1. ® IBM Software Group © 2006 IBM Corporation.JSP Page Flow – and Managing State in your Web Application This learning module covers the salient features of managing transaction and state in your dynamic content web application. It also covers page flow and forwarding options, request and session page beans.

2. 2 Last update: 12/04/2007 Course  Course Setup  Web/JSF Overview  JSF Properties Deep Dive  Essential JSF Components  Additional JSF Components  JSF dataTables  Page Flow and State Management  AJAX Controls and JavaScript  JSF Component Tree and Dynamic Property Setting  Web-Site Design and Template Pages  Appendices  Internationalization  Page Design Best Practices  Additional Use Cases Units: JSF/EGL Web Page and Site Design and Development

3. 3 Last update: 12/04/2007 Unit Objectives At the end of this unit, you will be able to:  State and describe the different state management options:  Application  Session  Request  State the functions and benefits of Forwarding options in EGL/RBD:  JSF  Link  Command Link  Submit  EGL  Forward  Forward to URL  HTML Links  Native HTML anchor tags  Graphically describe page flow using Links view  Create your own JSF pages initializing State and Forwarding features

4. 4 Last update: 12/04/2007 State Management Options Web applications are considered “state-less” - because they do not automatically save information about a user's interaction with the application. State management refers to the act of storing transaction data temporarily, and passing it among the various JSFHandlers in your application. There are three options (in descending order of scope (the variable’s lifetime):  Application variables  Application variables – which allow you to store data in application server “application” objects, such that any JSFHandler can access the variable data while the server is “up”  Session variables  Session variables – which allow you to store data in application server session objects  Request variables  Request variables – which allow you to store and forward data to pages in the URLs  The differences between these approaches is as follows:  Application variables  Application variables are set and maintained in and by the application server for data that is meant to be “globally available” to all JSFHandlers throughout an application –The are not view-able –Once they are set, unless they are unset by an EGL system library call, their values are extant until the server is brought down  Session variables  Session variables are stored in the application server’s memory –Variables are not view-able (in the URL)  Request variables  Request variables are passed as value-pair strings in the URL. –They are viewable – and can be seen by hackers (although they can be encrypted) –Their lifecycle (scope) ends when the launched page is rendered  Let’s look at the EGL statements to invoke these options.

5. 5 Last update: 12/04/2007 State Management Options – j2eeLib Statement Structure  From this screen shot (of Content Assist) you can see the three basic categories of statements (and note that these apply to all three types of variables):  clear  clear – remove the variable from application server’s memory  set  set – initialize the value of an variable in server memory to a JSFHandler variable value  get  get – return the value of an variable from the server to the JSFHandler  A few notes on the two exceptions to the above syntax structure:  clearEGLSessionAttrs()  clearEGLSessionAttrs() – removes all Session attributes set in your JSFHandler  getQueryParameter()  getQueryParameter() – is used with AJAX controls – a topic we will cover later in this course

6. 6 Last update: 12/04/2007 State Management Options – “Application” Variables Application variables are  “set”  And written to the application server’s memory  “get”  And retrieved from the application server’s memory  Their scope lifetime is:  Your application removes the variable clearApplicationAttr()  Until the server is brought down (stopped) Notes:  Application attributes are “global” to all JSFHandlers  As such, they should contain only information that should be made available at that level of scope  As a best practice, one JSFHandler sets – and the rest get Application Server (WebSphere) ApplicationVariableData JSFHandler1setApplicationAttr(…) JSFHandler2getApplicationAttr(…) JSFHandler3getApplicationAttr(…) JSFHandler4getApplicationAttr(…) JSFHandler…ngetApplicationAttr(…)

7. 7 Last update: 12/04/2007 State Management Options – Session Variables Session variables are set  “set”  And written to the application server’s memory  “get”  And retrieved from the application server’s memory Their scope (lifetime) is:  Your application removes the variable clearSessionAttr(…) clearEGLSessionAttrs()  The user redirects his browser to another server – from a forward statement within EGL.  Until an internal session time-out occurs (typically 10 minutes) ***Notes

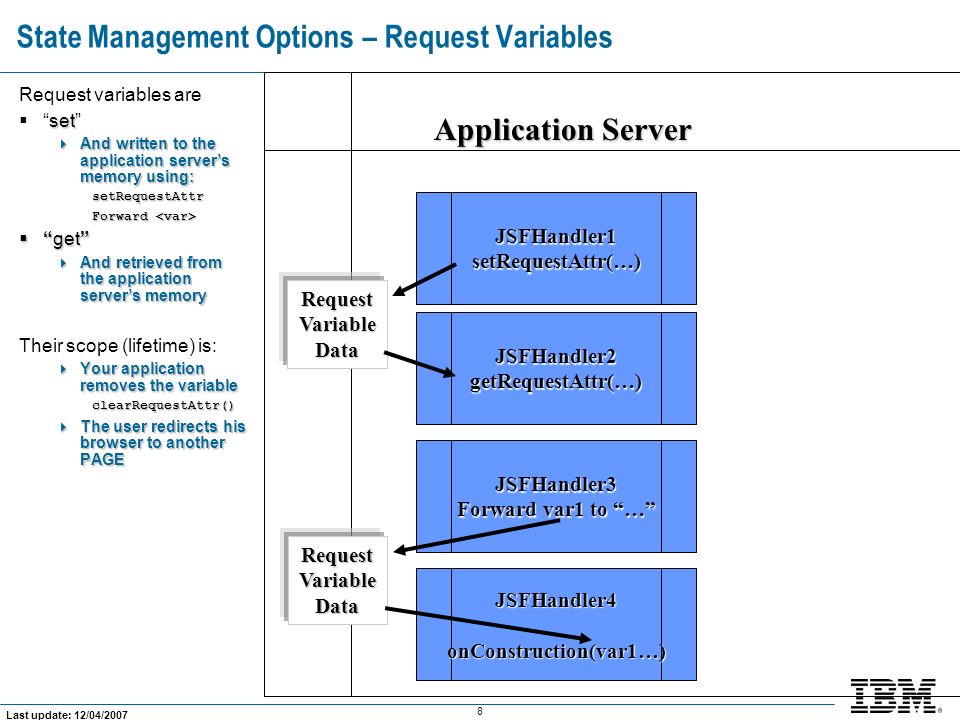

8. 8 Last update: 12/04/2007 State Management Options – Request Variables Request variables are set  “set”  And written to the application server’s memory using: setRequestAttr Forward Forward  “get”  And retrieved from the application server’s memory Their scope (lifetime) is:  Your application removes the variable clearRequestAttr()  The user redirects his browser to another PAGE Application Server RequestVariableData JSFHandler1setRequestAttr(…) JSFHandler2getRequestAttr(…) JSFHandler3 Forward var1 to “…” JSFHandler4onConstruction(var1…) RequestVariableData

9. 9 Last update: 12/04/2007 Page Forwarding Options  There are three types of page forwarding (launch this new page) options in EGL/RBD  HTML Links  Using native HTML anchor tags, you can launch any valid URL Site Users. See also this link on top of an image  JSF Links  Using the JSF Link component, you can add one of the above HTML anchor tags to dynamic data content – including passing values as parameters  Form Submit (and EGL forward )  Using Submit Buttons and Link-Command tags, you invoke an EGL Function. From which you may FORWARD (to any page in a project in your workspace), or FORWARD TO URL to any page on the Internet  There are many variations on these options, and the options can be combined. The next slide explains and categorizes this.

10. 10 Last update: 12/04/2007 Options (Details) Link Category Steps/Tools/OptionsDetails HTML Link From HTML Tags, drag a link onto the page, or select a static HTML element, right-click and specify Insert Link. Options:  HTTP link, or link to page  E-Mail link, FTP, anchor, etc  HTML links also include Image Maps When to use:  When you all you need is a static link address – to any page inside or external to your application When not to use:  Cannot combine with JSF (dynamic data) components  Must hard-code any parameter values  Does not return control to your JSFHandler, before redirecting JSF Links and Command Button From Enhanced Faces Components, drag one of the following link components onto the page – or, drag and drop on top of a JSF component, to make that component a hyper-link. All of these controls can be combined with JSF form data – and can pick up values as parameters  Link – to redirect to another page, from a hyper-link  Request Link – to invoke your JSFHandler, then redirect to another page  Command Link to submit your form to your JSFHandler Use JSF Link  When you want to redirect to another page, using form data as a parameter in the URL – without invoking your JSFHandler (before redirecting) Use Command Link or Command Button  When you want to submit your form, and invoke an EGL function in your JSFHandler.  Your function can issue a forward, but the target will be specified on the form Use Request Link  When you want to invoke an EGL function in your JSFHandler, then redirect to another page.  Note that this option allows you to specify a target= dynamically (see upcoming workshop) EGL Forward Statements Two options:  Forward, to “pageInProject”; Example:  Forward field1 to “hello2”;  Forward to url “literal” … or string variable with URL and parameter data. Example:  Forward to url “http://www.ibm.com?p1=Val1,p2=Val2”; Use forward to “page”  When the target page is in your project  When not in the onConstruction, onPreRender or onPostRender functions Use forward to URL  When the target page or URL is not in your project  When you need to redirect from EGL logic in onConstruction, onPreRender or onPostRender.  Example: Someone is not authorized to view a page

11. 11 Last update: 12/04/2007 JSFHandler Pages and State Management faces-config.xml  Your pages are defined in faces-config.xml with a “scope” which controls how long the JSFHandlers (JavaBeans – aka “managed beans”) exist in the application server’s storage at run-time. session  The default scope for new EGL JSFHandlers is: “session” – which means the JavaBeans persist while the user is logged into the application, or until some pre-set server timeout is reached (typically 10 minutes). request  An additional scope is “request” – which forces the server to remove the JavaBean as soon as the page is rendered. This is important! Let’s dig into it a bit… WebSphere Application Server JSFHandler-1 JSFHandler-2 Forward to… What happens to the JSFHandler-1 JavaBean in server storage?

12. 12 Last update: 12/04/2007 JSFHandlers in session Scope faces-config.xml  When you create a new web (.jsp) page in an EGL/Web project, the tooling enters a default scope of “session” in faces-config.xml. This means the following happens at run-time with each JavaBean that is instantiated (loaded from disk into server memory): WebSphere Application Server JSPPage- 1 JSFHandler-1 JSFHandler-2 1.onConstruction() The JSFHandler-1 JavaBean remains memory for ~10 minutes, or until the user leaves the application 2. Forward or Link JSPPage- 2 3. onConstruction() The JSFHandler-1 JavaBean remains memory for ~10 minutes, or until the user leaves the application

13. 13 Last update: 12/04/2007 JSFHandlers in session Scope + cancelOnPageTransition=yes  Forcing the Application Server to maintain each instance of a JavaBean for up to 10 minutes or conceivably longer may not be the ideal situation for your server’s memory allocation. when the user launches the next page  If you add cancelOnPageTransition=yes to your JSFHandler properties, your page’s JavaBean will be removed from server memory – when the user launches the next page WebSphere Application Server JSPPage- 1 JSFHandler-1 JSFHandler-2 JSPPage- 2 1. onConstruction() 2. Forward or Link 4. onConstruction() 3. IF cancelOnPageTransition=yes JSFHandler-1 removed from Application Server memory.

14. 14 Last update: 12/04/2007 JSFHandlers in request Scope memory  For the optimal server memory performance, you should design your pages to save and return minimal data to/from the Application Server’s Session variables, and define your pages to be request scope.  For page’s in request scope, the JSFHandler bean is removed from the server at then end of the onConstruction() function. As you can imagine, this can save considerable memory. However, you will have to design your logic to support selective variable state management - especially if your page’s lifecycle involves multiple round-trips from the user’s browser to the server. WebSphere Application Server After onConstruction() the JavaBean is removed from server memory. Use setSessionAttr/getSessionAttr to persist data values temporarily Forward or Link After onConstruction() the JavaBean is removed from server memory. Use settSessionAttr/getSessionAttr to persist data values temporarily JSPPag e-1 SessionVariableData JSPPag e-2 JSFHandler-2getSessionAttrsetSessionAttr JSFHandler-1getSessionAttrsetSessionAttr

15. 15 Last update: 12/04/2007 Maintaining State With Request Pages – 1 of 2 When initially loaded (if called from another page) request pages are no different than session scoped pages. However, when they are loaded because of a Form Submit, there are three things that you must understand when designing your request-scoped pages: 1.The JSFHandler function order onConstruction() 2.How to code logic that determines and handles onConstruction() logic when the page:  Is called from another page  Is called from a Form Submit ***Notes 3.How to save and return selective variable values stored in Session ***Notes JSFHandler function order for request pages JSFHandler function order for request pages (upon form submit) session  For pages that interact iteratively with users (like a data entry form), when a page is in session scope, the function that is bound to a Submit button is executed in the JSFHandler.  And that is all. One click / submit? That function is invoked (and any other functions called from it) request  In a page that is defined as request scope: When a user clicks a function: 1.The page is loaded into the server “from scratch” – as if the page was called by some other page’s link or forward to statement. All data variables have initial values (i.e. they do NOT maintain the values that existed before the page was rendered) 2.onConstruction() is executed 3.Then the function that is bound to the submit button is executed***see Notes*** JSPPag e Submit Form Submit  WebSphere Application Server JSFHandler JSFHandler onConstruction()… Function (bound to clicked Submit Button) … 1. 3. 2. 

16. 16 Last update: 12/04/2007 Maintaining State With Request Pages – 2 of 2 How to code EGL that determines and handles onConstruction() logic when the page: is called from another page …vs… is called from a Form Submit 1.Retrieve a session variable into an EGL variable. This variable will act as a flag for the lifecycle path 2.Code conditional logic that tests the EGL variable and takes appropriate action based on whether this is: Initial load (setup page variables) …or… Form Submit (interact with user) SessionVariablePool (saveVar == 0) JSPPag e Submit Link or Forward. URL contains parm Initial Page Load Set key to parm First-time-in Business Logic Save values to Session Subsequent Page Load (Form Submit) Return keys from Session Submitted-Form onConstruction Logic Function onConstruction(parm int) … getsessionAttr(“saveKey”, saveVar); WebSphere Application Server JSFHandler Form Submit Page values return  TRUEFALSE …or…

17. 17 Last update: 12/04/2007 Workshop – Request Page Form  You will updatecustomer3.jsp  Create a new version of updatecustomer (updatecustomer3.jsp) request  You will define it as request in scope  Copy/Paste standard request page business logic  Create the fields for the new page  Run and test and note from the console, the sequence/order of function execution  Modify two lines of code in the JSFHandler’s onConstruction function, that will demonstrate the interaction between page data and saved values, for pages in request scope  Re-test and validate your understanding of this technique  Note – this is a multi-step and non-trivial workshop, but very important for your complete understanding of this critical process

18. 18 Last update: 12/04/2007  Create updatecustomer3.jsp  From Project Explorer updatecustomer3.jsp  Create a new Web Page: updatecustomer3.jsp  Use a template from the MyTemplates folder  Change the header text as shown   Save (press Ctrl/S)

19. 19 Last update: 12/04/2007  Updatecustomer3.egl  Replace the boiler-plate EGL statements with the code in the Notes section of this slide.  Press Ctrl/S  Read the comments carefully, and for understanding.  Especially of the:  getSessionAttr()  If test to determine which lifecycle phase  setSessionAttr()  clearSessionAttr()

20. 20 Last update: 12/04/2007  Add EGL Page Data to the.JSP Page  From Page Data:  Drag and Drop customer onto the Content Area:  Create Customer_ID as an output text control  Create the remainder of the fields as Input Text controls  Drag and Drop updateCustomerFunc() on the Content Area  Drag and Drop returnToAllCustomers2() on the Content Area  Drag and drop outputVar on the page as shown

21. 21 Last update: 12/04/2007  From the new Link’s Properties  Add a Parameter customerArray.CustomerID  To customerArray.CustomerID  Add a New Link From allcustomers2.jsp  From Enhanced Faces Components CustomerID  Add a link to CustomerID updatecustomer3.faces  URL: updatecustomer3.faces

22. 22 Last update: 12/04/2007  Run On Server – Verify Results – 1 of 2 1.Run and test allcustomers2 2.From updatecustomer3  Note the value of OutputVar  Change some data and press updateCustomerFunc  Your data should be saved – BUT NOTE – OutputVar no longer has data…why? (Because it is an output field and unlike CustID – is not saved to session between lifecycle phases)  Press returnToAllCustomers2 3.Open the Console view  Read the ** writeStdOut(“messages”) and note the sequence/order of function execution in a request page

23. 23 Last update: 12/04/2007  Run On Server – Verify Results – 2 of 2  From updatecustomer3.egl – onConstruction() function:  Un-comment the statement that assigns outputVar on the Form Submit lifecycle phase ( else path)  Comment out the statement that assigns customer.CustomerID to the saveKey;  Press Ctrl/S to save your edits  Run allcustomers2.jsp and re-test the pages Note that the database update failed… why? Because the row’s primary key – which is not returned from the page because it is an output field – is missing in the record to be updated clearSessionAttr(“cidSession”);  One other use case scenario to solve. If you run from allcustomers2 twice – within the same session, your updatecustomer3 page will not work correctly. Can you figure out why? (Read the Notes if you need help). To fix this, from allcustomers3.egl’s onConstruction() function, add: clearSessionAttr(“cidSession”);

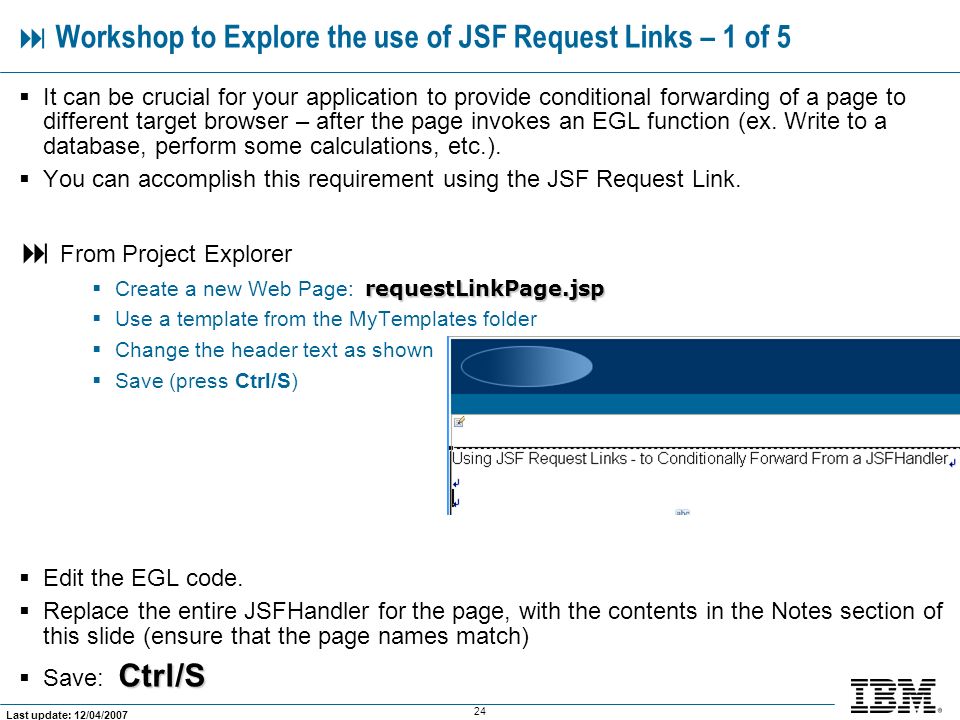

24. 24 Last update: 12/04/2007  Workshop to Explore the use of JSF Request Links – 1 of 5  It can be crucial for your application to provide conditional forwarding of a page to different target browser – after the page invokes an EGL function (ex. Write to a database, perform some calculations, etc.).  You can accomplish this requirement using the JSF Request Link.  From Project Explorer requestLinkPage.jsp  Create a new Web Page: requestLinkPage.jsp  Use a template from the MyTemplates folder  Change the header text as shown  Save (press Ctrl/S)  Edit the EGL code.  Replace the entire JSFHandler for the page, with the contents in the Notes section of this slide (ensure that the page names match) Ctrl/S  Save: Ctrl/S

25. 25 Last update: 12/04/2007  Workshop to Explore the use of JSF Request Links – 2 of 5  Read for understanding, the comments in the JSFHandler Function that will open a page in a new browser frame Passing a parameter Function that will open a page in a browser frame named: “frame2” Also passing a parameter

26. 26 Last update: 12/04/2007  Workshop to Explore the use of JSF Request Links – 3 of 5  From Page Designer – add the following:  Two JSF Request links. For each link:  Type representative label text  From All Attributes –Specify a target that accesses the associated EGL function:  An HTML Horizontal Rule frame2  An HTML inline frame, named: frame2

27. 27 Last update: 12/04/2007  Workshop to Explore the use of JSF Request Links – 4 of 5  Select each request link, and from the Properties/All Attributes view specify their respective action.

28. 28 Last update: 12/04/2007  Workshop to Explore the use of JSF Request Links – 5 of 5  Run the page, and test out the Request links. Look in the console to see the messages written that confirm the EGL JSFHandler was invoked, before redirecting

29. 29 Last update: 12/04/2007 OPTIONAL OPTIONAL Workshop – Working with State and Forwarding Features  You will create several pages that demonstrate the language and tooling features just discussed.  Specifically:  state1.jsp state2.jsp  state1.jsp – will demonstrate the linking and forwarding features, as well as initializing application/session/request attributes and forwarding to state2.jsp  state2.jsp state3.jsp  state2.jsp – will receive and display the initialized application, session and request variables - and forward to state3.jsp  state3.jsp state1.jsp  state3.jsp – will receive and display the same initialized application, session and request variables – and allow you to clear them, and forward back to state1.jsp state1.js p state2.js p state3.js p Forward/Links to other URLs Application Variable Session Variable(s) Request Variable set ForwardForward  Forward getget ApplicationServer

30. 30 Last update: 12/04/2007  Create state1.jsp state1.jsp Create a new page, named: state1.jsp - Replace the default code with the JSFHandler code in the slide Notes - Check out the following! - j2eelib.get functions  - j2eelib.set functions  - Several different forward options  Note also that the JSFHandler has the cancelOnPageTransition cancelOnPageTransition property

31. 31 Last update: 12/04/2007  State1.jsp Page – Server Attributes Section – 1 of 3  Change the page header text  Add an HTML table to the page:  16 Rows/2 columns/100% width  Combine cells in the top row, and add the text shown   Rows 2  4  Add the text that is shown in the left column  Drag JSF output controls in the right column  (From Page Data) Bind the variables as shown in the screen capture to the output controls  Combine cells in rows 5 and 6  In the left column, rows 6 - 16 add the text as shown here In the right hand column: Row 7 Row 7 – add an HTML link  Type:  File dataGraph.jsp  Browse and select dataGraph.jsp.faces  Change the.jsp extension to.faces Row 8 Row 8 – add the ibm.gif graphic from \images\  Right-click over the graphic and add an  HTTP link to: http://www.ibm.com Note: To add an HTML link to a graphic. 1.Select (set focus to) the graphic 2.Right-click - and from the context menu 3.Select: Insert Link…

32. 32 Last update: 12/04/2007  State1.jsp Page – Server Attributes Section – 2 of 3 In the right hand column: Row 9 Row 9 - add a JSF link  It’s URL should be: allorders.faces  Type the label as shown Row 10 Row 10 – add a JSF Image From the Images Properties/File: Browse to: /images/ibm.gif Link  Drag and drop a JSF Link on top of the JSF Image control http://www.ibm.com  It’s URL should be: http://www.ibm.com Row 11 Row 11 – add a Link-Command action From Properties/All Attributes specify an action that invokes: commandLinkFunc() Value  Select (click) the text portion of the Link and type the Value as shown  output  Add a JSF output control next to the Link-Command cmdLink  From Page Data, drag and drop cmdLink on top of the output control Row 12 Row 12 – From Page Data, drag & drop submitButtonFunc()  Add a JSF output control next to the Submit Button created  From Page Data, drag and drop subButton on top of the output control

33. 33 Last update: 12/04/2007  State1.jsp Page – Server Attributes Section – 3 of 3 In the right hand column: Row 13 Row 13 - From Page Data, drag and drop EGLForward() Row 14 Row 14 - From Page Data, drag and drop EGLForwardRequest() Row 15 Row 15 - From Page Data, drag and drop EGLForwardToURL()  Add a JSF input control next to the button  From Page Data, drag and drop city on top of the input control Row 15 Row 15 - From Page Data, drag and drop setAttrsAndFwd()  Run the page on the server  Try out all of the options EXCEPT – setAttrsAndFwd()  We need to create a new page for that.

34. 34 Last update: 12/04/2007  Create state2.jsp Page state2.jsp  Create a new page, named: state2.jsp  Replace the default code with the JSFHandler code in the slide Notes.  Read through the EGL statements – note the:  J2eelib.get – statements  New U.I. record  EGL forward to “state3” after setting a new session attribute value

35. 35 Last update: 12/04/2007  Design the state2.jsp Page  As you can see, this is a much simpler page than state1.jsp  Drag the rec - uiRecSession variable on the page.  Create output fields  Optionally  Customize the labels  Select the entire HTML table and give it a border: 1  Drag the forwardToState3() function on the page

36. 36 Last update: 12/04/2007  Create state3.jsp Page state3.jsp.  Create a new page, named: state3.jsp. Replace the default code with the JSFHandler code in the slide Notes.  Read through the EGL statements  Note the:  J2eelib.get – statements  J2eelib.clear – statements  Forward to state1.jsp

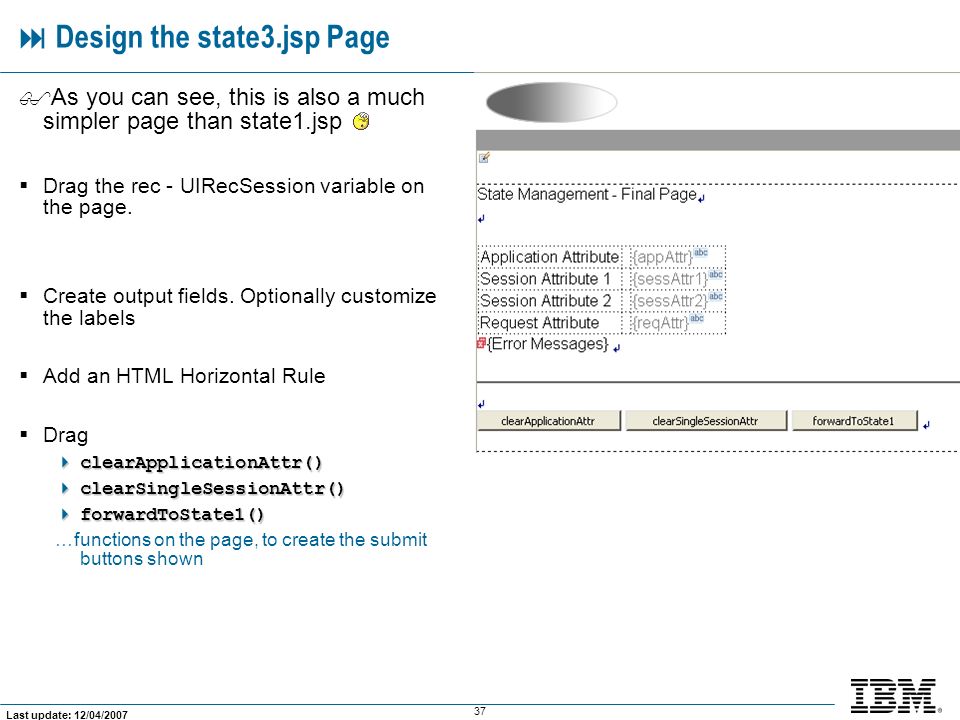

37. 37 Last update: 12/04/2007  Design the state3.jsp Page  As you can see, this is also a much simpler page than state1.jsp  Drag the rec - UIRecSession variable on the page.  Create output fields. Optionally customize the labels  Add an HTML Horizontal Rule  Drag  clearApplicationAttr()  clearSingleSessionAttr()  forwardToState1() …functions on the page, to create the submit buttons shown

38. 38 Last update: 12/04/2007  Run the Pages (starting from state1.jsp) setAttrsAndFwd  Run state1.jsp. Click setAttrsAndFwd. Check out the values in the state variables. Launch state3.jsp. Try out the clear functions. Go back to state1.jsp (Note that (unless you cleared them) the Application and Session attributes are still available and will show up on state1.jsp – why?)

39. 39 Last update: 12/04/2007  Page Links View – state1.jsp The web tooling can show you all of your JSF page links (notably, not the EGL forward), including:  Templates .CSS files  Graphics  # of references  HTML links  JSF links  Navigation links  Website-navigator  See next slide  Try it out! From the Window menu …select  Show View  Links

40. 40 Last update: 12/04/2007  Page Links View – menu.jsp Try looking at menu.jsp, or allcustomers2.jsp in the Links view (with the Links view open, just click the page name in Project Explorer) 

41. 41 Last update: 12/04/2007  Now that you have completed this unit, you should have:  Stated and described the different state management options:  Application  Session  Request  Listed the functions and benefits of Forwarding options in EGL/RBD:  JSF  Link  Command Link  Submit  EGL  Forward  Forward to URL  HTML Links  Native HTML anchor tags  Used Links View to graphically describe page flow  Created your own JSF pages, and initialized State and Forwarding features Unit Summary
