1 MCC BP Based on work by K. Foglia www.kimunity.com

2 MCC BP Based on work by K. Foglia www.kimunity.com Chapter 10. Photosynthesis: Life from Light

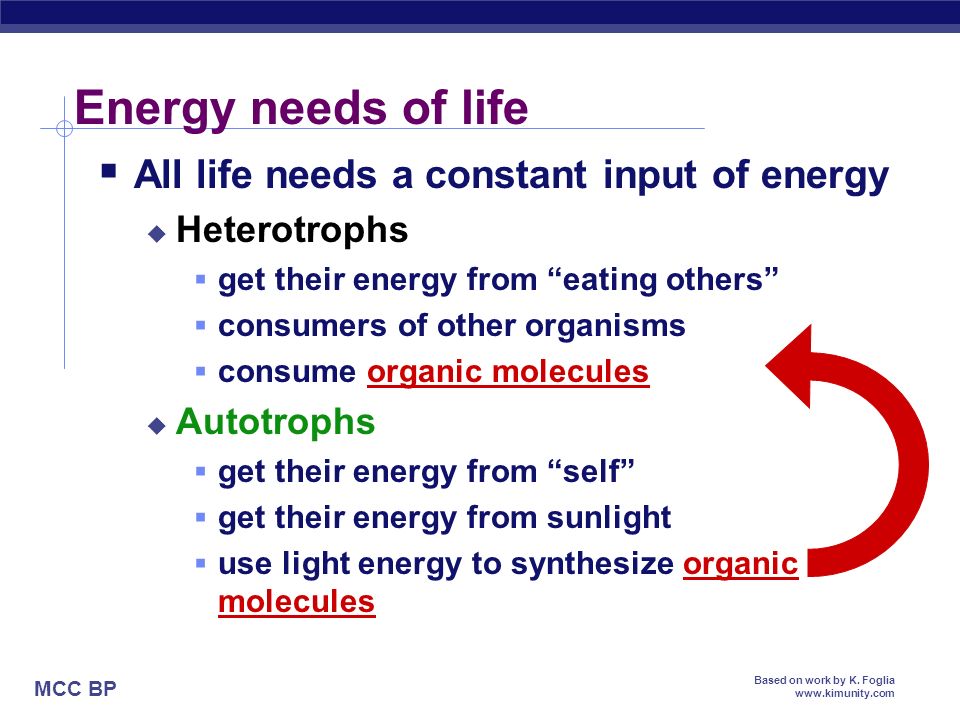

3 MCC BP Based on work by K. Foglia www.kimunity.com Energy needs of life  All life needs a constant input of energy  Heterotrophs  get their energy from “eating others”  consumers of other organisms  consume organic molecules  Autotrophs  get their energy from “self”  get their energy from sunlight  use light energy to synthesize organic molecules

4 MCC BP Based on work by K. Foglia www.kimunity.com Energy needs of life  Heterotrophs  consumers  animals  fungi  most bacteria  Autotrophs  producers  plants  photosynthetic bacteria (blue-green algae)

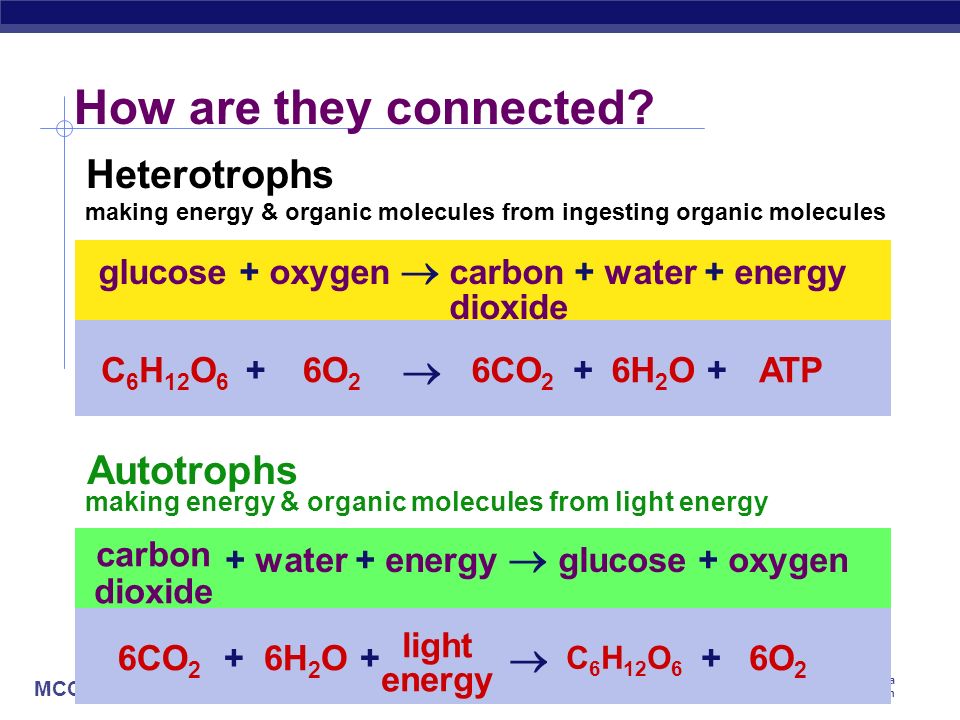

5 MCC BP Based on work by K. Foglia www.kimunity.com How are they connected? glucose + oxygen  carbon + water + energy dioxide C 6 H 12 O 6 6O 2 6CO 2 6H 2 OATP  +++ Heterotrophs + water + energy  glucose + oxygen carbon dioxide 6CO 2 6H 2 O C 6 H 12 O 6 6O 2 light energy  +++ Autotrophs making energy & organic molecules from light energy making energy & organic molecules from ingesting organic molecules

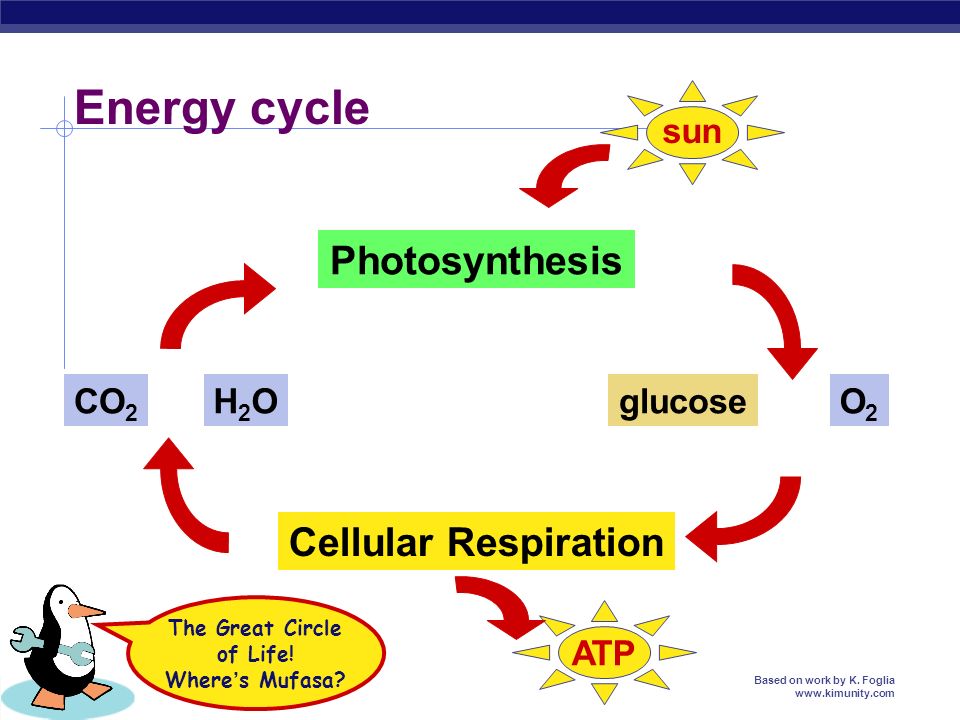

6 MCC BP Based on work by K. Foglia www.kimunity.com Energy cycle Photosynthesis Cellular Respiration glucoseO2O2 H2OH2OCO 2 ATP sun The Great Circle of Life! Where ’ s Mufasa?

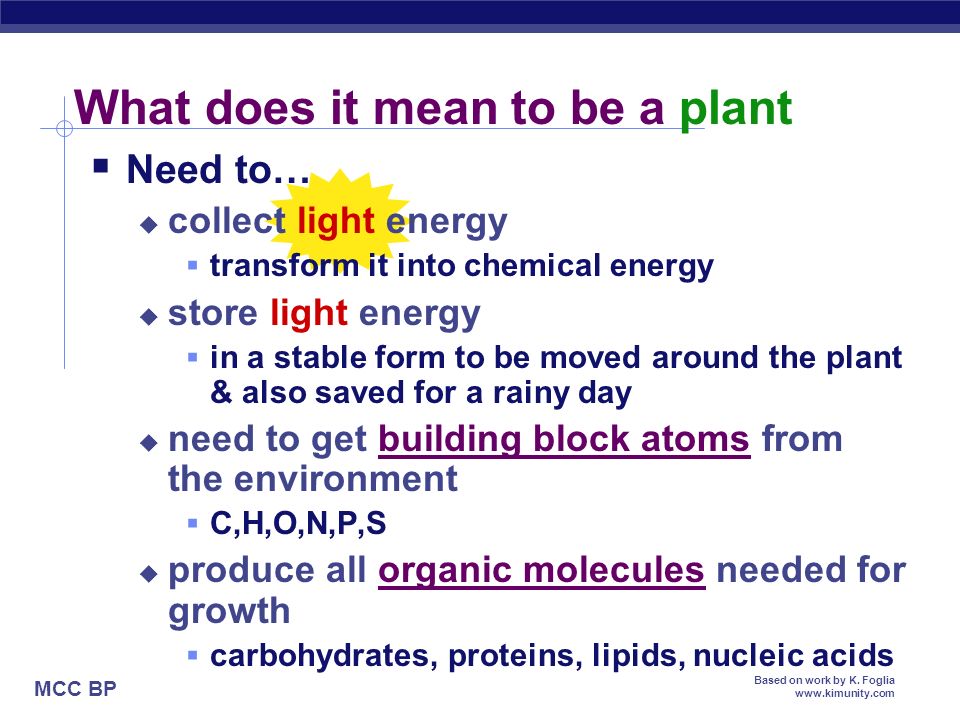

7 MCC BP Based on work by K. Foglia www.kimunity.com What does it mean to be a plant  Need to…  collect light energy  transform it into chemical energy  store light energy  in a stable form to be moved around the plant & also saved for a rainy day  need to get building block atoms from the environment  C,H,O,N,P,S  produce all organic molecules needed for growth  carbohydrates, proteins, lipids, nucleic acids

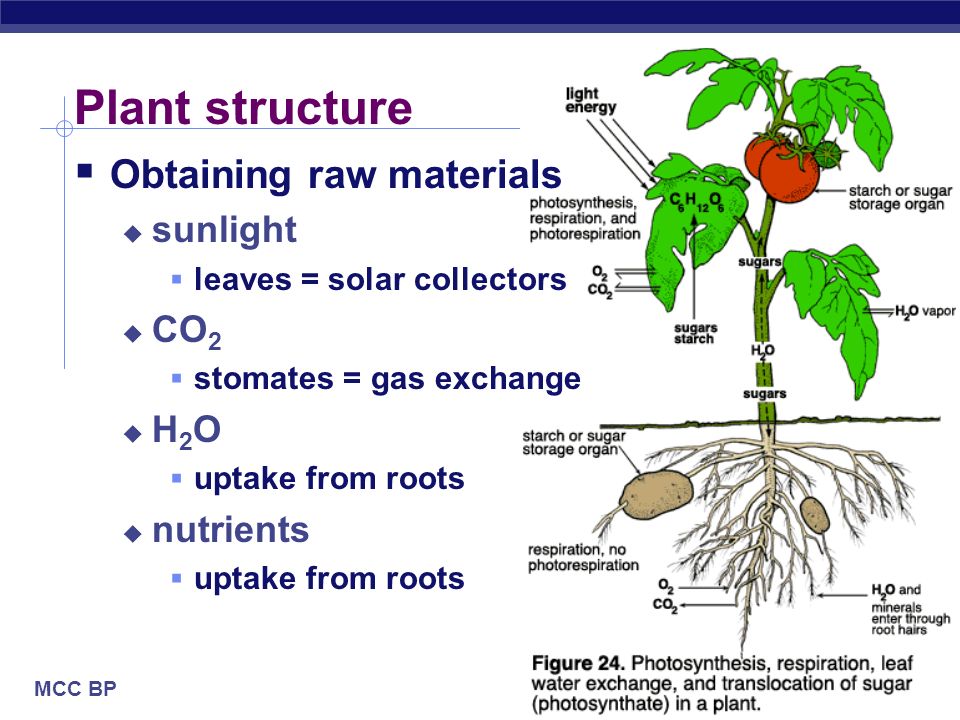

8 MCC BP Based on work by K. Foglia www.kimunity.com Plant structure  Obtaining raw materials  sunlight  leaves = solar collectors  CO 2  stomates = gas exchange  H 2 O  uptake from roots  nutrients  uptake from roots

9 MCC BP Based on work by K. Foglia www.kimunity.com

10 MCC BP Based on work by K. Foglia www.kimunity.com Stomates

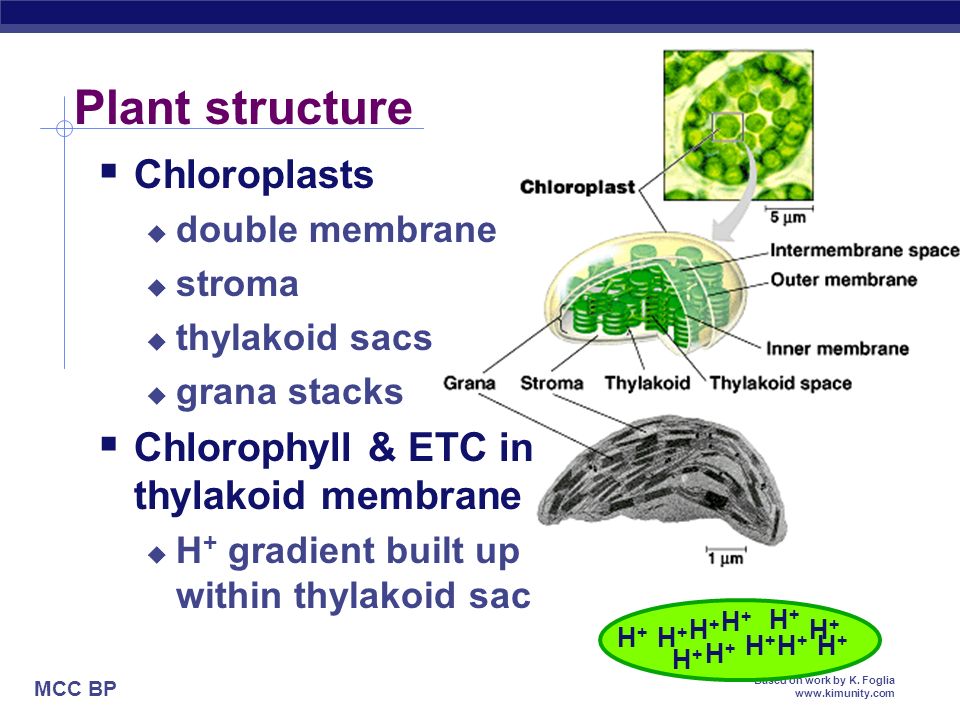

11 MCC BP Based on work by K. Foglia www.kimunity.com  Chloroplasts  double membrane  stroma  thylakoid sacs  grana stacks  Chlorophyll & ETC in thylakoid membrane  H + gradient built up within thylakoid sac Plant structure H+H+ H+H+ H+H+ H+H+ H+H+ H+H+ H+H+ H+H+ H+H+ H+H+ H+H+

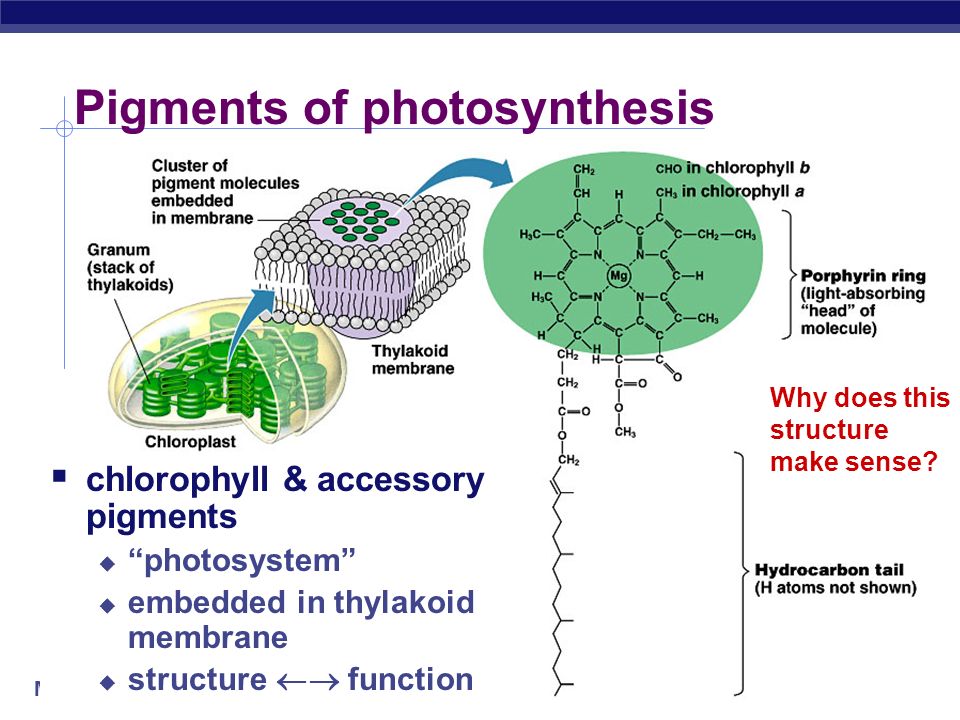

12 MCC BP Based on work by K. Foglia www.kimunity.com Pigments of photosynthesis  chlorophyll & accessory pigments  “photosystem”  embedded in thylakoid membrane  structure  function Why does this structure make sense?

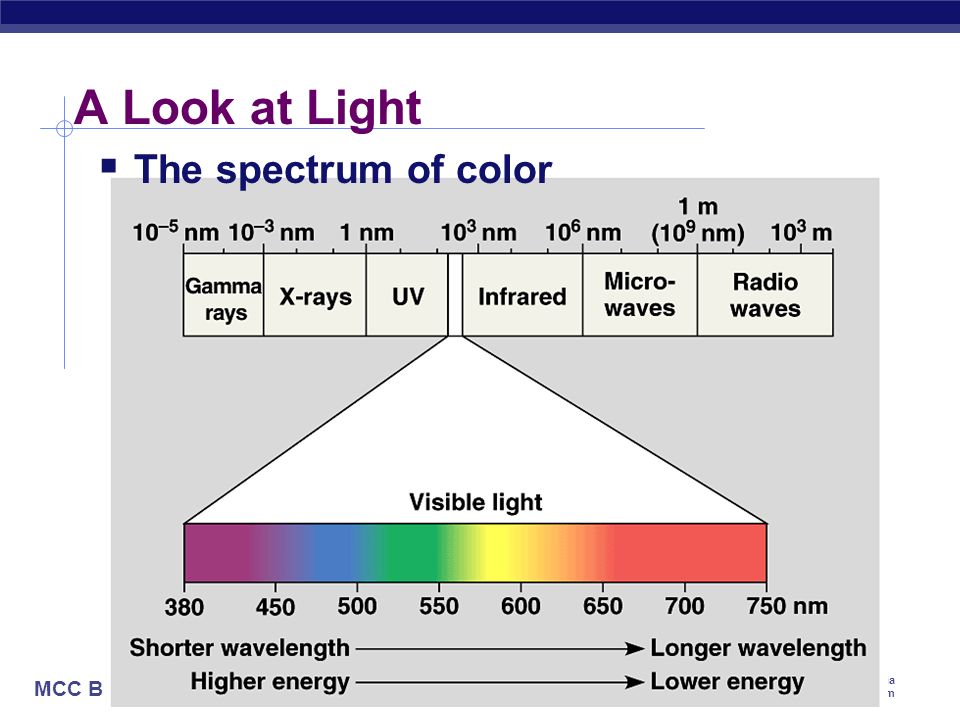

13 MCC BP Based on work by K. Foglia www.kimunity.com A Look at Light  The spectrum of color

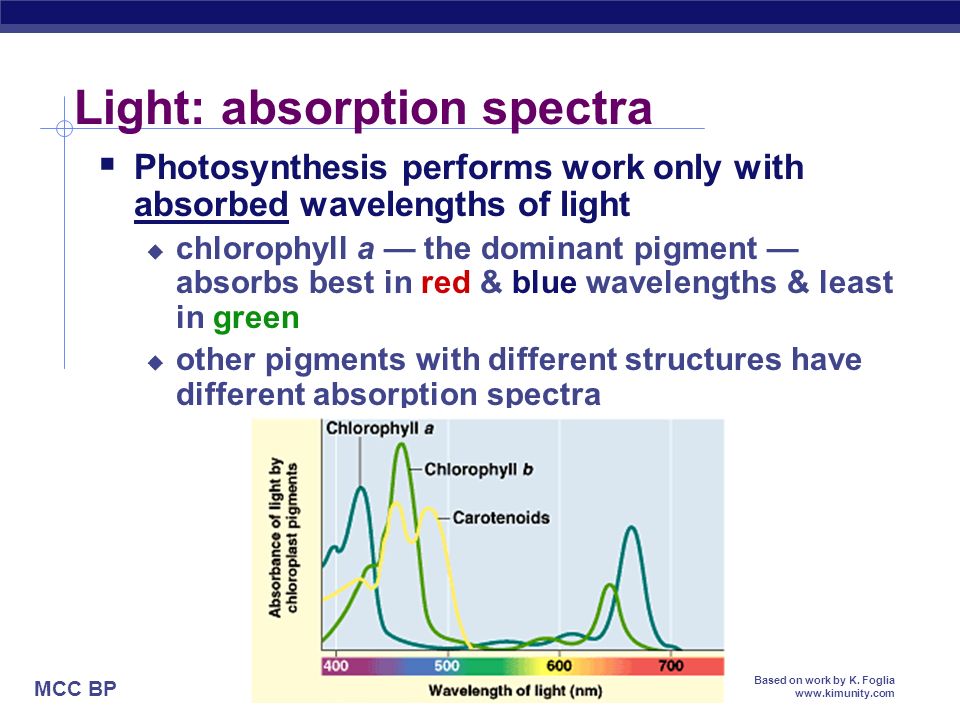

14 MCC BP Based on work by K. Foglia www.kimunity.com Light: absorption spectra  Photosynthesis performs work only with absorbed wavelengths of light  chlorophyll a — the dominant pigment — absorbs best in red & blue wavelengths & least in green  other pigments with different structures have different absorption spectra

15 MCC BP Based on work by K. Foglia www.kimunity.com  Chloroplasts are green because they absorb light wavelengths in red & blue and reflect green back out Chloroplasts structure  function

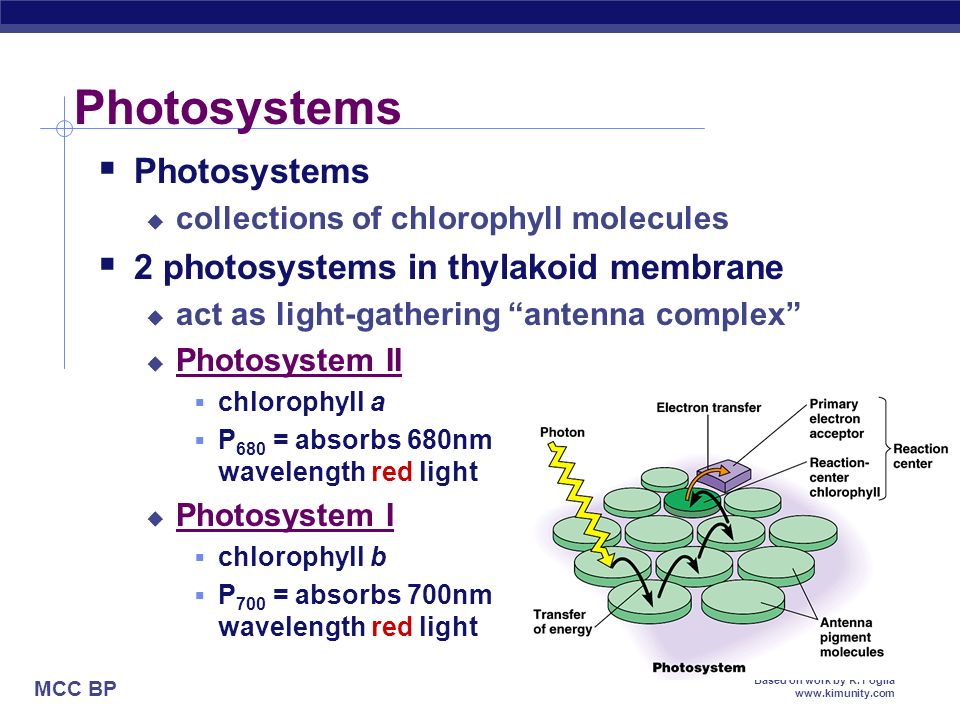

16 MCC BP Based on work by K. Foglia www.kimunity.com Photosystems  Photosystems  collections of chlorophyll molecules  2 photosystems in thylakoid membrane  act as light-gathering “antenna complex”  Photosystem II  chlorophyll a  P 680 = absorbs 680nm wavelength red light  Photosystem I  chlorophyll b  P 700 = absorbs 700nm wavelength red light

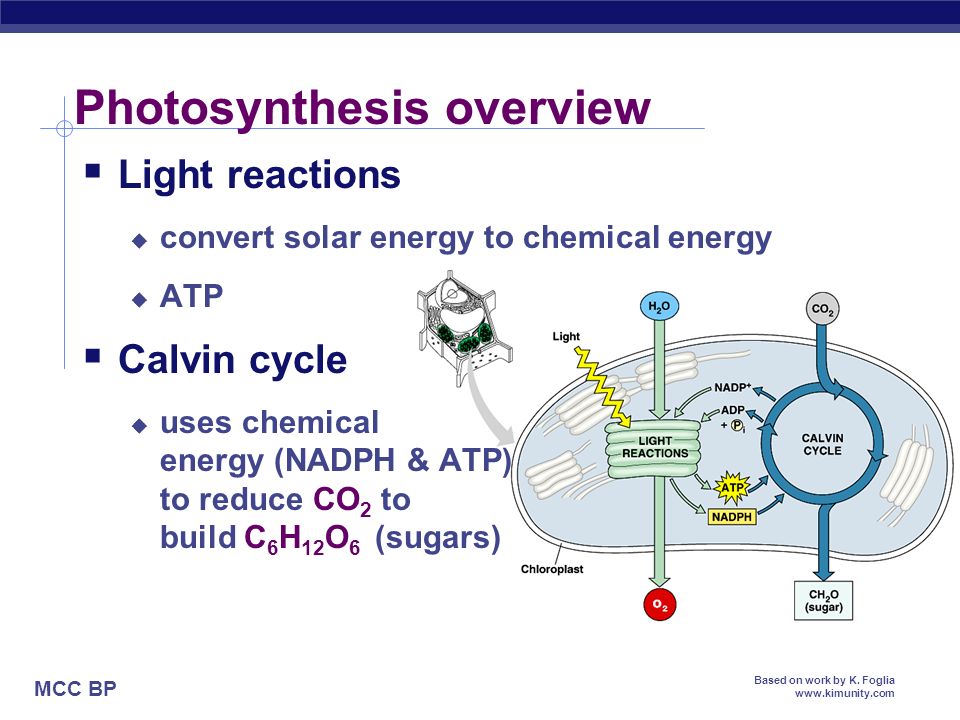

17 MCC BP Based on work by K. Foglia www.kimunity.com Photosynthesis overview  Light reactions  convert solar energy to chemical energy  ATP  Calvin cycle  uses chemical energy (NADPH & ATP) to reduce CO 2 to build C 6 H 12 O 6 (sugars)

18 MCC BP Based on work by K. Foglia www.kimunity.com Light reactions  Similar to ETC in cellular respiration  membrane-bound proteins in organelle  electron acceptors  NADPH  proton (H + ) gradient across inner membrane  Where’s the double membrane?  ATP synthase enzyme

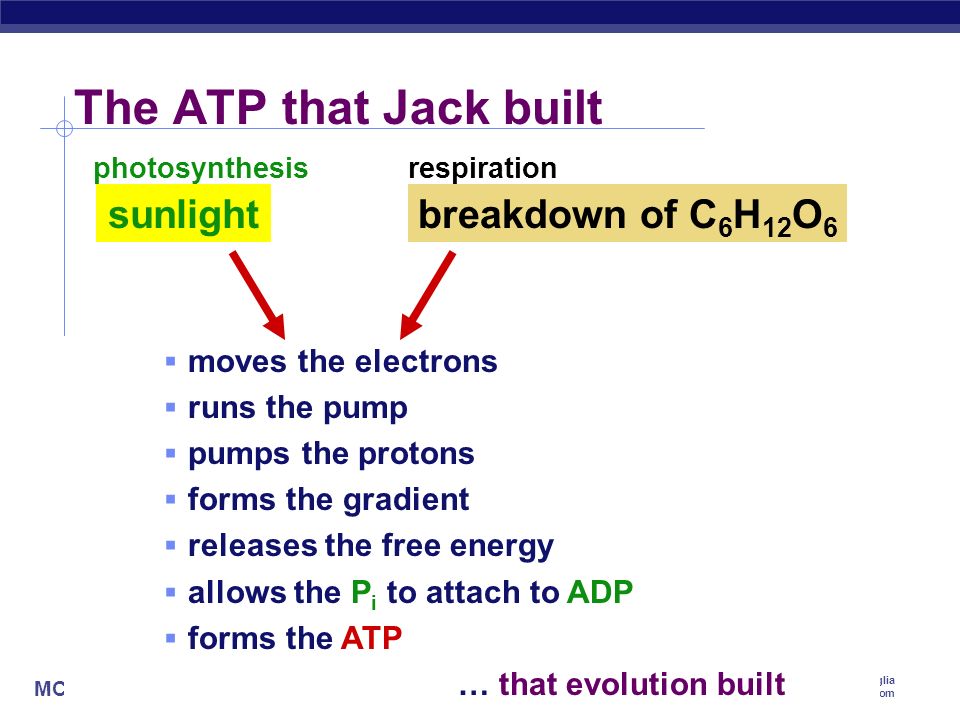

19 MCC BP Based on work by K. Foglia www.kimunity.com The ATP that Jack built  moves the electrons  runs the pump  pumps the protons  forms the gradient  releases the free energy  allows the P i to attach to ADP  forms the ATP … that evolution built sunlightbreakdown of C 6 H 12 O 6 respirationphotosynthesis

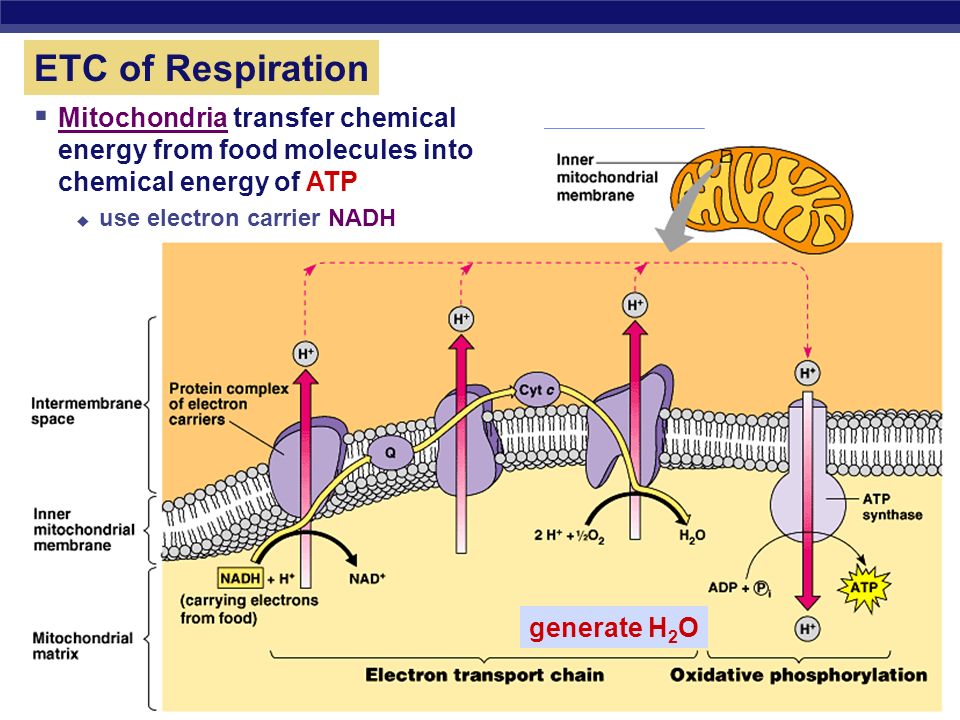

20 MCC BP Based on work by K. Foglia www.kimunity.com ETC of Respiration  Mitochondria transfer chemical energy from food molecules into chemical energy of ATP  use electron carrier NADH generate H 2 O

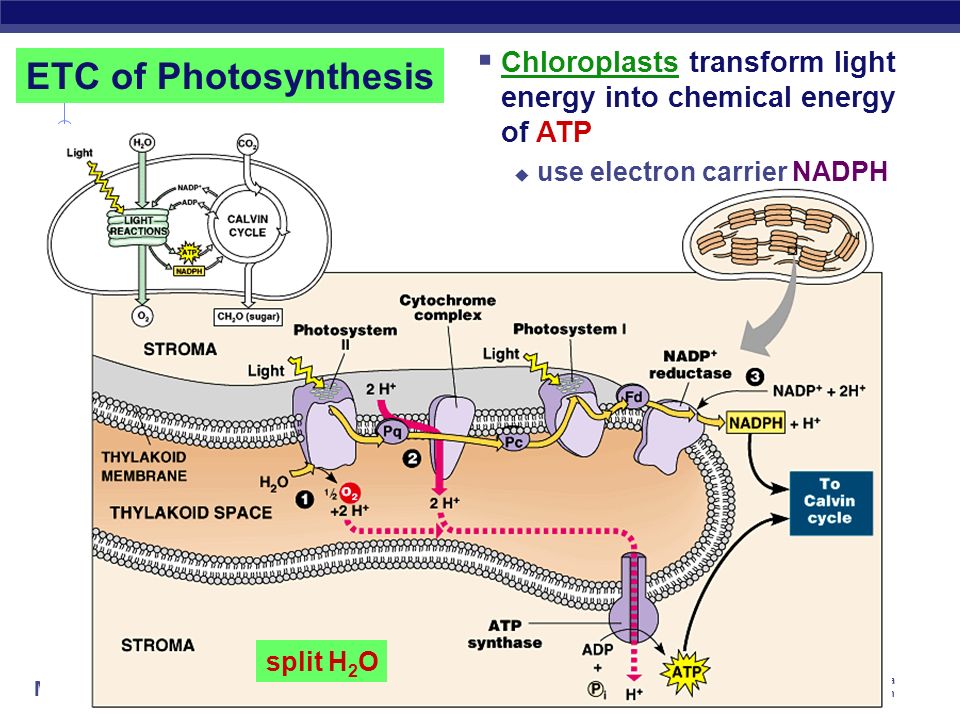

21 MCC BP Based on work by K. Foglia www.kimunity.com ETC of Photosynthesis  Chloroplasts transform light energy into chemical energy of ATP  use electron carrier NADPH split H 2 O

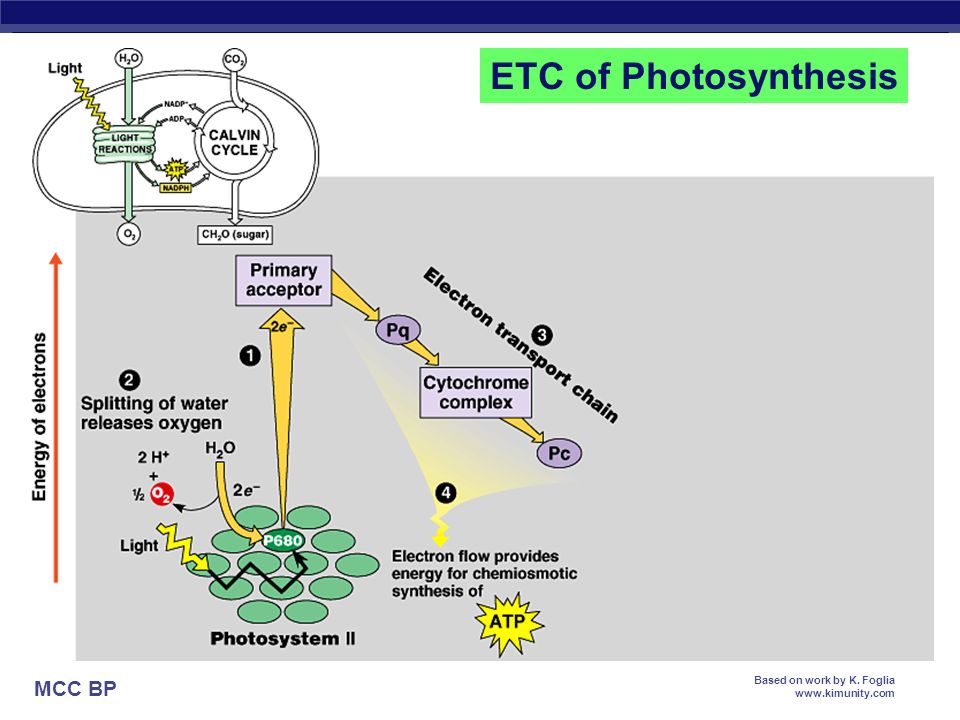

22 MCC BP Based on work by K. Foglia www.kimunity.com ETC of Photosynthesis

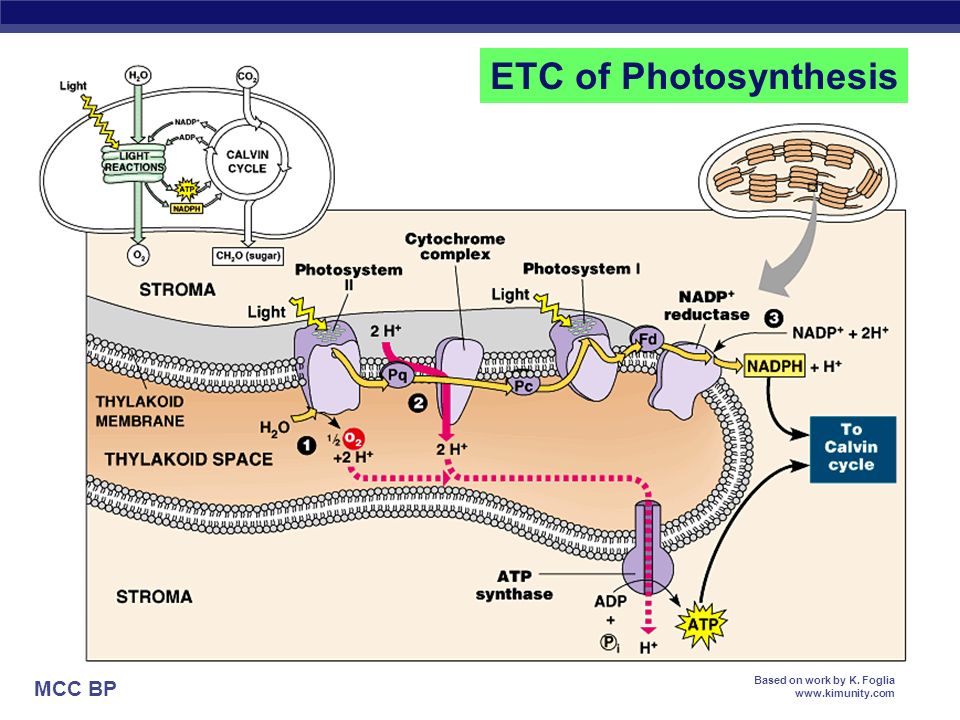

23 MCC BP Based on work by K. Foglia www.kimunity.com ETC of Photosynthesis

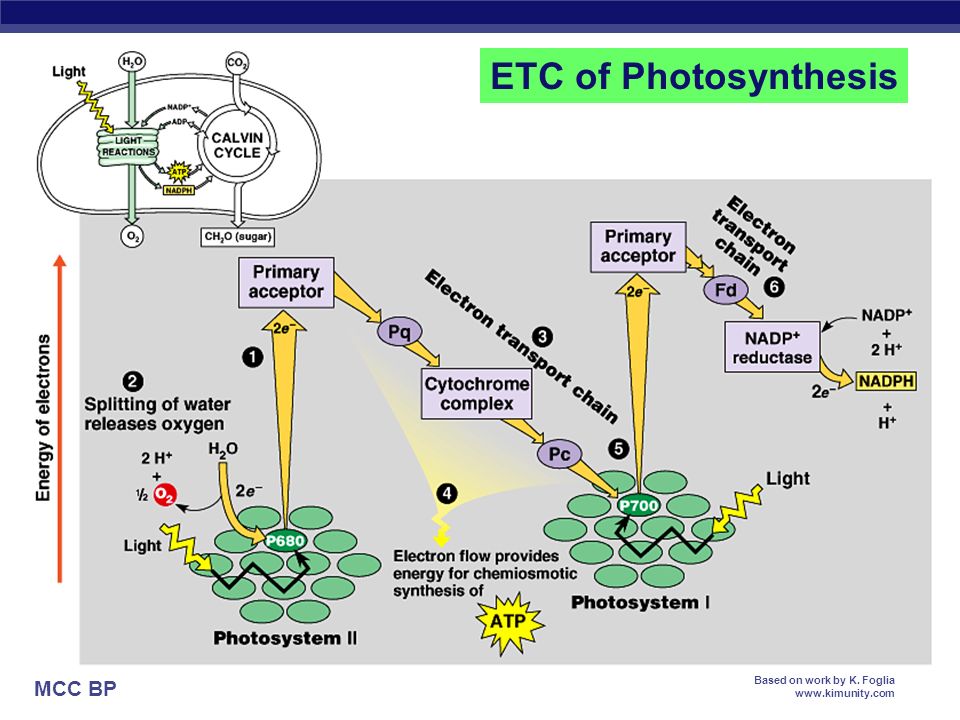

24 MCC BP Based on work by K. Foglia www.kimunity.com ETC of Photosynthesis

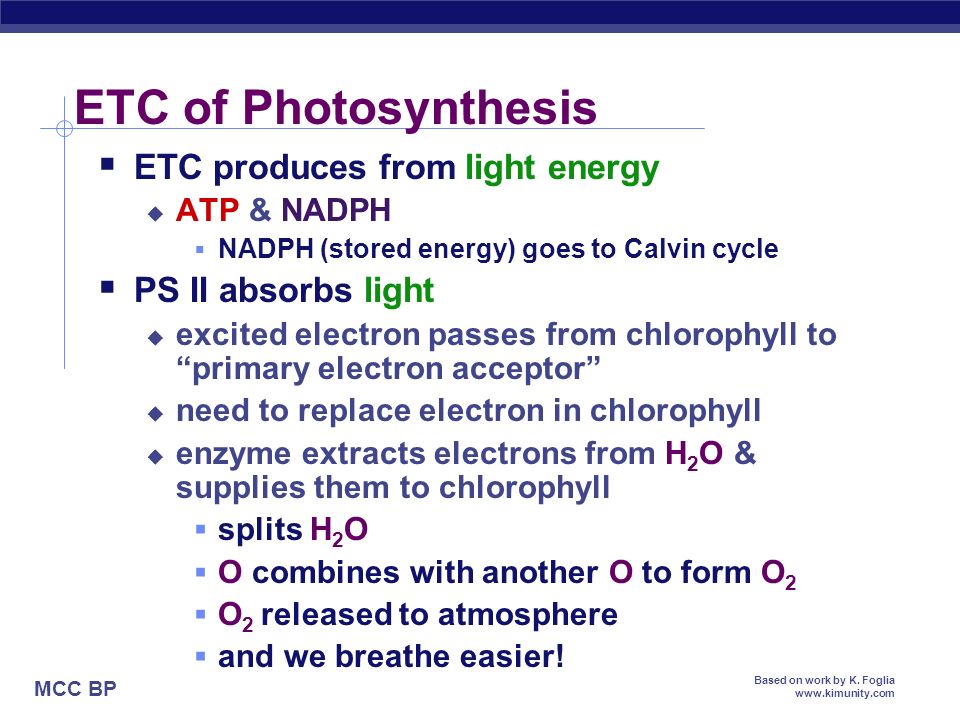

25 MCC BP Based on work by K. Foglia www.kimunity.com ETC of Photosynthesis  ETC produces from light energy  ATP & NADPH  NADPH (stored energy) goes to Calvin cycle  PS II absorbs light  excited electron passes from chlorophyll to “primary electron acceptor”  need to replace electron in chlorophyll  enzyme extracts electrons from H 2 O & supplies them to chlorophyll  splits H 2 O  O combines with another O to form O 2  O 2 released to atmosphere  and we breathe easier!

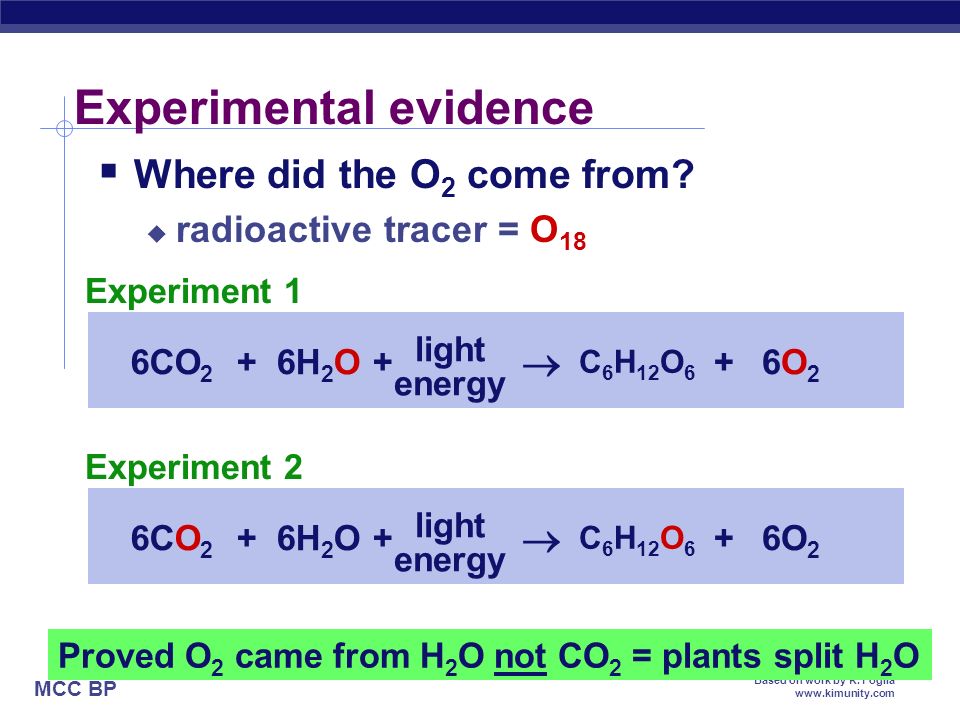

26 MCC BP Based on work by K. Foglia www.kimunity.com Experimental evidence  Where did the O 2 come from?  radioactive tracer = O 18 6CO 2 6H 2 O C 6 H 12 O 6 6O26O2 light energy  +++ Experiment 1 6CO 2 6H 2 O C 6 H 12 O 6 6O 2 light energy  +++ Experiment 2 Proved O 2 came from H 2 O not CO 2 = plants split H 2 O

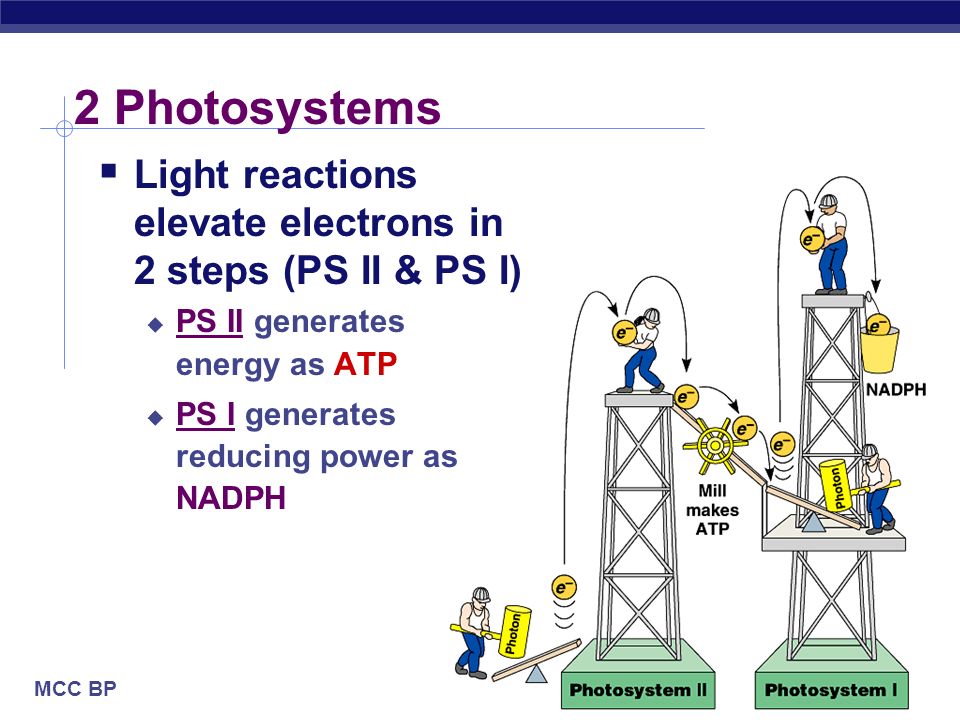

27 MCC BP Based on work by K. Foglia www.kimunity.com 2 Photosystems  Light reactions elevate electrons in 2 steps (PS II & PS I)  PS II generates energy as ATP  PS I generates reducing power as NADPH

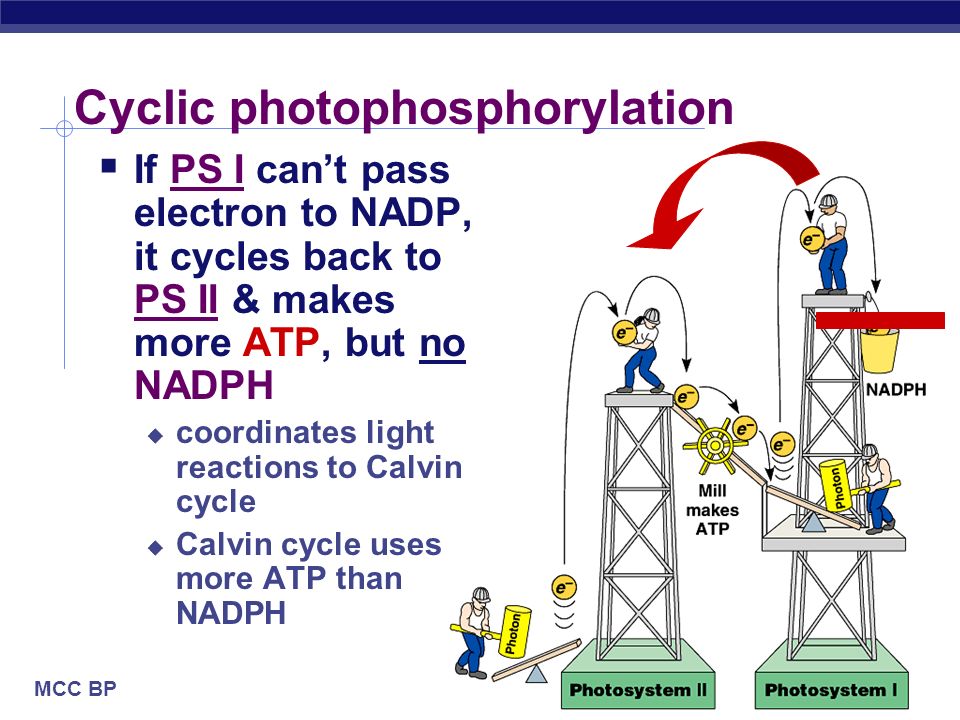

28 MCC BP Based on work by K. Foglia www.kimunity.com Cyclic photophosphorylation  If PS I can’t pass electron to NADP, it cycles back to PS II & makes more ATP, but no NADPH  coordinates light reactions to Calvin cycle  Calvin cycle uses more ATP than NADPH

29 MCC BP Based on work by K. Foglia www.kimunity.com Photophosphorylation noncyclic photophosphorylation cyclic photophosphorylation

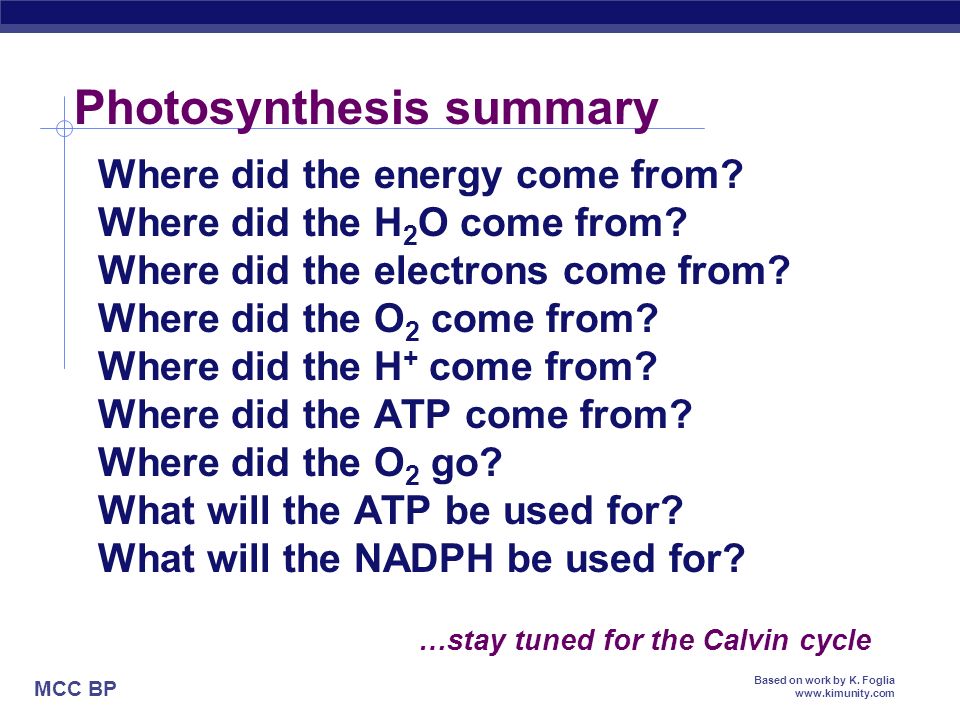

30 MCC BP Based on work by K. Foglia www.kimunity.com Photosynthesis summary Where did the energy come from? Where did the H 2 O come from? Where did the electrons come from? Where did the O 2 come from? Where did the H + come from? Where did the ATP come from? Where did the O 2 go? What will the ATP be used for? What will the NADPH be used for? …stay tuned for the Calvin cycle

31 MCC BP Based on work by K. Foglia www.kimunity.com Any Questions??
