1. A Scalable Content-Addressable Network (CAN) Seminar “Peer-to-peer Information Systems” Speaker Vladimir Eske Advisor Dr. Ralf Schenkel November 2003

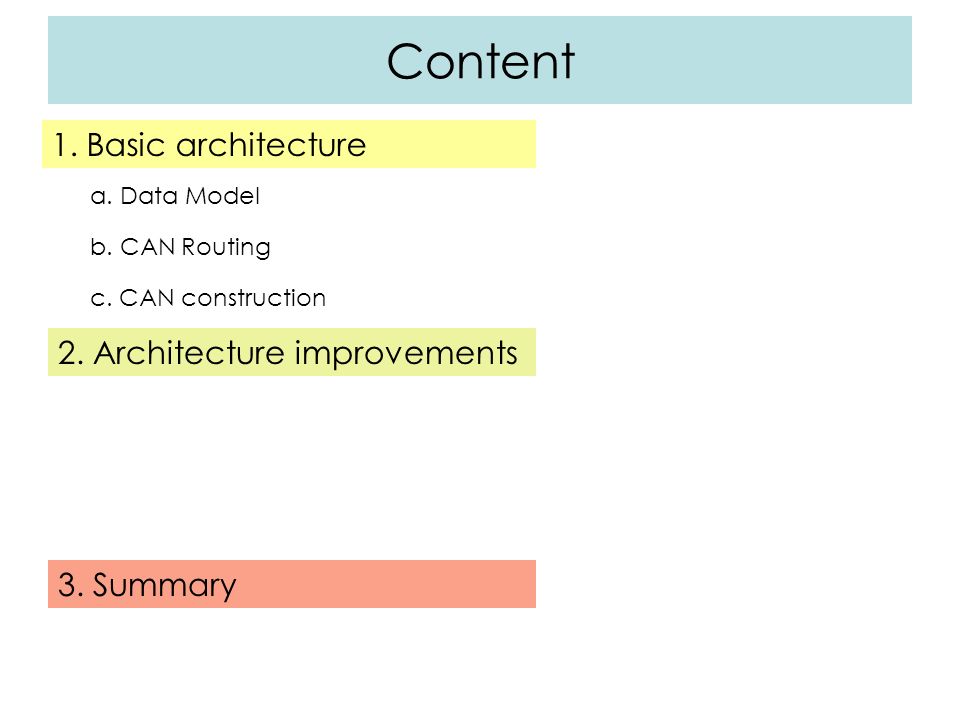

2. Content 1. Basic architecture a. Data Model b. CAN Routing c. CAN construction 2. Architecture improvements 3. Summary

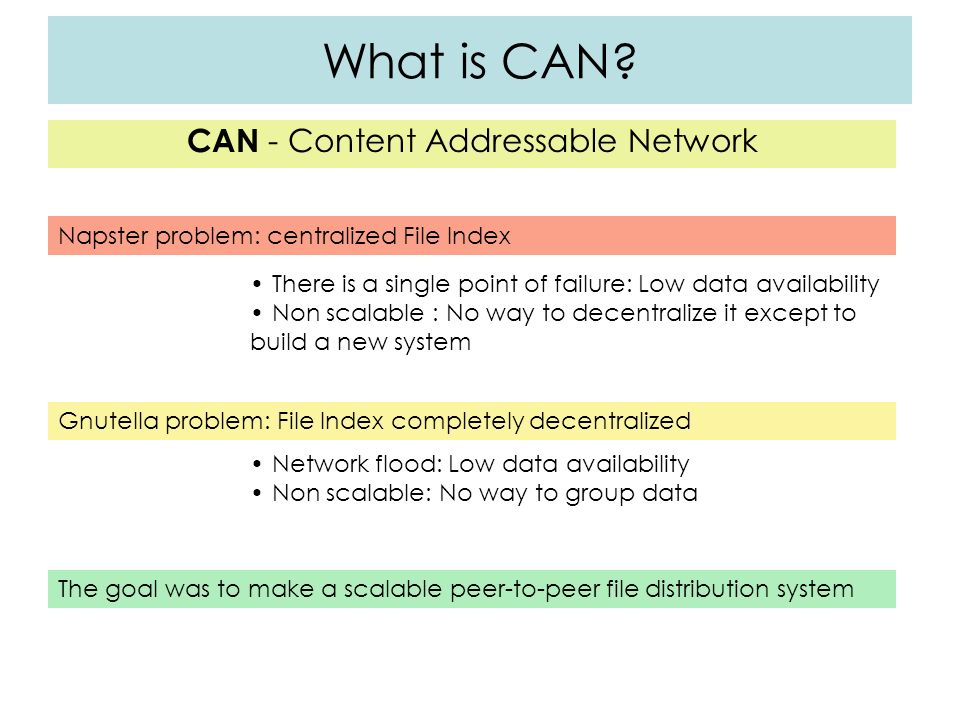

3. What is CAN? The goal was to make a scalable peer-to-peer file distribution system Napster problem: centralized File Index Gnutella problem: File Index completely decentralized There is a single point of failure: Low data availability Non scalable : No way to decentralize it except to build a new system Network flood: Low data availability Non scalable: No way to group data CAN - Content Addressable Network

4. What is CAN? CAN - Distributed, Internet-Scale, Hash table. CAN provides Insertion, Lookup and Deletion operations under Key, Value pairs (K,V), e.g. file name, file address CAN is designed completely Distributed (does not require any centralized control) CAN design is Scalable, every part of the system maintains only a small amount of control state and independent of the # of parts CAN is Fault-tolerance (It provides a rooting even some part of the system is crashed) CAN features

5. CAN architecture 1 Hash Table works on d-dimension Cartesian coordinate space on D-torus d-values hash function hash(K)=(x 1, …, x d ) Cartesian distance Cyclical d-dimension Space. 1-cartesian space, 0.5 + 0.7 = 0.2

6. CAN architecture 1 Hash Table works on d-dimension Cartesian coordinate space on D-torus d-values hash function hash(K)=(x 1, …, x d ) Cartesian distance Cyclical d-dimension Space.

7. CAN architecture 1 Hash Table works on d-dimension Cartesian coordinate space on D-torus d-values hash function hash(K)=(x 1, …, x d ) Cartesian distance Cyclical d-dimension Space.

8. CAN architecture 1 Hash Table works on d-dimension Cartesian coordinate space on D-torus d-values hash function hash(K)=(x 1, …, x d ) Cartesian distance Cyclical d-dimension Space. Zone – chunk of the entire Hash Table, a piece of Cartesian space Coordinate Zone 1-cartesian space, 0.5 + 0.7 = 0.2

9. CAN architecture 1 Hash Table works on d-dimension Cartesian coordinate space on D-torus d-values hash function hash(K)=(x 1, …, x d ) Cartesian distance Cyclical d-dimension Space. Zone – chunk of the entire Hash Table, a piece of Cartesian space Coordinate Zone 1-cartesian space, 0.5 + 0.7 = 0.2 Zone is a valid if it has a squared shape

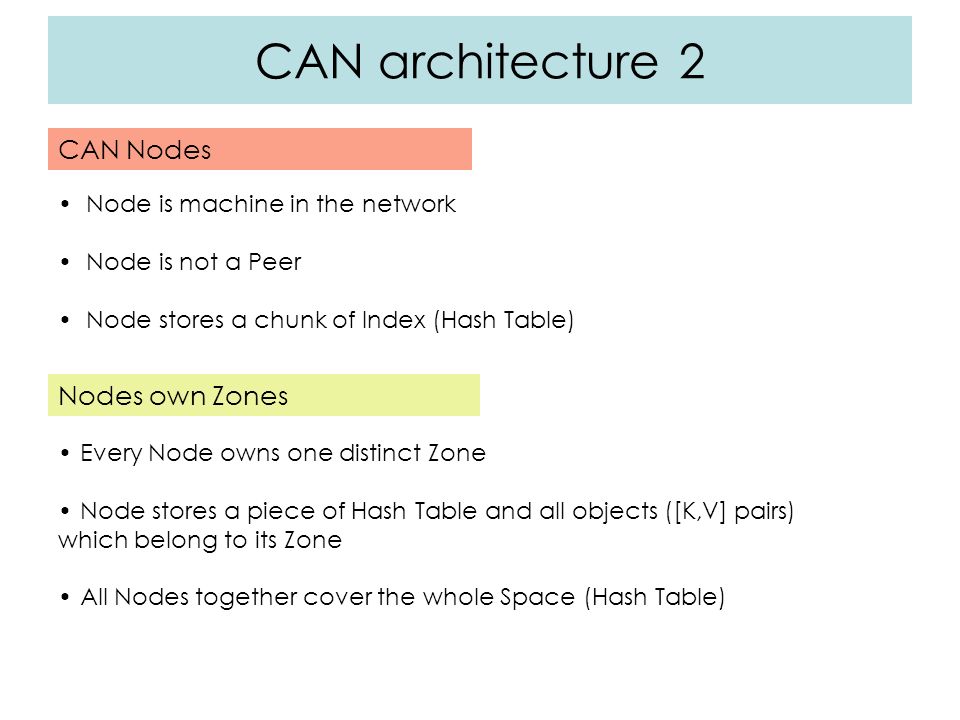

10. CAN architecture 2 CAN Nodes Node is machine in the network Node is not a Peer Node stores a chunk of Index (Hash Table) Every Node owns one distinct Zone Node stores a piece of Hash Table and all objects ([K,V] pairs) which belong to its Zone All Nodes together cover the whole Space (Hash Table) Nodes own Zones

11. CAN architecture 3 Neighbors in CAN 2 nodes are neighbors if their zones overlap among d-1 dimensions and abut along one dimension Node knows IP addresses of all its neighbor Nodes Node knows Zone coordinates of all neighbors Node can communicate only with its neighbors

12. CAN architecture: Access How to get an access to CAN system 1. CAN has an associated DNS domain 2. CAN domain name is resolved by DNS domain to Bootstrap server’s IP addresses 3. Bootstrap is special CAN Node which holds only a list of several Nodes are currently in the system User scenario 1. A user wants to join the system and sends the request using CAN domain name 4. The user chooses one of them and establishes a connection. 2. DNS domain redirects it to one of Bootstraps 3. A Bootstrap sends a list of Nodes to the user

13. CAN architecture: Access How to get an access to CAN system 1. CAN has an associated DNS domain 2. CAN domain name is resolved by DNS domain to Bootstrap server’s IP addresses 3. Bootstrap is special CAN Node which holds only a list of several Nodes are currently in the system User scenario 1. A user wants to join the system and sends the request using CAN domain name 4. The user chooses one of them and establishes a connection. 2. DNS domain redirects it to one of Bootstraps 3. A Bootstrap sends a list of Nodes to the user 3 level access algorithm reduces the failure probability. DNS domain just redirect all requests Many Bootstraps Many Nodes in the Bootstrap list

14. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forward the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

15. CAN: routing algorithm 1. Start from some Node 2. P - hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

16. CAN: routing algorithm 1. Start from some Node 2. P - hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

17. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

18. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

19. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

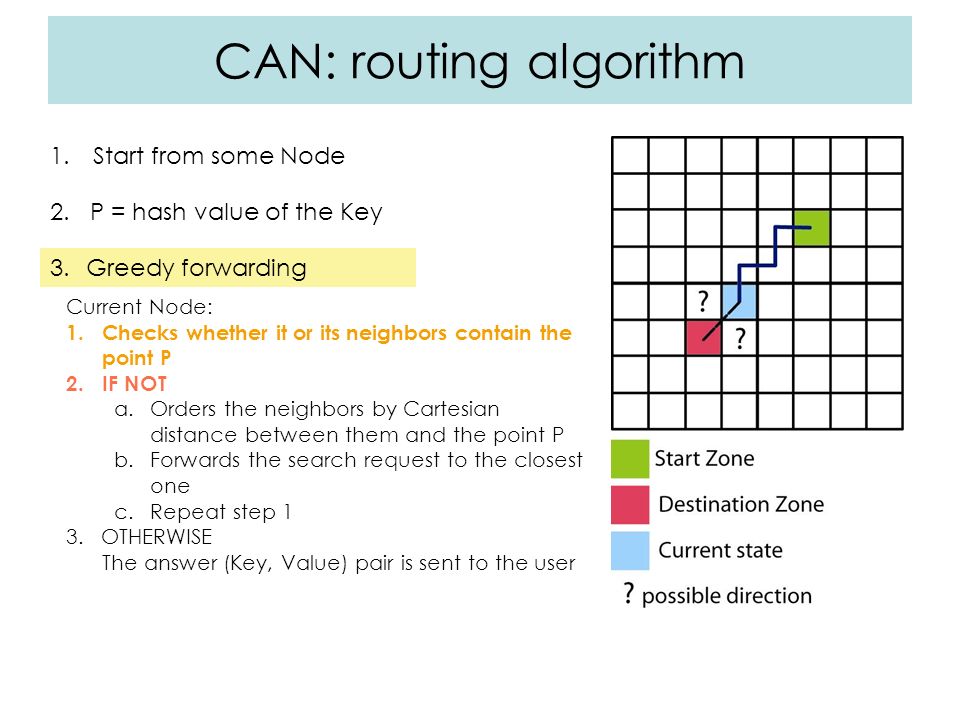

20. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

21. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

22. CAN: routing algorithm 1. Start from some Node 2. P = hash value of the Key 3.Greedy forwarding Current Node: 1.Checks whether it or its neighbors contain the point P 2.IF NOT a.Orders the neighbors by Cartesian distance between them and the point P b.Forwards the search request to the closest one c.Repeat step 1 3. OTHERWISE The answer (Key, Value) pair is sent to the user

23. CAN: routing algorithm Average path length is average # hops should be done to reach a destination node In the case when: 1. All Zones have the same volume 2. There is not any crashed Node Total path length = 0 * 1 + 1 * 2d + 2 * 4d + 3 * 6d + 4 * 7d + 5 * 6d + 6 * 4d + 7 * 2d + 8 * 1

24. CAN: routing algorithm Average path length is average # should be done to reach a destination node In the case when: 1. All Zones have the same volume 2. There is not any crashed Node Total path length = 0 * 1 + 1 * 2d + 2 * 4d + 3 * 6d + 4 * 7d + 5 * 6d + 6 * 4d + 7 * 2d + 8 * 1

25. CAN: routing algorithm Average path length is average # should be done to reach a destination node In the case when: 1. All Zones have the same volume 2. There is not any crashed Node Total path length = 0 * 1 + 1 * 2d + 2 * 4d + 3 * 6d + 4 * 7d + 5 * 6d + 6 * 4d + 7 * 2d + 8 * 1

26. CAN: routing algorithm Fault tolerance routing 1. Start from some Node 2. P = hash value of the Key 3. Greedy forwarding a.Before sending the request, the current node checks for neighbor’s availability b.The request is sent to the best available node

27. CAN: routing algorithm Fault tolerance routing 1. Start from some Node 2. P = hash value of the Key 3. Greedy forwarding a.Before sending the request, the current node checks for neighbor’s availability b.The request is sent to the best available node

28. CAN: routing algorithm Fault tolerance routing 1. Start from some Node 2. P = hash value of the Key 3. Greedy forwarding a.Before sending the request, the current node checks for neighbor’s availability b.The request is sent to the best available node

29. CAN: routing algorithm Fault tolerance routing 1. Start from some Node 2. P = hash value of the Key 3. Greedy forwarding a.Before sending the request, the current node checks for neighbor’s availability b.The request is sent to the best available node

30. CAN: routing algorithm Fault tolerance routing 1. Start from some Node 2. P = hash value of the Key 3. Greedy forwarding a.Before sending the request, the current node checks for neighbor’s availability b.The request is sent to the best available node The destination Node will be reached If there exists at least one path

31. CAN construction: New Node arrival 1 1. Finding an access point New Node, a server in internet wants to join the system and shares a piece of Hash Table. 1. New Node needs to get an access to the CAN 2. The system should allocate a piece of Hash Table to the New Node 3. New Node should start working in the system: provide routing New Node uses the basic algorithm described later: Sends a request to the CAN domain name Gets a IP address of one of the Node currently in the system Connects to this Node

32. CAN construction: New Node arrival 2 2. Finding a Zone 1. Randomly choose a point P 2. JOIN request is sent to the P -owner node 3. The request is forwarded via CAN routing 4. Desired node (P-owner) splits its Zone in half One half is assigned to the New Node Another half stays with Old Node 6. Hash table contents associated with New Node’s Zone are moved from Old Node to the New Node 5. Zone is split along only one dimension: The greatest dim. with the lowest order

33. CAN construction: New Node arrival 2 2. Finding a Zone 1. Randomly choose a point P 2. JOIN request is sent to the P -owner node 3. The request is forwarded via CAN routing 4. Desired node (P-owner) splits its Zone in half One half is assigned to the New Node Another half stays with Old Node 6. Hash table contents associated with New Node’s Zone are moved from Old Node to the New Node 5. Zone is split along only one dimension: The greatest dim. with the lowest order

34. CAN construction: New Node arrival 2 2. Finding a Zone 1. Randomly choose a point P 2. JOIN request is sent to the P -owner node 3. The request is forwarded via CAN routing 4. Desired node (P-owner) splits its Zone in half One half is assigned to the New Node Another half stays with Old Node 6. Hash table contents associated with New Node’s Zone are moved from Old Node to the New Node 5. Zone is split along only one dimension: The greatest dim. with the lowest order

35. CAN construction: New Node arrival 2 2. Finding a Zone 1. Randomly choose a point P 2. JOIN request is sent to the P -owner node 3. The request is forwarded via CAN routing 4. Desired node (P-owner) splits its Zone in half One half is assigned to the New Node Another half stays with Old Node 6. Hash table contents associated with New Node’s Zone are moved from Old Node to the New Node 5. Zone is split among only one dimension: The greatest dim. with the lowest order

36. CAN construction: New Node arrival 2 2. Finding a Zone 1. Randomly choose a point P 2. JOIN request is sent to the P -owner node 3. The request is forwarded via CAN routing 4. Desired node (P-owner) splits its Zone in half One half is assigned to the New Node Another half stays with Old Node 6. Hash table contents associated with New Node’s Zone are moved from Old Node to the New Node 5. Zone is split along only one dimension: The greatest dim. with the lowest order

37. CAN construction: New Node arrival 3 3. Joining the routing 1. New Node gets a list of neighbors from Old Node (old owner of the split Zone) 2. Old Node refreshes its list of neighbors: Removes the lost neighbors Adds New Node 3. All neighbors get a message to update their neighbor lists: Remove Old Node Add New Node

38. CAN construction: New Node arrival 3 3. Joining the routing 1. New Node gets a list of neighbors from Old Node (old owner of the split Zone) 2. Old Node refreshes its list of neighbors: Removes the lost neighbors Adds New Node 3. All neighbors get a message to update their neighbor lists: Remove Old Node Add New Node

39. CAN construction: New Node arrival 3 3. Joining the routing 1. New Node gets a list of neighbors from Old Node (old owner of the split Zone) 2. Old Node refreshes its list of neighbors: Removes the lost neighbors Adds New Node 3. All neighbors get a message to update their neighbor lists: Remove Old Node Add New Node

40. CAN construction: New Node arrival 3 3. Joining the routing 1. New Node gets a list of neighbors from Old Node (old owner of the split Zone) 2. Old Node refreshes its list of neighbors: Removes the lost neighbors Adds New Node 3. All neighbors get a message to update their neighbor lists: Remove Old Node Add New Node

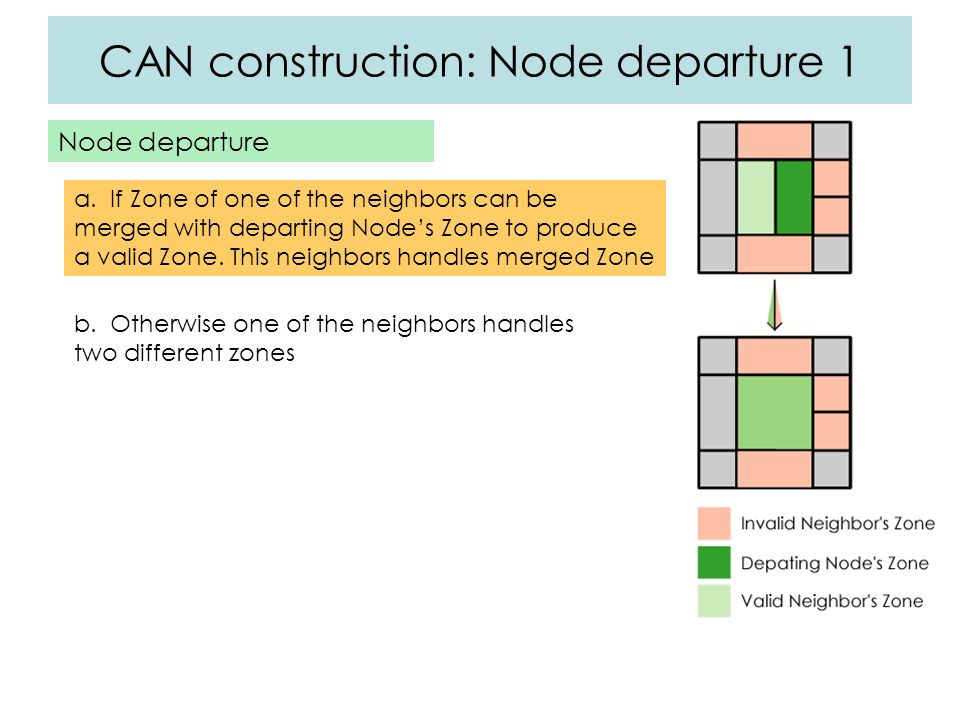

41. CAN construction: Node departure 1 Node departure b. Otherwise one of the neighbors handles two different zones a. If Zone of one of the neighbors can be merged with departing Node’s Zone to produce a valid Zone. This neighbors handles merged Zone

42. CAN construction: Node departure 1 2. Node departure b. Otherwise one of the neighbors handles two different zones a. If Zone of one of the neighbors can be merged with departing Node’s Zone to produce a valid Zone. This neighbors handles merged Zone

43. CAN construction: Node departure 1 1. Node departure b. Otherwise one of the neighbors handles two different zones a. If Zone of one of the neighbors can be merged with departing Node’s Zone to produce a valid Zone. This neighbors handles merged Zone In both cases (a and b): 1.Data from departing Node is moved to the receiving Node 2.The receiving Node should update its neighbor list 3.All their neighbors are notified about changes and should update their neighbor lists

44. CAN construction: Node departure 2 Node is crashed 1. Periodically every node sends a message to all its neighbors 2. If Node does not receive from one of its neighbors a message for period of time t it starts a TAKEOVER mechanism 3. It sends a takeover message to each neighbor of the crashed Node, the neighbor which did not send a periodical message 4. Neighbors receive a message and compare its own Zone with the Zone of the sender. If it has a smaller Zone it sends a new takeover message to all crashed Node neighbors. 5. The crashed Node’s Zone is handled by the Node which does not get an answer on its message for period of time t Data stored on the crashed Node are unavailable until source owner refreshes the CAN state.

45. CAN problems Main problems: 1. Routing Latency a. Path Latency - avg. # of hops per path b. Hop Latency - avg. real hop duration 2. Increasing fault tolerance 3. Increasing data availability Basic CAN architecture archives: 1.Scalability, State of distribution 2.Increasing data availability (Napster, Gnutella)

46. Content 1. Basic architecture a. Data Model b. CAN Routing c. CAN construction 2. Architecture improvements 3. Summary a. Path Latency Improvement b. Hop Latency Improvement c. Mixed approaches d. Construction Improvement

47. Path latency Improvements 1 Realities: multiple coordinate spaces Maintain multiple (R) coordinate spaces with each Node Every Node contains different Zones in different Realities, all zones are chosen randomly Contents of hash table replicated on every reality Each coordinate Space is called Reality All Realities have  The same # of Zones  The same data  The same hash function

48. Path latency Improvements 2 The extended routing Algorithm for Realities b. The request is forwarded in the best Reality a. Every Node on the path checks in which of its realities a distance to the destination is the closest one 1. The destination Zone are the same for all realities 2. Each Zone can be own by many Nodes 3. For routing is applied a basic algorithm with following extensions:

49. Path latency Improvements 2 The extended routing Algorithm for Realities b. The request is forwarded in the best Reality a. Every Node on the path checks in which of its realities a distance to the destination is the closest one 1. The destination Zone are the same for all realities 2. Each Zone can be own by many Nodes 3. For routing is applied a basic algorithm with following extensions:

50. Path latency Improvements 2 The extended routing Algorithm for Realities b. The request is forwarded in the best Reality a. Every Node on the path checks in which of its realities a distance to the destination is the closest one 1. The destination Zone are the same for all realities 2. Each Zone can be own by many Nodes 3. For routing is applied a basic algorithm with following extensions:

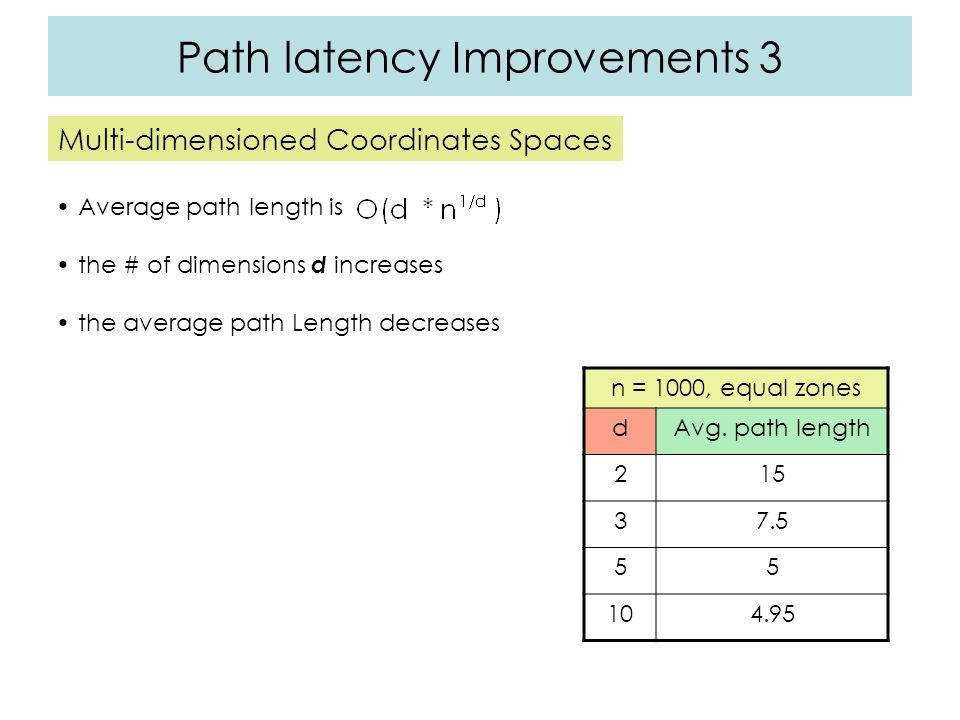

51. Path latency Improvements 3 Multi-dimensioned Coordinates Spaces Average path length is the # of dimensions d increases the average path Length decreases n = 1000, equal zones dAvg. path length 215 37.5 55 104.95

52. Multiple Dimensions vs. Multiple Realities Path latency Improvements 4 Multiple Dimensions Multiple Realities Average # of neighbors O(d)O(r*d) Size of data store increasing none r times Data availability increasing none O(r) times Total path latency reduction strongerstrong

53. Hop latency improvement RTT CAN Routing Metrics 2. New Metrics: Cartesian Distance + RTT 1. RTT is Round Trip Time (ping) Expanded Node is the closest to the destination by Cartesian Distance RRT between current Node and expanded Node is minimal for all optimal Nodes number of dimensions routing without RTT (ms) per hop routing with RTT (ms) per hop 2116.888.3 3116.776.1 4115.871.2 5115.470.9

54. Mixed Improvement: Overloading Zones 1 Overloading coordinate zones One Zone – many Nodes MAXPEERS – max # of Nodes per Zone Every Node keeps list of its Peers The number of neighbors stays the same (O(1) in each direction) The general routing algorithm is used (from neighbor to neighbor)

55. Mixed Improvement: Overloading Zones 2 Extended construction algorithm New node A joins the system: 1. It discovers a Zone (owner Node B) 2. B checks: how many peers does it have 3. If less than MAXPEERS 1.A is added as a new Peer 2.A gets a list of Peers and Neighbors from B 4. Otherwise 1. Zone is split in half 2. Peer list is split in half too 3. Refresh the peer and neighbor lists

56. Mixed Improvement: Overloading Zones 2 Extended construction algorithm New node A joins the system: 1. It discovers a Zone (owner Node B) 2. B checks: how many peers does it have 3. If less than MAXPEERS 1.A is added as a new Peer 2.A gets a list of Peers and Neighbors from B 4. Otherwise 1. Zone is split in half 2. Peer list is split in half too 3. Refresh the peer and neighbor lists

57. Mixed Improvement: Overloading Zones 2 Extended construction algorithm New node A joins the system: 1. It discovers a Zone (owner Node B) 2. B checks: how many peers does it have 3. If less than MAXPEERS 1.A is added as a new Peer 2.A gets a list of Peers and Neighbors from B 4. Otherwise 1. Zone is split in half 2. Peer list is split in half too 3. Refresh the peer and neighbor lists

58. Mixed Improvement: Overloading Zones 2 Extended construction algorithm New node A joins the system: 1. It discovers a Zone (owner Node B) 2. B checks: how many peers does it have 3. If less than MAXPEERS 1.A is added as a new Peer 2.A gets a list of Peers and Neighbors from B 4. Otherwise 1. Zone is split in half 2. Peer list is split in half too 3. Refresh the peer and neighbor lists

59. Mixed Improvement: Overloading Zones 2 Periodical self updating 1. Periodically, Node gets a peer list of each its neighbors 2. Node estimates a RRT to every node in peer list 3. Node chooses the closest peer Node as a New Neighbor Node in this direction

60. Mixed Improvement: Overloading Zones 2 Periodical self updating Approach Benefits 1. Periodically, Node gets a peer list of each its neighbors 2. Node estimates RRT to every node in peer list 3. Node chooses the closest peer Node as New Neighbor Node in this direction Reduced Path Latency (reduced # of Zones) Reduced Hop Latency (periodical self updating) Improved fault tolerance and data availability (Hash Table Contents are replicated among several Nodes) MAXPEERS Per-hop Latency (ms) 1116.4 292.8 372.9 464.4

61. CAN construction improvements Uniform Partitioning 1.The Node to be split compares the volume of its Zone with Zones of its Neighbors 2. The Zone with the largest volume should be split

62. CAN construction improvements Uniform Partitioning 1.The Node to be split compares the volume of its Zone with Zones of its Neighbors 2. The Zone with the largest volume should be split

63. CAN: Summary 1 Parameter “bare bones” CAN “knobs on full” CAN # of dimensions 210 MAXPEERS 04 RTT weighted routing metrics OFFON Uniform partitioning OFFON Total Improvement “bare bones” CAN uses only basic CAN architecture “knobs on full” CAN uses most of additional design features

64. CAN: Summary 2 Metric “bare bones”“knobs on full” Avg. Path length 142.04.899 # of neighbors 4.224.4 # of peers 02.95 Data availability increasing none2.95 times (zones overloading) Avg. Path Latency 19671 ms135 ms

65. CAN: Summary 3 CAN is scalable, distributed Hash Table CAN provides: Dynamical Zone allocation Fault Tolerance Access Algorithm Stable Fault Tolerance Routing Algorithm There are many improve techniques which Increase Routing Latency Increase Data availability Increase Fault Tolerance The scalable, distributed, efficient P2P system was designed and developed

66. CAN: Summary 3 CAN is scalable, distributed Hash Table CAN provides: Dynamical Zone allocation Fault Tolerance Access Algorithm Stable Fault Tolerance Routing Algorithm There are many improve techniques which Increase Routing Latency Increase Data availability Increase Fault Tolerance THANK YOU The scalable, distributed, efficient P2P system was designed and developed
