1 AC & DC Generators LEARNING OUTCOMES: Recognise the differences between DC and AC and illustrate them diagrammatically Describe how simple generators work using the dynamo effect.

2 DC= DIRECT CURRENT The current flows in one direction, from + to -. Eg, a battery AC = ALTERNATING CURRENT The current keeps reversing direction, since the 2 terminals alternately become + and – Eg, mains electricity (in the UK it alternates 50 times per second, so frequency = 50Hz). If we know how long 1 wave lasts for (the period) then the inverse is the frequency. Eg, waves lasts for 0.1s, so the frequency is 1 / 0.1 = 10Hz.

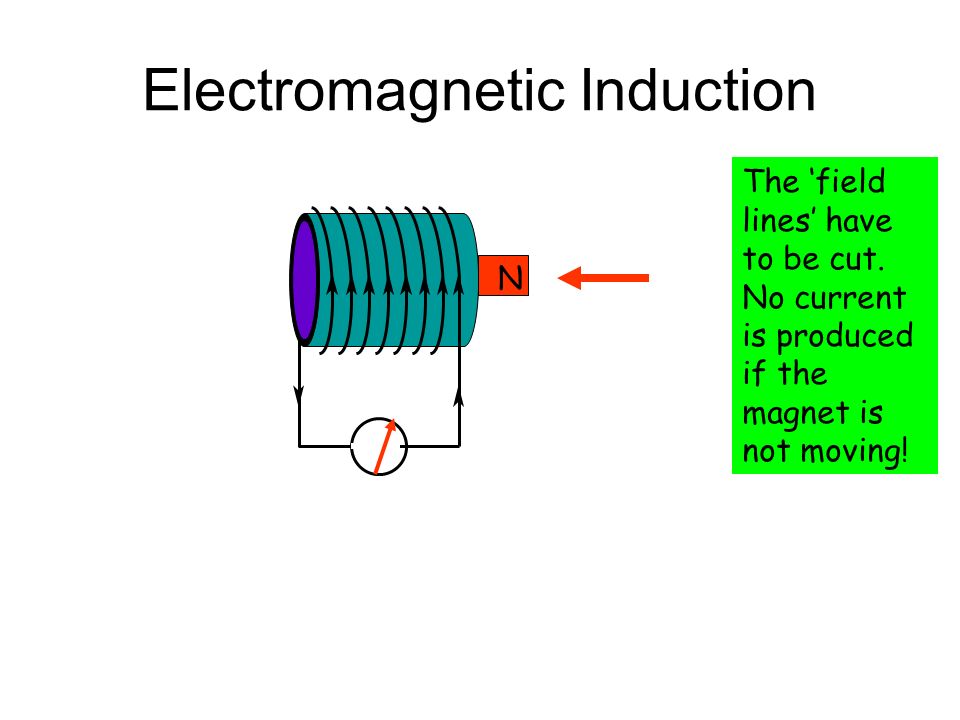

3 Electromagnetic Induction If You push a magnet into a coil the electrons in the coil are also given a push. This makes an ‘induced voltage’ N The ‘field lines’ have to be cut. No current is produced if the magnet is not moving!

4 Electromagnetic Induction If You pull a magnet out of the coil the electrons in the coil are once again given a push. This makes an ‘induced voltage’ in the opposite direction N Notice the needle moves in the opposite direction

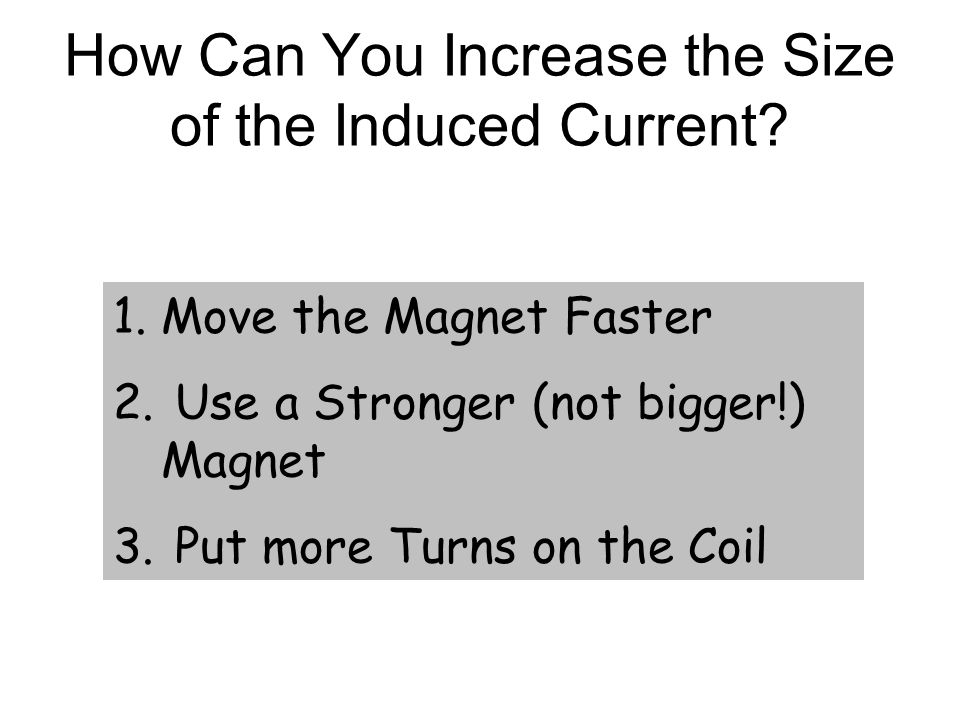

5 How Can You Increase the Size of the Induced Current? 1.Move the Magnet Faster 2. Use a Stronger (not bigger!) Magnet 3. Put more Turns on the Coil

6 We can use a magnet, coil and movement to generate electricity with this device Will it make AC or DC Current?

7 This is a Generator You will have heard them near road works generating the electricity to make the traffic lights and machines work

8 AC Generator Induced current can be increased in 4 ways: 1)Increasing the speed of movement 2)Increasing the magnetic field strength 3)Increasing the number of turns on the coil 4)Increasing the area of the coil

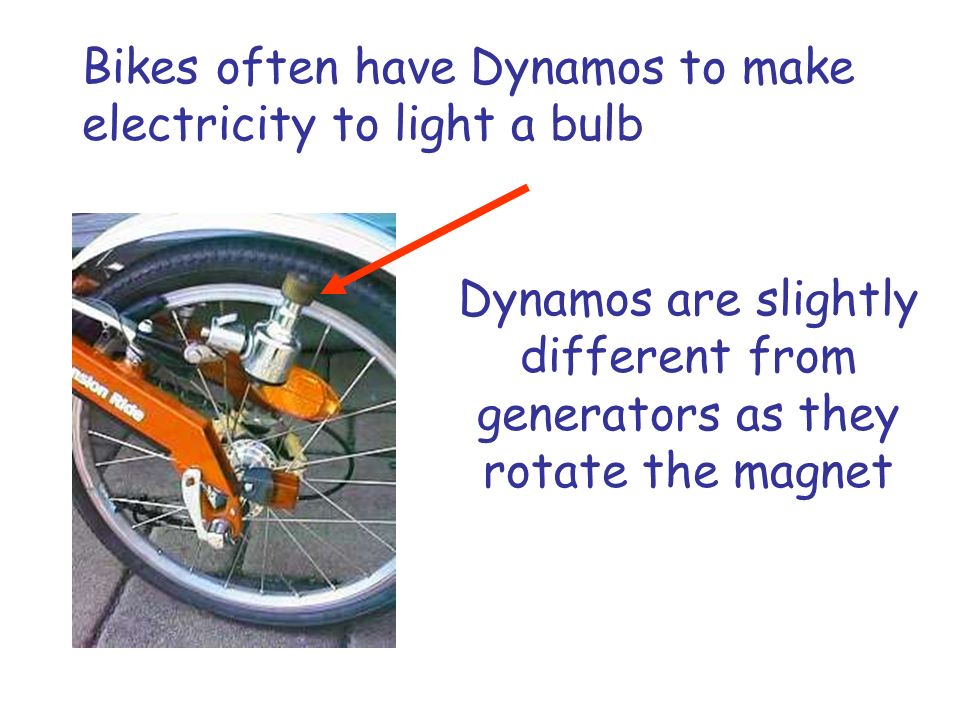

9 Bikes often have Dynamos to make electricity to light a bulb Dynamos are slightly different from generators as they rotate the magnet

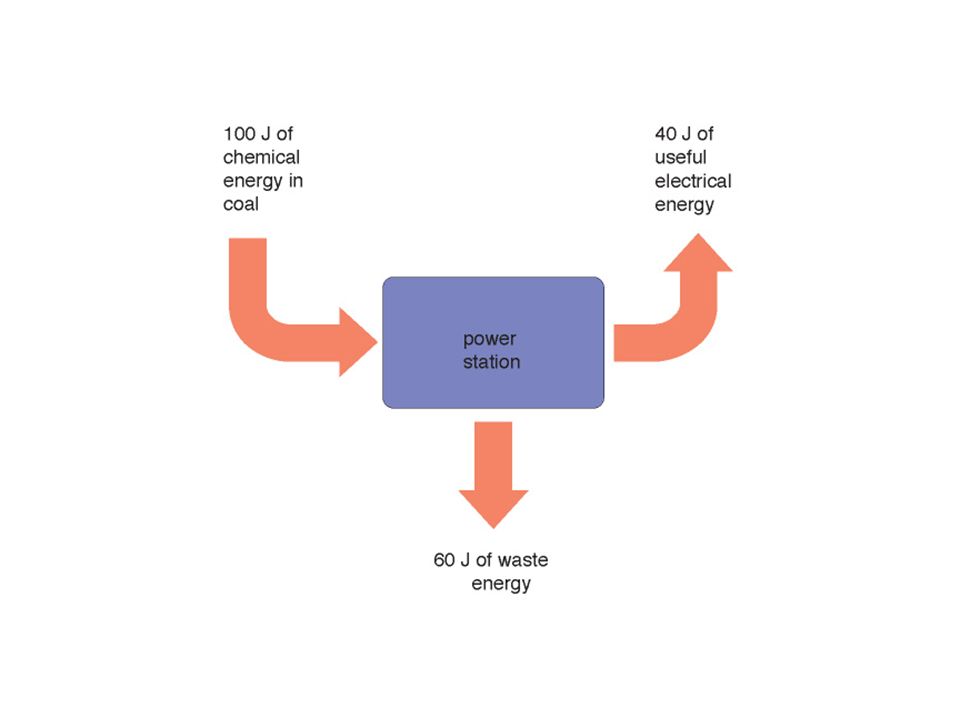

10 Power stations & Efficiency LEARNING OUTCOMES: Describe how the dynamo effect is used in conventional power stations to generate electricity: burning fuel producing steam spinning a turbine turbine turns generator. Be able to use equations to calculate efficiency in a variety of situations. Describe & recognise that there is significant waste of energy in a conventional power station.

11

12

13 Transformers LEARNING OUTCOMES: Explain how transformers are used on the National grid to transmit electricity at high voltage to reduce energy waste/costs. Explain how, for a given power, increased voltage reduces current. This will decrease energy waste by reducing heating of cables.

14
