1. Section 3.2 Section 3.2 Motion with Constant Acceleration ●Interpret position-time graphs for motion with constant acceleration. ●Determine mathematical relationships among position, velocity, acceleration, and time. ●Apply graphical and mathematical relationships to solve problems related to constant acceleration. In this section you will: Section 3.2-1

2. Section 3.2 Section 3.2 Motion with Constant Acceleration If an object’s average acceleration during a time interval is known, then it can be used to determine how much the velocity changed during that time. The definition of average acceleration: Velocity with Average Acceleration can be rewritten as follows: Section 3.2-2

3. Section 3.2 Section 3.2 Motion with Constant Acceleration The equation for final velocity with average acceleration can be written as follows: Velocity with Average Acceleration The final velocity is equal to the initial velocity plus the product of the average acceleration and time interval. Section 3.2-3

4. Section 3.2 Section 3.2 Motion with Constant Acceleration In cases in which the acceleration is constant, the average acceleration, ā, is the same as the instantaneous acceleration, a. The equation for final velocity can be rewritten to find the time at which an object with constant acceleration has a given velocity. It also can be used to calculate the initial velocity of an object when both the velocity and the time at which it occurred are given. Velocity with Average Acceleration Section 3.2-4

5. Section 3.2 Section 3.2 Motion with Constant Acceleration The position data at different time intervals for a car with constant acceleration are shown in the table. The data from the table are graphed as shown on the next slide. Position with Constant Acceleration Section 3.2-5

6. Section 3.2 Section 3.2 Motion with Constant Acceleration The graph shows that the car’s motion is not uniform: the displacements for equal time intervals on the graph get larger and larger. The slope of a position-time graph of a car moving with a constant acceleration gets steeper as time goes on. Position with Constant Acceleration Section 3.2-6

7. Section 3.2 Section 3.2 Motion with Constant Acceleration The slopes from the position time graph can be used to create a velocity-time graph as shown on the right. Note that the slopes shown in the position-time graph are the same as the velocities graphed in the velocity-time graph. Position with Constant Acceleration Section 3.2-7

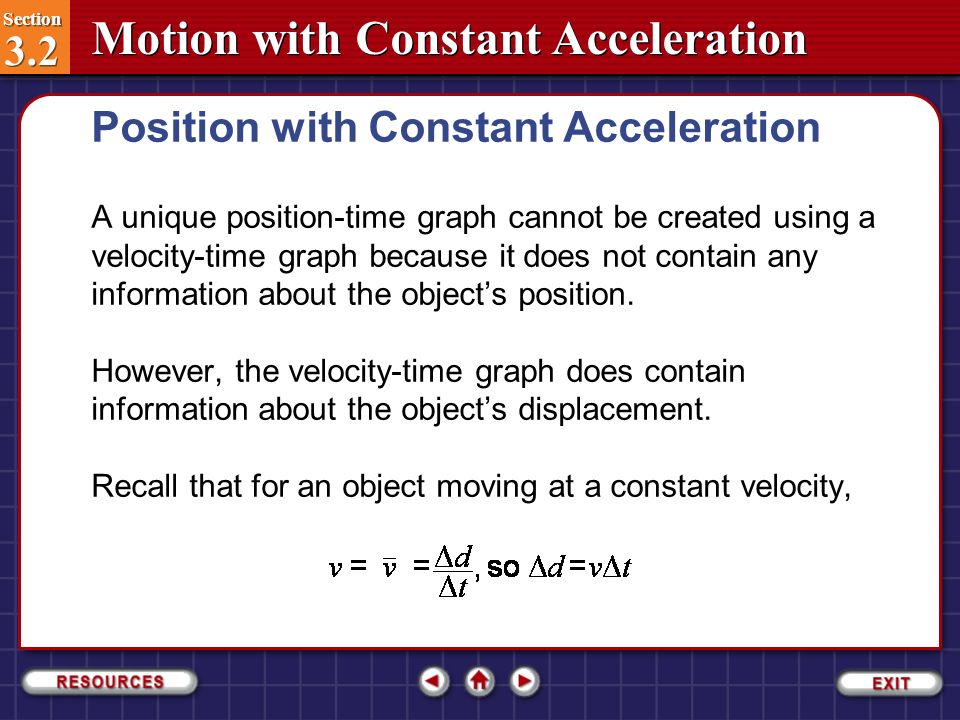

8. Section 3.2 Section 3.2 Motion with Constant Acceleration A unique position-time graph cannot be created using a velocity-time graph because it does not contain any information about the object’s position. However, the velocity-time graph does contain information about the object’s displacement. Recall that for an object moving at a constant velocity, Position with Constant Acceleration Section 3.2-8

9. Section 3.2 Section 3.2 Motion with Constant Acceleration On the graph shown on the right, v is the height of the plotted line above the t-axis, while Δt is the width of the shaded rectangle. The area of the rectangle, then, is vΔt, or Δd. Thus, the area under the v-t graph is equal to the object’s displacement. Position with Constant Acceleration Section 3.2-9

10. Section 3.2 Section 3.2 Motion with Constant Acceleration The area under the v-t graph is equal to the object’s displacement. Position with Constant Acceleration Section 3.2-10

11. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph The v-t graph shows the motion of an airplane. Find the displacement of the airplane at Δt = 1.0 s and at Δt = 2.0 s. Section 3.2-11

12. Section 3.2 Section 3.2 Motion with Constant Acceleration Step 1: Analyze and Sketch the Problem Finding the Displacement from a v-t Graph Section 3.2-12

13. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph The displacement is the area under the v-t graph. Section 3.2-13

14. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph The time intervals begin at t = 0.0. Section 3.2-14

15. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph Identify the known and unknown variables. Known: v = +75 m/s Δt = 1.0 s Δt = 2.0 s Unknown: Δd = ? Section 3.2-15

16. Section 3.2 Section 3.2 Motion with Constant Acceleration Step 2: Solve for the Unknown Finding the Displacement from a v-t Graph Section 3.2-16

17. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph Solve for displacement during Δt = 1.0 s. Section 3.2-17

18. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph Substitute v = +75 m/s, Δt = 1.0 s Section 3.2-18

19. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph Solve for displacement during Δt = 2.0 s. Section 3.2-19

20. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph Substitute v = +75 m/s, Δt = 2.0 s Section 3.2-20

21. Section 3.2 Section 3.2 Motion with Constant Acceleration Step 3: Evaluate the Answer Finding the Displacement from a v-t Graph Section 3.2-21

22. Section 3.2 Section 3.2 Motion with Constant Acceleration Are the units correct? Displacement is measured in meters. Do the signs make sense? The positive sign agrees with the graph. Is the magnitude realistic? Moving a distance of about one football field in 2 s is reasonable for an airplane. Finding the Displacement from a v-t Graph Section 3.2-22

23. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph The steps covered were: Step 1: Analyze and Sketch the Problem The displacement is the area under the v-t graph. The time intervals begin at t = 0.0. Step 2 Solve for the Unknown Solve for displacement during Δt = 1.0 s. Solve for displacement during Δt = 2.0 s. Section 3.2-23

24. Section 3.2 Section 3.2 Motion with Constant Acceleration Finding the Displacement from a v-t Graph The steps covered were: Step 3: Evaluate the Answer Section 3.2-24

25. Section 3.2 Section 3.2 Motion with Constant Acceleration Often, it is useful to relate position, velocity, and constant acceleration without including time. The three equations for motion with constant acceleration are summarized in the table. An Alternative Expression Section 3.2-25

26. Section 3.2 Section 3.2 Motion with Constant Acceleration An Alternative Expression Rearrange the equation v f = v i + āt f, to solve for time: Section 3.2-26

27. Section 3.2 Section 3.2 Motion with Constant Acceleration An Alternative Expression This equation can be solved for the velocity, v f, at any time, t f. The square of the final velocity equals the sum of the square of the initial velocity and twice the product of the acceleration and the displacement since the initial time. Section 3.2-27

28. Section 3.2 Section 3.2 Section Check A position-time graph of a bike moving with constant acceleration is shown below. Which statement is correct regarding the displacement of the bike? Question 1 Section 3.2-28

29. Section 3.2 Section 3.2 Section Check Question 1 A.The displacement in equal time intervals is constant. B.The displacement in equal time intervals progressively increases. C.The displacement in equal time intervals progressively decreases. D.The displacement in equal time intervals first increases, then after reaching a particular point, it decreases. Section 3.2-29

30. Section 3.2 Section 3.2 Section Check Answer 1 Reason: You will see that the slope gets steeper as time progresses, which means that the displacement in equal time intervals progressively gets larger and larger. Section 3.2-30

31. Section 3.2 Section 3.2 Section Check A car is moving with an initial velocity of v i m/s. After reaching a highway, it moves with a constant acceleration of a m/s 2, what will be the velocity (v f ) of the car after traveling for t seconds? Question 2 A.v f = v i + at B.v f = v i + 2at C.v f 2 = v i 2 + 2at D.v f = v i – at Section 3.2-31

32. Section 3.2 Section 3.2 Section Check Answer 2 Reason: Since a = Δv/Δt v f - v i = a (t f - t i ) Also since the car is starting from rest, t i = 0 Therefore v f = v i + at (where t is the total time) Section 3.2-32

33. Section 3.2 Section 3.2 Section Check From the graph as shown on the right, if a car slowing down with a constant acceleration from initial velocity v i to the final velocity v f, calculate the total distance ( Δ d) traveled by the car. Question 3 A. B. C. D. Section 3.2-33

34. Section 3.2 Section 3.2 Section Check Answer 3 Reason: Acceleration is the area under the graph. Solving for Δd, we get Section 3.2-34

35. Section 3.2 Section 3.2 Section Check Answer 3 Reason: Now since (v f – v i ) = aΔt (v i – v f ) = –aΔt Substituting in the above equation, we get Δd triangle = –a(Δt) 2 Also Δd rectangle = v f (Δt) Adding the above two equations, we can write Δd = v f (Δt) – a(Δt) 2 Section 3.2-35

36. Section 3.2 Section 3.2 Motion with Constant Acceleration On the v-t graph shown on the right, for an object moving with constant acceleration that started with an initial velocity of v i, derive the object’s displacement. Position with Constant Acceleration Click the Back button to return to original slide. SS 3.2-1a

37. Section 3.2 Section 3.2 Motion with Constant Acceleration Position with Constant Acceleration Click the Back button to return to original slide. SS 3.2-1b

38. Section 3.2 Section 3.2 Motion with Constant Acceleration Position with Constant Acceleration Click the Back button to return to original slide. SS 3.2-1c

39. Section 3.2 Section 3.2 Motion with Constant Acceleration Position with Constant Acceleration Solving for the total area under the graph results in the following: When the initial or final position of the object is known, the equation can be written as follows: Click the Back button to return to original slide. SS 3.2-1d

40. Section 3.2 Section 3.2 Motion with Constant Acceleration Position with Constant Acceleration If the initial time, t i = 0, the equation then becomes the following: An object’s position at a later time is equal to the sum of its initial position, the product of the initial velocity and the time, and half the product of the acceleration and the square of the time. Click the Back button to return to original slide. SS 3.2-1e
