1. Ocean Observatories Initiative OOI Cyberinfrastructure Architecture Overview Michael Meisinger September 29, 2009

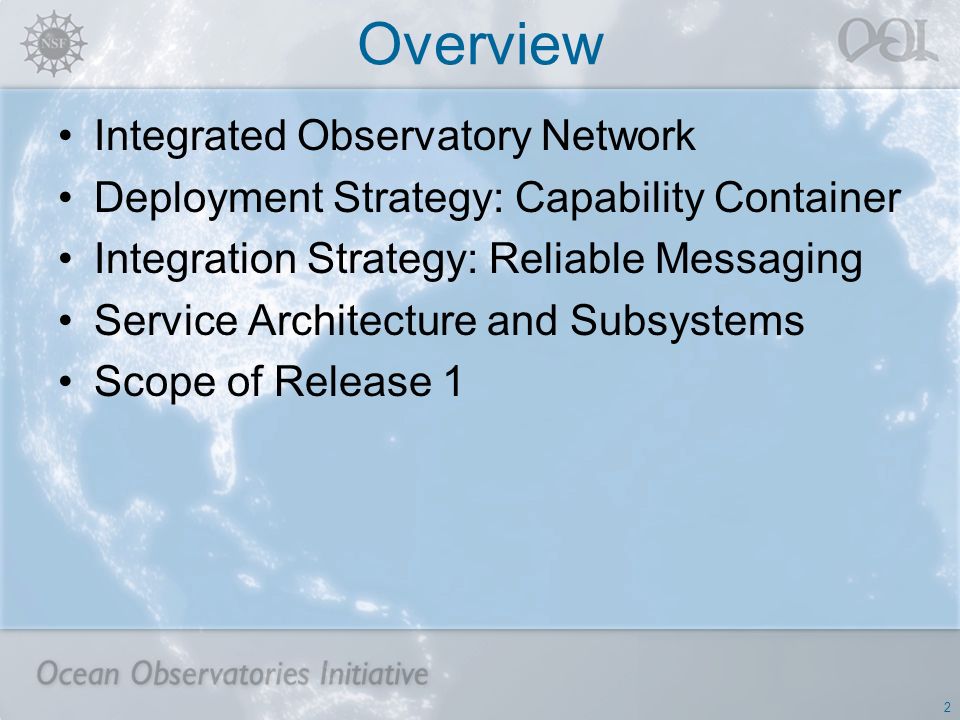

2. Overview Integrated Observatory Network Deployment Strategy: Capability Container Integration Strategy: Reliable Messaging Service Architecture and Subsystems Scope of Release 1 2

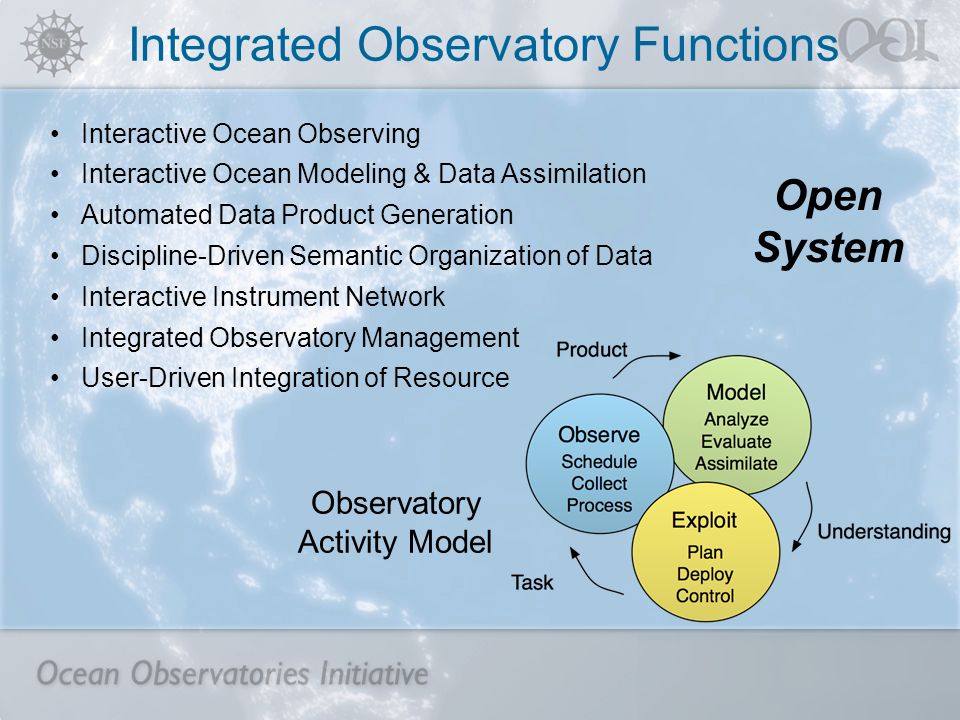

3. Integrated Observatory Functions Interactive Ocean Observing Interactive Ocean Modeling & Data Assimilation Automated Data Product Generation Discipline-Driven Semantic Organization of Data Interactive Instrument Network Integrated Observatory Management User-Driven Integration of Resource Observatory Activity Model Open System

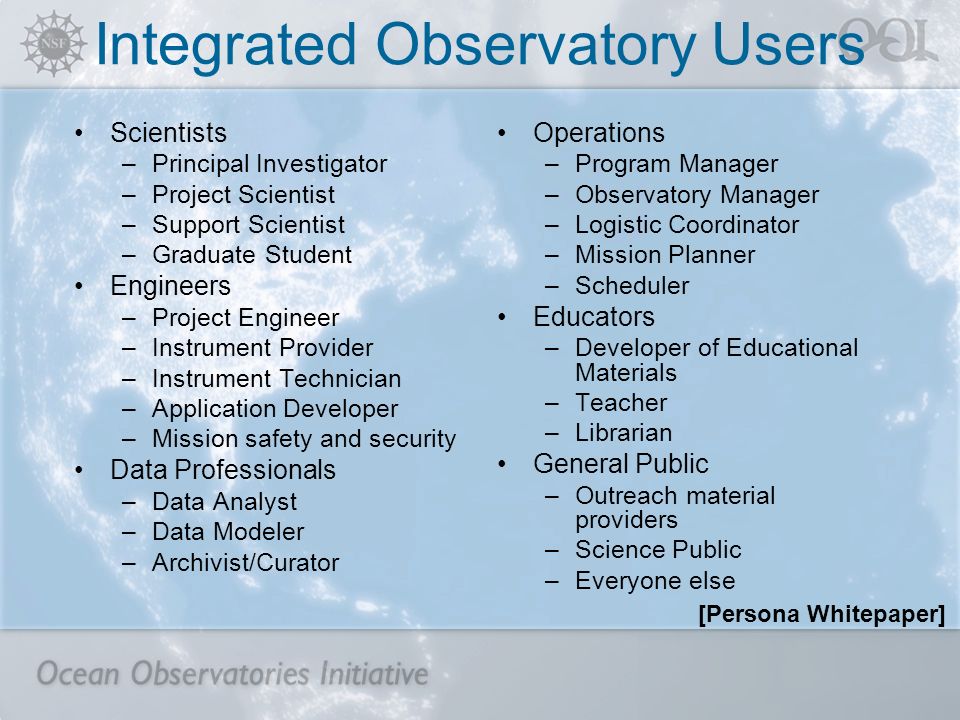

4. Integrated Observatory Users Scientists –Principal Investigator –Project Scientist –Support Scientist –Graduate Student Engineers –Project Engineer –Instrument Provider –Instrument Technician –Application Developer –Mission safety and security Data Professionals –Data Analyst –Data Modeler –Archivist/Curator Operations –Program Manager –Observatory Manager –Logistic Coordinator –Mission Planner –Scheduler Educators –Developer of Educational Materials –Teacher –Librarian General Public –Outreach material providers –Science Public –Everyone else [Persona Whitepaper]

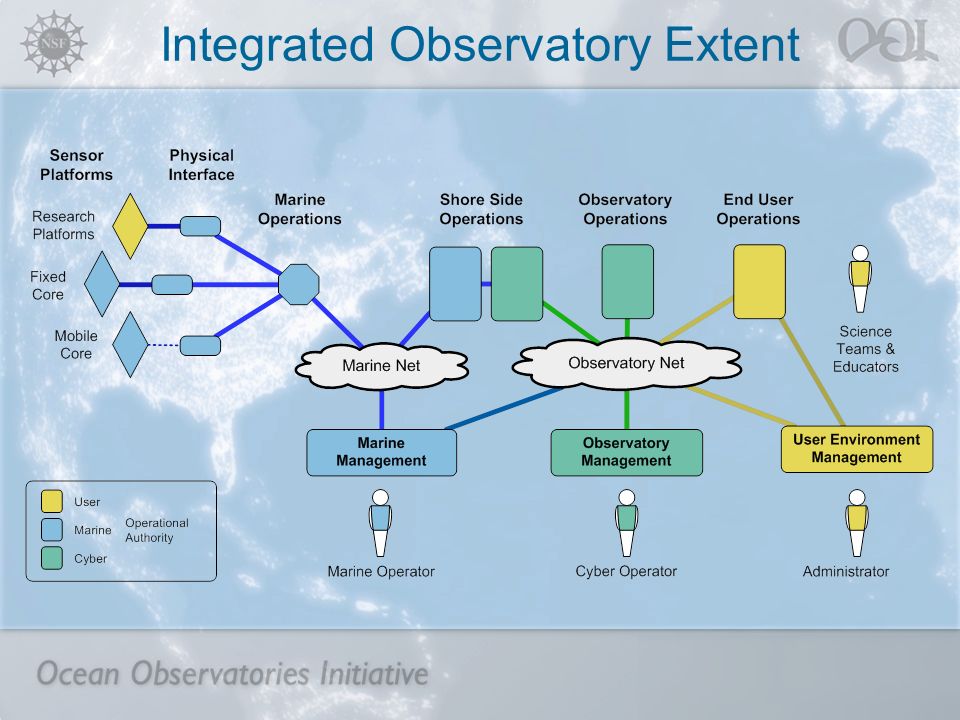

5. Integrated Observatory Extent

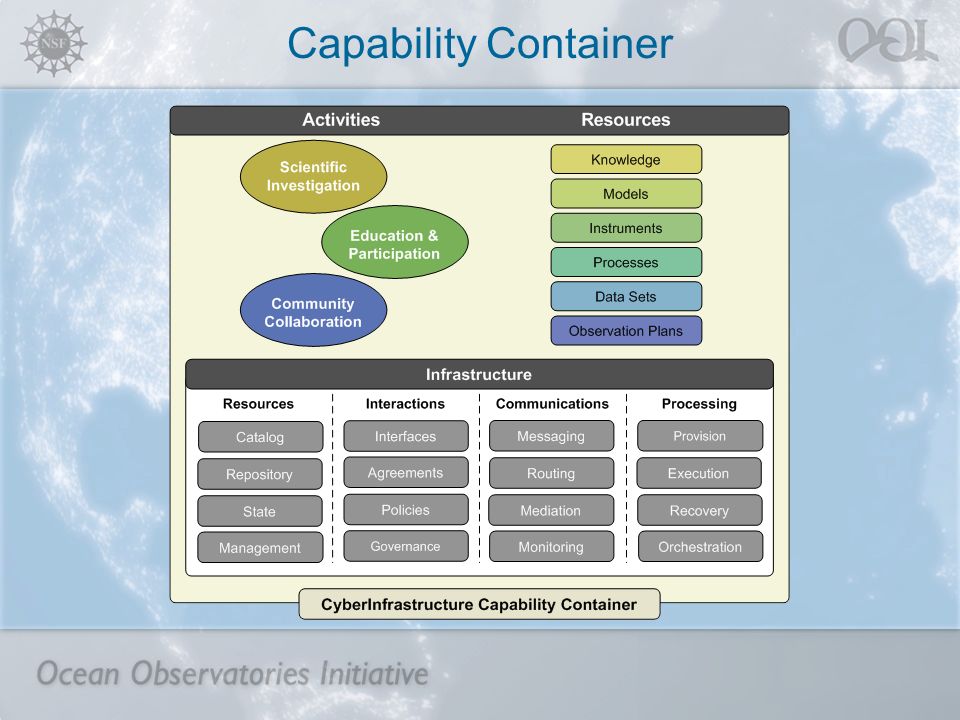

6. Capability Container

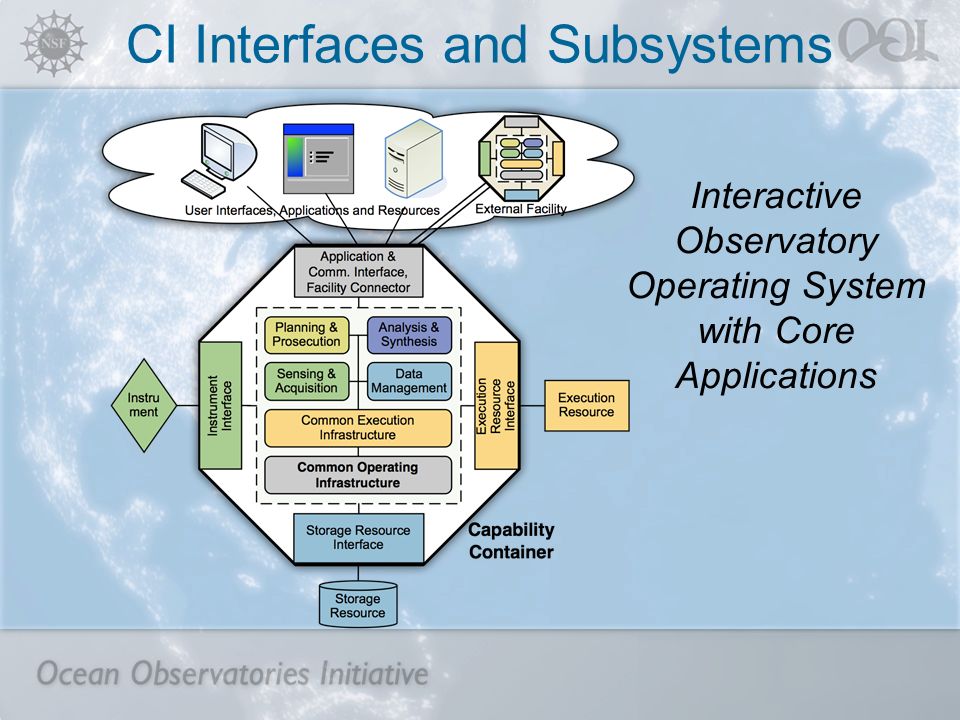

7. CI Interfaces and Subsystems Interactive Observatory Operating System with Core Applications

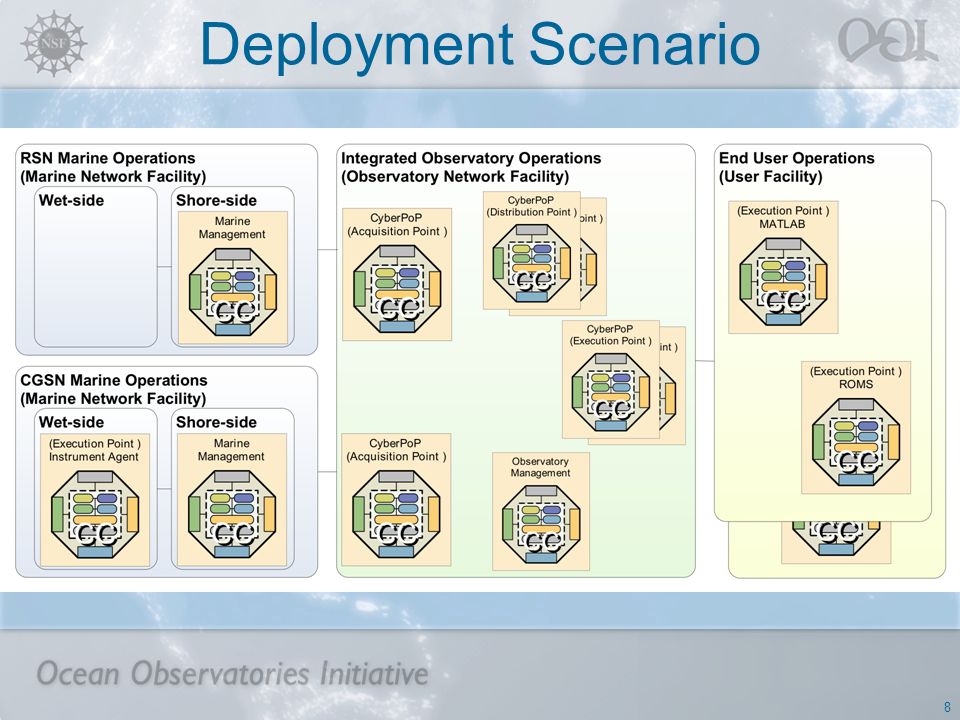

8. Deployment Scenario 8

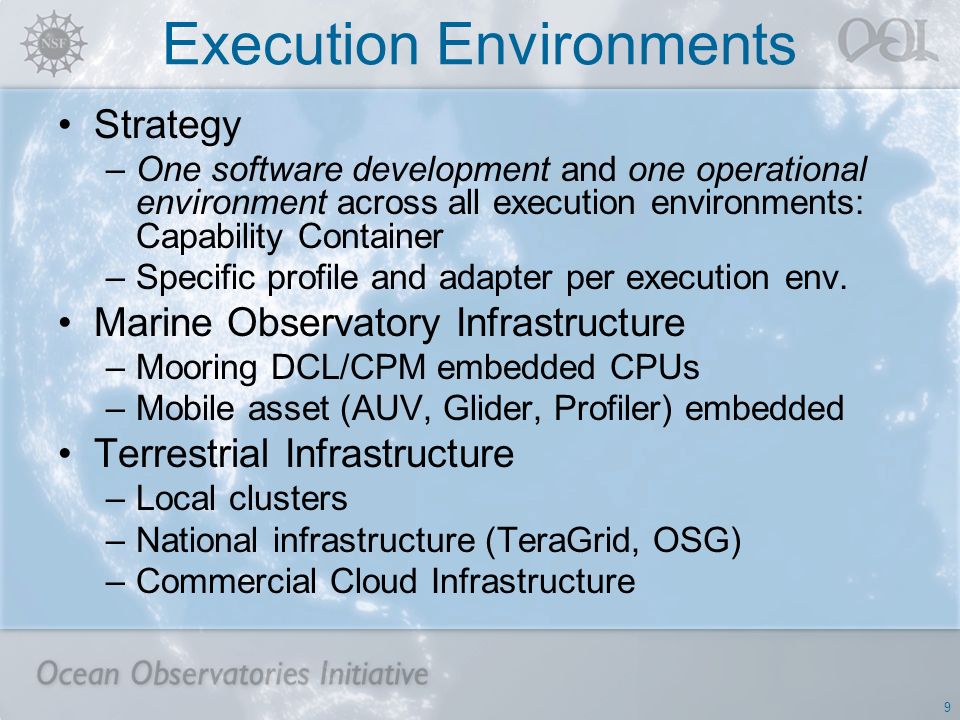

9. Execution Environments Strategy –One software development and one operational environment across all execution environments: Capability Container –Specific profile and adapter per execution env. Marine Observatory Infrastructure –Mooring DCL/CPM embedded CPUs –Mobile asset (AUV, Glider, Profiler) embedded Terrestrial Infrastructure –Local clusters –National infrastructure (TeraGrid, OSG) –Commercial Cloud Infrastructure 9

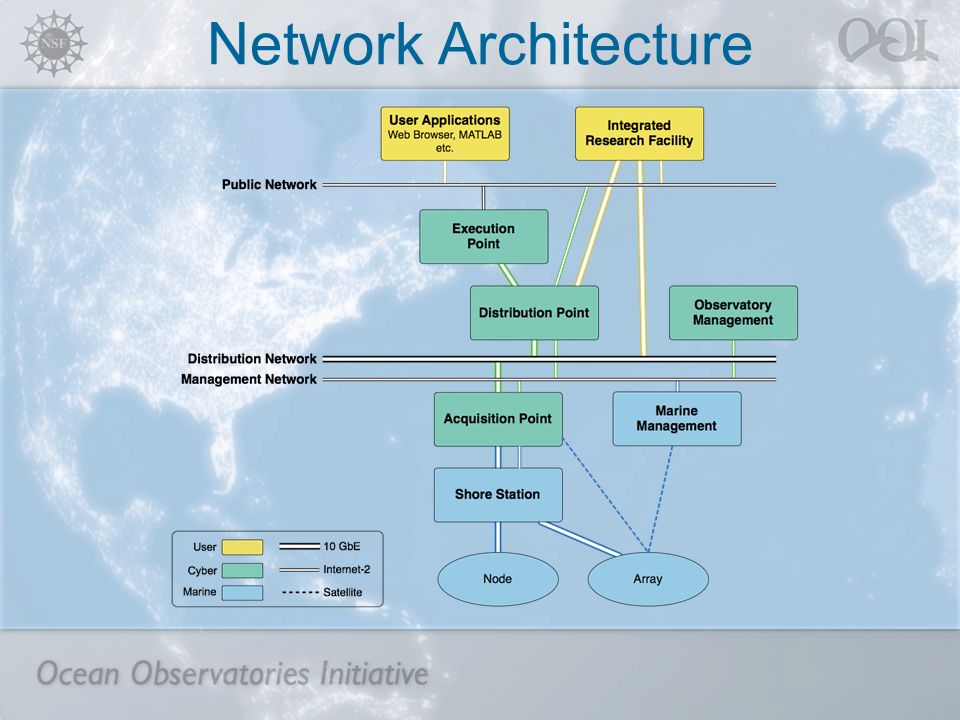

10. Network Architecture

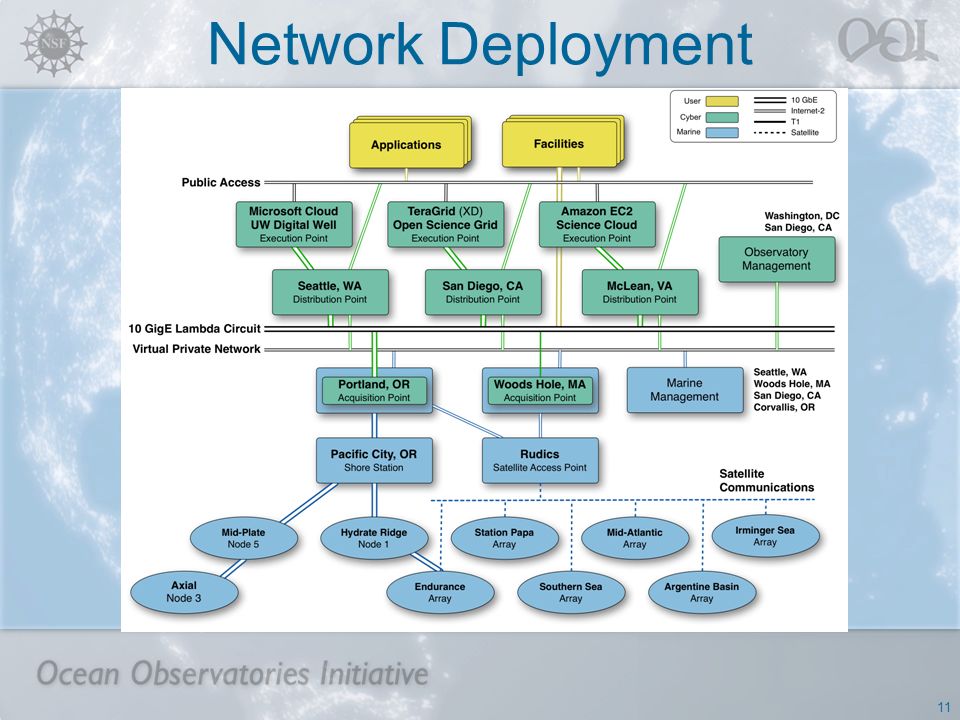

11. 11 Network Deployment

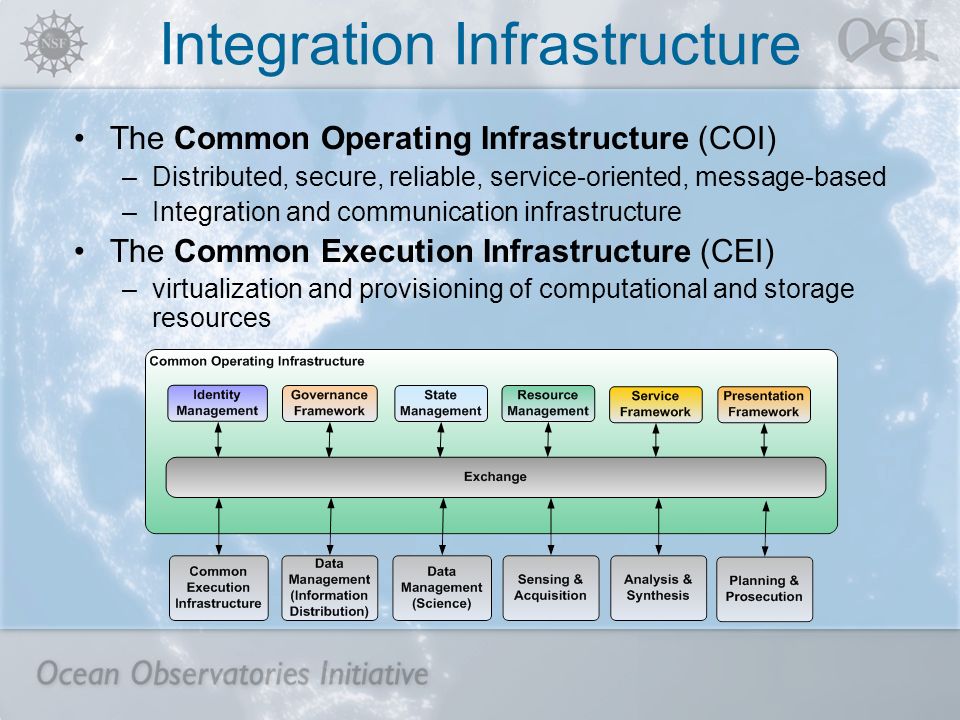

12. Integration Infrastructure The Common Operating Infrastructure (COI) –Distributed, secure, reliable, service-oriented, message-based –Integration and communication infrastructure The Common Execution Infrastructure (CEI) –virtualization and provisioning of computational and storage resources

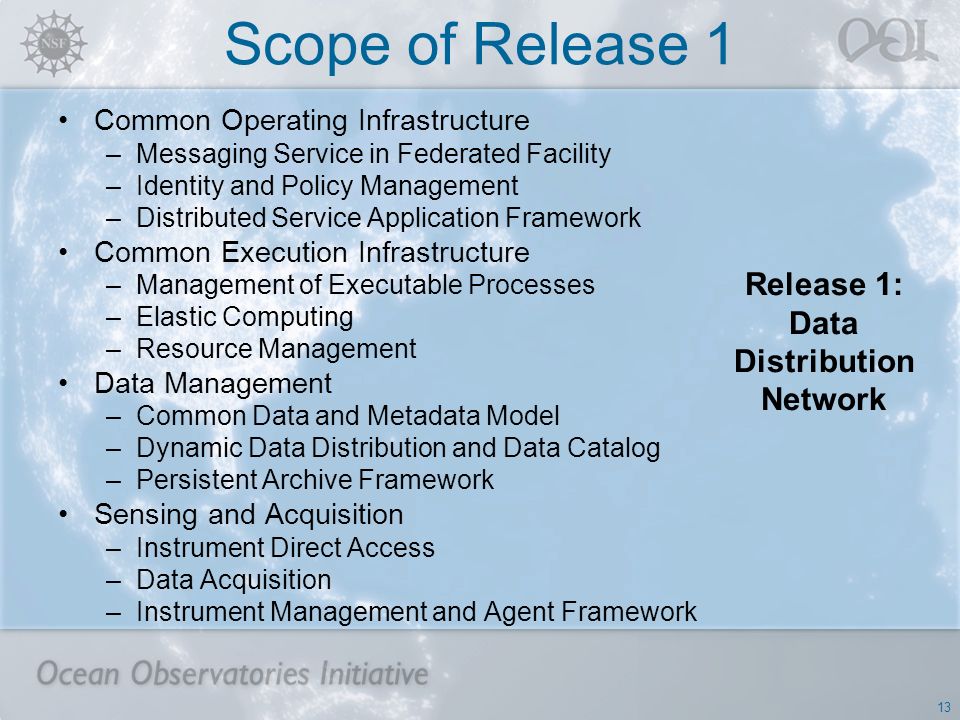

13. Scope of Release 1 Common Operating Infrastructure –Messaging Service in Federated Facility –Identity and Policy Management –Distributed Service Application Framework Common Execution Infrastructure –Management of Executable Processes –Elastic Computing –Resource Management Data Management –Common Data and Metadata Model –Dynamic Data Distribution and Data Catalog –Persistent Archive Framework Sensing and Acquisition –Instrument Direct Access –Data Acquisition –Instrument Management and Agent Framework 13 Release 1: Data Distribution Network

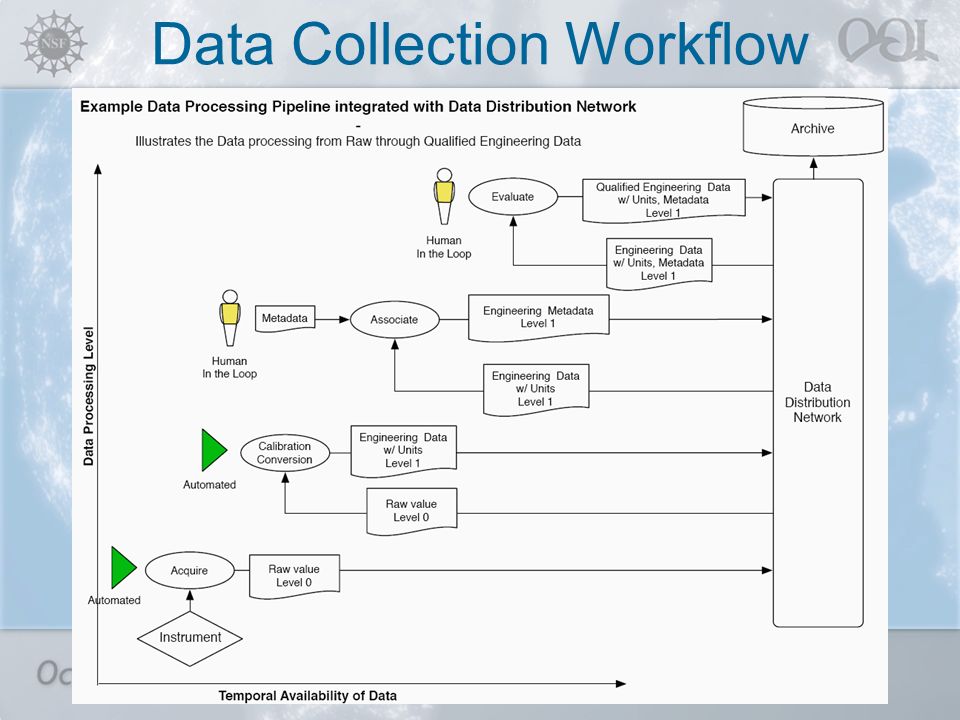

14. Data Collection Workflow

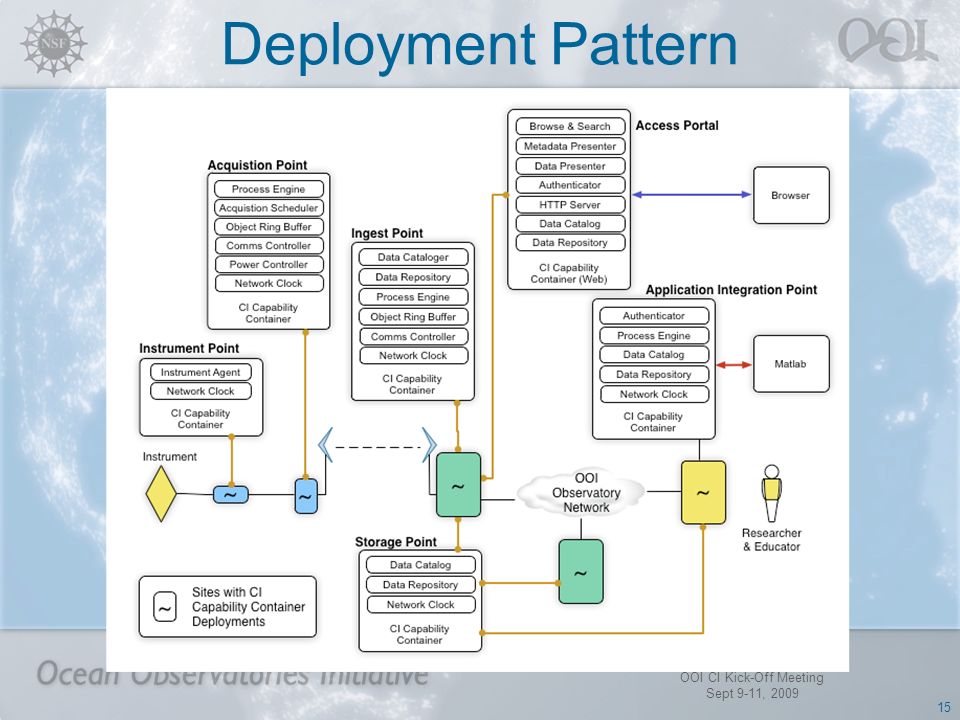

15. Deployment Pattern 15 OOI CI Kick-Off Meeting Sept 9-11, 2009

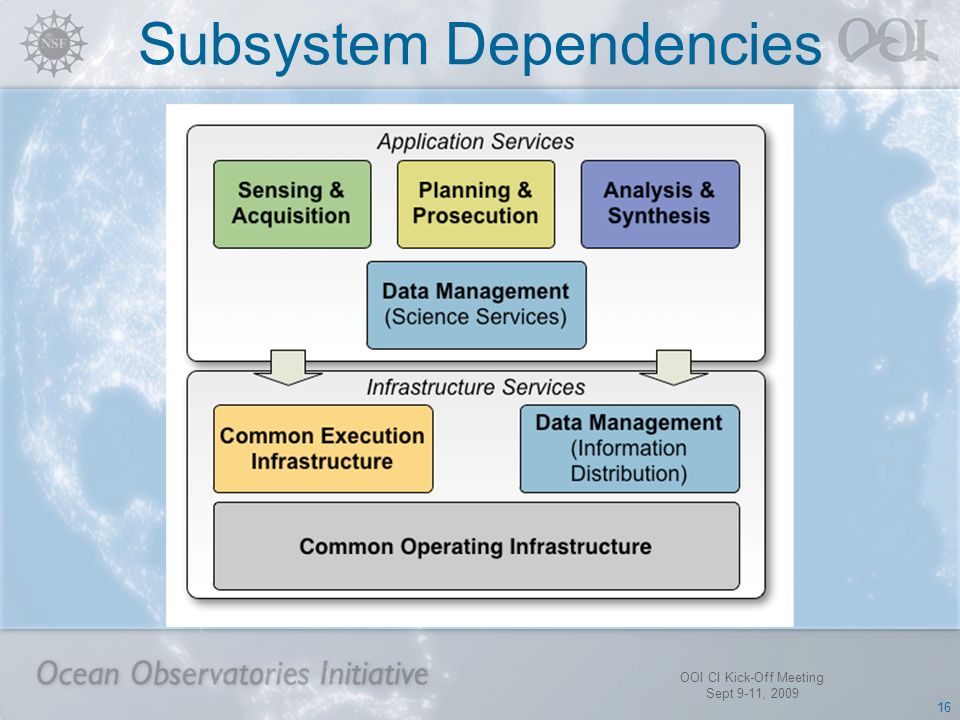

16. Subsystem Dependencies 16 OOI CI Kick-Off Meeting Sept 9-11, 2009

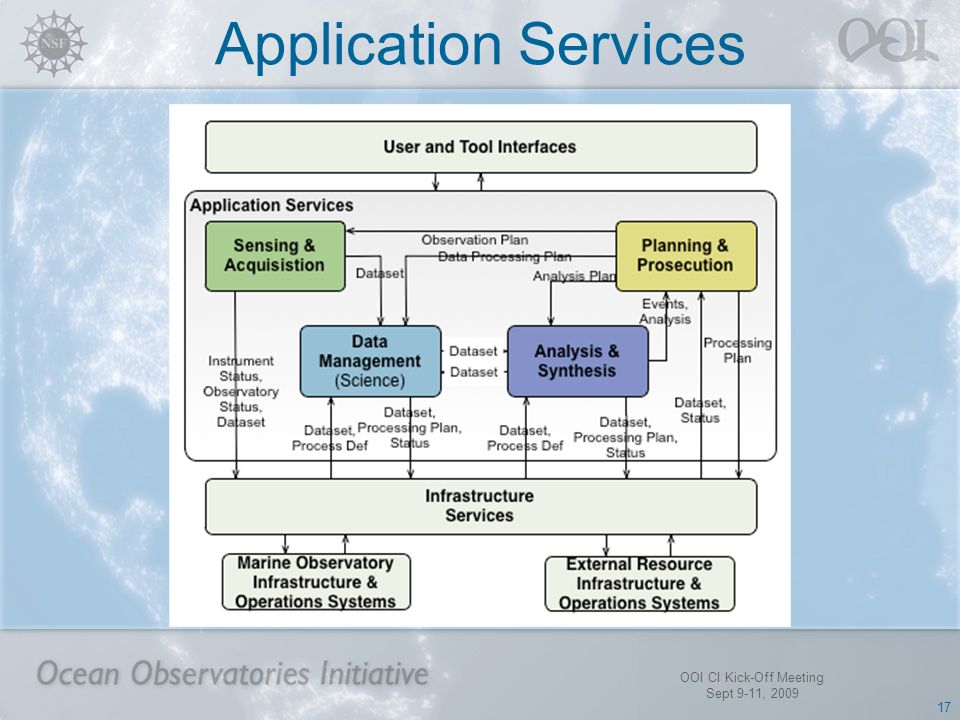

17. Application Services 17 OOI CI Kick-Off Meeting Sept 9-11, 2009

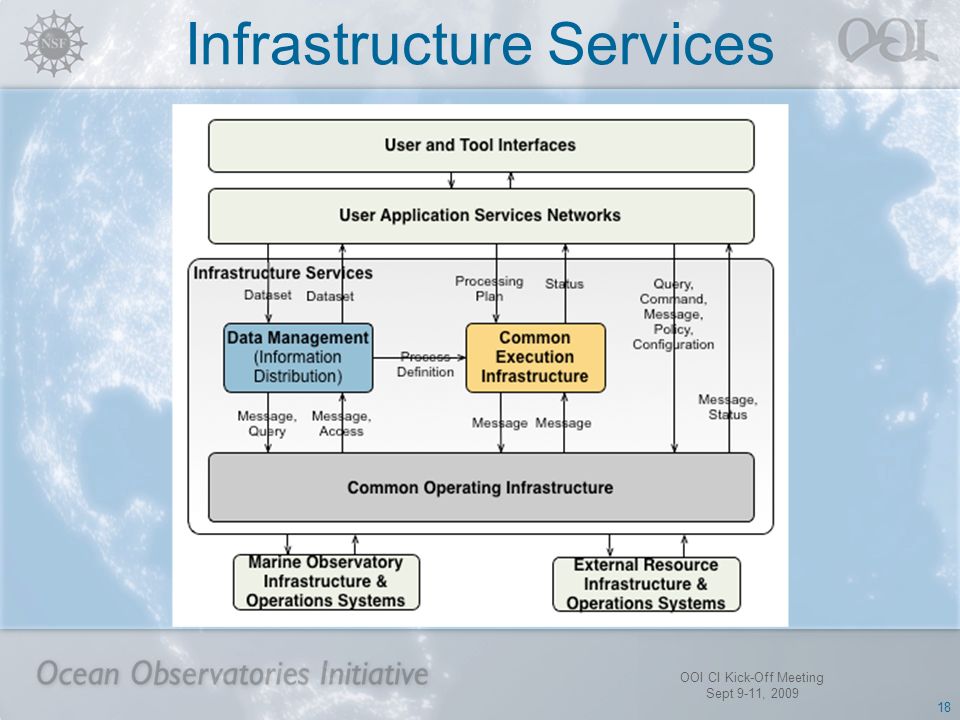

18. Infrastructure Services 18 OOI CI Kick-Off Meeting Sept 9-11, 2009

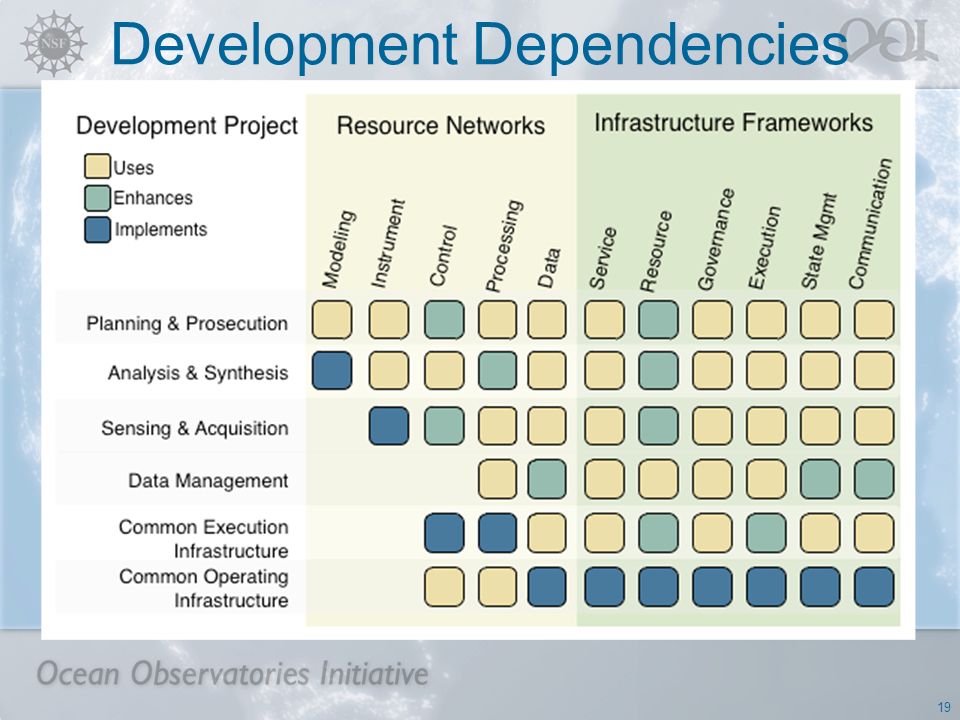

19. Development Dependencies 19

20. Technology Readiness Level TRLDefinitionDescription 1Basic principles observed and reported. Lowest level of technology readiness. Scientific research begins to be translated into applied research and development. Examples might include paper studies of a technology's basic properties. 2Technology concept and/or application formulated. Invention begins. Once basic principles are observed, practical applications can be invented. Applications are speculative and there may be no proof or detailed analysis to support the assumptions. Examples are limited to analytic studies. 3Analytical and experimental critical function and/or characteristic proof of concept. Active research and development is initiated. This includes analytical studies and laboratory studies to physically validate analytical predictions of separate elements of the technology. Examples include components that are not yet integrated or representative. 4Component and/or breadboard validation in laboratory environment. Basic technological components are integrated to establish that they will work together. This is relatively "low fidelity" compared to the eventual system. Examples include integration of "ad hoc" hardware in the laboratory. 5Component and/or breadboard validation in relevant environment. Fidelity of breadboard technology increases significantly. The basic technological components are integrated with reasonably realistic supporting elements so it can be tested in a simulated environment. Examples include "high fidelity" laboratory integration of components. 6System/subsystem model or prototype demonstration in a relevant environment. Representative model or prototype system, which is well beyond that of TRL 5, is tested in a relevant environment. Represents a major step up in a technology's demonstrated readiness. Examples include testing a prototype in a high-fidelity laboratory environment or in simulated operational environment. 7System prototype demonstration in an operational environment. Prototype near, or at, planned operational system. Represents a major step up from TRL 6, requiring demonstration of an actual system prototype in an operational environment such as an aircraft, vehicle, or space. Examples include testing the prototype in a test bed aircraft. 8Actual system completed and qualified through test and demonstration. Technology has been proven to work in its final form and under expected conditions. In almost all cases, this TRL represents the end of true system development. Examples include developmental test and evaluation of the system in its intended weapon system to determine if it meets design specifications. 9Actual system proven through successful mission operations. Actual application of the technology in its final form and under mission conditions, such as those encountered in operational test and evaluation. Examples include using the system under operational mission conditions.

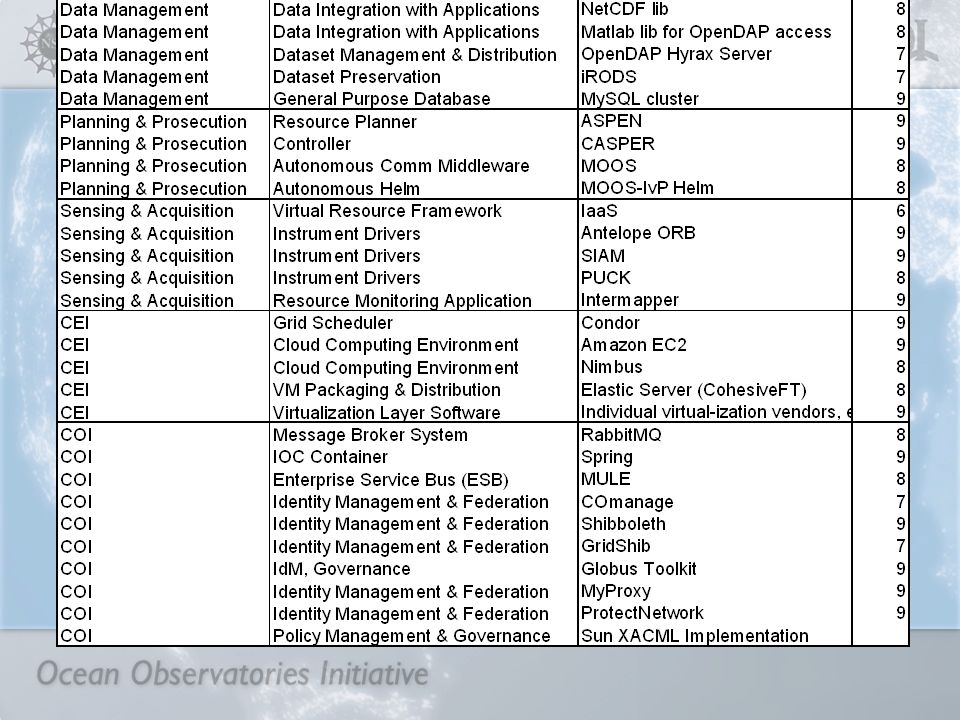

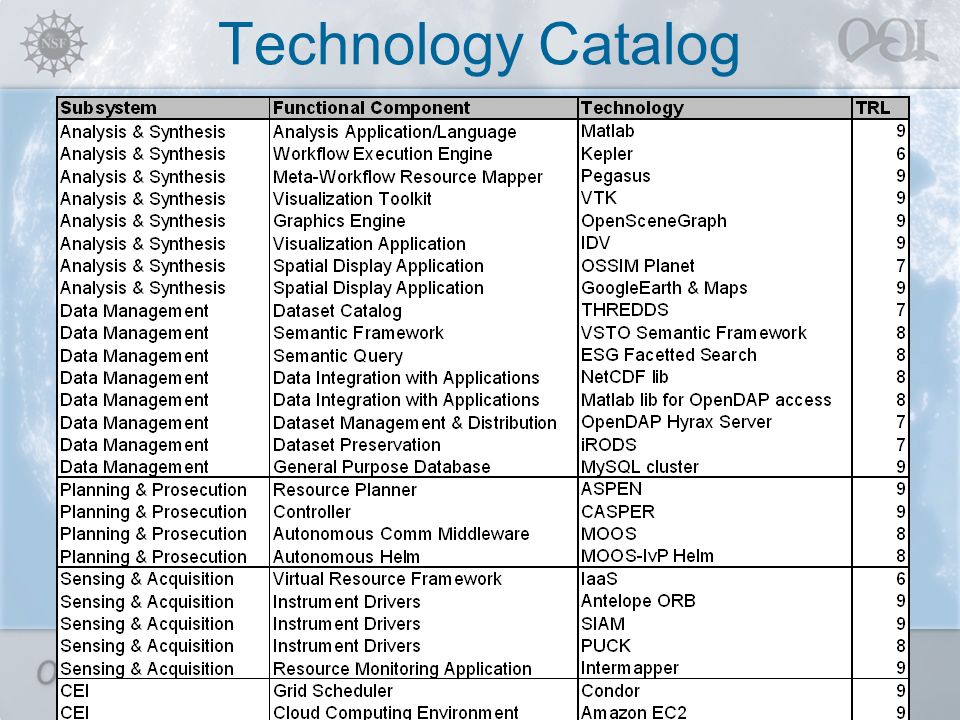

21. Technology Catalog

23. 23 Thanks !

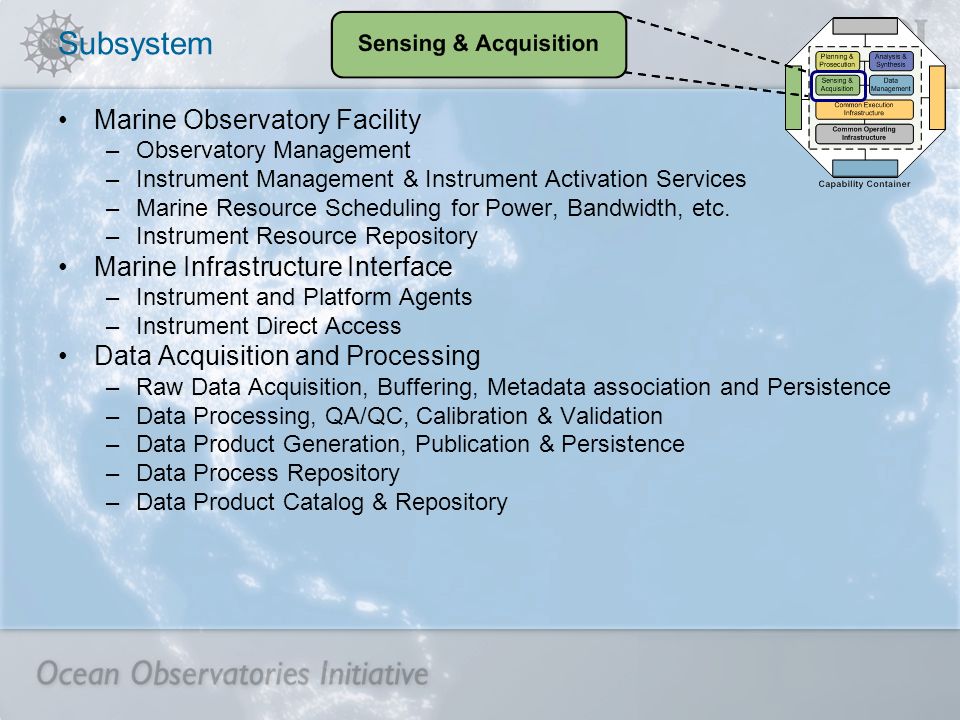

24. Subsystem Marine Observatory Facility –Observatory Management –Instrument Management & Instrument Activation Services –Marine Resource Scheduling for Power, Bandwidth, etc. –Instrument Resource Repository Marine Infrastructure Interface –Instrument and Platform Agents –Instrument Direct Access Data Acquisition and Processing –Raw Data Acquisition, Buffering, Metadata association and Persistence –Data Processing, QA/QC, Calibration & Validation –Data Product Generation, Publication & Persistence –Data Process Repository –Data Product Catalog & Repository

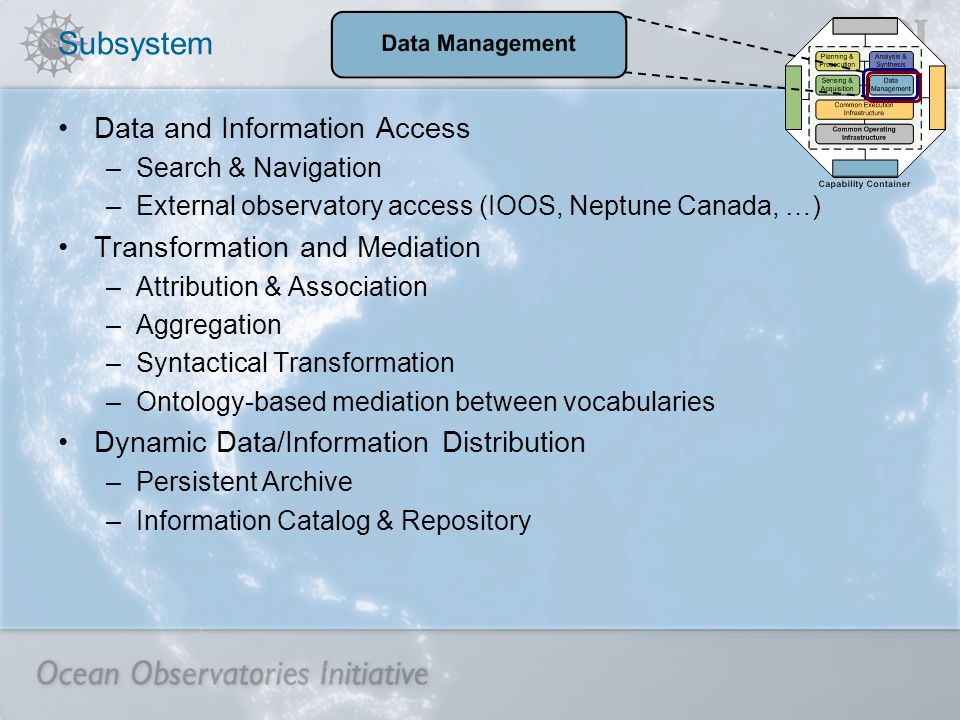

25. Subsystem Data and Information Access –Search & Navigation –External observatory access (IOOS, Neptune Canada, …) Transformation and Mediation –Attribution & Association –Aggregation –Syntactical Transformation –Ontology-based mediation between vocabularies Dynamic Data/Information Distribution –Persistent Archive –Information Catalog & Repository

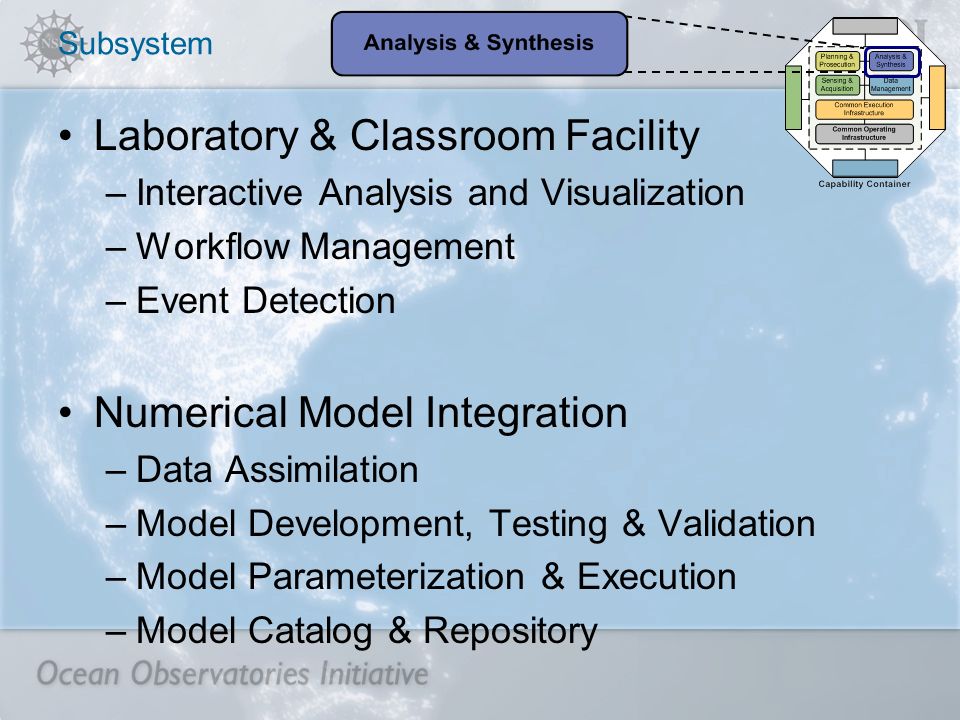

26. Subsystem Laboratory & Classroom Facility –Interactive Analysis and Visualization –Workflow Management –Event Detection Numerical Model Integration –Data Assimilation –Model Development, Testing & Validation –Model Parameterization & Execution –Model Catalog & Repository

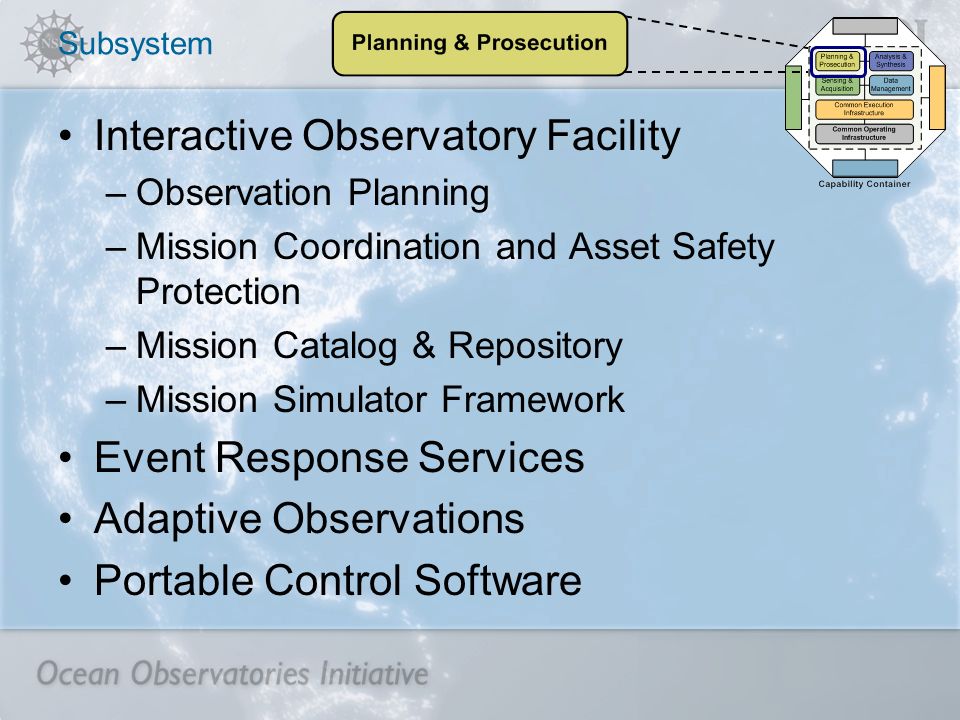

27. Subsystem Interactive Observatory Facility –Observation Planning –Mission Coordination and Asset Safety Protection –Mission Catalog & Repository –Mission Simulator Framework Event Response Services Adaptive Observations Portable Control Software

28. Subsystem Computing Management –Resource Provisioning and Management –Execution Engine Catalog & Repository –Process Management –Process Catalog & Repository Elastic Computing Integration with National Computing Infrastructure

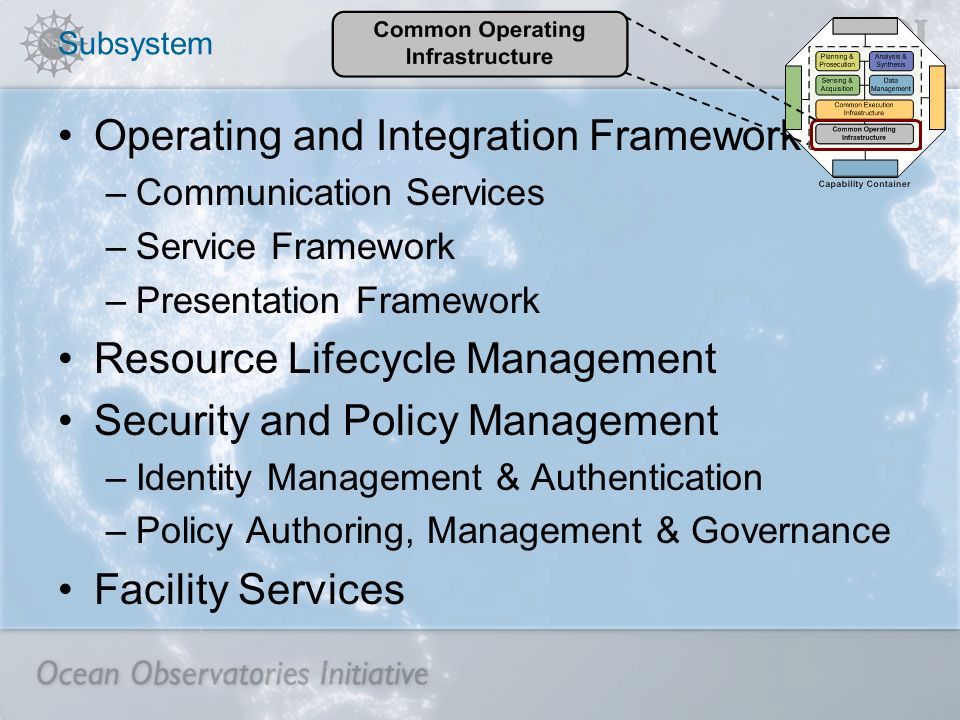

29. Subsystem Operating and Integration Framework –Communication Services –Service Framework –Presentation Framework Resource Lifecycle Management Security and Policy Management –Identity Management & Authentication –Policy Authoring, Management & Governance Facility Services

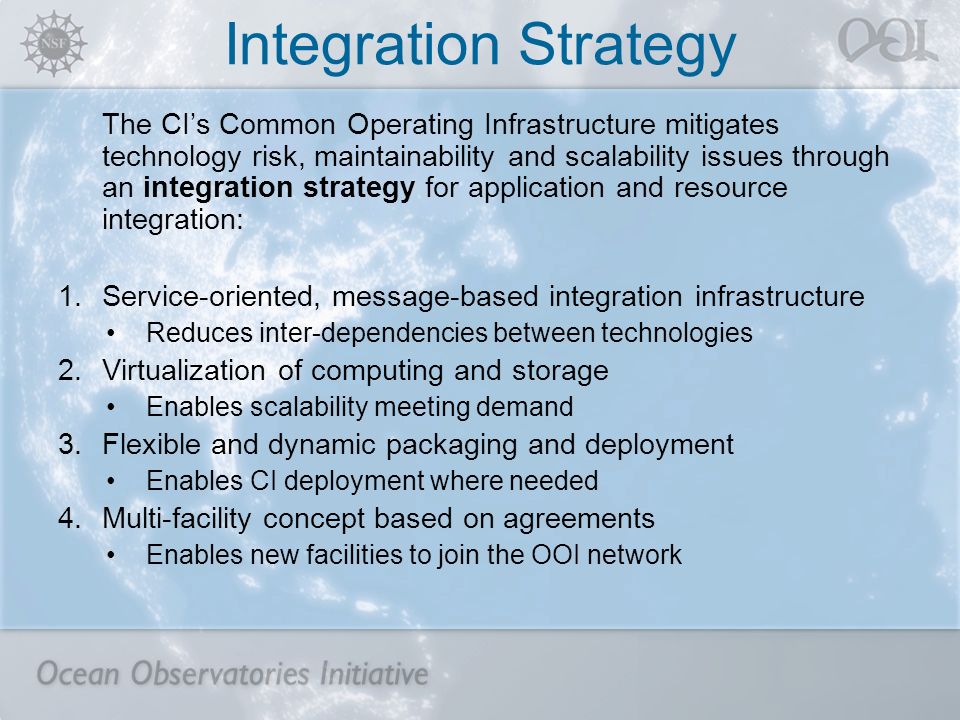

30. Integration Strategy The CI’s Common Operating Infrastructure mitigates technology risk, maintainability and scalability issues through an integration strategy for application and resource integration: 1.Service-oriented, message-based integration infrastructure Reduces inter-dependencies between technologies 2.Virtualization of computing and storage Enables scalability meeting demand 3.Flexible and dynamic packaging and deployment Enables CI deployment where needed 4.Multi-facility concept based on agreements Enables new facilities to join the OOI network
