1. Some Advanced Features of Procedures

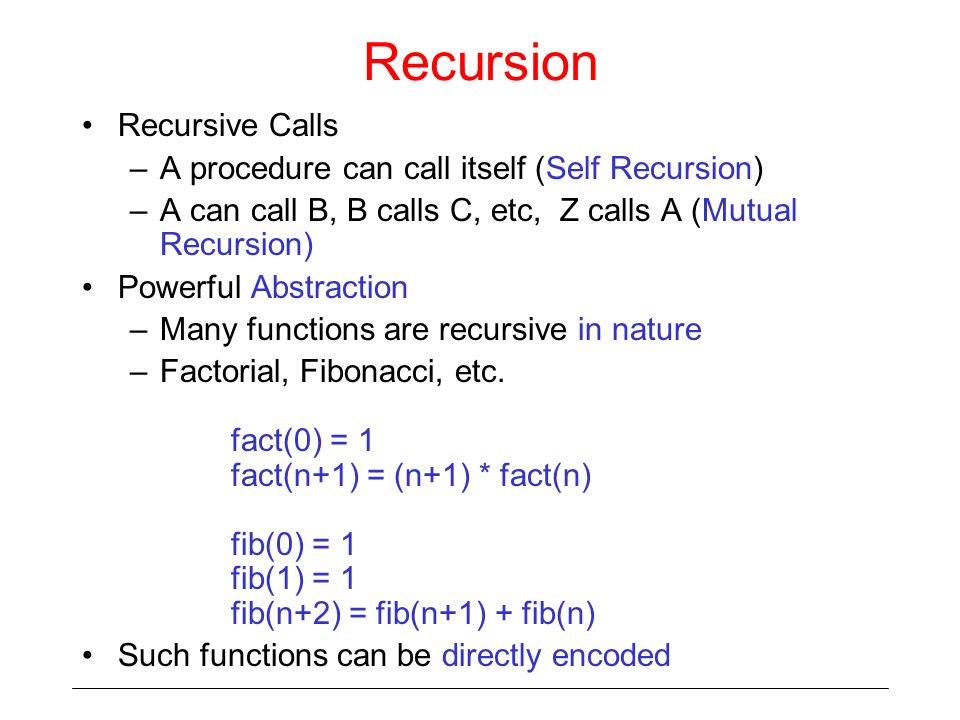

2. Recursion Recursive Calls –A procedure can call itself (Self Recursion) –A can call B, B calls C, etc, Z calls A (Mutual Recursion) Powerful Abstraction –Many functions are recursive in nature –Factorial, Fibonacci, etc. fact(0) = 1 fact(n+1) = (n+1) * fact(n) fib(0) = 1 fib(1) = 1 fib(n+2) = fib(n+1) + fib(n) Such functions can be directly encoded

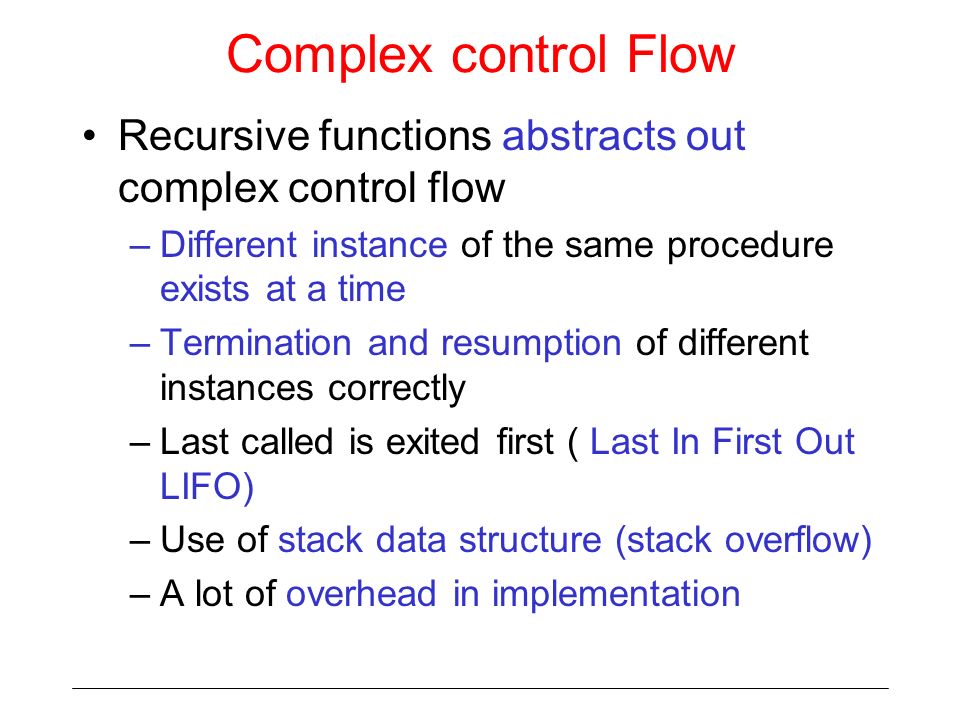

3. Complex control Flow Recursive functions abstracts out complex control flow –Different instance of the same procedure exists at a time –Termination and resumption of different instances correctly –Last called is exited first ( Last In First Out LIFO) –Use of stack data structure (stack overflow) –A lot of overhead in implementation

4. Factorial Example Program fact Implicit none integer:: N, z read *, N call fct(N, z) print *, z contains recursive subroutine fct(M, y) implicit none integer, intent(in):: M integer, intent(out):: y if (M >= 1) then call fct(M - 1, y) y = M * y else y = 1 endif end subroutine end program

5. Recursive Function Program fact implicit none integer:: N, z read *, N z = fct(N) print *, z contains recursive integer function fct(M) result(answer) implicit none integer:: M, answer if (M /= 0) then answer = M * fct(M - 1) else answer = 1 endif end function end program

6. Fibonacci Numbers Program fibonacci implicit none integer:: N, z read *, N call fib(N, z) print *, z contains recursive subroutine fib(M, y) implicit none integer, intent(in):: M integer, intent(out):: y integer:: y1, y2 if (M > 1) then call fib(M - 1, y1) call fib(M - 1, y2) y = y1 + y2 else y = 1 endif end subroutine end program

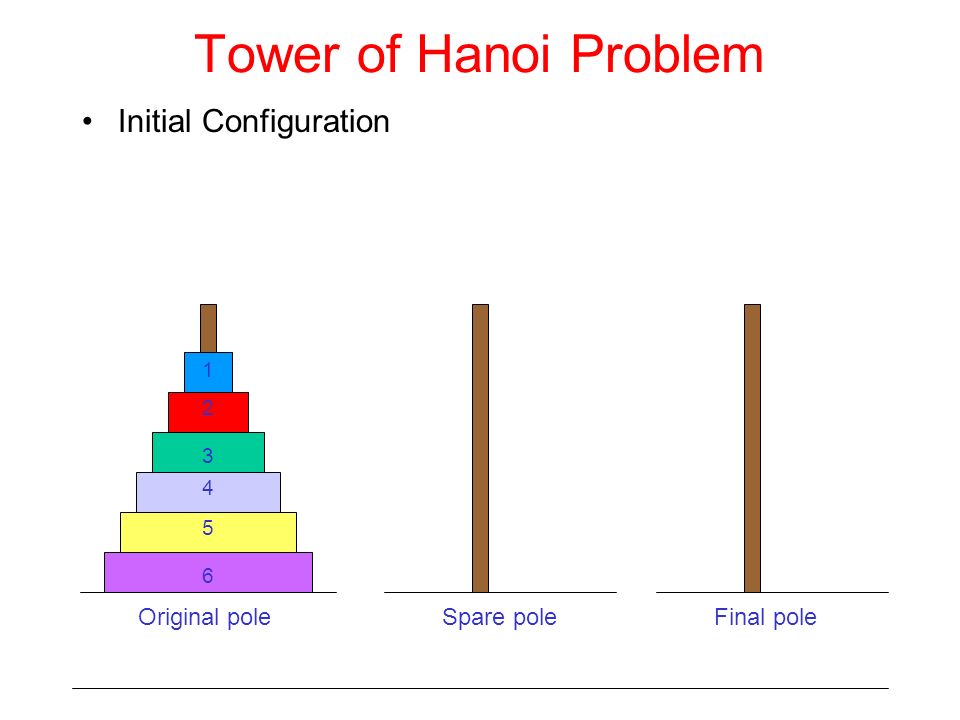

7. Tower of Hanoi Problem Initial Configuration Original pole 6 5 4 3 2 1 Final poleSpare pole

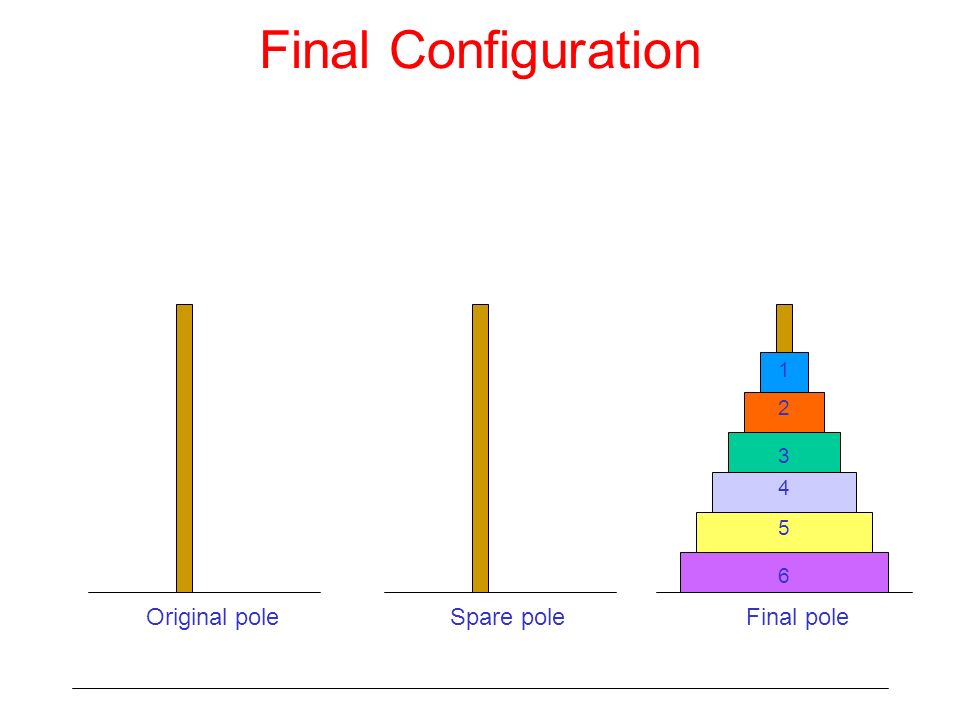

8. Final Configuration Original poleSpare poleFinal pole 6 5 4 3 2 1

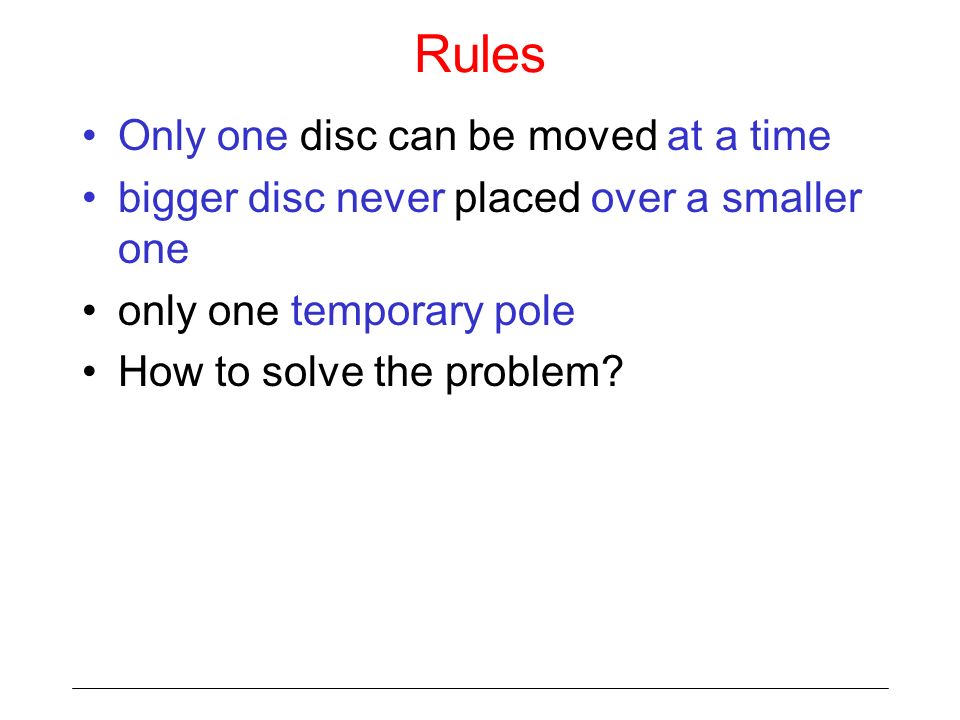

9. Rules Only one disc can be moved at a time bigger disc never placed over a smaller one only one temporary pole How to solve the problem?

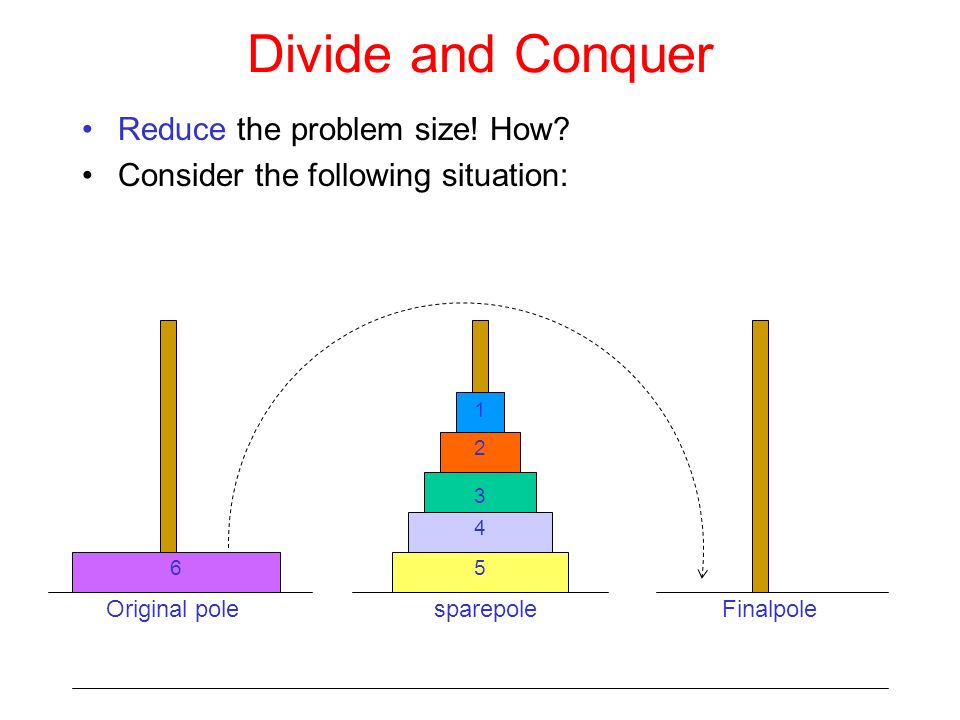

10. Divide and Conquer Reduce the problem size! How? Consider the following situation: Original pole 65 4 3 2 1 Finalpolesparepole

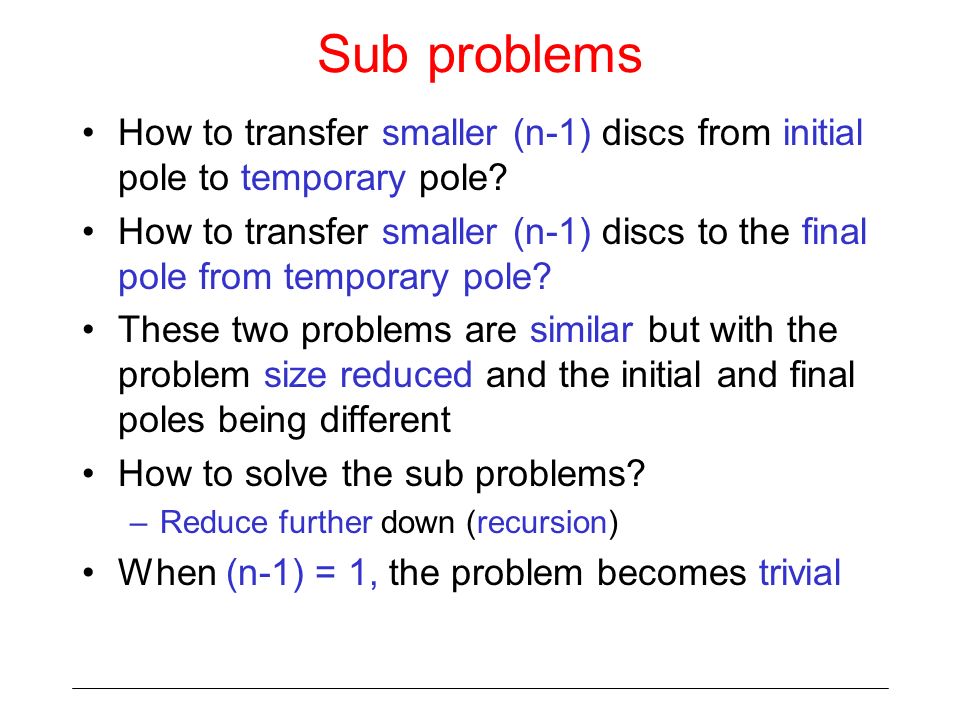

11. Sub problems How to transfer smaller (n-1) discs from initial pole to temporary pole? How to transfer smaller (n-1) discs to the final pole from temporary pole? These two problems are similar but with the problem size reduced and the initial and final poles being different How to solve the sub problems? –Reduce further down (recursion) When (n-1) = 1, the problem becomes trivial

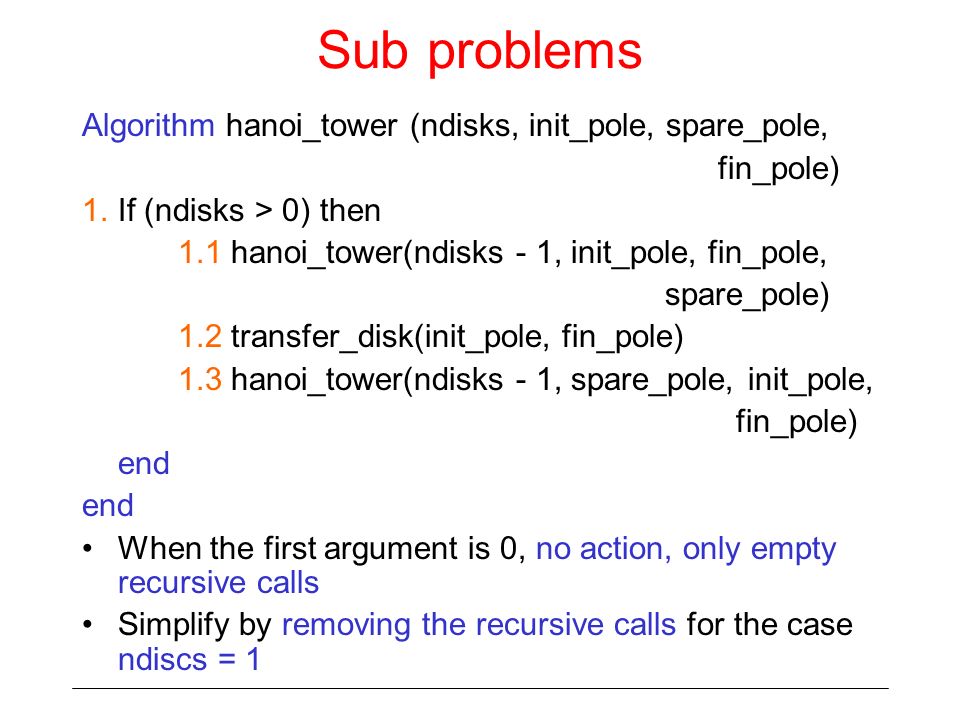

12. Sub problems Algorithm hanoi_tower (ndisks, init_pole, spare_pole, fin_pole) 1.If (ndisks > 0) then 1.1 hanoi_tower(ndisks - 1, init_pole, fin_pole, spare_pole) 1.2 transfer_disk(init_pole, fin_pole) 1.3 hanoi_tower(ndisks - 1, spare_pole, init_pole, fin_pole) end When the first argument is 0, no action, only empty recursive calls Simplify by removing the recursive calls for the case ndiscs = 1

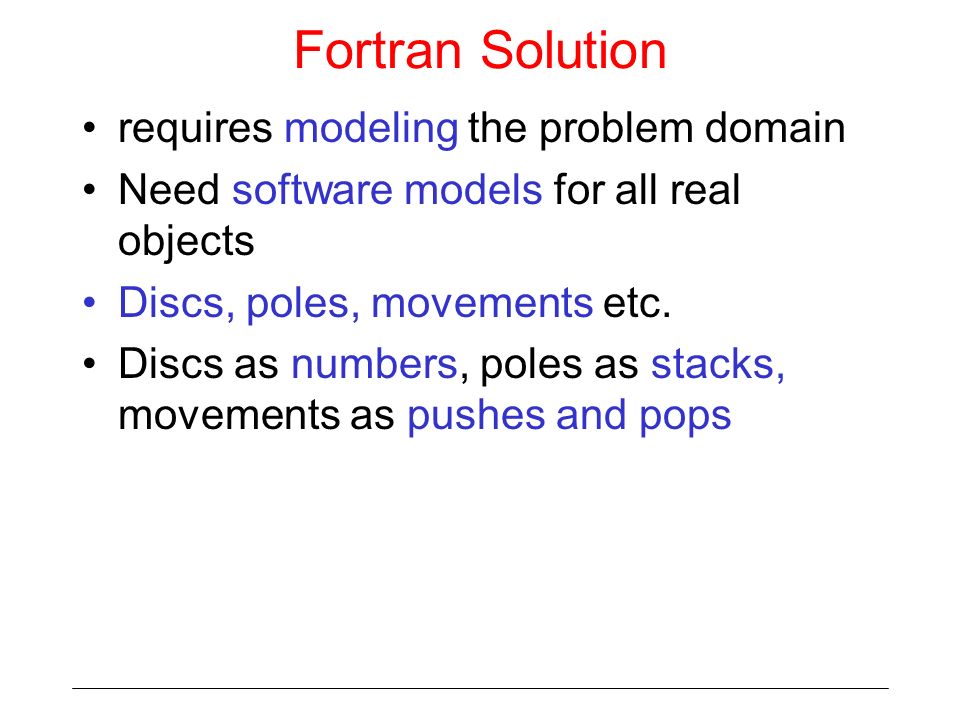

13. Fortran Solution requires modeling the problem domain Need software models for all real objects Discs, poles, movements etc. Discs as numbers, poles as stacks, movements as pushes and pops

14. Quick Sort quick sort is another sorting algorithm which when implemented properly gives the fastest known sorting algorithm for random inputs useful for sorting arrays rather than lists main idea – pick one element, put it in its correct position, all elements < than it to its left and others to its right recursively sort left and right halves expressed easily using recursion

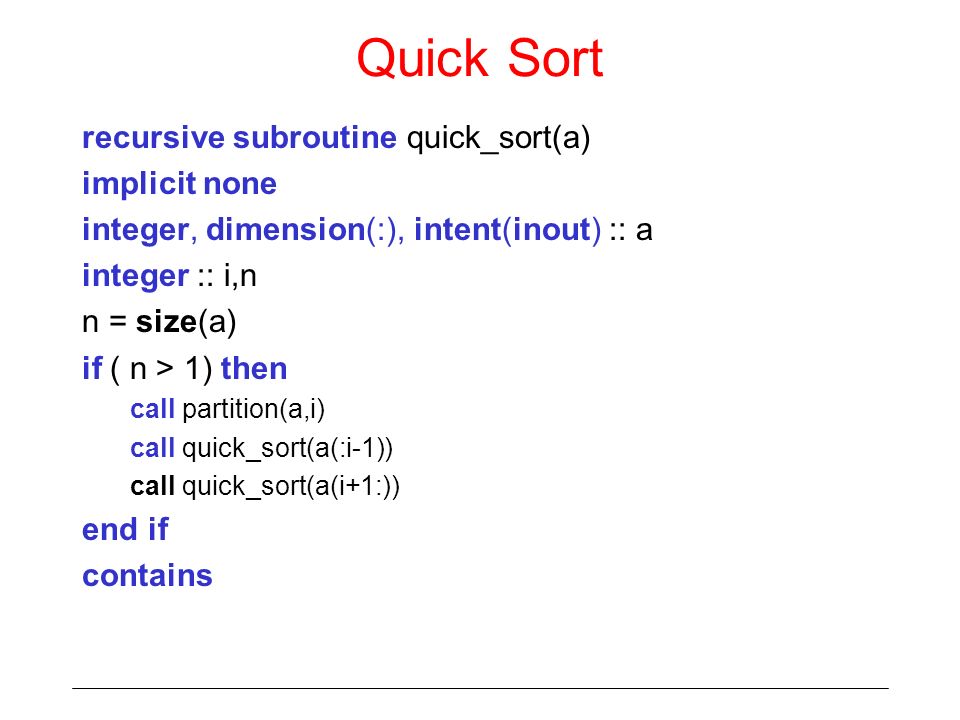

15. Quick Sort recursive subroutine quick_sort(a) implicit none integer, dimension(:), intent(inout) :: a integer :: i,n n = size(a) if ( n > 1) then call partition(a,i) call quick_sort(a(:i-1)) call quick_sort(a(i+1:)) end if contains

16. Partition subroutine partition(a,j) integer, dimension(:), intent(inout) :: a integer,intent(out) :: j integer :: i,temp i = 1 ; j = size(a) do if ( i > j ) exit if (a(i) > a(1)) exit i = i+1 end do

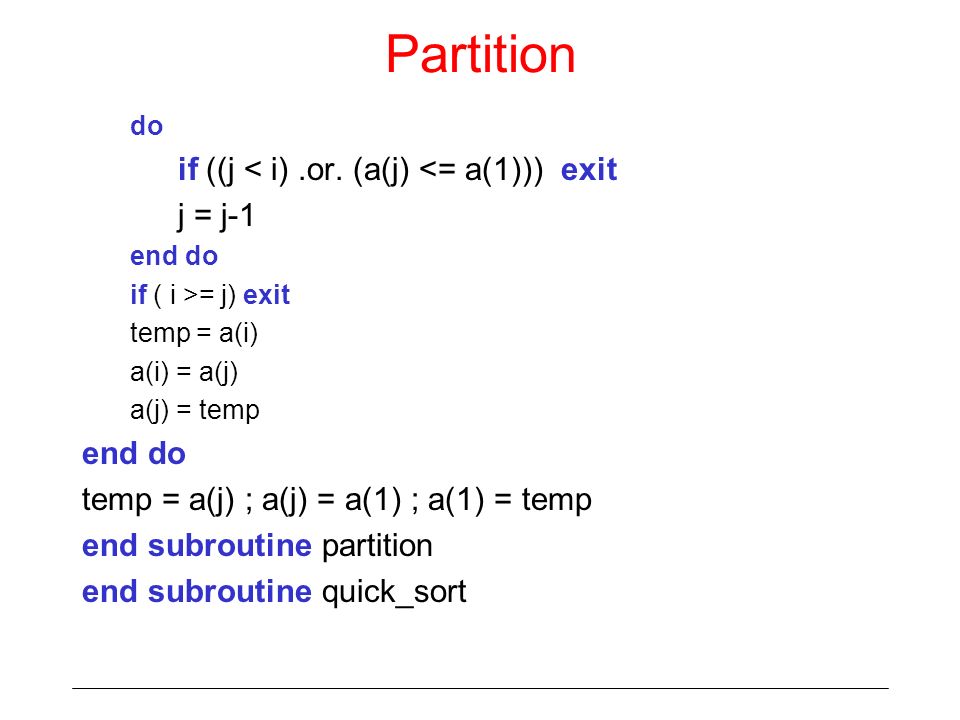

17. Partition do if ((j < i).or. (a(j) <= a(1))) exit j = j-1 end do if ( i >= j) exit temp = a(i) a(i) = a(j) a(j) = temp end do temp = a(j) ; a(j) = a(1) ; a(1) = temp end subroutine partition end subroutine quick_sort

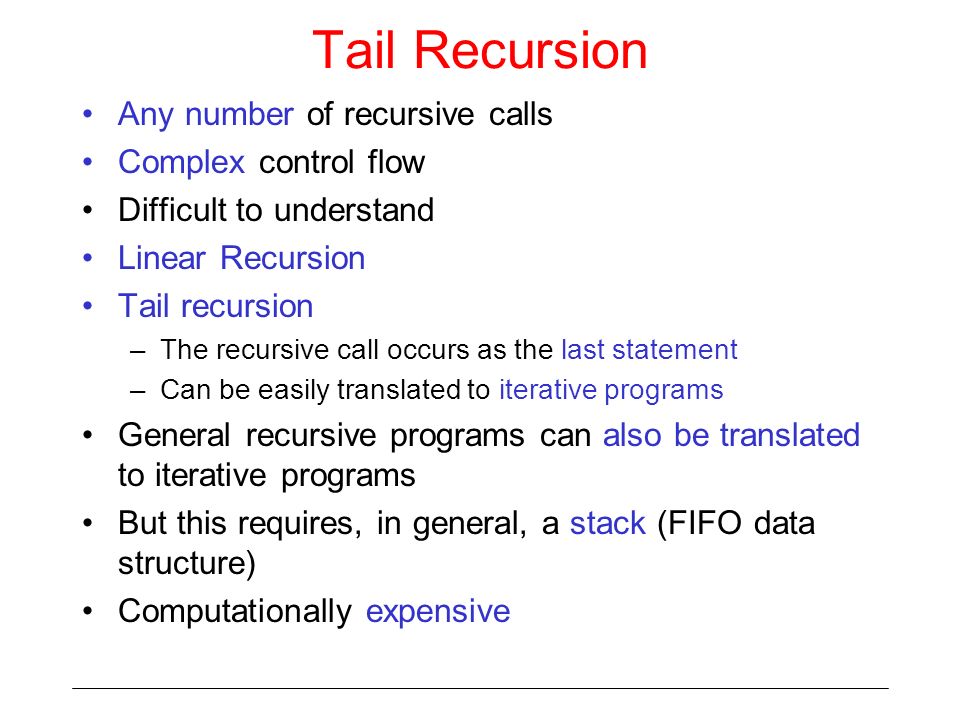

18. Tail Recursion Any number of recursive calls Complex control flow Difficult to understand Linear Recursion Tail recursion –The recursive call occurs as the last statement –Can be easily translated to iterative programs General recursive programs can also be translated to iterative programs But this requires, in general, a stack (FIFO data structure) Computationally expensive

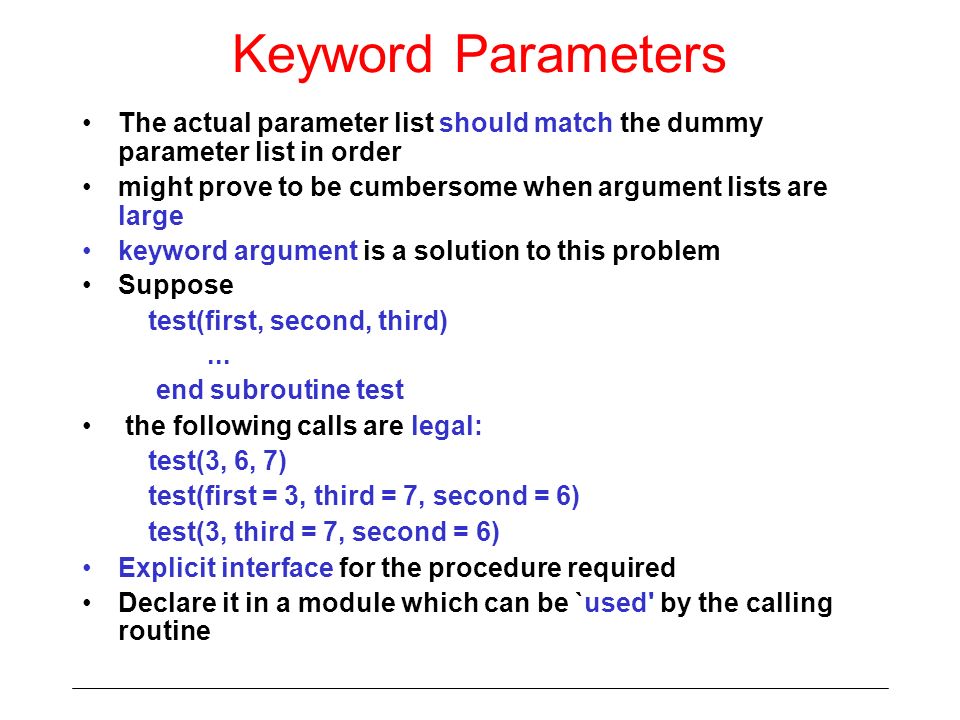

19. Keyword Parameters The actual parameter list should match the dummy parameter list in order might prove to be cumbersome when argument lists are large keyword argument is a solution to this problem Suppose test(first, second, third)... end subroutine test the following calls are legal: test(3, 6, 7) test(first = 3, third = 7, second = 6) test(3, third = 7, second = 6) Explicit interface for the procedure required Declare it in a module which can be `used' by the calling routine

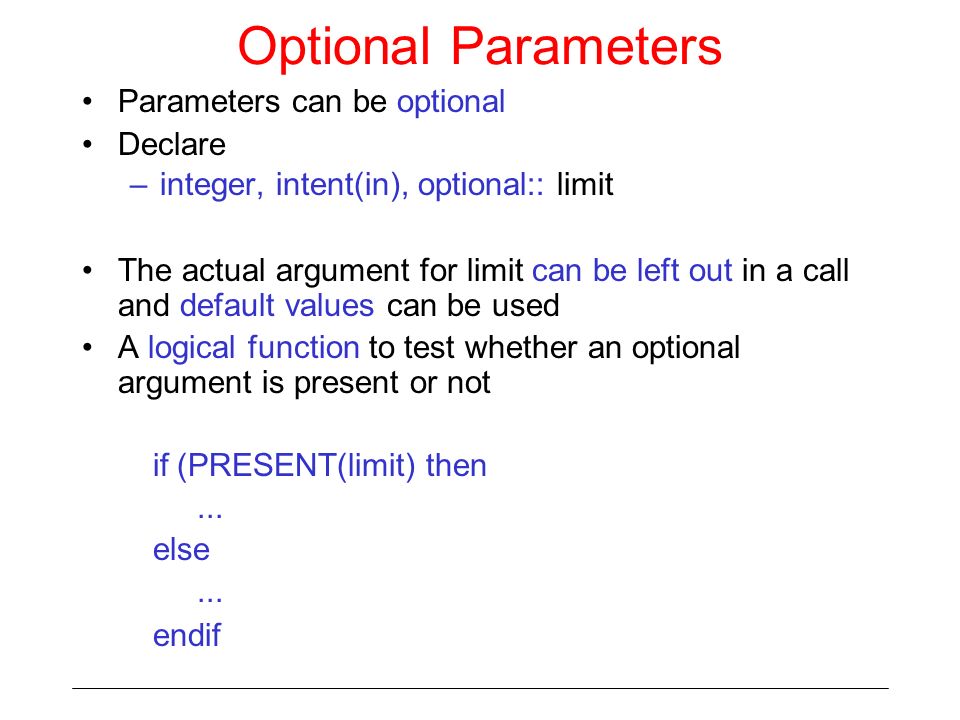

20. Optional Parameters Parameters can be optional Declare –integer, intent(in), optional:: limit The actual argument for limit can be left out in a call and default values can be used A logical function to test whether an optional argument is present or not if (PRESENT(limit) then... else... endif
