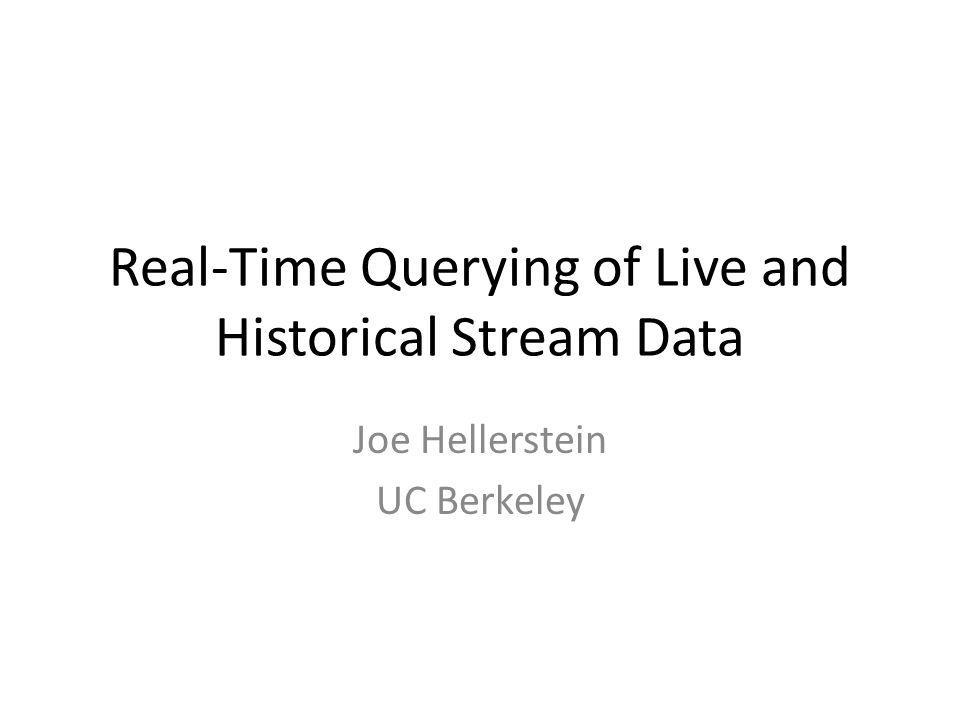

1. Real-Time Querying of Live and Historical Stream Data Joe Hellerstein UC Berkeley

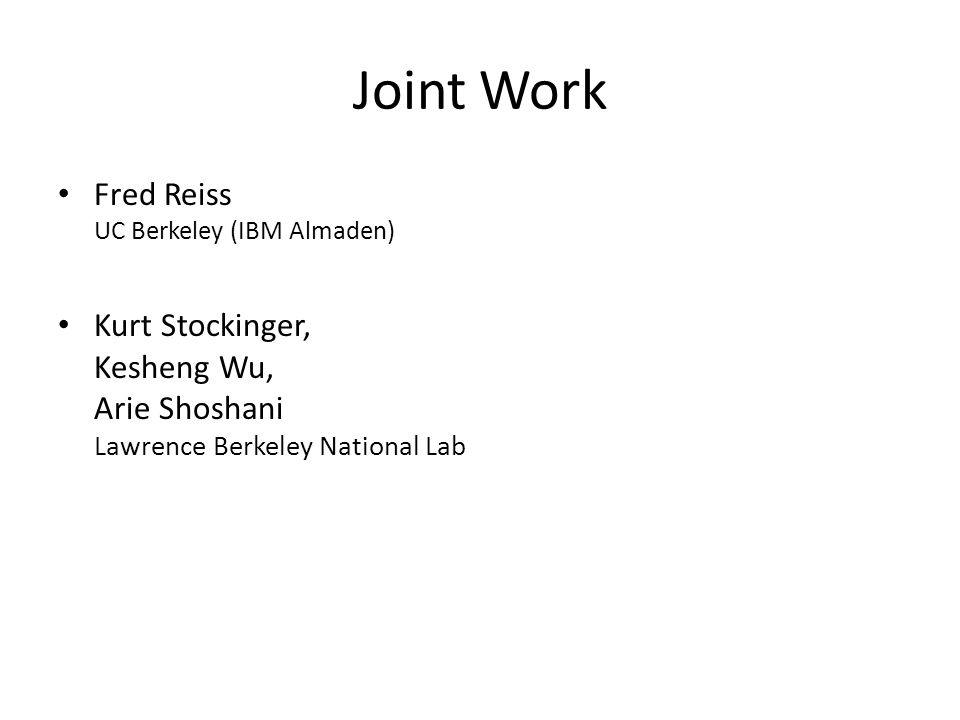

2. Joint Work Fred Reiss UC Berkeley (IBM Almaden) Kurt Stockinger, Kesheng Wu, Arie Shoshani Lawrence Berkeley National Lab

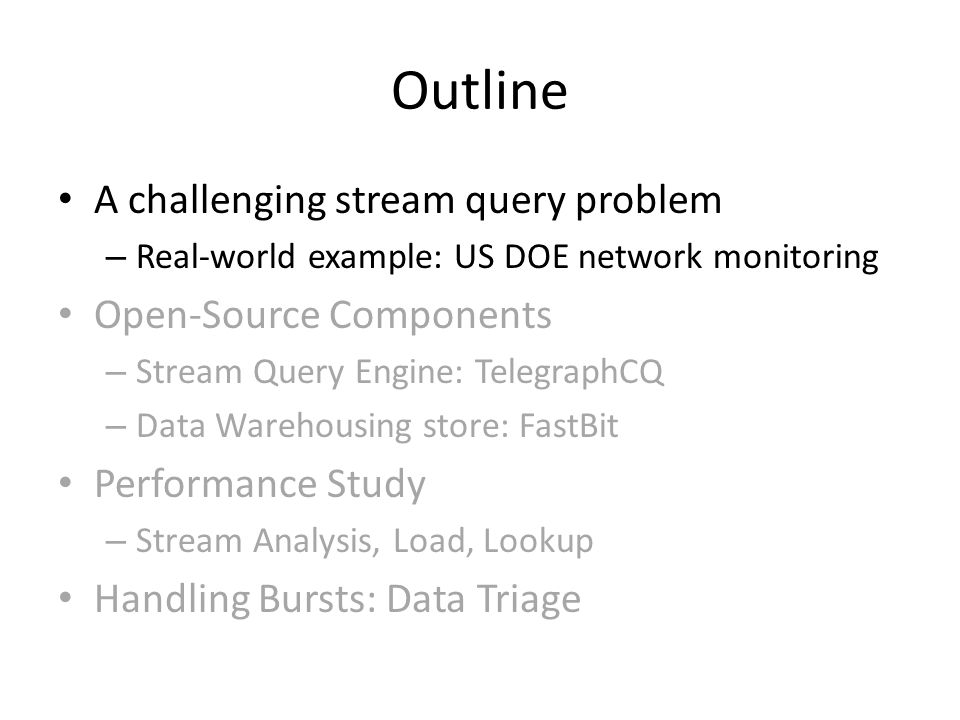

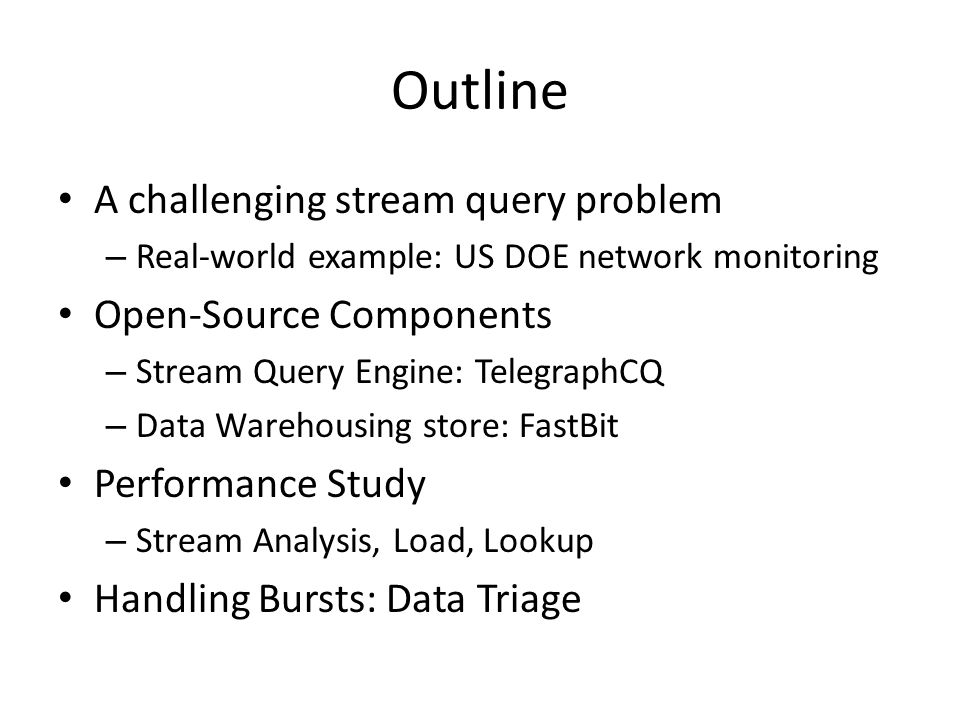

3. Outline A challenging stream query problem – Real-world example: US DOE network monitoring Open-Source Components – Stream Query Engine: TelegraphCQ – Data Warehousing store: FastBit Performance Study – Stream Analysis, Load, Lookup Handling Bursts: Data Triage

4. Outline A challenging stream query problem – Real-world example: US DOE network monitoring Open-Source Components – Stream Query Engine: TelegraphCQ – Data Warehousing store: FastBit Performance Study – Stream Analysis, Load, Lookup Handling Bursts: Data Triage

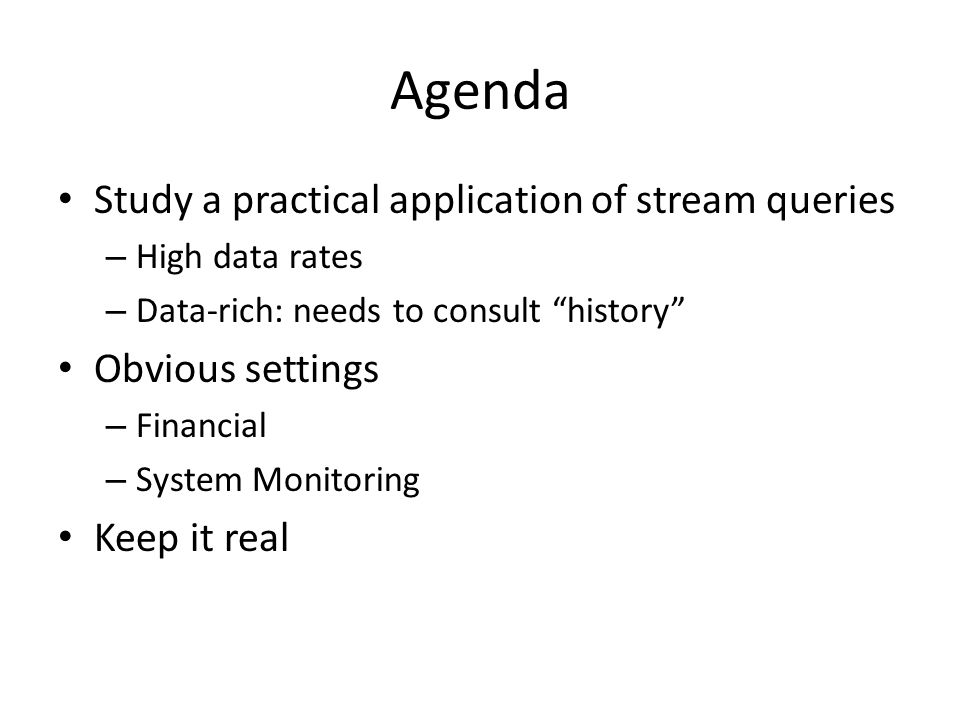

5. Agenda Study a practical application of stream queries – High data rates – Data-rich: needs to consult “history” Obvious settings – Financial – System Monitoring Keep it real

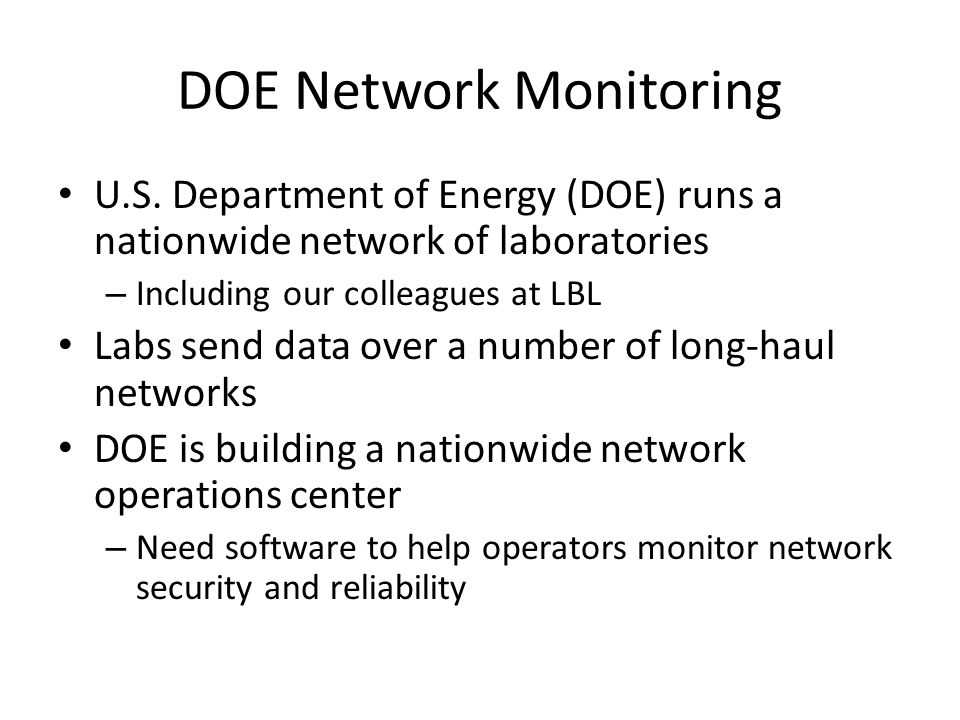

6. DOE Network Monitoring U.S. Department of Energy (DOE) runs a nationwide network of laboratories – Including our colleagues at LBL Labs send data over a number of long-haul networks DOE is building a nationwide network operations center – Need software to help operators monitor network security and reliability

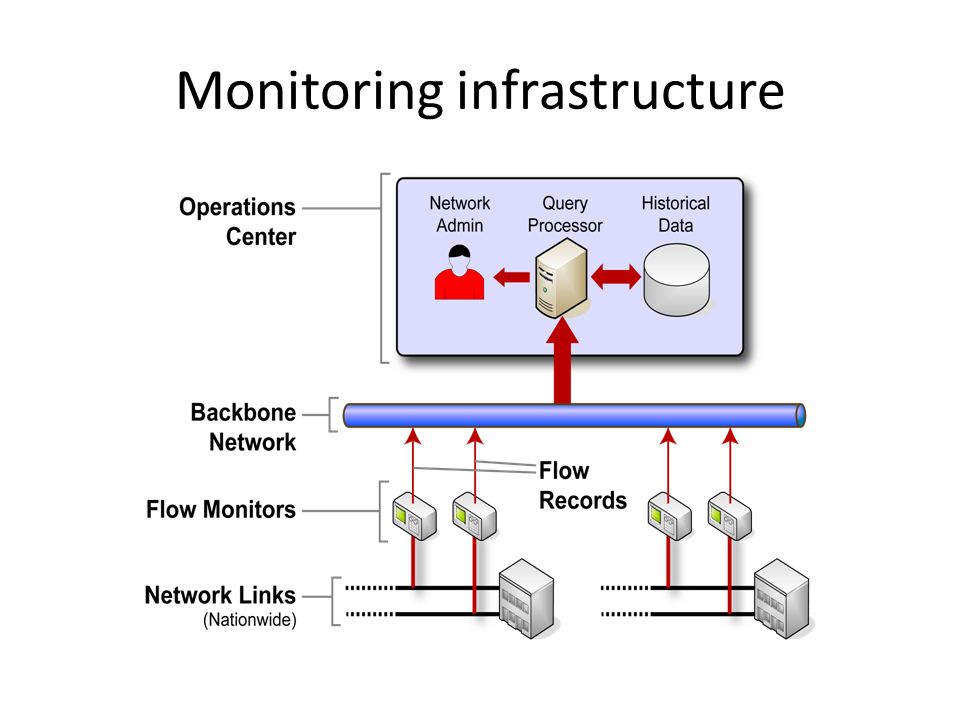

7. Monitoring infrastructure

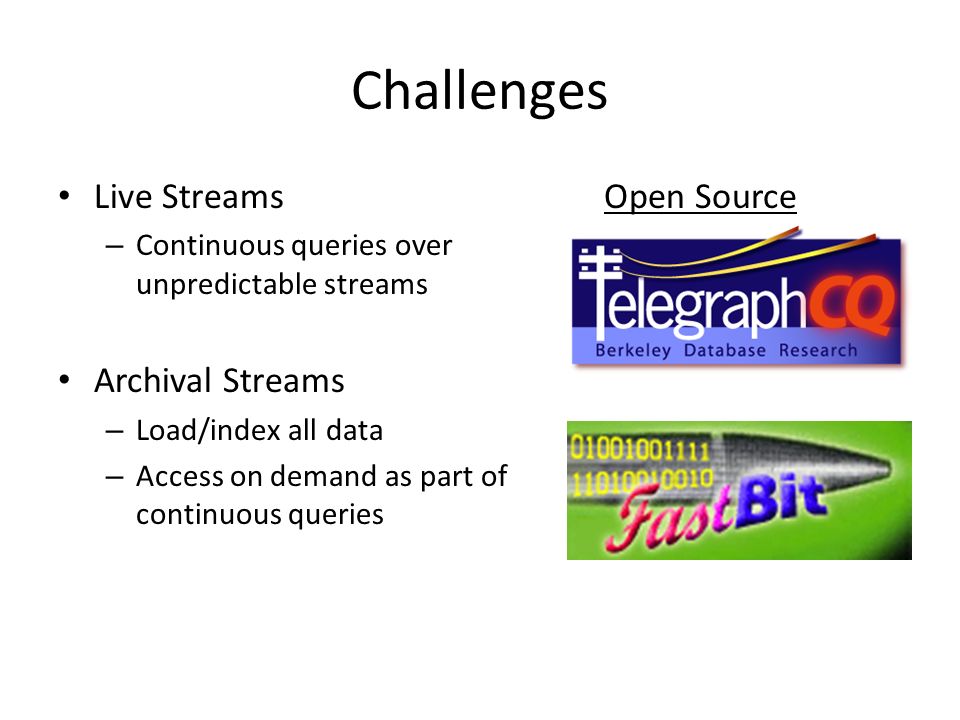

8. Challenges Live Streams – Continuous queries over unpredictable streams Archival Streams – Load/index all data – Access on demand as part of continuous queries Open Source

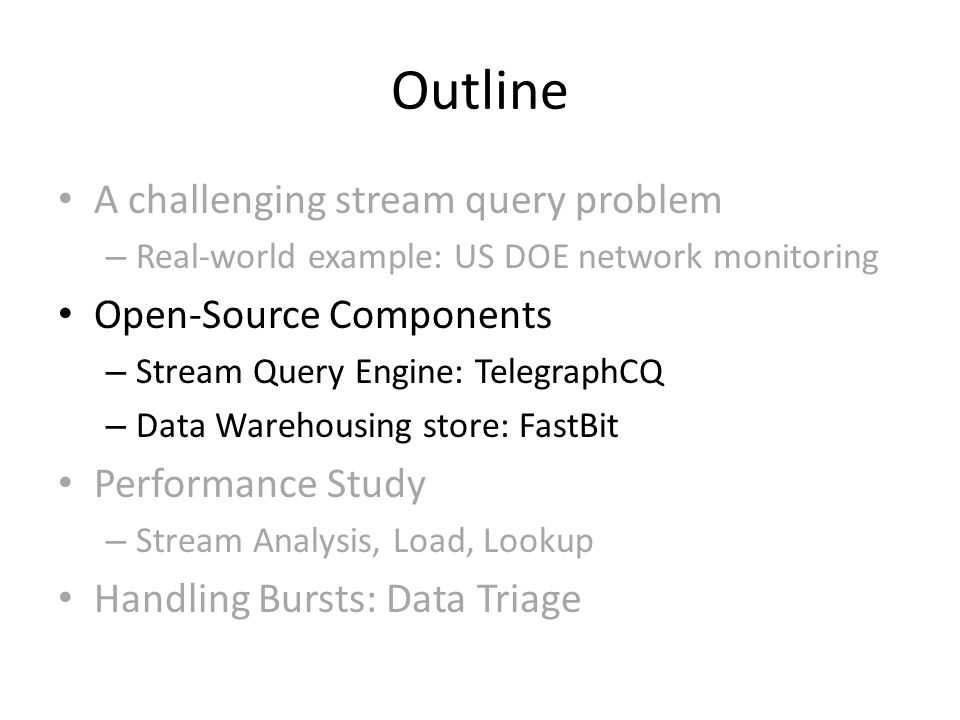

9. Outline A challenging stream query problem – Real-world example: US DOE network monitoring Open-Source Components – Stream Query Engine: TelegraphCQ – Data Warehousing store: FastBit Performance Study – Stream Analysis, Load, Lookup Handling Bursts: Data Triage

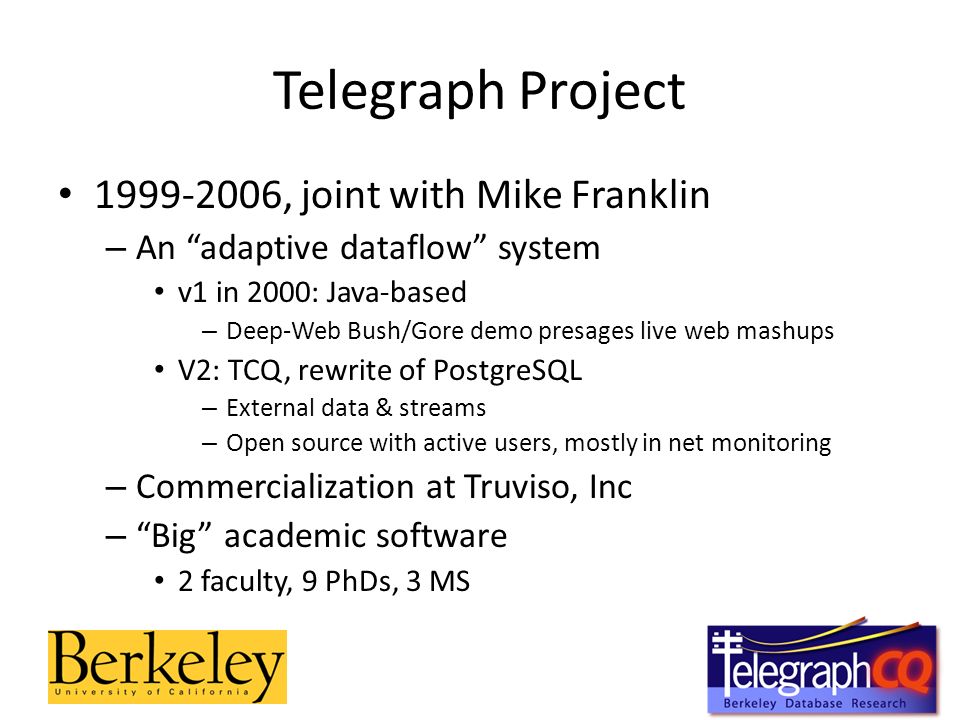

10. Telegraph Project 1999-2006, joint with Mike Franklin – An “adaptive dataflow” system v1 in 2000: Java-based – Deep-Web Bush/Gore demo presages live web mashups V2: TCQ, rewrite of PostgreSQL – External data & streams – Open source with active users, mostly in net monitoring – Commercialization at Truviso, Inc – “Big” academic software 2 faculty, 9 PhDs, 3 MS

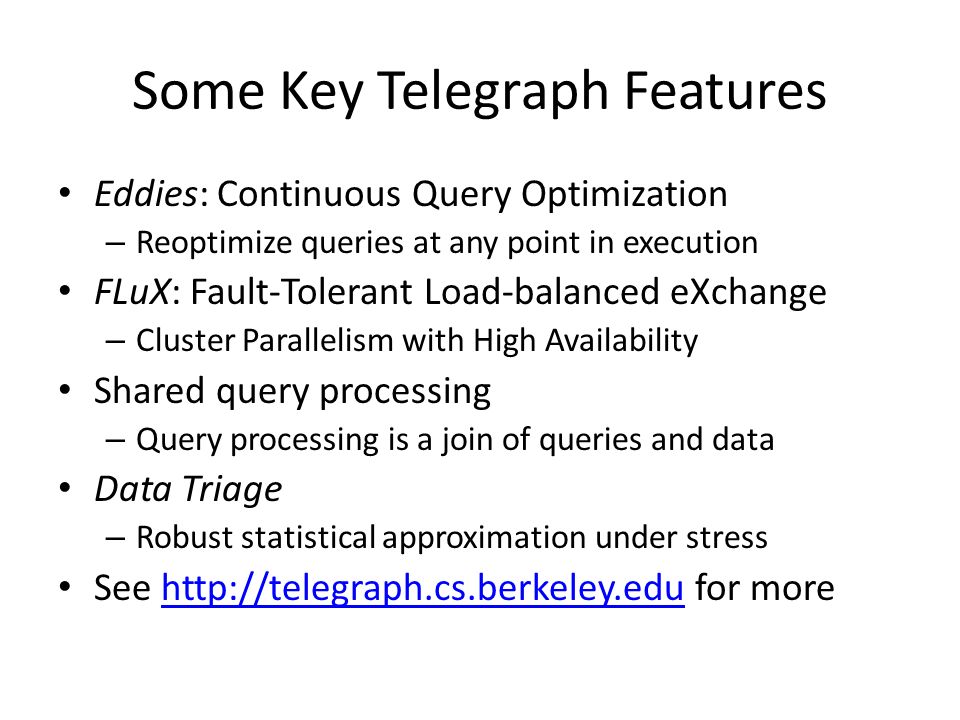

11. Some Key Telegraph Features Eddies: Continuous Query Optimization – Reoptimize queries at any point in execution FLuX: Fault-Tolerant Load-balanced eXchange – Cluster Parallelism with High Availability Shared query processing – Query processing is a join of queries and data Data Triage – Robust statistical approximation under stress See http://telegraph.cs.berkeley.edu for morehttp://telegraph.cs.berkeley.edu

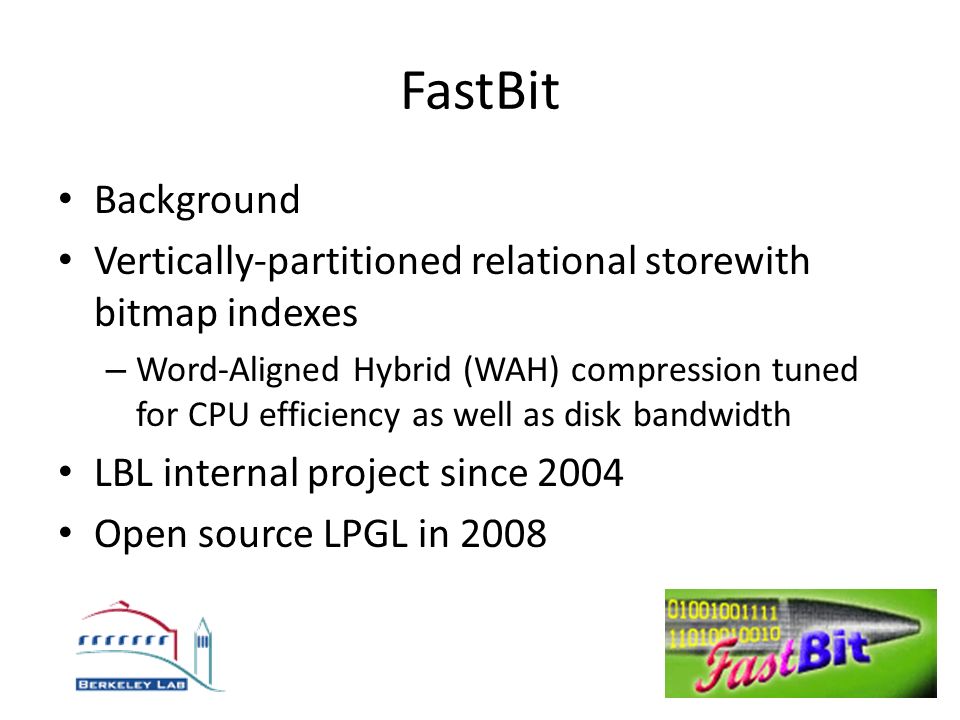

12. FastBit Background Vertically-partitioned relational storewith bitmap indexes – Word-Aligned Hybrid (WAH) compression tuned for CPU efficiency as well as disk bandwidth LBL internal project since 2004 Open source LPGL in 2008

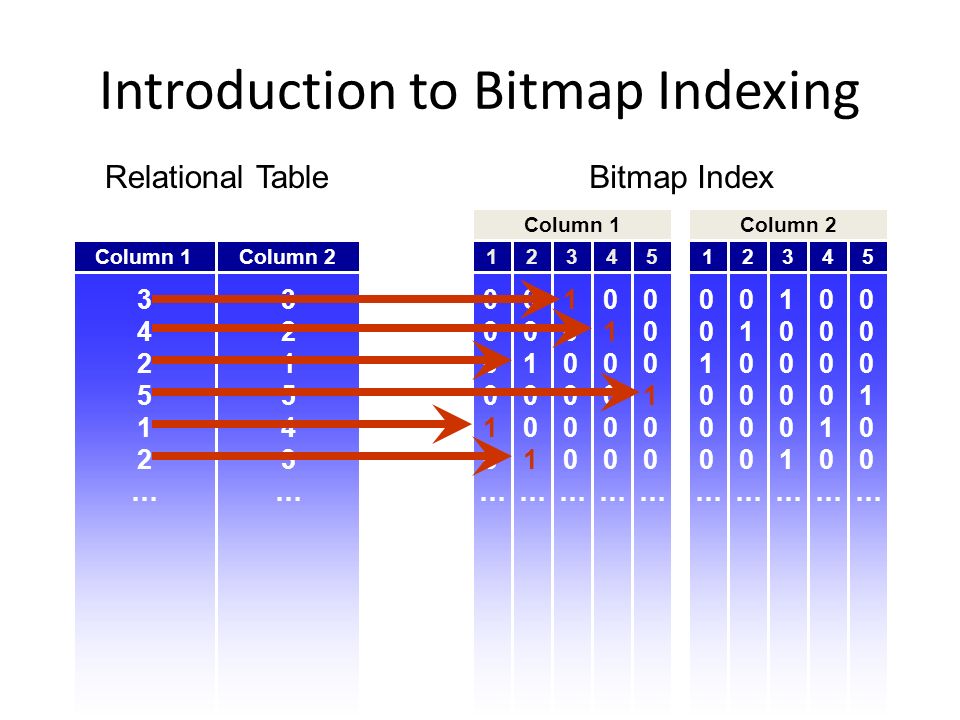

13. Introduction to Bitmap Indexing Column 1 Column 2 321543…321543… 342512…342512… Column 1 12345 000010…000010… 001001…001001… 100000…100000… 010000…010000… 000100…000100… Column 2 001000…001000… 12345 010000…010000… 100001…100001… 000010…000010… 000100…000100… Relational TableBitmap Index

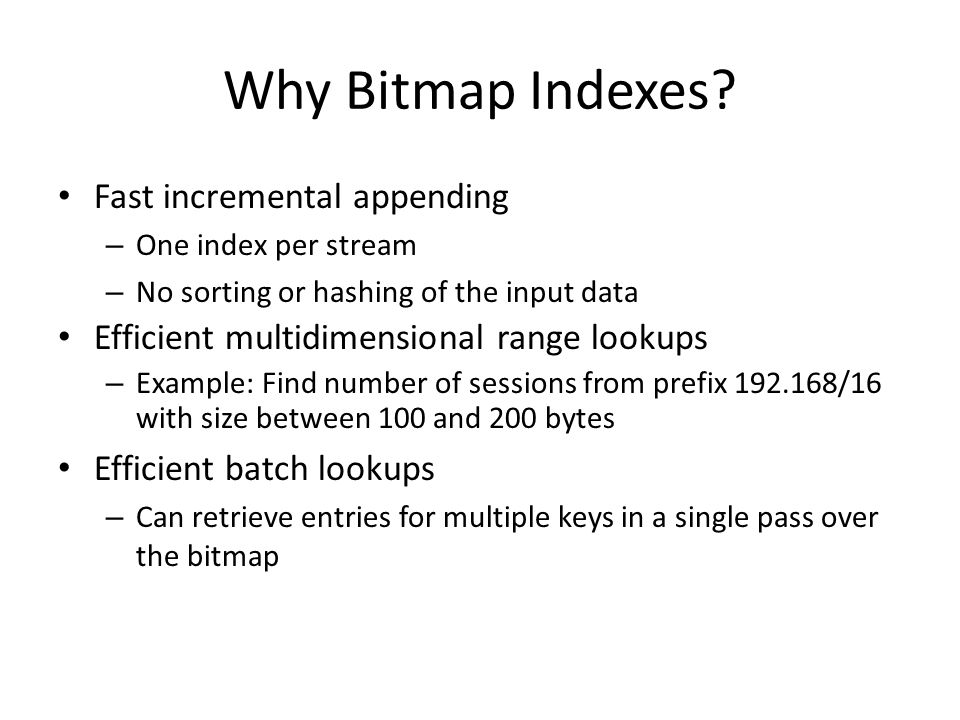

14. Why Bitmap Indexes? Fast incremental appending – One index per stream – No sorting or hashing of the input data Efficient multidimensional range lookups – Example: Find number of sessions from prefix 192.168/16 with size between 100 and 200 bytes Efficient batch lookups – Can retrieve entries for multiple keys in a single pass over the bitmap

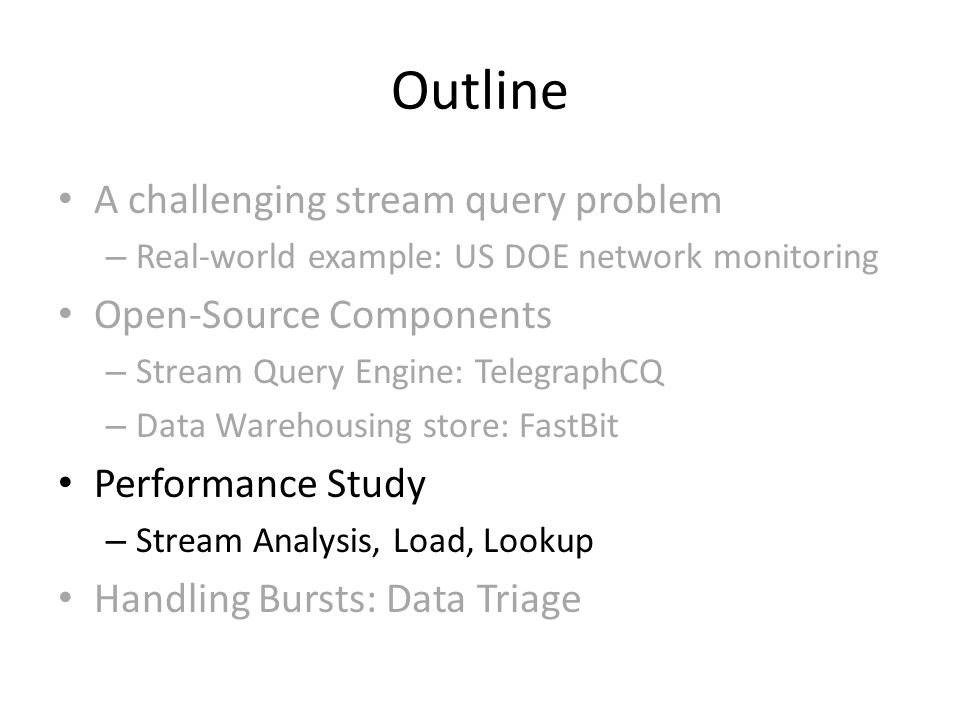

15. Outline A challenging stream query problem – Real-world example: US DOE network monitoring Open-Source Components – Stream Query Engine: TelegraphCQ – Data Warehousing store: FastBit Performance Study – Stream Analysis, Load, Lookup Handling Bursts: Data Triage

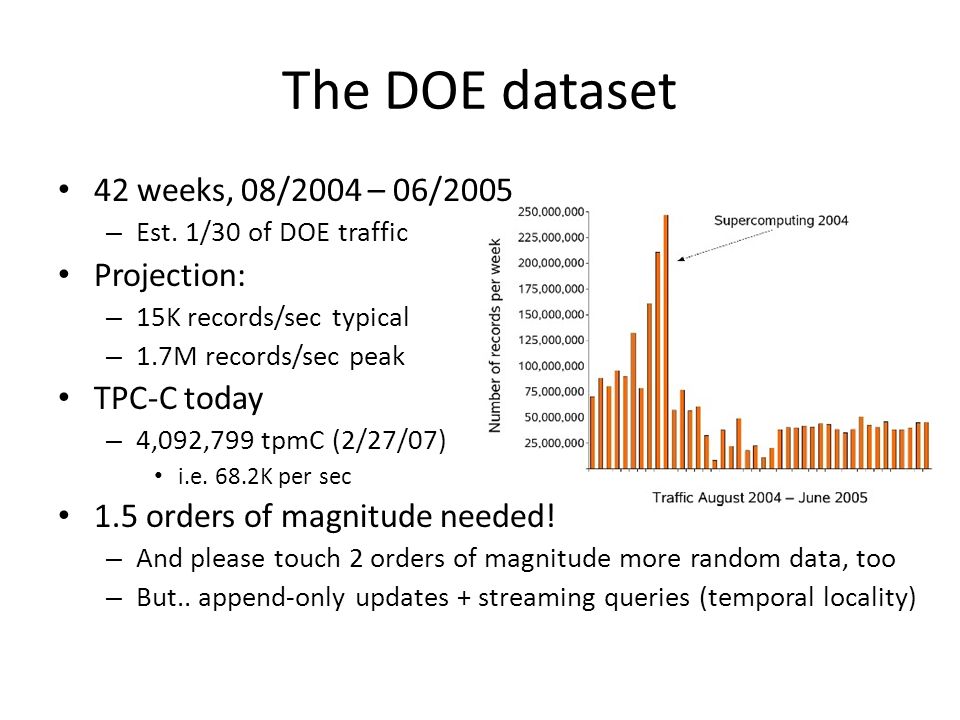

16. The DOE dataset 42 weeks, 08/2004 – 06/2005 – Est. 1/30 of DOE traffic Projection: – 15K records/sec typical – 1.7M records/sec peak TPC-C today – 4,092,799 tpmC (2/27/07) i.e. 68.2K per sec 1.5 orders of magnitude needed! – And please touch 2 orders of magnitude more random data, too – But.. append-only updates + streaming queries (temporal locality)

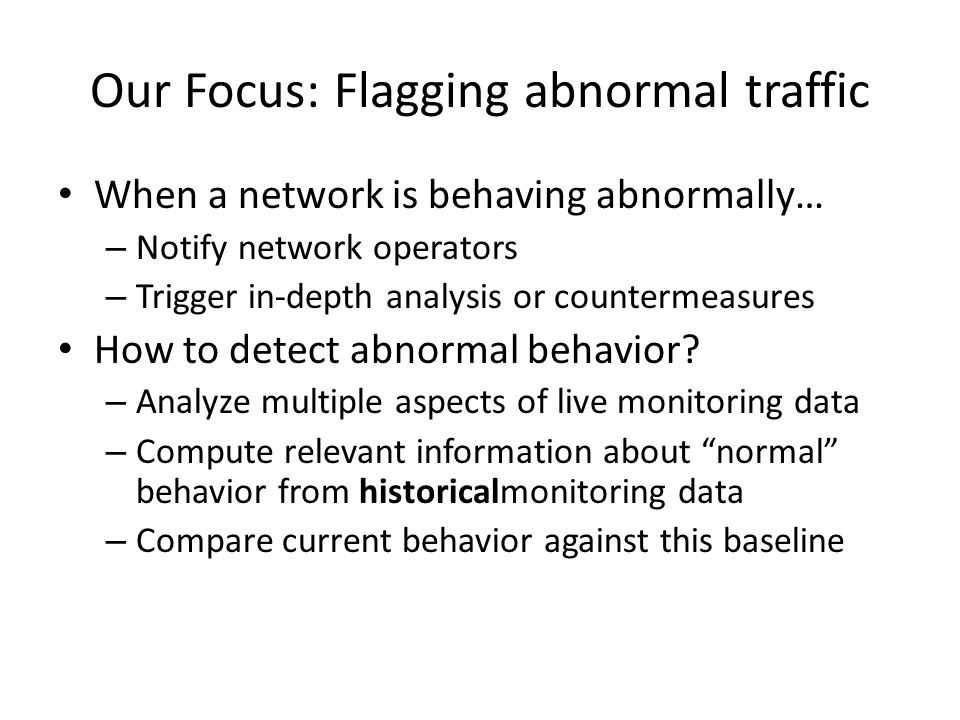

17. Our Focus: Flagging abnormal traffic When a network is behaving abnormally… – Notify network operators – Trigger in-depth analysis or countermeasures How to detect abnormal behavior? – Analyze multiple aspects of live monitoring data – Compute relevant information about “normal” behavior from historicalmonitoring data – Compare current behavior against this baseline

18. Example: “Elephants” The query: – Find the k most significant sources of traffic on the network over the past t seconds. – Alert the network operator if any of these sources is sending an unusually large amount of traffic for this time of the day/week, compared with its usual traffic patterns.

19. System Architecture

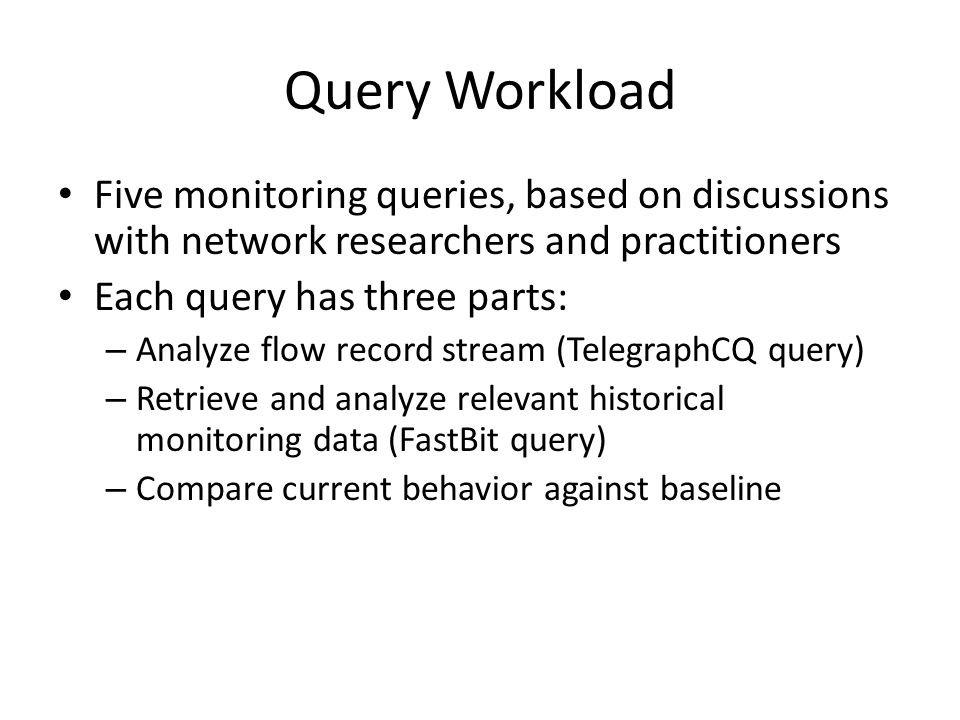

20. Query Workload Five monitoring queries, based on discussions with network researchers and practitioners Each query has three parts: – Analyze flow record stream (TelegraphCQ query) – Retrieve and analyze relevant historical monitoring data (FastBit query) – Compare current behavior against baseline

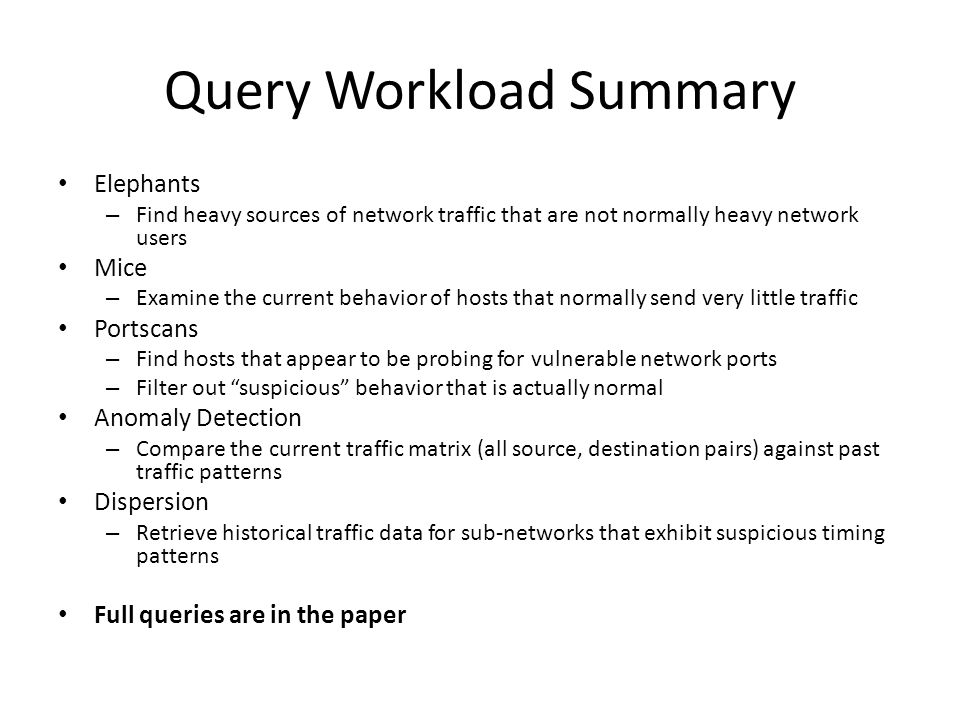

21. Query Workload Summary Elephants – Find heavy sources of network traffic that are not normally heavy network users Mice – Examine the current behavior of hosts that normally send very little traffic Portscans – Find hosts that appear to be probing for vulnerable network ports – Filter out “suspicious” behavior that is actually normal Anomaly Detection – Compare the current traffic matrix (all source, destination pairs) against past traffic patterns Dispersion – Retrieve historical traffic data for sub-networks that exhibit suspicious timing patterns Full queries are in the paper

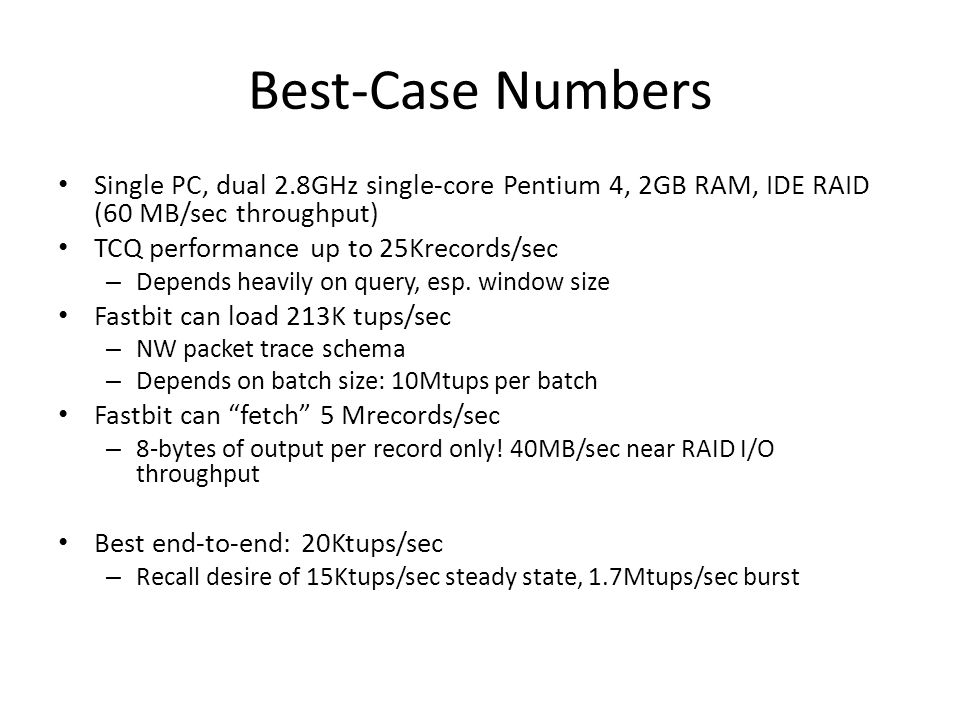

22. Best-Case Numbers Single PC, dual 2.8GHz single-core Pentium 4, 2GB RAM, IDE RAID (60 MB/sec throughput) TCQ performance up to 25Krecords/sec – Depends heavily on query, esp. window size Fastbit can load 213K tups/sec – NW packet trace schema – Depends on batch size: 10Mtups per batch Fastbit can “fetch” 5 Mrecords/sec – 8-bytes of output per record only! 40MB/sec near RAID I/O throughput Best end-to-end: 20Ktups/sec – Recall desire of 15Ktups/sec steady state, 1.7Mtups/sec burst

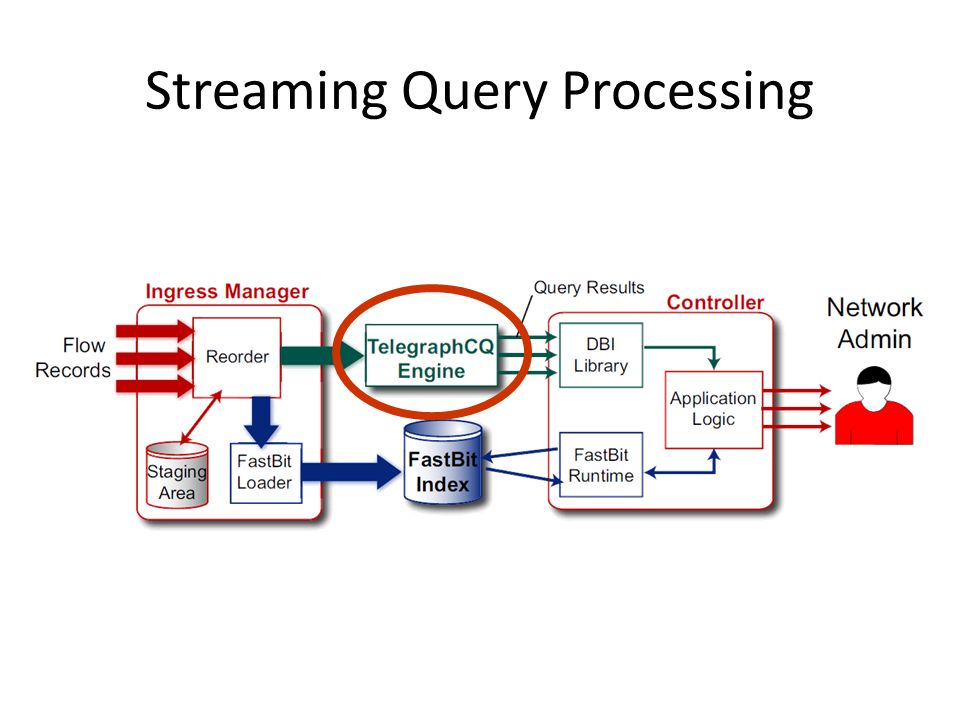

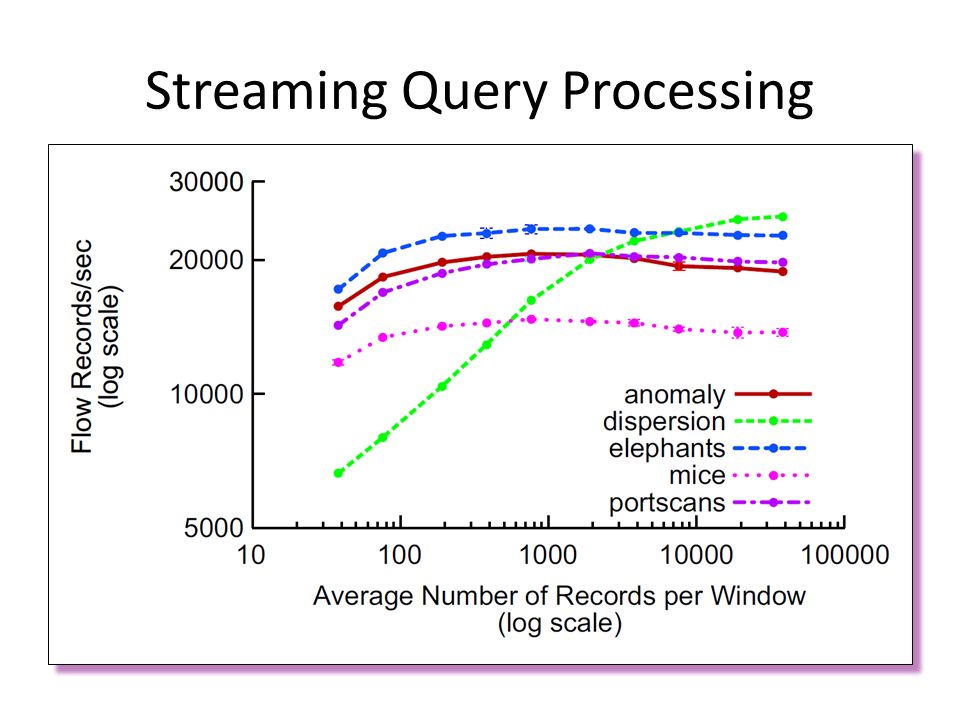

23. Streaming Query Processing

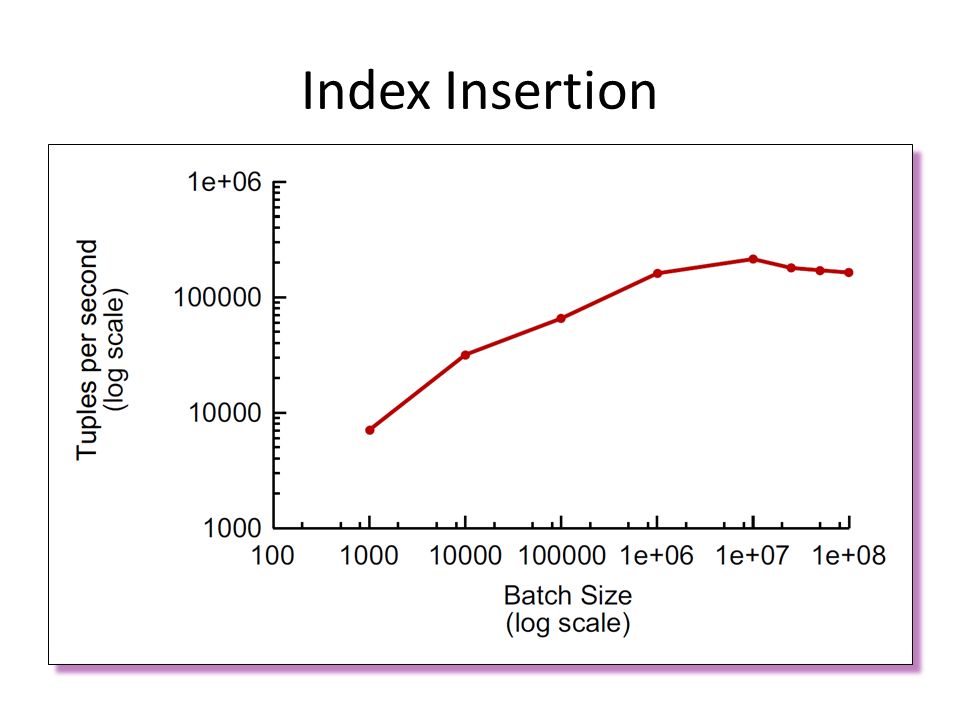

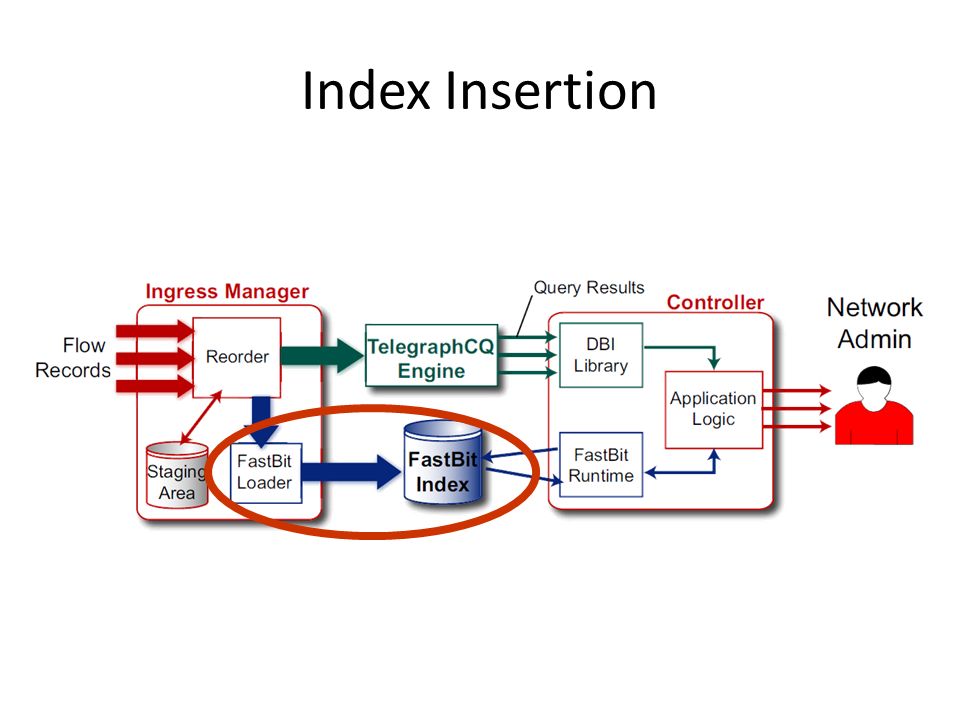

25. Index Insertion

27. Index Lookup

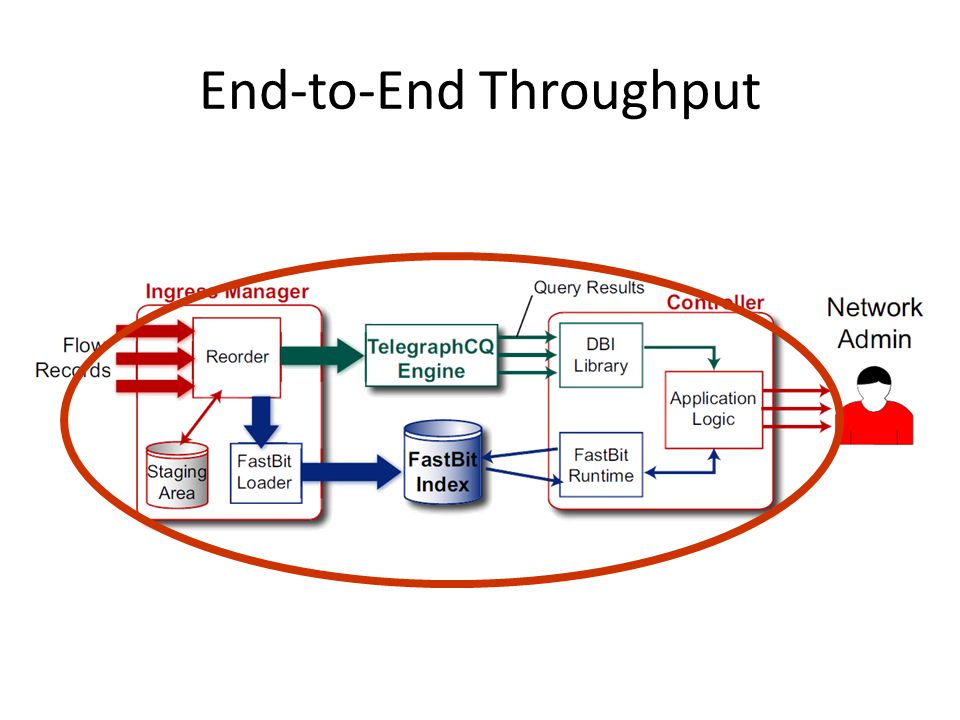

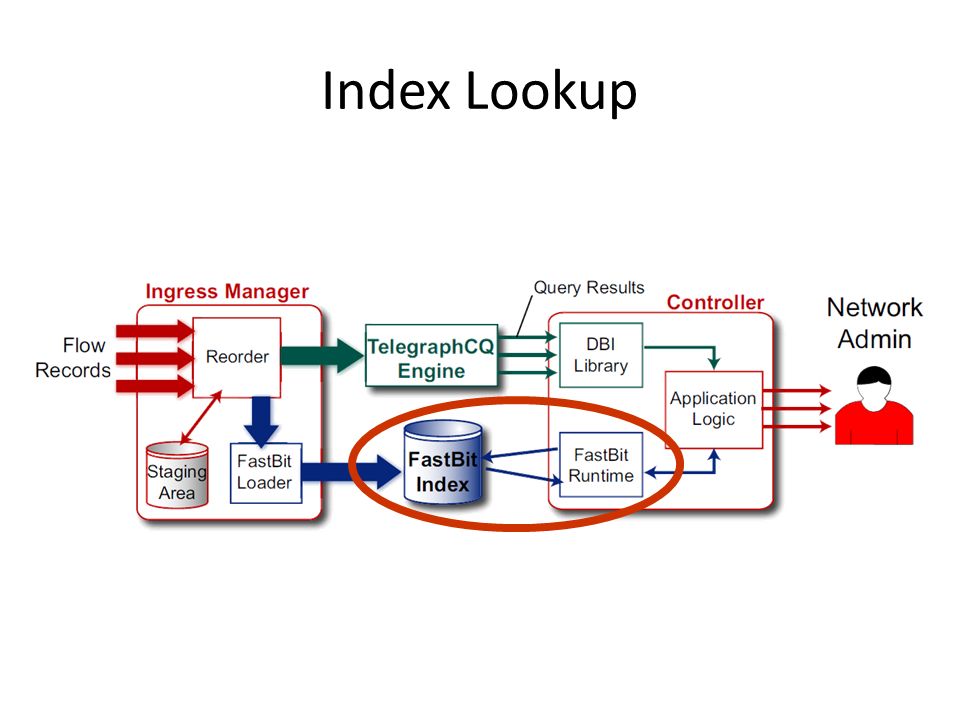

29. End-to-End Throughput

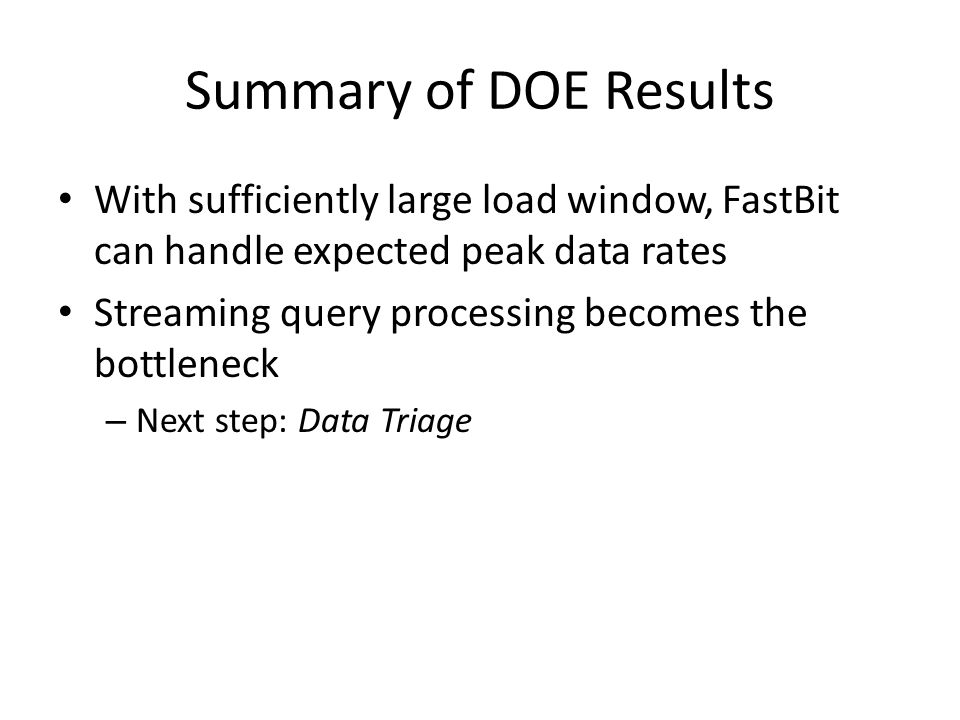

31. Summary of DOE Results With sufficiently large load window, FastBit can handle expected peak data rates Streaming query processing becomes the bottleneck – Next step: Data Triage

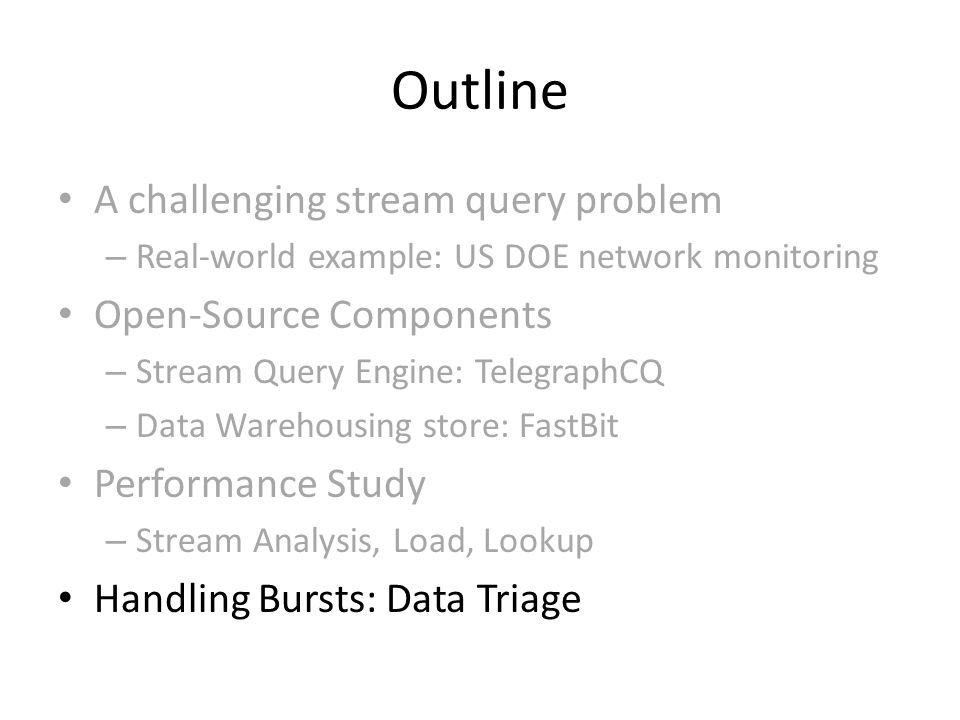

32. Outline A challenging stream query problem – Real-world example: US DOE network monitoring Open-Source Components – Stream Query Engine: TelegraphCQ – Data Warehousing store: FastBit Performance Study – Stream Analysis, Load, Lookup Handling Bursts: Data Triage

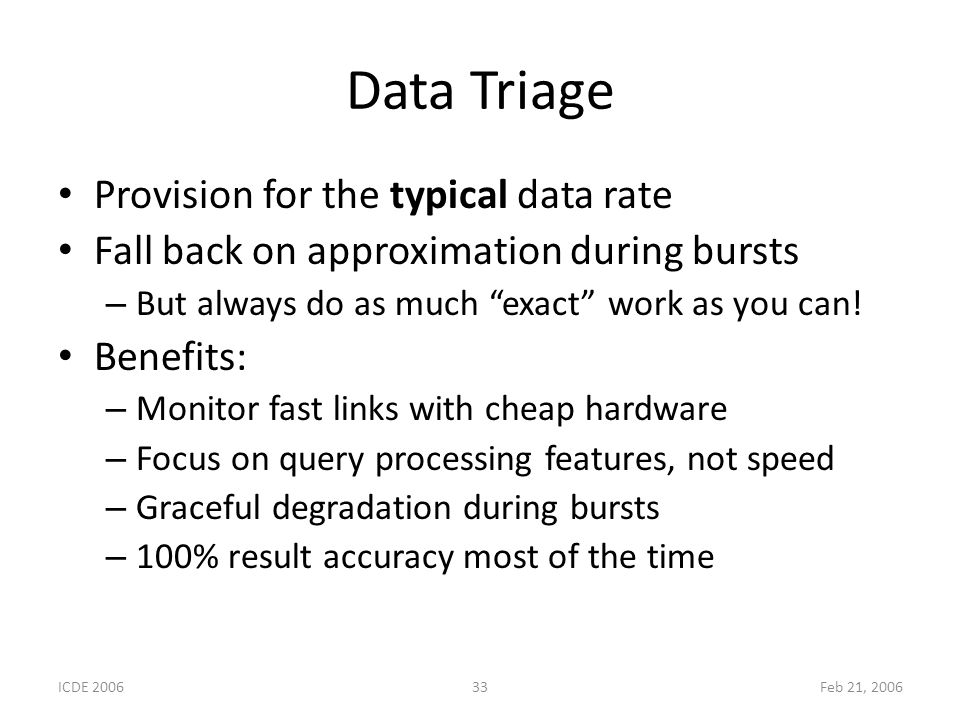

33. ICDE 200633Feb 21, 2006 Data Triage Provision for the typical data rate Fall back on approximation during bursts – But always do as much “exact” work as you can! Benefits: – Monitor fast links with cheap hardware – Focus on query processing features, not speed – Graceful degradation during bursts – 100% result accuracy most of the time

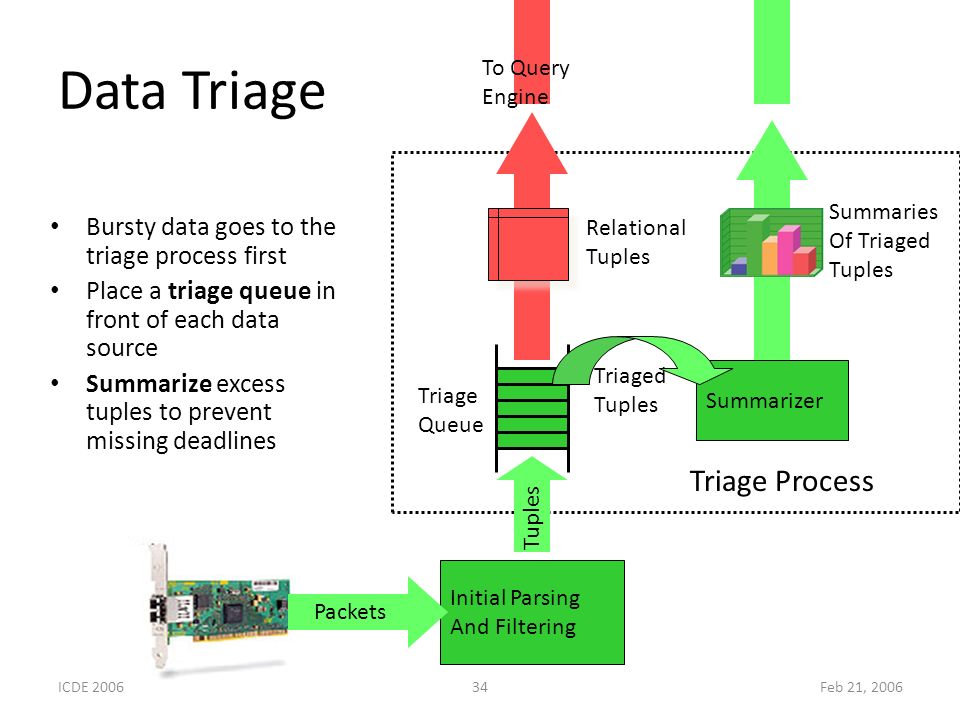

34. ICDE 200634Feb 21, 2006 Summarizer Data Triage Bursty data goes to the triage process first Place a triage queue in front of each data source Summarize excess tuples to prevent missing deadlines Triage Process Relational Tuples Triage Queue Summaries Of Triaged Tuples Triaged Tuples To Query Engine Initial Parsing And Filtering Packets Tuples

35. ICDE 200635Feb 21, 2006 Data Triage Query engine receives tuples and summaries Use a shadow query to compute approximation of missing results Main Query Shadow Query Query Engine Merge User Relational Tuples Summaries Of Triaged Tuples Summaries Of Missing Results

36. ICDE 200636Feb 21, 2006 Read the paper for… Provisioning – Where are the performance bottlenecks in this pipeline? – How do we mitigate those bottlenecks? Implementation – How do we “plug in” different approximation schemes without modifying the query engine? – How do we build shadow queries? Interface – How do we present the merged query results to the user?

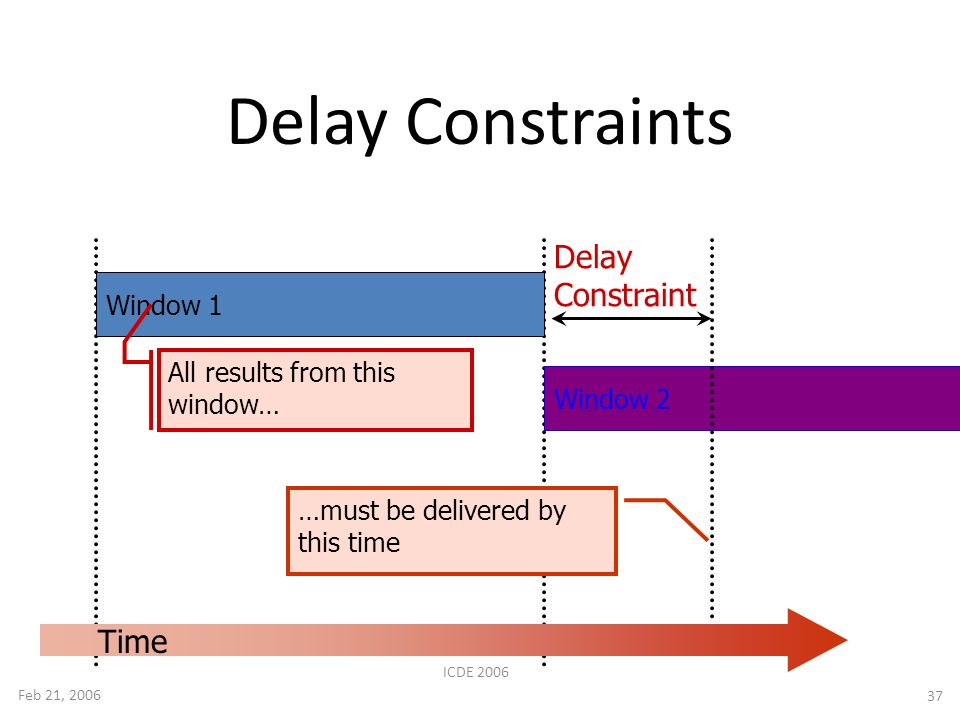

37. ICDE 2006 37 Feb 21, 2006 Delay Constraints …must be delivered by this time Window 1 Window 2 Delay Constraint All results from this window… Time

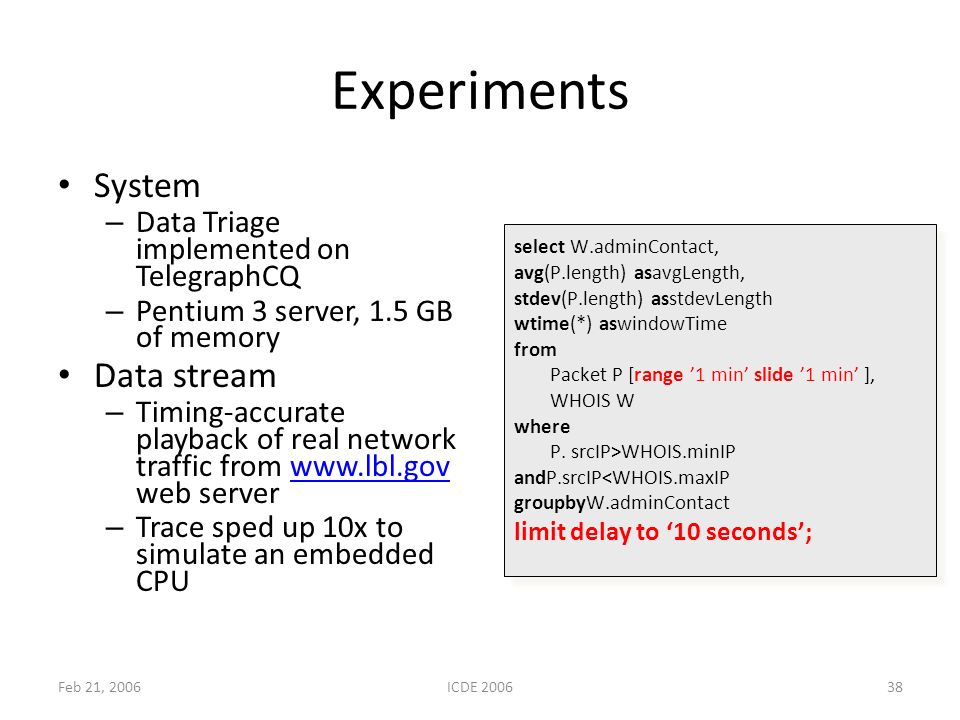

38. Experiments System – Data Triage implemented on TelegraphCQ – Pentium 3 server, 1.5 GB of memory Data stream – Timing-accurate playback of real network traffic from www.lbl.gov web serverwww.lbl.gov – Trace sped up 10x to simulate an embedded CPU Feb 21, 2006ICDE 200638 select W.adminContact, avg(P.length) asavgLength, stdev(P.length) asstdevLength wtime(*) aswindowTime from Packet P [range ’1 min’ slide ’1 min’ ], WHOIS W where P. srcIP>WHOIS.minIP andP.srcIP<WHOIS.maxIP groupbyW.adminContact limit delay to ‘10 seconds’; select W.adminContact, avg(P.length) asavgLength, stdev(P.length) asstdevLength wtime(*) aswindowTime from Packet P [range ’1 min’ slide ’1 min’ ], WHOIS W where P. srcIP>WHOIS.minIP andP.srcIP<WHOIS.maxIP groupbyW.adminContact limit delay to ‘10 seconds’;

39. ICDE 2006 39 Feb 21, 2006 Experimental Results: Latency

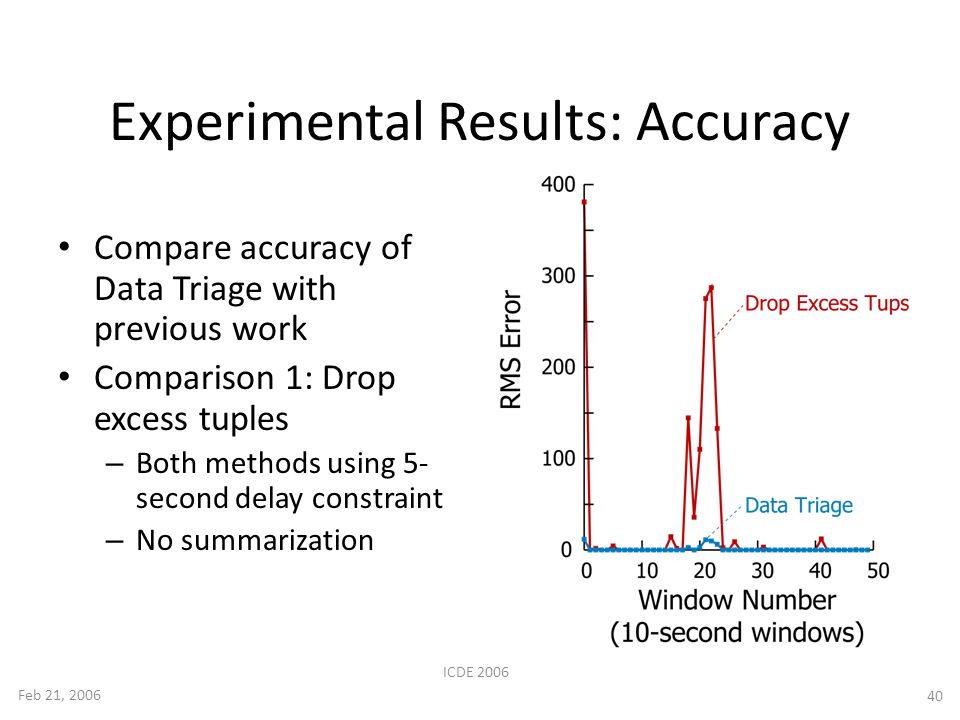

40. ICDE 2006 40 Feb 21, 2006 Experimental Results: Accuracy Compare accuracy of Data Triage with previous work Comparison 1: Drop excess tuples – Both methods using 5- second delay constraint – No summarization

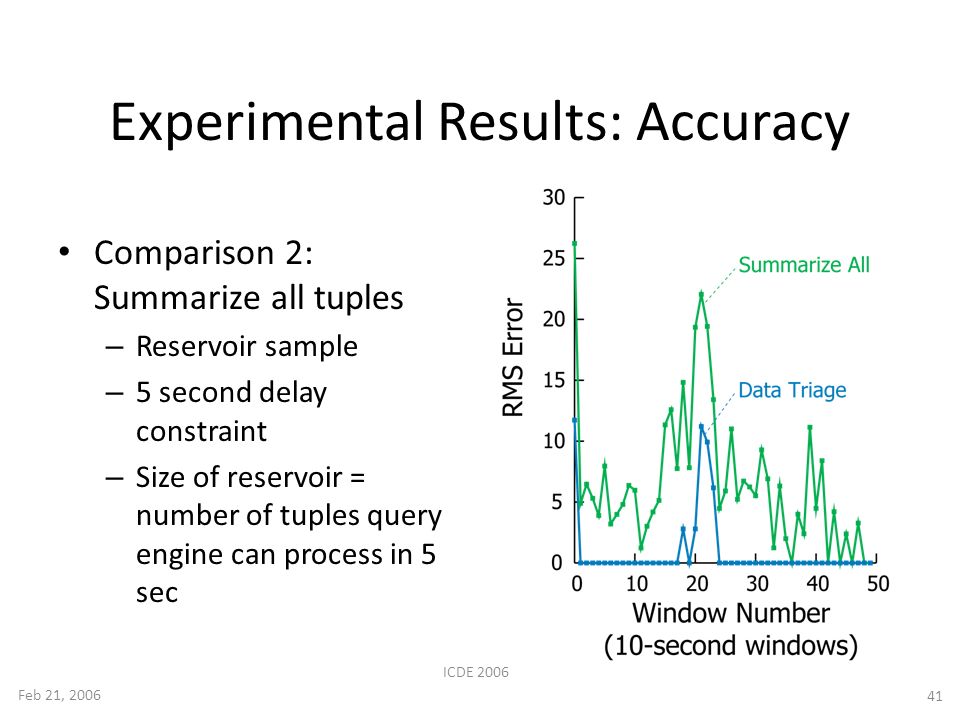

41. ICDE 2006 41 Feb 21, 2006 Experimental Results: Accuracy Comparison 2: Summarize all tuples – Reservoir sample – 5 second delay constraint – Size of reservoir = number of tuples query engine can process in 5 sec

42. Conclusions & Issues Stream Query + Append Only Warehouse – Good match, can scale a long way at modest $$ Data Triage combats Stream Query bottleneck – Provision for the common case – Approximate on excess load during bursts – Keep approximation limited, extensible Parallelism needed – See FLuX work for High Availability Shah et al, ICDE ‘03 and SIGMOD ‘04 vs. Google’s MapReduce Query Optimization for streams? Adaptivity! – Eddies: Avnur & Hellerstein SIGMOD ‘00 – SteMs: Raman, Deshpande, Hellerstein, ICDE ‘03 – STAIRs: Deshpande & Hellerstein VLDB ’04 – Deshpande/Ives/Raman survey, F&T-DB ‘07

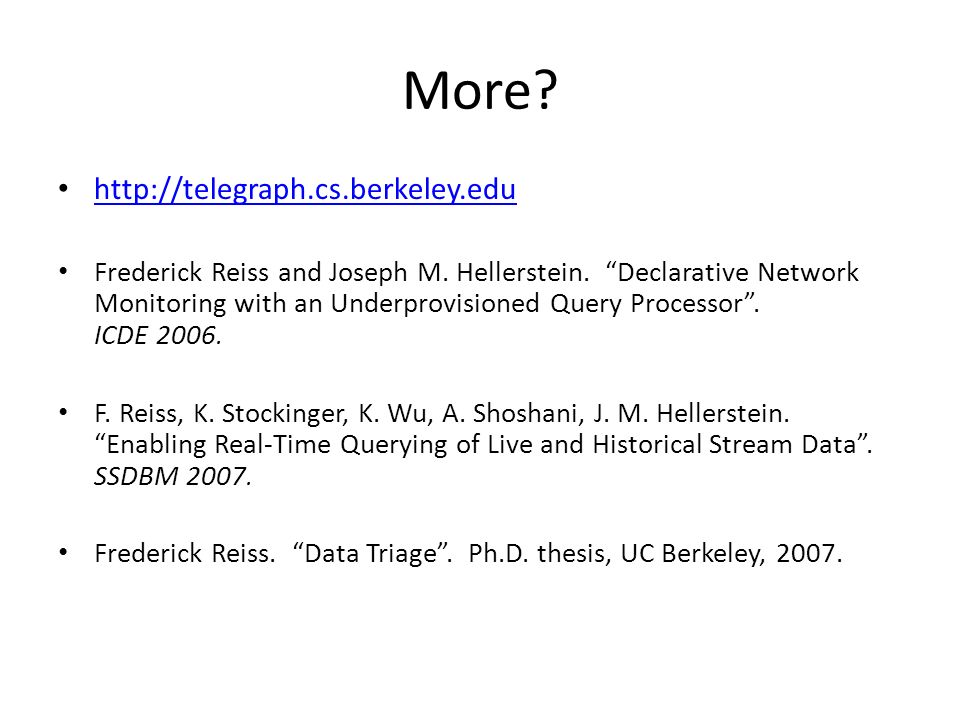

43. More? http://telegraph.cs.berkeley.edu Frederick Reiss and Joseph M. Hellerstein. “Declarative Network Monitoring with an Underprovisioned Query Processor”. ICDE 2006. F. Reiss, K. Stockinger, K. Wu, A. Shoshani, J. M. Hellerstein. “Enabling Real-Time Querying of Live and Historical Stream Data”. SSDBM 2007. Frederick Reiss. “Data Triage”. Ph.D. thesis, UC Berkeley, 2007.
