1 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 Date: January 2010 MT_CKD_2.5 continuum modifications included in this.

Published byXavier Guthrie Modified over 10 years ago

Similar presentations

Presentation on theme: "1 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 Date: January 2010 MT_CKD_2.5 continuum modifications included in this."— Presentation transcript:

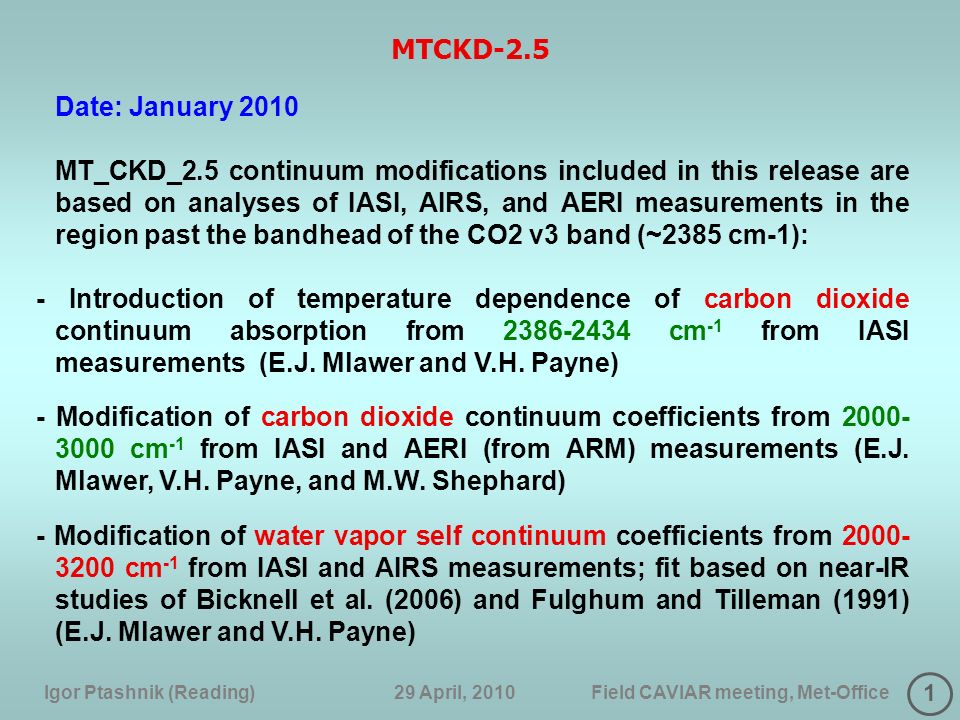

1 1 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 Date: January 2010 MT_CKD_2.5 continuum modifications included in this release are based on analyses of IASI, AIRS, and AERI measurements in the region past the bandhead of the CO2 v3 band (~2385 cm-1): - Introduction of temperature dependence of carbon dioxide continuum absorption from 2386-2434 cm -1 from IASI measurements (E.J. Mlawer and V.H. Payne) - Modification of carbon dioxide continuum coefficients from 2000- 3000 cm -1 from IASI and AERI (from ARM) measurements (E.J. Mlawer, V.H. Payne, and M.W. Shephard) - Modification of water vapor self continuum coefficients from 2000- 3200 cm -1 from IASI and AIRS measurements; fit based on near-IR studies of Bicknell et al. (2006) and Fulghum and Tilleman (1991) (E.J. Mlawer and V.H. Payne)

2 2 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 vs MTCKD-1.3: Foreign

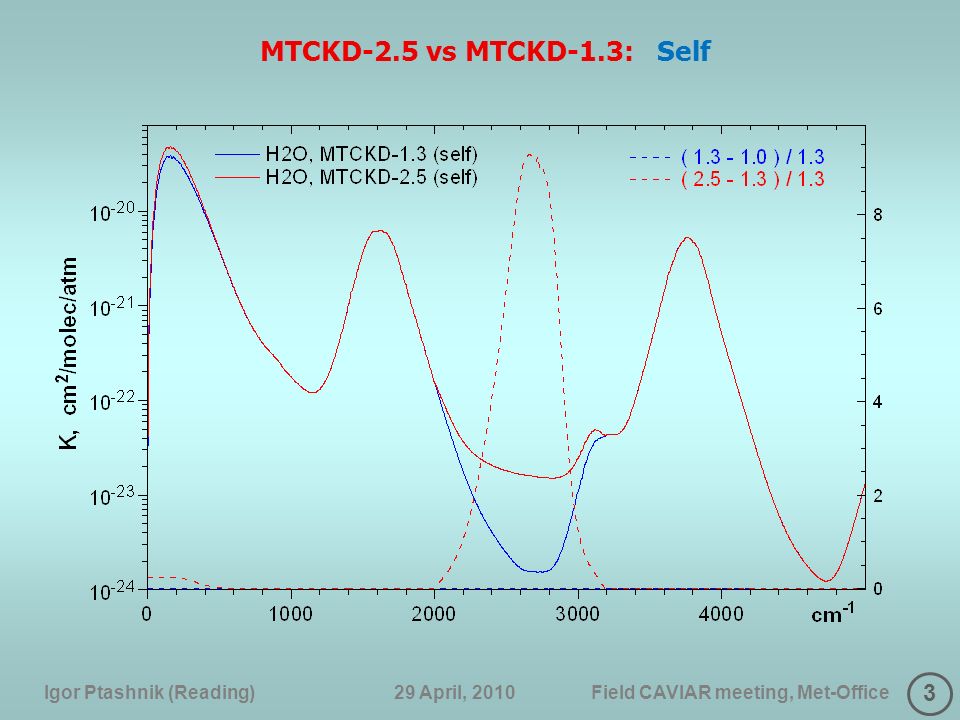

3 3 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 vs MTCKD-1.3: Self

4 4 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 vs MTCKD-1.3: CO 2 continuum

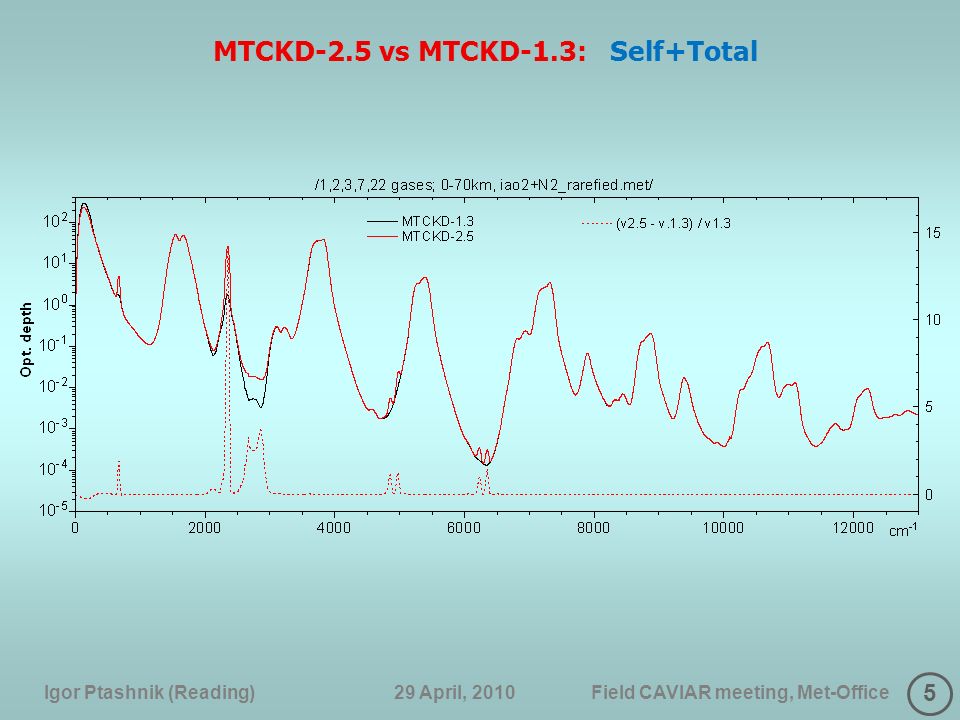

5 5 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office MTCKD-2.5 vs MTCKD-1.3: Self+Total

6 6 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office Best spectral regions: TAFTS

7 7 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office Best spectral regions: TAFTS

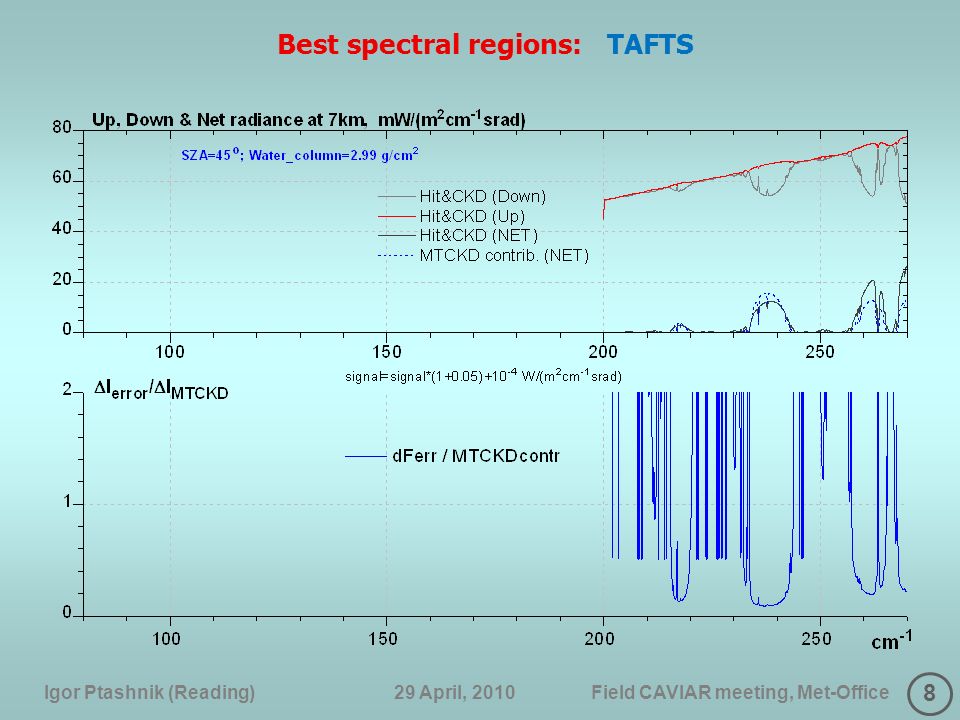

8 8 Igor Ptashnik (Reading) 29 April, 2010 Field CAVIAR meeting, Met-Office Best spectral regions: TAFTS
