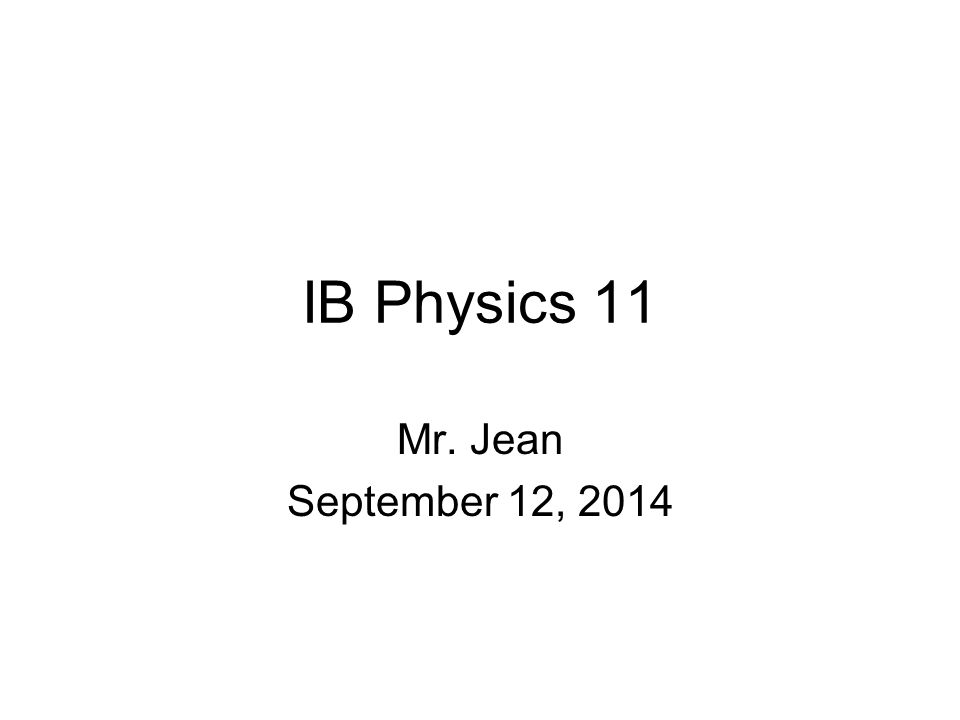

1. IB Physics 11 Mr. Jean September 12, 2014

2. The plan: Video clip of the day Finish Motion labs Continue working on kinematics & mechanics topics.

3. Graphical Representation of Motion These come in 4 forms 1. Distance-time graphs 2. Displacement-time graphs 3. Velocity-time graphs 4. Acceleration-time graphs

4. Gradiants of Graphs Gradiant of a Displacement-time graph is the velocity Gradiant of a Velocity-time graph is the acceleration

5. Areas Under Graphs Area under a Velocity-time graph is the displacement Area under a Acceleration-time graph is the velocity Areas can be calculated by the addition of geometric shapes

6. Uniformly Accelerated Motion Velocity and hence Acceleration can be measured using –Light gates –Strobe photographs ( Duncan Page 142/3) –Ticker tape timers

7. The Equations of Uniformly Accelerated Motion There are 4 equations which we use when dealing with constant acceleration problems I call them the “suvat” equations You need to be able to derive them

8. The 4 Equations Supposing the velocity of a body increases from u to v in time t, then the uniform acceleration, a is given by a = change of velocity time taken a = v – u t  v = u + at- equation (1)

9. Since the velocity is increasing steadily, the average velocity is the mean of the initial and final velocities, i.e. Average velocity = u + v 2 If s is the displacement of the body in time t, then since average velocity = displacement/time = s/t We can say s = u + v t 2  s = ½ (u + v) t - equation (2)

10. But v = u + at  s = ½ (u + u + at) t  s = ut + ½at 2 - equation (3)

11. If we eliminate t from (3) by substituting in t = (v – u)/a from (1), we get on simplifying v 2 = u 2 +2as- equation (4) Knowing any three of s, u, v, a, t, and the others can be found

12. Experiments show that at a particular place all bodies falling freely under gravity, in a vacuum or where air resistance is negligible, have the same constant acceleration irrespective of their masses. This acceleration towards the surface of the Earth, known as the acceleration due to gravity, is donated by g. Acceleration Due to Gravity

13. Its magnitude varies slightly from place to place on the Earth´s surface and is approximately 9.8ms -2

14. The Effects of Air Resistance Air resistance depends on 2 things –Surface area –Velocity Air resistance increases as surface area increases Air resistance increases as the velocity increases

15. Terminal Velocity As an object falls through the air, it accelerates, due to the force of attraction of the Earth. This force does not change. As the velocity increases, the air resistance, the force opposing the motion, increases, therefore the acceleration decreases.

16. If the object falls for long enough, then the air resistance (a force acting upwards) will equal the force of attraction of the Earth (the weight) (a force acting downwards) Now there are no net forces acting on the object (since the two forces balance) so it no longer accelerates, but travels at a constant velocity called its terminal velocity.

17. Terminal velocity depends on –The size –Shape –And weight of the object A sky diver has a terminal velocity of more than 50ms -1 (100 miles per hour)

18. Relative Motion If you are stationary and watching things come towards you or away from you, then your stating velocities is easy. If, however you are in motion, either moving towards or away from an object in motion, then your frame of reference is different

19. In this case the relative velocity is the velocity of the object relative to your motion. Examples include –cars overtaking –Trains going passed platforms
