1. CMPT 438 Algorithms

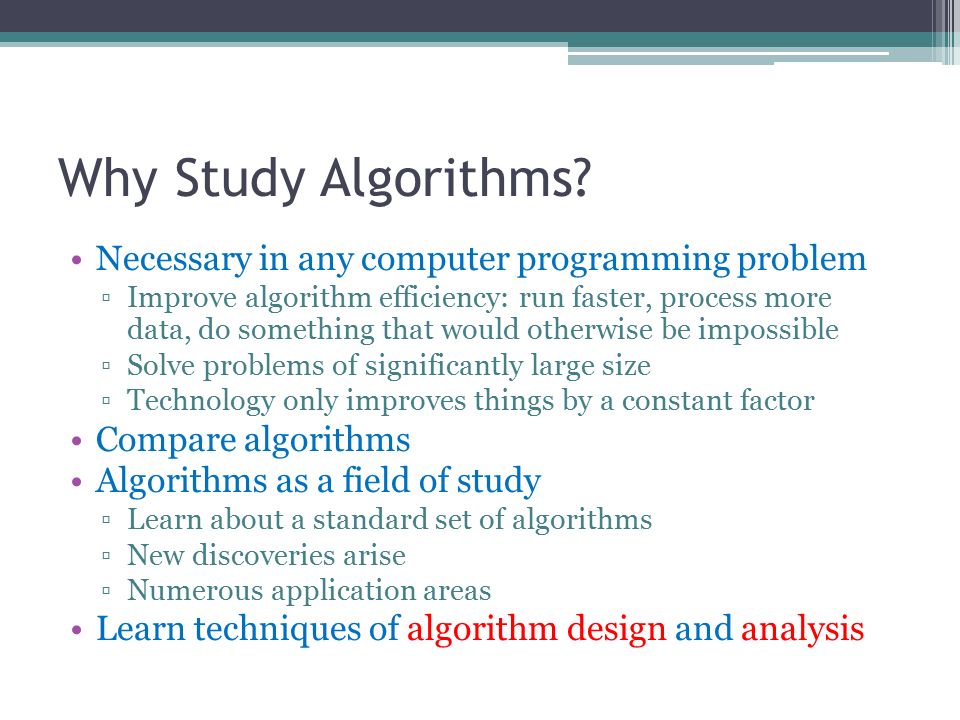

2. Why Study Algorithms? Necessary in any computer programming problem ▫Improve algorithm efficiency: run faster, process more data, do something that would otherwise be impossible ▫Solve problems of significantly large size ▫Technology only improves things by a constant factor Compare algorithms Algorithms as a field of study ▫Learn about a standard set of algorithms ▫New discoveries arise ▫Numerous application areas Learn techniques of algorithm design and analysis

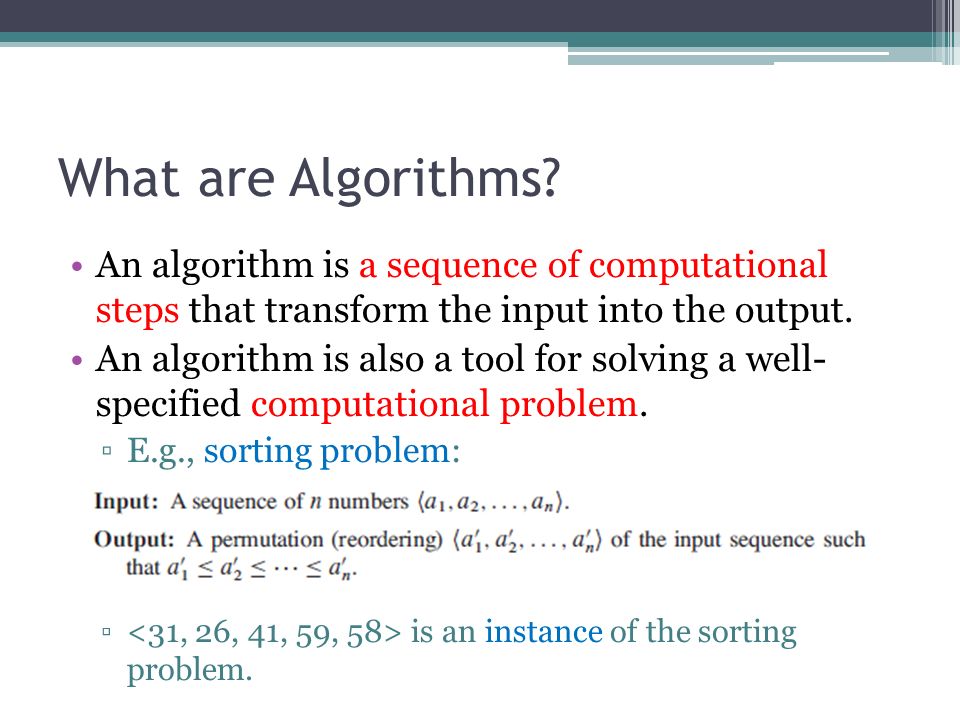

3. What are Algorithms? An algorithm is a sequence of computational steps that transform the input into the output. An algorithm is also a tool for solving a well- specified computational problem. ▫E.g., sorting problem: ▫ is an instance of the sorting problem.

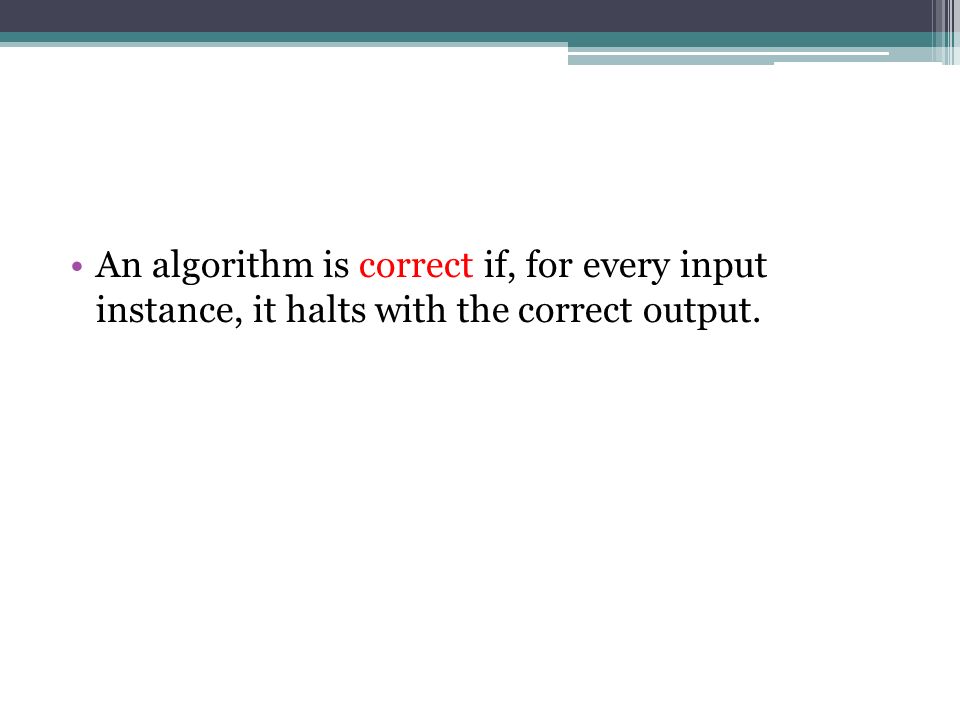

4. An algorithm is correct if, for every input instance, it halts with the correct output.

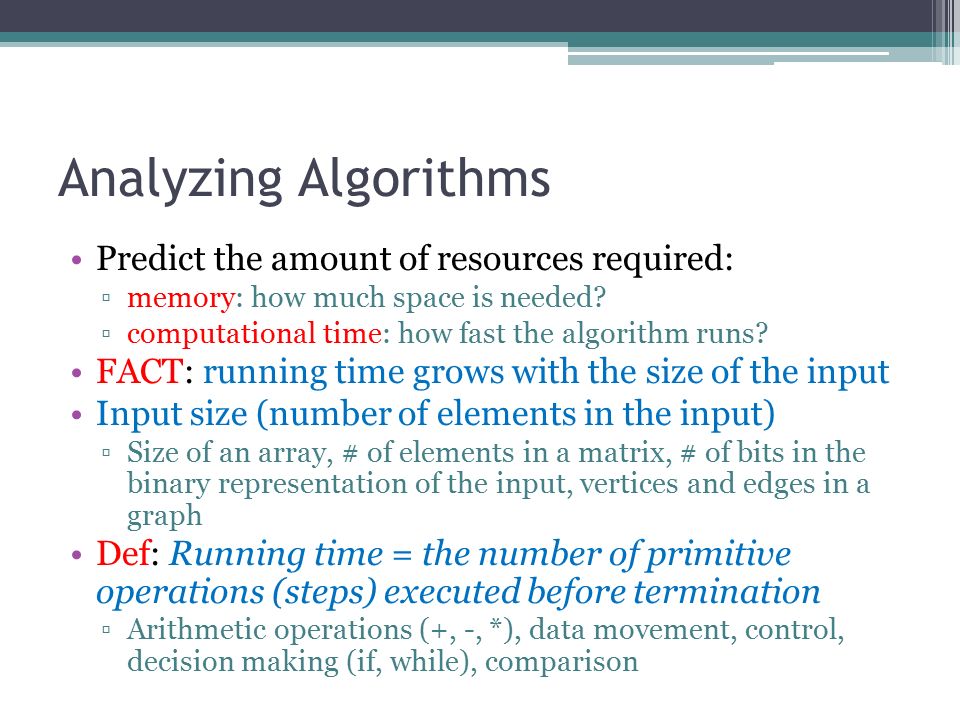

5. Analyzing Algorithms Predict the amount of resources required: ▫memory: how much space is needed? ▫computational time: how fast the algorithm runs? FACT: running time grows with the size of the input Input size (number of elements in the input) ▫Size of an array, # of elements in a matrix, # of bits in the binary representation of the input, vertices and edges in a graph Def: Running time = the number of primitive operations (steps) executed before termination ▫Arithmetic operations (+, -, *), data movement, control, decision making (if, while), comparison

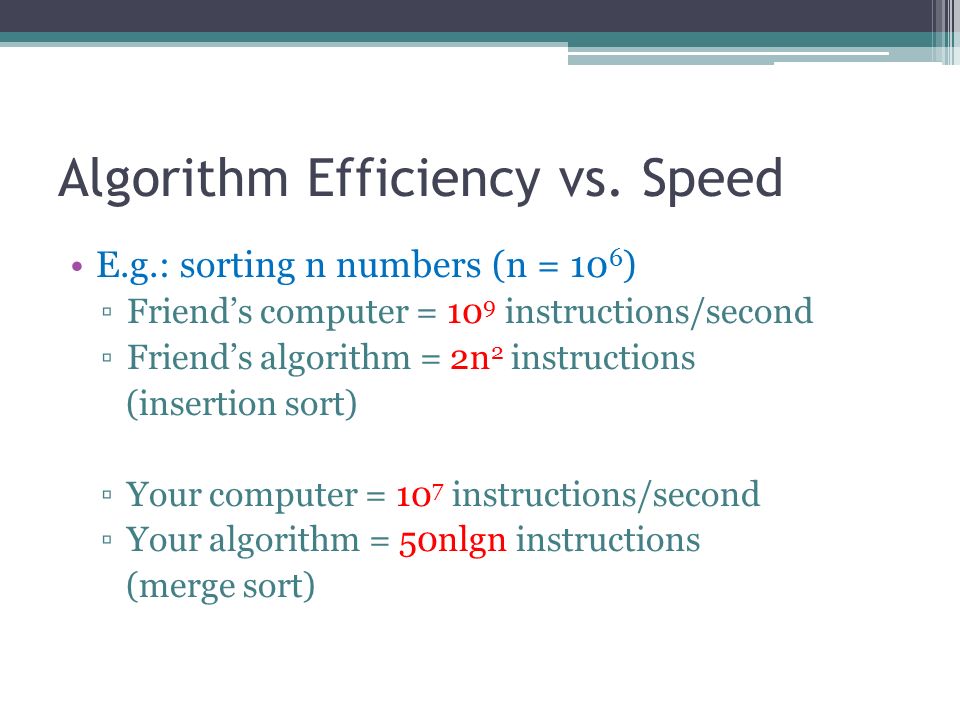

6. Algorithm Efficiency vs. Speed E.g.: sorting n numbers (n = 10 6 ) ▫Friend’s computer = 10 9 instructions/second ▫Friend’s algorithm = 2n 2 instructions (insertion sort) ▫Your computer = 10 7 instructions/second ▫Your algorithm = 50nlgn instructions (merge sort)

7. Algorithm Efficiency vs. Speed To sort 100 million numbers: Insertion sort takes more than 23 days Merge sort takes under 4 hours

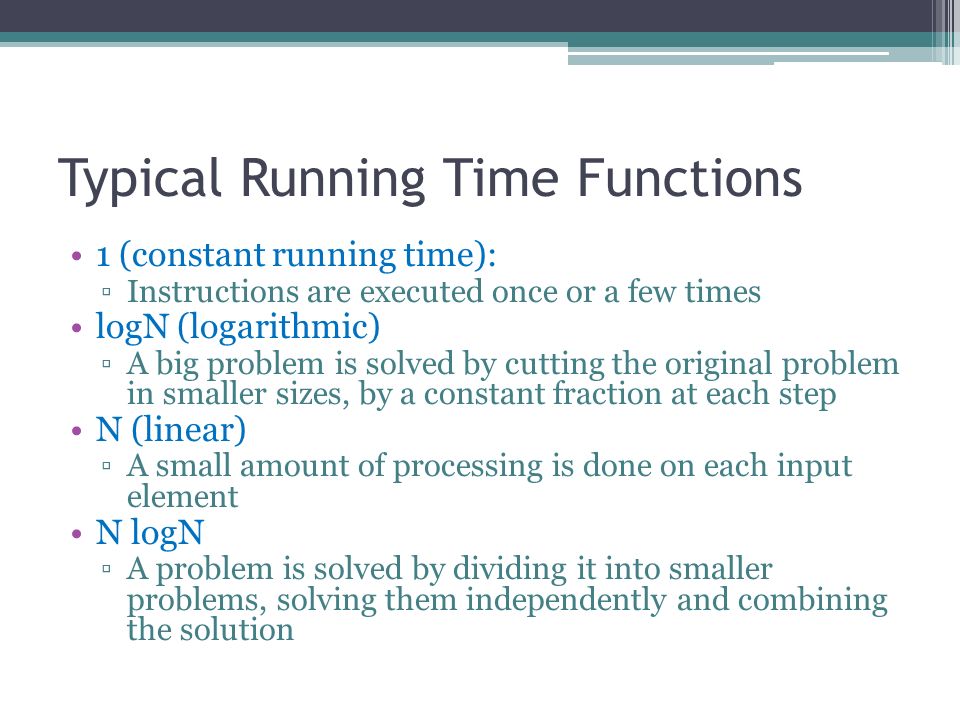

8. Typical Running Time Functions 1 (constant running time): ▫Instructions are executed once or a few times logN (logarithmic) ▫A big problem is solved by cutting the original problem in smaller sizes, by a constant fraction at each step N (linear) ▫A small amount of processing is done on each input element N logN ▫A problem is solved by dividing it into smaller problems, solving them independently and combining the solution

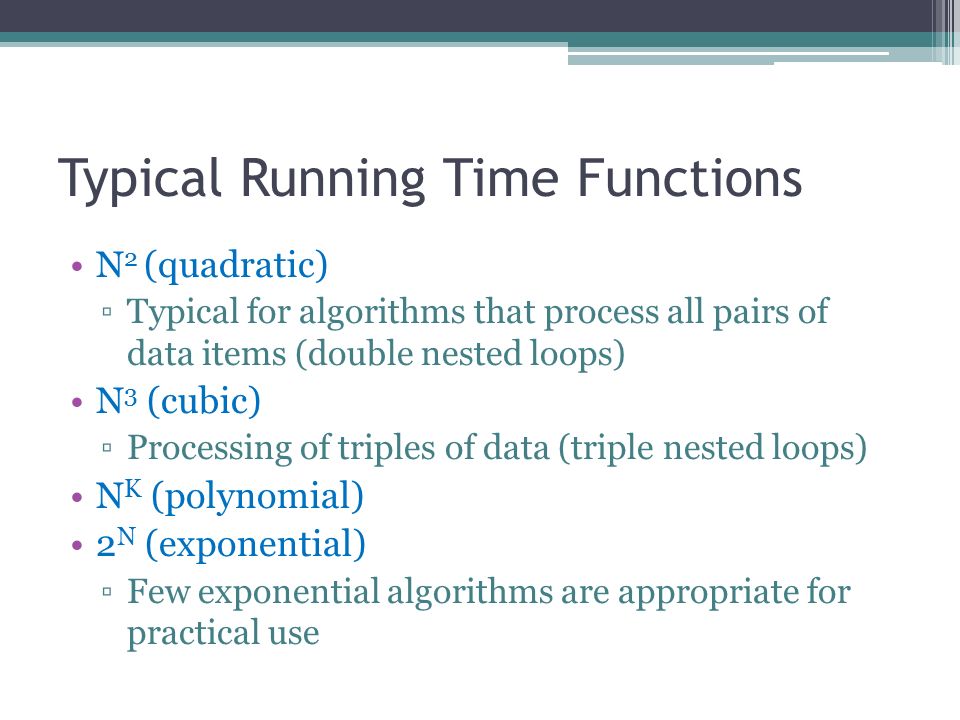

9. Typical Running Time Functions N 2 (quadratic) ▫Typical for algorithms that process all pairs of data items (double nested loops) N 3 (cubic) ▫Processing of triples of data (triple nested loops) N K (polynomial) 2 N (exponential) ▫Few exponential algorithms are appropriate for practical use

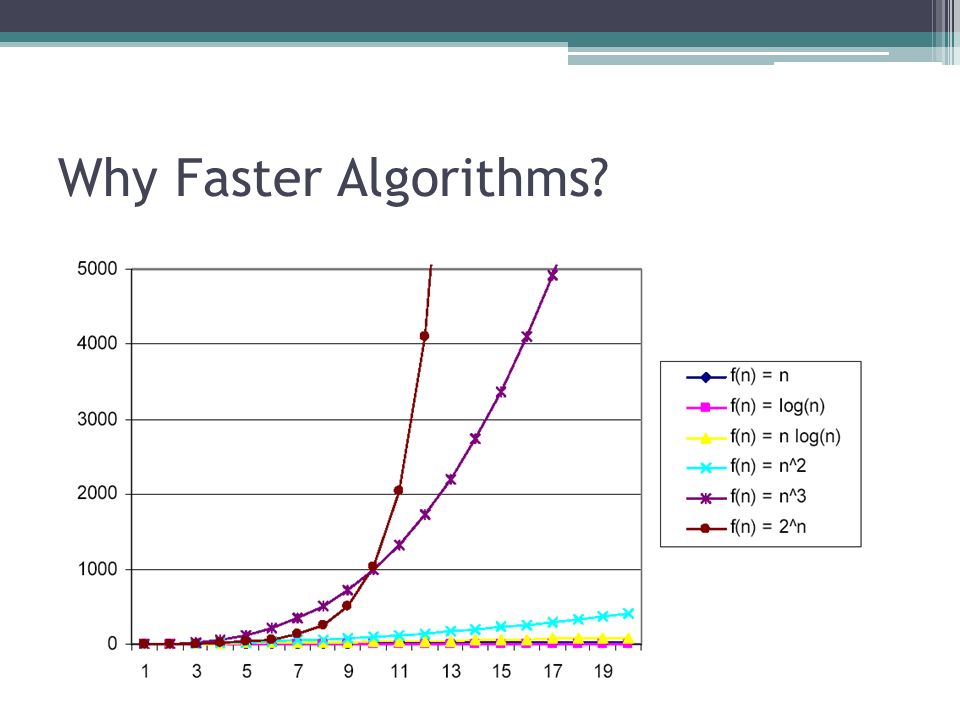

10. Why Faster Algorithms?

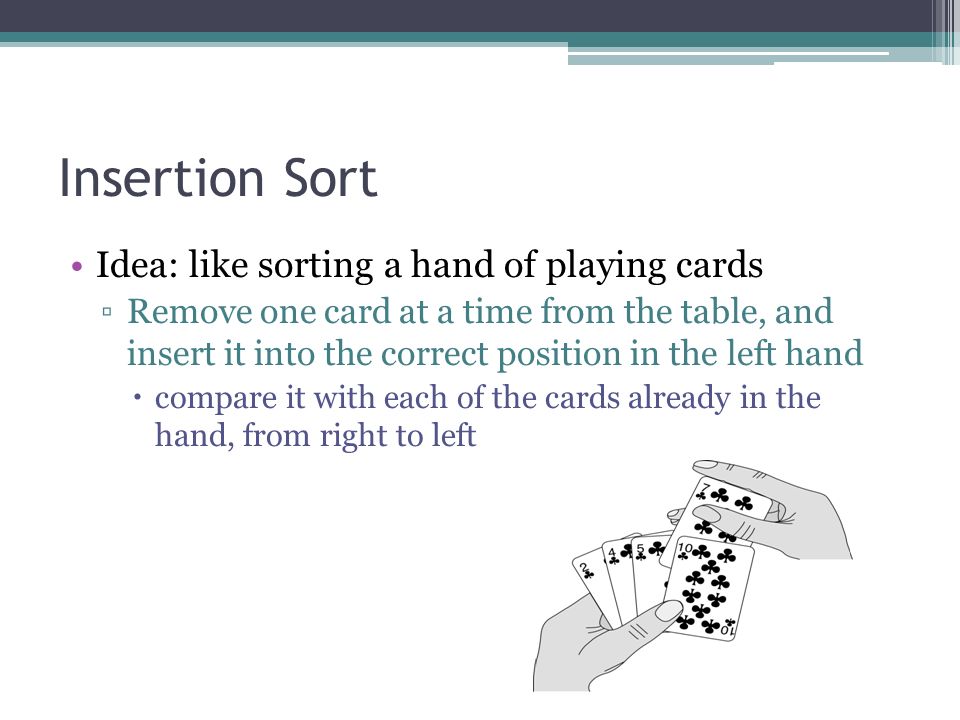

11. Insertion Sort Idea: like sorting a hand of playing cards ▫Remove one card at a time from the table, and insert it into the correct position in the left hand  compare it with each of the cards already in the hand, from right to left

12. Example of insertion sort 5 2 4 6 1 3

14. INSERTION-SORT I NSERTION -S ORT (A, n) ⊳ A[1.. n] for j ← 2 to n do key ← A[ j] i ← j –1 while i > 0 and A[i] > key do A[i+1] ← A[i] i ← i –1 A[i+1] = key Insertion sort sorts the elements in place. i A: sorted key nj 1

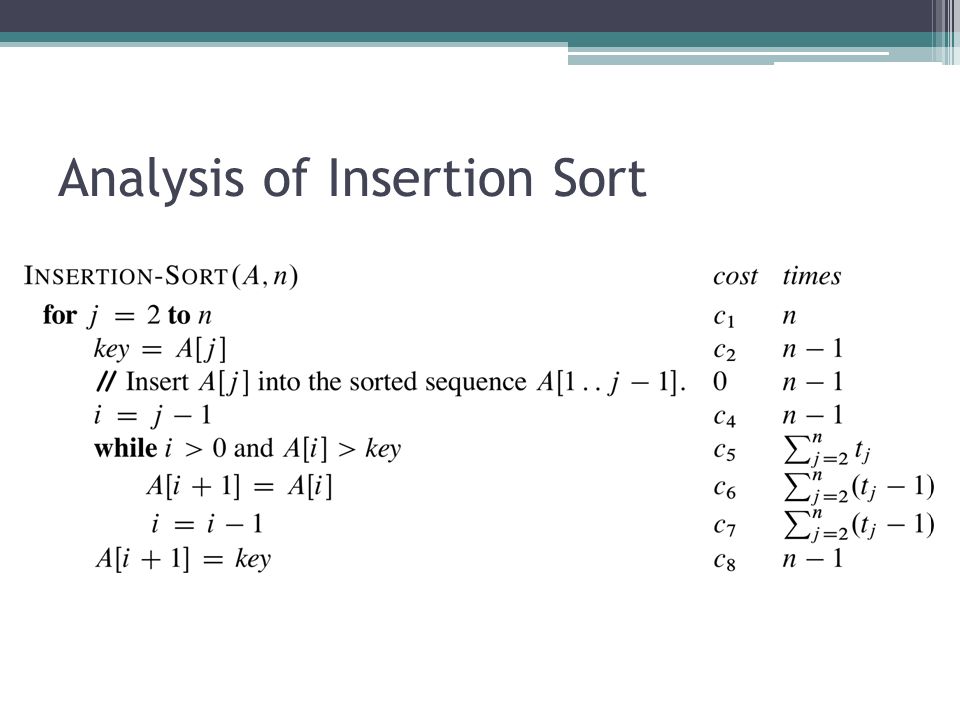

15. Analysis of Insertion Sort

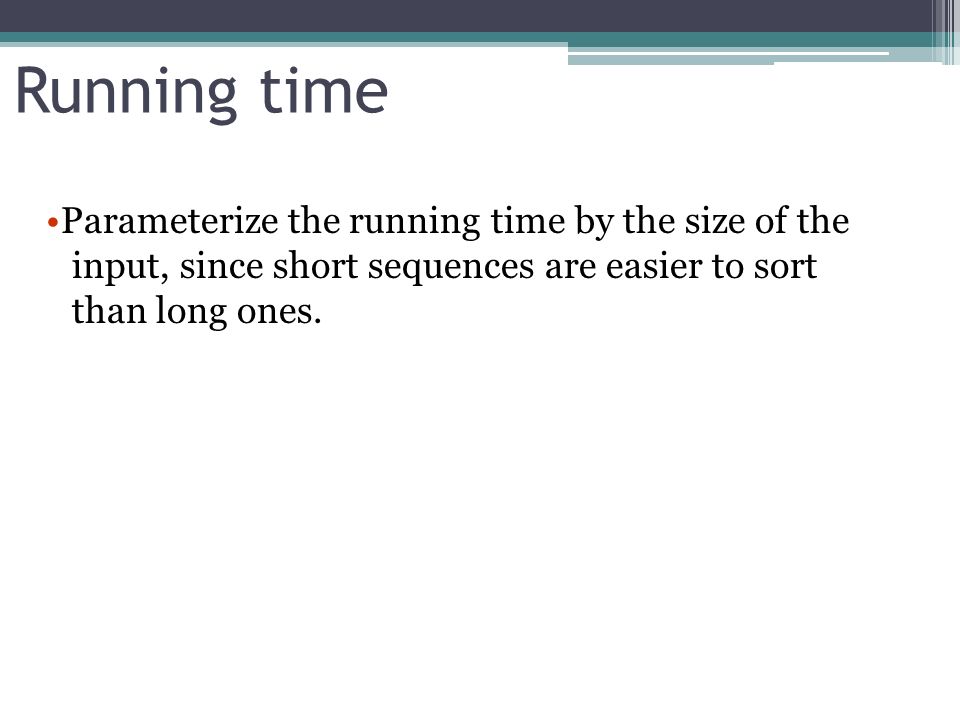

17. Running time Parameterize the running time by the size of the input, since short sequences are easier to sort than long ones.

18. Kinds of analyses Worst-case: T(n) =maximum time of algorithm on any input of size n. Average-case: T(n) =expected time of algorithm over all inputs of size n. Need assumption of statistical distribution of inputs. Best-case: Cheat with a slow algorithm that works fast on some input.

19. “Asymptotic Analysis” Machine-independent time What is insertion sort’s worst-case time? It depends on the speed of our computer BIG IDEA: Ignore machine-dependent constants. Look at growth of T(n) as n → ∞.

20. Θ-notation Math: Θ(g(n)) = { f (n): there exist positive constants c 1, c 2, and n 0 such that 0 ≤c 1 g(n) ≤f (n) ≤c 2 g(n) for all n≥n 0 } Engineering: Drop low-order terms; ignore leading constants. Example: 3n 3 + 90n 2 –5n+ 6046 = Θ(n 3 )

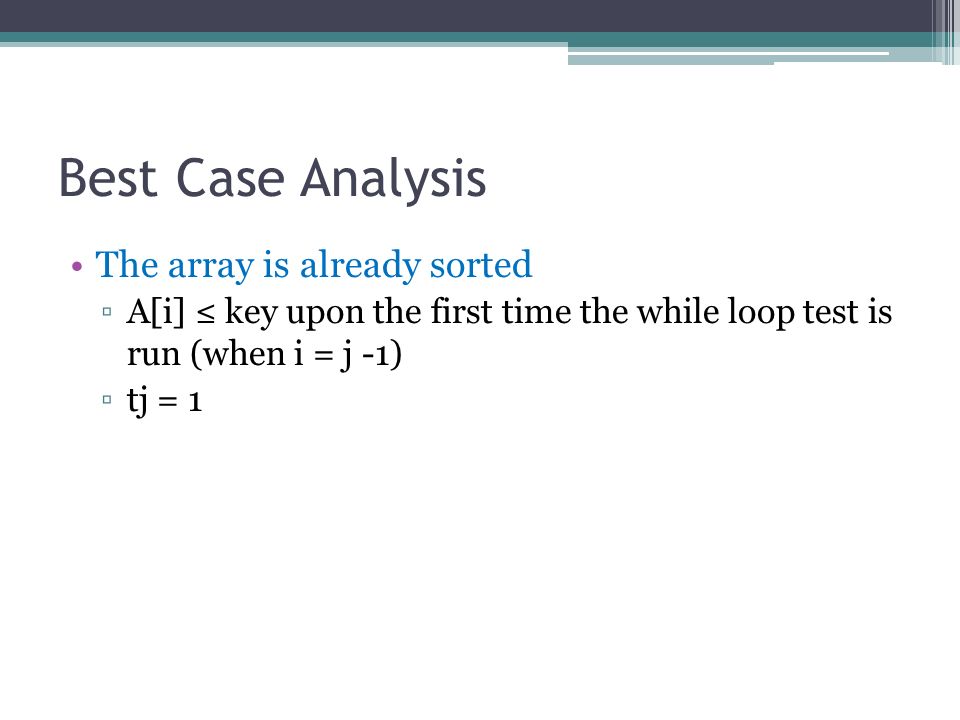

21. Best Case Analysis The array is already sorted ▫A[i] ≤ key upon the first time the while loop test is run (when i = j -1) ▫tj = 1

22. Worst Case Analysis The array is in reverse sorted order ▫Always A[i] > key in while loop test ▫Have to compare key with all elements to the left of the j-th position ▫compare with j-1 elements ▫tj = j

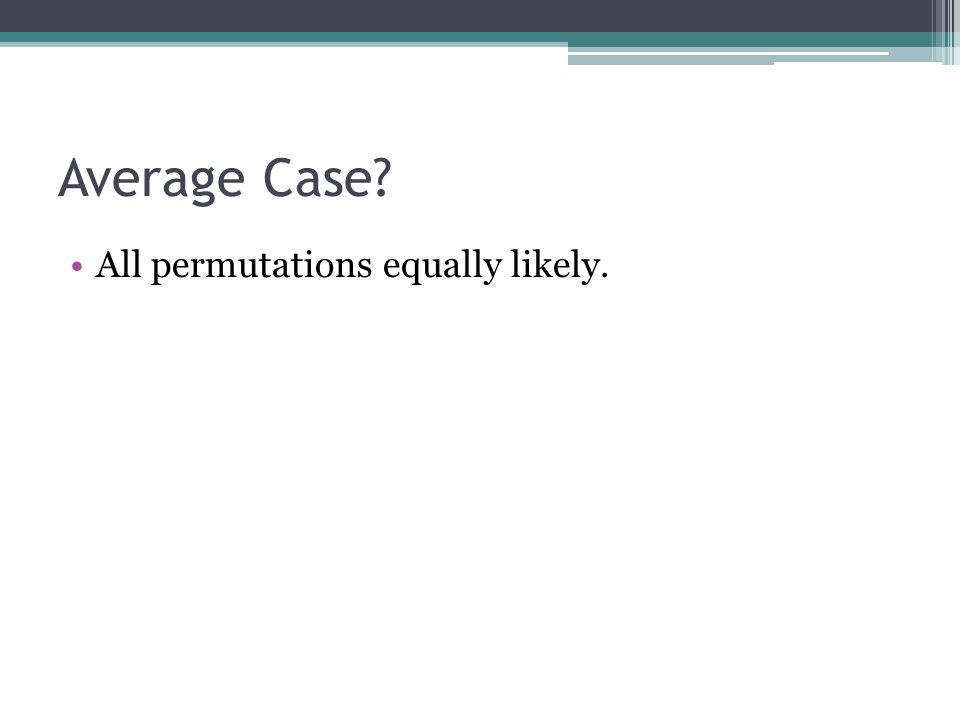

23. Average Case? All permutations equally likely.

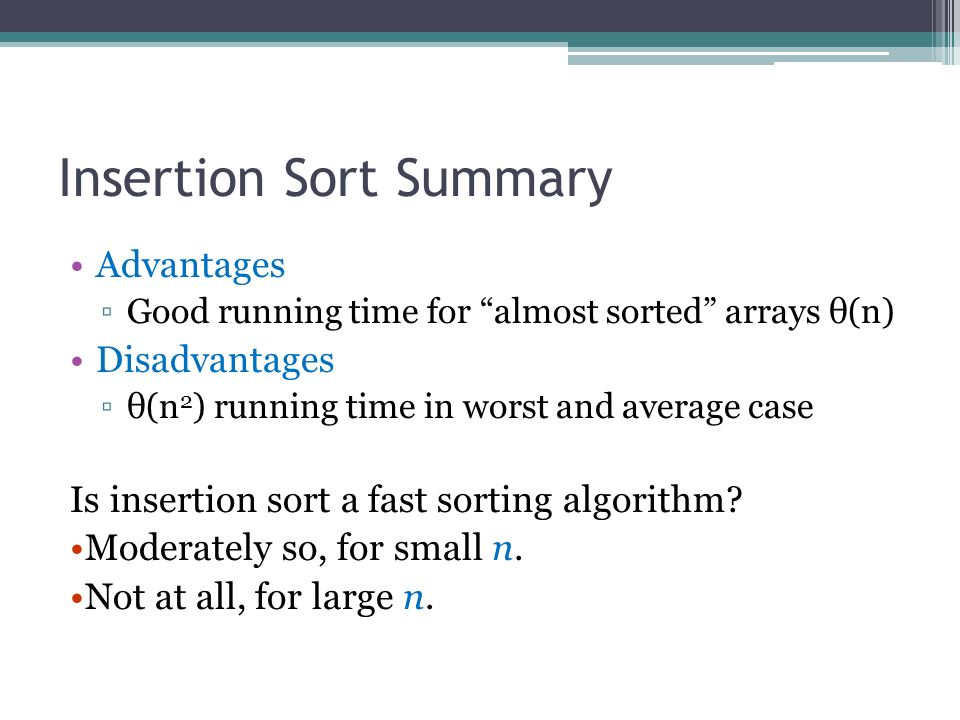

24. Insertion Sort Summary Advantages ▫Good running time for “almost sorted” arrays θ(n) Disadvantages ▫θ(n 2 ) running time in worst and average case Is insertion sort a fast sorting algorithm? Moderately so, for small n. Not at all, for large n.

25. Worst-Case and Average-Case We usually concentrate on finding only the worst-case running time ▫an upper bound on the running time ▫For some algorithms, the worst case occurs often.  E.g., searching when information is not present in the DB ▫The average case is often as bad as the worst case.

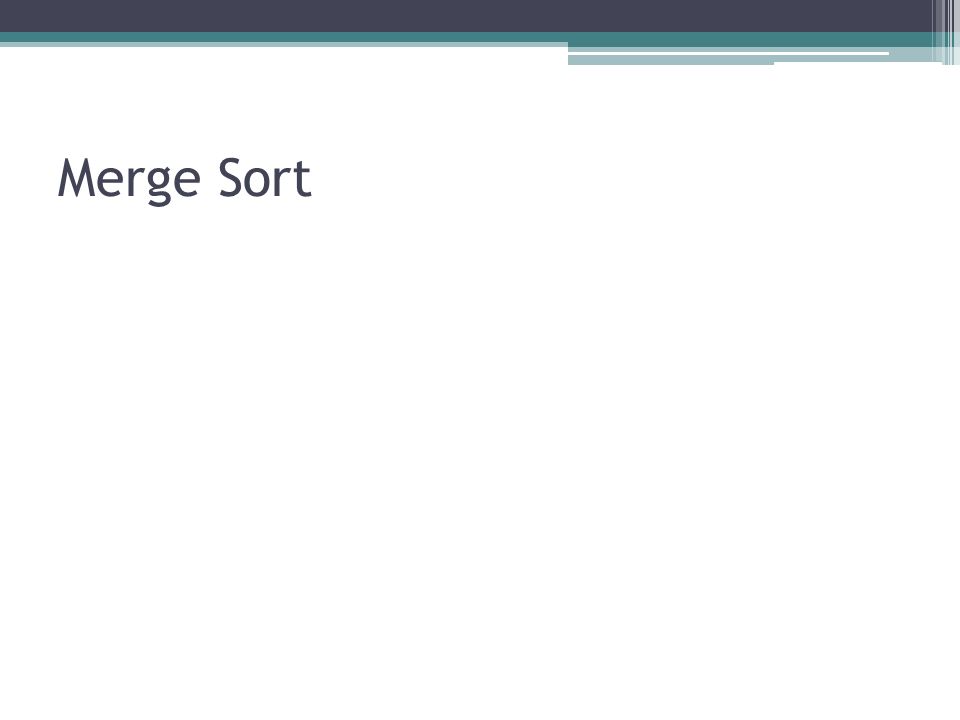

26. Merge Sort

27. MERGE-SORT A[1.. n] 1.If n= 1, done. 2.Recursively sort A[ 1...n/2]and A[ [n/2]+1.. n ]. 3.“Merge” the 2 sorted lists.

28. Example

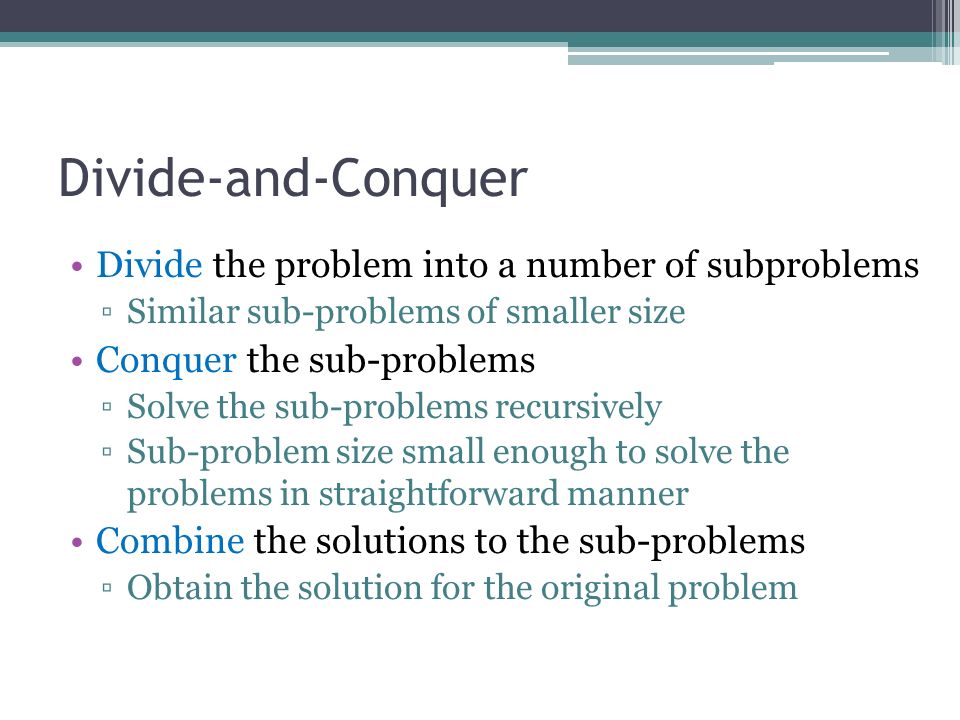

29. Divide-and-Conquer Divide the problem into a number of subproblems ▫Similar sub-problems of smaller size Conquer the sub-problems ▫Solve the sub-problems recursively ▫Sub-problem size small enough to solve the problems in straightforward manner Combine the solutions to the sub-problems ▫Obtain the solution for the original problem

30. Merge Sort Approach To sort an array A[p.. r]: Divide ▫Divide the n-element sequence to be sorted into two subsequences of n/2 elements each Conquer ▫Sort the subsequences recursively using merge sort ▫When the size of the sequences is 1 there is nothing more to do Combine ▫Merge the two sorted subsequences

31. Merge sort

32. Analyzing merge sort MERGE-SORT A[1.. n] 1.If n= 1, done. 2.Recursively sort A[ 1.. 「 n/2 」 ] and A[ 「 n/2 」 +1.. n ]. 3.“Merge”the 2sorted lists Sloppiness: Should be T( 「 n/2 」 ) + T( 「 n/2 」 ), but it turns out not to matter asymptotically. T(n) Θ(1) 2T(n/2) ?

33. Merging two sorted arrays 20 12 13 11 7 9 2 1

34. Merging two sorted arrays 20 12 13 11 7 9 2 1 20 12 13 11 7 9 2 20 12 13 11 7 9 20 12 13 11 9 20 12 13 11 20 12 13 12 7 9 1112 Time = Θ(n) to merge a total of n elements (linear time).

35. In place sort? Run time?

36. Analyzing Divide and Conquer Algorithms The recurrence is based on the three steps of the paradigm: ▫T(n) – running time on a problem of size n ▫Divide the problem into a subproblems, each of size n/b: takes D(n) ▫Conquer (solve) the subproblems: takes aT(n/b) ▫Combine the solutions: takes C(n) T(n) = aT(n/b) + D(n) + C(n) otherwise

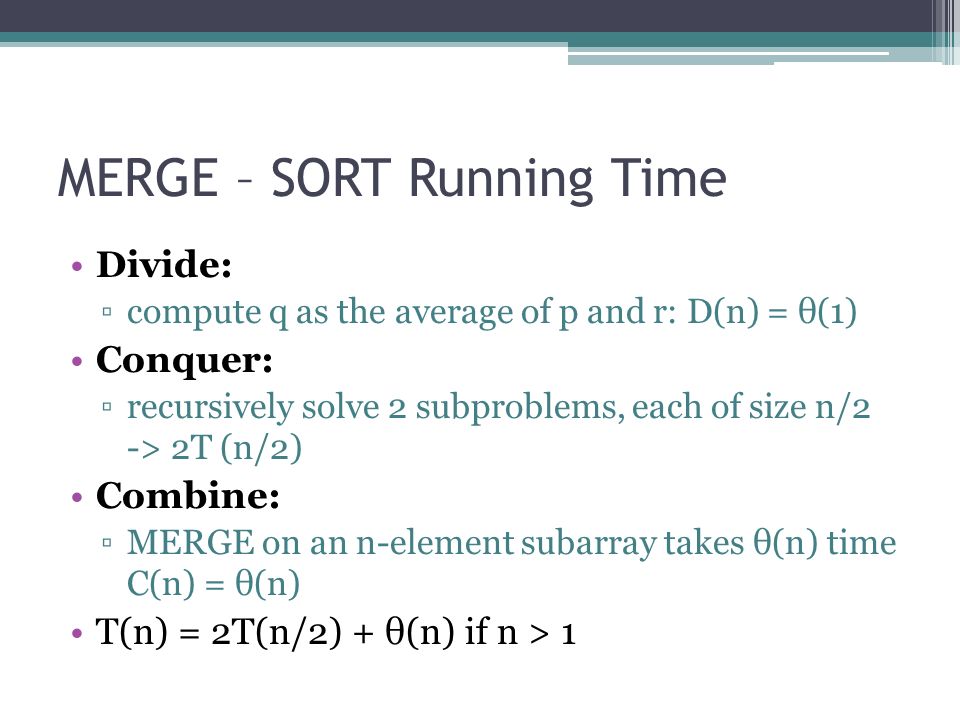

37. MERGE – SORT Running Time Divide: ▫compute q as the average of p and r: D(n) = θ(1) Conquer: ▫recursively solve 2 subproblems, each of size n/2 -> 2T (n/2) Combine: ▫MERGE on an n-element subarray takes θ(n) time C(n) = θ(n) T(n) = 2T(n/2) + θ(n) if n > 1

38. Recurrence for merge sort We shall usually omit stating the base case when T(n) = Θ(1) for sufficiently small n, but only when it has no effect on the asymptotic solution to the recurrence. Θ(1) if n= 1; 2T(n/2)+ Θ(n) if n> 1. T(n) =

39. Recursion tree Solve T(n) = 2T(n/2) + cn, where c > 0 is constant.

40. Recursion tree Solve T(n) = 2T(n/2) + cn, where c > 0 is constant. cn cn/2 cn/2 cn/4 cn/4 cn/4 cn/4 Θ(1) ． ． ．． ． ． h= lgn cn ． ． ．． ． ． #leaves = n Θ(n) Total= Θ( n lg n)

41. Conclusions Θ(n lg n) grows more slowly than Θ(n 2 ). Therefore, merge sort asymptotically beats insertion sort in the worst case. Disadvantage ▫Requires extra space Θ (n) In practice, merge sort beats insertion sort for n> 30 or so.

42. Divide-and-Conquer Example: Binary Search Find an element in a sorted array: 1. Divide: Check middle element. 2. Conquer: Recursively search 1 subarray. 3. Combine: Trivial. A[8] = {1, 2, 3, 4, 5, 7, 9, 11} Find 7

43. Divide-and-Conquer Example: Binary Search For an ordered array A, finds if x is in the array A[lo…hi]

44. Example A[8] = {1, 2, 3, 4, 5, 7, 9, 11} lo = 1 hi = 8 x = 6

45. Analysis of Binary Search ?

46. Divide-and-Conquer Example: Powering a Number ? ? ?

47. Readings Chapter 3 Appendix A Homework 1 Quiz
