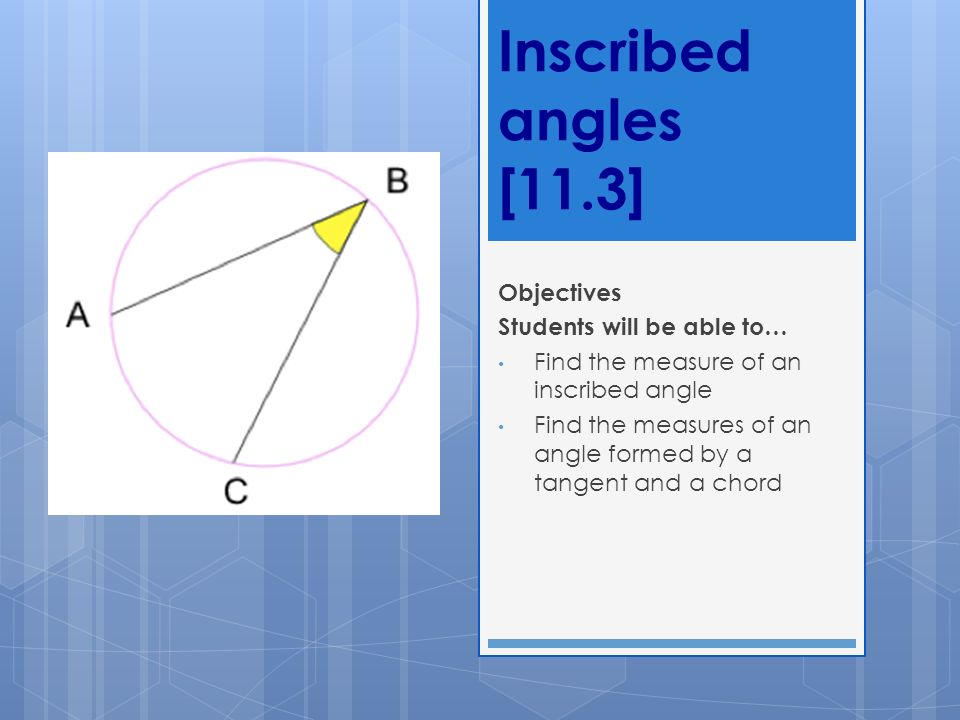

1 Inscribed angles [11.3] Objectives Students will be able to… Find the measure of an inscribed angle Find the measures of an angle formed by a tangent and a chord

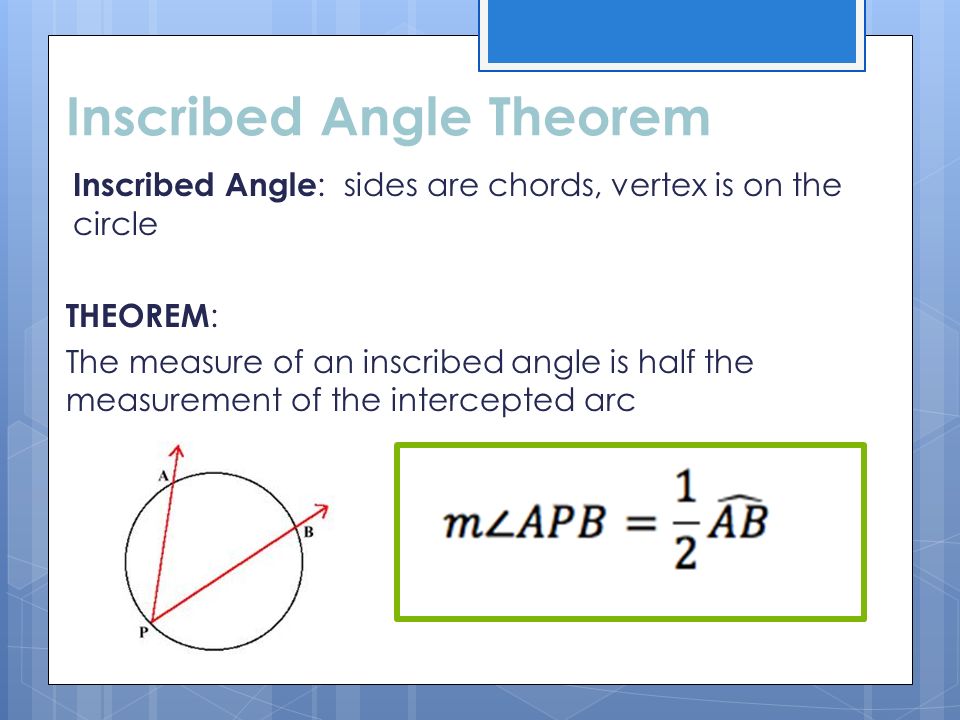

2 Inscribed Angle Theorem Inscribed Angle : sides are chords, vertex is on the circle THEOREM : The measure of an inscribed angle is half the measurement of the intercepted arc

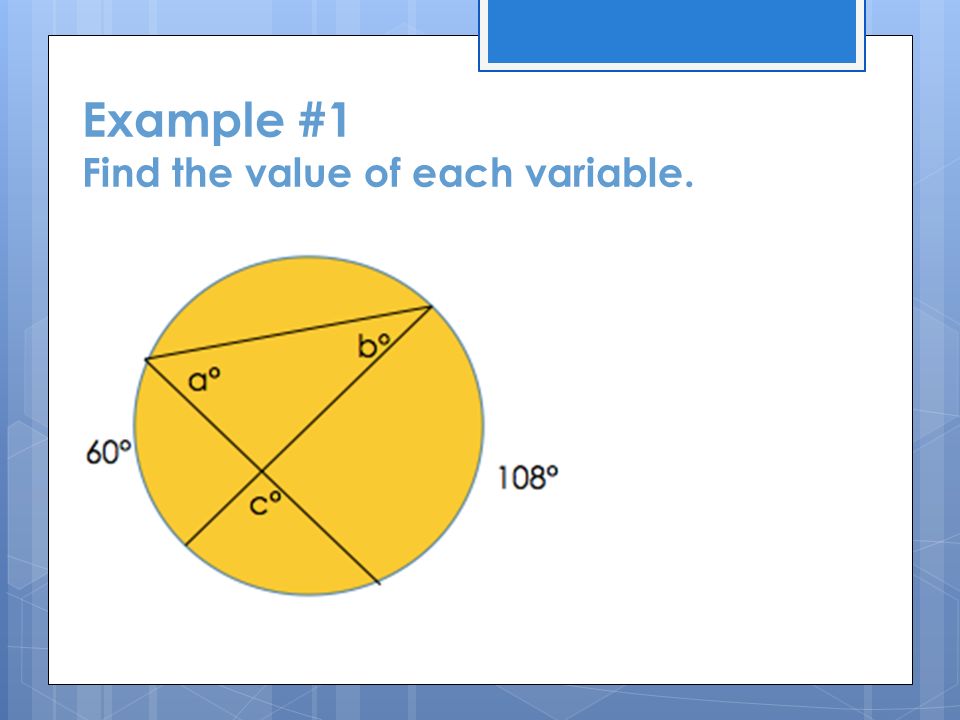

3 Example #1 Find the value of each variable.

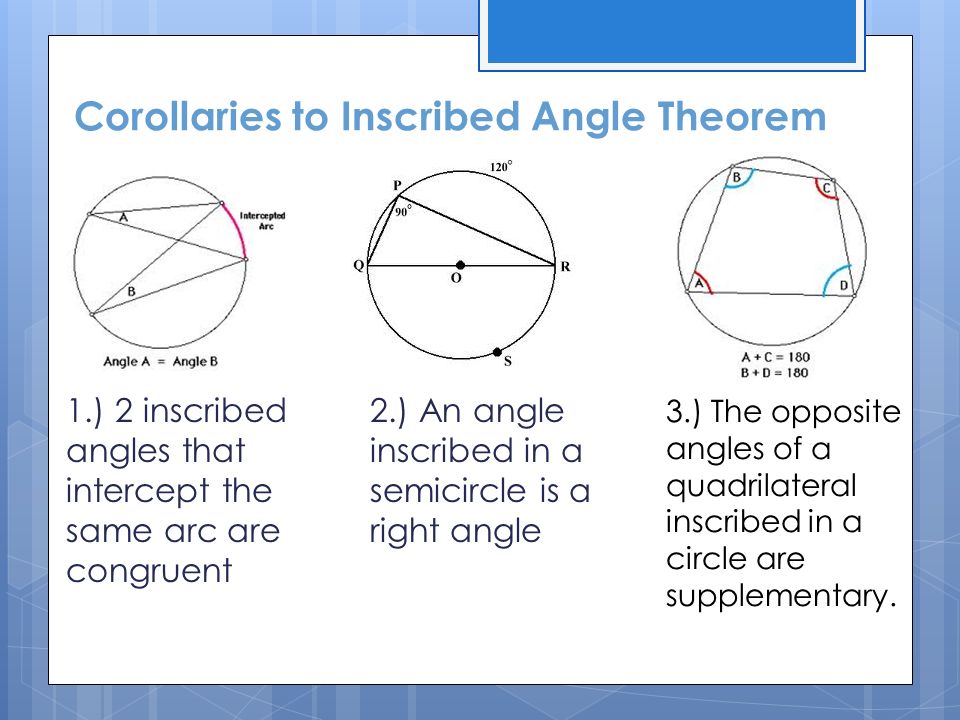

4 Corollaries to Inscribed Angle Theorem 1.) 2 inscribed angles that intercept the same arc are congruent 2.) An angle inscribed in a semicircle is a right angle 3.) The opposite angles of a quadrilateral inscribed in a circle are supplementary.

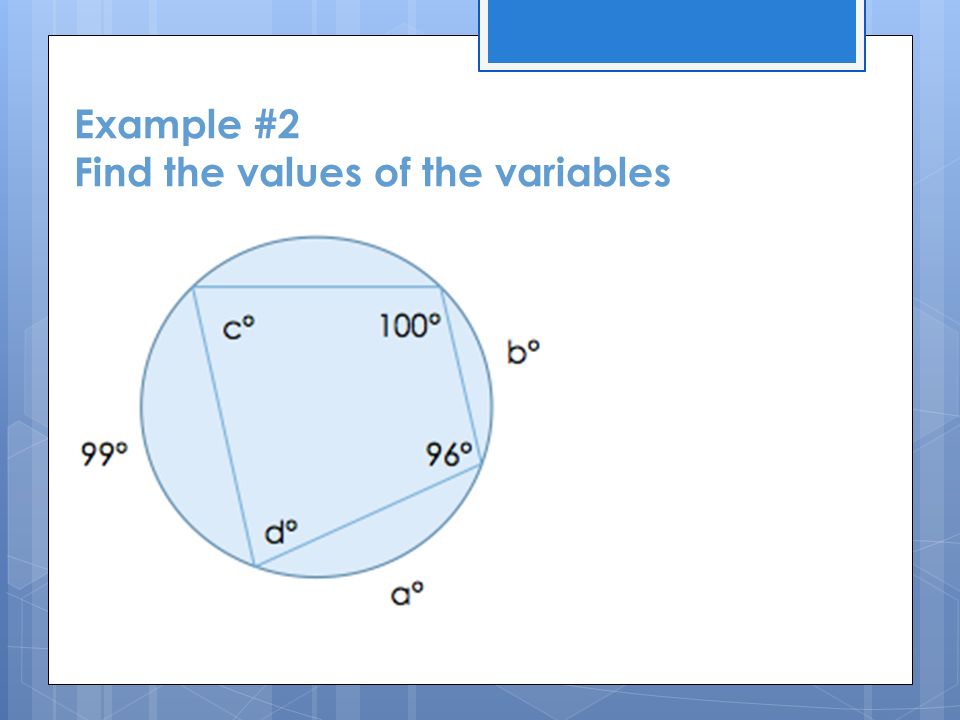

5 Example #2 Find the values of the variables

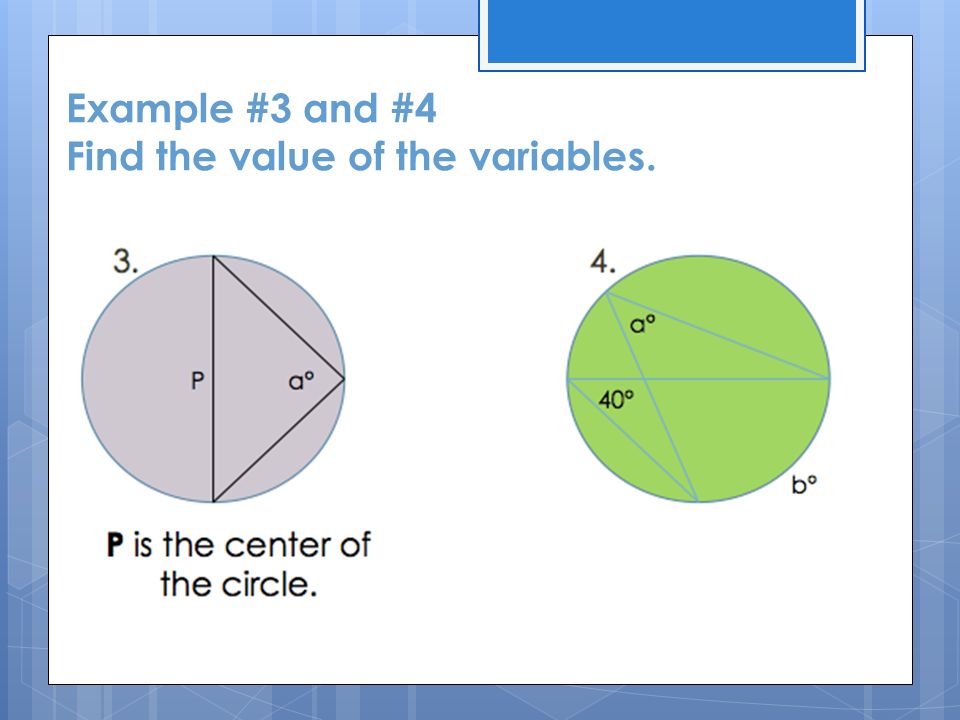

6 Example #3 and #4 Find the value of the variables.

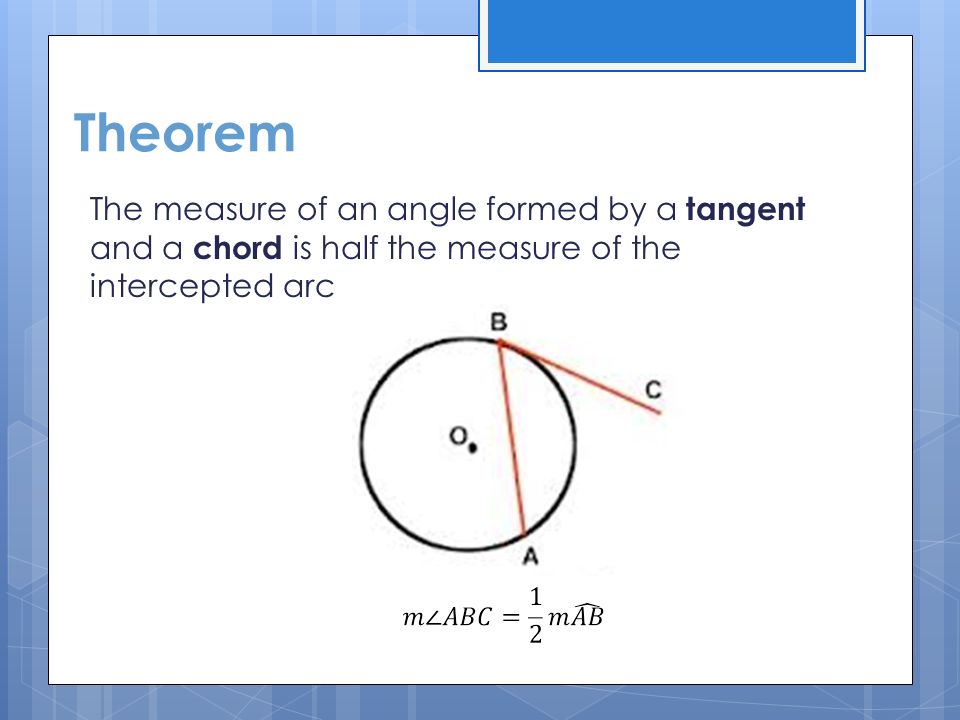

7 Theorem The measure of an angle formed by a tangent and a chord is half the measure of the intercepted arc

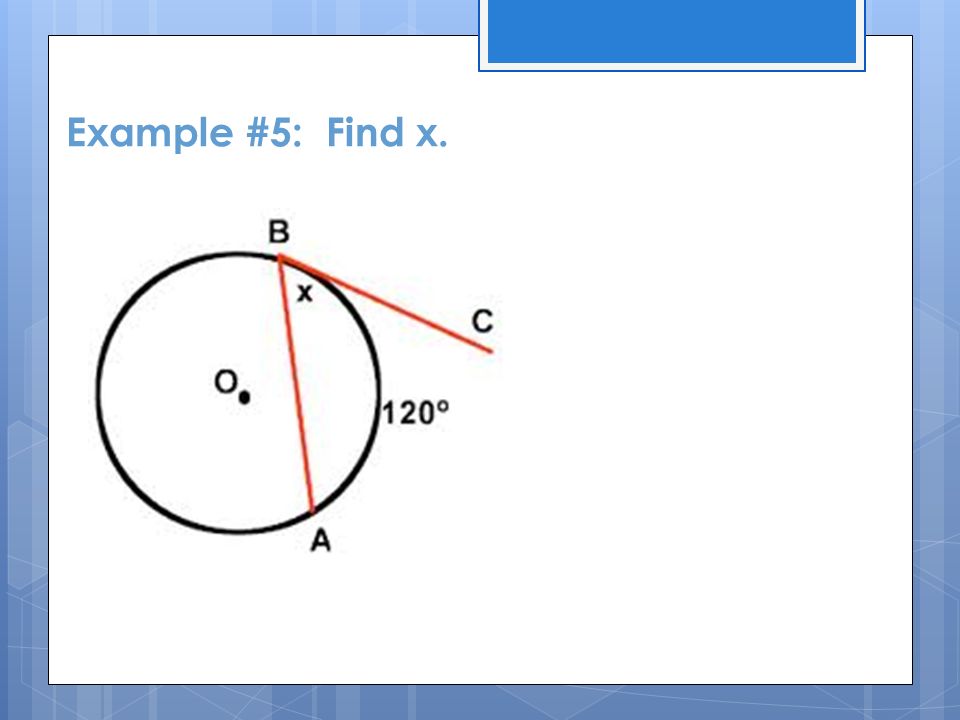

8 Example #5: Find x.

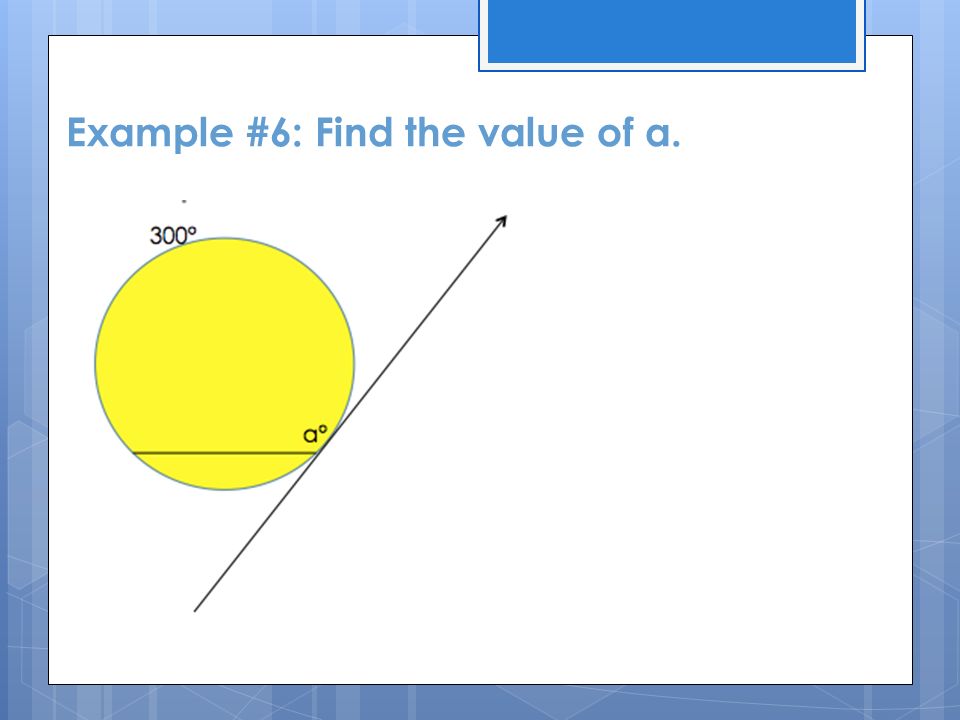

9 Example #6: Find the value of a.

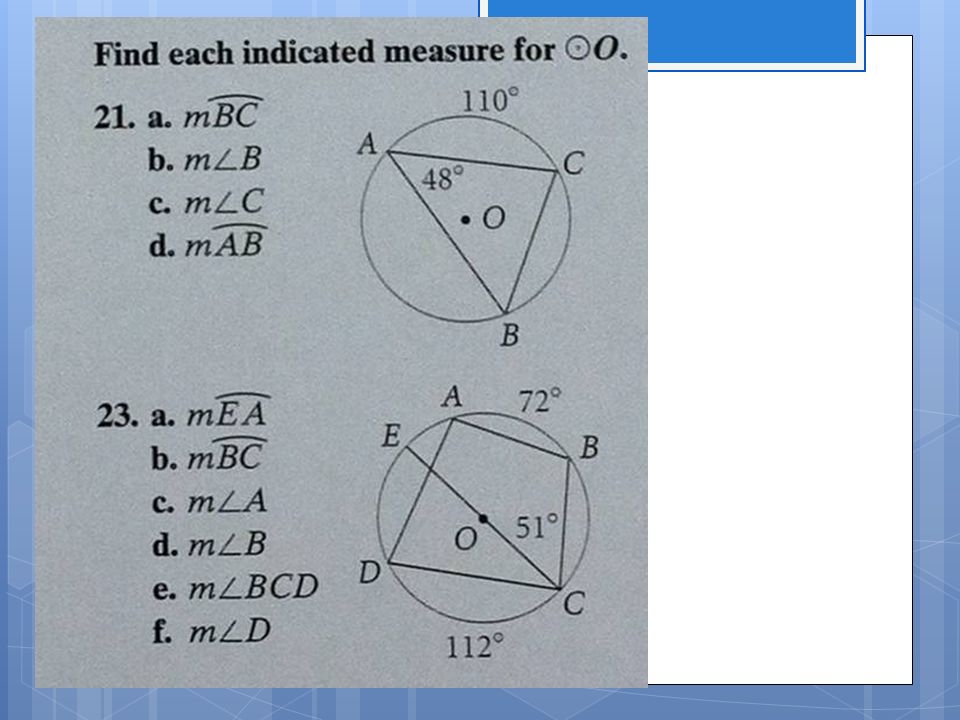

10
