1. 1 Classes and Objects in Java Basics of Classes in Java

2. 2 Classes A class is a collection of fields (data) and methods (procedure or function) that operate on that data. Circle centre radius circumference() area()

3. 3 Classes The basic syntax for a class definition: Bare bone class – no fields, no methods public class Circle { // my circle class } class ClassName [extends SuperClassName] { [fields declaration] [methods declaration] }

4. 4 Adding Fields: Class Circle with fields Add fields The fields (data) are also called the instance varaibles. public class Circle { public double x, y; // centre coordinate public double r; // radius of the circle }

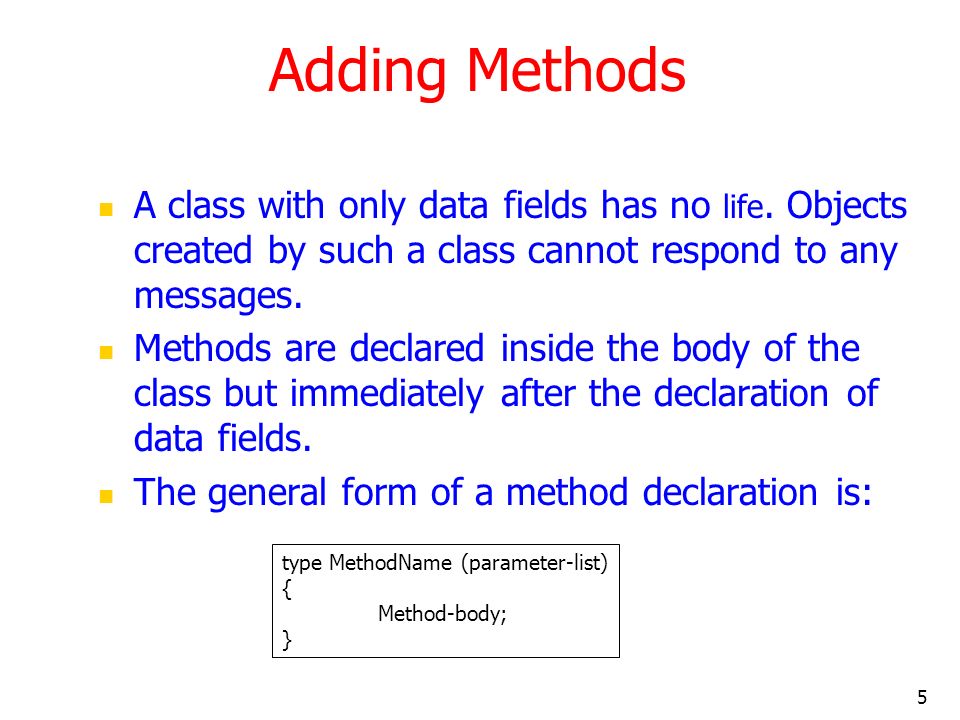

5. 5 Adding Methods A class with only data fields has no life. Objects created by such a class cannot respond to any messages. Methods are declared inside the body of the class but immediately after the declaration of data fields. The general form of a method declaration is: type MethodName (parameter-list) { Method-body; }

6. 6 Adding Methods to Class Circle public class Circle { public double x, y; // centre of the circle public double r; // radius of circle //Methods to return circumference and area public double circumference() { return 2*3.14*r; } public double area() { return 3.14 * r * r; } Method Body

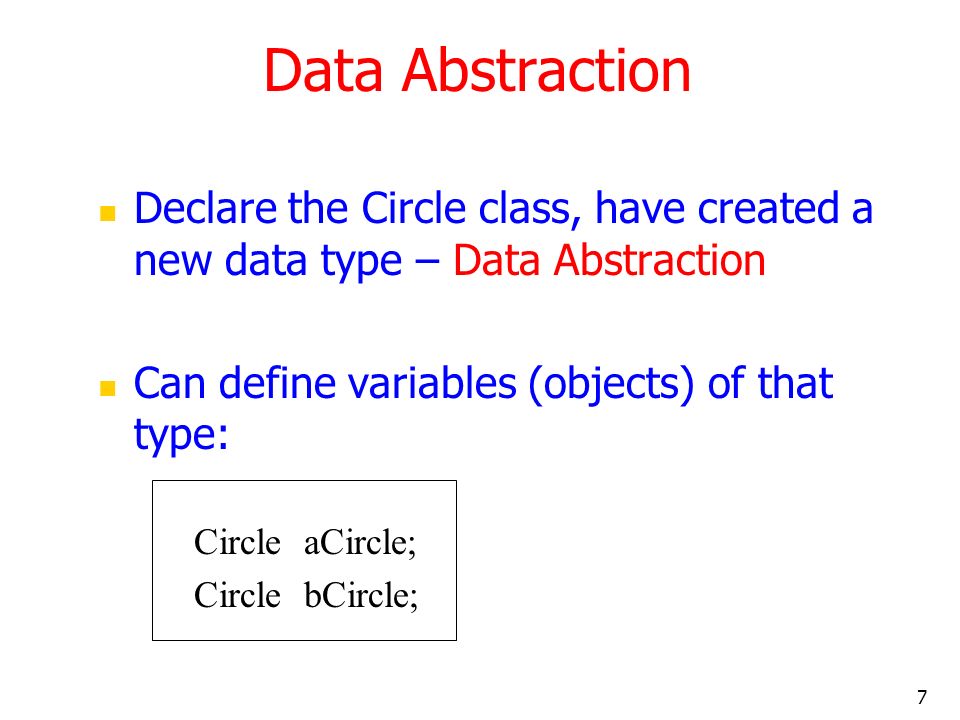

7. 7 Data Abstraction Declare the Circle class, have created a new data type – Data Abstraction Can define variables (objects) of that type: Circle aCircle; Circle bCircle;

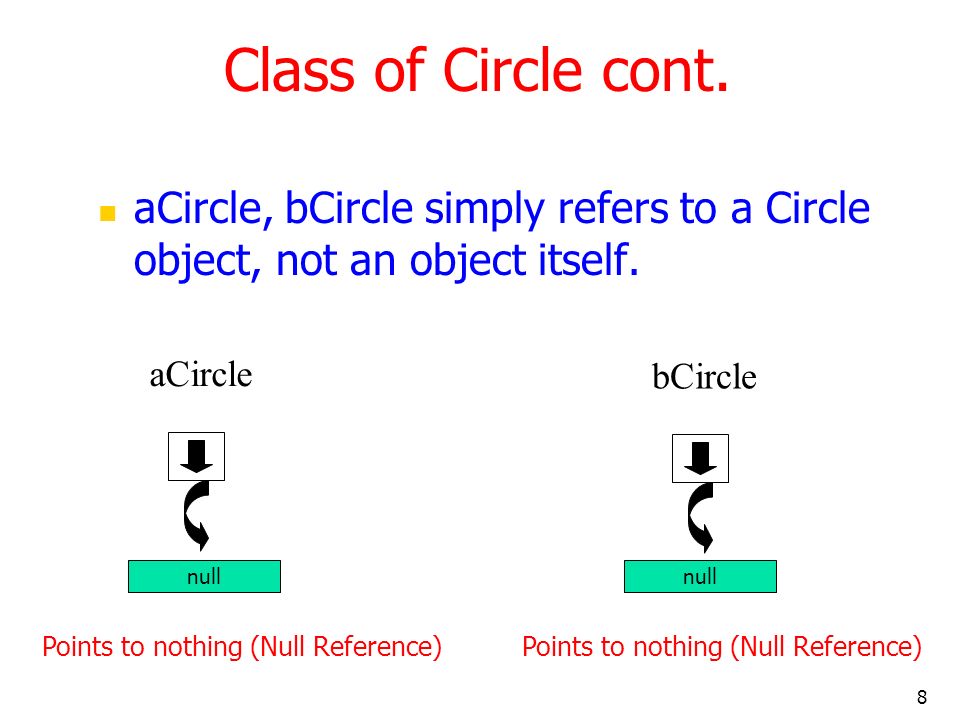

8. 8 Class of Circle cont. aCircle, bCircle simply refers to a Circle object, not an object itself. aCircle Points to nothing (Null Reference) bCircle Points to nothing (Null Reference) null

9. 9 Creating objects of a class Objects are created dynamically using the new keyword. aCircle and bCircle refer to Circle objects bCircle = new Circle() ; aCircle = new Circle() ;

10. 10 Creating objects of a class aCircle = new Circle(); bCircle = new Circle() ; bCircle = aCircle;

11. 11 Creating objects of a class aCircle = new Circle(); bCircle = new Circle() ; bCircle = aCircle; P aCircle Q bCircle Before Assignment P aCircle Q bCircle After Assignment

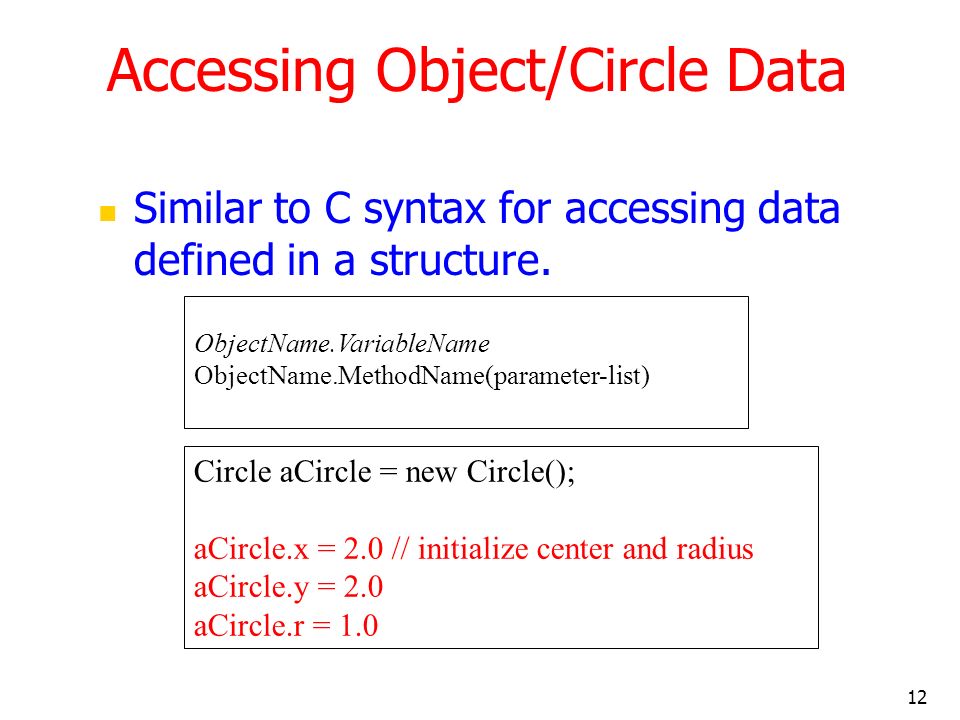

12. 12 Accessing Object/Circle Data Similar to C syntax for accessing data defined in a structure. Circle aCircle = new Circle(); aCircle.x = 2.0 // initialize center and radius aCircle.y = 2.0 aCircle.r = 1.0 ObjectName.VariableName ObjectName.MethodName(parameter-list)

13. 13 Executing Methods in Object/Circle Using Object Methods: Circle aCircle = new Circle(); double area; aCircle.r = 1.0; area = aCircle.area(); sent ‘message’ to aCircle

14. 14 Using Circle Class // Circle.java: Contains both Circle class and its user class //Add Circle class code here class MyMain { public static void main(String args[]) { Circle aCircle; // creating reference aCircle = new Circle(); // creating object aCircle.x = 10; // assigning value to data field aCircle.y = 20; aCircle.r = 5; double area = aCircle.area(); // invoking method double circumf = aCircle.circumference(); System.out.println("Radius="+aCircle.r+" Area="+area); System.out.println("Radius="+aCircle.r+" Circumference ="+circumf); } [raj@mundroo]%: java MyMain Radius=5.0 Area=78.5 Radius=5.0 Circumference =31.400000000000002
