Root Cause Slow Boot/Slow Login With WPT Chad Schultz Premier Field Engineer 10/26/2013.

Similar presentations


Presentation on theme: "Root Cause Slow Boot/Slow Login With WPT Chad Schultz Premier Field Engineer 10/26/2013."— Presentation transcript:

1 Root Cause Slow Boot/Slow Login With WPT Chad Schultz Premier Field Engineer Chad.a@Microsoft.com 10/26/2013

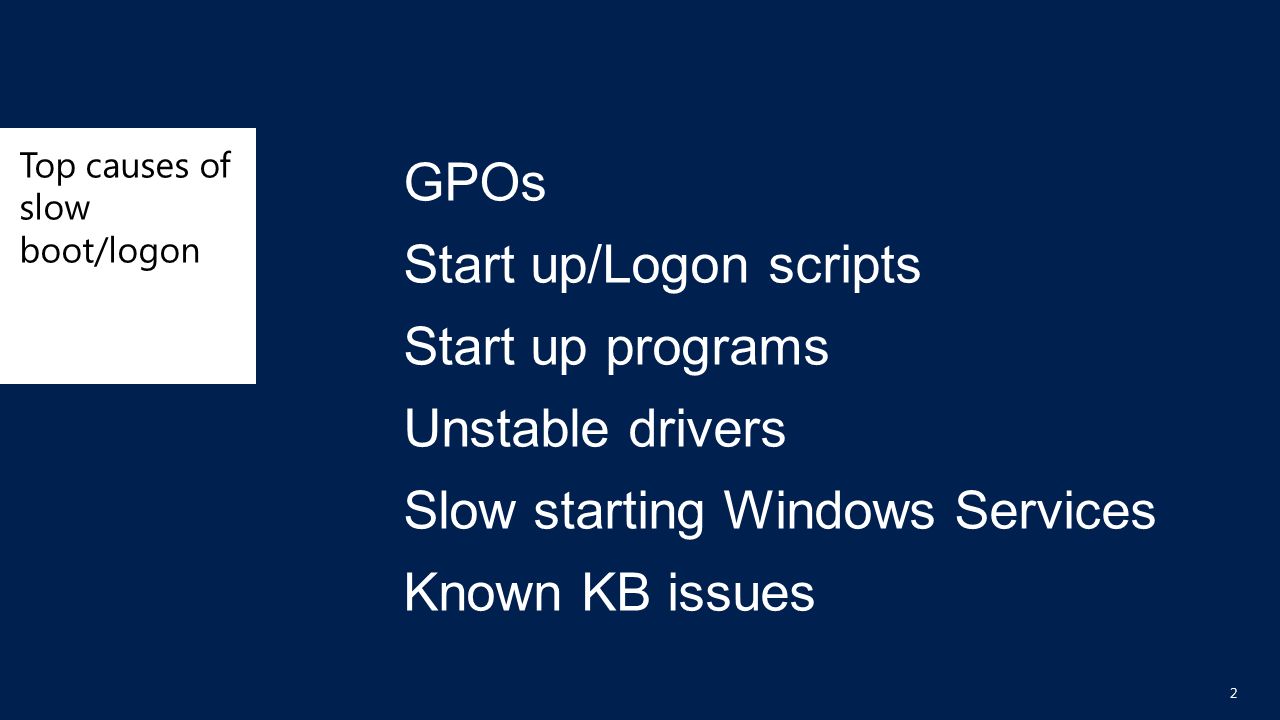

2 Top causes of slow boot/logon 2 GPOs Start up/Logon scripts Start up programs Unstable drivers Slow starting Windows Services Known KB issues

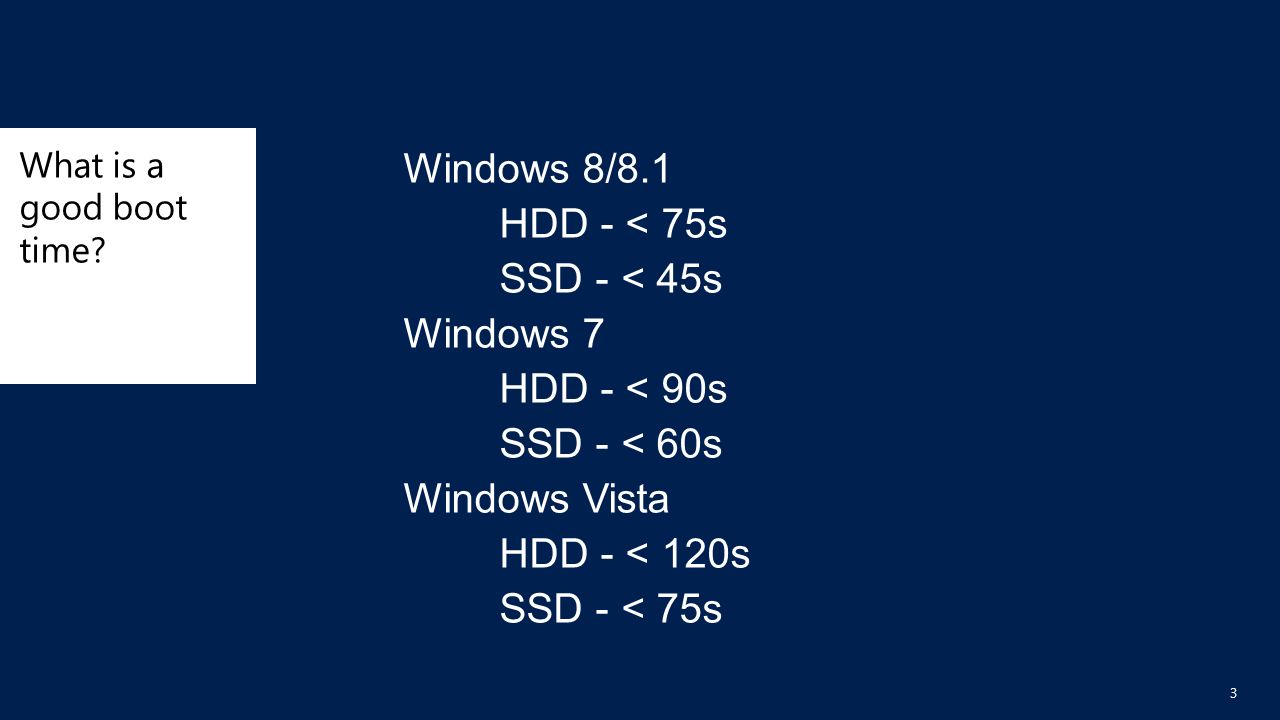

3 What is a good boot time? 3 Windows 8/8.1 HDD - < 75s SSD - < 45s Windows 7 HDD - < 90s SSD - < 60s Windows Vista HDD - < 120s SSD - < 75s

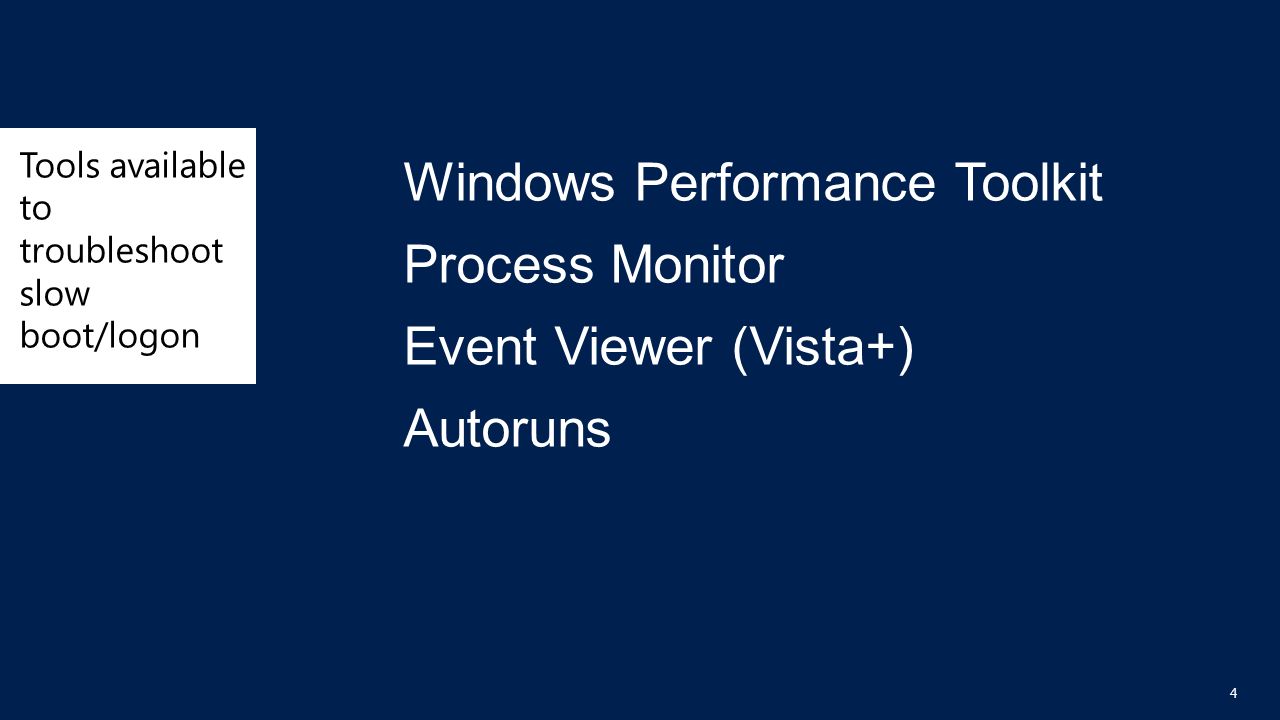

4 Tools available to troubleshoot slow boot/logon 4 Windows Performance Toolkit Process Monitor Event Viewer (Vista+) Autoruns

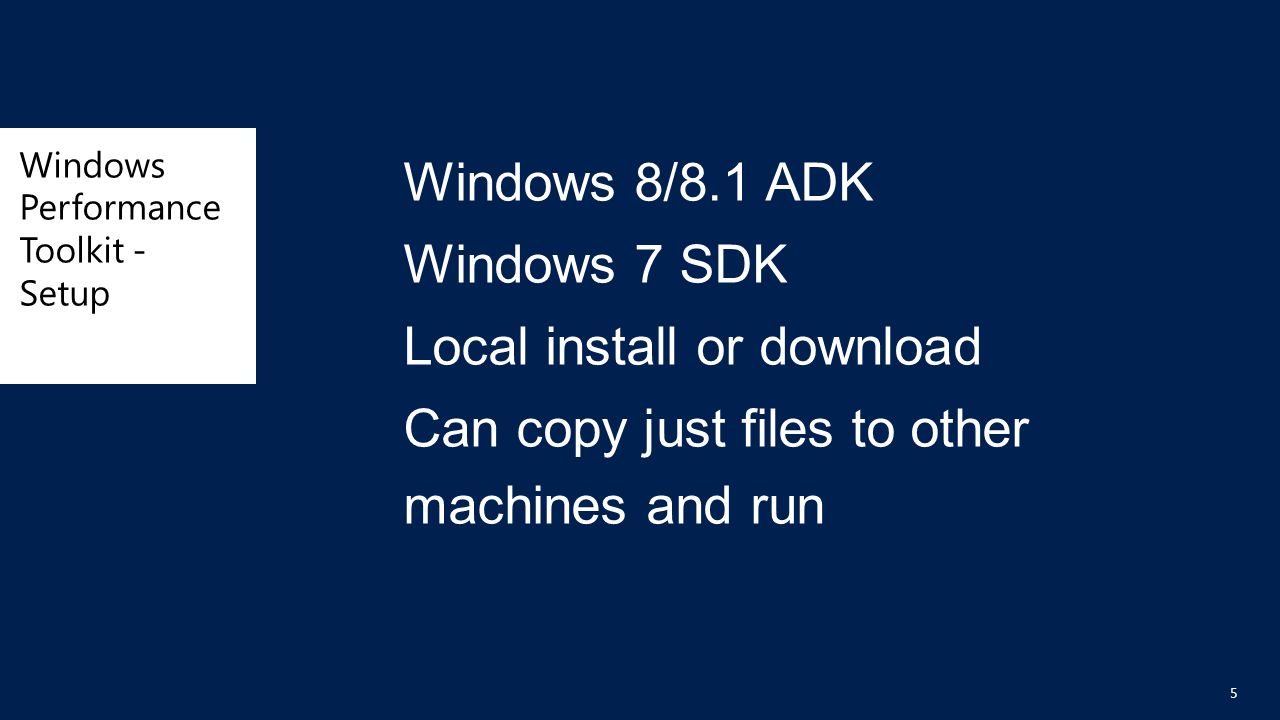

5 Windows Performance Toolkit - Setup 5 Windows 8/8.1 ADK Windows 7 SDK Local install or download Can copy just files to other machines and run

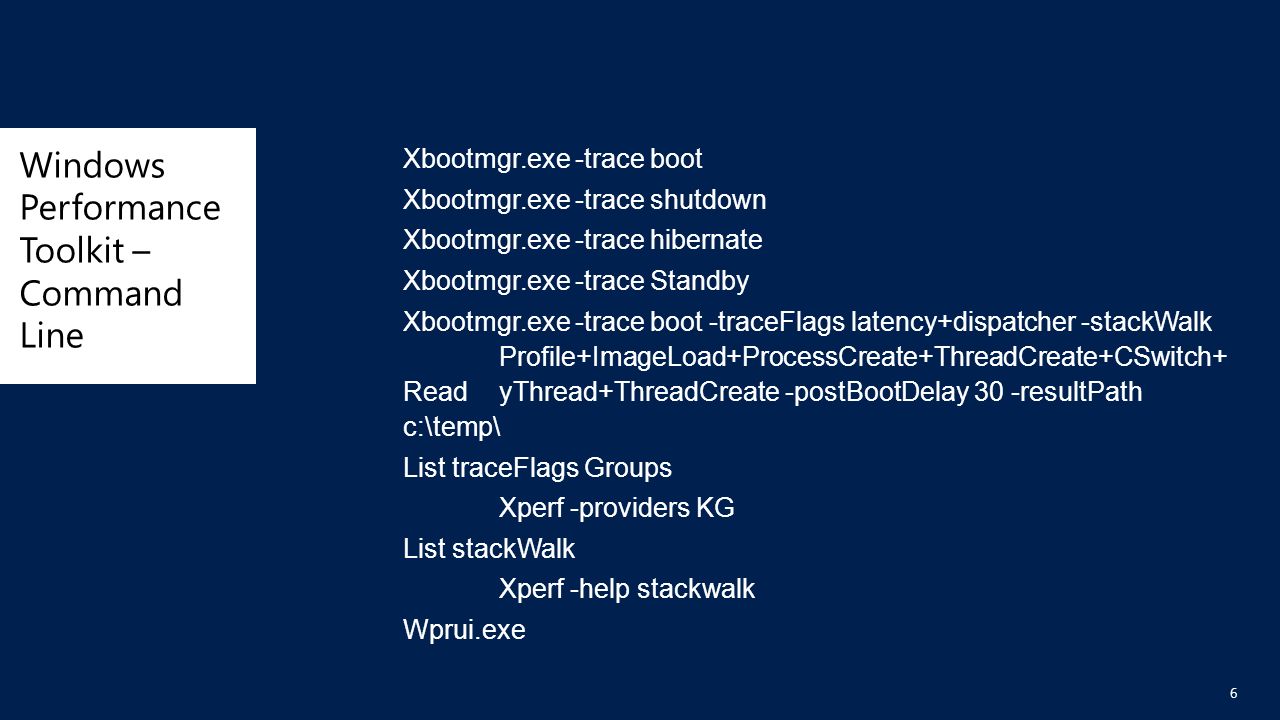

6 Windows Performance Toolkit – Command Line 6 Xbootmgr.exe -trace boot Xbootmgr.exe -trace shutdown Xbootmgr.exe -trace hibernate Xbootmgr.exe -trace Standby Xbootmgr.exe -trace boot -traceFlags latency+dispatcher -stackWalk Profile+ImageLoad+ProcessCreate+ThreadCreate+CSwitch+ ReadyThread+ThreadCreate -postBootDelay 30 -resultPath c:\temp\ List traceFlags Groups Xperf -providers KG List stackWalk Xperf -help stackwalk Wprui.exe

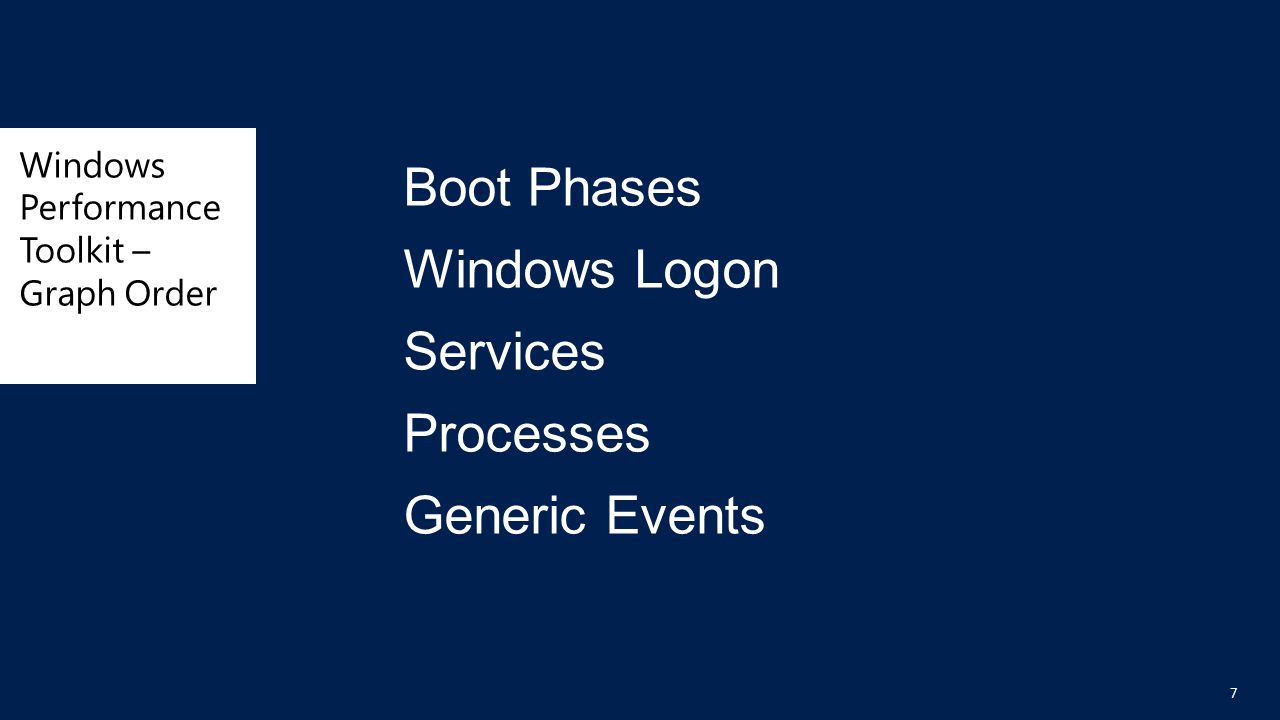

7 Windows Performance Toolkit – Graph Order 7 Boot Phases Windows Logon Services Processes Generic Events

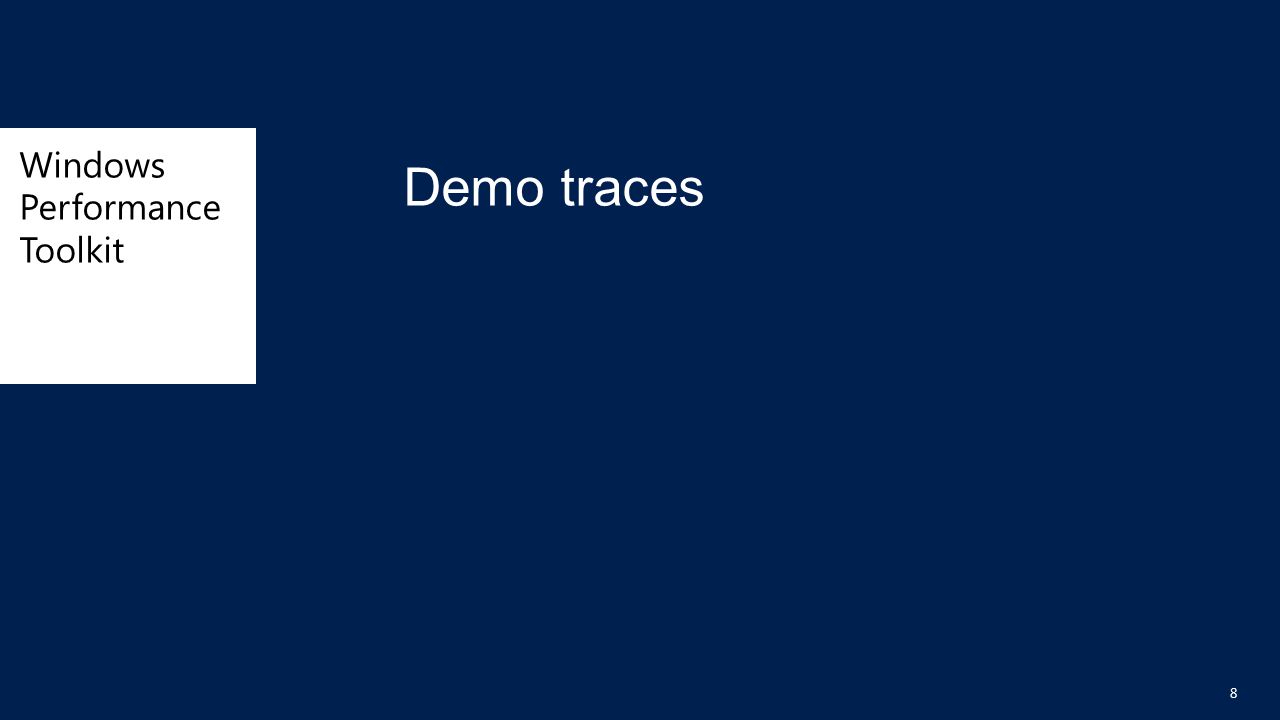

8 Windows Performance Toolkit 8 Demo traces

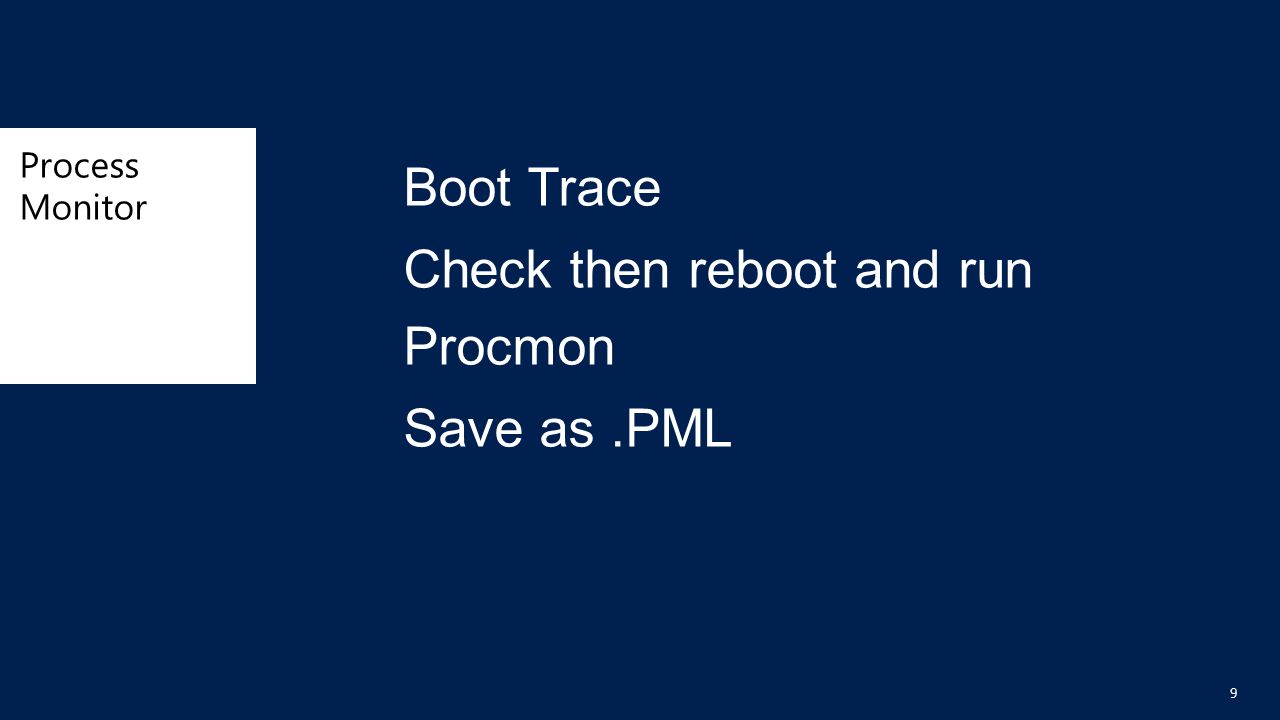

9 Process Monitor 9 Boot Trace Check then reboot and run Procmon Save as.PML

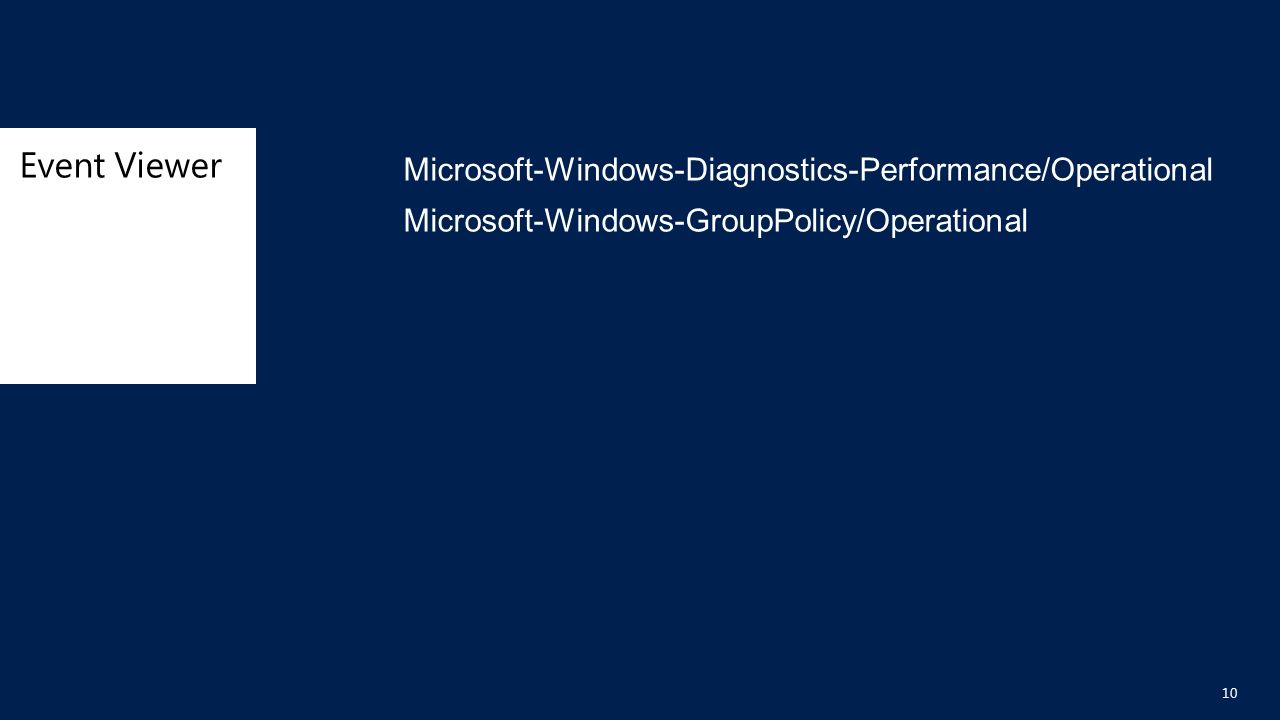

10 Event Viewer 10 Microsoft-Windows-Diagnostics-Performance/Operational Microsoft-Windows-GroupPolicy/Operational

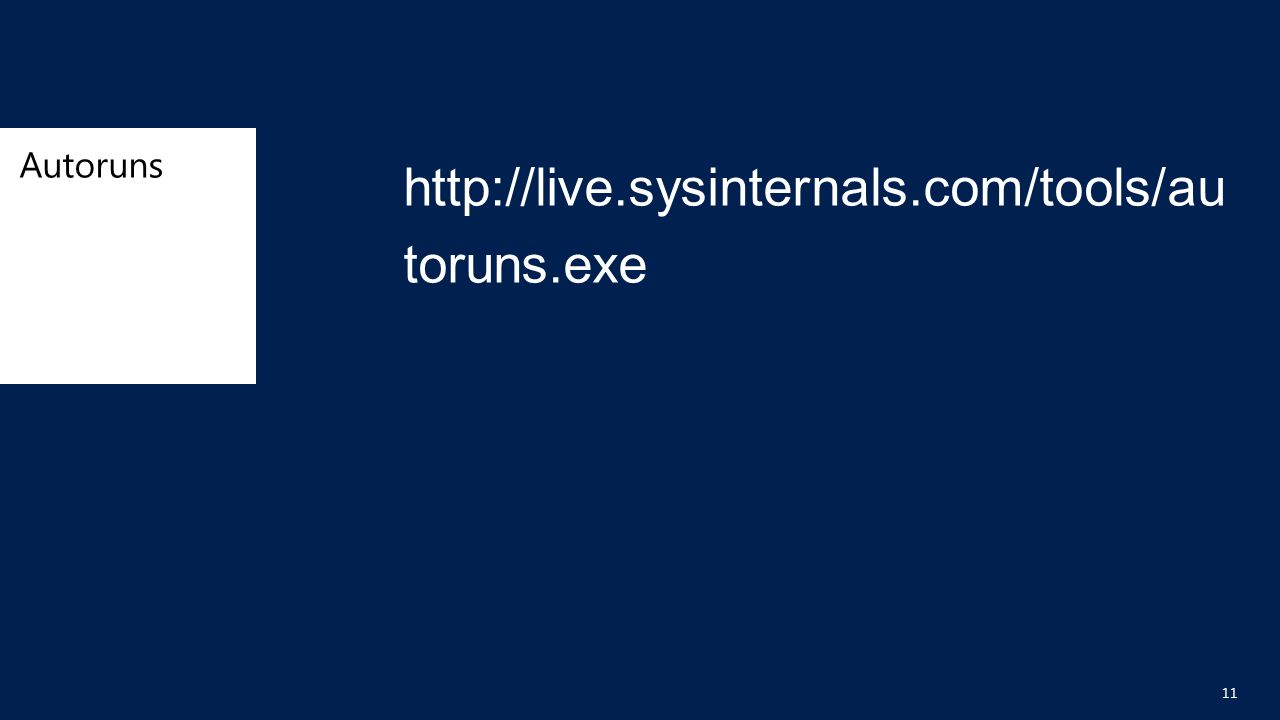

11 Autoruns 11 http://live.sysinternals.com/tools/au toruns.exe

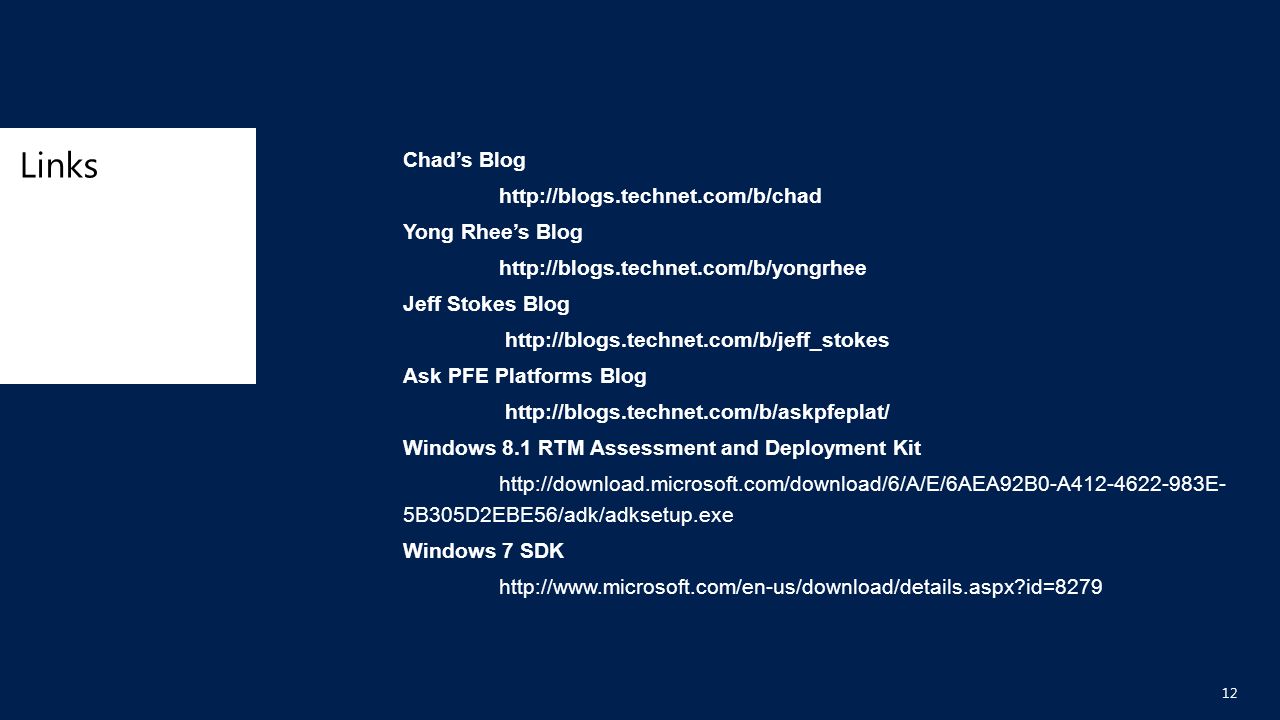

12 Links 12 Chad’s Blog http://blogs.technet.com/b/chad Yong Rhee’s Blog http://blogs.technet.com/b/yongrhee Jeff Stokes Blog http://blogs.technet.com/b/jeff_stokes Ask PFE Platforms Blog http://blogs.technet.com/b/askpfeplat/ Windows 8.1 RTM Assessment and Deployment Kit http://download.microsoft.com/download/6/A/E/6AEA92B0-A412-4622-983E- 5B305D2EBE56/adk/adksetup.exe Windows 7 SDK http://www.microsoft.com/en-us/download/details.aspx?id=8279

13 © 2012 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION Contact Chad Schultz Premier Field Engineer (701) 610-1310 www.microsoft.com/microsoftservices
