1. Flow Control in Java

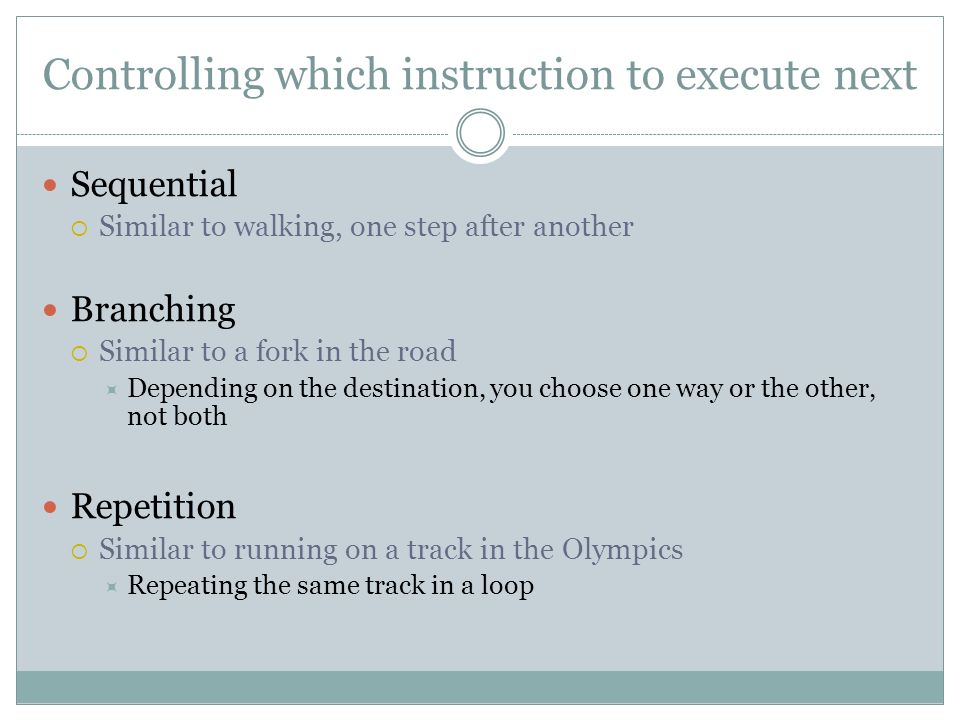

2. Controlling which instruction to execute next Sequential  Similar to walking, one step after another Branching  Similar to a fork in the road  Depending on the destination, you choose one way or the other, not both Repetition  Similar to running on a track in the Olympics  Repeating the same track in a loop

3. Sequential x = 1; x = x + 1; As expected  First instruction first  Second instruction second What if we swap the two instructions? That is  Instructions cannot be in arbitrary order

4. Branching (Conditional Statements) if ( x < y ) // boolean condition x = x + 1; // execute if true else y = y * 10; // execute if false

5. Second/Else Branch is Optional if ( x < y ) // boolean condition x = x + 1; // execute if true

6. Multiple Instructions in One Branch if ( x < y ) { // note the matching braces x = x + 1; y = y – x; } else { y = y * 10; x = y / x; }

7. Nested Branching if ( x < y ) { x = x + 1; if ( y > 10) y = y – x; } else { y = y * 10; x = y / x; }

8. Cascaded Branching if (score >= 90) grade = ’A’; else if (score >= 80) grade = ’B’; else if (score >= 70) grade = ’C’; else if (score >= 60) grade = ’D’; else grade = ’F’;

9. Version 2: always correct answer? if (score >= 90) grade = ’A’; if (score >= 80) grade = ’B’; if (score >= 70) grade = ’C’; if (score >= 60) grade = ’D’; if (score < 60) grade = ’F’;

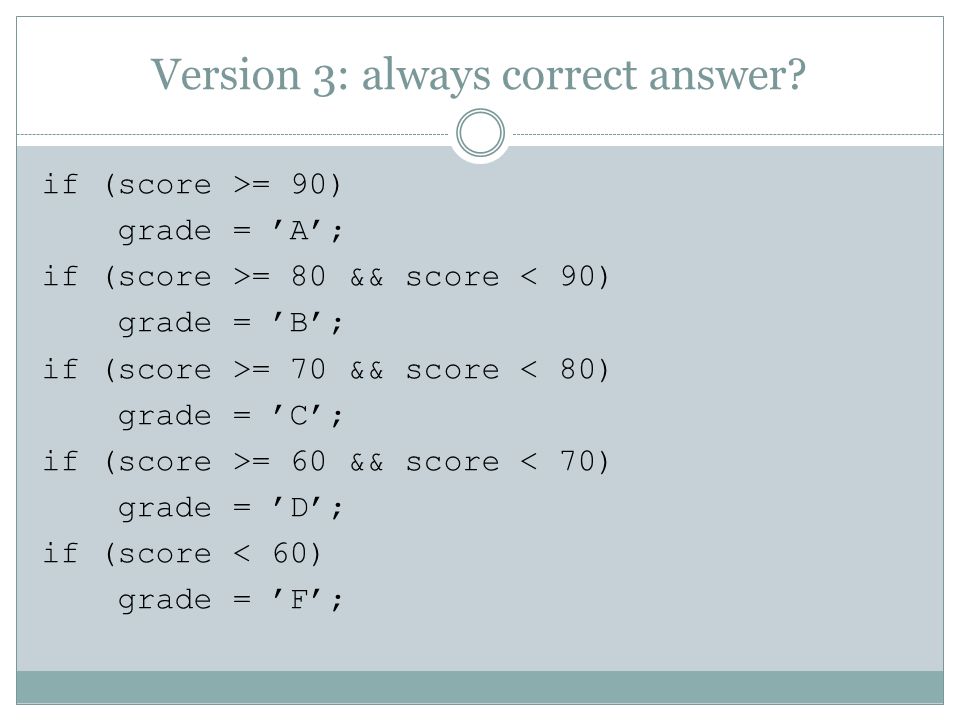

10. Version 3: always correct answer? if (score >= 90) grade = ’A’; if (score >= 80 && score < 90) grade = ’B’; if (score >= 70 && score < 80) grade = ’C’; if (score >= 60 && score < 70) grade = ’D’; if (score < 60) grade = ’F’;

11. Repetition (looping) for  “counting” loops  frequently (sometimes inappropriately) used while  general loops  most flexible do-while (“Repeat until”)  at least once  least used

12. ICU Initialize (start)  What is the initial/starting condition? Continue (or stop)  When to continue/stop?  In what condition does it continue/stop? Update  How to update the condition? If ICU is not carefully designed (common mistake)  your program will be in ICU

13. Counting loop – 1, 2, 3, … 10 for (int num = 1; num <= 10; num++) System.out.println(num); for (initialize; continue; update) body -- instruction(s) to be repeated Continue -- boolean (continue if true, stop if false)

14. How about from 55 to 123? for (int num = ?; ?; ?) System.out.println(num);

15. How about from 55 to 123? for (int num = 55; num <= 123; num++) System.out.println(num);

16. How about 10 numbers from 55? for (int num = ?; ?; ?) System.out.println(num);

17. How about 10 numbers from 55? // version 1? for (int num = 55; num <= 64; num++) System.out.println(num); // version 2? for (int num = 55; num <= 65; num++) System.out.println(num); // version 3? for (int num = 55; num < 65; num++) System.out.println(num);

18. How about 10 even numbers from 2? for (int num = ?; ?; ?) System.out.println(num);

19. How about 10 even numbers from 2? // version 1? for (int num = 2; num <= 20; num=num+2) System.out.println(num); // version 2? for (int num = 2; num <= 18; num=num+2) System.out.println(num); // version 3? for (int num = 2; num < 20; num=num+2) System.out.println(num);

20. How about 10 even numbers down from 100? for (int num= ? ; ?; ?) System.out.println(num);

21. How about 10 even numbers down from 100? // version 1? for (int num=100; num >= 80; num=num-2) System.out.println(num); // version 2? for (int num=100; num >= 82; num=num-2) System.out.println(num); // version 3? for (int num=100; num > 82; num=num-2) System.out.println(num);

22. Anything that is strange? for (int num=10; num < 10; num++) System.out.println(num);

23. Anything that is strange? for (int num=10; num < 10; num++) System.out.println(num); continue is never true, body never executes

24. Anything that is strange? for (int num=10; num >= 10; num++) System.out.println(num);

25. Anything that is strange? for (int num=10; num >= 10; num++) System.out.println(num); Continue is always true, infinite loop (eventually stops since int has an upper limit and num overflows)

26. Finding Sum of 1 to 10 int sum = 0; for (int num = 1; num <= 10; num++) sum = sum + num;

27. Finding Sum of 1 to 10 int sum = 0; for (int num = 1; num <= 10; num++) sum = sum + num; // --- version 2 ? --- int sum = 0; for (int num = 1; num < 10; num++) sum = sum + num;

28. Sum of first 10 even numbers int sum = 0; for (int num = ?; ? ; ?) sum = sum + num;

29. Sum of first 10 even numbers int sum = 0; for (int num = 0; num <= 18; num = num + 2) sum = sum + num;

30. Printing a Line of 5 Stars for (int star = 1; star <= 5; star++) { System.out.print(’*’); } System.out.println(); // new line // --- output: --- *****

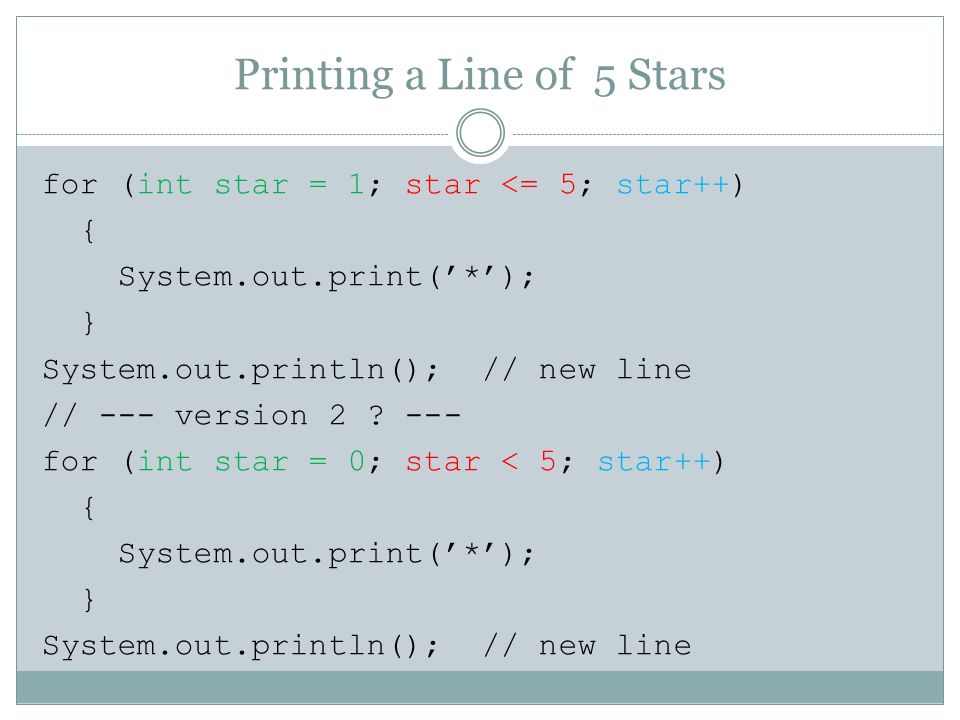

31. Printing a Line of 5 Stars for (int star = 1; star <= 5; star++) { System.out.print(’*’); } System.out.println(); // new line // --- version 2 ? --- for (int star = 0; star < 5; star++) { System.out.print(’*’); } System.out.println(); // new line

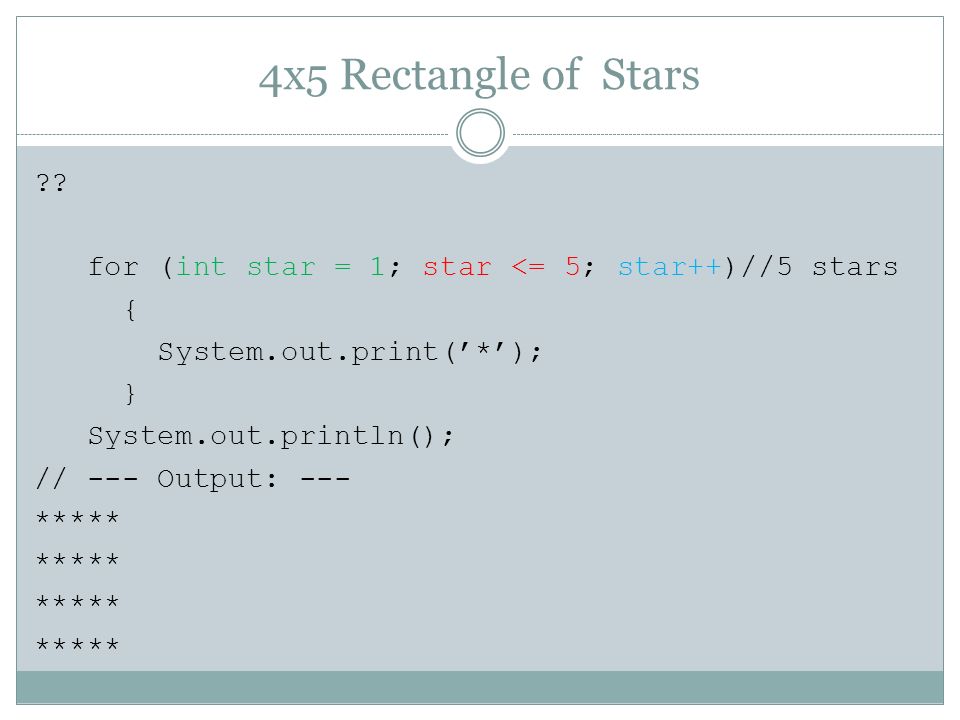

32. 4x5 Rectangle of Stars ?? for (int star = 1; star <= 5; star++)//5 stars { System.out.print(’*’); } System.out.println(); // --- Output: --- *****

33. 4x5 Rectangle of Stars – nested loop for (int line = 1; line <= 4; line++) //4 lines { for (int star = 1; star <= 5; star++)//5 stars { System.out.print(’*’); } System.out.println(); } // --- Output: --- *****

34. Triangle of Stars * ** *** **** *****

35. “While” loop int num = 1, sum = 0; while (num <= 10) { sum = sum + num; num++; } initialize while (continue) // repeat if continue is true { update }

36. A program with an exit command boolean exit = false; while (exit == false) { // do stuff if ( //exit command is entered ) exit = true; }

37. Is num a prime number?

38. Definition  Only divisible by 1 or itself Check factors between 2 and num – 1 to see if num is divisible by factor Don’t need check factors larger than num

39. Checking Different Factors Initialize  Start factor with 2 Continue  Factor is less than num  num is not divisible by factor Update  Increment factor

40. in Java // I: start factor with 2 int factor = 2; // C: factor less than num and // num not divisible by factor while (factor < num && num % factor != 0) { factor++; // U: increment factor }

41. But how do we print out the answer? // I: start factor with 2 int factor = 2; // C: factor less than num and // num not divisible by factor while (factor < num && num % factor != 0) { factor++; // U: increment factor } System.out.println(?);

42. Print the answer as well // I: start factor with 2 int factor = 2; // C: factor less than num and // num not divisible by factor while (factor < num && num % factor != 0) { factor++; // U: increment factor } if (factor == num) // not divisible by smaller factors System.out.println(“prime”); else System.out.println(“not prime”);

43. “Do-While” loop Execute the loop body at least once continue is checked after the loop body is executed initialize do { update } while (continue); // repeat if continue is true // note the semicolon at the end

44. Checking input int numTickets = 0; do { System.out.print(”Please enter # of tickets: ”); numtickets = keyboard.nextInt(); } while (numTickets <= 0);

45. Checking Password String username = ””, password = ””; do { System.out.print(”Please enter username: ”); username = keyboard.next(); System.out.print(”Please enter password: ”); password = keyboard.next(); } while (!valid(username, password));

46. How to add at most 3 Trials? String username = ””, password = ””; do { System.out.print(”Please enter username: ”); username = keyboard.next(); System.out.print(”Please enter password: ”); password = keyboard.next(); } while (!valid(username, password));

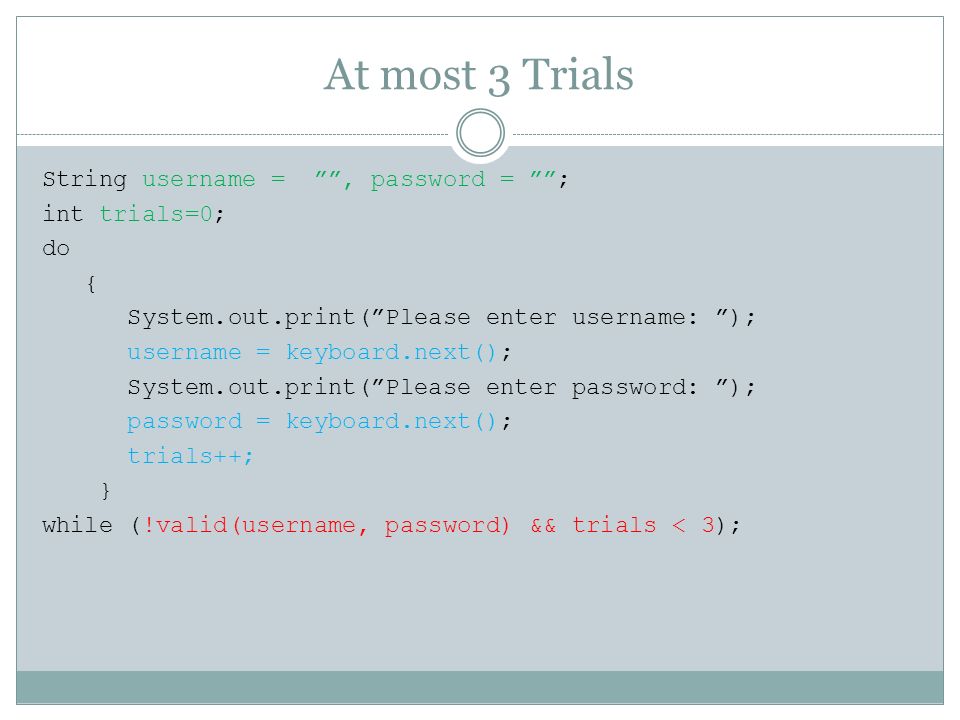

47. At most 3 Trials String username = ””, password = ””; int trials=0; do { System.out.print(”Please enter username: ”); username = keyboard.next(); System.out.print(”Please enter password: ”); password = keyboard.next(); trials++; } while (!valid(username, password) && trials < 3);
