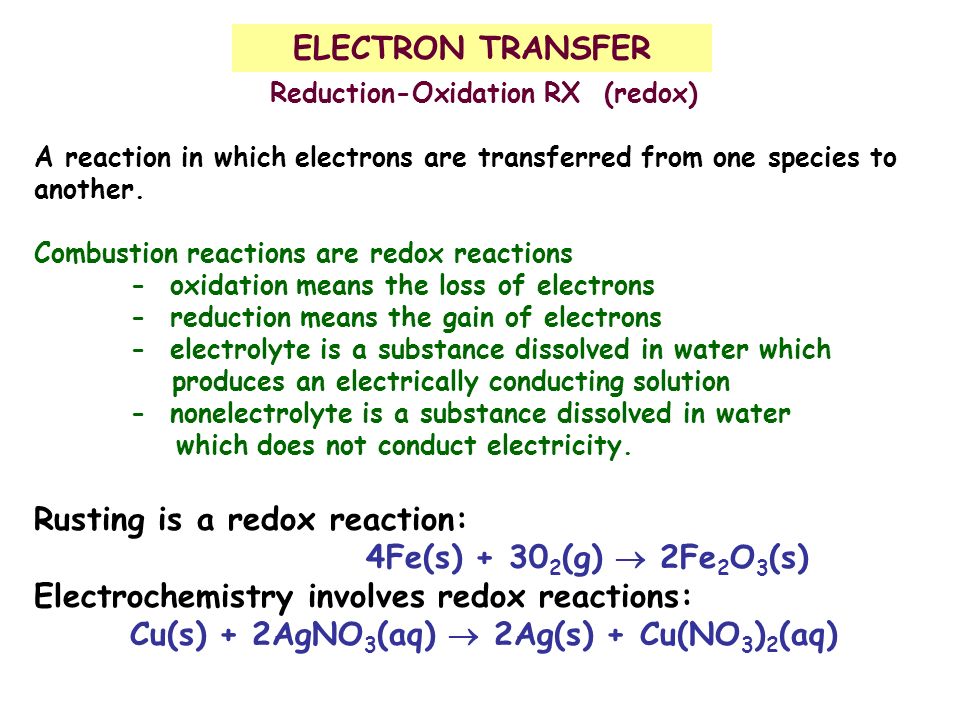

1. ELECTRON TRANSFER Reduction-Oxidation RX (redox) A reaction in which electrons are transferred from one species to another. Combustion reactions are redox reactions - oxidation means the loss of electrons - reduction means the gain of electrons - electrolyte is a substance dissolved in water which produces an electrically conducting solution - nonelectrolyte is a substance dissolved in water which does not conduct electricity. Rusting is a redox reaction: 4Fe(s) + 30 2 (g)  2Fe 2 O 3 (s) Electrochemistry involves redox reactions: Cu(s) + 2AgNO 3 (aq)  2Ag(s) + Cu(NO 3 ) 2 (aq)

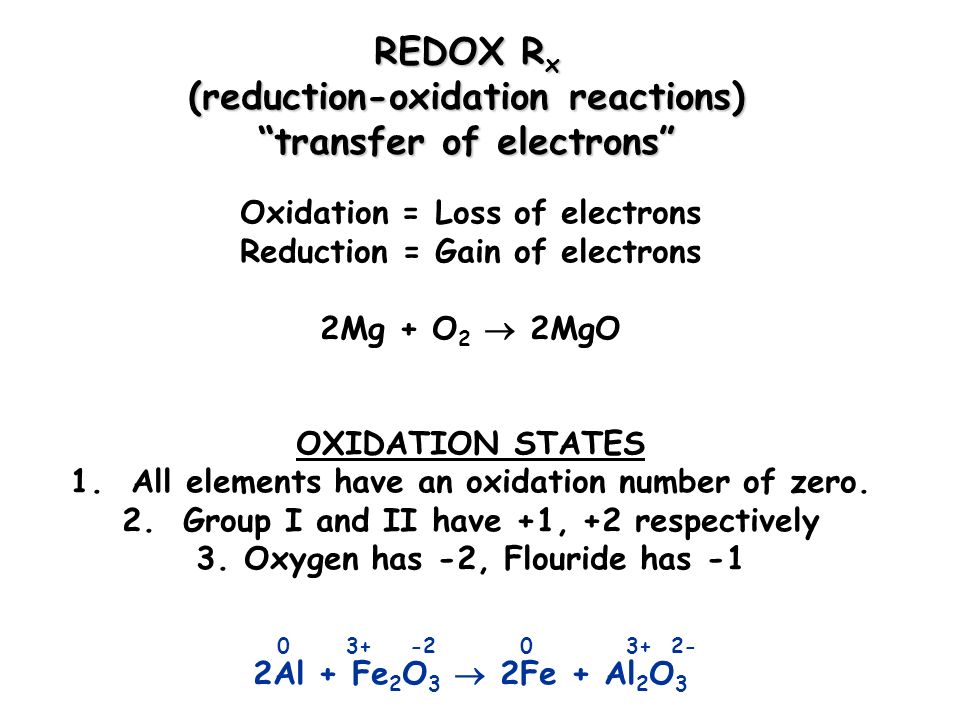

2. REDOX R x (reduction-oxidation reactions) “transfer of electrons” Oxidation = Loss of electrons Reduction = Gain of electrons 2Mg + O 2  2MgO OXIDATION STATES 1. All elements have an oxidation number of zero. 2. Group I and II have +1, +2 respectively 3.Oxygen has -2, Flouride has -1 0 3+ -2 0 3+ 2- 2Al + Fe 2 O 3  2Fe + Al 2 O 3

3. IDENTIFING REDOX RX Element + compound  New element + New compound A + BC  B + AC Element + Element  Compound A + B  AB Check oxidation state (charges) of species A change in oxidation # means redox reaction Identify the Redox Rx: Cu + AgNO 3  Cu(NO 3 ) 2 + Ag NO + O 2  NO 2 K 2 SO 4 + CaCl 2  KCl + CaSO 4 C 2 H 4 O 2 + O 2  CO 2 + H 2 O

4. LABELING COMPONENTS OF REDOX REACTIONS The REDUCING AGENT is the species which undergoes OXIDATION. The OXIDIZING AGENT is the species which undergoes REDUCTION. CuO + H 2  Cu + H 2 O

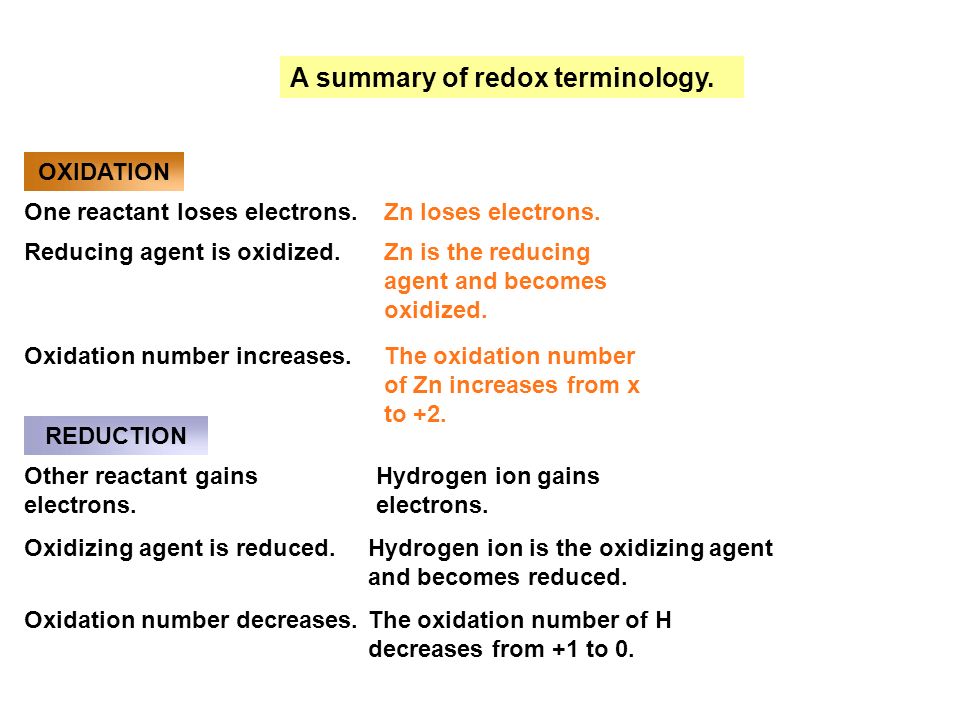

5. A summary of redox terminology. OXIDATION Zn loses electrons. Zn is the reducing agent and becomes oxidized. The oxidation number of Zn increases from x to +2. REDUCTION One reactant loses electrons. Reducing agent is oxidized. Oxidation number increases. Hydrogen ion gains electrons. Hydrogen ion is the oxidizing agent and becomes reduced. The oxidation number of H decreases from +1 to 0. Other reactant gains electrons. Oxidizing agent is reduced. Oxidation number decreases.

6. Key Points About Redox Reactions Oxidation (electron loss) always accompanies reduction (electron gain). The oxidizing agent is reduced, and the reducing agent is oxidized. The number of electrons gained by the oxidizing agent always equals the number lost by the reducing agent.

7. REDOX REACTIONS For the following reactions, identify the oxidizing and reducing agents. MnO 4 - + C 2 O 4 2-  MnO 2 + CO 2 acid: Cr 2 O 7 2- + Fe 2+  Cr 3+ + Fe 3+ base: CO2 + + H 2 O 2  CO(OH) 3 + H 2 O As + ClO 3 -  H 3 AsO 3 + HClO

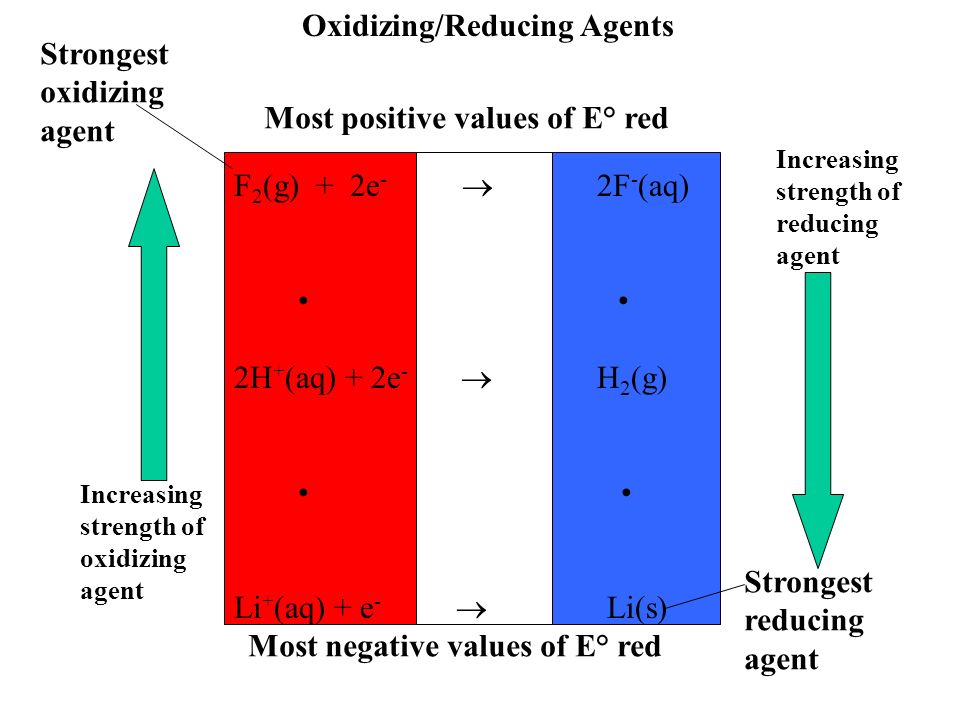

8. Oxidizing/Reducing Agents Most positive values of E° red Most negative values of E° red F 2 (g) + 2e -  2F - (aq) 2H + (aq) + 2e -  H 2 (g) Li + (aq) + e -  Li(s) Strongest oxidizing agent Strongest reducing agent Increasing strength of oxidizing agent Increasing strength of reducing agent

9. More Positive Cathode(reduction) Eº Red (cathode) Eº cell Eº red (anode) Anode(oxidation) More Negative E º Red (V)

10. Standard Reduction Potentials in Water at 25°C Standard Potential (V)Reduction Half Reaction 2.87F 2 (g) + 2e -  2F - (aq) 1.51MnO 4 - (aq) + 8H + (aq) + 5e -  Mn 2+ (aq) + 4H 2 O(l) 1.36Cl 2 (g) + 2e -  2Cl - (aq) 1.33Cr 2 O 7 2- (aq) + 14H + (aq) + 6e -  2Cr 3+ (aq) + 7H 2 O(l) 1.23O 2 (g) + 4H + (aq) + 4e -  2H 2 O(l) 1.06Br 2 (l) + 2e -  2Br - (aq) 0.96NO 3 - (aq) + 4H + (aq) + 3e -  NO(g) + H 2 O(l) 0.80Ag + (aq) + e -  Ag(s) 0.77Fe 3+ (aq) + e -  Fe 2+ (aq) 0.68O 2 (g) + 2H + (aq) + 2e -  H 2 O 2 (aq) 0.59MnO 4 - (aq) + 2H 2 O(l) + 3e -  MnO 2 (s) + 4OH - (aq) 0.54I 2 (s) + 2e -  2I - (aq) 0.40O 2 (g) + 2H 2 O(l) + 4e -  4OH - (aq) 0.34Cu 2+ (aq) + 2e -  Cu(s) 02H + (aq) + 2e -  H 2 (g) -0.28Ni 2+ (aq) + 2e -  Ni(s) -0.44Fe 2+ (aq) + 2e -  Fe(s) -0.76An 2+ (aq) + 2e -  Zn(s) -0.832H 2 O(l) + 2e -  H 2 (g) + 2OH - (aq) -1.66Al 3+ (aq) + 3e -  Al(s) -2.71Na + (aq) + e -  Na(s) -3.05Li + (aq) + e -  Li(s)

11. ELECTROCHEMISTRY A system consisting of electrodes that dip into an electrolyte and in which a chemical reaction uses or generates an electric current. Two Basic Types of Electrochemical cells: Galvanic (Voltaic) Cell: A spontaneous reaction generates an electric current. Chemical energy is converted into electrical energy Electrolytic Cell: An electric current drives a nonspontaneous reaction. Electrical energy is converted into chemical energy.

12. ELECTROCHEMICAL CELLS CHEMICALS AND EQUIPMENT NEEDED TO BUILD A SIMPLE CELL: The Cell: VoltmeterTwo alligator clips Two beakers or glass jars The Electrodes: Metal electrodeMetal salt solution The Salt Bridge: Glass or Plastic u-tubeNa or K salt solution

13. ELECTROCHEMICAL CELLS A CHEMICAL CHANGE PRODUCES ELECTRICITY Theory: If a metal strip is placed in a solution of it’s metal ions, one of the following reactions may occur M n+ + ne -  M M  M n+ + ne - These reactions are called half-reactions or half cell reactions If different metal electrodes in their respective solutions were connected by a wire, and if the solutions were electrically connected by a porous membrane or a bridge that minimizes mixing of the solutions, a flow of electrons will move from one electrode, where the reaction is M 1  M 1 n+ + ne - To the other electrode, where the reaction is M 2 n+ + ne -  M 2 The overall reaction would be M 1 + M 2 n+  M 2 + M 1 n+

14. Energy is absorbed to drive a nonspontaneous redox reaction General characteristics of voltaic and electrolytic cells. VOLTAIC CELLELECTROLYTIC CELL Energy is released from spontaneous redox reaction Reduction half-reaction Y + + e - Y Oxidation half-reaction X X + + e - System does work on its surroundings Reduction half-reaction B + + e - B Oxidation half-reaction A - A + e - Surroundings(power supply) do work on system(cell) Overall (cell) reaction X + Y + X + + Y;  G < 0 Overall (cell) reaction A - + B + A + B;  G > 0

15. The electrolysis of water: nonspontaneous Oxidation half-reaction 2H 2 O( l ) 4H + ( aq ) + O 2 ( g ) + 4e - Reduction half-reaction 2H 2 O( l ) + 4e - 2H 2 ( g ) + 2OH - ( aq ) Overall (cell) reaction 2H 2 O( l ) H 2 ( g ) + O 2 ( g )

16. The spontaneous reaction between zinc and copper( II ) ion.

17. ACTIVITY SERIES OF SOME SELECTED METALS A brief activity series of selected metals, hydrogen and halogens are shown below. The series are listed in descending order of chemical reactivity, with the most active metals and halogens at the top (the elements most likely to undergo oxidation). Any metal on the list will replace the ions of those metals (to undergo reduction) that appear anywhere underneath it on the list. METALSHALOGENS K (most oxidized F 2 Ca Cl 2 Na Br 2 Mg l 2 Al Zn Fe Ni Sn Pb H Cu Ag Hg Au(least oxidized) Oxidation refers to the loss of electrons and reduction refers to the gain of electrons

18. The reaction of calcium in water: spontaneous Overall (cell) reaction Ca( s ) + 2H 2 O( l ) Ca 2+ ( aq ) + H 2 ( g ) + 2OH - ( aq ) Oxidation half-reaction Ca( s ) Ca 2+ ( aq ) + 2e - Reduction half-reaction 2H 2 O( l ) + 2e - H 2 ( g ) + 2OH - ( aq )

19. Relative Reactivities (Activities) of Metals 1. Metals that can displace H from acid 2. Metals that cannot displace H from acid 3. Metals that can displace H from water 4. Metals that can displace other metals from solution Activity Series K Ba Ca Na Mg Al Zn Cr Fe Ni Sn Pb H 2 Cu Ag Hg Au

20. A voltaic cell based on the zinc-copper reaction. Oxidation half-reaction Zn( s ) Zn 2+ ( aq ) + 2e - Reduction half-reaction Cu 2+ ( aq ) + 2e - Cu( s ) Overall (cell) reaction Zn( s ) + Cu 2+ ( aq ) Zn 2+ ( aq ) + Cu( s )

21. Why Does a Voltaic Cell Work? The spontaneous reaction occurs as a result of the different abilities of materials (such as metals) to give up their electrons and the ability of the electrons to flow through the circuit. E cell > 0 for a spontaneous reaction 1 Volt (V) = 1 Joule (J)/ Coulomb (C)

22. Notation for a Voltaic Cell components of anode compartment (oxidation half-cell) components of cathode compartment (reduction half-cell) phase of lower oxidation state phase of higher oxidation state phase of lower oxidation state phase boundary between half-cells Examples:Zn( s ) | Zn 2+ ( aq ) || Cu 2+ ( aq ) | Cu ( s ) Zn( s ) Zn 2+ ( aq ) + 2e - Cu 2+ ( aq ) + 2e - Cu( s ) graphite | I - ( aq ) | I 2 ( s ) || H + ( aq ), MnO 4 - ( aq ) | Mn 2+ ( aq ) | graphite inert electrode

23. NOTATION FOR VOLTAIC CELLS Zn + Cu 2+  Zn 2+ + Cu Zn(s)/Zn 2+ (aq) // Cu 2+ (aq)/Cu(s) Anode Cathode oxidation reduction salt bridge write the net ionic equation for: Al(s)/Al 3+( aq)//Cu 2+ (aq)/Cu(s)

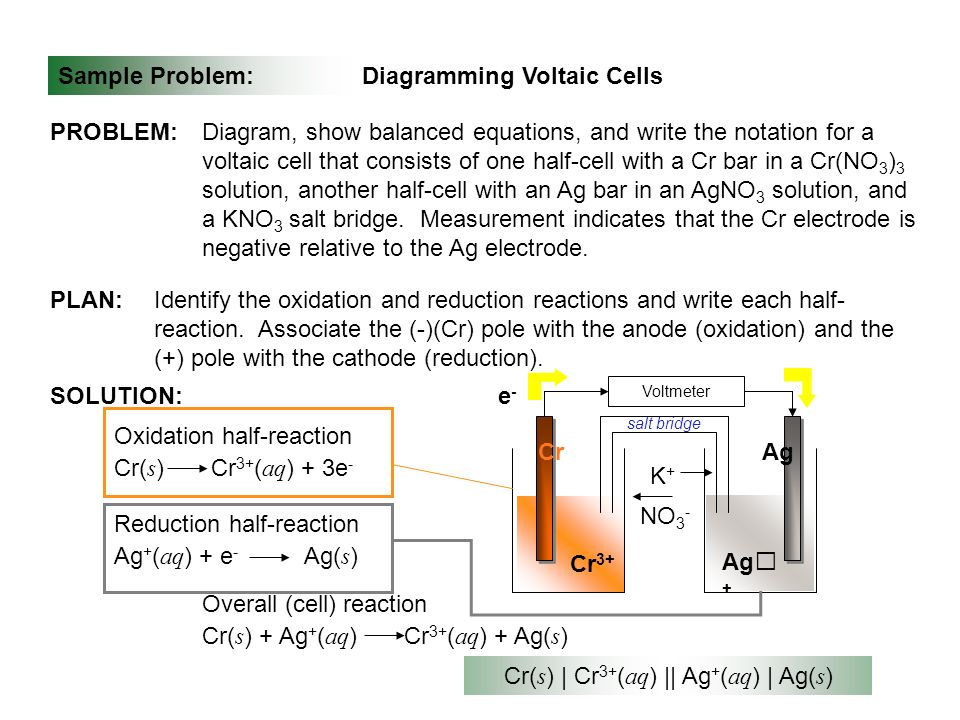

24. Sample Problem:Diagramming Voltaic Cells PROBLEM:Diagram, show balanced equations, and write the notation for a voltaic cell that consists of one half-cell with a Cr bar in a Cr(NO 3 ) 3 solution, another half-cell with an Ag bar in an AgNO 3 solution, and a KNO 3 salt bridge. Measurement indicates that the Cr electrode is negative relative to the Ag electrode. PLAN: SOLUTION: Identify the oxidation and reduction reactions and write each half- reaction. Associate the (-)(Cr) pole with the anode (oxidation) and the (+) pole with the cathode (reduction). Voltmeter Oxidation half-reaction Cr( s ) Cr 3+ ( aq ) + 3e - Reduction half-reaction Ag + ( aq ) + e - Ag( s ) Overall (cell) reaction Cr( s ) + Ag + ( aq ) Cr 3+ ( aq ) + Ag( s ) Cr Cr 3+ Ag Ag + K+K+ NO 3 - salt bridge e-e- Cr( s ) | Cr 3+ ( aq ) || Ag + ( aq ) | Ag( s )

25. Voltages of Some Voltaic Cells Voltaic Cell Voltage (V) Common alkaline battery Lead-acid car battery (6 cells = 12V) Calculator battery (mercury) Electric eel (~5000 cells in 6-ft eel = 750V) Nerve of giant squid (across cell membrane) 2.0 1.5 1.3 0.15 0.070

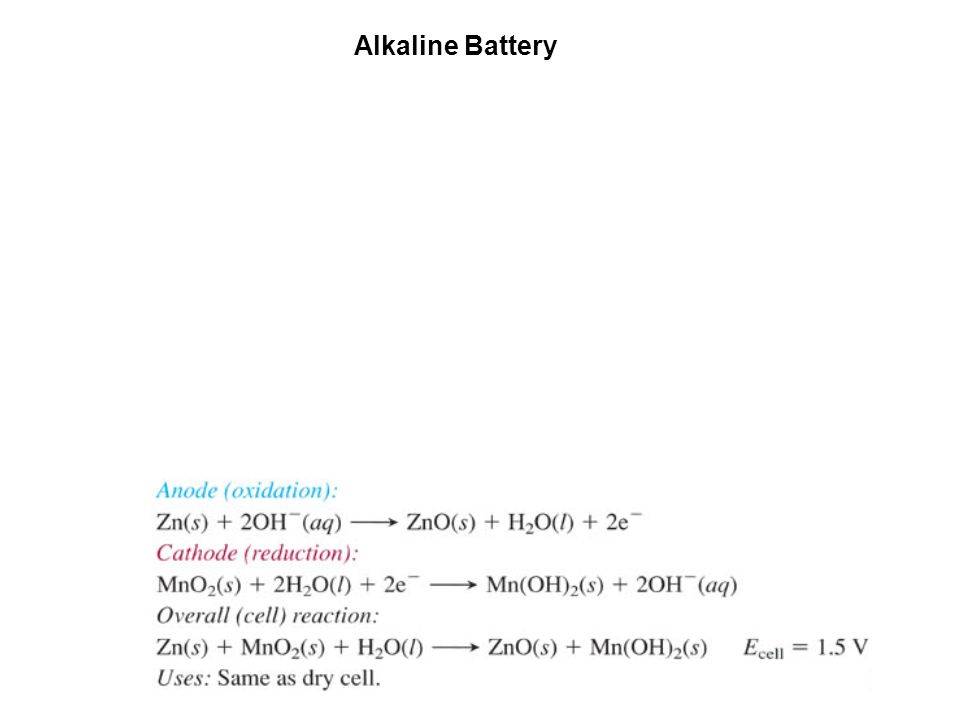

26. Alkaline Battery

27. Mercury and Silver (Button) Batteries

28. Lithium battery.

29. Nickel-metal hydride (Ni-MH) battery

30. Lithium-ion battery.

31. A voltaic cell using inactive electrodes. Reduction half-reaction MnO 4 - ( aq ) + 8H + ( aq ) + 5e - Mn 2+ ( aq ) + 4H 2 O( l ) Oxidation half-reaction 2 I - ( aq ) I 2 ( s ) + 2e - Overall (cell) reaction 2MnO 4 - ( aq ) + 16H + ( aq ) + 10 I - ( aq ) 2Mn 2+ ( aq ) + 5 I 2 ( s ) + 8H 2 O( l )

32. The Hydrogen Electrode: At the hydrogen electrode, the half reaction involves a gas. 2 H + (aq) + 2e -  H 2 (g) so an inert material must serve as the reaction site (Pt) H + (aq)/H 2 (g)/Pt cathode Pt/H 2 (g)/H + (aq) anode Therefore: Al(g)/Al 3+ (aq)//H + (aq)/H 2 (g)/Pt

33. Determining an unknown E 0 half-cell with the standard reference (hydrogen) electrode. Oxidation half-reaction Zn( s ) Zn 2+ ( aq ) + 2e - Reduction half-reaction 2H 3 O + ( aq ) + 2e - H 2 ( g ) + 2H 2 O( l ) Overall (cell) reaction Zn( s ) + 2H 3 O + ( aq ) Zn 2+ ( aq ) + H 2 ( g ) + 2H 2 O( l )

34. The laboratory measurement of pH. Reference (calomel) electrode Glass electrode AgCl on Ag on Pt 1M HCl Thin glass membrane Porous ceramic plugs KCl solution Paste of Hg 2 Cl 2 in Hg Hg Pt

35. The tin-copper reaction as the basis of a voltaic and an electrolytic cell. Oxidation half-reaction Sn( s ) Sn 2+ ( aq ) + 2e - Reduction half-reaction Cu 2+ ( aq ) + 2e - Cu( s ) Oxidation half-reaction Cu( s ) Cu 2+ ( aq ) + 2e - Reduction half-reaction Sn 2+ ( aq ) + 2e - Sn( s ) Overall (cell) reaction Sn( s ) + Cu 2+ ( aq ) Sn 2+ ( aq ) + Cu( s ) Overall (cell) reaction Sn( s ) + Cu 2+ ( aq ) Sn 2+ ( aq ) + Cu( s ) voltaic cellelectrolytic cell Rechargeable Batteries

36. Lead-acid battery.

37. The processes occurring during the discharge and recharge of a lead-acid battery. VOLTAIC(discharge) ELECTROLYTIC(recharge)

38. The corrosion of iron.

39. OTHER APPLICATIONS FOR REDOX REACTIONS Corrosion Photosynthesis Cleaning agents and other household supplies Chemicals

40. The effect of metal-metal contact on the corrosion of iron. faster corrosion

41. In Photosynthesis, carbohydrates are produced in the green leaves of plants carbon cycle (photosynthesis) 6CO 2 + 6H 2 O + hv  C 6 H 12 O 6 + 6O 2 (respiration) glucose In body tissues, Glucose is oxidized in metabolic reactions (respiration) and chemical energy is released to do work in the cells. Polysaccharides react with water to yield monosaccharides, (Hydrolysis) H+ C 12 H 22 O1 1 + H 2 O  C 6 H 12 O 6 + C 6 H1 2 O 6 sucrose glucose fructose

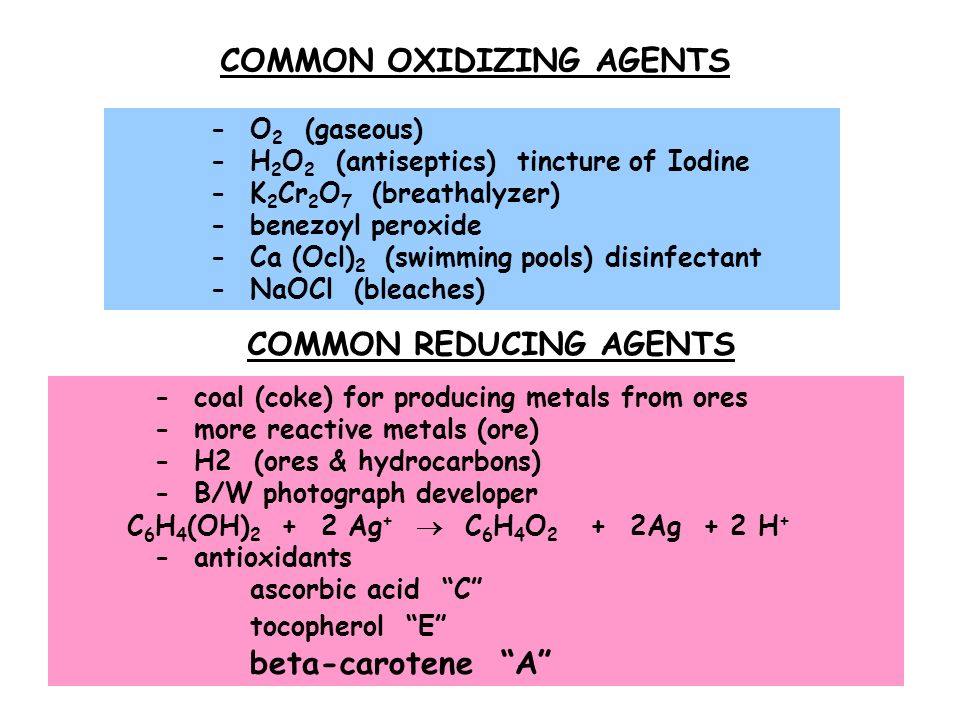

42. COMMON OXIDIZING AGENTS - O 2 (gaseous) - H 2 O 2 (antiseptics) tincture of Iodine - K 2 Cr 2 O 7 (breathalyzer) - benezoyl peroxide - Ca (Ocl) 2 (swimming pools) disinfectant - NaOCl (bleaches) COMMON REDUCING AGENTS - coal (coke) for producing metals from ores - more reactive metals (ore) - H2 (ores & hydrocarbons) - B/W photograph developer C 6 H 4 (OH) 2 + 2 Ag +  C 6 H 4 O 2 + 2Ag + 2 H + - antioxidants ascorbic acid “C” tocopherol “E” beta-carotene “A”

43. HYDROGEN H 2 - most abundent element in universe - rare on earth - flammable as an element - usually found as compound Acids = HCl hydrocarbons = CH 4 water = H 2 O - many times required a catalyst to react. Catalyst speeds up the reaction but is not consumed. (Pt, Ni, Pd) Pt CuO + H 2  Cu + H 2 O - produced by reacting an acid with a reactive metal Mg + 2HCl  MgCl 2 + H 2

44. OXYGEN O 2 - occurs in atmosphere, hydrosphere, and lithosphere O 2 H 2 O SiO 2 - percent composition of H 2 O = 89% O 2/3 body weight is O - needed for combustion HC + O 2  CO 2 + H 2 O - used in rusting or corrosion 2Cu + O 2  2CuO 4Fe + 3O 2  2Fe 2 O 3 - nonmetal oxides C + O 2  CO 2 S + O 2  SO 2 - needed for burning
