1. Chap. 9: Image Segmentation Jen-Chang Liu, 2005

2. Motivation Segmentation subdivides an image into its constituent regions or objects Example: 生物細胞在影像序列中的追蹤

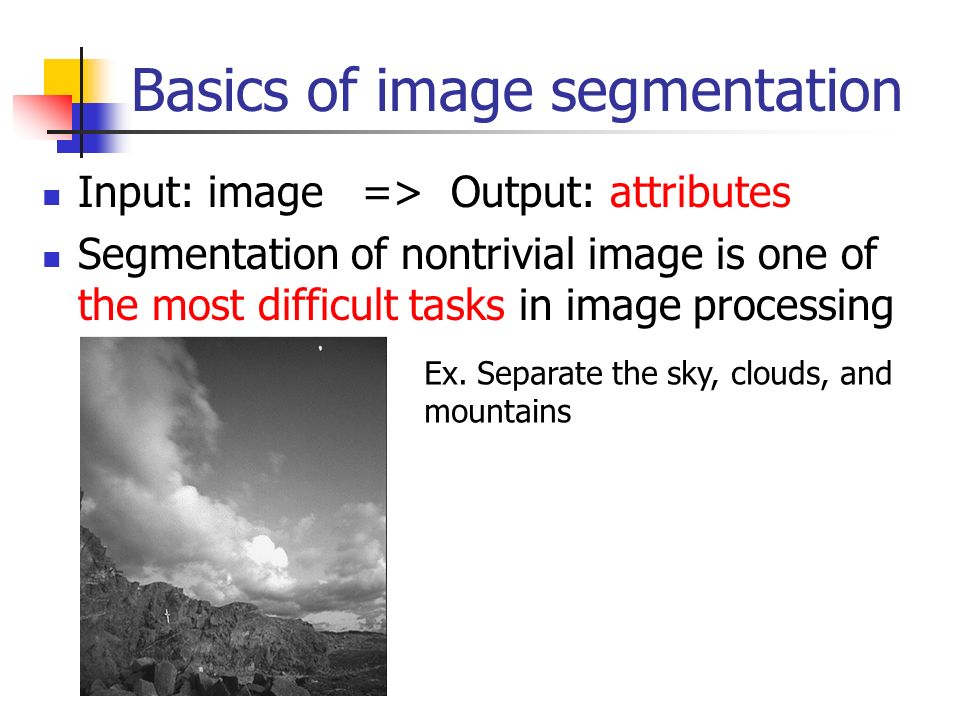

3. Basics of image segmentation Input: image => Output: attributes Segmentation of nontrivial image is one of the most difficult tasks in image processing Ex. Separate the sky, clouds, and mountains

4. Two approaches Based on intensity values discontinuity Partition an image based on abrupt changes, such as edges Based on intensity similarity in regions Partition an image into regions that are similar according to some criteria

5. Outline Point, line detection Edge detection Thresholding Use of motion in segmentation Pixel discontinuity Region similarity

6. Detection of discontinuity Three basic types of gray-level discontinuity Points, lines, and edges Method: run a mask through the image Input: 3x3 region z 1, z 2, …, z 9 Output: z 5 -> R z1z1 z2z2 z3z3 z4z4 z5z5 z6z6 z7z7 z8z8 z9z9 w1w1 w2w2 w3w3 w4w4 w5w5 w6w6 w7w7 w8w8 w9w9

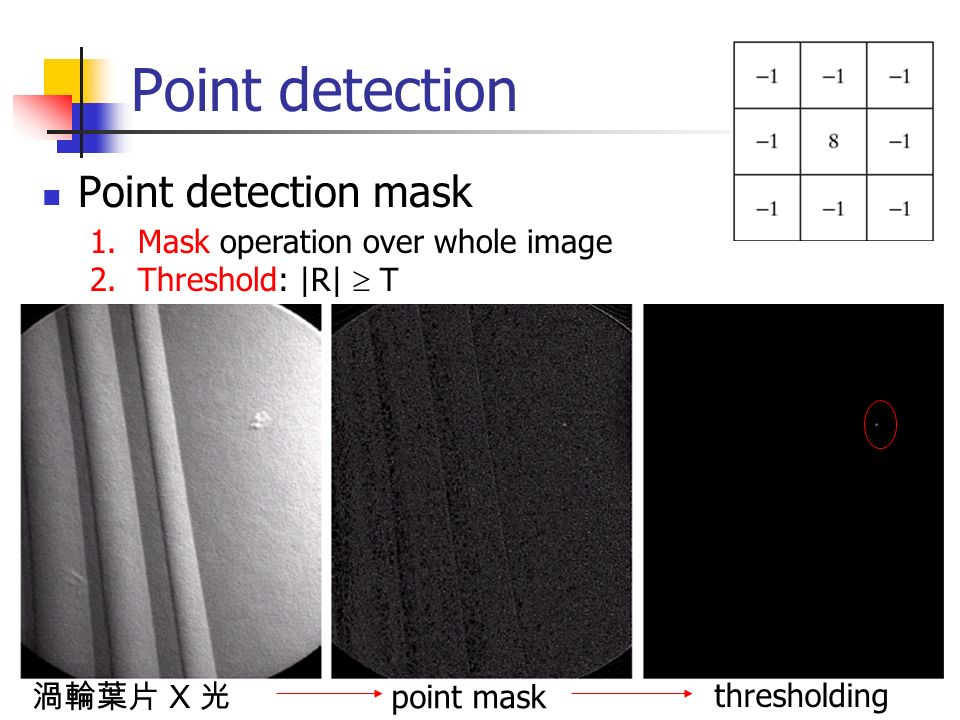

7. Point detection Point detection mask 1.Mask operation over whole image 2.Threshold: |R|  T 渦輪葉片 X 光 thresholding point mask

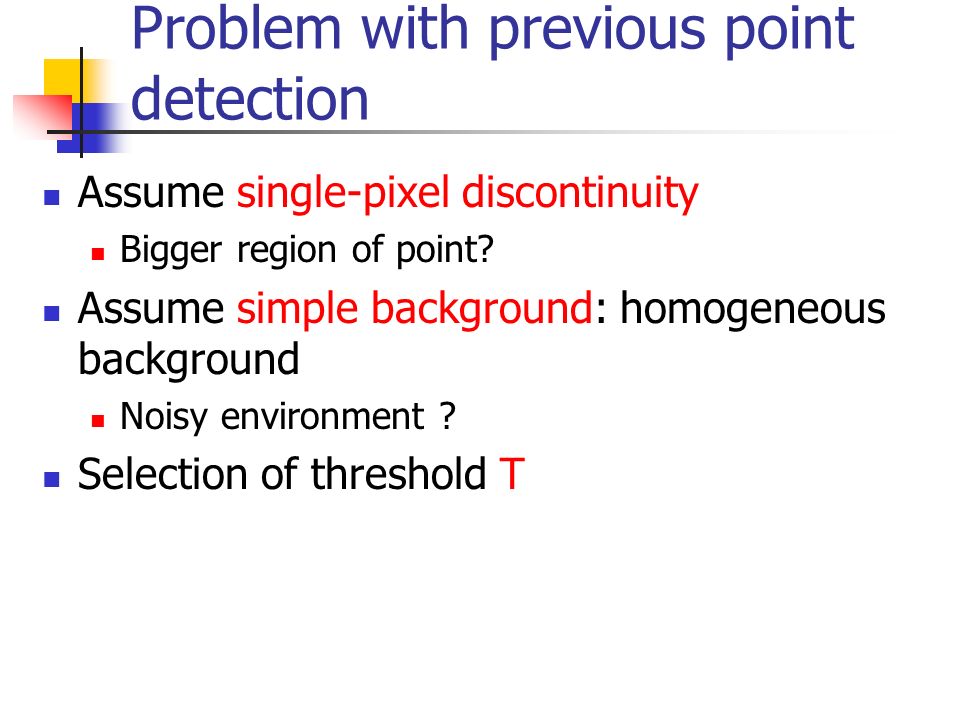

8. Problem with previous point detection Assume single-pixel discontinuity Bigger region of point? Assume simple background: homogeneous background Noisy environment ? Selection of threshold T

9. Line detection 1. Line detection mask 2. Which orientation? Thresholding: |R i |  |R j |  T Ex. A thin line: 0 0 0 1 2 1 0 0 0 Hori. R 1 =8 45 o R 2 =2 -45 o R 4 =2 Veri. R 3 =2

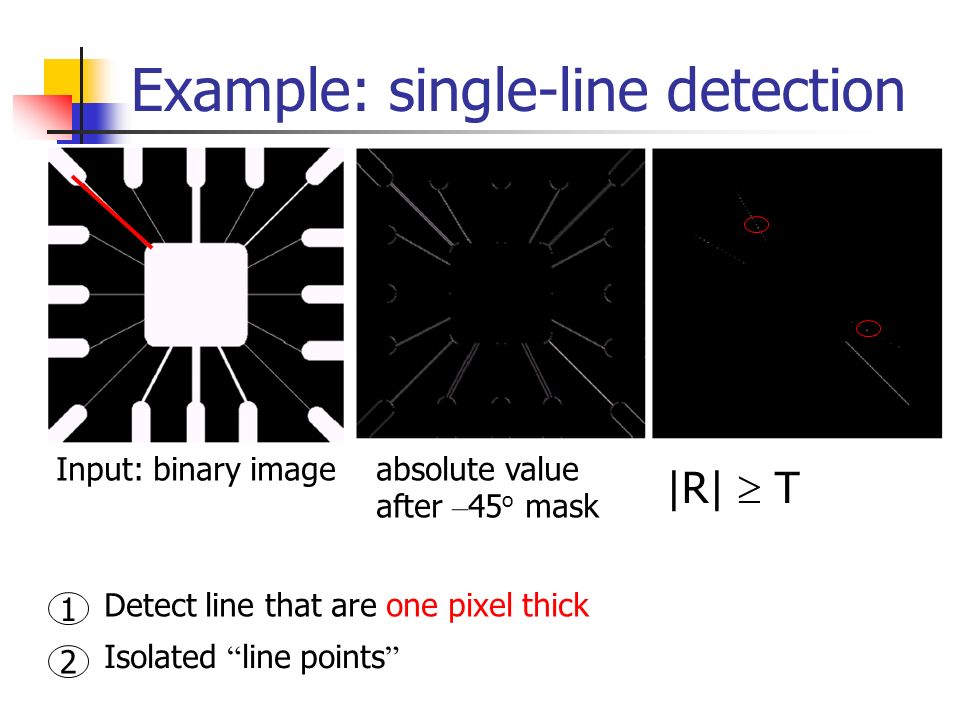

10. Example: single-line detection Input: binary imageabsolute value after – 45 o mask |R|  T 1 Detect line that are one pixel thick 2 Isolated “ line points ”

11. Outline Point, line detection Edge detection Boundary with arbitrary shape Thresholding Use of motion in segmentation

12. Definition of edges? Intuition of edge: set of connected pixels that line one the boundary between two regions Model of digital edge

13. Two factors affects acquired edges Blur 模糊化 Sampling rate, illumination condition zoom Noise 雜訊

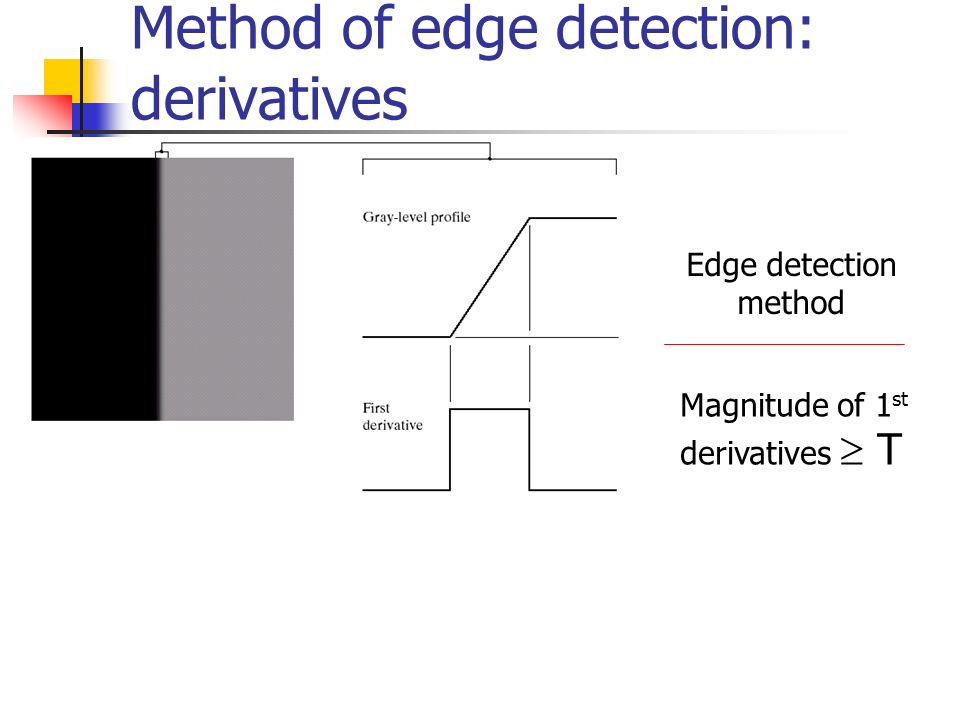

14. Method of edge detection: derivatives Edge detection method Magnitude of 1 st derivatives  T 1. Sign determines Dark or light region 2. Zero-crossing

15. Methods: 1 st derivatives 1st derivatives 2-D gradient Magnitude = Direction =

16. Example: Sobel filter Original: 1200x1600 Ver. Hor. abs +

17. Effects of noise Unwanted Detailed Structure !

18. 1st 2nd Noisy edges Fail to detect

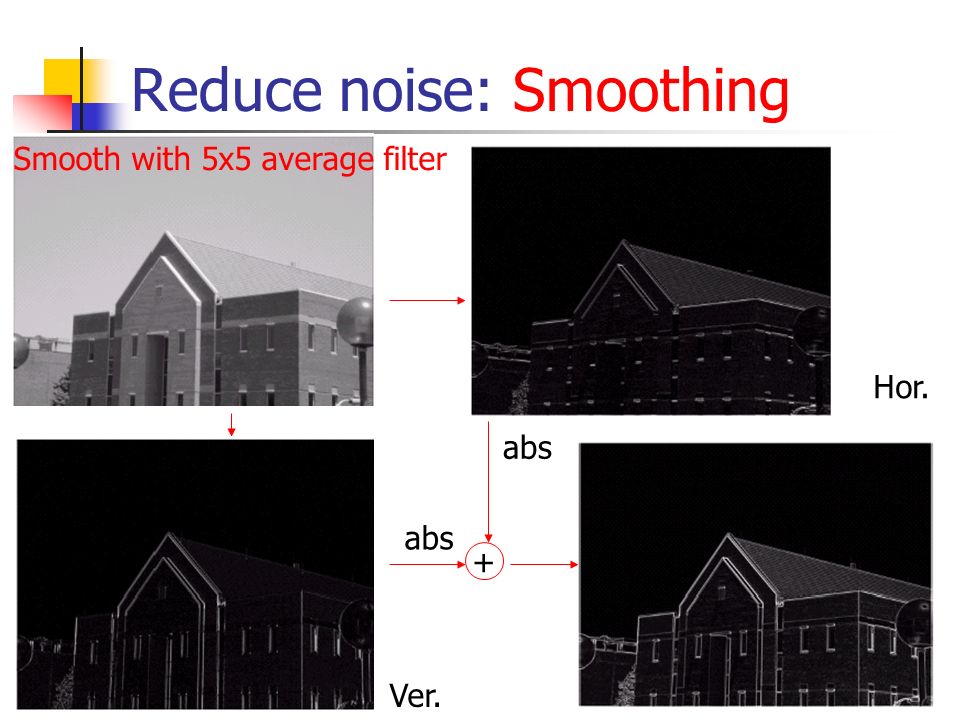

19. Reduce noise: Smoothing Smooth with 5x5 average filter Ver. Hor. abs +

20. Review 2nd derivative f(x) f(x-1) 1st derivative 2nd derivative f(x)-f(x-1) f(x+1)-2f(x)+f(x-1)

21. Method: 2nd derivative Edge detection method Magnitude of 1 st derivatives  T 1. Sign determines Dark or light region 2. Zero-crossing 2nd derivative mask Laplacian

22. Example: 2nd derivative originalSobel Gaussian Smoothing Laplacian (2nd derivative) LoG Threshold(LoG)Zero-crossing of LoG

23. Outline Point, line detection Edge detection Thresholding Use of motion in segmentation

24. Foundation of thresholding Idea: object and background pixels have gray levels grouped into two dominant modes Original imagehistogram

25. Foundation of thresholding Input f(x,y), given threshold T

26. Issues of thresholding Selection of threshold T ? Complex environment – illumination Multiple thresholds – more than one object Global threshold Local threshold Thresholding as a multi-variable function: g(x,y) = T[ f(x,y), x, y, p(x,y) ] Adaptive: Depend on position Local: local property func.

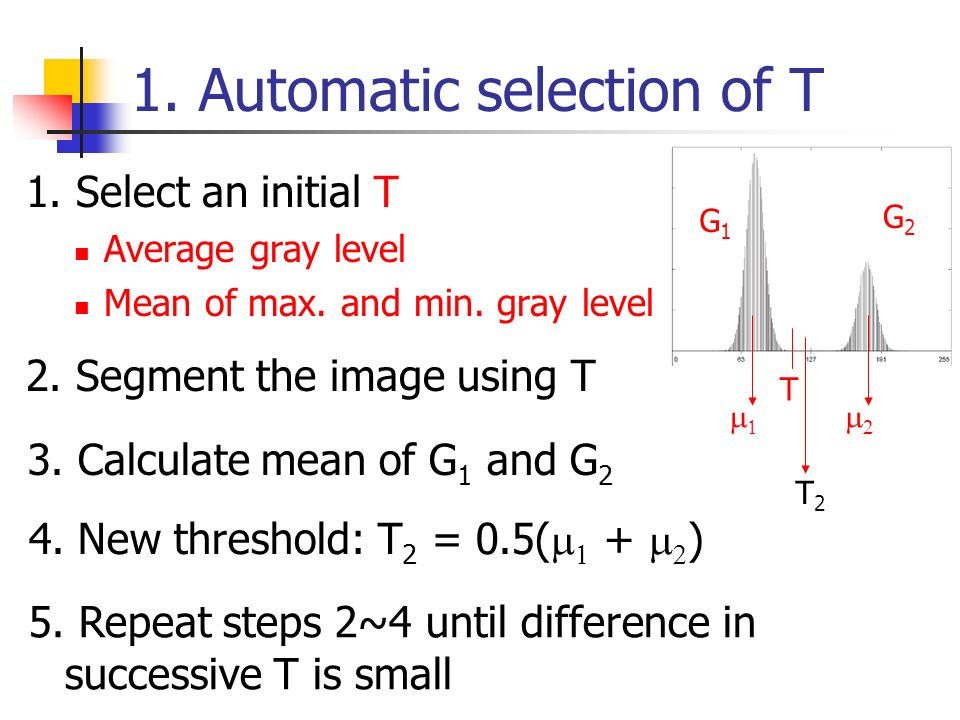

27. 1. Automatic selection of T 1. Select an initial T Average gray level Mean of max. and min. gray level 2. Segment the image using T T G1G1 G2G2 3. Calculate mean of G 1 and G 2   4. New threshold: T 2 = 0.5(   +   ) T2T2 5. Repeat steps 2~4 until difference in successive T is small

28. Example: automatically select T fingerprint Initial: gray level mean 3 iterations T = 125.4

29. 2. Effects of illumination Recall: f(x,y)=i(x,y) r(x,y) Illumination source scene reflection illumination:reflectance:

30. Example: illumination Original image histogram Illumination source x histogram

31. Example: bad histogram * The gray levels of the object is mixed with background

32. Matlab code I = imread( ‘ PIC00074.JPG ’, ‘ jpg ’ ); I = rgb2gray(I); I = double( reshape(I, prod(size(I)), 1) ); X=0:255; Y = hist(I, X); bar(Y ’ );

33. Why illumination is hard to handle? f(x,y)=i(x,y) r(x,y) => z(x,y) = ln f(x,y) = ln i(x,y) + ln r(x,y) Suppose they are independent random variables Histogram (distribution) convolution

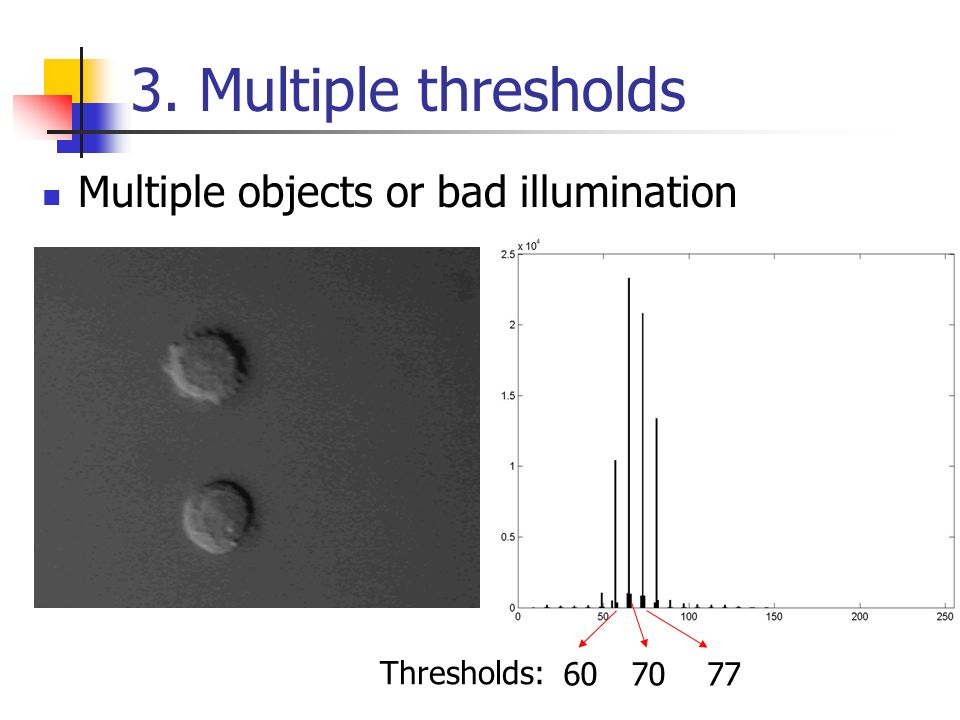

34. 3. Multiple thresholds Multiple objects or bad illumination 607077 Thresholds:

35. Result of thresholding 4 gray levels

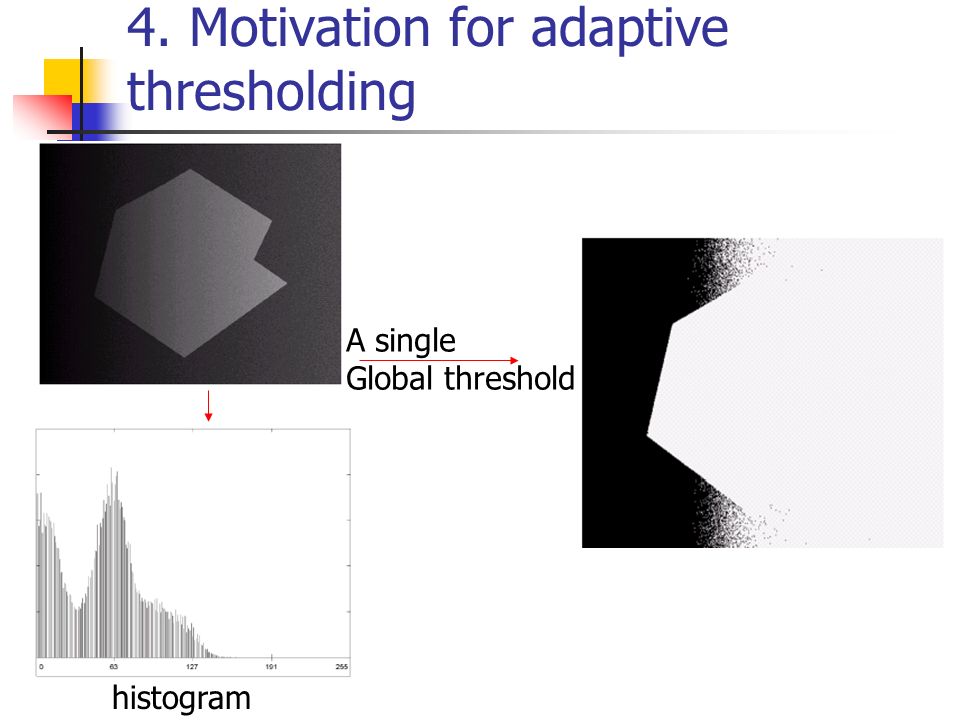

36. 4. Motivation for adaptive thresholding histogram A single Global threshold

37. Adaptive local thresholding Subdivide image into blocks Q: Improperly segmented subimages !

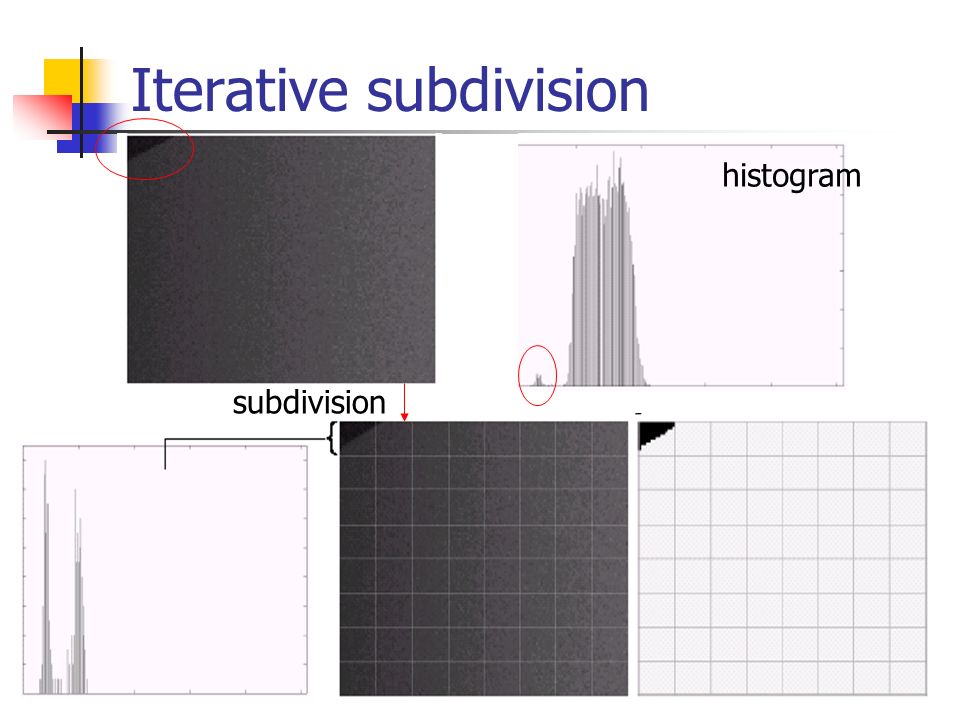

38. Iterative subdivision histogram subdivision

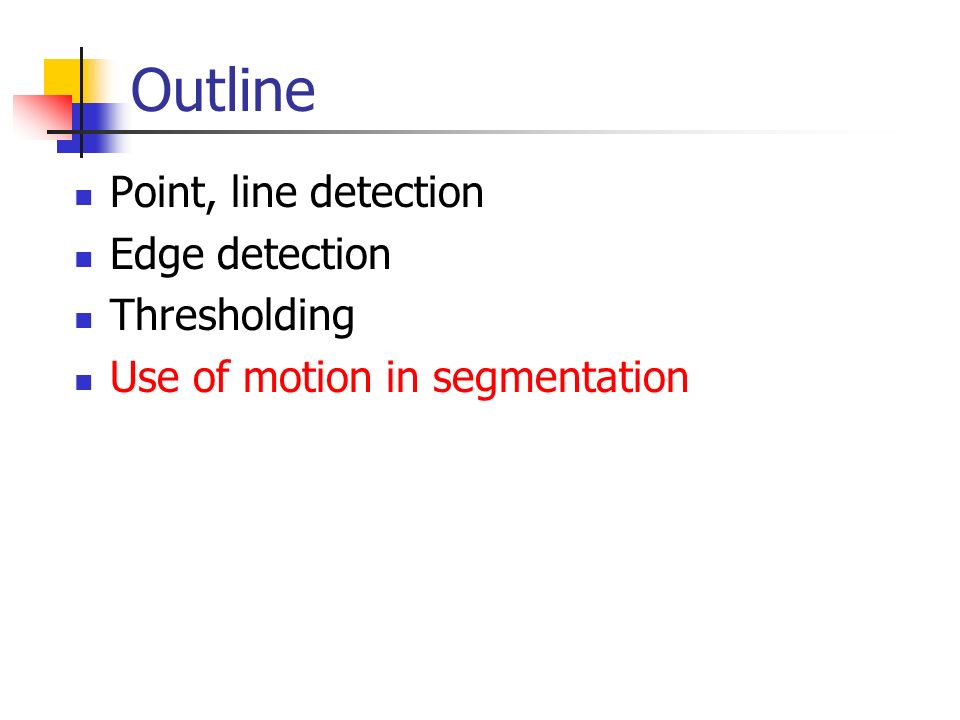

39. Outline Point, line detection Edge detection Thresholding Use of motion in segmentation

40. Example:

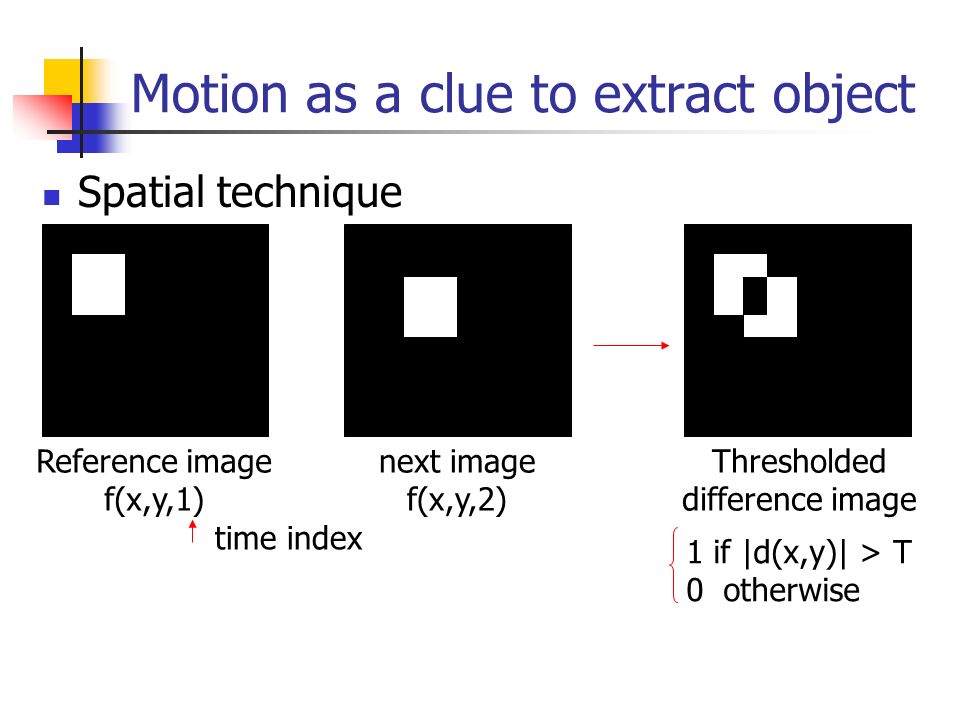

41. Motion as a clue to extract object Spatial technique Reference image f(x,y,1) next image f(x,y,2) time index Thresholded difference image 1 if |d(x,y)| > T 0 otherwise

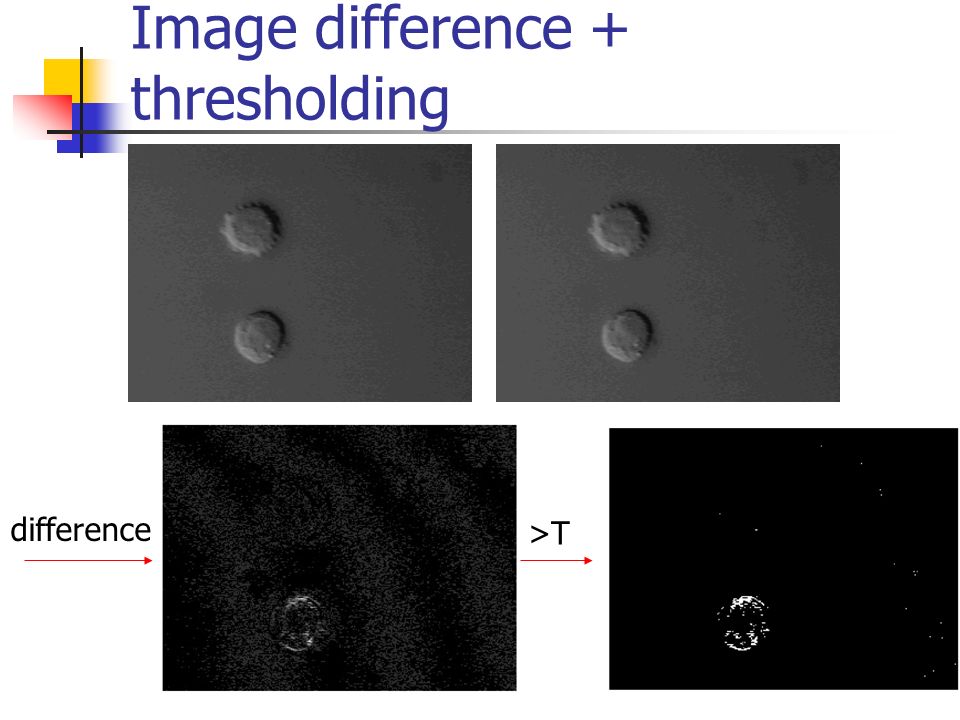

42. Image difference + thresholding difference >T>T

43. Use more than one images in time: eliminate noise Reference image R(x,y) Image f(x,y,2) Accumulative difference image counter + 1, Image f(x,y,3) … counter a. if d(x,y) > T positive ADI b. if d(x,y) < -T negative ADI c. if |d(x,y)| > T absolute ADI d(x,y)=R(x,y)-f(x,y,t)

44. Example: Absolute ADI Positive ADI Negative ADI * Object shape * Location in ref. image

45. Accumulative difference image(ADI) 13 frames, threshold = 10 Absolute ADIPositive ADI Negative ADI Fail to find object shape ? => Success when object intensity > background
