1. Smart card security Nora Dabbous Security Technologies Department

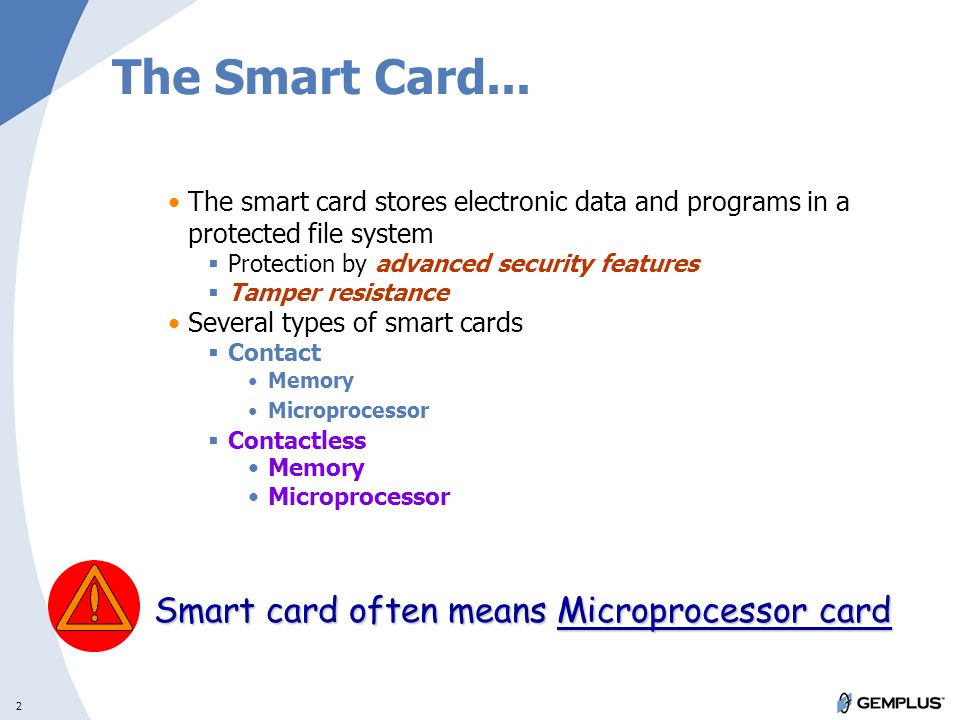

2. 2 The Smart Card... The smart card stores electronic data and programs in a protected file system  Protection by advanced security features  Tamper resistance Several types of smart cards  Contact Memory Microprocessor  Contactless Memory Microprocessor Smart card often means Microprocessor card

3. 3 Close-up view...

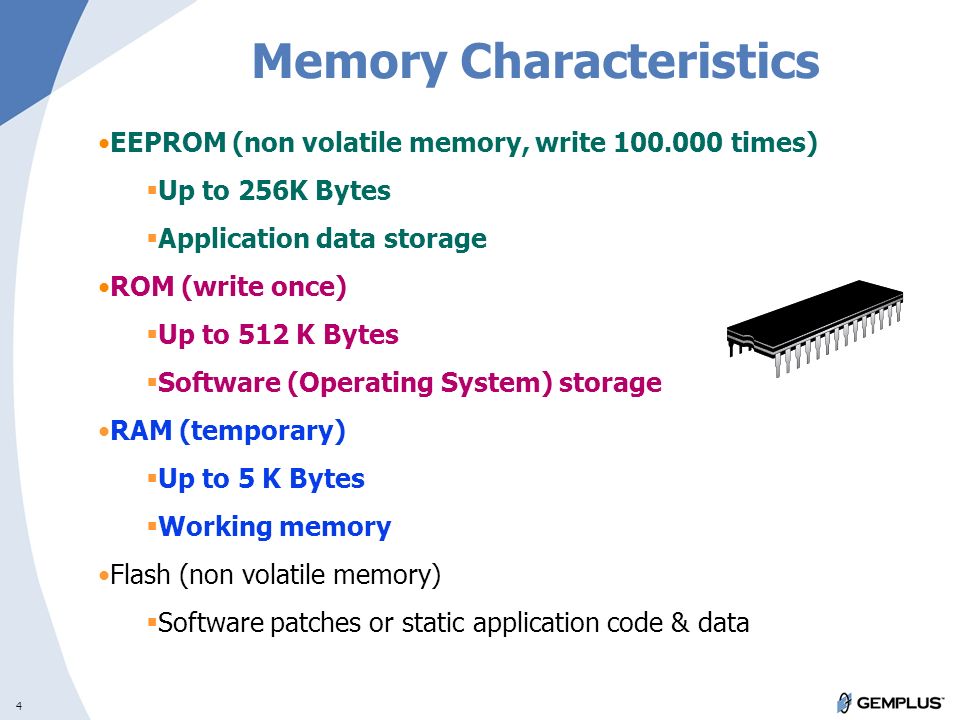

4. 4 Memory Characteristics EEPROM (non volatile memory, write 100.000 times)  Up to 256K Bytes  Application data storage ROM (write once)  Up to 512 K Bytes  Software (Operating System) storage RAM (temporary)  Up to 5 K Bytes  Working memory Flash (non volatile memory)  Software patches or static application code & data

5. 5 Contact Smart Cards Communication through electrical contacts

6. 6 Contactless Smart Cards Communication over the air

7. The Chip Operating System File and directory management :  Create  Read Only  Add Information Only  Erase and Update Access protected by secret codes :  Data files  Secret Code files  Cryptographic key files

8. 8 HOSTREADERSCARDS Application Players

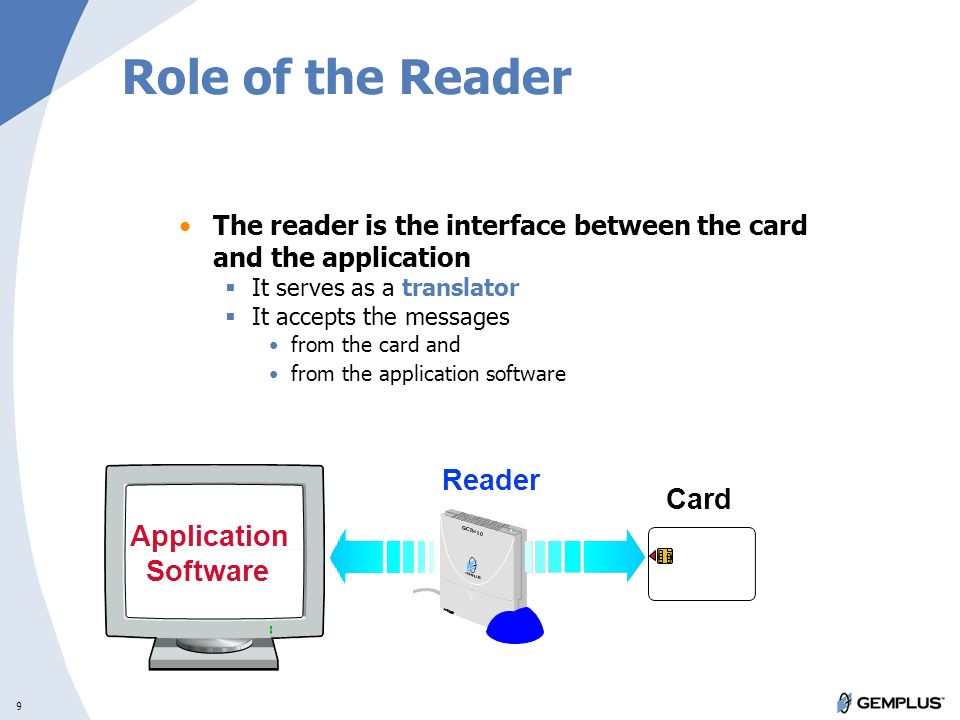

9. 9 Role of the Reader Application Software Reader Card The reader is the interface between the card and the application  It serves as a translator  It accepts the messages from the card and from the application software

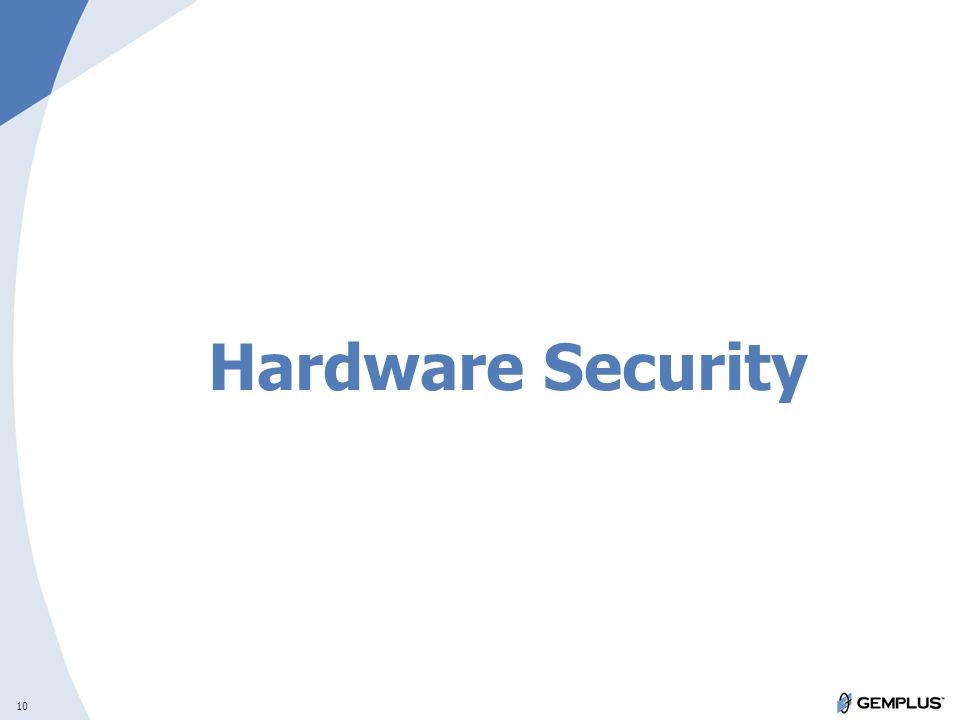

10. 10 Hardware Security

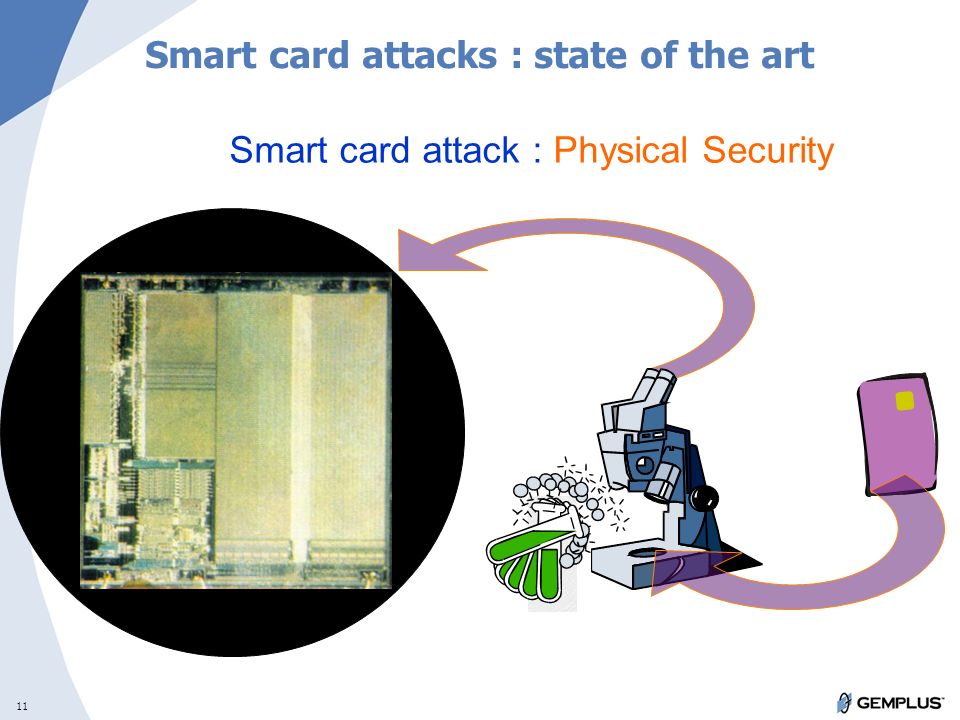

11. 11 Smart card attack : Physical Security Smart card attacks : state of the art

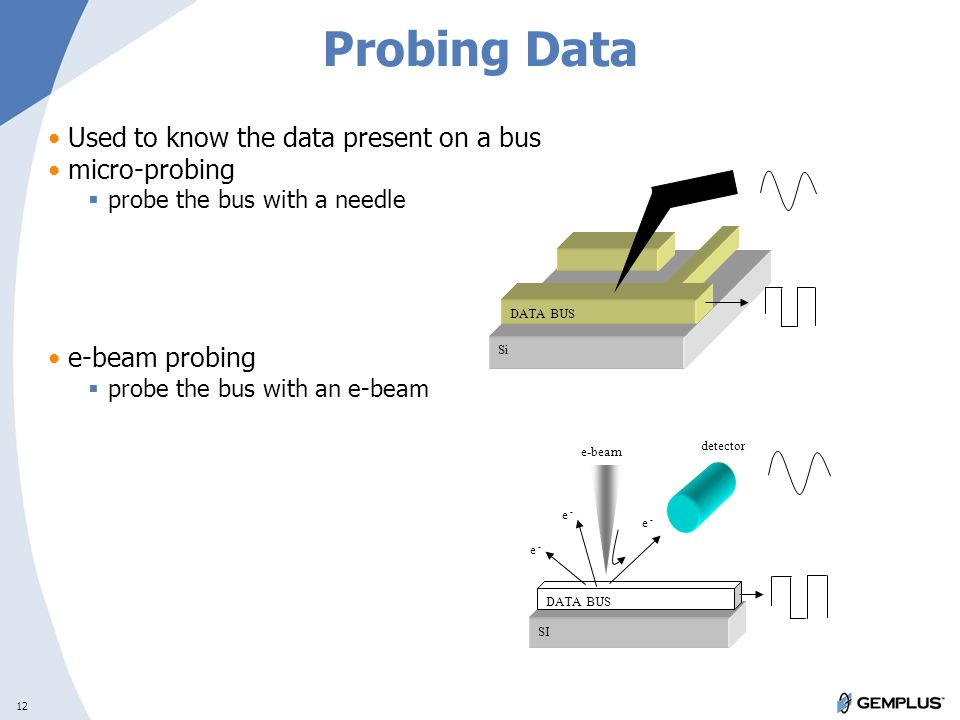

12. 12 Probing Data Used to know the data present on a bus micro-probing  probe the bus with a needle e-beam probing  probe the bus with an e-beam Si DATA BUS SI DATA BUS e-beam e - detector e -

13. 13 Circuit modification Connect or disconnect security mechanism  disconnect security sensors  RNG stuck at a fixed value Cut or Paste tracks Add probe pads  make micro-probing of the buried layers possible Equipment Laser FIB Cut Metal strap

14. 14 Fault Generation Vcc Clock Temperature UV Light X-Rays... Apply combinations of environmental conditions and bypass or infer secrets input key error

15. 15 Hardware Security Measures Security Sensors (VCC, Temp. Light, UV, Clock) Data scrambling Address scrambling Current scrambling Several Independent Metal Layers Submicron scale Deeply buried buses Glue Logic

16. 16 Embedded Software Security

17. 17 Timing Attacks: Principles  TrueFalse Everything performed unconditionally before the test A test based on secret data is performed that leads to a boolean decision Depending on the boolean condition, the process may be long (t1) or short (t2) Everything performed unconditionally after the test

18. 18 Power Attacks ICC's Power Consumption leaks information about data processing  Power Consumption = f(secret key, data) Deduce information about secret data and processing  empirical methods  statistical treatment Monitor ICC's Power Consumption  resistor  oscilloscope  post processing computer  chip

19. 19 Power Analysis Tools for contact cards 5V 

20. 20 Power Analysis Profiles Raw data, zoomed in Time Power 1m s Time

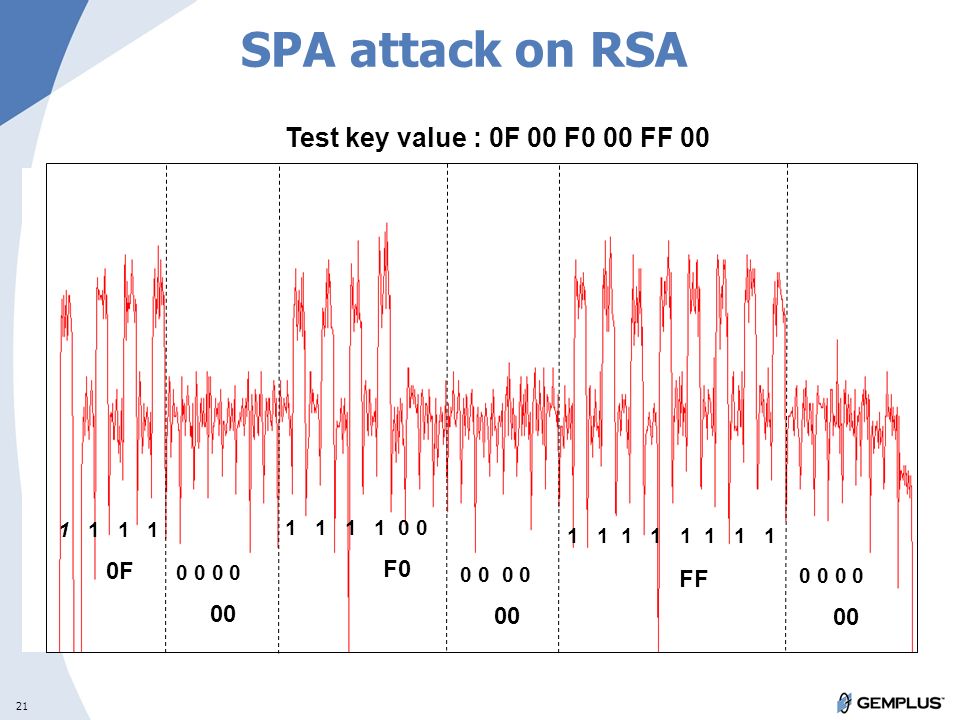

21. 21 SPA attack on RSA Test key value : 0F 00 F0 00 FF 00 1 1 0F 0 0 0 0 00 1 1 1 1 0 0 F0 0 0 0 0 00 0 0 0 0 00 1 1 1 1 FF

22. 22 Key value : 2E C6 91 5B F9 4A SPA attack on RSA 2 0010 E 1 1 10 C 1 100 6 0 1 10 9 100 1 1 000 1 5 0 10 1 B 10 1 1 F 1 1 9 100 1 4 0 100 A 10 10

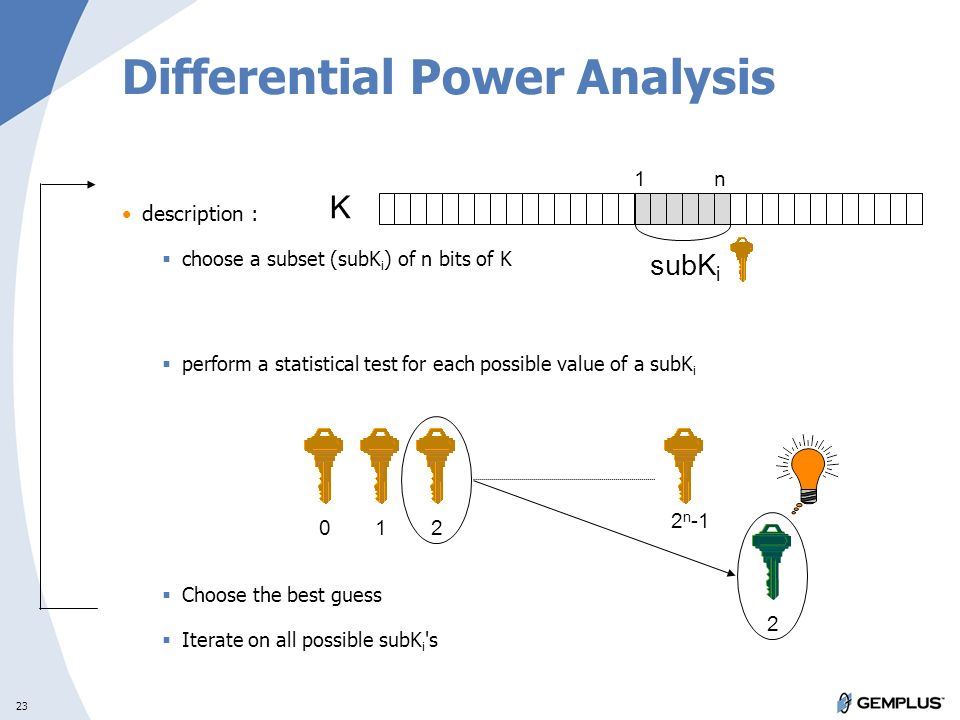

23. 23 description :  choose a subset (subK i ) of n bits of K  perform a statistical test for each possible value of a subK i  Choose the best guess  Iterate on all possible subK i 's Differential Power Analysis 2 n -1 012 2 1n K subK i

24. 24 Differential Power Analysis data processing for a value x of a subK i : Average D x n lklkjlsdq fdgcxv 1 0 dfdsffb M0M0 MnMn M1M1 -

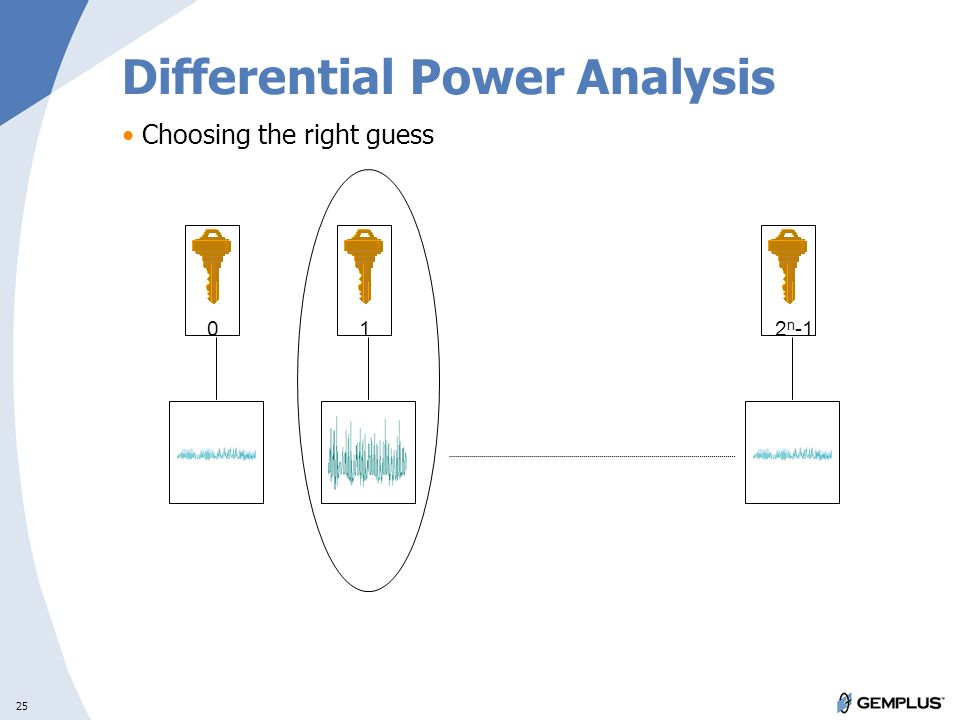

25. 25 Differential Power Analysis Choosing the right guess 012 n -1

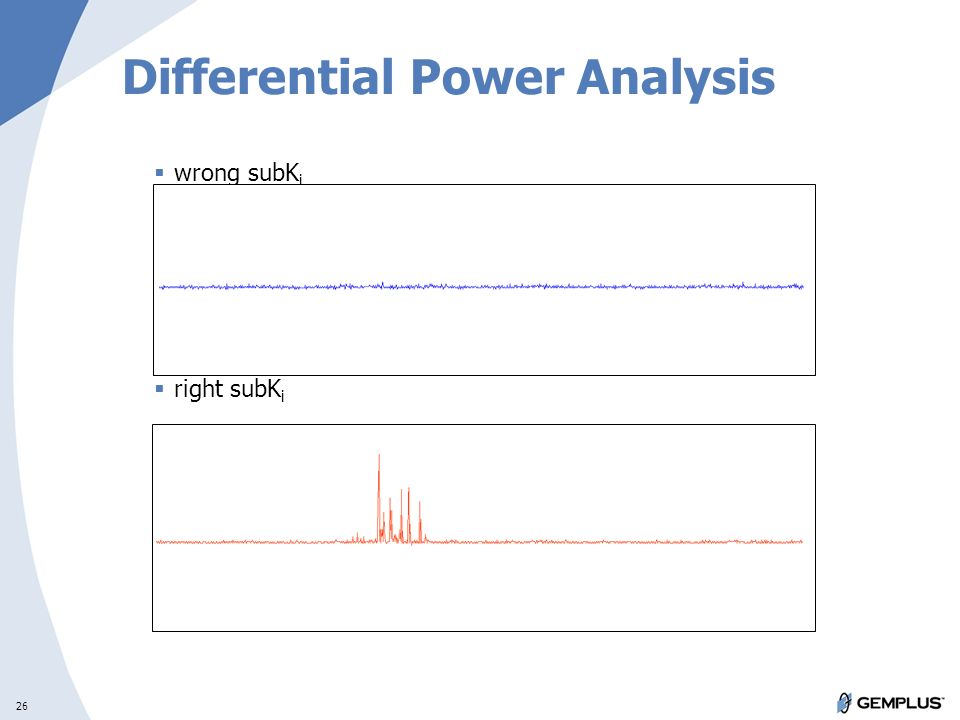

26. 26 Differential Power Analysis  wrong subK i  right subK i

27. 27 Add noise Scramble power consumption or stabilize it Randomize all sensitive data variables with a fresh mask for every execution of an algorithm Randomize, randomize, randomize … Secret keys Messages Private exponents Bases Moduli Countermeasures

28. 28 Electromagnetic Analysis on RSA Tests require a de-capsulation of chip with semi invasive method. A scanning of surface is needed to find the « good » area where electromagnetic analysis is possible. The chip is powered by contact reader

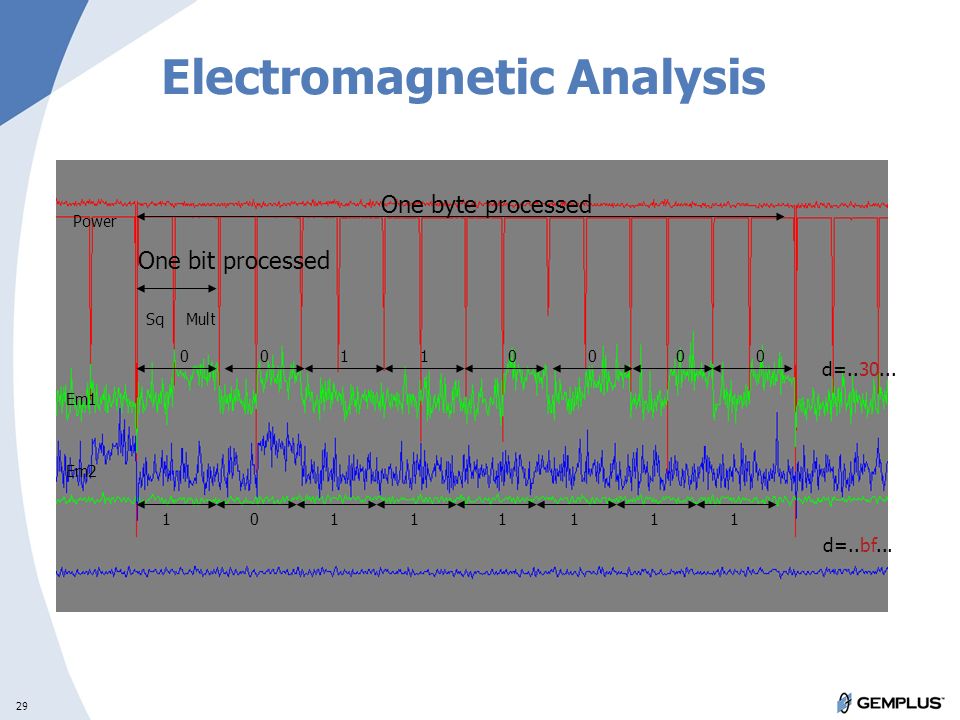

29. 29 Electromagnetic Analysis One byte processed Power Em1 Em2 One bit processed SqMult 0 0110000 10111111 d=..30... d=..bf...

30. 30 Radio Frequency Analysis (Contactless Cards) Tests are non-invasive. A simple magnetic loop made with copper wire is needed. An image of the magnetic field, modified by the card’s consumption, is collected. The chip is powered by a contactless reader.

31. 31 Equipment (1/2)

32. 32 There are many potential ways to attack a smart card But there are also many ways to counteract and efficiently protect your secrets Smart Cards are among the most secure embedded devices in the field today We try to keep it that way Conclusion

33. 33 Read-on W. Rankl, W. Effing, Smart Card Handbook, 2nd edition, John Wiley & Sons, 2000. K. Vedder, Smart Cards - Requirements, Properties, and Applications, in State of the Art in Applied Cryptography, pages 307-331, LNCS 1528, Springer-Verlag,1997.
