1. Distributed Source CodingBy
Raghunadh K Bhattar, EE Dept, IISc
Under the Guidance of
Prof.K.R.Ramakrishnan

2. Outline of the Presentation
Introduction
Why Distributed Source Coding
Source Coding
How Source Coding Works
How Channel Coding Works
Distributed Source Coding
Slepian-Wolf Coding
Wyner-Ziv Coding
Applications of DSC
Conclusion

3. Why Distributed Source Coding ?
Low Complexity Encoders
Error Resilience – Robust to transmission errors
The above two attributes make the DSC an enabling technology for wireless communications

4. Low Complexity Wireless Handsets
Courtesy Nicolas Gehrig

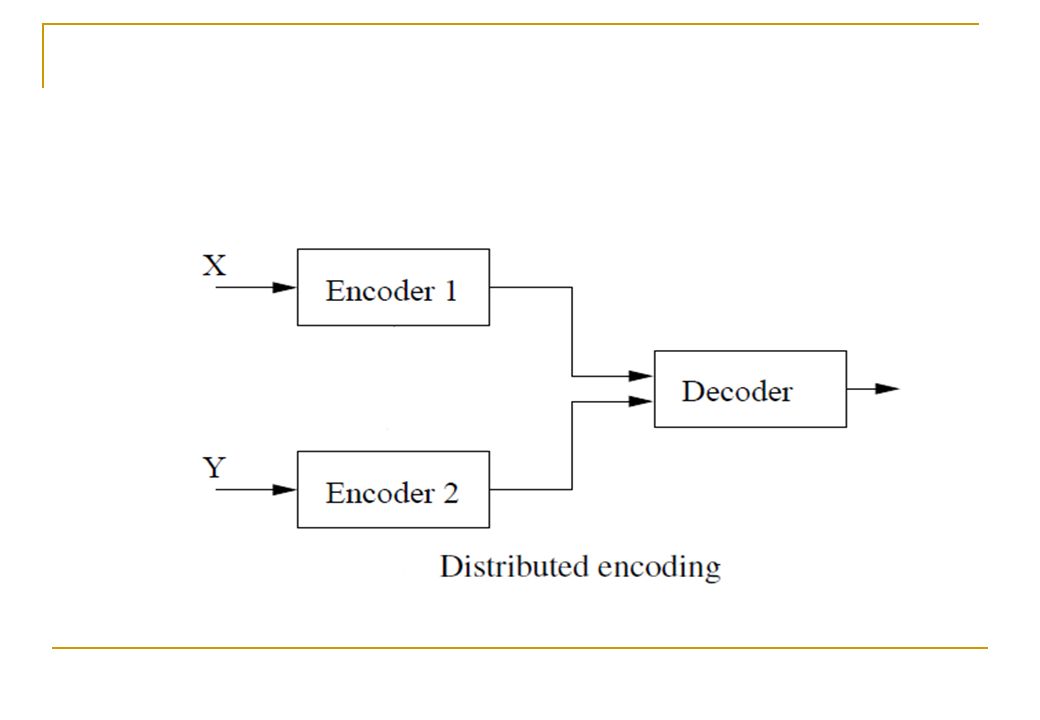

5. Distributed Source Coding (DSC)
Compression of Correlated Sources –Separate Encoding & Joint Decoding
Encoder
Decoder
Statistically dependent
But Physical Distinct

6. Source Coding (Data Compression)
Exploit the redundancy in the source to reduce the data required for storage or for transmission
Highly complex encoders are required for compression (MPEG, H.264 …)
However, Simple decoders !
The Highly complex encoders require
Bulky handsets
Power consumption
Battery Life

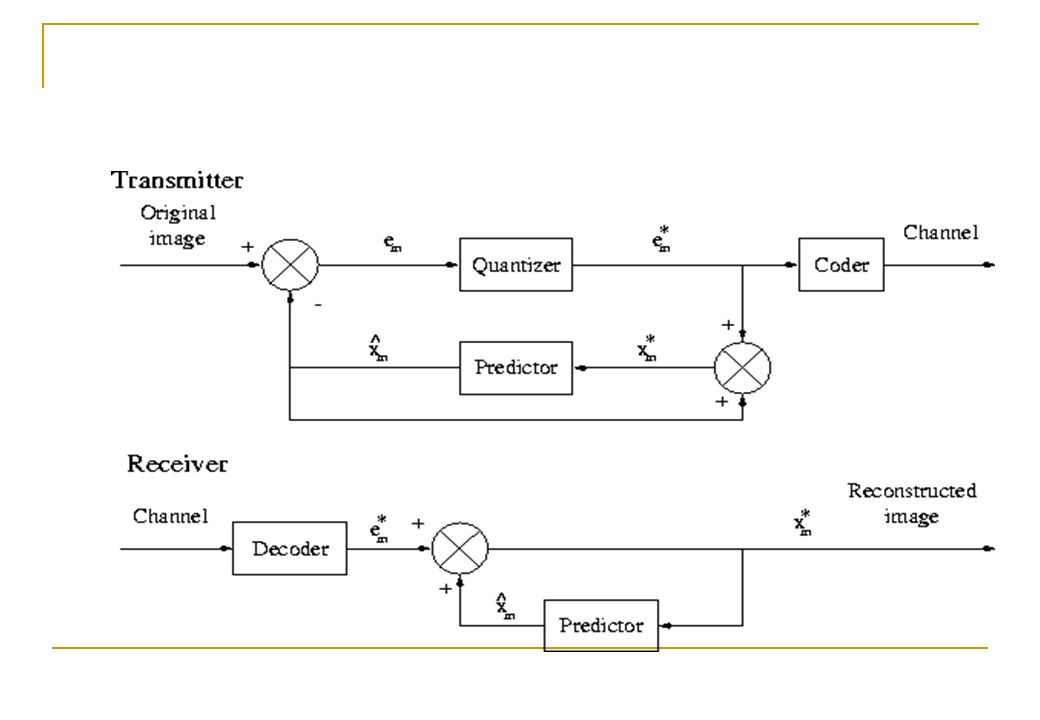

7. How Source Coding Works
Types of redundancy
Spatial redundancy - Transform or predictive coding
Temporal redundancy - Predictive coding
In predictive coding, the next value in the sequence is predicted from the past values and the predicted value is subtracted from the actual value
The difference is only sent to the decoder
Let the Past values are in C, the predicted value is y = f(C). If the actual value is x, then (x – y) sent to the decoder.

8. Decoder, knowing the past values C, can also predict the value of y.
With the knowledge of (x – y), the decoder finds the value of x, which is the desired value

9. x y - + x - y x - y x + - y Encoder Decoder Past Values (C) Prediction

11. Compression – Toy Example
Suppose, X and Y – Two uniformly distributed i.i.d Sources.
X, Y X  3bits If they are related (i.e., correlated)
000 Y  3bits Can we reduce the data rate?
001 Let the relation be :
010 X and Y differ at most by one bit
011 i.e., the Hamming distance
100 between X and Y is maximum one
101
110
111

12. H(X) = H(Y) = 3bits
Let Y = 101 then X = 101 (0), 100 (1), 111 (2), 001 (3)
Code = XY
H(X/Y) = 2bits
Need 2bits to transmit X and 3bits for Y and total 5 bits for both X and Y instead of 6bits.
Here we should know what is the outcome of Y, then we code the X with 2bits.
Decoding = Y Code; Code 0 = 000, 1 = 001, 2 = 010, 3 = 100;

13. Now assume that, we don’t know the outcome of the Y (but sent to decoder using 3bits), can I still transmit X using 2 bits?
The Answer is YES (Surprisingly!)
How?

14. Partition
Group all the symbols into four groups each consists of two members
{(000),(111)} 0 Trick = Partition each
{(001),(110)} 1 set with Hamming
{(010),(101)} 2 distance 3
{(100),(011)} 3

15. The encoding of X is simply done by sending the index of the set that actually contains X
Let X = (100) then the index for X = 3
Let the decoder already received a correlated Y (101)
How we recover X knowing the Y (101) (from now onwards call this as side information) at decoder and index (3) from X

16. Since, index is 3 we know that the value of X is either (100) or (011)
Measure the Hamming distance between the two possible values of X with side information Y
(100)(101) = (001) = Ham dis = 1
(011)(101) = (110) = Ham dis = 2
 X = (100)

17. Source Coding X  Y = 101 X = 100 Code = (100)(101) = 001 = 1
000
001 X
010
011
100
101 
110
111
Y = 101
X = 100
Code = (100)(101)
= 001 = 1
Decoding =
YCode =
=(101)(001)
= 100 = X

18. Uncorrelated Side Information
Distributed Source Coding
Side Information
Decoding
Output
Y = 000
011000 = 2
100000 = 1
X = 100
Y = 110
011110 = 2
100110 = 1
Y = 101
011101 = 2
100101 = 1
Y = 100
011100 = 3
100100 = 0
Y = 111
011111 = 1
100111 = 2
X = 011
X =100
Code = 3
Correlated Side Information
No Error in Decoding
Uncorrelated Side Information
Erroneous Decoding

19. For above toy example the matrix is
How to partition the input sample space? Always I have to find some trick ? If input sample space is large (even if few hundreds), can I still find the trick???
The trick is matrix multiplication and we have to have one such matrix, which partition the input space.
For above toy example the matrix is
Index = X*HT in GF(2) field
H is the parity check matrix in
Error correction terminology

20. Coset Partition Now, we see again the partitions.
{(000),(111)} 0 This is the repetition code
{(001),(110)} 1 (in error correction
{(010),(101)} 2 terminology.)
{(100),(011)} These are the Cosets of
the repetition code induced by the elements of the sample space of X

21. Channel Coding
In channel coding, controlled redundancy is added to the information bits to protect the them from channel noise
We can classify channel coding or error control coding into two categories
Error Detection
Error Correction
In Error Detection, the introduced redundancy is just enough to detect errors
In Error Correction, we need to introduce more redundancy.

22. dmin = 1
dmin= 2
dmin= 3

23. Parity Check
X Parity
000 0
001 1
010 1
011 0
100 1
101 0
110 0
111 1
Minimum Hamming Distance =2
How to make Hamming distance 3 ?
It is not clear (or not easy to make minimum hamming distance 3)

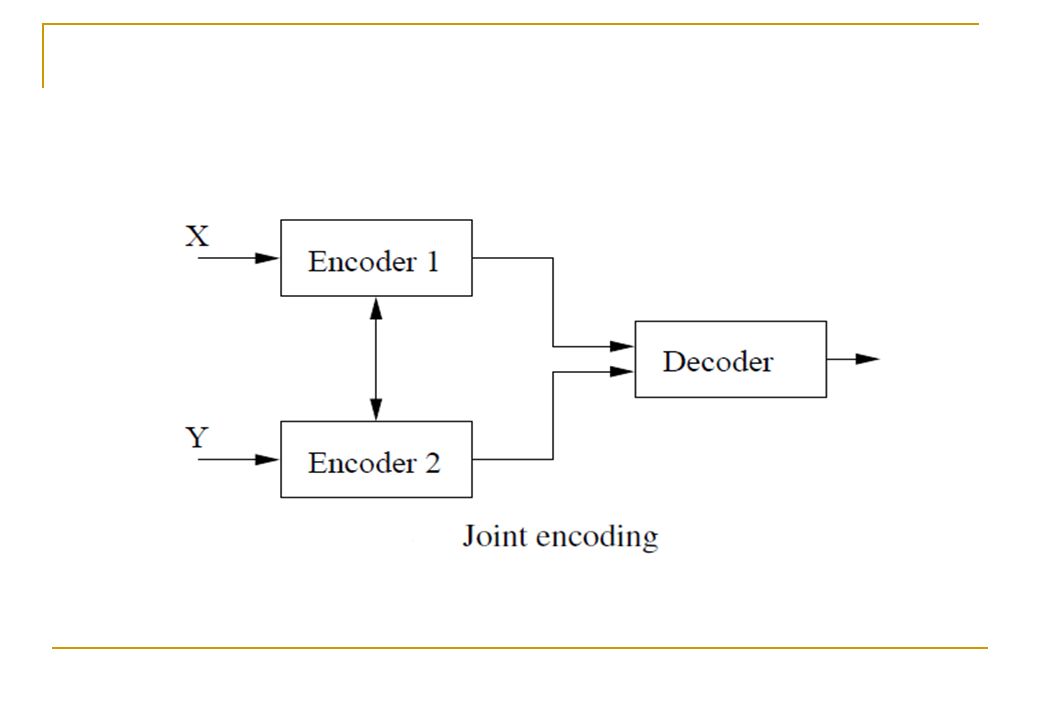

26. Slepian-Wolf theorem: The Slepian-Wolf theorem states that the correlated sources that don’t communicate each other can be coded at a rate equal to the rate at which they are coded jointly. No performance loss occurs if they are decoded jointly.
When correlated sources are coded independently, but decoded jointly, then the minimum data rate for each source is lower bounded by
Total data rate should be atleast equal to (or greater) than H(X,Y) and individual data rates should be atleast equal to (or greater than) H(X/Y) and H(Y/X) respectively
J. D. Slepian and J. K. Wolf, “Noiseless coding of correlated information sources,” IEEE Trans. Inf. Theory, vol. 19, pp. 471–480, July 1973.

27. DISCUS (DIstributed Source Coding Using Syndrome)
The first constructive realization of the Slepian-Wolf boundary using practical channel codes was proposed where single-parity check codes were used with the binning scheme.
Wyner first proposed to use capacity achieving binary linear channel code to solve the SW compression problem for a class of joint distributions
DISCUS extended the results of Wyner idea to the distributed rate-distortion (lossy compression) problem using channel codes
S. Pradhan and K.Ramchandran, “Distributed source coding using syndrome(DISCUS),” in IEEE Data Compression Conference, DCC-1999, Snowbird,UT, 1999.

28. Distributed Source Coding (Compression with Side Information)
Encoder
Decoder
Statistically dependent
Side Information
Available at Decoder
Lossless

29. Achievable Rates with Slepian-Wolf Coding
Achievable Rate Region - SWC 
Rx > H(X/Y)
Ry > H(Y) Ry
Separate Coding
No Errors
Rx > H(X)
Ry > H(Y)
H(X,Y)
H(Y) A
Achievable Rates with Slepian-Wolf Coding C
Rx > H(X/Y)
Ry > H(Y)
H(Y/X) B
Rx + Ry = H(X,Y) = Joint Encoding and Decoding Rx
H(X/Y)
H(X)
H(X,Y)

30. No errors Vanishing error probability for long sequences
Code X with Y as side-information
No errors
Vanishing error
probability for
long sequences
Time-sharing/
Source splitting/
Code partitioning
Code Y with X as side-information

31. + How Compression Works ? How Channel Coding Works ?
Compressed Data
(Decorrelated Data)
Redundant Data (Correlated Data)
Remove Redundancy
How Channel Coding Works ?
Decorrelated Data +
Correlated Data
Redundant Data Generator

32. Source Coding and Channel Coding
Duality Between
Source Coding and Channel Coding
Source Coding
Channel Coding
Compress the Data
Expands the Data
De-correlates the Data
Correlates the Data
Complex Encoder
Simple Encoder
Simple Decoder
Complex Decoder

33. Channel Coding or Error Correction Coding
Information Bits
Information Bits
Information Bits k
Channel
(Additive Noise)
Channel
Decoding n
Code Word
Parity Bits
Parity Bits
n - k
Data Expansion = times

34. Correlation Model ( = Noise)
Channel Codes for DSC
Decompression Y
Information Bits (X) k
Parity Bits
Compressed Data = X
Channel
Coding
Channel
Decoding x
Parity Bits
Parity Bits
n - k = + Y
Correlation Model ( = Noise) Y x

35. Turbo Coder for Slepian-Wolf Encoding
Interleaver length L
L bits in
L bits
Systematic Convolutional Encoder Rate
bits
Discarded
Curtsey
Anne Aaron and Bernd Girod

36. Turbo Decoder for Slepian-Wolf Decoding
Pchannel
bits in
SISO Decoder
Pa posteriori
Channel probabilities calculations
Pa priori
Pextrinsic
Deinterleaver length L
Interleaver length L
Decision
bits in
Channel probabilities calculations
Pextrinsic
Pa priori
Deinterleaver length L
SISO Decoder
Pchannel
Pa posteriori
Interleaver length L
Curtsey
Anne Aaron and Bernd Girod

37. Wyner’s Scheme Use a linear block code, send syndrome
(n,k) block code, 2(n-k) syndromes, each corresponding to a set of 2k words of length n.
Each set is a coset code.
Compression ratio of n:(n-k).
Linear block code
Instead of sending X of length n, we send syndrome of length (n-k)
A D Wyner, "Recent Results in the Shannon Theory” in IEEE Transactions On Information Theory, VOL. IT-20, NO. 1, JANUARY 1974
A. D. Wyner, “On source coding with side information at the decoder,” IEEE Trans. Inf. Theory, vol. 21, no. 3, pp. 294–300, May 1975.

38. Correlation Model ( = Noise)
Linear Block Codes for DSC
Decompression
Compressed Data
Syndrome
Decoding
Syndrome Former n
n - k x
Corrupted Codeword = x H
Corrupted Codeword = Y n
Correlation Model for Side Information = + Y
Compression Ratio =
Correlation Model ( = Noise) Y x

39. LDPC Encoder (Syndrome Former Generator)X
LDPC Encoder (Syndrome Former Generator)
Compressed Data
Syndrome (s) Y s
Decompressed Data
LDPC Decoder
Entropy Coding
Side Information (Y)

40. Correlation Model

41. The Wyner-Ziv theorem
Wyner and Ziv extended the work by Slepian and Wolf by studying the lossy case in the same scenario, where signals X and Y are statistically dependent.
Y is transmitted at a rate equal to its entropy (Y is then called Side Information) and what needs to be found is the minimum transmission rate for X that introduces no more than a certain distortion D.
The Wyner-Ziv rate-distortion function, which is the lowest bound for Rx.
For MSE distortion and Gaussian statistics, rate-distortion functions of the two systems are the same.
A.D.Wyner and J.Ziv, “The rate distortion function for source coding with side information at the decoder,” IEEE Transactions on Information theory, vol. 22, no. 1, pp. 1–10, January 1976.

42. Wyner-Ziv Codec
A codec that intends to separately encode signals X and Y while jointly decoding them, but does not aim at recovering them perfectly, it expects some distortion D in the reconstruction is called a Wyner-Ziv codec.

43. Wyner-Ziv Coding Lossy Compression with Side Information
RX|Y (d)
Encoder
Decoder
For MSE distortion and Gaussian statistics, rate-distortion functions of the two systems are the same.
The rate loss R*(d) – RX|Y (d) is bounded.
R*(d)
Encoder
Decoder

44. The structure of the Wyner-Ziv encoding and decoding
Encoding consists of quantization followed by a binning operation encoding U into Bin (Coset) index.

45. Structure of distributed decoders
Structure of distributed decoders. Decoding consists of “de-binning” followed by estimation

46. Wyner-Ziv Coding (WZC) - A joint source-channel coding problem
Since SWC is a channel coding problem, and we add a source coder, we get a joint source-channel coding problem.

47. Pixel-Domain Wyner-Ziv Residual Video Codec
Wyner-Ziv Encoder
Wyner-Ziv Decoder
WZ frames
Slepian-Wolf Codec
LDPC Encoder
LDPC Decoder
Reconstruction X
Scalar Quantizer
Buffer X’ -
Request bits -
Q-1
Side information
Xer
Xer Y
Frame Memory
Interpolation/ Extrapolation
Key frames
Conventional Intraframe decoding I
Conventional Intraframe coding I’

48. Distributed Video Coding
Distributed coding is a new paradigm for video compression, based on Slepian and Wolf’s (lossless coding) and Wyner and Ziv’s (lossy coding) information theoretic results.
Enables low-complexity video encoding where the bulk of the computation is shifted to the decoder.
A second architectural goal is to allow for far greater robustness to packet and frame drops.
Useful for wireless video applications by means of transcoding architecture use.

49. PRISM Flexible encoding/decoding complexity
PRISM (Power-efficient, Robust, hIgh compression Syndrome based Multimedia)
The PRISM is a practical video coding framework built on distributed source coding principles.
Flexible encoding/decoding complexity
High compression efficiency
Superior robustness to packet/frame drops
Light yet rich encoding syntax
R. Puri, A. Manjumdar, and K.Ramchandran, “PRISM: A video coding paradigm with motion estimation at the decoder,” IEEE Transactions on Image Processing, vol. 16, no. 10, pp. 2436–2448, October 2007.

50. DIStributed COding for Video sERvices (DISCOVER)
DISCOVER is a new video coding scheme which has a strong potential of new applications, targeting new advances in coding efficiency, error resilience and scalability
At the encoder side the video is split into two parts.
The first set of frames called key frame are encoded with conventional H.264/AVC encoder.
The remaining frames known as Wyner-Ziv frames which are coded using distributed coding principle
X.Artigas, J.ascenso, M.Dalai, D.Kubasov, and M.quaret, “The discover codec: Architecture, techniques and evaluation,” Picture Coding Symposium, 2007.

51. A Typical Distributed Video coding

52. Side Information from Motion-Compensated Interpolation
Decoded WZ frames
WZ frame
Wyner-Ziv Residual Encoder
WZ parity bits
Wyner-Ziv Residual Decoder W W’
Side information Y
Decoded frames
Interpolation
Previous key frame as encoder reference I I I I wz I wz I

53. Wyner-Ziv DCT Video Codec
WZ frames
Decoded WZ frames W W’
Intraframe Encoder
Interframe Decoder
level Quantizer
DCT
level Quantizer
DCT
IDCT Xk
Xk’
bit-plane 1 qk
qk’
Turbo Encoder
Buffer
Turbo Decoder
Extract bit-planes
Turbo Encoder
Buffer
Turbo Decoder
Extract bit-planes
bit-plane 2
Reconstruction …
Request bits
bit-plane Mk
Side information Yk
For each transform band k
DCT Y
Interpolation/ Extrapolation
Interpolation/ Extrapolation
Key frames
Conventional Intraframe decoding K
Conventional Intraframe coding K’

54. After Wyner-Ziv Coding
Foreman sequence
Side information
After Wyner-Ziv Coding
16-level quantization (~1 bpp)

55. Sample Frame (Foreman)
Side information
After Wyner-Ziv Coding
16-level quantization (~1 bpp)

56. H263+ Intraframe Coding 410 kbps
Carphone Sequence
H263+ Intraframe Coding 410 kbps
Wyner-Ziv Codec 384 kbps

57. Salesman sequence at 10 fps
DCT-based Intracoding 247 kbps PSNRY=33.0 dB
Wyner-Ziv DCT codec 256 kbps PSNRY=39.1 dB GOP=16

58. Salesman sequence at 10 fps
H.263+ I-P-P-P kbps PSNRY=43.4 dB GOP=16
Wyner-Ziv DCT codec 256 kbps PSNRY=39.1 dB GOP=16

59. Hall Monitor sequence at 10 fps
DCT-based Intracoding 231 kbps PSNRY=33.3 dB
Wyner-Ziv DCT codec 227 kbps PSNRY=39.1 dB GOP=16

60. Hall Monitor sequence at 10 fps
H.263+ I-P-P-P kbps PSNRY=43.0 dB GOP=16
Wyner-Ziv DCT codec 227 kbps PSNRY=39.1 dB GOP=16

61. Facsimile Image Compression with DSC CCITT 8 Image

62. Reconstructed Image with 30 errors

63. Fax4 Reconstructed Image with 8 errors

64. Applications Very low complexity encoders
Compression for networks of cameras
Error-resilient transmission of signal waveforms
Digitally enhanced analog transmission
Unequal error protection without layered coding
Image authentication
Random access
Compression of encrypted signals

65. Thank You
Any Questions ?

66. Cosets

67. Let G = {000,001,…111}
Let H = {000,111} is a subgroup of G
Coset are
001000 = 001
001111 = 110
Hence, {001, 110} is one coset
010000 = 010
010111 = 101
{010, 101} is another coset and so on…

68. Hamming Distance
Hamming distance is a distance measure defined as the number of bits two binary sequence differ
Let X and Y be two binary equences, the Hamming distance between X and Y is defined as
Hamming distance =
Example Let X = { }
Let Y = { }
Hamming distance Sum({ }) = 5
