1. Object-Oriented Programming in C++
Lecture 2
Classes and Objects

2. Introduction Last lecture we introduced the module introduced C++
This lecture we will
review the concept of classes and objects
discuss their representation using UML class diagrams
implement and use a simple C++ class
introduce C++ structures and enumeration types

3. Classes and objects a class is a programmer-created data type
it can have member variables (attributes)
to hold data
and member functions (methods)
to manipulate that data
an object is an instance of a class
with specific values for the member variables
normally the member variables are private
hidden within the object
we interact with the object via its public methods
encapsulation

4. Example – Account class
consider a class to represent a bank account
what data do we need to store about a bank account?
account balance
interest rate
what functions are needed to manipulate this data?
get the balance, deposit money, withdraw money, calculate and add the interest
create an account with a given initial balance and interest rate
each bank account object will have its own balance
and interest rate in this example

5. UML class diagrams
UML (the Unified Modelling language) defines 13 standard diagrams for system modelling
the class diagram is a useful way to represent a class
its member variables and methods
their type and visibility
UML diagrams can have different levels of detail
from initial ideas (analysis) to implementation-level documentation

6. UML diagram of an Account
balance
interest rate
create account
get balance
deposit money
withdraw money
add interest
the diagram has 3 sections
the class name is at the top
the variables are in the middle
the functions are at the bottom
this is an analysis-level diagram
what should the implementation-level diagram look like?

7. Implementation-level diagram of an Account
-balance: double
-interestRate: double
+Account(initalBalance: double, rate: double)
+getBalance() : double
+deposit(amount: double)
+withdraw(amount: double)
+addInterest()
the member visibility is shown by:
private
+ public
# protected
the type of each member is shown after the member name

8. C++ implementation of the Account class
class Account {
private: // optional because members are private by default
double balance; // amount of money held by this account
double interestRate; // a monthly or yearly interest rate
public:
// create an account with an initial amount and a specified interest rate
Account(double initialBalance, double rate) : balance(initialBalance), interestRate(rate){ }
// return the account's balance
double getBalance(){ return balance;}
// add money to the account
void deposit(double amount) {
balance += amount;
} // continued on next slide

9. C++ implementation of the Account class
void withdraw(double amount) {
// implement this method yourself }
// add money according to the interest rate.
void addInterest() {
balance *= (1 + interestRate/100.0);
// this is the same as balance = balance * (1 + (interestRate/100) ); };

10. Using the Account class
create a project
put the Account class code into a header file called account.h
this is the account class definition
create a source file called bank.cpp
this will contain the main method
which will create and test an Account object

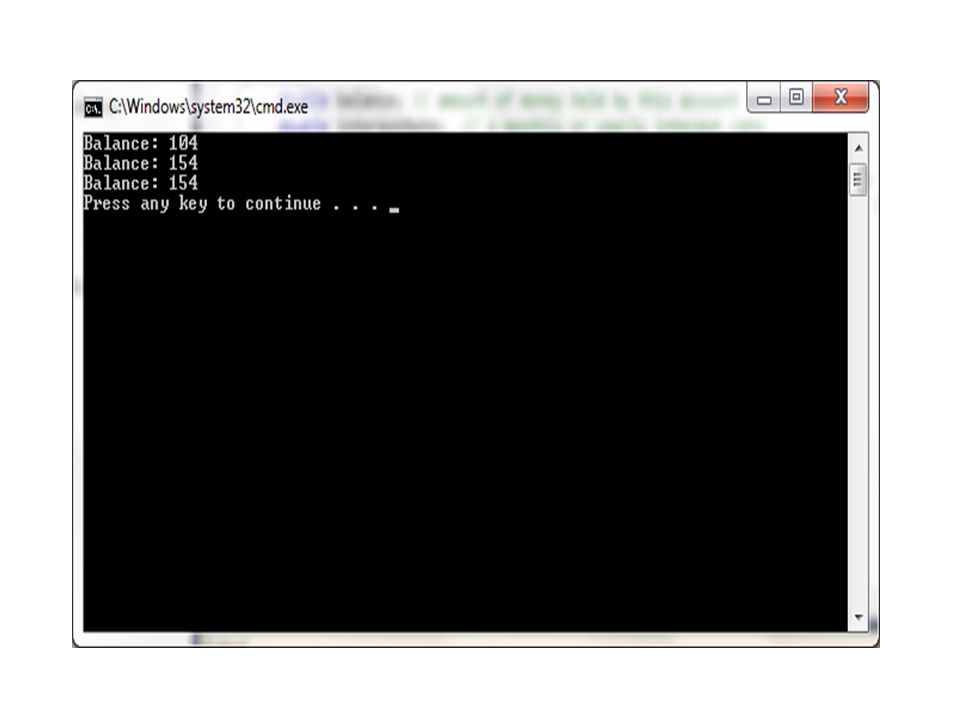

11. bank.cpp #include <iostream> #include "account.h"
using namespace std;
void main(void) {
Account stdAccount(100, 4);
// create an account with £100and 4% interest rate
stdAccount.addInterest();
cout << "Balance: " << stdAccount.getBalance()<< endl;
stdAccount.deposit(50);
stdAccount.withdraw(100); }

13. #include directives #include <iostream> #include "account.h"
iostream is a library file
the angled brackets indicate the file is in the C++ library directory
path should already been set up in IDE
account.h was written by the programmer
the quotes indicate the file path and name
in this case, it is in the same directory as bank.cpp

14. Constructors the constructor is called when an object is first created
sets up the object in memory
with space for the member variables
if the class does not have a constructor, a default no-argument constructor is used
a constructor must have the same name as the class
and no return value

15. Account constructor
the constructor initialises the member variables balance and interestRate
Account(double initialBalance, double rate) : balance(initialBalance),interestRate(rate) { }
this is equivalent to the Java-like constructor
Account(double initialBalance, double rate) {
balance = initialBalance;
interestRate = rate; }
the first version initialises the member variables as they are created
the second creates the member variables
then assigns them values within the constructor body
less efficient

16. Destructors a destructor is called when the object is destroyed
goes out of scope or is deleted
a destructor has the same name as the class, preceded by a ~
it cannot have any parameters or return value
it is called automatically – never call it yourself
a destructor for the Account class:
~Account() {
cout << "Closing the account. Final balance: " << balance << endl; }

17. C++ structures C++ structures are similar to classes no encapsulation
they can have member variables and functions
however all members are public by default
no encapsulation
an Account struct could have its balance changed directly
rather through the deposit and withdraw methods
structs are useful to group together related data

18. Example structures struct Point3D { float x; float y; float z; };
int main() {
Point3D A = { 10, 5.3, 6};
Point3D B;
B.x = 2.1;
B.y = 2.4;
B.z = 7.3;
//.... }

19. Enumeration types
another useful programmer-defined type is the enumeration
defines all possible values of a given type
enum colour {
RED,ORANGE,YELLOW,GREEN,BLUE,VIOLET };
int main() {
colour hatColour = ORANGE;
colour shirtColour = VIOLET;
// .... }
each enum value maps to an integer
RED is 0, ORANGE is 1….
less error-prone than using strings or constants

20. Summary In this lecture we have In the tutorial we will
reviewed the concept of classes
discussed their representation using UML class diagrams
implemented and used a simple C++ class
introduced C++ structures and enumeration types
In the tutorial we will
implement the Account class
add more functionality and a menu-driven interface

21. Further reading
Object Management Group – UML Resource Page
MSDN library – C++ language reference
Classes, structures and unions
