1. FORCE 12 C4 with CUSHCRAFT A148-10S

2. Selection Criteria Quality Construction No Lossy Traps
Multiple Band Capability 40,20,15,10,17,12
Cost of Force 12 C4 V. Stepp IR

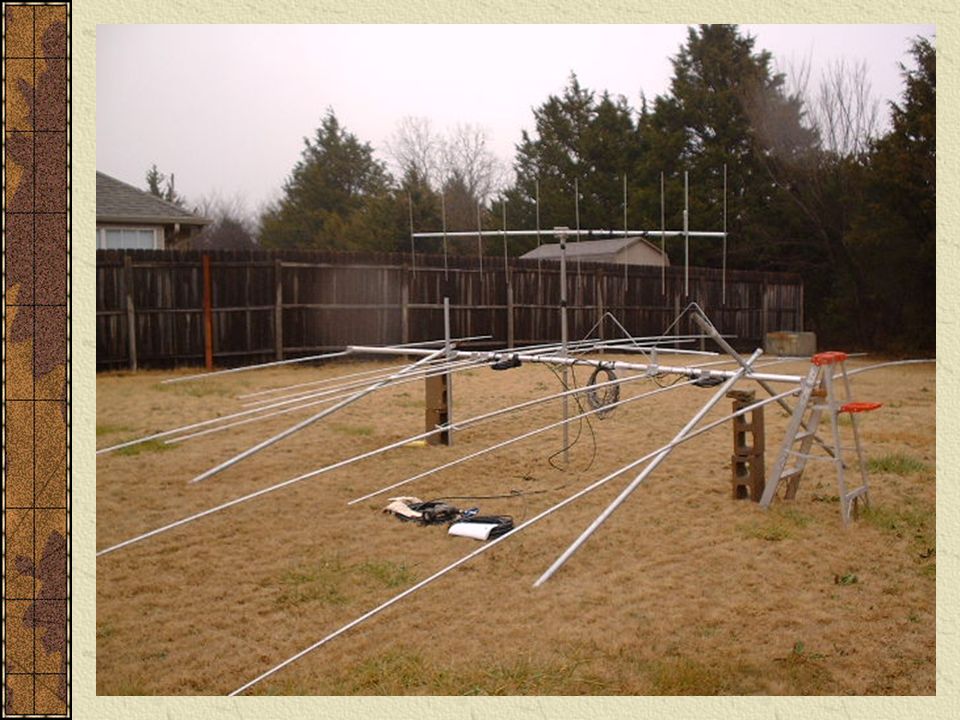

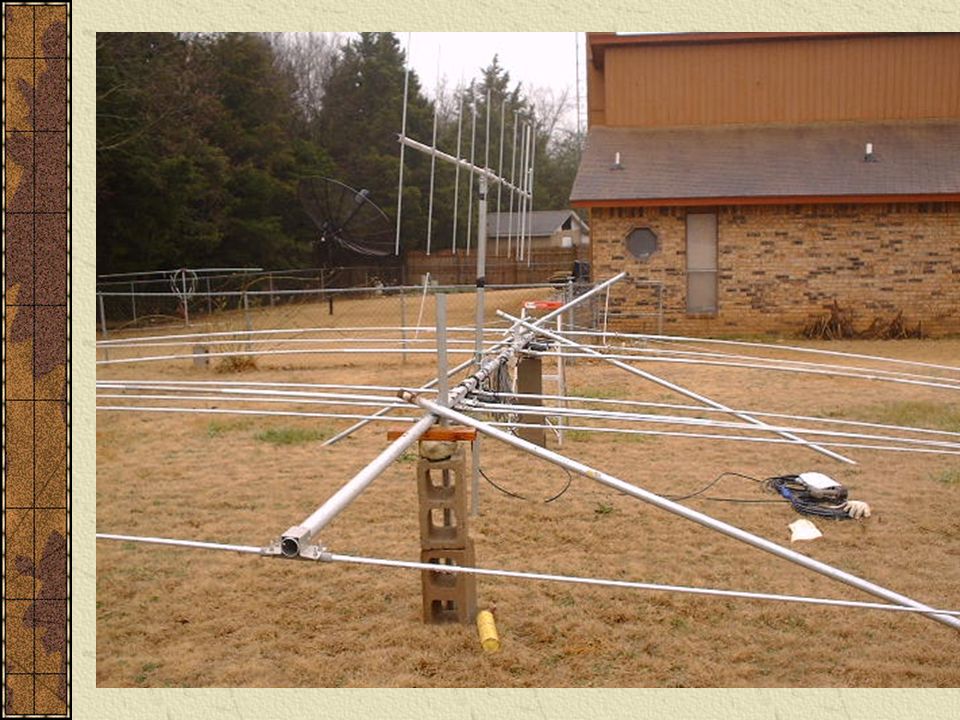

3. Assembly Antenna assembly utilizes Pop Rivets No Traps
Antenna Pre-assembled and tested

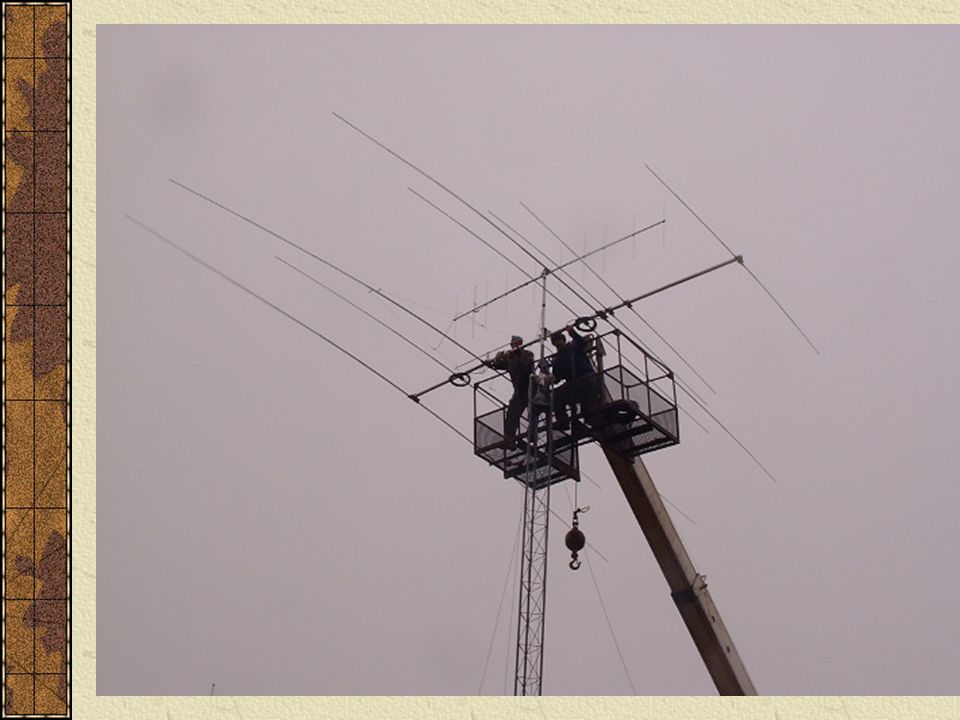

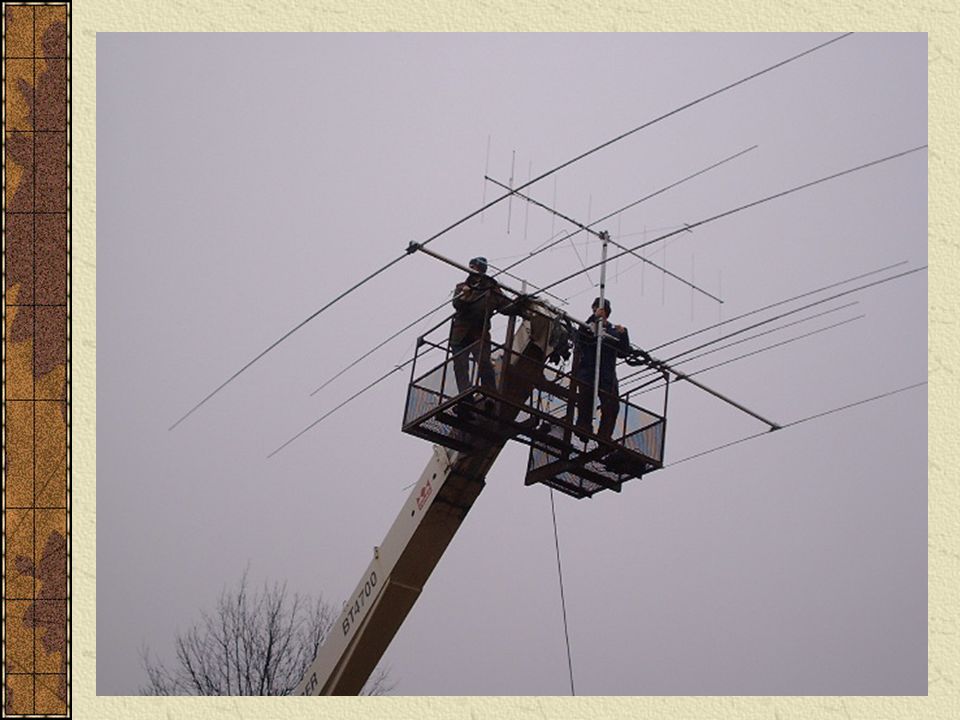

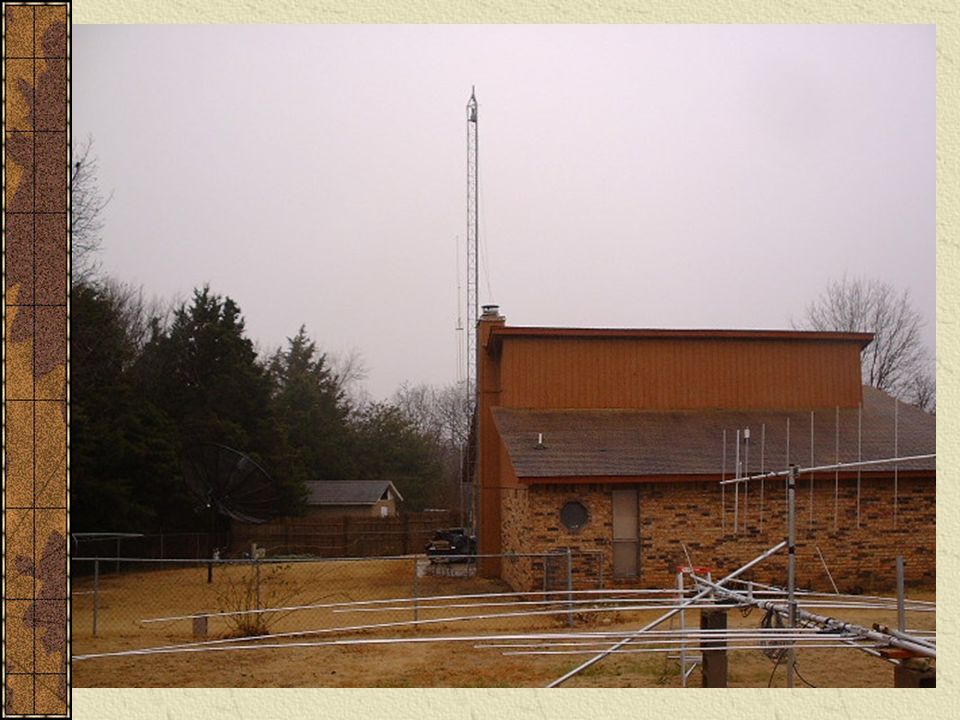

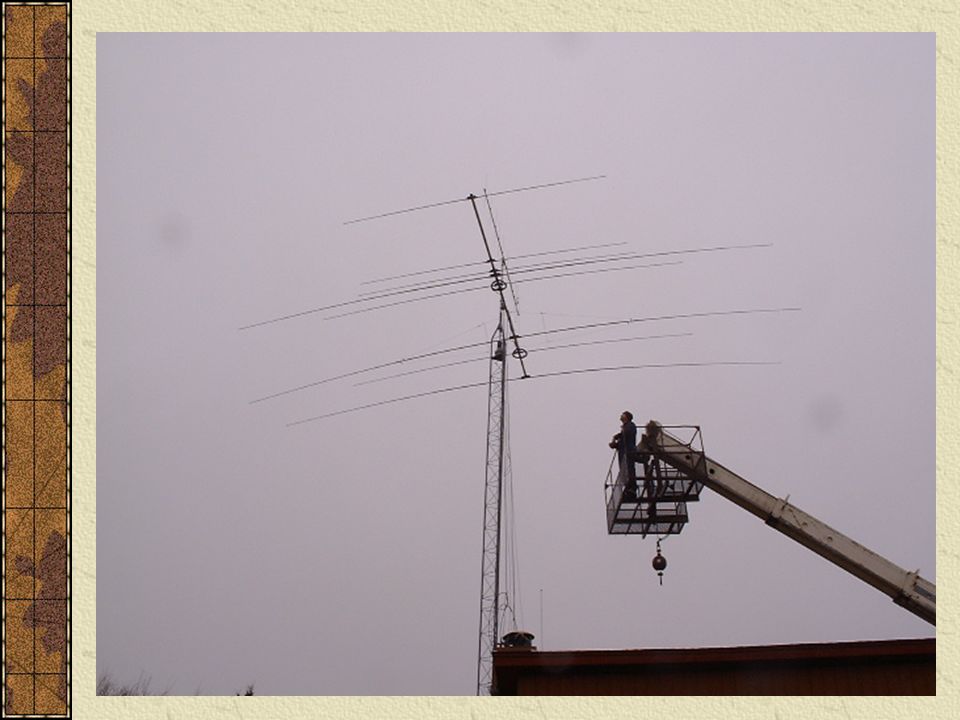

4. Installation (All images courtesy N5UMH--WG5T) BILL BAKER

12. FINAL CHECK OUT VSWR READINGS BY BAND
20 METERS MHZ 1.3
10 METERS MHZ 1.3
15 METERS MHZ 1.4, MHZ 2.0,
40 METERS MHZ 1.8, 7.225MHZ 1.2, MHZ 1.2 (CALCULATIONS DE W5OU)
17&12 METERS USE LDG AT-11MP TUNER BEAM ORIENTATION “BACKWARDS”

13. OPERATION SUPERIOR RECEIVE MUCH IMPROVED TRANSMIT
INCOMING SIGNAL REPORTS
NO COUPLING OR INTERACTION WITH OTHER ANTENNAS (CUSHCRAFT A148-10S, GAP EAGLE DX VERTICLE, 160 METER DIPOLE)

14. DEBUGGING AN ANTENNA TOM SCHILLER N6BT FORCE 12 ANTENNAS

15. SPECIAL THANKS WB5VAE N5UMH—WG5T BILL BAKER Mike Lapuza “The Coaxman”
MRC, INC. Lifting Service
