1. Section 2 - Slide 1 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Industrial Automation CANopen offer September 2004 Industrial Automation CANopen offer September 2004 Part 1 : IA global offer overview Part 2 : Principales caractéristiques des produits

2. Section 2 - Slide 2 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 1: IA global offer overview CANopen master PCMCIA cards for Premium PLC TSXCPP100 DS301 V3.0 TSXCPP110 DS301 V4.2 CANopen communication module for TEGO POWER/QUICKFIT APP1CCO0 = 16I + 8O on bus APP1CCO2 = 16I + 8O on bus + 16I + 16O locally Products

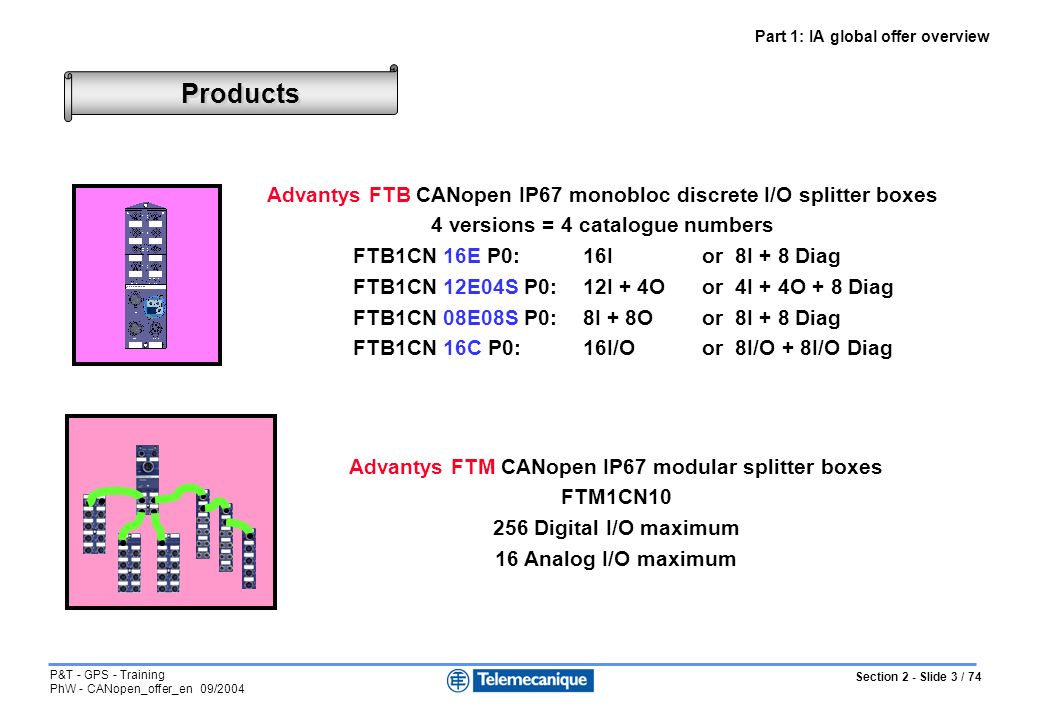

3. Section 2 - Slide 3 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 1: IA global offer overview Advantys FTB CANopen IP67 monobloc discrete I/O splitter boxes 4 versions = 4 catalogue numbers FTB1CN 16E P0:16Ior 8I + 8 Diag FTB1CN 12E04S P0:12I + 4Oor 4I + 4O + 8 Diag FTB1CN 08E08S P0:8I + 8Oor 8I + 8 Diag FTB1CN 16C P0:16I/Oor 8I/O + 8I/O Diag Advantys FTM CANopen IP67 modular splitter boxes FTM1CN10 256 Digital I/O maximum 16 Analog I/O maximum Products

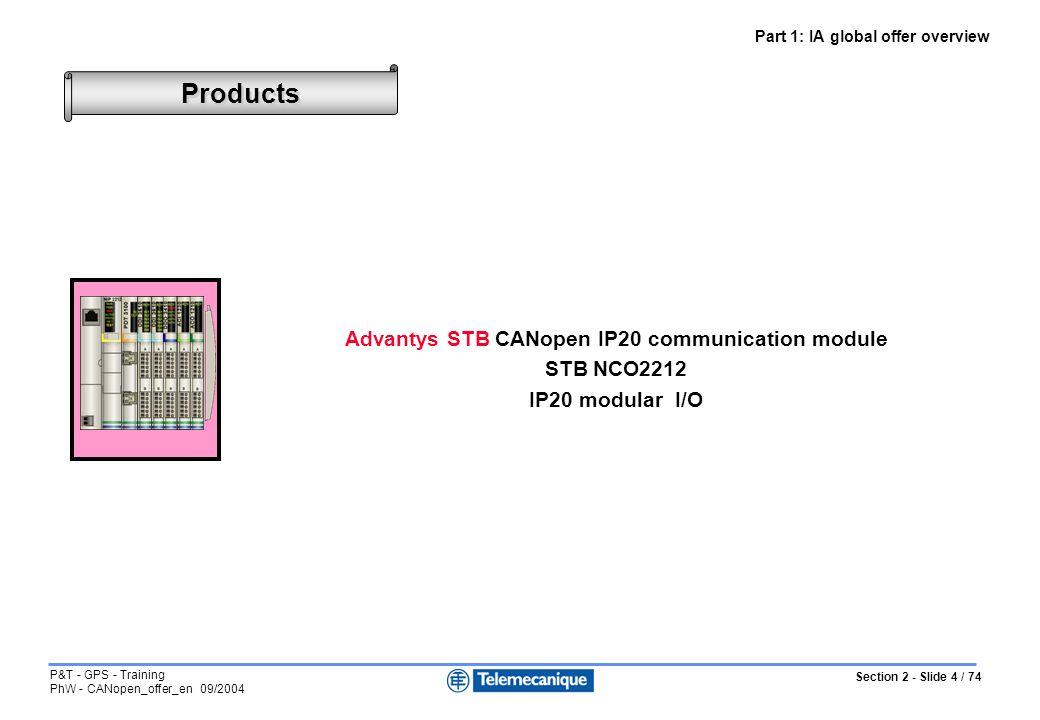

4. Section 2 - Slide 4 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 1: IA global offer overview Advantys STB CANopen IP20 communication module STB NCO2212 IP20 modular I/O Products

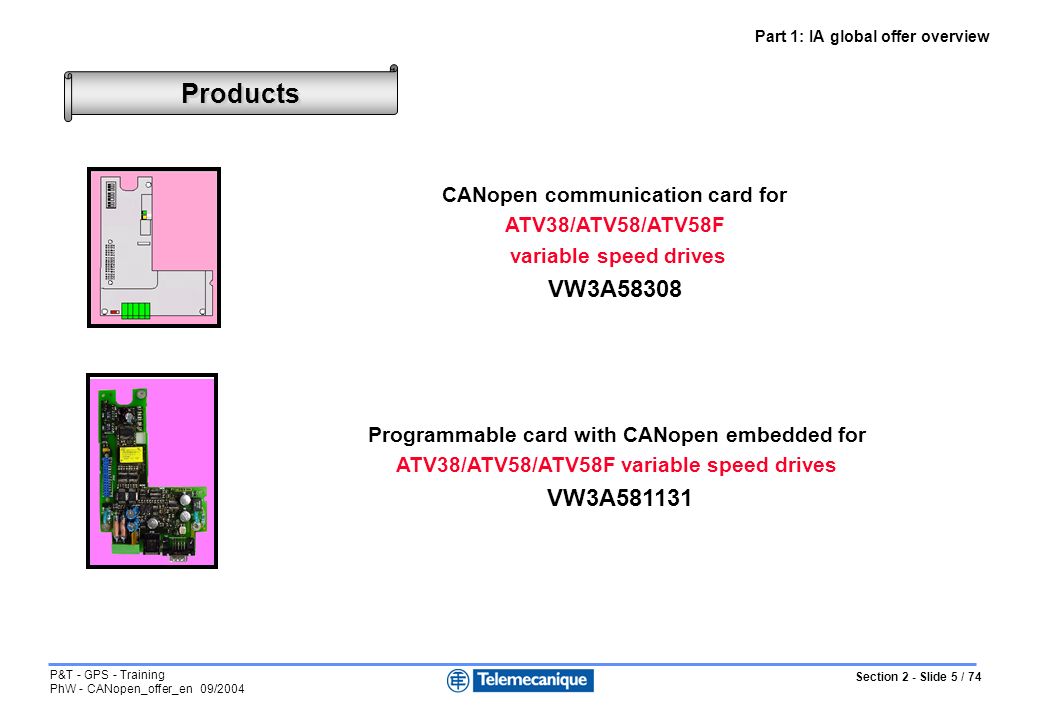

5. Section 2 - Slide 5 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 1: IA global offer overview Products CANopen communication card for ATV38/ATV58/ATV58F variable speed drives VW3A58308 Programmable card with CANopen embedded for ATV38/ATV58/ATV58F variable speed drives VW3A581131

6. Section 2 - Slide 6 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 1: IA global offer overview ATV31 variable speed drive with integral CANopen link: ATV31Hxxxx: standard enclosure version ATV31Cxxxx: dust and damp proof enclosure version ATV31Kxxxx: kit version Products Lexium MHDA servodrive with integral CANopen link 17D xxxx 17D HP xxxx

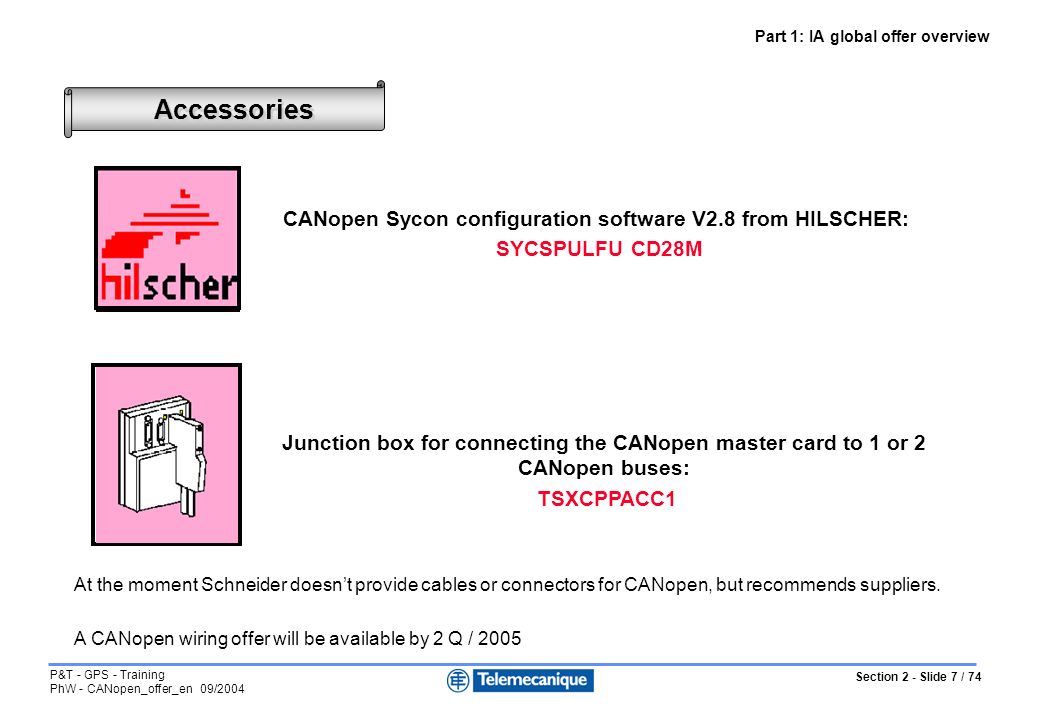

7. Section 2 - Slide 7 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 At the moment Schneider doesn’t provide cables or connectors for CANopen, but recommends suppliers. A CANopen wiring offer will be available by 2 Q / 2005 Part 1: IA global offer overview Accessories CANopen Sycon configuration software V2.8 from HILSCHER: SYCSPULFU CD28M Junction box for connecting the CANopen master card to 1 or 2 CANopen buses: TSXCPPACC1

8. Section 2 - Slide 8 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 1: IA global offer overview Recommended suppliers Cables - U.I.LAPP GmbH Schultze-Delitsch-Str. 25 D-70565 Stuttgart Germany http://www.lappcable.com Connectors - ERNI Elektroapparate GmbH Seestrasse 9 D-73099 Adelberg Germany - ERNI Connectique S.a.r.l, France 27 bis, avenue des Sources / CP 638 F-69258 LYON Cedex 09, http://connect.erni.com/ http://connect.erni.com/

9. Section 2 - Slide 9 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Planned additions to the offer Advantys STB : NIM CANopen slave basic Twido CANopen master module Advantys OTB CANopen slave module Tesys U : CANopen slave module Uses the same hardware as the dedicated BECKHOFF module CANopen communication card for ATV71 Part 1: IA global offer overview 3 Q / 2004 4 Q / 2004 1 Q / 2005

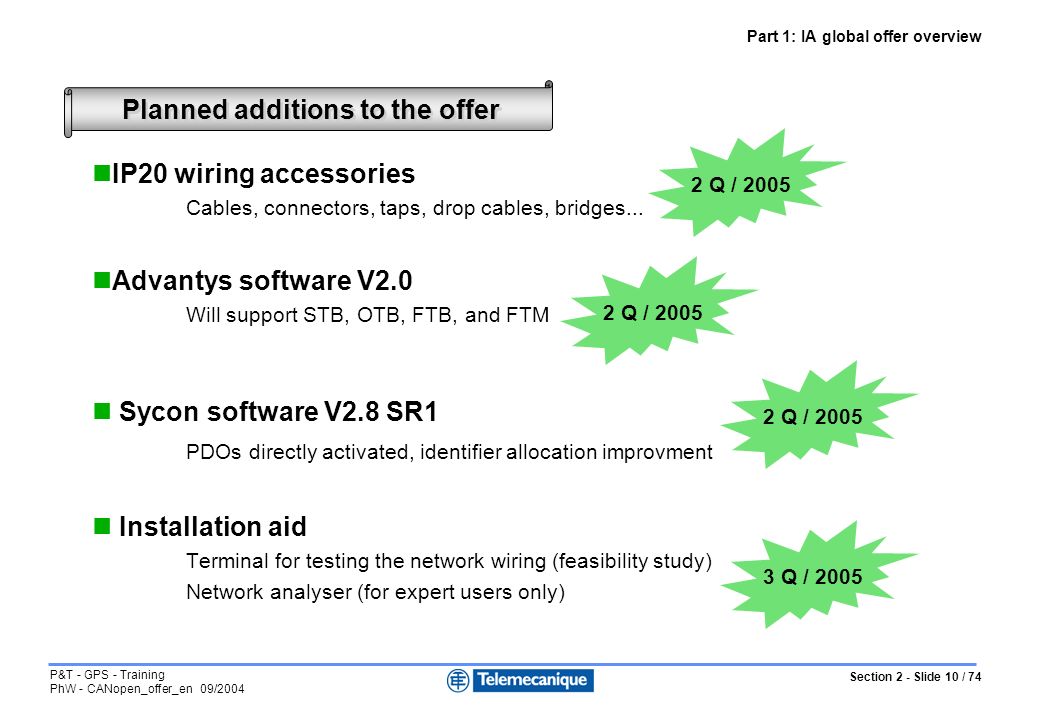

10. Section 2 - Slide 10 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Planned additions to the offer IP20 wiring accessories Cables, connectors, taps, drop cables, bridges... Advantys software V2.0 Will support STB, OTB, FTB, and FTM Sycon software V2.8 SR1 PDOs directly activated, identifier allocation improvment Installation aid Terminal for testing the network wiring (feasibility study) Network analyser (for expert users only) Part 1: IA global offer overview 2 Q / 2005 3 Q / 2005 2 Q / 2005

11. Section 2 - Slide 11 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Product characteristics Type III PCMCIA card inserted in the processor module communication port slot (only 1 CANopen master per PLC). CANopen master card: TSXCPP100 2 indicator lights Brackets for fixing on PLC CPU Connecting cable, 0.6 m long, with 15- pin male SUBD at the end. Connection on TAP TSXCPPACC1

12. Section 2 - Slide 12 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Masters characteristics Compatibility: CANopen DS301 standard V3.0. Premium processors >= V5.0 except for TSX57103. PL7 >= V4.0 Sycon configurator >= 2.630 The Sycon configurator is used to generate the ***.co configuration file which can be imported from PL7 or loaded directly into the card. CANopen master card: TSXCPP100

13. Section 2 - Slide 13 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Masters characteristics Functions supported: Bus management Implicit exchange of PDOs (8 bytes max.) using %MW words Explicit exchange of SDOs by WRITE_VAR and READ_VAR functions Sending any identifier by the SEND_REQ function Fault identification, diagnostics and history by the SEND_REQ function CANopen master card: TSXCPP100

14. Section 2 - Slide 14 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Masters characteristics CANopen master card: TSXCPP100 (1) This maximum size can be exceeded if the configuration file is loaded directly into the card using the Sycon software. The maximum file size authorized by Sycon is 256 Kb. For 10 ATV58: Configuration file size = 4.6 Kb I/O data = 2 X 20 words For 20 ATV58: Configuration file size = 7.5 Kb I/O data = 2 X 40 words

15. Section 2 - Slide 15 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Masters characteristics Type III PCMCIA card inserted in the processor module communication port slot (only 1 CANopen master per PLC). CANopen master card: TSXCPP110 2 indicator lights Brackets for fixing on PLC CPU Connecting cable, 0.6 m long, with integrated Tap and standard 9-pin male SUBD at the end

16. Section 2 - Slide 16 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Masters characteristics Compatibility: CANopen DS301 standard V4.1 Premium processors >= V5.0 except for TSX57103. PL7 >= V4.3 Sycon configurator >= 2.8 The Sycon configurator is used to generate the ***.co configuration file which can be imported from PL7 or loaded directly into the card. CANopen master card: TSXCPP110

17. Section 2 - Slide 17 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2 : Masters characteristics Functions supported: Bus management Implicit exchange of PDOs (8 bytes max.) using %MW words Explicit exchange of SDOs by WRITE_VAR and READ_VAR functions Sending any identifier by the SEND_REQ function Fault identification, diagnostics and history by the SEND_REQ function Same functions than the TSXCPP100 + Heartbeat management CANopen master card: TSXCPP110 Idem TSXCPP100 New

18. Section 2 - Slide 18 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Communication module placed on the left side of the motor starters Indicator lights Bus connection terminal block Switches for configuring the speed and address Local I/O connection terminal blocks (only on APP1CCO2 module) 24V power supply CANopen communication module for TEGO POWER/QUICKFIT

19. Section 2 - Slide 19 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics 2 catalogue numbers: APP1CCO0 16I + 8O on bus Controls 8 motor starter units APP1CCO2 16I + 8O on bus + 16I + 16O locally Controls 24 motor starter units CANopen communication module for TEGO POWER/QUICKFIT

20. Section 2 - Slide 20 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Main characteristics: Supported speeds:125, 250, 500 Kbps or 1 Mbps configured via switches Supported addresses: 1 to 63 configured via switches CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers:By address Profiles: DS-301 “Communication profile” DS-401 “I/O module”. Part 2: Product characteristics CANopen communication module for TEGO POWER/QUICKFIT

21. Section 2 - Slide 21 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Process Data Objects = PDO CANopen APP1CO00 and APP1CO02 modules can control a maximum of: 5 transmit PDOs 5 receive PDOs Only the first predefined transmit PDO (1800) and the first predefined receive PDO (1400) are used with TEGO motor starters. Supported transmission modes: Transmit: Synchronous and asynchronous, acyclic Receive: Synchronous and asynchronous Part 2: Product characteristics CANopen communication module for TEGO POWER/QUICKFIT

22. Section 2 - Slide 22 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Description of predefined PDOs on APP1CCO0: 1 receive PDO: 1400 (control) containing 1 byte: Control of 8 TEGO base contactors 1 transmit PDO: 1800 (monitoring) containing 2 bytes: Status of 8 auxiliary contacts on contactors Status of 8 auxiliary contacts on circuit-breakers Part 2: Product characteristics CANopen communication module for TEGO POWER/QUICKFIT

23. Section 2 - Slide 23 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Description of predefined PDOs on APP1CCO2: 1 receive PDO: 1400 (control) containing 4 bytes: Control of 8 TEGO sub-base contactors Control of 16 external outputs on sub-base 4th byte not used 1 transmit PDO: 1800 (monitoring) containing 4 bytes: Status of 8 auxiliary contacts on contactors Status of 8 auxiliary contacts on circuit-breakers Status of 16 external inputs on sub-base Part 2: Product characteristics CANopen communication module for TEGO POWER/QUICKFIT

24. Section 2 - Slide 24 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Service Data Object = SDO 1 transmit SDO, 1 receive SDO Allowing access to any dictionary object by message exchange. The various objects that can be accessed are not documented. Part 2: Product characteristics CANopen communication module for TEGO POWER/QUICKFIT

25. Section 2 - Slide 25 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Controls the transmission and reception of PDOs in synchronous mode EMCY object: Sent in the event of a fault on the motor starter Node guarding object: Supported. Sent on polling of motor starter status and detection of absence of polling Heartbeat object: Not supported Part 2: Product characteristics CANopen communication module for TEGO POWER/QUICKFIT

26. Section 2 - Slide 26 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Connection of sensors/actuator to 8 M12 sockets with status or diagnostic LEDs for each channel LEDs for bus and power supply diagnostics 24 VDC power supply for module Thumbwheels for configuring the module speed and address Connection of module to bus IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0 Part 2: Product characteristics

27. Section 2 - Slide 27 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0 Part 2: Product characteristics 16I modules: FTB1CN 16E P0 Connection of 16 single sensors or 8 sensors with integral diagnostic function 12I/4O modules: FTB1CN 12E04S P0 Connection of 12 single sensors and 4 single actuators or 4 sensors and 4 actuators with integral diagnostic function 8I/8O modules: FTB1CN 08E08S P0 Connection of 8 single sensors and 8 single actuators or 8 actuators with integral diagnostic function Configurable 16I or 16O modules: FTB1CN 16C P0 Connection of 16 sensors, or 15 sensors and 1 actuator, or 14 sensors and 2 actuators, etc. 4 versions:

28. Section 2 - Slide 28 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Main characteristics: Supported speeds: 10, 20, 50, 125, 250, 500, 800 Kbps or 1 Mbps configured by thumbwheel with automatic recognition capability Address: 1 to 99 configured by 2 thumbwheels CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address for PDOs 1400 and 1800 Manually for PDOs 1405 and 1805 Profiles: DS-301 “Communication profile” DS-401 “I/O module” Part 2: Product characteristics IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0

29. Section 2 - Slide 29 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Process Data Objects = PDO CANopen IP67 monobloc I/O splitter boxes can control: 2 predefined transmit PDOs 2 predefined receive PDOs (with the exception of module FTB1CN 16E P0 16 inputs: only 1 PDO) Supported transmission modes: Transmit: Synchronous and asynchronous, cyclic and acyclic, on Remote frame Receive: Synchronous and asynchronous Part 2: Product characteristics IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0

30. Section 2 - Slide 30 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0 Description of predefined PDOs Choice of 2 transmit PDOs (inputs) PDO 1800 = 1 word:Input/Diag PDO 1805 = 3 or 4 words:Input/Diag + Module-channel diagnostics Choice of 2 receive PDOs (outputs): PDO 1400 = 1 word:Outputs (except for module FTB1CN 16EP0) PDO 1405 = 1 word:Outputs + Configuration channels 1. Input or Diag.

31. Section 2 - Slide 31 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Service Data Object = SDO 1 transmit SDO, 1 receive SDO Allowing access to any dictionary object by message exchange. For example, can be used to set parameters for: Input logic:NO - NC contact Output logic: NO - NC status Fallback position for outputs: Maintain/fallback to 0/fallback to 1 in the event of communication problems Operation of channel 1 (pin 2): Input or sensor with integral diagnostics These parameters can be set when the network is initialised (Object Configuration window) or by application. Part 2: Product characteristics IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0

32. Section 2 - Slide 32 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics IP67 monobloc I/O splitter box on CANopen bus: FTB 1CNP0 Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Controls the transmission and reception of PDOs in synchronous mode EMCY object: Sent in the event of a fault on the splitter box Node guarding object: Supported. Sent on polling of splitter box status and detection of absence of polling Heartbeat object: Supported. Periodic sending of cell status.

33. Section 2 - Slide 33 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 CANopen coupler for modular I/O splitter boxes : FTM 1CN10 Part 2: Product characteristics Is integrated in the Advantys IP67 FTM offer Allows to connect a changeable number of digital or analog I/O splitter boxes 256 digital I/O maximum 16 analog I/O maximum Connection of sensors and actuators to M8 or M12 connectors: M8: 1 channel per connector M12:2 channels per connector CANopen coupler Splitter boxes

34. Section 2 - Slide 34 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 1 7/8 male connector ("PWR") for connecting the power supply 2 M12 connectors ("BUS IN" and "BUS OUT") for connection to the fieldbus 2 "BUS" diagnostic LEDs 4 M12 female connectors for connecting the 4 splitter box segments Each connector has 2 “segment diagnostics Cover fixed with 3 screws for accessing coding wheels CANopen coupler for modular I/O splitter boxes : FTM 1CN10 Part 2: Product characteristics

35. Section 2 - Slide 35 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Main characteristics: Supported speeds: 10, 20, 50, 125, 250, 500, 800 Kbps or 1 Mbps configured by thumbwheel with automatic recognition capability Address: 1 to 99 configured by 2 thumbwheels CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address for first 4 PDOs Manually for the others Profiles: DS-301 “Communication profile” DS-401 “I/O module” Part 2: Product characteristics CANopen coupler for modular I/O splitter boxes : FTM 1CN10

36. Section 2 - Slide 36 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics CANopen coupler for modular I/O splitter boxes : FTM 1CN10 Supported Process Data Objects : PDO The CANconfig software is used to generate an EDS file specific to each modular configuration. The generated file can be used to control up to 5 receive PDOs and 5 transmit PDOs. Customised PDOs can be defined in order to connect more I/O splitter boxes.

37. Section 2 - Slide 37 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Service Data Object = SDO 1 transmit SDO, 1 receive SDO Allowing access to any dictionary object by message exchange. For example, can be used to set parameters for: Input logic:NO - NC contact Output logic: NO - NC status Fallback position for outputs: Maintain/fallback to 0/fallback to 1 in the event of communication problems Operation of channel 1 (pin 2): Input or sensor with integral diagnostics Analogue input/output configuration-10V/+10V, 0/+10V, 0/20 mA, 4/20mA These parameters can be set when the network is initialised (Object Configuration window) or by application. Part 2: Product characteristics CANopen coupler for modular I/O splitter boxes : FTM 1CN10

38. Section 2 - Slide 38 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Controls the transmission and reception of PDOs in synchronous mode EMCY object: Sent in the event of a fault on the splitter box Node guarding object: Supported. Sent on polling of splitter box status and detection of absence of polling Heartbeat object: Supported. Periodic sending of cell status. CANopen coupler for modular I/O splitter boxes : FTM 1CN10

39. Section 2 - Slide 39 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Communication module placed on the left side of the first cell (primary cell). Bus status indicator lights Bus connection socket 2 thumbwheels for configuring the speed and address on the bus (2 stages) Optional SIM memory card for backing up the cell bus configuration HE13 8-pin male connector for connecting the PC to the STB (configuration change, debugging) 24VDC power supply for module CANopen communication module for STB: STBNCO2212 Part 2: Product characteristics

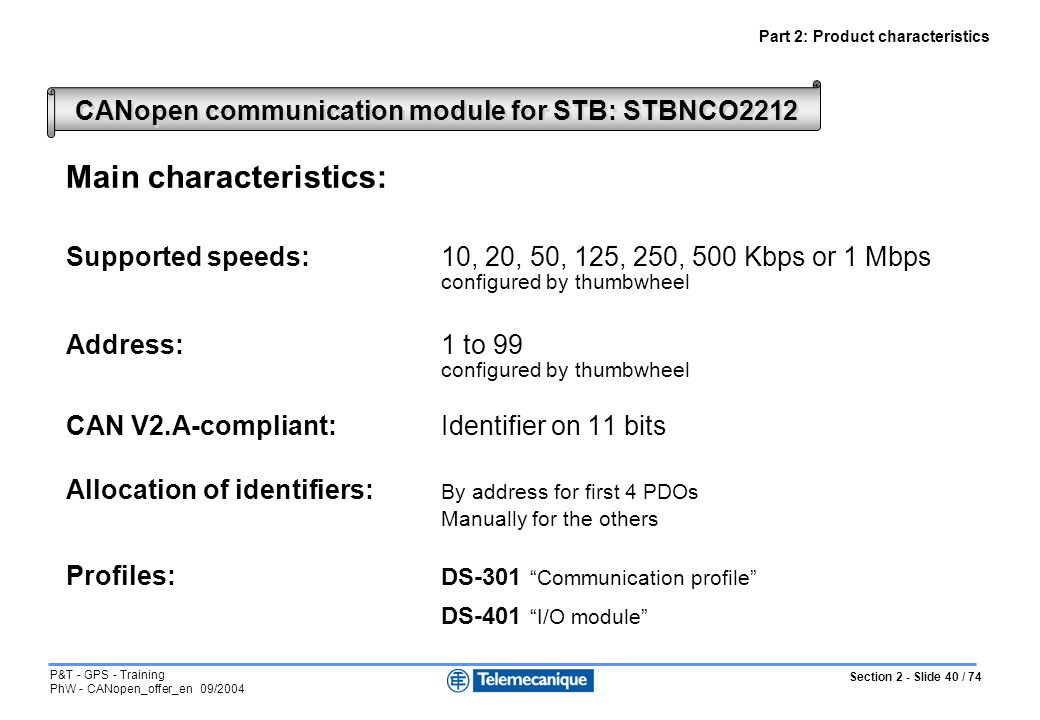

40. Section 2 - Slide 40 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Main characteristics: Supported speeds:10, 20, 50, 125, 250, 500 Kbps or 1 Mbps configured by thumbwheel Address: 1 to 99 configured by thumbwheel CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address for first 4 PDOs Manually for the others Profiles: DS-301 “Communication profile” DS-401 “I/O module” Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

41. Section 2 - Slide 41 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Supported Process Data Objects: PDO The CANopen module can control a maximum of 32 receive PDOs and 32 transmit PDOs. Each PDO contains a maximum of 8 bytes of data. - The standard EDS file supplied with the CANopen module can be used to control a maximum of 4 receive PDOs and 4 transmit PDOs. - The Advantys configurator is used to configure the cell bus and to generate an EDS file specific to each bus configuration. The generated file can be used to control up to 32 receive PDOs and 32 transmit PDOs. - Customised PDOs can be defined in order to transport specific objects (diagnostics). Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

42. Section 2 - Slide 42 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Supported PDOs in the standard EDS file 4 receive PDOs (outputs): PDO 1 : Discrete outputs (managed by 8-bit block) PDO 2 to 4 : Analogue outputs (managed by 16-bit block) 4 transmit PDOs (inputs): PDO 1 : Discrete inputs (managed by 8-bit block) PDO 2 to 4 : Analogue inputs (managed by 16-bit block) Transmission modes supported by the PDOs: Transmit: Synchronous and asynchronous, cyclic and acyclic Receive: Synchronous and asynchronous Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

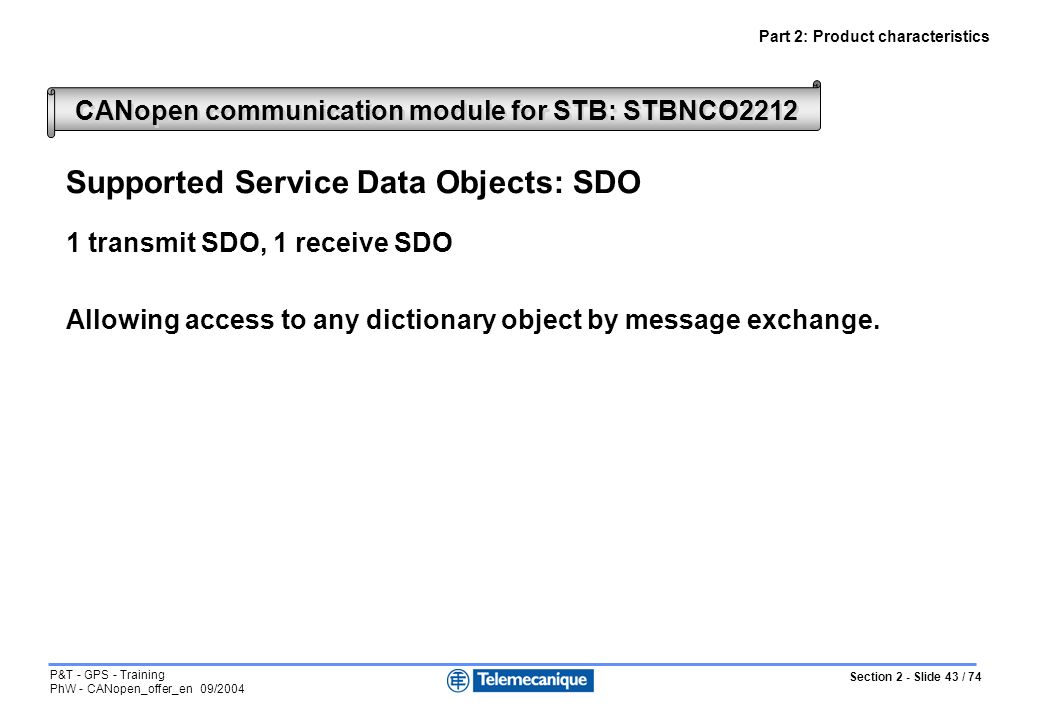

43. Section 2 - Slide 43 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Supported Service Data Objects: SDO 1 transmit SDO, 1 receive SDO Allowing access to any dictionary object by message exchange. Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

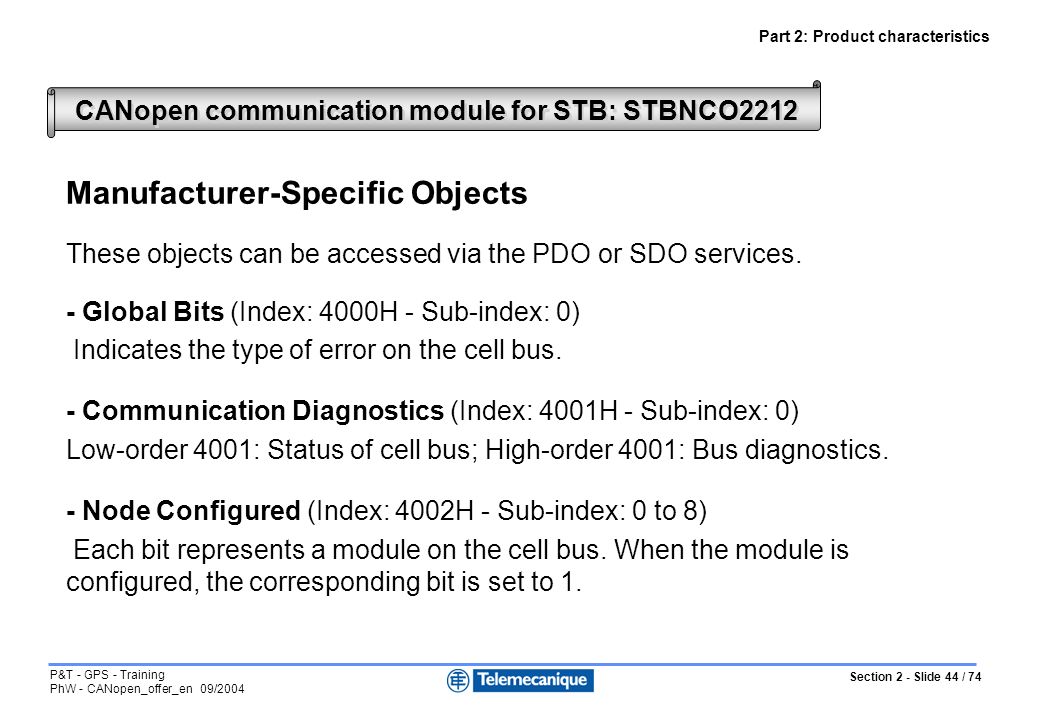

44. Section 2 - Slide 44 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Manufacturer-Specific Objects These objects can be accessed via the PDO or SDO services. - Global Bits (Index: 4000H - Sub-index: 0) Indicates the type of error on the cell bus. - Communication Diagnostics (Index: 4001H - Sub-index: 0) Low-order 4001: Status of cell bus; High-order 4001: Bus diagnostics. - Node Configured (Index: 4002H - Sub-index: 0 to 8) Each bit represents a module on the cell bus. When the module is configured, the corresponding bit is set to 1. Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

45. Section 2 - Slide 45 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Manufacturer-Specific Objects (continued) - Node Operational (Index: 4003H - Sub-index: 0 to 8) Each bit represents a module on the cell bus. When the module is operational, the corresponding bit is set to 1. - Node Error (Index: 4004H - Sub-index: 0 to 8) Each bit represents a module on the cell bus. When a fault occurs on the module, the corresponding bit is set to 1. - Node Assembly Fault (Index: 4005H - Sub-index: 0 to 8) Each bit represents a module on the cell bus. When a configuration fault occurs on the module, the corresponding bit is set to 1. Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

46. Section 2 - Slide 46 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Manufacturer-Specific Objects (continued) - NIM Status (Index: 4006H - Sub-index: 0) Indicates the status of the communication module (NIM). Part 2: Product characteristics CANopen communication module for STB: STBNCO2212

47. Section 2 - Slide 47 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Controls the transmission and reception of PDOs in synchronous mode EMCY object: Sent in the event of a fault on the cell Node guarding object: Supported. Sent on polling of the cell status and detection of absence of polling Heartbeat object: Supported. Periodic sending of cell status. CANopen communication module for STB: STBNCO2212

48. Section 2 - Slide 48 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics L-shaped electronic card connected to the drive control card. CANopen communication card for ATV58: VW3A58308 Switches for configuring the speed and the address Indicator lights Bus connection terminal block End of line switch Supplied with floppy disk containing the.eds description file for the device. Compatible with all ATV58 and ATV58F control cards.

49. Section 2 - Slide 49 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Main characteristics: Supported speeds:125, 250, 500 Kbps or 1 Mbps configured by switches Address: 1 to 63 configured by switches CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address Profiles:DS-301 “Communication profile” DS402 V1.1: “Drives & motion control-Velocity Mode” DriveCom CANopen communication card for ATV58: VW3A58308

50. Section 2 - Slide 50 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Process Data Objects = PDO The CANopen communication card for ATV58 can control: 1 predefined transmit PDO 1 predefined receive PDO Supported transmission modes: Transmit: Asynchronous, cyclic and acyclic, on Remote frame Receive: Asynchronous CANopen communication card for ATV58: VW3A58308

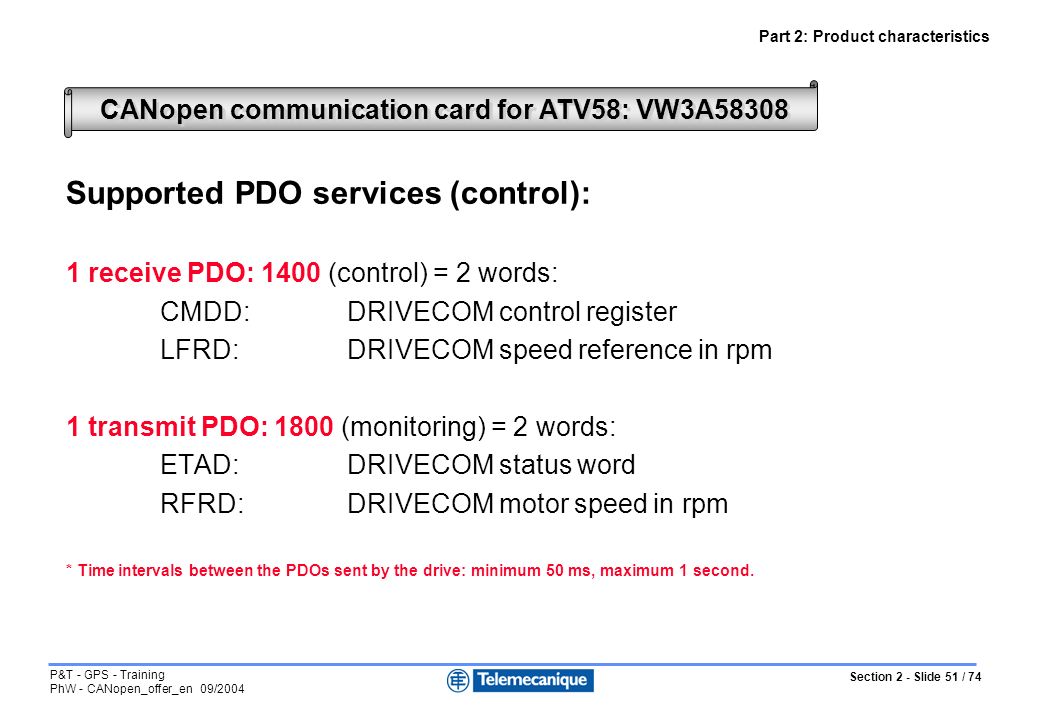

51. Section 2 - Slide 51 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Supported PDO services (control): 1 receive PDO: 1400 (control) = 2 words: CMDD:DRIVECOM control register LFRD:DRIVECOM speed reference in rpm 1 transmit PDO: 1800 (monitoring) = 2 words: ETAD:DRIVECOM status word RFRD:DRIVECOM motor speed in rpm * Time intervals between the PDOs sent by the drive: minimum 50 ms, maximum 1 second. Part 2: Product characteristics CANopen communication card for ATV58: VW3A58308

52. Section 2 - Slide 52 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Supported Service Data Objects: SDO 1 transmit SDO, 1 receive SDO Allowing access to any dictionary object by message exchange. These parameters can be set when the network is initialised (Object Configuration window) or by application. CANopen communication card for ATV58: VW3A58308

53. Section 2 - Slide 53 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Not supported EMCY object: Sent in the event of a fault on the drive Node guarding object: Supported. Sent on polling of the splitter block status and detection of absence of polling Heartbeat object: Not supported CANopen communication card for ATV58: VW3A58308

54. Section 2 - Slide 54 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Programmable card with CANopen link for ATV38/58: VW3A581131 Part 2: Product characteristics L-shaped electronic card connected to the drive control card The CANopen link can operate in master or slave mode. Switches for configuring the speed and address Indicator lights 9-pin SUBD connector for connection to CANopen bus End of line resistor jumper Compatibility with control cards: ATV38: all versions - ATV58 >=4.2 ATV58F >=3.1IE27. Removable terminal block 8 configurable I/O with external 24V power supply RJ45 connector for connection to PC

55. Section 2 - Slide 55 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Main characteristics in master mode: Supported speeds: 125, 250, 500 Kbps or 1 Mbps if configured by switches 10, 20, 50, 100, 125, 250, 500, 800 Kbps or 1Mbps if configured by software Address: 1 to 32 nodes 9 PDOs maximum per slave CAN V2.A-compliant:Identifier on 11 bits Profiles: DSP 301 V4.01 and DSP 306 All CANopen network functions: (network starting, periodic exchanges, monitoring, diagnostics) are managed by integrated libraries in the PLC application. Programmable card with CANopen link for ATV38/58: VW3A581131

56. Section 2 - Slide 56 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Main characteristics in slave mode: Supported speeds: 125, 250, 500 Kbps or 1 Mbps if configured by switches 10, 20, 50, 100, 125, 250, 500, 800 Kbps or 1Mbps if configured by software Address: 1 to 63 configured by switches or by software CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address Profiles: DS 405 Programmable Devices IEC1131 All CANopen network functions: (network starting, periodic exchanges, monitoring, diagnostics) are managed by integrated libraries in the PLC application. Programmable card with CANopen link for ATV38/58: VW3A581131

57. Section 2 - Slide 57 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Process Data Objects = PDO The CANopen programmable card for ATV58 can control: 1 8-byte user-definable transmit PDO 1 8-byte user-definable receive PDO Supported transmission modes: Transmit: Synchronous: acyclic, cyclic Asynchronous device profile and manufacturer specific Receive: Synchronous acyclic, cyclic Asynchronous device profile and manufacturer specific Capacity for using one PDO for direct slave-to-slave transmission (PDO linking) Content of PDOs assigned by application program. Programmable card with CANopen link for ATV38/58: VW3A581131

58. Section 2 - Slide 58 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Supported Service Data Objects: SDO 1 transmit SDO, 1 receive SDO For accessing card inputs/outputs. The drive parameters can be written or read with an application program, by reserving two words from the PDOs using a PKW-type indexed addressing system. Programmable card with CANopen link for ATV38/58: VW3A581131

59. Section 2 - Slide 59 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Supported EMCY object: Controlled from a function block The user has to enter the code in the function block Node guarding object: Supported. Sent on polling of the splitter block status and detection of absence of polling Heartbeat object: Not supported. Programmable card with CANopen link for ATV38/58: VW3A581131

60. Section 2 - Slide 60 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 The Altivar 31 is fitted with a female RJ45 connector which supports both Modbus and CANopen protocols. Both protocols can be used simultaneously. The transmission speed and the address are configured via the integral HMI. ATV31 variable speed drive with integral CANopen link Part 2: Product characteristics

61. Section 2 - Slide 61 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Main characteristics: Supported speeds:10, 20, 50, 125, 250, 500 Kbps or 1 Mbps configured via integral HMI Address: 1 to 127 configured via integral HMI CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address for the first PDO (PDO1) Manually for PDO6 Profiles:DS-301 V4 “Communication profile” DS402 “Drives & motion control-Velocity Mode” DriveCom ATV31 variable speed drive with integral CANopen link

62. Section 2 - Slide 62 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Process Data Objects = PDO The ATV31 can control: 2 predefined transmit PDOs 2 predefined receive PDOs Supported transmission modes: Transmit: PDO1:Asynchronous, acyclic PDO6:Synchronous, asynchronous, and acyclic, on Remote frame Receive: PDO1:Asynchronous PDO6:Synchronous, asynchronous ATV31 variable speed drive with integral CANopen link

63. Section 2 - Slide 63 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Supported PDO services (control): Receive PDO1: 1400 (control) = 1 word CMDD:DRIVECOM control register Receive PDO6: 1405 (control) = 2 words CMDD:DRIVECOM control register LFRD:DRIVECOM speed reference in rpm with the possibility of changing this mapping and select 4 words from the object dictionary. Transmit PDO1: 1800 (monitoring) = 1 word ETAD:DRIVECOM status word Transmit PDO6: 1805 (monitoring) = 2 words ETAD:DRIVECOM status word RFRD:DRIVECOM motor speed in rpm with the possibility of changing this mapping and select 4 words from the object dictionary. Part 2: Product characteristics ATV31 variable speed drive with integral CANopen link

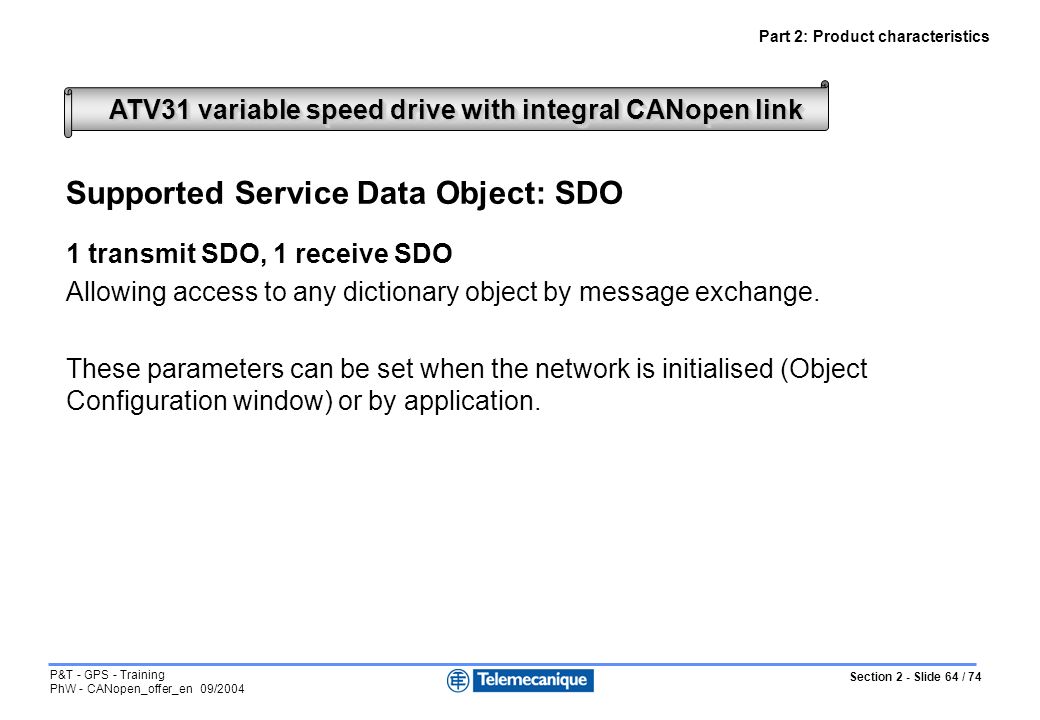

64. Section 2 - Slide 64 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Supported Service Data Object: SDO 1 transmit SDO, 1 receive SDO Allowing access to any dictionary object by message exchange. These parameters can be set when the network is initialised (Object Configuration window) or by application. ATV31 variable speed drive with integral CANopen link

65. Section 2 - Slide 65 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Supported EMCY object: Sent in the event of a fault on the drive Node guarding object: Supported. Sent on polling of the splitter block status and detection of absence of polling Heartbeat object: Supported. (Version >= V1.2 IE02) ATV31 variable speed drive with integral CANopen link

66. Section 2 - Slide 66 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 LEXIUM servodrive with integral CANopen link Part 2: Product characteristics Address configuration arrows 9-pin SUBD CANopen communication port on top panel of module

67. Section 2 - Slide 67 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Main characteristics: Supported speeds:10, 20, 50, 125, 250, 500 Kbps or 1 Mbps configured by switches or Unilink software Address: 1 to 99 configured by switches or Unilink software CAN V2.A-compliant:Identifier on 11 bits Allocation of identifiers: By address Profiles:DS-301 “Communication profile” DS402 “Drives & motion control-Velocity Mode” DriveCom LEXIUM servodrive with integral CANopen link

68. Section 2 - Slide 68 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Process Data Objects = PDO The LEXIUM can control: 2 predefined transmit PDOs 2 predefined receive PDOs Supported transmission modes: Transmit: Asynchronous, acyclic Receive: Asynchronous LEXIUM servodrive with integral CANopen link

69. Section 2 - Slide 69 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Supported PDO services (control): Receive PDO1: 1400 (control) = 1 word CMDD:DRIVECOM control register Receive PDO2: 1401 (control) = 4 words ASCII channel Transmit PDO1: 1800 (monitoring) = 1 word ETAD:DRIVECOM status word Transmit PDO2: 1802 (monitoring) = 4 words ASCII channel LEXIUM servodrive with integral CANopen link

70. Section 2 - Slide 70 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics The communication channels are configured by the SyCon tool LEXIUM addressing on CANopen is configured by the SyCon tool The communication channels are configured by the PL7 application via WRITE VAR according to the type of PDO required Exchange by %MW according to PL7 configuration 8 bytes per channel Supported PDO services (implicit exchange): LEXIUM servodrive with integral CANopen link

71. Section 2 - Slide 71 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Supported SDO services (configuration, adjustment, etc.): 1 receive SDO: handling of write or read request 1 transmit SDO: handling of write or read request The length depends on the SDO (Index/Sub-index) and varies from 1 to 4 bytes. Part 2: Product characteristics Gestion applicative des requêtes READ_VAR et WRITE_VAR LEXIUM addressing on CANopen is configured by the SyCon tool Application management of READ_VAR and WRITE_VAR requests LEXIUM servodrive with integral CANopen link

72. Section 2 - Slide 72 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Special Function Objects: SFO NMT services: CANopen minimum boot-up (no dynamic allocation of identifiers) SYNC object: Not supported EMCY object: Sent in the event of a fault on the drive Node guarding object: Supported. Sent on polling of the splitter block status and detection of absence of polling Heartbeat object: Not supported LEXIUM servodrive with integral CANopen link

73. Section 2 - Slide 73 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Used to generate a configuration file for the CANopen master PCMCIA card. This configuration can be imported from PL7 PRO/PL7 Junior or loaded directly from Sycon software. CANopen Sycon master configuration software from HILSCHER

74. Section 2 - Slide 74 / 74 P&T - GPS - Training PhW - CANopen_offer_en 09/2004 Part 2: Product characteristics Activity indicators channels A and B Junction box for connecting the master card 9-pin SUBD connector for connecting the slaves on channel B 9-pin SUBD sub-base for connecting the slaves on channel A 15-pin SUBD sub-base for connecting the master PCMCIA card
