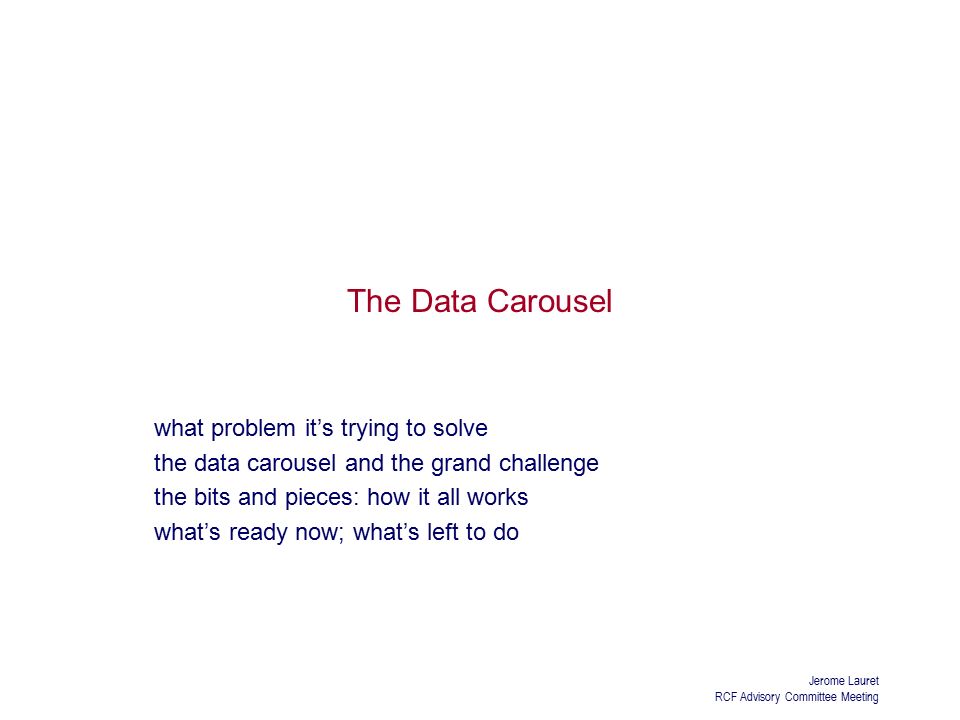

1. Jerome Lauret RCF Advisory Committee Meeting The Data Carousel what problem it’s trying to solve the data carousel and the grand challenge the bits and pieces: how it all works what’s ready now; what’s left to do

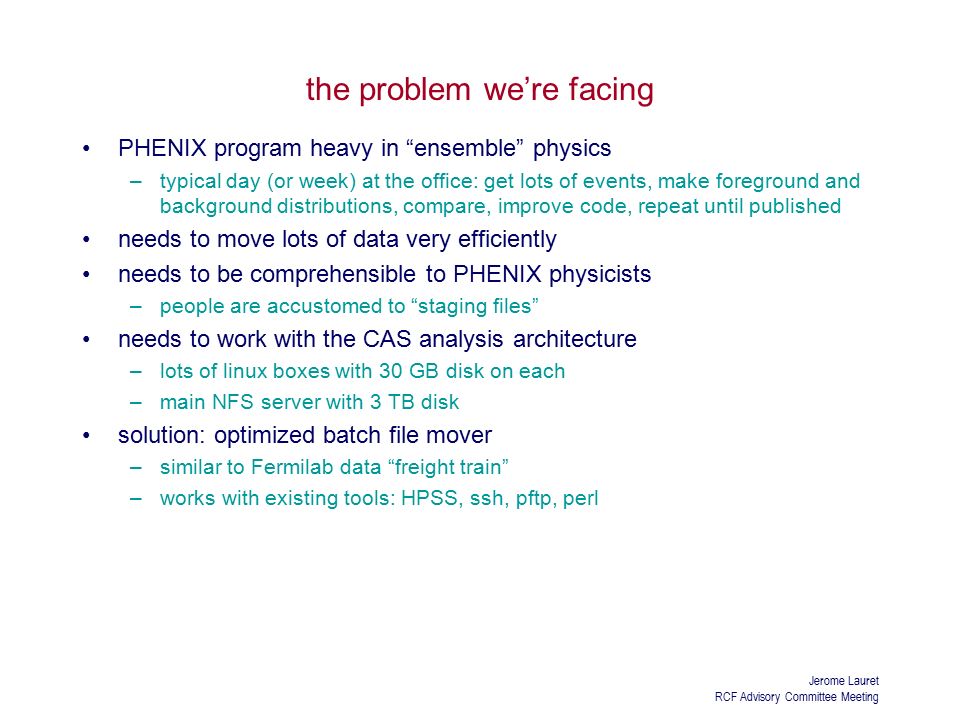

2. Jerome Lauret RCF Advisory Committee Meeting the problem we’re facing PHENIX program heavy in “ensemble” physics –typical day (or week) at the office: get lots of events, make foreground and background distributions, compare, improve code, repeat until published needs to move lots of data very efficiently needs to be comprehensible to PHENIX physicists –people are accustomed to “staging files” needs to work with the CAS analysis architecture –lots of linux boxes with 30 GB disk on each –main NFS server with 3 TB disk solution: optimized batch file mover –similar to Fermilab data “freight train” –works with existing tools: HPSS, ssh, pftp, perl

3. Jerome Lauret RCF Advisory Committee Meeting the carousel and the grand challenge complementary tools for accessing event data works at lower level of abstraction than GC –files, not objects can work with non-event data files –important since it doesn’t take much to clog access to tapes –11 MB/sec/drive in principle; 6 MB/sec/drive in practice –best case: Eagles take ~20 seconds to load, seek: read ~100 MB files at random and you’ll see no better than 50% bandwidth –MDC1,2 naive ftp only saw ~1 MB/sec effective bandwidth for reads already works with disjoint staging areas can, in principle, work over the WAN doesn’t reorganize data, doesn’t provide event iterator, isn’t coupled to analysis code –good or bad, depends on what you’re expecting

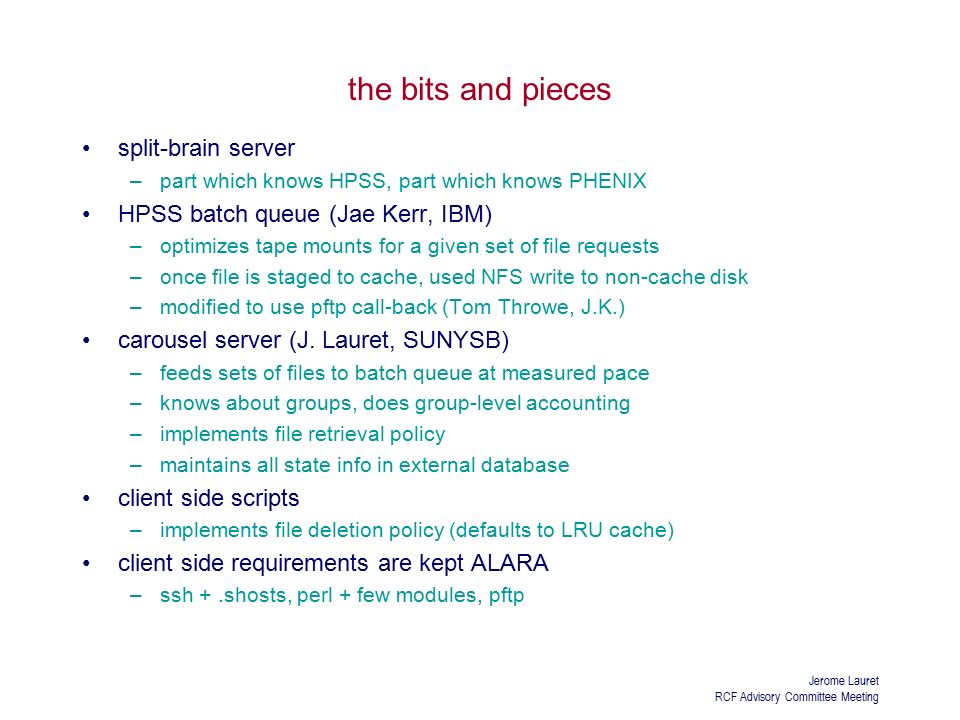

4. Jerome Lauret RCF Advisory Committee Meeting the bits and pieces split-brain server –part which knows HPSS, part which knows PHENIX HPSS batch queue (Jae Kerr, IBM) –optimizes tape mounts for a given set of file requests –once file is staged to cache, used NFS write to non-cache disk –modified to use pftp call-back (Tom Throwe, J.K.) carousel server (J. Lauret, SUNYSB) –feeds sets of files to batch queue at measured pace –knows about groups, does group-level accounting –implements file retrieval policy –maintains all state info in external database client side scripts –implements file deletion policy (defaults to LRU cache) client side requirements are kept ALARA –ssh +.shosts, perl + few modules, pftp

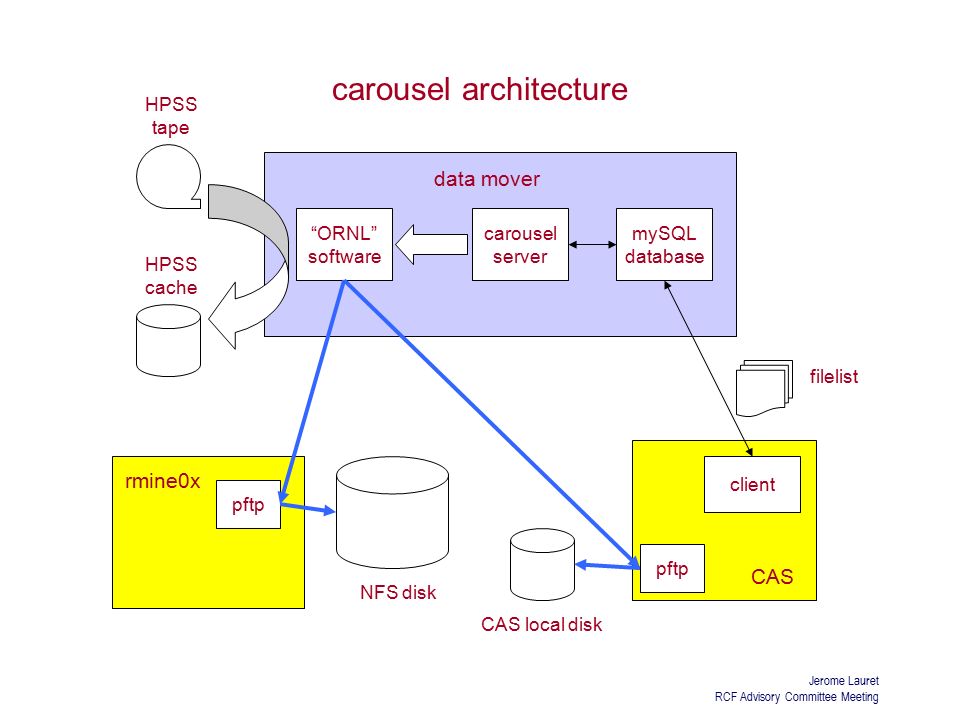

5. Jerome Lauret RCF Advisory Committee Meeting carousel architecture “ORNL” software carousel server mySQL database filelist HPSS tape HPSS cache pftp rmine0x client pftp CAS data mover CAS local disk NFS disk

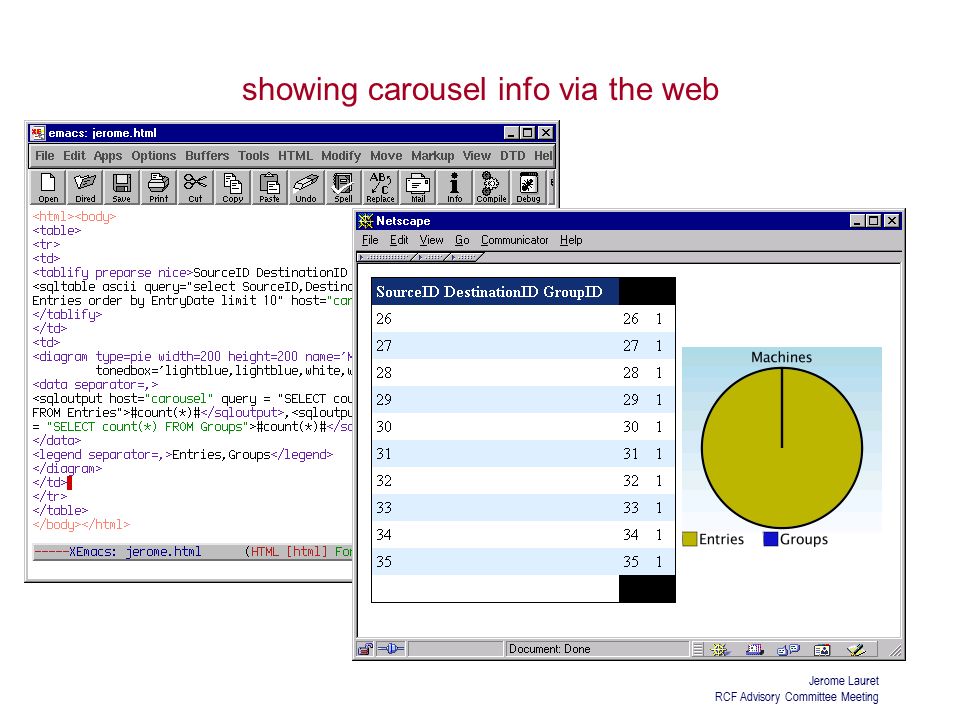

6. Jerome Lauret RCF Advisory Committee Meeting showing carousel info via the web

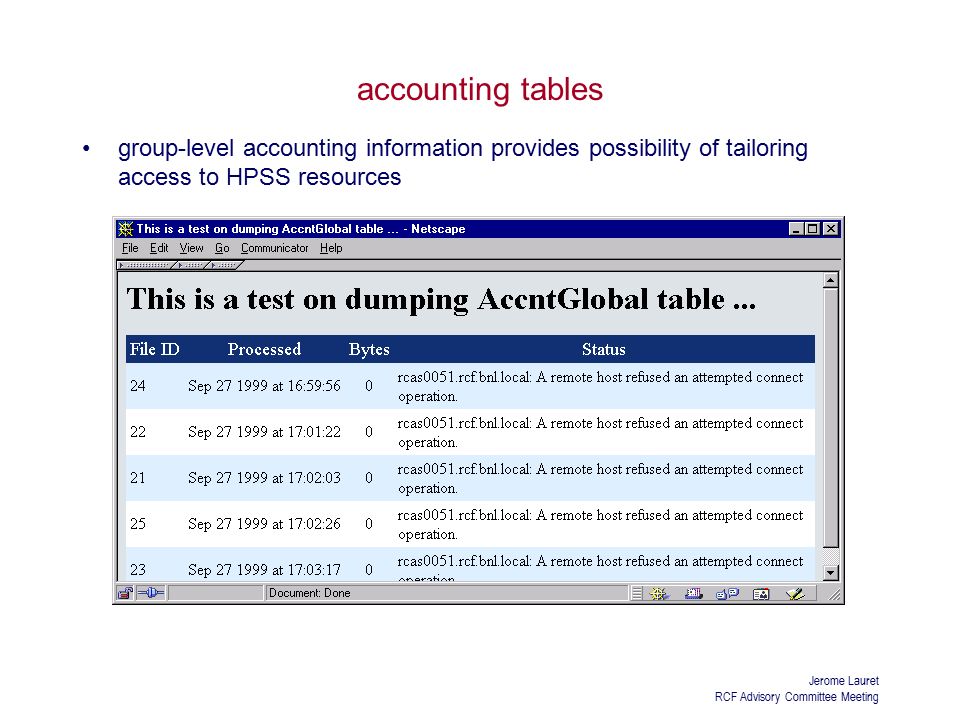

7. Jerome Lauret RCF Advisory Committee Meeting accounting tables group-level accounting information provides possibility of tailoring access to HPSS resources

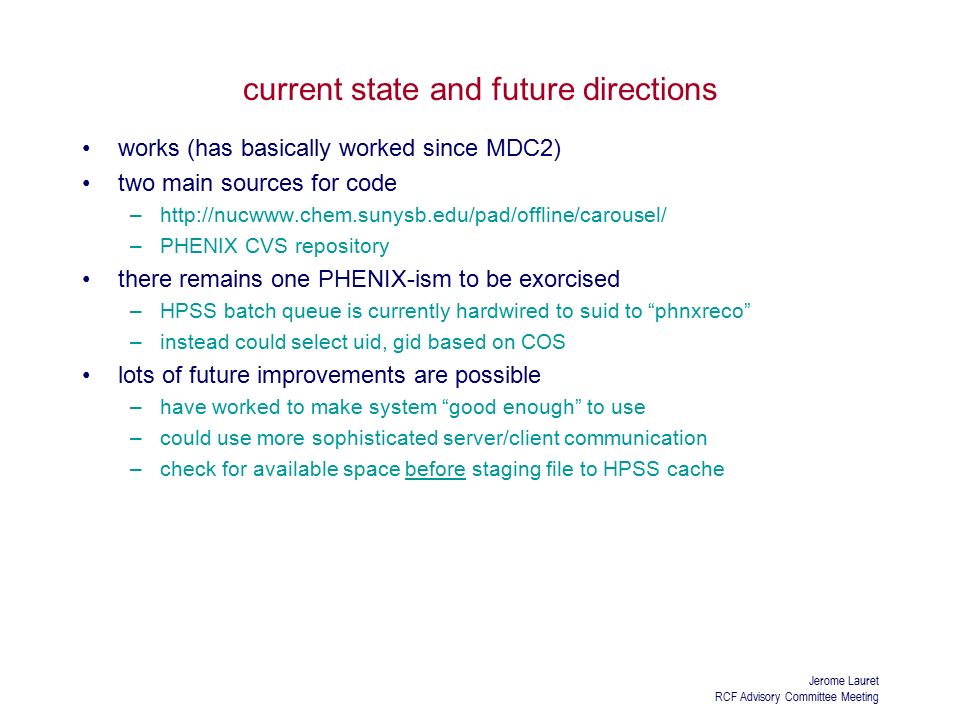

8. Jerome Lauret RCF Advisory Committee Meeting current state and future directions works (has basically worked since MDC2) two main sources for code –http://nucwww.chem.sunysb.edu/pad/offline/carousel/ –PHENIX CVS repository there remains one PHENIX-ism to be exorcised –HPSS batch queue is currently hardwired to suid to “phnxreco” –instead could select uid, gid based on COS lots of future improvements are possible –have worked to make system “good enough” to use –could use more sophisticated server/client communication –check for available space before staging file to HPSS cache
