1. Probabilistic Robotics Bayes Filter Implementations

2. Prediction Correction Bayes Filter Reminder

3. Gaussians --   Univariate  Multivariate

4. Properties of Gaussians

5. We stay in the “Gaussian world” as long as we start with Gaussians and perform only linear transformations. Multivariate Gaussians

6. 6 Discrete Kalman Filter Estimates the state x of a discrete-time controlled process that is governed by the linear stochastic difference equation with a measurement

7. 7 Components of a Kalman Filter Matrix (nxn) that describes how the state evolves from t to t-1 without controls or noise. Matrix (nxm) that describes how the control u t changes the state from t to t-1. Matrix (kxn) that describes how to map the state x t to an observation z t. Random variables representing the process and measurement noise that are assumed to be independent and normally distributed with covariance R t and Q t respectively.

8. 8 Prediction Correction Bayes Filter Reminder

9. 9 Kalman Filter Algorithm 1. Algorithm Kalman_filter(  t-1,  t-1, u t, z t ): 2. Prediction: 3. 4. 5. Correction: 6. 7. 8. 9. Return  t,  t

10. 10 Dynamics are linear function of state and control plus additive noise: Linear Gaussian Systems: Dynamics

11. 11 Observations are linear function of state plus additive noise: Linear Gaussian Systems: Observations

12. 12 Linear Gaussian Systems: Initialization Initial belief is normally distributed:

13. 13 Kalman Filter Updates in 1D

14. 14 Kalman Filter Updates

15. 15 Kalman Filter Updates in 1D

16. 16 Kalman Filter Updates in 1D

17. 17 Linear Gaussian Systems: Dynamics

18. 18 Linear Gaussian Systems: Observations

19. 19 The Prediction-Correction-Cycle Prediction

20. 20 The Prediction-Correction-Cycle Correction

21. 21 The Prediction-Correction-Cycle Correction Prediction

22. 22 Kalman Filter Summary Highly efficient: Polynomial in measurement dimensionality k and state dimensionality n: O(k 2.376 + n 2 ) Optimal for linear Gaussian systems! Most robotics systems are nonlinear!

23. 23 Nonlinear Dynamic Systems Most realistic robotic problems involve nonlinear functions

24. 24 Linearity Assumption Revisited

25. 25 Non-linear Function

26. 26 EKF Linearization (1)

27. 27 EKF Linearization (2)

28. 28 EKF Linearization (3)

29. 29 Prediction: Correction: EKF Linearization: First Order Taylor Series Expansion

30. 30 EKF Algorithm 1.Extended_Kalman_filter (  t-1,  t-1, u t, z t ): 2. Prediction: 3. 4. 5. Correction: 6. 7. 8. 9. Return  t,  t

31. 31 EKF Summary Highly efficient: Polynomial in measurement dimensionality k and state dimensionality n: O(k 2.376 + n 2 ) Not optimal! Can diverge if nonlinearities are large! Works surprisingly well even when all assumptions are violated!

32. 32 Unscented Transform Sigma points Weights Pass sigma points through nonlinear function Recover mean and covariance

33. 33 Linearization via Unscented Transform EKF UKF

34. 34 UKF Sigma-Point Estimate (2) EKF UKF

35. 35 UKF Sigma-Point Estimate (3) EKF UKF

36. 36 UKF Algorithm

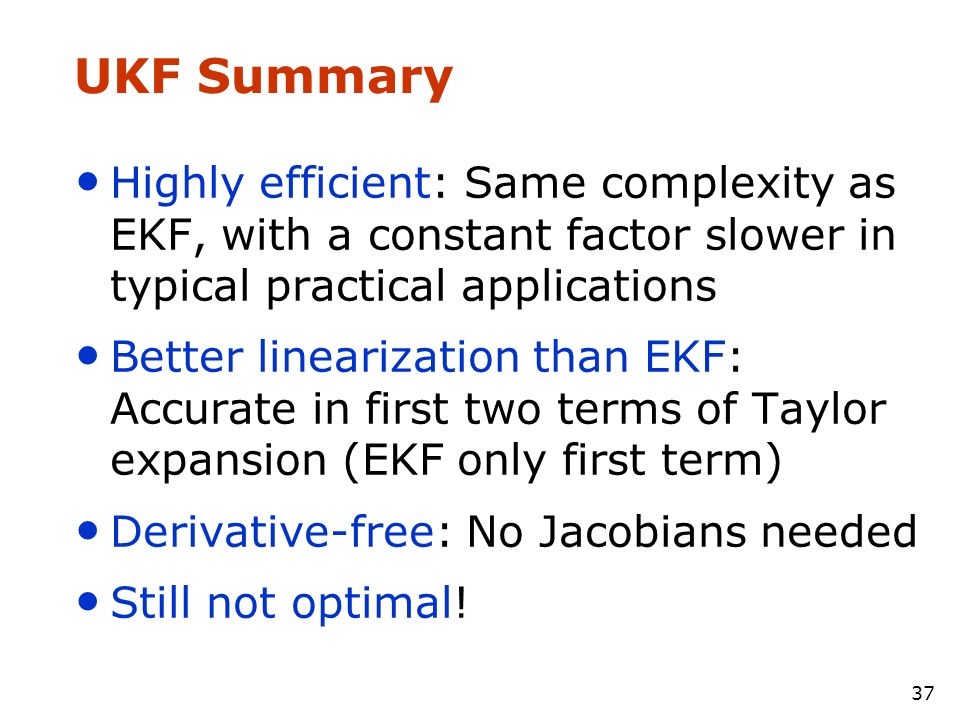

37. 37 UKF Summary Highly efficient: Same complexity as EKF, with a constant factor slower in typical practical applications Better linearization than EKF: Accurate in first two terms of Taylor expansion (EKF only first term) Derivative-free: No Jacobians needed Still not optimal!

38. 38  Represent belief by random samples  Estimation of non-Gaussian, nonlinear processes  Monte Carlo filter, Survival of the fittest, Condensation, Bootstrap filter, Particle filter  Filtering: [Rubin, 88], [Gordon et al., 93], [Kitagawa 96]  Computer vision: [Isard and Blake 96, 98]  Dynamic Bayesian Networks: [Kanazawa et al., 95]d Particle Filters

39. 39 Particle Filters

40. 40 Particle Filter Algorithm

41. 41 Resampling Given: Set S=(w 1, w 2, …, w M ) of weight samples. Wanted : Random sample, where the probability of drawing x i is given by w i. Typically done M times with replacement to generate new sample set X t.

42. 42 Resampling Algorithm

43. 43 w2w2 w3w3 w1w1 wnwn W n-1 Resampling w2w2 w3w3 w1w1 wnwn W n-1 Roulette wheel Binary search, n log n Stochastic universal sampling Systematic resampling Linear time complexity Easy to implement, low variance

44. 44 Summary Particle filters are an implementation of recursive Bayesian filtering They represent the posterior by a set of weighted samples. In the context of localization, the particles are propagated according to the motion model. They are then weighted according to the likelihood of the observations. In a re-sampling step, new particles are drawn with a probability proportional to the likelihood of the observation.
