1
PowerPoint Lecture Outlines to accompany Hole’s Human Anatomy and Physiology Tenth Edition Shier Butler Lewis Chapter 7 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 7-1
2
Chapter 7 Skeletal System Bone Classification Long Bones Short Bones Flat Bones Irregular Bones Sesamoid Bones 7-2
3

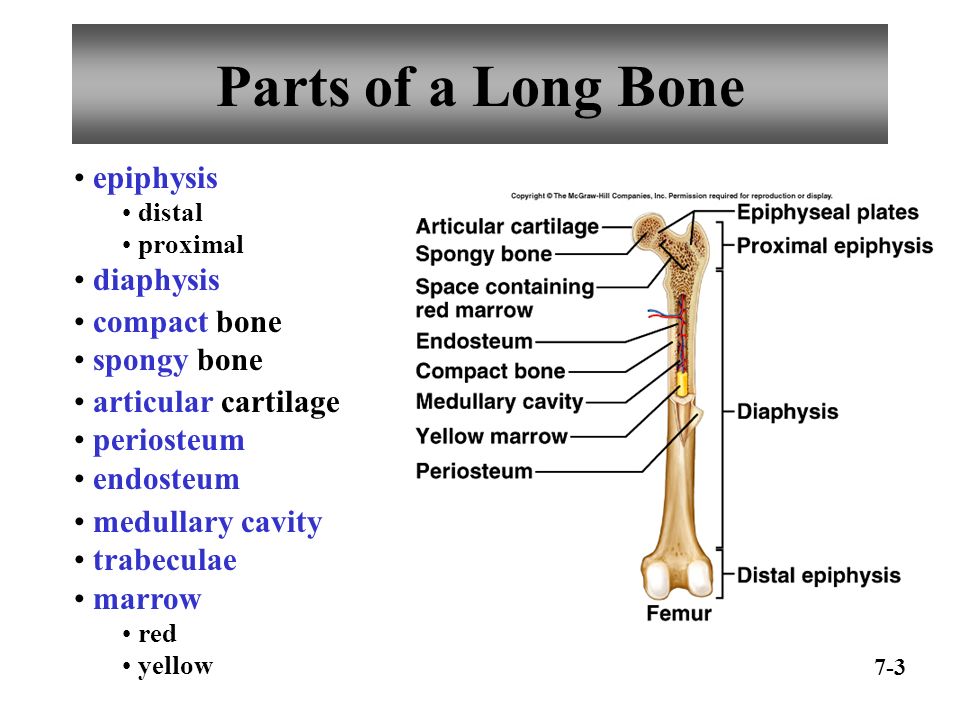

Parts of a Long Bone epiphysis distal proximal diaphysis compact bone spongy bone articular cartilage periosteum endosteum medullary cavity trabeculae marrow red yellow 7-3
4

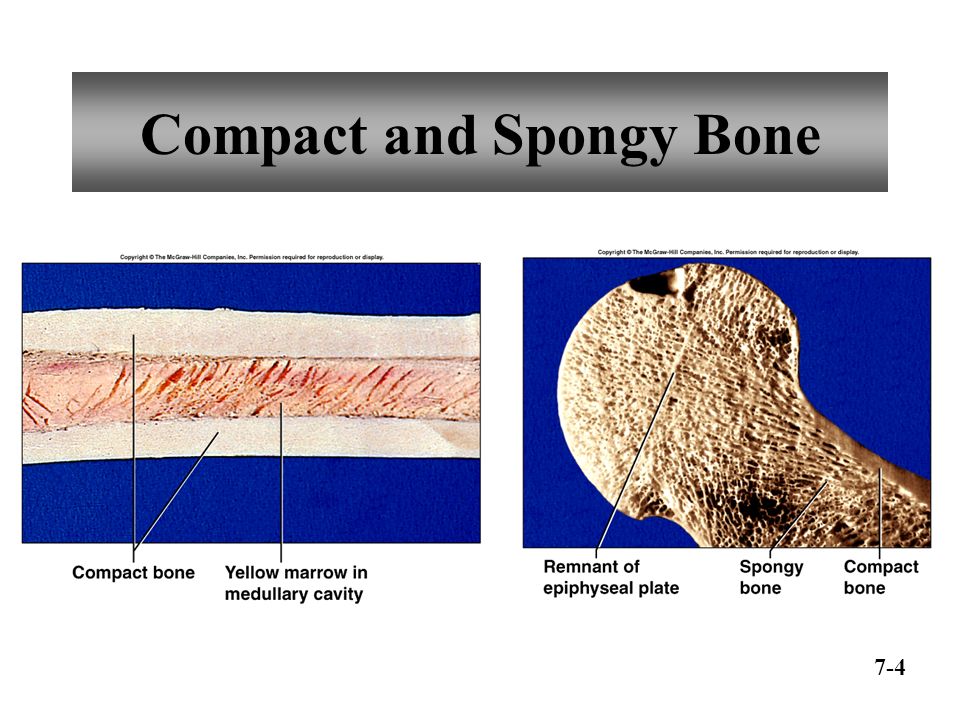

Compact and Spongy Bone 7-4
5

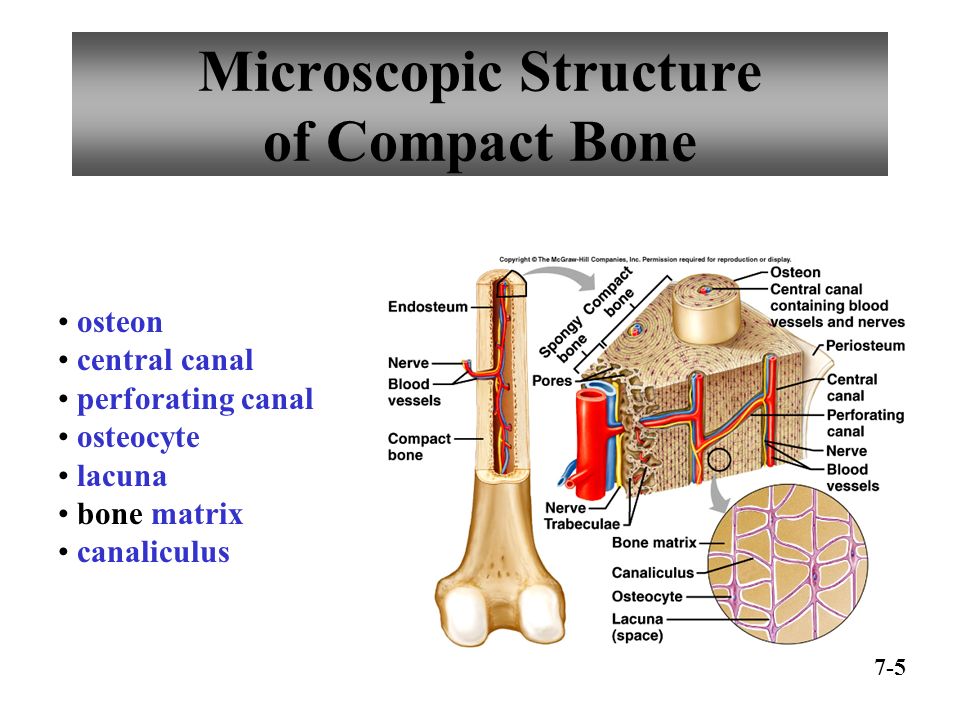

Microscopic Structure of Compact Bone osteon central canal perforating canal osteocyte lacuna bone matrix canaliculus 7-5

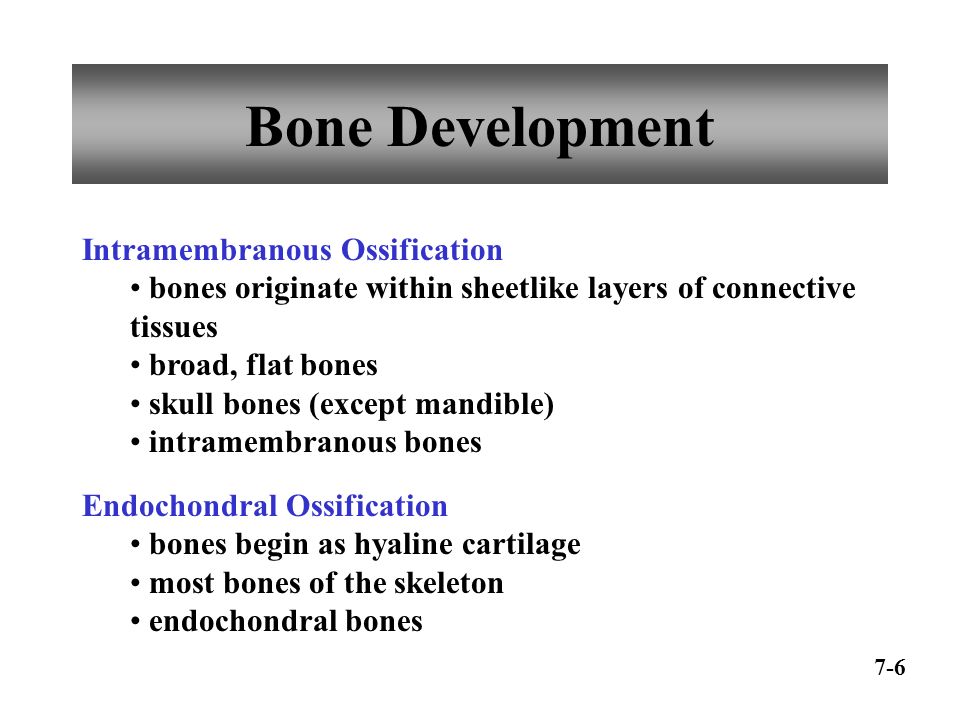

6
Bone Development Intramembranous Ossification bones originate within sheetlike layers of connective tissues broad, flat bones skull bones (except mandible) intramembranous bones Endochondral Ossification bones begin as hyaline cartilage most bones of the skeleton endochondral bones 7-6
7

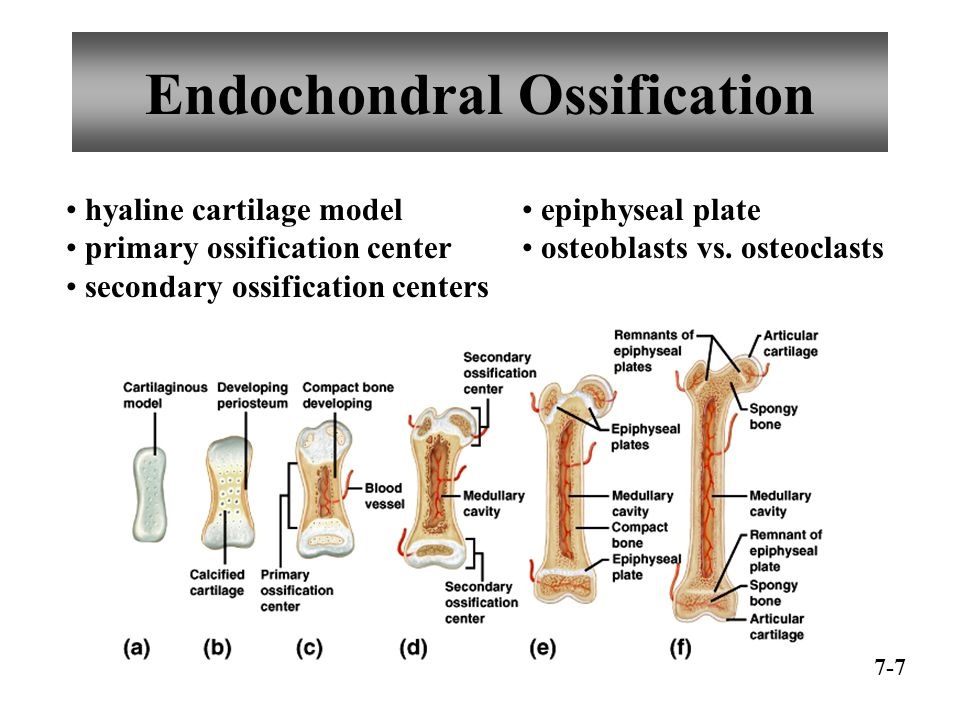

Endochondral Ossification hyaline cartilage model primary ossification center secondary ossification centers epiphyseal plate osteoblasts vs. osteoclasts 7-7
8

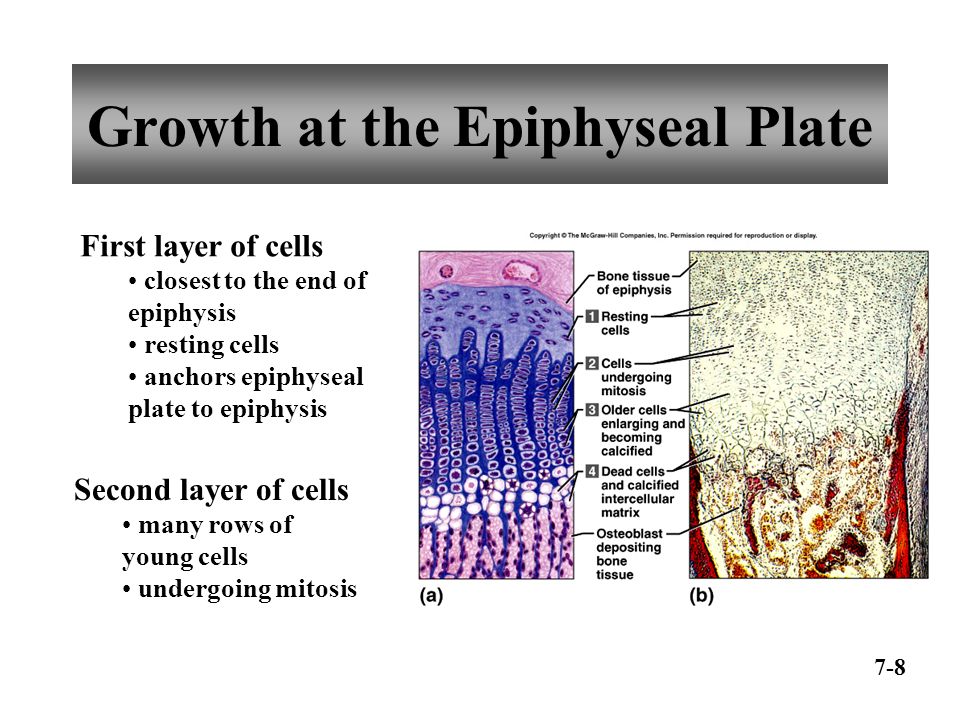

Growth at the Epiphyseal Plate First layer of cells closest to the end of epiphysis resting cells anchors epiphyseal plate to epiphysis Second layer of cells many rows of young cells undergoing mitosis 7-8
9

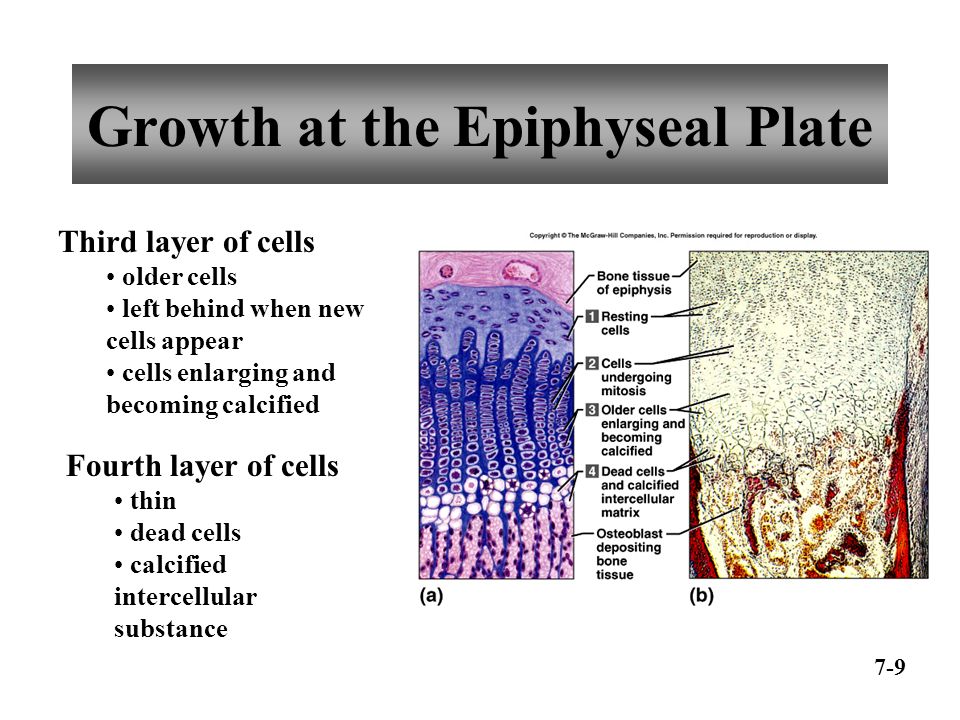

Growth at the Epiphyseal Plate Third layer of cells older cells left behind when new cells appear cells enlarging and becoming calcified Fourth layer of cells thin dead cells calcified intercellular substance 7-9
10
Homeostasis of Bone Tissue Bone Resorption – action of osteoclasts and parathyroid hormone Bone Deposition – action of osteoblasts and calcitonin 7-10
11

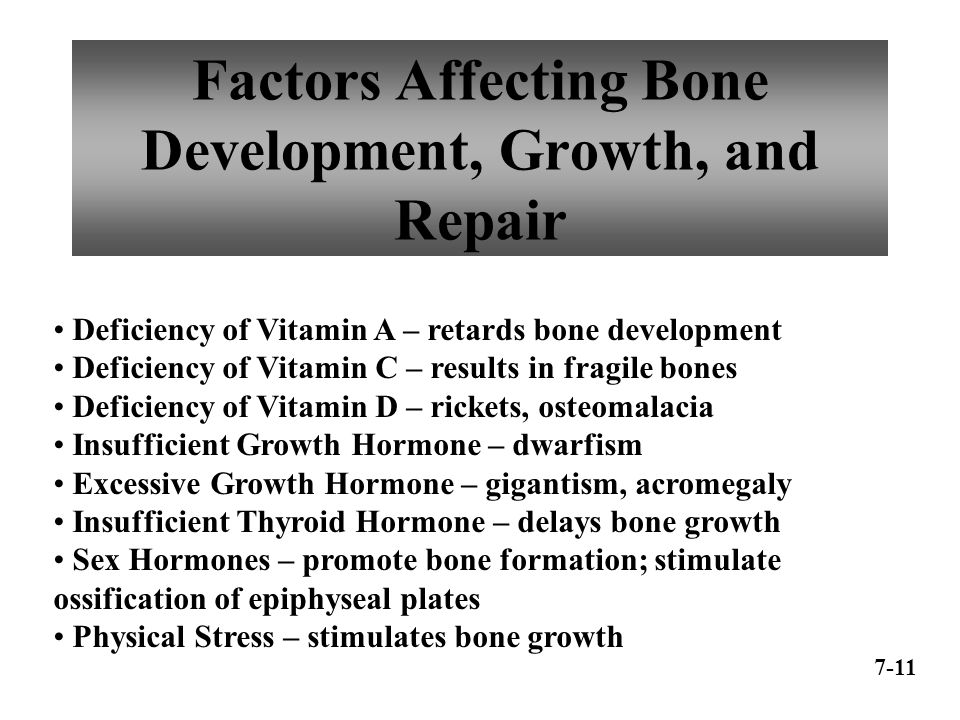

Factors Affecting Bone Development, Growth, and Repair Deficiency of Vitamin A – retards bone development Deficiency of Vitamin C – results in fragile bones Deficiency of Vitamin D – rickets, osteomalacia Insufficient Growth Hormone – dwarfism Excessive Growth Hormone – gigantism, acromegaly Insufficient Thyroid Hormone – delays bone growth Sex Hormones – promote bone formation; stimulate ossification of epiphyseal plates Physical Stress – stimulates bone growth 7-11
12

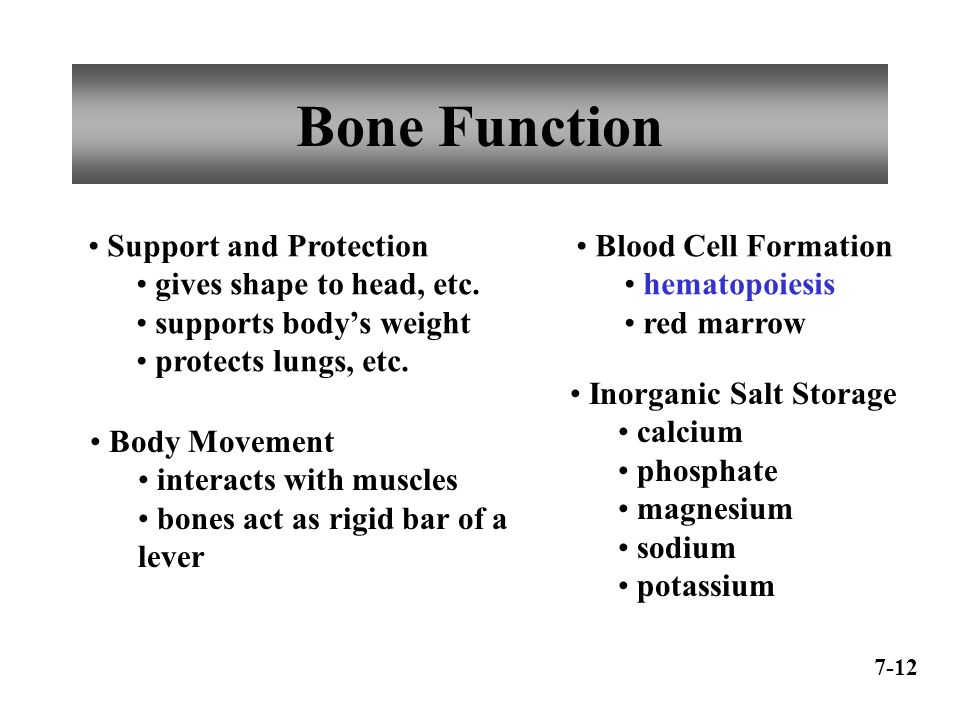

Bone Function Support and Protection gives shape to head, etc. supports body’s weight protects lungs, etc. Body Movement interacts with muscles bones act as rigid bar of a lever Blood Cell Formation hematopoiesis red marrow Inorganic Salt Storage calcium phosphate magnesium sodium potassium 7-12

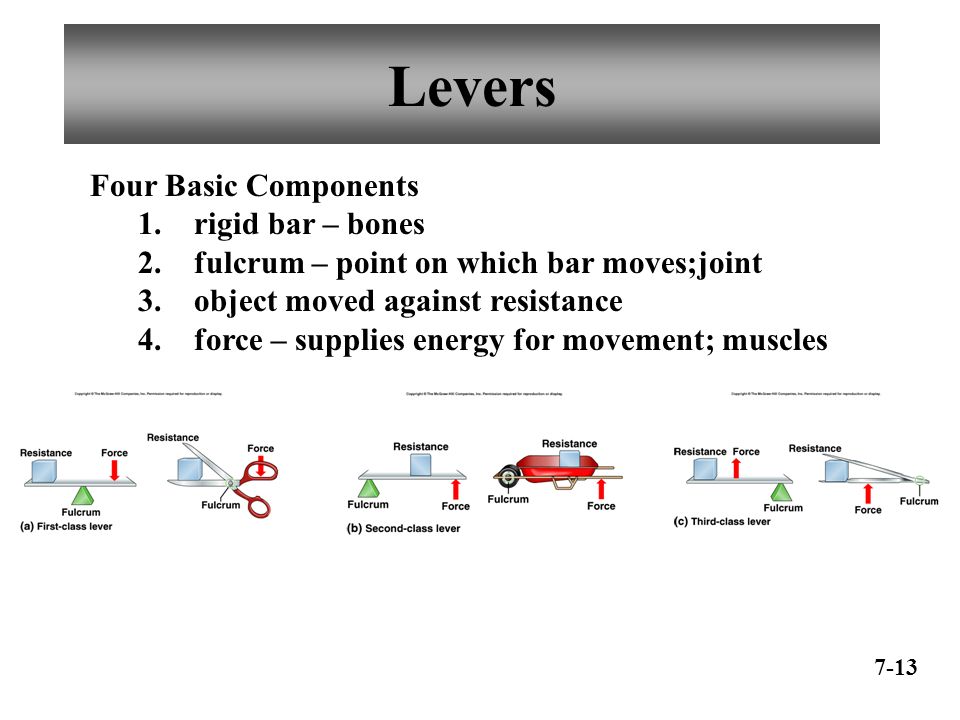

13
Levers Four Basic Components 1. rigid bar – bones 2. fulcrum – point on which bar moves;joint 3. object moved against resistance 4. force – supplies energy for movement; muscles 7-13

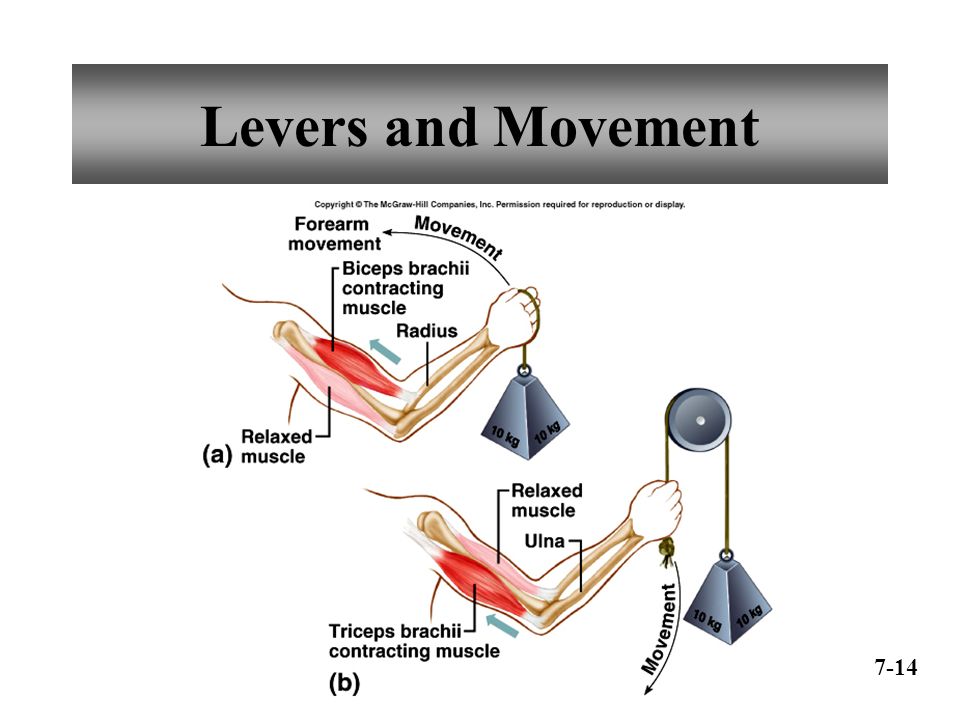

14
Levers and Movement 7-14
15

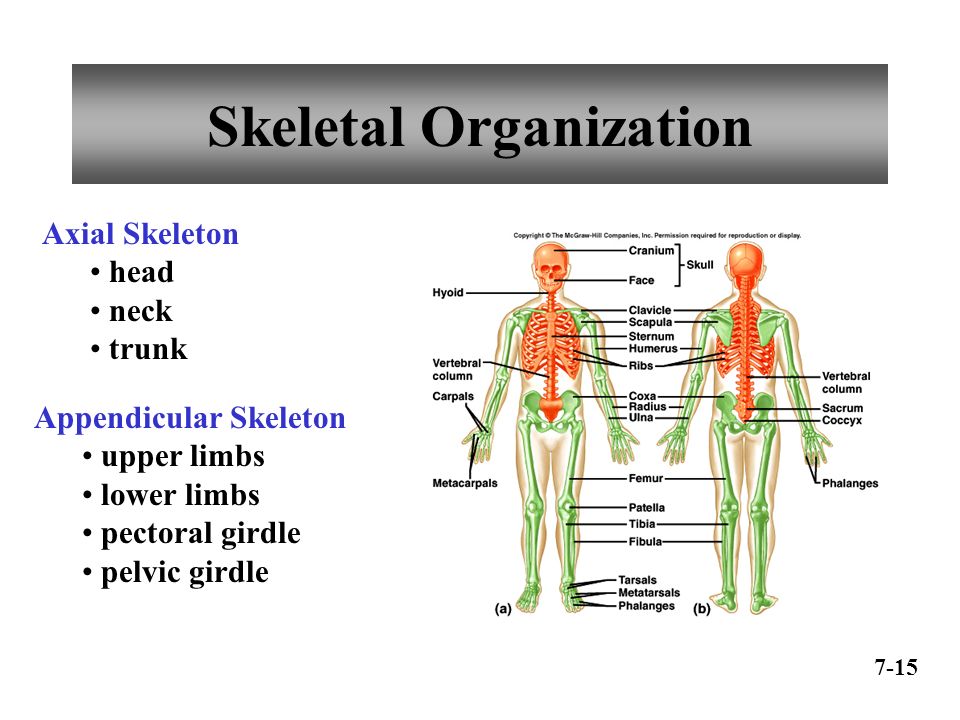

Skeletal Organization Axial Skeleton head neck trunk Appendicular Skeleton upper limbs lower limbs pectoral girdle pelvic girdle 7-15
16

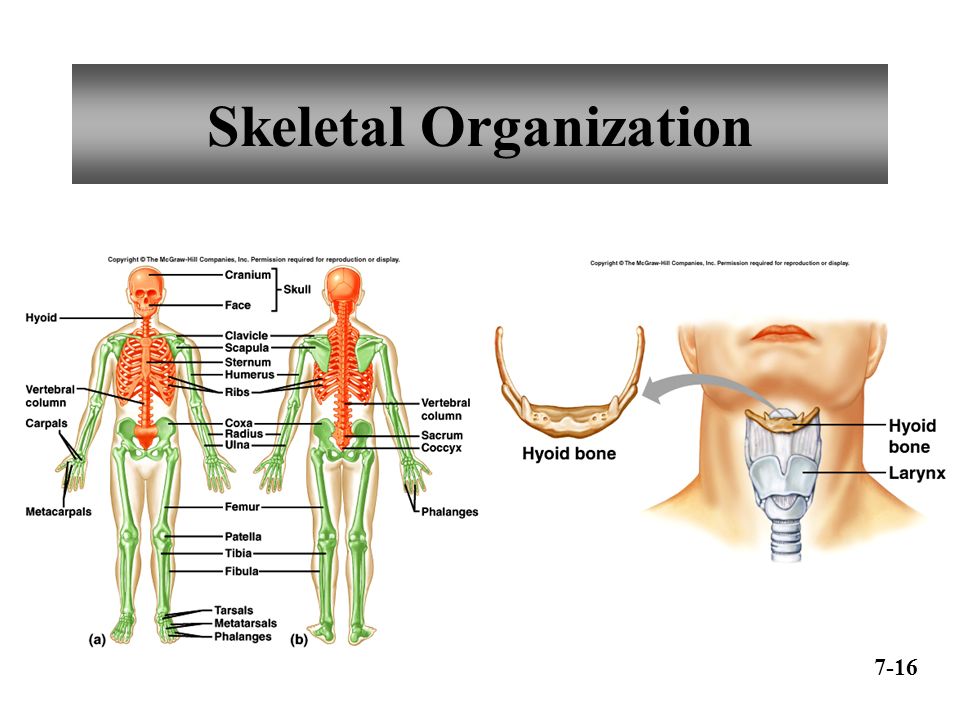

Skeletal Organization 7-16
17

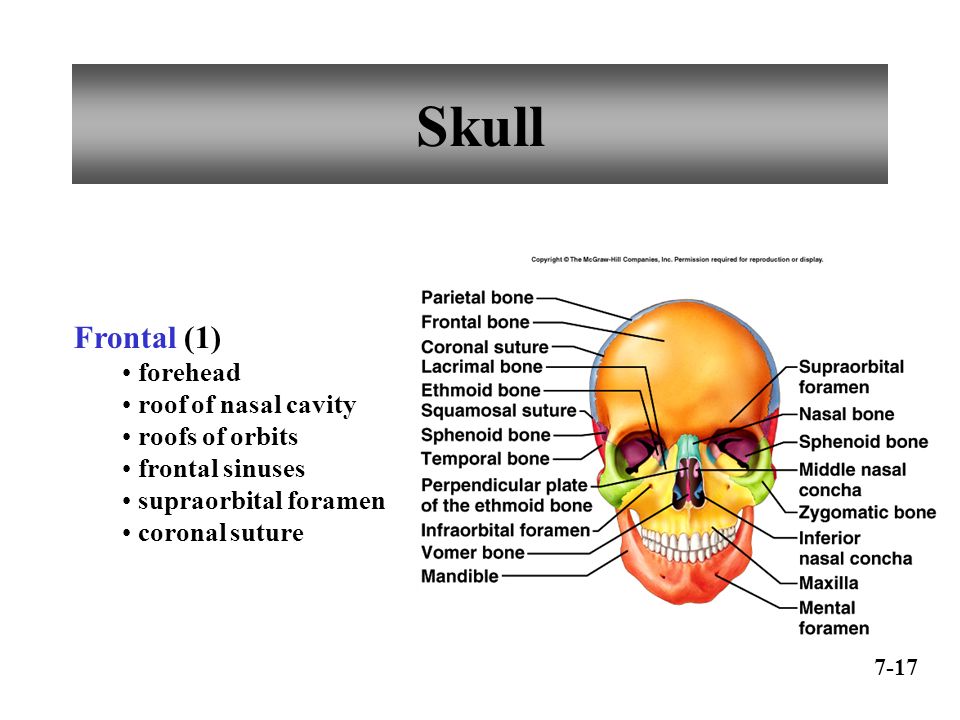

Skull Frontal (1) forehead roof of nasal cavity roofs of orbits frontal sinuses supraorbital foramen coronal suture 7-17
18
Skull Parietal (2) side walls of cranium roof of cranium sagittal suture 7-18
19

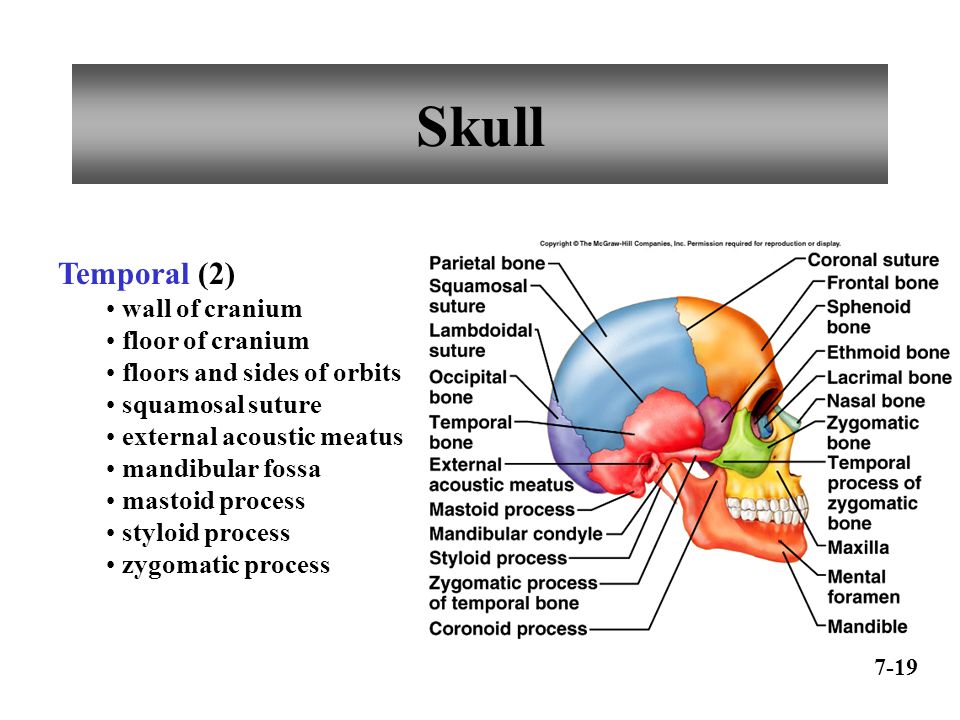

Skull Temporal (2) wall of cranium floor of cranium floors and sides of orbits squamosal suture external acoustic meatus mandibular fossa mastoid process styloid process zygomatic process 7-19

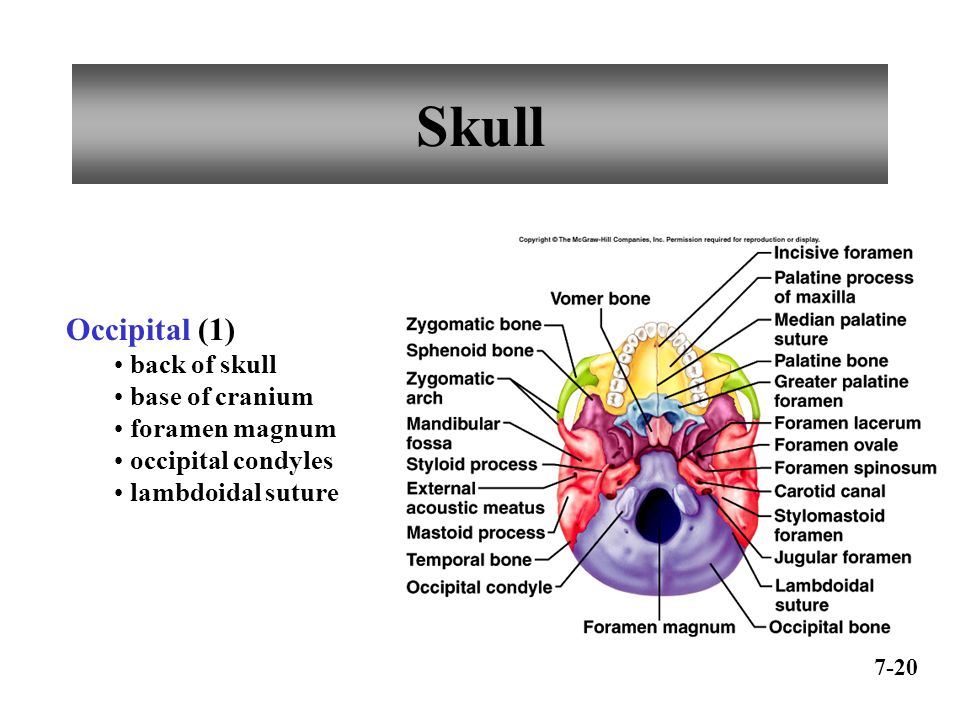

20
Skull Occipital (1) back of skull base of cranium foramen magnum occipital condyles lambdoidal suture 7-20
21

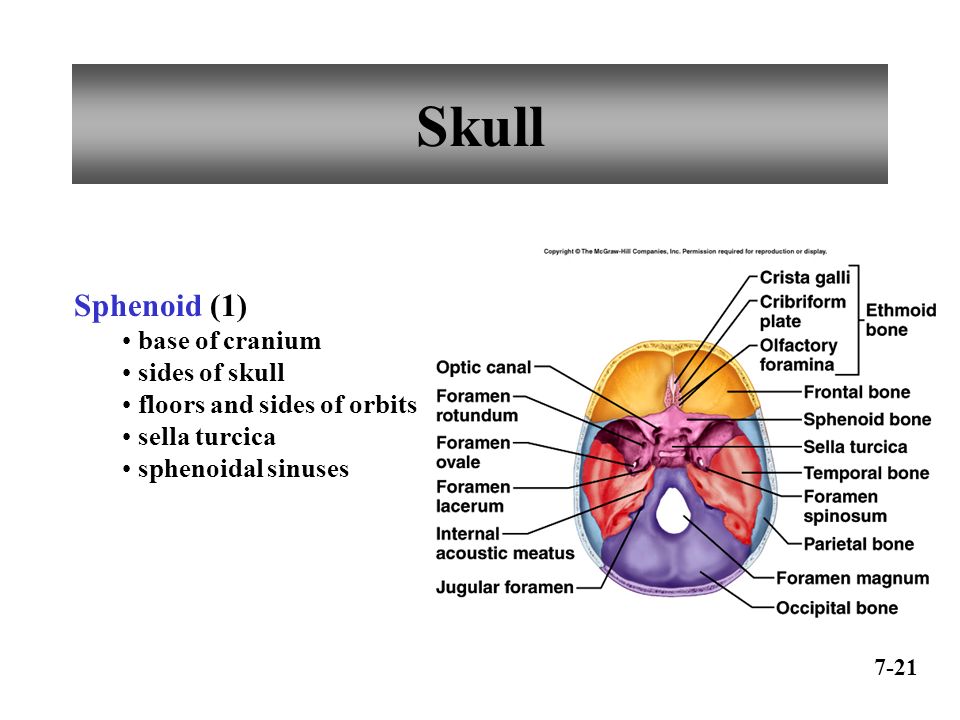

Skull Sphenoid (1) base of cranium sides of skull floors and sides of orbits sella turcica sphenoidal sinuses 7-21
22

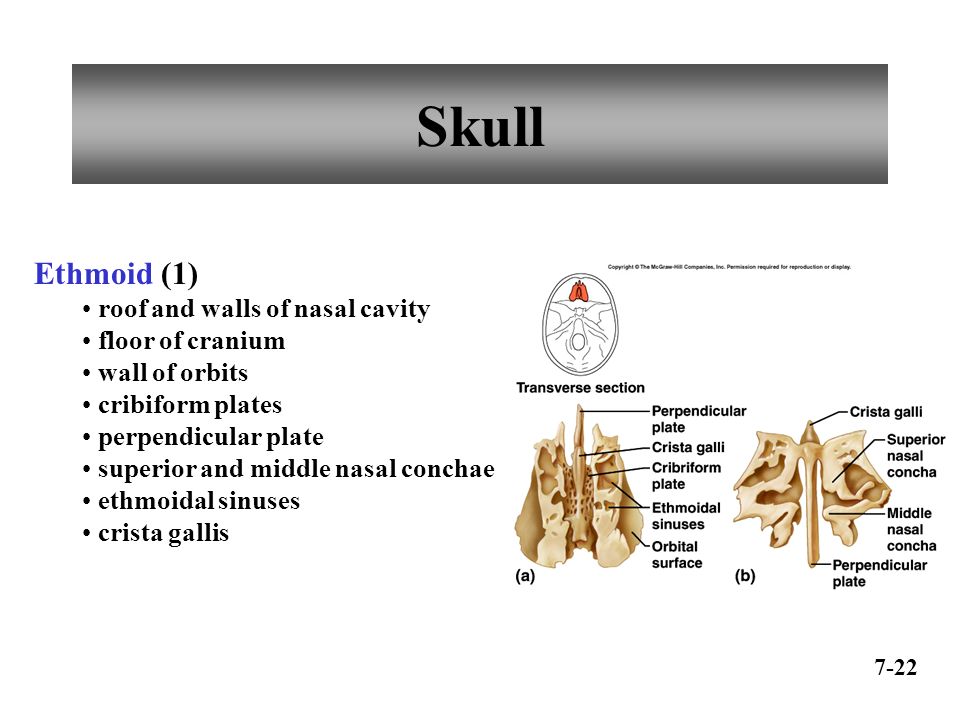

Skull Ethmoid (1) roof and walls of nasal cavity floor of cranium wall of orbits cribiform plates perpendicular plate superior and middle nasal conchae ethmoidal sinuses crista gallis 7-22
23

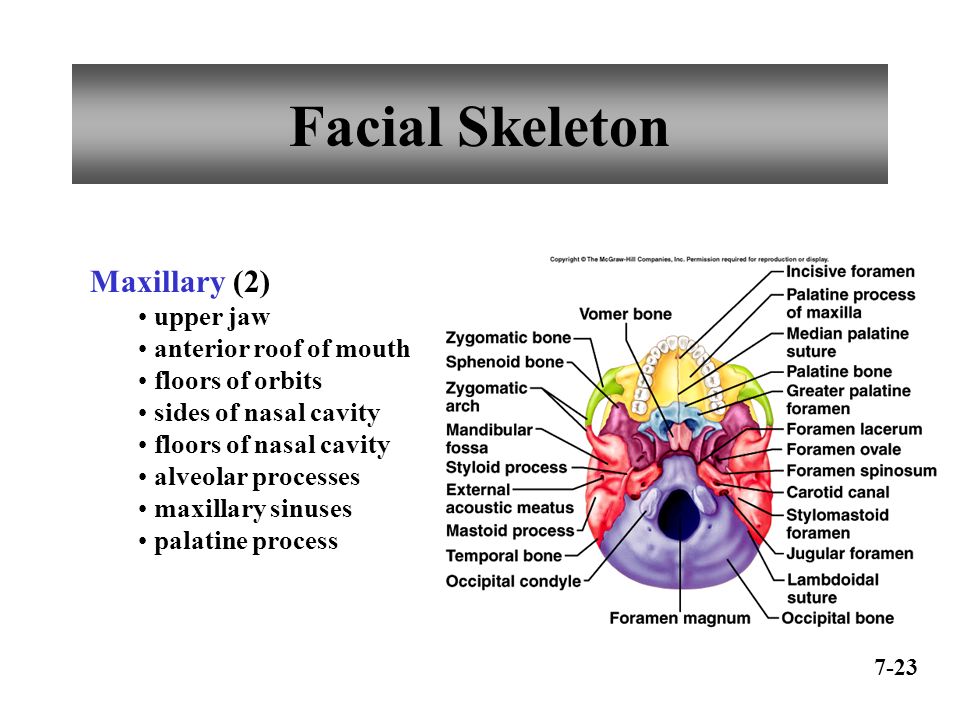

Facial Skeleton Maxillary (2) upper jaw anterior roof of mouth floors of orbits sides of nasal cavity floors of nasal cavity alveolar processes maxillary sinuses palatine process 7-23
24

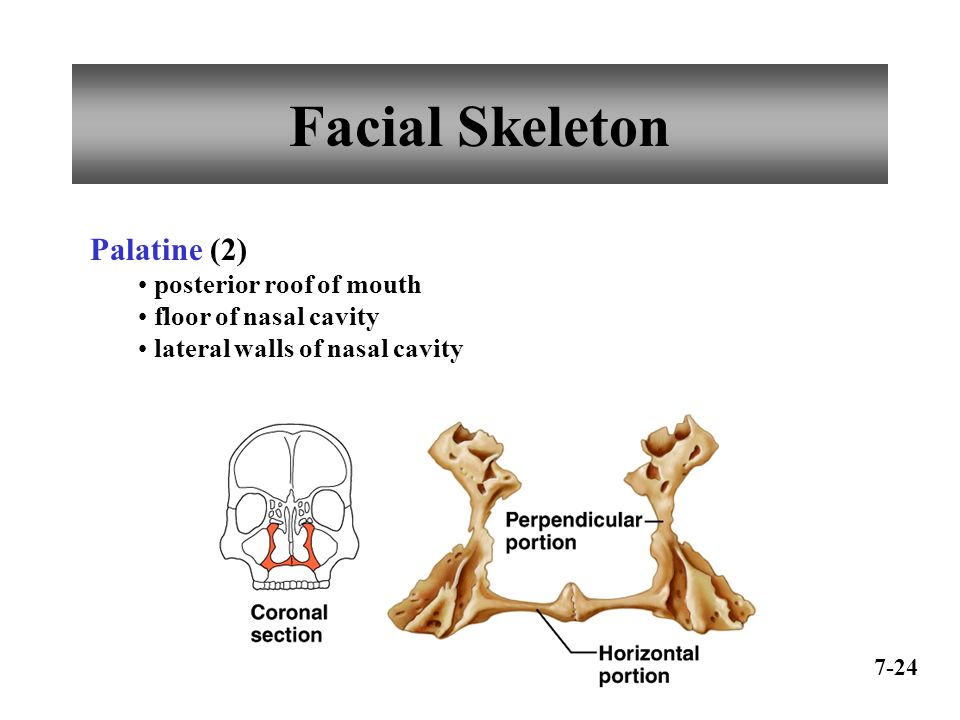

Facial Skeleton Palatine (2) posterior roof of mouth floor of nasal cavity lateral walls of nasal cavity 7-24
25

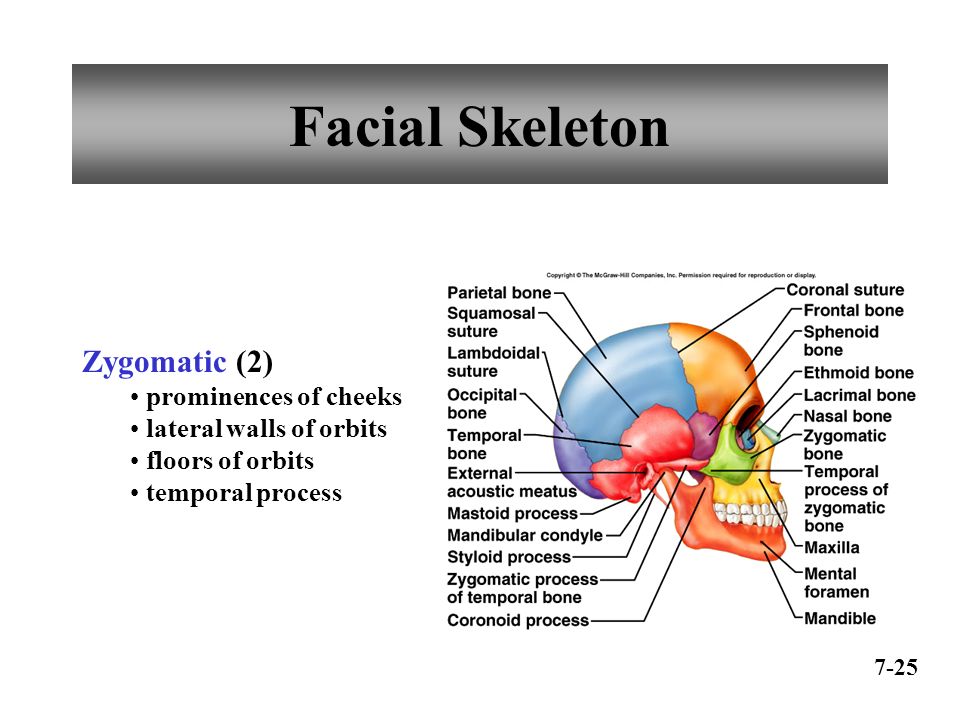

Facial Skeleton Zygomatic (2) prominences of cheeks lateral walls of orbits floors of orbits temporal process 7-25
26

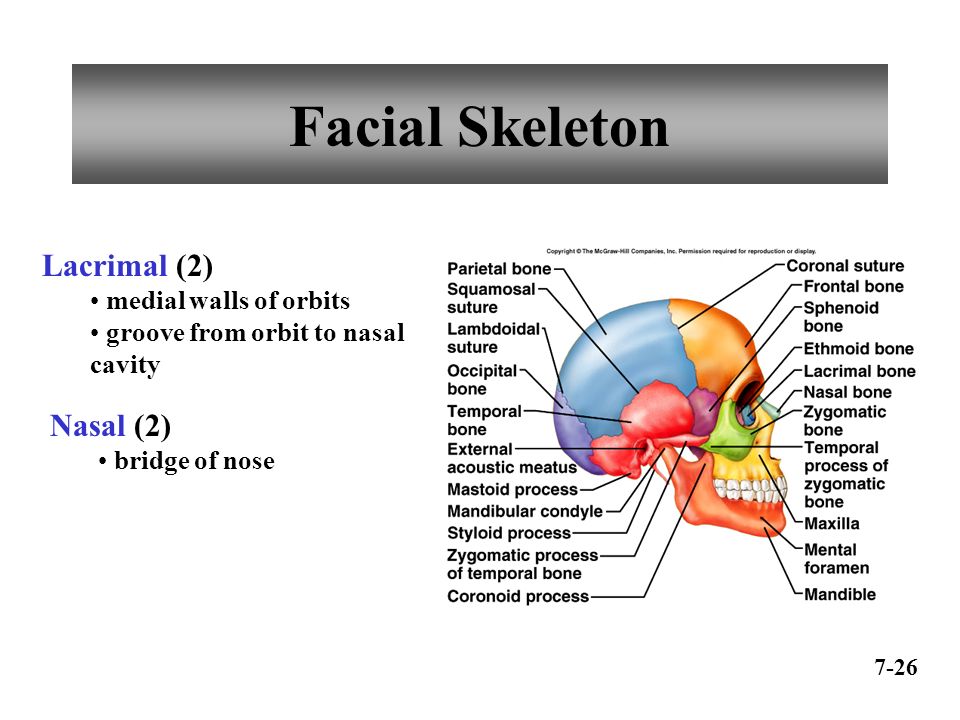

Facial Skeleton Lacrimal (2) medial walls of orbits groove from orbit to nasal cavity Nasal (2) bridge of nose 7-26
27

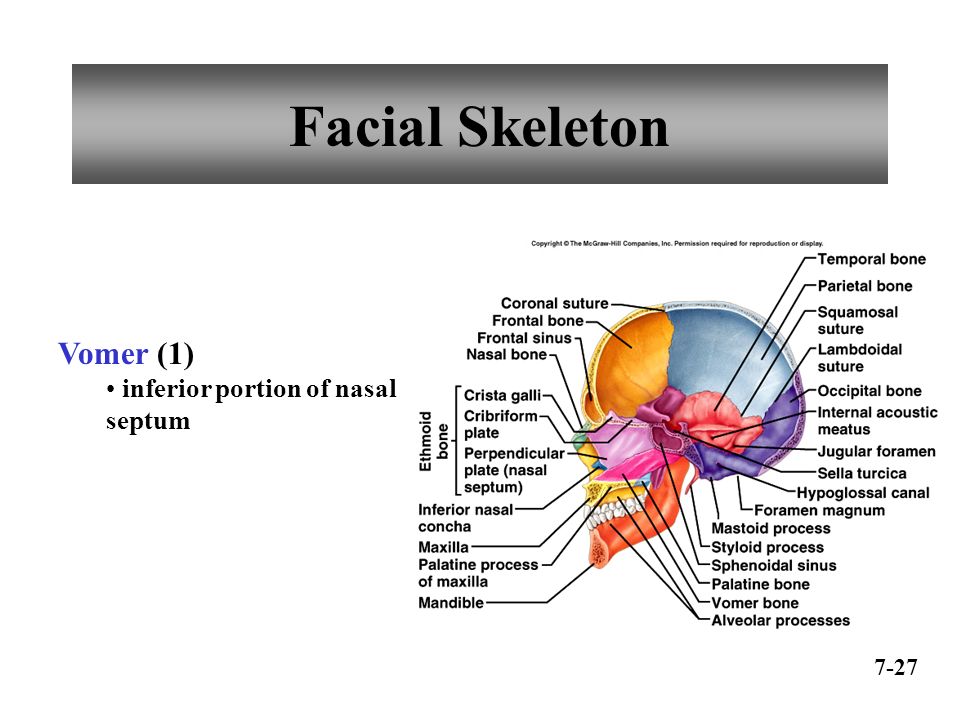

Facial Skeleton Vomer (1) inferior portion of nasal septum 7-27
28

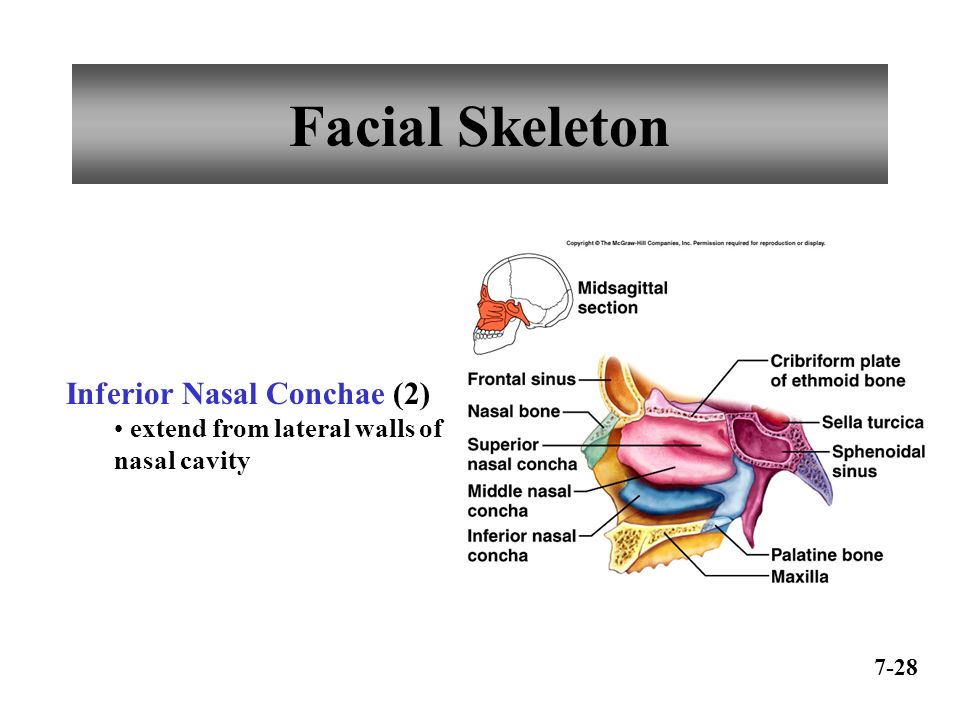

Facial Skeleton Inferior Nasal Conchae (2) extend from lateral walls of nasal cavity 7-28
29

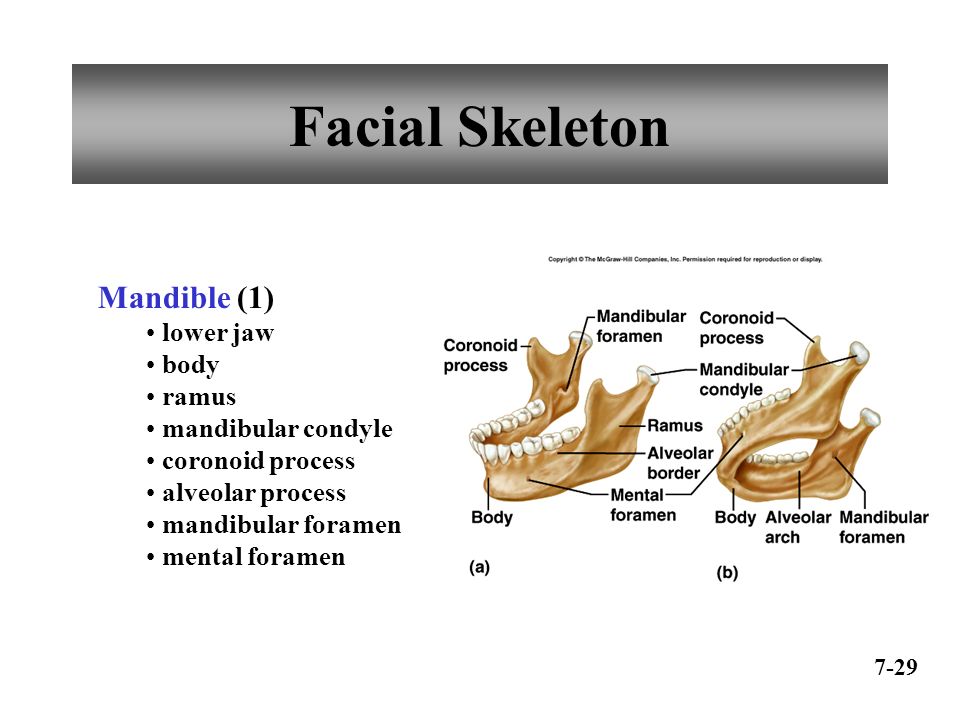

Facial Skeleton Mandible (1) lower jaw body ramus mandibular condyle coronoid process alveolar process mandibular foramen mental foramen 7-29
30

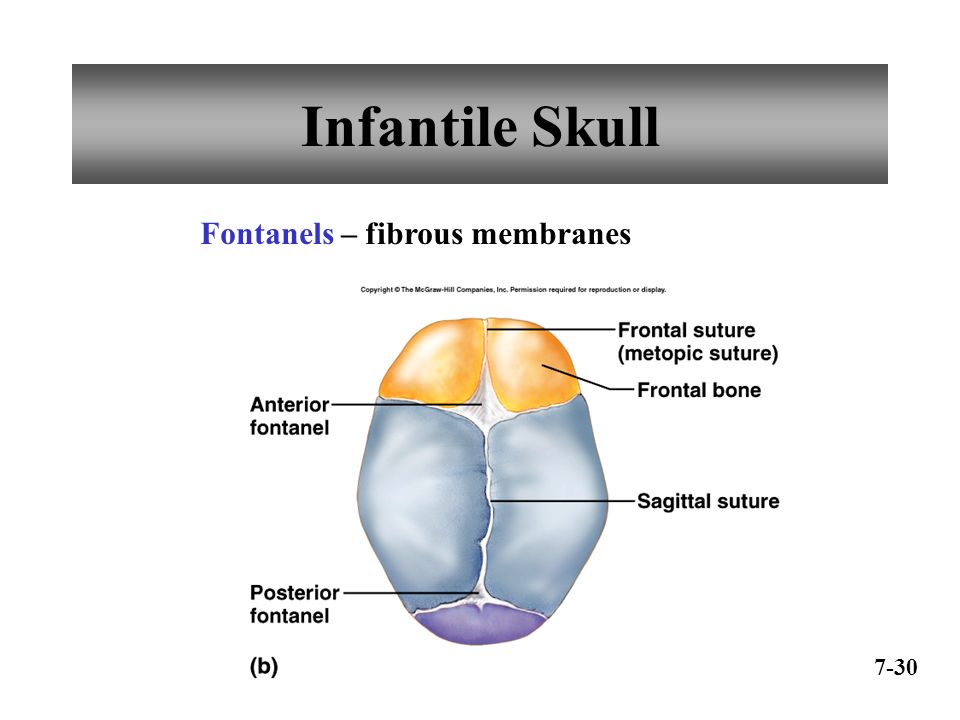

Infantile Skull Fontanels – fibrous membranes 7-30
31

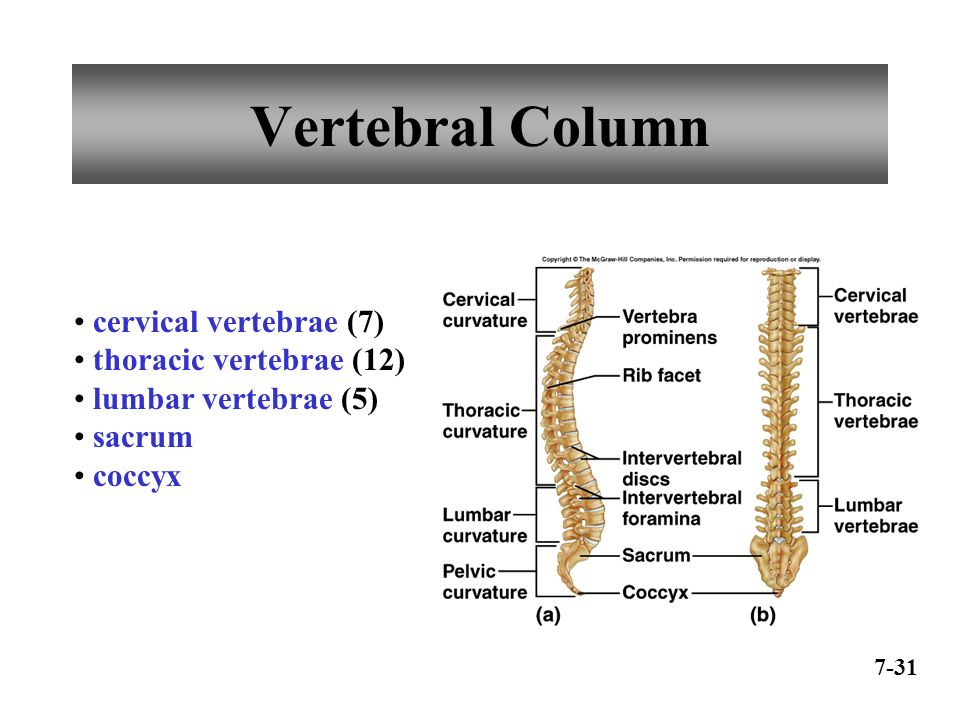

Vertebral Column cervical vertebrae (7) thoracic vertebrae (12) lumbar vertebrae (5) sacrum coccyx 7-31
32

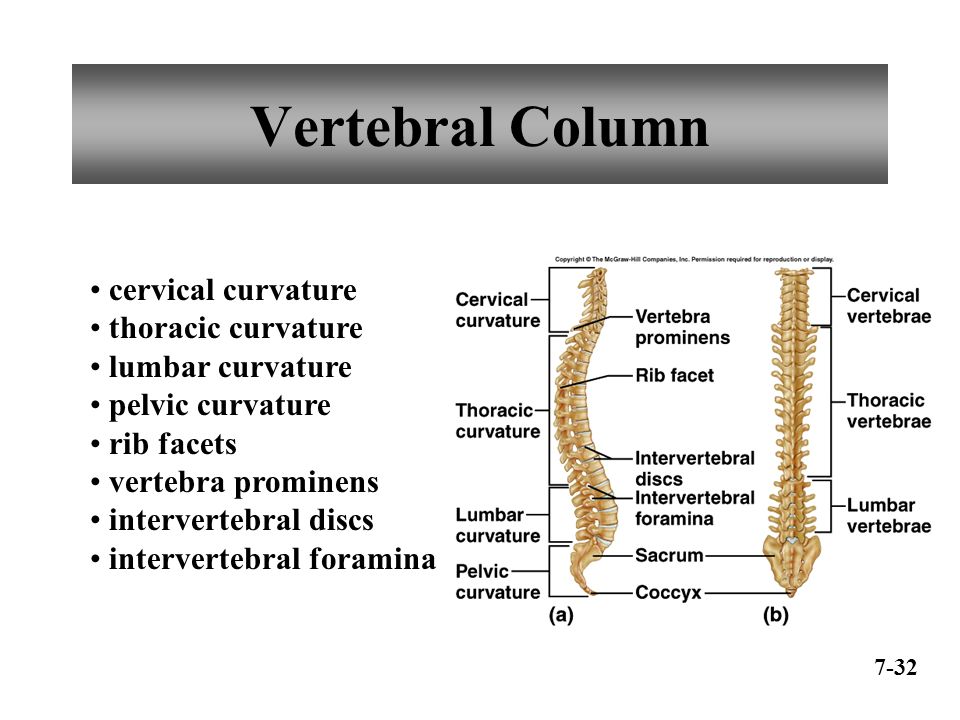

Vertebral Column cervical curvature thoracic curvature lumbar curvature pelvic curvature rib facets vertebra prominens intervertebral discs intervertebral foramina 7-32
33

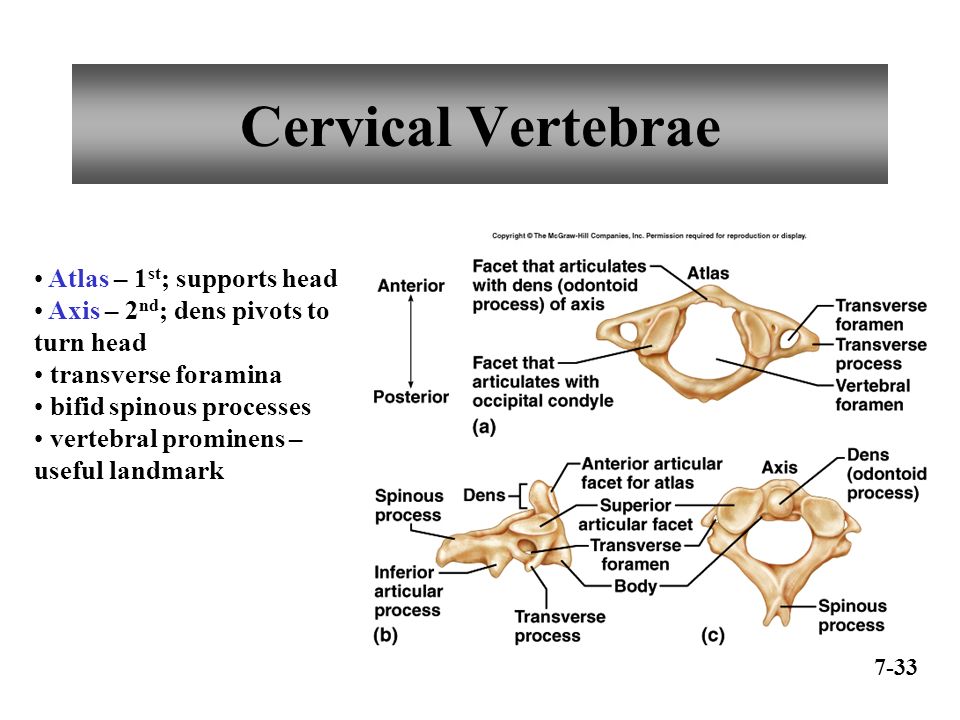

Cervical Vertebrae Atlas – 1 st ; supports head Axis – 2 nd ; dens pivots to turn head transverse foramina bifid spinous processes vertebral prominens – useful landmark 7-33
34

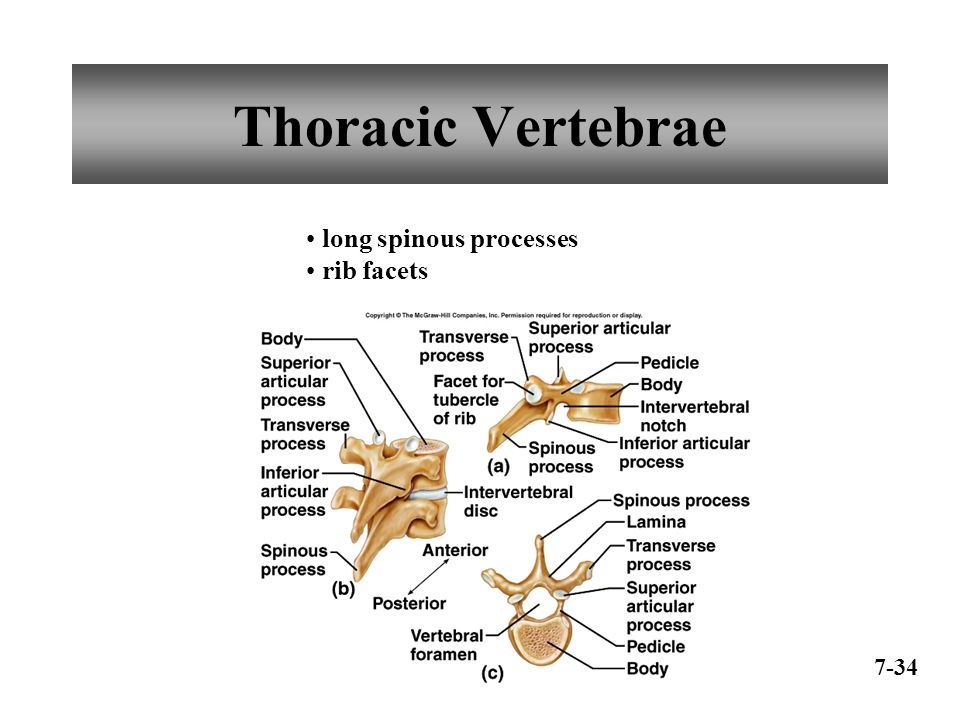

Thoracic Vertebrae long spinous processes rib facets 7-34
35
Lumbar Vertebrae large bodies thick, short spinous processes 7-35
36

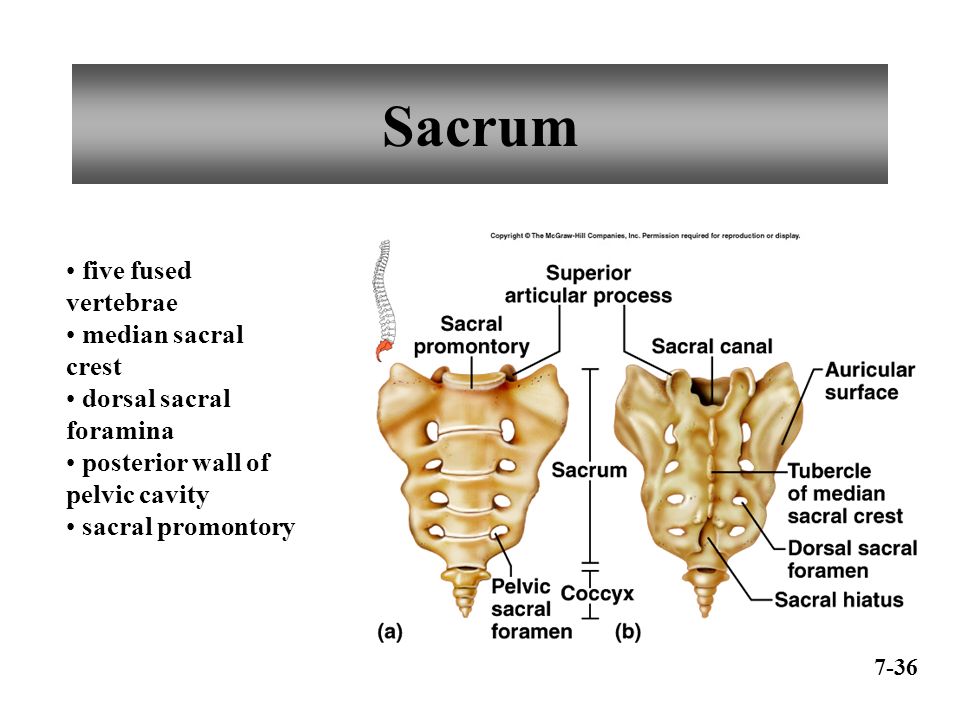

Sacrum five fused vertebrae median sacral crest dorsal sacral foramina posterior wall of pelvic cavity sacral promontory 7-36
37

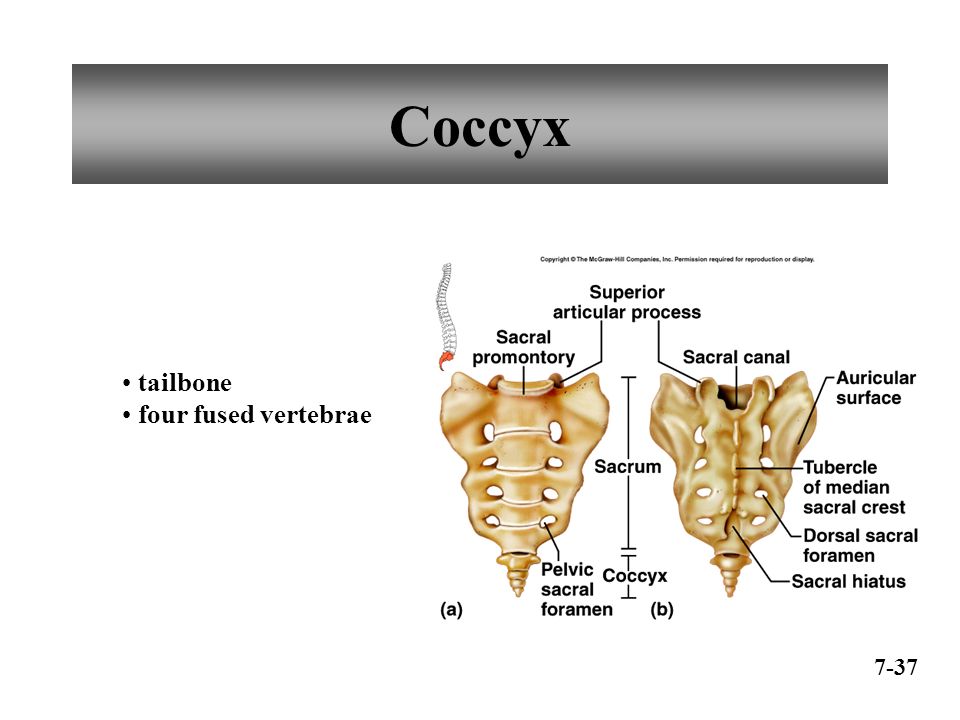

Coccyx tailbone four fused vertebrae 7-37
38

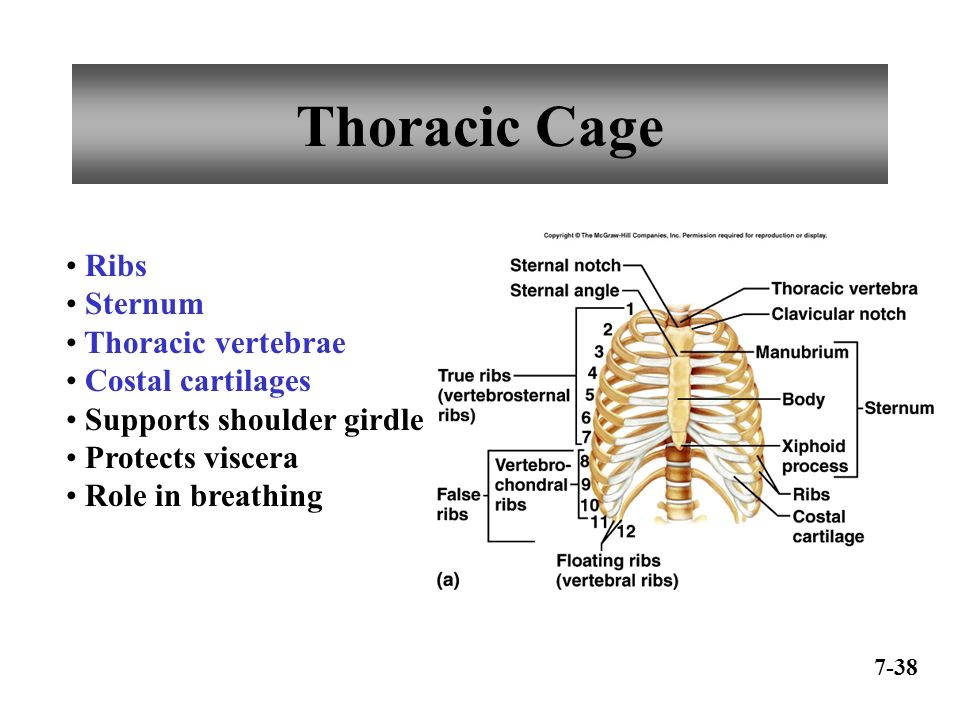

Thoracic Cage Ribs Sternum Thoracic vertebrae Costal cartilages Supports shoulder girdle Protects viscera Role in breathing 7-38
39

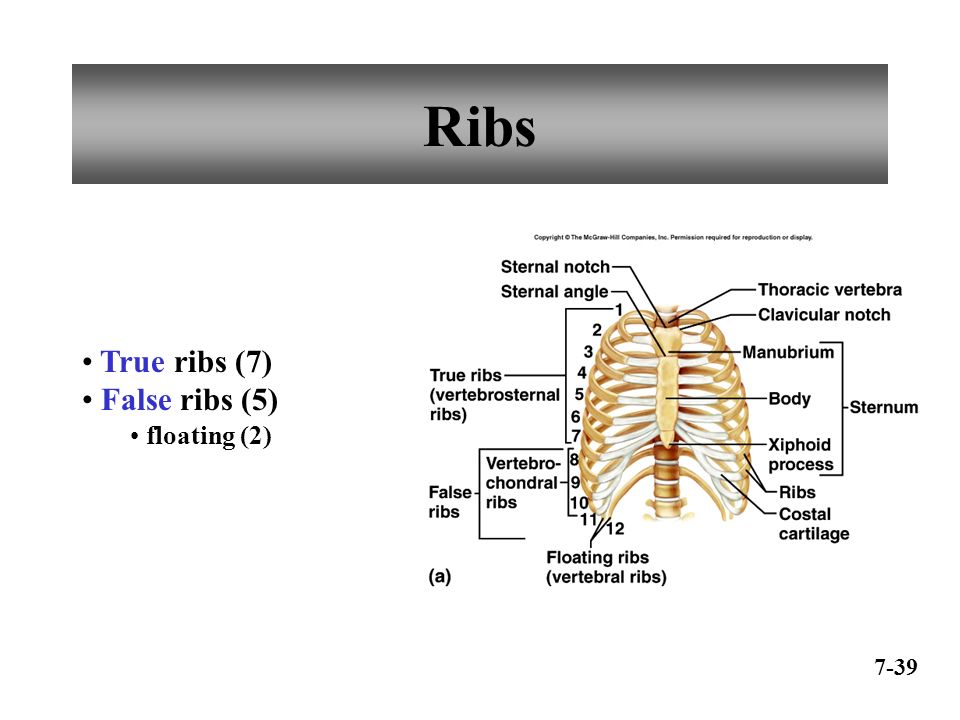

Ribs True ribs (7) False ribs (5) floating (2) 7-39
40

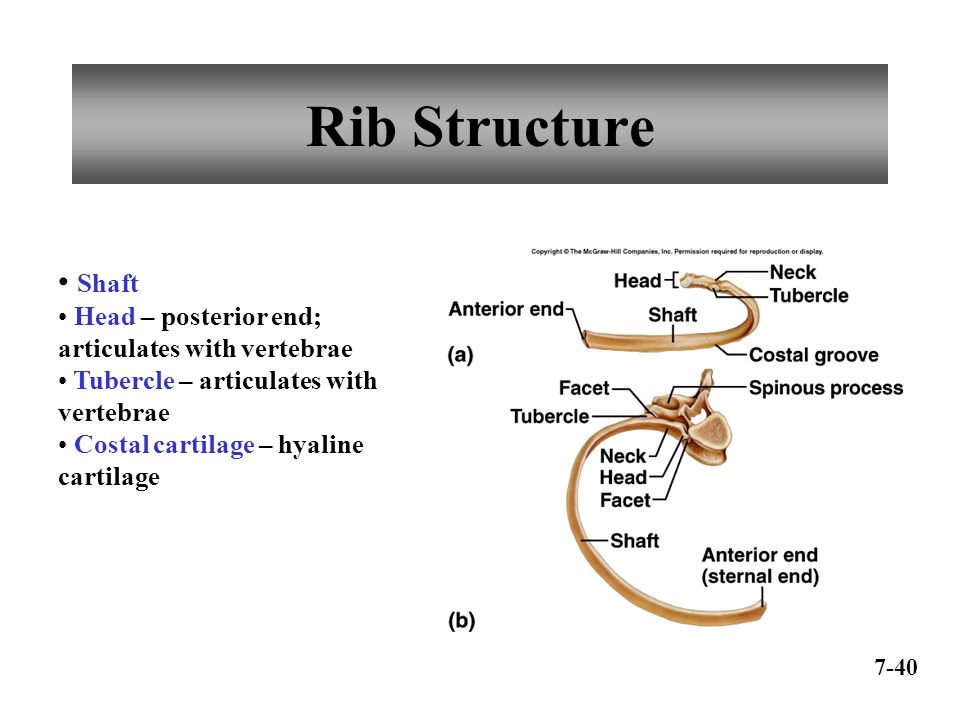

Rib Structure Shaft Head – posterior end; articulates with vertebrae Tubercle – articulates with vertebrae Costal cartilage – hyaline cartilage 7-40
41

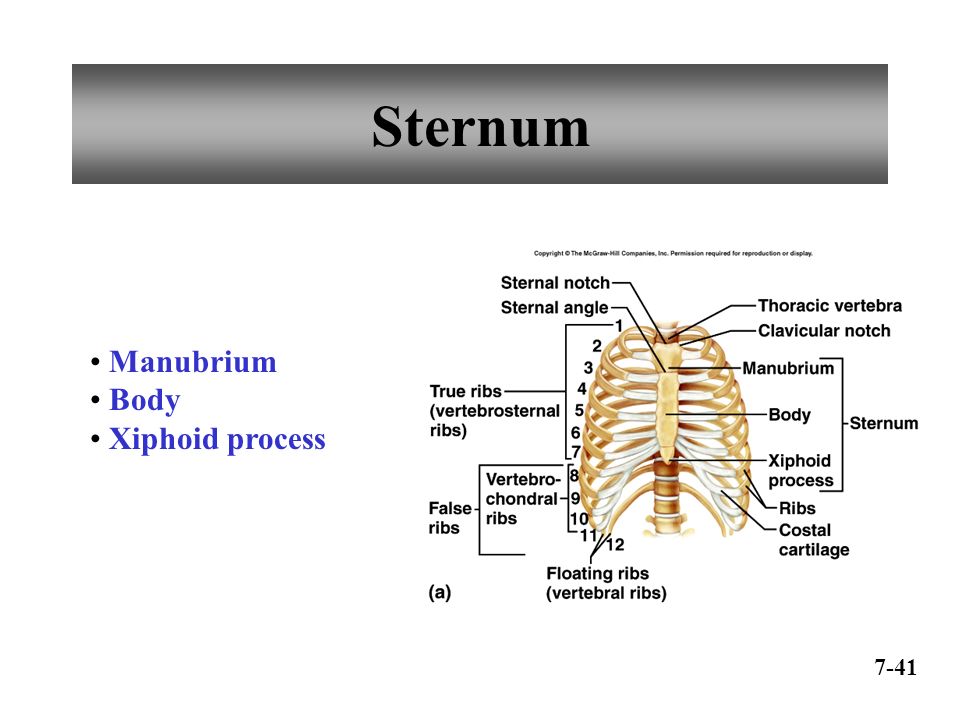

Sternum Manubrium Body Xiphoid process 7-41
42

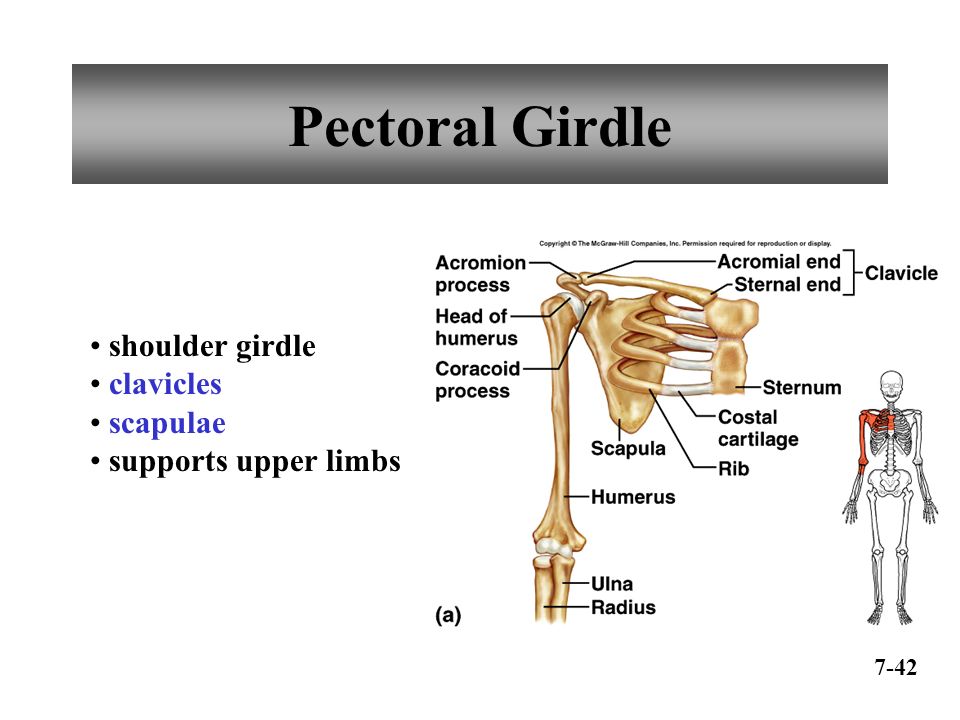

Pectoral Girdle shoulder girdle clavicles scapulae supports upper limbs 7-42
43

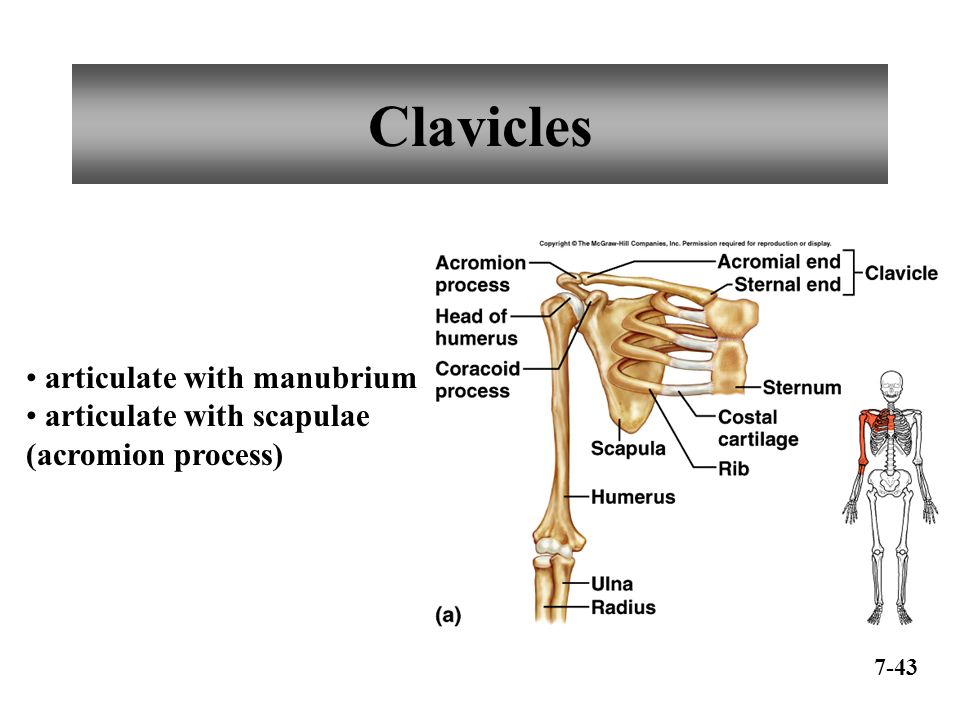

Clavicles articulate with manubrium articulate with scapulae (acromion process) 7-43
44
Scapulae spine supraspinous fossa infraspinous fossa acromion process coracoid process glenoid cavity 7-44
45
Upper Limb Humerus Radius Ulna Carpals Metacarpals Phalanges 7-45
46
Humerus head greater tubercle lesser tubercle anatomical neck surgical neck deltoid tuberosity capitulum trochlea coronoid fossa olecranon fossa 7-46
47
Radius lateral forearm bone head radial tuberosity styloid process 7-47
48

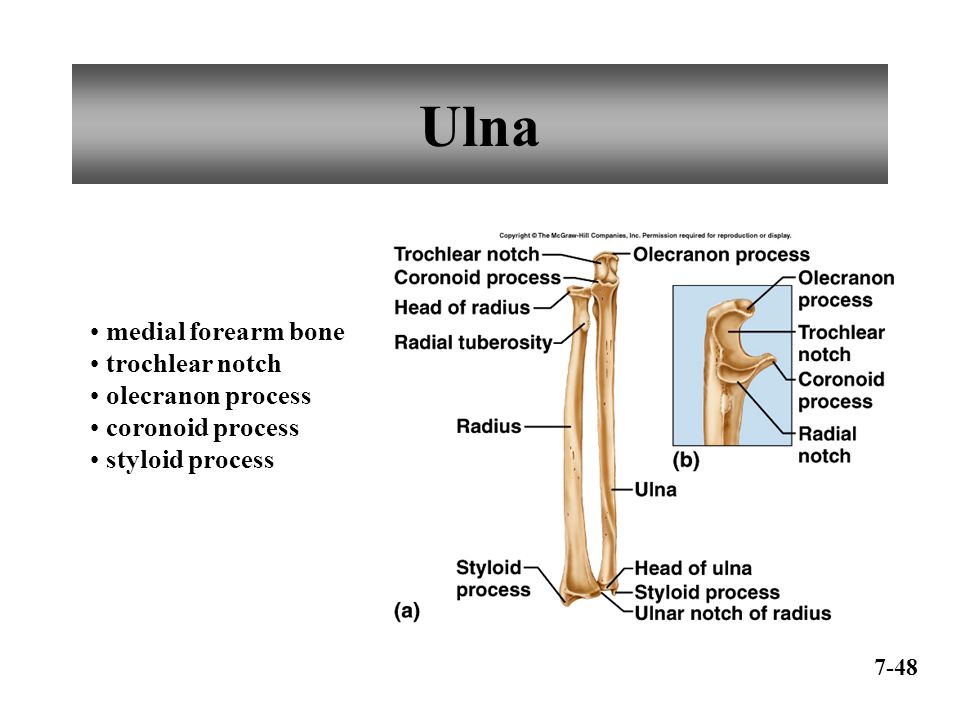

Ulna medial forearm bone trochlear notch olecranon process coronoid process styloid process 7-48
49
Wrist and Hand Carpals (16) trapezium trapezoid capitate scaphoid pisiform triquetrum hamate lunate Metacarpals (10) Phalanges (28) proximal phalanx middle phalanx distal phalanx 7-49
50

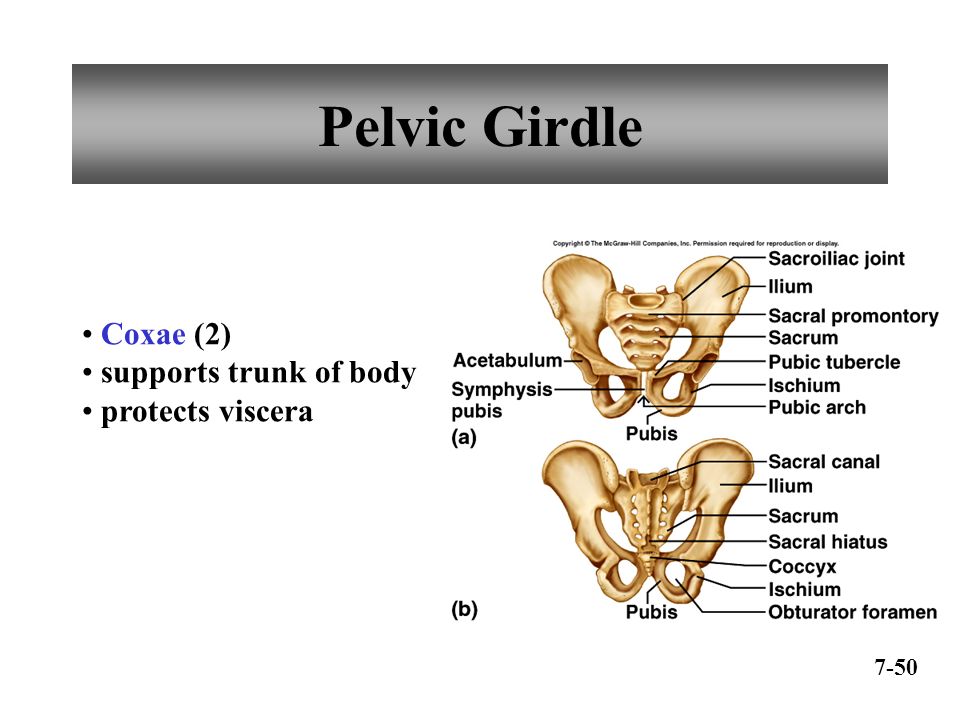

Pelvic Girdle Coxae (2) supports trunk of body protects viscera 7-50
51

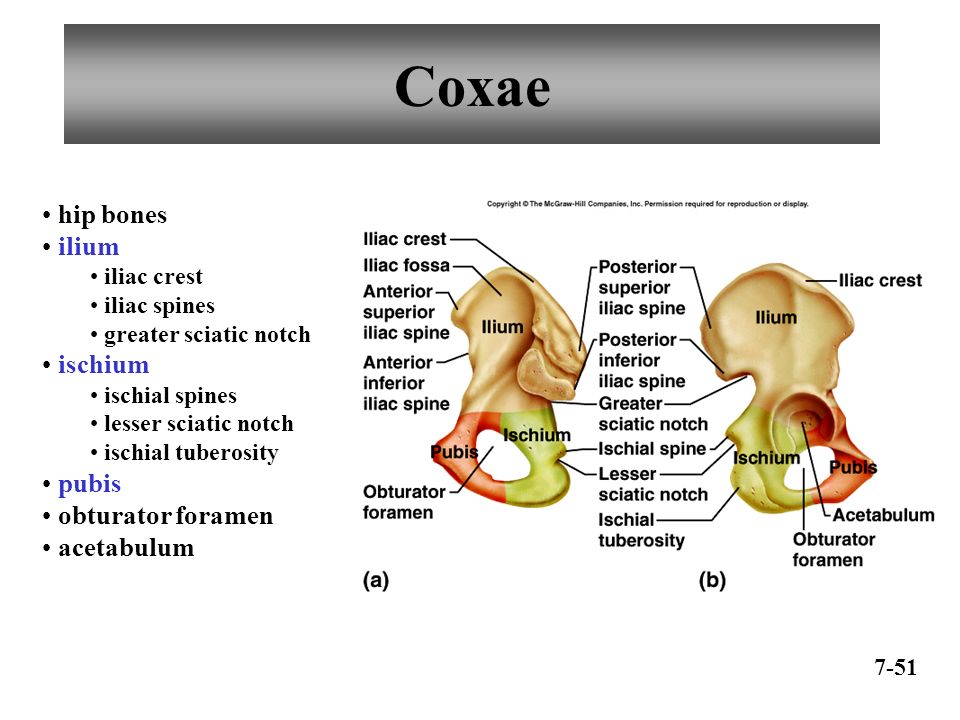

Coxae hip bones ilium iliac crest iliac spines greater sciatic notch ischium ischial spines lesser sciatic notch ischial tuberosity pubis obturator foramen acetabulum 7-51
52
Greater and Lesser Pelvis Greater Pelvis lumbar vertebrae posteriorly iliac bones laterally abdominal wall anteriorly Lesser Pelvis sacrum and coccyx posteriorly lower ilium, ischium, and pubis bones laterally and anteriorly 7-52
53

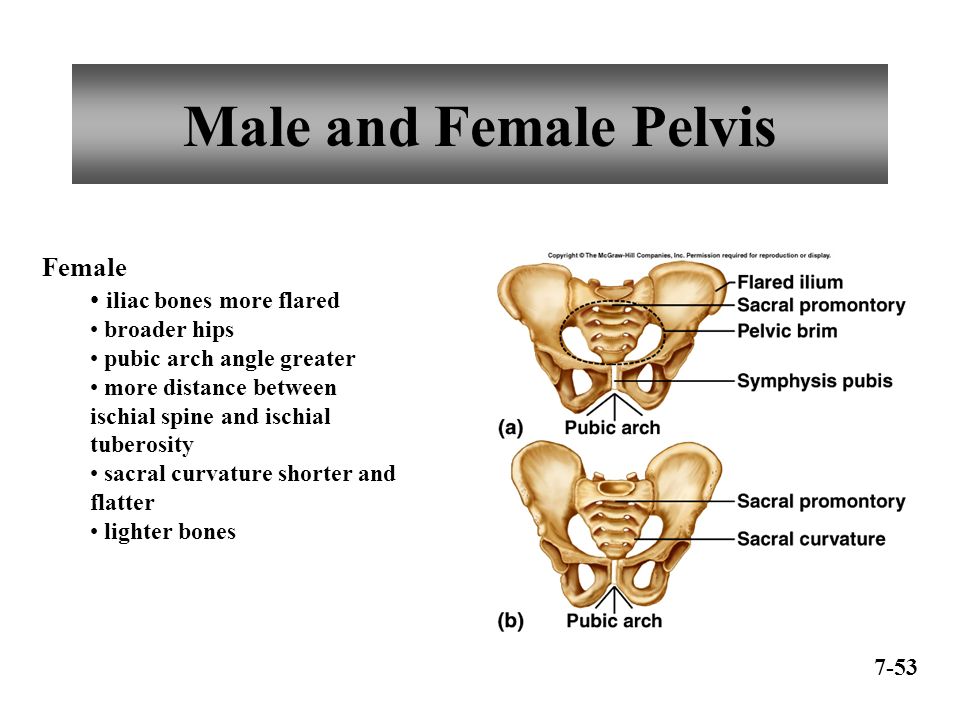

Male and Female Pelvis Female iliac bones more flared broader hips pubic arch angle greater more distance between ischial spine and ischial tuberosity sacral curvature shorter and flatter lighter bones 7-53
54
Lower Limb Femur Patella Tibia Fibula Tarsals Metatarsals Phalanges 7-54
55
Femur longest bone of body head fovea capitis neck greater trochanter lesser trochanter linea aspera condyles epicondyles 7-55
56

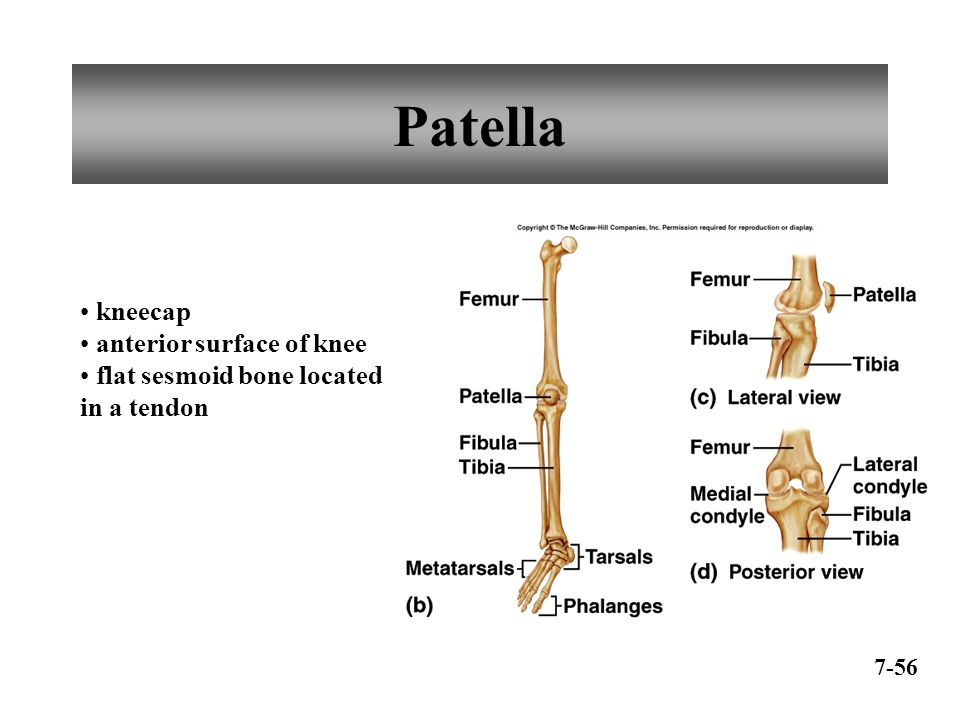

Patella kneecap anterior surface of knee flat sesmoid bone located in a tendon 7-56
57

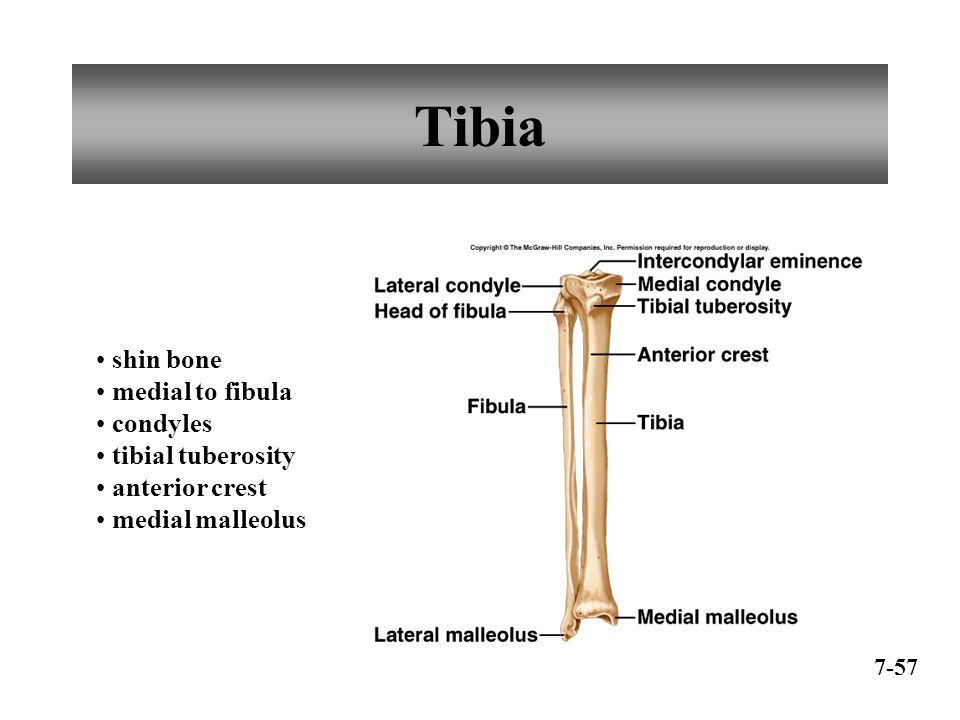

Tibia shin bone medial to fibula condyles tibial tuberosity anterior crest medial malleolus 7-57
58
Fibula Insert figure 7.54 lateral to tibia long, slender head lateral malleolus does not bear any body weight 7-58
59

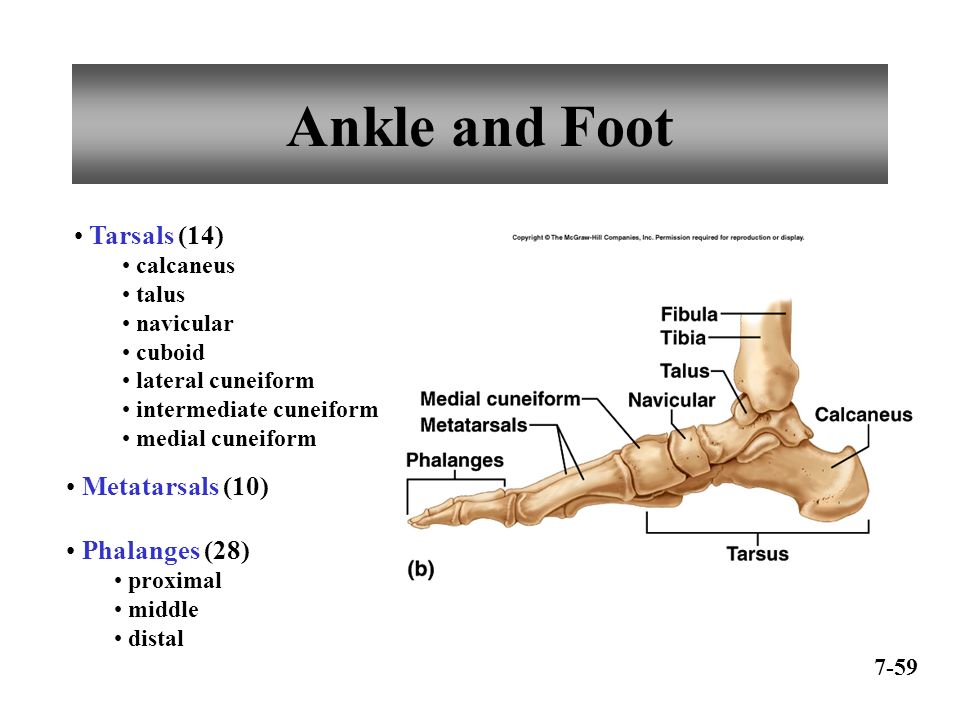

Ankle and Foot Tarsals (14) calcaneus talus navicular cuboid lateral cuneiform intermediate cuneiform medial cuneiform Metatarsals (10) Phalanges (28) proximal middle distal 7-59
60

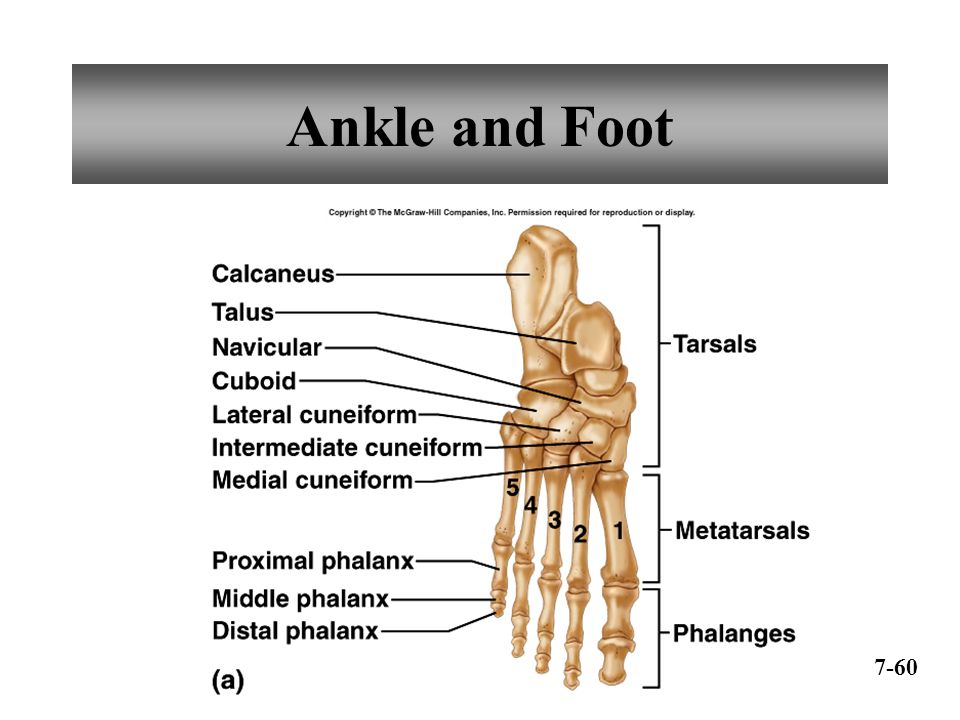

Ankle and Foot 7-60
61

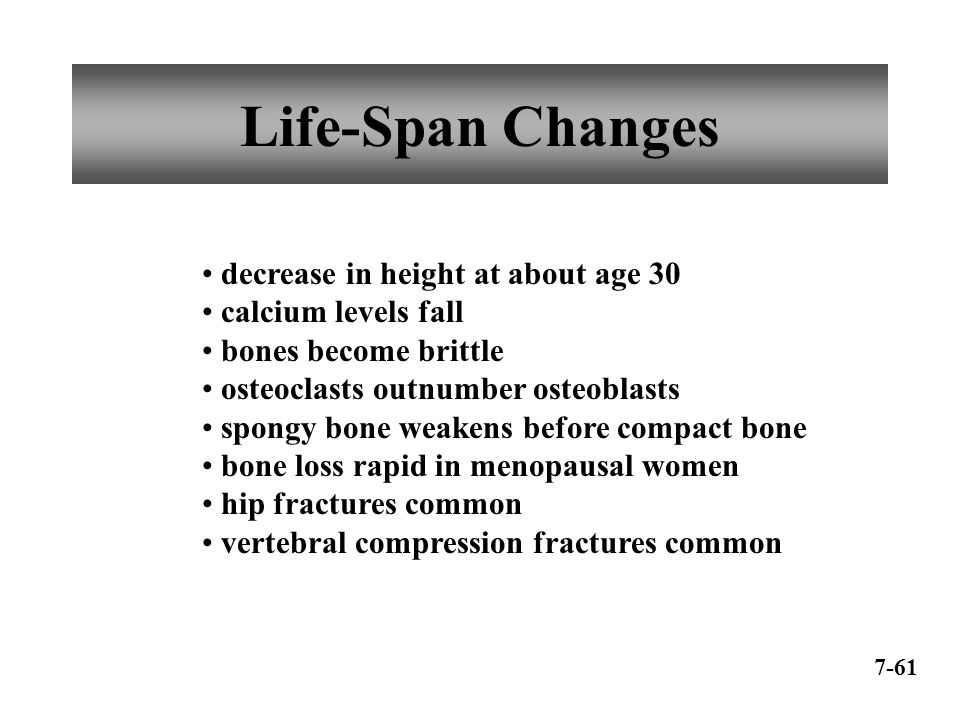

Life-Span Changes decrease in height at about age 30 calcium levels fall bones become brittle osteoclasts outnumber osteoblasts spongy bone weakens before compact bone bone loss rapid in menopausal women hip fractures common vertebral compression fractures common 7-61
62

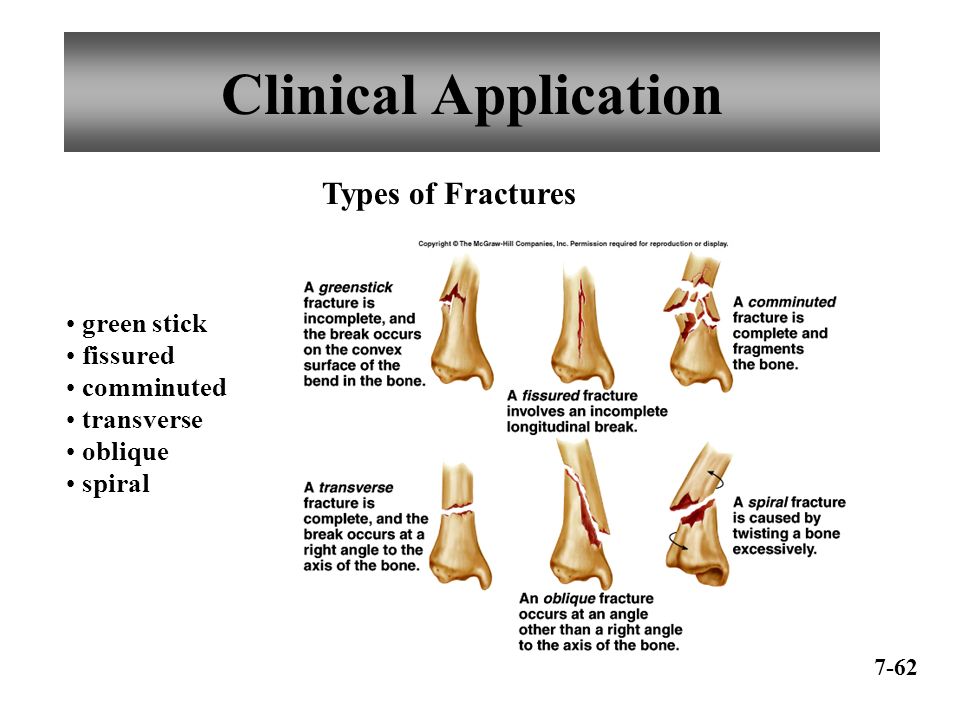

Clinical Application Types of Fractures green stick fissured comminuted transverse oblique spiral 7-62
63

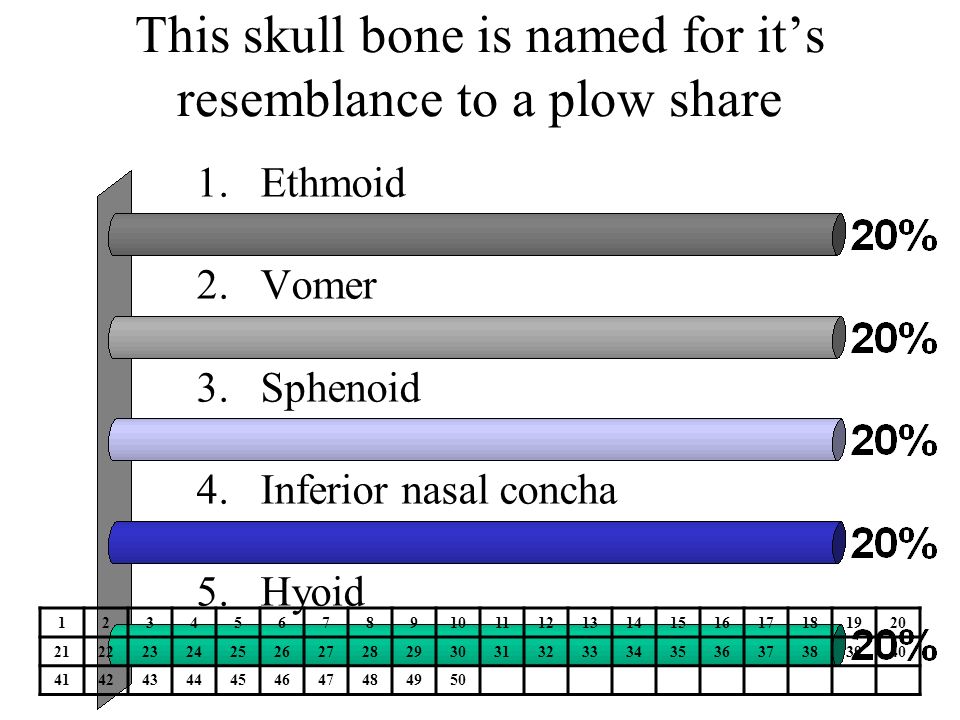

This skull bone is named for it’s resemblance to a plow share 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Ethmoid 2.Vomer 3.Sphenoid 4.Inferior nasal concha 5.Hyoid
64
This bone provides sockets for teeth of the upper jaw 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Palatine 2.Zygomatic 3.Maxilla 4.Maxilla and palatine 5.Mandible
65

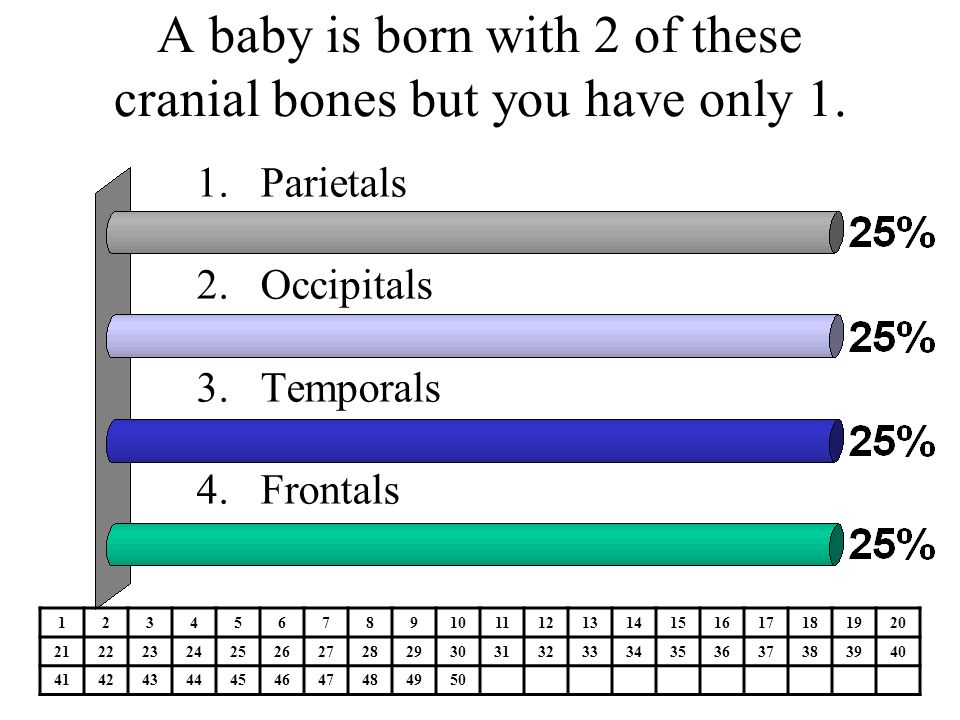

A baby is born with 2 of these cranial bones but you have only 1. 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Parietals 2.Occipitals 3.Temporals 4.Frontals

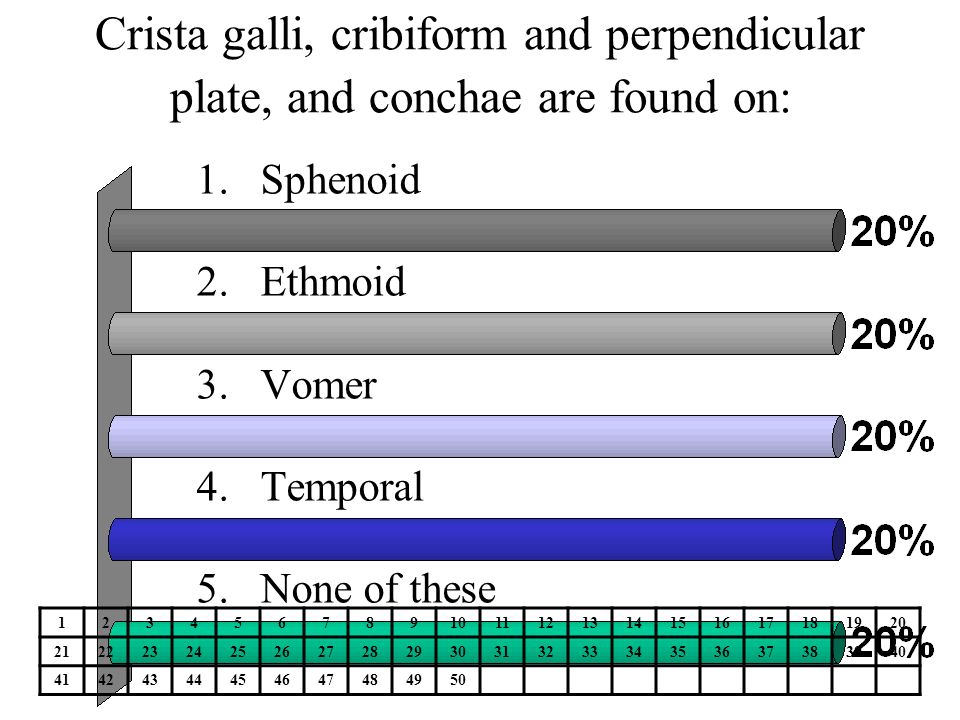

66
Crista galli, cribiform and perpendicular plate, and conchae are found on: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Sphenoid 2.Ethmoid 3.Vomer 4.Temporal 5.None of these
67
These bones and processes increase the surface area of the nasal cavity and are named after snail shells: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Sella turcica 2.Conchae 3.Foramen magnum 4.Sinuses 5.Olfactory foramina
68

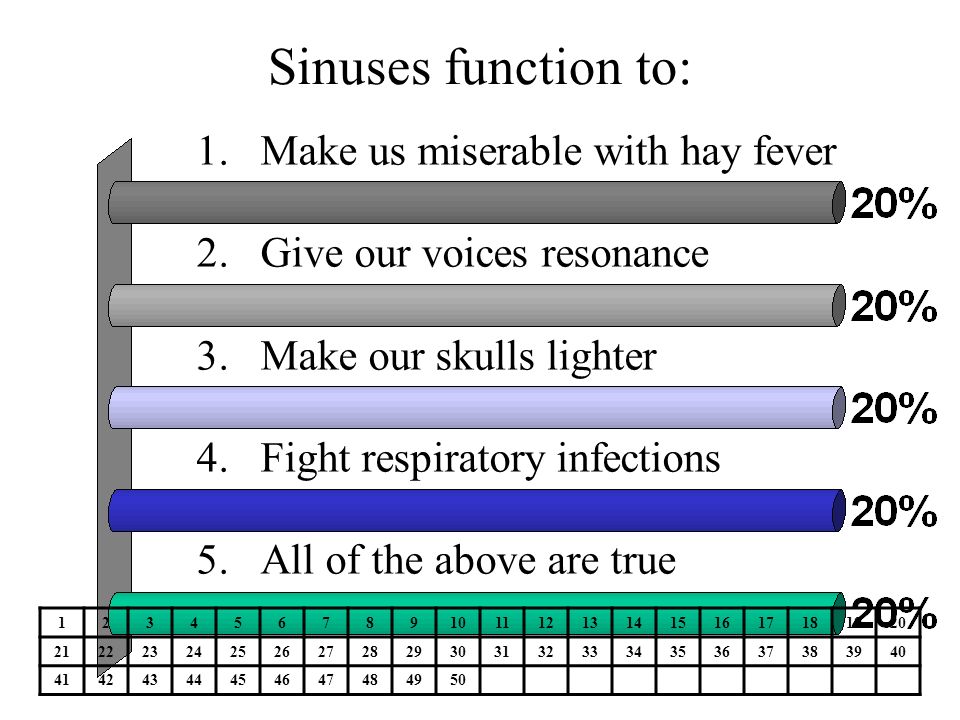

Sinuses function to: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Make us miserable with hay fever 2.Give our voices resonance 3.Make our skulls lighter 4.Fight respiratory infections 5.All of the above are true

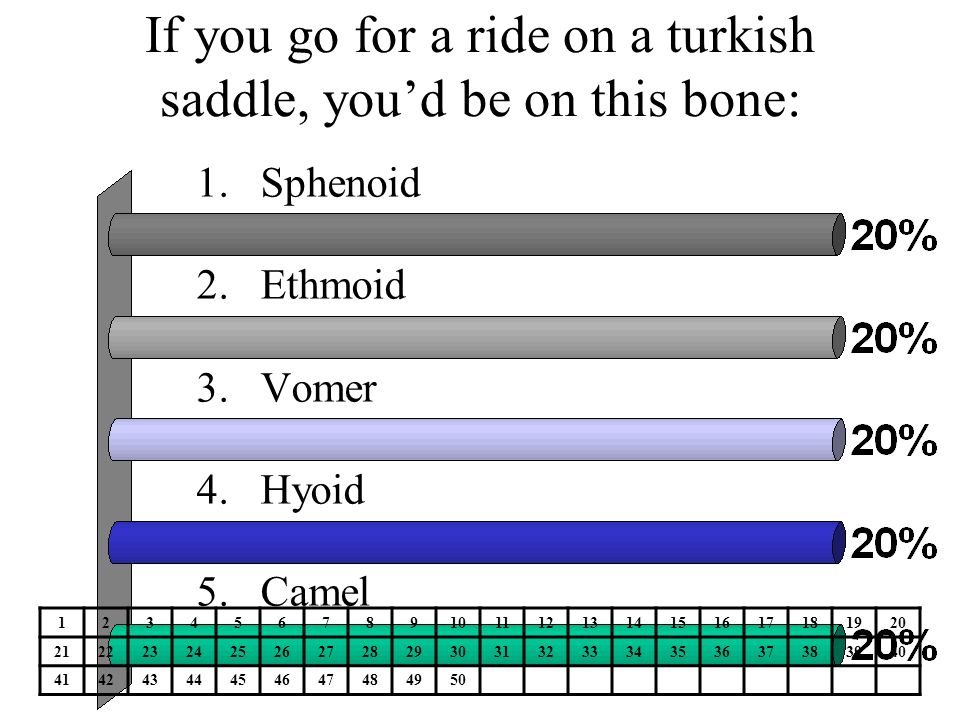

69
If you go for a ride on a turkish saddle, you’d be on this bone: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Sphenoid 2.Ethmoid 3.Vomer 4.Hyoid 5.Camel
70

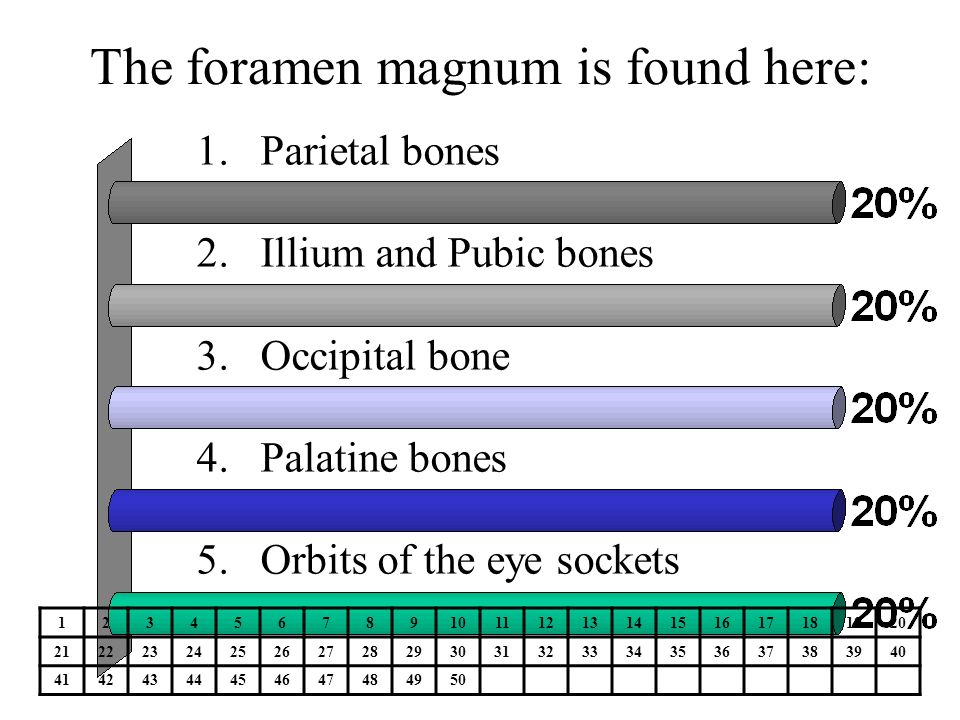

The foramen magnum is found here: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Parietal bones 2.Illium and Pubic bones 3.Occipital bone 4.Palatine bones 5.Orbits of the eye sockets
71
A cleft palate is usually due to incomplete fusion of these bones: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Palatines 2.Maxillae 3.Mandible 4.Vomer 5.None of the above

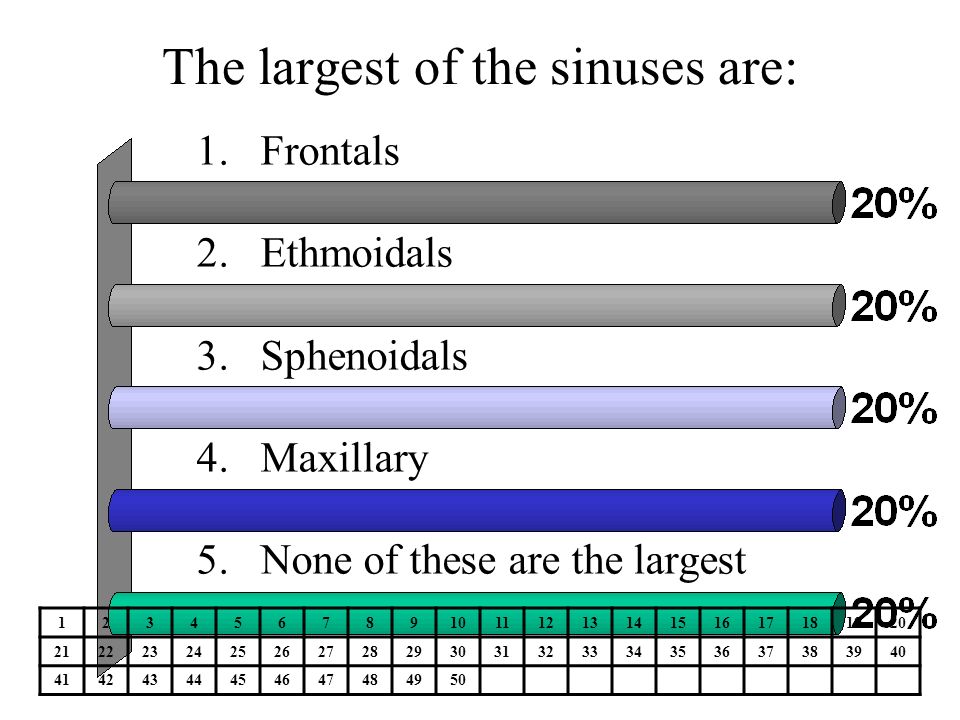

72
The largest of the sinuses are: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Frontals 2.Ethmoidals 3.Sphenoidals 4.Maxillary 5.None of these are the largest
73
This singular bone helps you swallow and move your tongue 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.Epiglottis 2.Hyoid 3.Thyroid 4.Cricoid 5.None of these
74

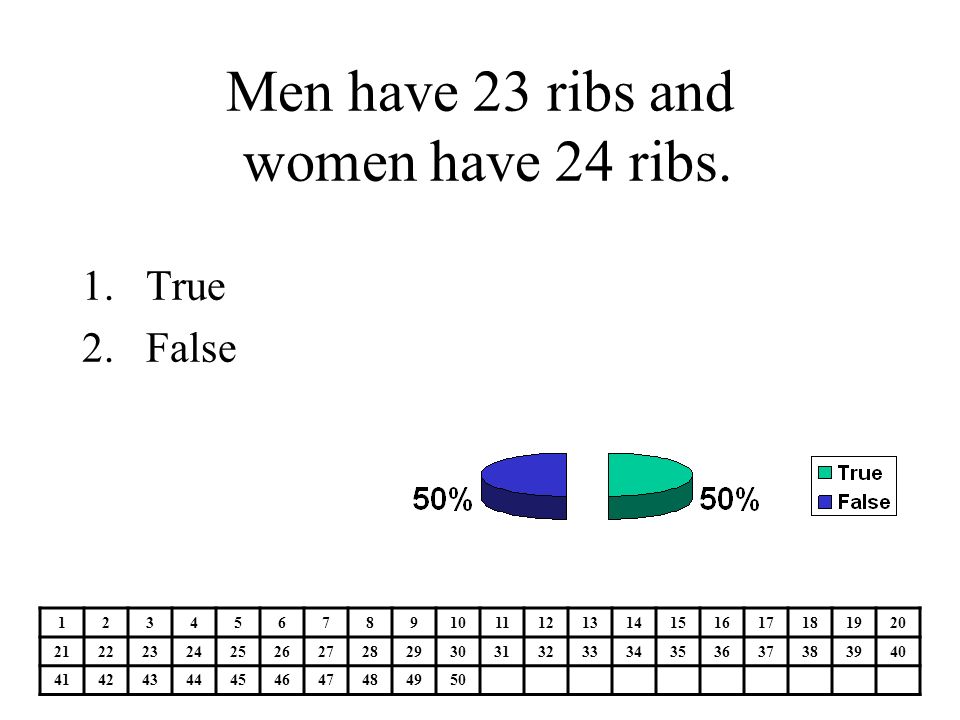

Men have 23 ribs and women have 24 ribs. 1.True 2.False 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950
75

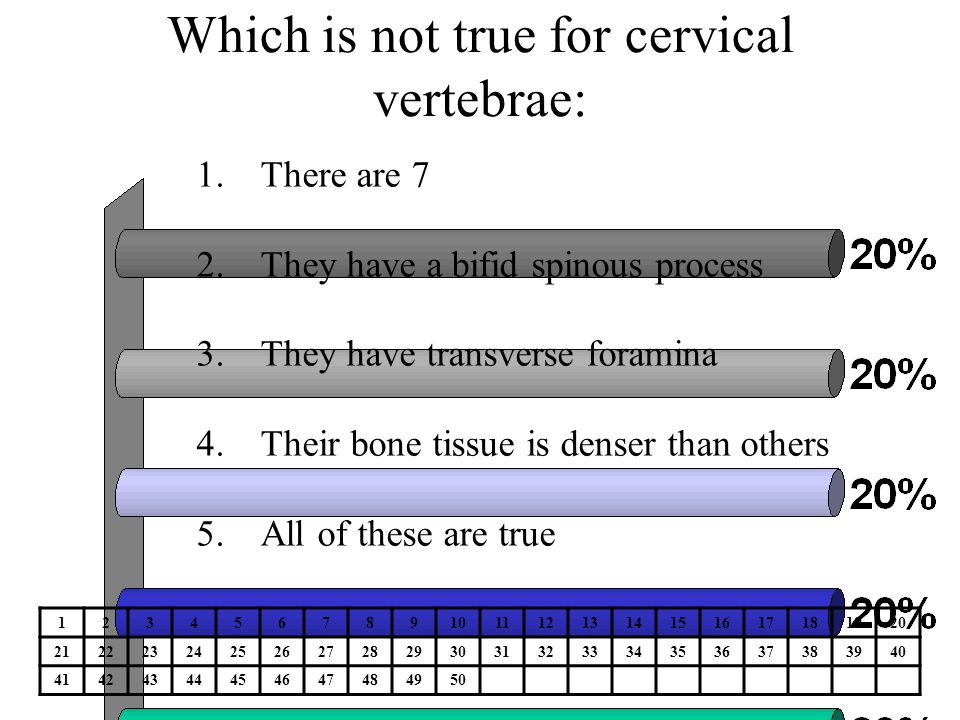

Which is not true for cervical vertebrae: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.There are 7 2.They have a bifid spinous process 3.They have transverse foramina 4.Their bone tissue is denser than others 5.All of these are true

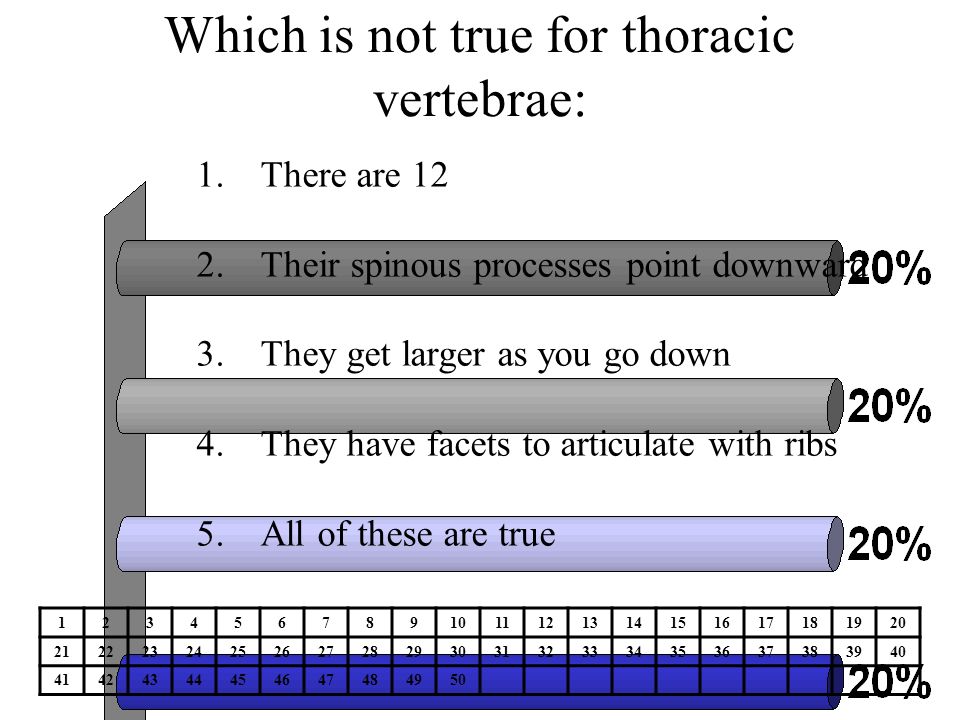

76
Which is not true for thoracic vertebrae: 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.There are 12 2.Their spinous processes point downward 3.They get larger as you go down 4.They have facets to articulate with ribs 5.All of these are true
77

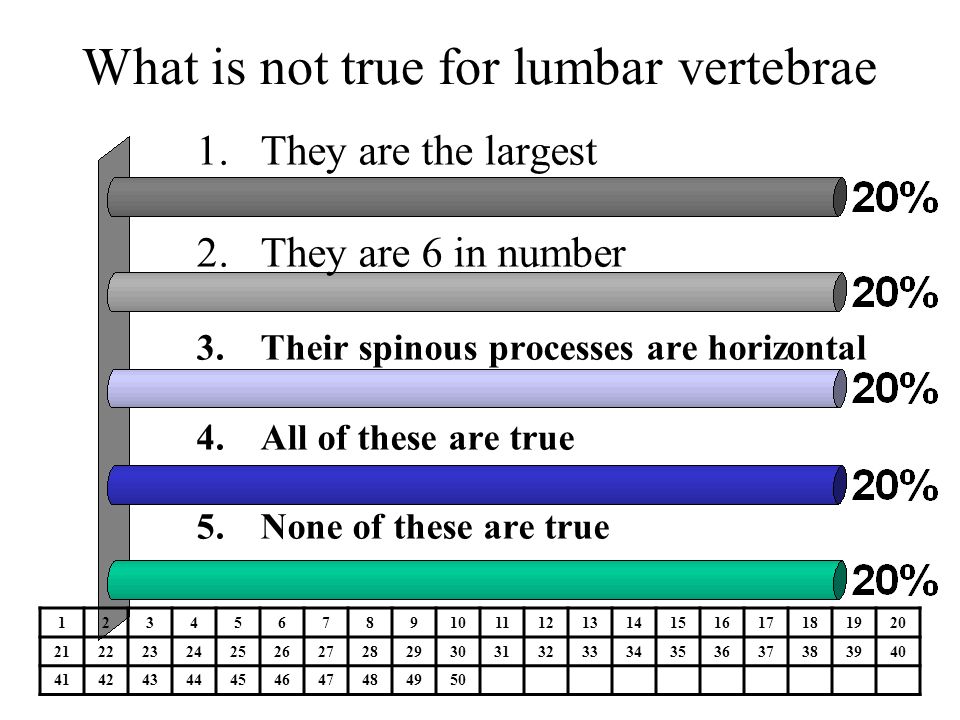

What is not true for lumbar vertebrae 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950 1.They are the largest 2.They are 6 in number 3.Their spinous processes are horizontal 4.All of these are true 5.None of these are true
78
Enter Question Text… 1.Enter answer text… 1234567891011121314151617181920 2122232425262728293031323334353637383940 41424344454647484950
