1. Chapter Ten The Application and Presentation Layers

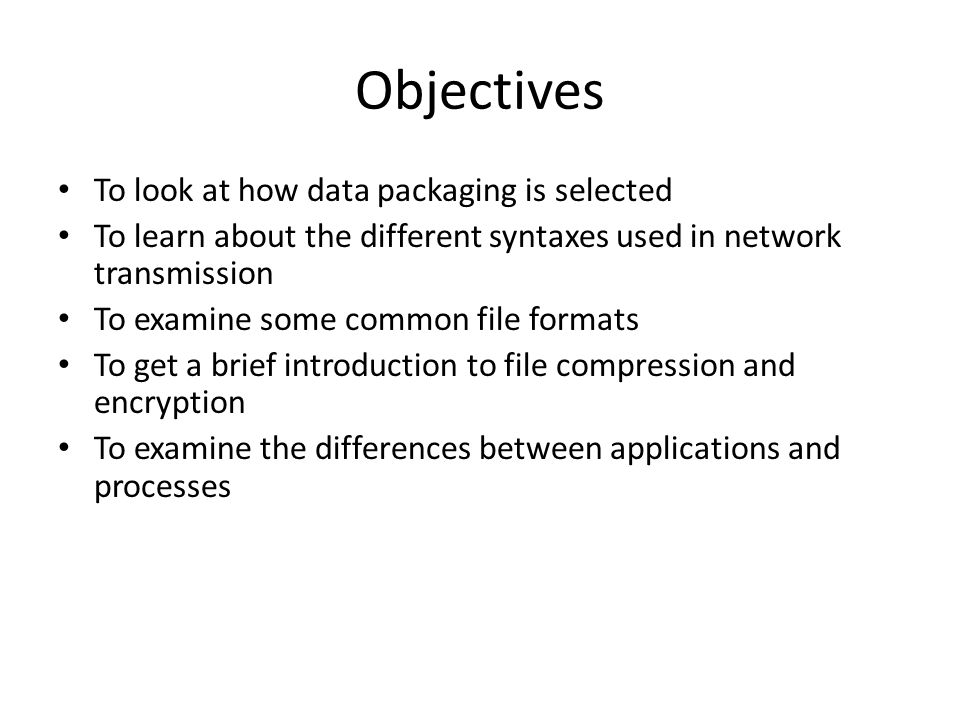

2. Objectives To look at how data packaging is selected To learn about the different syntaxes used in network transmission To examine some common file formats To get a brief introduction to file compression and encryption To examine the differences between applications and processes

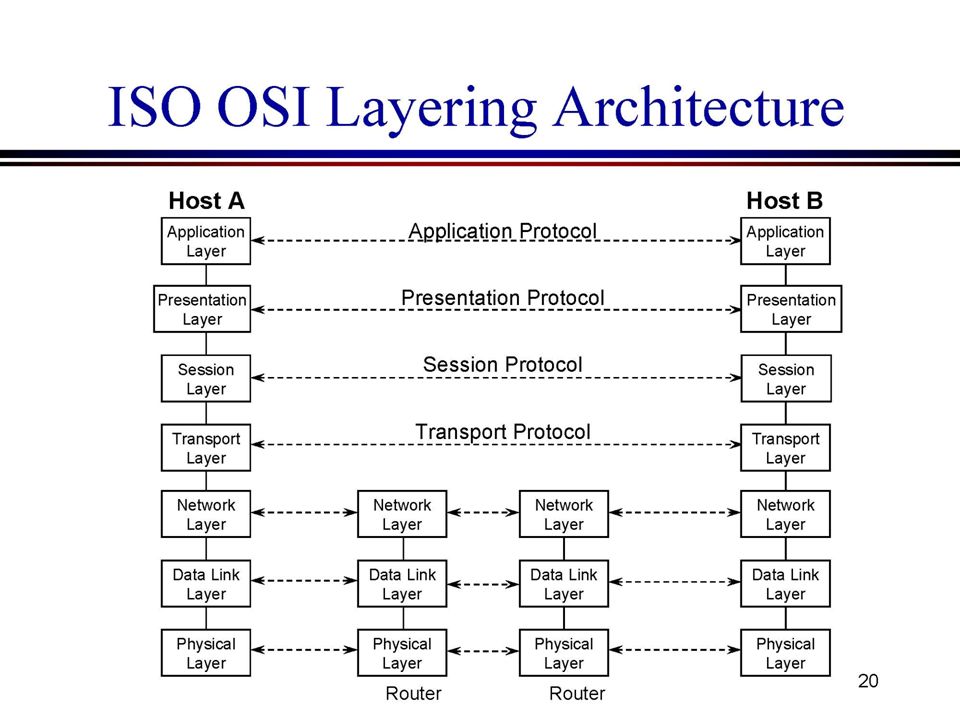

4. OSI and the Real World Most companies these days don’t follow OSI to the letter. The Application and Presentation layers are mostly historical artifacts and not used much in real-world networking.

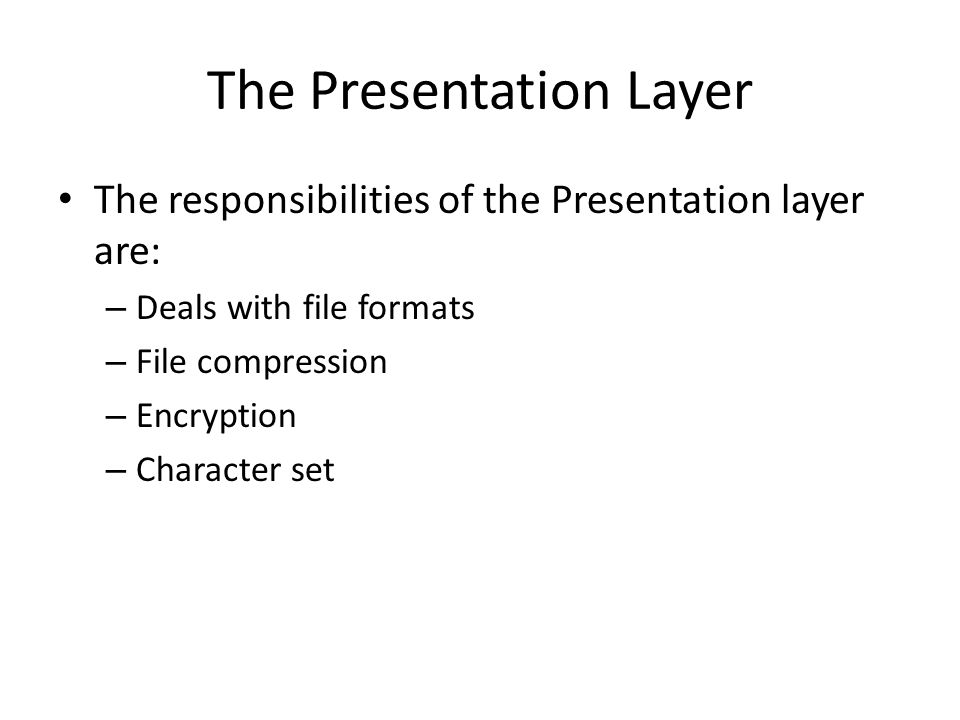

5. The Presentation Layer The responsibilities of the Presentation layer are: – Deals with file formats – File compression – Encryption – Character set

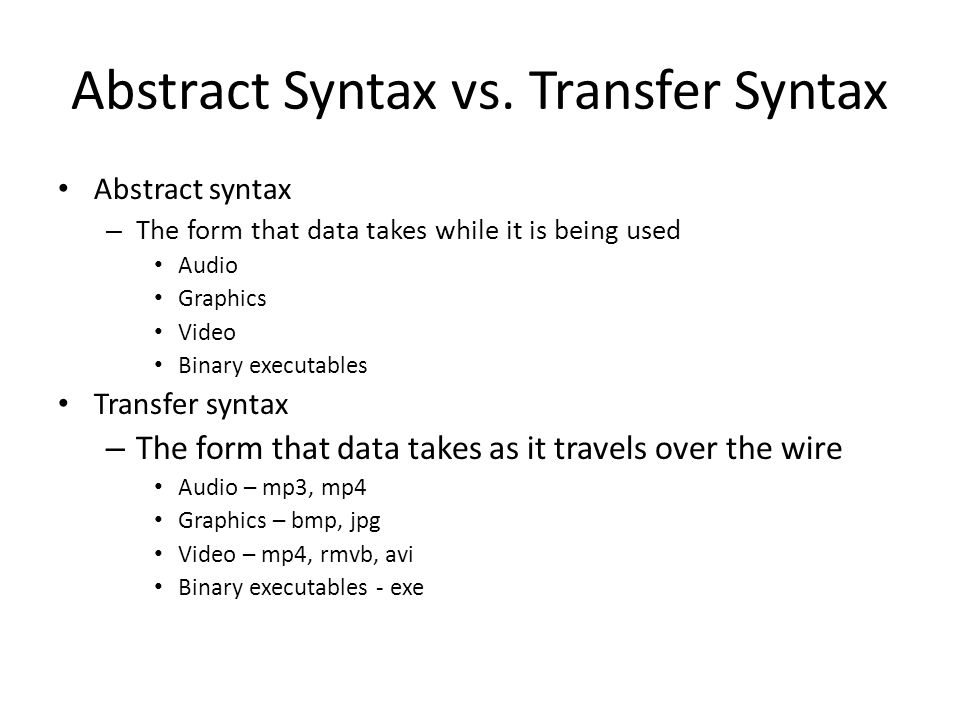

6. Abstract Syntax vs. Transfer Syntax Abstract syntax – The form that data takes while it is being used Audio Graphics Video Binary executables Transfer syntax – The form that data takes as it travels over the wire Audio – mp3, mp4 Graphics – bmp, jpg Video – mp4, rmvb, avi Binary executables - exe

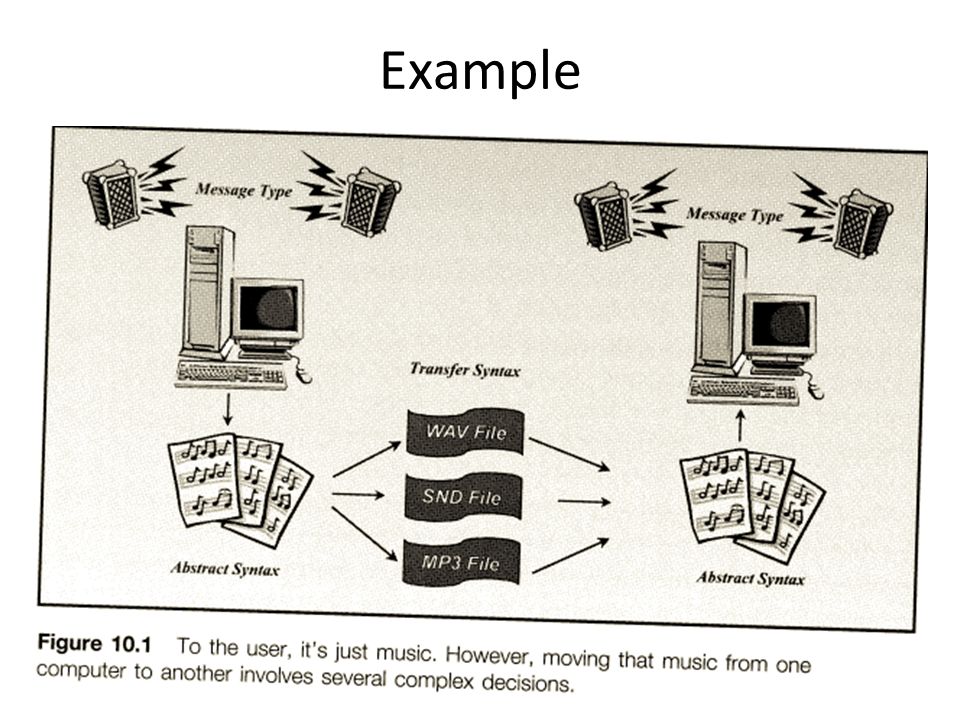

7. Example

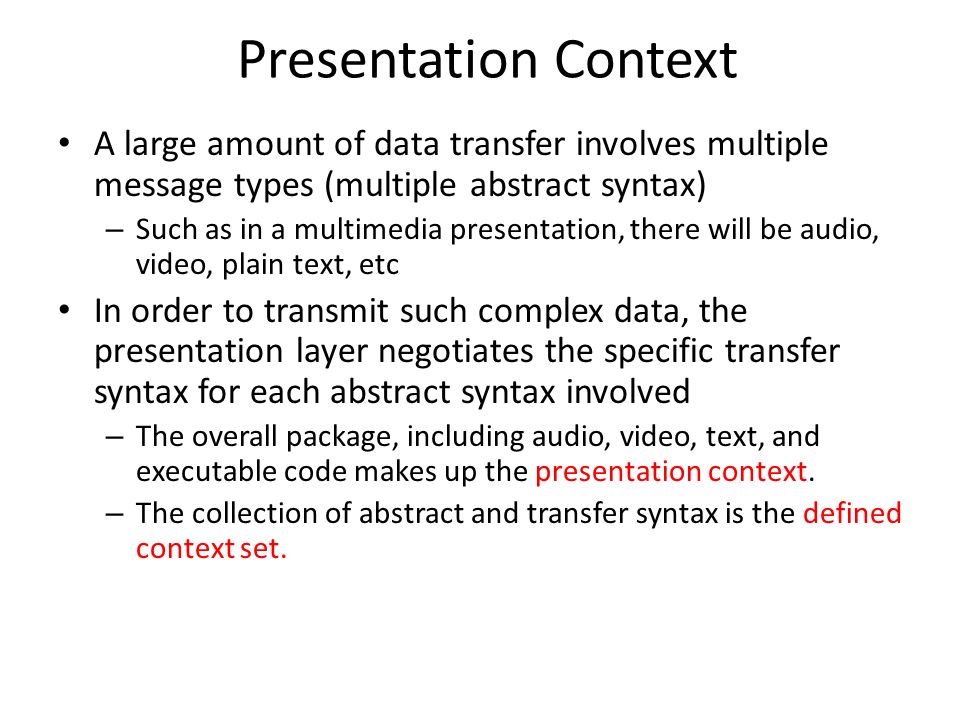

8. Presentation Context A large amount of data transfer involves multiple message types (multiple abstract syntax) – Such as in a multimedia presentation, there will be audio, video, plain text, etc In order to transmit such complex data, the presentation layer negotiates the specific transfer syntax for each abstract syntax involved – The overall package, including audio, video, text, and executable code makes up the presentation context. – The collection of abstract and transfer syntax is the defined context set.

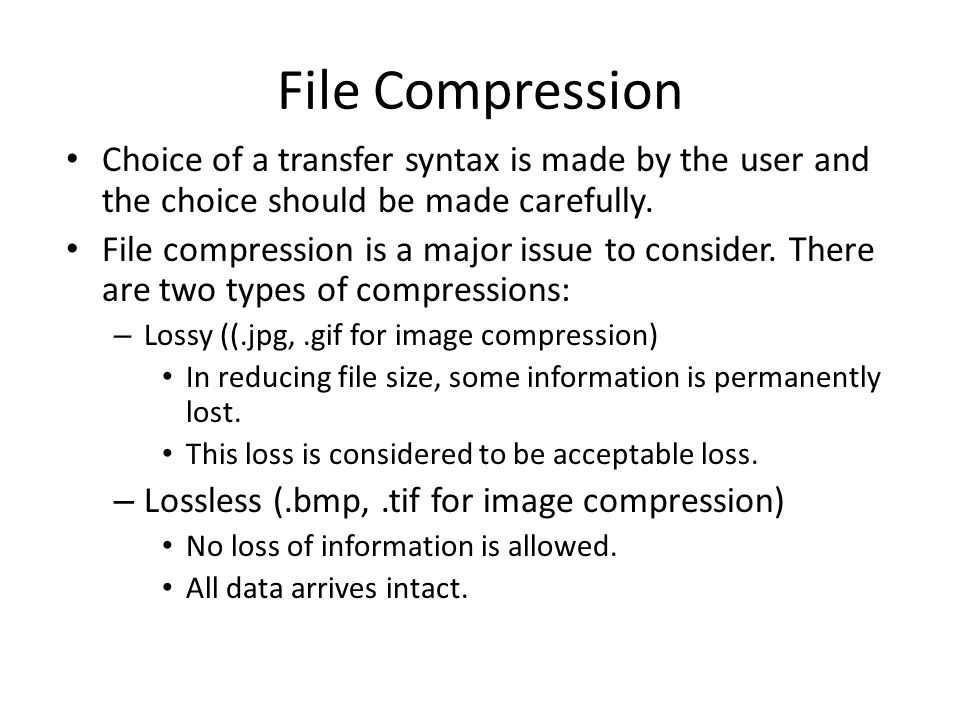

9. File Compression Choice of a transfer syntax is made by the user and the choice should be made carefully. File compression is a major issue to consider. There are two types of compressions: – Lossy ((.jpg,.gif for image compression) In reducing file size, some information is permanently lost. This loss is considered to be acceptable loss. – Lossless (.bmp,.tif for image compression) No loss of information is allowed. All data arrives intact.

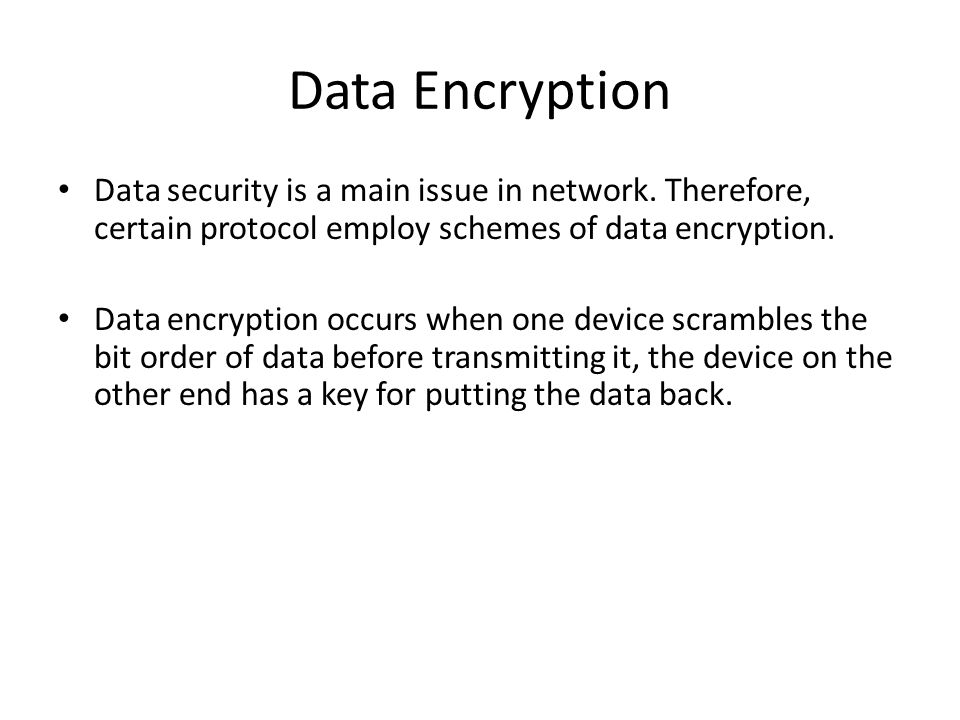

10. Data Encryption Data security is a main issue in network. Therefore, certain protocol employ schemes of data encryption. Data encryption occurs when one device scrambles the bit order of data before transmitting it, the device on the other end has a key for putting the data back.

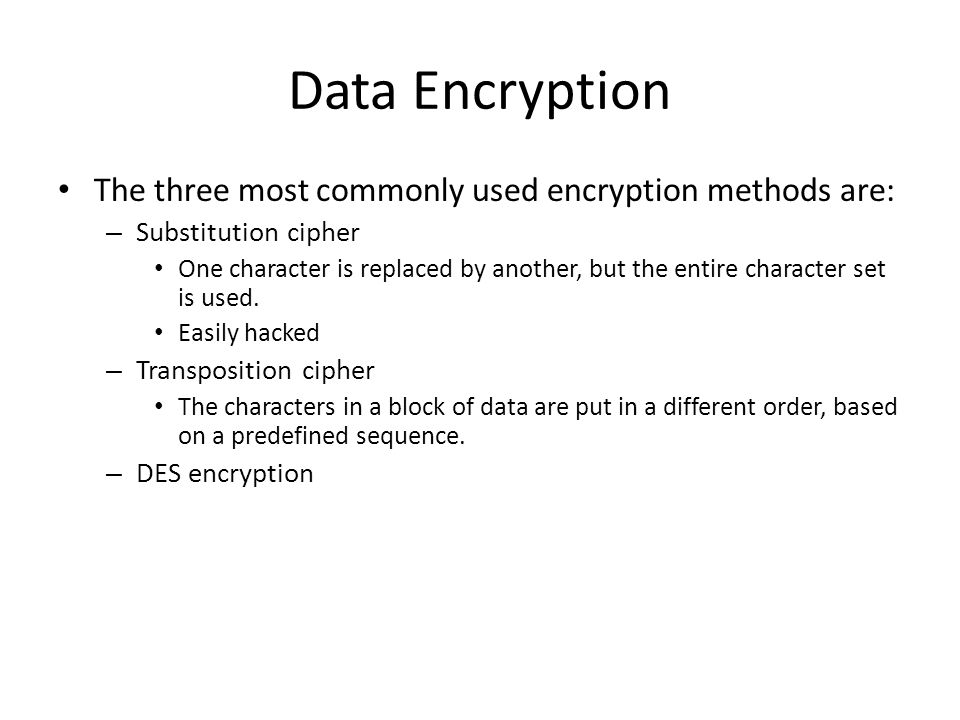

11. Data Encryption The three most commonly used encryption methods are: – Substitution cipher One character is replaced by another, but the entire character set is used. Easily hacked – Transposition cipher The characters in a block of data are put in a different order, based on a predefined sequence. – DES encryption

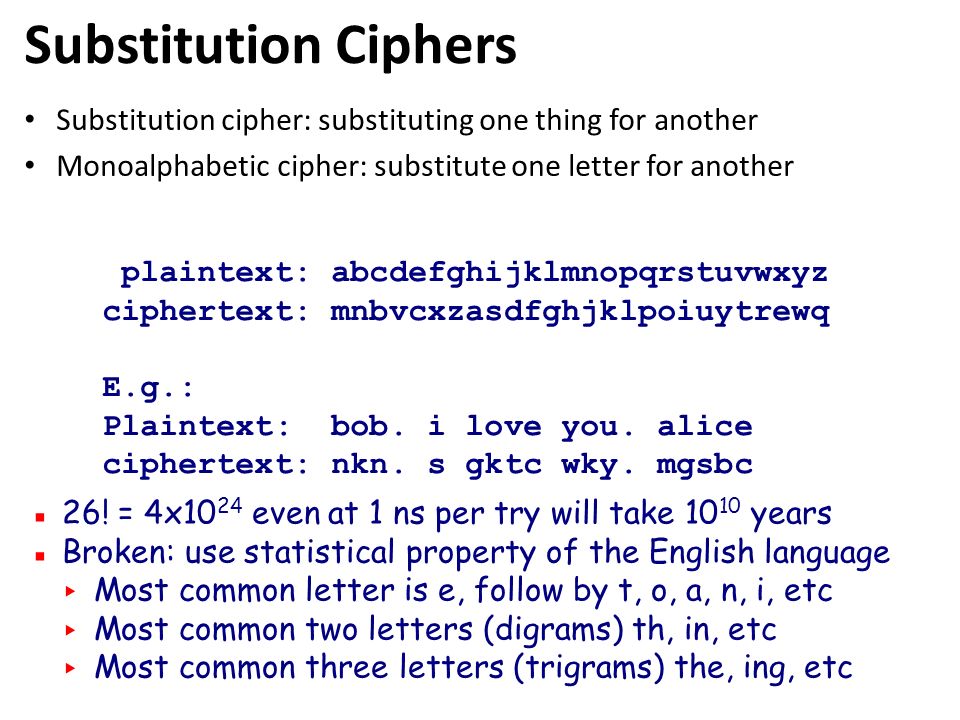

12. Substitution Ciphers Substitution cipher: substituting one thing for another Monoalphabetic cipher: substitute one letter for another plaintext: abcdefghijklmnopqrstuvwxyz ciphertext: mnbvcxzasdfghjklpoiuytrewq E.g.: Plaintext: bob. i love you. alice ciphertext: nkn. s gktc wky. mgsbc ▪26! = 4x10 24 even at 1 ns per try will take 10 10 years ▪Broken: use statistical property of the English language ▸ Most common letter is e, follow by t, o, a, n, i, etc ▸ Most common two letters (digrams) th, in, etc ▸ Most common three letters (trigrams) the, ing, etc

13. Transposition Ciphers ▪MEGABUCK is the Key and sort by alphabet (numbers in the second row) ▪Ciphertext is sent one column at a time staring with the lowest key which is 1 (column A), then 2 (column B), and so on. ▪Broken: frequency of letters does not change

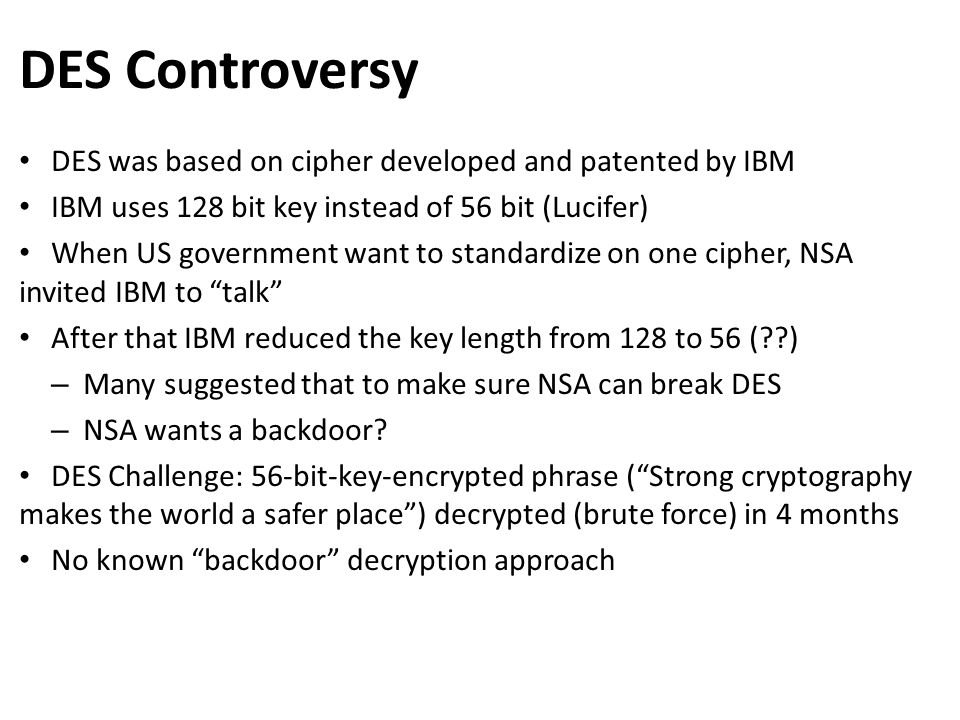

14. DES Controversy DES was based on cipher developed and patented by IBM IBM uses 128 bit key instead of 56 bit (Lucifer) When US government want to standardize on one cipher, NSA invited IBM to “talk” After that IBM reduced the key length from 128 to 56 (??) – Many suggested that to make sure NSA can break DES – NSA wants a backdoor? DES Challenge: 56-bit-key-encrypted phrase (“Strong cryptography makes the world a safer place”) decrypted (brute force) in 4 months No known “backdoor” decryption approach

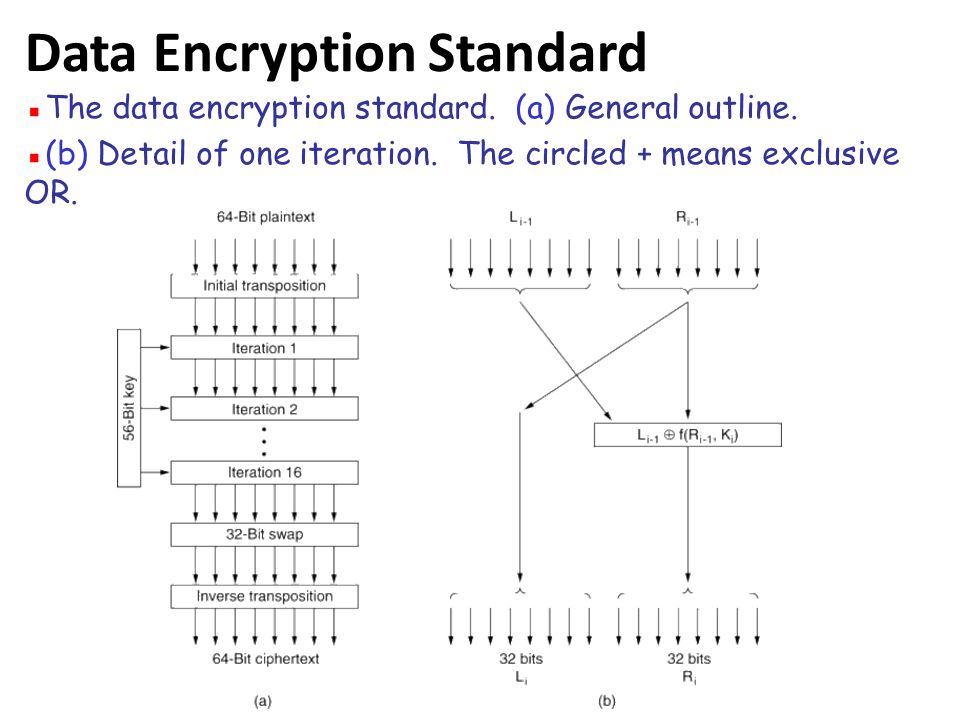

15. Data Encryption Standard ▪The data encryption standard. (a) General outline. ▪(b) Detail of one iteration. The circled + means exclusive OR.

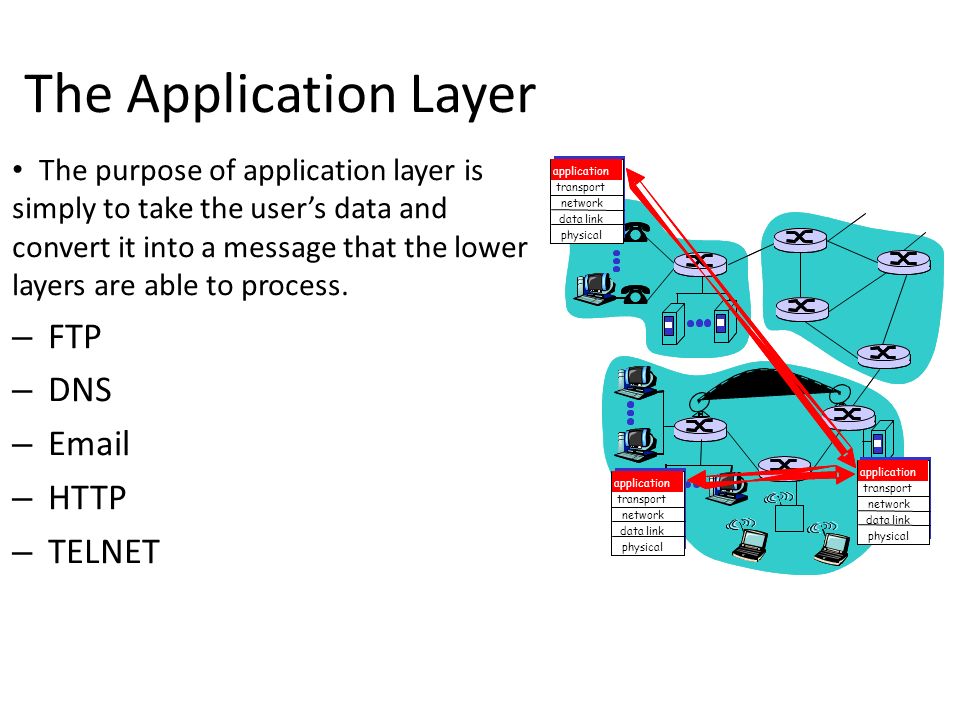

16. The Application Layer The purpose of application layer is simply to take the user’s data and convert it into a message that the lower layers are able to process. – FTP – DNS – Email – HTTP – TELNET application transport network data link physical application transport network data link physical application transport network data link physical application transport network data link physical application transport network data link physical application transport network data link physical application transport network data link physical application transport network data link physical application transport network data link physical

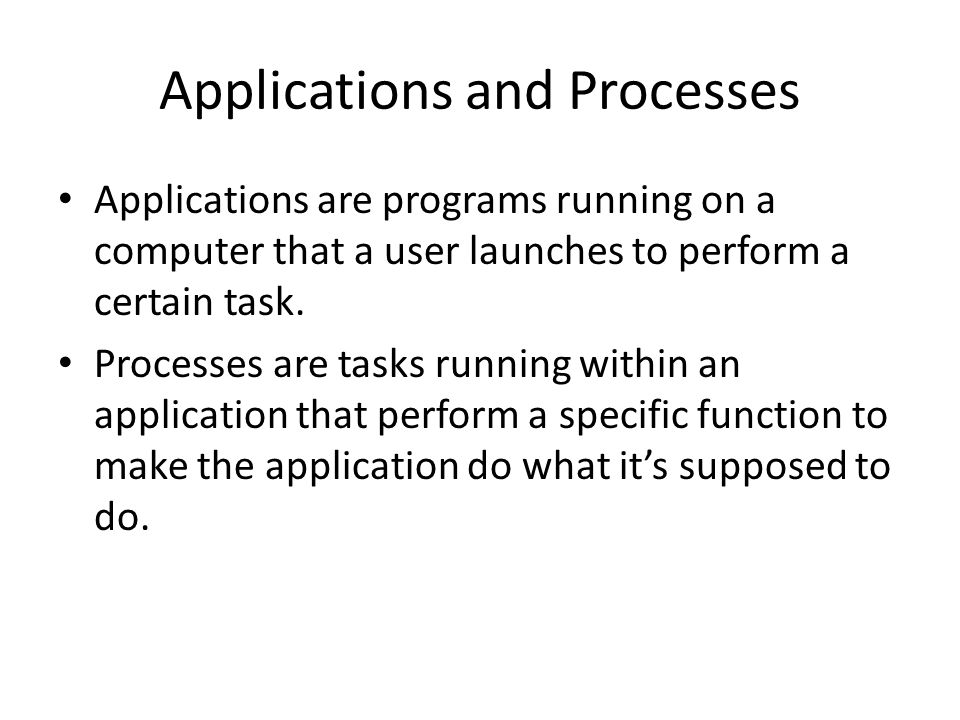

17. Applications and Processes Applications are programs running on a computer that a user launches to perform a certain task. Processes are tasks running within an application that perform a specific function to make the application do what it’s supposed to do.

18. Application Process Application processes fall under the category of either a Common Application-specific Element (CASE) or a Specific Application-Specific Element (SASE). SASE is processes that would be called specifically by the programmer only when needed. CASE processes are those whose services are likely to be required regardless of the type of communication. Some example of CASE processes are: – Association control (ACSE) – Reliable transfer (RTSE) – Remote operations (ROSE) – Commitment, concurrency, and recovery (CCR)

19. Application Process ACSE is the process by which the two devices are able to establish and then subsequently terminate a logic connection between two application processes. RTSE assures that the data moved from one device to another gets there safely and intact. CCR is the process by which a transaction is either finished or it never happened.
