1. October 13, 2005 0 MATLAB Fuzzy Logic Toolbox Intelligent Control

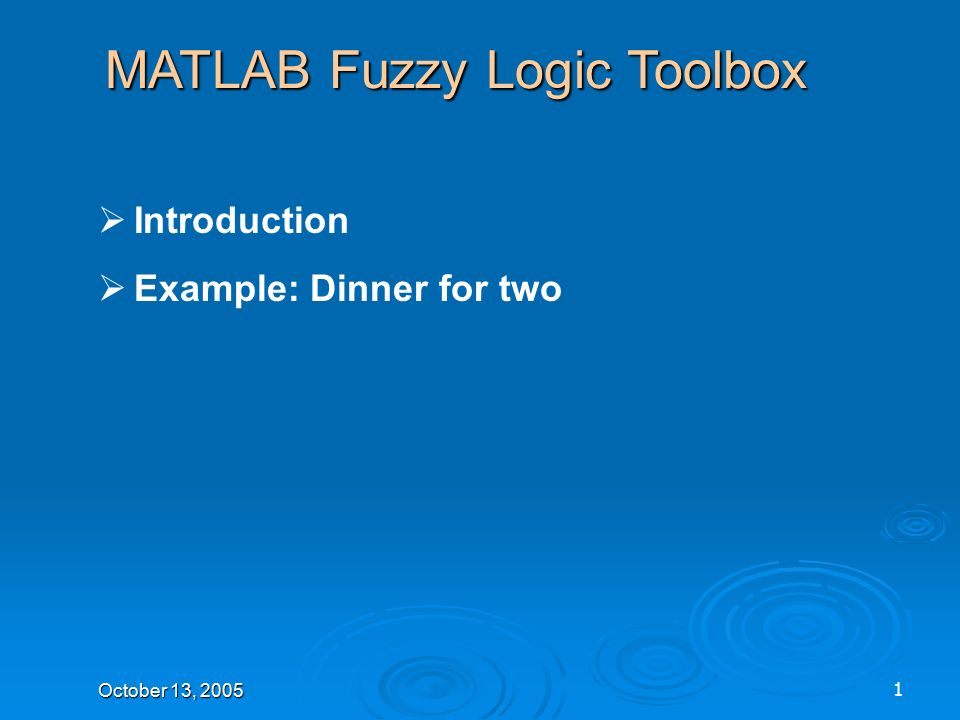

2. October 13, 2005 1  Introduction  Example: Dinner for two MATLAB Fuzzy Logic Toolbox

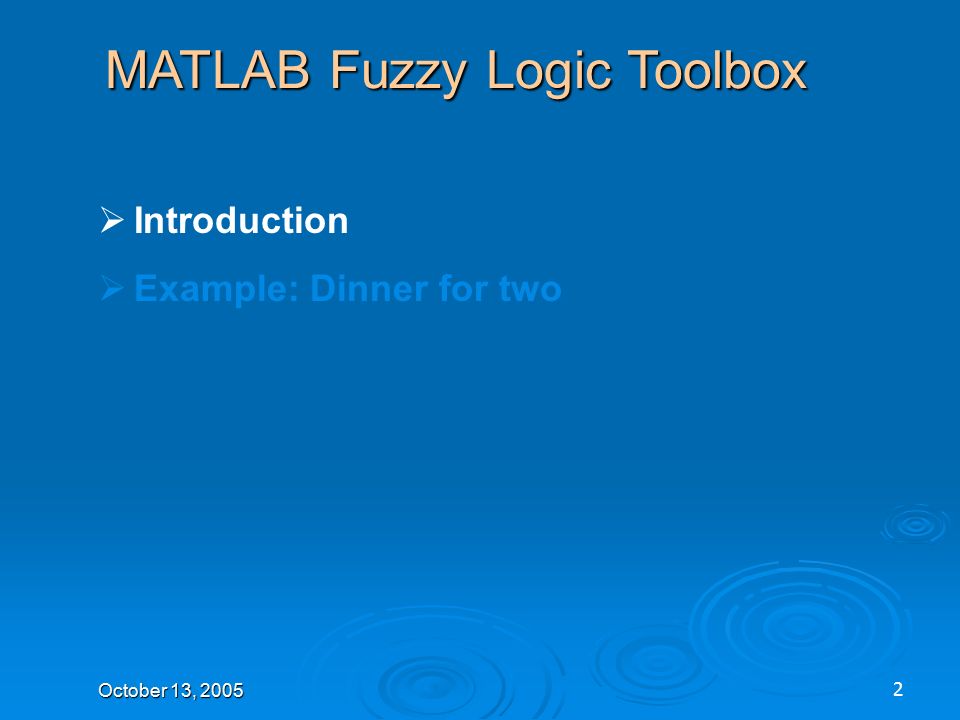

3. October 13, 2005 2  Introduction  Example: Dinner for two MATLAB Fuzzy Logic Toolbox

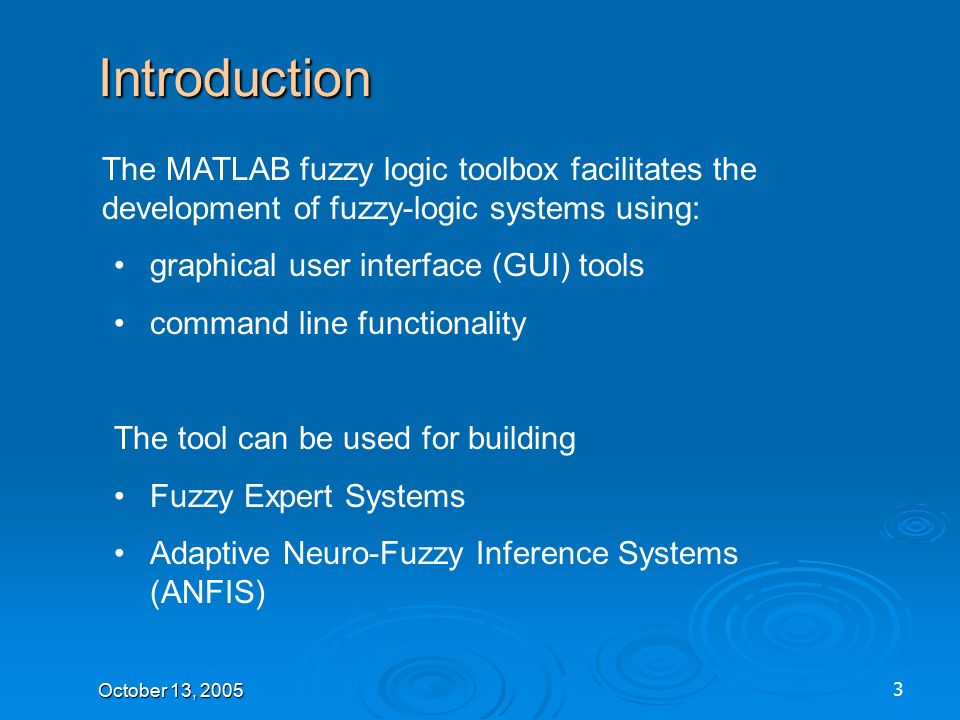

4. October 13, 2005 3 The MATLAB fuzzy logic toolbox facilitates the development of fuzzy-logic systems using: graphical user interface (GUI) tools command line functionality The tool can be used for building Fuzzy Expert Systems Adaptive Neuro-Fuzzy Inference Systems (ANFIS) Introduction

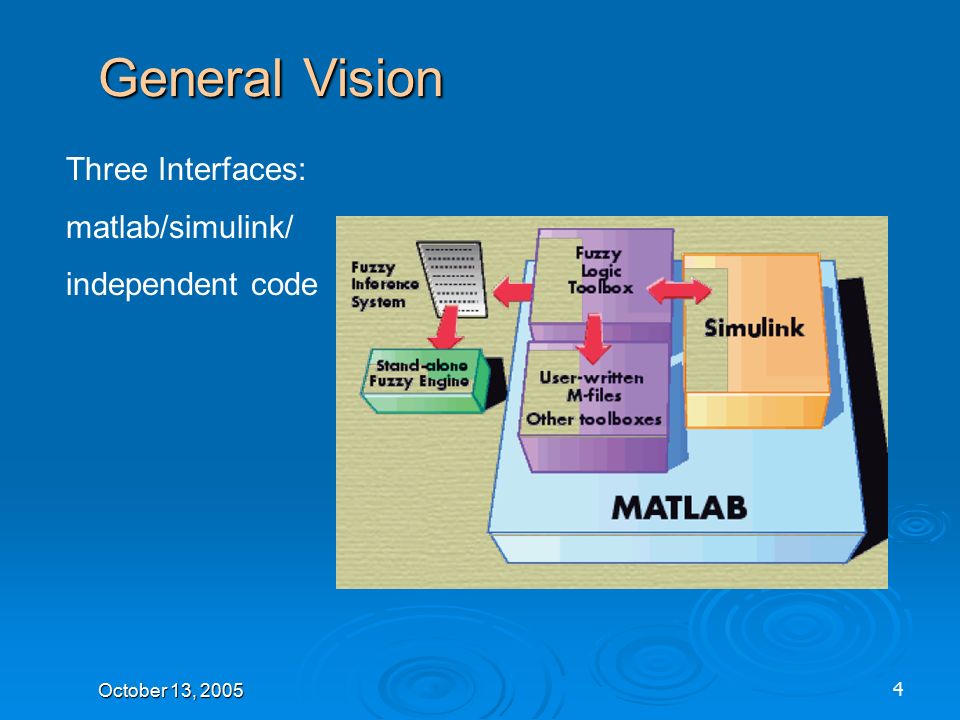

5. October 13, 2005 4 Three Interfaces: matlab/simulink/ independent code General Vision

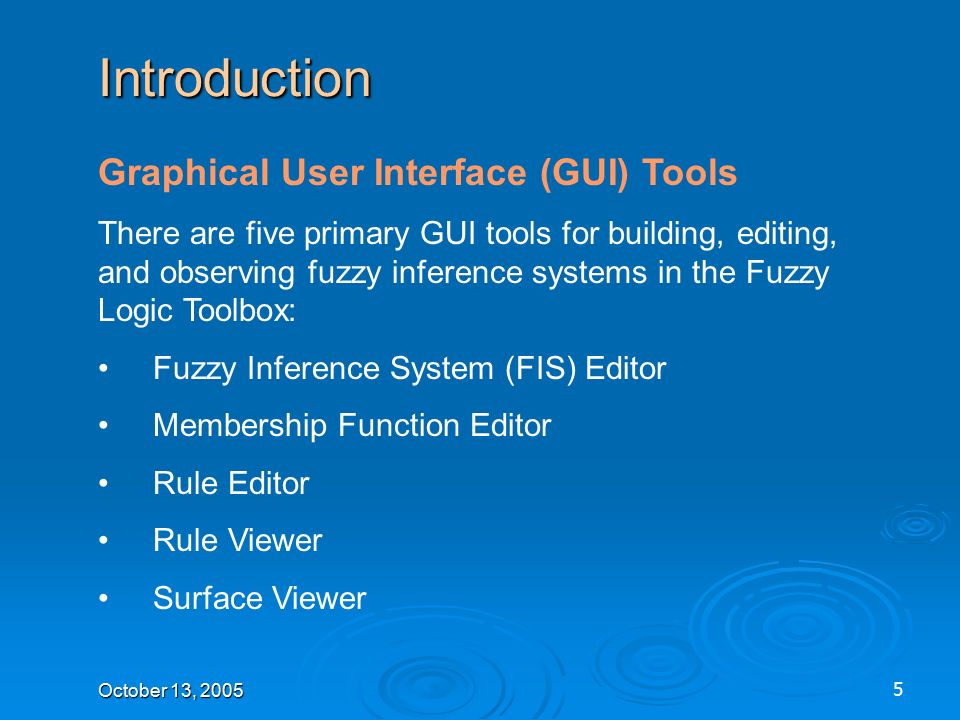

6. October 13, 2005 5 Graphical User Interface (GUI) Tools There are five primary GUI tools for building, editing, and observing fuzzy inference systems in the Fuzzy Logic Toolbox: Fuzzy Inference System (FIS) Editor Membership Function Editor Rule Editor Rule Viewer Surface Viewer Introduction

7. October 13, 2005 6 Graphical User Interface (GUI) Tools Introduction

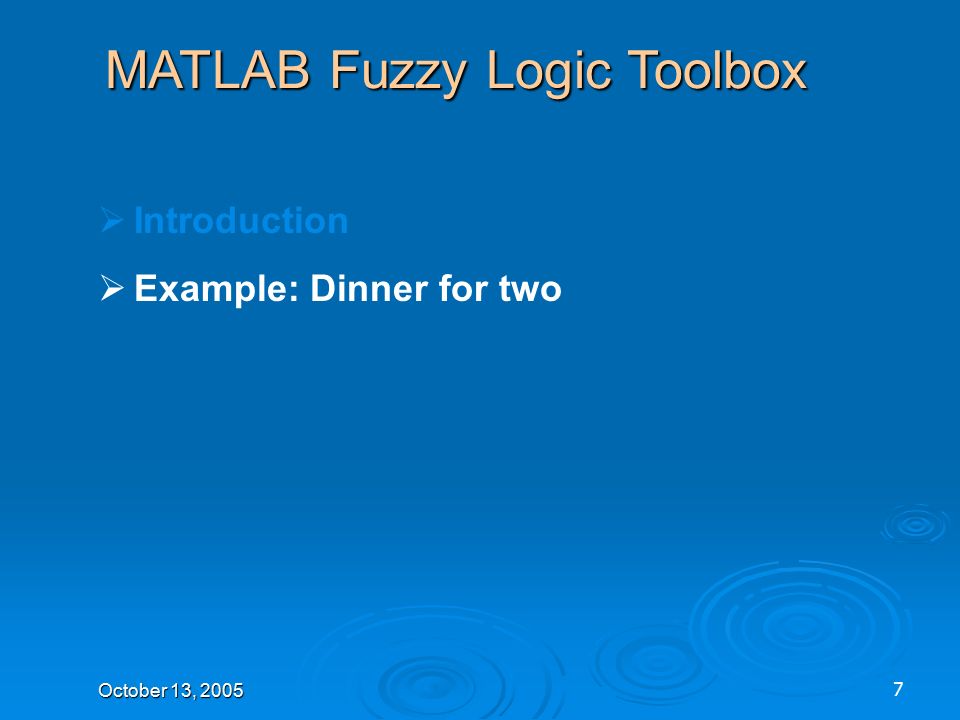

8. October 13, 2005 7  Introduction  Example: Dinner for two MATLAB Fuzzy Logic Toolbox

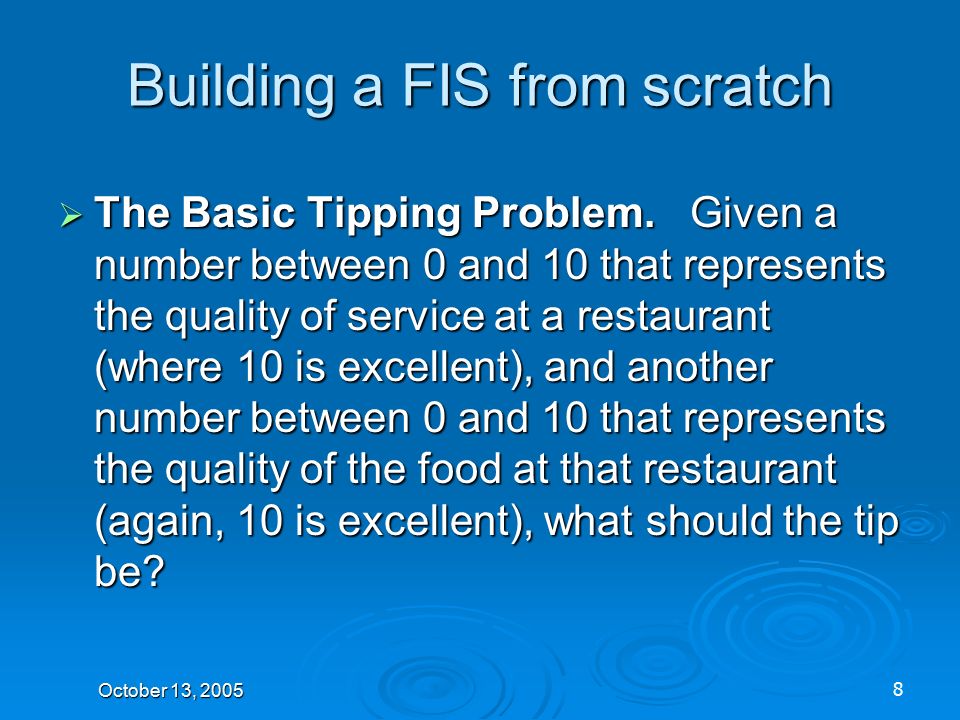

9. October 13, 2005 8 Building a FIS from scratch  The Basic Tipping Problem. Given a number between 0 and 10 that represents the quality of service at a restaurant (where 10 is excellent), and another number between 0 and 10 that represents the quality of the food at that restaurant (again, 10 is excellent), what should the tip be?

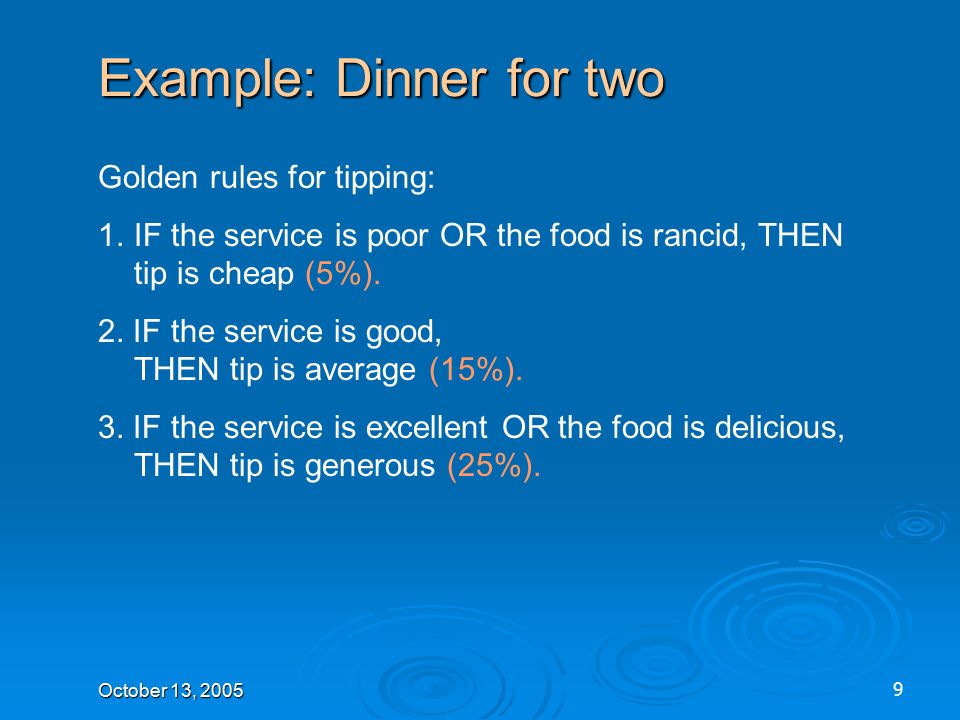

10. October 13, 2005 9 Example: Dinner for two Golden rules for tipping: 1.IF the service is poor OR the food is rancid, THEN tip is cheap (5%). 2. IF the service is good, THEN tip is average (15%). 3. IF the service is excellent OR the food is delicious, THEN tip is generous (25%).

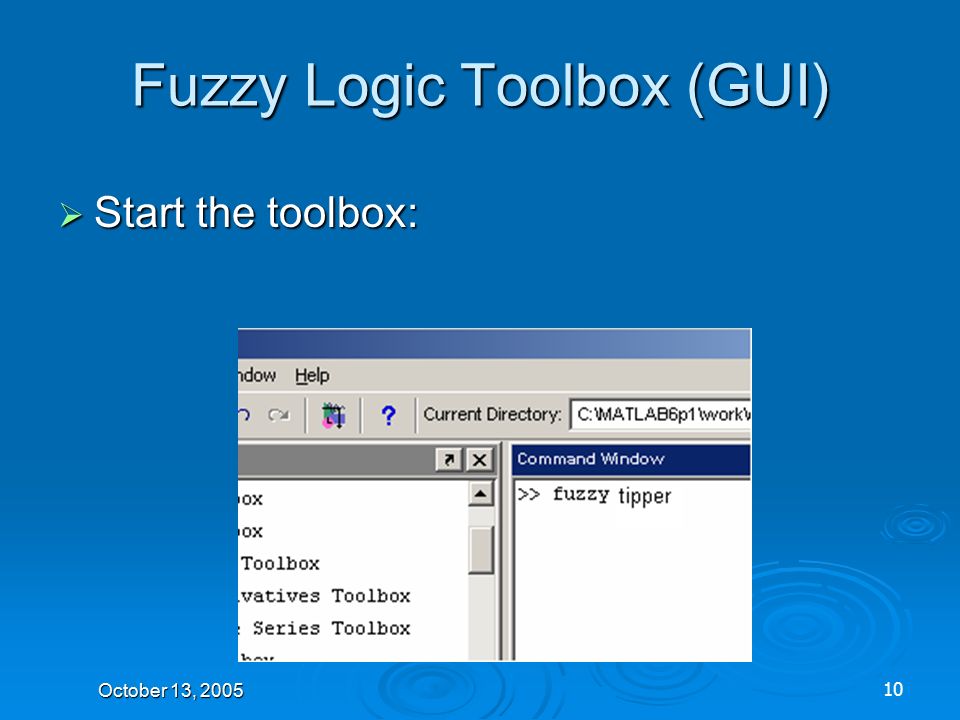

11. October 13, 2005 10 Fuzzy Logic Toolbox (GUI)  Start the toolbox:

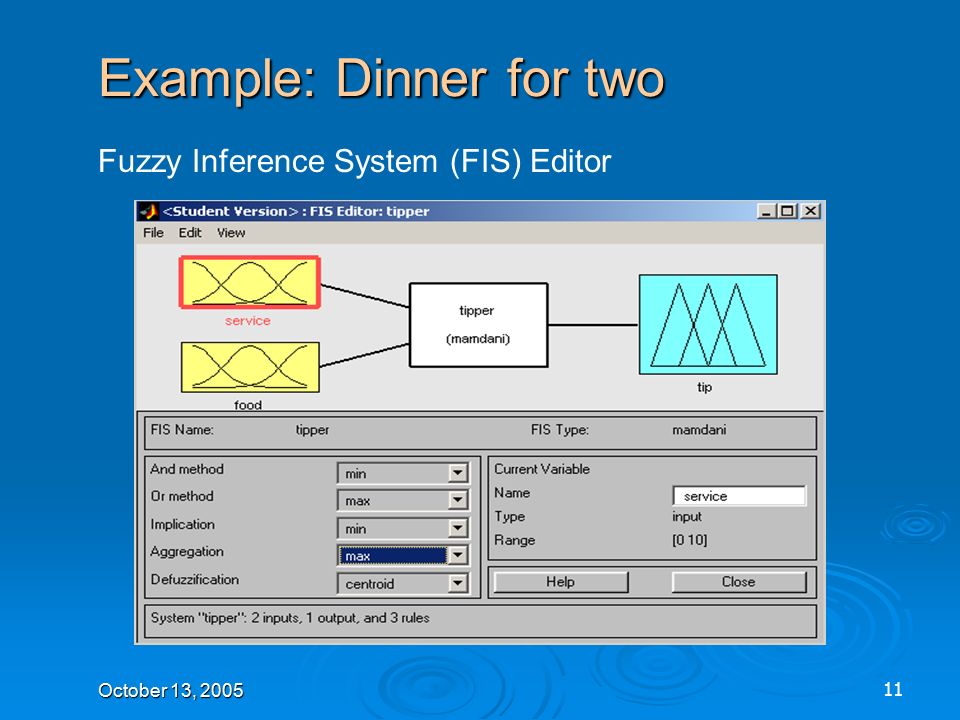

12. October 13, 2005 11 Example: Dinner for two Fuzzy Inference System (FIS) Editor

13. October 13, 2005 12 Fuzzy Inference System (FIS) Editor FIS Editor

14. October 13, 2005 13 Example: Dinner for two Membership Function Editor

15. October 13, 2005 14 Fuzzy Inference System (FIS) Editor Membership Function Editor

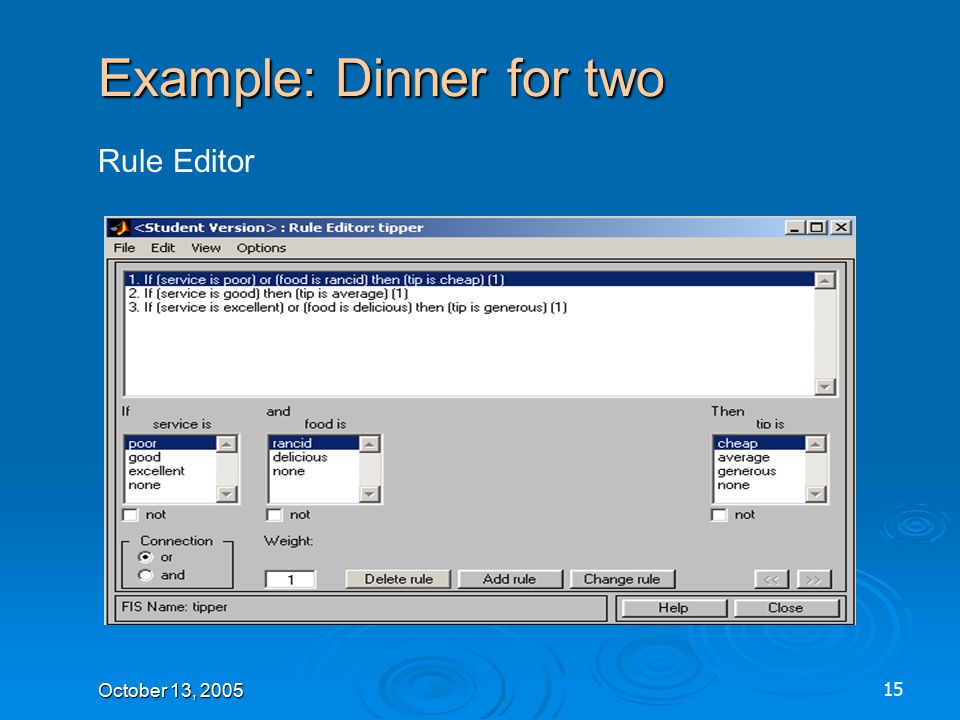

16. October 13, 2005 15 Example: Dinner for two Rule Editor

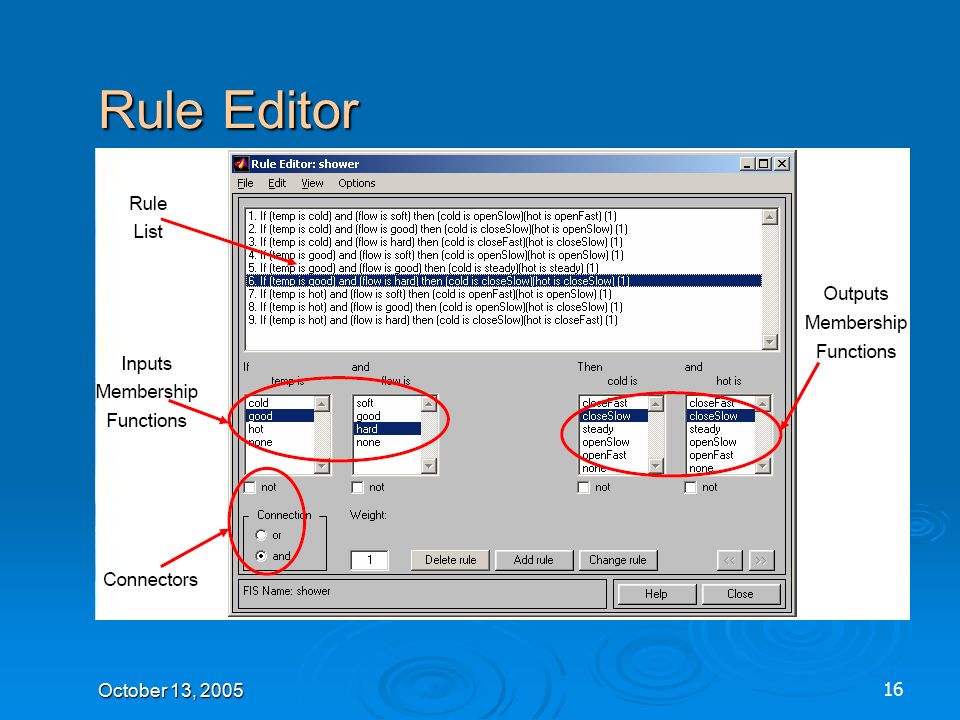

17. October 13, 2005 16 Fuzzy Inference System (FIS) Editor Rule Editor

18. October 13, 2005 17 Example: Dinner for two Rule Viewer

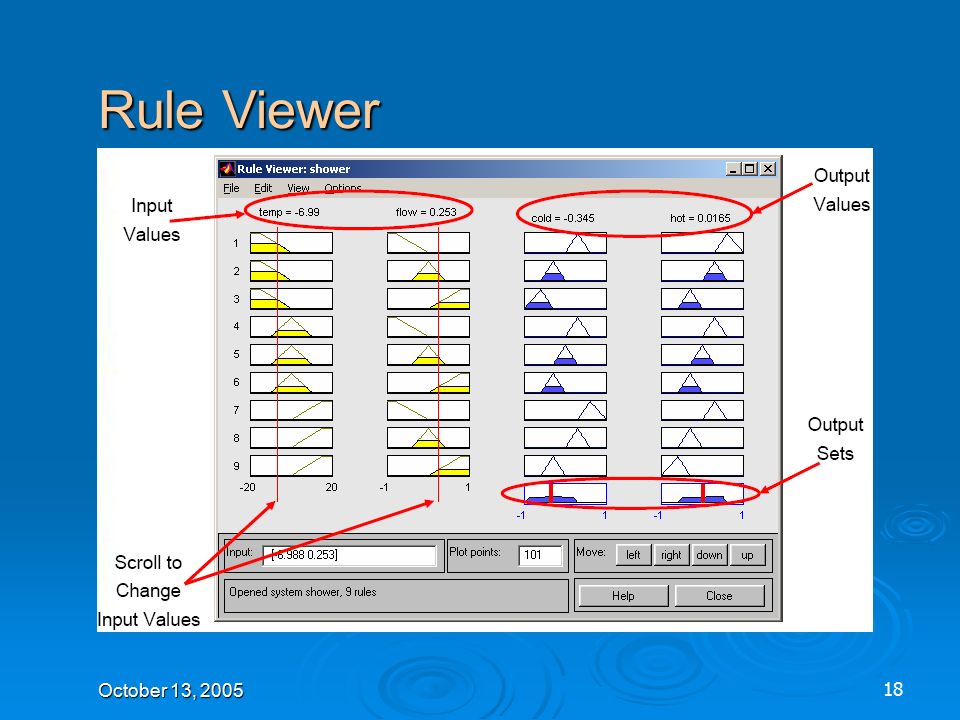

19. October 13, 2005 18 Fuzzy Inference System (FIS) Editor Rule Viewer

20. October 13, 2005 19 Example: Dinner for two

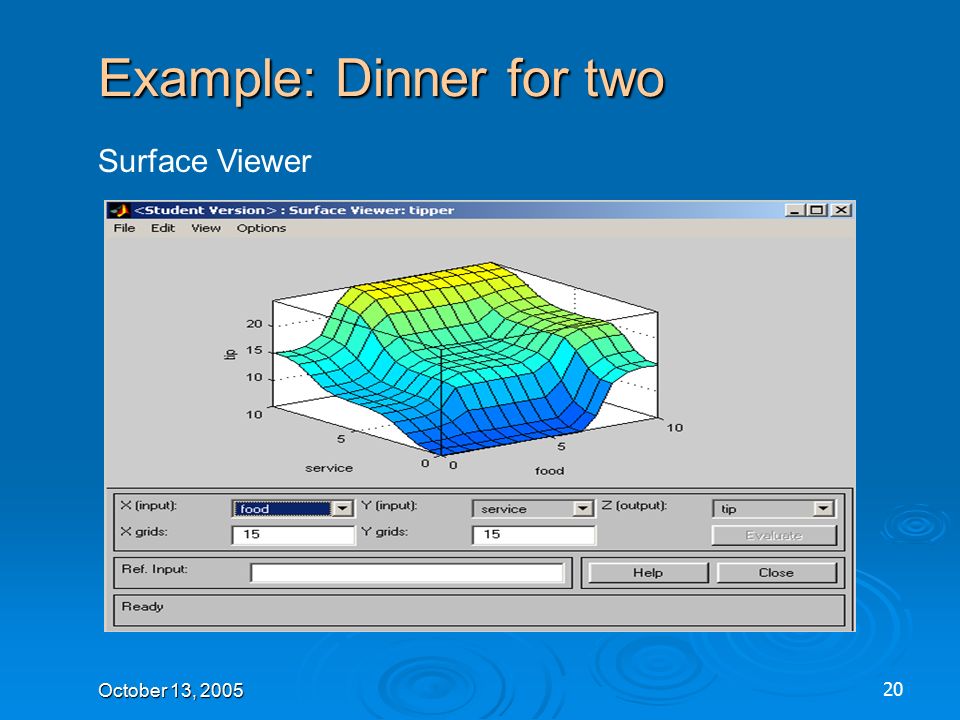

21. October 13, 2005 20 Example: Dinner for two Surface Viewer

22. October 13, 2005 21 Fuzzy Inference System (FIS) Editor Surface Viewer
