Geometry Section 1.5 Describe Angle Pair Relationships.

Similar presentations


Presentation on theme: "Geometry Section 1.5 Describe Angle Pair Relationships."— Presentation transcript:

1 Geometry Section 1.5 Describe Angle Pair Relationships

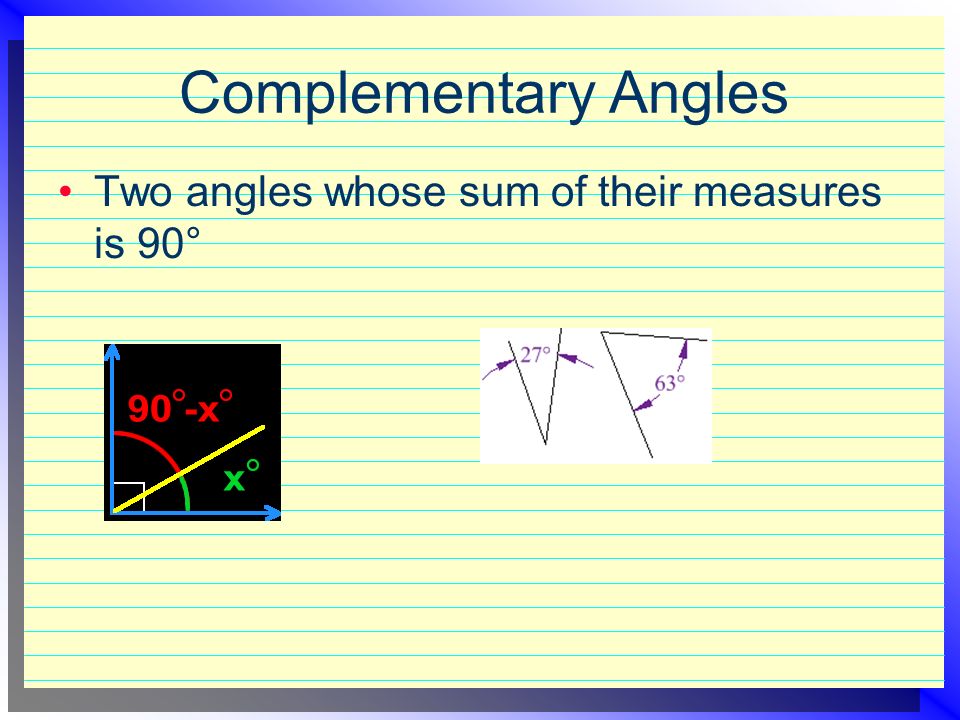

2 Complementary Angles Two angles whose sum of their measures is 90°

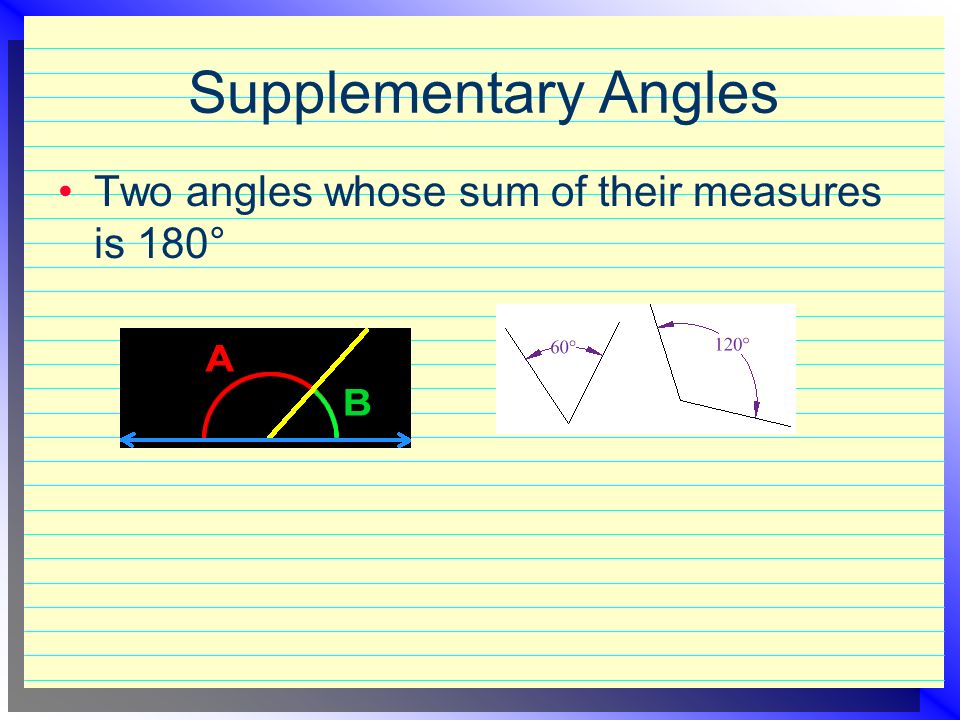

3 Supplementary Angles Two angles whose sum of their measures is 180°

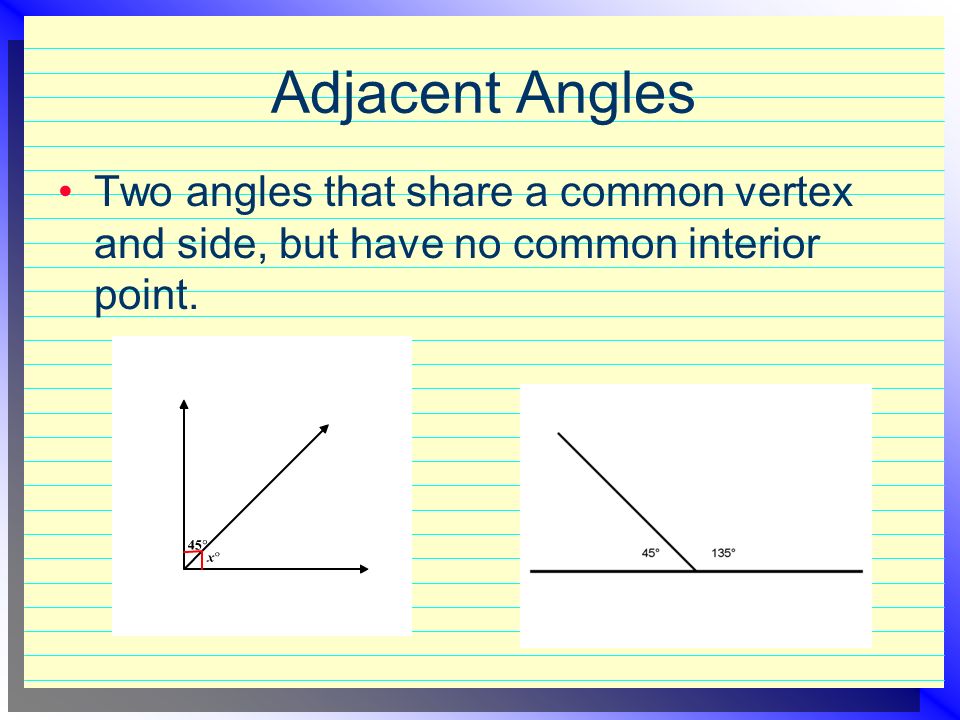

4 Adjacent Angles Two angles that share a common vertex and side, but have no common interior point.

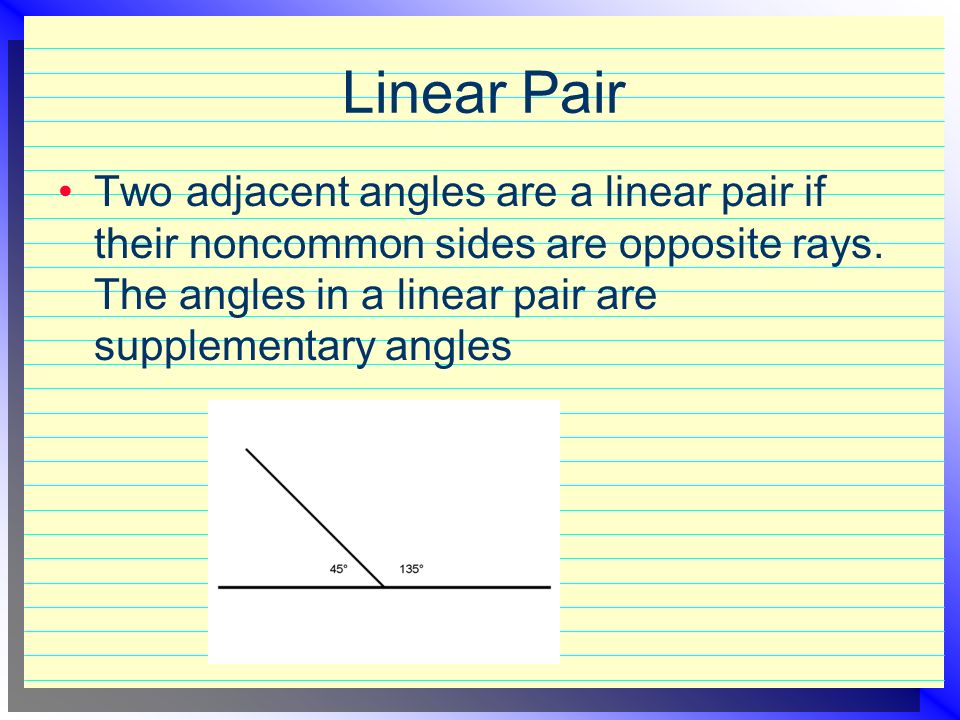

5 Linear Pair Two adjacent angles are a linear pair if their noncommon sides are opposite rays. The angles in a linear pair are supplementary angles

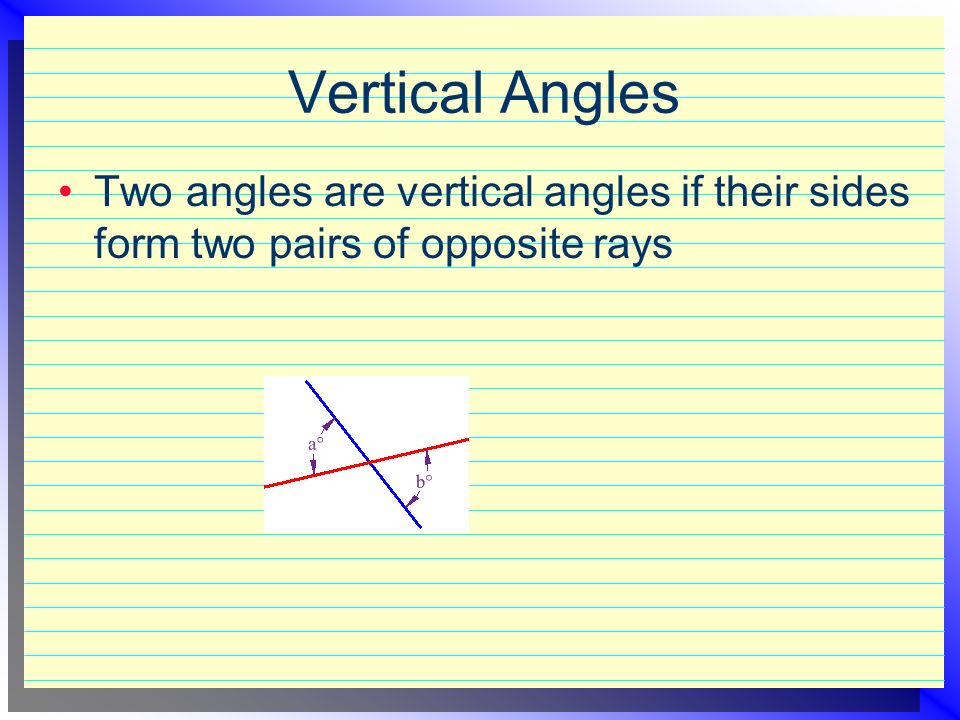

6 Vertical Angles Two angles are vertical angles if their sides form two pairs of opposite rays

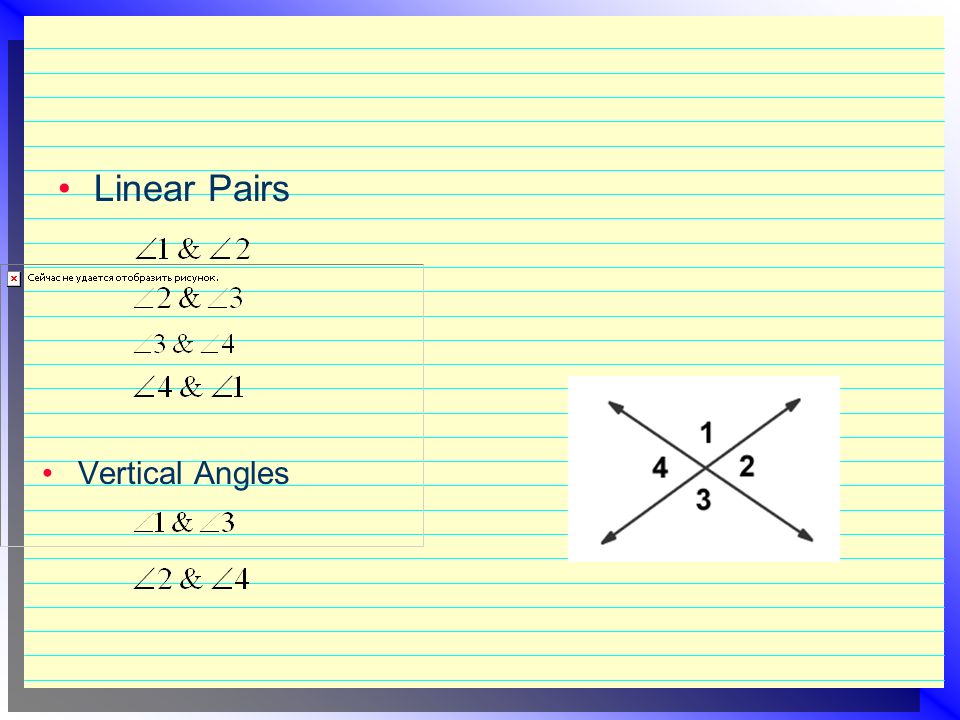

7 Linear Pairs Vertical Angles

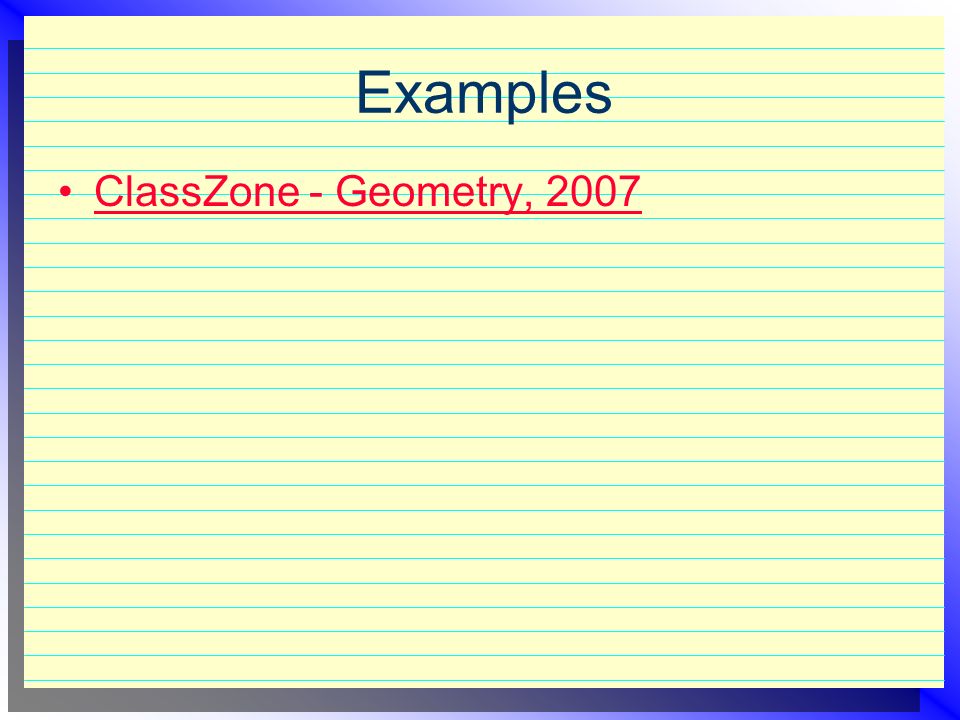

8 Examples ClassZone - Geometry, 2007

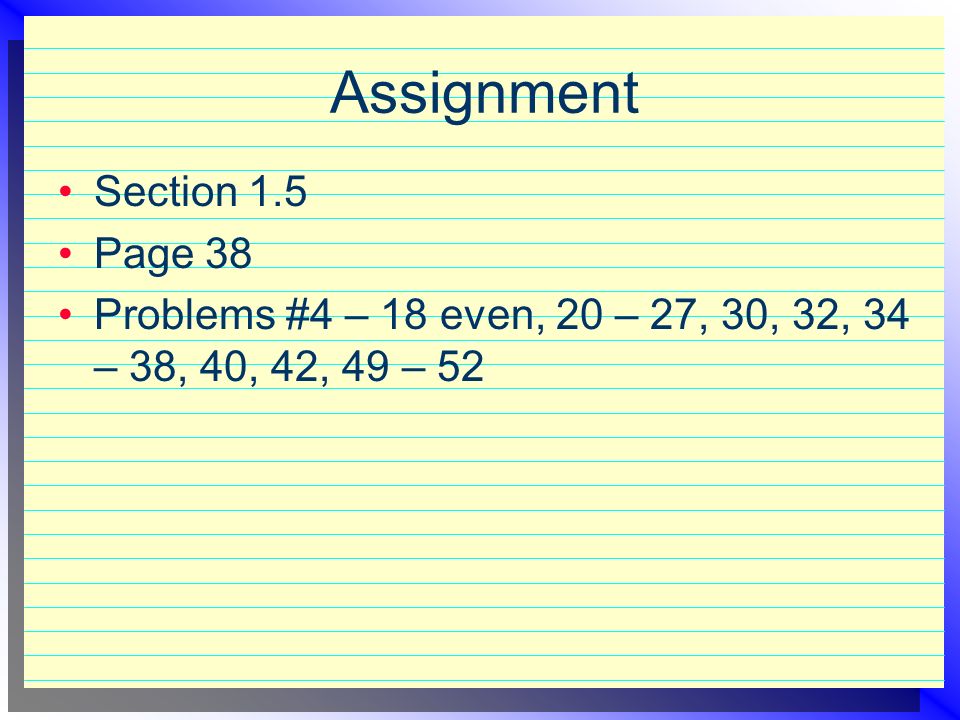

9 Assignment Section 1.5 Page 38 Problems #4 – 18 even, 20 – 27, 30, 32, 34 – 38, 40, 42, 49 – 52
