 # Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle.

## Presentation on theme: "Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle."— Presentation transcript:

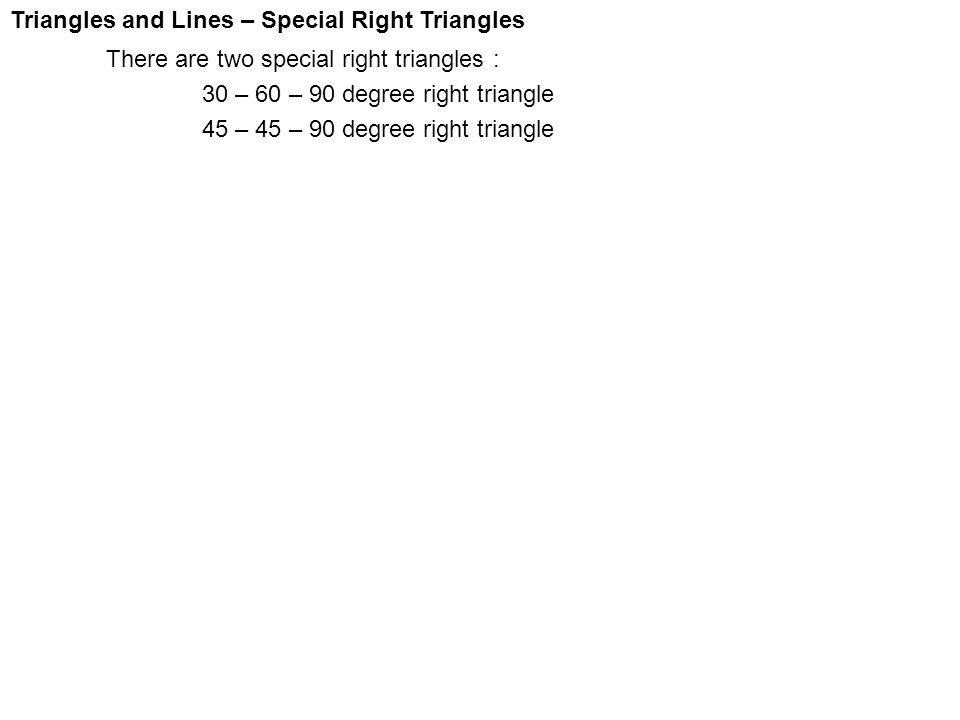

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg x 2x

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side. x 2x

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 1 : Find the other two sides if the hypotenuse = 10 x 2x =10 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 1 : Find the other two sides if the hypotenuse = 10 x = 5 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side. 2x =10

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 1 : Find the other two sides if the hypotenuse = 10 x = 5 2x =10 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

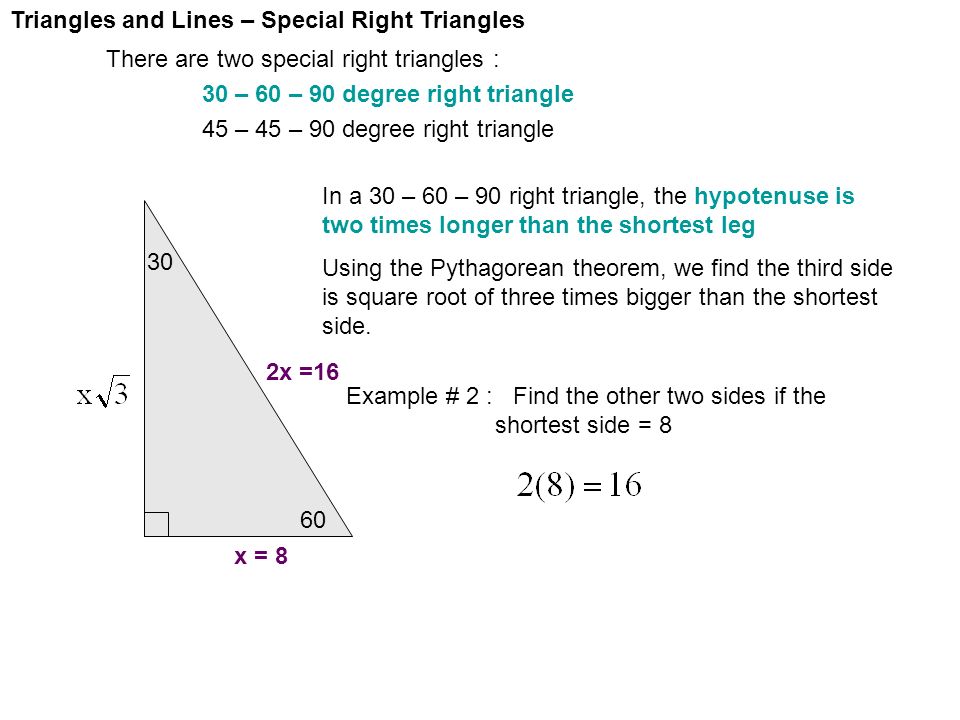

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 2 : Find the other two sides if the shortest side = 8 x = 8 2x In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 2 : Find the other two sides if the shortest side = 8 x = 8 2x =16 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 2 : Find the other two sides if the shortest side = 8 x = 8 2x =16 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 2 : Find the other two sides if the medium length side = x 2x In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 2 : Find the other two sides if the medium length side = x = 13 2x In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 30 60 Example # 2 : Find the other two sides if the medium length side = x = 13 2x = 26 In a 30 – 60 – 90 right triangle, the hypotenuse is two times longer than the shortest leg Using the Pythagorean theorem, we find the third side is square root of three times bigger than the shortest side.

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 Remember, sides opposite equal angles are congruent. If we let AC and BC = 1 and use Pythagorean theorem… 1 1 A C B ?

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 Remember, sides opposite equal angles are congruent. If we let AC and BC = 1 and use Pythagorean theorem… 1 1 A C B

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 The hypotenuse of a 45 – 45 – 90 right triangle is square root two times larger than the equal sides… x x A C B

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 The hypotenuse of a 45 – 45 – 90 right triangle is square root two times larger than the equal sides… 6 6 A C B Example # 1 : Find the hypotenuse if the congruent sides = 6

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 The hypotenuse of a 45 – 45 – 90 right triangle is square root two times larger than the equal sides… 6 6 A C B Example # 1 : Find the hypotenuse if the congruent sides = 6

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 The hypotenuse of a 45 – 45 – 90 right triangle is square root two times larger than the equal sides… x x A C B Example # 2 : Find the congruent sides if the hypotenuse =

Triangles and Lines – Special Right Triangles There are two special right triangles : 30 – 60 – 90 degree right triangle 45 – 45 – 90 degree right triangle 45 The hypotenuse of a 45 – 45 – 90 right triangle is square root two times larger than the equal sides… 15 A C B Example # 2 : Find the congruent sides if the hypotenuse =
