1. Building Scripts For HP LoadRunner >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

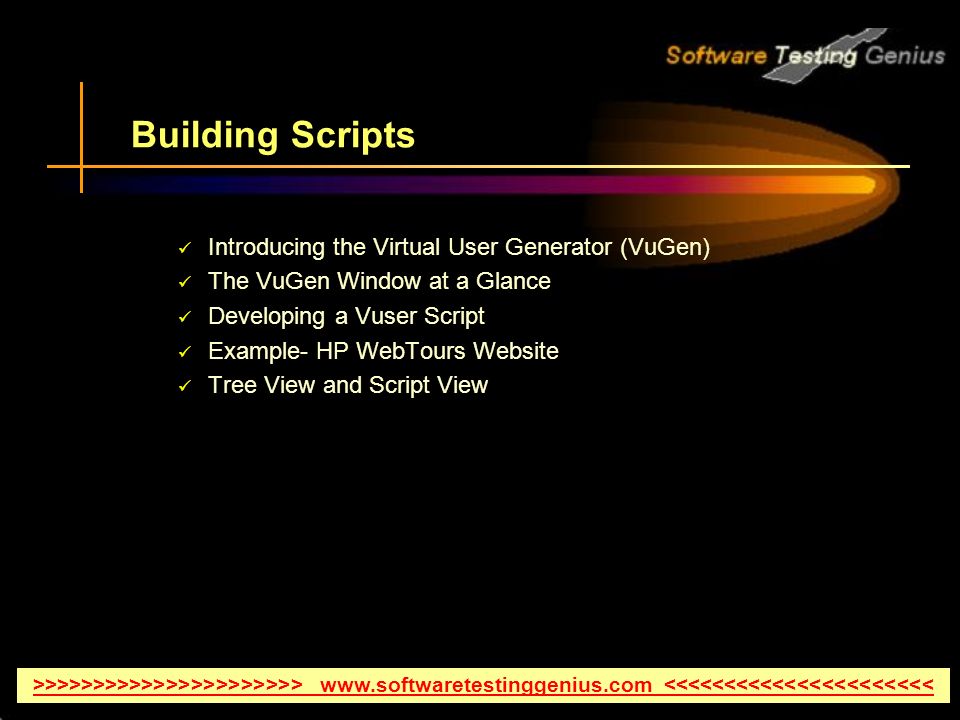

2. Building Scripts Introducing the Virtual User Generator (VuGen) The VuGen Window at a Glance Developing a Vuser Script Example- HP WebTours Website Tree View and Script View >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

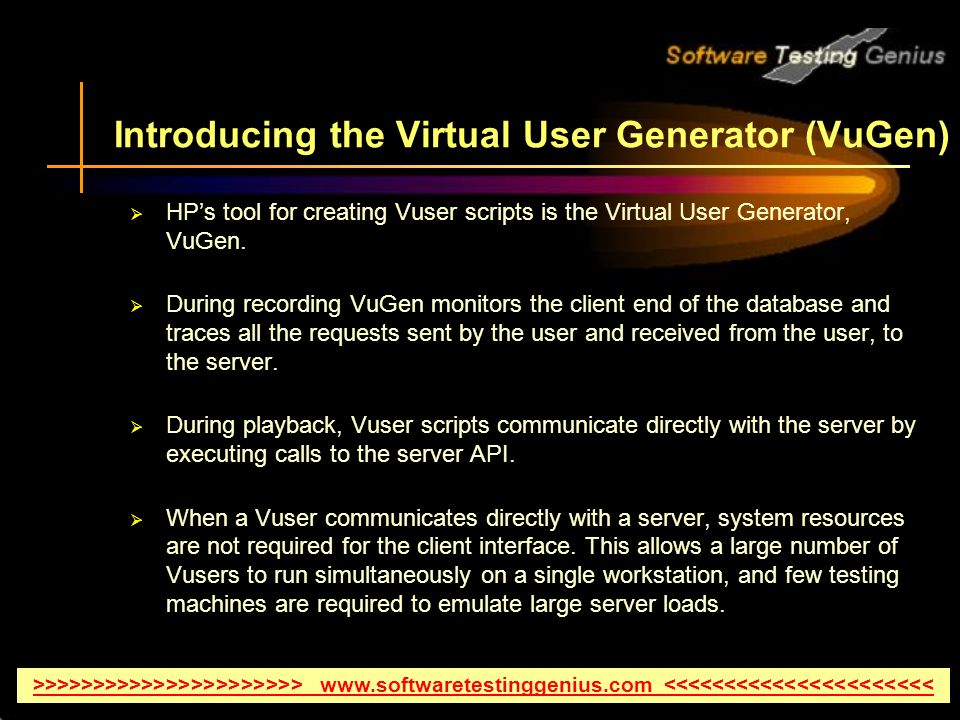

3. Introducing the Virtual User Generator (VuGen)  HP’s tool for creating Vuser scripts is the Virtual User Generator, VuGen.  During recording VuGen monitors the client end of the database and traces all the requests sent by the user and received from the user, to the server.  During playback, Vuser scripts communicate directly with the server by executing calls to the server API.  When a Vuser communicates directly with a server, system resources are not required for the client interface. This allows a large number of Vusers to run simultaneously on a single workstation, and few testing machines are required to emulate large server loads. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

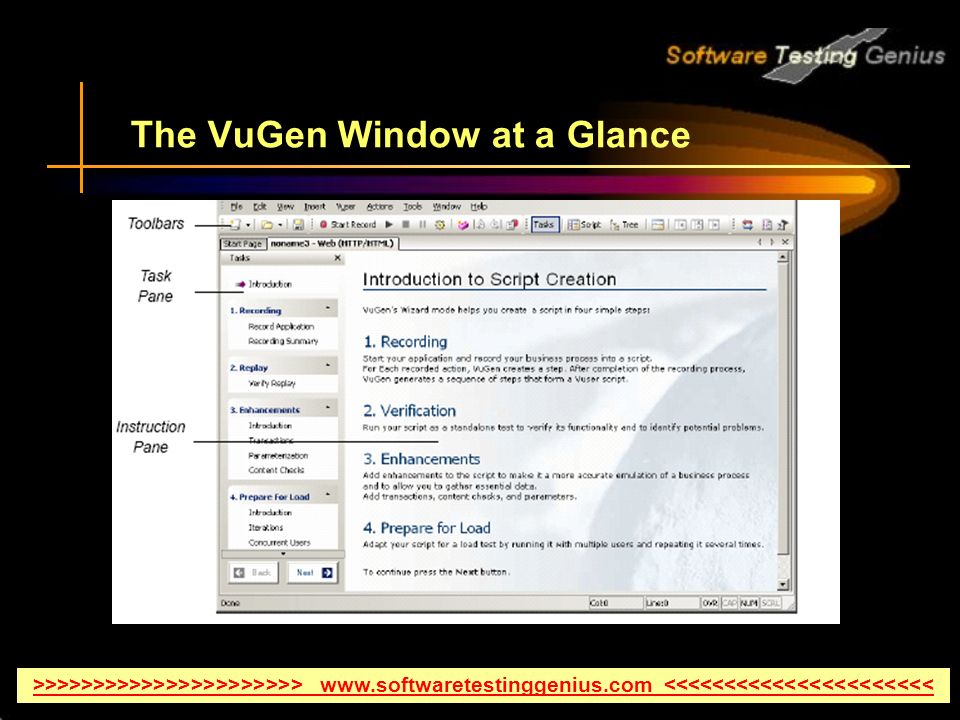

4. The VuGen Window at a Glance >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

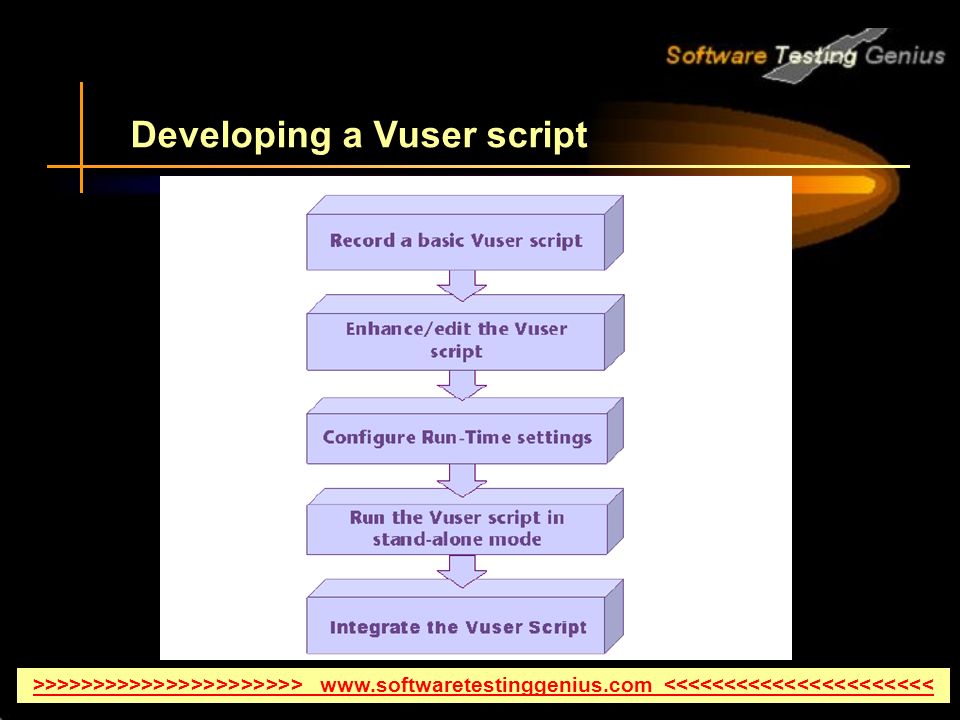

5. Developing a Vuser script >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

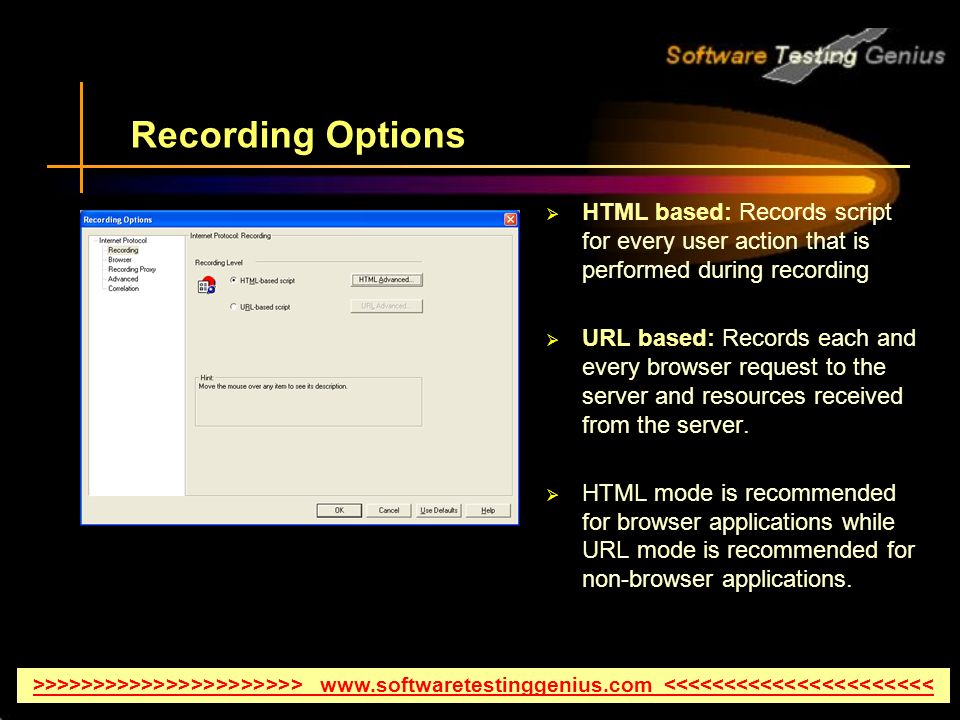

6. Recording Options  HTML based: Records script for every user action that is performed during recording  URL based: Records each and every browser request to the server and resources received from the server.  HTML mode is recommended for browser applications while URL mode is recommended for non-browser applications. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

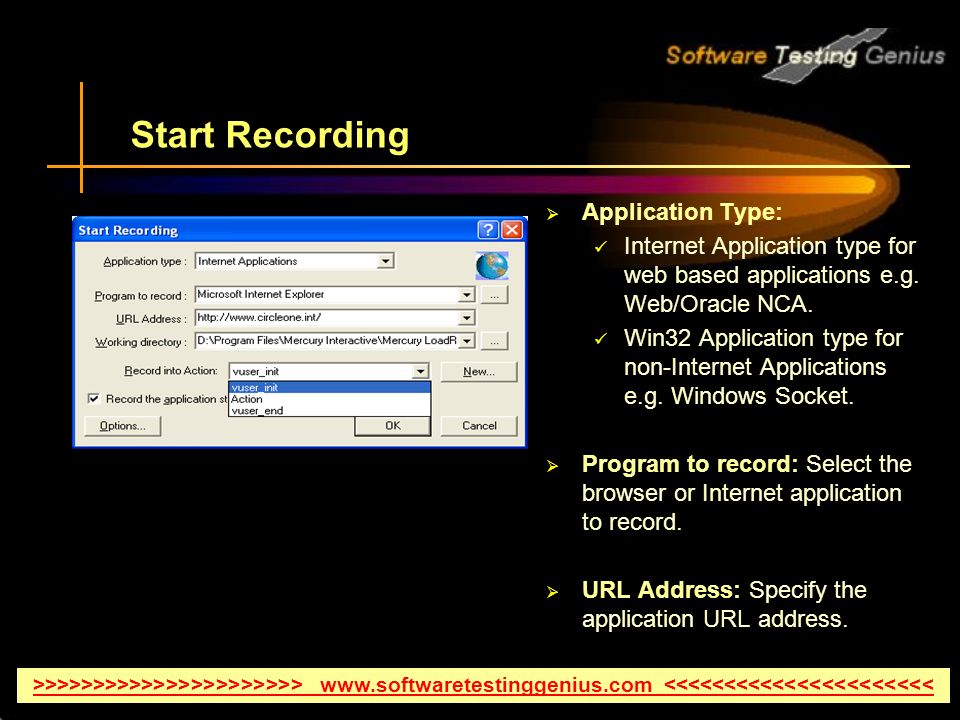

7. Start Recording  Application Type: Internet Application type for web based applications e.g. Web/Oracle NCA. Win32 Application type for non-Internet Applications e.g. Windows Socket.  Program to record: Select the browser or Internet application to record.  URL Address: Specify the application URL address. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

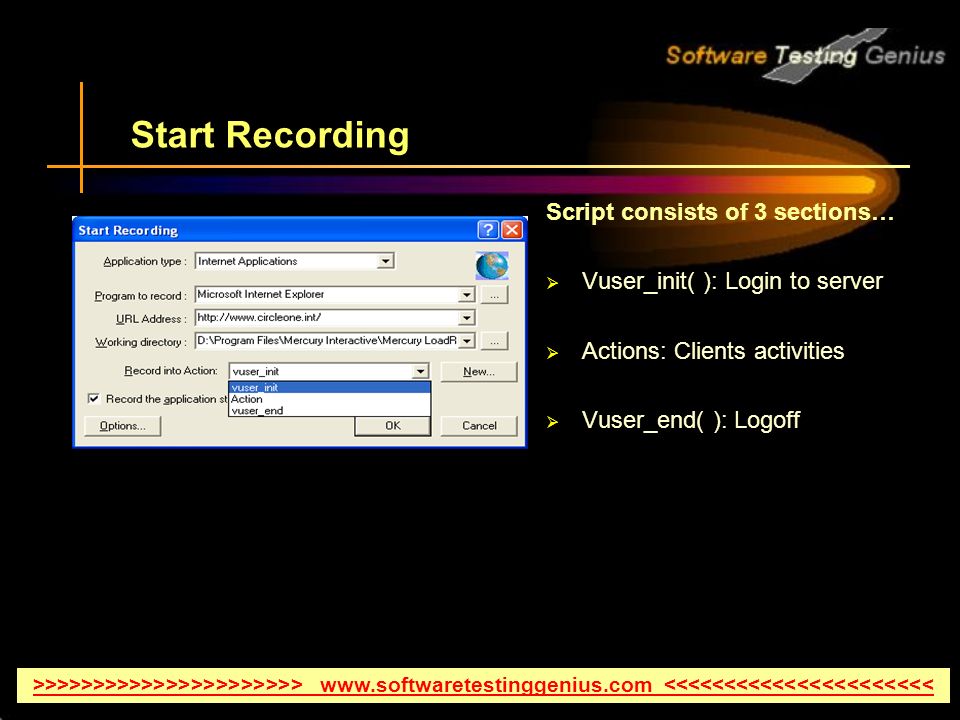

8. Start Recording Script consists of 3 sections…  Vuser_init( ): Login to server  Actions: Clients activities  Vuser_end( ): Logoff >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

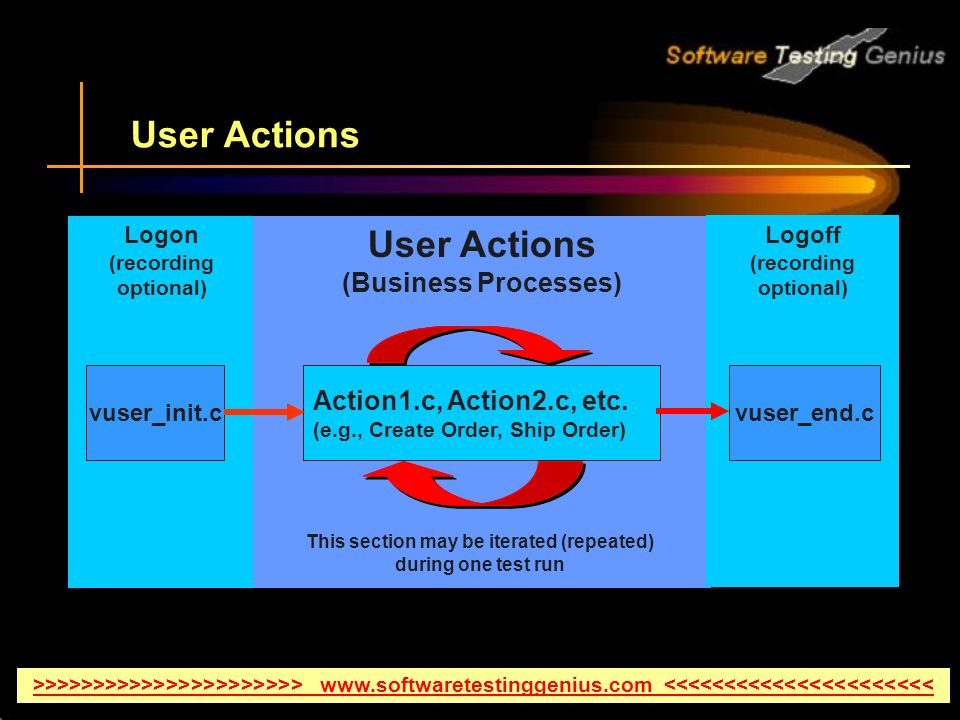

9. User Actions Logon (recording optional) vuser_init.c User Actions (Business Processes) Action1.c, Action2.c, etc. (e.g., Create Order, Ship Order) This section may be iterated (repeated) during one test run Logoff (recording optional) vuser_end.c >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

10. Recording Script  Provide the URL of the application and navigate through the scenario that is to be tested.  The script is automatically recorded in VuGen. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

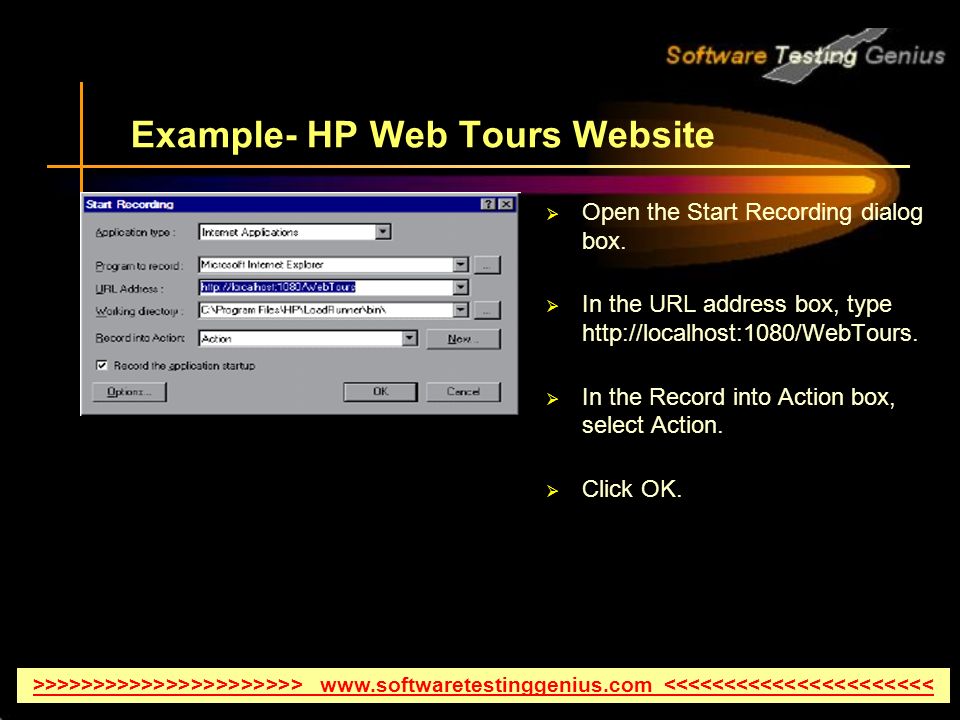

11. Example- HP Web Tours Website  Open the Start Recording dialog box.  In the URL address box, type http://localhost:1080/WebTours.  In the Record into Action box, select Action.  Click OK. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

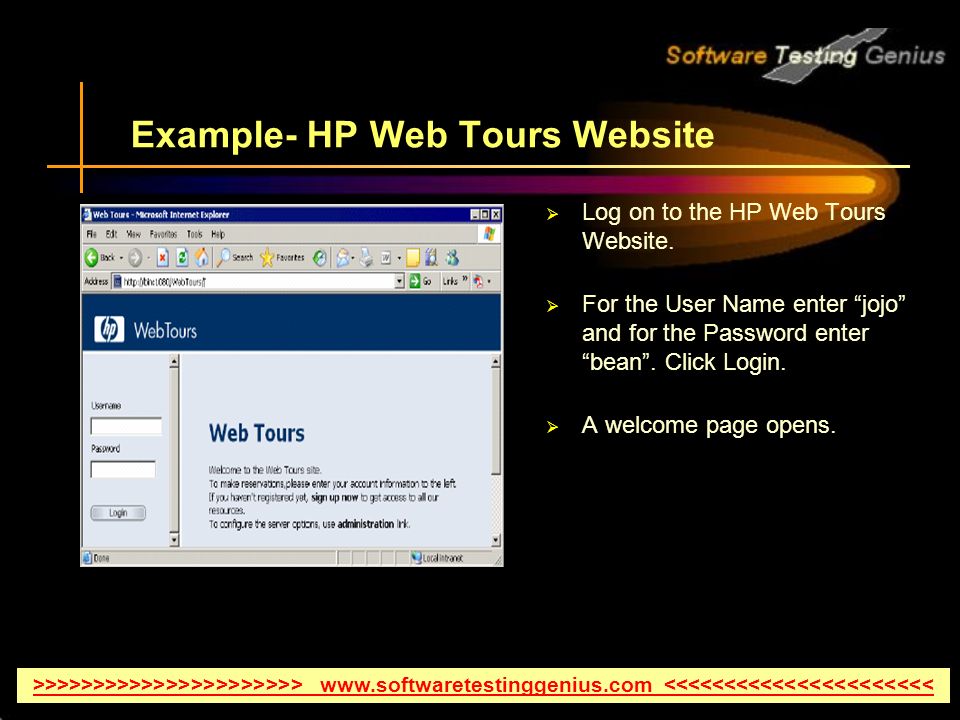

12. Example- HP Web Tours Website  Log on to the HP Web Tours Website.  For the User Name enter “jojo” and for the Password enter “bean”. Click Login.  A welcome page opens. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

13. Example- HP Web Tours Website  Click Flights and provide the following information:  Departure City: Denver (default)  Departure Date: Keep the default, current date  Arrival City: Los Angeles  Return Date: Keep the default, tomorrow’s date  Seating Preference: Aisle  Keep the rest of the default settings and click Continue. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

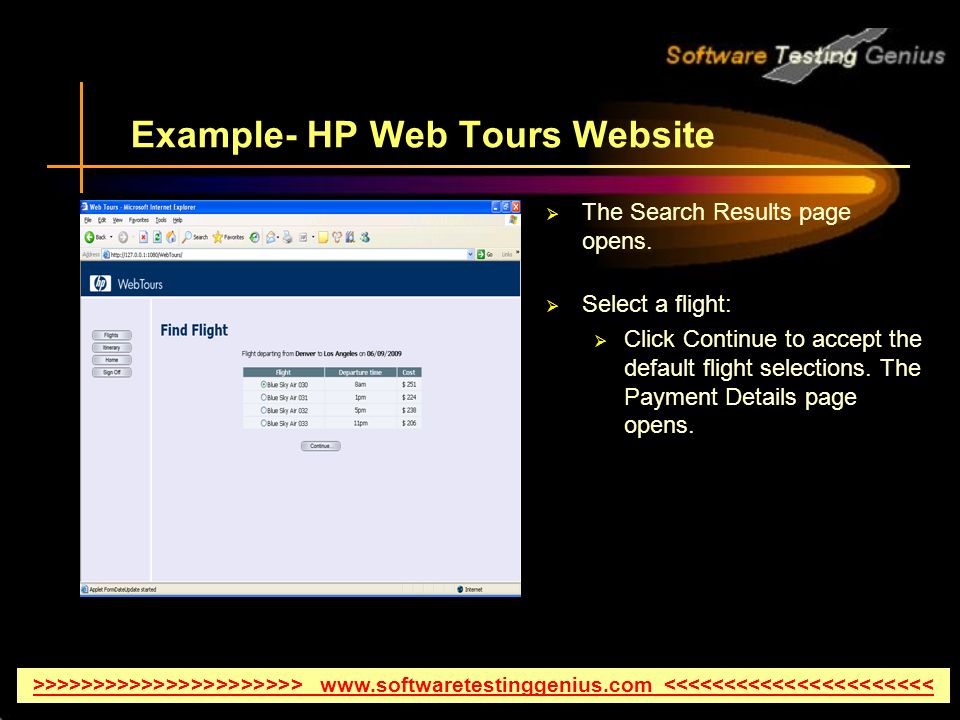

14. Example- HP Web Tours Website  The Search Results page opens.  Select a flight:  Click Continue to accept the default flight selections. The Payment Details page opens. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

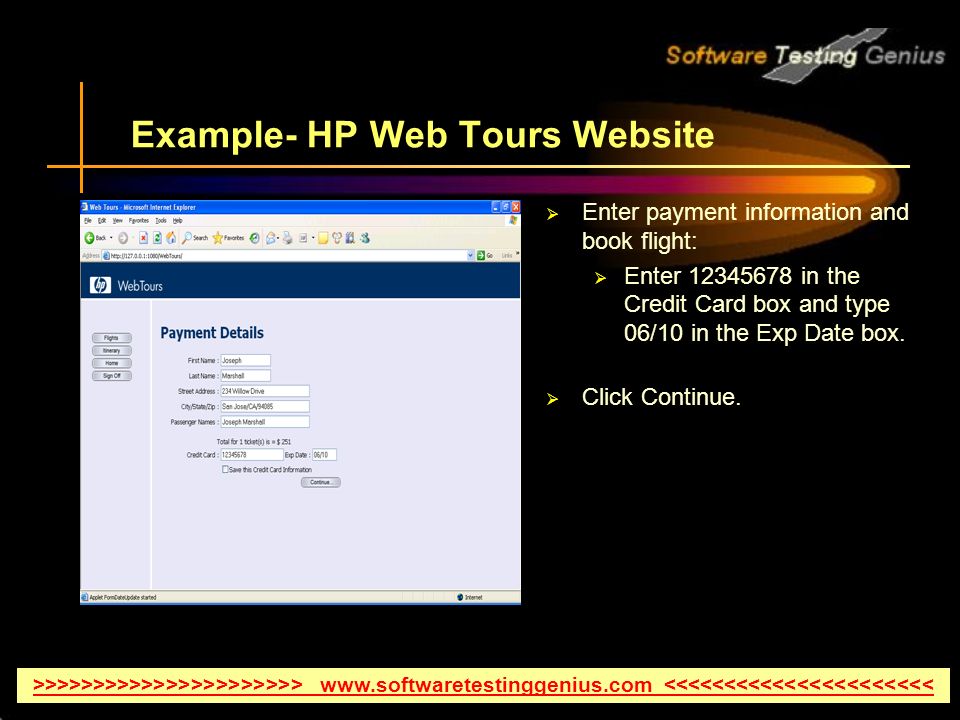

15. Example- HP Web Tours Website  Enter payment information and book flight:  Enter 12345678 in the Credit Card box and type 06/10 in the Exp Date box.  Click Continue. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

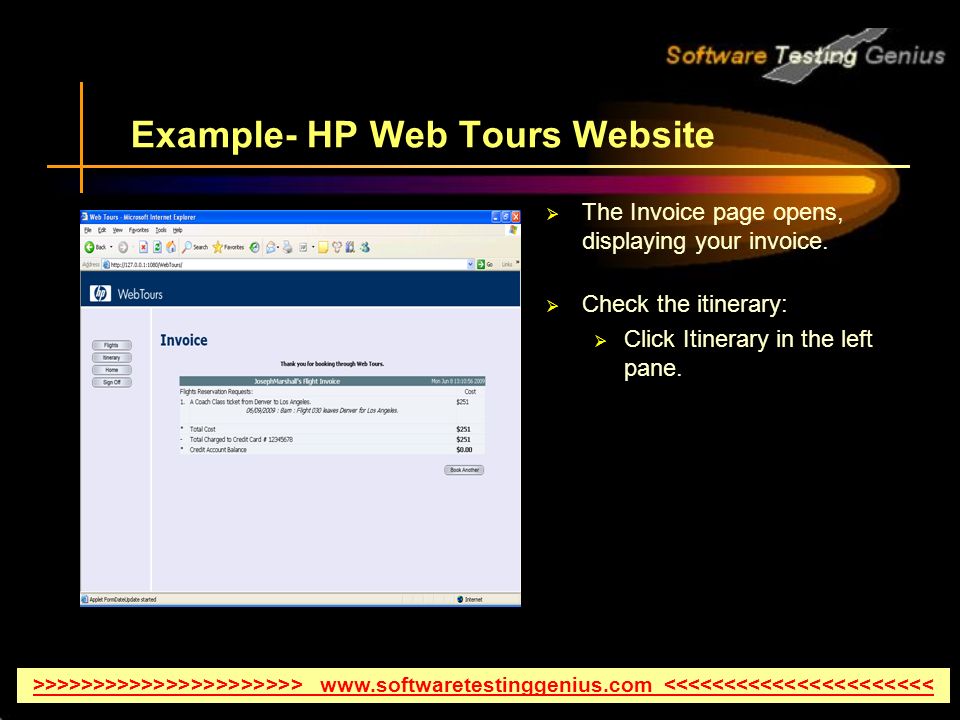

16. Example- HP Web Tours Website  The Invoice page opens, displaying your invoice.  Check the itinerary:  Click Itinerary in the left pane. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

17. Example- HP Web Tours Website  The Itinerary page opens.  Click Sign Off in the left pane.  Click Stop on the floating toolbar to stop the recording process. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

18. Example- HP Web Tours Website  The Code Generation pop up window opens while the Vuser script is generated and recording summary is displayed.  The recording summary includes the protocol information and a list of the actions created during the session. For each step you performed during recording, VuGen generated a snapshot, a picture of the window during recording.  Select File > Save or click the Save button.  Type basic_tutorial in the File name box and click Save. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

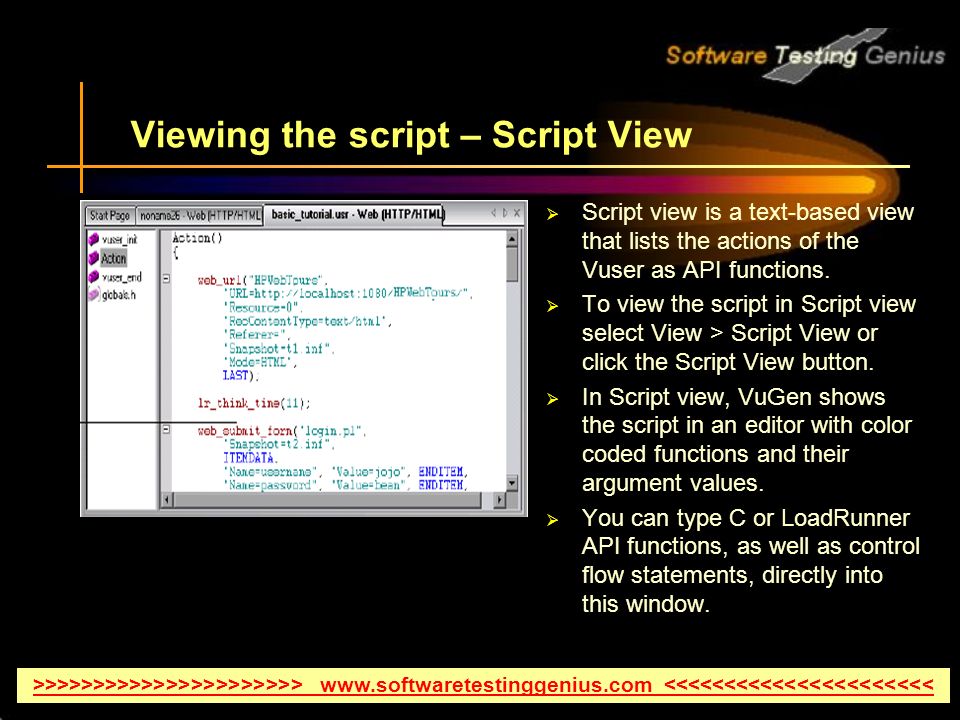

19. Viewing the script – Script View  Script view is a text-based view that lists the actions of the Vuser as API functions.  To view the script in Script view select View > Script View or click the Script View button.  In Script view, VuGen shows the script in an editor with color coded functions and their argument values.  You can type C or LoadRunner API functions, as well as control flow statements, directly into this window. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

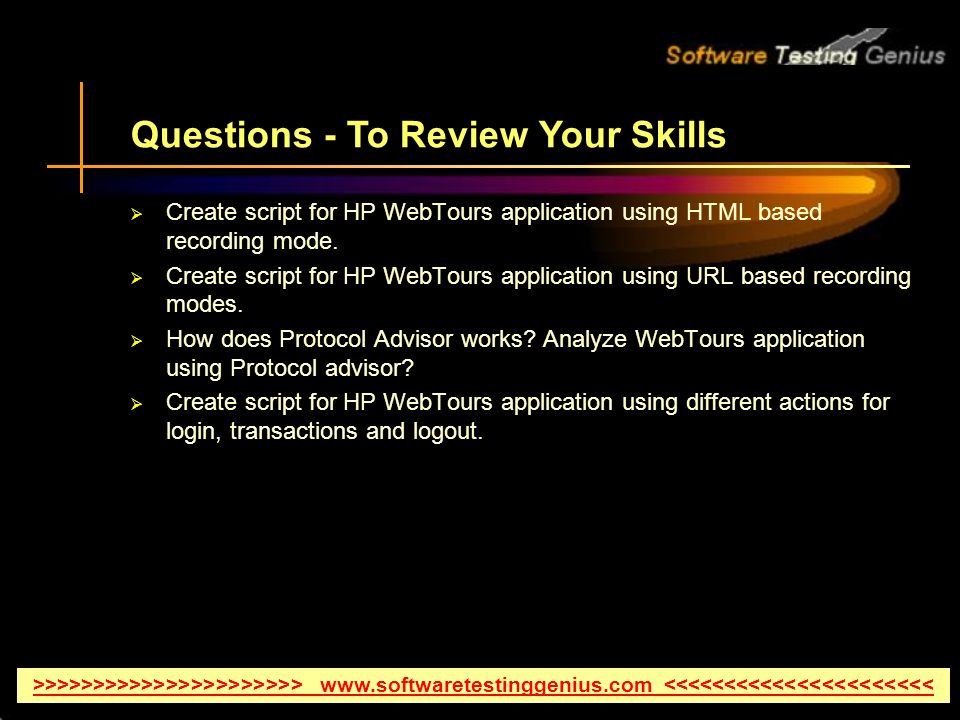

20.  Create script for HP WebTours application using HTML based recording mode.  Create script for HP WebTours application using URL based recording modes.  How does Protocol Advisor works? Analyze WebTours application using Protocol advisor?  Create script for HP WebTours application using different actions for login, transactions and logout. Questions - To Review Your Skills >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<
