1. Outline Introduction Descriptive Data Summarization Data Cleaning Missing value Noise data Data Integration Redundancy Data Transformation

2. Data Cleaning Importance “Data cleaning is one of the three biggest problems in data warehousing”—Ralph Kimball “Data cleaning is the number one problem in data warehousing”—DCI survey

3. Data Cleaning Data cleaning tasks Fill in missing values Identify outliers and smooth out noisy data

4. Missing Data Missing data may be due to equipment malfunction inconsistent with other recorded data and thus deleted data not entered due to misunderstanding certain data may not be considered important at the time of entry not register history or changes of the data It is important to note that, a missing value may not always imply an error. (for example, Null-allow attri. )

5. How to Handle Missing Data? Ignore the tuple: usually done when class label is missing (assuming the tasks in classification—not effective when the percentage of missing values per attribute varies considerably. Fill in the missing value manually: tedious + infeasible

6. How to Handle Missing Data? Fill in it automatically with a global constant : e.g., “unknown”, a new class?! the attribute mean the attribute mean for all samples belonging to the same class: smarter the most probable value: inference-based such as Bayesian formula or decision tree

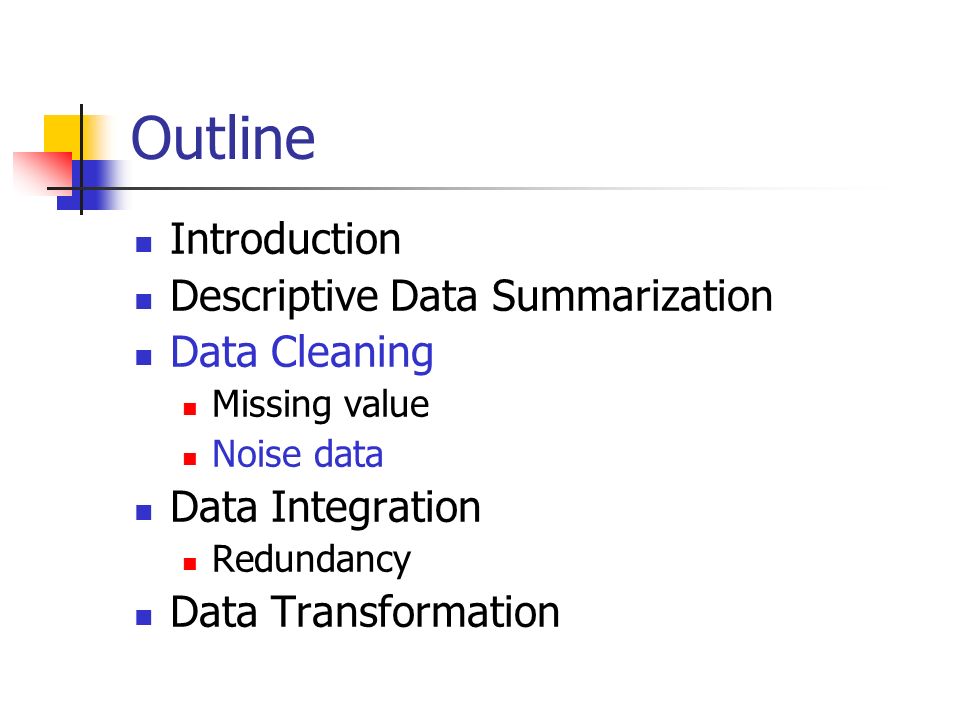

7. Outline Introduction Descriptive Data Summarization Data Cleaning Missing value Noise data Data Integration Redundancy Data Transformation

8. Noisy Data Noise: random error or variance in a measured variable How to Handle Noisy Data? Binning Regression Clustering

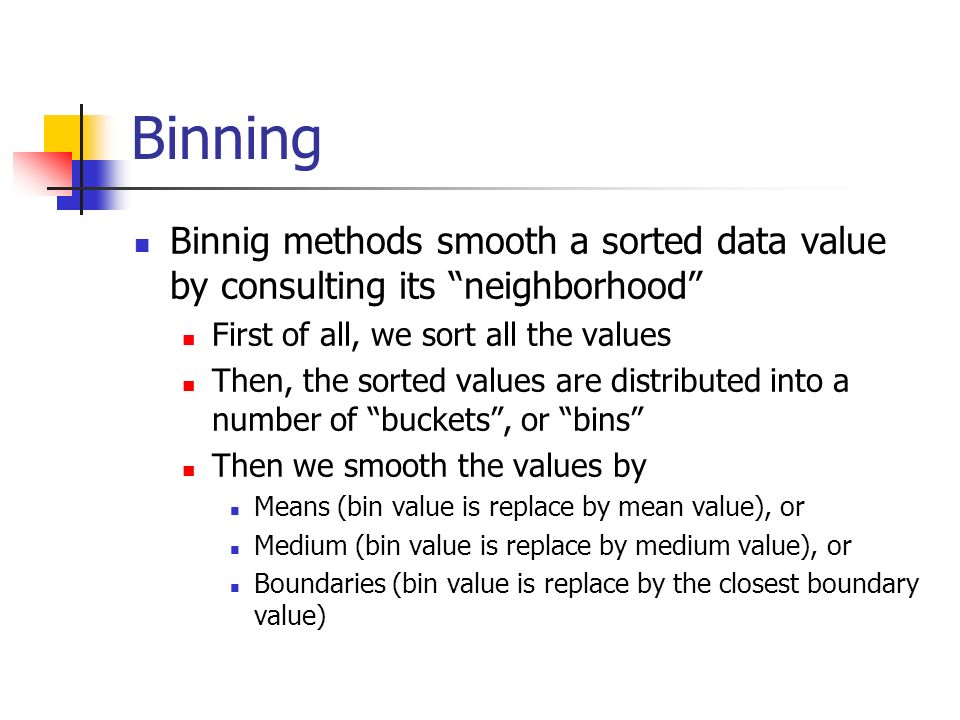

9. Binning Binnig methods smooth a sorted data value by consulting its “neighborhood” First of all, we sort all the values Then, the sorted values are distributed into a number of “buckets”, or “bins” Then we smooth the values by Means (bin value is replace by mean value), or Medium (bin value is replace by medium value), or Boundaries (bin value is replace by the closest boundary value)

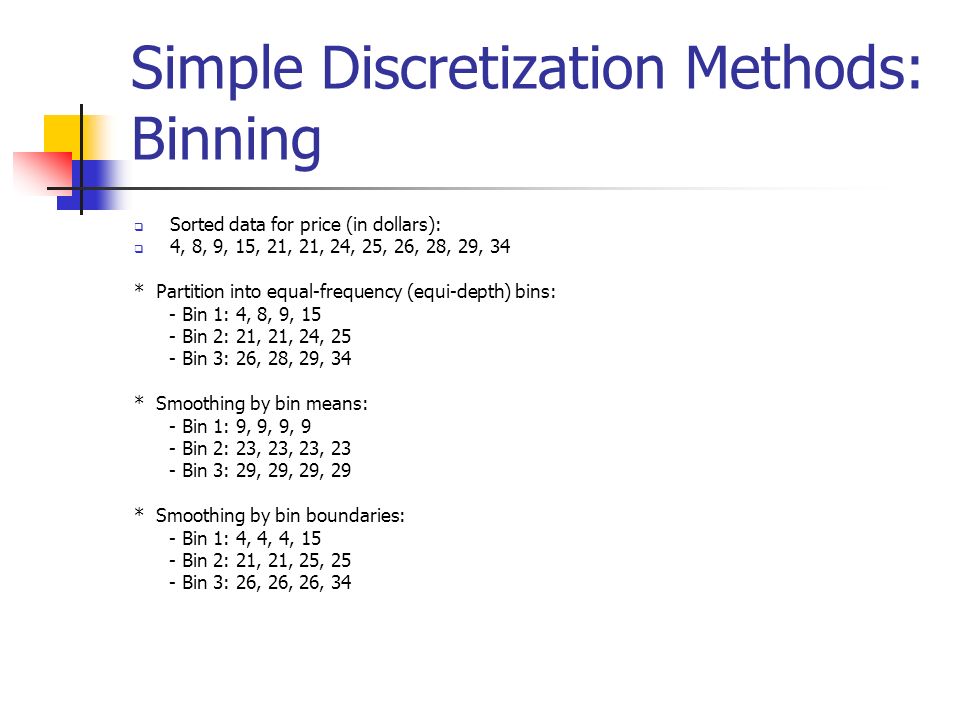

10. Simple Discretization Methods: Binning  Sorted data for price (in dollars):  4, 8, 9, 15, 21, 21, 24, 25, 26, 28, 29, 34 * Partition into equal-frequency (equi-depth) bins: - Bin 1: 4, 8, 9, 15 - Bin 2: 21, 21, 24, 25 - Bin 3: 26, 28, 29, 34 * Smoothing by bin means: - Bin 1: 9, 9, 9, 9 - Bin 2: 23, 23, 23, 23 - Bin 3: 29, 29, 29, 29 * Smoothing by bin boundaries: - Bin 1: 4, 4, 4, 15 - Bin 2: 21, 21, 25, 25 - Bin 3: 26, 26, 26, 34

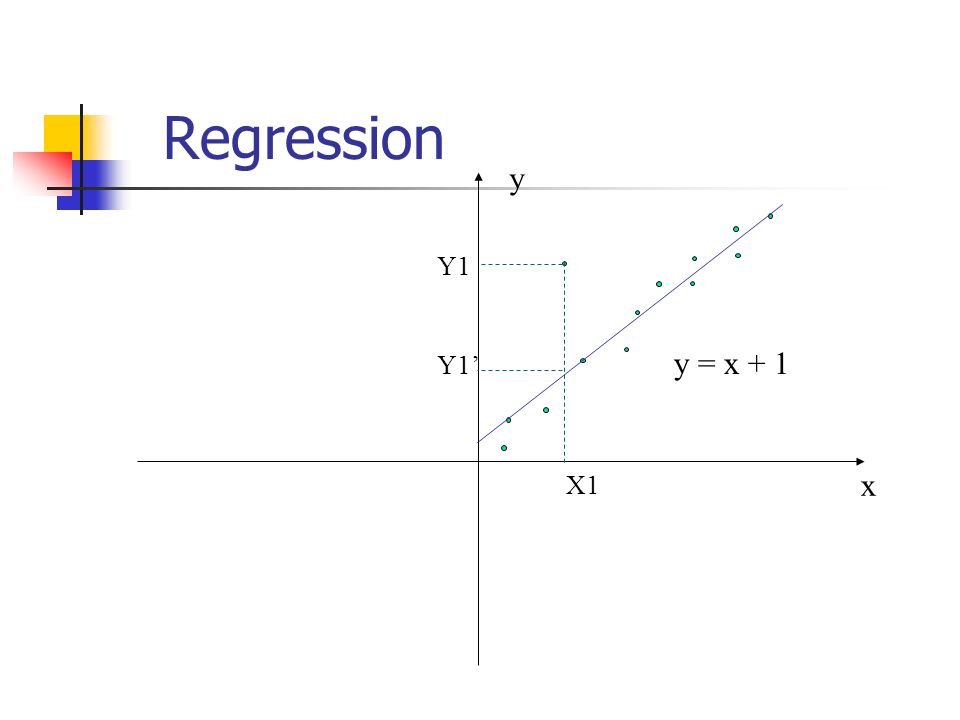

11. Regression x y y = x + 1 X1 Y1 Y1’

12. Cluster Analysis

13. Outline Introduction Descriptive Data Summarization Data Cleaning Missing value Noise data Data Integration Redundancy Data Transformation

14. Data integration Data integration: Combines data from multiple sources into a coherent store

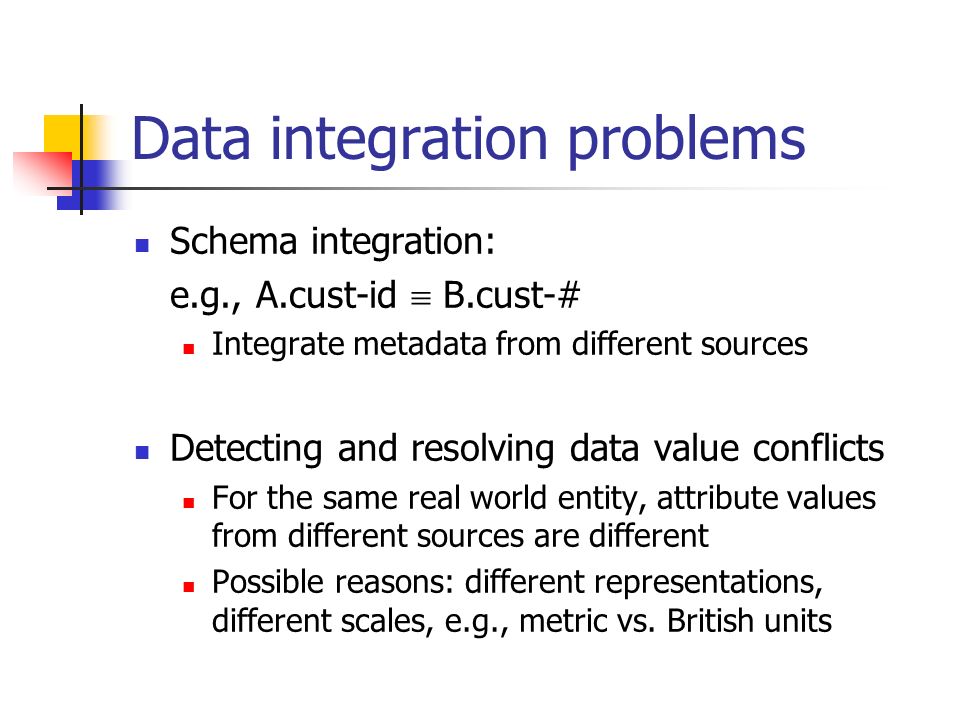

15. Data integration problems Schema integration: e.g., A.cust-id  B.cust-# Integrate metadata from different sources Detecting and resolving data value conflicts For the same real world entity, attribute values from different sources are different Possible reasons: different representations, different scales, e.g., metric vs. British units

16. Redundant data Redundant data occur often when integration of multiple databases Object identification: The same attribute or object may have different names in different databases Derivable data: One attribute may be a “derived” attribute in another table, e.g., annual revenue

17. Redundant data Redundant attributes may be able to be detected by correlation analysis Careful integration of the data from multiple sources may help reduce/avoid redundancies and inconsistencies and improve mining speed and quality

18. Pearson’s product moment coefficient Correlation coefficient (also called Pearson’s product moment coefficient) where n is the number of tuples, and are the respective means of A and B, σ A and σ B are the respective standard deviation of A and B, and Σ(AB) is the sum of the AB cross-product.

19. Pearson’s product moment coefficient The correlation coefficient is always between -1 and +1. The closer the correlation is to +/- 1, the closer to a perfect linear relationship. Here is how I tend to interpret correlations. -1.0 to -0.7 strong negative association. -0.7 to -0.3 weak negative association. -0.3 to +0.3 little or no association. +0.3 to +0.7 weak positive association. +0.7 to +1.0 strong positive association.

20. Chi-Square Χ 2 (chi-square) test The larger the Χ 2 value, the more likely the variables are related

21. Chi-Square Calculation: An Example Suppose a group of 1500 people was surveyed. The gender of each person was noted Male: 300 Female: 1200 We have two attributes: Gender Prefer-reading

22. Chi-Square Calculation: An Example E 11 = count (male)*count(fiction)/N = 300 * 450 / 1500 =90 E 12 = count (male)*count(not_fiction)/N = 300 * 1050/ 1500 =90 i j MaleFemaleSum (row) Like science fiction250(90)200(360)450 Not like science fiction 50(210)1000(840)1050 Sum(col.)30012001500

23. Chi-Square Calculation: An Example For this 2 by 2 table, the degree of freedom are (2- 1)(2-1)=1 For 1 degree of freedom, the Chi-Square value needed to reject the hypothesis at the 0.001 significance is 10.828 Since our value is above this, we can conclude that the gender and prefer_reading are (strongly) correlated for the given group of people

24. Outline Introduction Descriptive Data Summarization Data Cleaning Missing value Noise data Data Integration Redundancy Data Transformation

25. Data Transformation can involve the following: Smoothing: remove noise from the data, including binning, regression and clustering Aggregation Generalization Normalization Attribute construction

26. Normalization

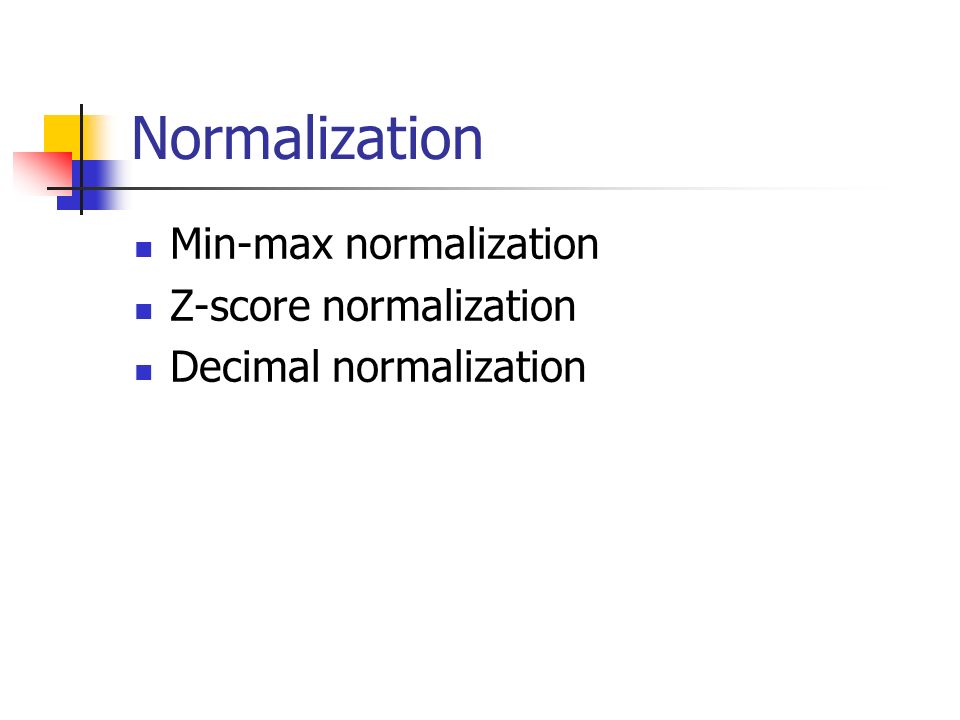

28. Min-max normalization Z-score normalization Decimal normalization

29. Min-max normalization Min-max normalization: to [new_min A, new_max A ] Ex. Let income range $12,000 to $98,000 normalized to [0.0, 1.0]. Then $73,000 is mapped to

30. Z-score normalization Z-score normalization (μ: mean, σ: standard deviation): Ex. Let μ = 54,000, σ = 16,000. Then

31. Decimal normalization Normalization by decimal scaling Suppose the recorded value of A range from -986 to 917, the max absolute value is 986, so j = 3 Where j is the smallest integer such that Max(|ν’|) < 1
