1. www.novell.com Novell iManager Introduction and Overview James Whitchurch Director—Software Engineering Novell, Inc. jwhitchurch@novell.com Karl Ford Engineering Manager Novell, Inc. kford@novell.com

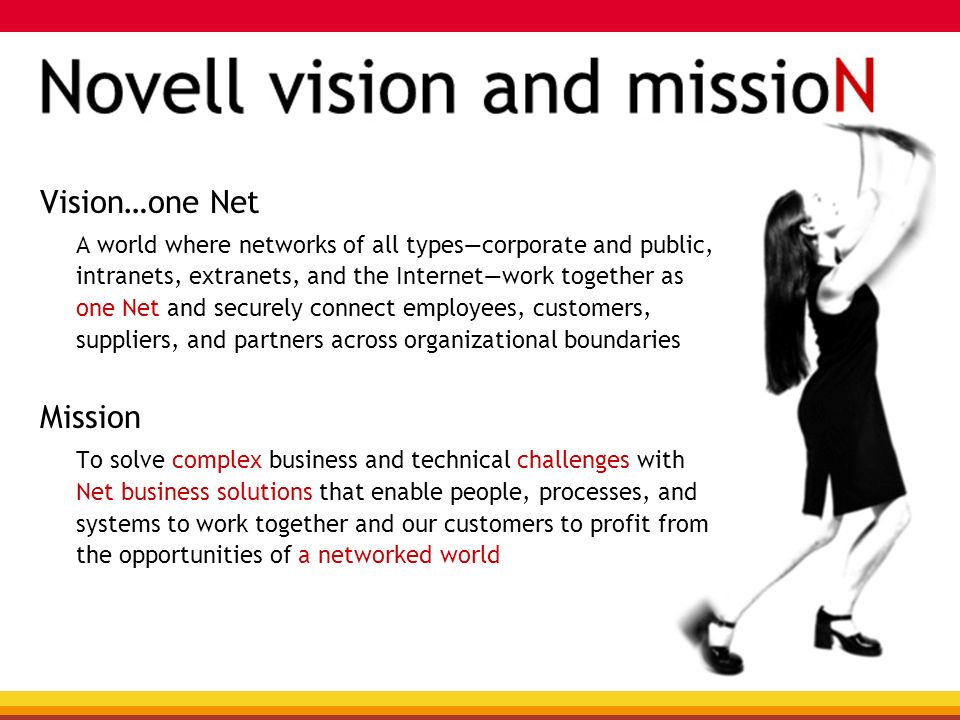

2. Vision…one Net A world where networks of all types—corporate and public, intranets, extranets, and the Internet—work together as one Net and securely connect employees, customers, suppliers, and partners across organizational boundaries Mission To solve complex business and technical challenges with Net business solutions that enable people, processes, and systems to work together and our customers to profit from the opportunities of a networked world

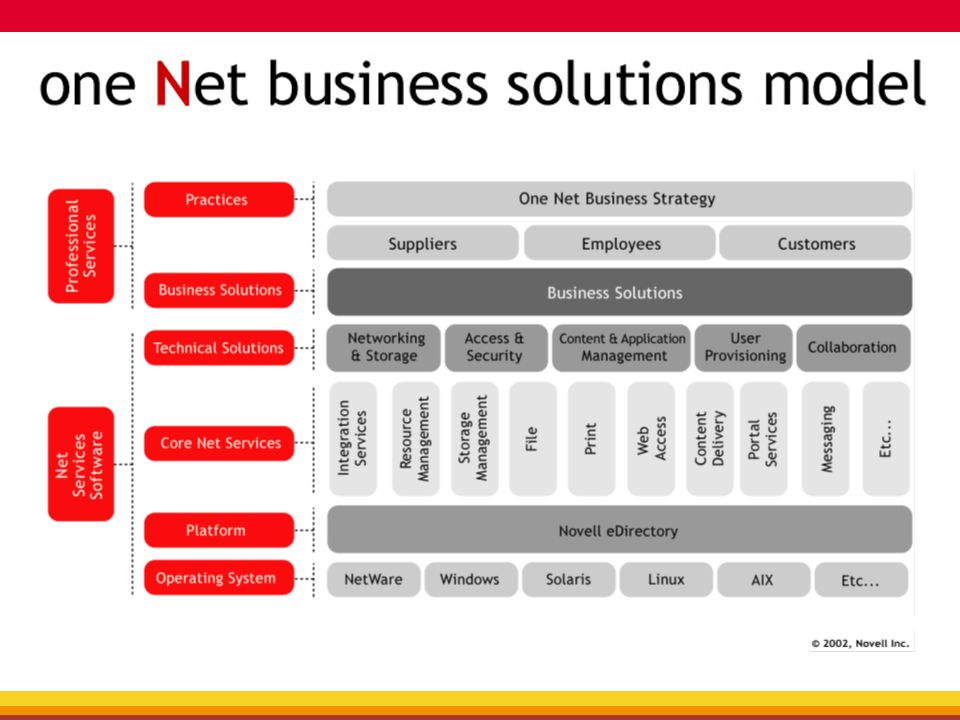

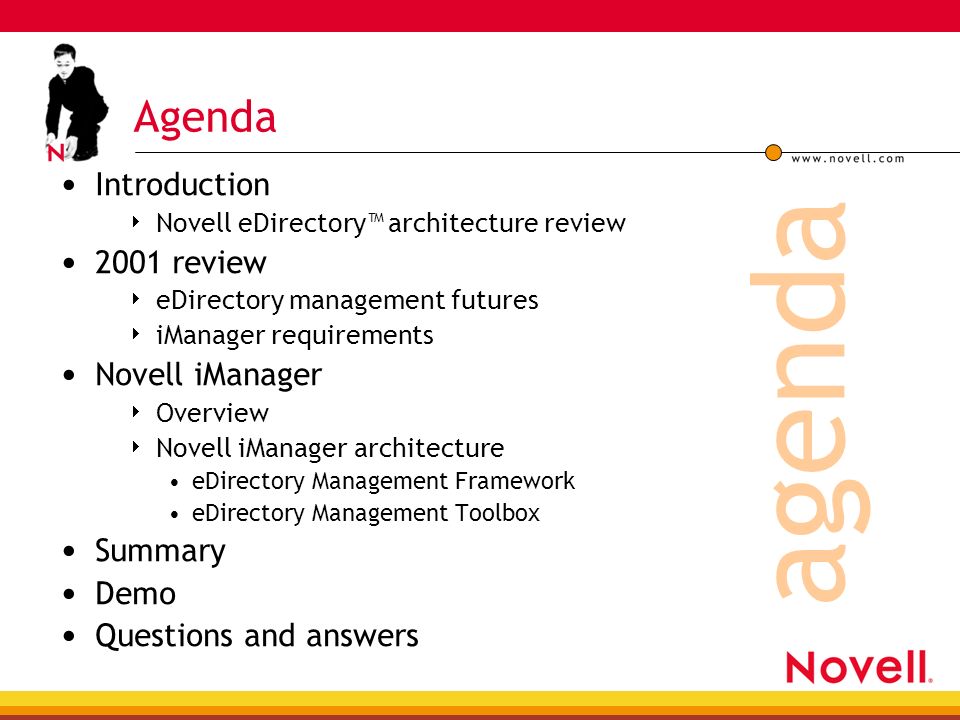

4. Agenda Introduction  Novell eDirectory™ architecture review 2001 review  eDirectory management futures  iManager requirements Novell iManager  Overview  Novell iManager architecture eDirectory Management Framework eDirectory Management Toolbox Summary Demo Questions and answers agenda

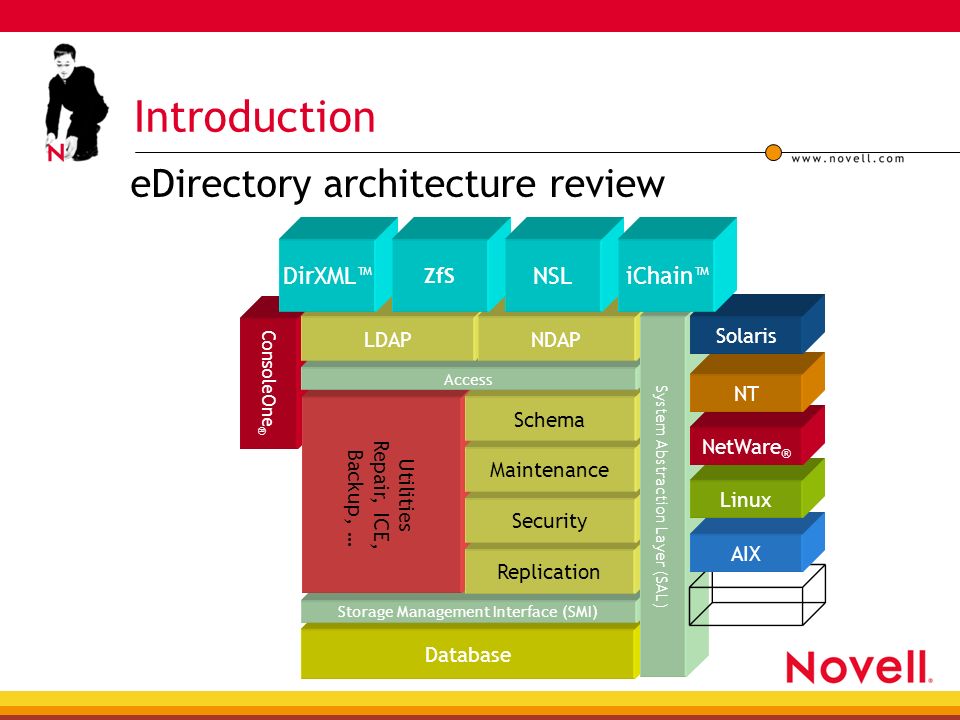

5. ConsoleOne ® Database Storage Management Interface (SMI) Utilities Repair, ICE, Backup, … Replication Security Maintenance Schema Introduction Access LDAPNDAP System Abstraction Layer (SAL) AIX Linux NetWare ® NT Solaris DirXML™ ZfS NSLiChain™ eDirectory architecture review

6. Deployed Versions Novell eDirectory and Novell Directory Services ® (NDS ® ) Product VersionBuild VersionPlatforms NetWare 5.1 SP4 (NDS 7)DS.nlm v7.57NetWare 5.1 NetWare 5.1 SP 4 (NDS 8)DS.nlm v8.79NetWare 5.1 eDirectory 8DS.nlm & DS.dlm v8.79NetWare 5.0,Win NT/2K eDirectory 8.5.xDS v85.23NetWare 5.x,Win,Solaris NetWare 6 (eDirectory 8.6)DS.nlm v10110.20NetWare 6 eDirectory 8.6.1DS v10210.43NW 5.1,NW 6,Win,Solaris,Linux NetWare 6 SP1 (eDirectory 8.6.2)DS.nlm v10310.17NetWare 6 eDirectory 8.6.2DS v103xx.xxNW 5.1,NW 6,Win,Solaris,Linux eDirectory 8.7DS v10410.xxNW 5.1,NW 6,Win,Solaris,Linux,AIX

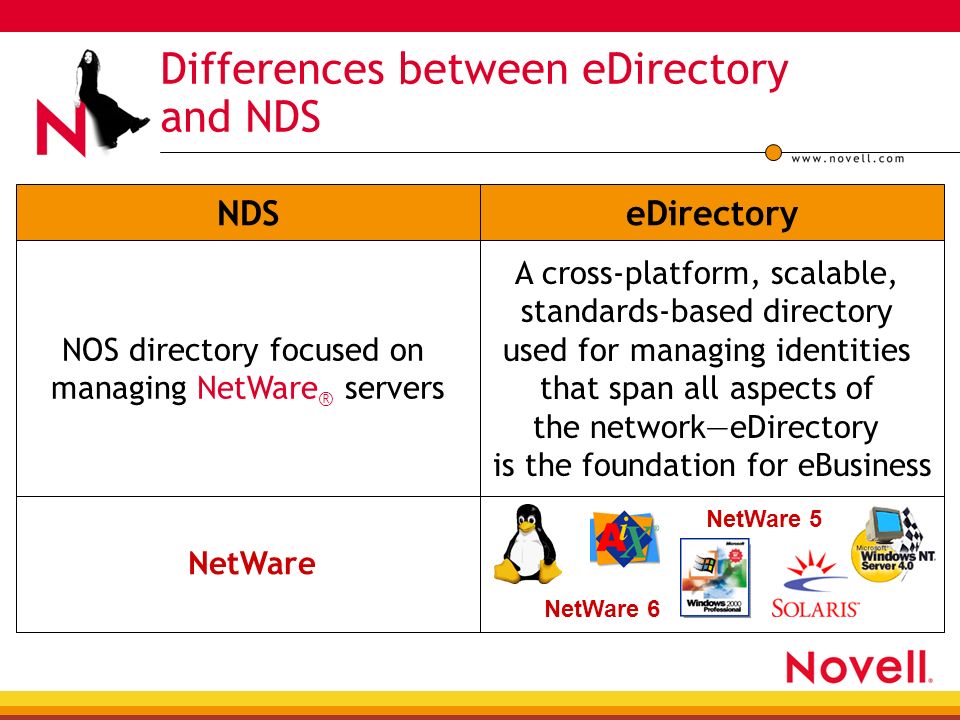

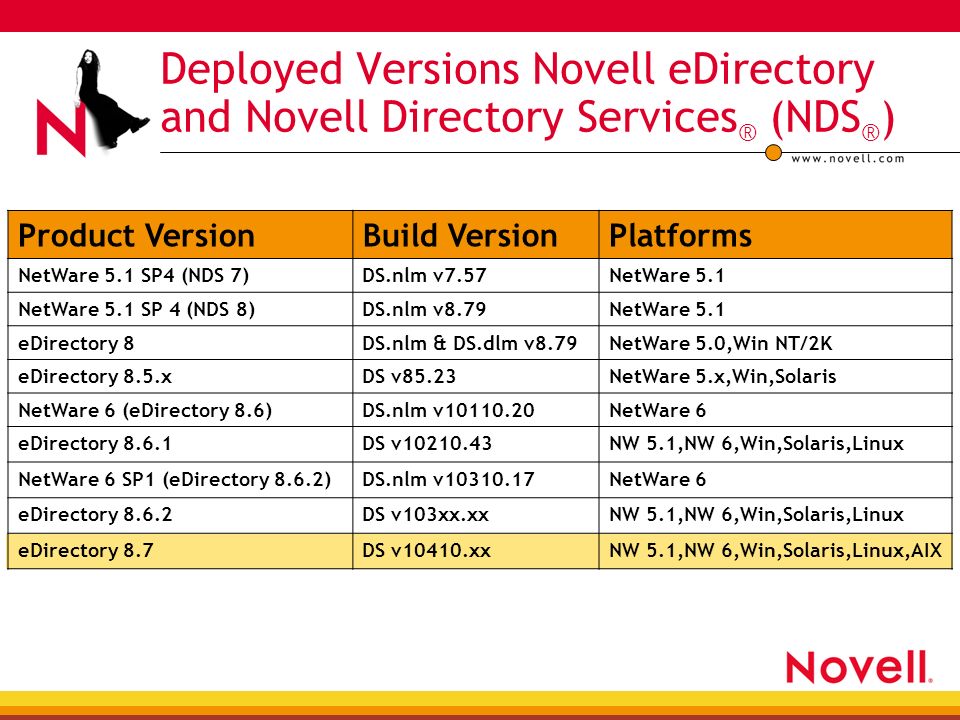

7. Differences between eDirectory and NDS NetWare 6 NetWare NDSeDirectory NOS directory focused on managing NetWare ® servers A cross-platform, scalable, standards-based directory used for managing identities that span all aspects of the network—eDirectory is the foundation for eBusiness NetWare 5

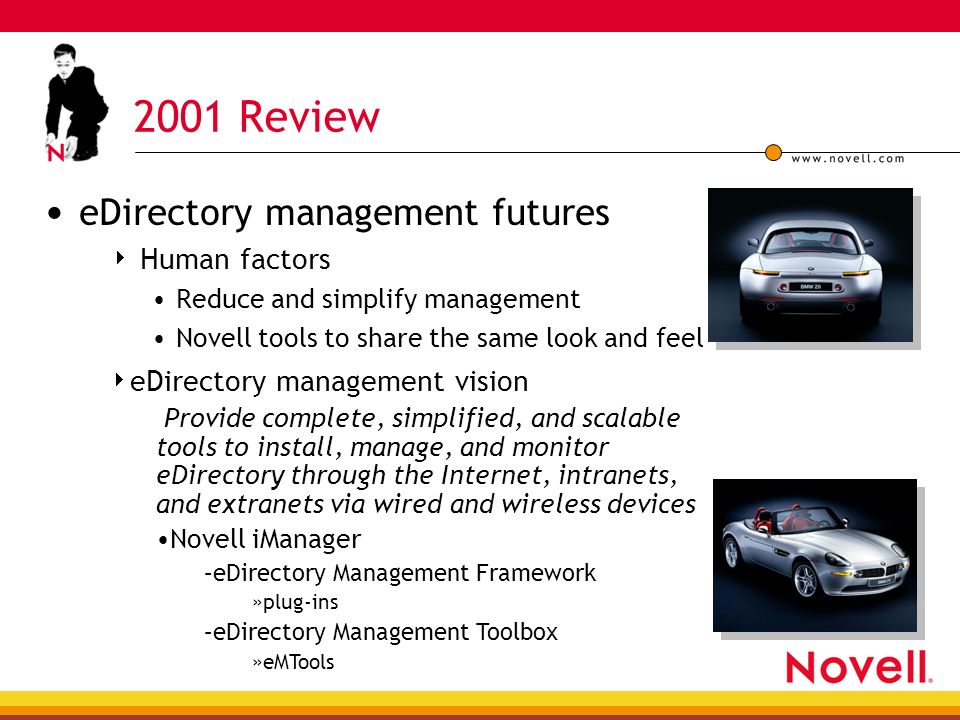

8. eDirectory management futures  Human factors Reduce and simplify management Novell tools to share the same look and feel 2001 Review  eDirectory management vision Provide complete, simplified, and scalable tools to install, manage, and monitor eDirectory through the Internet, intranets, and extranets via wired and wireless devices Novell iManager –eDirectory Management Framework »plug-ins –eDirectory Management Toolbox »eMTools

9. Novell iManager Requirements Simplified and complete  Consolidation  Role-based Cross-platform  Windows  Novell NetWare  Solaris, Linux, AIX, etc. Remotely available  Wired  Wireless Server available  Command-line  Scriptable Development support  SDK  Tools

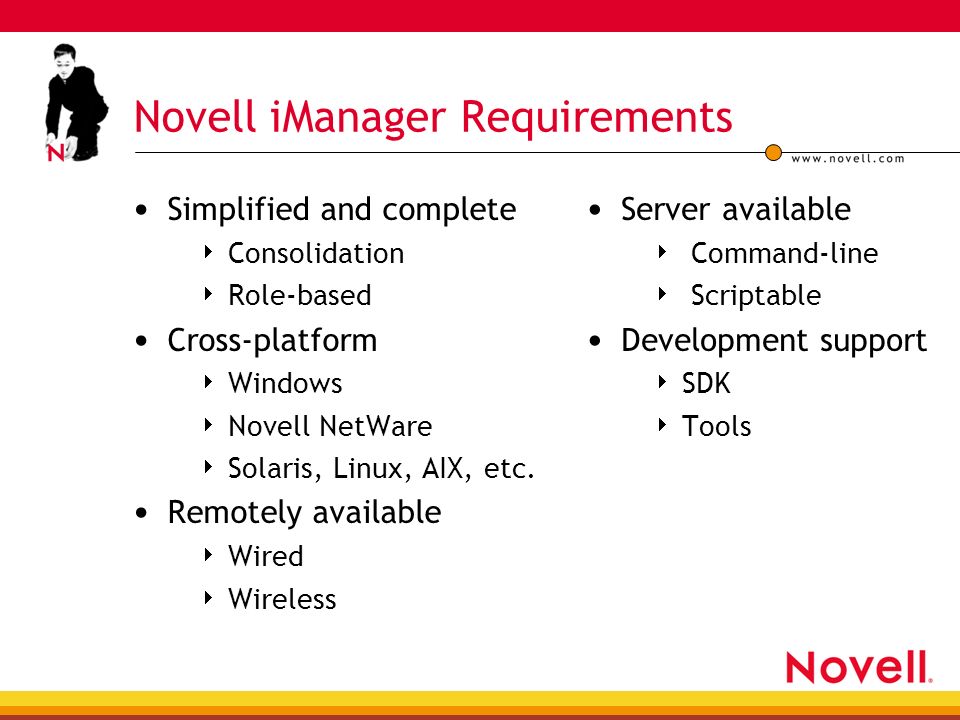

10. Novell iManager Overview

11. Management SDK Management interface Utilities Novell iManager Overview eDirectory

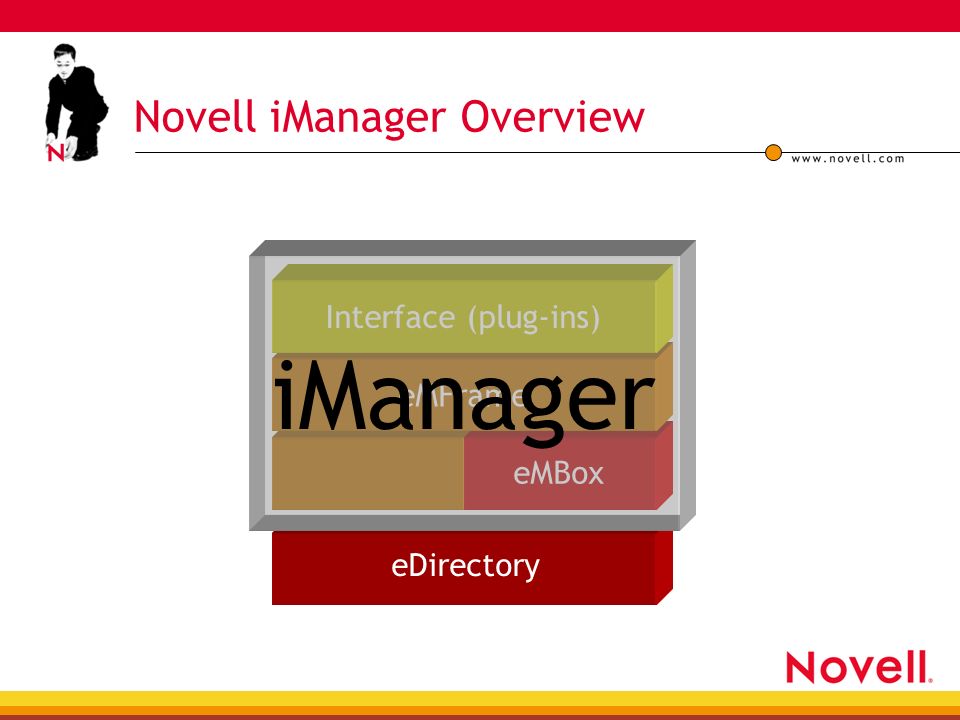

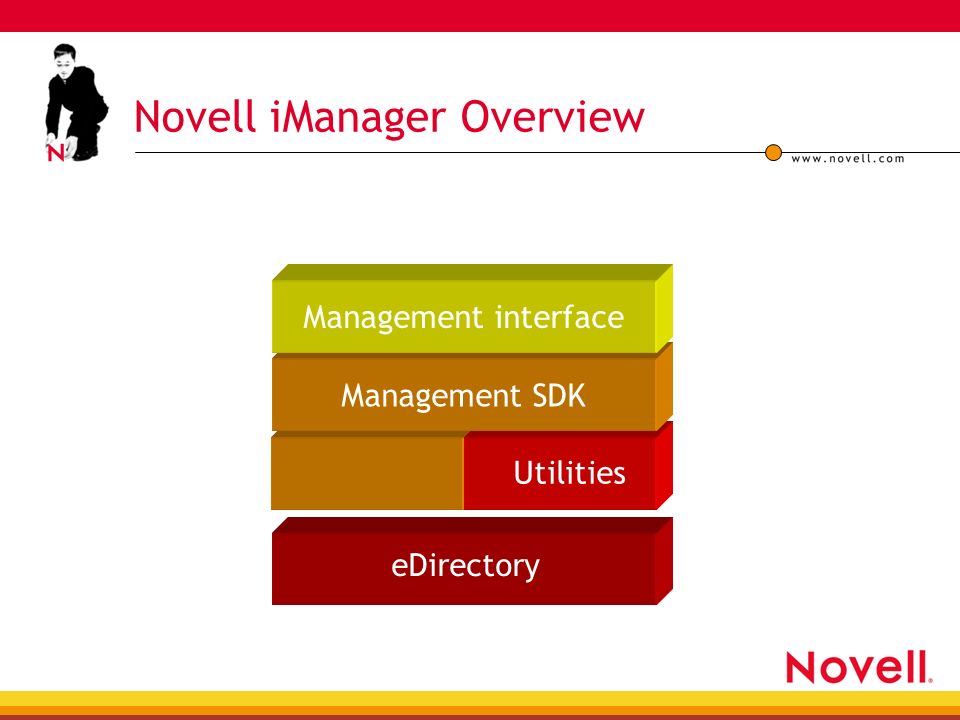

12. eMFrame Interface (plug-ins) eMBox Novell iManager Overview eDirectory iManager

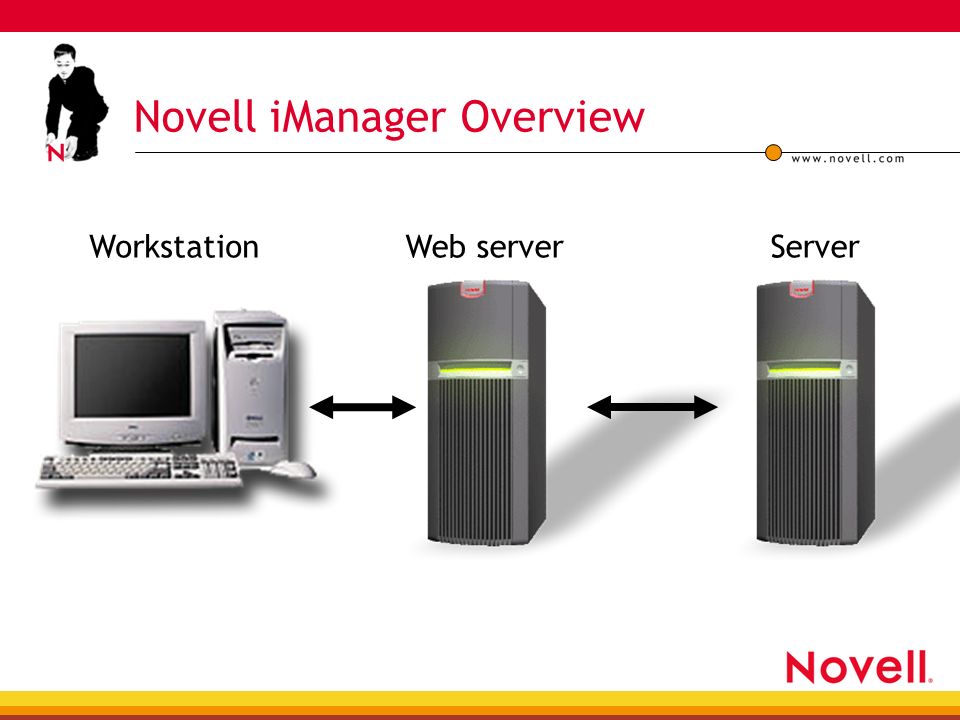

13. WorkstationWeb serverServer Novell iManager Overview

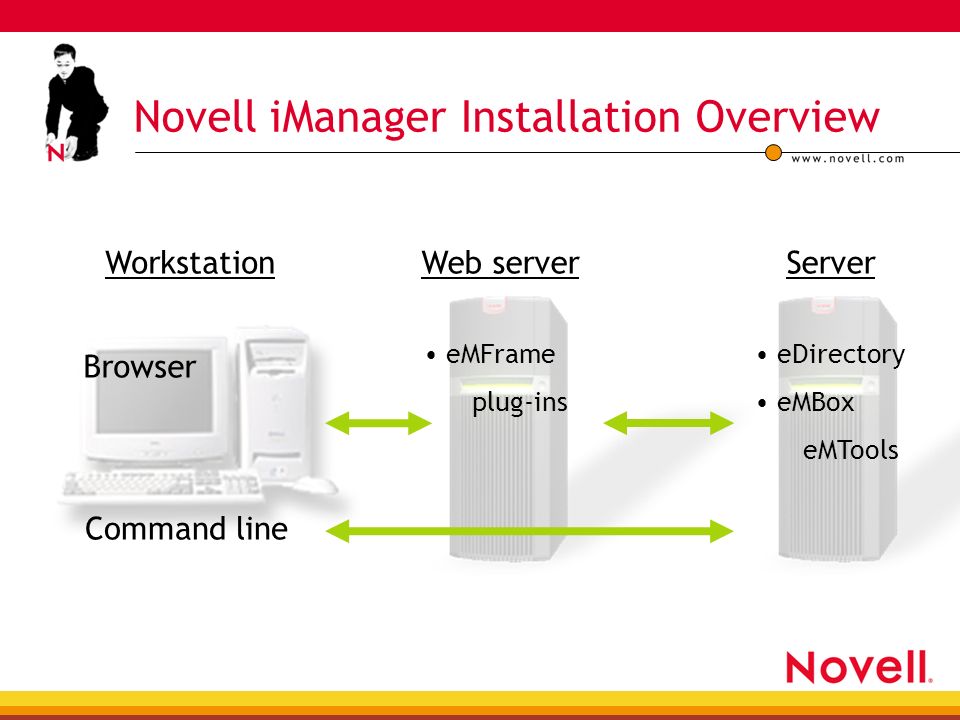

14. WorkstationWeb serverServer Novell iManager Installation Overview eMFrame plug-ins eDirectory eMBox eMTools Browser Command line

15. Novell iManager eDirectory Management Framework (eMFrame)

16. Novell iManager eMFrame Key Features Web-based  Wired  Wireless Cross-platform Development environment  Java  Java script  HTML  Interface wizard Role-based Uses web server eMFrame

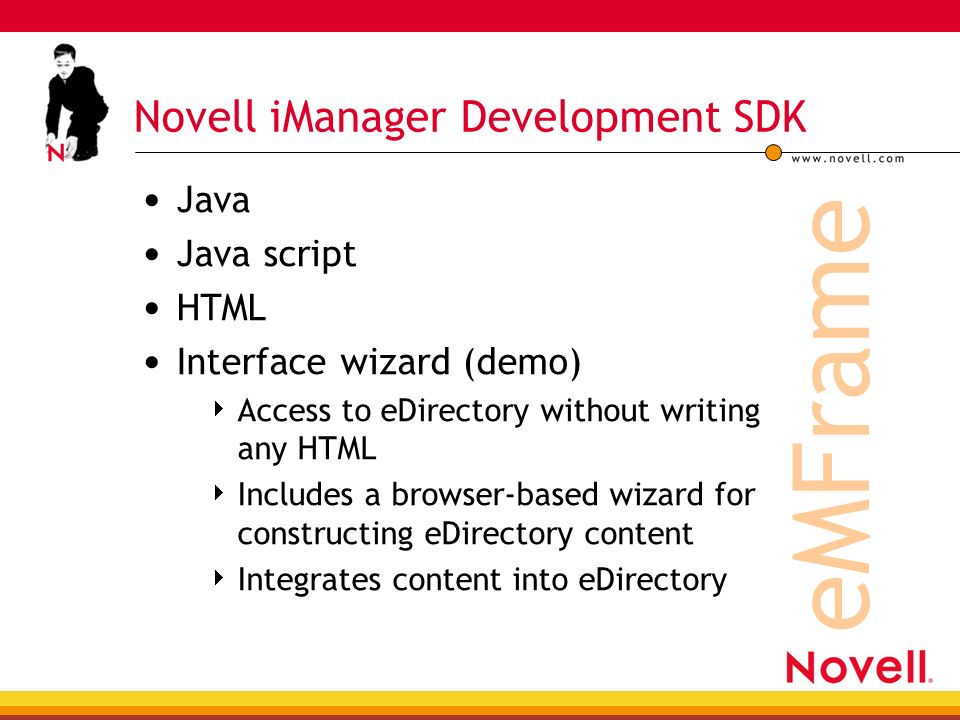

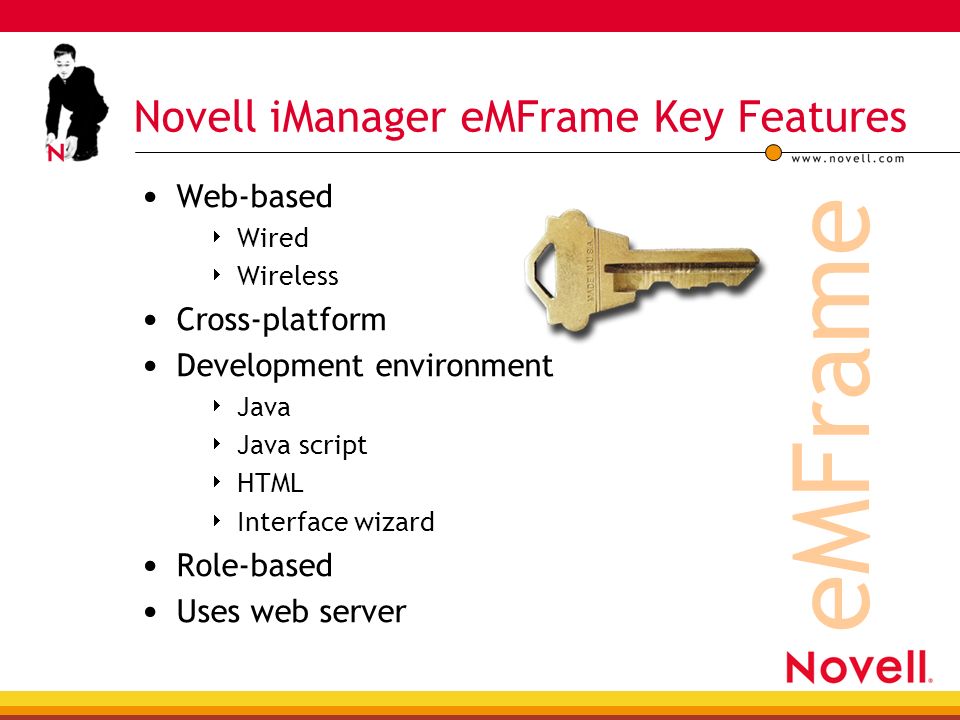

17. Novell iManager Development SDK Java Java script HTML Interface wizard (demo)  Access to eDirectory without writing any HTML  Includes a browser-based wizard for constructing eDirectory content  Integrates content into eDirectory

18. eMFrame Novell iManager Role-Based Management Role-Based management Requires role-based schema Supports the assignments of roles to users Simplifies interface Customizable  Creation of roles  Assignment of tasks to roles Self-administration—eGuide

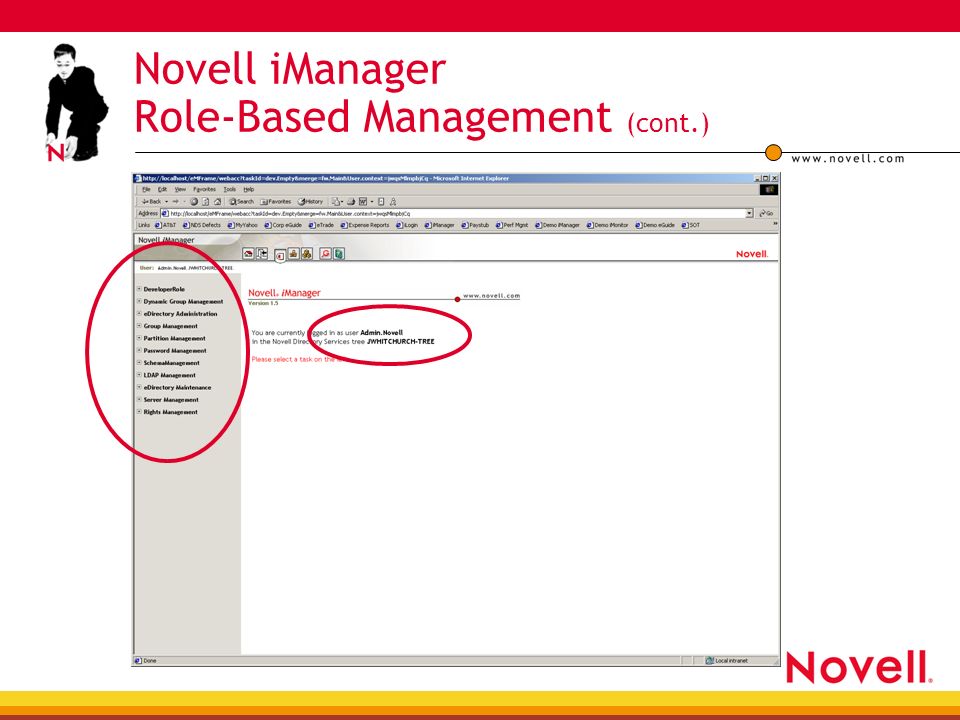

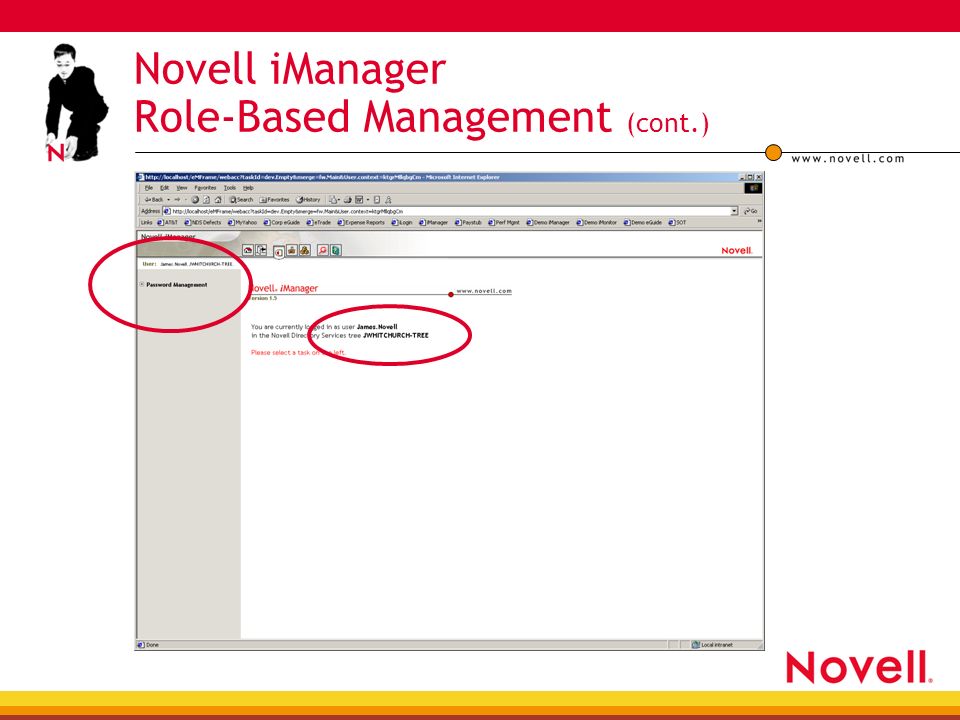

19. Novell iManager Role-Based Management (cont.)

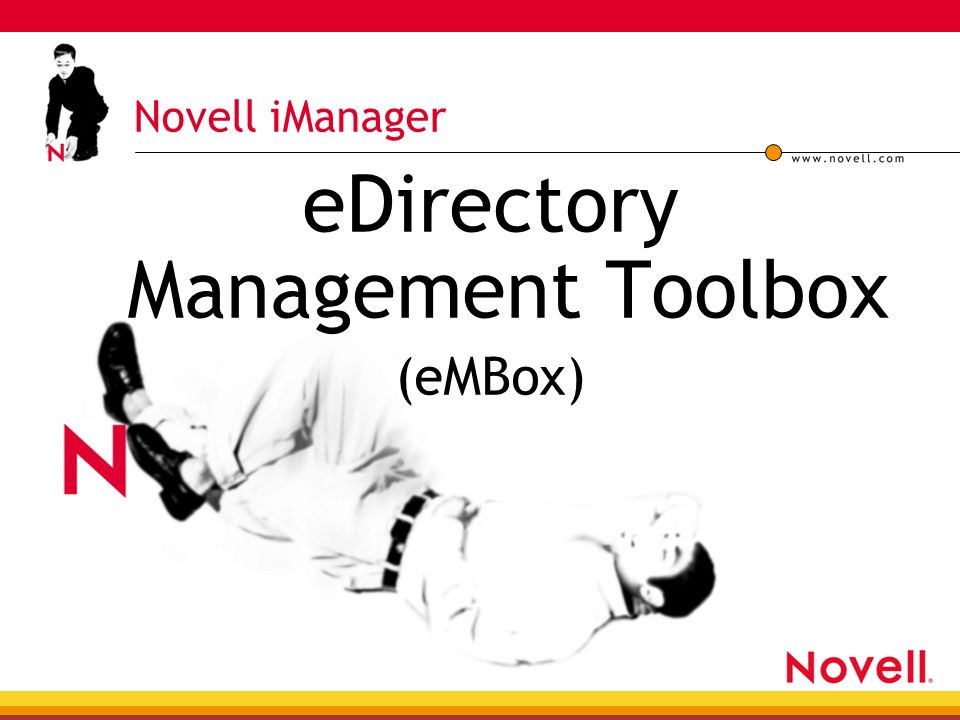

21. Novell iManager eDirectory Management Toolbox (eMBox)

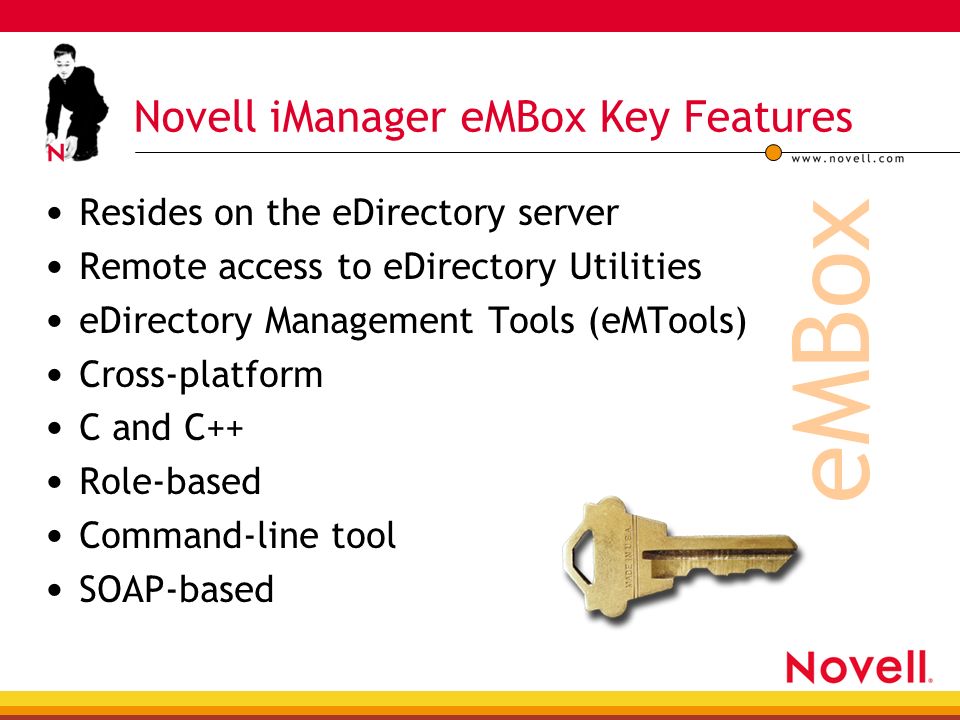

22. Novell iManager eMBox Key Features Resides on the eDirectory server Remote access to eDirectory Utilities eDirectory Management Tools (eMTools) Cross-platform C and C++ Role-based Command-line tool SOAP-based eMBox

23. Novell iManager Architecture

24. iManager (eMFrame) Novell iManager Architecture Plug-ins SDK… DHost process or NetWare ServerWeb server SDK… eMBox eMTools… eDirectory Browser

25. iManager (eMFrame) Novell iManager eMFrame Architecture LDAP plug-in Schema manager plug-in ICE plug-in DSMerge plug-in DSRepair plug-in Backup/restore plug-in eDir SDK eMBox SDK DHost Process ServerWeb server LDAP... eDirectory Browser eMBox eMTools…

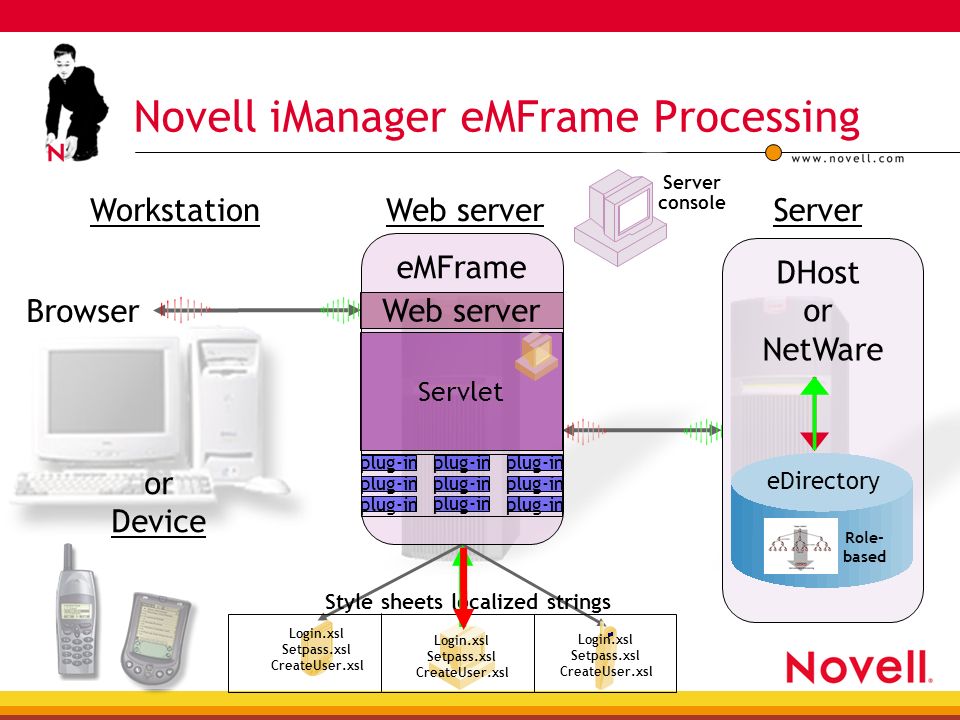

26. Novell iManager eMFrame Processing Web serverServer Browser Workstation DHost or NetWare eDirectory Role- based or Device Login.xsl Setpass.xsl CreateUser.xsl Login.xsl Setpass.xsl CreateUser.xsl Login.xsl Setpass.xsl CreateUser.xsl Style sheets localized strings eMFrame Servlet plug-in Web server Server console

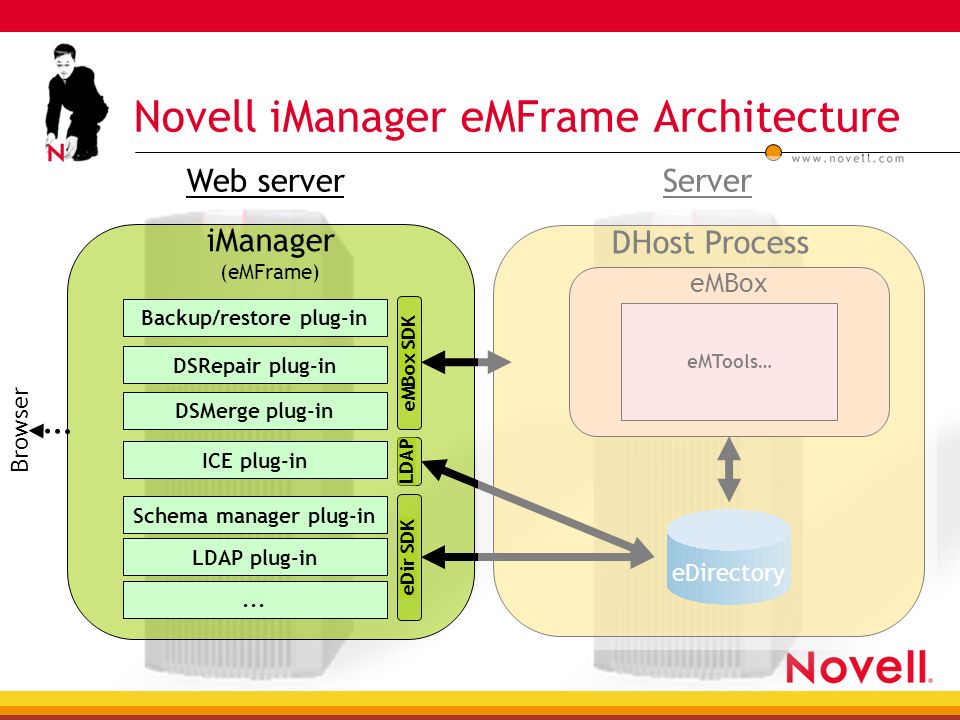

27. Novell iManager eMFrame Results

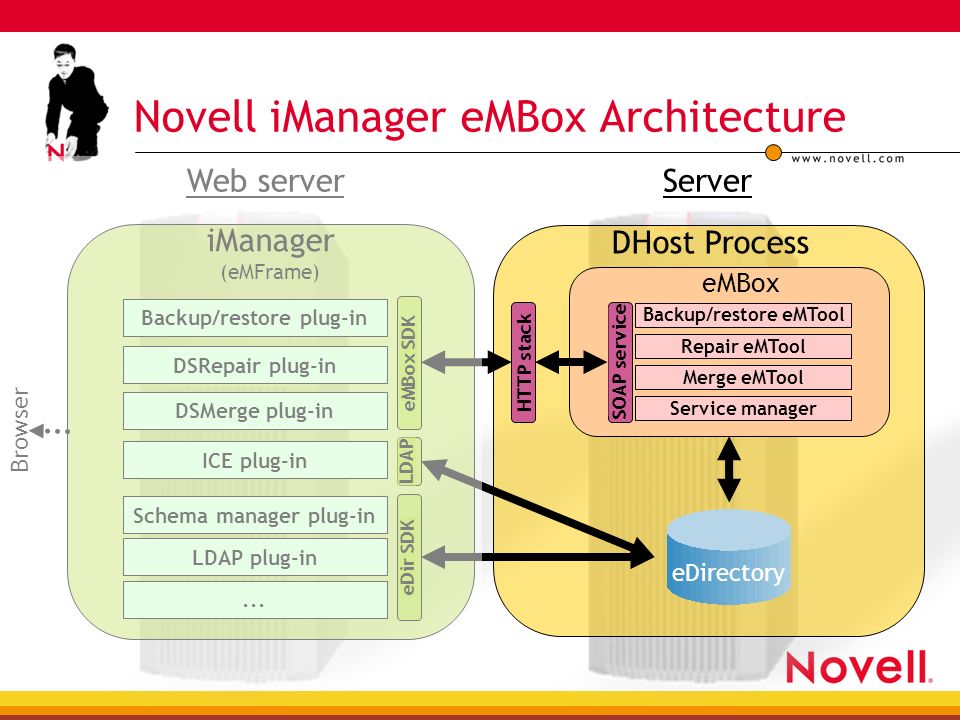

28. iManager (eMFrame) Novell iManager eMBox Architecture LDAP plug-in Schema manager plug-in ICE plug-in DSMerge plug-in DSRepair plug-in Backup/restore plug-in eDir SDK eMBox SDK DHost Process ServerWeb server LDAP eMBox HTTP stack SOAP service... Service manager Merge eMTool Repair eMTool Backup/restore eMTool eDirectory Browser

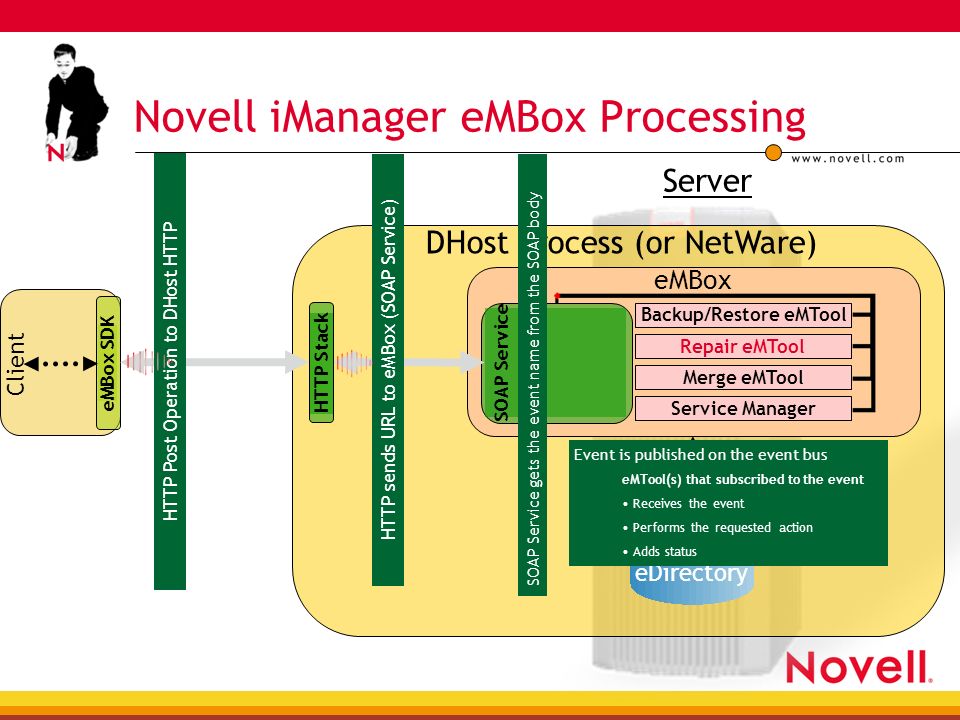

29. Novell iManager eMBox Processing eMBox SDK DHost Process (or NetWare) Server eMBox SOAP Service Service Manager Merge eMTool Repair eMTool Backup/Restore eMTool eDirectory Client Event is published on the event bus eMTool(s) that subscribed to the event Receives the event Performs the requested action Adds status HTTP sends URL to eMBox (SOAP Service) SOAP Service gets the event name from the SOAP body HTTP Stack HTTP Post Operation to DHost HTTP Repair eMTool

30. Novell iManager eMBox Processing eMBox SDK DHost process Server eMBox Soap Service eDirectory Client HTTP stack Client gets status information/response from SOAP body HTTP sends response to client Soap service Service manager Merge eMTool Repair eMTool Backup/restore eMTool Return from the event handler SOAP Service puts the event name, response and sends to HTTP

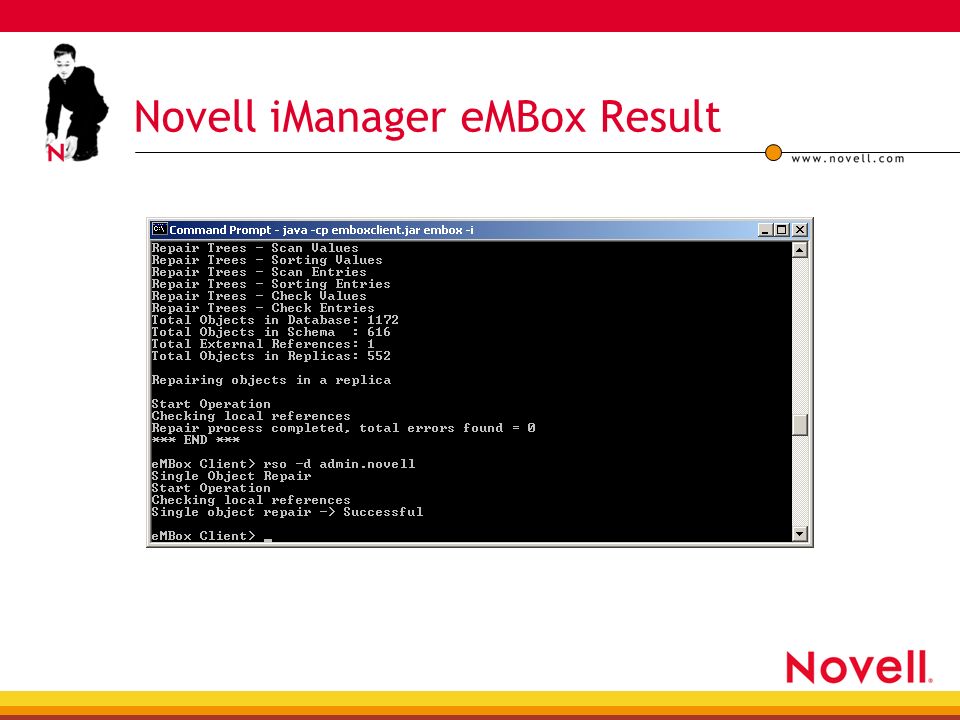

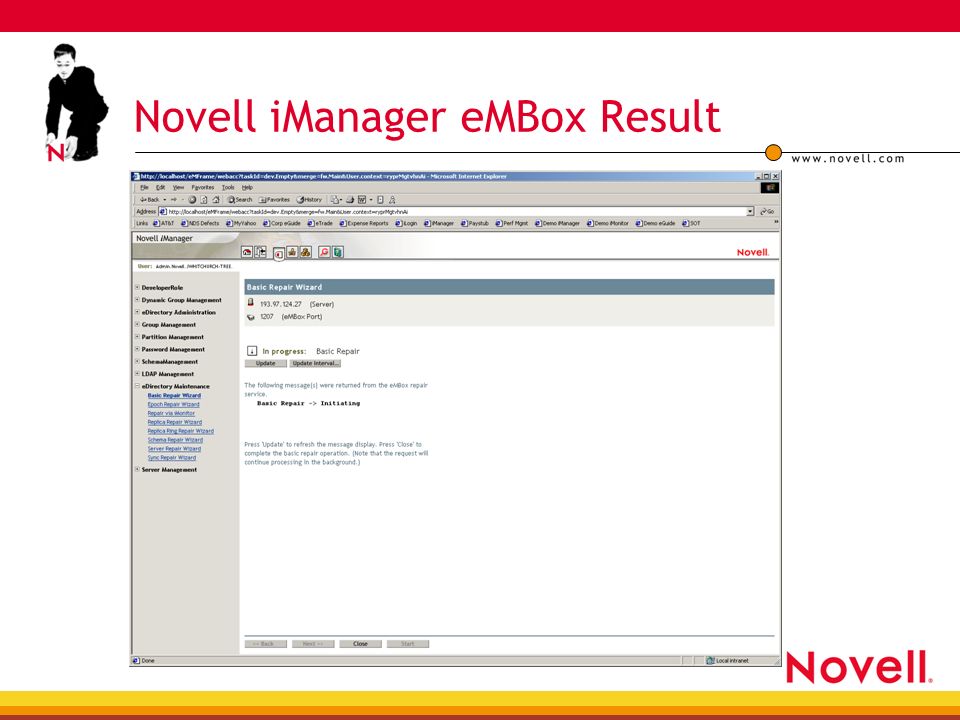

31. Novell iManager eMBox Result

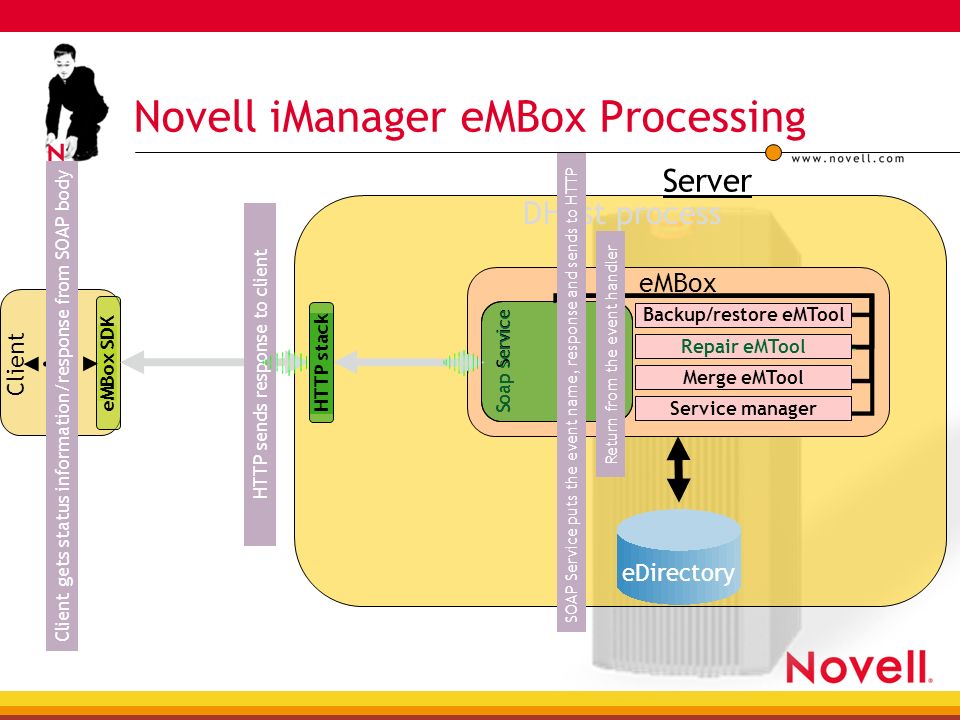

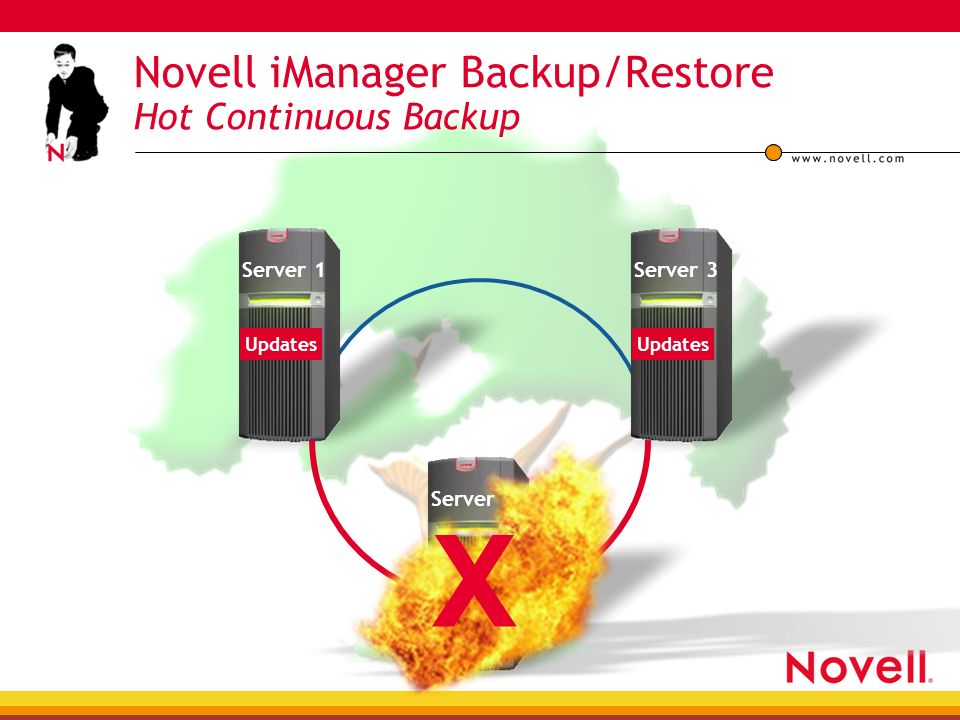

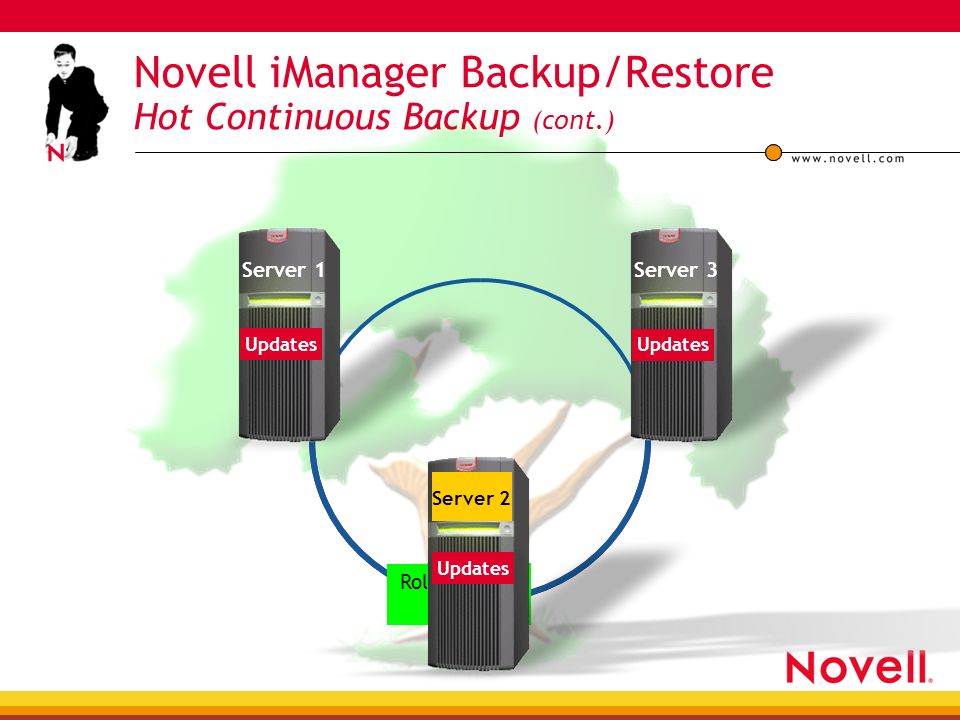

33. Novell iManager Backup/Restore Hot Continuous Backup Server 1Server 3 Updates Server 2 X

34. Incremental Backups Roll-Forward Logs Full Backup Novell iManager Backup/Restore Hot Continuous Backup (cont.) Server 1Server 3 Updates New Server Updates Server 2

35. Novell iManager Summary

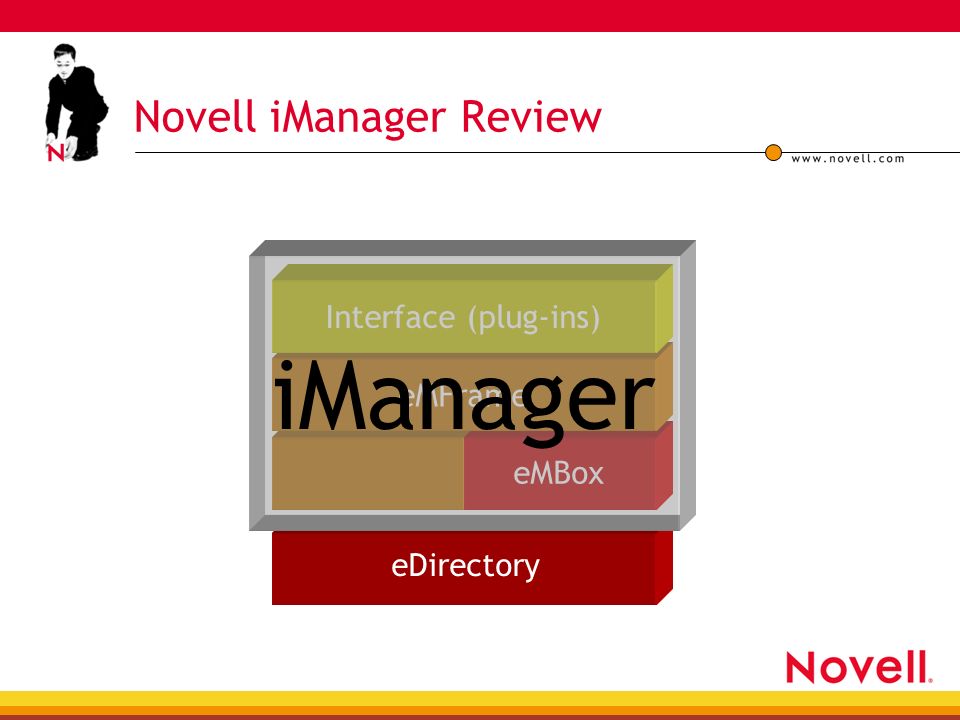

36. eMFrame Interface (plug-ins) eMBox Novell iManager Review eDirectory iManager

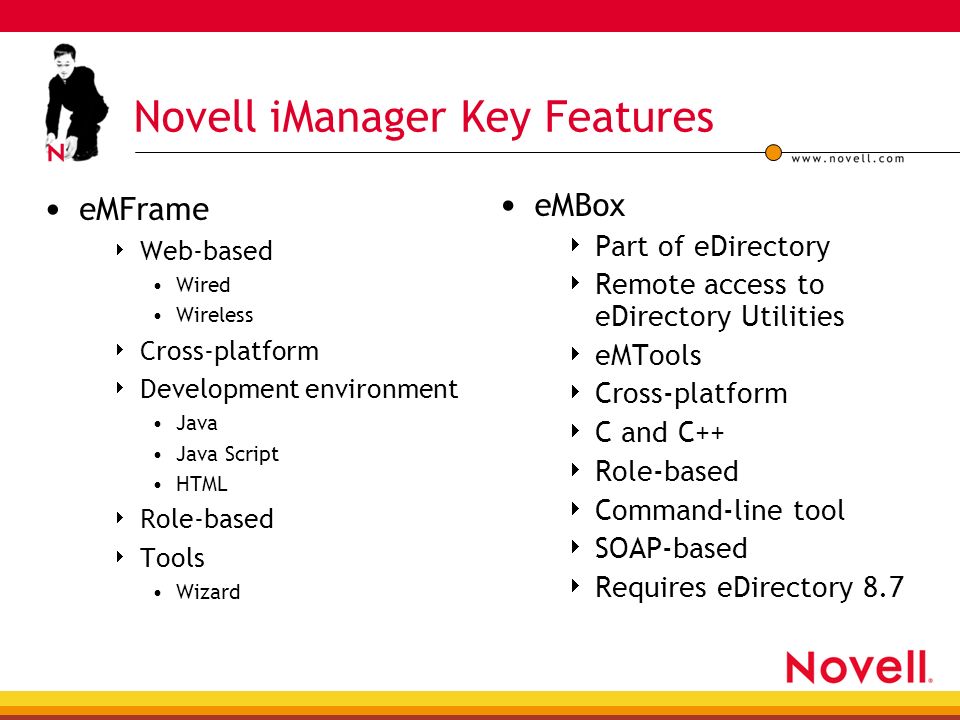

37. Novell iManager Key Features eMFrame  Web-based Wired Wireless  Cross-platform  Development environment Java Java Script HTML  Role-based  Tools Wizard eMBox  Part of eDirectory  Remote access to eDirectory Utilities  eMTools  Cross-platform  C and C++  Role-based  Command-line tool  SOAP-based  Requires eDirectory 8.7

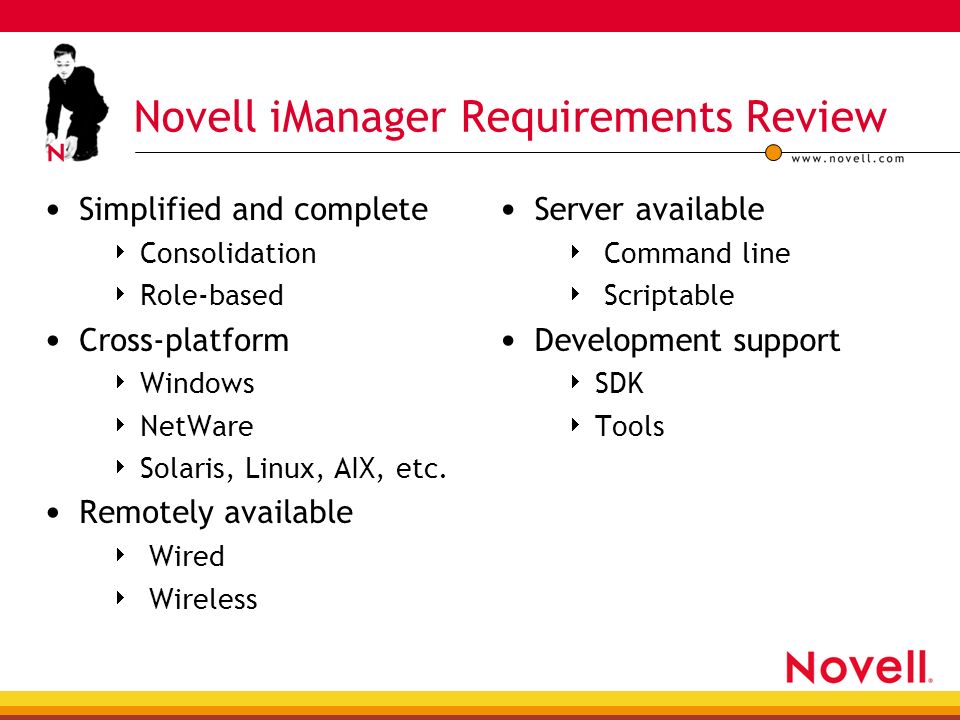

38. Novell iManager Requirements Review Simplified and complete  Consolidation  Role-based Cross-platform  Windows  NetWare  Solaris, Linux, AIX, etc. Remotely available  Wired  Wireless Server available  Command line  Scriptable Development support  SDK  Tools

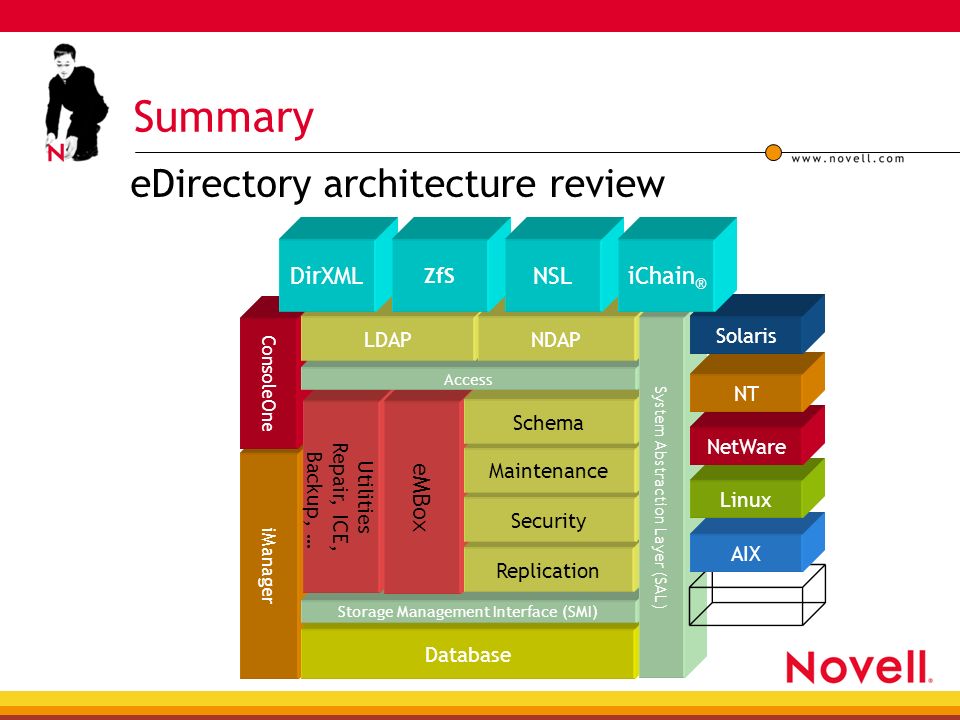

39. iManager ConsoleOne Database Storage Management Interface (SMI) Utilities Repair, ICE, Backup, … eMBox Replication Security Maintenance Schema Summary eDirectory architecture review Access LDAPNDAP DirXML ZfS NSL System Abstraction Layer (SAL) AIX Linux NetWare NT Solaris iChain ®

40. Novell iManager URL http://download.novell.com/iManager

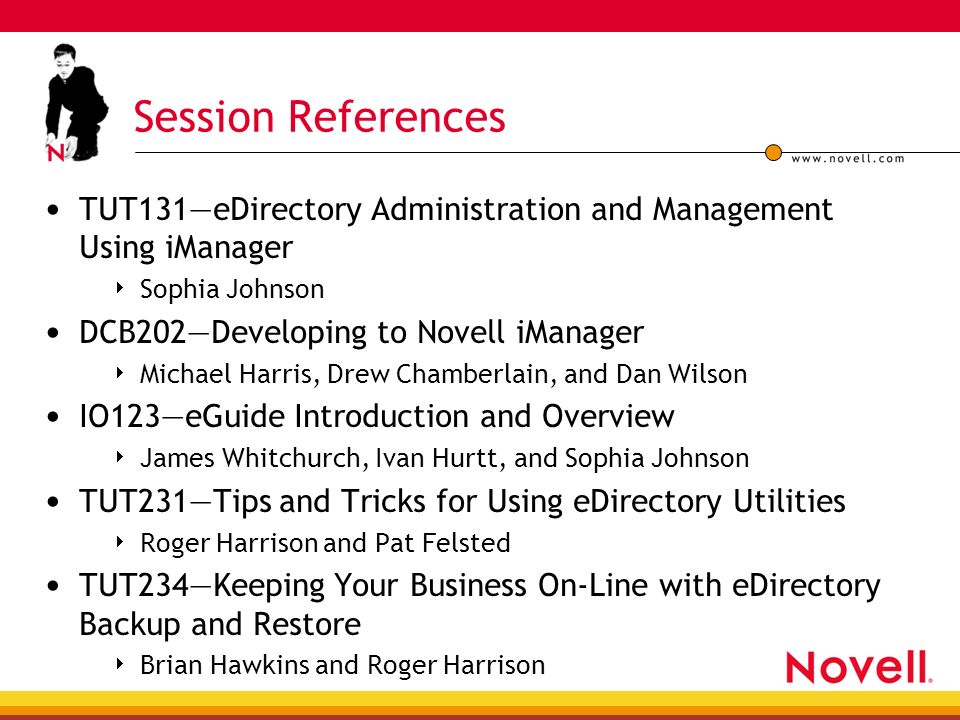

41. Session References TUT131—eDirectory Administration and Management Using iManager  Sophia Johnson DCB202—Developing to Novell iManager  Michael Harris, Drew Chamberlain, and Dan Wilson IO123—eGuide Introduction and Overview  James Whitchurch, Ivan Hurtt, and Sophia Johnson TUT231—Tips and Tricks for Using eDirectory Utilities  Roger Harrison and Pat Felsted TUT234—Keeping Your Business On-Line with eDirectory Backup and Restore  Brian Hawkins and Roger Harrison

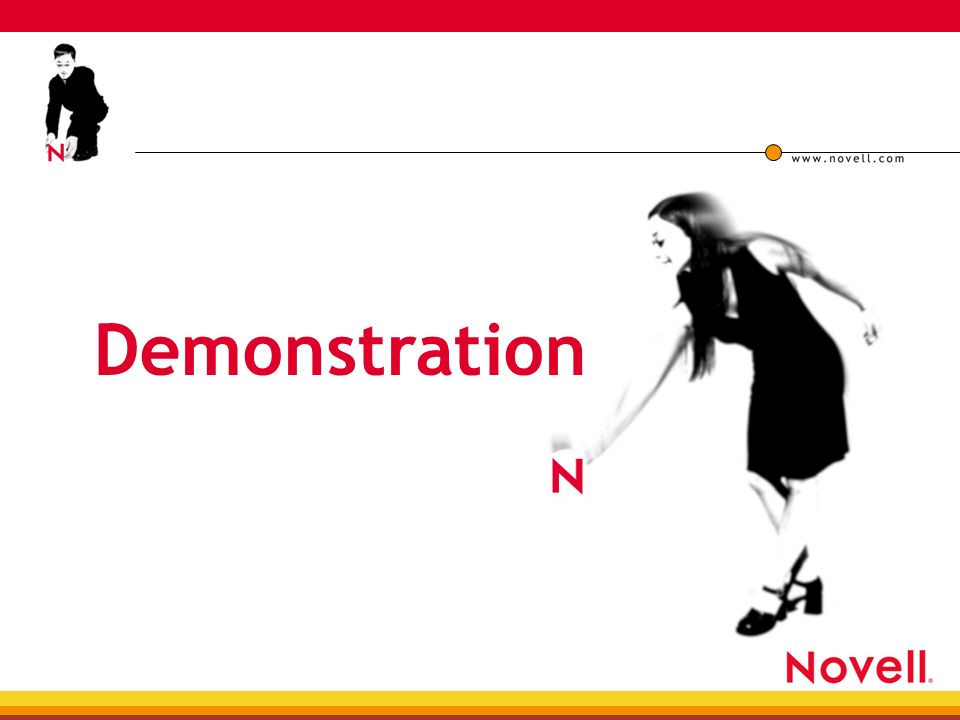

42. Demonstration

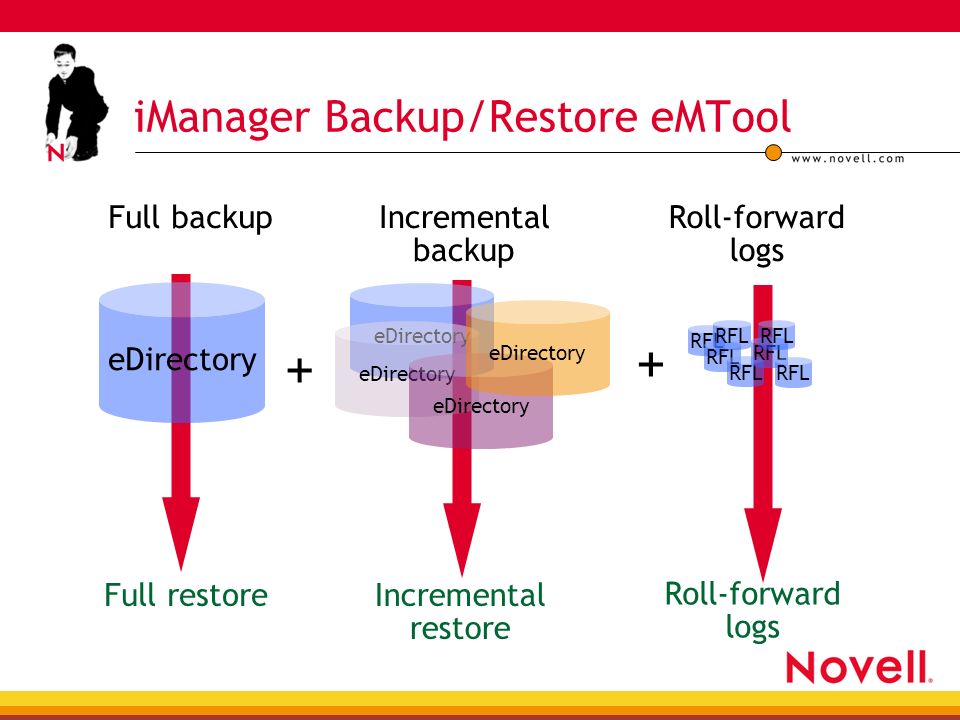

44. iManager Backup/Restore eMTool eDirectory Full backup eDirectory Incremental backup RFL Roll-forward logs Full restoreIncremental restore Roll-forward logs + +
