1. © T Madas

2.

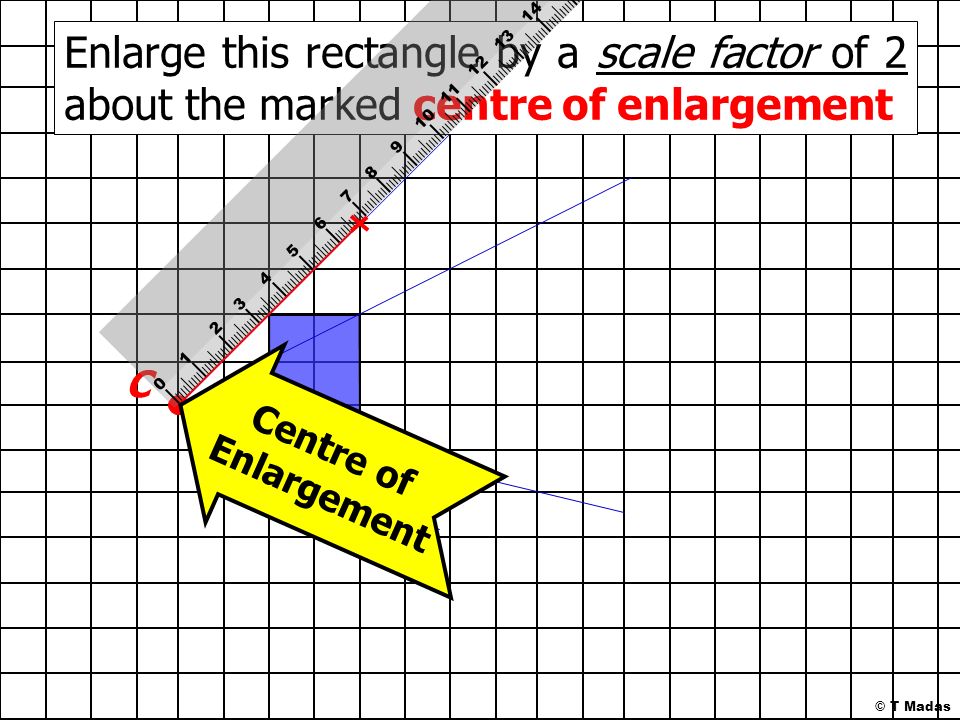

Enlarge this rectangle by a scale factor of 2 about the marked centre of enlargement C
Centre of
Enlargement
© T Madas

3. Enlarge this rectangle by a scale factor of 2 about the marked centre of enlargement
Can you see where the rest of the shape will be? C
© T Madas

4. Enlarge this rectangle by a scale factor of 2 about the marked centre of enlargement
Can you see where the rest of the shape will be? C
© T Madas

5. Enlarge this rectangle by a scale factor of 2 about the marked centre of enlargement
Can you see where the rest of the shape will be? I C
© T Madas

6. Why is the centre of enlargement important?
© T Madas

7. Why is the centre of enlargement important?
Can you see where the rest of the shape will be? C
© T Madas

8. Why is the centre of enlargement important?
Can you see where the rest of the shape will be? C
© T Madas

9. Why is the centre of enlargement important?
Can you see where the rest of the shape will be? C
© T Madas

10. Why is the centre of enlargement important?
To enlarge a shape you need:
A Scale Factor
Centre of Enlargement C
(Size)
(Position) I
© T Madas

11.

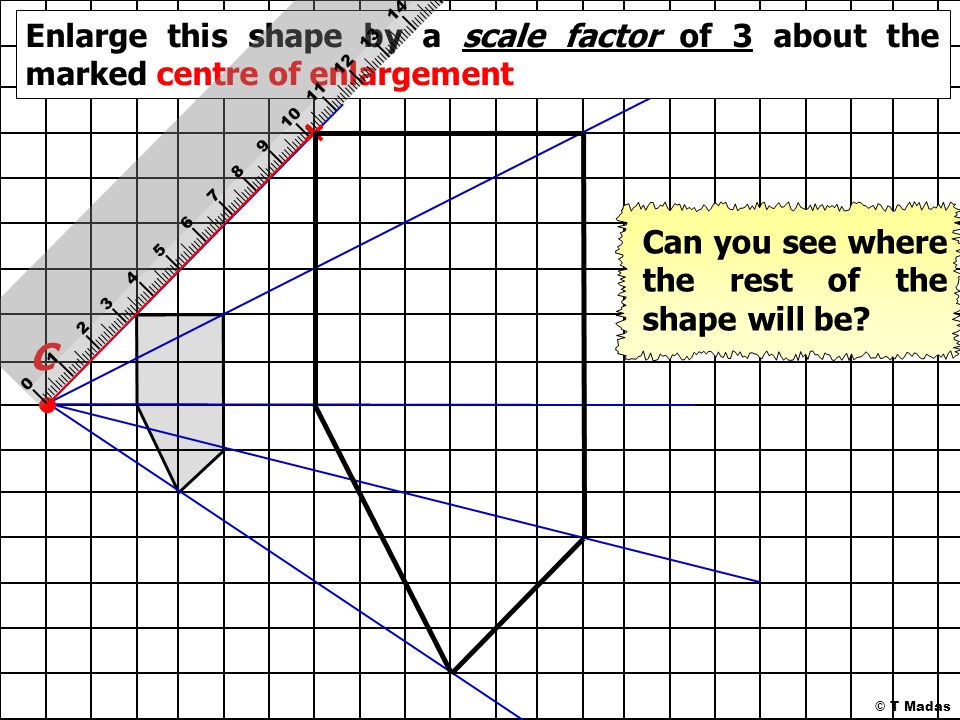

Enlarge this shape by a scale factor of 3 about the marked centre of enlargement
Can you see where the rest of the shape will be? C
© T Madas

12. Enlarge this shape by a scale factor of 3 about the marked centre of enlargement C
© T Madas

13. Enlarge this shape by a scale factor of 3 about the marked centre of enlargement
© T Madas

14. Enlarge this shape by a scale factor of 3 about the marked centre of enlargement
© T Madas

15. Enlarge this shape by a scale factor of 3 about the marked centre of enlargement
© T Madas

16. The Different Positions
of the
Centre of Enlargement
© T Madas

17. The centre of enlargement can lie on a corner of the shape
x 4
x 3
x 2 C
© T Madas

18. The centre of enlargement can lie on a side of the shape
x 3
x 2 C
© T Madas

19. The centre of enlargement can lie inside the shape
x 3
x 2 C
© T Madas

20. Formal Enlargement on square paper
© T Madas

21. If you are using square paper you can use the following method to enlarge:
Scale factor 3 C
© T Madas

22. If you are using square paper you can use the following method to enlarge:
Scale factor 3 2 4
x 3 C 6 12
© T Madas

23. Finding The Centre of Enlargement
© T Madas

24. Where is the centre of enlargement?
© T Madas

25. Where is the centre of enlargement?
© T Madas

26. Scale Factor Pairs
© T Madas

27. x 2 x ½ B A C What is the scale factor from A to B?
What is the scale factor from B to A? C B A
© T Madas

28. x 3 B x A C What is the scale factor from A to B?
What is the scale factor from B to A? B x 1 3 A C
© T Madas

29. What is the scale factor from A to B?x 3 2
What is the scale factor from B to A? x 2 3 C A B
The scale factors which transform object to image and vice versa are always reciprocals of each other
© T Madas

30. Negative Scale Factors
© T Madas

31. What is the meaning of a negative scale factor?
© T Madas

32. -ve +ve A B C What is the scale factor from B to A?
Enlarge object A by a scale factor of -1
-ve
+ve C A B
What is the scale factor from B to A?
What other single transformation would have produced the same result from A to B?
© T Madas

33. Enlarge object A by a scale factor of -1
The Enlargement with scale factor -1 and a given centre of enlargement C is the same as a rotation by 180° about C , and C is also known as centre of symmetry
© T Madas

34. Enlarge object A by a scale factor of -1-2 C A B
© T Madas

35. A B – C What is the scale factor from B to A?
Enlarge object A by a scale factor of -1 -2 C A B – 1 2
What is the scale factor from B to A?
What combination of transformations would have produced the same result from A to B?
© T Madas

36. © T Madas

37. Enlarge the triangle shown below by a scale factor of 3, with centre of enlargement the origin.9 8 7 6 5 4 3 2 1 -1 -2 -3 -4
© T Madas

38. © T Madas

39. Enlarge the triangle shown below by a scale factor of 2½, with centre of enlargement the point P.9 8 7 6 5 4 3 2 1 -1 -2 -3 -4 -5 -6 -7 P
© T Madas

40. © T Madas

41. Enlarge the trapezium shown below by a scale factor of ½, with centre of enlargement the origin.10 8 6 4 2 -2 -4 -6 -8 5 1 3 7 9 11 12 13 14 15 -5
-10 -1 -3 -7 -9
-11
© T Madas

42. © T Madas

43. R Q P Shape P is enlarged to give shape Q.
One side of shape Q is drawn for you.
What is the scale factor for this enlargement?
Complete shape Q.
What are the co ordinates of the centre of enlargement?
Enlarge shape P by a scale factor of ½ about (3,14) to give shape R. 16 14 12 10 8 6 4 2 5 15 13 11 9 7 3 1 18 17 19
the scale factor from P to Q is 2 R Q
the centre of enlargement is at
(0,0) P
© T Madas

44. 5 4 3 2 1 -1 -2 -3 -4 -5
Exam Question
© T Madas

45. P Enlarge this triangle by a scale factor of 1½, about P 5 4 3 2 1 -1 5 4 3 2 1 -1 -2 -3 -4 -5
Enlarge this triangle by a scale factor of 1½, about P P
© T Madas

46. © T Madas

47. Q P Shape P is enlarged to give shape Q.
One of the sides of shape Q has been drawn on the grid.
State the scale factor for this enlargement.
Complete shape Q on the grid. A B A B Q P C D C D E
The scale factor is E
© T Madas

48. © T Madas
