1. True or False: The Earth’s surface has stayed the same for thousands of years

2. The Earth’s surface is always changing!

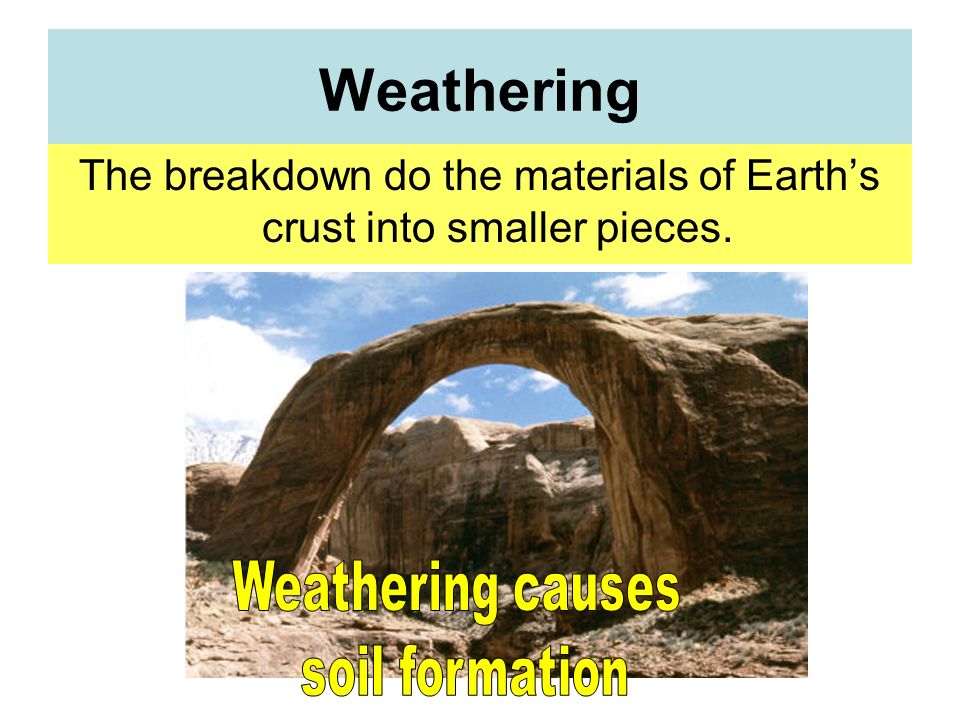

8. Weathering The breakdown do the materials of Earth’s crust into smaller pieces.

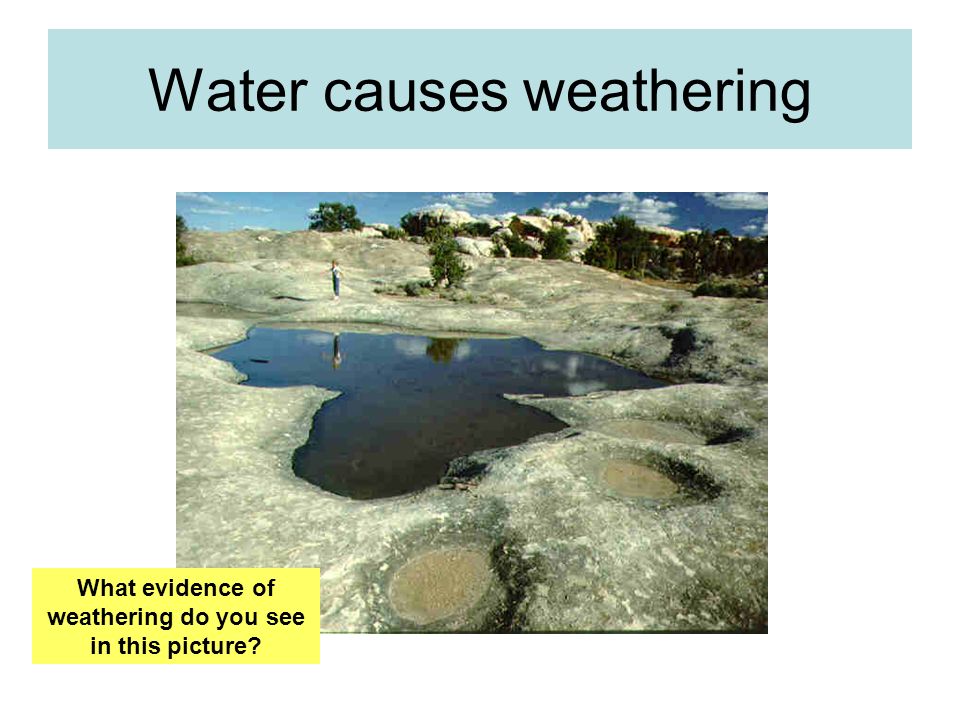

9. Water causes weathering What evidence of weathering do you see in this picture?

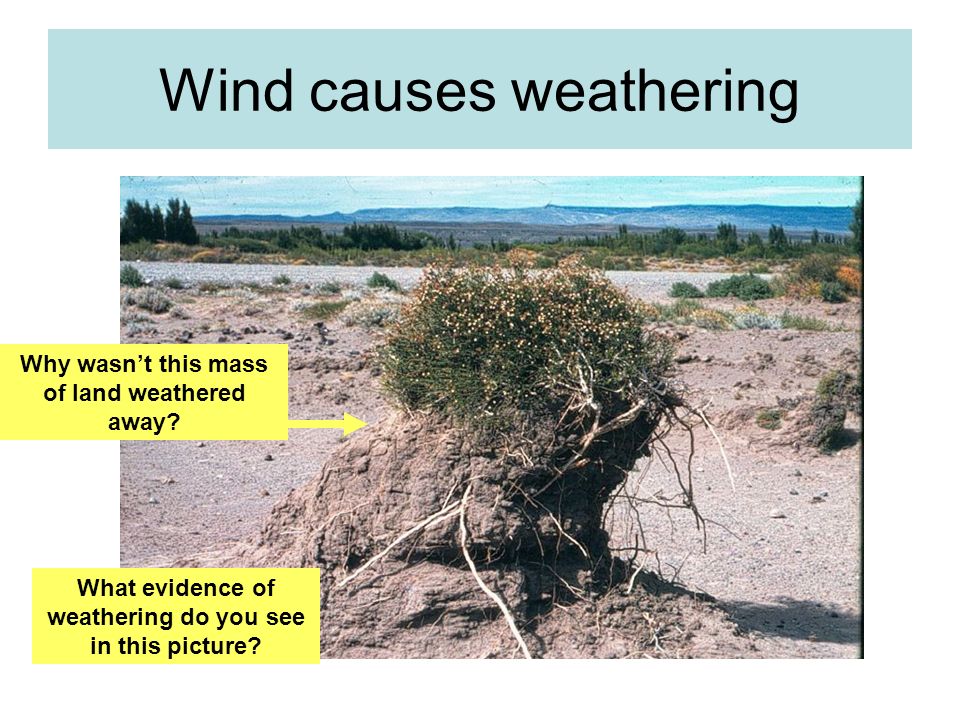

10. Wind causes weathering What evidence of weathering do you see in this picture? Why wasn’t this mass of land weathered away?

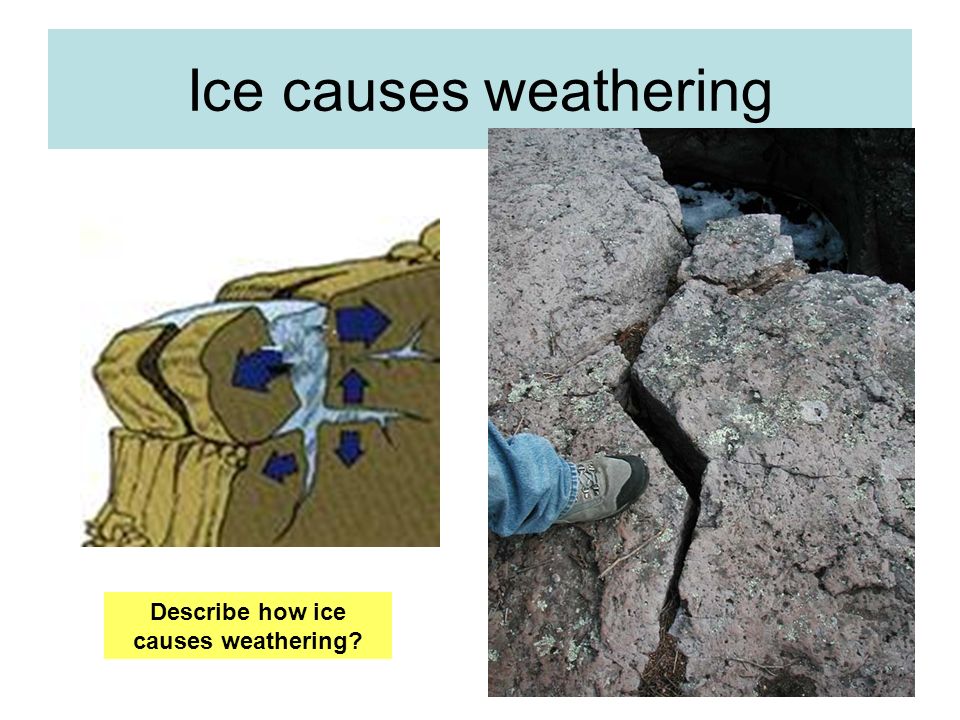

11. Ice causes weathering Describe how ice causes weathering?

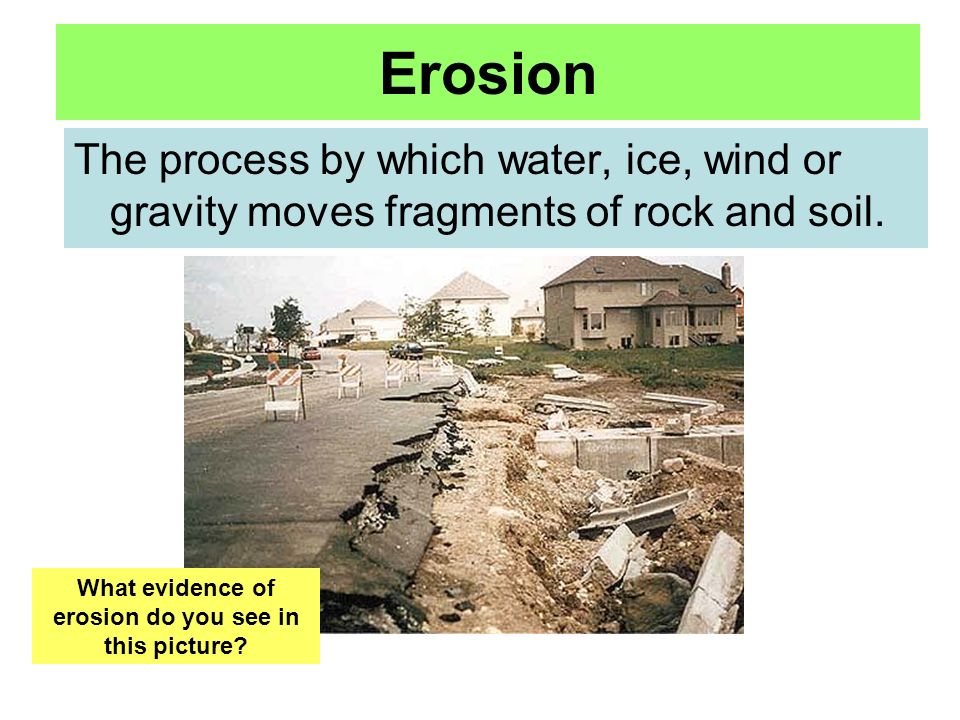

12. Erosion The process by which water, ice, wind or gravity moves fragments of rock and soil. What evidence of erosion do you see in this picture?

13. Erosion is Movement of Sediment ! This process, known as Erosion, is gradually wearing down the surface of the earth. Erosion is the process by which weathered rock and soil (sediment) are moved from one place to another. Erosion carves the Earth's surface creating canyons, gorges, and even beaches. What do you think has caused this rock to look this way?

14. Wind Erosion As the wind blows it picks up small particles of sand/sediment and blasts large rocks with the abrasive particles, cutting and shaping the rock. The intensity of wind erosion is determined by: Sum (amount) Speed Slope Surface Abrasion: the sediment or sand blows into rock and causes pits in the rocks. (Not a mass movement)

15. Wind Erosion Abrasion Abrasion: the sediment or sand blows into rock and causes scratches and pits in the rocks. (Not a mass movement)

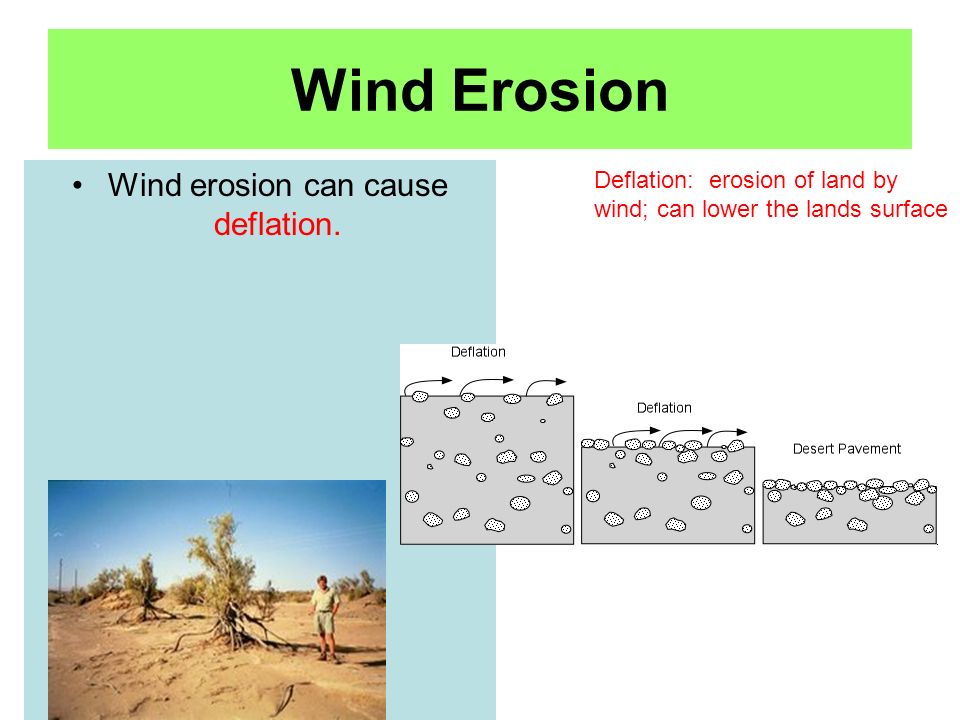

16. Wind Erosion Wind erosion can cause deflation. Deflation: erosion of land by wind; can lower the lands surface

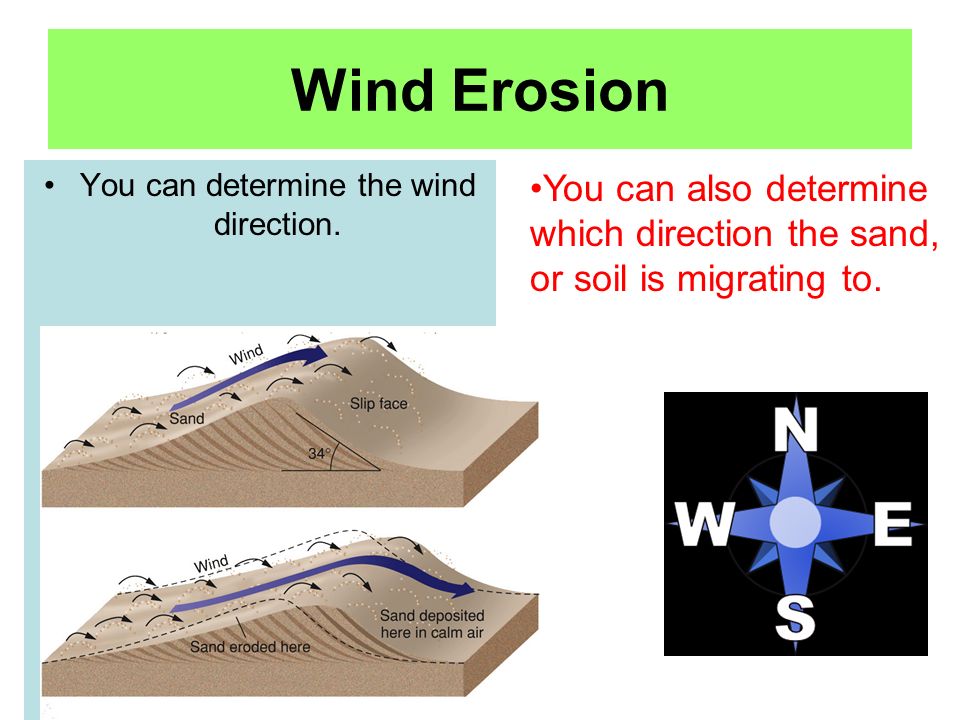

17. Wind Erosion You can determine the wind direction. You can also determine which direction the sand, or soil is migrating to.

18. Wind Erosion Other important vocabulary associated with wind erosion Loess: (LOOS)- accumulation of silt or fine sediment. Loess was created by deposits of sediment and dust from glaciers. Loess- extremely fertile. Topsoils made up of loess are found in the central and northwestern parts of United States, in central and eastern Europe, and in eastern China.

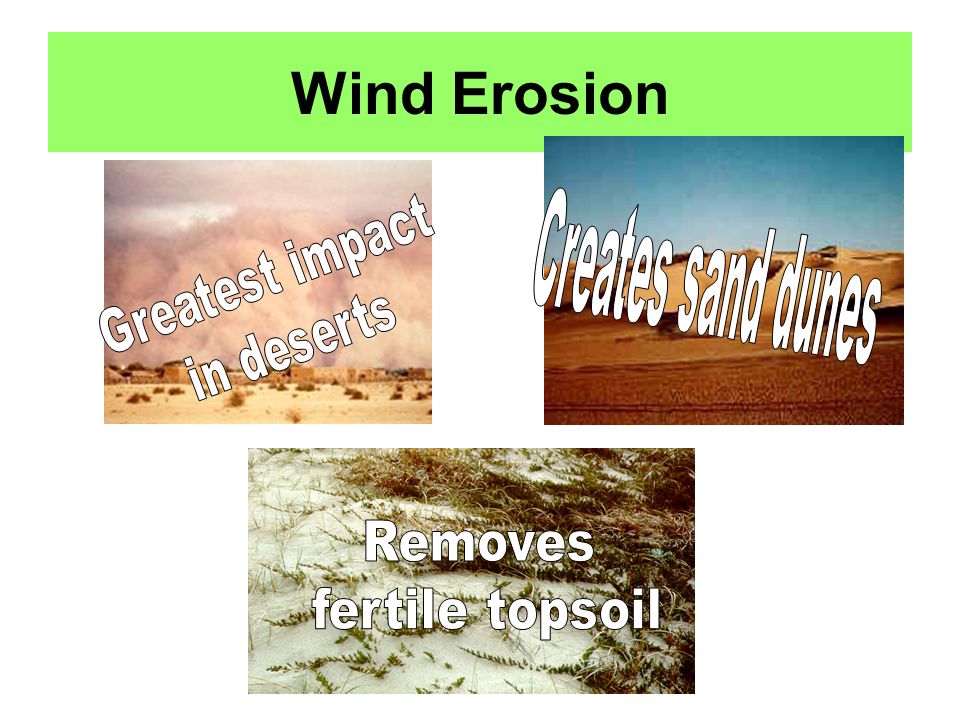

19. Wind Erosion

20. Water Causes Erosion runoff, rivers and, streams

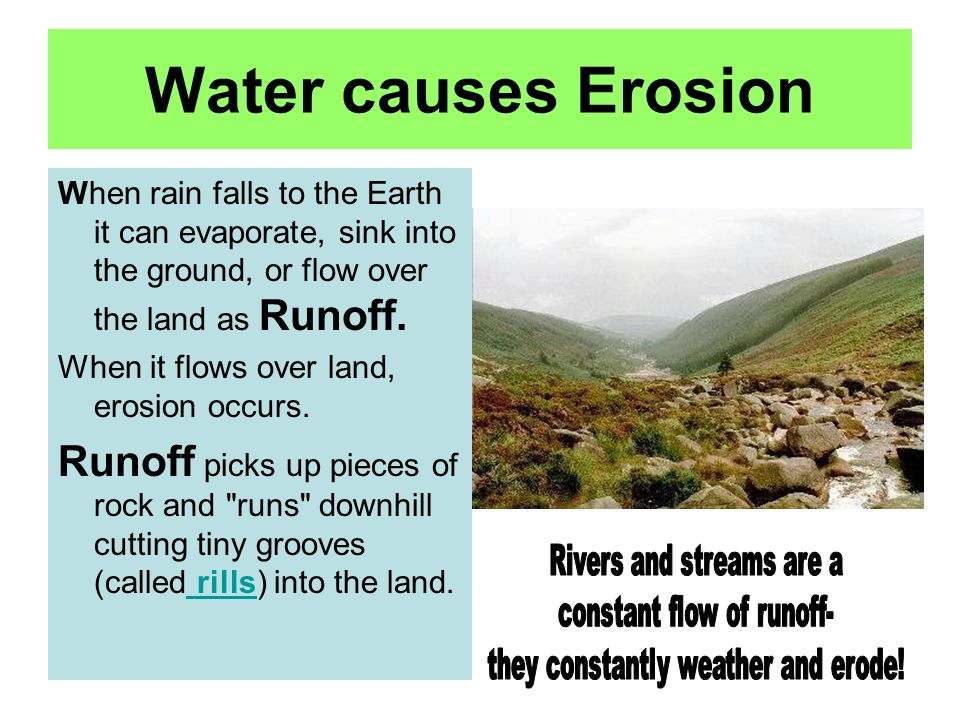

21. Water causes Erosion When rain falls to the Earth it can evaporate, sink into the ground, or flow over the land as Runoff. When it flows over land, erosion occurs. Runoff picks up pieces of rock and "runs" downhill cutting tiny grooves (called rills) into the land. rills

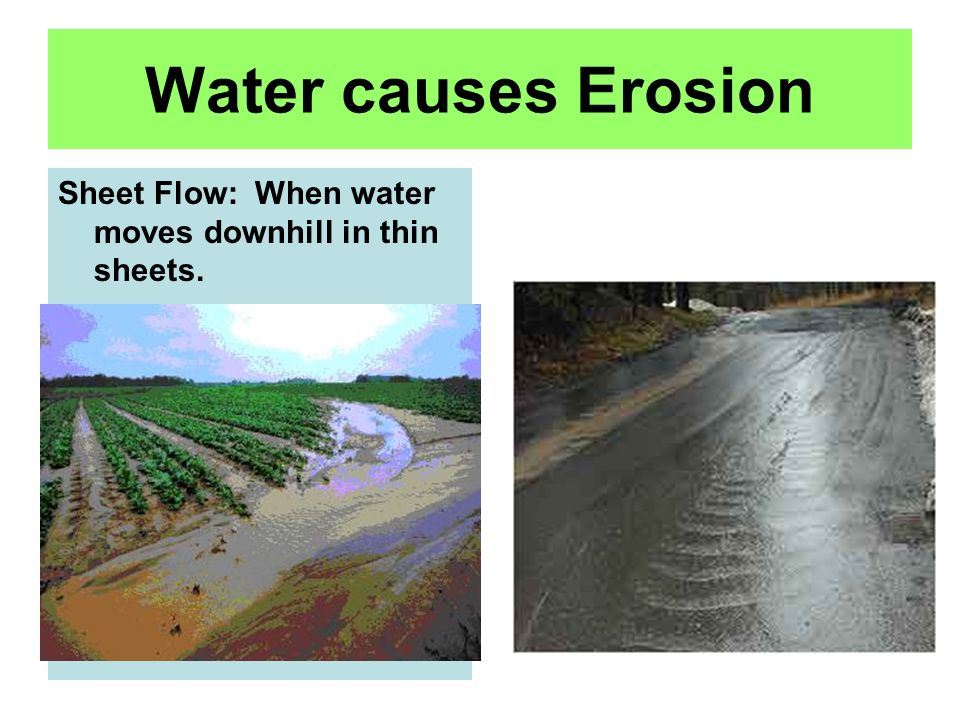

22. Water causes Erosion Sheet Flow: When water moves downhill in thin sheets.

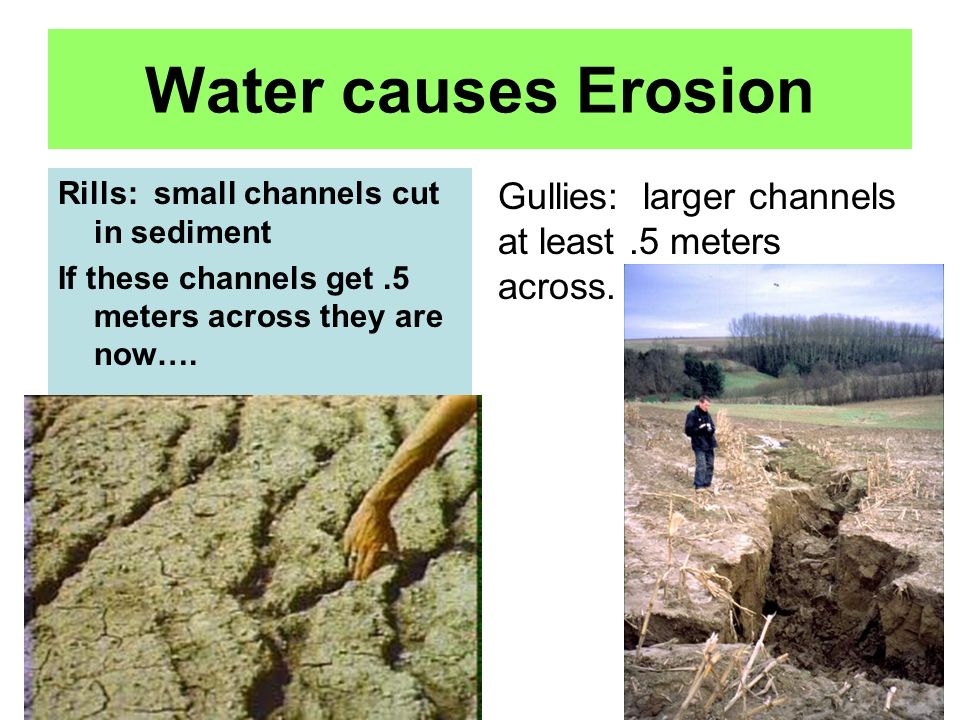

23. Water causes Erosion Rills: small channels cut in sediment If these channels get.5 meters across they are now…. Gullies: larger channels at least.5 meters across.

24. Water causes Erosion Gullies often lead into a stream.

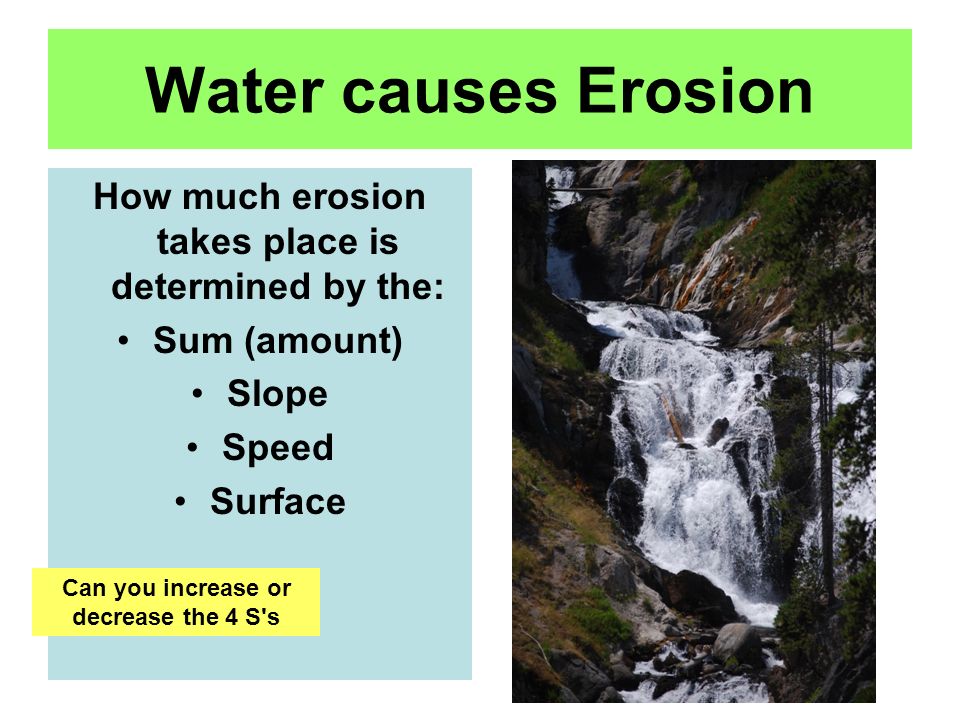

25. Water causes Erosion How much erosion takes place is determined by the: Sum (amount) Slope Speed Surface Can you increase or decrease the 4 S's

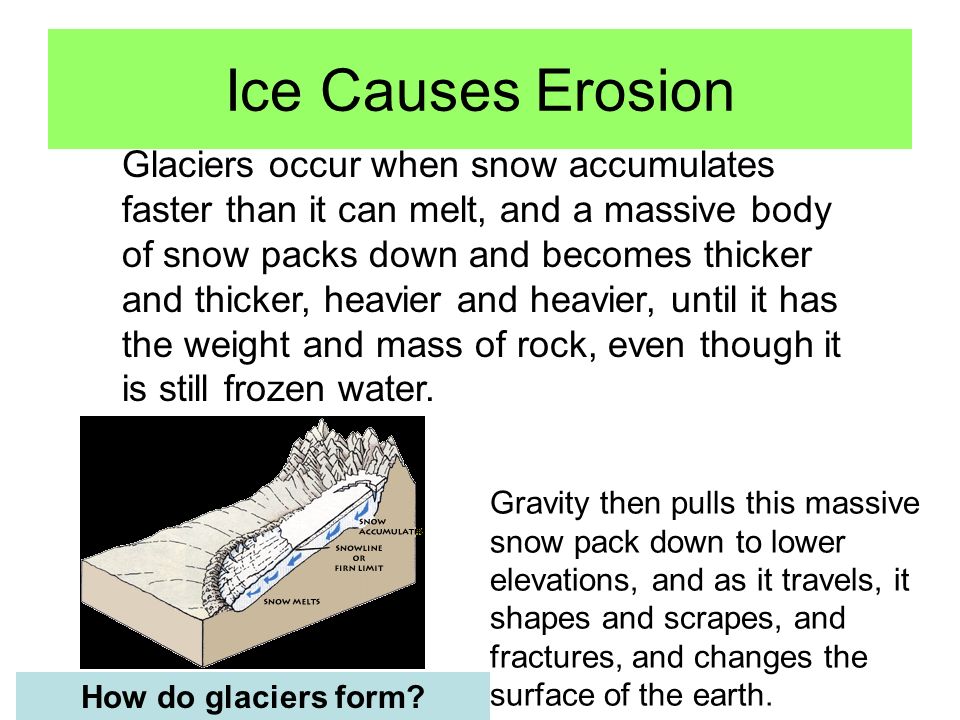

26. Ice Causes Erosion How do glaciers form? Glaciers occur when snow accumulates faster than it can melt, and a massive body of snow packs down and becomes thicker and thicker, heavier and heavier, until it has the weight and mass of rock, even though it is still frozen water. Gravity then pulls this massive snow pack down to lower elevations, and as it travels, it shapes and scrapes, and fractures, and changes the surface of the earth.

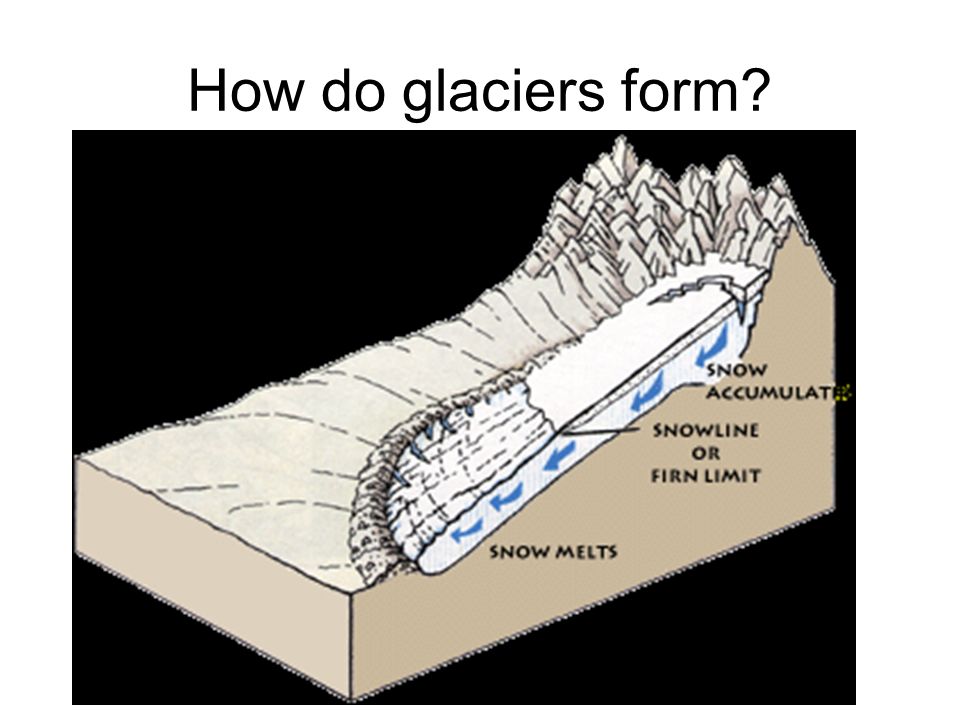

27. How do glaciers form?

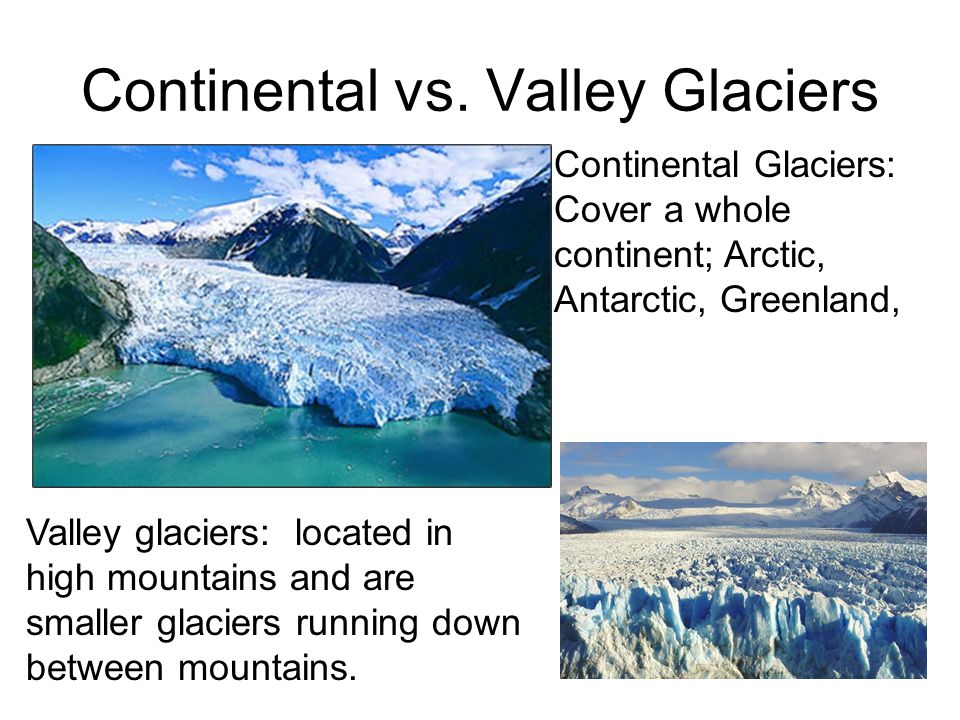

28. Continental vs. Valley Glaciers Valley glaciers: located in high mountains and are smaller glaciers running down between mountains. Continental Glaciers: Cover a whole continent; Arctic, Antarctic, Greenland,

29. Ice Causes Erosion Glaciers wear down the landscape; by picking up and carrying debris that moves across the land along with the ice.

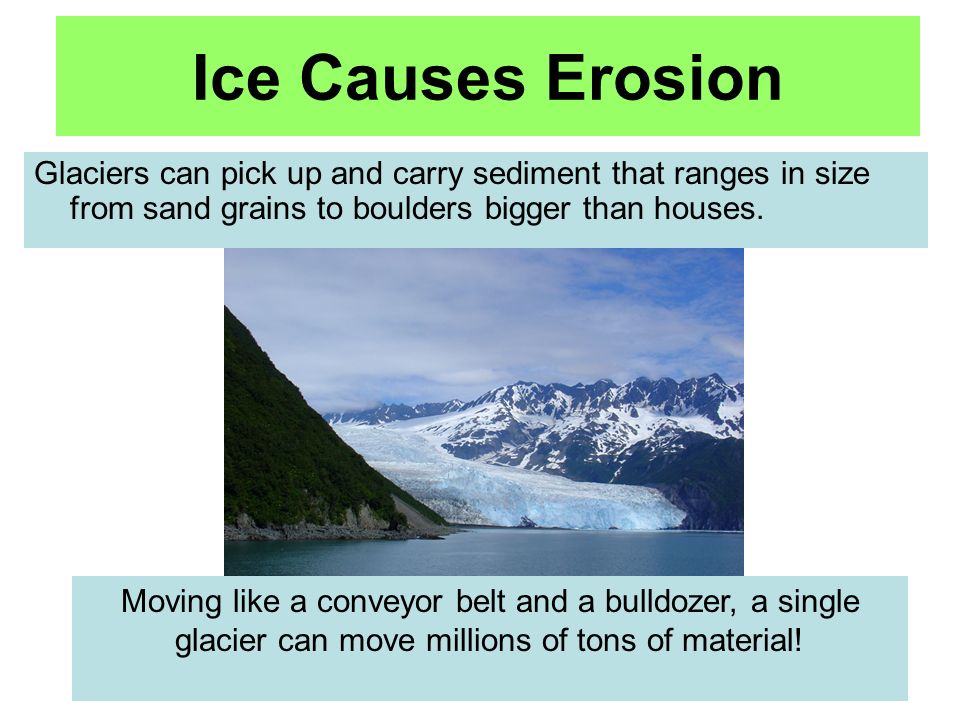

30. Ice Causes Erosion Glaciers can pick up and carry sediment that ranges in size from sand grains to boulders bigger than houses. Moving like a conveyor belt and a bulldozer, a single glacier can move millions of tons of material!

31. Ice Causes Erosion Glaciers form a U-Shaped Valley.

32. Ice Causes Erosion How much erosion takes place is determined by the: **Sum (Glaciers are massive!) Slope Speed Surface

33. Ice Causes Erosion What is left behind when glaciers melt? Till: sediment deposition from melted glaciers; can range from clay to boulders.

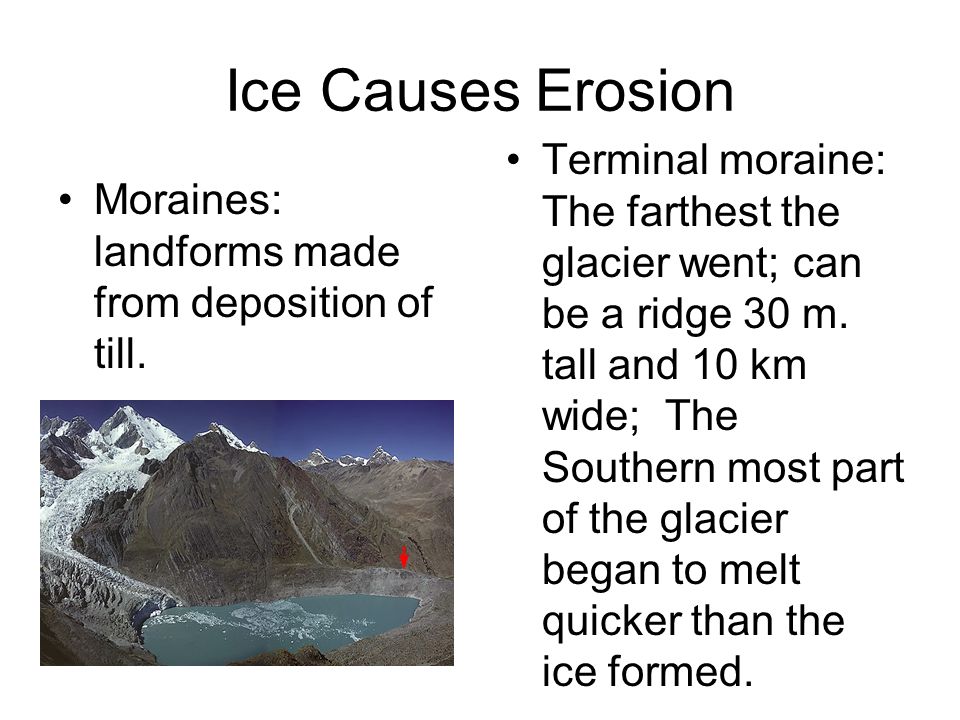

34. Ice Causes Erosion Moraines: landforms made from deposition of till. Terminal moraine: The farthest the glacier went; can be a ridge 30 m. tall and 10 km wide; The Southern most part of the glacier began to melt quicker than the ice formed.

35. Ice Causes Erosion Ground Moraine: The till didn't build up a ridge because the glacier moving again. It still dropped some sediment off.

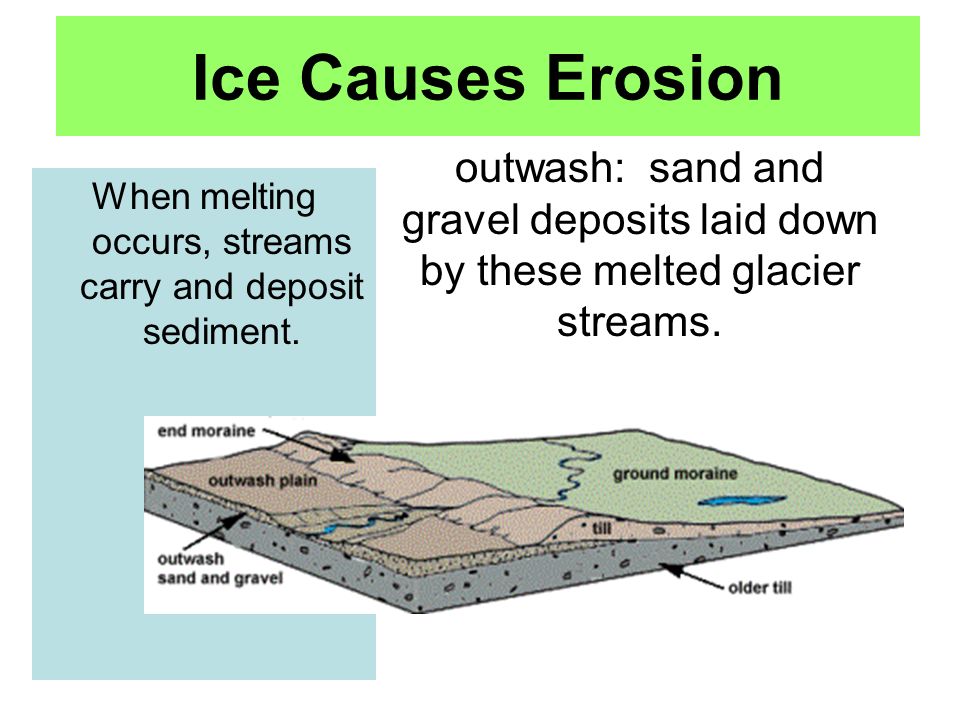

37. Ice Causes Erosion When melting occurs, streams carry and deposit sediment. outwash: sand and gravel deposits laid down by these melted glacier streams.

39. Gravity causes erosion landslide clip.mpeg Creep, Slump, Landslides, Mudslides, and Avalanches. These are examples of mass movement (or called mass wasting) SlowerFaster

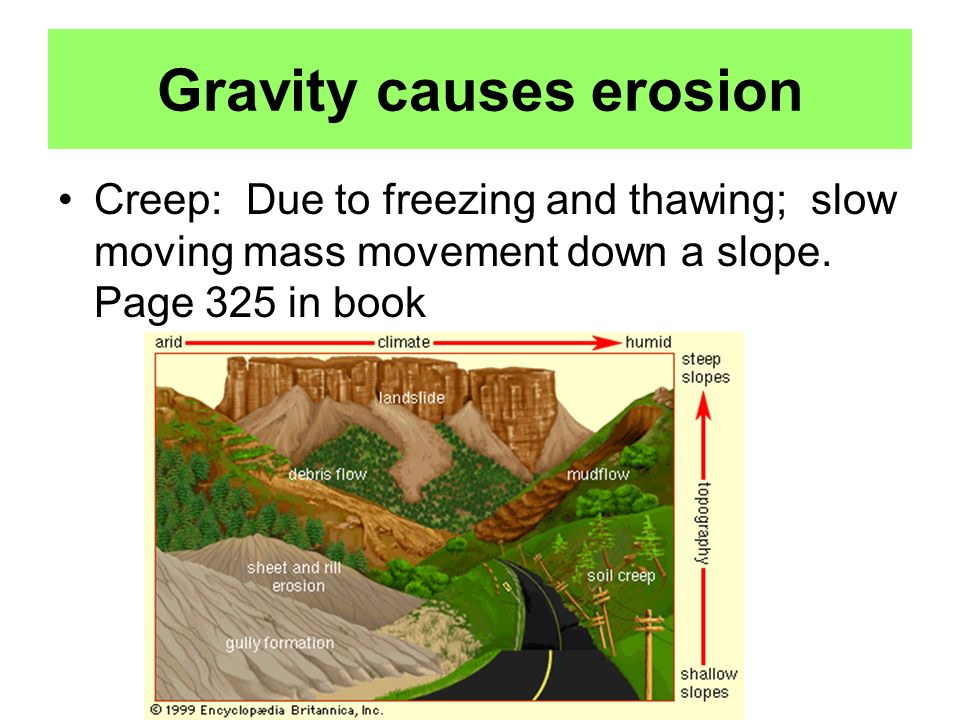

40. Creep: Due to freezing and thawing; slow moving mass movement down a slope. Page 325 in book Gravity causes erosion

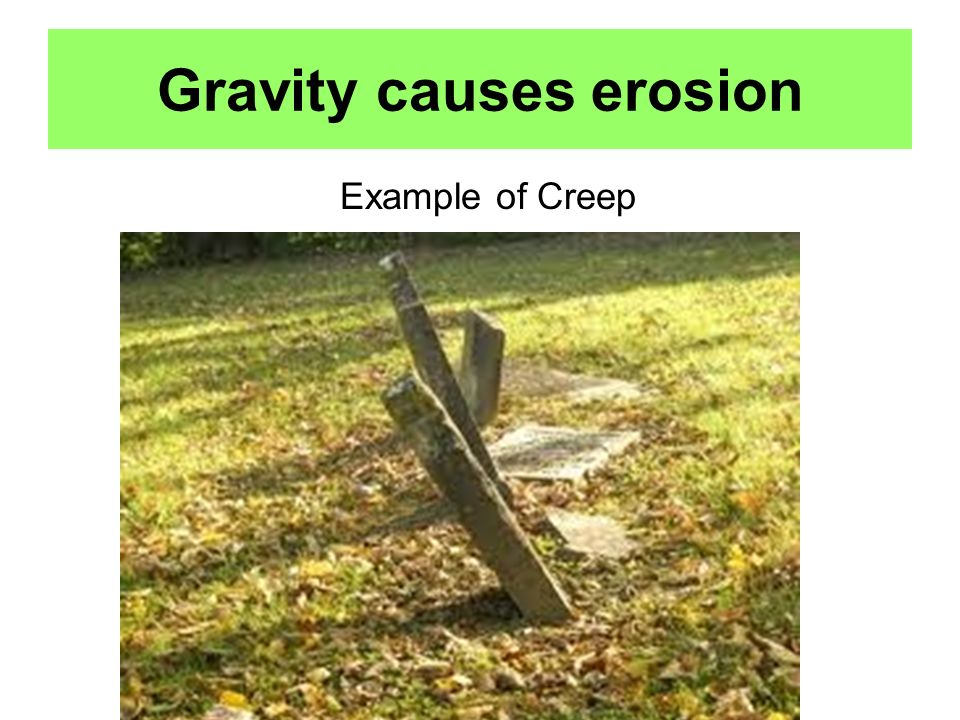

41. Example of Creep

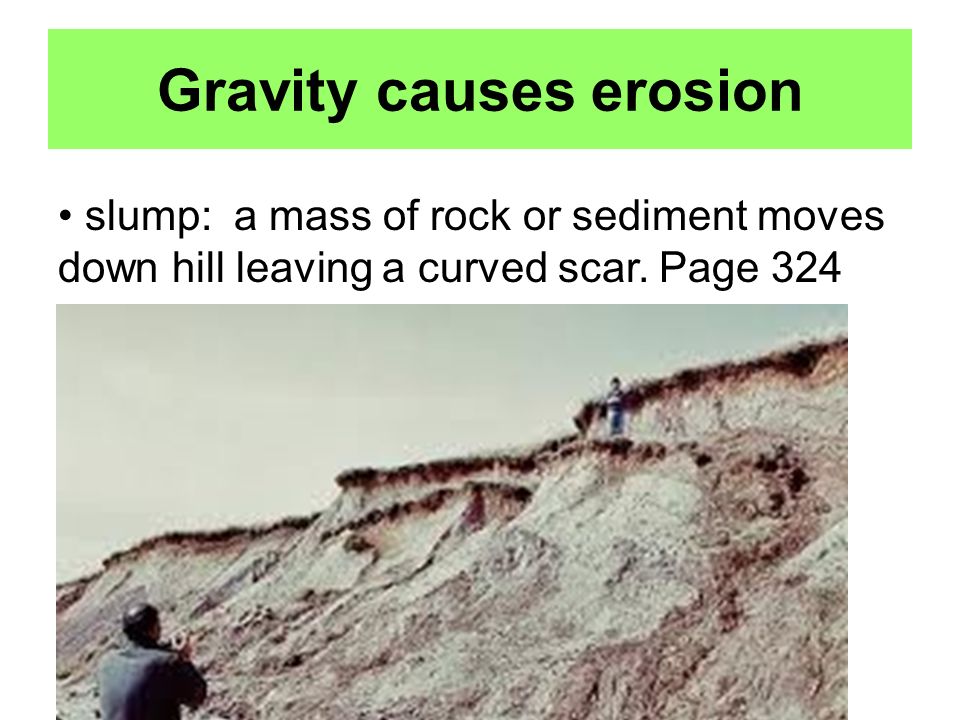

42. Gravity causes erosion slump: a mass of rock or sediment moves down hill leaving a curved scar. Page 324

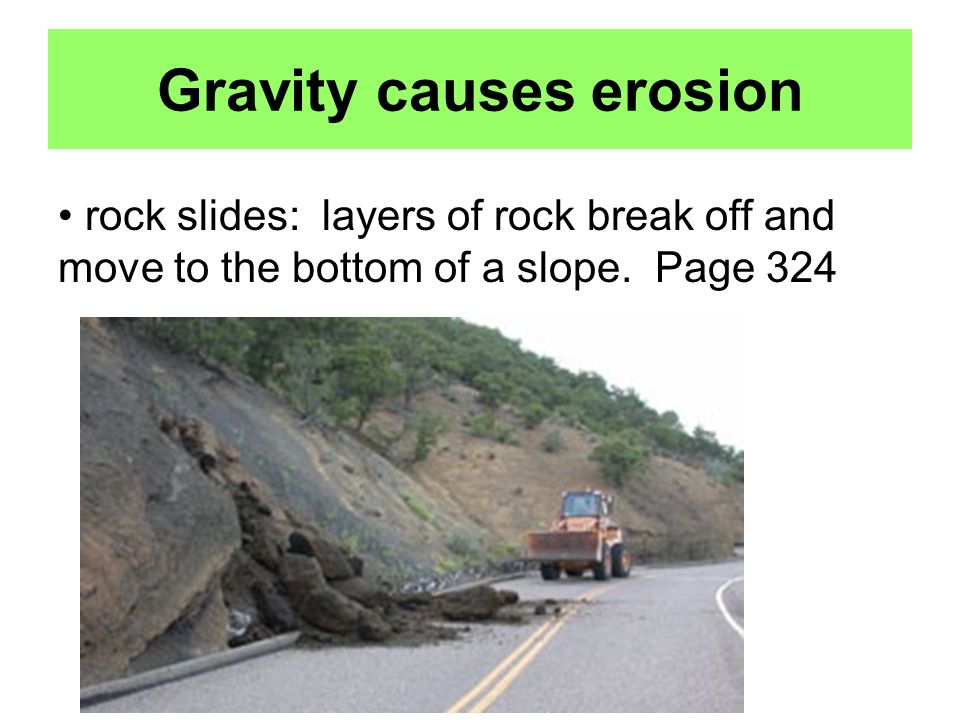

43. Gravity causes erosion rock slides: layers of rock break off and move to the bottom of a slope. Page 324

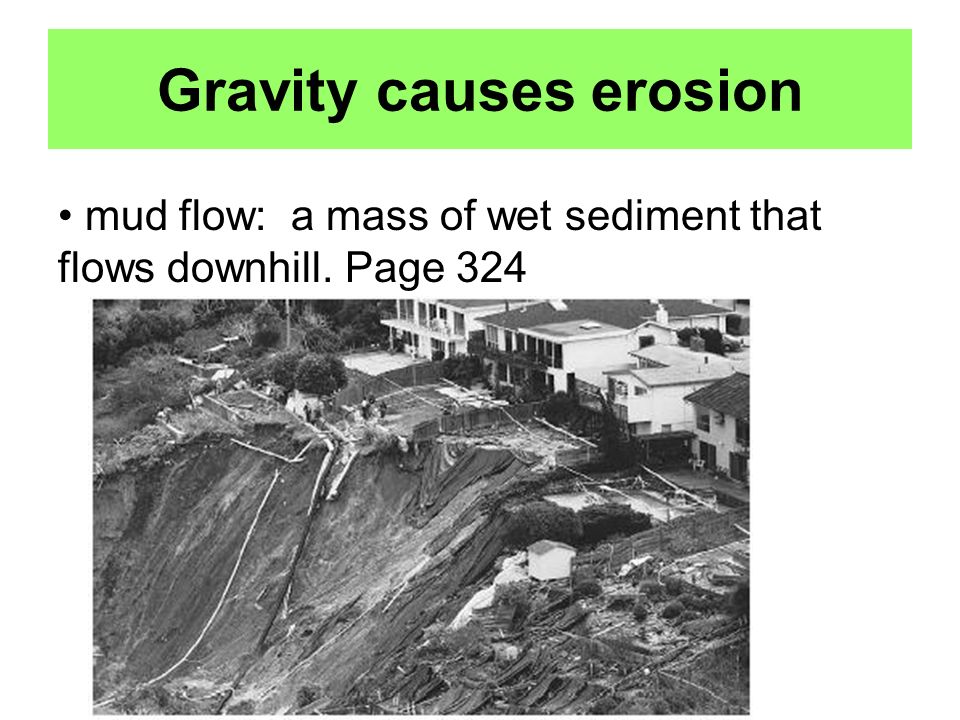

44. Gravity causes erosion mud flow: a mass of wet sediment that flows downhill. Page 324

45. Gravity causes Erosion How much erosion takes place is determined by the: Sum **Slope Speed **Surface

46. Effects of Erosion Sediment removed: forms canyons, valleys and mountain cirques A cirque ("serk") is a bowl-shaped rock valley on the side of a mountain, often with a glacier or permanent snowfield in it. (more below)

47. Effects of Erosion Sediment deposition: forms deltas, sandbars, and sand dunes

48. Effects of Erosion Sediment deposition: forms deltas, sandbars, and sand dunes

49. Plants CAN CAUSE weathering

50. Plants CAN PREVENT erosion

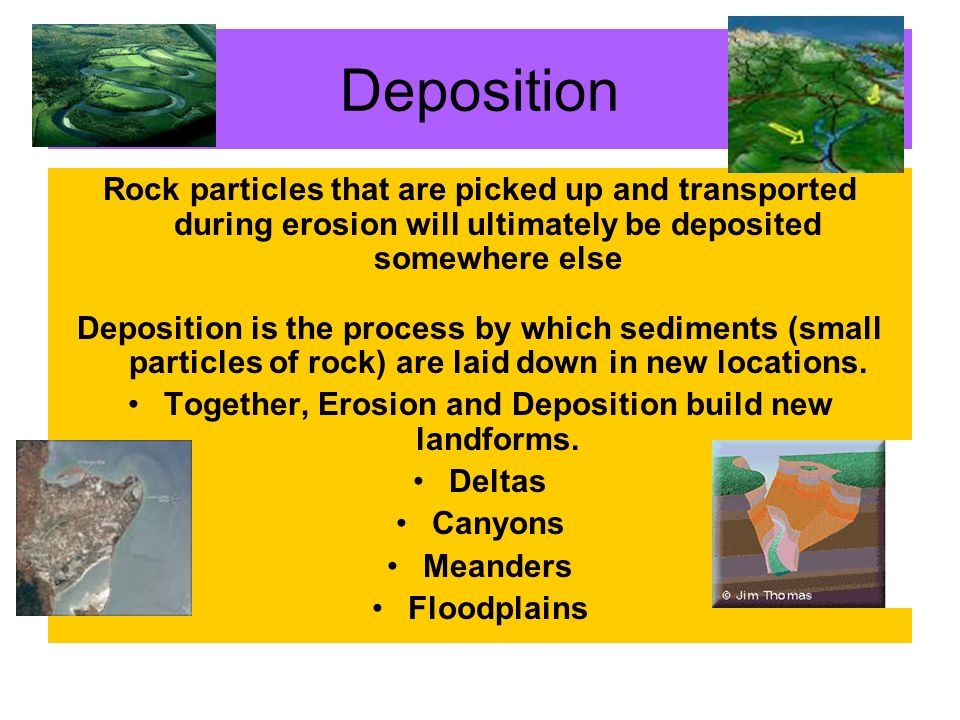

51. Deposition Rock particles that are picked up and transported during erosion will ultimately be deposited somewhere else Deposition is the process by which sediments (small particles of rock) are laid down in new locations. Together, Erosion and Deposition build new landforms. Deltas Canyons Meanders Floodplains

52. Delta Where rivers meet the ocean is called the mouth of the river. Soil and dirt carried by these rivers is deposited at the mouth, and new land is formed. The new, soil-rich land is known as a Delta

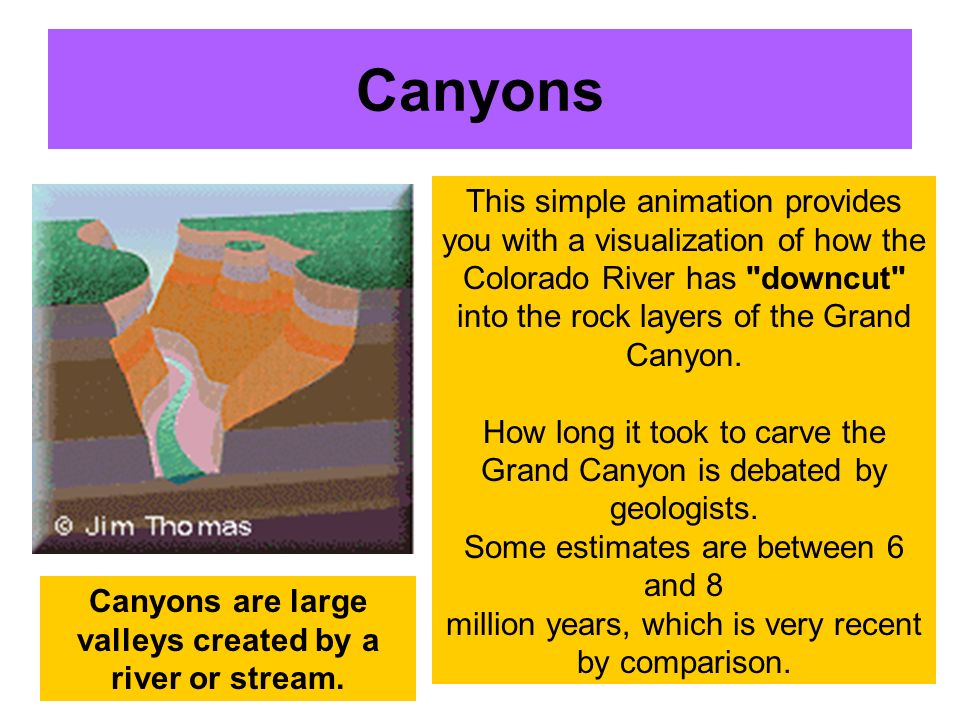

53. Canyons This simple animation provides you with a visualization of how the Colorado River has "downcut" into the rock layers of the Grand Canyon. How long it took to carve the Grand Canyon is debated by geologists. Some estimates are between 6 and 8 million years, which is very recent by comparison. Canyons are large valleys created by a river or stream.

54. Meanders Meandering streams wander side to side as they constantly seek out the lowest elevation. This constant motion creates a series of S-shaped “loops”.

55. Meanders Stream Velocity varies from one side to the other side of the “S”, resulting in erosion in some places and deposition of sediments in others.

56. Floodplains Floodplains form along the banks of mid-order streams and larger rivers. These are low-lying areas along the sides of a river channel that have regular times of heavy waterflow to cause the river to spill over and flood the land.
