1 MDC417 Follow me on twitter: @edvaldocardoso

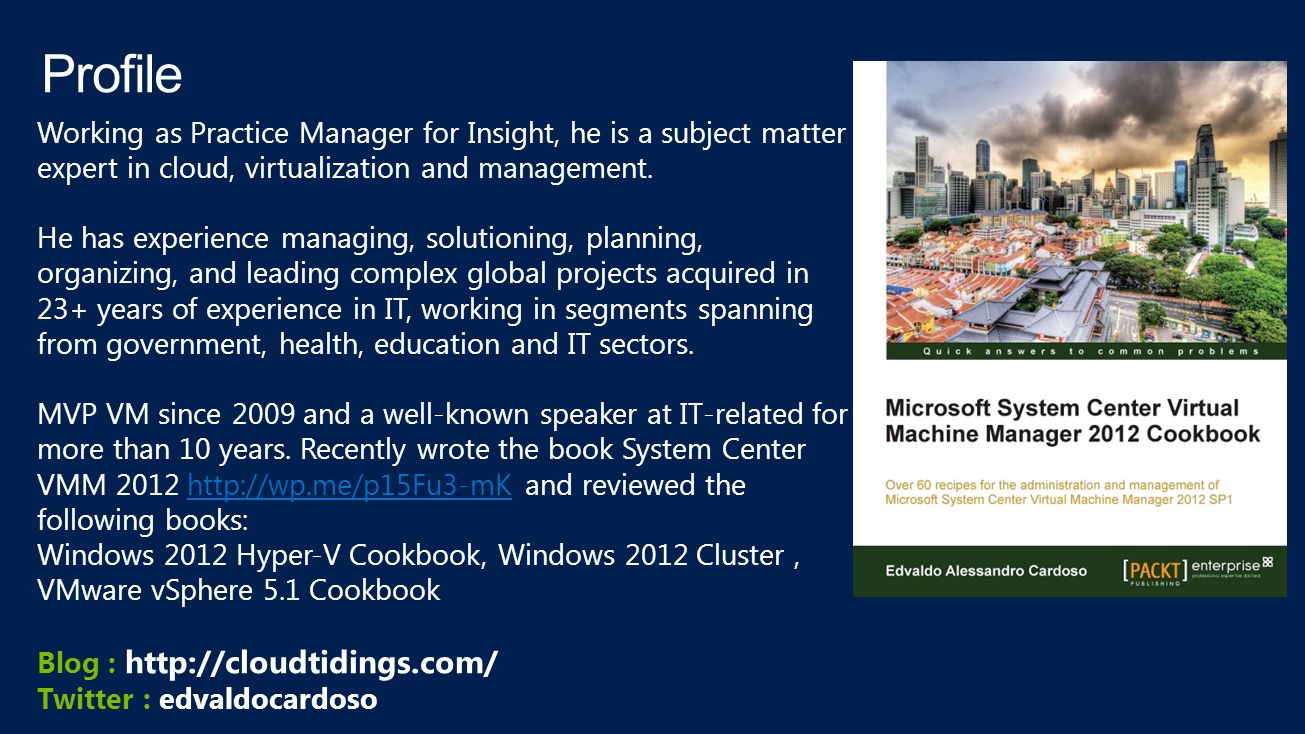

2 Working as Practice Manager for Insight, he is a subject matter expert in cloud, virtualization and management. He has experience managing, solutioning, planning, organizing, and leading complex global projects acquired in 23+ years of experience in IT, working in segments spanning from government, health, education and IT sectors. MVP VM since 2009 and a well-known speaker at IT-related for more than 10 years. Recently wrote the book System Center VMM 2012 http://wp.me/p15Fu3-mK and reviewed the following books: Windows 2012 Hyper-V Cookbook, Windows 2012 Cluster, VMware vSphere 5.1 Cookbook Blog : http://cloudtidings.com/ Twitter : edvaldocardosohttp://wp.me/p15Fu3-mK

3 Simple and cost-effective In-box service templates and runbooks for System Center components Web-based interfaces to System Center capabilities to help integrate existing investments Standards-based top-of-rack network switch configuration Windows Server file-based storage and Storage Spaces support Extensible service management automation and integration Workload protection & recovery across datacenters with Windows Azure Hyper-V Recovery Manager Enterprise-class Best-of-breed management for Windows Server and Microsoft workloads Multitenant virtual networking, including edge gateway provisioning to bridge physical and virtual networks Support for VM connectivity into virtual Fibre Channel SAN Multi-hypervisor support, including Hyper-V, VMware, and Citrix Robust open source support: Dynamic Memory for Linux, Unix/ Linux monitoring and configuration Unified monitoring for on-premises and Windows Azure infrastructure Application focused Easy VM portability and management between Windows Server and Windows Azure Deep.NET and Java application monitoring and diagnostics Standardized app provisioning with service templates Integrated dev-ops with System Center- Visual Studio connector Cloud-integrated app and workload insight with Global Service Monitor and System Center Advisor Management Packs with extensive built- in knowledge for Microsoft Exchange, SQL, SharePoint

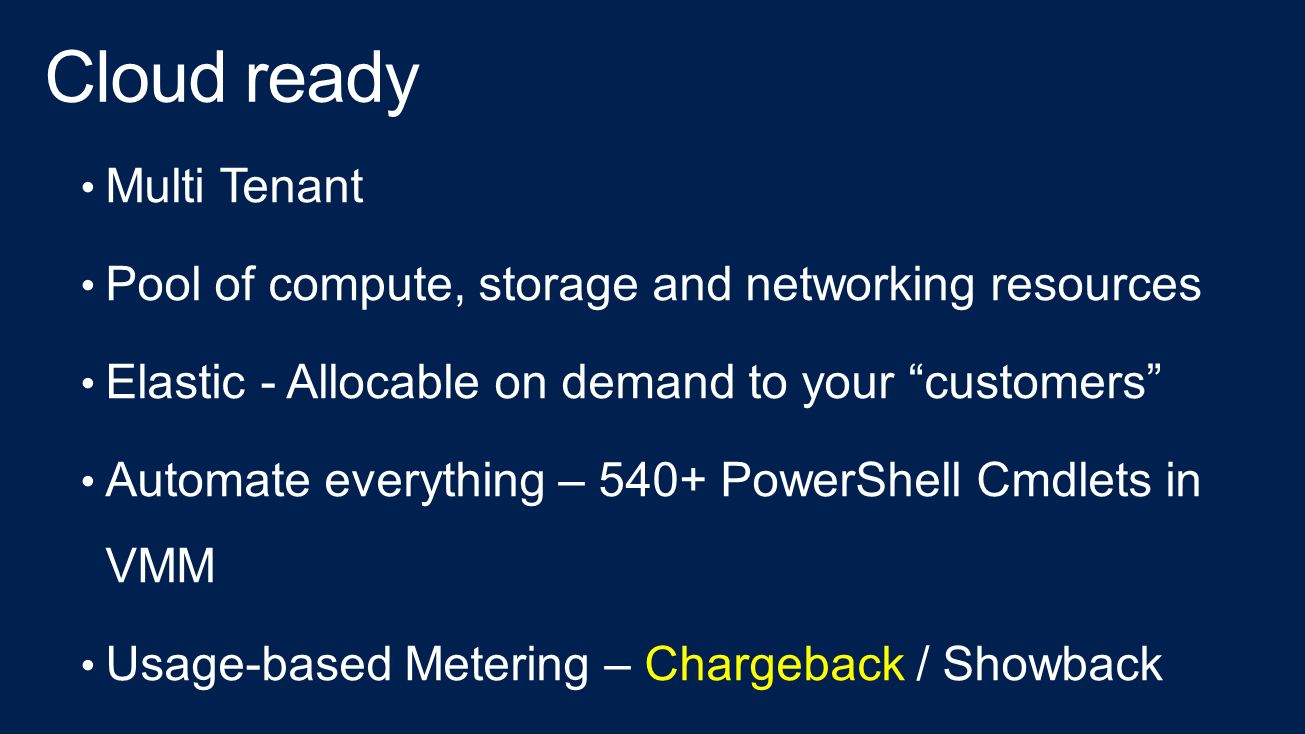

4

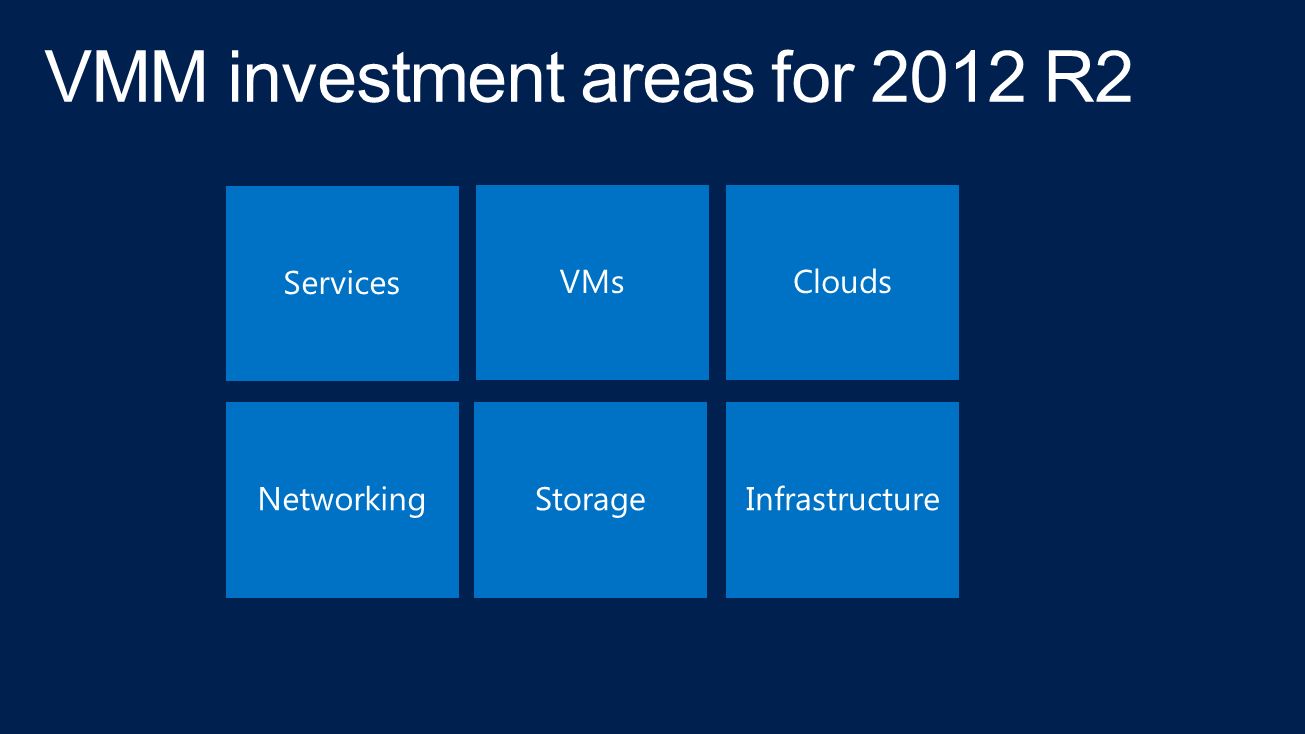

5

6

7 Configure and deploy: Fibre Channel SAN Scale-out file servers from bare metal Clustered Hyper-V hosts Networking IP address management Logical switches Logical networks Virtual networks Delegated capacity for Wingtip departments VM Service Provider Capacity VM Expanding Wingtip’s network to a service provider

8 Management (Run as VM’s on Clustered Hyper-V hosts) VMM VM OM VM SPF VM Etc Rack 1 Storage Management Edge components Compute Tenant or user VMs Storage File Servers (JBOD), SANs (iSCSI, Fibre Channel) Rack 2 Storage Edge components Compute Rack 3 Storage Edge components Compute Rack 4 Storage Edge components Compute Clustered Compute Nodes Edge Network Virtualization Gateway Top of rack (TOR) switch

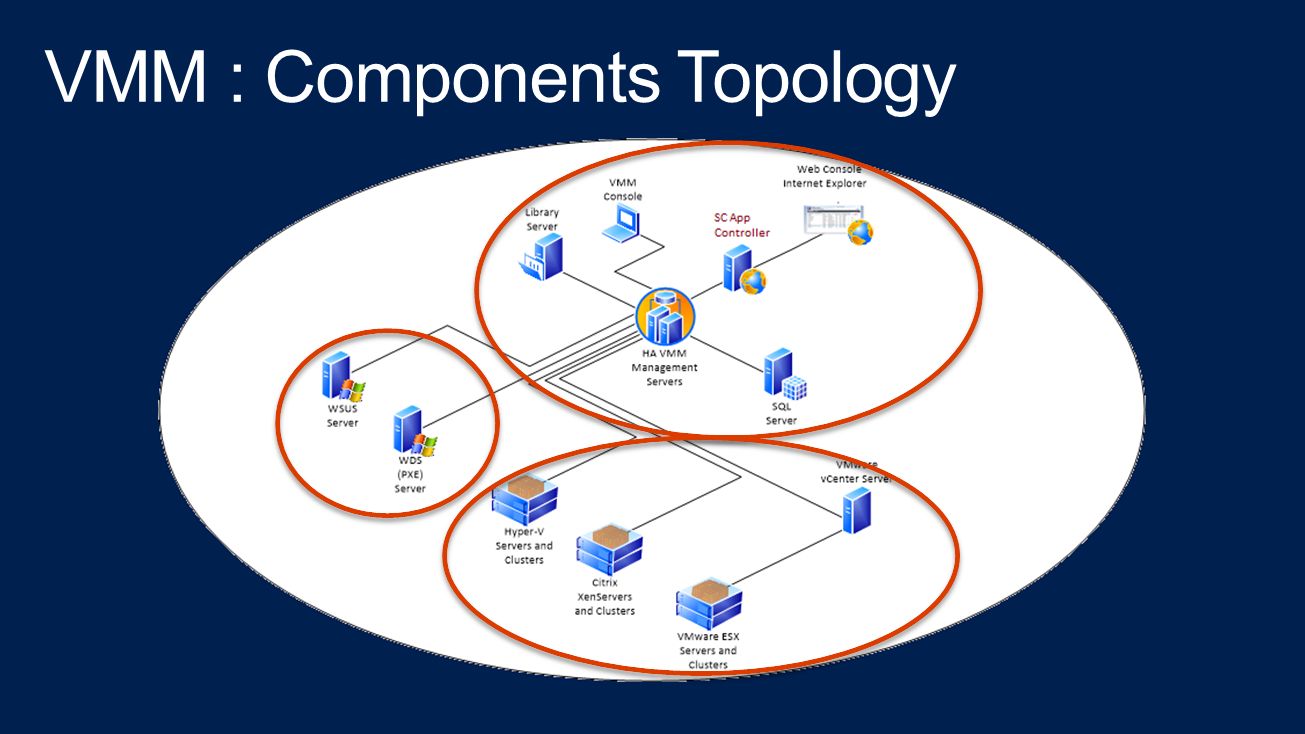

9

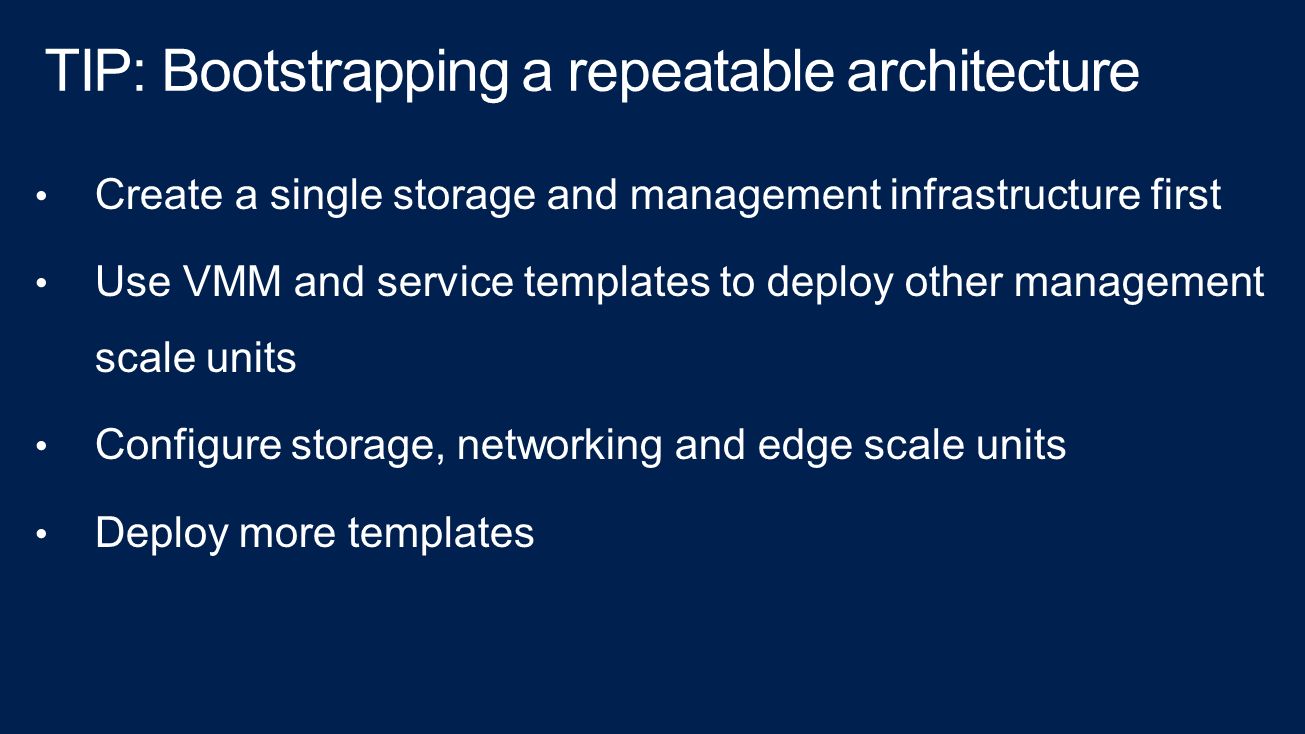

10

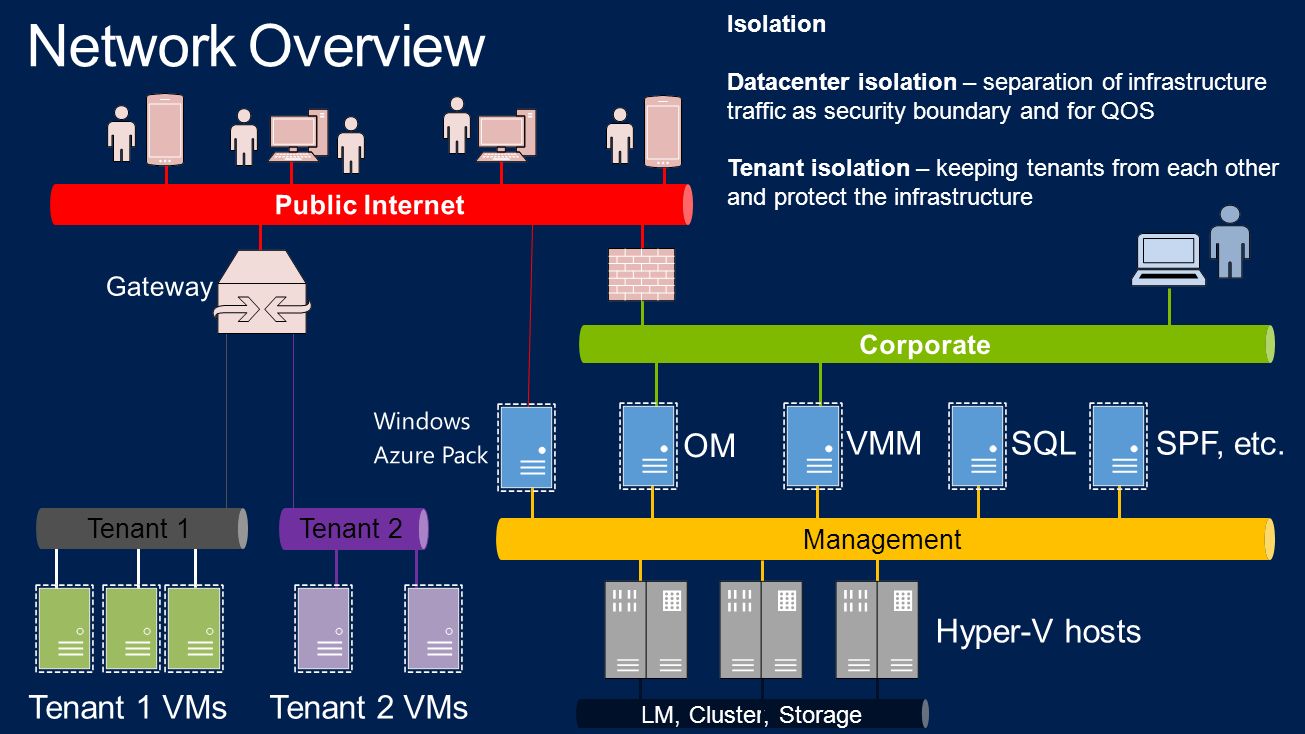

11 Tenant 2 Tenant 1 LM, Cluster, Storage Isolation Datacenter isolation – separation of infrastructure traffic as security boundary and for QOS Tenant isolation – keeping tenants from each other and protect the infrastructure Management

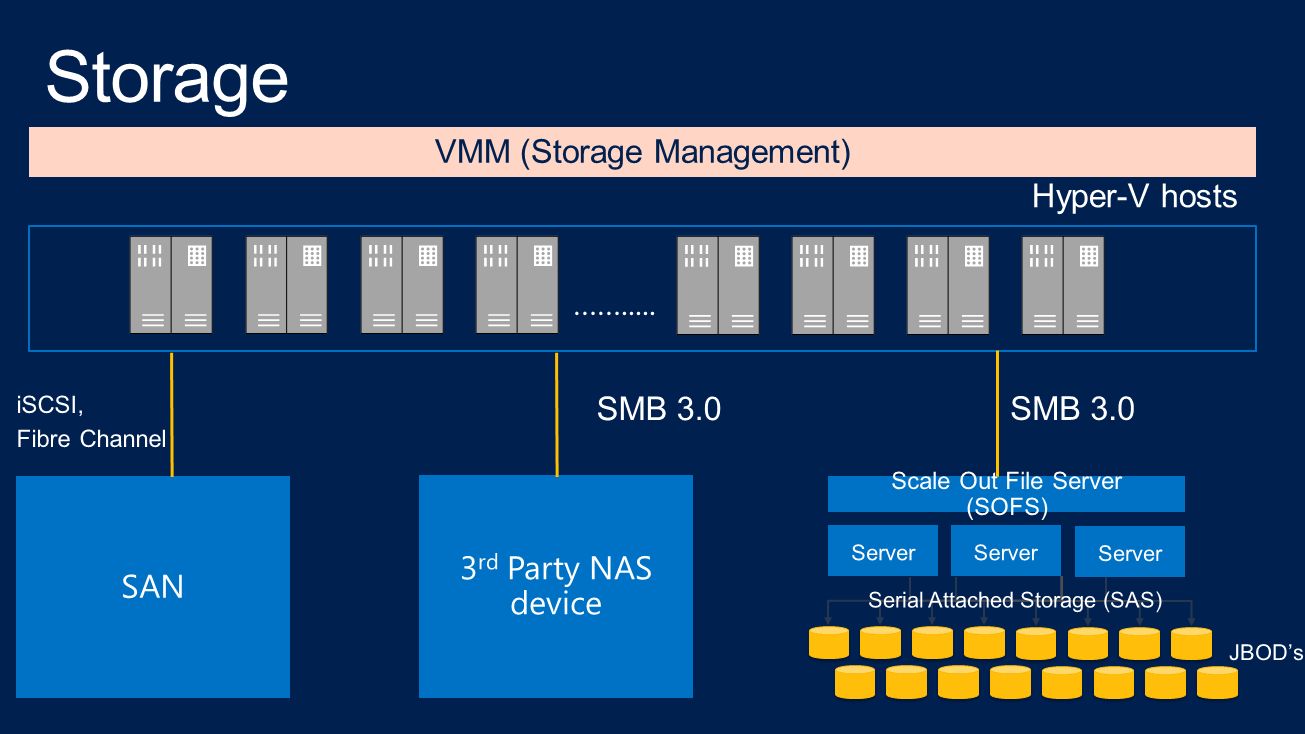

12 VMM (Storage Management)

13

14 Disk Physical Storage Disk Storage Pool Storage Spaces

15 Fibre Channel switch VM Zone A Zone B

16

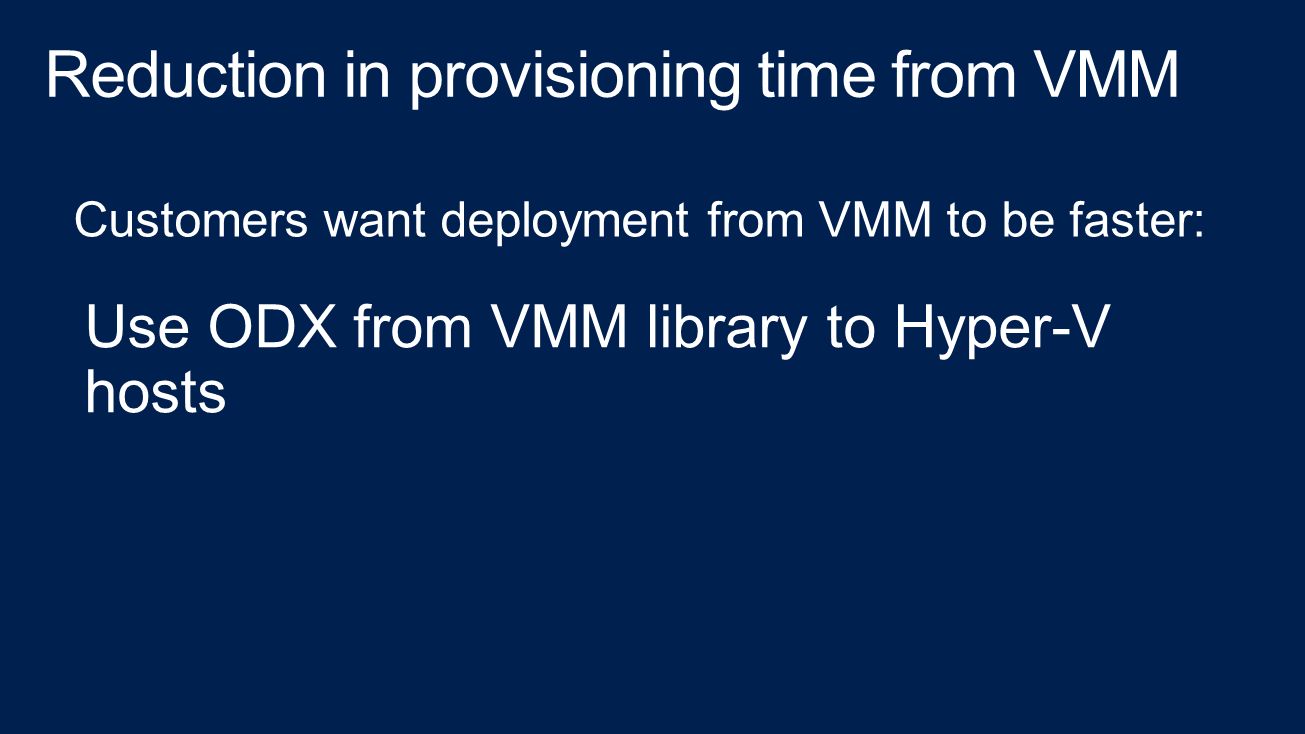

17

18 Introducing Shared VHDX Virtual Disks Virtual disks that can be shared without presenting real LUNs to VM’s Infrastructure Storage Compute Networking VMs/Services

19 VM Service Tier Data disk (VHDX) OS

20

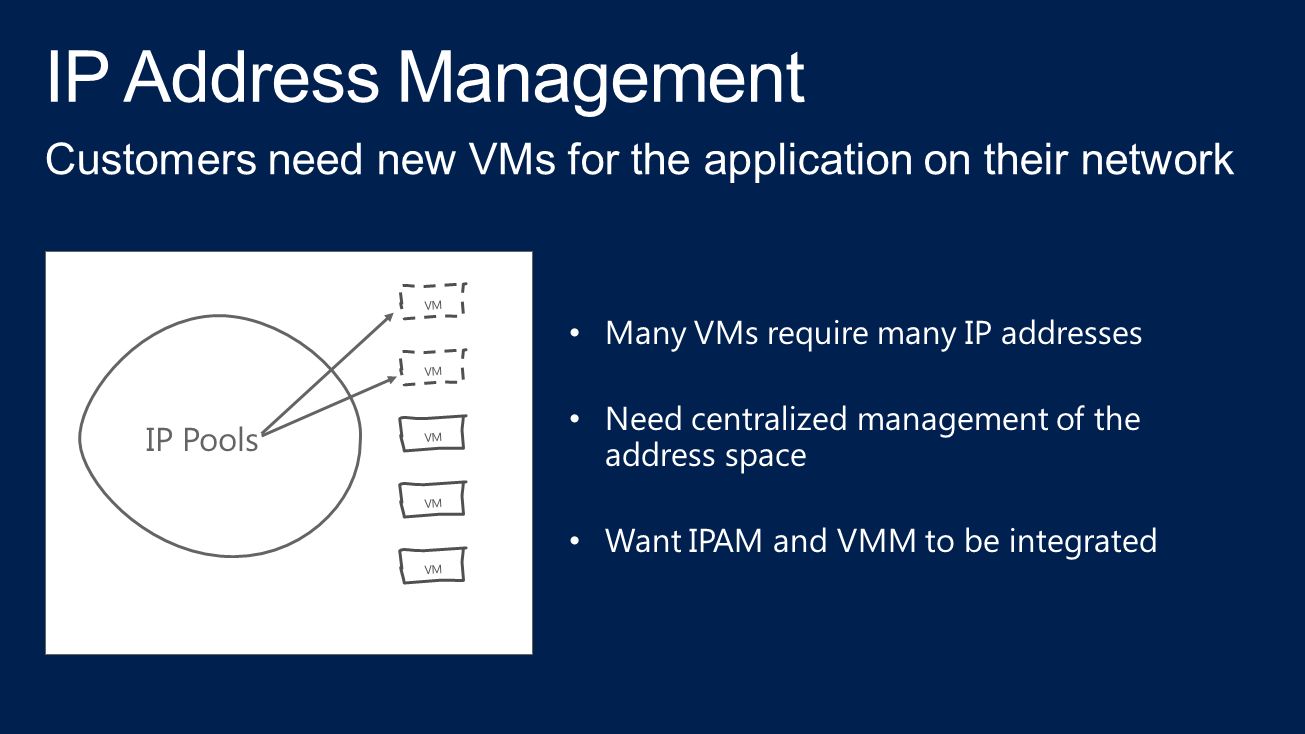

21 VM IP Pools

22

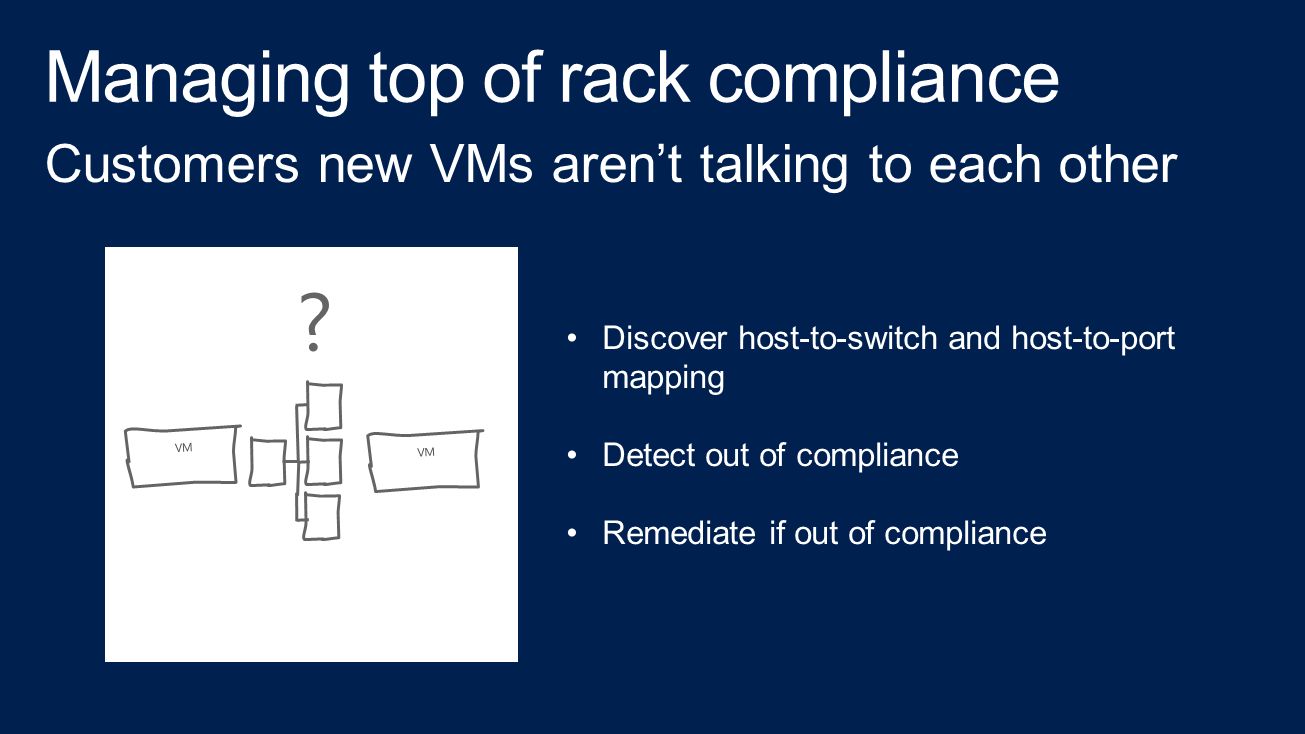

23 Discover host-to-switch and host-to-port mapping Detect out of compliance Remediate if out of compliance VM ?

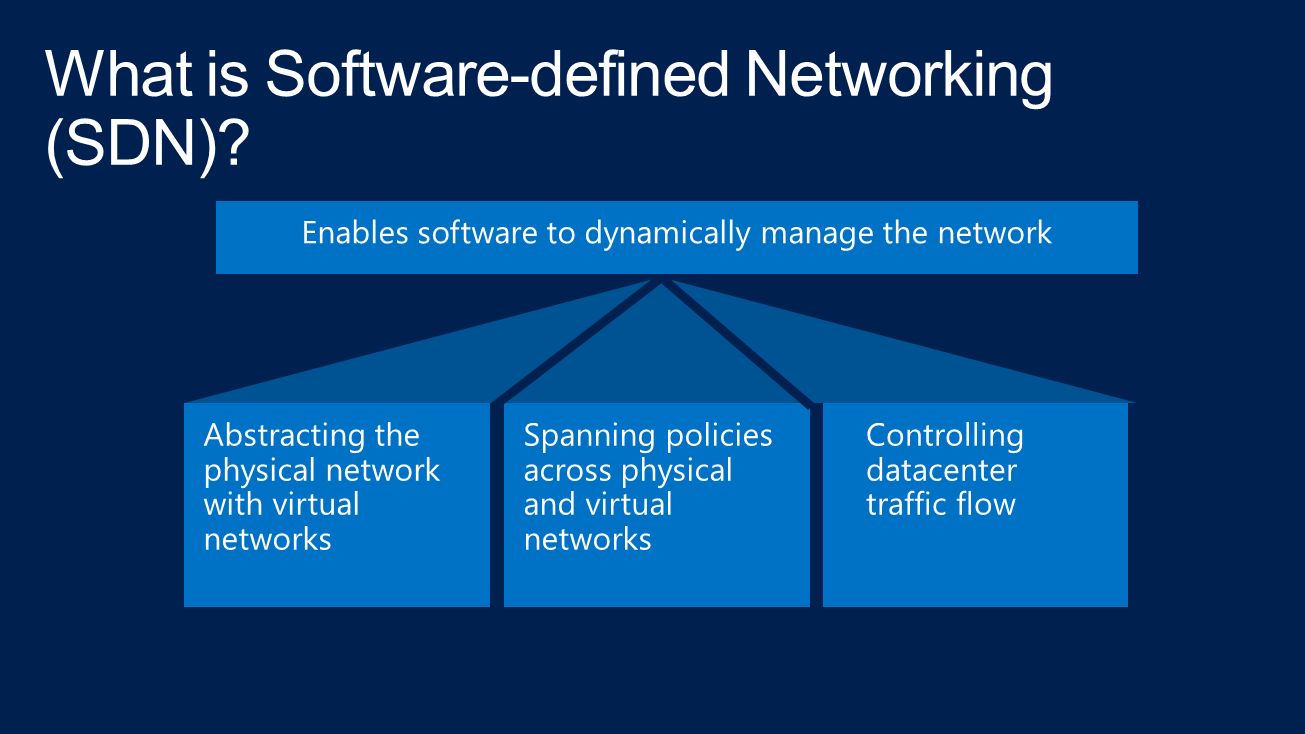

24 Abstracting the physical network with virtual networks Spanning policies across physical and virtual networks Controlling datacenter traffic flow Enables software to dynamically manage the network

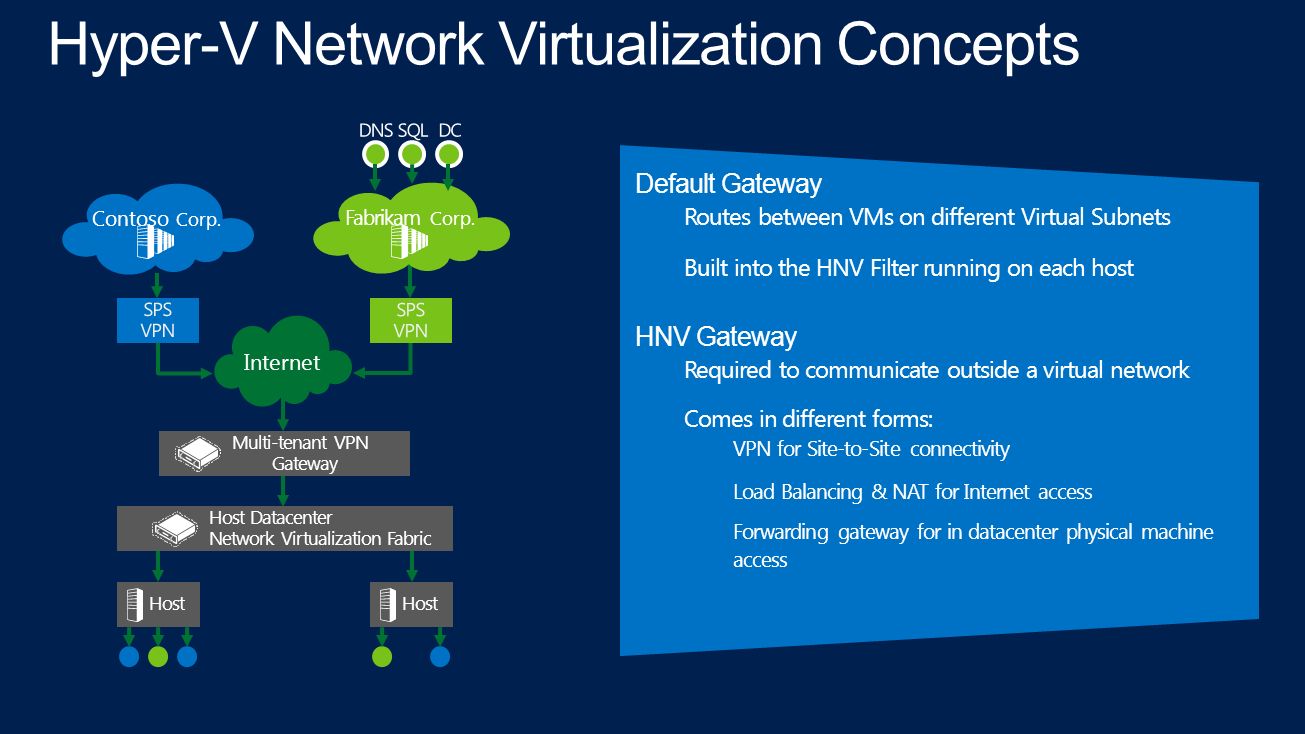

25 Default Gateway Routes between VMs on different Virtual Subnets Built into the HNV Filter running on each host HNV Gateway Required to communicate outside a virtual network Comes in different forms: VPN for Site-to-Site connectivity Load Balancing & NAT for Internet access Forwarding gateway for in datacenter physical machine access Host Datacenter Network Virtualization Fabric Host Internet Fabrikam Corp. Contoso Corp. Multi-tenant VPN Gateway

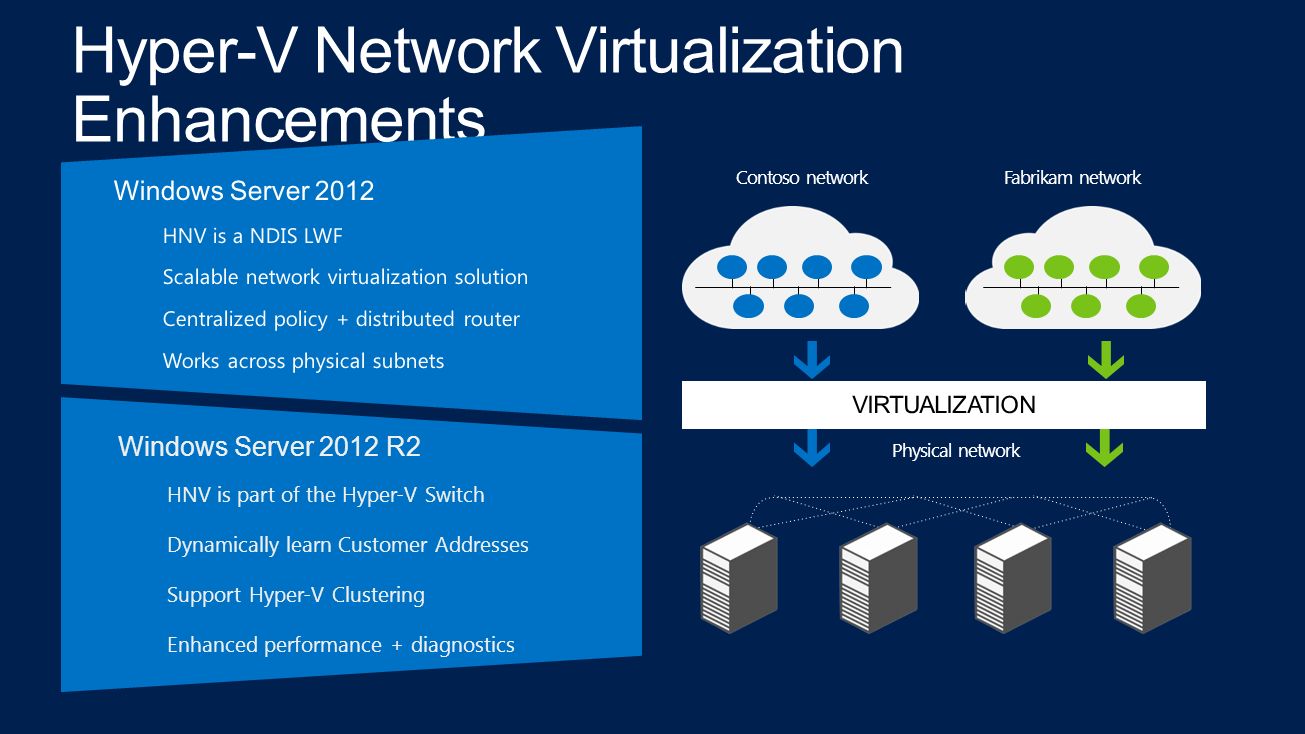

26 Windows Server 2012 R2 HNV is part of the Hyper-V Switch Dynamically learn Customer Addresses Support Hyper-V Clustering Enhanced performance + diagnostics Physical network Contoso networkFabrikam network

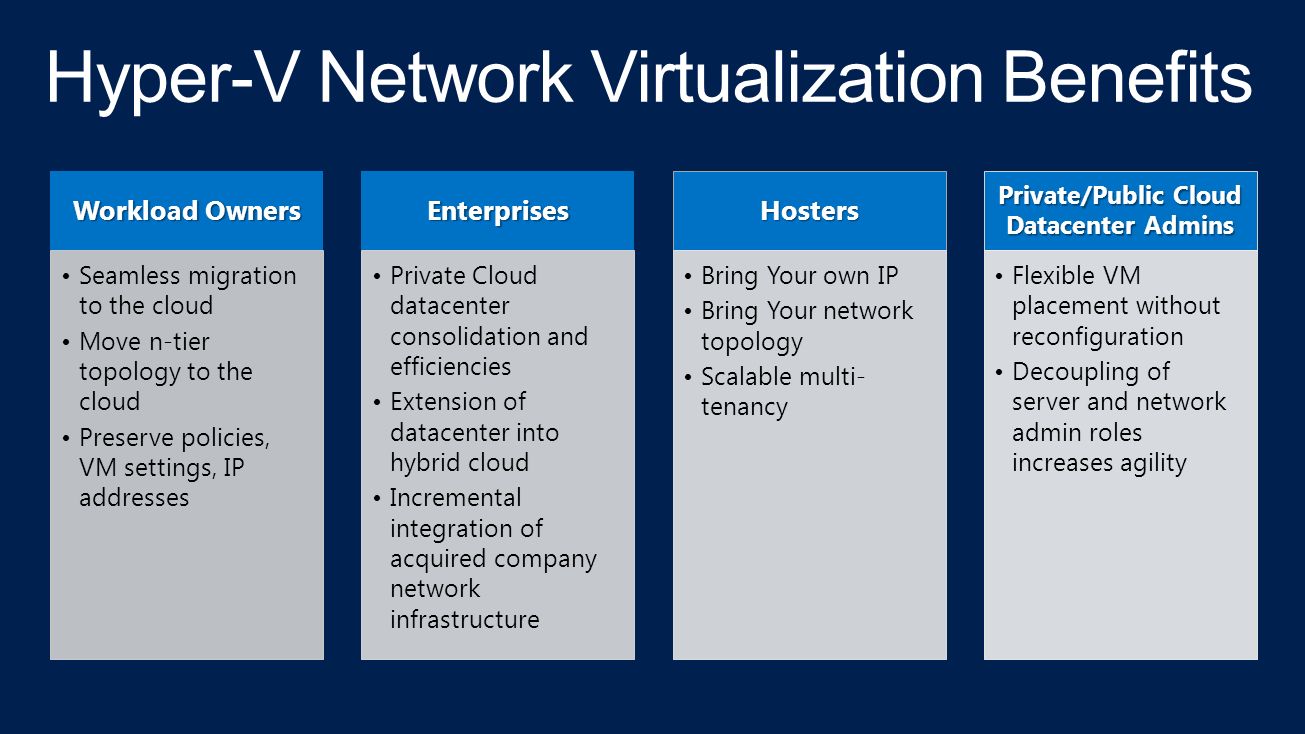

27

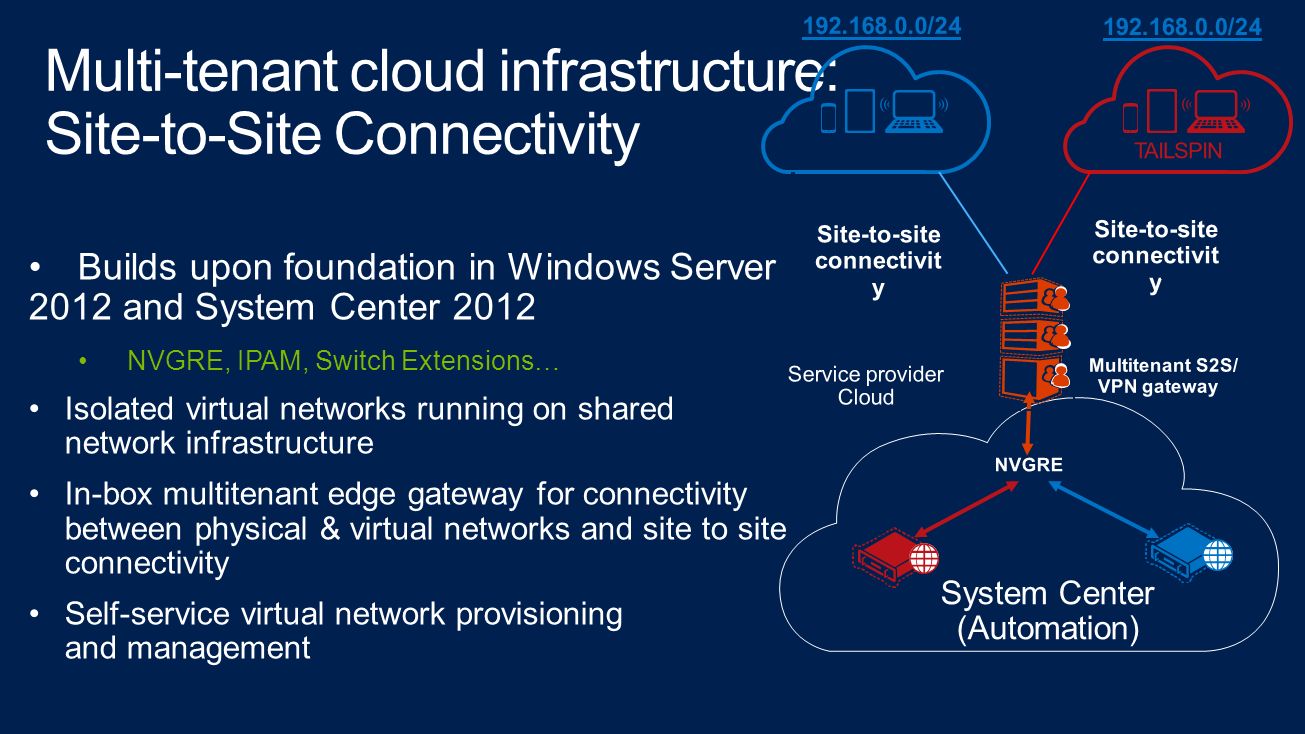

28

29

30 VM Wingtip Service Provider

31 Data Channel (Hyper-V Replica) Primary VMM Server Primary site Recover y site Recovery VMM Server Windows Azure Hyper-V Recovery Manager DR Orchestration

32 VM Restricted permissions Full permissions

33

34

35

36

37

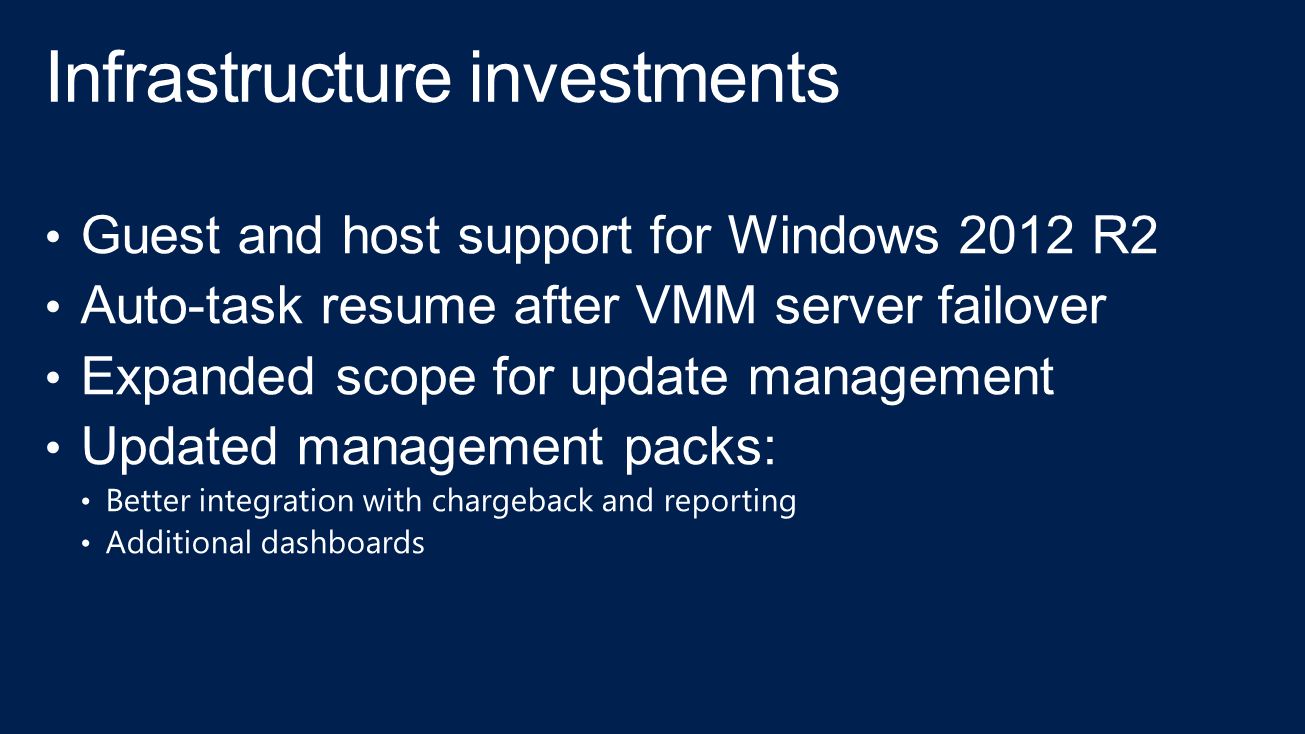

38

39

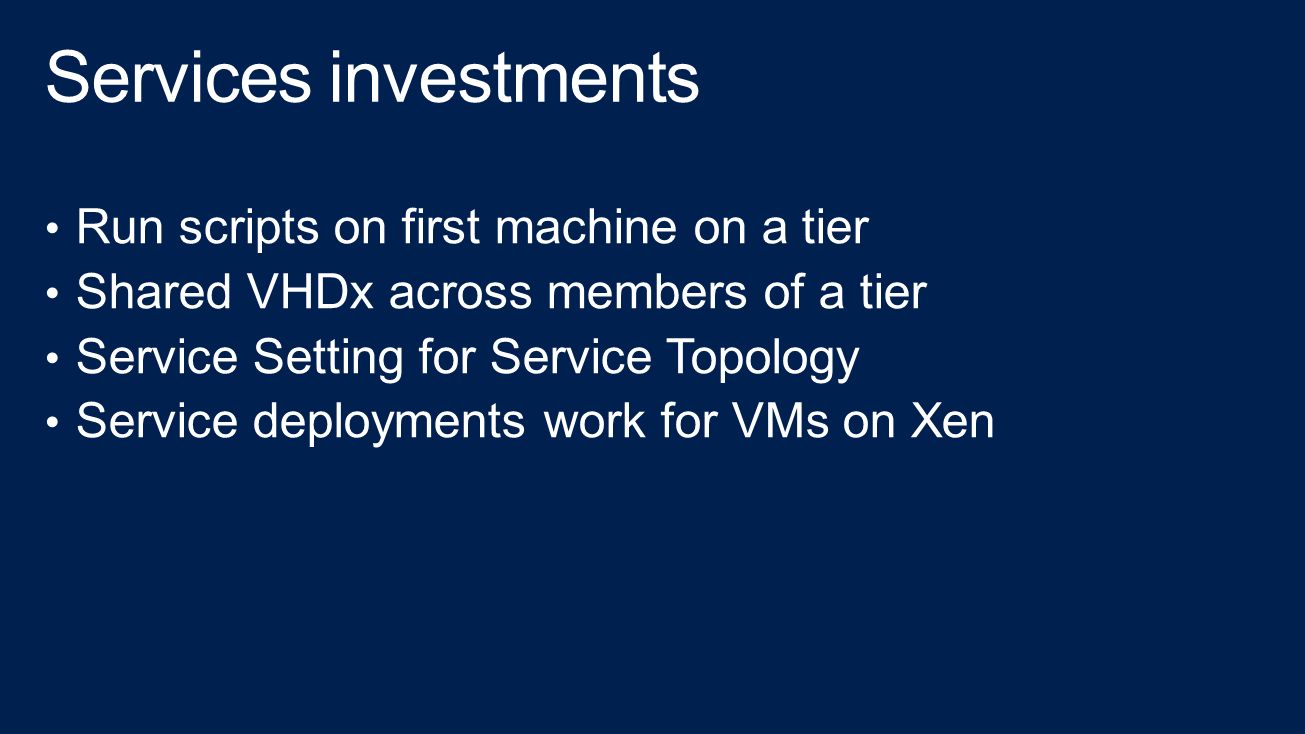

40

41
