1. COMPONENT INTERFACE By, Mr. Srinivas.

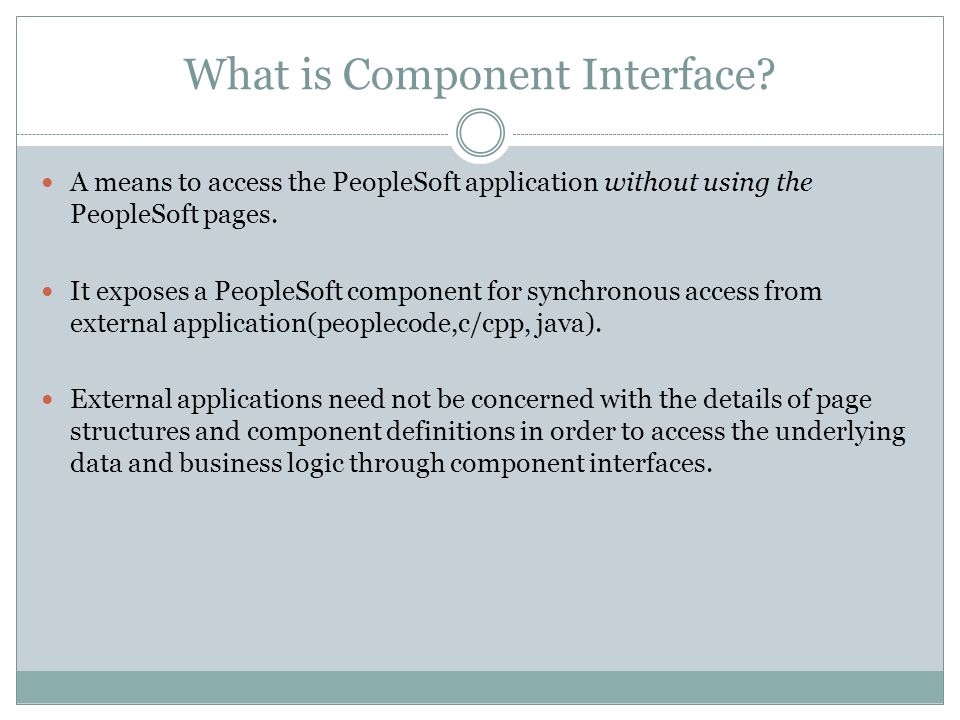

2. What is Component Interface? A means to access the PeopleSoft application without using the PeopleSoft pages. It exposes a PeopleSoft component for synchronous access from external application(peoplecode,c/cpp, java). External applications need not be concerned with the details of page structures and component definitions in order to access the underlying data and business logic through component interfaces.

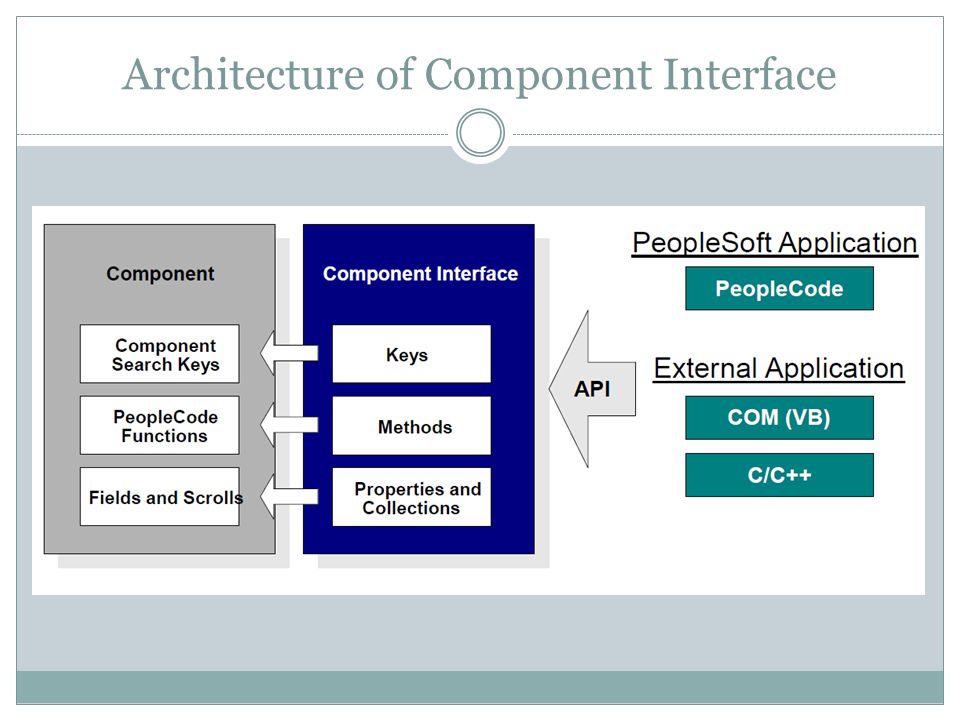

3. Architecture of Component Interface

4. Architecture(Contd..) Fundamental elements to the component interface architecture. Components Component Interface Component Interface API

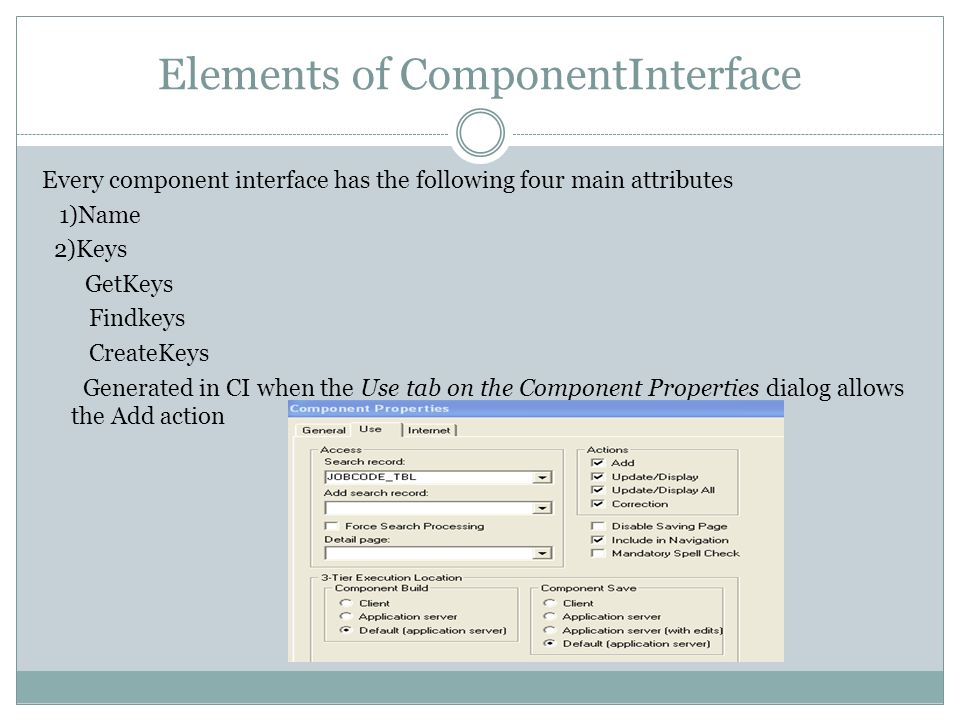

5. Elements of ComponentInterface Every component interface has the following four main attributes 1)Name 2)Keys GetKeys Findkeys CreateKeys Generated in CI when the Use tab on the Component Properties dialog allows the Add action

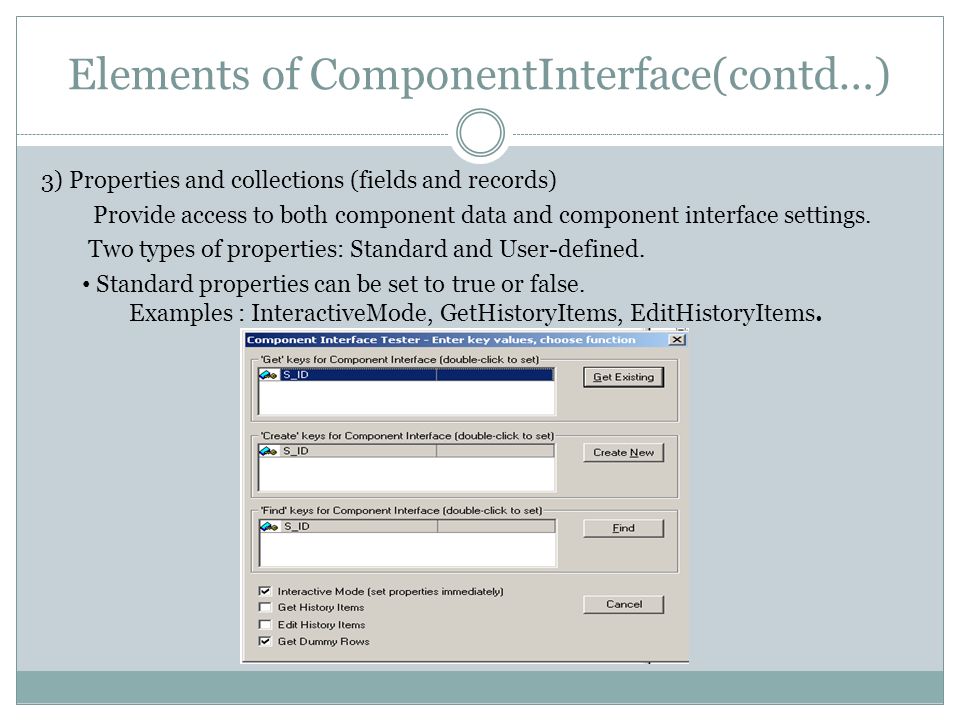

6. Elements of ComponentInterface(contd…) 3) Properties and collections (fields and records) Provide access to both component data and component interface settings. Two types of properties: Standard and User-defined. Standard properties can be set to true or false. Examples : InteractiveMode, GetHistoryItems, EditHistoryItems.

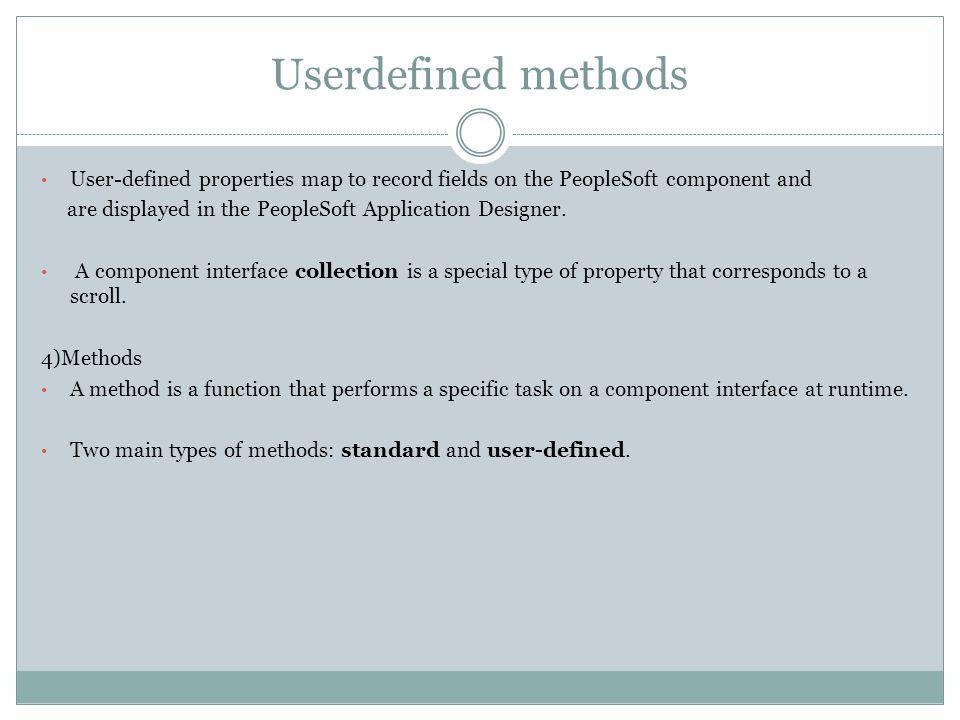

7. Userdefined methods User-defined properties map to record fields on the PeopleSoft component and are displayed in the PeopleSoft Application Designer. A component interface collection is a special type of property that corresponds to a scroll. 4)Methods A method is a function that performs a specific task on a component interface at runtime. Two main types of methods: standard and user-defined.

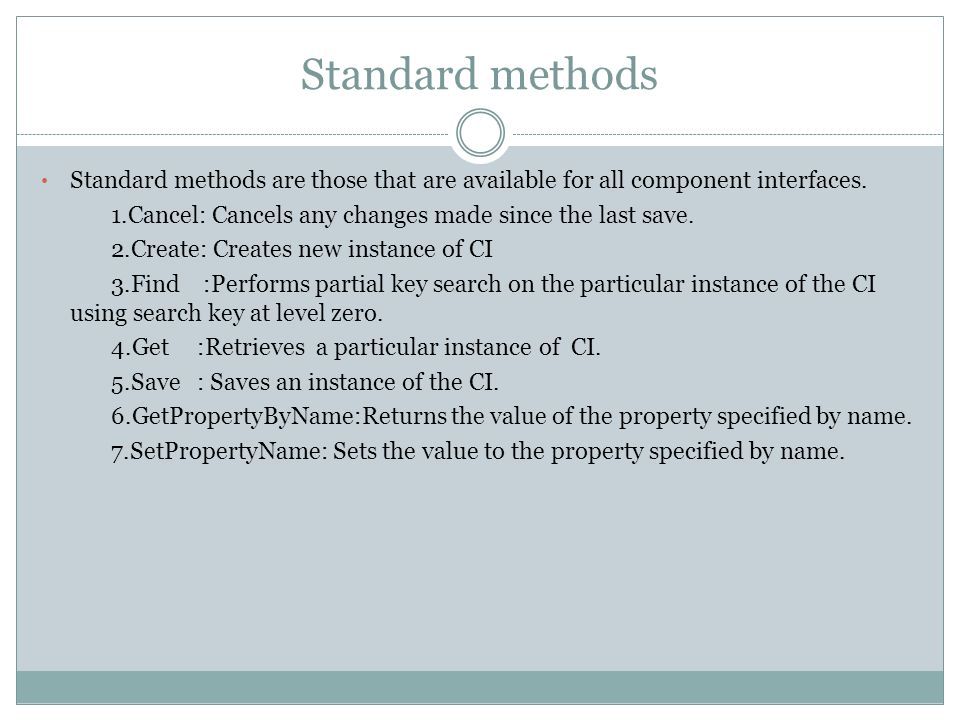

8. Standard methods Standard methods are those that are available for all component interfaces. 1.Cancel: Cancels any changes made since the last save. 2.Create: Creates new instance of CI 3.Find :Performs partial key search on the particular instance of the CI using search key at level zero. 4.Get :Retrieves a particular instance of CI. 5.Save : Saves an instance of the CI. 6.GetPropertyByName:Returns the value of the property specified by name. 7.SetPropertyName: Sets the value to the property specified by name.

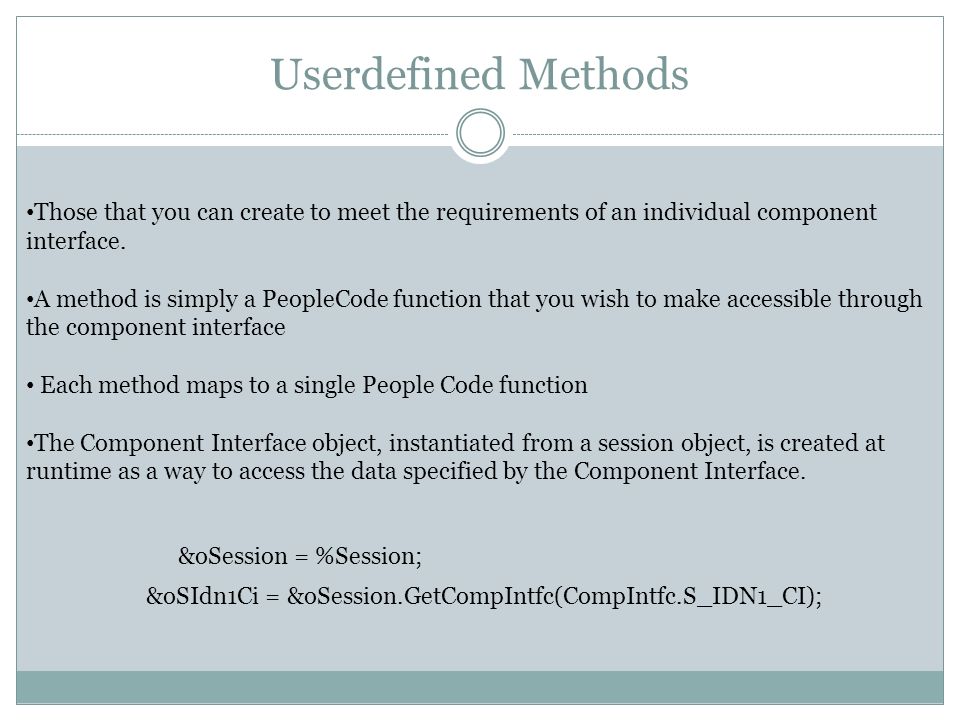

9. Userdefined Methods Those that you can create to meet the requirements of an individual component interface. A method is simply a PeopleCode function that you wish to make accessible through the component interface Each method maps to a single People Code function The Component Interface object, instantiated from a session object, is created at runtime as a way to access the data specified by the Component Interface. &oSession = %Session; &oSIdn1Ci = &oSession.GetCompIntfc(CompIntfc.S_IDN1_CI);

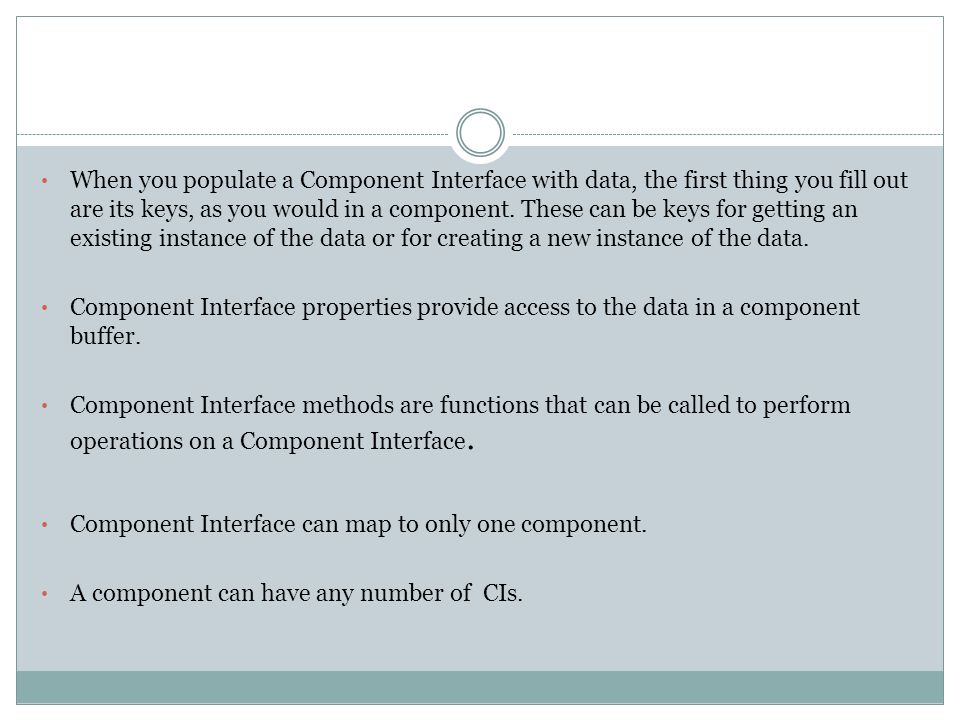

10. When you populate a Component Interface with data, the first thing you fill out are its keys, as you would in a component. These can be keys for getting an existing instance of the data or for creating a new instance of the data. Component Interface properties provide access to the data in a component buffer. Component Interface methods are functions that can be called to perform operations on a Component Interface. Component Interface can map to only one component. A component can have any number of CIs.

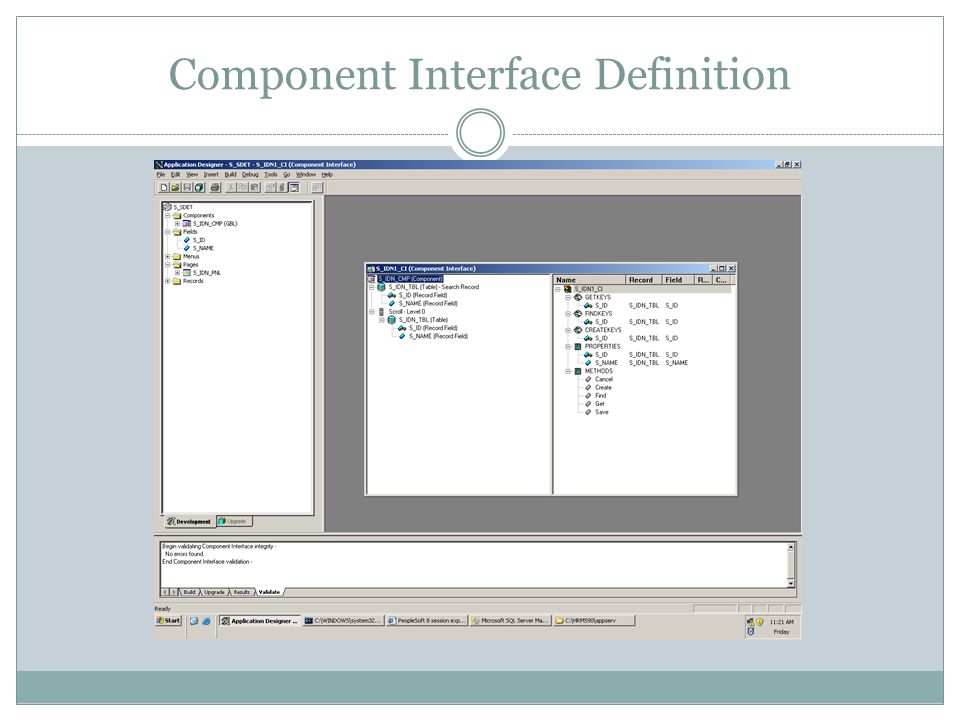

11. Component Interface Definition

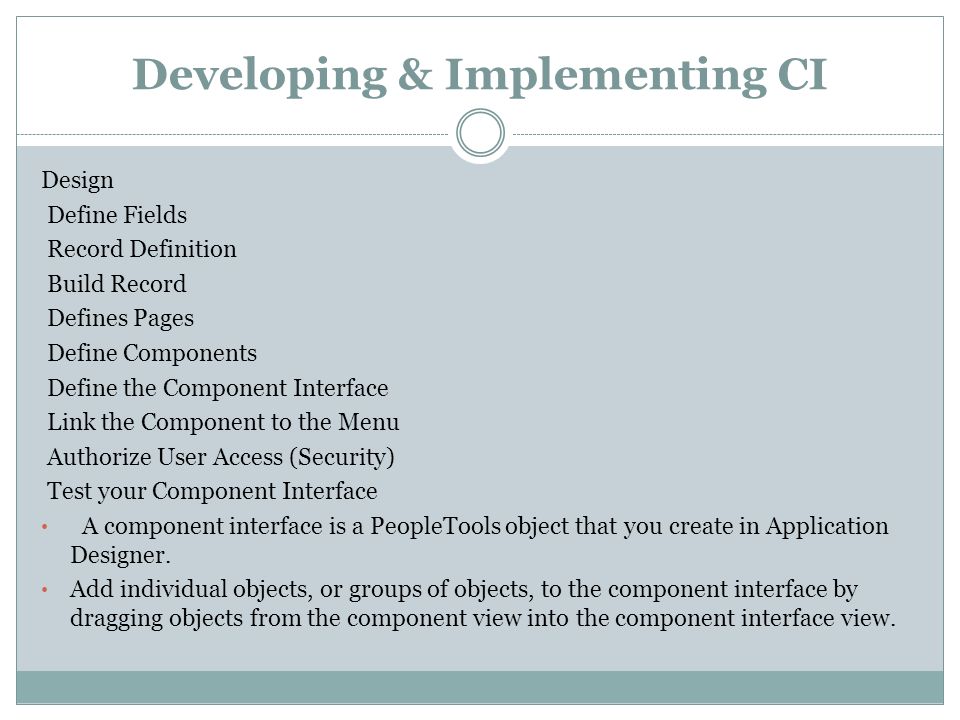

12. Developing & Implementing CI Design Define Fields Record Definition Build Record Defines Pages Define Components Define the Component Interface Link the Component to the Menu Authorize User Access (Security) Test your Component Interface A component interface is a PeopleTools object that you create in Application Designer. Add individual objects, or groups of objects, to the component interface by dragging objects from the component view into the component interface view.

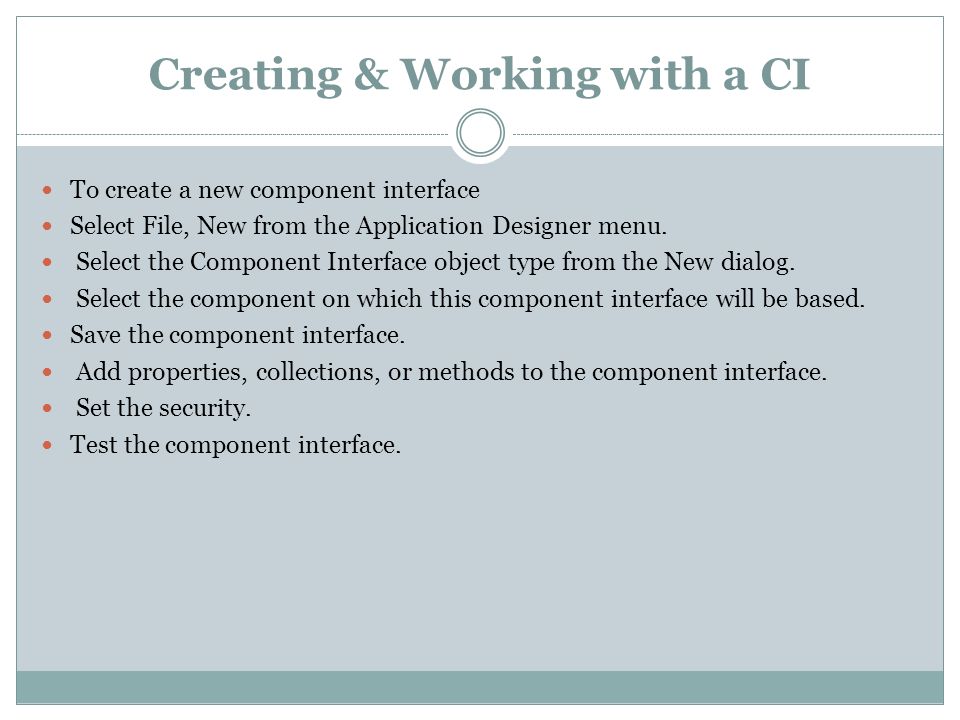

13. Creating & Working with a CI To create a new component interface Select File, New from the Application Designer menu. Select the Component Interface object type from the New dialog. Select the component on which this component interface will be based. Save the component interface. Add properties, collections, or methods to the component interface. Set the security. Test the component interface.

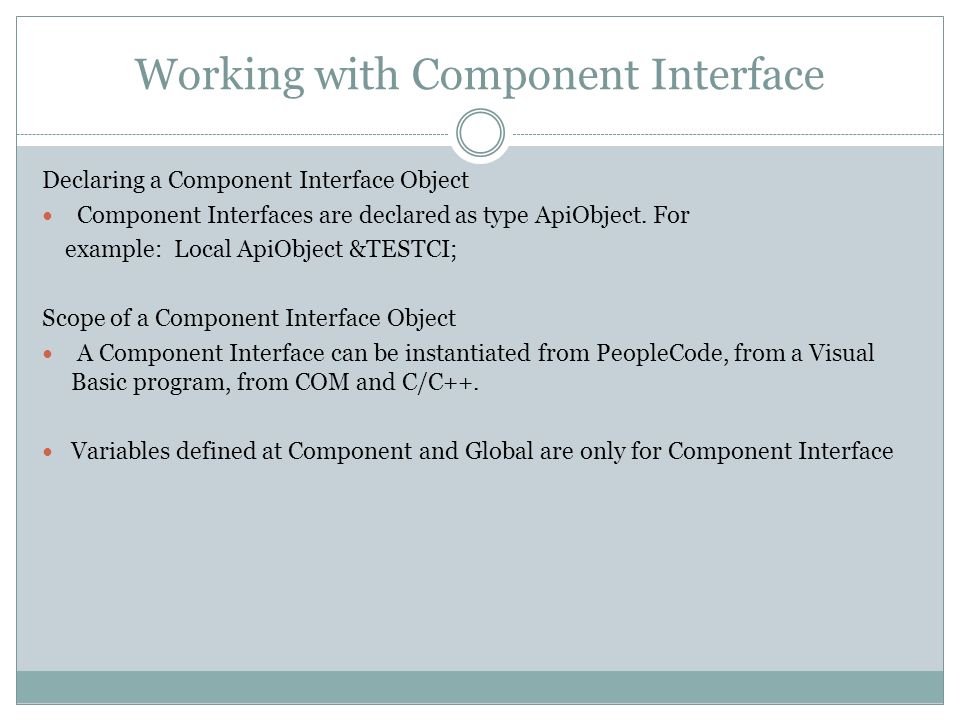

14. Working with Component Interface Declaring a Component Interface Object Component Interfaces are declared as type ApiObject. For example: Local ApiObject &TESTCI; Scope of a Component Interface Object A Component Interface can be instantiated from PeopleCode, from a Visual Basic program, from COM and C/C++. Variables defined at Component and Global are only for Component Interface

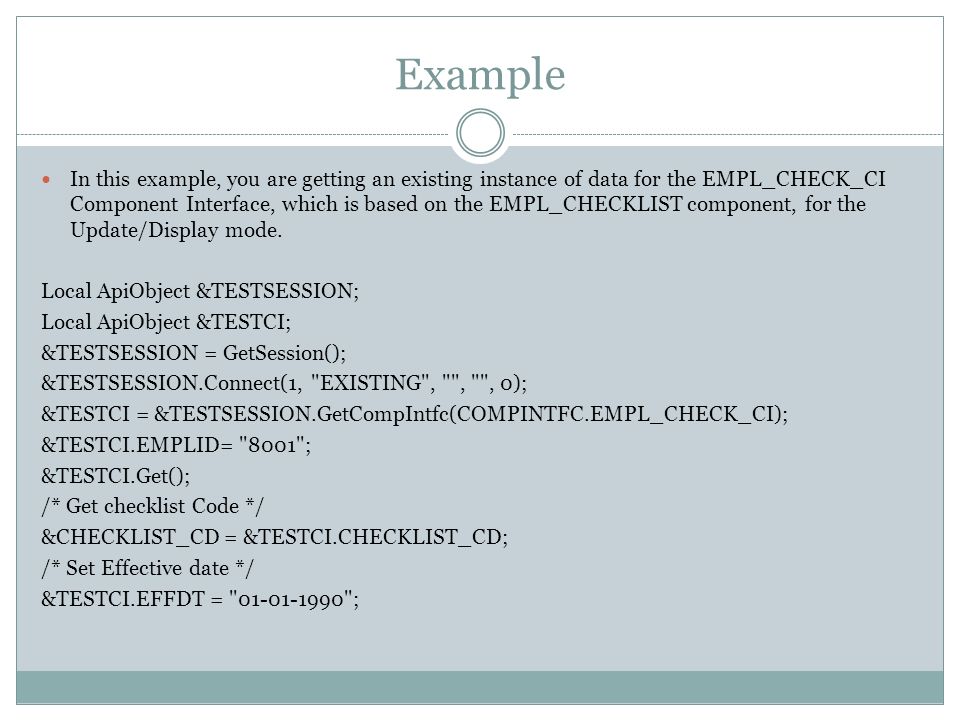

15. Example In this example, you are getting an existing instance of data for the EMPL_CHECK_CI Component Interface, which is based on the EMPL_CHECKLIST component, for the Update/Display mode. Local ApiObject &TESTSESSION; Local ApiObject &TESTCI; &TESTSESSION = GetSession(); &TESTSESSION.Connect(1, "EXISTING", "", "", 0); &TESTCI = &TESTSESSION.GetCompIntfc(COMPINTFC.EMPL_CHECK_CI); &TESTCI.EMPLID= "8001"; &TESTCI.Get(); /* Get checklist Code */ &CHECKLIST_CD = &TESTCI.CHECKLIST_CD; /* Set Effective date */ &TESTCI.EFFDT = "01-01-1990";

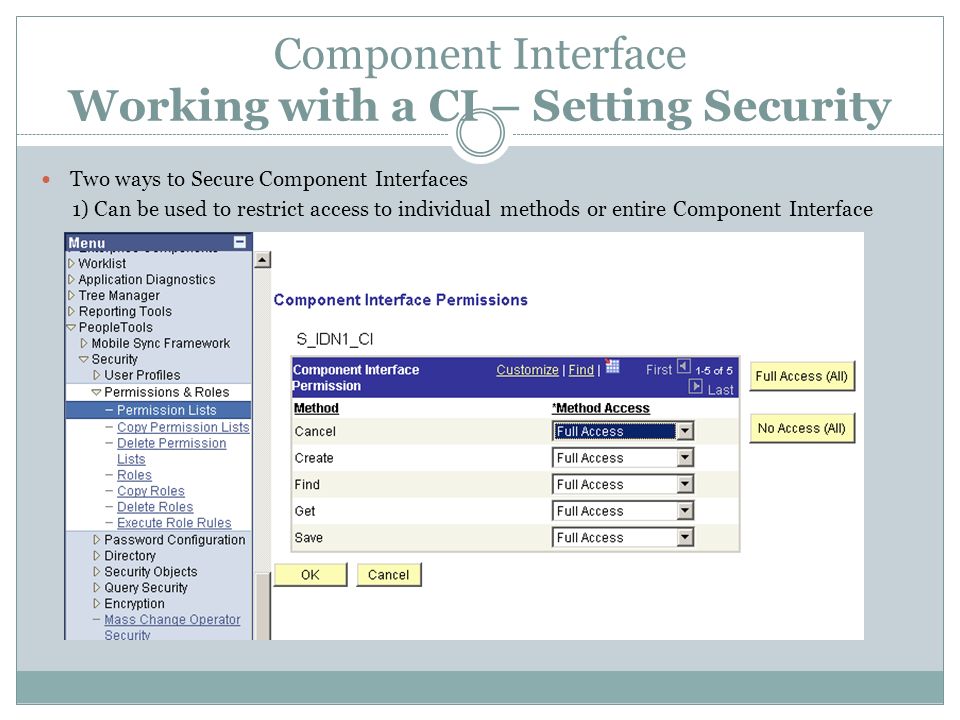

16. Component Interface Working with a CI – Setting Security Two ways to Secure Component Interfaces 1) Can be used to restrict access to individual methods or entire Component Interface

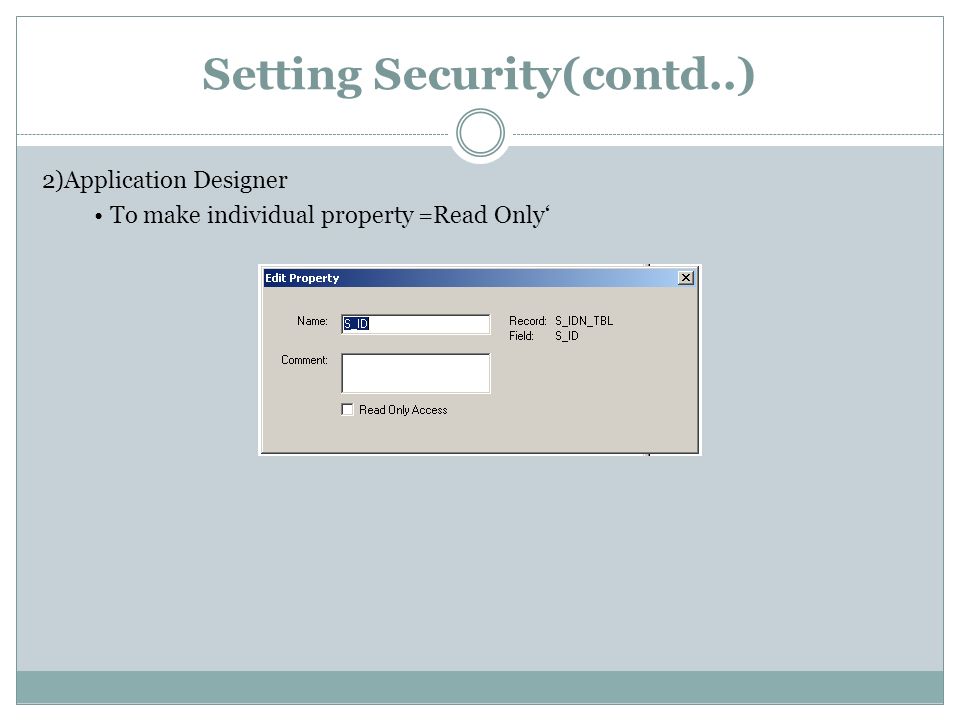

17. Setting Security(contd..) 2)Application Designer To make individual property =Read Only‘

18. Using the CI Tester

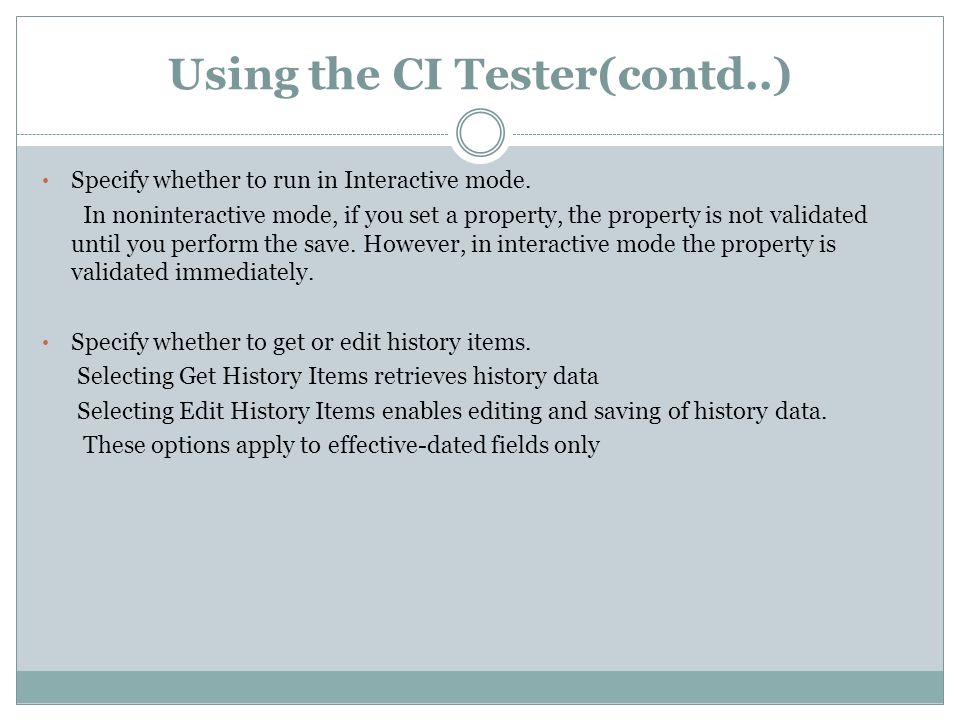

19. Using the CI Tester(contd..) Specify whether to run in Interactive mode. In noninteractive mode, if you set a property, the property is not validated until you perform the save. However, in interactive mode the property is validated immediately. Specify whether to get or edit history items. Selecting Get History Items retrieves history data Selecting Edit History Items enables editing and saving of history data. These options apply to effective-dated fields only

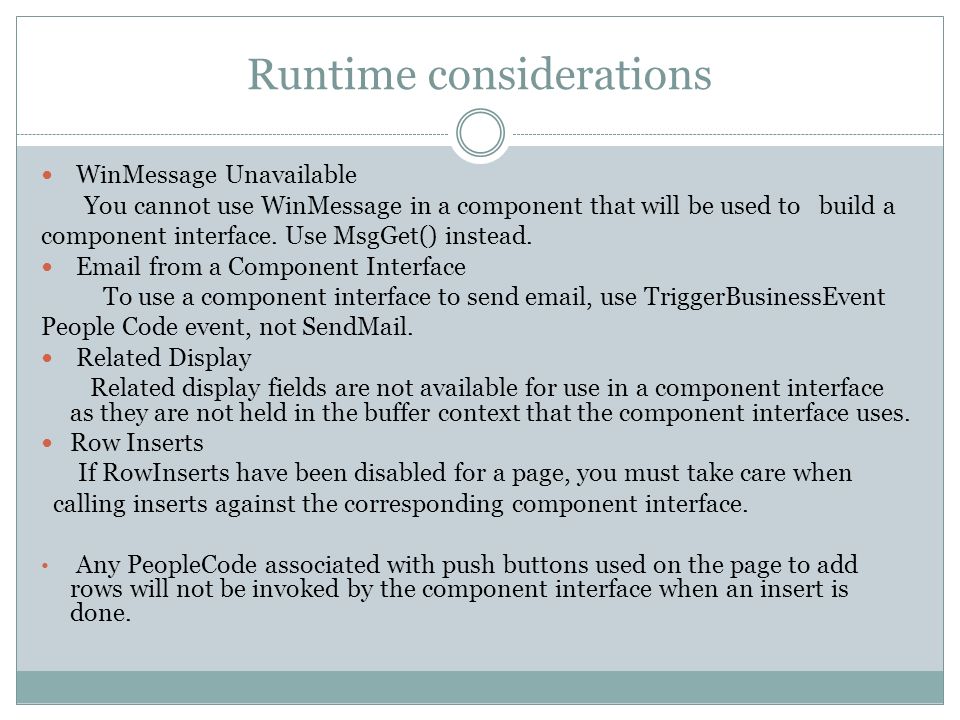

20. Runtime considerations WinMessage Unavailable You cannot use WinMessage in a component that will be used to build a component interface. Use MsgGet() instead. Email from a Component Interface To use a component interface to send email, use TriggerBusinessEvent People Code event, not SendMail. Related Display Related display fields are not available for use in a component interface as they are not held in the buffer context that the component interface uses. Row Inserts If RowInserts have been disabled for a page, you must take care when calling inserts against the corresponding component interface. Any PeopleCode associated with push buttons used on the page to add rows will not be invoked by the component interface when an insert is done.

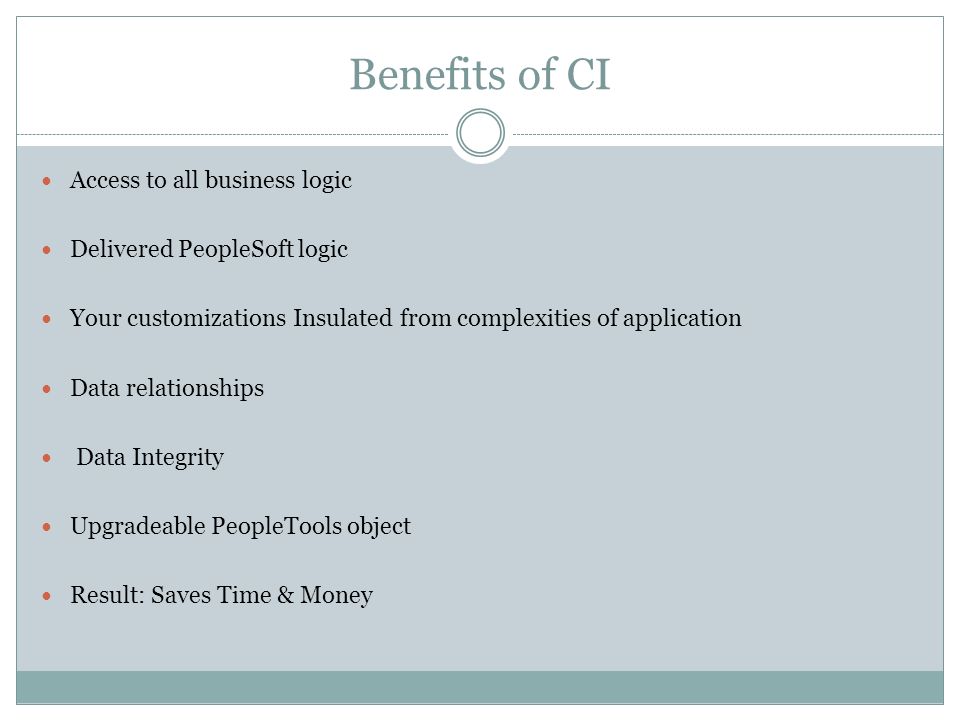

21. Benefits of CI Access to all business logic Delivered PeopleSoft logic Your customizations Insulated from complexities of application Data relationships Data Integrity Upgradeable PeopleTools object Result: Saves Time & Money

22. Thank you
