Copyright 2008 Coast Guard Auxiliary Association, Inc. The Weekend Navigator Basic Level I
2
Chapter 5: Planning With GPS and Paper Charts
3
Chapter 5: Lesson Objectives Criteria for a safe course Steps in pre-voyage planning Plotting on a chart Entering waypoints into your GPS
4
Planning and Paper Charts Make sure you use the latest version of the charts for your area of operation!
5
Criteria for a Safe Course Determining safe depths –Characteristics of your boat –Characteristics of the seabed Sounding is measurement of the bottom depth at a particular location Contour lines can be drawn for constant depths
6
Criteria for a Safe Course All soundings are referenced to a standard datum –Mean lower low water (MLLW) –Each sounding represents the shallowest water for that particular location
7
Criteria for a Safe Course Draft is the measure of how far a boat’s keel or drive unit extends below the waterline
8

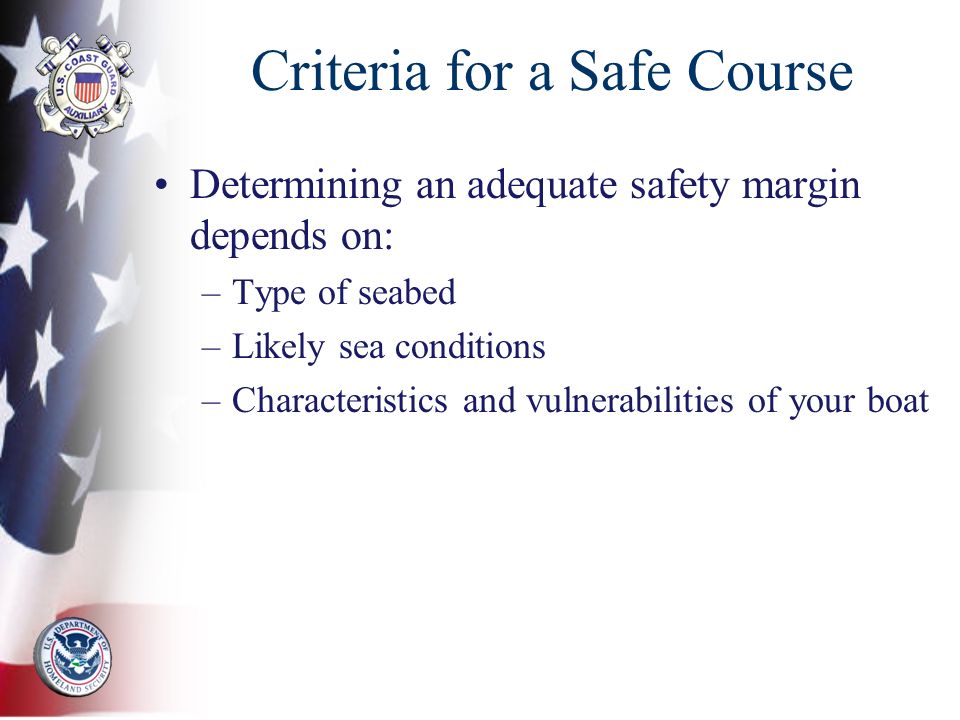

Criteria for a Safe Course Determining an adequate safety margin depends on: –Type of seabed –Likely sea conditions –Characteristics and vulnerabilities of your boat
9
Criteria for a Safe Course Isolated hazards can be natural or man- made –Outlying rocks (exposed, covered, covering) –Wrecks –Old pilings
10
Criteria for a Safe Course Shoals are the tops of underwater hills that may lie along a line Main channels may run parallel to shoals
11
Criteria for a Safe Course Horizontal clearance provides adequate room to steer around obstacles Intended path - ten times wider than GPS error to either side (i.e. error of 50 feet for most units) –One-tenth of a minute of latitude is equivalent to 600 feet and can also be used
12

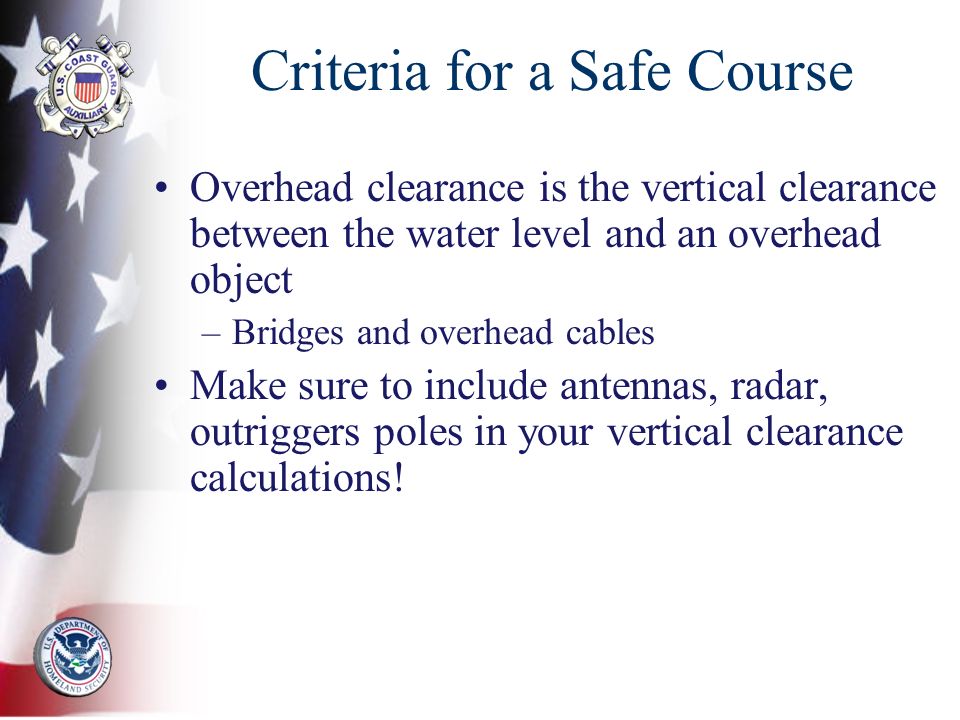

Criteria for a Safe Course Overhead clearance is the vertical clearance between the water level and an overhead object –Bridges and overhead cables Make sure to include antennas, radar, outriggers poles in your vertical clearance calculations!
13
Criteria for a Safe Course Overhead clearances –referenced to mean high water (MHW) –or mean higher high water (MHHW)
14
Steps in Pre-voyage Planning First: Locate home port and ports to visit Second: Locate hazards Third: Plot straight line paths to points of interest Fourth: Invent short names for connecting waypoints
15
Steps in Pre-voyage Planning Fifth: Note any landmarks Sixth: Measure coordinates of each waypoint Seventh: Complete waypoint table and enter into GPS
16

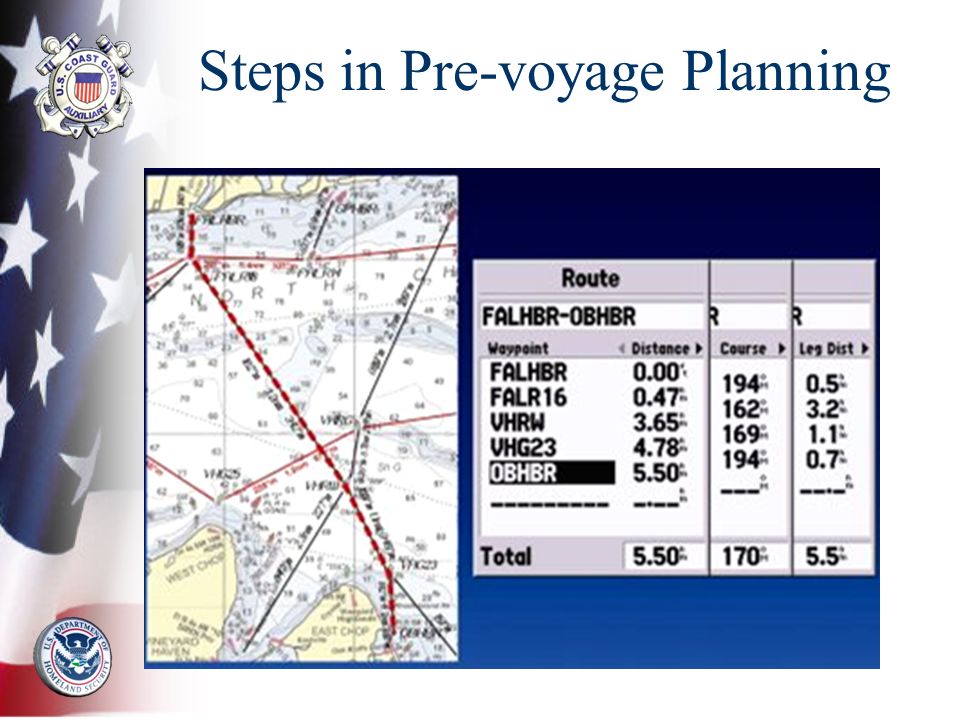

Steps in Pre-voyage Planning
17

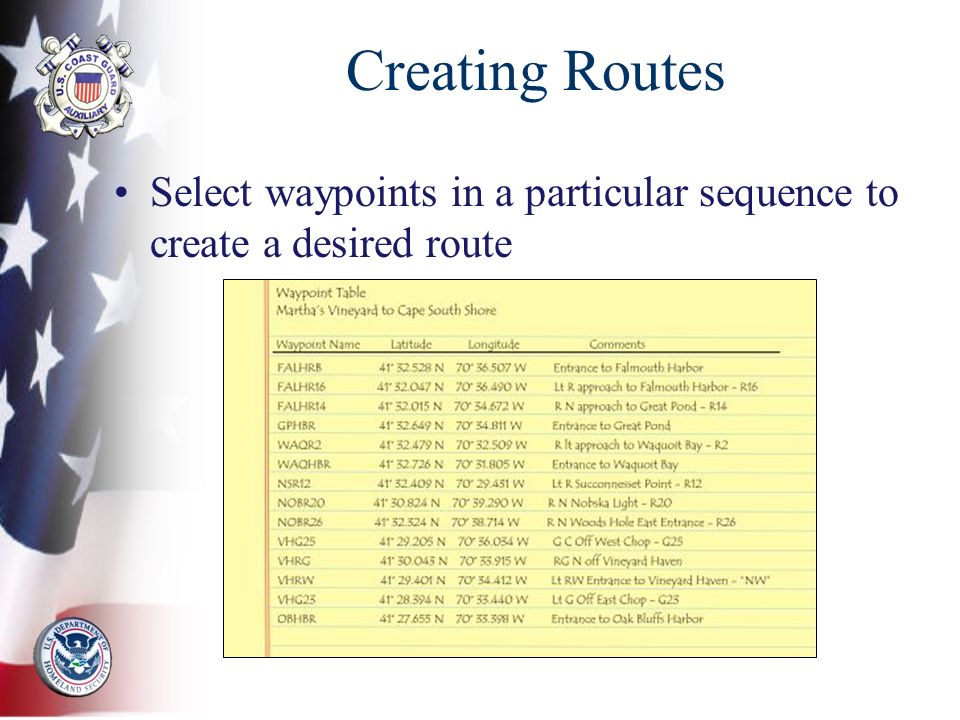

Creating Routes Select waypoints in a particular sequence to create a desired route
18

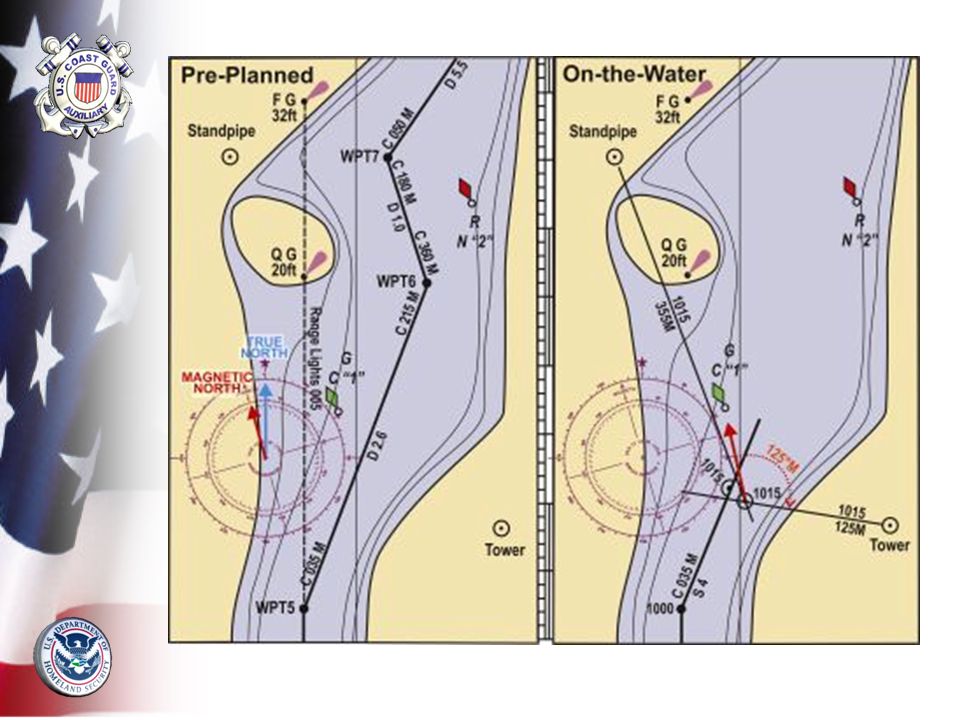

Plotting on a Chart Thoroughly annotate your paper charts with the information stored in your GPS Summary of Plotting Lines –Course lines –Range lines –Dead Reckoning (DR) –Bearing lines
19
Plotting a Course Draw straight line segments on the chart to avoid obstacles Measure the coordinates of the end points of each leg
20
Plotting a Course Course legs should labeled using navigation conventions –C for course followed by three digit direction –M for magnetic Example: –A course of 3 o should be labeled “C 003 M” –Label is placed near the waypoint above the course line
22
Plotting a Course Distance of a leg starts with the letter “D” and then the distance Distance label is placed under the line and near the center of the leg Example: “D 2.6”
24
Plotting a Course Remember: Waypoint coordinates are just numbers until they are plotted on a chart!
25
Plotting a Course A reciprocal is the course you would steer if you came from the exact opposite direction –To determine a reciprocal, either add 180 o to a course less than 180 o or subtract 180 o from a course more than 180 o The reciprocal course heading is noted at the other end of each line
26

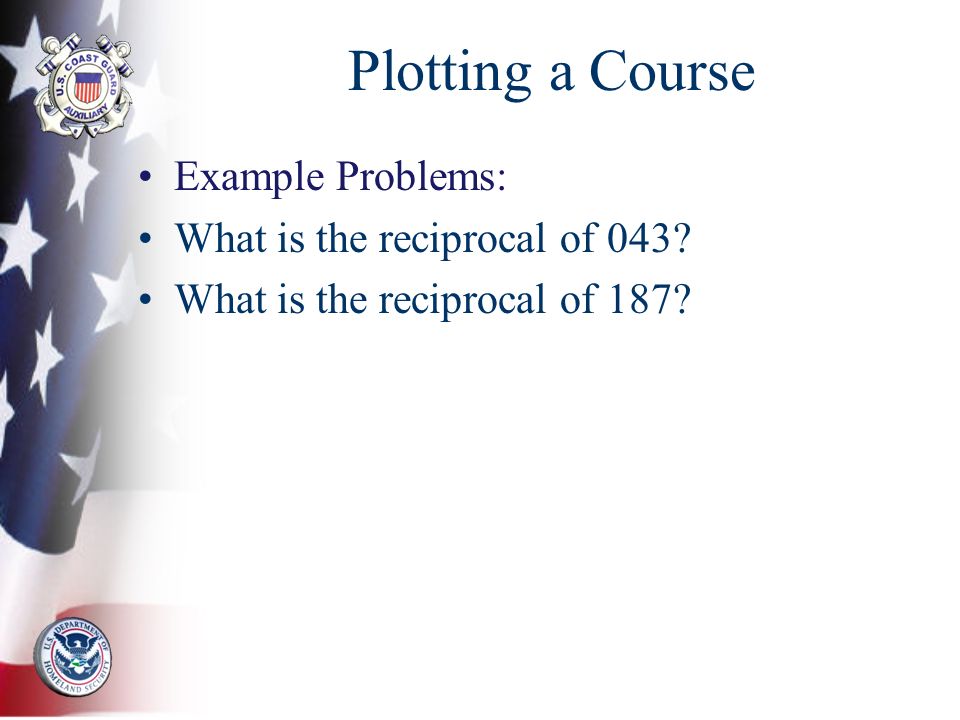

Plotting a Course Example Problems: What is the reciprocal of 043? What is the reciprocal of 187?
27
Plotting a Course The reciprocal for 043 would be 43 o + 180 o = 223 o The reciprocal for 187 would 187 o – 180 o = 007 o
28

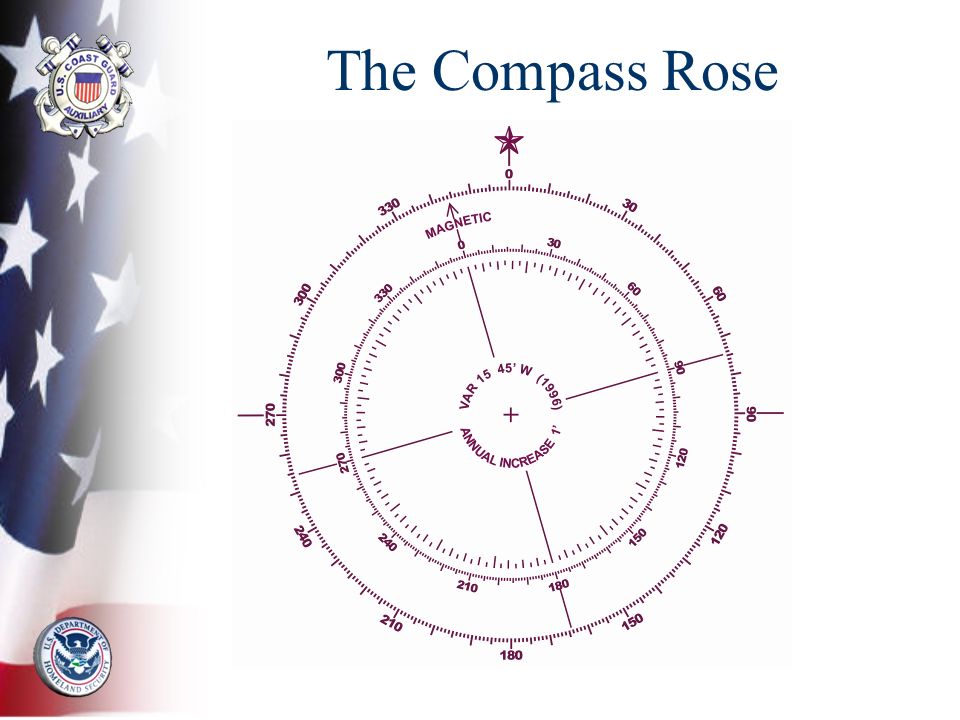

The Compass Rose Provides the chart’s fundamental reference for magnetic directions Outer ring aligns with the chart grid of latitude and longitude or true north Inner ring aligns with magnetic north
29
The Compass Rose
30
Variation describes both the: –Magnitude of the difference in degrees and minutes between true and magnetic north –Direction of the offset either east or west Includes the date used for the variation and the annual change
32

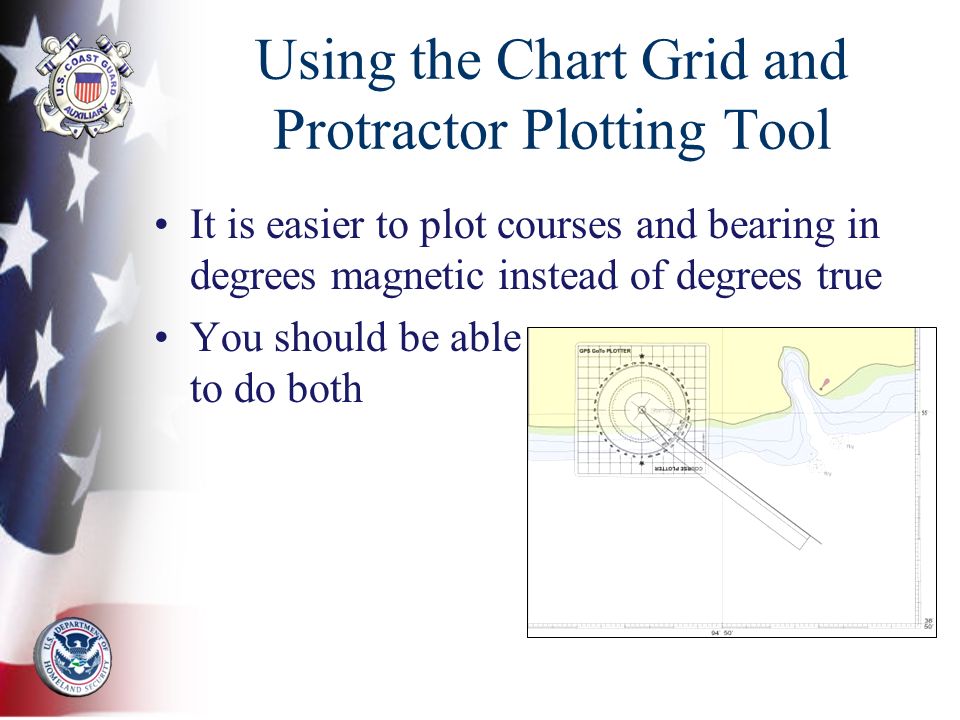

Using the Chart Grid and Protractor Plotting Tool It is easier to plot courses and bearing in degrees magnetic instead of degrees true You should be able to do both
33
Adding or Subtracting Local Variation Add westerly variation to your true course Subtract easterly variation from your true course
34
Adding or Subtracting Local Variation Examples: –Local variation =15 o W –True course= 175 –What is your magnetic course? –175 T + 15 o W = 190 M –If local variation = 15 o E –What is your magnetic course? –175 T– 15 o E = 160 M
35
Correcting for Deviation Deviation –compass error or the difference between your compass and magnetic north Compass deviation is unique to each boat while variation is consistent within a given area
36
Correcting for Deviation T = True direction V = Local variation M = Magnetic direction D = Deviation of the compass C = Compass direction
37

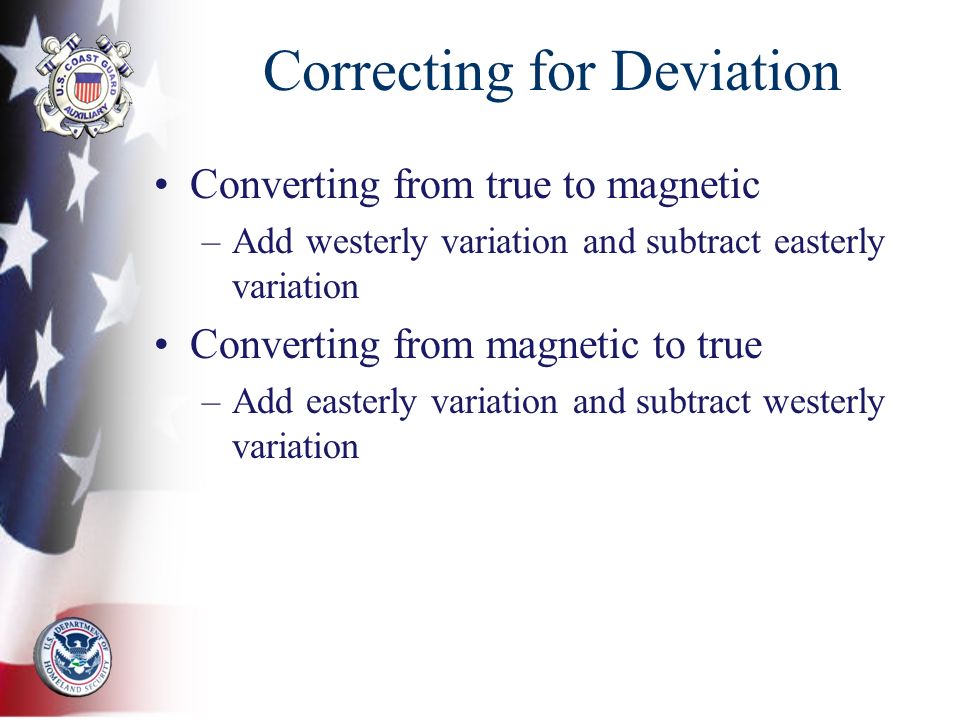

Correcting for Deviation Converting from true to magnetic –Add westerly variation and subtract easterly variation Converting from magnetic to true –Add easterly variation and subtract westerly variation
38
Correcting for Deviation Converting from magnetic to compass –Add westerly deviation and subtract easterly variation Converting from compass to magnetic –Add easterly deviation and subtract westerly variation
39
Copyright 2006 Coast Guard Auxiliary Association, Inc. Correcting for Deviation True and magnetic directions are used for plotting Compass courses are used for steering the boat and are not plotted
40

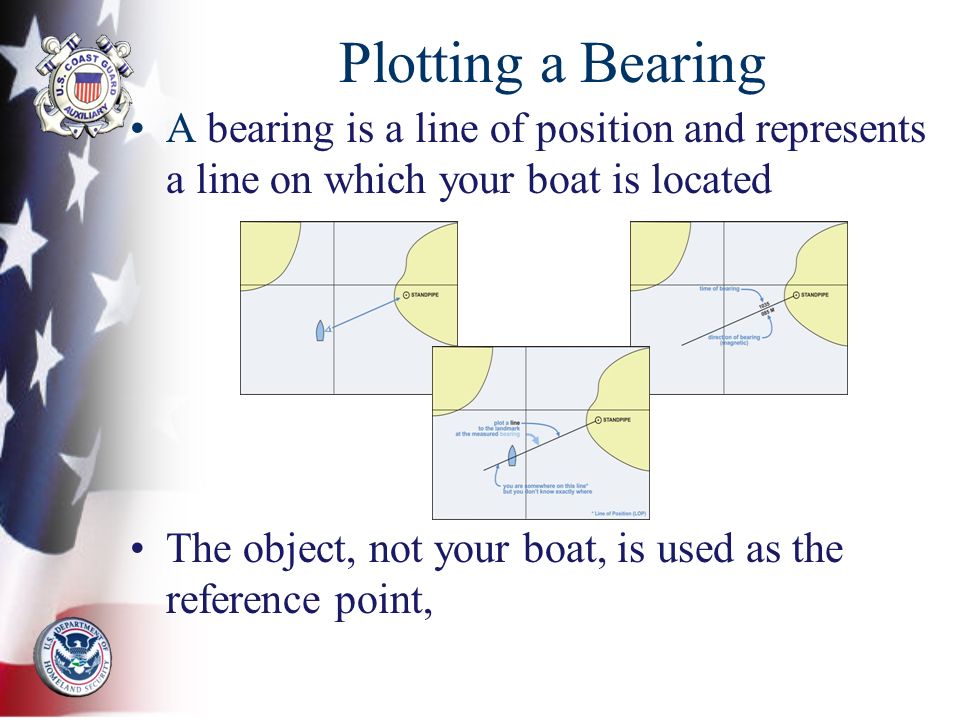

Plotting a Bearing A bearing is a line of position and represents a line on which your boat is located The object, not your boat, is used as the reference point,
41
Plotting a Bearing The bearing line is drawn: –Toward the object –Direction of the bearing –Estimated location of your boat –Labeled with 24 hour clock (4 digits) above the line and direction of bearing (3 digits) below the line
43
Plotting a Range Plotted as straight dashed lines between charted objects with the line extending to the navigation area Bearing is placed on top of the line Water towers, church spires, and day beacons may be used as ranges
44
Summary Criteria for a safe course Steps in pre-voyage planning Plotting on a chart Entering waypoints into your GPS
