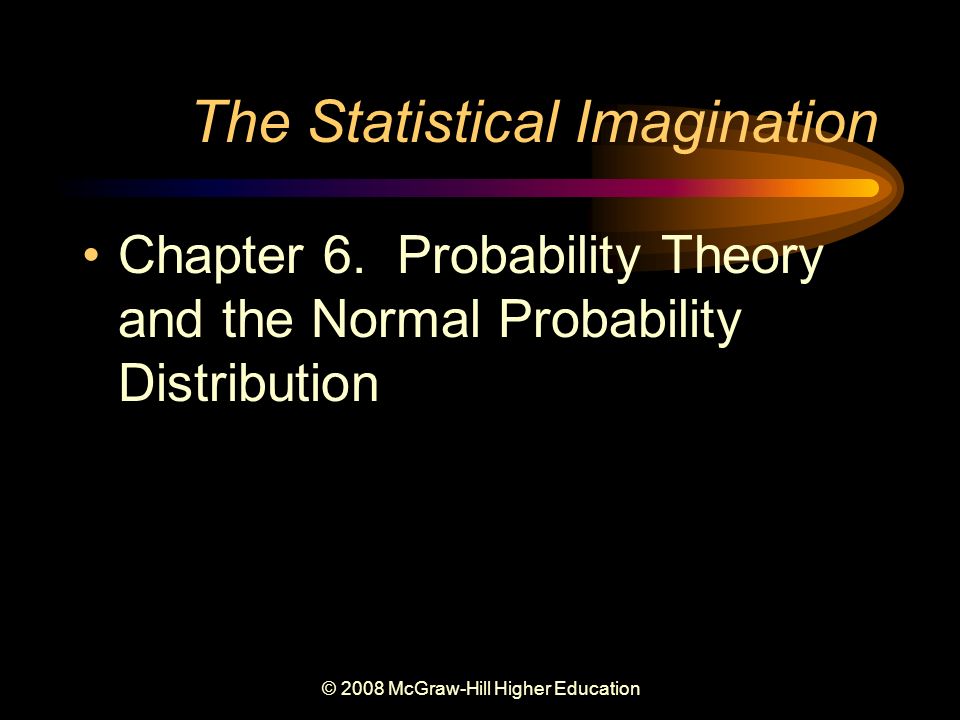

1. © 2008 McGraw-Hill Higher Education The Statistical Imagination Chapter 6. Probability Theory and the Normal Probability Distribution

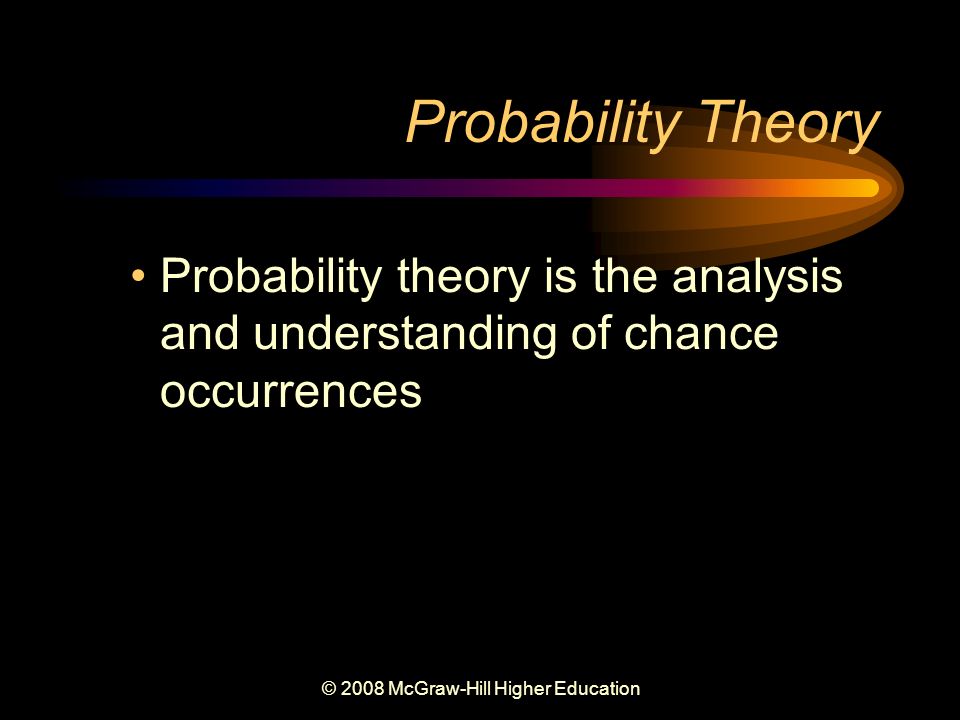

2. © 2008 McGraw-Hill Higher Education Probability Theory Probability theory is the analysis and understanding of chance occurrences

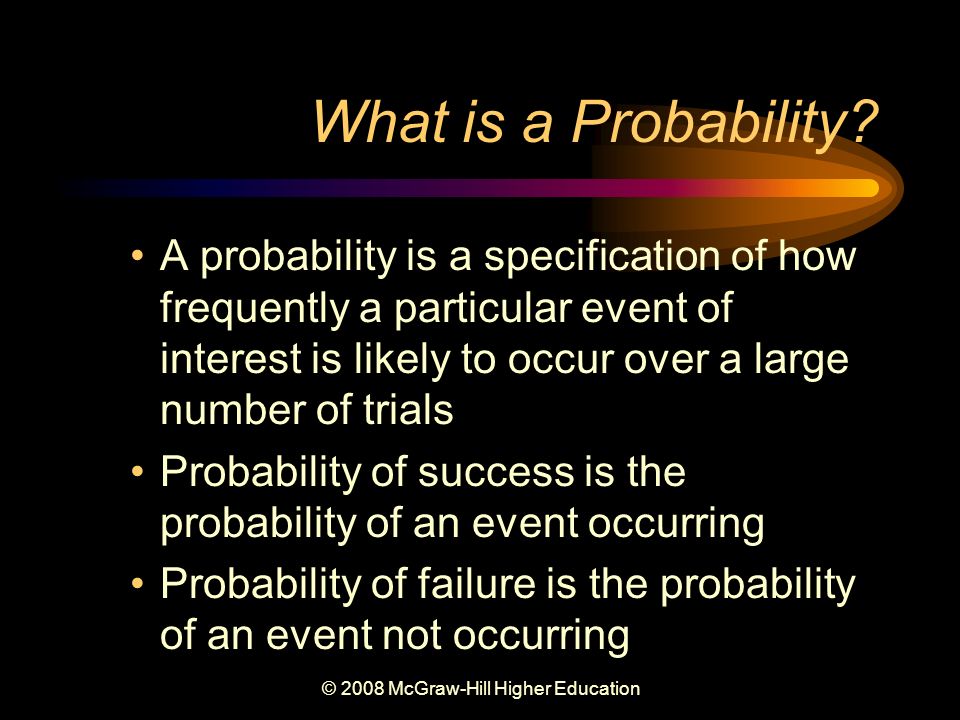

3. © 2008 McGraw-Hill Higher Education What is a Probability? A probability is a specification of how frequently a particular event of interest is likely to occur over a large number of trials Probability of success is the probability of an event occurring Probability of failure is the probability of an event not occurring

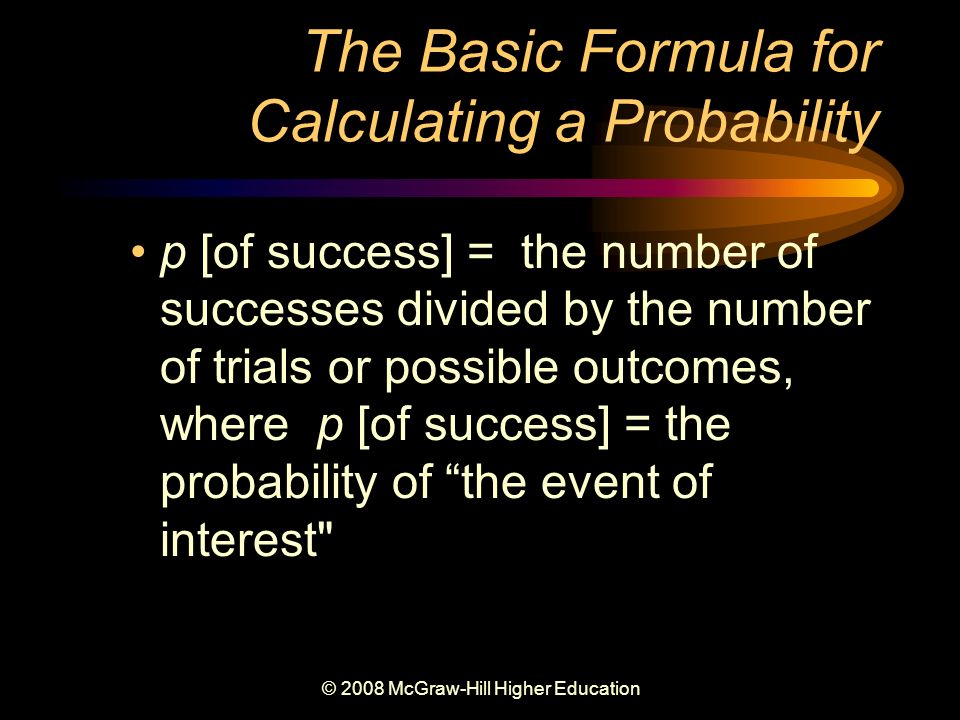

4. © 2008 McGraw-Hill Higher Education The Basic Formula for Calculating a Probability p [of success] = the number of successes divided by the number of trials or possible outcomes, where p [of success] = the probability of “the event of interest"

5. © 2008 McGraw-Hill Higher Education Basic Rules of Probability Theory There are five basic rules of probability that underlie all calculations of probabilities

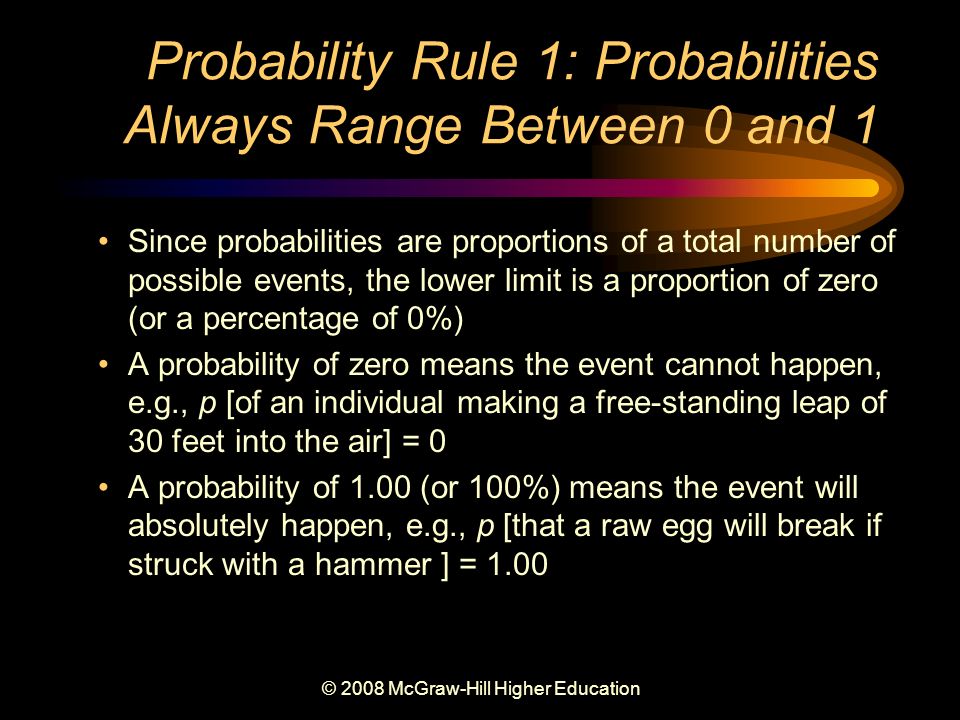

6. © 2008 McGraw-Hill Higher Education Probability Rule 1: Probabilities Always Range Between 0 and 1 Since probabilities are proportions of a total number of possible events, the lower limit is a proportion of zero (or a percentage of 0%) A probability of zero means the event cannot happen, e.g., p [of an individual making a free-standing leap of 30 feet into the air] = 0 A probability of 1.00 (or 100%) means the event will absolutely happen, e.g., p [that a raw egg will break if struck with a hammer ] = 1.00

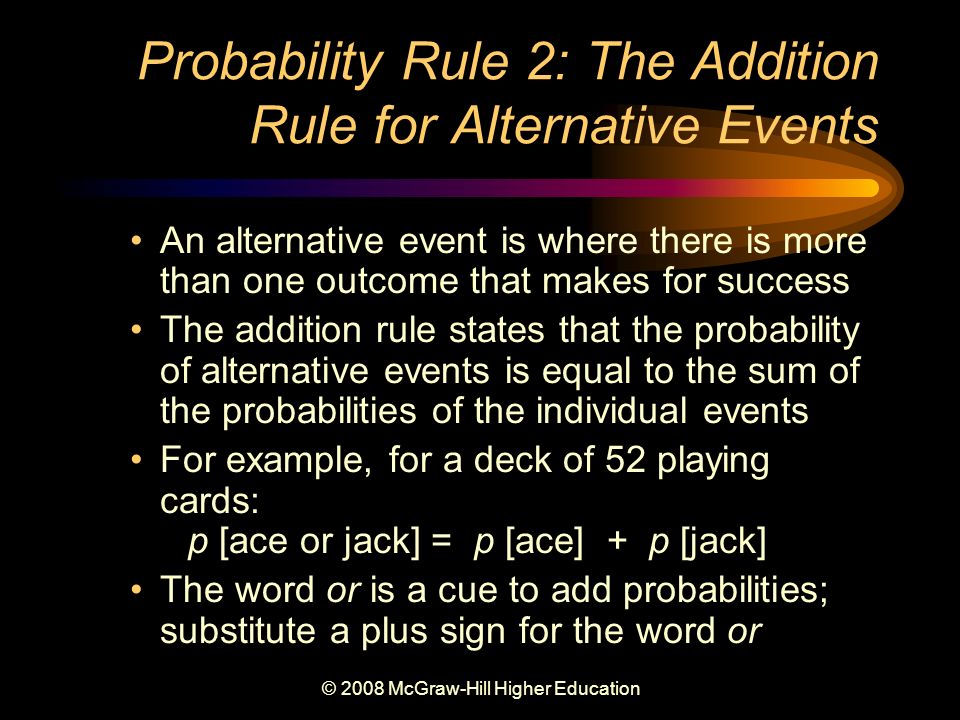

7. © 2008 McGraw-Hill Higher Education Probability Rule 2: The Addition Rule for Alternative Events An alternative event is where there is more than one outcome that makes for success The addition rule states that the probability of alternative events is equal to the sum of the probabilities of the individual events For example, for a deck of 52 playing cards: p [ace or jack] = p [ace] + p [jack] The word or is a cue to add probabilities; substitute a plus sign for the word or

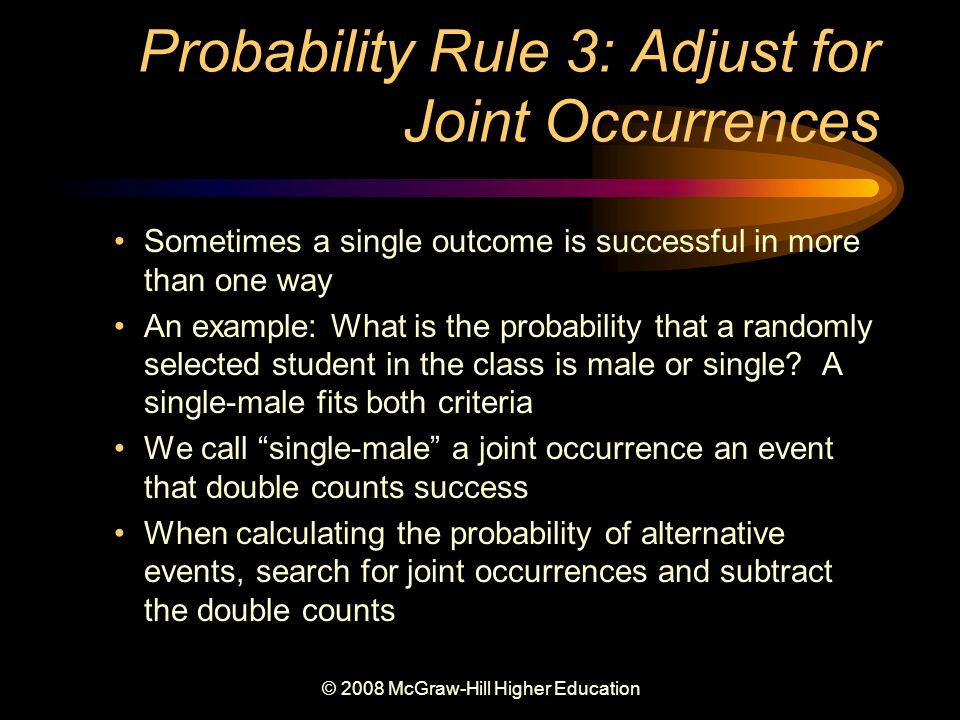

8. © 2008 McGraw-Hill Higher Education Probability Rule 3: Adjust for Joint Occurrences Sometimes a single outcome is successful in more than one way An example: What is the probability that a randomly selected student in the class is male or single? A single-male fits both criteria We call “single-male” a joint occurrence an event that double counts success When calculating the probability of alternative events, search for joint occurrences and subtract the double counts

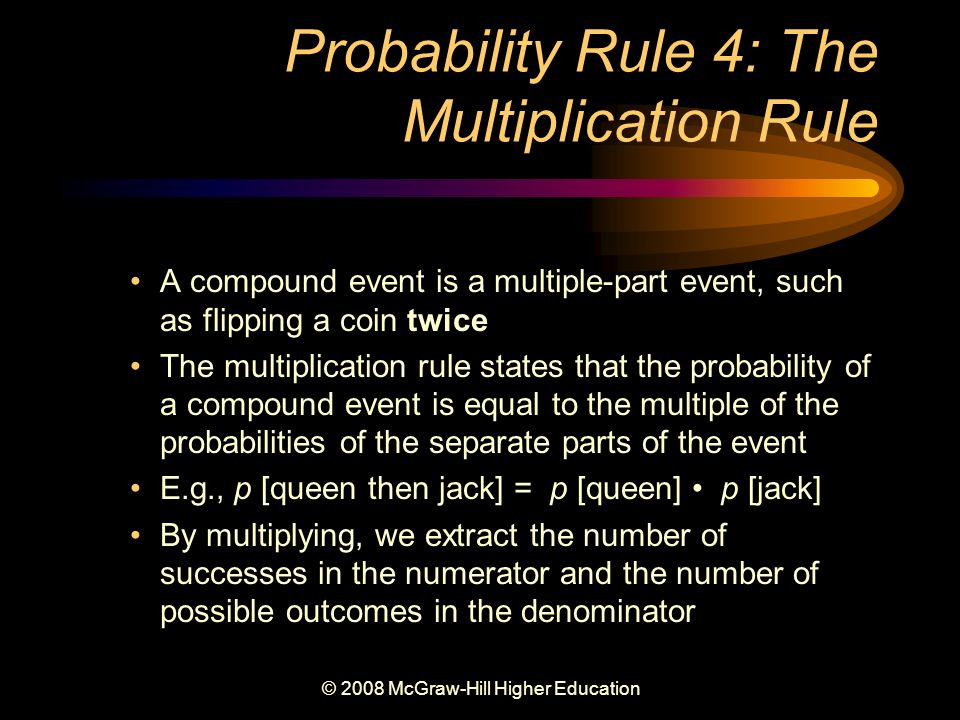

9. © 2008 McGraw-Hill Higher Education Probability Rule 4: The Multiplication Rule A compound event is a multiple-part event, such as flipping a coin twice The multiplication rule states that the probability of a compound event is equal to the multiple of the probabilities of the separate parts of the event E.g., p [queen then jack] = p [queen] p [jack] By multiplying, we extract the number of successes in the numerator and the number of possible outcomes in the denominator

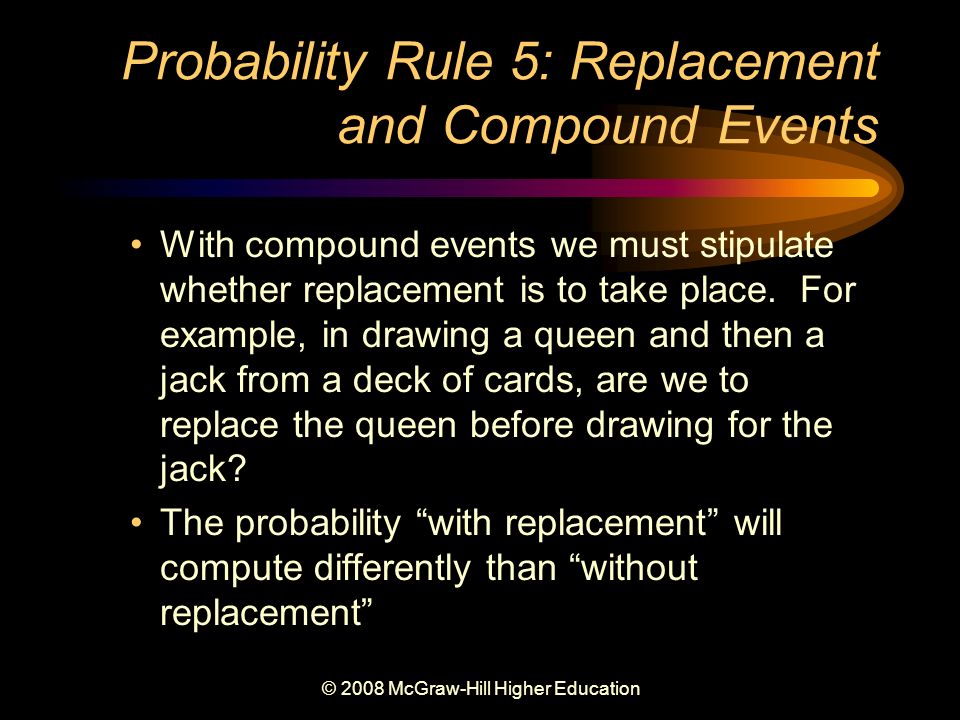

10. © 2008 McGraw-Hill Higher Education Probability Rule 5: Replacement and Compound Events With compound events we must stipulate whether replacement is to take place. For example, in drawing a queen and then a jack from a deck of cards, are we to replace the queen before drawing for the jack? The probability “with replacement” will compute differently than “without replacement”

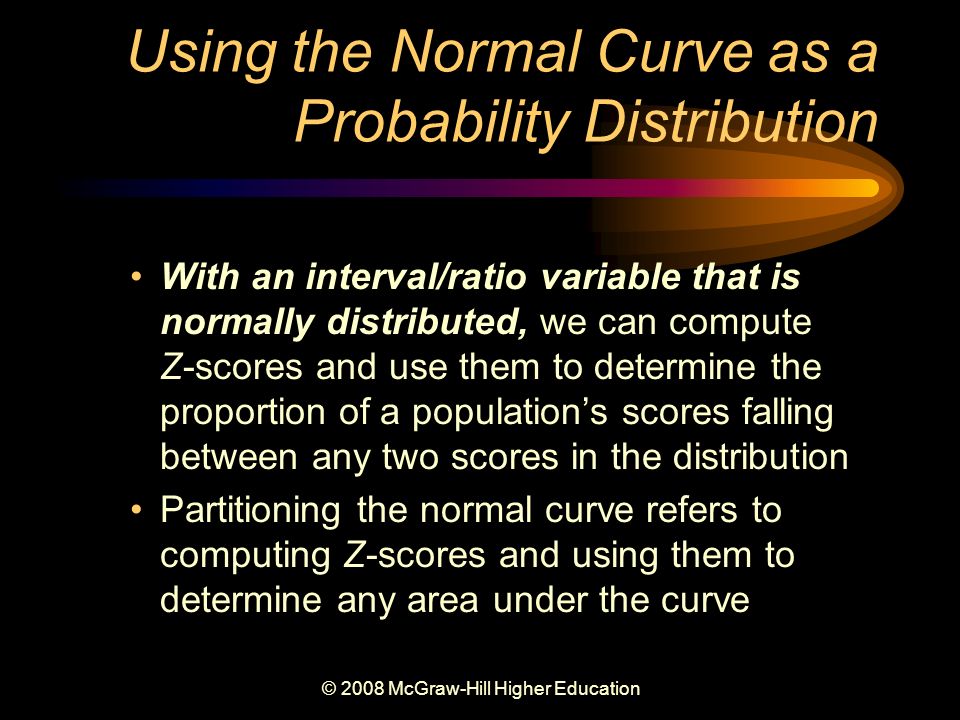

11. © 2008 McGraw-Hill Higher Education Using the Normal Curve as a Probability Distribution With an interval/ratio variable that is normally distributed, we can compute Z-scores and use them to determine the proportion of a population’s scores falling between any two scores in the distribution Partitioning the normal curve refers to computing Z-scores and using them to determine any area under the curve

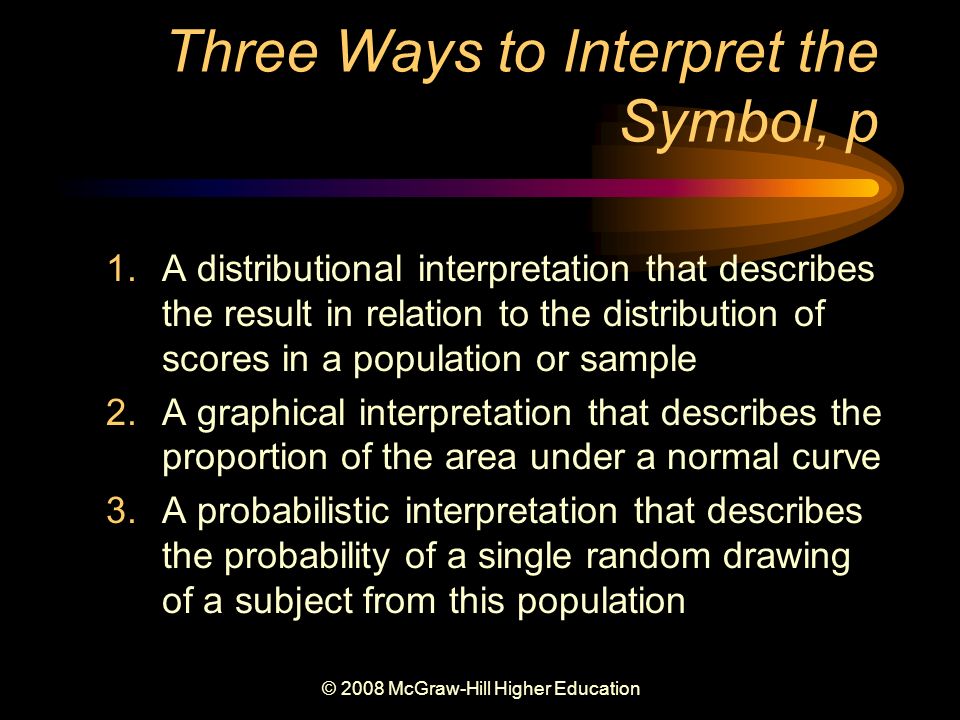

12. © 2008 McGraw-Hill Higher Education Three Ways to Interpret the Symbol, p 1.A distributional interpretation that describes the result in relation to the distribution of scores in a population or sample 2.A graphical interpretation that describes the proportion of the area under a normal curve 3.A probabilistic interpretation that describes the probability of a single random drawing of a subject from this population

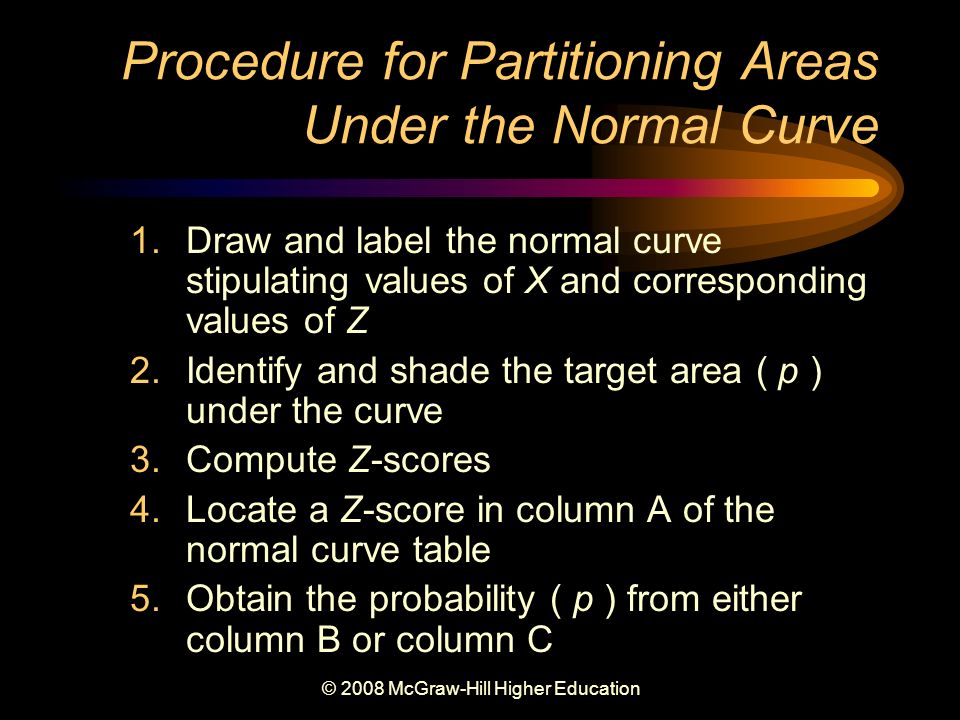

13. © 2008 McGraw-Hill Higher Education Procedure for Partitioning Areas Under the Normal Curve 1.Draw and label the normal curve stipulating values of X and corresponding values of Z 2.Identify and shade the target area ( p ) under the curve 3.Compute Z-scores 4.Locate a Z-score in column A of the normal curve table 5.Obtain the probability ( p ) from either column B or column C

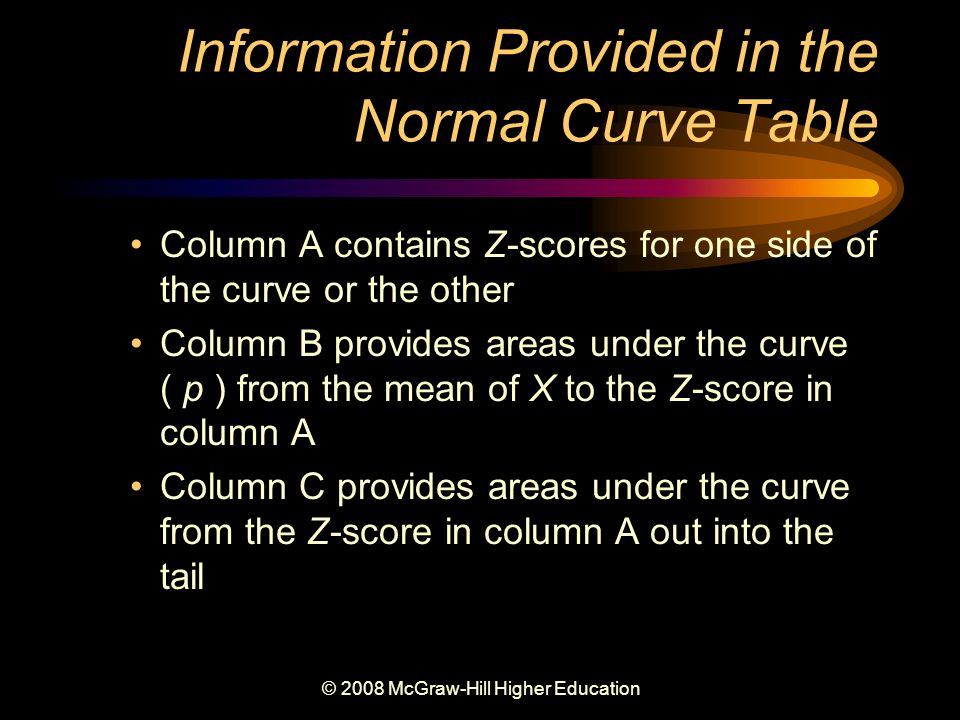

14. © 2008 McGraw-Hill Higher Education Information Provided in the Normal Curve Table Column A contains Z-scores for one side of the curve or the other Column B provides areas under the curve ( p ) from the mean of X to the Z-score in column A Column C provides areas under the curve from the Z-score in column A out into the tail

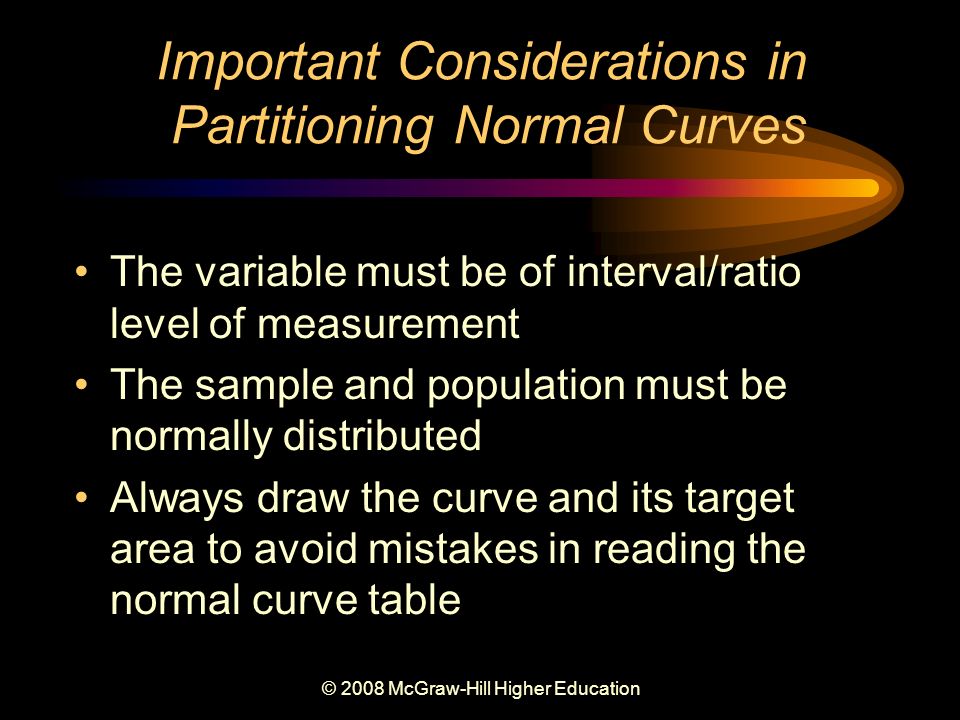

15. © 2008 McGraw-Hill Higher Education Important Considerations in Partitioning Normal Curves The variable must be of interval/ratio level of measurement The sample and population must be normally distributed Always draw the curve and its target area to avoid mistakes in reading the normal curve table

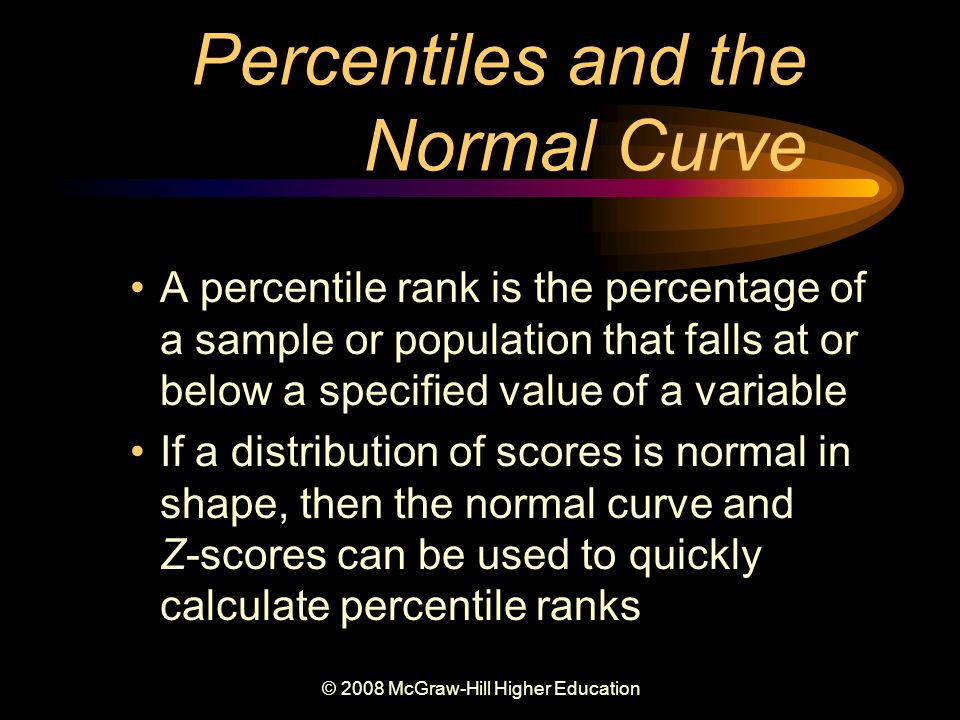

16. © 2008 McGraw-Hill Higher Education Percentiles and the Normal Curve A percentile rank is the percentage of a sample or population that falls at or below a specified value of a variable If a distribution of scores is normal in shape, then the normal curve and Z-scores can be used to quickly calculate percentile ranks

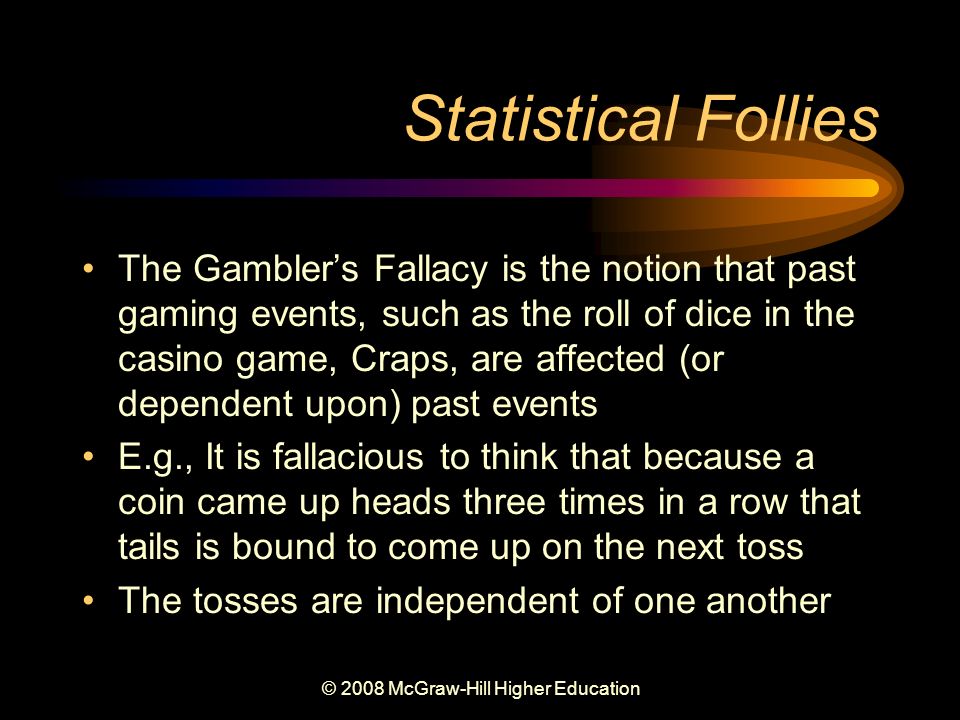

17. © 2008 McGraw-Hill Higher Education Statistical Follies The Gambler’s Fallacy is the notion that past gaming events, such as the roll of dice in the casino game, Craps, are affected (or dependent upon) past events E.g., It is fallacious to think that because a coin came up heads three times in a row that tails is bound to come up on the next toss The tosses are independent of one another
