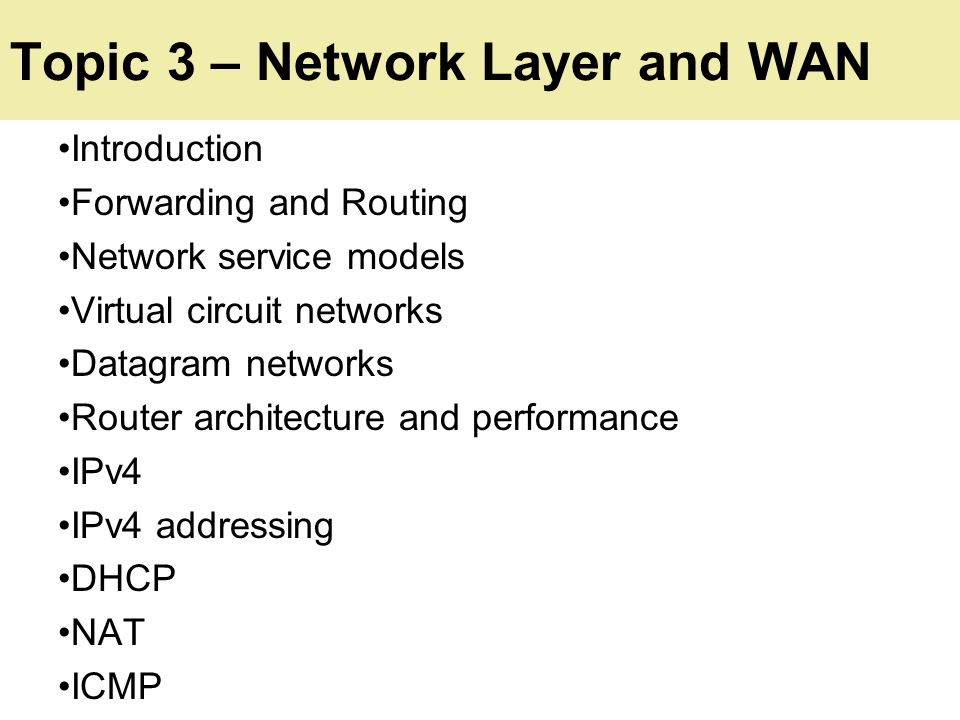

1. Topic 3 – Network Layer and WAN Introduction Forwarding and Routing Network service models Virtual circuit networks Datagram networks Router architecture and performance IPv4 IPv4 addressing DHCP NAT ICMP

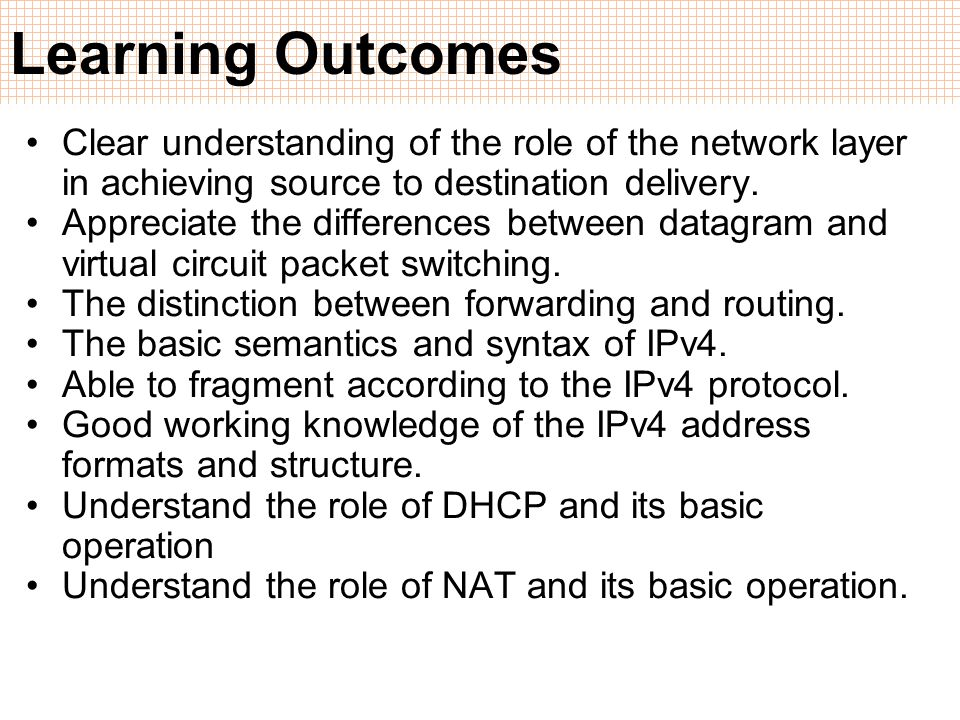

2. Learning Outcomes Clear understanding of the role of the network layer in achieving source to destination delivery. Appreciate the differences between datagram and virtual circuit packet switching. The distinction between forwarding and routing. The basic semantics and syntax of IPv4. Able to fragment according to the IPv4 protocol. Good working knowledge of the IPv4 address formats and structure. Understand the role of DHCP and its basic operation Understand the role of NAT and its basic operation.

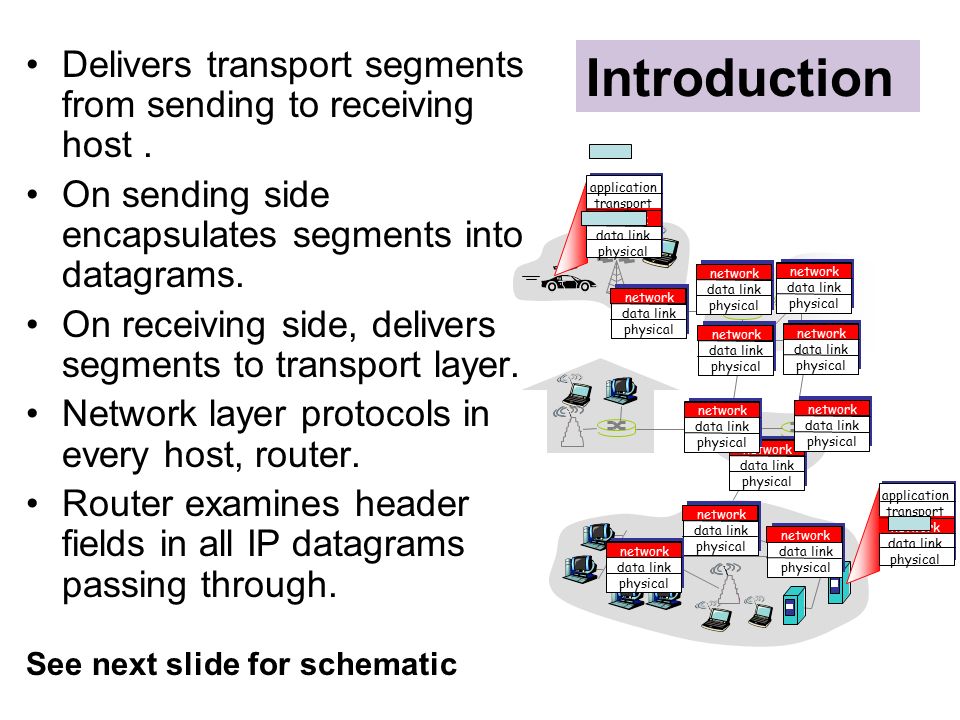

3. Introduction Delivers transport segments from sending to receiving host. On sending side encapsulates segments into datagrams. On receiving side, delivers segments to transport layer. Network layer protocols in every host, router. Router examines header fields in all IP datagrams passing through. See next slide for schematic

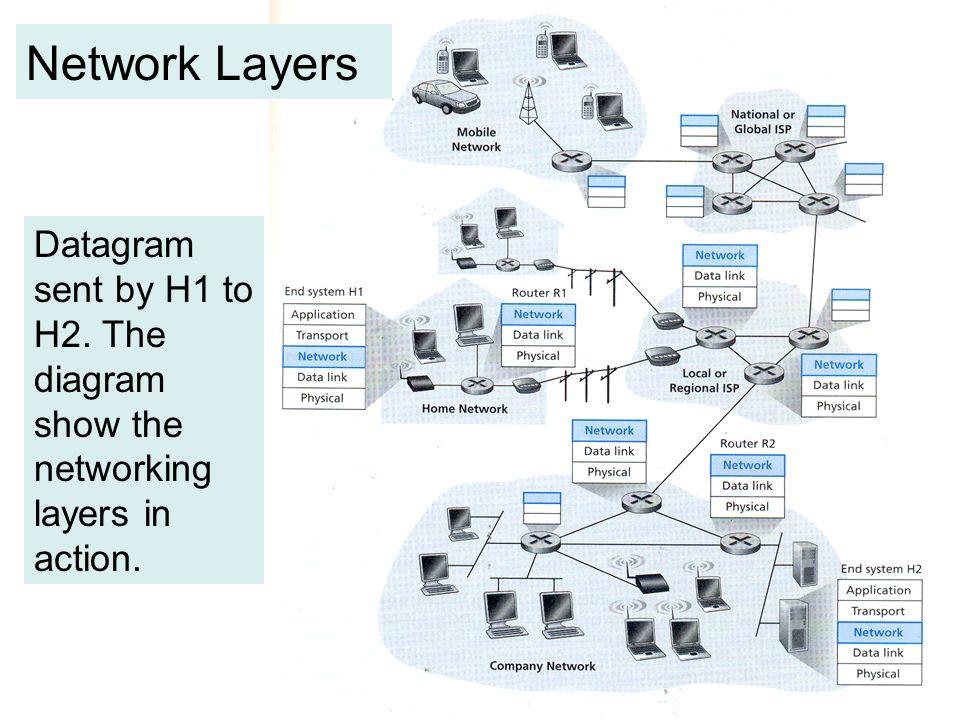

4. Datagram sent by H1 to H2. The diagram show the networking layers in action. Network Layers

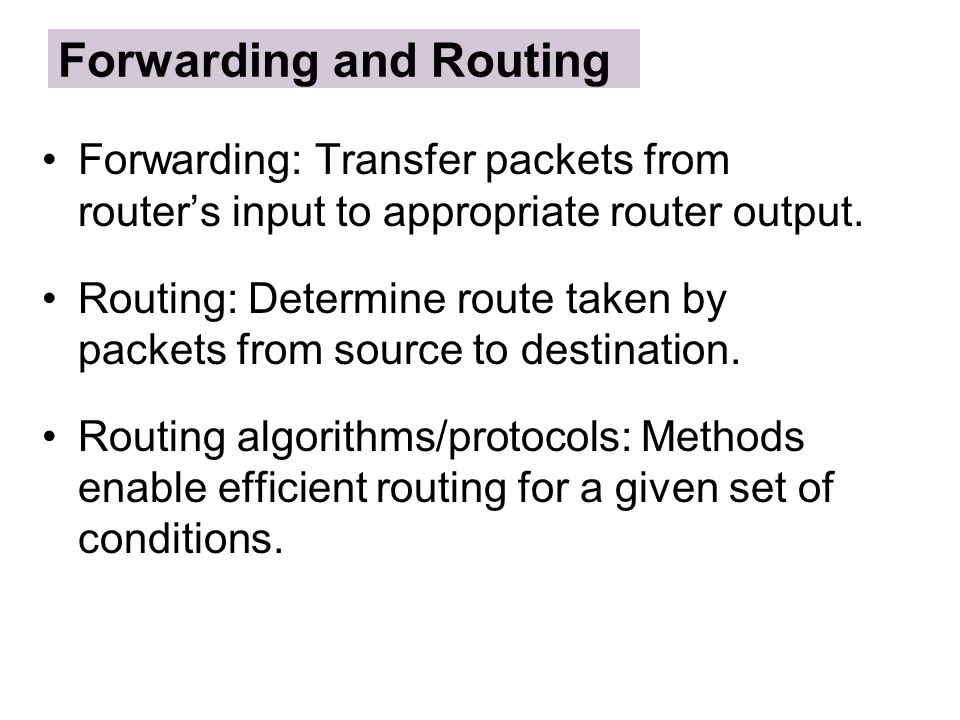

5. Forwarding and Routing Forwarding: Transfer packets from router’s input to appropriate router output. Routing: Determine route taken by packets from source to destination. Routing algorithms/protocols: Methods enable efficient routing for a given set of conditions.

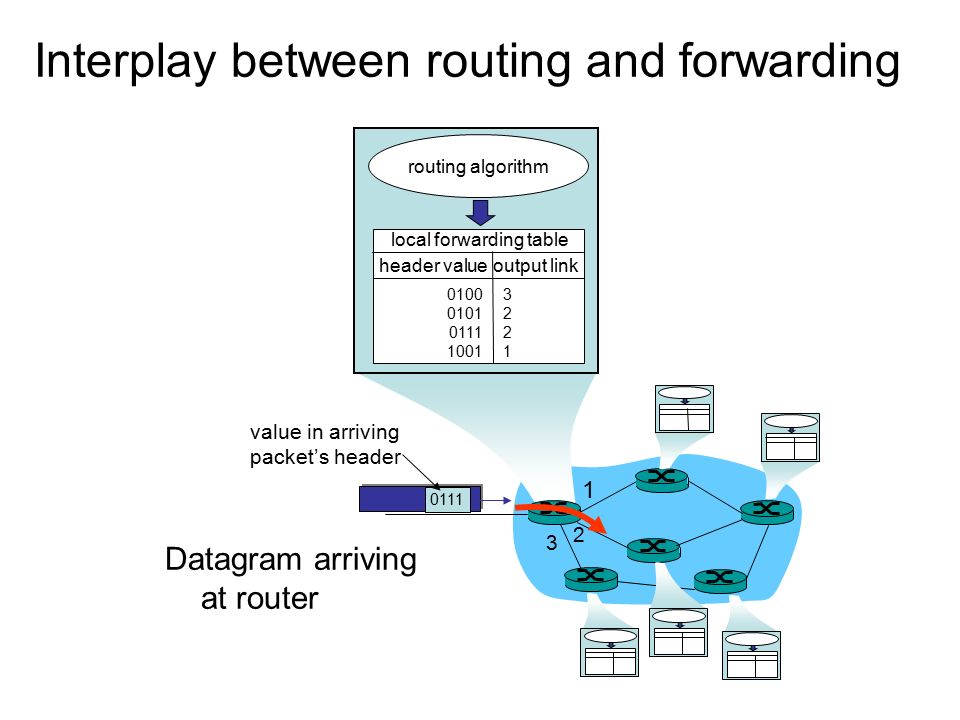

6. Interplay between routing and forwarding Datagram arriving at router 1 2 3 0111 value in arriving packet’s header routing algorithm local forwarding table header value output link 0100 0101 0111 1001 32213221

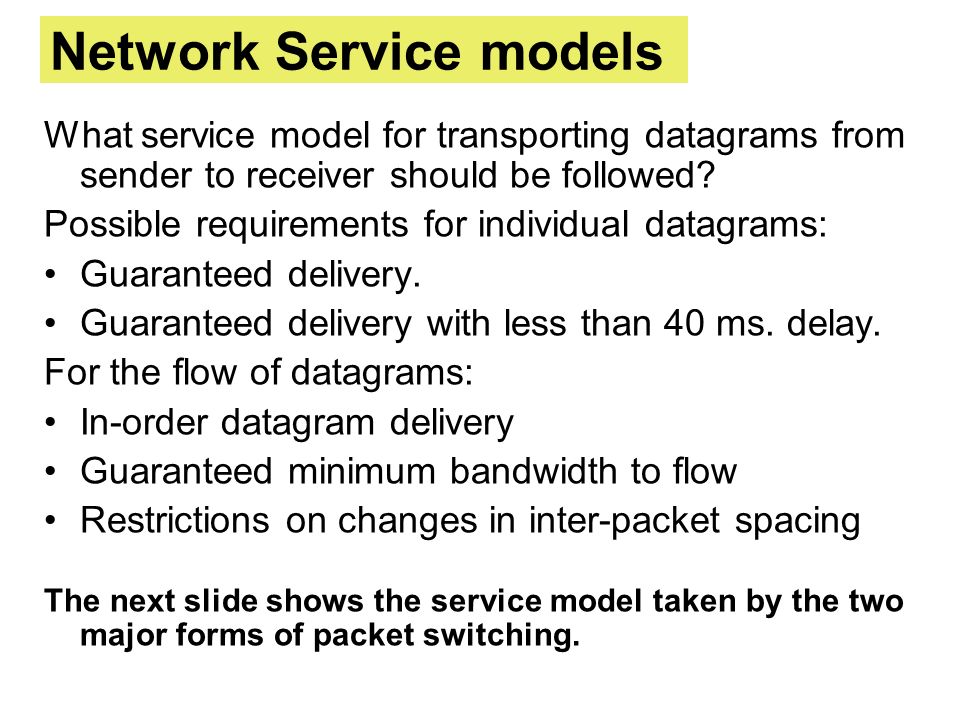

7. Network Service models What service model for transporting datagrams from sender to receiver should be followed? Possible requirements for individual datagrams: Guaranteed delivery. Guaranteed delivery with less than 40 ms. delay. For the flow of datagrams: In-order datagram delivery Guaranteed minimum bandwidth to flow Restrictions on changes in inter-packet spacing The next slide shows the service model taken by the two major forms of packet switching.

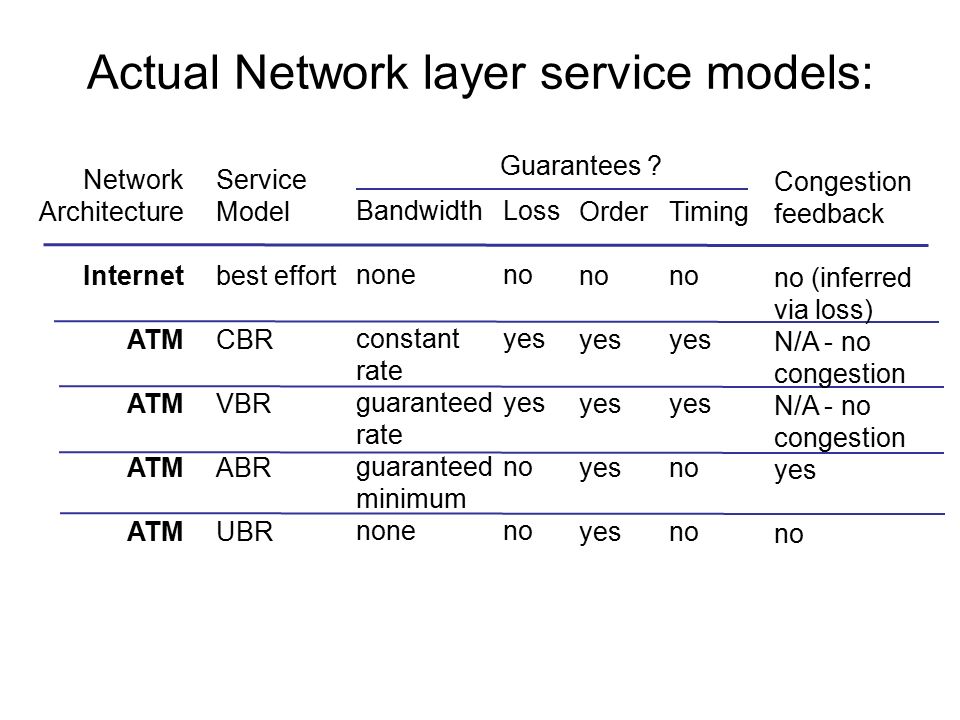

8. Network Architecture Internet ATM Service Model best effort CBR VBR ABR UBR Bandwidth none constant rate guaranteed rate guaranteed minimum none Loss no yes no Order no yes Timing no yes no Congestion feedback no (inferred via loss) N/A - no congestion N/A - no congestion yes no Guarantees ? Actual Network layer service models:

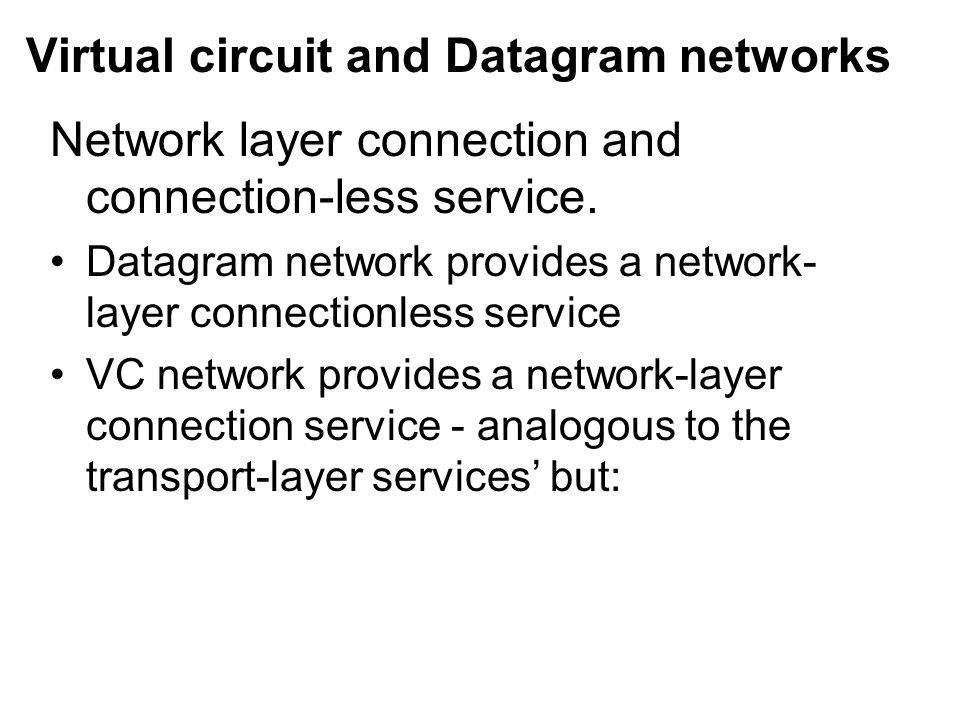

9. Virtual circuit and Datagram networks Network layer connection and connection-less service. Datagram network provides a network- layer connectionless service VC network provides a network-layer connection service - analogous to the transport-layer services’ but:

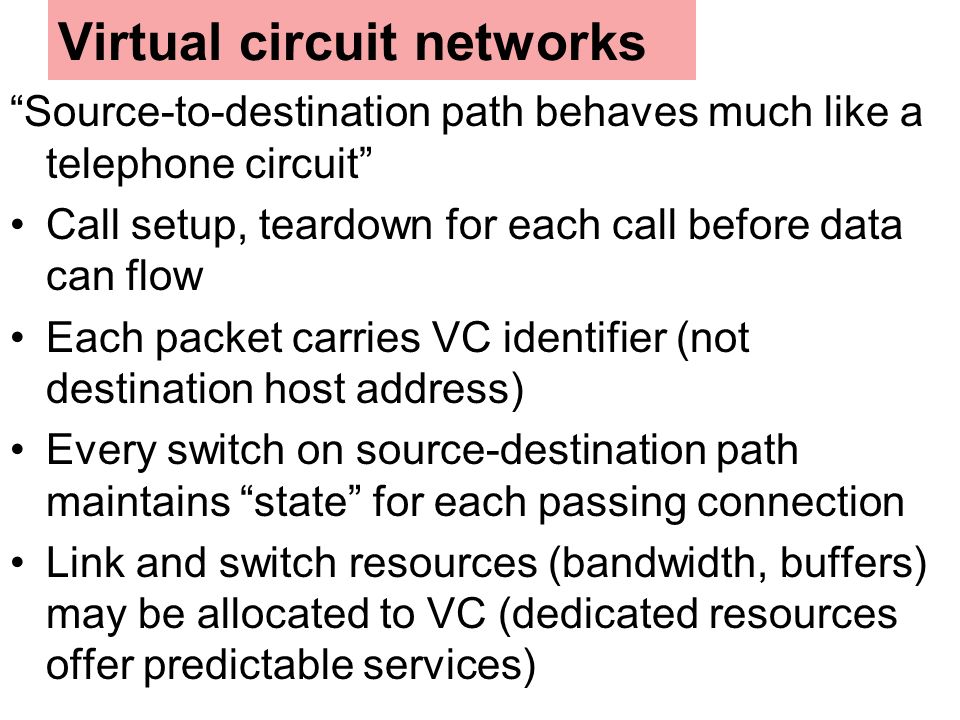

10. Virtual circuit networks “Source-to-destination path behaves much like a telephone circuit” Call setup, teardown for each call before data can flow Each packet carries VC identifier (not destination host address) Every switch on source-destination path maintains “state” for each passing connection Link and switch resources (bandwidth, buffers) may be allocated to VC (dedicated resources offer predictable services)

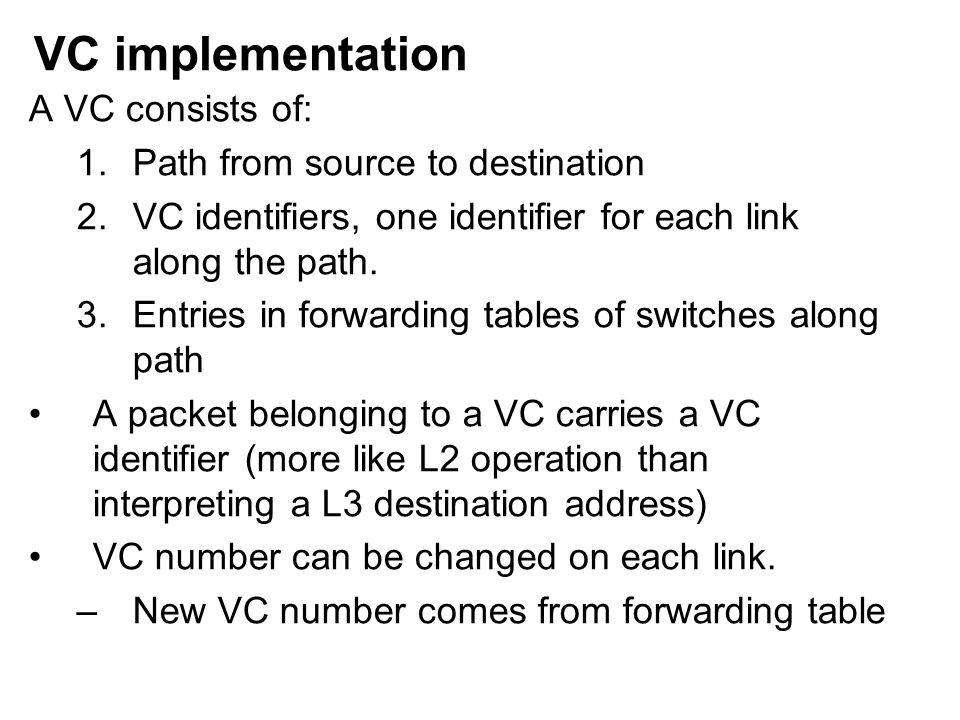

11. VC implementation A VC consists of: 1.Path from source to destination 2.VC identifiers, one identifier for each link along the path. 3.Entries in forwarding tables of switches along path A packet belonging to a VC carries a VC identifier (more like L2 operation than interpreting a L3 destination address) VC number can be changed on each link. –New VC number comes from forwarding table

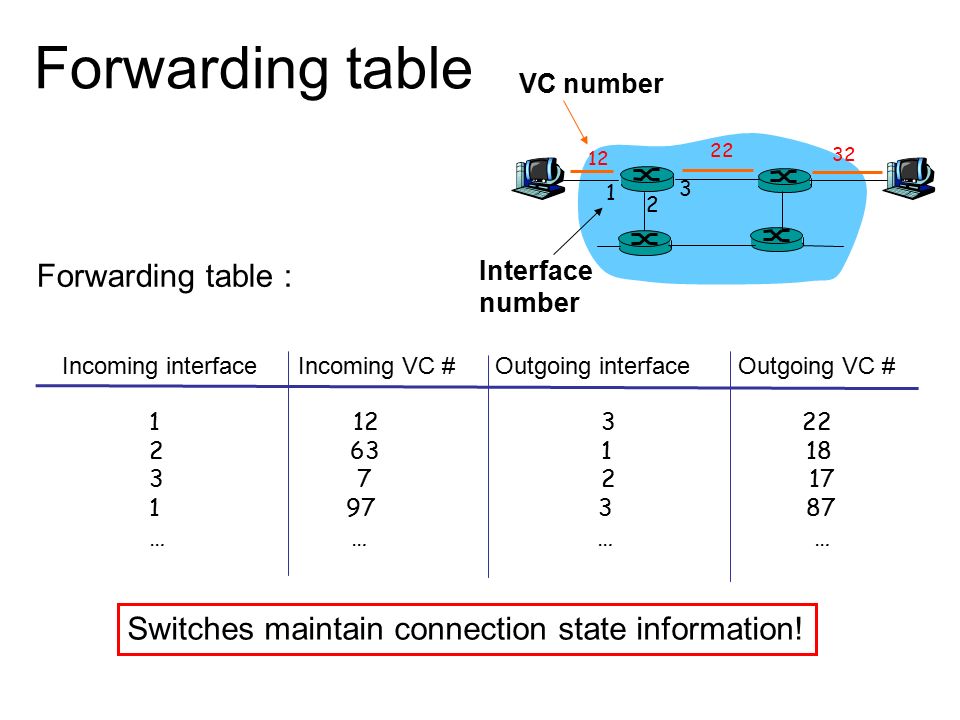

12. 12 22 32 1 2 3 VC number Interface number Incoming interface Incoming VC # Outgoing interface Outgoing VC # 1 12 3 22 2 63 1 18 3 7 2 17 1 97 3 87 … … Forwarding table : Switches maintain connection state information! Forwarding table

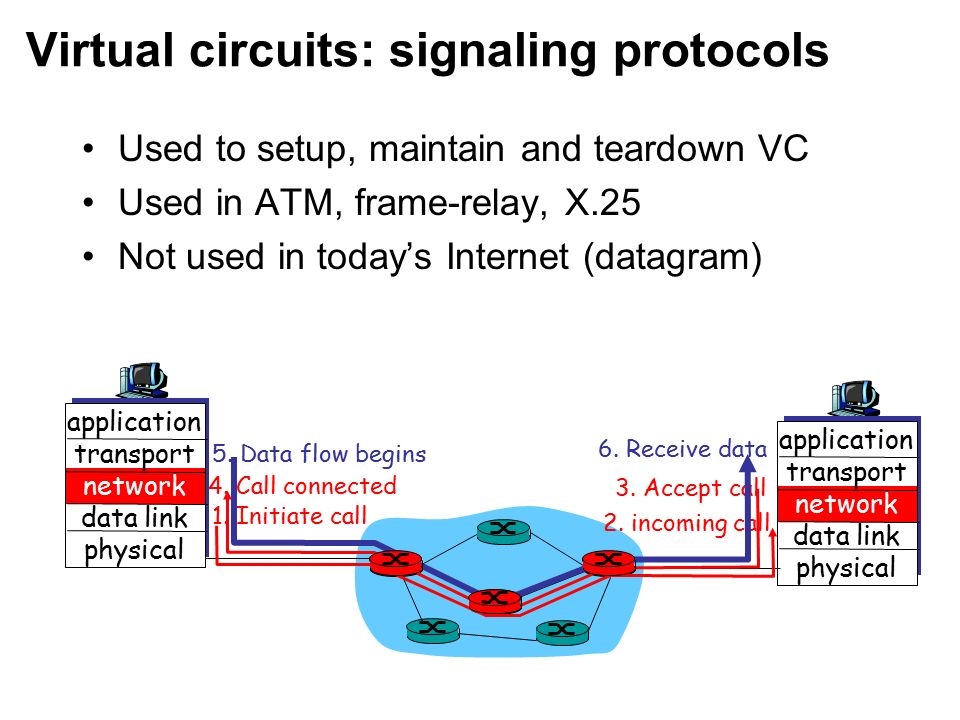

13. Virtual circuits: signaling protocols Used to setup, maintain and teardown VC Used in ATM, frame-relay, X.25 Not used in today’s Internet (datagram) application transport network data link physical application transport network data link physical 1. Initiate call 2. incoming call 3. Accept call 4. Call connected 5. Data flow begins 6. Receive data

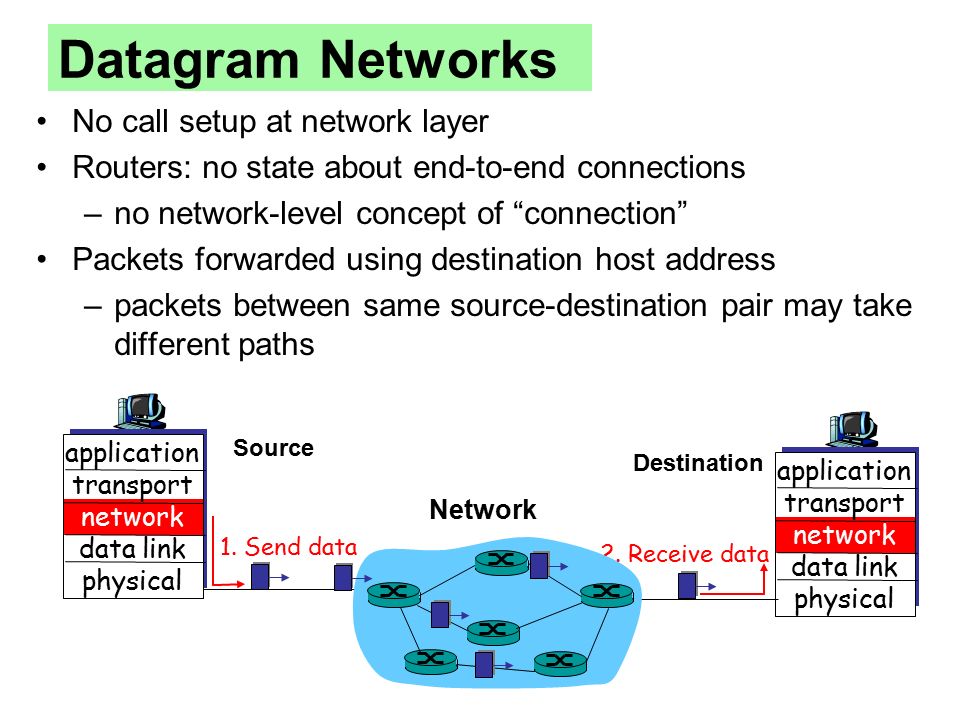

14. Datagram Networks No call setup at network layer Routers: no state about end-to-end connections –no network-level concept of “connection” Packets forwarded using destination host address –packets between same source-destination pair may take different paths application transport network data link physical application transport network data link physical 1. Send data 2. Receive data Network Destination Source

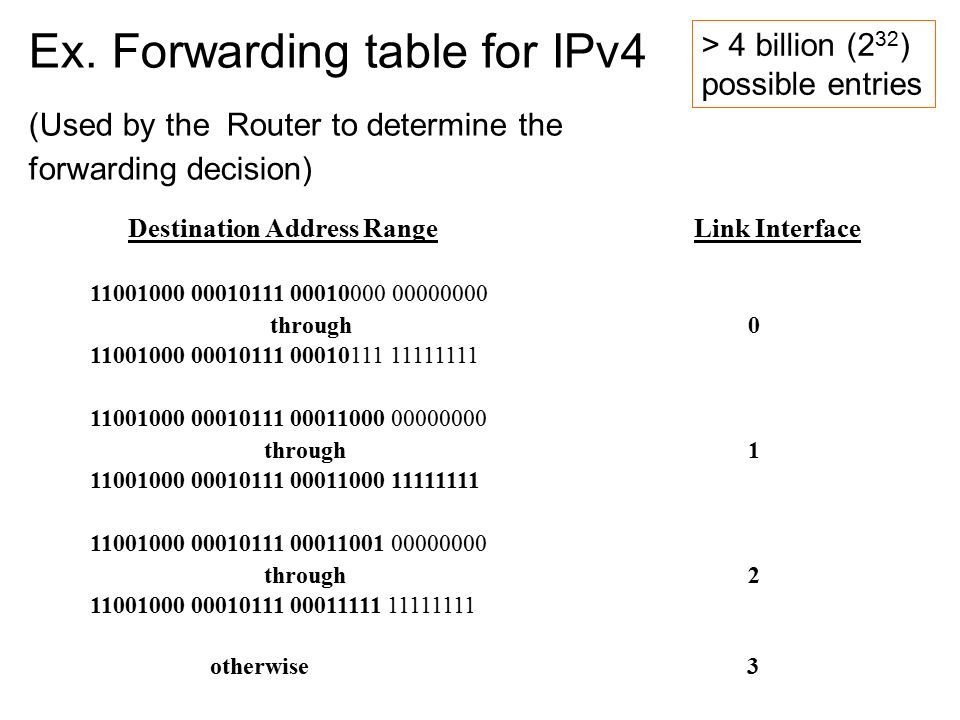

15. Destination Address Range Link Interface 11001000 00010111 00010000 00000000 through 0 11001000 00010111 00010111 11111111 11001000 00010111 00011000 00000000 through 1 11001000 00010111 00011000 11111111 11001000 00010111 00011001 00000000 through 2 11001000 00010111 00011111 11111111 otherwise 3 > 4 billion (2 32 ) possible entries Ex. Forwarding table for IPv4 (Used by the Router to determine the forwarding decision)

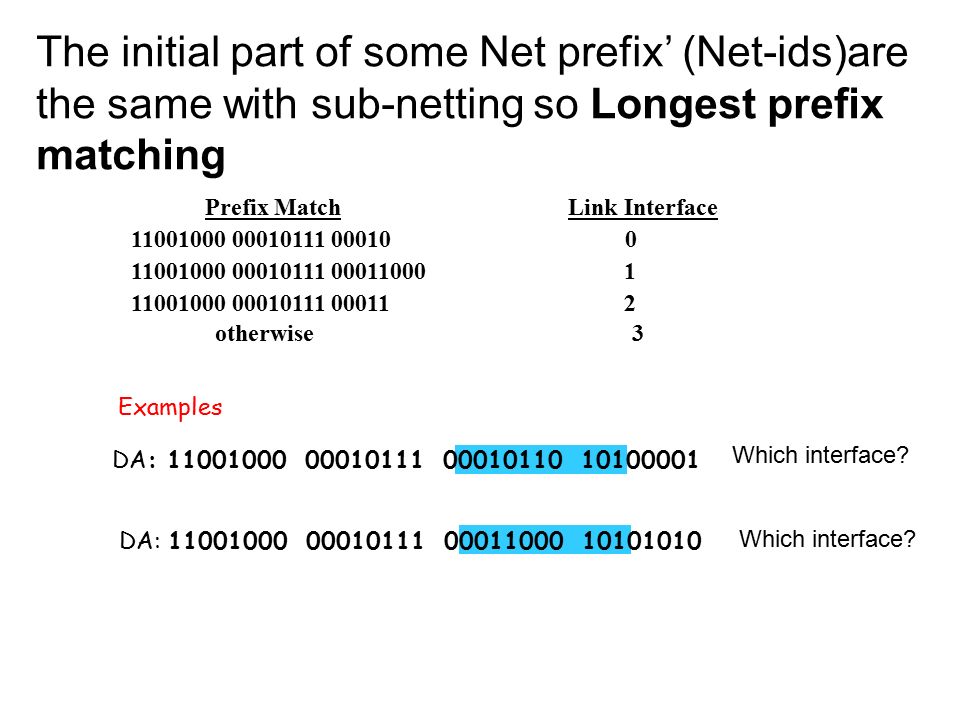

16. Prefix Match Link Interface 11001000 00010111 00010 0 11001000 00010111 00011000 1 11001000 00010111 00011 2 otherwise 3 DA: 11001000 00010111 00011000 10101010 Examples DA: 11001000 00010111 00010110 10100001 Which interface? The initial part of some Net prefix’ (Net-ids)are the same with sub-netting so Longest prefix matching

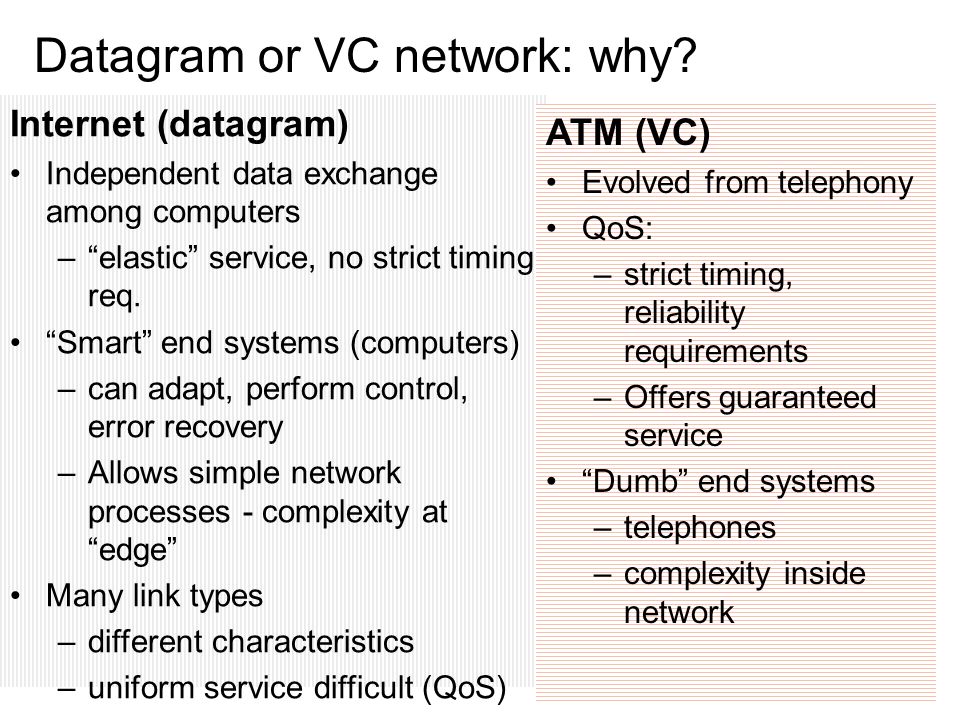

17. Internet (datagram) Independent data exchange among computers –“elastic” service, no strict timing req. “Smart” end systems (computers) –can adapt, perform control, error recovery –Allows simple network processes - complexity at “edge” Many link types –different characteristics –uniform service difficult (QoS) ATM (VC) Evolved from telephony QoS: –strict timing, reliability requirements –Offers guaranteed service “Dumb” end systems –telephones –complexity inside network Datagram or VC network: why?

18. Two key router functions: Run routing algorithms/protocol (RIP, OSPF, BGP) Forwarding datagrams from incoming to outgoing link Router Architecture Overview

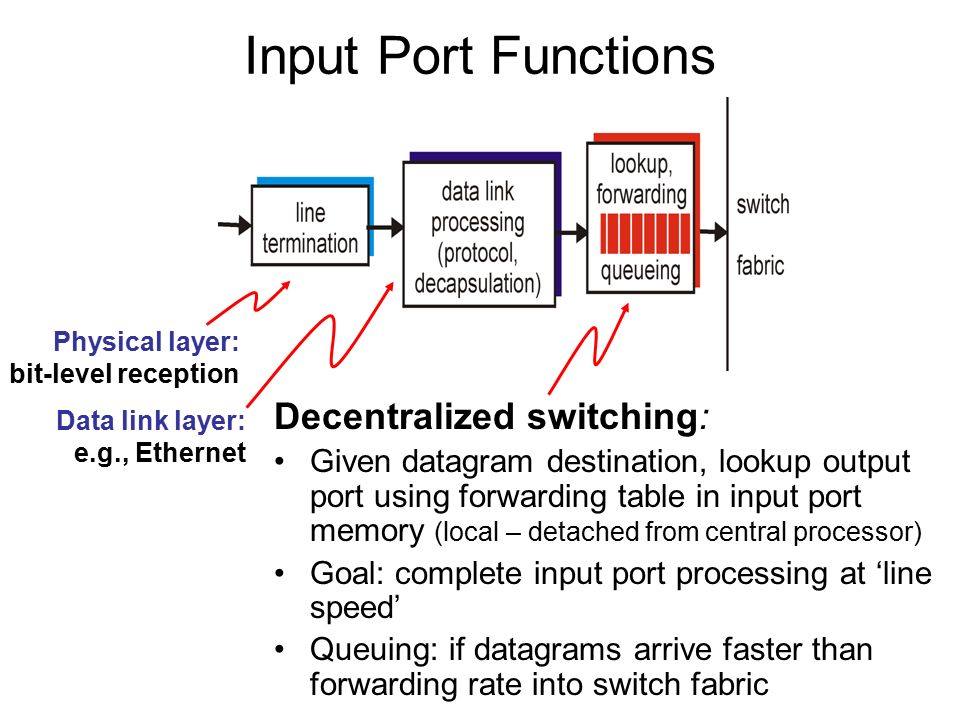

19. Decentralized switching: Given datagram destination, lookup output port using forwarding table in input port memory (local – detached from central processor) Goal: complete input port processing at ‘line speed’ Queuing: if datagrams arrive faster than forwarding rate into switch fabric Physical layer: bit-level reception Data link layer: e.g., Ethernet Input Port Functions

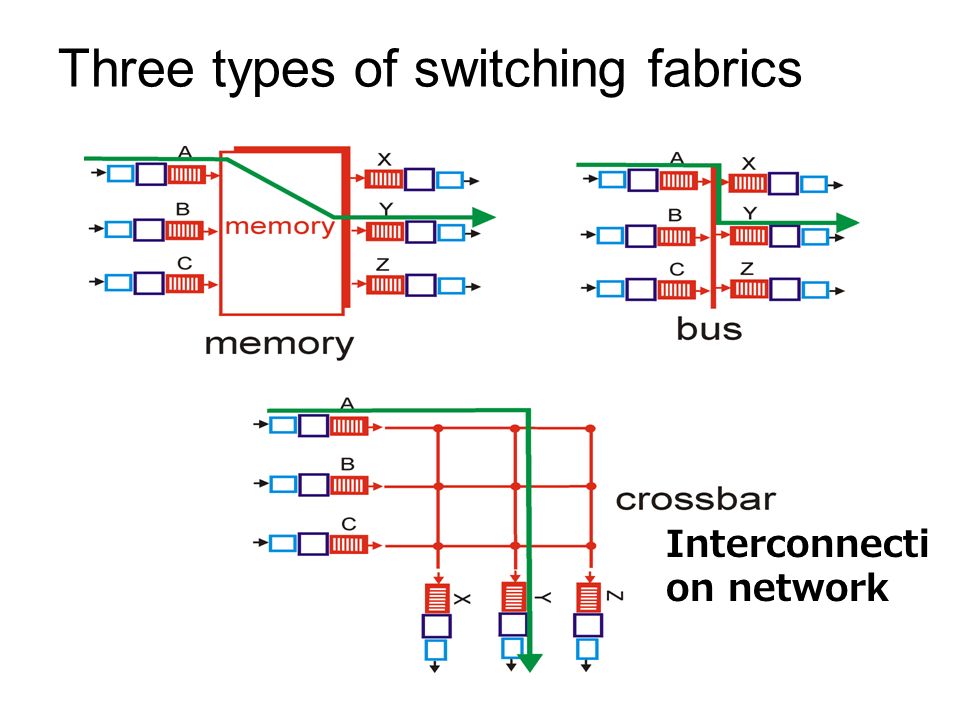

20. Three types of switching fabrics Interconnecti on network

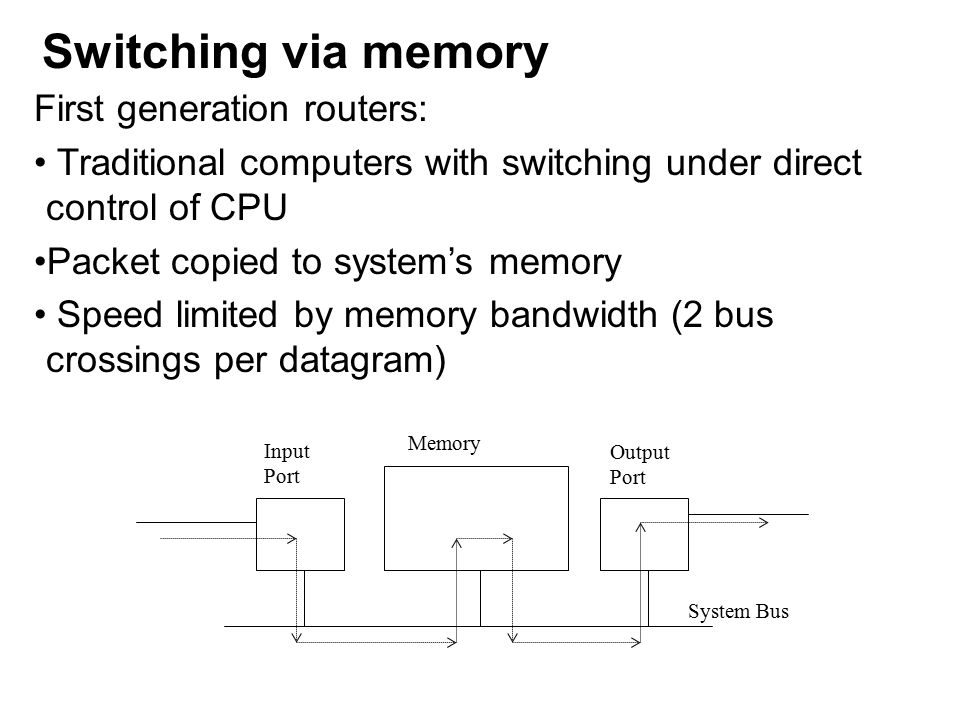

21. First generation routers: Traditional computers with switching under direct control of CPU Packet copied to system’s memory Speed limited by memory bandwidth (2 bus crossings per datagram) Input Port Output Port Memory System Bus Switching via memory

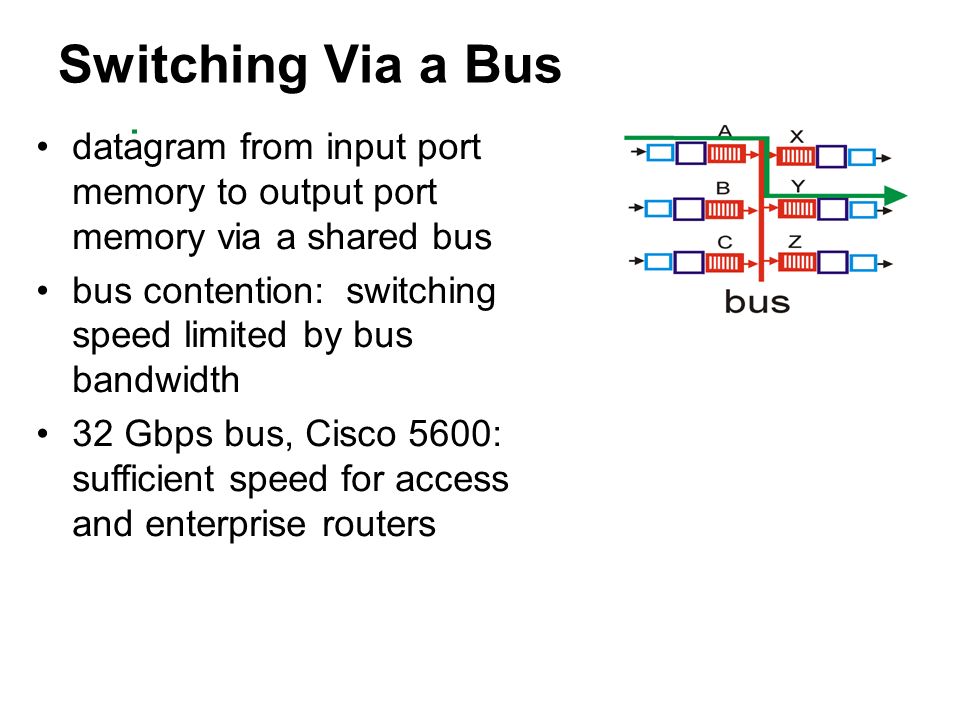

22. datagram from input port memory to output port memory via a shared bus bus contention: switching speed limited by bus bandwidth 32 Gbps bus, Cisco 5600: sufficient speed for access and enterprise routers Switching Via a Bus

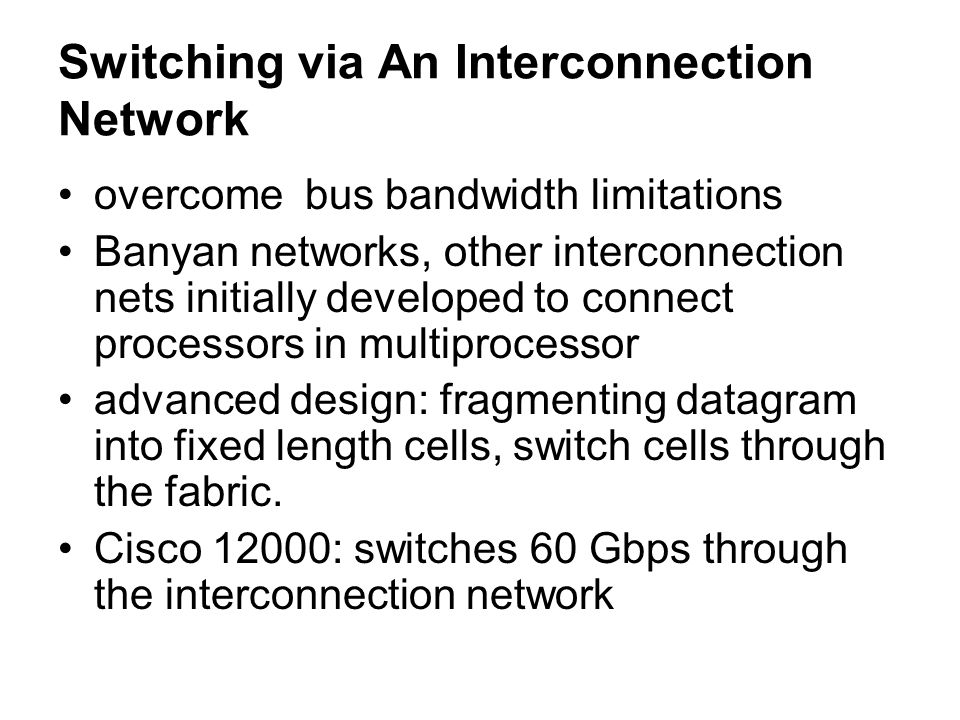

23. Switching via An Interconnection Network overcome bus bandwidth limitations Banyan networks, other interconnection nets initially developed to connect processors in multiprocessor advanced design: fragmenting datagram into fixed length cells, switch cells through the fabric. Cisco 12000: switches 60 Gbps through the interconnection network

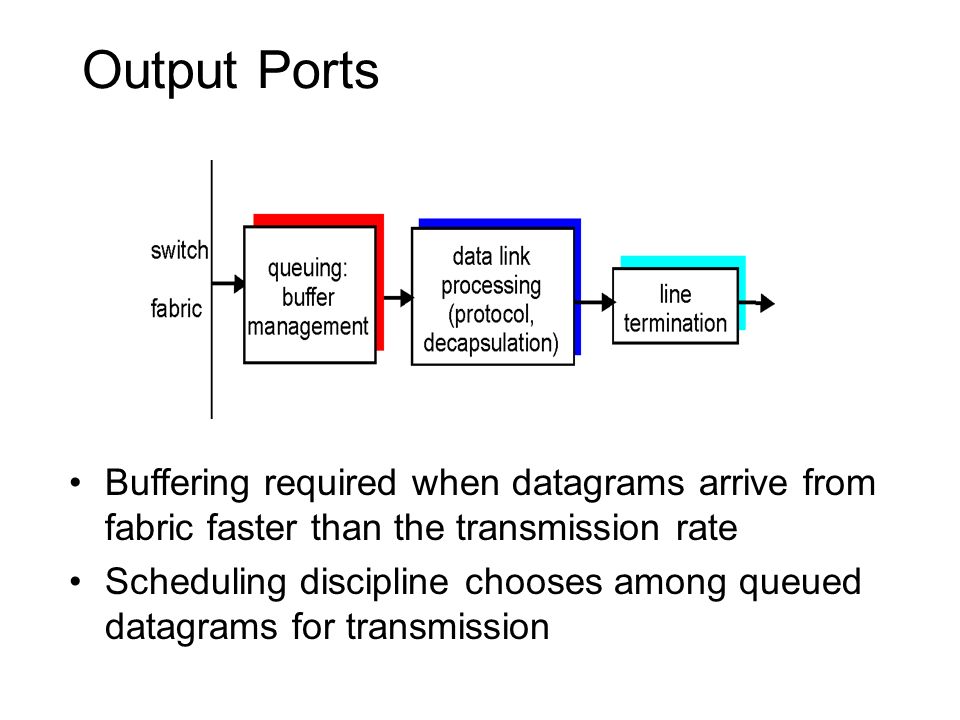

24. Buffering required when datagrams arrive from fabric faster than the transmission rate Scheduling discipline chooses among queued datagrams for transmission Output Ports

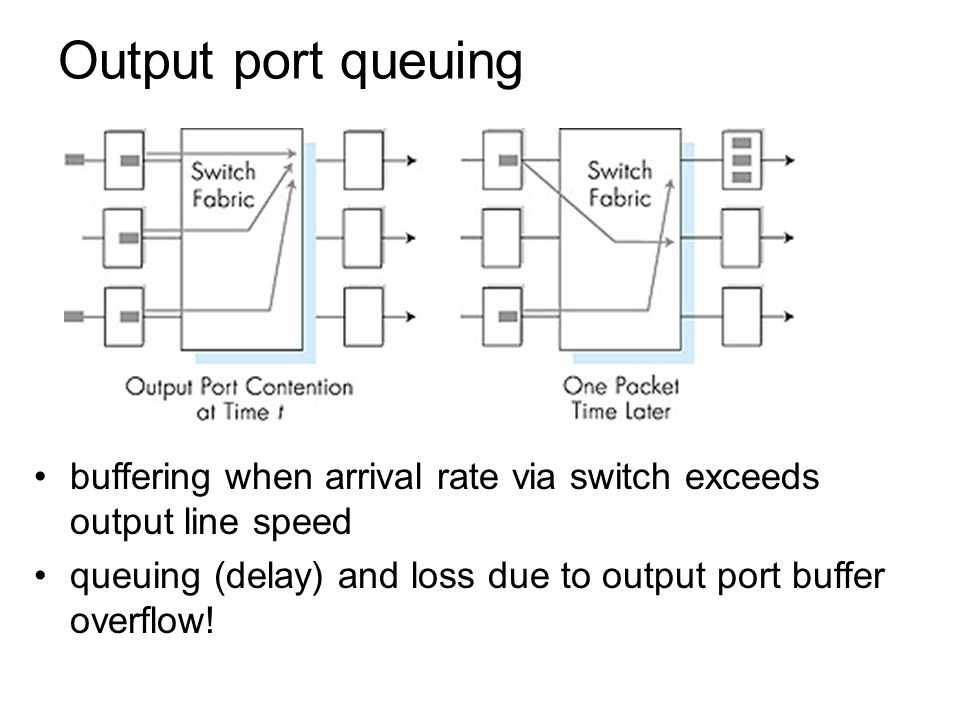

25. buffering when arrival rate via switch exceeds output line speed queuing (delay) and loss due to output port buffer overflow! Output port queuing

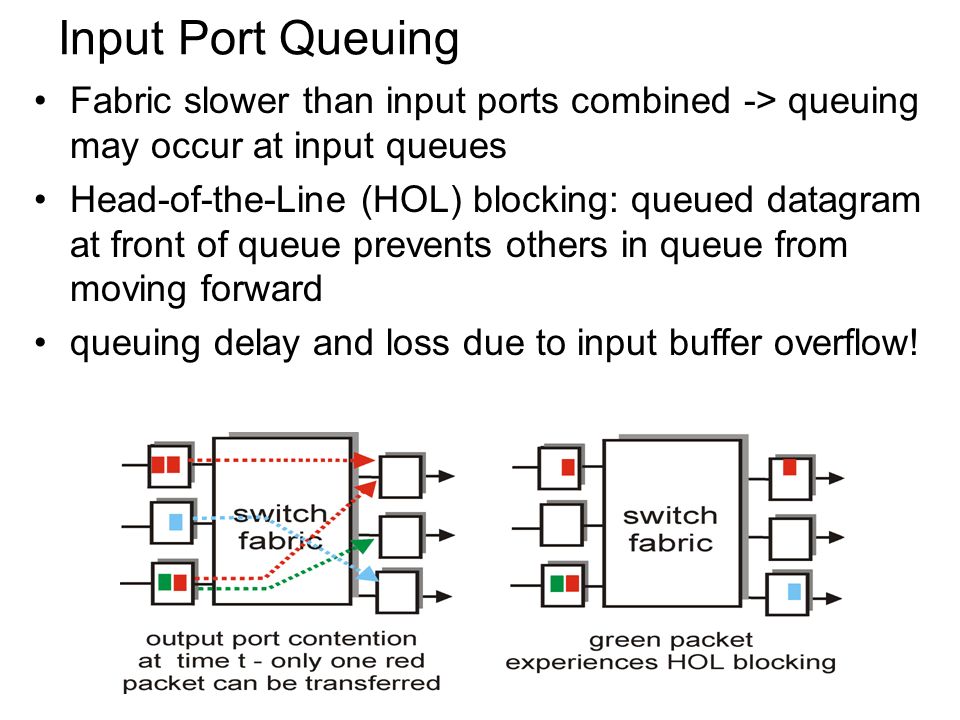

26. Fabric slower than input ports combined -> queuing may occur at input queues Head-of-the-Line (HOL) blocking: queued datagram at front of queue prevents others in queue from moving forward queuing delay and loss due to input buffer overflow! Input Port Queuing

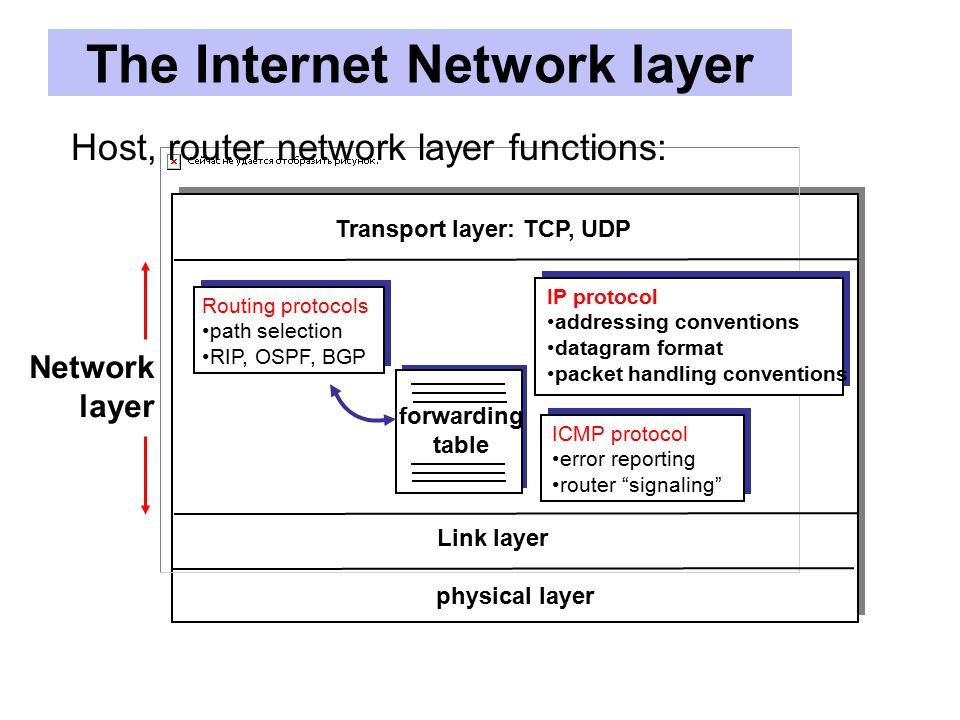

27. forwarding table Host, router network layer functions: Routing protocols path selection RIP, OSPF, BGP IP protocol addressing conventions datagram format packet handling conventions ICMP protocol error reporting router “signaling” Transport layer: TCP, UDP Link layer physical layer Network layer The Internet Network layer

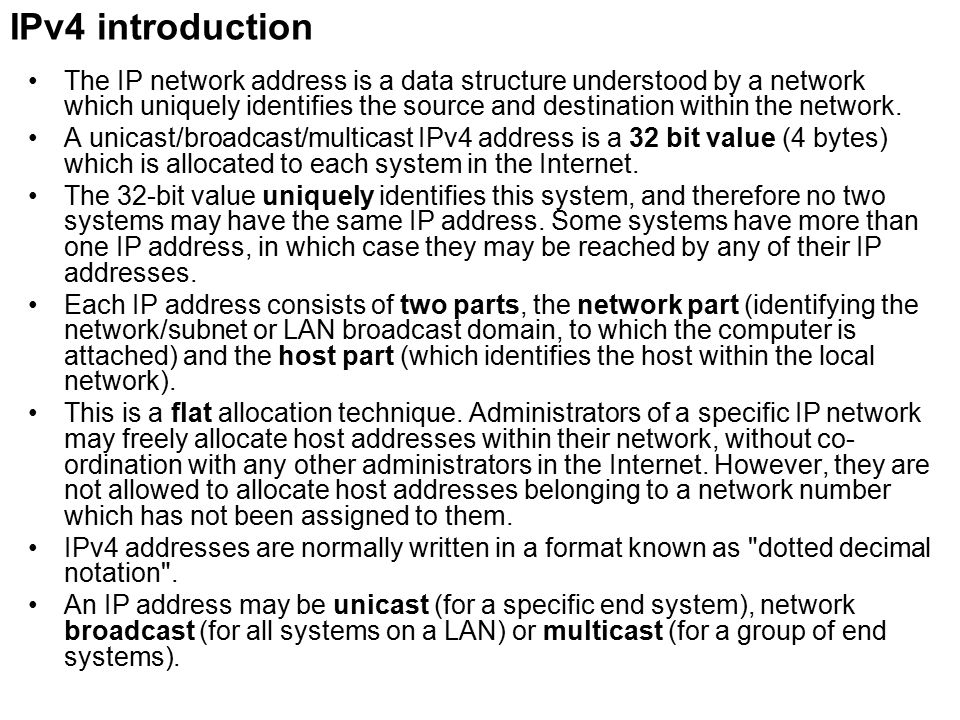

28. IPv4 introduction The IP network address is a data structure understood by a network which uniquely identifies the source and destination within the network. A unicast/broadcast/multicast IPv4 address is a 32 bit value (4 bytes) which is allocated to each system in the Internet. The 32-bit value uniquely identifies this system, and therefore no two systems may have the same IP address. Some systems have more than one IP address, in which case they may be reached by any of their IP addresses. Each IP address consists of two parts, the network part (identifying the network/subnet or LAN broadcast domain, to which the computer is attached) and the host part (which identifies the host within the local network). This is a flat allocation technique. Administrators of a specific IP network may freely allocate host addresses within their network, without co- ordination with any other administrators in the Internet. However, they are not allowed to allocate host addresses belonging to a network number which has not been assigned to them. IPv4 addresses are normally written in a format known as "dotted decimal notation". An IP address may be unicast (for a specific end system), network broadcast (for all systems on a LAN) or multicast (for a group of end systems).

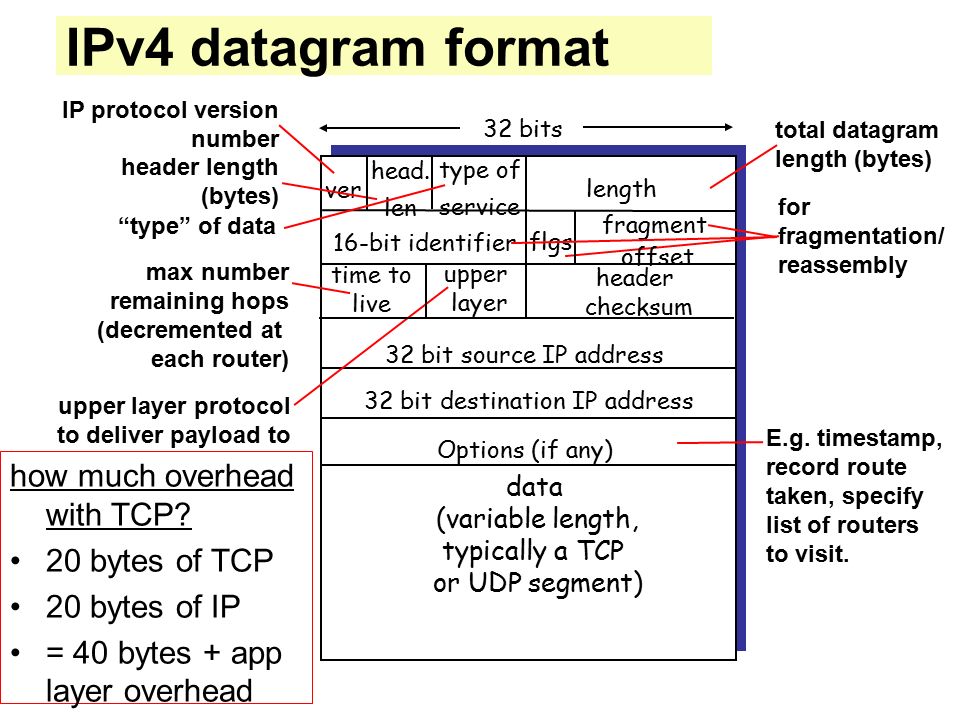

29. ver length 32 bits data (variable length, typically a TCP or UDP segment) 16-bit identifier header checksum time to live 32 bit source IP address IP protocol version number header length (bytes) max number remaining hops (decremented at each router) for fragmentation/ reassembly total datagram length (bytes) upper layer protocol to deliver payload to head. len type of service “type” of data flgs fragment offset upper layer 32 bit destination IP address Options (if any) E.g. timestamp, record route taken, specify list of routers to visit. how much overhead with TCP? 20 bytes of TCP 20 bytes of IP = 40 bytes + app layer overhead IPv4 datagram format

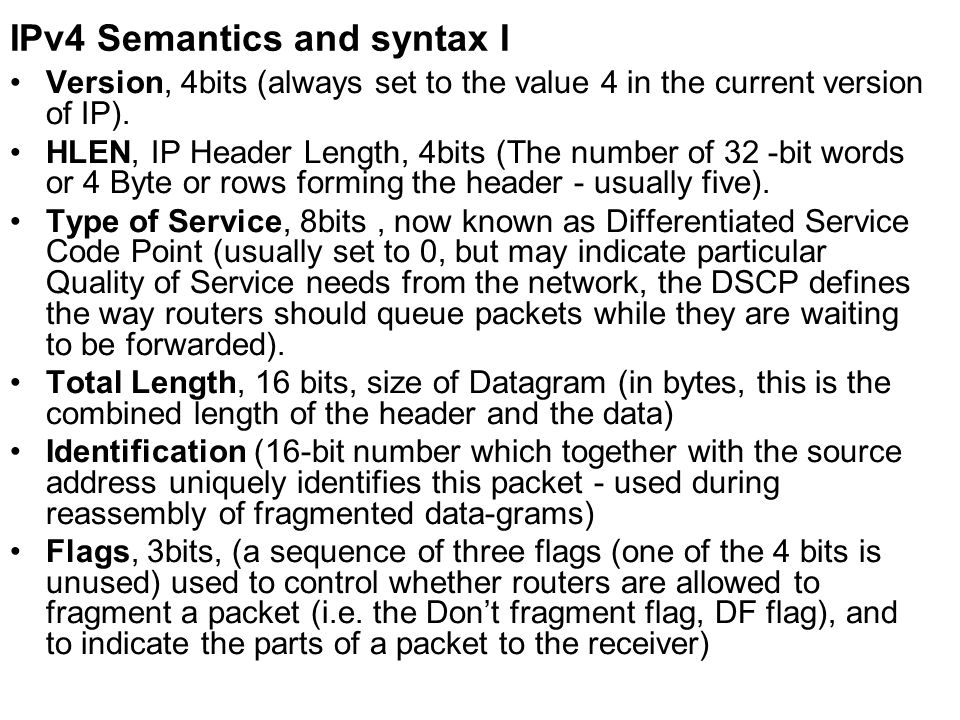

30. IPv4 Semantics and syntax I Version, 4bits (always set to the value 4 in the current version of IP). HLEN, IP Header Length, 4bits (The number of 32 -bit words or 4 Byte or rows forming the header - usually five). Type of Service, 8bits, now known as Differentiated Service Code Point (usually set to 0, but may indicate particular Quality of Service needs from the network, the DSCP defines the way routers should queue packets while they are waiting to be forwarded). Total Length, 16 bits, size of Datagram (in bytes, this is the combined length of the header and the data) Identification (16-bit number which together with the source address uniquely identifies this packet - used during reassembly of fragmented data-grams) Flags, 3bits, (a sequence of three flags (one of the 4 bits is unused) used to control whether routers are allowed to fragment a packet (i.e. the Don’t fragment flag, DF flag), and to indicate the parts of a packet to the receiver)

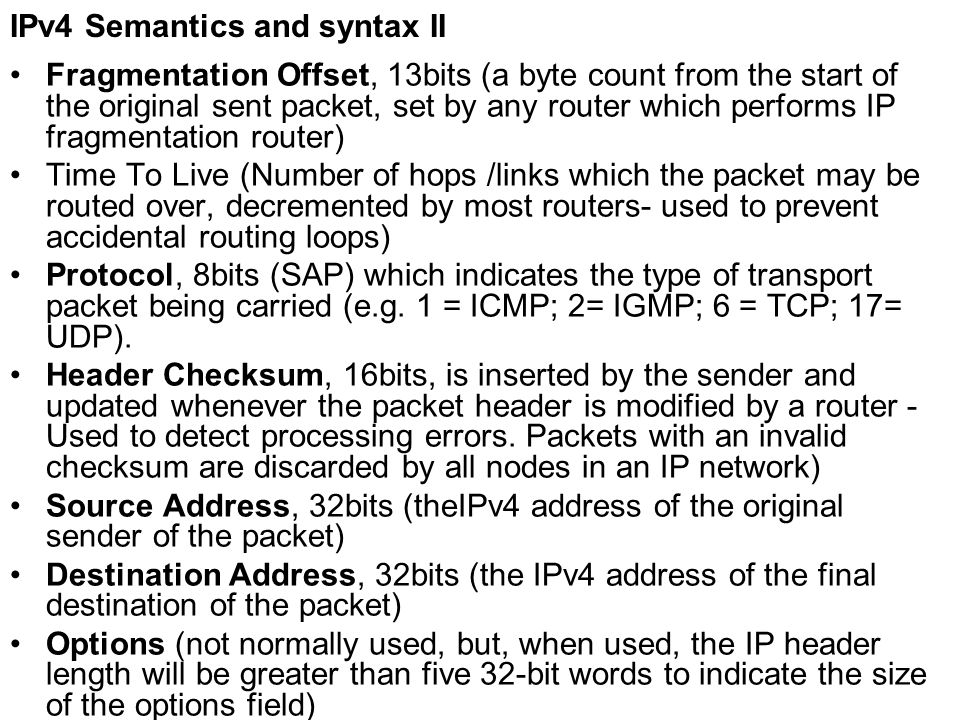

31. IPv4 Semantics and syntax II Fragmentation Offset, 13bits (a byte count from the start of the original sent packet, set by any router which performs IP fragmentation router) Time To Live (Number of hops /links which the packet may be routed over, decremented by most routers- used to prevent accidental routing loops) Protocol, 8bits (SAP) which indicates the type of transport packet being carried (e.g. 1 = ICMP; 2= IGMP; 6 = TCP; 17= UDP). Header Checksum, 16bits, is inserted by the sender and updated whenever the packet header is modified by a router - Used to detect processing errors. Packets with an invalid checksum are discarded by all nodes in an IP network) Source Address, 32bits (theIPv4 address of the original sender of the packet) Destination Address, 32bits (the IPv4 address of the final destination of the packet) Options (not normally used, but, when used, the IP header length will be greater than five 32-bit words to indicate the size of the options field)

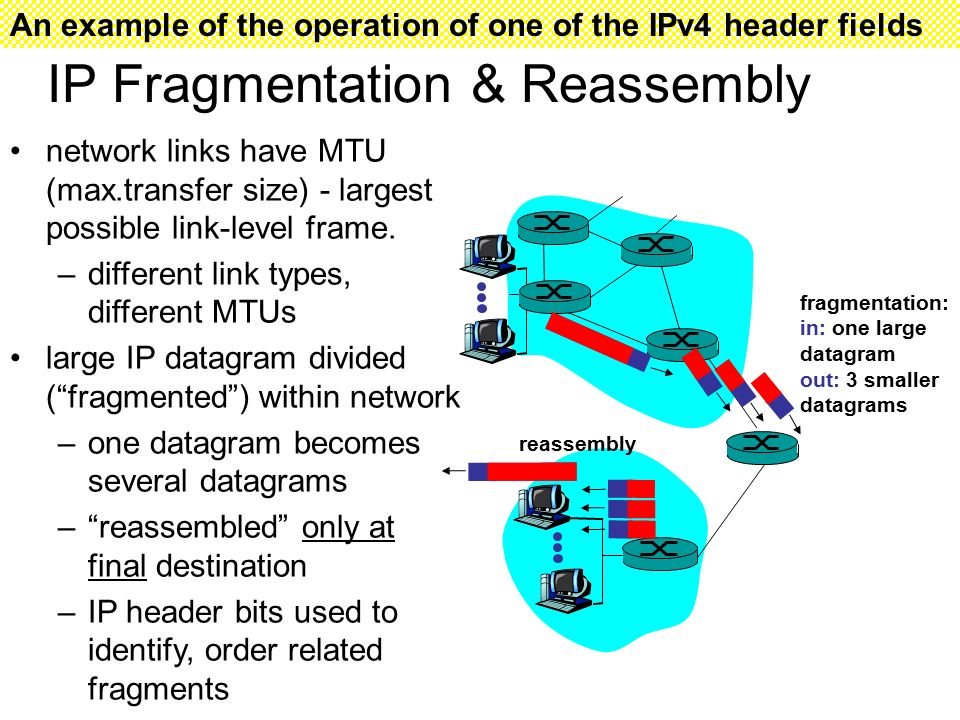

32. network links have MTU (max.transfer size) - largest possible link-level frame. –different link types, different MTUs large IP datagram divided (“fragmented”) within network –one datagram becomes several datagrams –“reassembled” only at final destination –IP header bits used to identify, order related fragments fragmentation: in: one large datagram out: 3 smaller datagrams reassembly IP Fragmentation & Reassembly An example of the operation of one of the IPv4 header fields

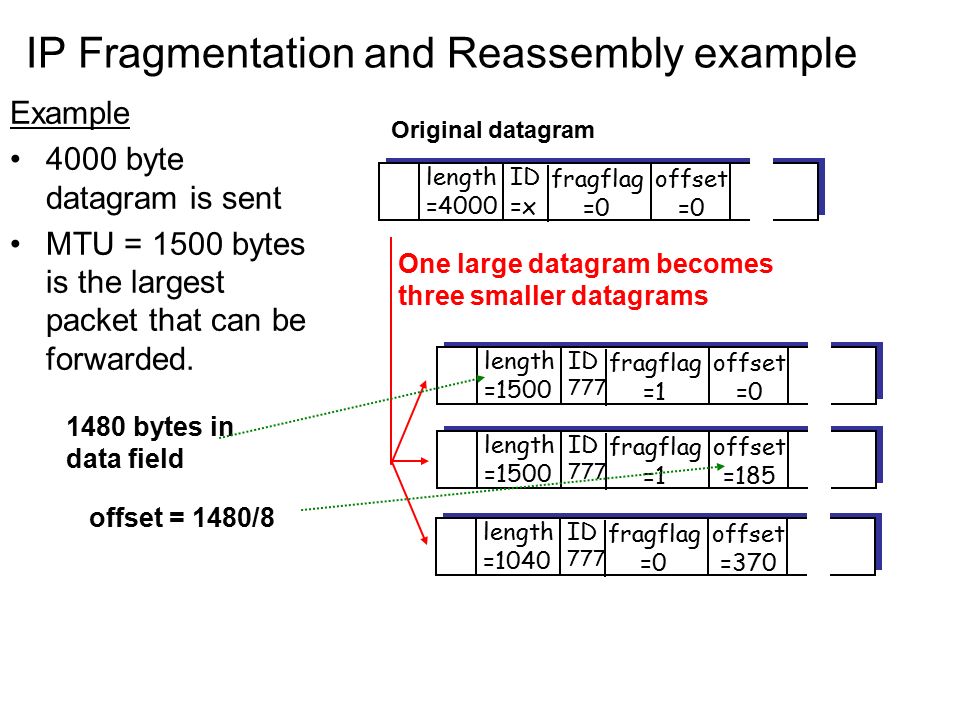

33. ID =x offset =0 fragflag =0 length =4000 ID 777 offset =0 fragflag =1 length =1500 ID 777 offset =185 fragflag =1 length =1500 ID 777 offset =370 fragflag =0 length =1040 One large datagram becomes three smaller datagrams Example 4000 byte datagram is sent MTU = 1500 bytes is the largest packet that can be forwarded. 1480 bytes in data field offset = 1480/8 IP Fragmentation and Reassembly example Original datagram

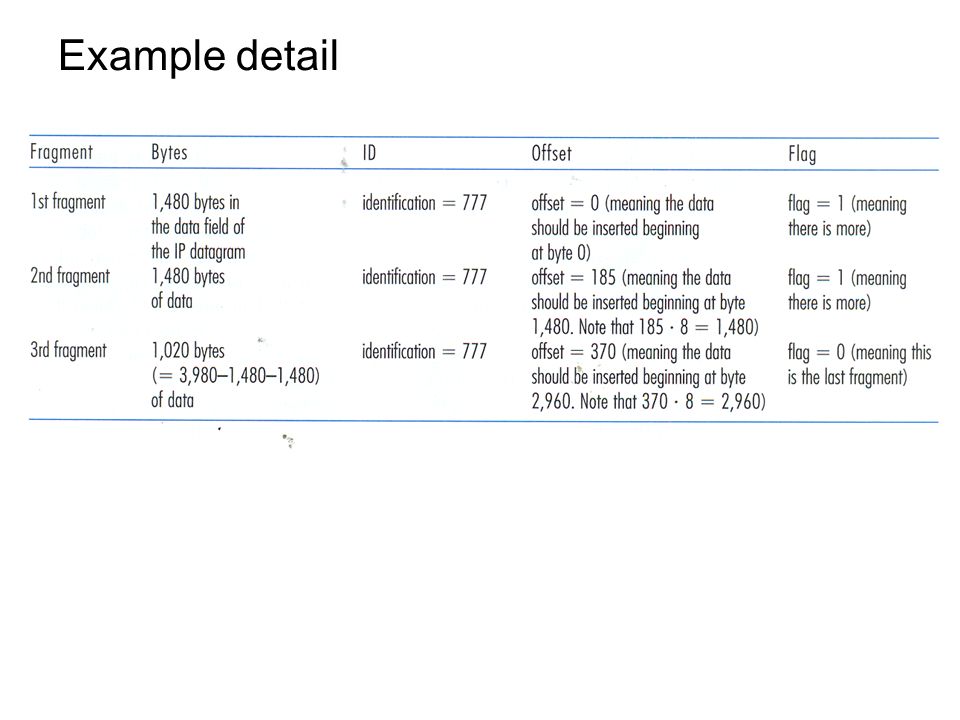

34. Example detail

35. IPv4 address: 32-bit identifier for host and router interface interface: connection between host/router and physical link –router’s typically have multiple interfaces –host typically has one interface –IP addresses associated with each interface 223.1.1.1 223.1.1.2 223.1.1.3 223.1.1.4 223.1.2.9 223.1.2.2 223.1.2.1 223.1.3.2 223.1.3.1 223.1.3.27 223.1.1.1 = 11011111 00000001 00000001 00000001 223 111 IP Addressing: introduction IPv4 address - dotted decimal

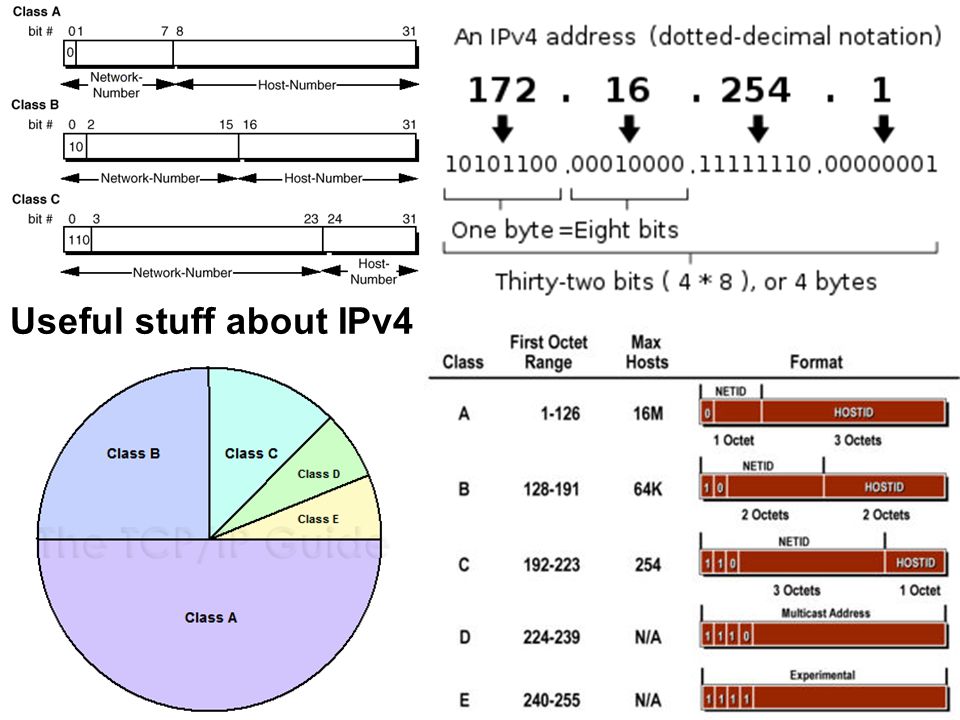

36. Useful stuff about IPv4

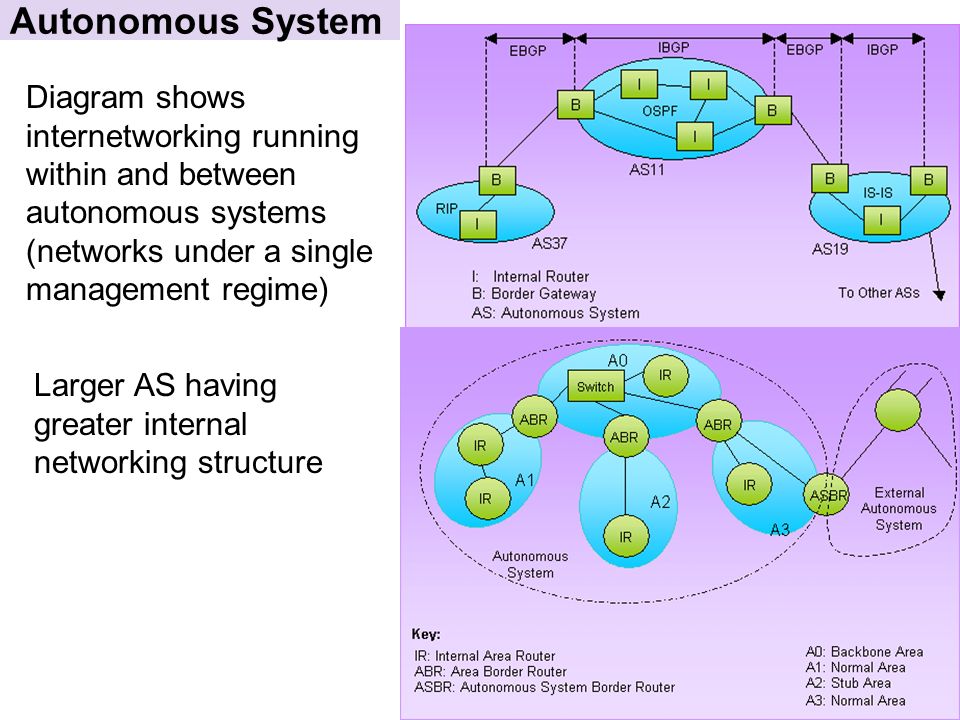

37. Diagram shows internetworking running within and between autonomous systems (networks under a single management regime) Autonomous System Larger AS having greater internal networking structure

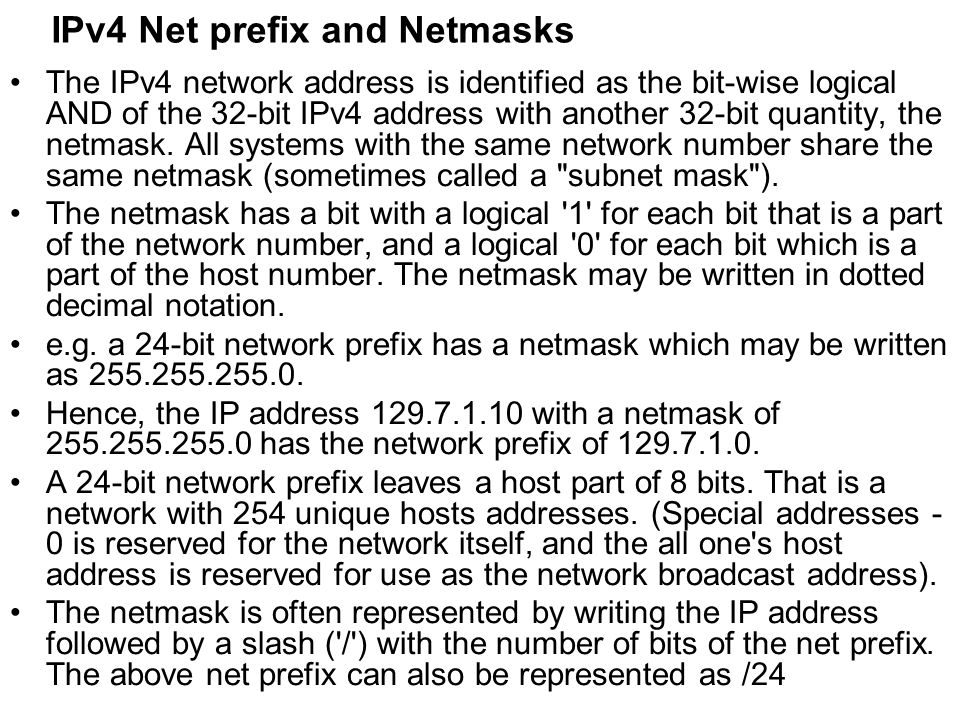

38. IPv4 Net prefix and Netmasks The IPv4 network address is identified as the bit-wise logical AND of the 32-bit IPv4 address with another 32-bit quantity, the netmask. All systems with the same network number share the same netmask (sometimes called a "subnet mask"). The netmask has a bit with a logical '1' for each bit that is a part of the network number, and a logical '0' for each bit which is a part of the host number. The netmask may be written in dotted decimal notation. e.g. a 24-bit network prefix has a netmask which may be written as 255.255.255.0. Hence, the IP address 129.7.1.10 with a netmask of 255.255.255.0 has the network prefix of 129.7.1.0. A 24-bit network prefix leaves a host part of 8 bits. That is a network with 254 unique hosts addresses. (Special addresses - 0 is reserved for the network itself, and the all one's host address is reserved for use as the network broadcast address). The netmask is often represented by writing the IP address followed by a slash ('/') with the number of bits of the net prefix. The above net prefix can also be represented as /24

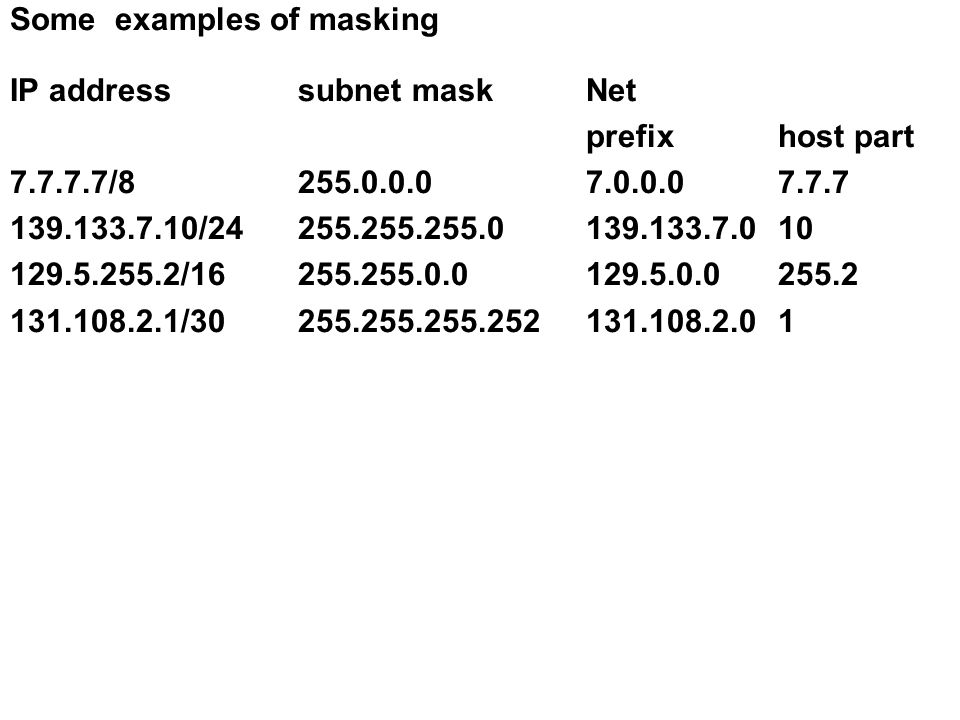

39. Some examples of masking IP address subnet maskNet prefix host part 7.7.7.7/8255.0.0.07.0.0.07.7.7 139.133.7.10/24255.255.255.0139.133.7.010 129.5.255.2/16255.255.0.0129.5.0.0255.2 131.108.2.1/30255.255.255.252131.108.2.01

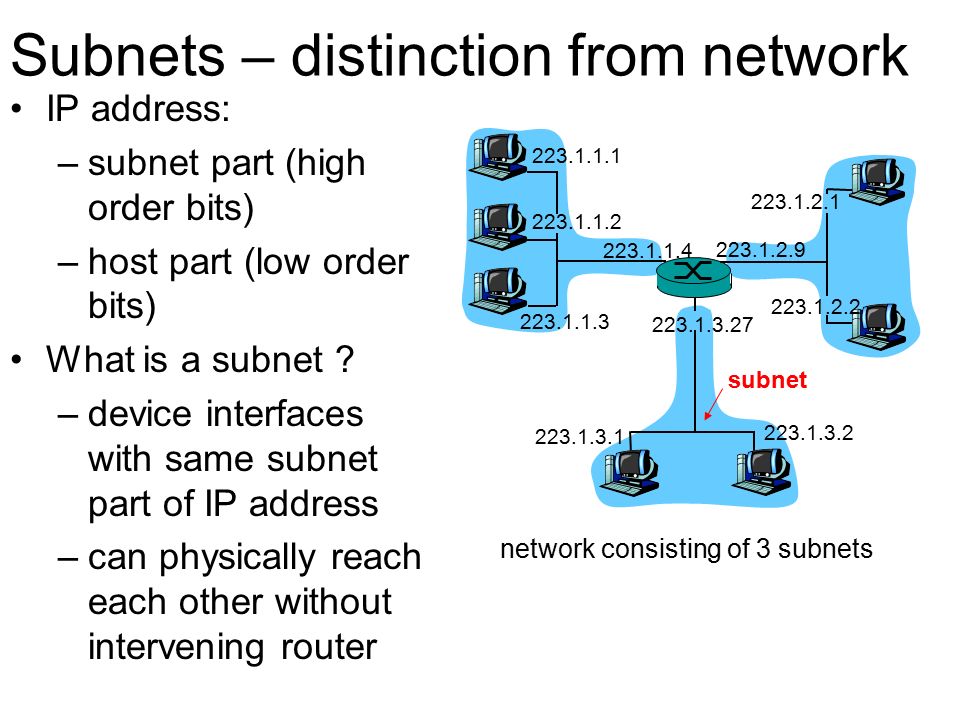

40. IP address: –subnet part (high order bits) –host part (low order bits) What is a subnet ? –device interfaces with same subnet part of IP address –can physically reach each other without intervening router 223.1.1.1 223.1.1.2 223.1.1.3 223.1.1.4 223.1.2.9 223.1.2.2 223.1.2.1 223.1.3.2 223.1.3.1 223.1.3.27 network consisting of 3 subnets subnet Subnets – distinction from network

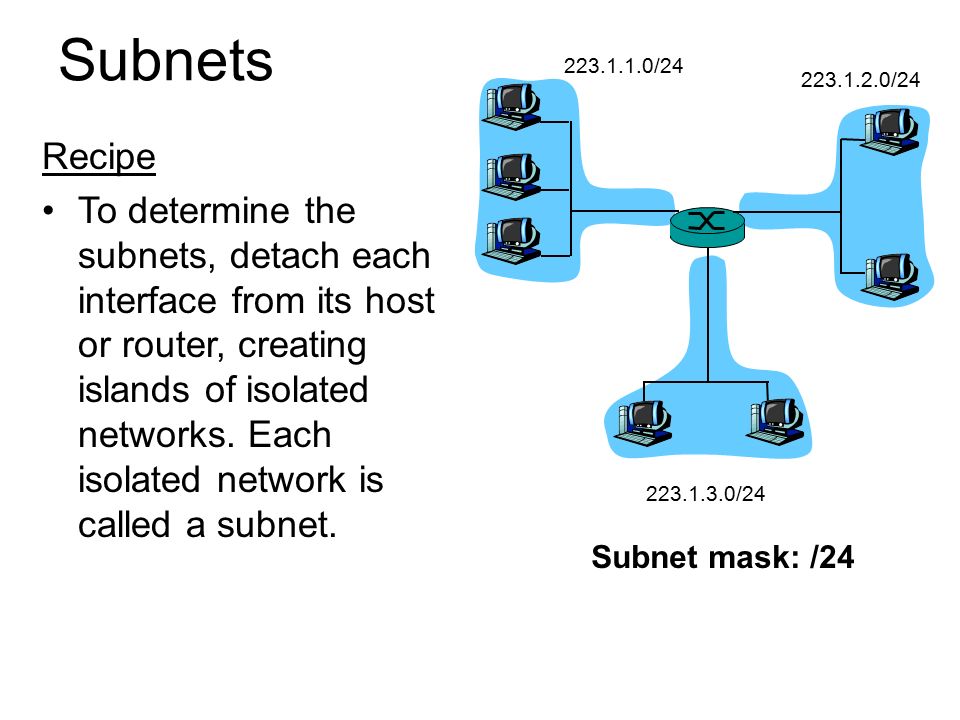

41. 223.1.1.0/24 223.1.2.0/24 223.1.3.0/24 Recipe To determine the subnets, detach each interface from its host or router, creating islands of isolated networks. Each isolated network is called a subnet. Subnet mask: /24 Subnets

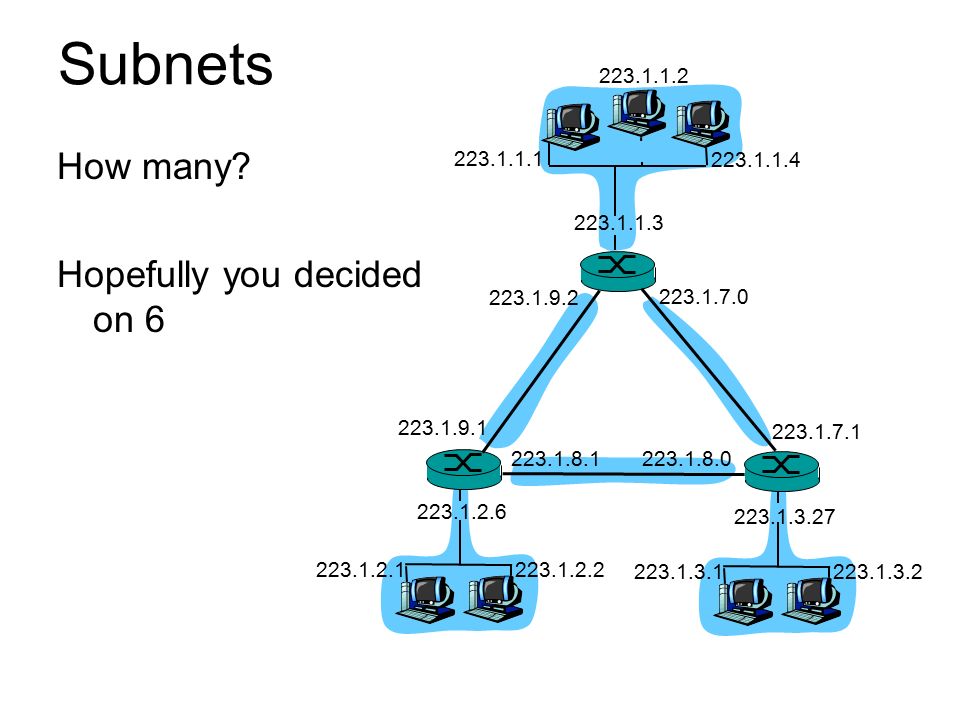

42. How many? Hopefully you decided on 6 223.1.1.1 223.1.1.3 223.1.1.4 223.1.2.2 223.1.2.1 223.1.2.6 223.1.3.2 223.1.3.1 223.1.3.27 223.1.1.2 223.1.7.0 223.1.7.1 223.1.8.0223.1.8.1 223.1.9.1 223.1.9.2 Subnets

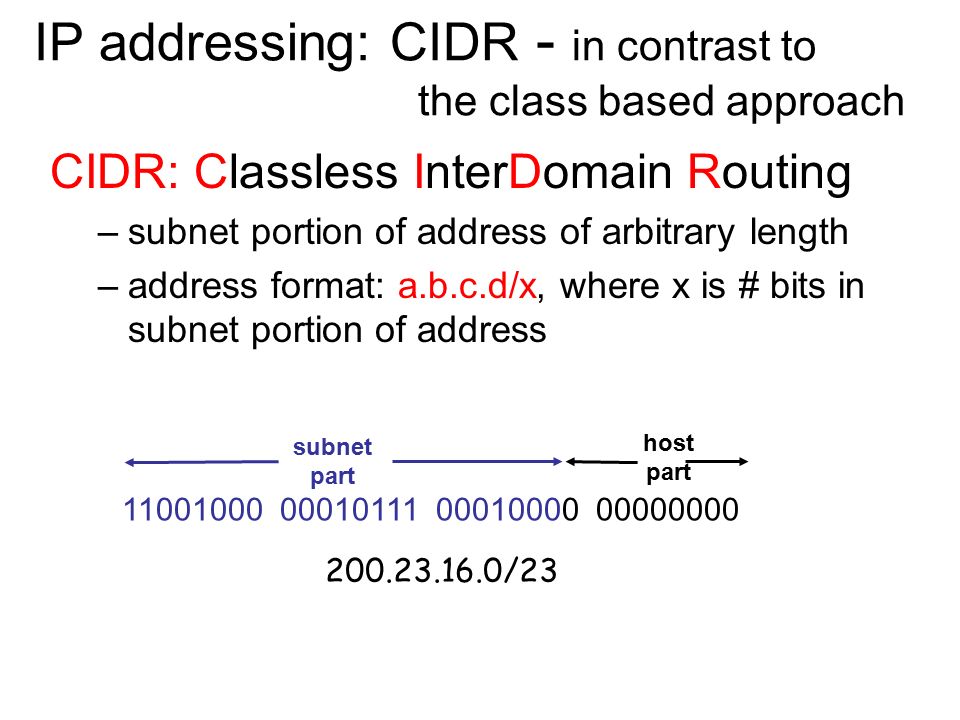

43. CIDR: Classless InterDomain Routing –subnet portion of address of arbitrary length –address format: a.b.c.d/x, where x is # bits in subnet portion of address 11001000 00010111 00010000 00000000 subnet part host part 200.23.16.0/23 IP addressing: CIDR - in contrast to the class based approach

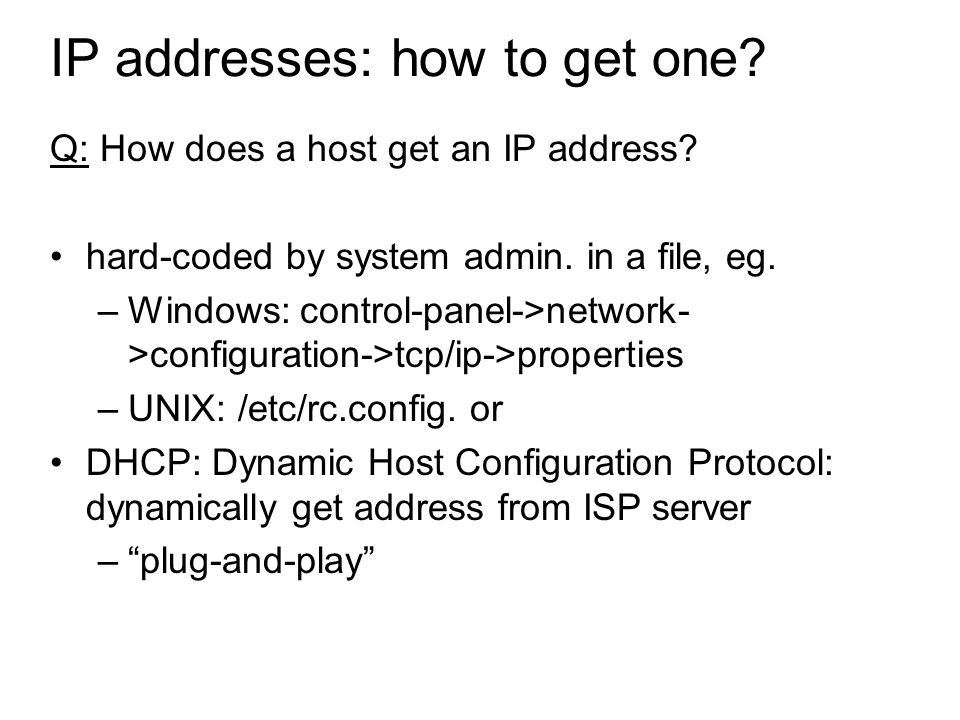

44. Q: How does a host get an IP address? hard-coded by system admin. in a file, eg. –Windows: control-panel->network- >configuration->tcp/ip->properties –UNIX: /etc/rc.config. or DHCP: Dynamic Host Configuration Protocol: dynamically get address from ISP server –“plug-and-play” IP addresses: how to get one?

45. DHCP: Dynamic Host Configuration Protocol Goal: allow host to dynamically obtain its IP address from network server when it joins a network Can renew its lease on address in use Allows reuse of addresses (only hold on to address while connected and “on”) Support for mobile users who want to join network (more intermittently) DHCP overview: –Host broadcasts “DHCP discover” message. –DHCP server responds with “DHCP offer” msg. –Host requests IP address: “DHCP request” msg. –DHCP server sends address: “DHCP ack” msg.

46. Arriving DHCP client needs address in this network 223.1.1.1 223.1.1.2 223.1.1.3 223.1.1.4 223.1.2.9 223.1.2.2 223.1.2.1 223.1.3.2 223.1.3.1 223.1.3.27 A B E DHCP server DHCP client-server scenario

47. DHCP server: 223.1.2.5 arriving client time DHCP discover src : 0.0.0.0, 68 dest.: 255.255.255.255,67 yiaddr: 0.0.0.0 transaction ID: 654 DHCP offer src: 223.1.2.5, 67 dest: 255.255.255.255, 68 yiaddrr: 223.1.2.4 transaction ID: 654 Lifetime: 3600 secs DHCP request src: 0.0.0.0, 68 dest:: 255.255.255.255, 67 yiaddrr: 223.1.2.4 transaction ID: 655 Lifetime: 3600 secs DHCP ACK src: 223.1.2.5, 67 dest: 255.255.255.255, 68 yiaddrr: 223.1.2.4 transaction ID: 655 Lifetime: 3600 secs DHCP client-server scenario

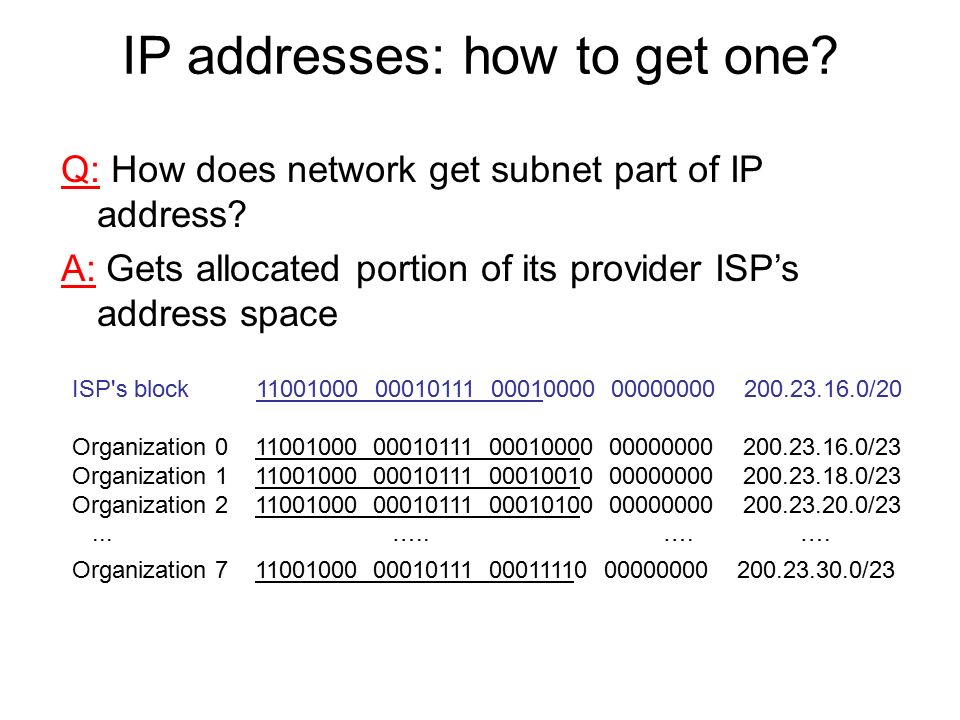

48. Q: How does network get subnet part of IP address? A: Gets allocated portion of its provider ISP’s address space ISP's block 11001000 00010111 00010000 00000000 200.23.16.0/20 Organization 0 11001000 00010111 00010000 00000000 200.23.16.0/23 Organization 1 11001000 00010111 00010010 00000000 200.23.18.0/23 Organization 2 11001000 00010111 00010100 00000000 200.23.20.0/23... ….. …. …. Organization 7 11001000 00010111 00011110 00000000 200.23.30.0/23 IP addresses: how to get one?

49. “Send me anything with addresses beginning 200.23.16.0/20” 200.23.16.0/23200.23.18.0/23200.23.30.0/23 Fly-By-Night-ISP Organization 0 Organization 7 Internet Organization 1 ISPs-R-Us “Send me anything with addresses beginning 199.31.0.0/16” 200.23.20.0/23 Organization 2...... Hierarchical addressing allows efficient advertisement of routing information: Hierarchical addressing: route aggregation

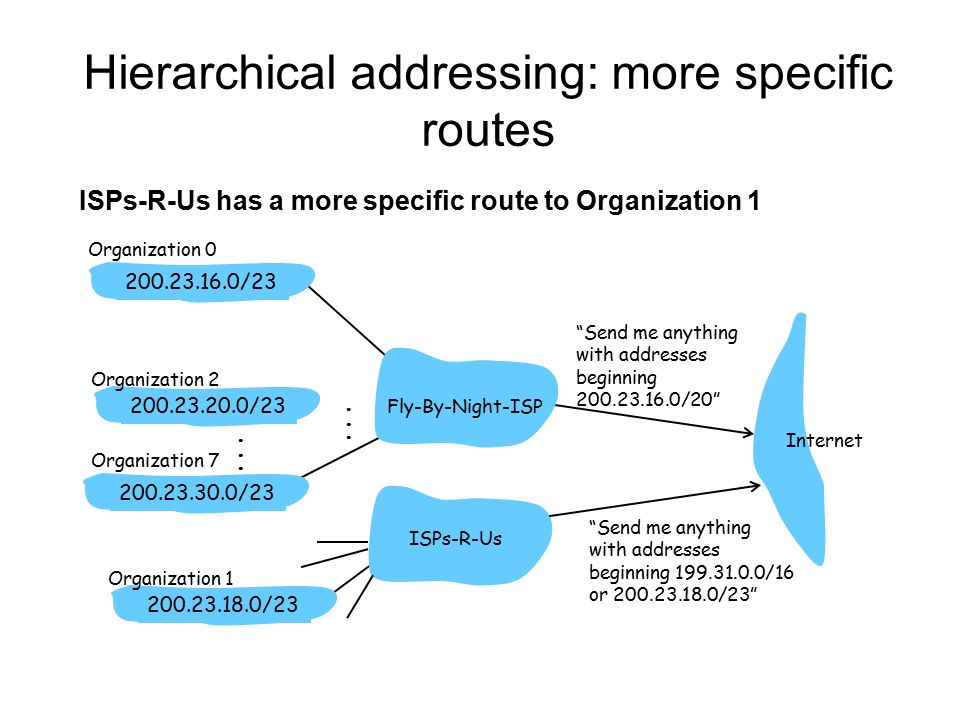

50. Hierarchical addressing: more specific routes ISPs-R-Us has a more specific route to Organization 1 “Send me anything with addresses beginning 200.23.16.0/20” 200.23.16.0/23200.23.18.0/23200.23.30.0/23 Fly-By-Night-ISP Organization 0 Organization 7 Internet Organization 1 ISPs-R-Us “Send me anything with addresses beginning 199.31.0.0/16 or 200.23.18.0/23” 200.23.20.0/23 Organization 2......

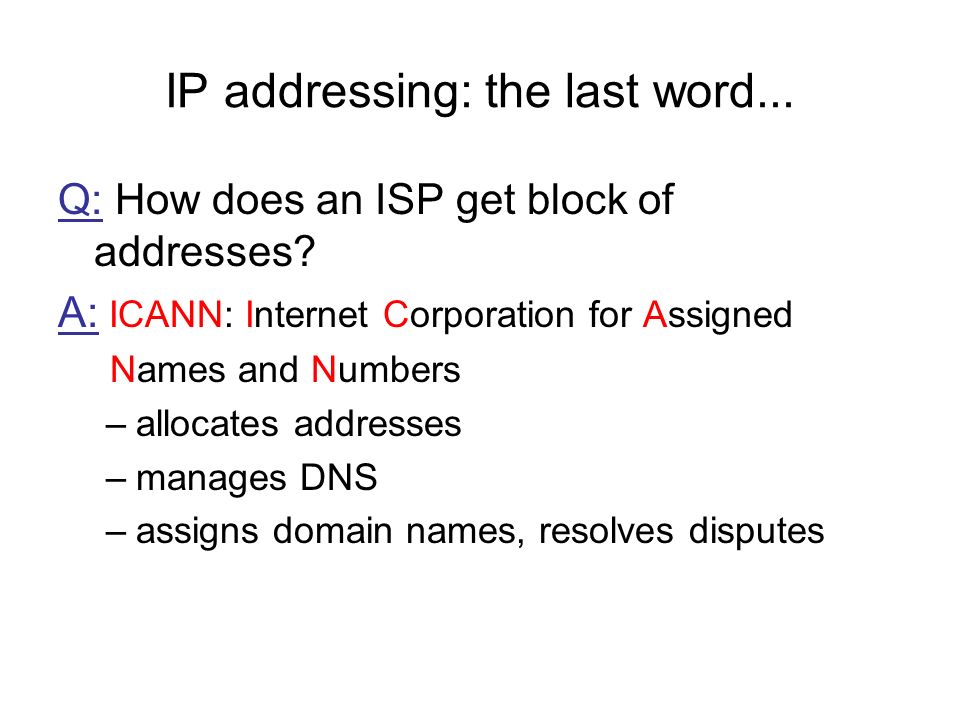

51. IP addressing: the last word... Q: How does an ISP get block of addresses? A: ICANN: Internet Corporation for Assigned Names and Numbers –allocates addresses –manages DNS –assigns domain names, resolves disputes

52. ClassFromToDecimal Mask Class "A10.0.0.010.255.255.255255.0.0.0 Class "B172.16.0.0172.31.255.255255.240.0.0 (or 255.255.0.0) Class "C192.168.0.0192.168.255.255255.255.0.0 (or 255.255.255.0) Private address space An IP (Internet Protocol) Address is a 32-bit number broken up into "quads" of 1 byte each, separated by dots. 1 byte is 8 bits which in decimal is a number in the range 0 to 255. For example, 10.234.56.71 is an IP Address. There are only so many "real" IP addresses, and they are (and have been) perpetually very close to being used up and thus are very difficult to get. One of the solutions to this problem is so-called "private" IP Addresses. These are ranges of IP Addresses set aside expressly for use by a company or other entity internally. Private IP Addresses cannot be used to connect directly to the Internet--that is they are non-routable. These are also often called RFC1918 addresses.RFC1918

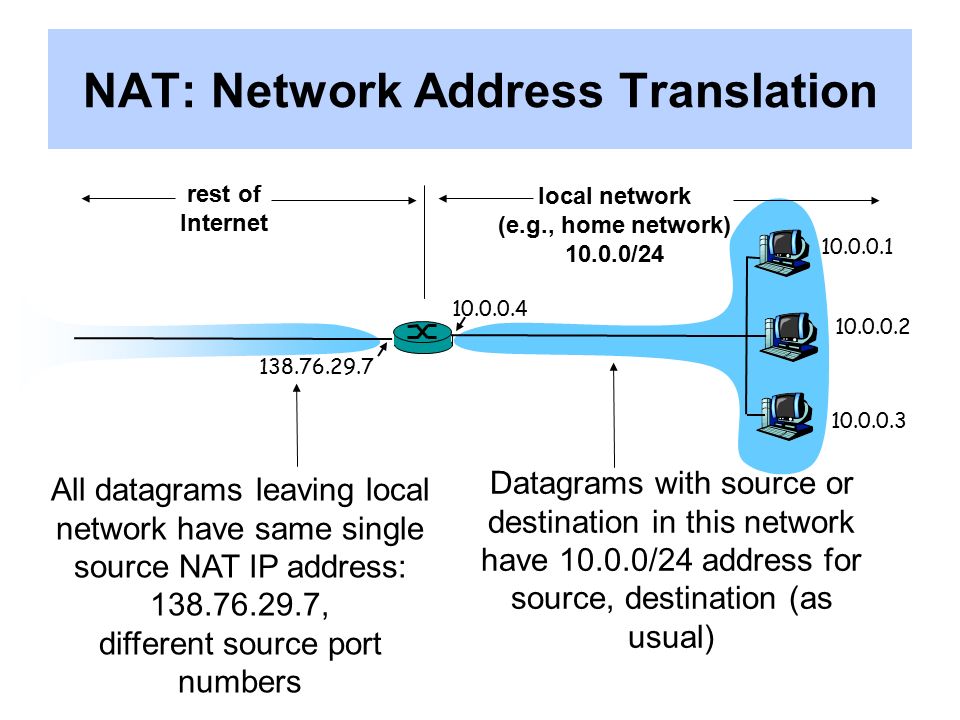

53. NAT: Network Address Translation 10.0.0.1 10.0.0.2 10.0.0.3 10.0.0.4 138.76.29.7 local network (e.g., home network) 10.0.0/24 rest of Internet Datagrams with source or destination in this network have 10.0.0/24 address for source, destination (as usual) All datagrams leaving local network have same single source NAT IP address: 138.76.29.7, different source port numbers NAT: Network Address Translation

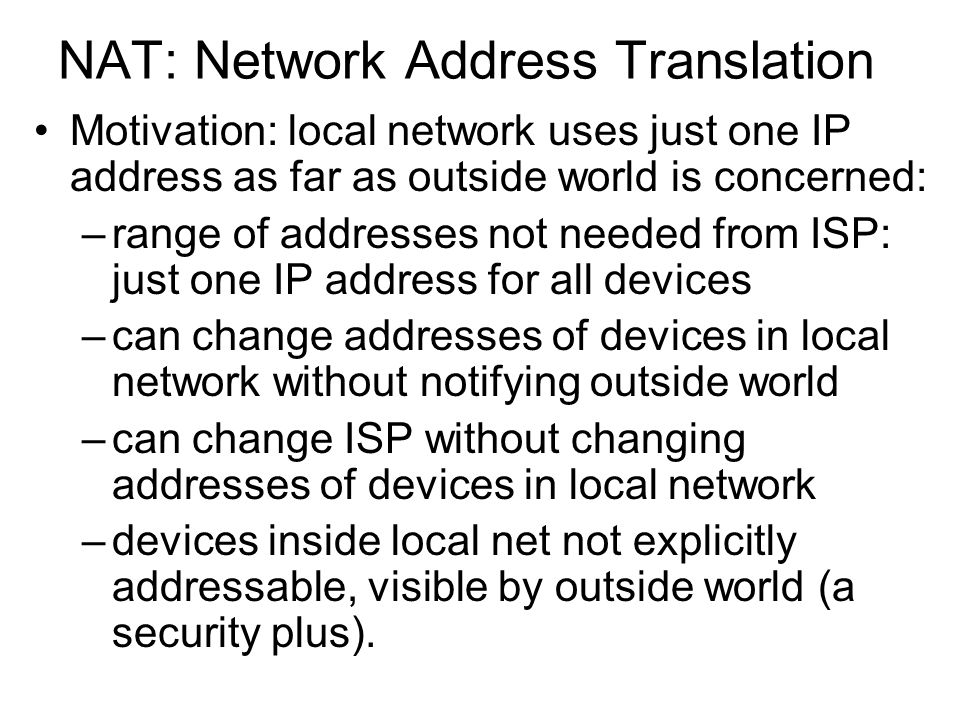

54. Motivation: local network uses just one IP address as far as outside world is concerned: –range of addresses not needed from ISP: just one IP address for all devices –can change addresses of devices in local network without notifying outside world –can change ISP without changing addresses of devices in local network –devices inside local net not explicitly addressable, visible by outside world (a security plus).

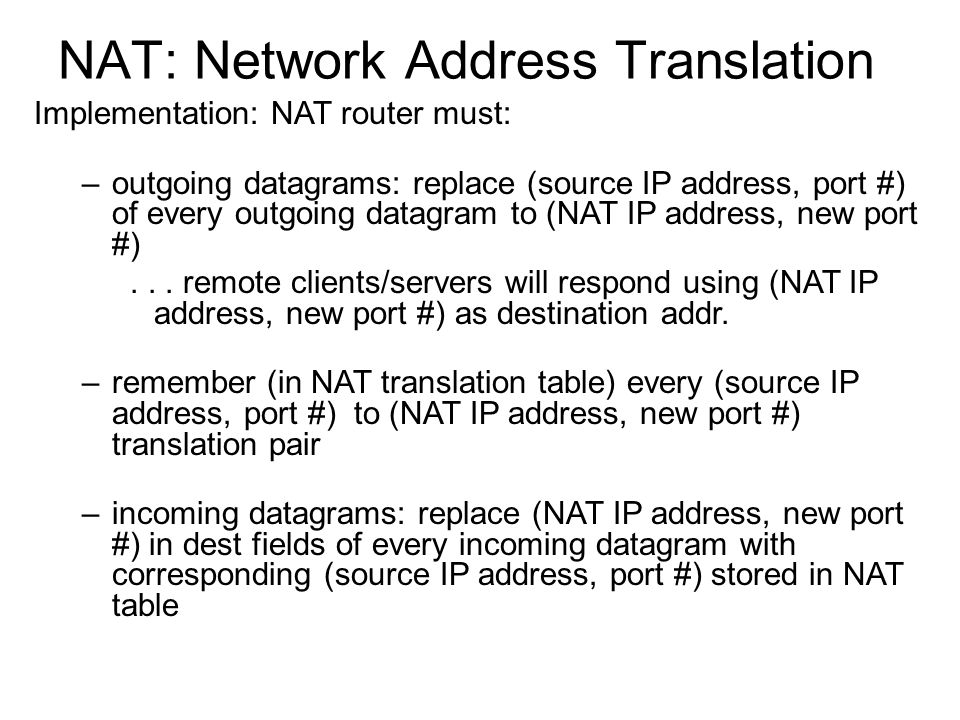

55. Implementation: NAT router must: –outgoing datagrams: replace (source IP address, port #) of every outgoing datagram to (NAT IP address, new port #)... remote clients/servers will respond using (NAT IP address, new port #) as destination addr. –remember (in NAT translation table) every (source IP address, port #) to (NAT IP address, new port #) translation pair –incoming datagrams: replace (NAT IP address, new port #) in dest fields of every incoming datagram with corresponding (source IP address, port #) stored in NAT table NAT: Network Address Translation

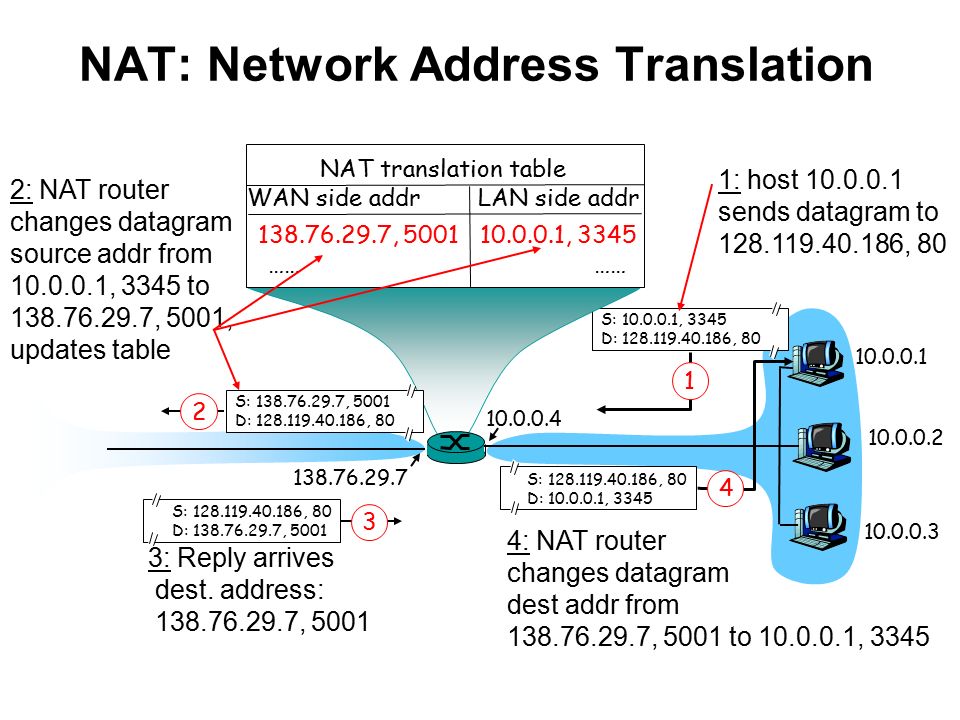

56. 10.0.0.1 10.0.0.2 10.0.0.3 S: 10.0.0.1, 3345 D: 128.119.40.186, 80 1 10.0.0.4 138.76.29.7 1: host 10.0.0.1 sends datagram to 128.119.40.186, 80 NAT translation table WAN side addr LAN side addr 138.76.29.7, 5001 10.0.0.1, 3345 …… S: 128.119.40.186, 80 D: 10.0.0.1, 3345 4 S: 138.76.29.7, 5001 D: 128.119.40.186, 80 2 2: NAT router changes datagram source addr from 10.0.0.1, 3345 to 138.76.29.7, 5001, updates table S: 128.119.40.186, 80 D: 138.76.29.7, 5001 3 3: Reply arrives dest. address: 138.76.29.7, 5001 4: NAT router changes datagram dest addr from 138.76.29.7, 5001 to 10.0.0.1, 3345 NAT: Network Address Translation

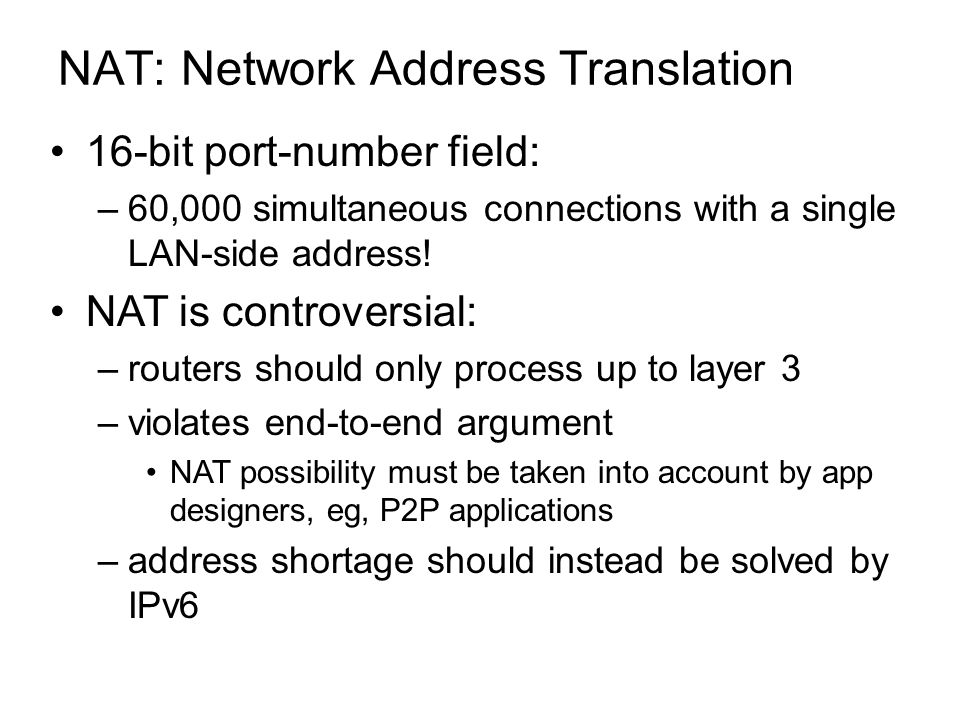

57. 16-bit port-number field: –60,000 simultaneous connections with a single LAN-side address! NAT is controversial: –routers should only process up to layer 3 –violates end-to-end argument NAT possibility must be taken into account by app designers, eg, P2P applications –address shortage should instead be solved by IPv6 NAT: Network Address Translation

58. client wants to connect to server with address 10.0.0.1 –server address 10.0.0.1 local to LAN (client can’t use it as destination addr) –only one externally visible NATted address: 138.76.29.7 solution 1: statically configure NAT to forward incoming connection requests at given port to server –e.g., (123.76.29.7, port 2500) always forwarded to 10.0.0.1 port 25000 10.0.0.1 10.0.0.4 NAT router 138.76.29.7 Client ? NAT traversal problem

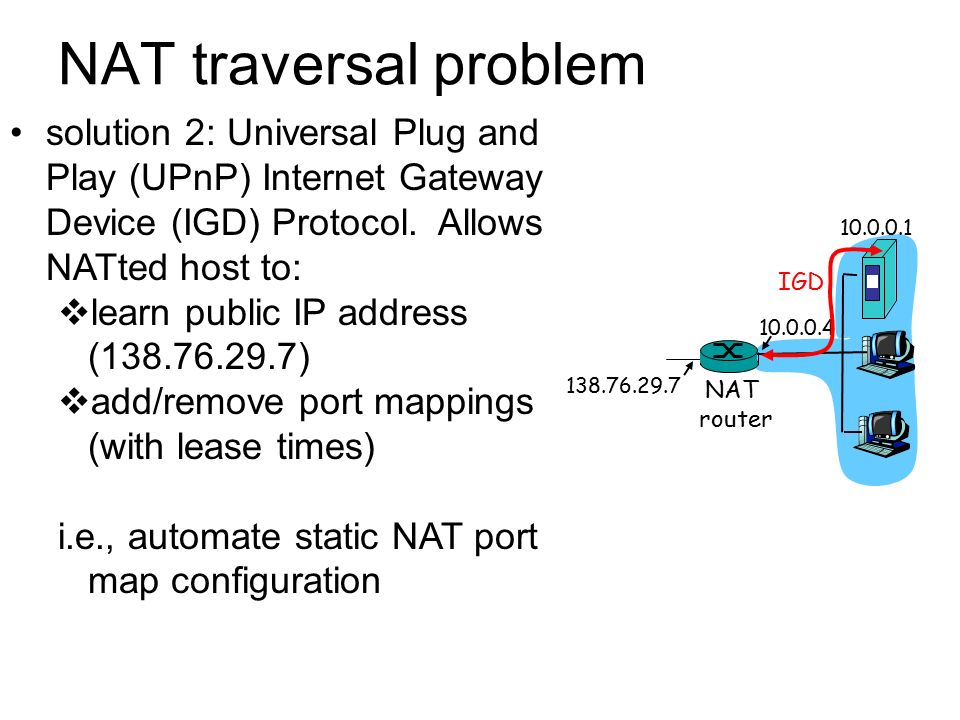

59. solution 2: Universal Plug and Play (UPnP) Internet Gateway Device (IGD) Protocol. Allows NATted host to:  learn public IP address (138.76.29.7)  add/remove port mappings (with lease times) i.e., automate static NAT port map configuration 10.0.0.1 10.0.0.4 NAT router 138.76.29.7 IGD NAT traversal problem

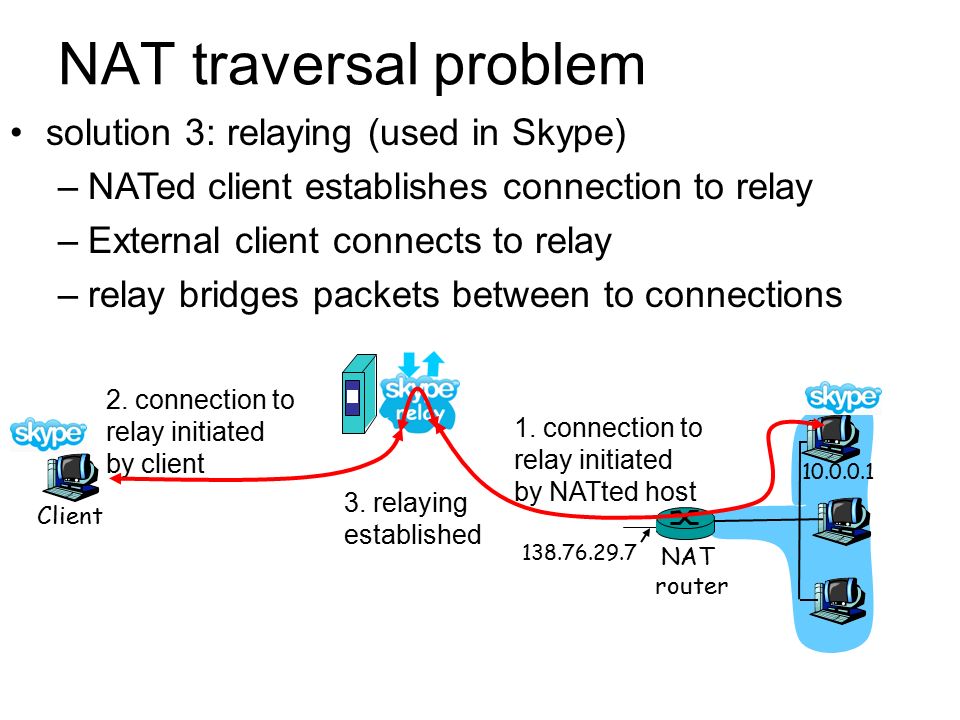

60. solution 3: relaying (used in Skype) –NATed client establishes connection to relay –External client connects to relay –relay bridges packets between to connections 138.76.29.7 Client 10.0.0.1 NAT router 1. connection to relay initiated by NATted host 2. connection to relay initiated by client 3. relaying established NAT traversal problem

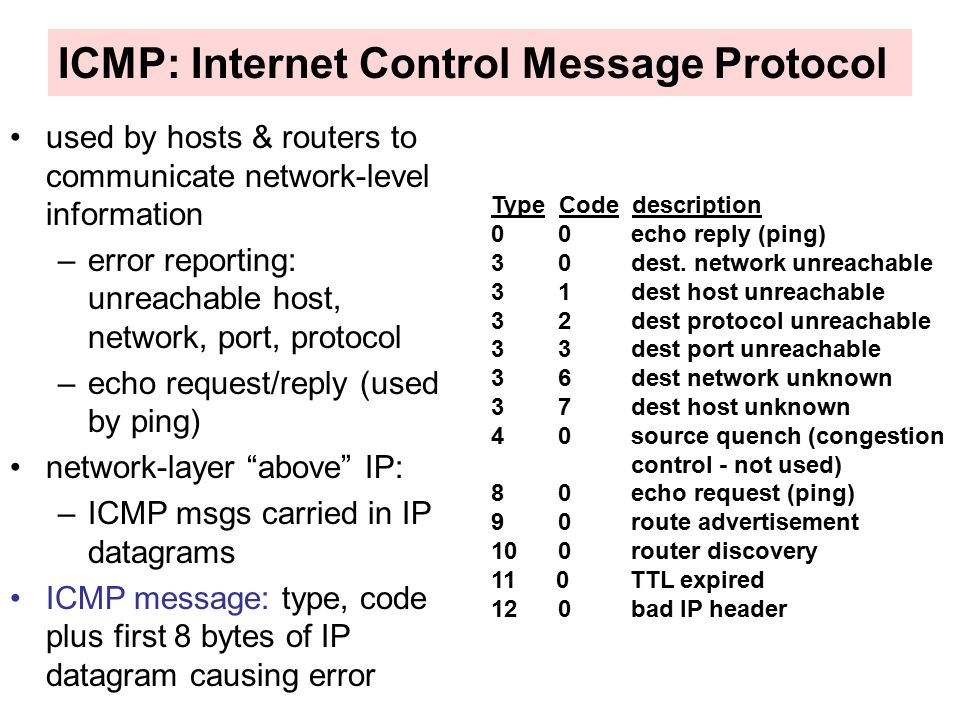

61. used by hosts & routers to communicate network-level information –error reporting: unreachable host, network, port, protocol –echo request/reply (used by ping) network-layer “above” IP: –ICMP msgs carried in IP datagrams ICMP message: type, code plus first 8 bytes of IP datagram causing error Type Code description 0 0 echo reply (ping) 3 0 dest. network unreachable 3 1 dest host unreachable 3 2 dest protocol unreachable 3 3 dest port unreachable 3 6 dest network unknown 3 7 dest host unknown 4 0 source quench (congestion control - not used) 8 0 echo request (ping) 9 0 route advertisement 10 0 router discovery 11 0 TTL expired 12 0 bad IP header ICMP: Internet Control Message Protocol

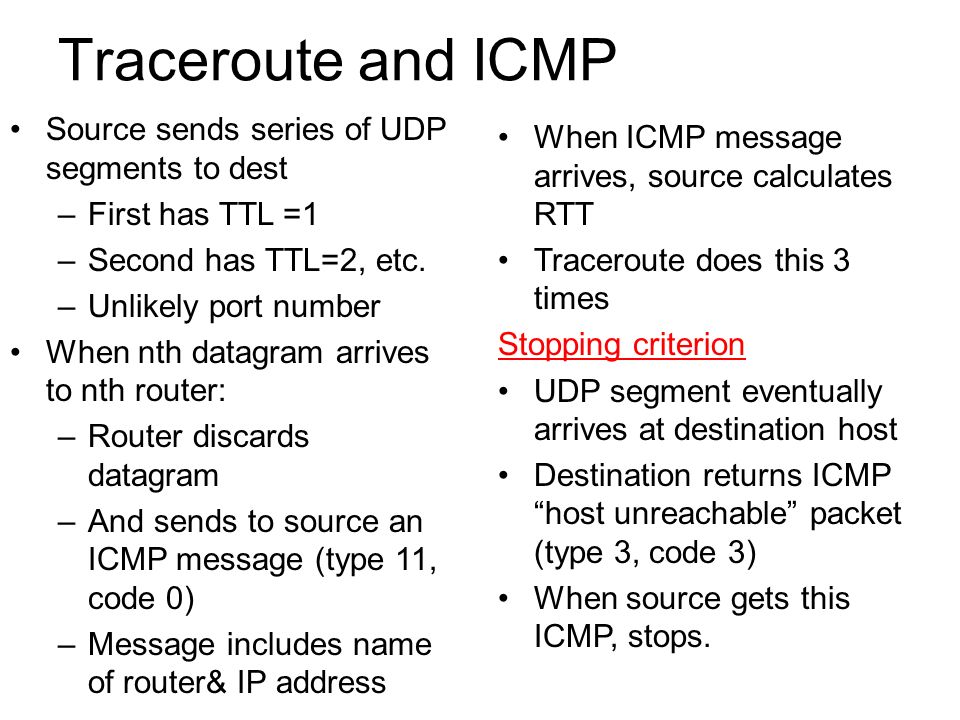

62. Source sends series of UDP segments to dest –First has TTL =1 –Second has TTL=2, etc. –Unlikely port number When nth datagram arrives to nth router: –Router discards datagram –And sends to source an ICMP message (type 11, code 0) –Message includes name of router& IP address When ICMP message arrives, source calculates RTT Traceroute does this 3 times Stopping criterion UDP segment eventually arrives at destination host Destination returns ICMP “host unreachable” packet (type 3, code 3) When source gets this ICMP, stops. Traceroute and ICMP

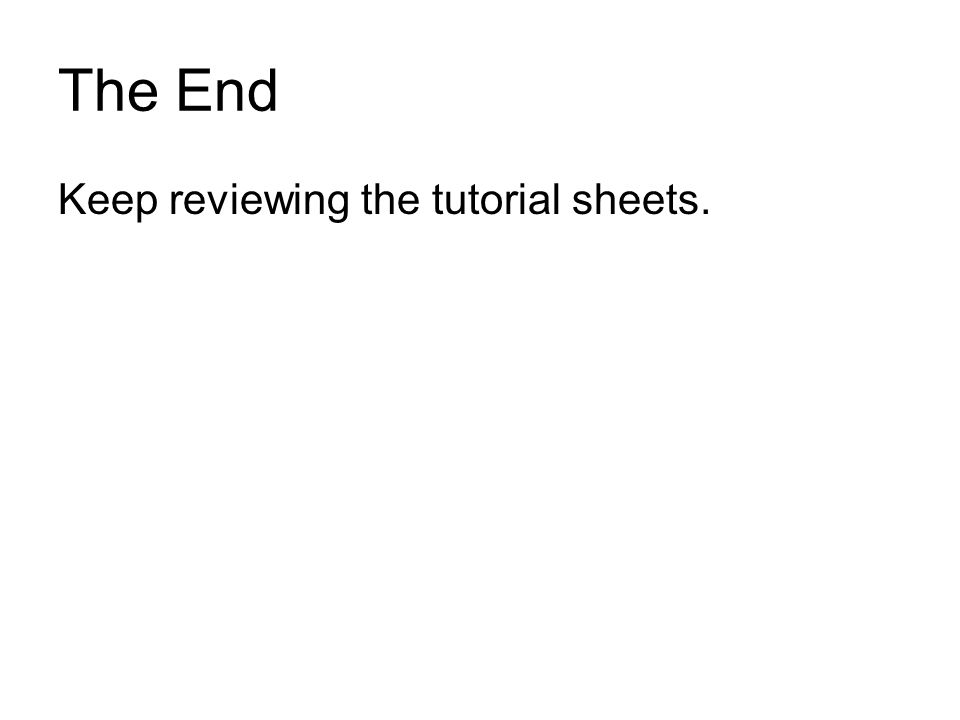

63. The End Keep reviewing the tutorial sheets.
