1. GeoVision Inc. Utility Programs First Edition, July, 2010

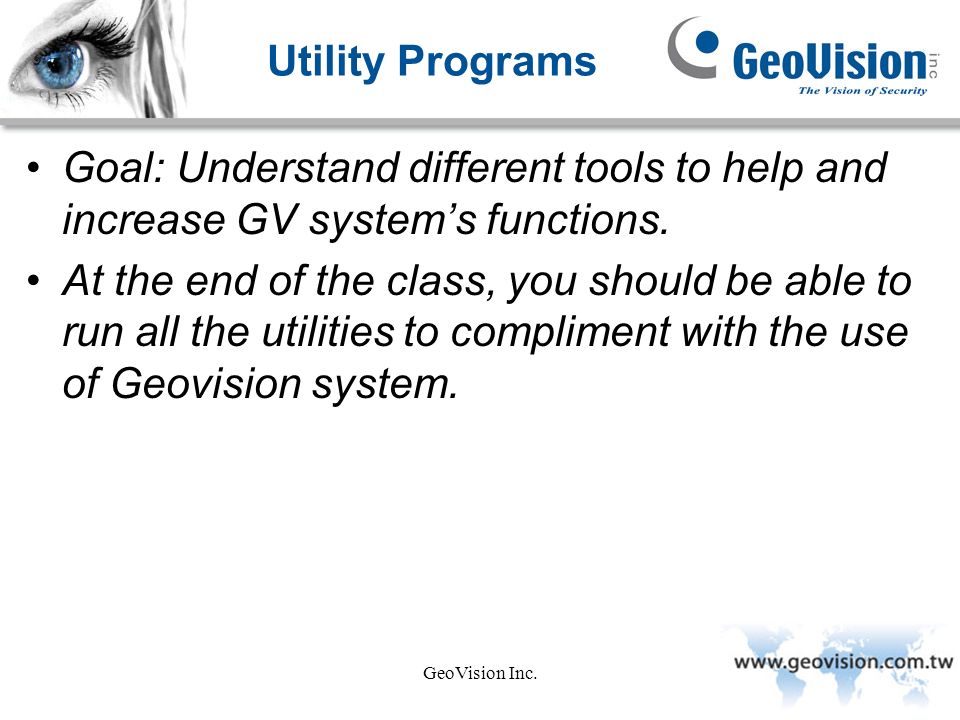

2. GeoVision Inc. Utility Programs Goal: Understand different tools to help and increase GV system’s functions. At the end of the class, you should be able to run all the utilities to compliment with the use of Geovision system.

3. GeoVision Inc. Utility Programs -DynDNS -LocalDDNS -DMPOS -Watermark -Windows Lockup -FBR -Media Man Tool -Report Generator -RepairLog -Repair MDB -AVIRepairAVI -PassUninstall

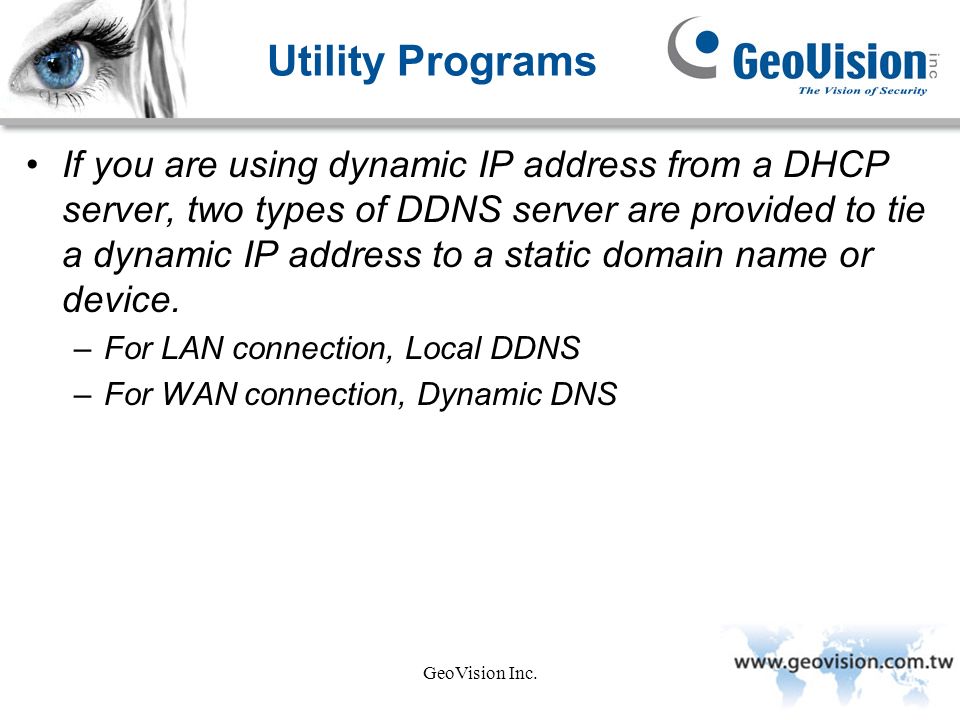

4. GeoVision Inc. Utility Programs If you are using dynamic IP address from a DHCP server, two types of DDNS server are provided to tie a dynamic IP address to a static domain name or device. –For LAN connection, Local DDNS –For WAN connection, Dynamic DNS

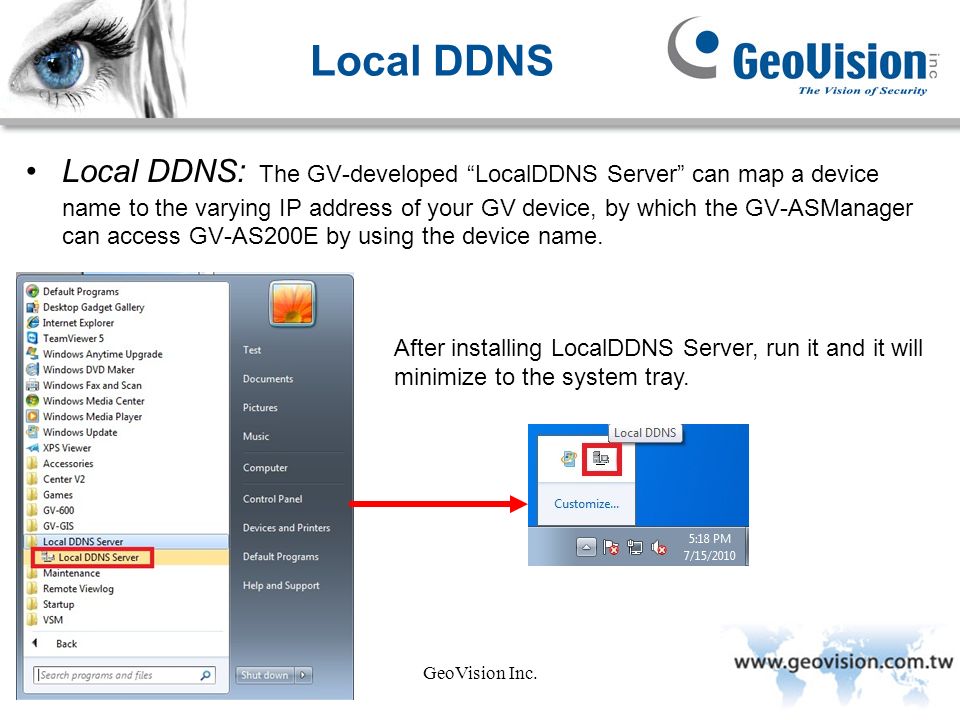

5. GeoVision Inc. Local DDNS Local DDNS: The GV-developed “LocalDDNS Server” can map a device name to the varying IP address of your GV device, by which the GV-ASManager can access GV-AS200E by using the device name. After installing LocalDDNS Server, run it and it will minimize to the system tray.

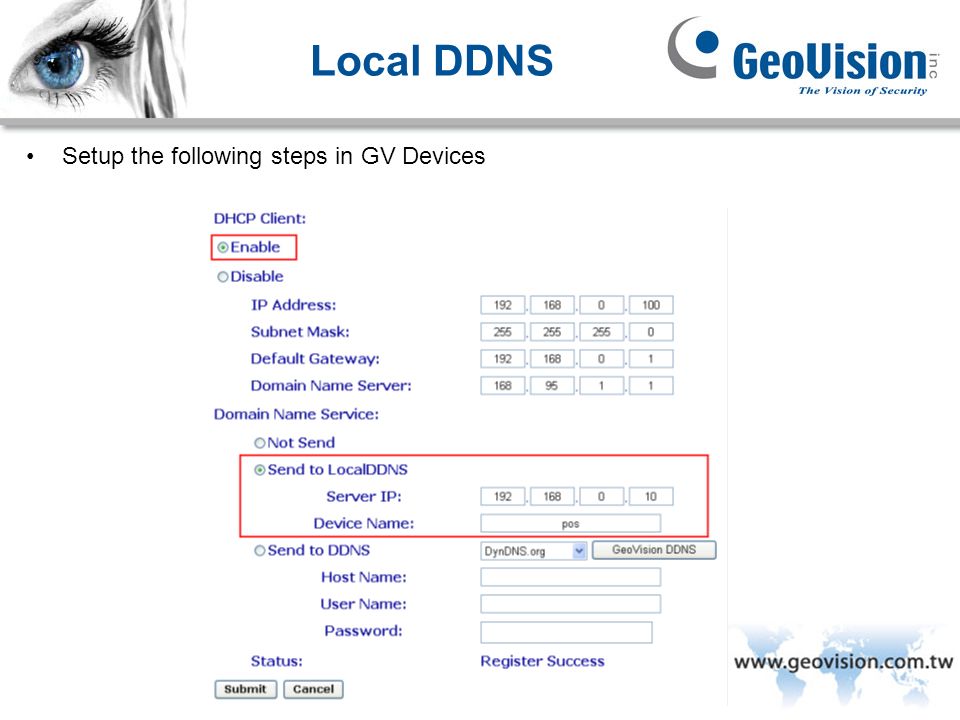

6. GeoVision Inc. Local DDNS Setup the following steps in GV Devices

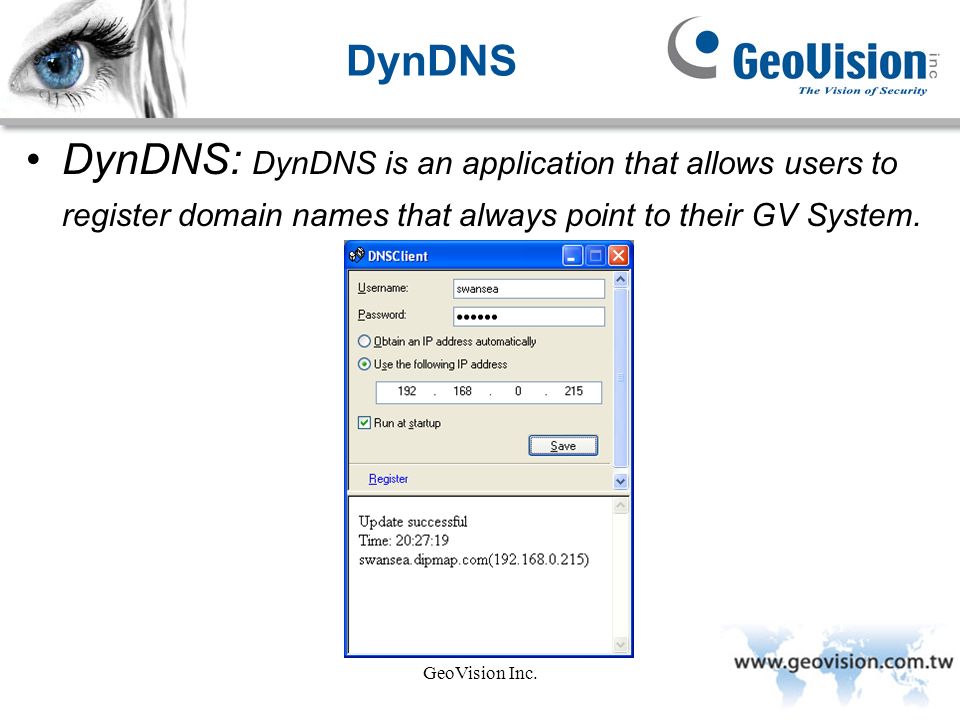

7. GeoVision Inc. DynDNS DynDNS: DynDNS is an application that allows users to register domain names that always point to their GV System.

8. GeoVision Inc. DMPOS DMPOS: You can display Main System, Viewlog and Multiview in two separated monitors using DMPOS application.

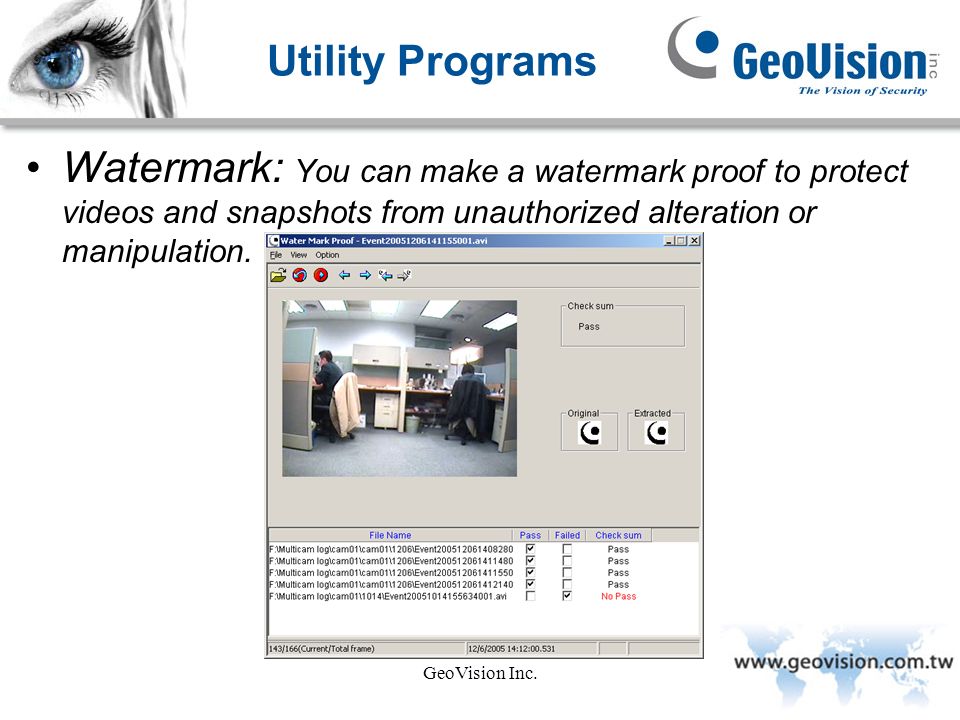

9. GeoVision Inc. Utility Programs Watermark: You can make a watermark proof to protect videos and snapshots from unauthorized alteration or manipulation.

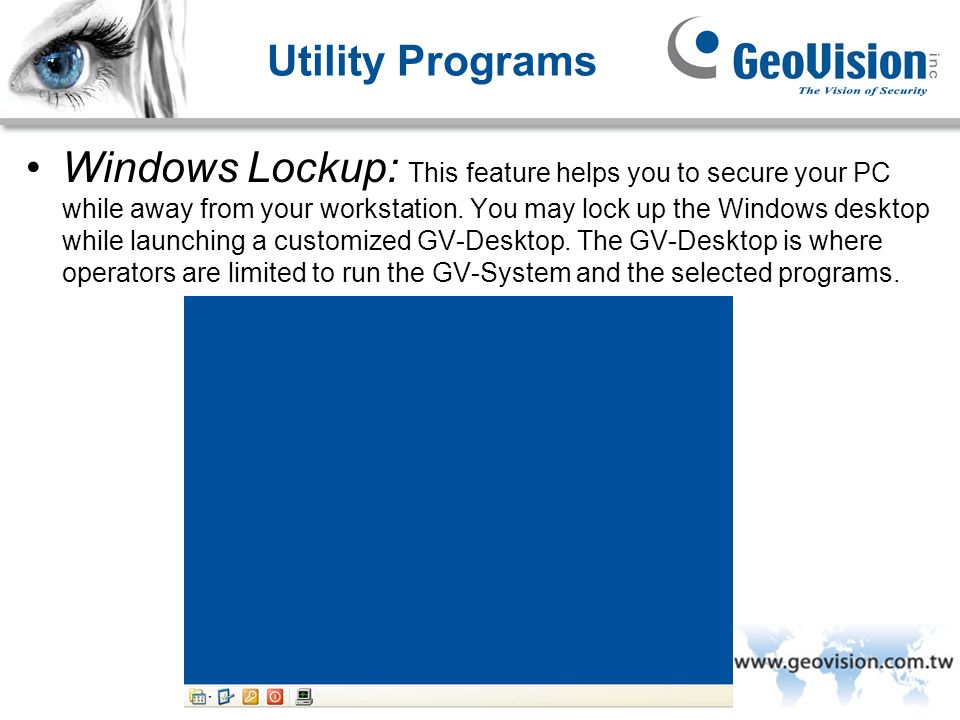

10. GeoVision Inc. Utility Programs Windows Lockup: This feature helps you to secure your PC while away from your workstation. You may lock up the Windows desktop while launching a customized GV-Desktop. The GV-Desktop is where operators are limited to run the GV-System and the selected programs.

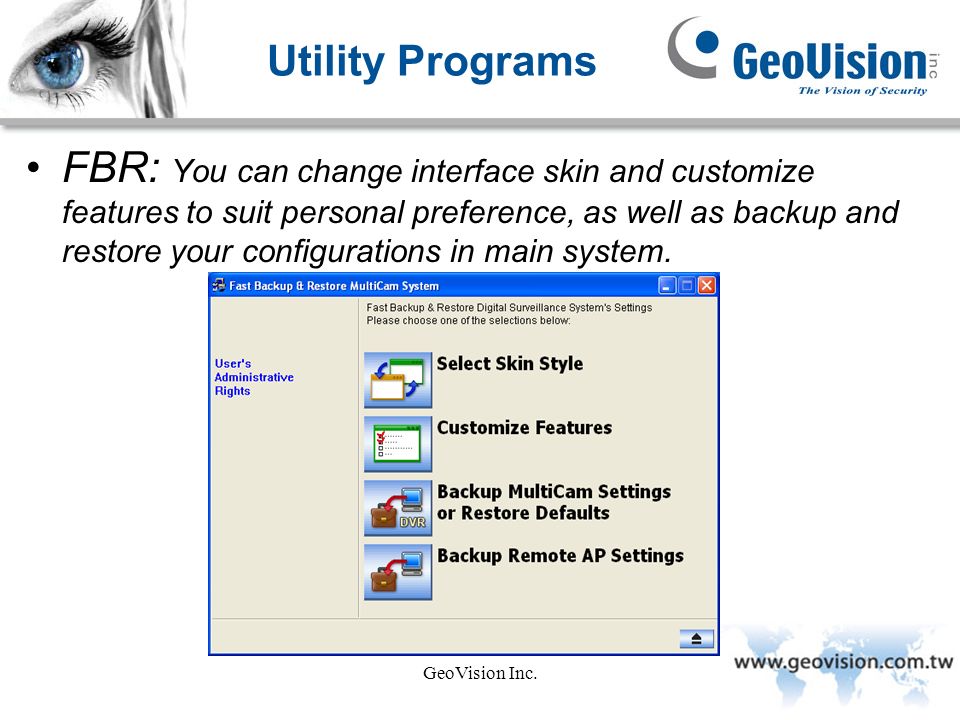

11. GeoVision Inc. Utility Programs FBR: You can change interface skin and customize features to suit personal preference, as well as backup and restore your configurations in main system.

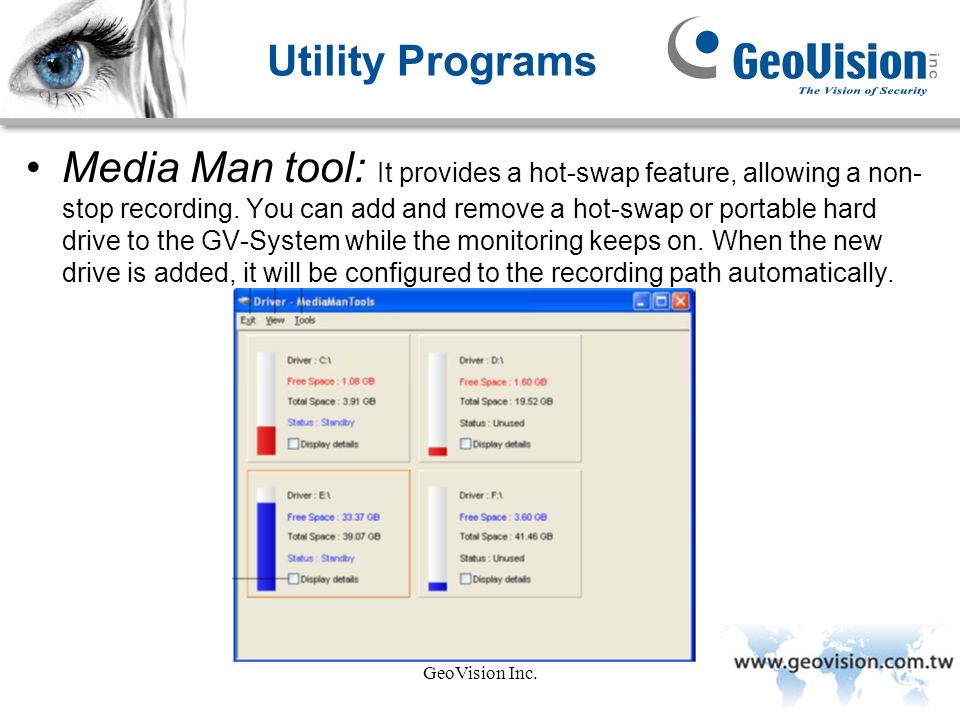

12. GeoVision Inc. Utility Programs Media Man tool: It provides a hot-swap feature, allowing a non- stop recording. You can add and remove a hot-swap or portable hard drive to the GV-System while the monitoring keeps on. When the new drive is added, it will be configured to the recording path automatically.

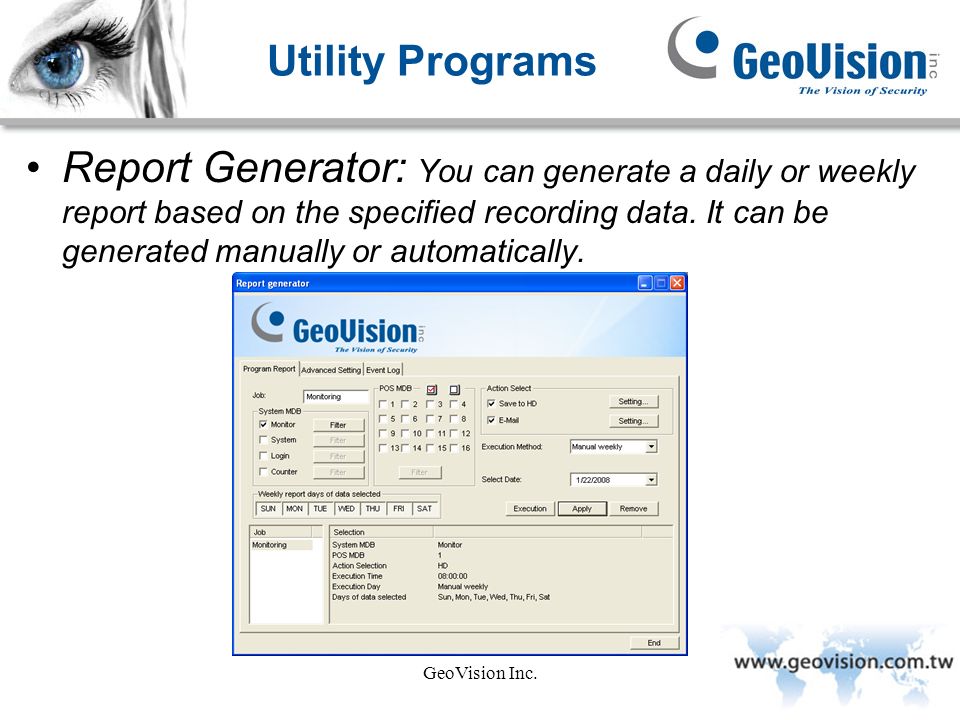

13. GeoVision Inc. Utility Programs Report Generator: You can generate a daily or weekly report based on the specified recording data. It can be generated manually or automatically.

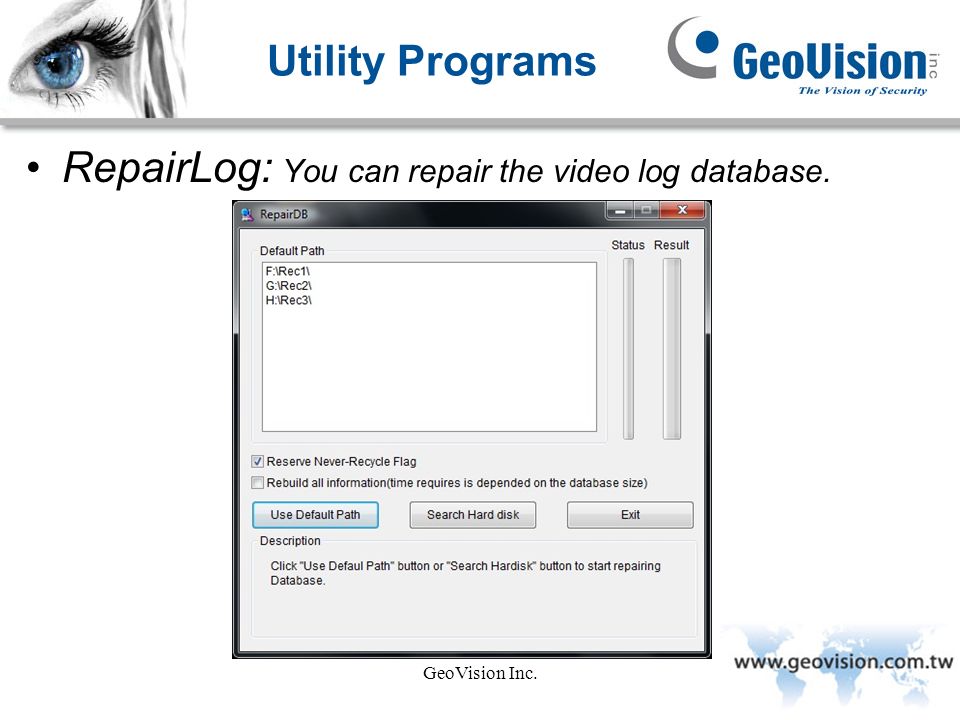

14. GeoVision Inc. Utility Programs RepairLog: You can repair the video log database.

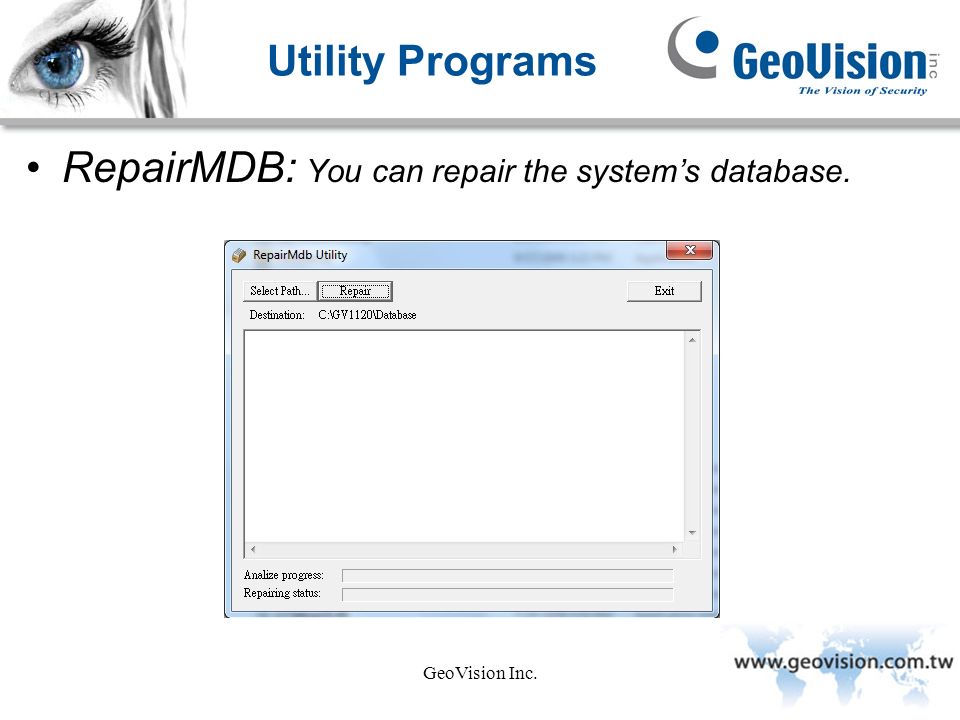

15. GeoVision Inc. Utility Programs RepairMDB: You can repair the system’s database.

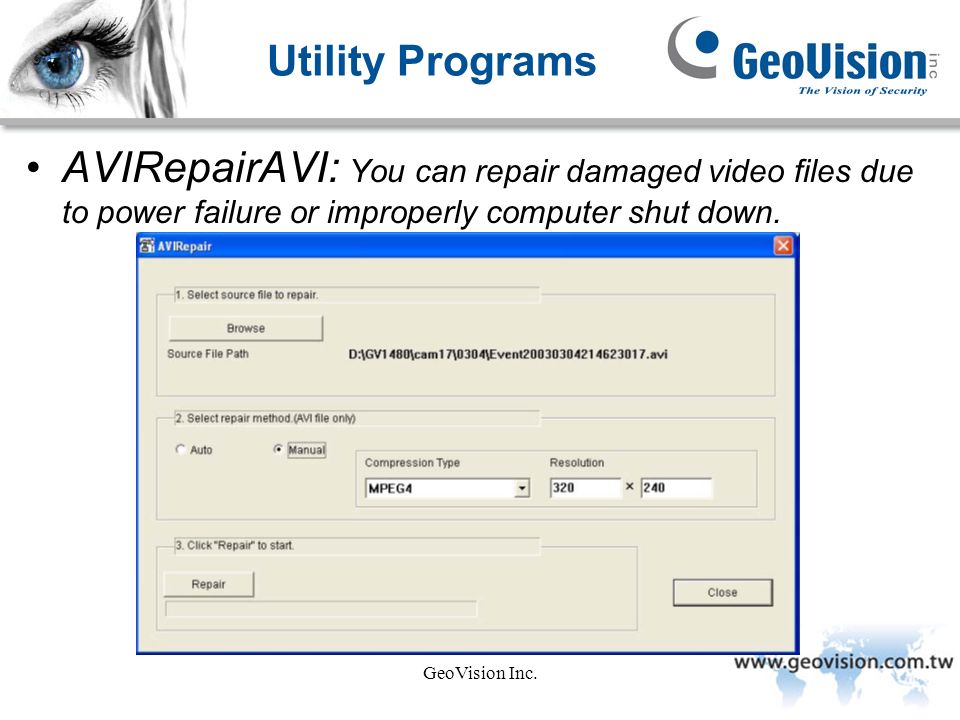

16. GeoVision Inc. Utility Programs AVIRepairAVI: You can repair damaged video files due to power failure or improperly computer shut down.

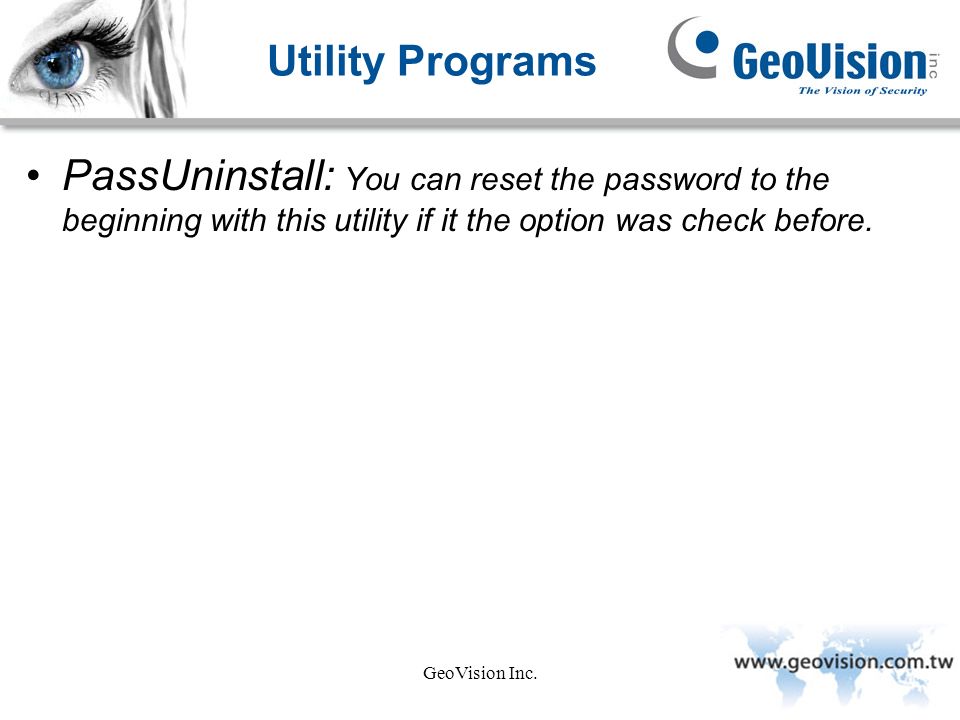

17. GeoVision Inc. Utility Programs PassUninstall: You can reset the password to the beginning with this utility if it the option was check before.

18. GeoVision Inc. DynDNS To install Dynamic DNS, follow these steps: 1. Insert the Surveillance System Software CD to your PC. It will automatically run, and a window appears. 2. Click Install V 8.X.X.X System. 3. Select Dynamic DNS Service, and follow the on-screen instructions.

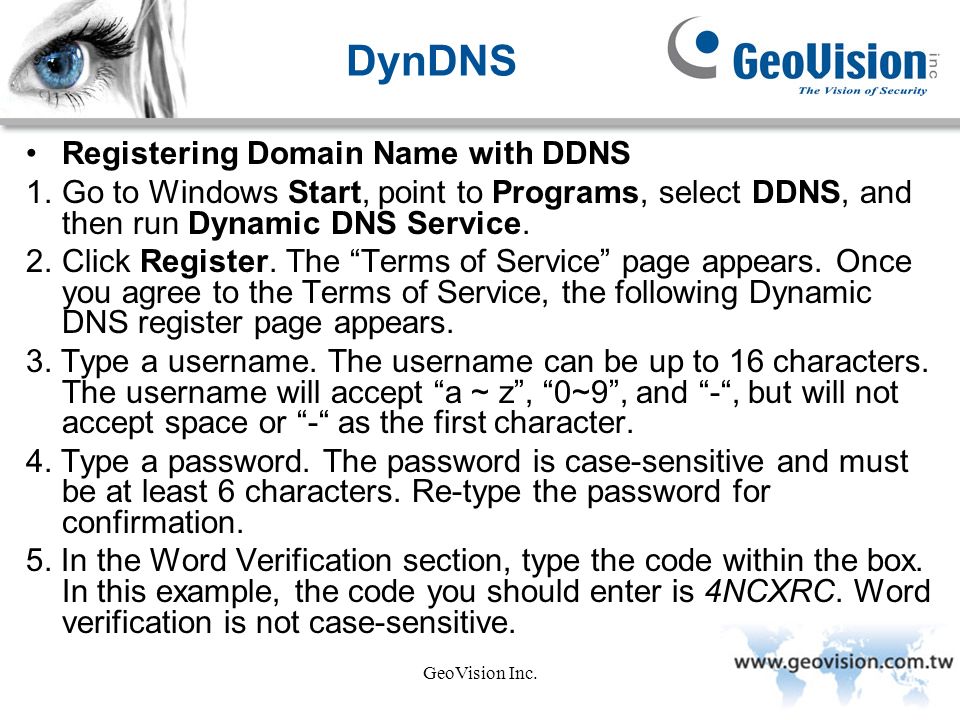

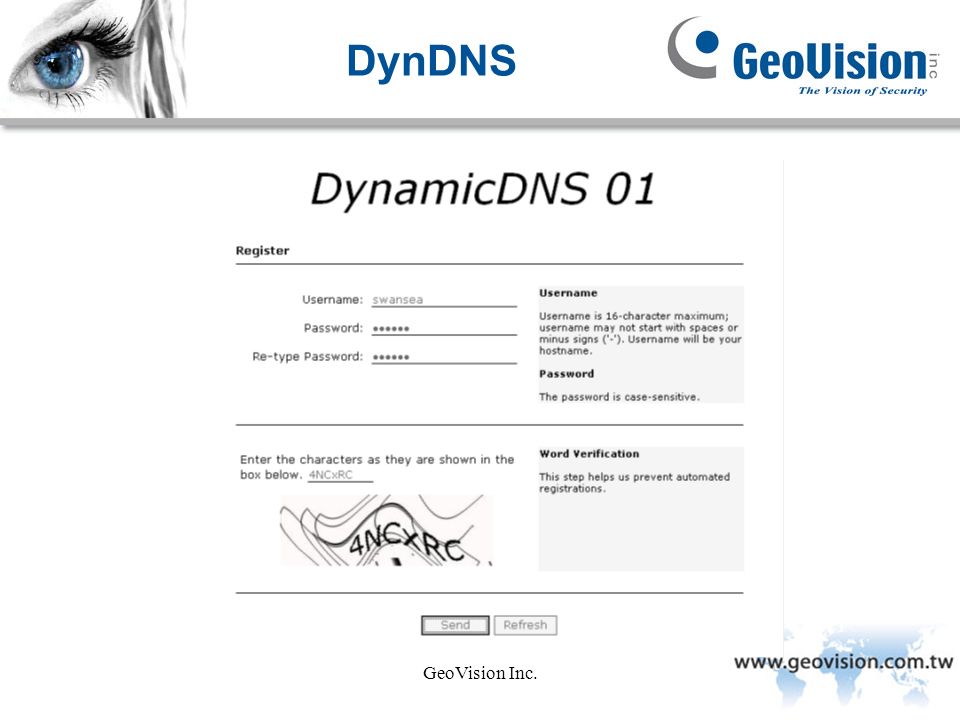

19. GeoVision Inc. DynDNS Registering Domain Name with DDNS 1.Go to Windows Start, point to Programs, select DDNS, and then run Dynamic DNS Service. 2.Click Register. The “Terms of Service” page appears. Once you agree to the Terms of Service, the following Dynamic DNS register page appears. 3. Type a username. The username can be up to 16 characters. The username will accept “a ~ z”, “0~9”, and “-“, but will not accept space or “-“ as the first character. 4. Type a password. The password is case-sensitive and must be at least 6 characters. Re-type the password for confirmation. 5. In the Word Verification section, type the code within the box. In this example, the code you should enter is 4NCXRC. Word verification is not case-sensitive.

20. GeoVision Inc. DynDNS

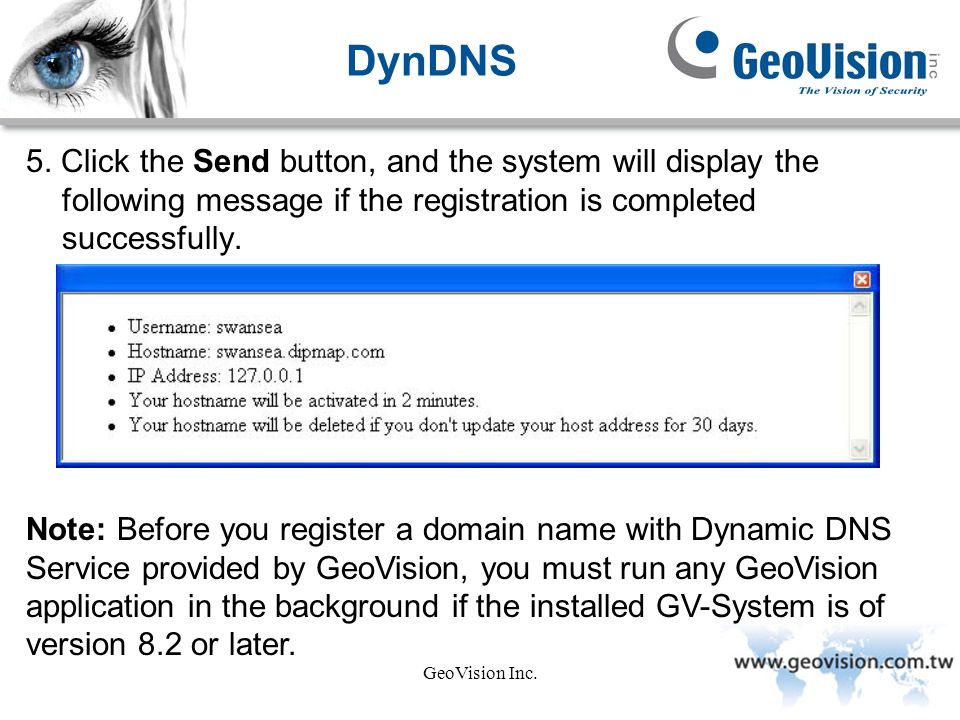

21. GeoVision Inc. DynDNS 5. Click the Send button, and the system will display the following message if the registration is completed successfully. Note: Before you register a domain name with Dynamic DNS Service provided by GeoVision, you must run any GeoVision application in the background if the installed GV-System is of version 8.2 or later.

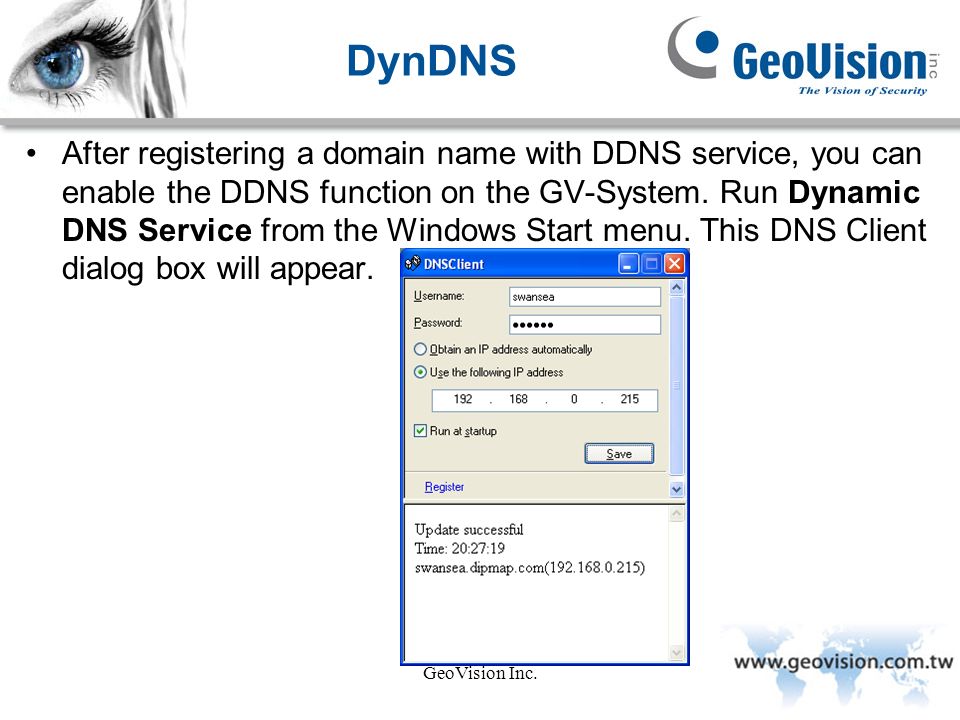

22. GeoVision Inc. DynDNS After registering a domain name with DDNS service, you can enable the DDNS function on the GV-System. Run Dynamic DNS Service from the Windows Start menu. This DNS Client dialog box will appear.

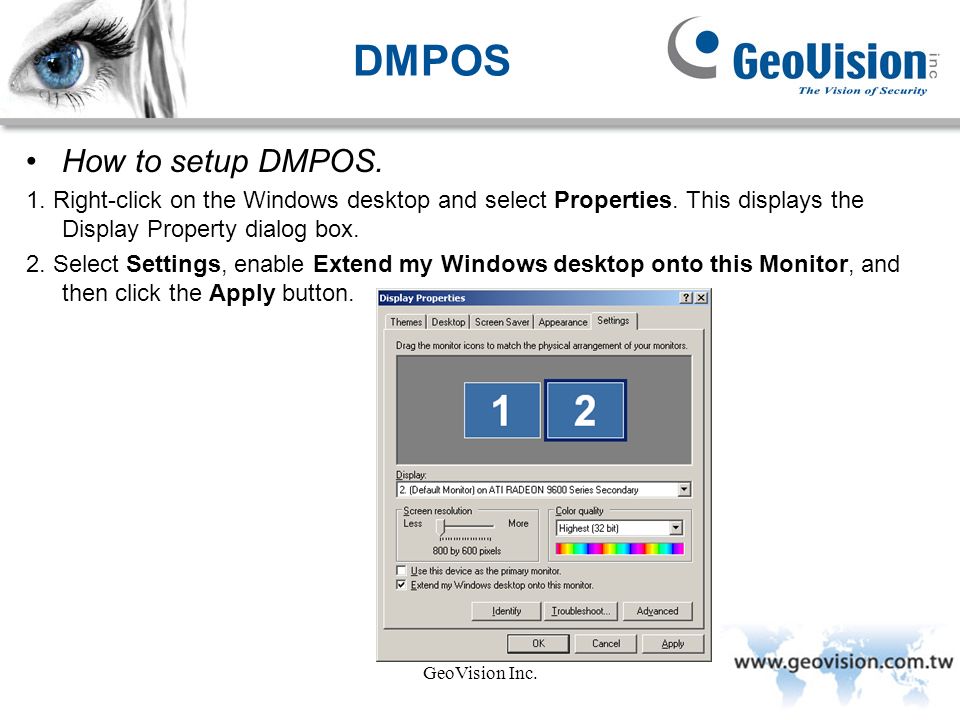

23. GeoVision Inc. DMPOS How to setup DMPOS. 1. Right-click on the Windows desktop and select Properties. This displays the Display Property dialog box. 2. Select Settings, enable Extend my Windows desktop onto this Monitor, and then click the Apply button.

24. GeoVision Inc. DMPOS 3. Go the system folder and locate DMPOS.exe.

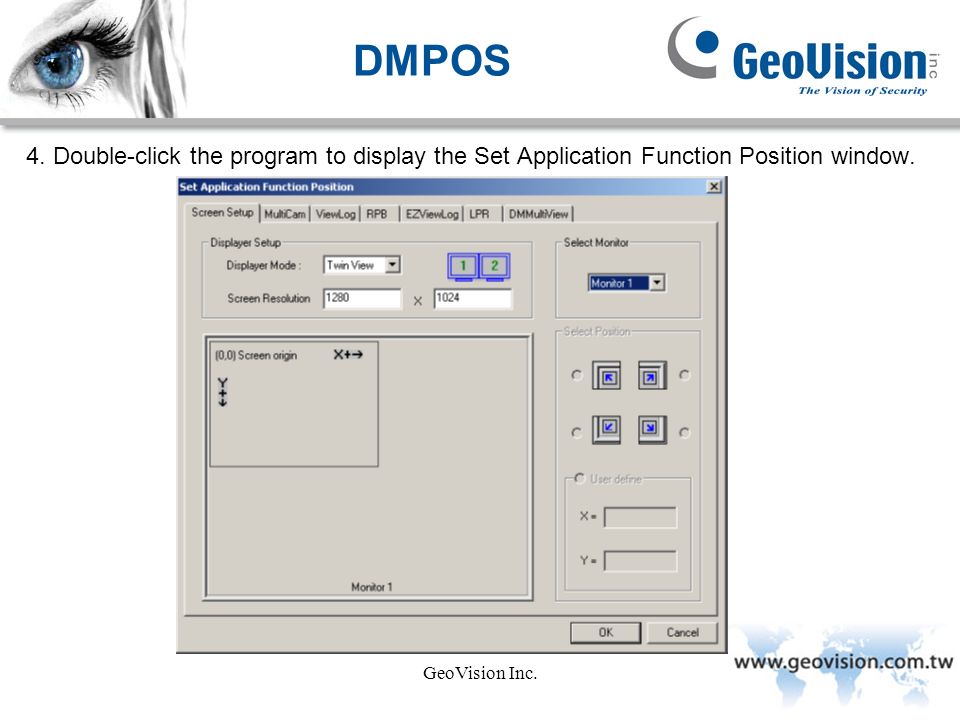

25. GeoVision Inc. DMPOS 4. Double-click the program to display the Set Application Function Position window.

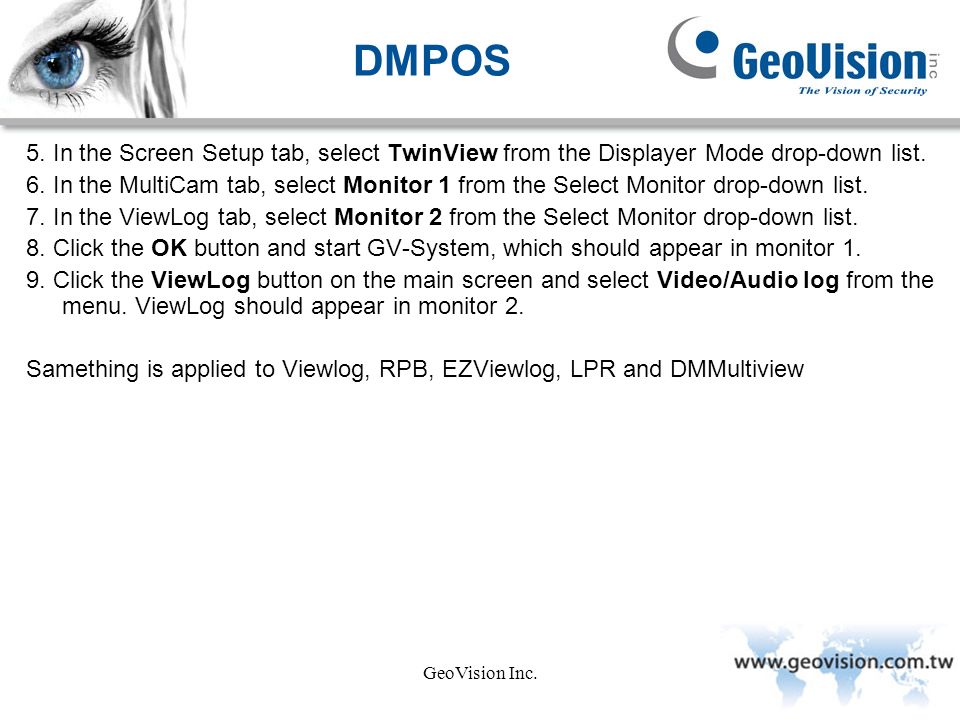

26. GeoVision Inc. DMPOS 5. In the Screen Setup tab, select TwinView from the Displayer Mode drop-down list. 6. In the MultiCam tab, select Monitor 1 from the Select Monitor drop-down list. 7. In the ViewLog tab, select Monitor 2 from the Select Monitor drop-down list. 8. Click the OK button and start GV-System, which should appear in monitor 1. 9. Click the ViewLog button on the main screen and select Video/Audio log from the menu. ViewLog should appear in monitor 2. Samething is applied to Viewlog, RPB, EZViewlog, LPR and DMMultiview

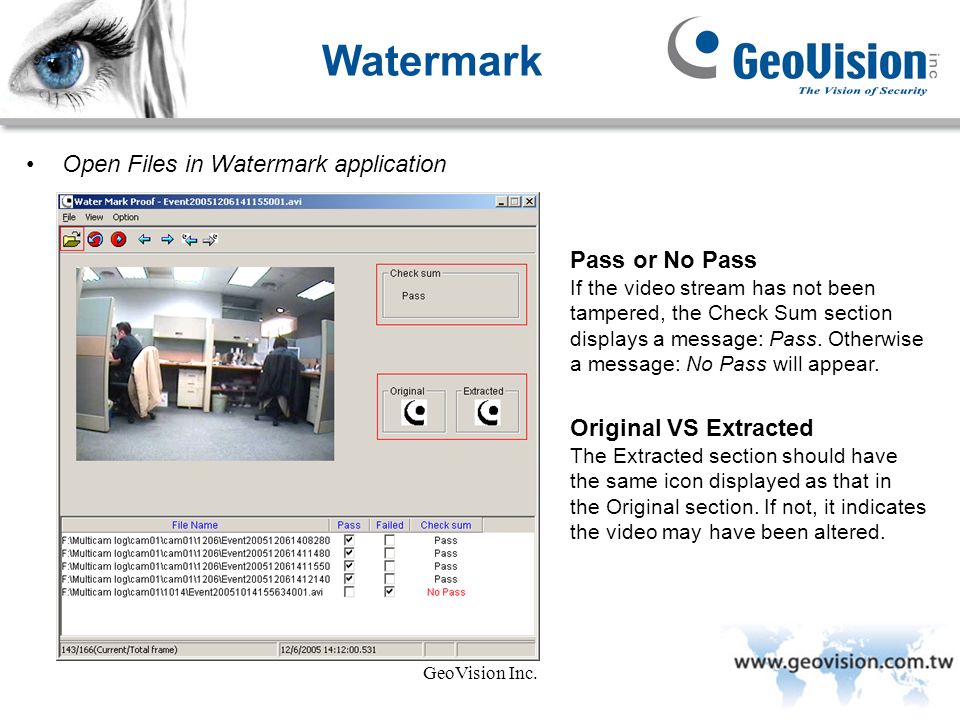

27. GeoVision Inc. Watermark Open Files in Watermark application Pass or No Pass If the video stream has not been tampered, the Check Sum section displays a message: Pass. Otherwise a message: No Pass will appear. Original VS Extracted The Extracted section should have the same icon displayed as that in the Original section. If not, it indicates the video may have been altered.

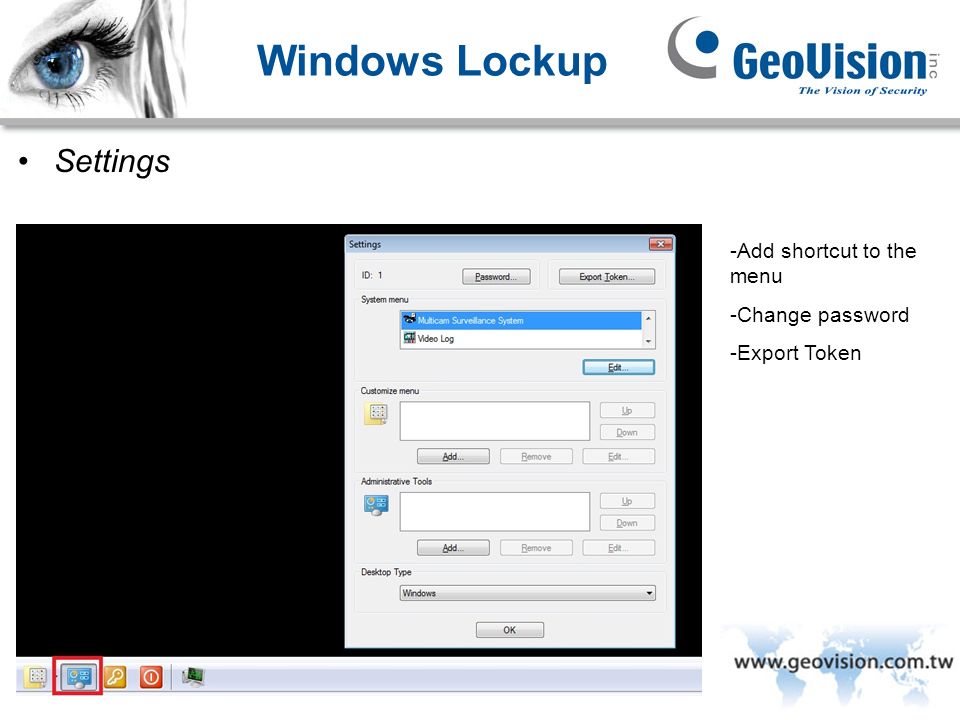

28. GeoVision Inc. Windows Lockup Settings -Add shortcut to the menu -Change password -Export Token

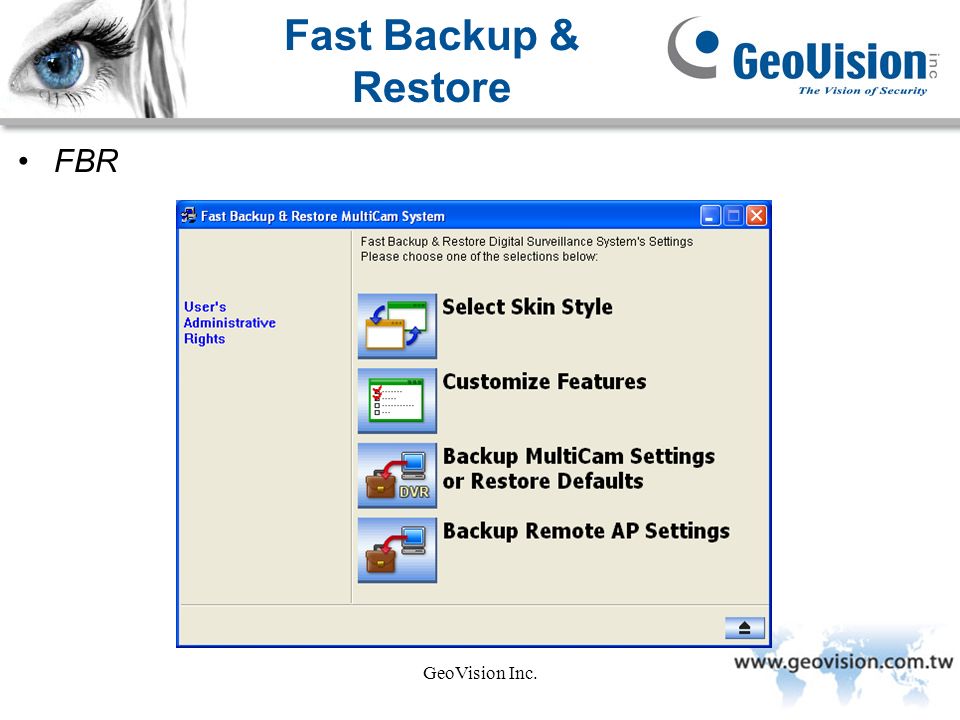

29. GeoVision Inc. Fast Backup & Restore FBR

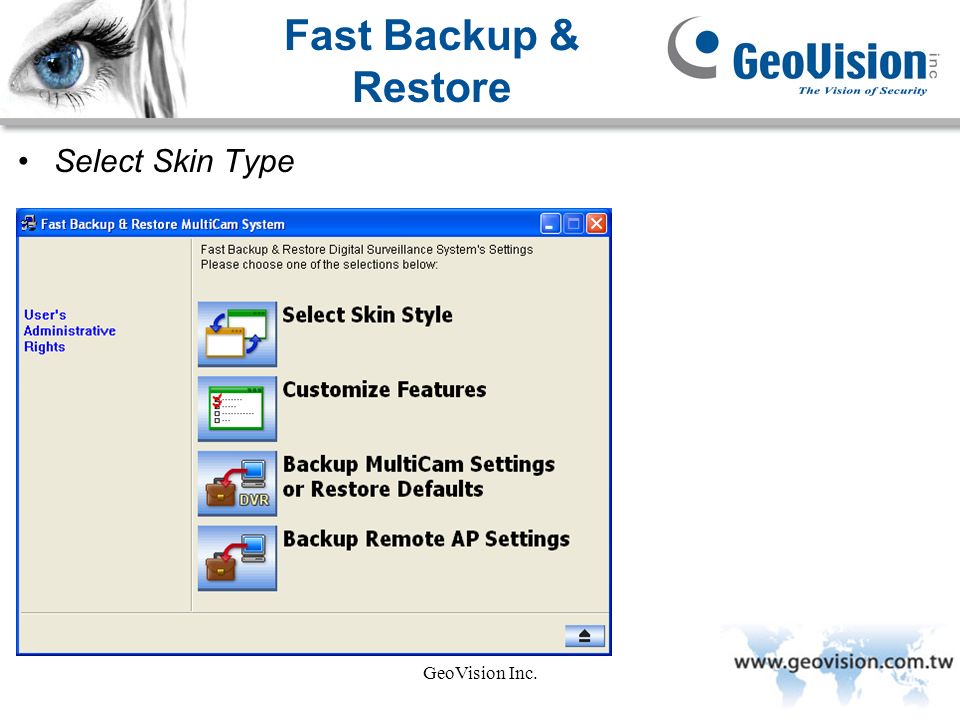

30. GeoVision Inc. Fast Backup & Restore Select Skin Type

31. GeoVision Inc. MediaMan Tools MediaMan Tools UI

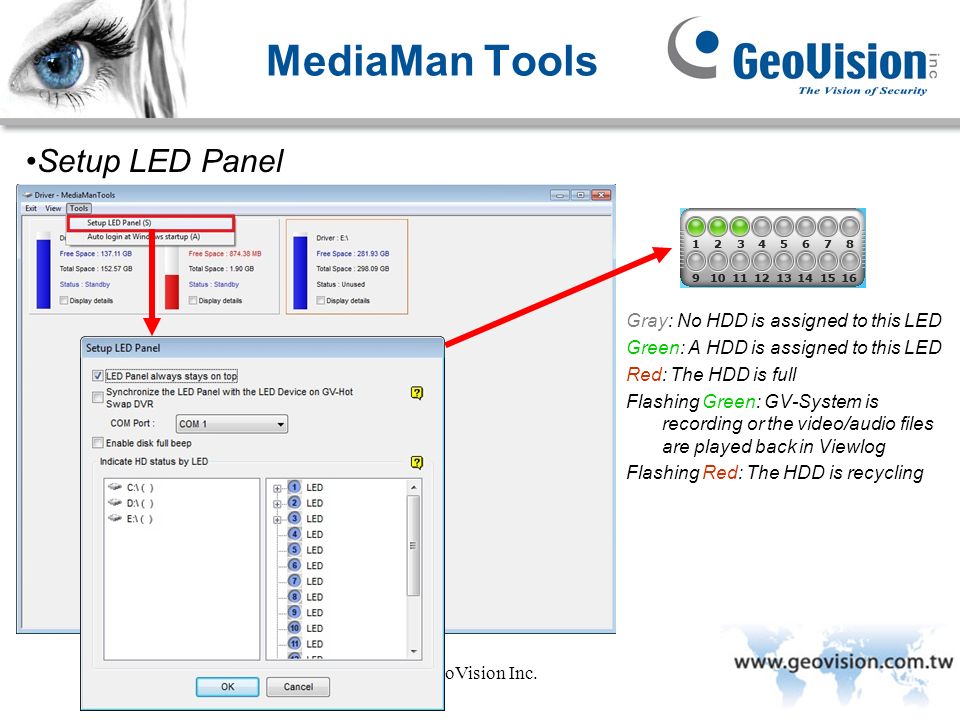

32. GeoVision Inc. MediaMan Tools Gray: No HDD is assigned to this LED Green: A HDD is assigned to this LED Red: The HDD is full Flashing Green: GV-System is recording or the video/audio files are played back in Viewlog Flashing Red: The HDD is recycling Setup LED Panel

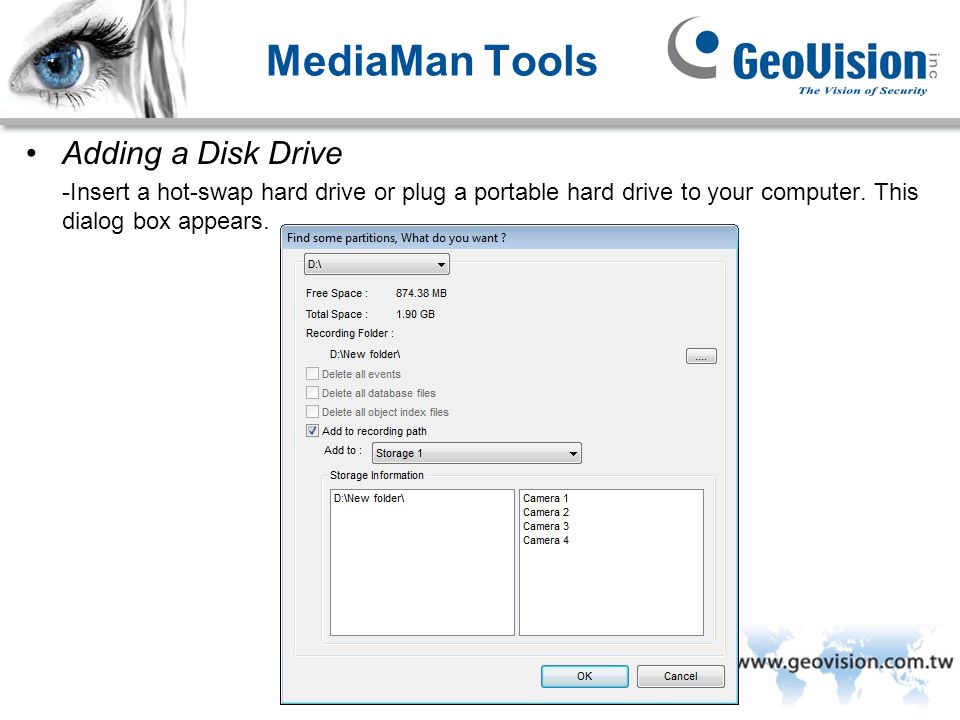

33. GeoVision Inc. MediaMan Tools Adding a Disk Drive -Insert a hot-swap hard drive or plug a portable hard drive to your computer. This dialog box appears.

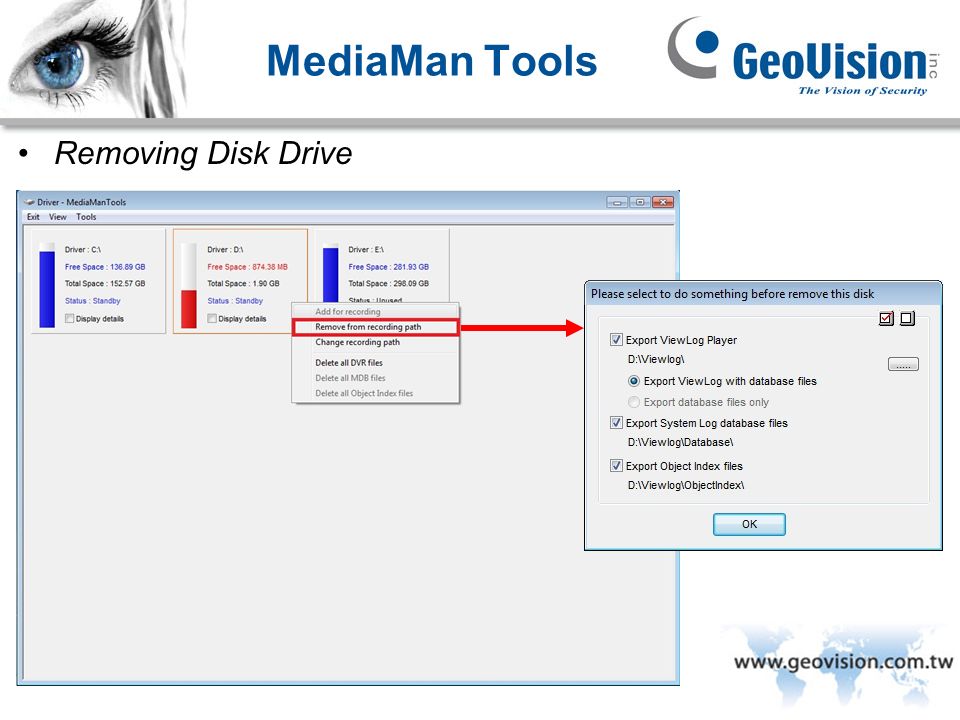

34. GeoVision Inc. MediaMan Tools Removing Disk Drive

35. GeoVision Inc. Report Generator It can generate a daily or weekly report based on the specified recording data, manually or automatically by schedule. Format: HTML or MDB

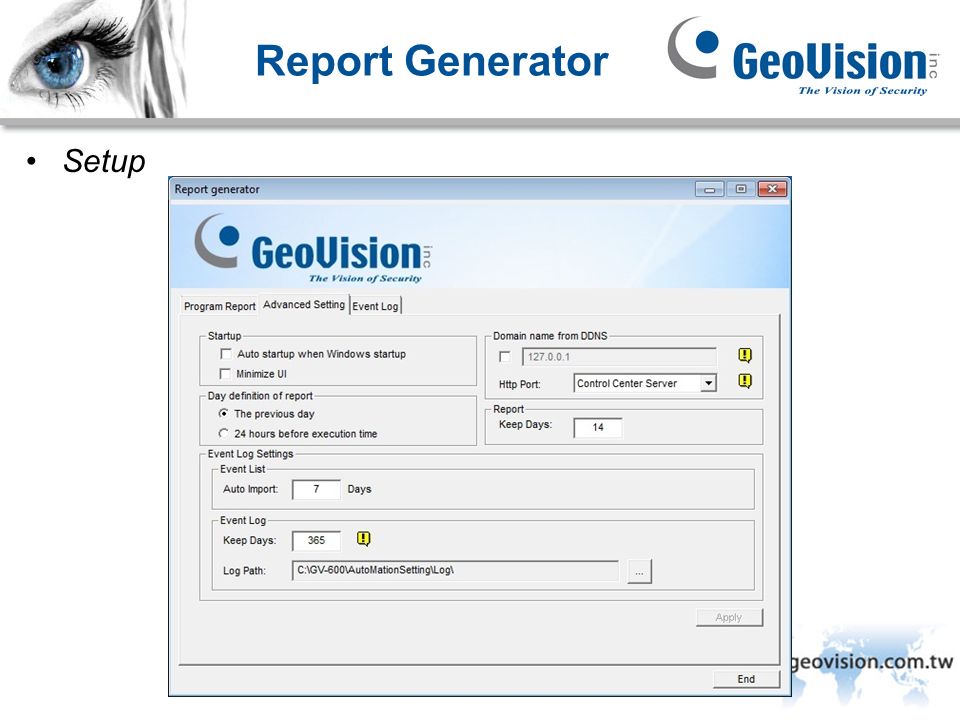

36. GeoVision Inc. Report Generator Setup

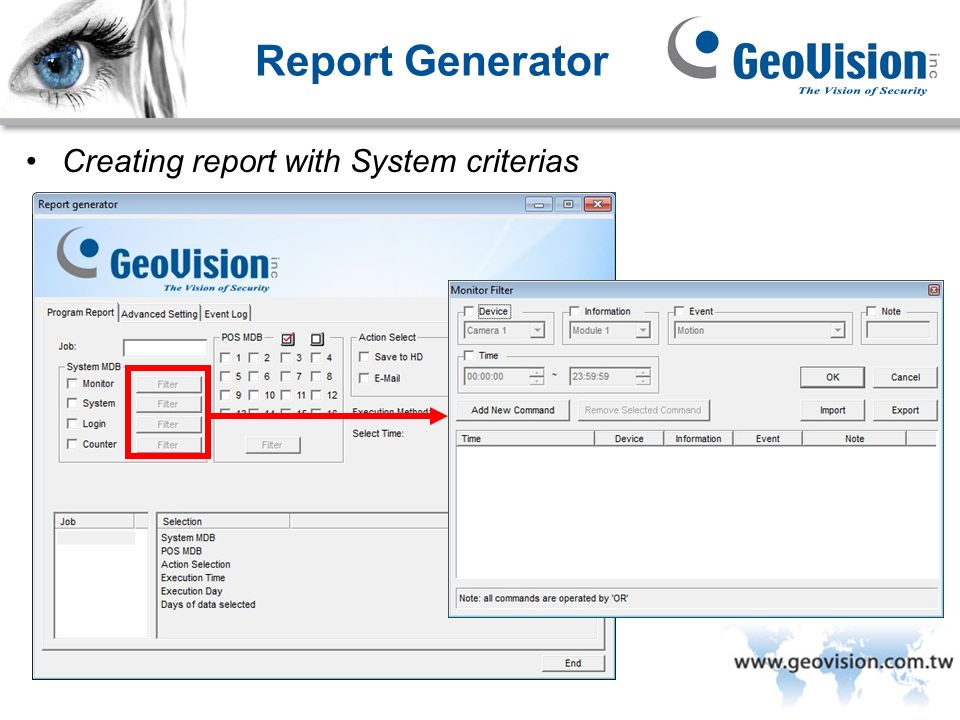

37. GeoVision Inc. Report Generator Creating report with System criterias

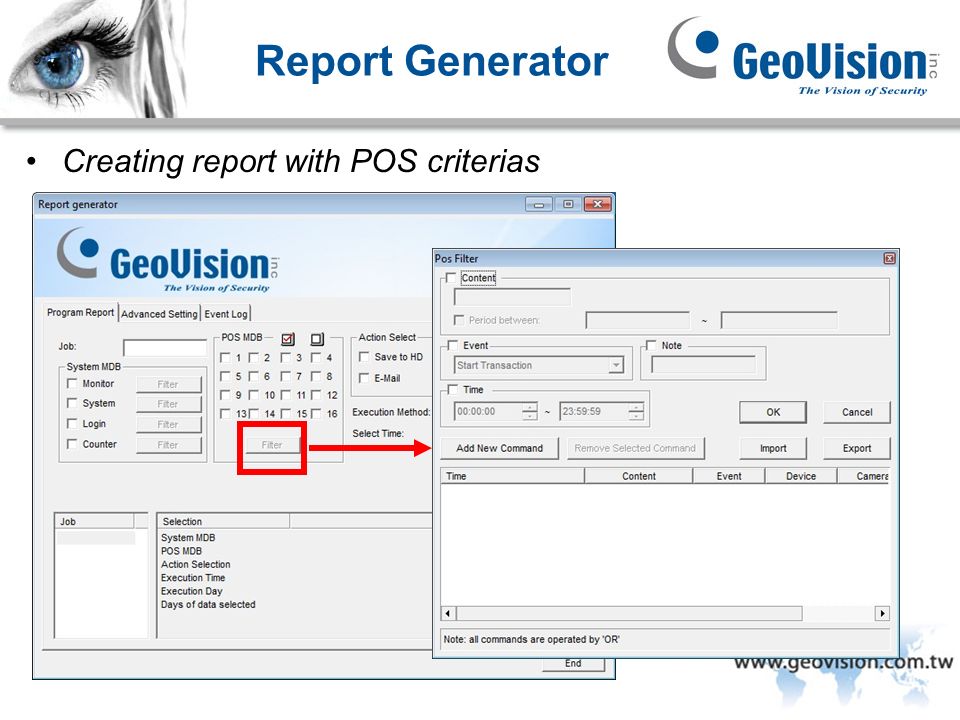

38. GeoVision Inc. Report Generator Creating report with POS criterias

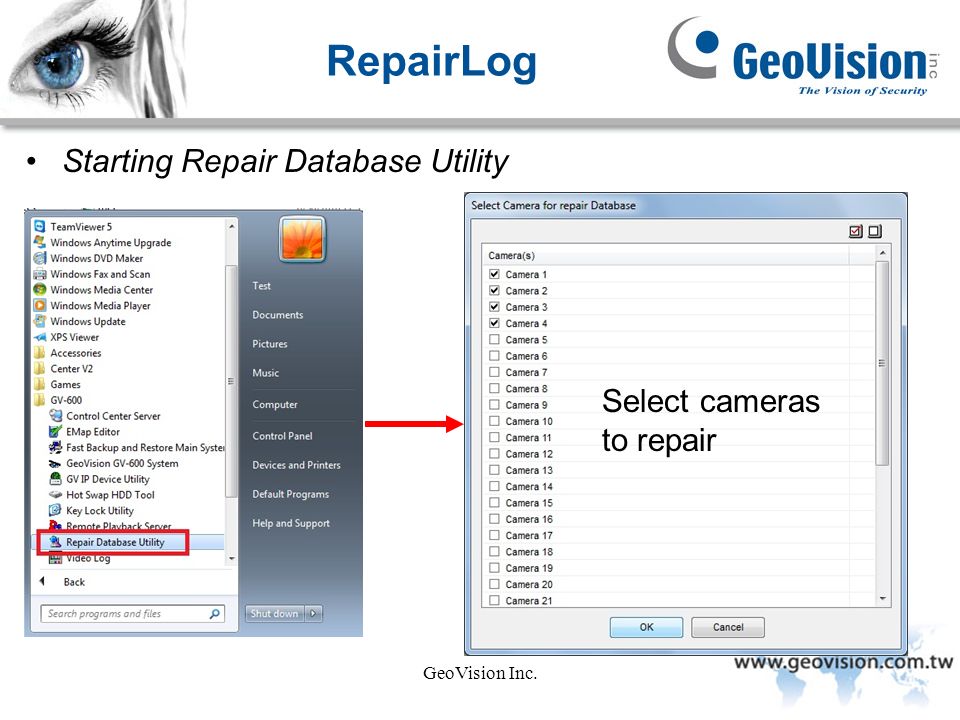

39. GeoVision Inc. RepairLog Starting Repair Database Utility Select cameras to repair

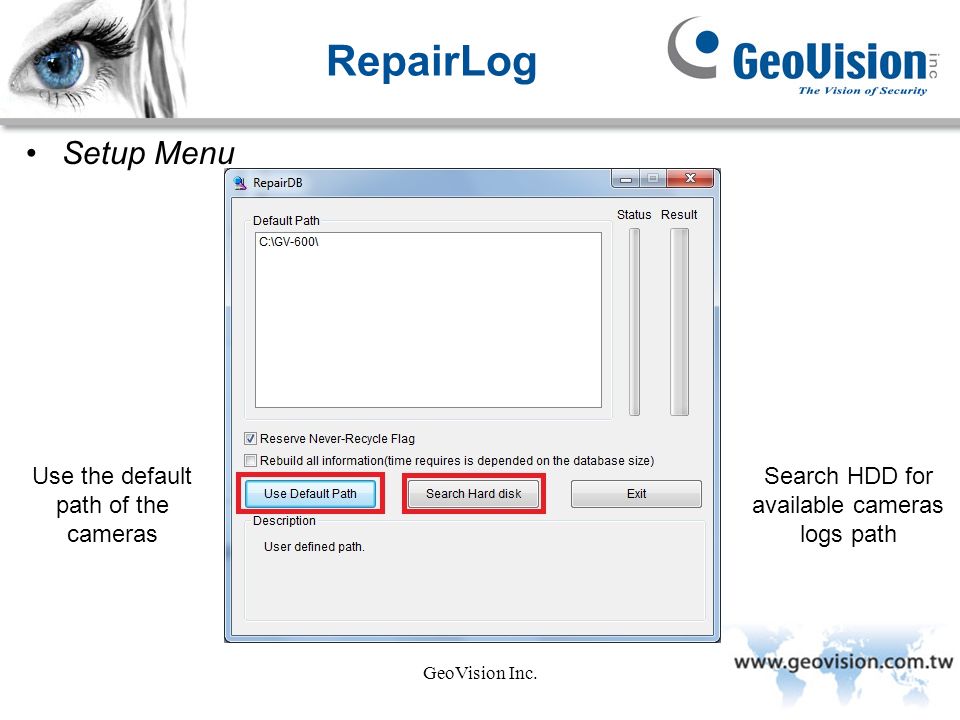

40. GeoVision Inc. RepairLog Setup Menu Use the default path of the cameras Search HDD for available cameras logs path

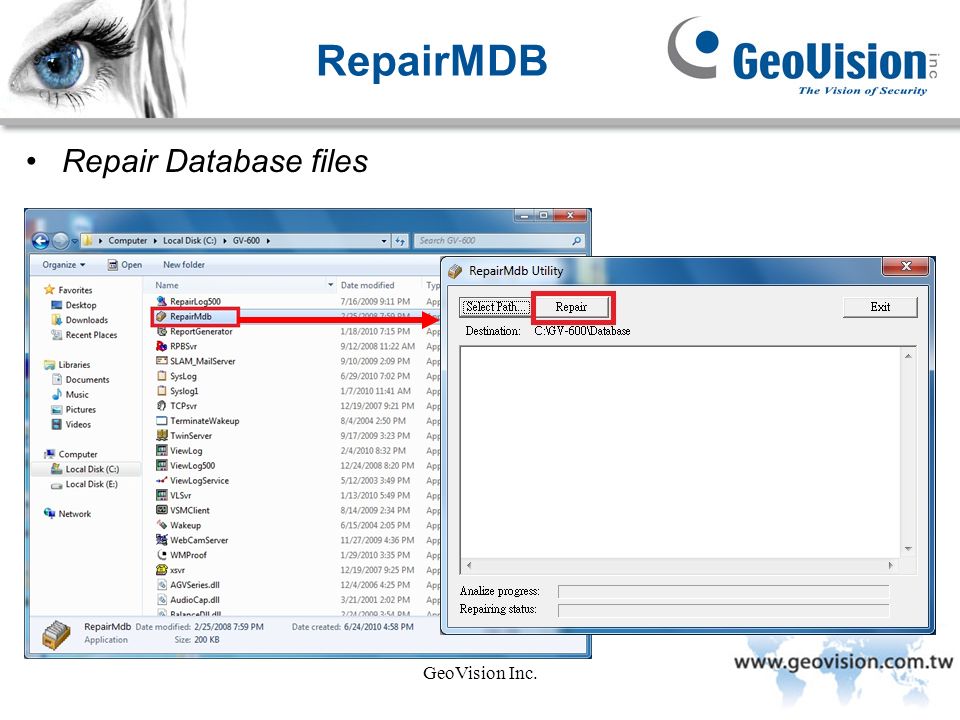

41. GeoVision Inc. RepairMDB Repair Database files

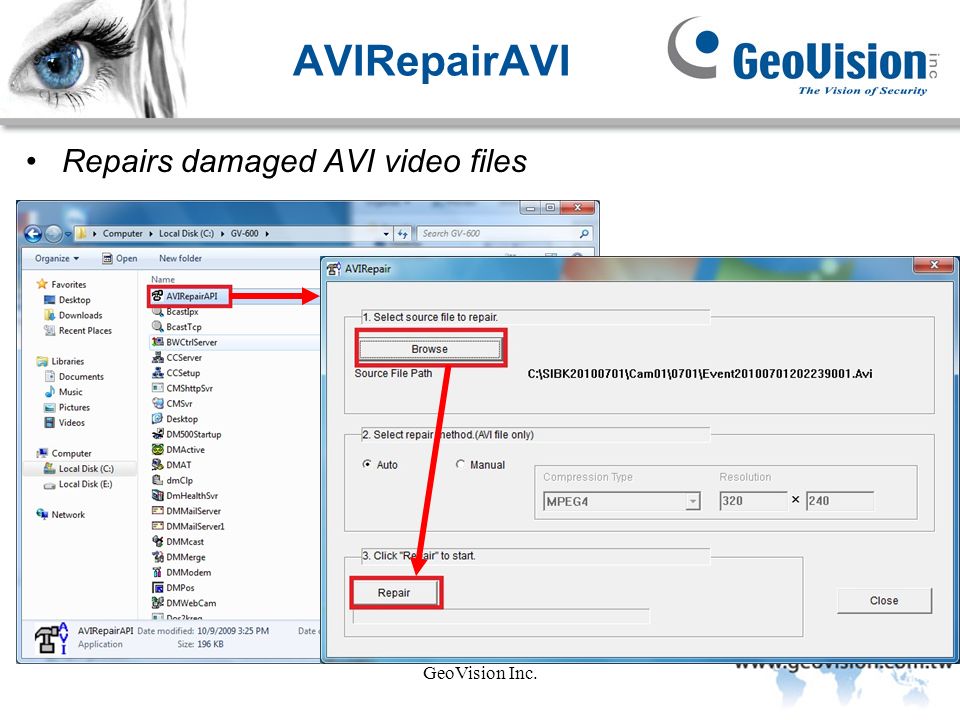

42. GeoVision Inc. AVIRepairAVI Repairs damaged AVI video files

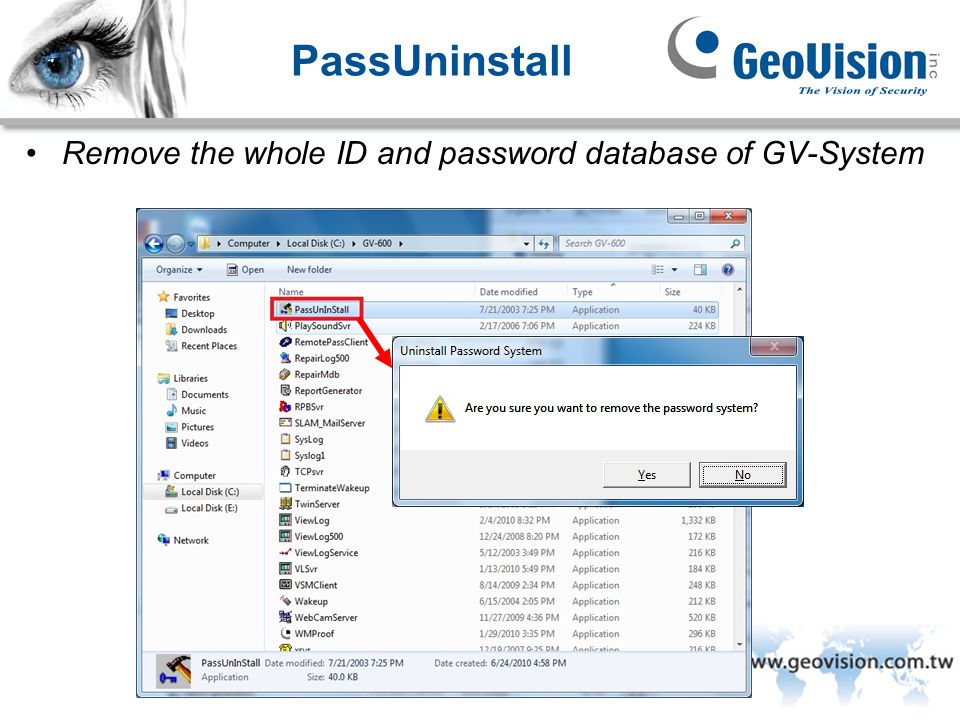

43. GeoVision Inc. PassUninstall Remove the whole ID and password database of GV-System

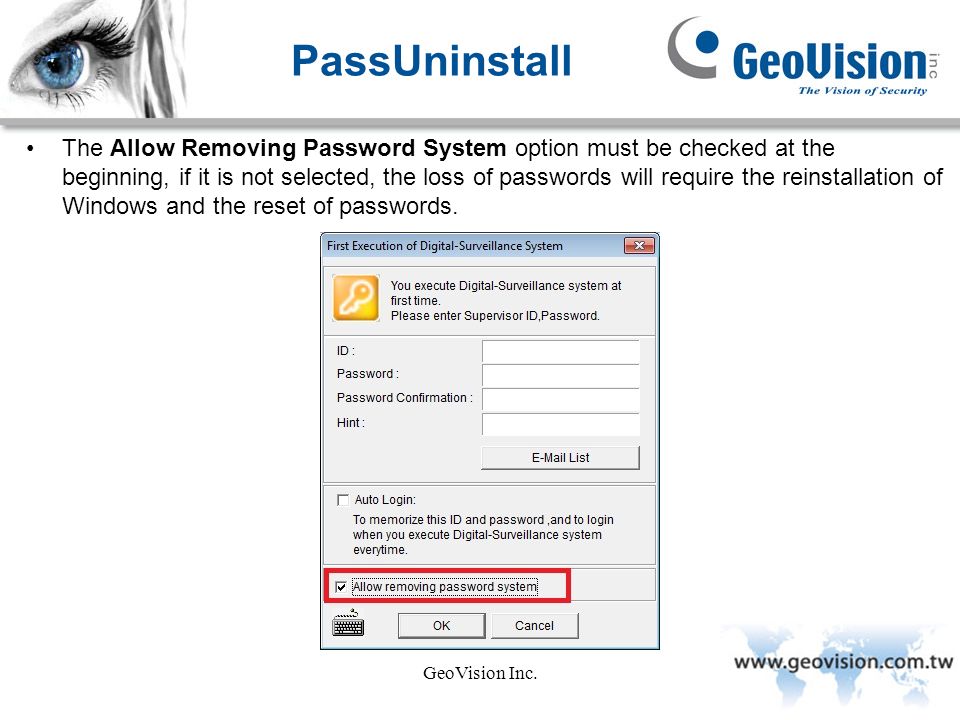

44. GeoVision Inc. PassUninstall The Allow Removing Password System option must be checked at the beginning, if it is not selected, the loss of passwords will require the reinstallation of Windows and the reset of passwords.

45. GeoVision Inc. PassUninstall You can also erase the entire password system with registry (internal use only) -Go to Regedit using Run -Search for Datacode -Delete the entry
