1 Molecular Cell Biology Fifth Edition Chapter 5: Biomembranes and Cell Architecture Copyright © 2004 by W. H. Freeman & Company Harvey Lodish Arnold Berk Paul Matsudaira Chris A. Kaiser Monty Krieger Matthew P. Scott Lawrence Zipursky James Darnell

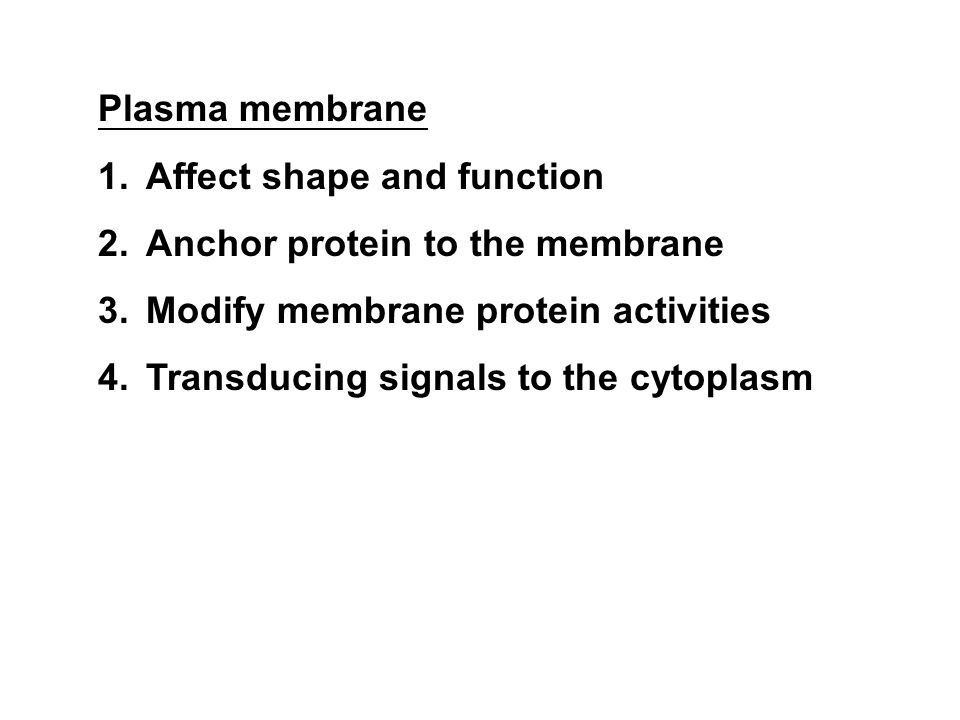

2 Plasma membrane 1.Affect shape and function 2.Anchor protein to the membrane 3.Modify membrane protein activities 4.Transducing signals to the cytoplasm

3

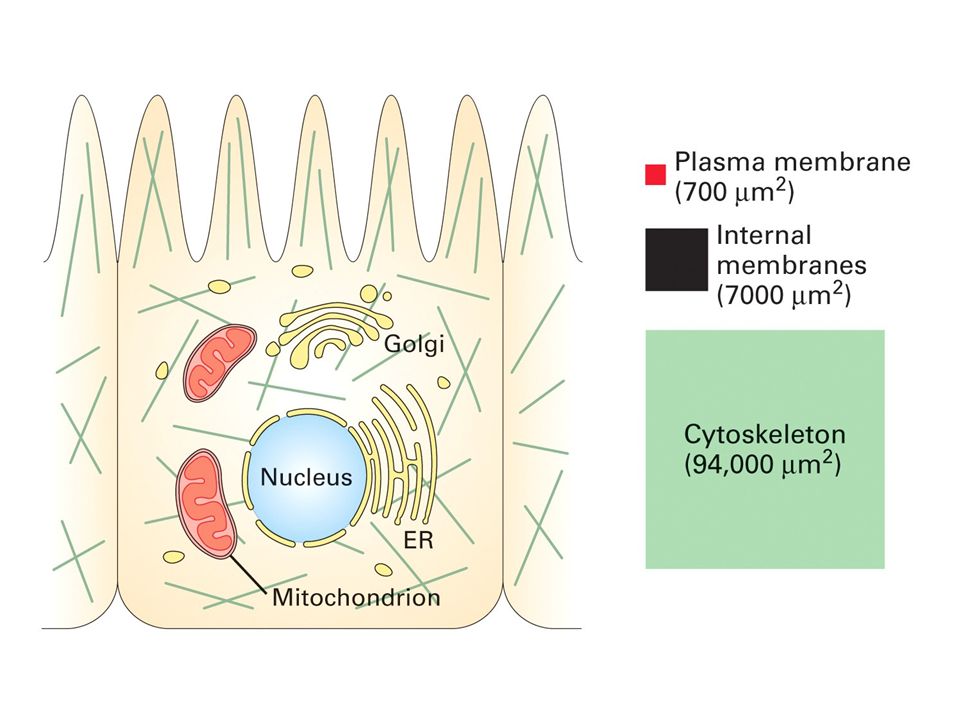

4

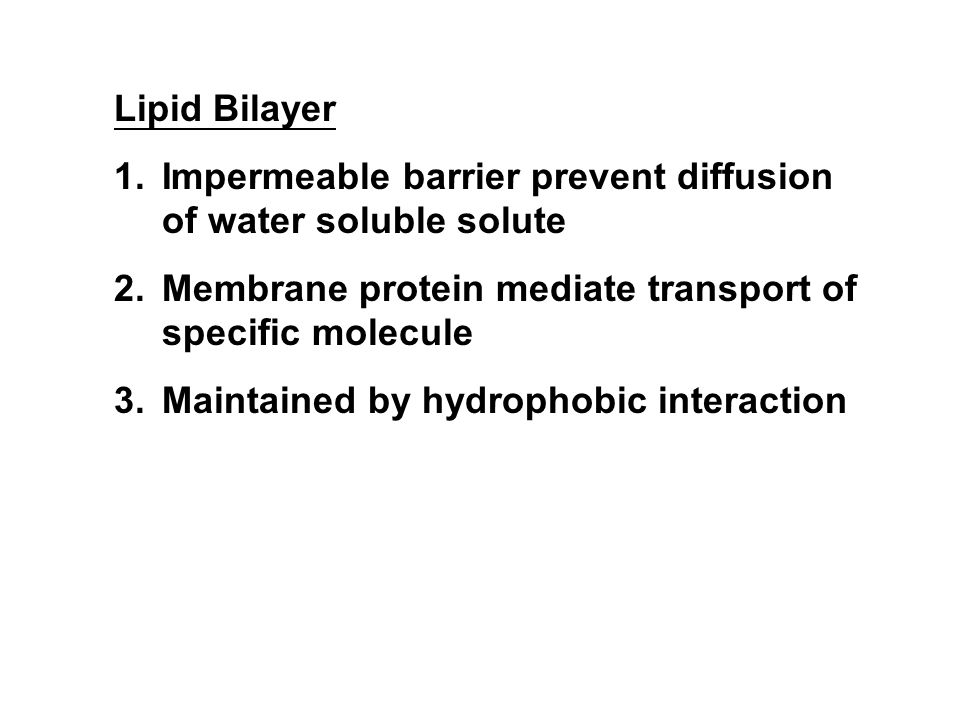

5 Lipid Bilayer 1.Impermeable barrier prevent diffusion of water soluble solute 2.Membrane protein mediate transport of specific molecule 3.Maintained by hydrophobic interaction

6

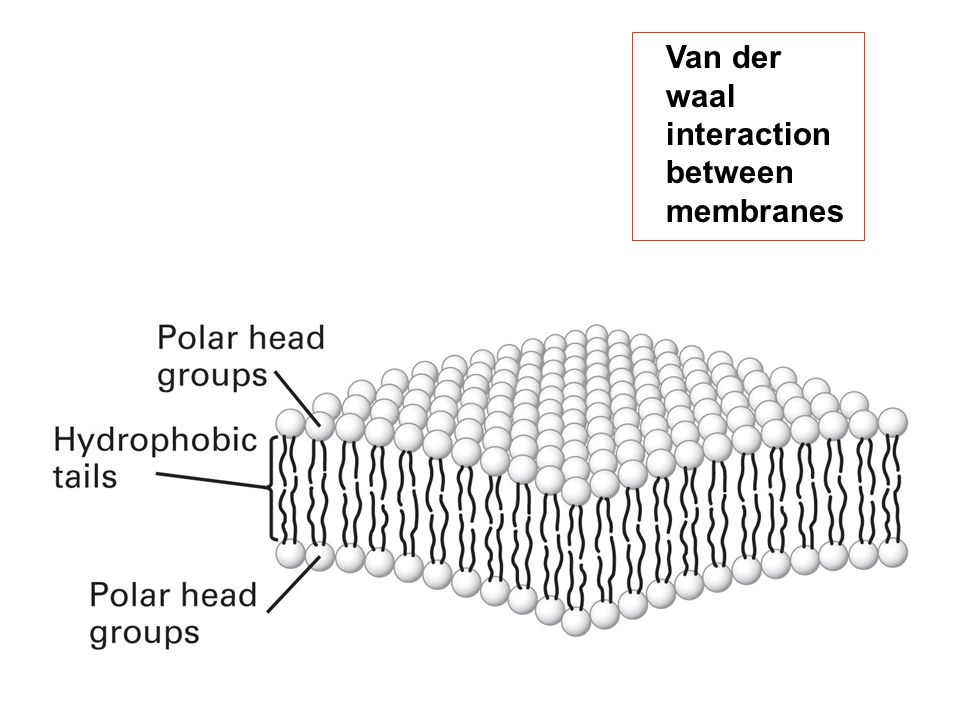

7 Van der waal interaction between membranes

8 RBC Smooth and flexible

9 Long, slender extension

10 Multiple layers of modified plasma membrane: formed by adjacent glial cells

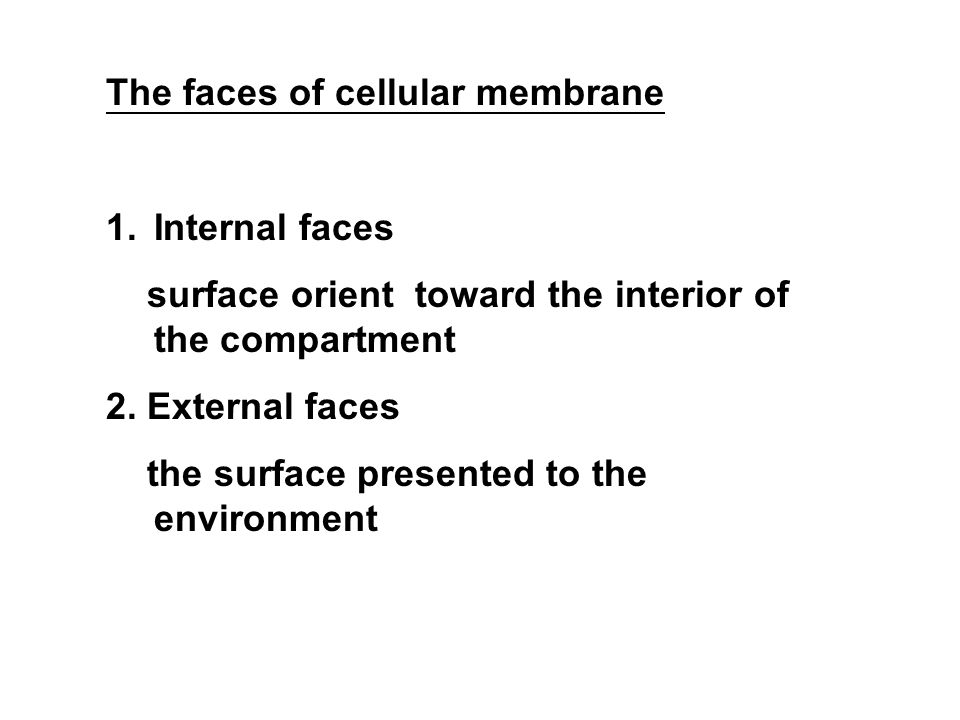

11 The faces of cellular membrane 1.Internal faces surface orient toward the interior of the compartment 2. External faces the surface presented to the environment

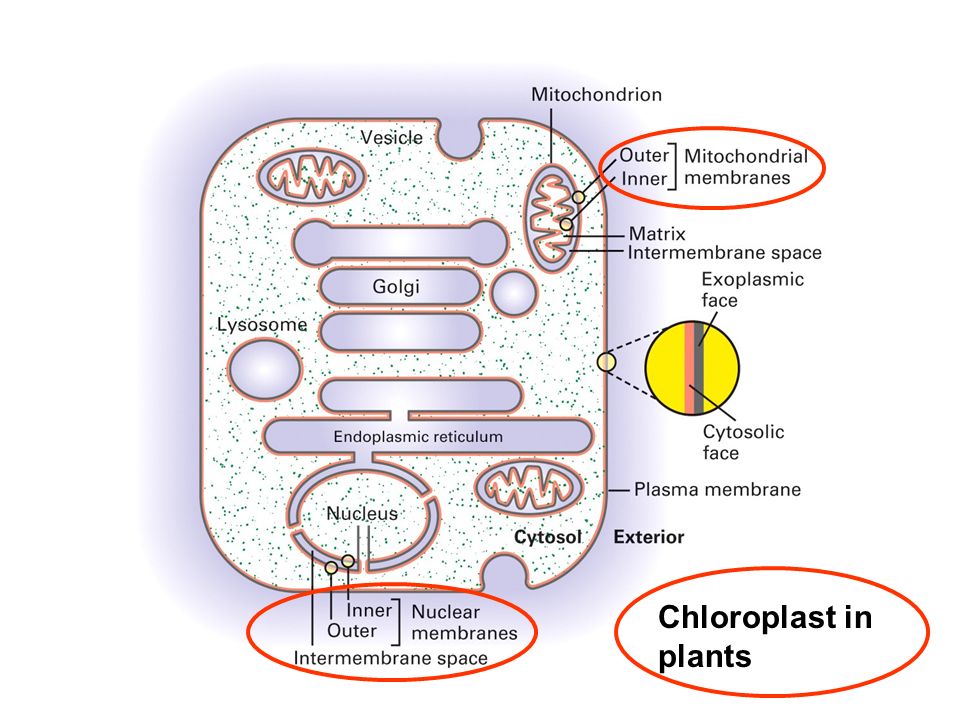

12 Chloroplast in plants

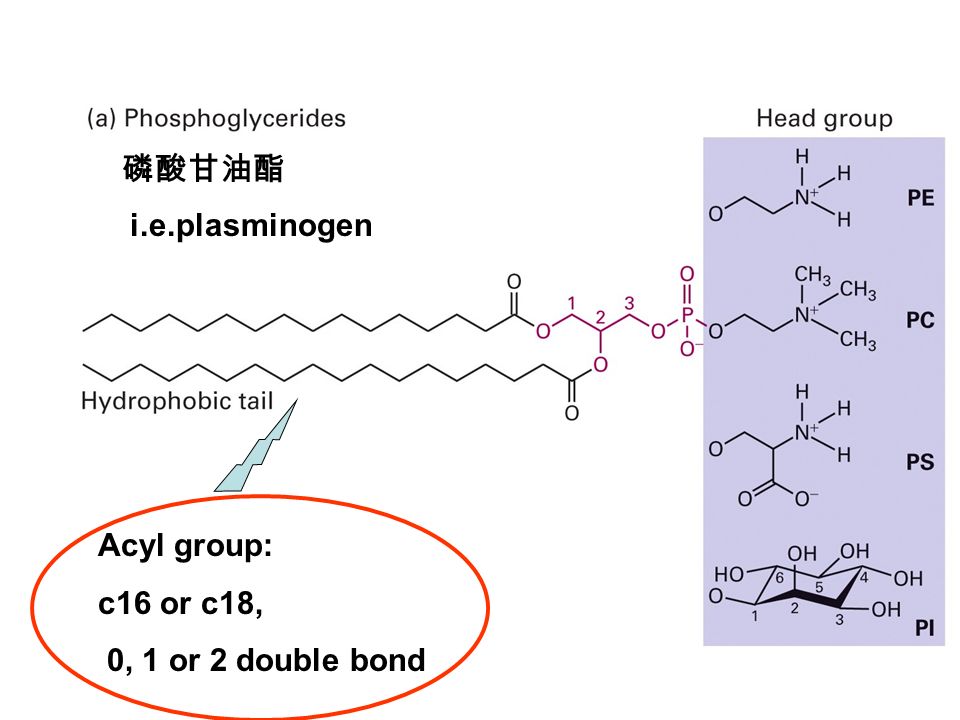

13 磷酸甘油酯 Acyl group: c16 or c18, 0, 1 or 2 double bond i.e.plasminogen

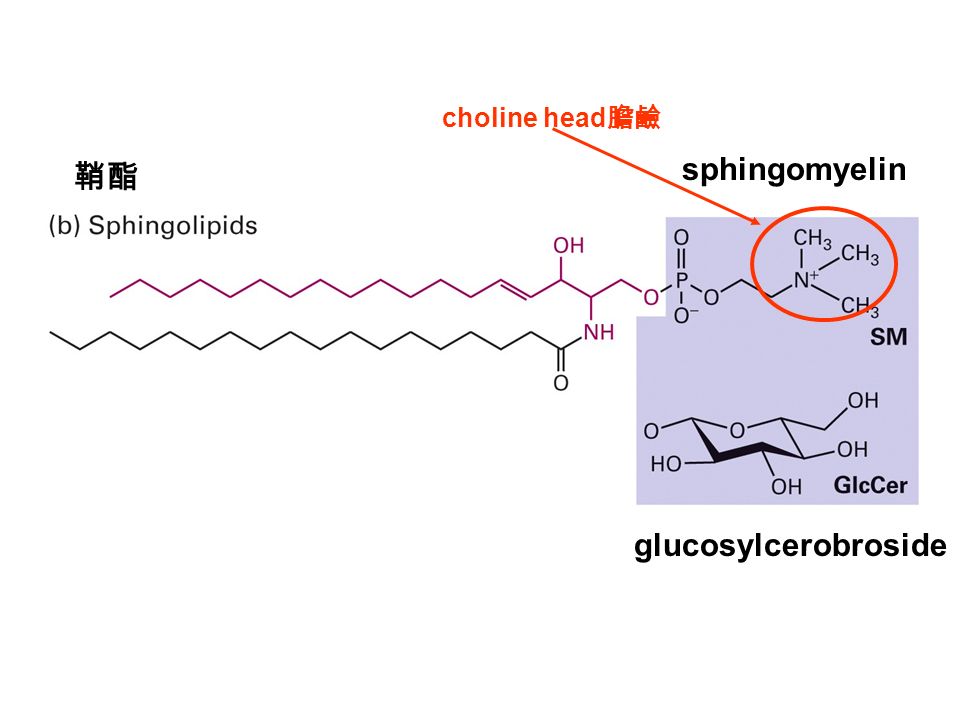

14 鞘酯 sphingomyelin glucosylcerobroside choline head 膽鹼

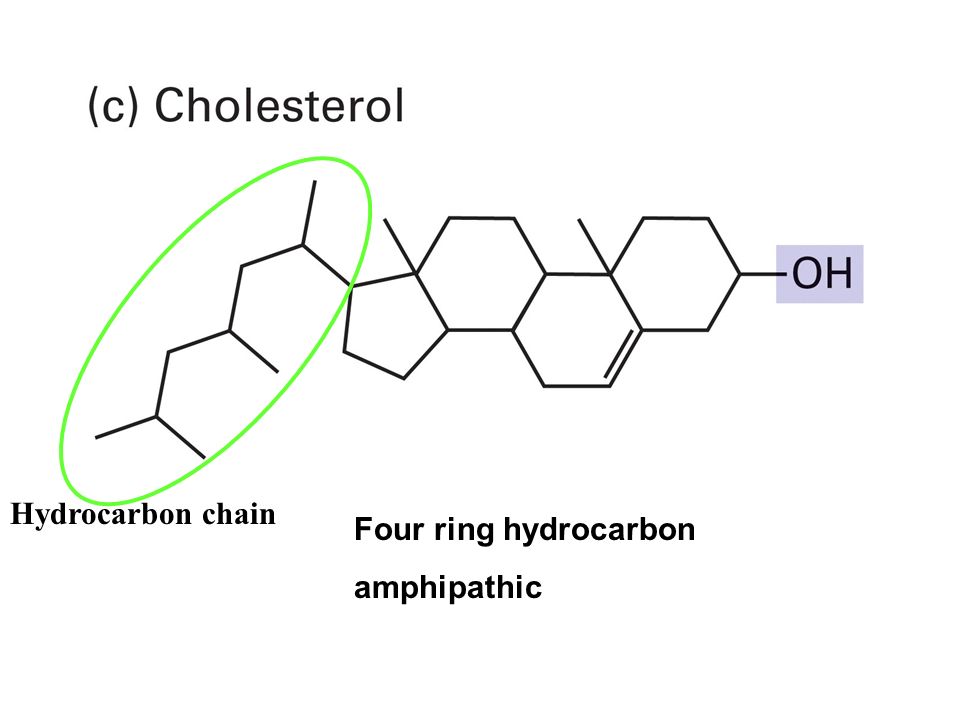

15 Four ring hydrocarbon amphipathic Hydrocarbon chain

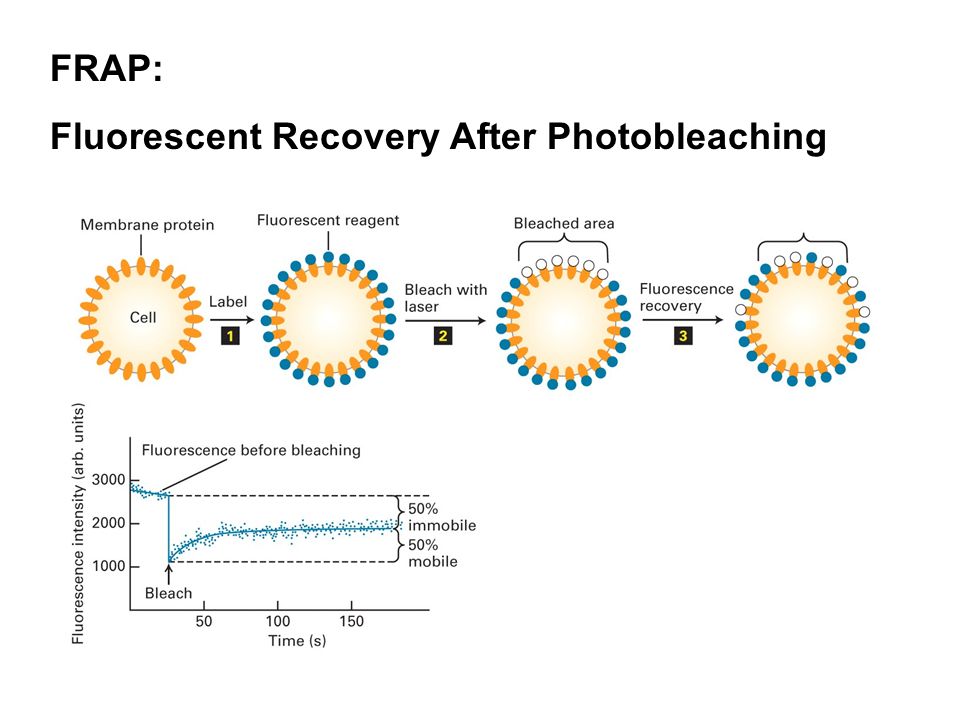

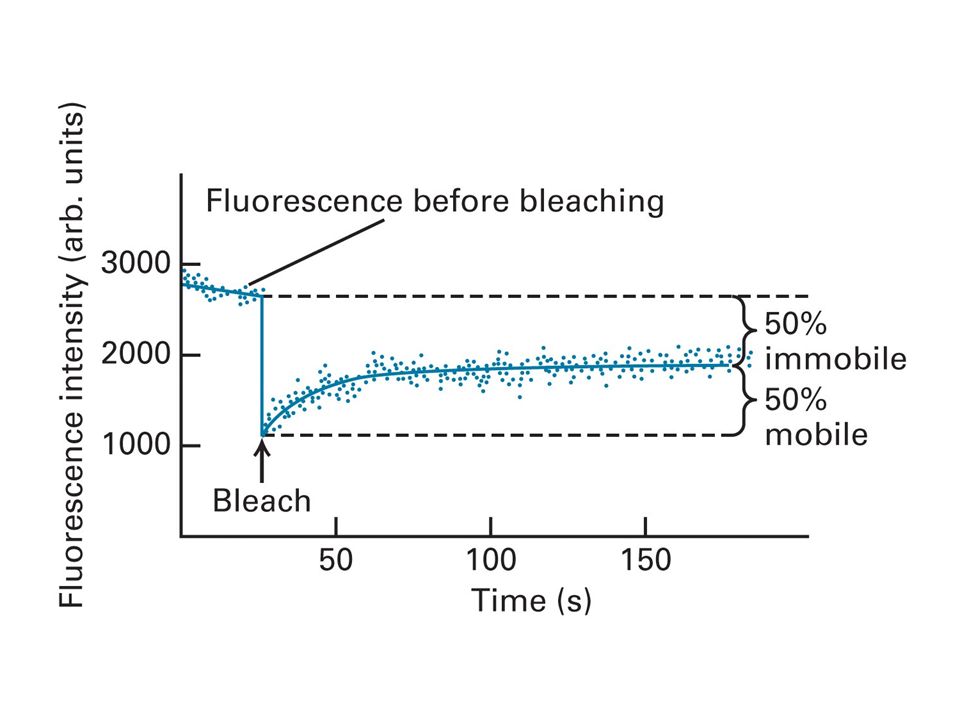

16 FRAP: Fluorescent Recovery After Photobleaching

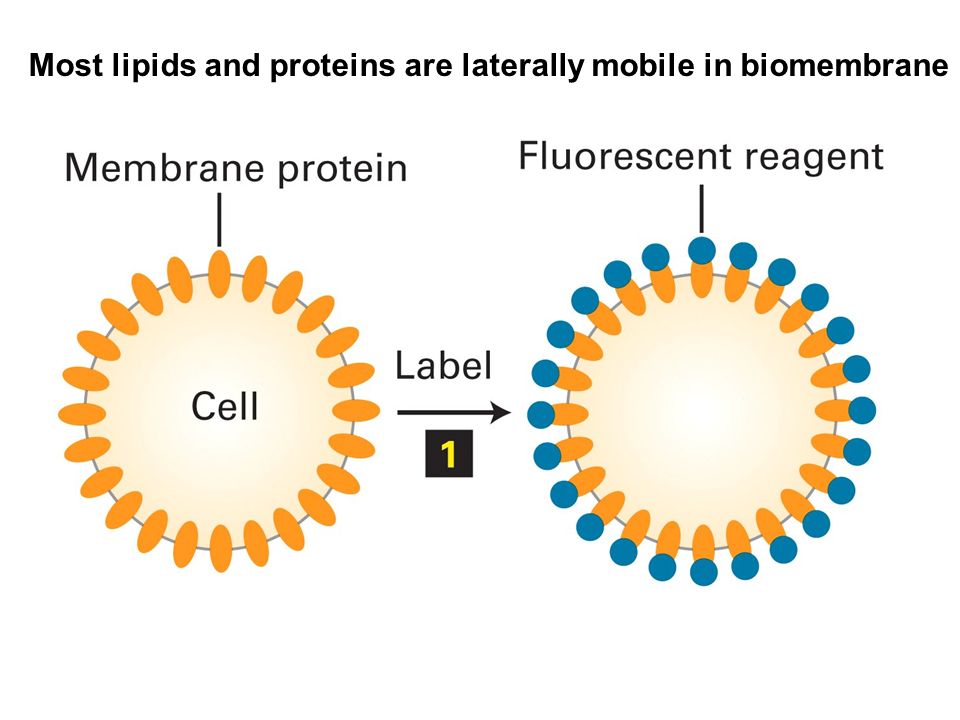

17 Most lipids and proteins are laterally mobile in biomembrane

18

19

20

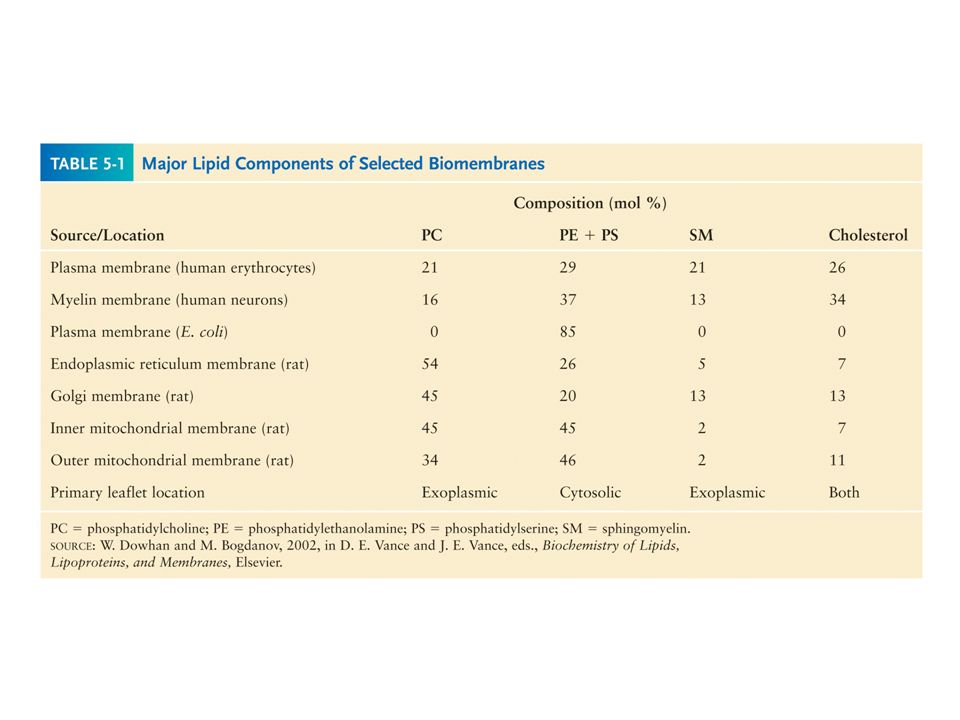

21

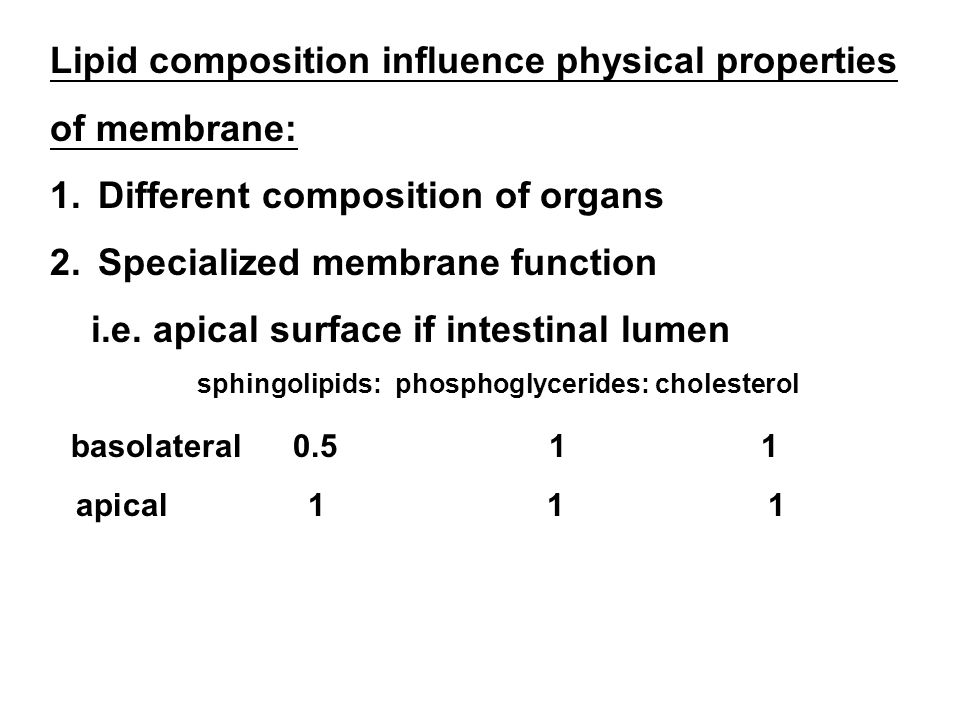

22 Lipid composition influence physical properties of membrane: 1.Different composition of organs 2.Specialized membrane function i.e. apical surface if intestinal lumen sphingolipids: phosphoglycerides: cholesterol basolateral 0.5 1 1 apical 1 1 1

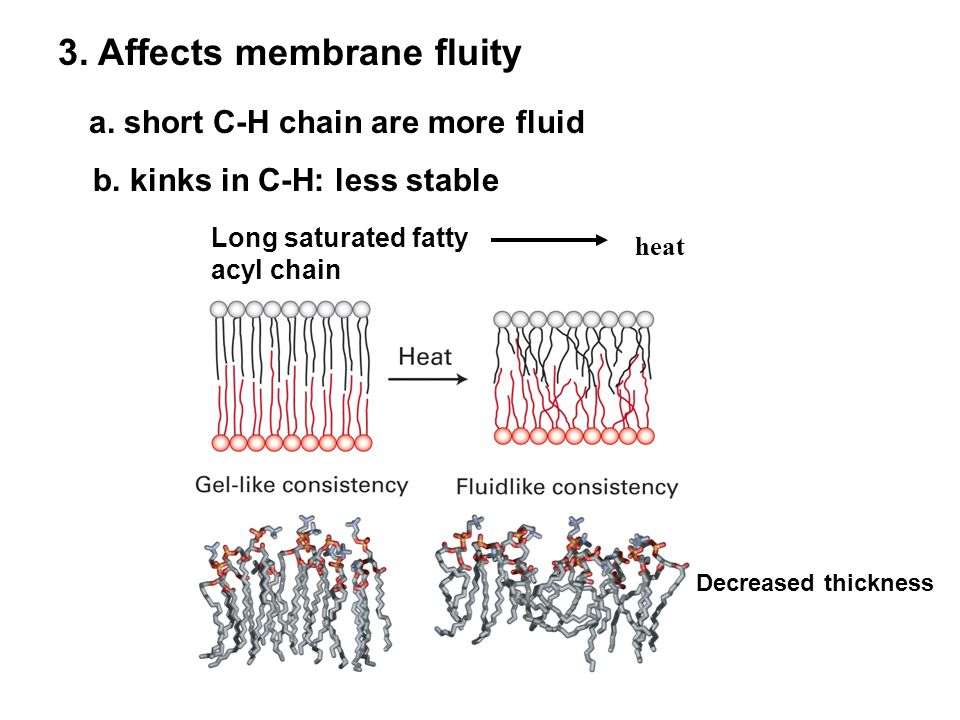

23 Long saturated fatty acyl chain heat 3. Affects membrane fluity a. short C-H chain are more fluid b. kinks in C-H: less stable Decreased thickness

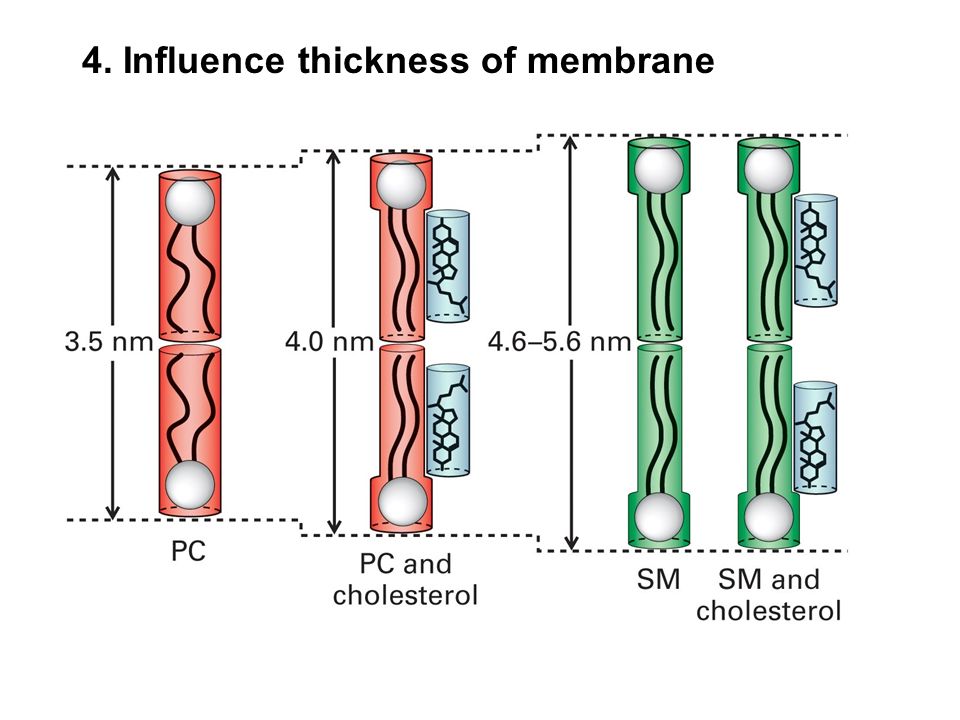

24 4. Influence thickness of membrane

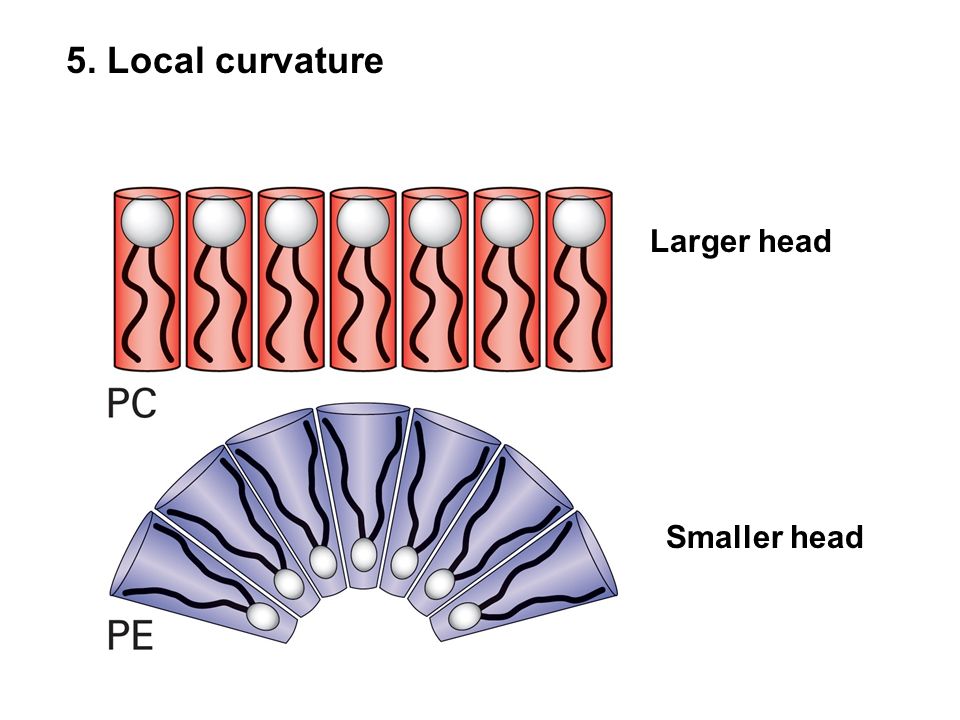

25 5. Local curvature Larger head Smaller head

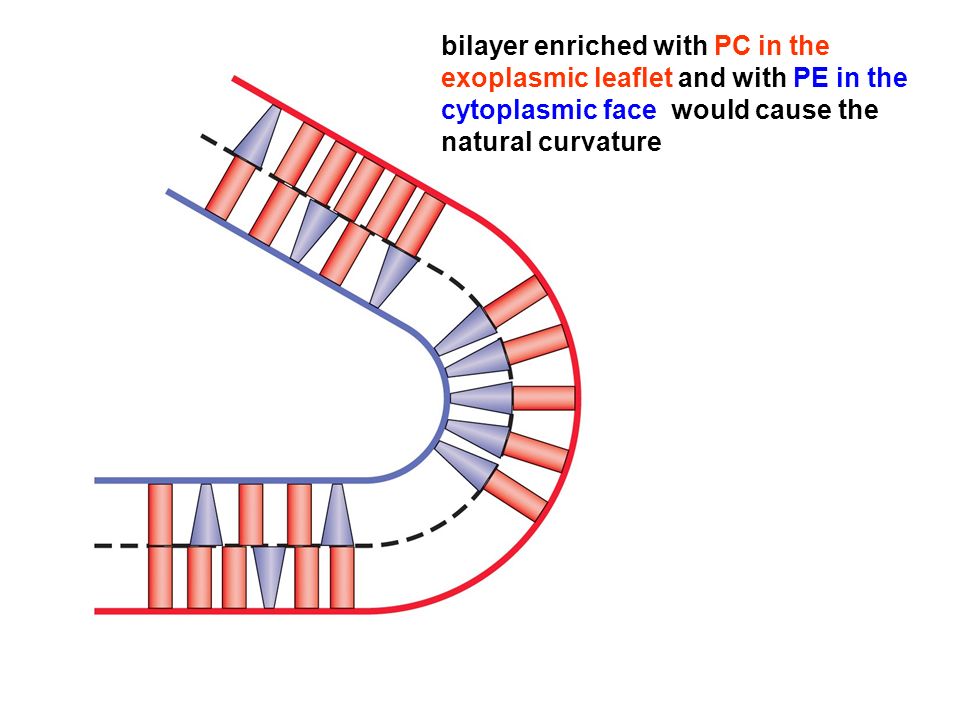

26 bilayer enriched with PC in the exoplasmic leaflet and with PE in the cytoplasmic face would cause the natural curvature

27 Membrane asymmetry Affects: 1. Enzyme cleavage  phospholipase cleaves phospholipids at exoplasmic sides  cytosolic sides are resist to phospholipase cleavage

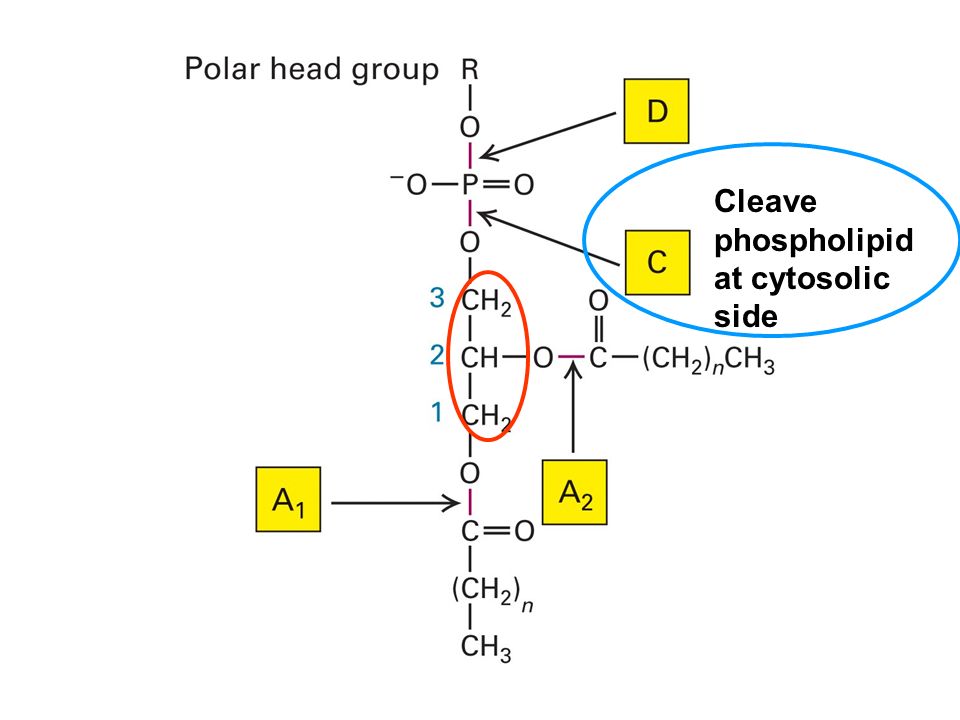

28 Cleave phospholipid at cytosolic side

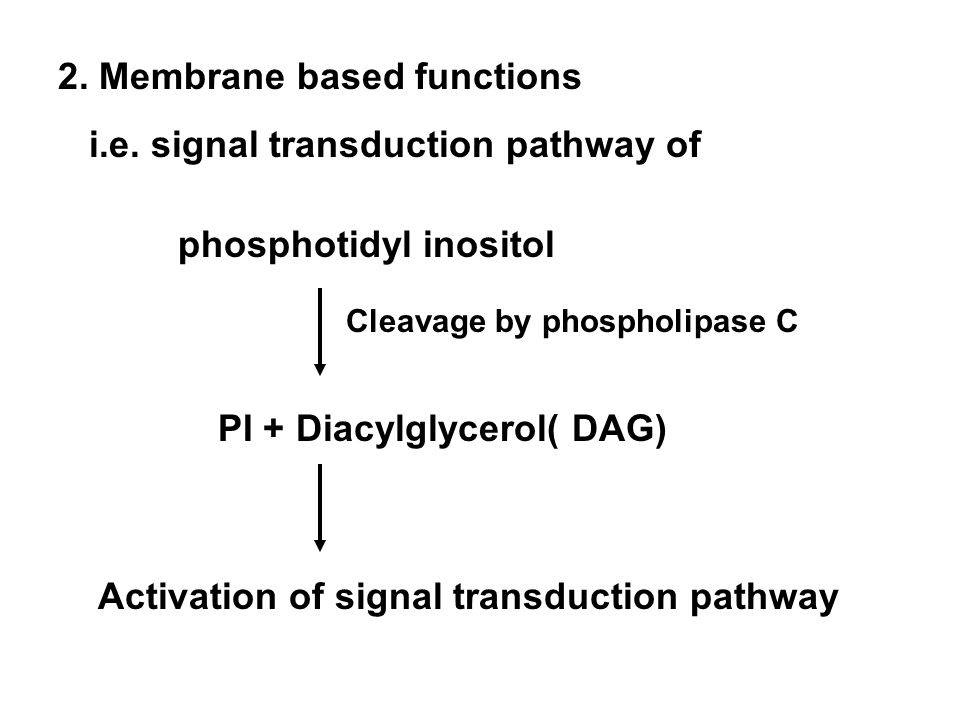

29 2. Membrane based functions i.e. signal transduction pathway of Cleavage by phospholipase C phosphotidyl inositol PI + Diacylglycerol( DAG) Activation of signal transduction pathway

30 i.e. phosphotidyl serine stimulation of platelate by serum translocate to exoplasmic face activate enzyme for blood clotting

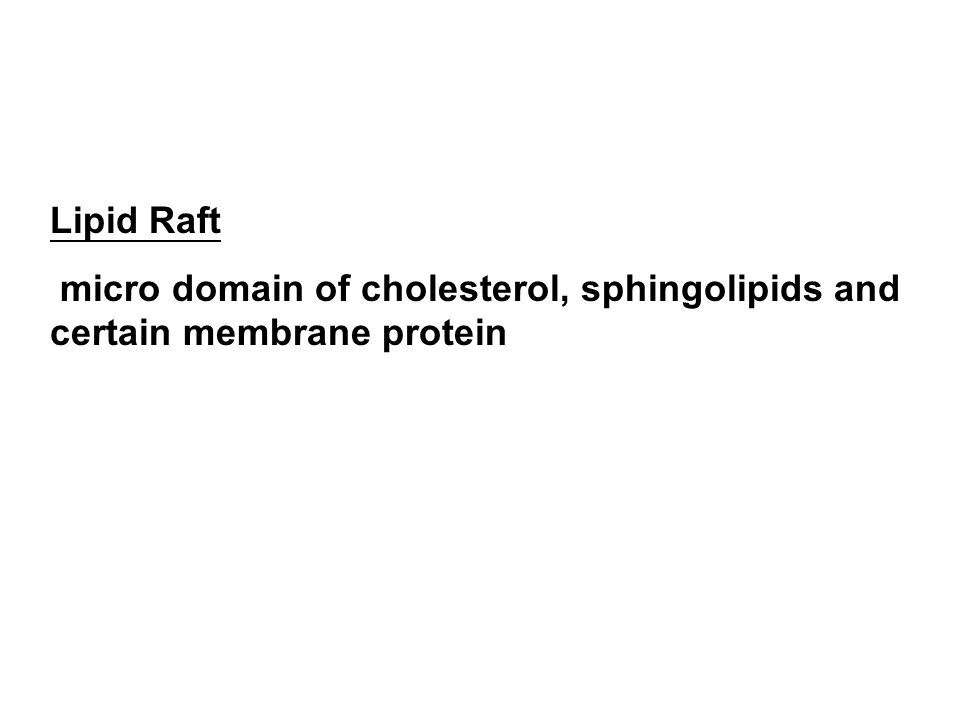

31 Lipid Raft micro domain of cholesterol, sphingolipids and certain membrane protein

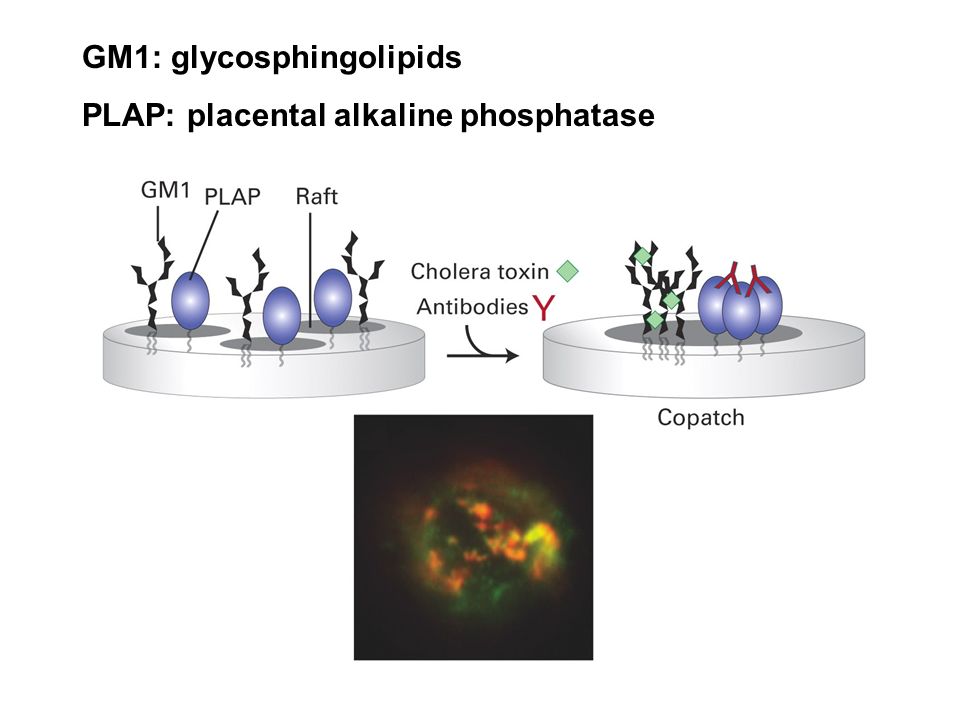

32 GM1: glycosphingolipids PLAP: placental alkaline phosphatase

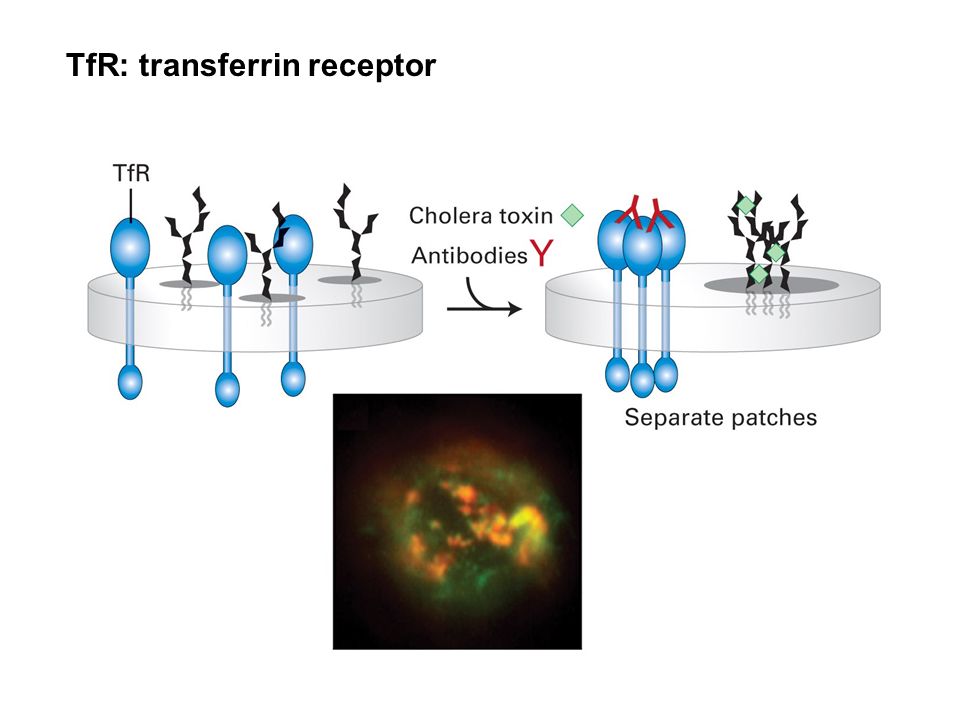

33 TfR: transferrin receptor

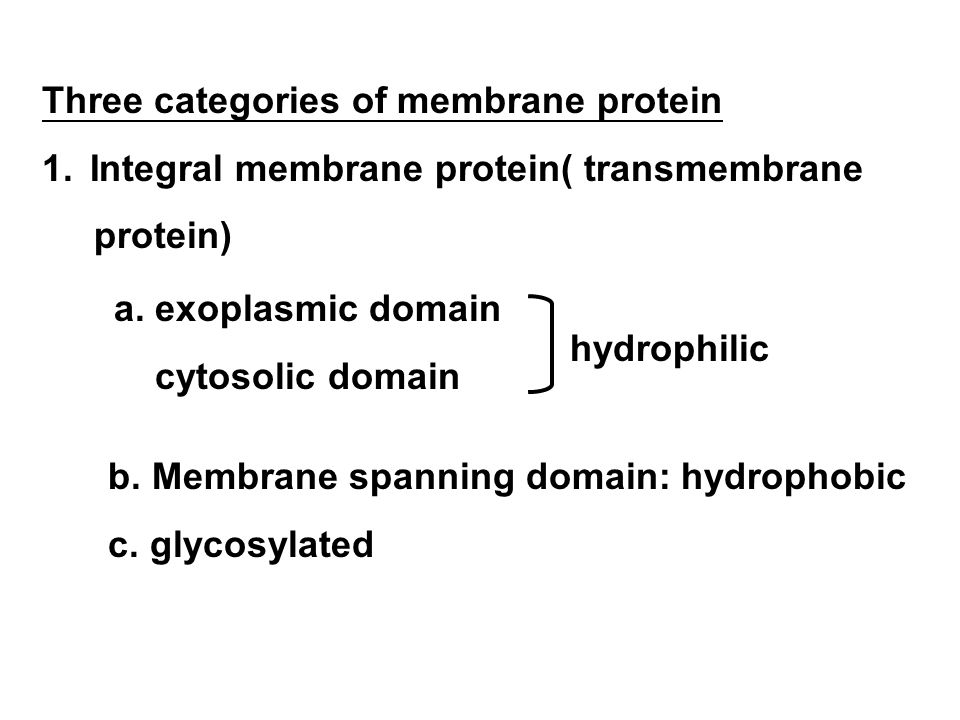

34 Three categories of membrane protein 1.Integral membrane protein( transmembrane protein) a. exoplasmic domain cytosolic domain hydrophilic b. Membrane spanning domain: hydrophobic c. glycosylated

35 2. Lipid anchored membrane protein covalently bound to lipid 3. Peripheral membrane protein bound to membrane by interaction with integral membrane protein

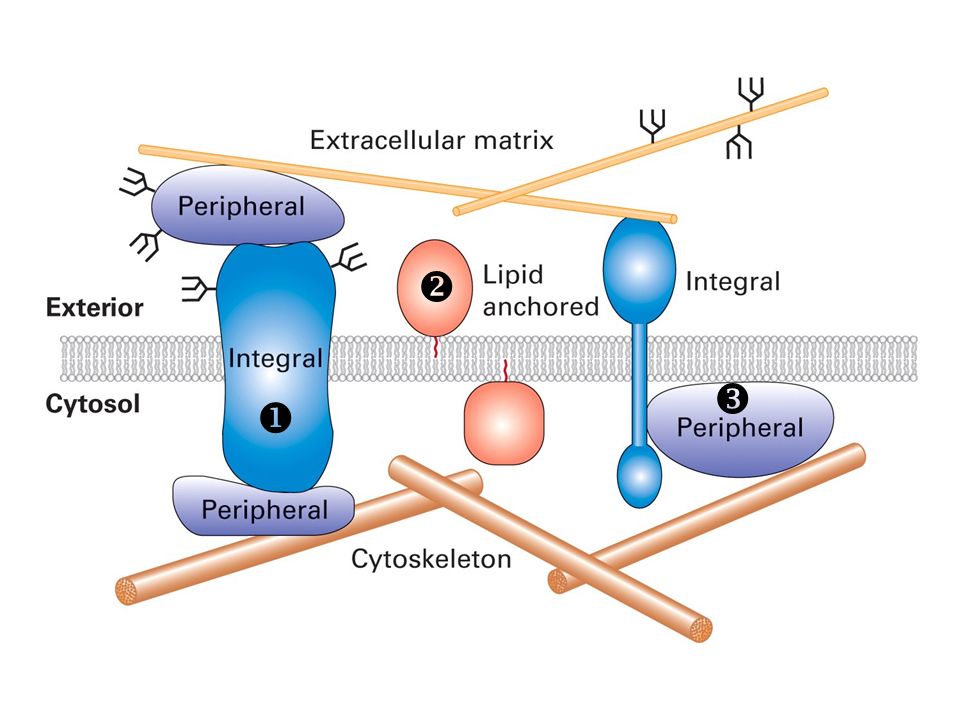

36   

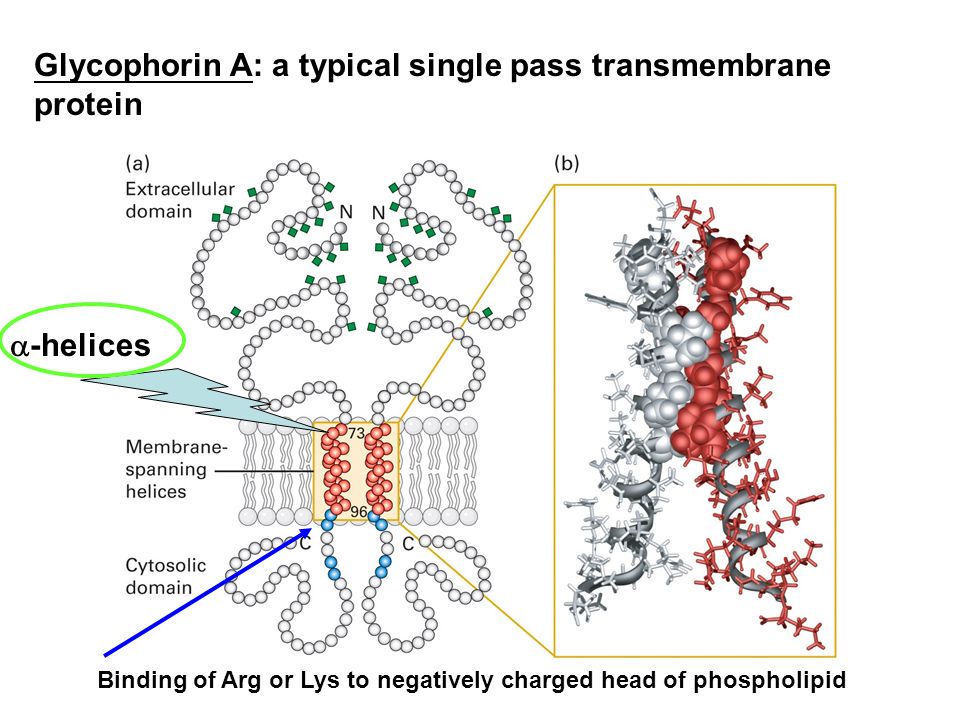

37 Glycophorin A: a typical single pass transmembrane protein  -helices Binding of Arg or Lys to negatively charged head of phospholipid

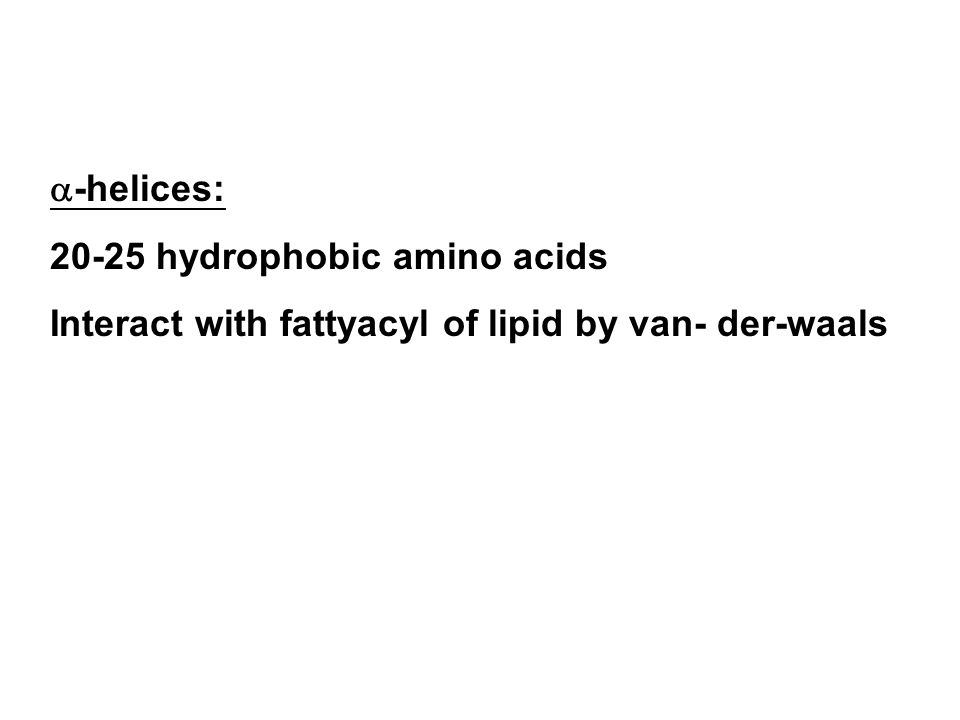

38  -helices: 20-25 hydrophobic amino acids Interact with fattyacyl of lipid by van- der-waals

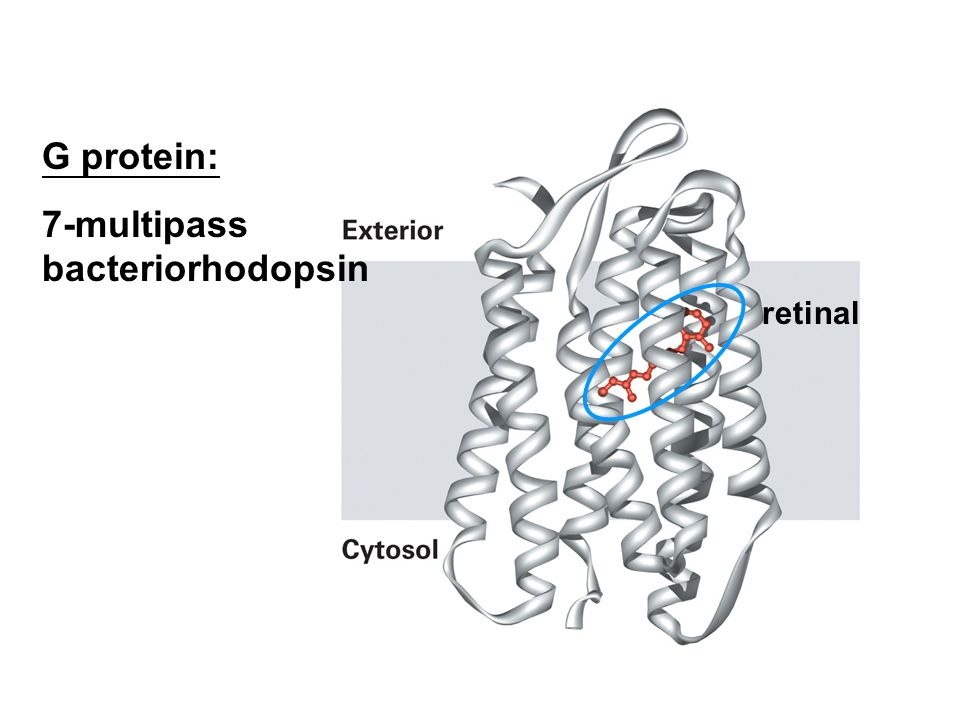

39 G protein: 7-multipass bacteriorhodopsin retinal

40 Porin  Trimric tramsmembrane protein  Barrel shape subunit with ß- sheet wall and hydrophilic center  aliphatic and aromatic side chain position the protein on the membrane

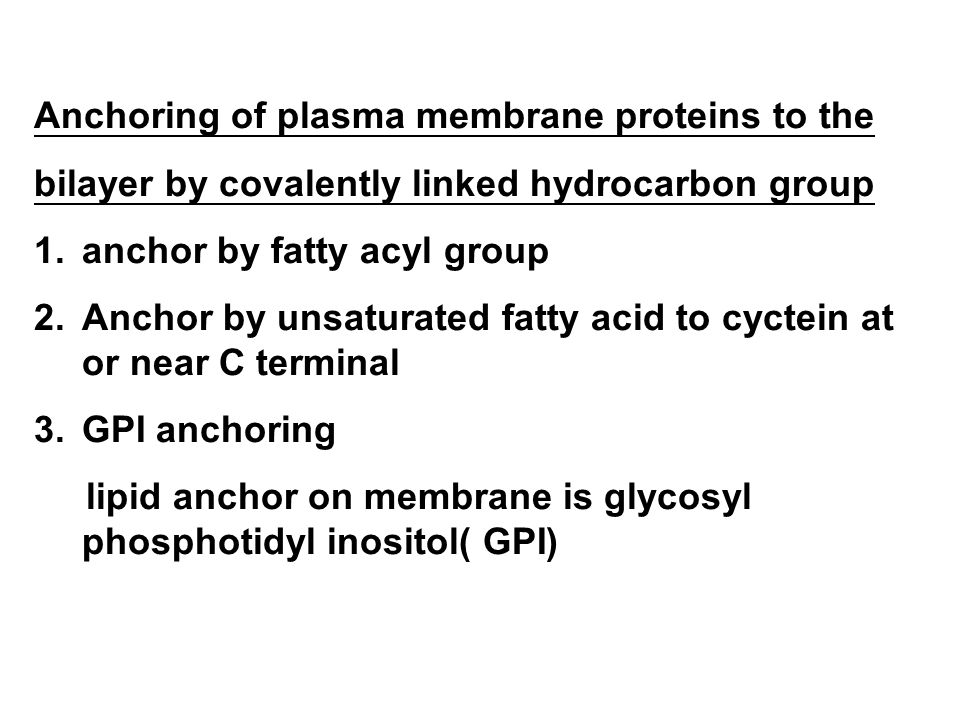

41 Anchoring of plasma membrane proteins to the bilayer by covalently linked hydrocarbon group 1.anchor by fatty acyl group 2.Anchor by unsaturated fatty acid to cyctein at or near C terminal 3.GPI anchoring lipid anchor on membrane is glycosyl phosphotidyl inositol( GPI)

42 Gly Cys C14 or C16 C15 or C20 Glycosylphosphosphatidylinositol sugar

43 All transmembrane proteins and glycolipids are asymetrically oriented in the bilayer

44

45

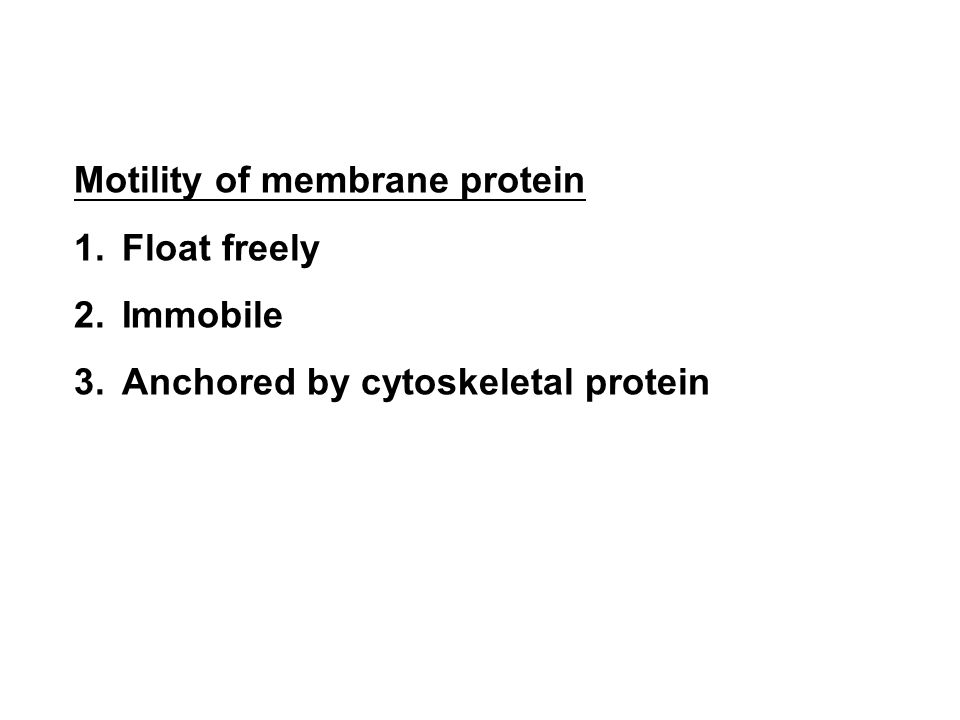

46 Motility of membrane protein 1.Float freely 2.Immobile 3.Anchored by cytoskeletal protein

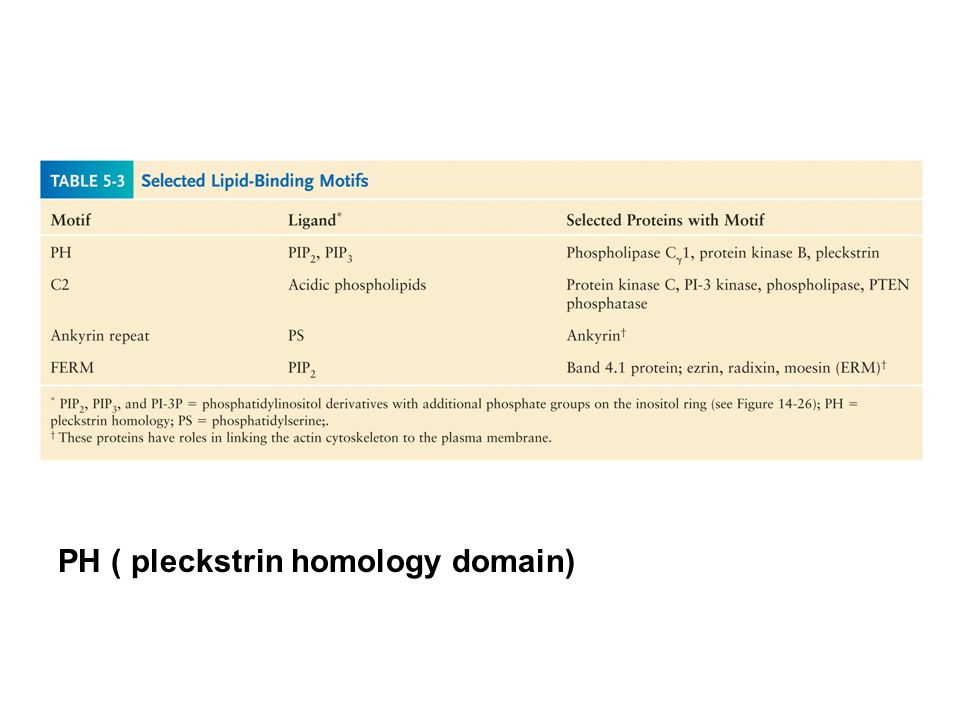

47 PH ( pleckstrin homology domain)

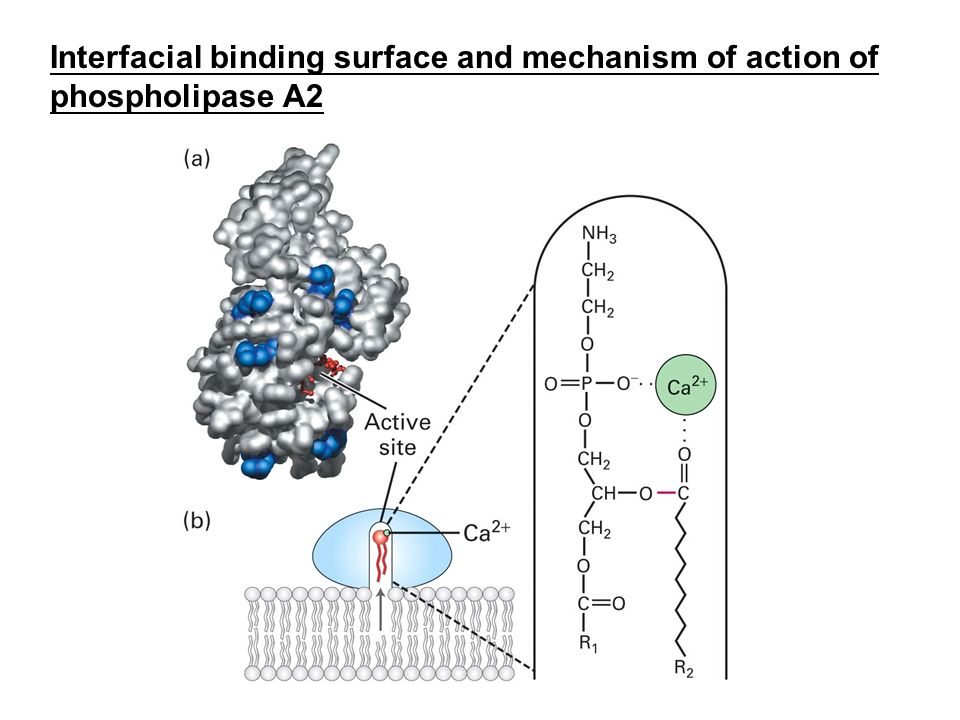

48 Interfacial binding surface and mechanism of action of phospholipase A2

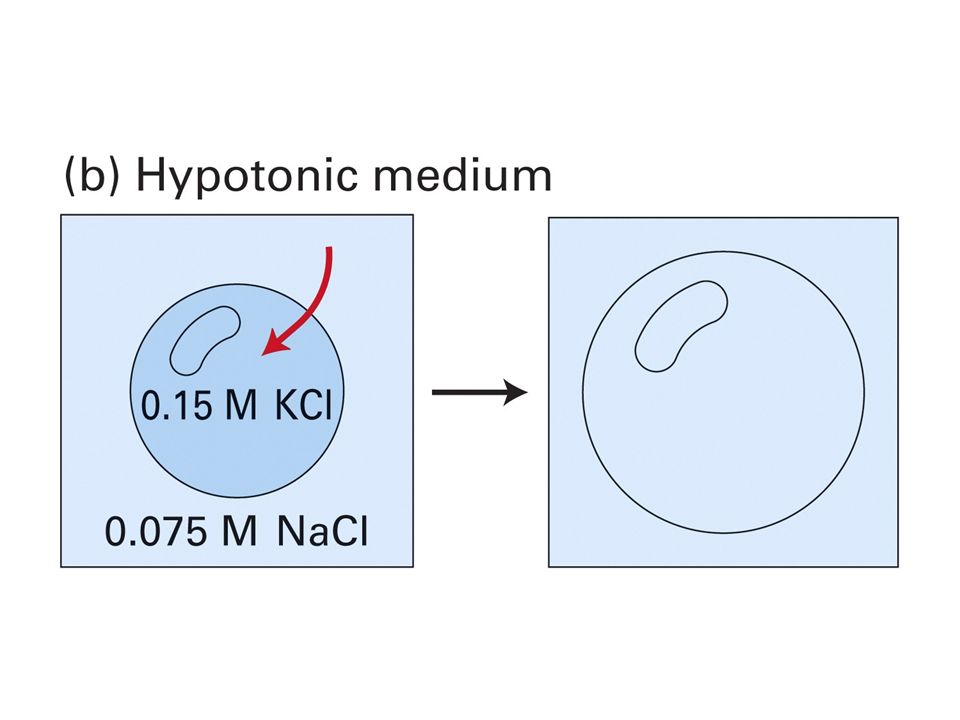

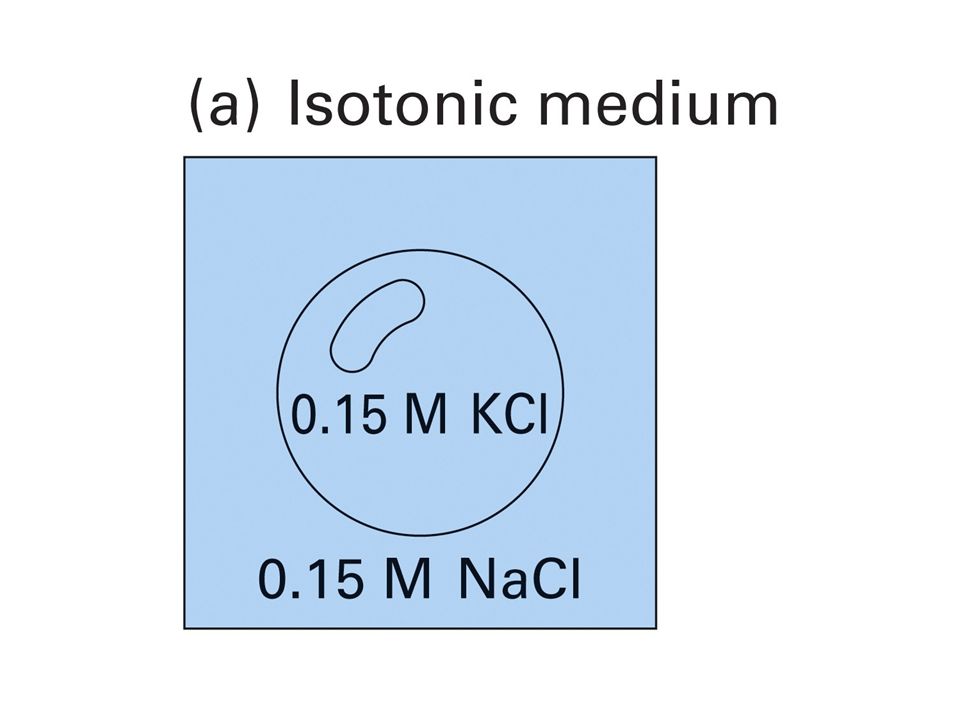

49 Effects of external ion concentration on water flowacross the plasma membrane of an animal cells

50

51

52
