ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 TITLE: IPv6 Motivation in 3GPP2 SOURCE: Ernie Tacsik +1 972-894-4044

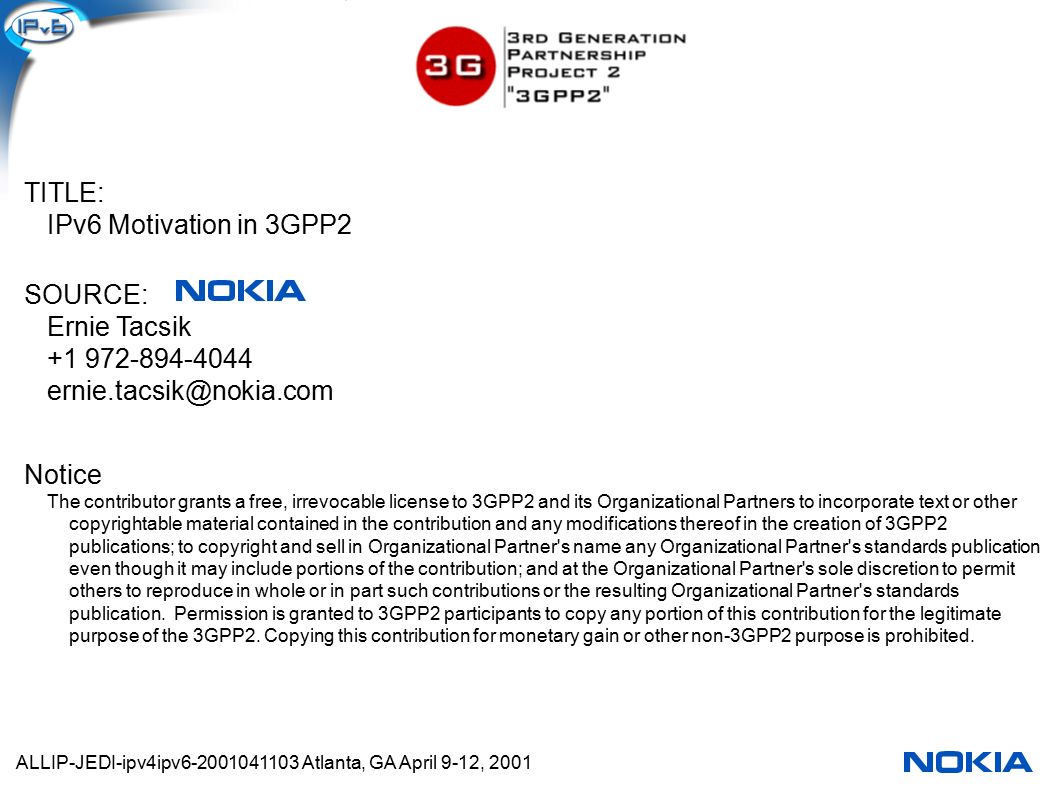

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 TITLE: IPv6 Motivation in 3GPP2 SOURCE: Ernie Tacsik +1 972-894-4044 ernie.tacsik@nokia.com Notice The contributor grants a free, irrevocable license to 3GPP2 and its Organizational Partners to incorporate text or other copyrightable material contained in the contribution and any modifications thereof in the creation of 3GPP2 publications; to copyright and sell in Organizational Partner's name any Organizational Partner's standards publication even though it may include portions of the contribution; and at the Organizational Partner's sole discretion to permit others to reproduce in whole or in part such contributions or the resulting Organizational Partner's standards publication. Permission is granted to 3GPP2 participants to copy any portion of this contribution for the legitimate purpose of the 3GPP2. Copying this contribution for monetary gain or other non-3GPP2 purpose is prohibited.

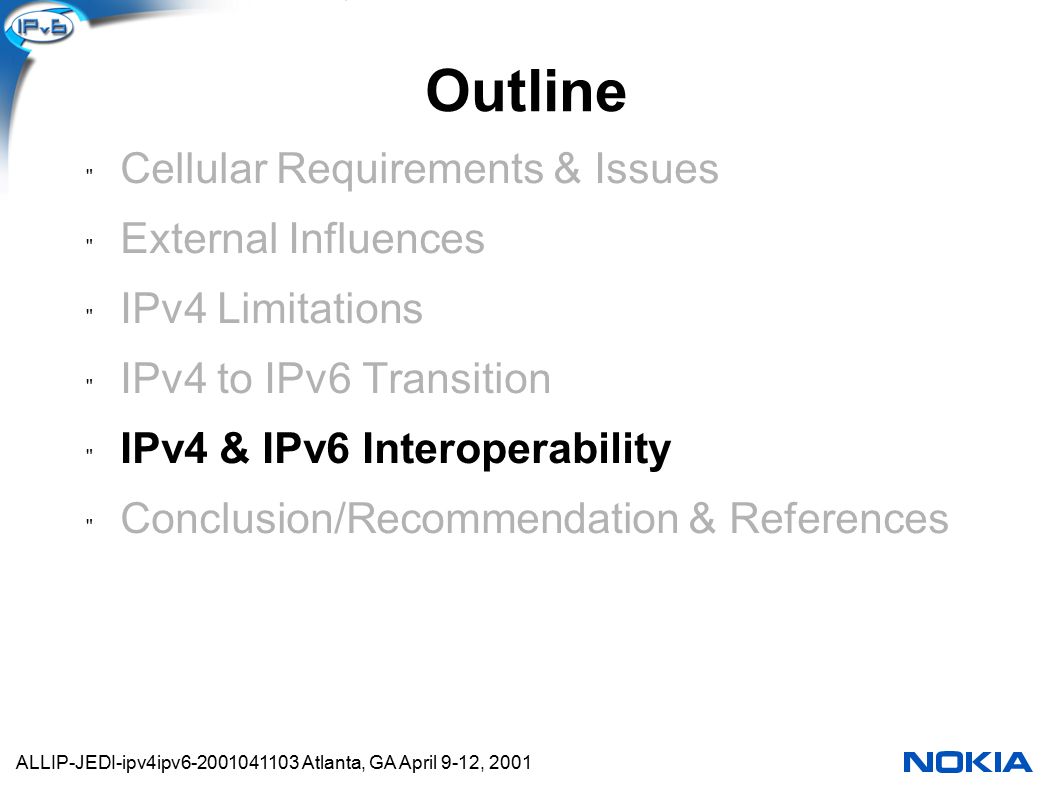

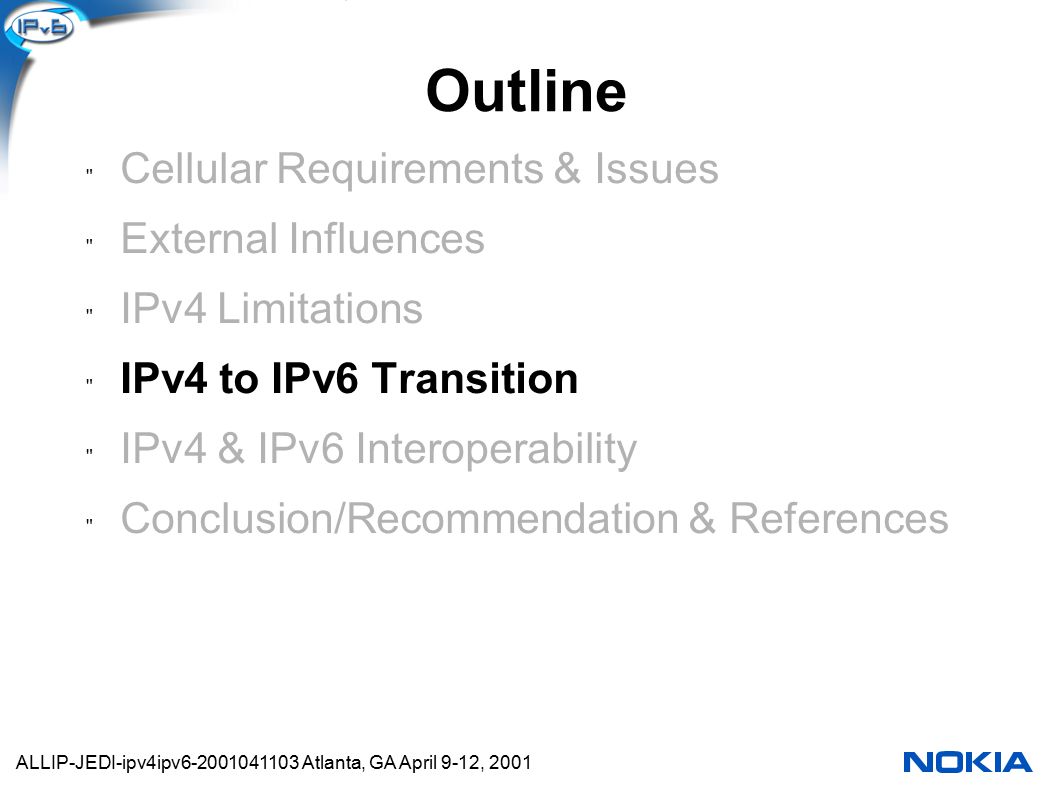

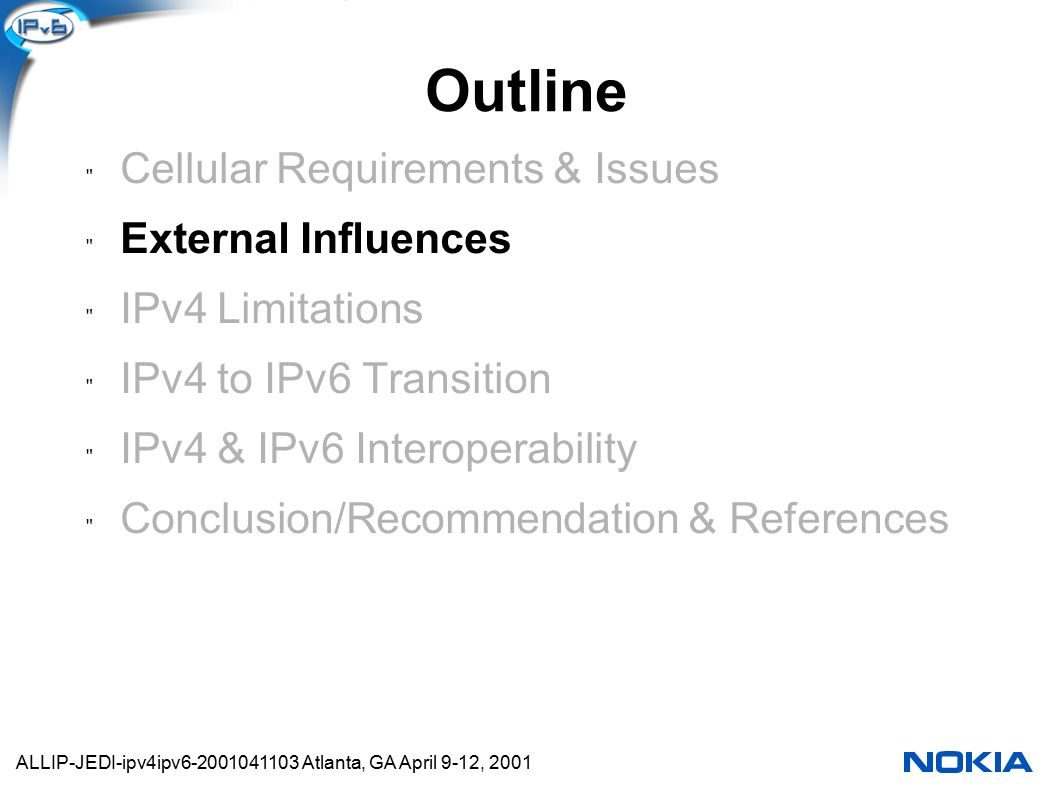

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Outline " Cellular Requirements & Issues " External Influences " IPv4 Limitations " IPv4 to IPv6 Transition " IPv4 & IPv6 Interoperability " Conclusion/Recommendation & References

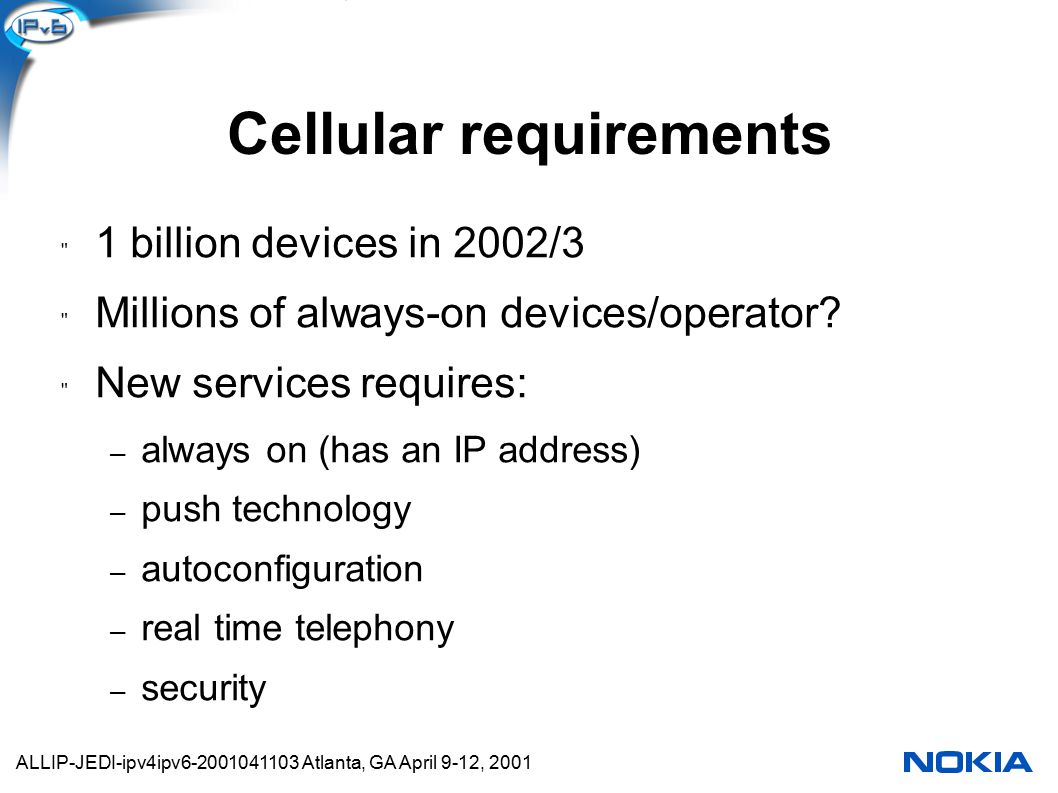

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Cellular requirements " 1 billion devices in 2002/3 " Millions of always-on devices/operator? " New services requires: – always on (has an IP address) – push technology – autoconfiguration – real time telephony – security

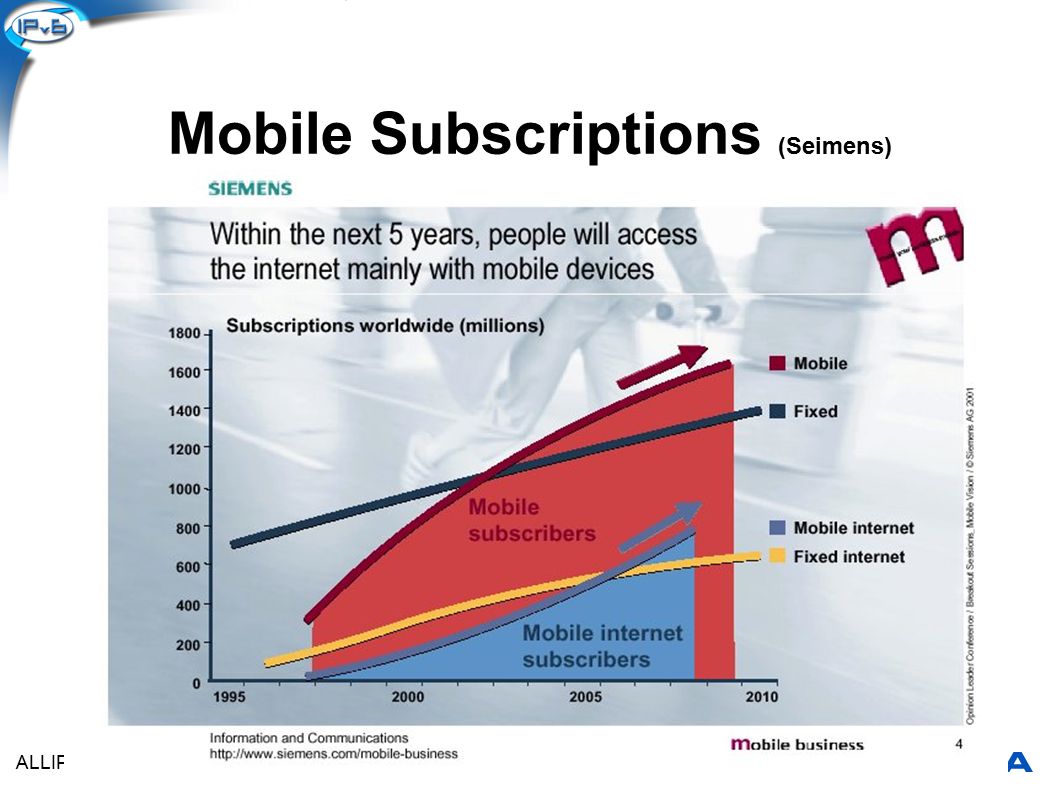

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Mobile Subscriptions (Seimens)

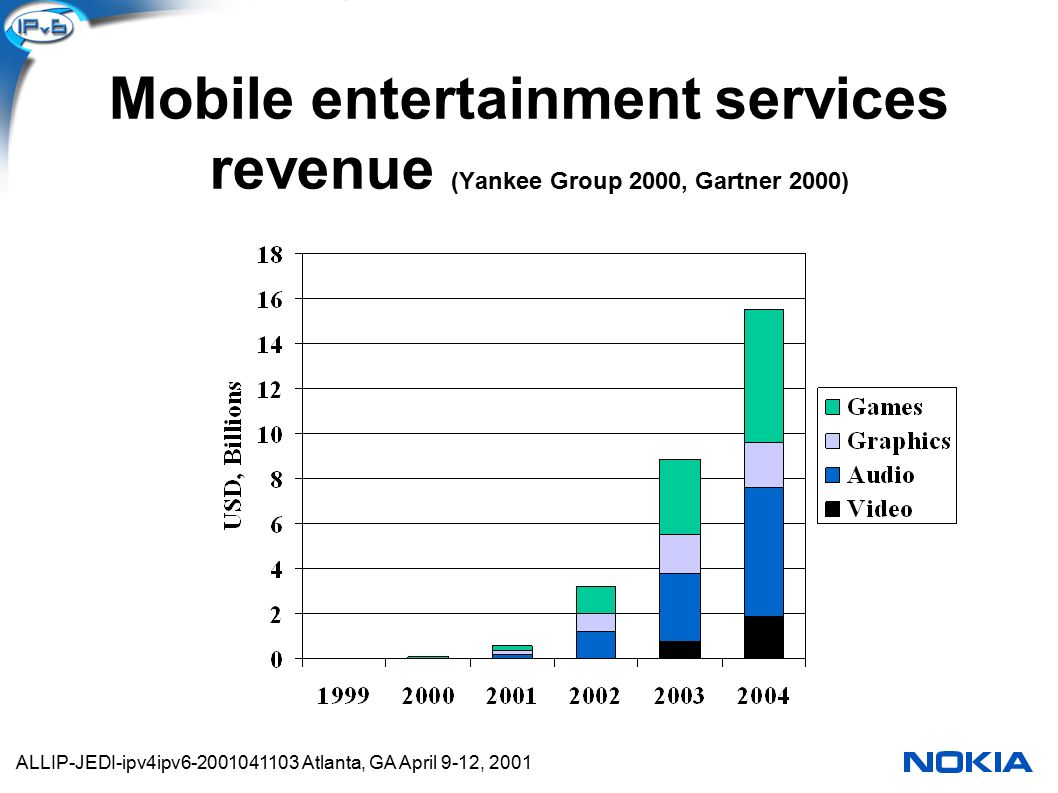

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Mobile entertainment services revenue (Yankee Group 2000, Gartner 2000)

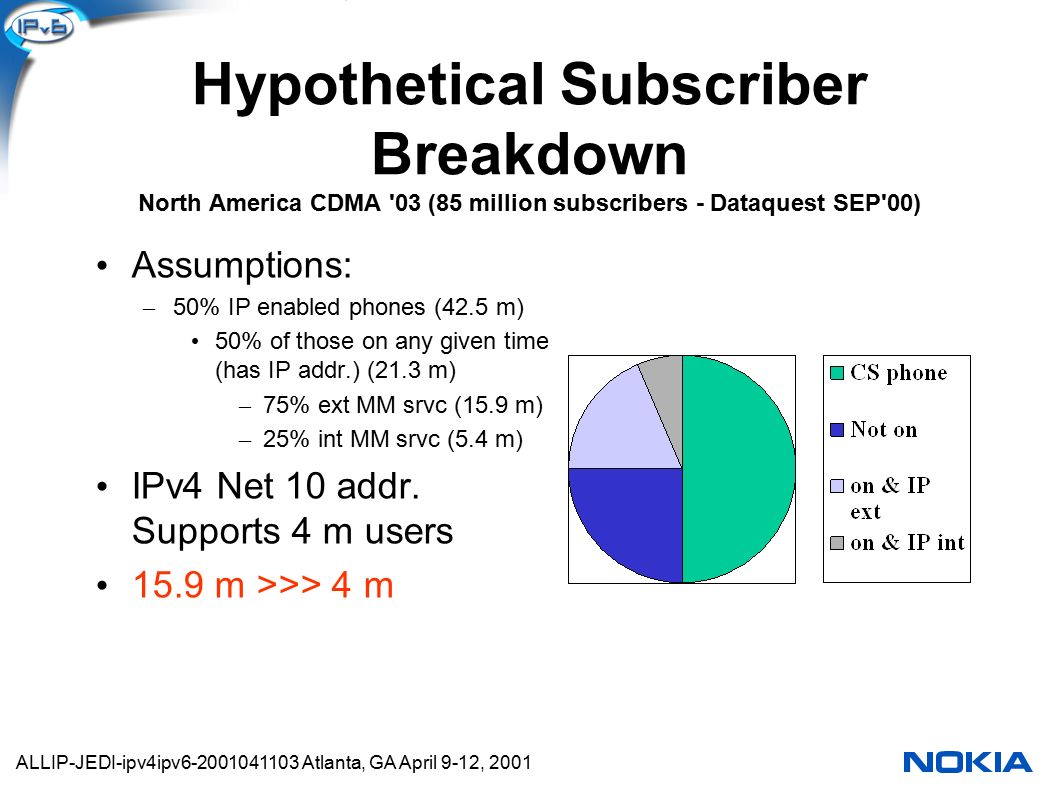

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Hypothetical Subscriber Breakdown North America CDMA '03 (85 million subscribers - Dataquest SEP'00) Assumptions: – 50% IP enabled phones (42.5 m) 50% of those on any given time (has IP addr.) (21.3 m) – 75% ext MM srvc (15.9 m) – 25% int MM srvc (5.4 m) IPv4 Net 10 addr. Supports 4 m users 15.9 m >>> 4 m

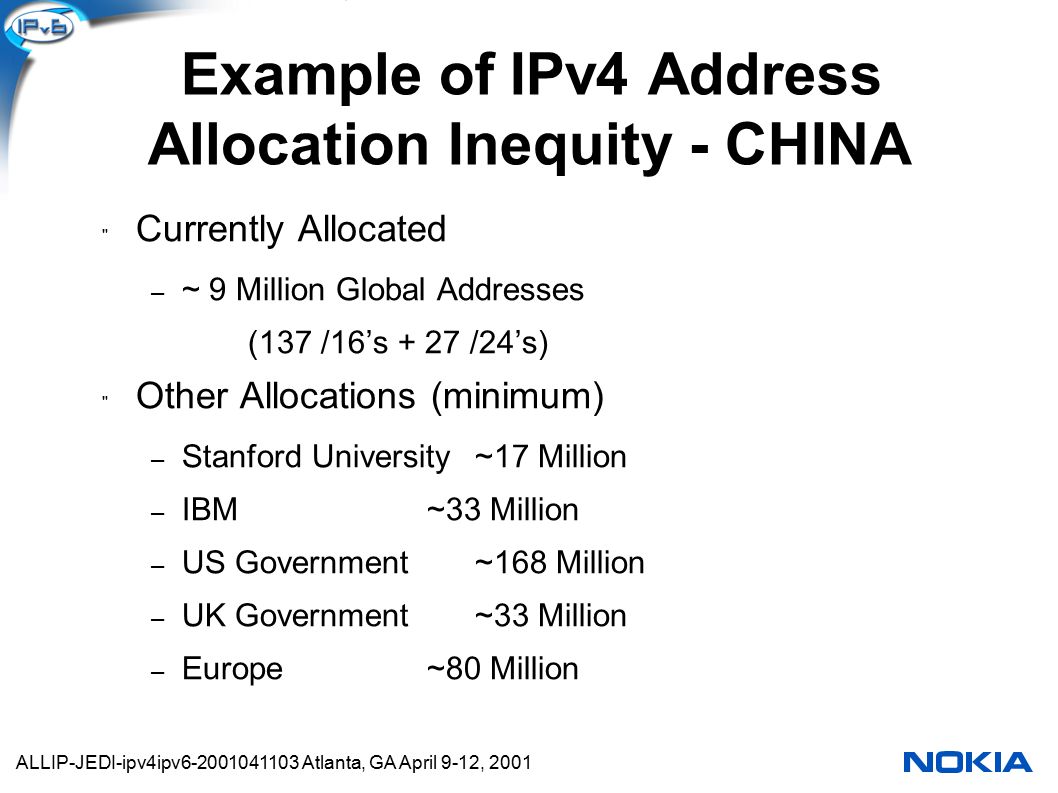

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Example of IPv4 Address Allocation Inequity - CHINA " Currently Allocated – ~ 9 Million Global Addresses (137 /16’s + 27 /24’s) " Other Allocations (minimum) – Stanford University~17 Million – IBM~33 Million – US Government~168 Million – UK Government~33 Million – Europe~80 Million

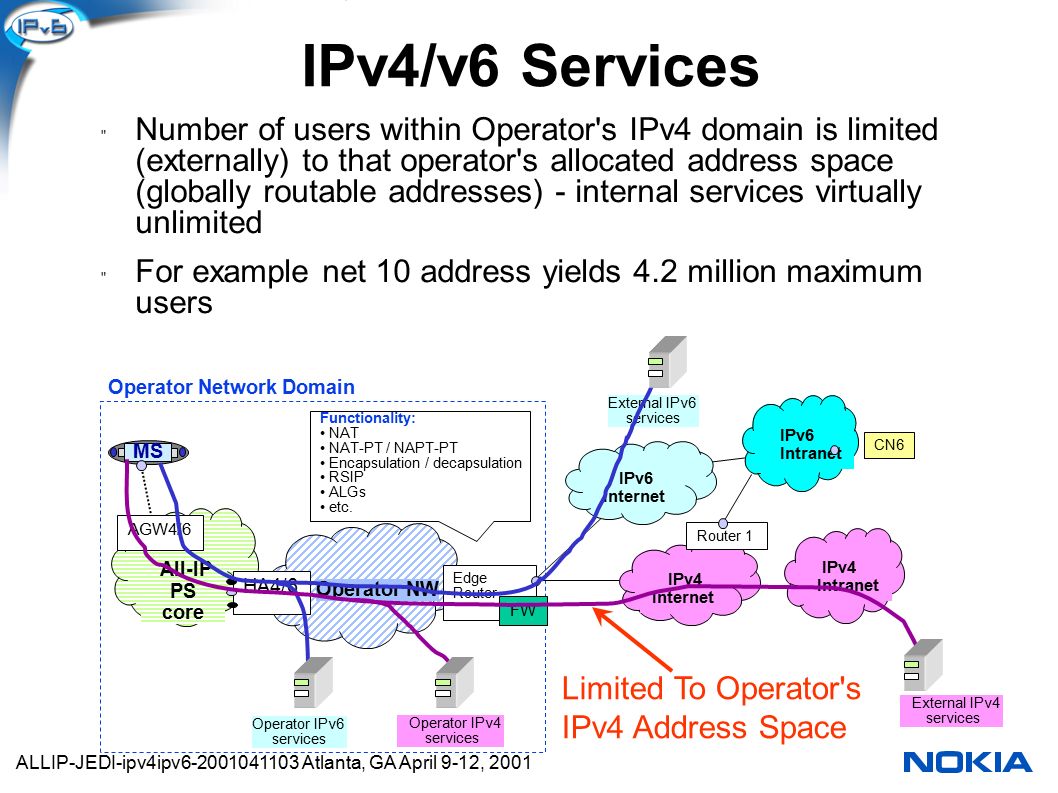

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 All-IP PS core Operator IPv4 services Operator IPv6 services Edge Router Operator Network Domain FW HA4/6 AGW4/6 IPv6 Internet IPv6 Intranet CN6 Operator NW IPv4 Internet Router 1 MS IPv4 Intranet Functionality: NAT NAT-PT / NAPT-PT Encapsulation / decapsulation RSIP ALGs etc. IPv4/v6 Services " Number of users within Operator's IPv4 domain is limited (externally) to that operator's allocated address space (globally routable addresses) - internal services virtually unlimited " For example net 10 address yields 4.2 million maximum users External IPv6 services Limited To Operator's IPv4 Address Space External IPv4 services

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 COMMISSION OF THE EUROPEAN COMMUNITIES (Brussels 20.3.2001COM(2001)141 final) " The current implementation of the Internet Protocol (version 4, IPv4) is considered to limit the full deployment of 3G services in the long run. The proposed new IP version (IPv6) would overcome this addressing shortage and enable additional features, such as guaranteed quality of service and security. Implementing IPv6 mobile networks will also allow for wireless machine-to-machine interconnection, thereby considerably boosting the application of 3G. Any delay in the transition to all-IPv6 networks, which will require several years of effort, risks hindering the deployment of these advanced 3G service features at a later stage." "Full potential of 3G services cannot be exploited without the gradual introduction of the new Internet Protocol (IPv6). A fully-fledged mobile Internet, where each mobile terminal will have an Internet address requires a much larger address space than the current IPv4 can cater for. In time, Europe risks to run out of Internet addresses if co- ordinated action is not taken now. The European Commission will invite Member States to work together with industry in an ad hoc group, which should provide proposals by the end of 2001 to accelerate the introduction of IPv6. The Commission will also increase support for test beds through its IST and TEN Telecom programmes."

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 3GPP TS 23.221 V1.1.0 (2001-01) Technical Specification Group Services and System Aspects; Architectural requirements; (Release 5) " 5.1 IP version issues The UMTS/GSM architecture shall support IPv4 / IPv6 based on the statements below. – IP transport between network elements of the IP Connectivity services (between RNC, SGSN and GGSN) and IP transport for the CS Domain: both IPv4 / IPv6 are options for IP Connectivity – IM CN subsystem elements (UE to CSCF and the other elements e.g. MRF): " The architecture shall make optimum use of IPv6. " The IM CN subsystem shall exclusively support IPv6. " The UE shall exclusively support IPv6 for the connection to services provided by the IM CN subsystem. – Access to existing data services (Intranet, Internet,…): – The UE can access IPv4 and IPv6 based services.

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Why not IPv4 + NAT ? (1 of 2) " Net 10 (private addresses) is too small: – Max: 2M nodes " Potentially, several layers of NAT are needed. – Nobody knows how to do that today. " NAT breaks the End to End model – prevents IPsec, makes the network less secure. " NAT prevents "incoming calls". – Problem with "push" technology, VoIP, local services...

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Why not IPv4 + NAT ? (2 of 2) " NAT boxes are single point of failure. – Makes the network less reliable. " Deployment of new services may require ALG set-up on all NAT boxes. – Requires global co-ordination. – Makes the cost of introducing new services higher. " Obliterates many of the advantages of using IP.

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Costs of IPv4 based solution " Costs of the daily management of NAT boxes " Costs of introducing new services " Costs of "buying" IPv4 global addresses " Costs of doing 2 architectures for 3G networks: – Once with IPv4 now – Transition to IPv6 later

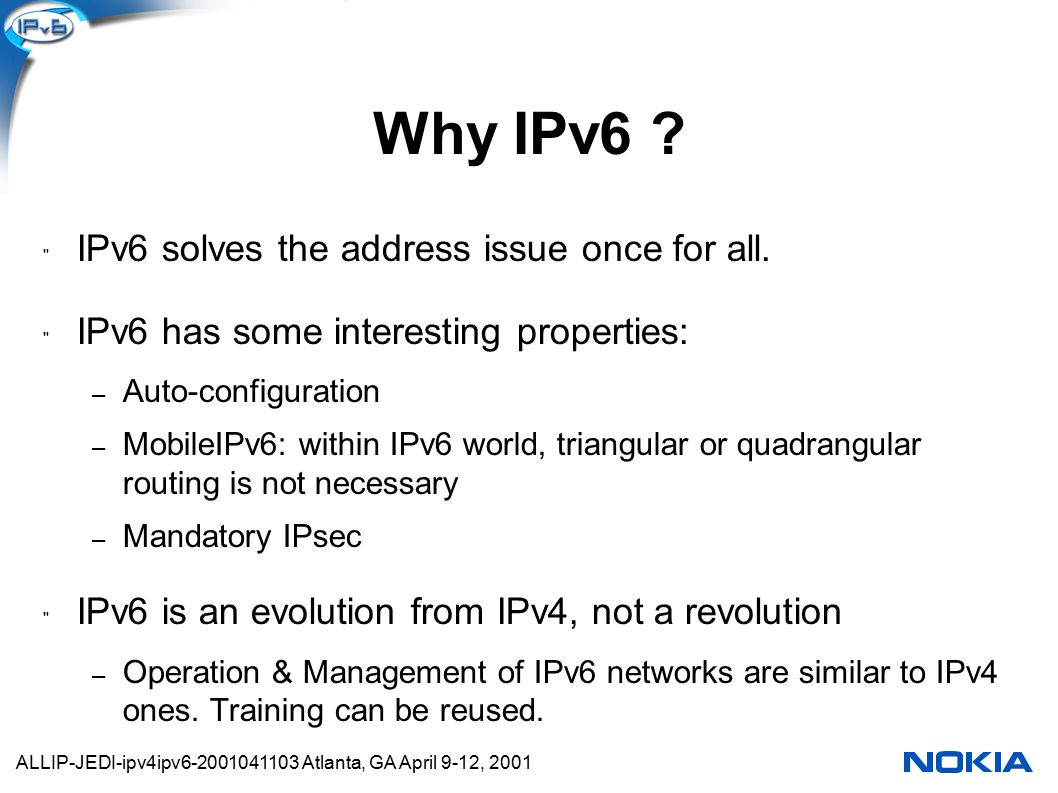

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Why IPv6 ? " IPv6 solves the address issue once for all. " IPv6 has some interesting properties: – Auto-configuration – MobileIPv6: within IPv6 world, triangular or quadrangular routing is not necessary – Mandatory IPsec " IPv6 is an evolution from IPv4, not a revolution – Operation & Management of IPv6 networks are similar to IPv4 ones. Training can be reused.

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Advantages over IPv4 + NAT " New applications deployed within IPv6 networks do not require proxies or NAT boxes. " One can do direct IPv6 communications with content providers, other wireless carriers, and anybody else which deploys IPv6. " NAT-PT or ALG are only needed at the boundaries with IPv4.

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Evolution of costs " The strain on the NAT boxes will increases as the number of subscribers increase and new applications are rolled out. " The strain on the proxies and NAT-PT boxes can be managed by making direct IPv6 connections to the key sites. IPv4IPv6

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Transition issues " New applications are rolled out with IPv6. " Not all applications need to communicate between the original IPv4 Internet and the cellular devices. " The most important ones are: VoIP, Web and Mail. " Dual Stack (IPv4/IPv6) proxies can be a good, simple solution.

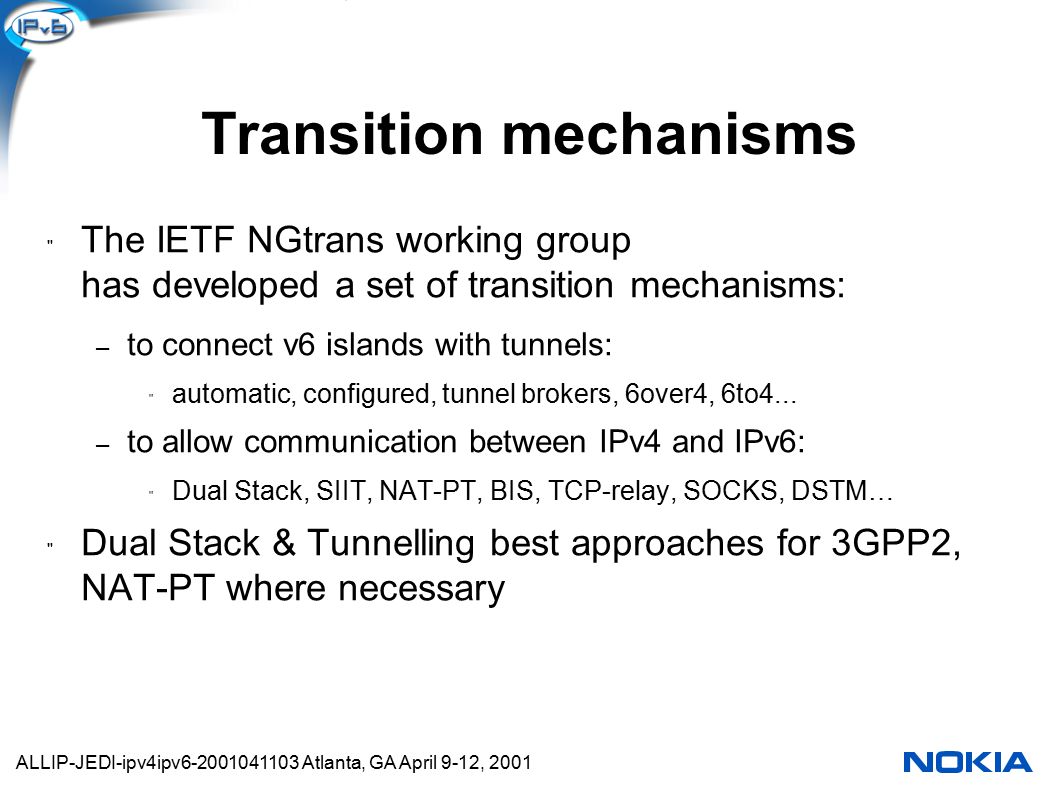

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Transition mechanisms " The IETF NGtrans working group has developed a set of transition mechanisms: – to connect v6 islands with tunnels: " automatic, configured, tunnel brokers, 6over4, 6to4... – to allow communication between IPv4 and IPv6: " Dual Stack, SIIT, NAT-PT, BIS, TCP-relay, SOCKS, DSTM… " Dual Stack & Tunnelling best approaches for 3GPP2, NAT-PT where necessary

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Transition phases 1/2 Today: PDSN/CDMA 2000 network supports only IPv4 IPv4 terminals NATs required Services via IPv4 First phase: separate IPv6 islands in the network Most IPv6 services are provided in the operator network IPv4 and dual stack terminals IPv4 Internet First phase IPv6 Intranet Operator network IPv4 Intranet NAT NAT-PT MT IPv4 NAT dual stack IPv4 / IPv6 core router IPv4 world today - the starting point IPv4 Internet Operator network IPv4 Intranet NAT MT NAT IPv4 IPv4 Intranet MT IPv4 core PDSN router

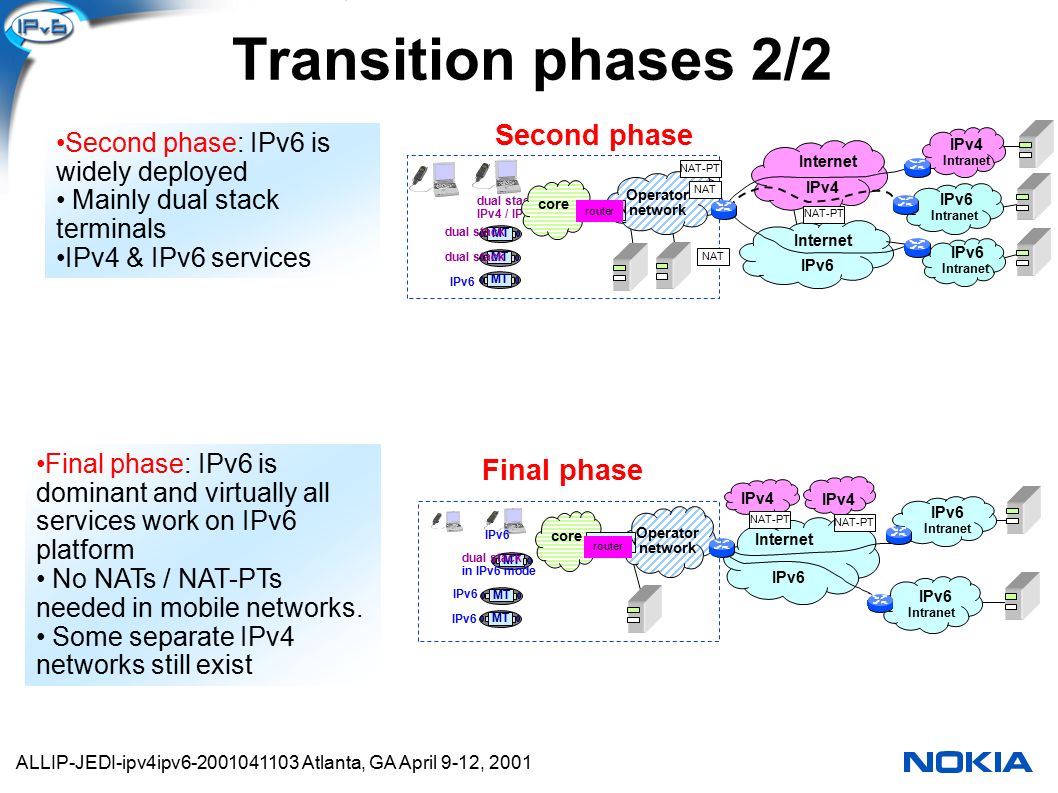

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Transition phases 2/2 Second phase: IPv6 is widely deployed Mainly dual stack terminals IPv4 & IPv6 services Final phase: IPv6 is dominant and virtually all services work on IPv6 platform No NATs / NAT-PTs needed in mobile networks. Some separate IPv4 networks still exist Second phase IPv4 Internet IPv6 Internet Operator network IPv6 Intranet IPv4 Intranet NAT NAT-PT MT NAT-PT MT dual stack IPv4 / IPv6 dual stack NAT MT IPv6 core PDSN Final phase IPv6 Internet IPv6 Intranet Operator network IPv4 MT NAT-PT MT IPv6 dual stack in IPv6 mode IPv6 core PDSN router

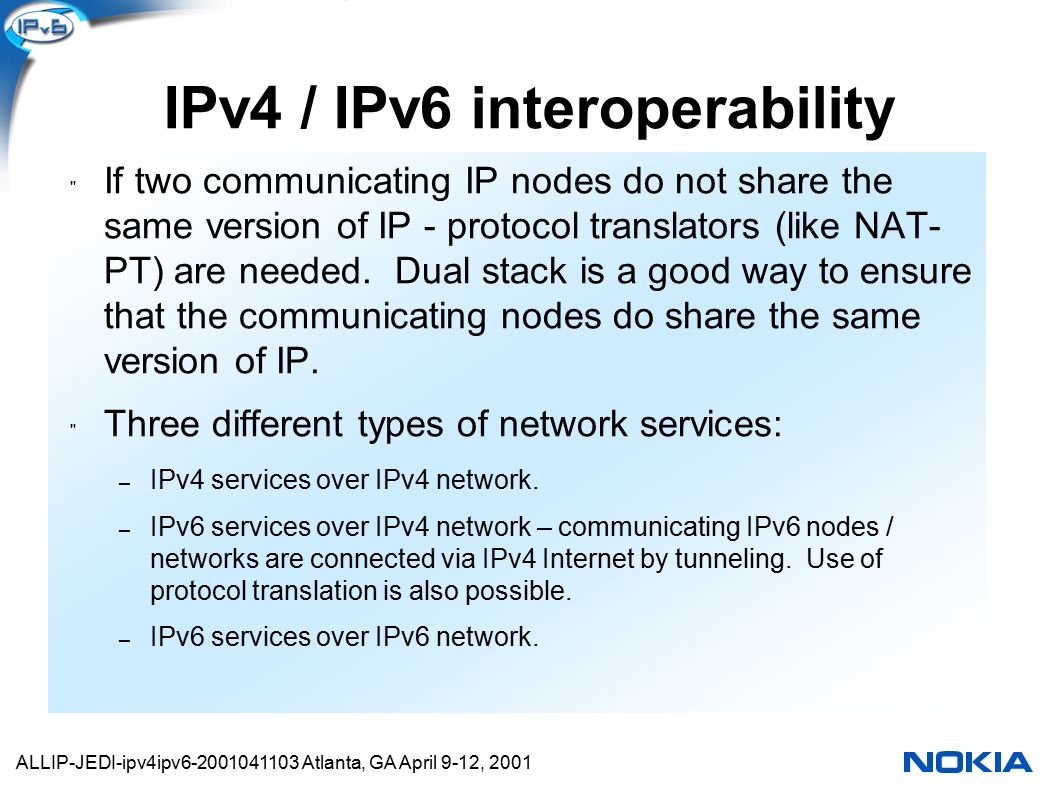

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 IPv4 / IPv6 interoperability " If two communicating IP nodes do not share the same version of IP - protocol translators (like NAT- PT) are needed. Dual stack is a good way to ensure that the communicating nodes do share the same version of IP. " Three different types of network services: – IPv4 services over IPv4 network. – IPv6 services over IPv4 network – communicating IPv6 nodes / networks are connected via IPv4 Internet by tunneling. Use of protocol translation is also possible. – IPv6 services over IPv6 network.

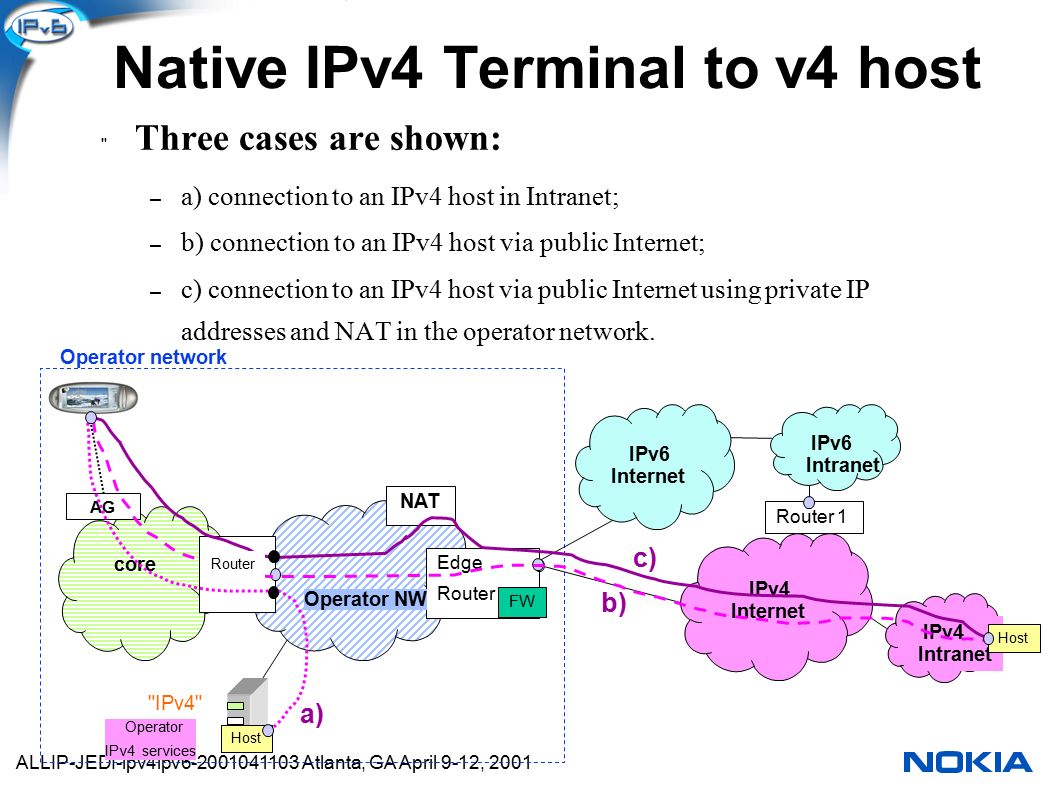

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 IPv4 Intranet core IPv4 Internet AG Edge Router NAT Operator network FW Router 1 "IPv4" c) a) b) Operator IPv4 services Host IPv6 Internet IPv6 Intranet Operator NW Router Host Native IPv4 Terminal to v4 host " Three cases are shown: – a) connection to an IPv4 host in Intranet; – b) connection to an IPv4 host via public Internet; – c) connection to an IPv4 host via public Internet using private IP addresses and NAT in the operator network.

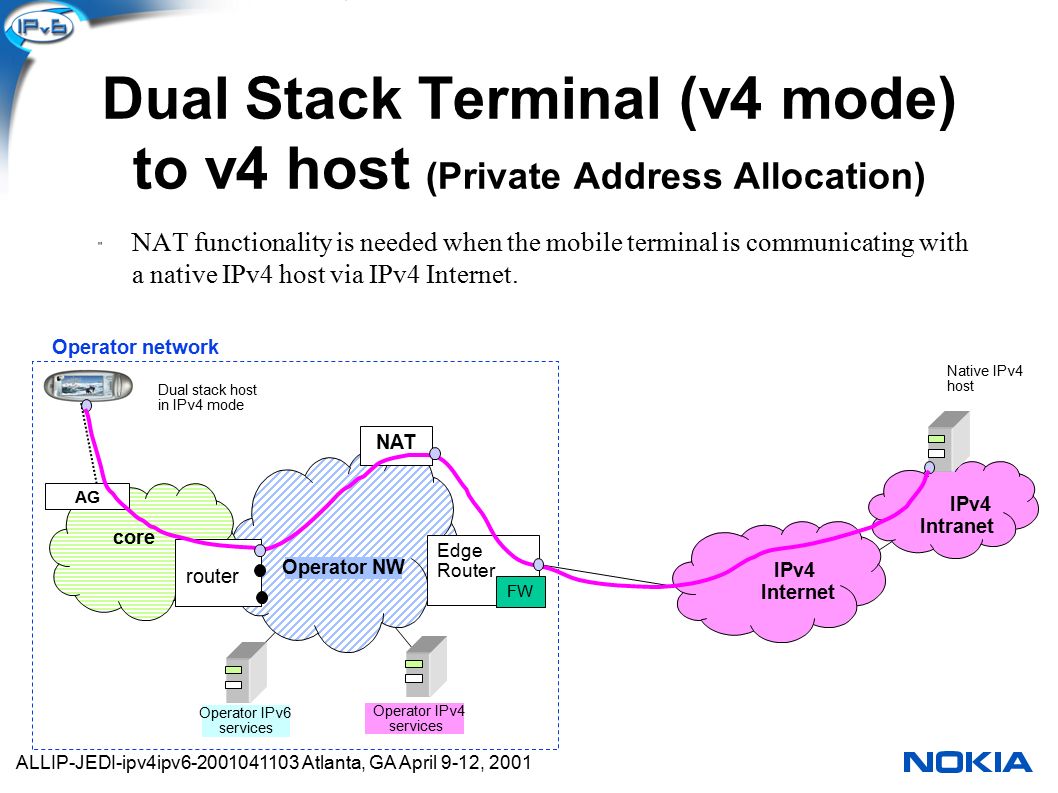

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 NAT IPv4 Internet Operator NW core AG router Edge Router Operator network FW Operator IPv4 services Operator IPv6 services IPv4 Intranet Dual stack host in IPv4 mode Native IPv4 host Dual Stack Terminal (v4 mode) to v4 host (Private Address Allocation) " NAT functionality is needed when the mobile terminal is communicating with a native IPv4 host via IPv4 Internet.

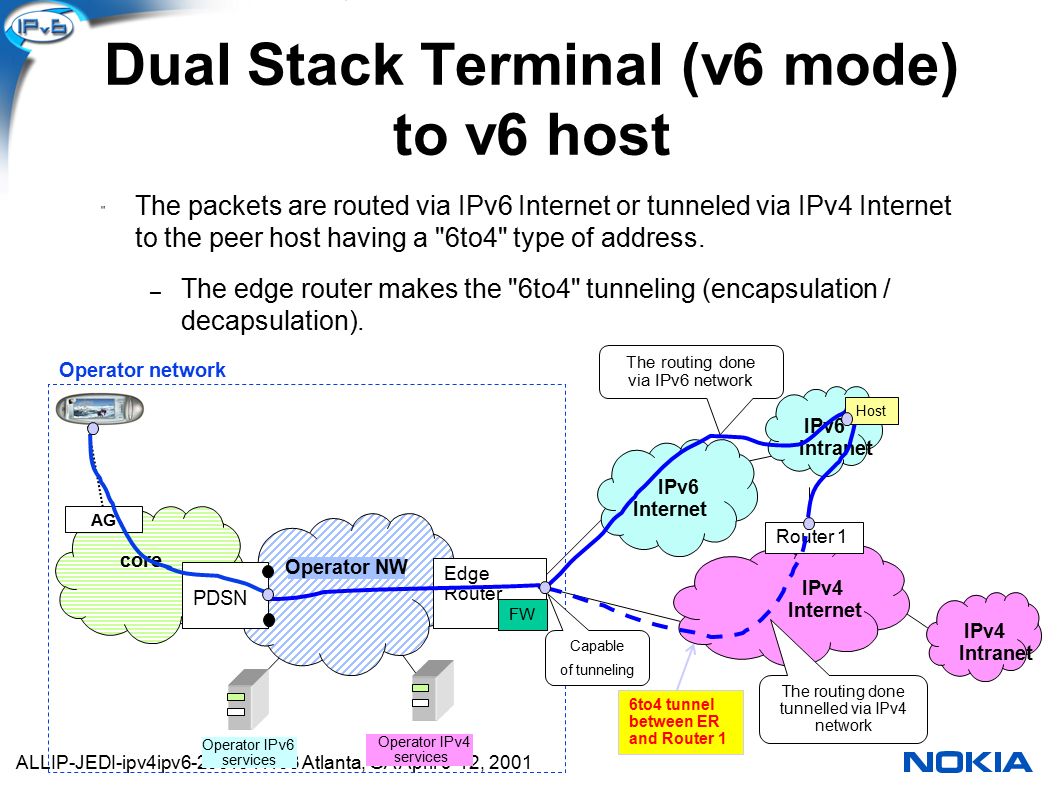

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 IPv4 Internet IPv6 Intranet IPv6 Internet Operator NW core AG PDSN Edge Router Operator network FW 6to4 tunnel between ER and Router 1 Router 1 Host The routing done via IPv6 network The routing done tunnelled via IPv4 network Capable of tunneling Operator IPv4 services Operator IPv6 services IPv4 Intranet Dual Stack Terminal (v6 mode) to v6 host " The packets are routed via IPv6 Internet or tunneled via IPv4 Internet to the peer host having a "6to4" type of address. – The edge router makes the "6to4" tunneling (encapsulation / decapsulation).

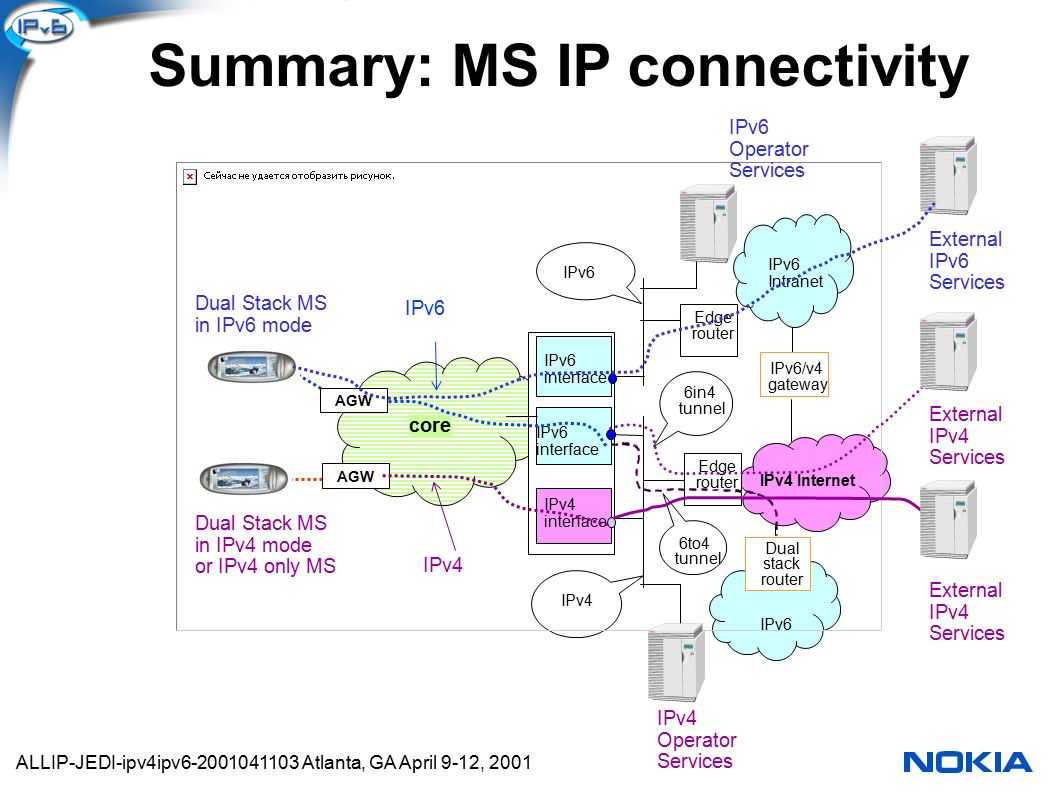

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 core IPv6 interface IPv6 interface IPv4 IPv4 Internet Edge router IPv6 Intranet IPv6 IPv6/v4 gateway Dual stack router IPv4 interface 6in4 tunnel AGW IPv4 IPv6 Dual Stack MS in IPv4 mode or IPv4 only MS Dual Stack MS in IPv6 mode 6to4 tunnel Summary: MS IP connectivity Edge router External IPv4 Services External IPv6 Services External IPv4 Services IPv6 Operator Services IPv4 Operator Services

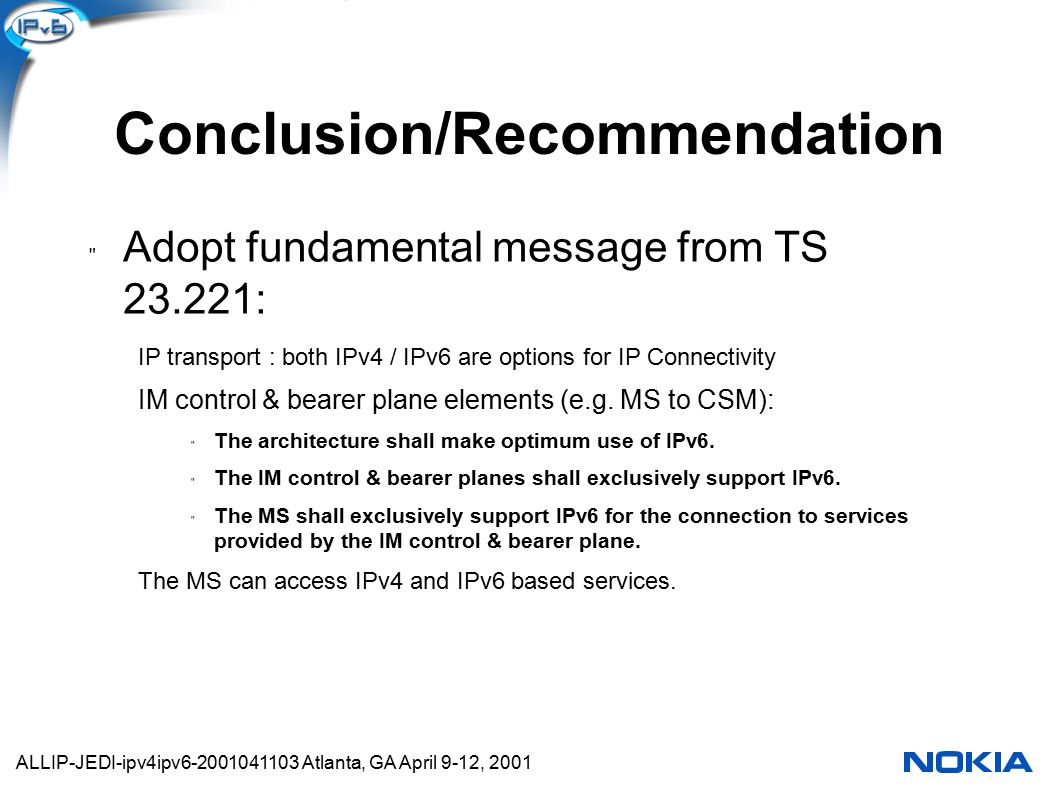

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 Conclusion/Recommendation " Adopt fundamental message from TS 23.221: IP transport : both IPv4 / IPv6 are options for IP Connectivity IM control & bearer plane elements (e.g. MS to CSM): " The architecture shall make optimum use of IPv6. " The IM control & bearer planes shall exclusively support IPv6. " The MS shall exclusively support IPv6 for the connection to services provided by the IM control & bearer plane. The MS can access IPv4 and IPv6 based services.

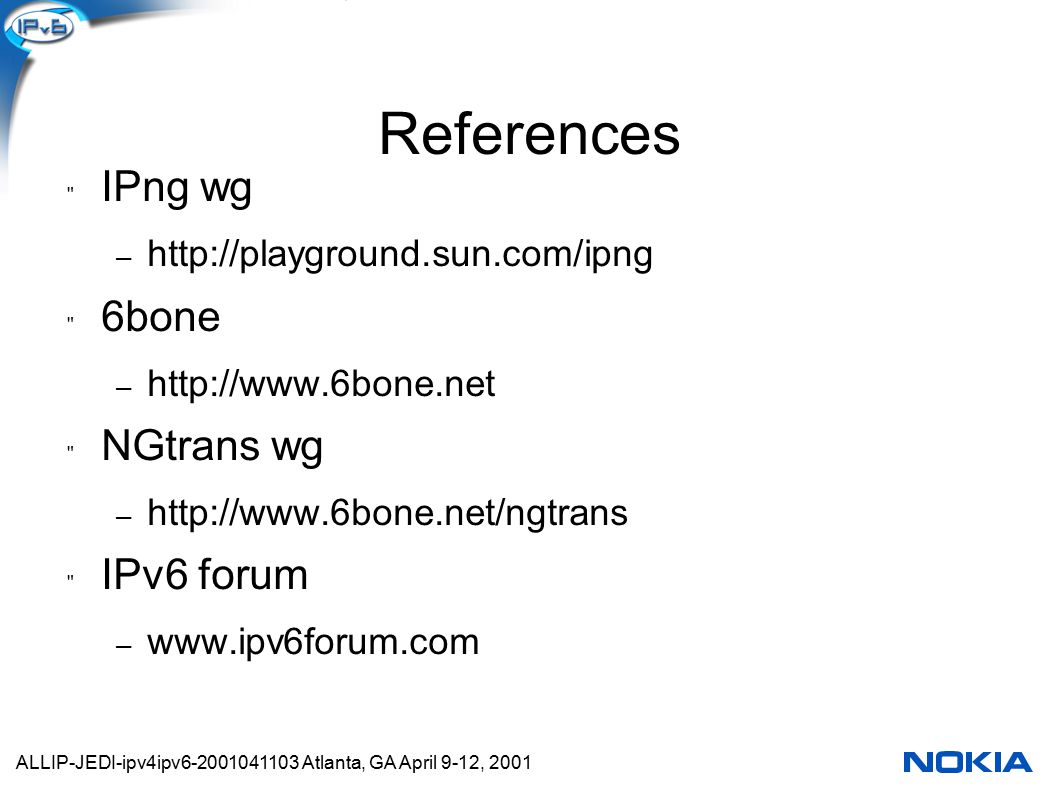

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 References " IPng wg – http://playground.sun.com/ipng " 6bone – http://www.6bone.net " NGtrans wg – http://www.6bone.net/ngtrans " IPv6 forum – www.ipv6forum.com

ALLIP-JEDI-ipv4ipv6-2001041103 Atlanta, GA April 9-12, 2001 TITLE: IPv6 Motivation in 3GPP2 SOURCE: Ernie Tacsik +1 972-894-4044
