1 STL-Associative Containers

2 Associative Containers Sequence containers : "This is item 0, this is item 1, this is item 2…“ Associative containers : – Store items by key: I have the word "apple" I have the word "carrot" – No numeric index – word[0] is meaningless

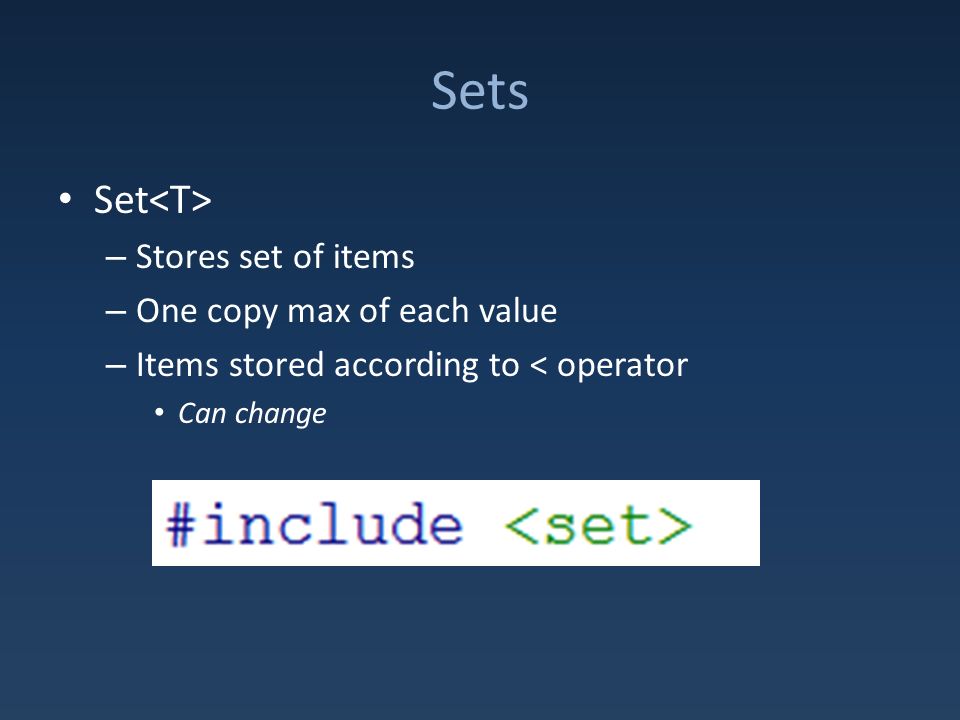

3 Sets Set – Stores set of items – One copy max of each value – Items stored according to < operator Can change

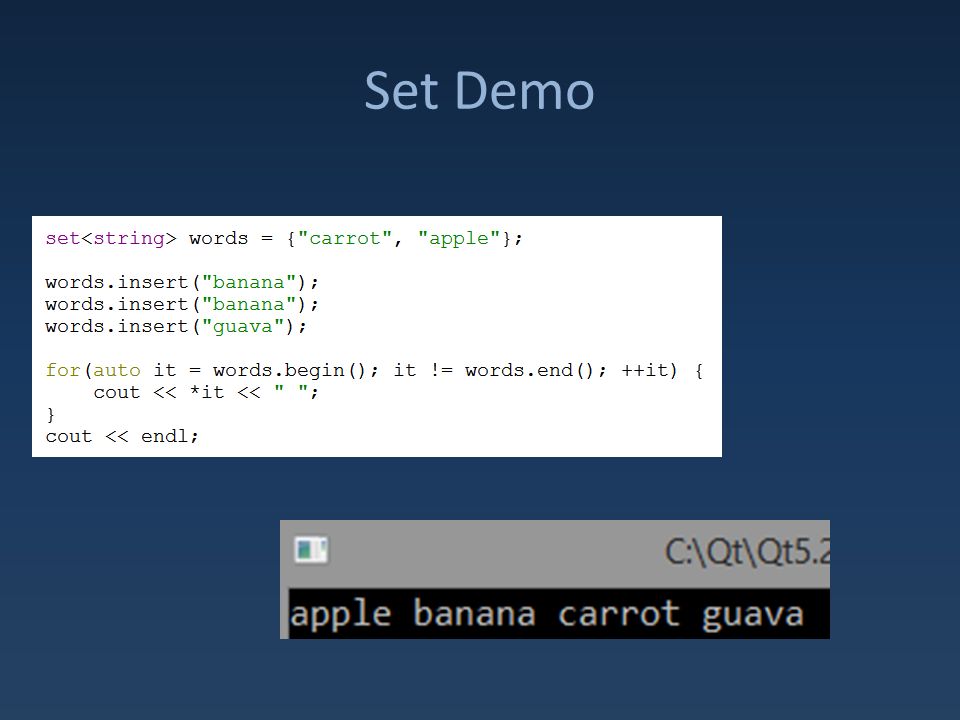

4 Set Demo

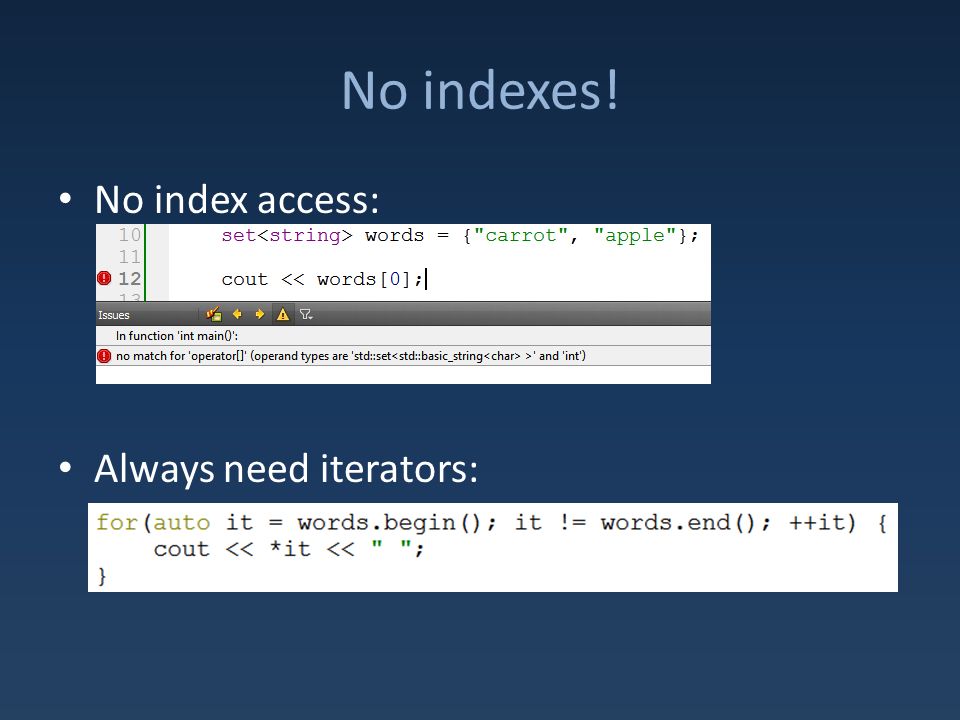

5 No indexes! No index access: Always need iterators:

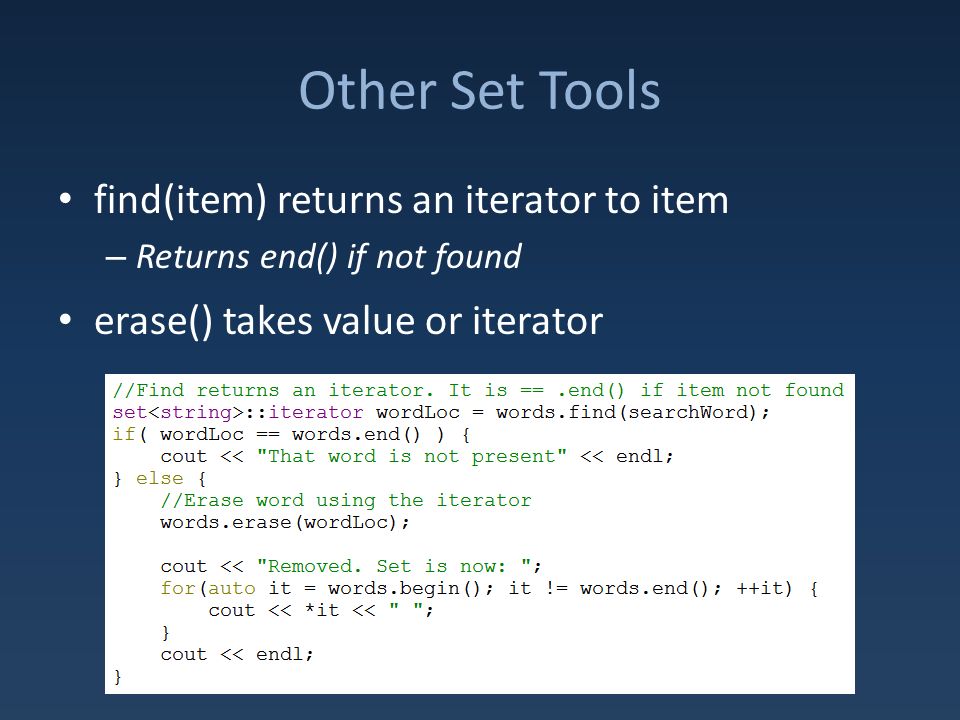

6 Other Set Tools find(item) returns an iterator to item – Returns end() if not found erase() takes value or iterator

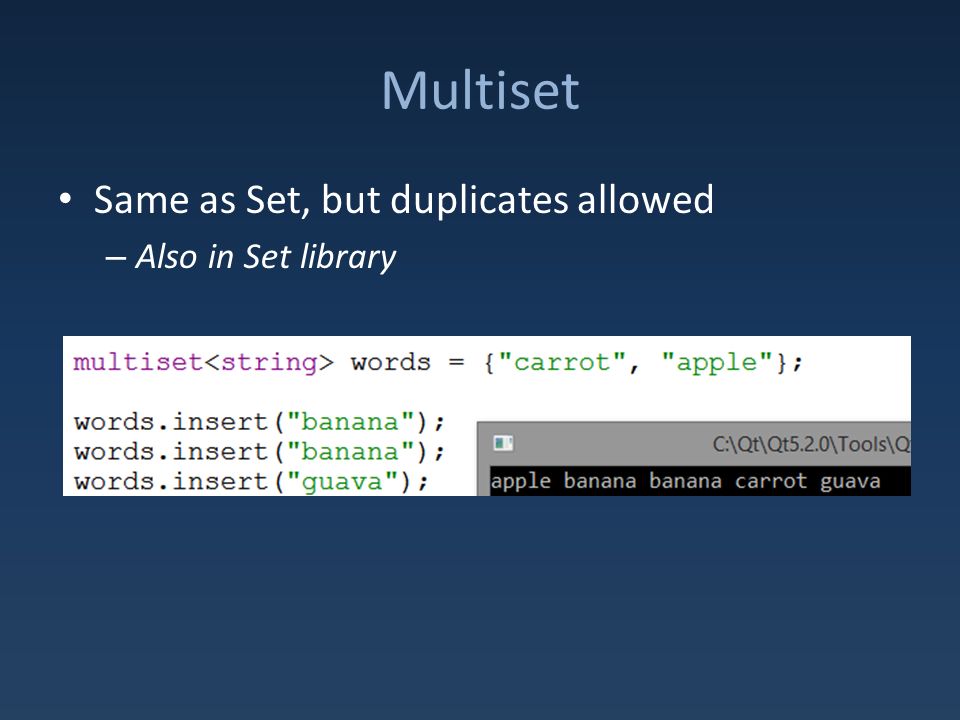

7 Multiset Same as Set, but duplicates allowed – Also in Set library

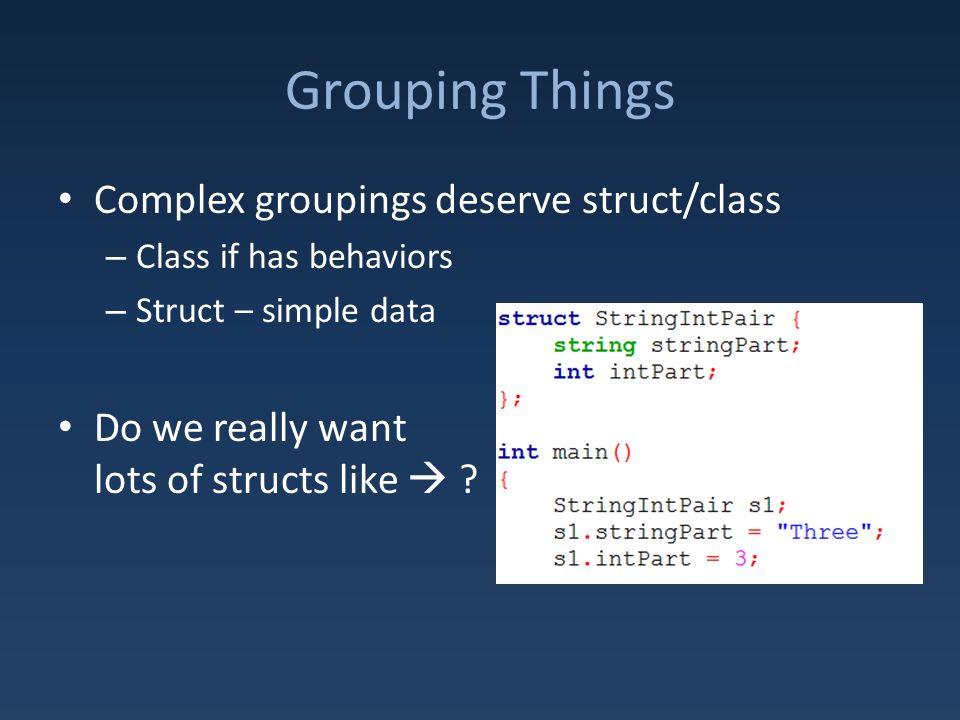

8 Grouping Things Complex groupings deserve struct/class – Class if has behaviors – Struct – simple data Do we really want lots of structs like  ?

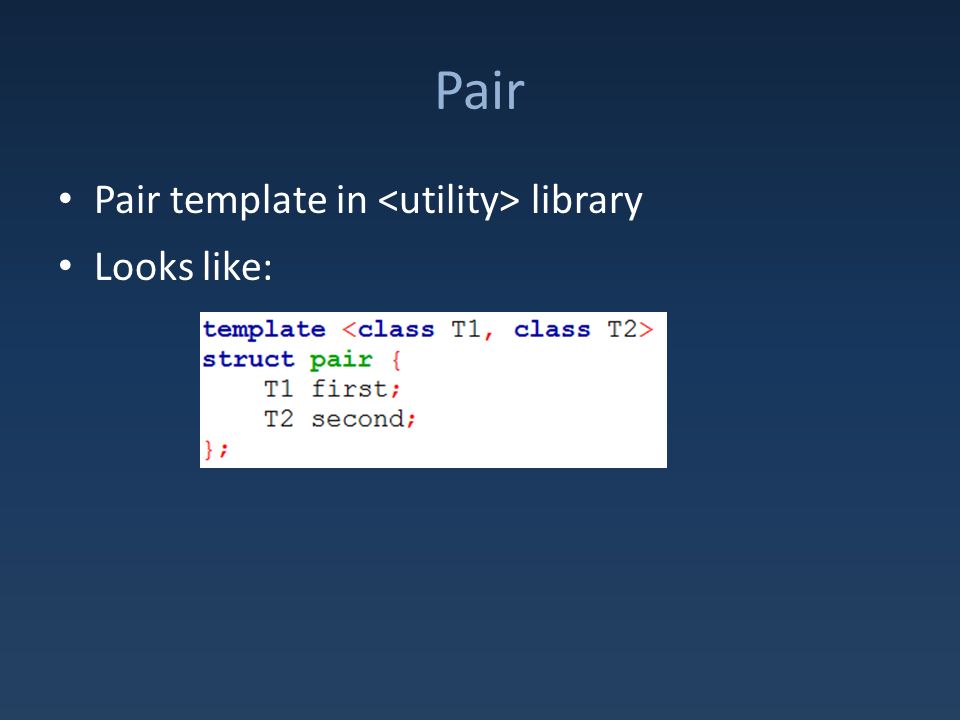

9 Pair Pair template in library Looks like:

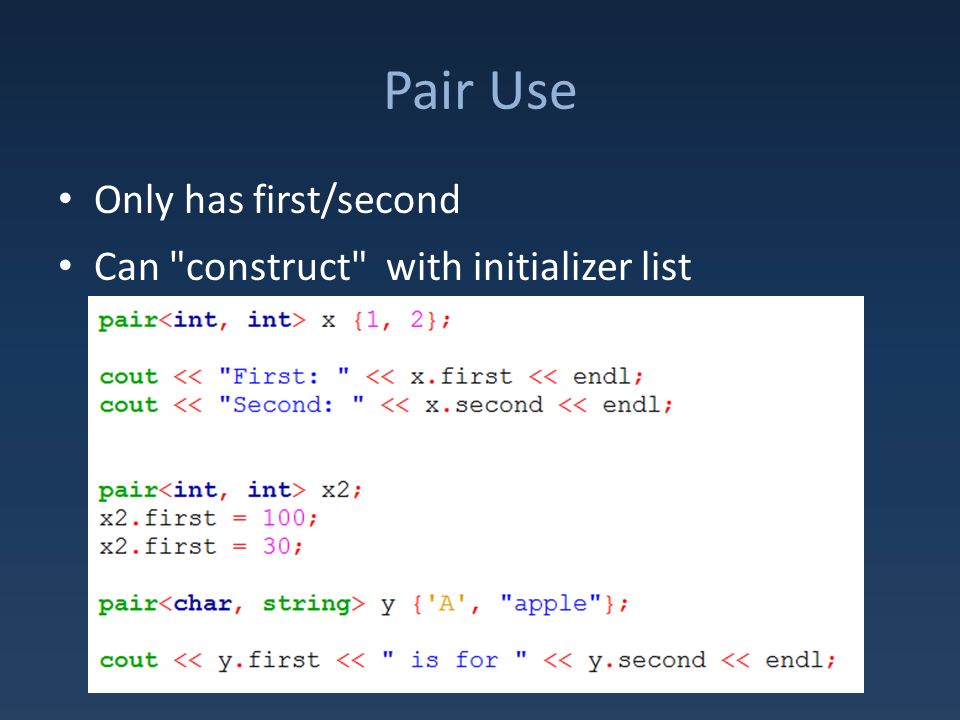

10 Pair Use Only has first/second Can "construct" with initializer list

11 Pair Use Can make a vector of pairs: But associations not explicitly stored – No order – No easy way to look up things

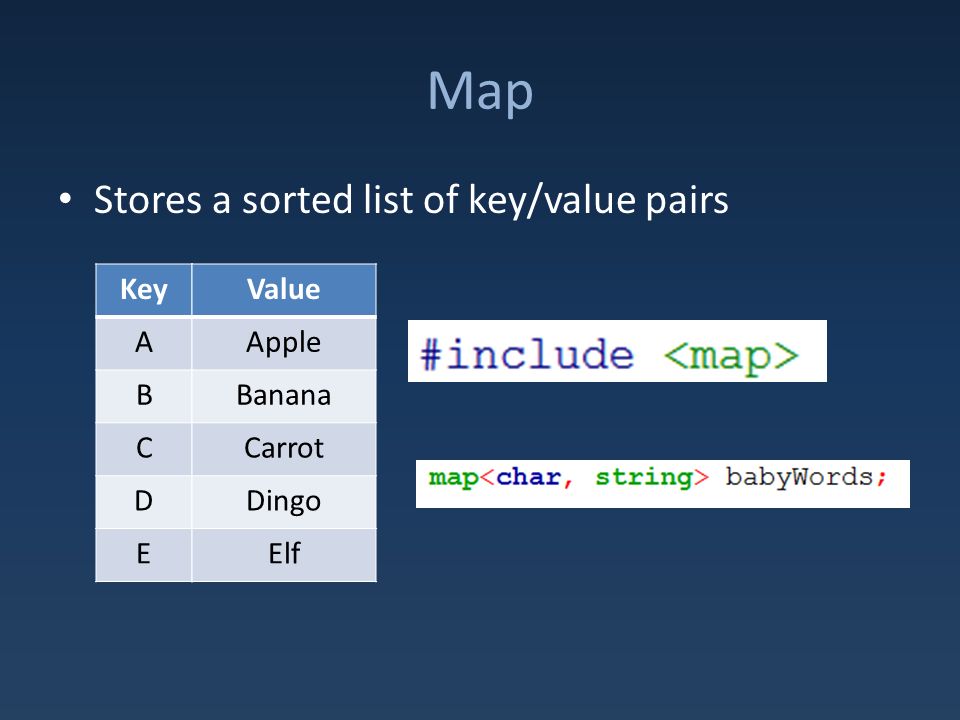

12 Map Stores a sorted list of key/value pairs Key A B C D E Value Apple Banana Carrot Dingo Elf

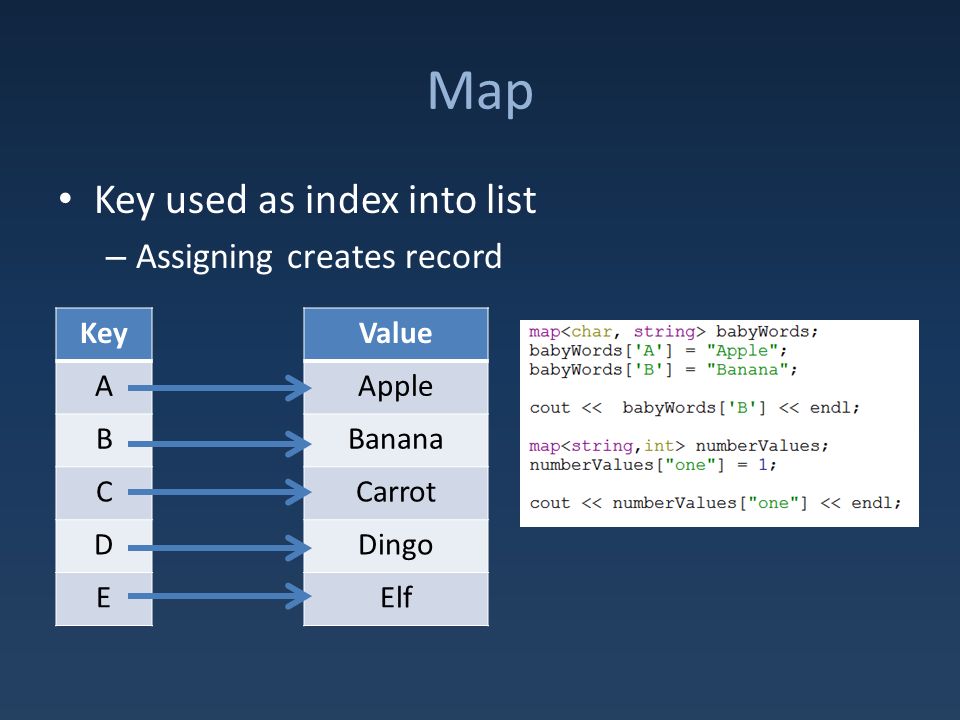

13 Map Key used as index into list – Assigning creates record Key A B C D E Value Apple Banana Carrot Dingo Elf

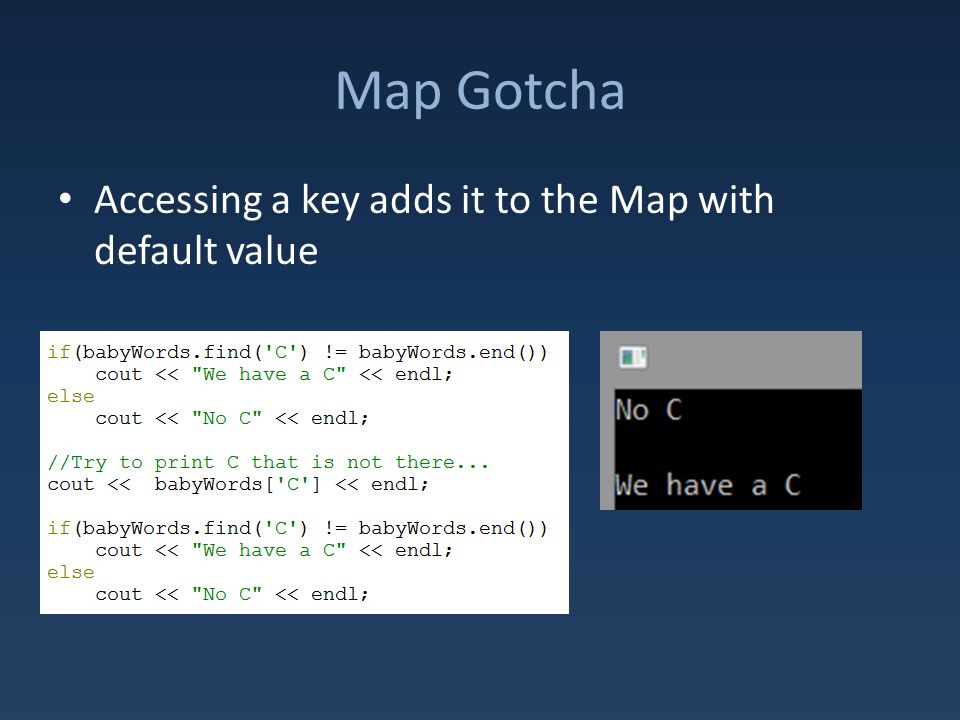

14 Map Gotcha Accessing a key adds it to the Map with default value

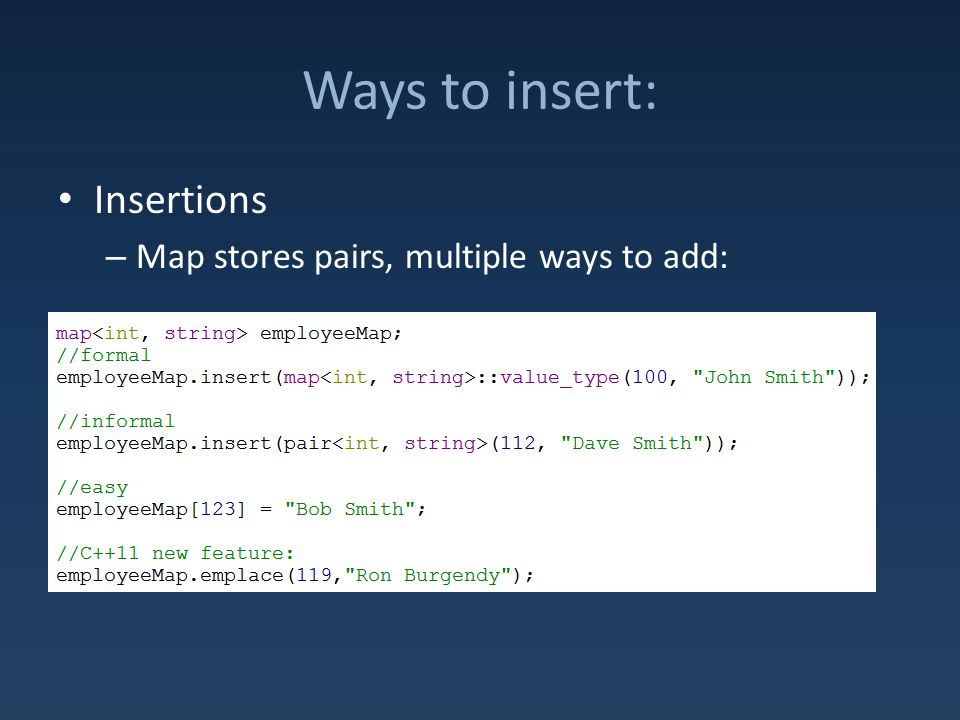

15 Ways to insert: Insertions – Map stores pairs, multiple ways to add:

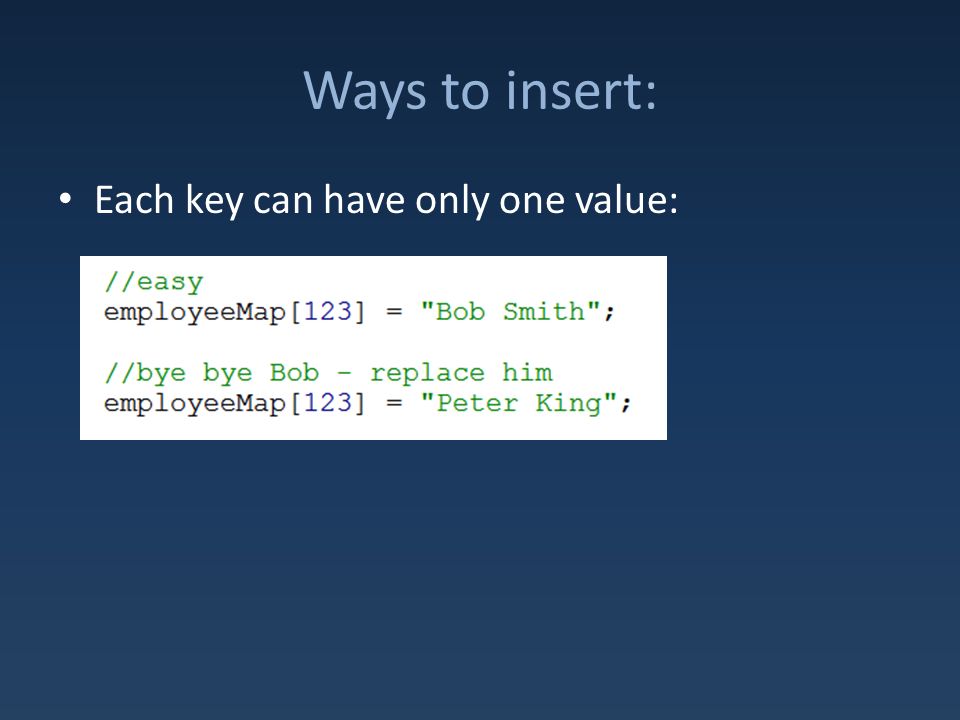

16 Ways to insert: Each key can have only one value:

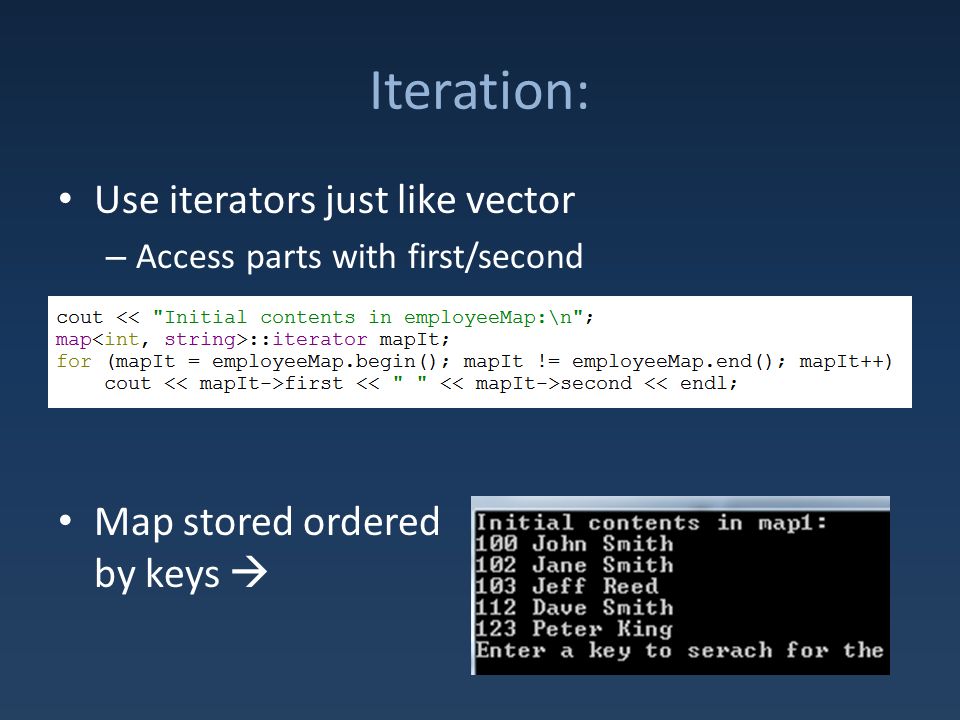

17 Iteration: Use iterators just like vector – Access parts with first/second Map stored ordered by keys 

18 Find/Contains Can find(keyType): – No find(valueType)

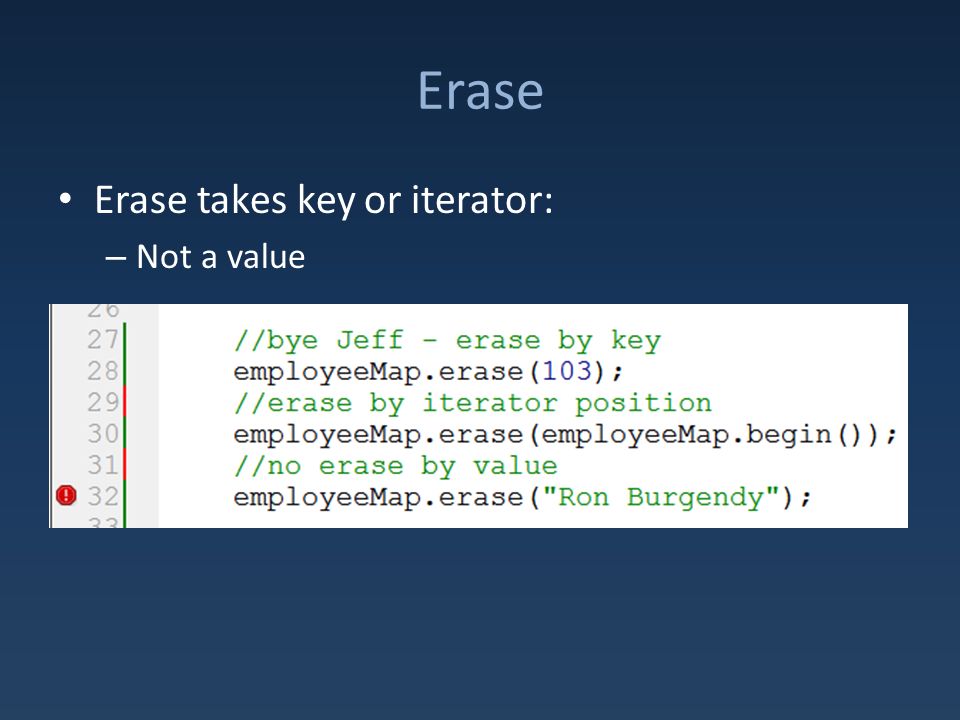

19 Erase Erase takes key or iterator: – Not a value

20 MultiMap To store list as value, could use map of vector: Can’t use [] with multimap

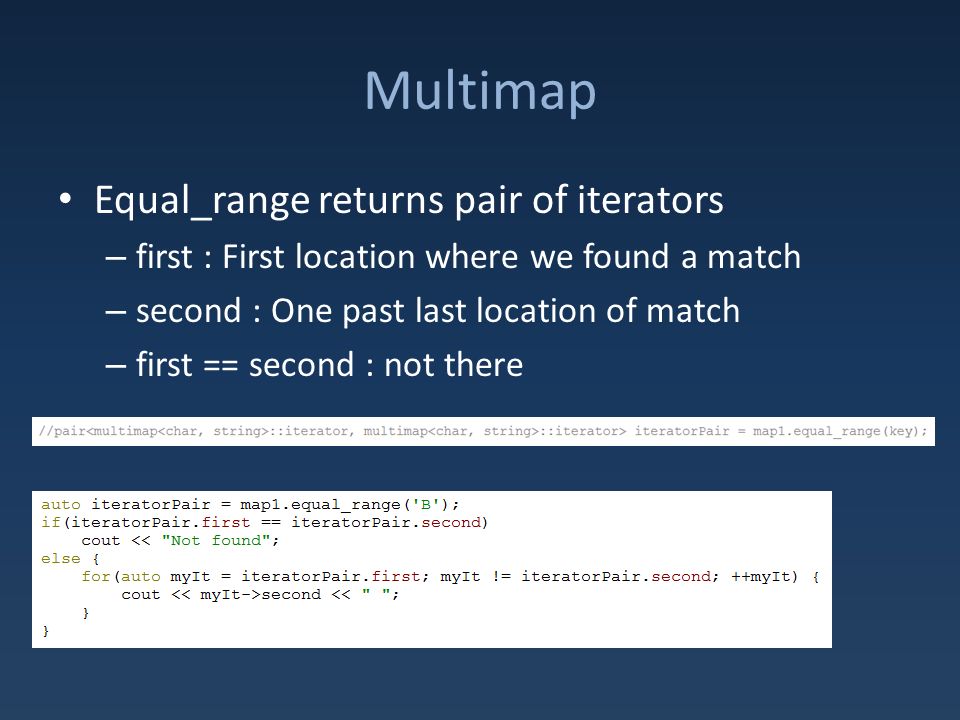

21 Multimap Equal_range returns pair of iterators – first : First location where we found a match – second : One past last location of match – first == second : not there
