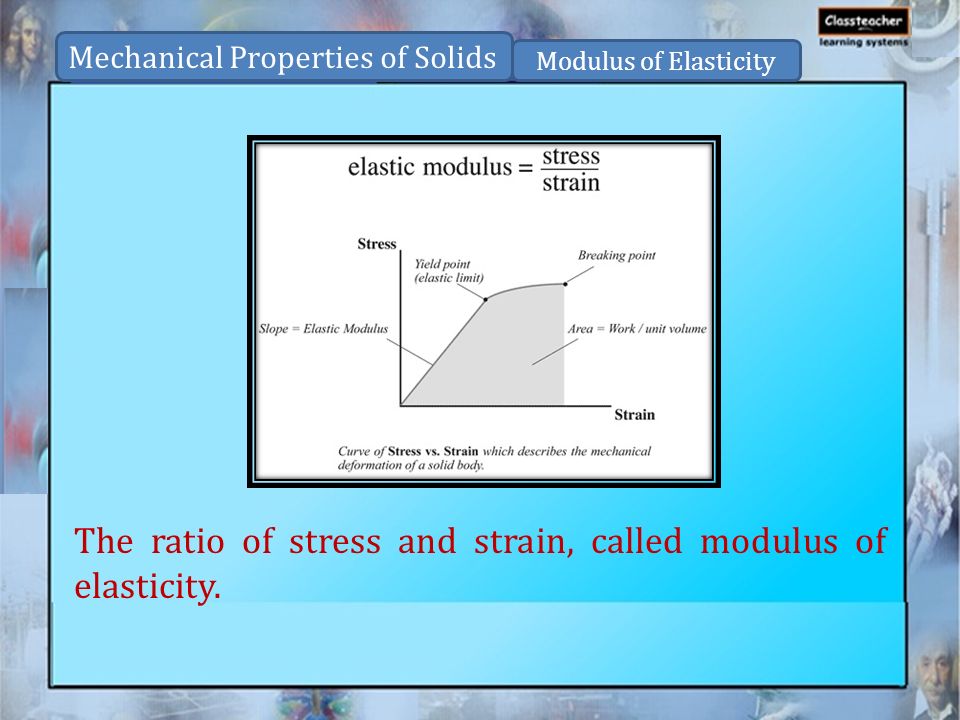

1 The ratio of stress and strain, called modulus of elasticity. Mechanical Properties of Solids Modulus of Elasticity

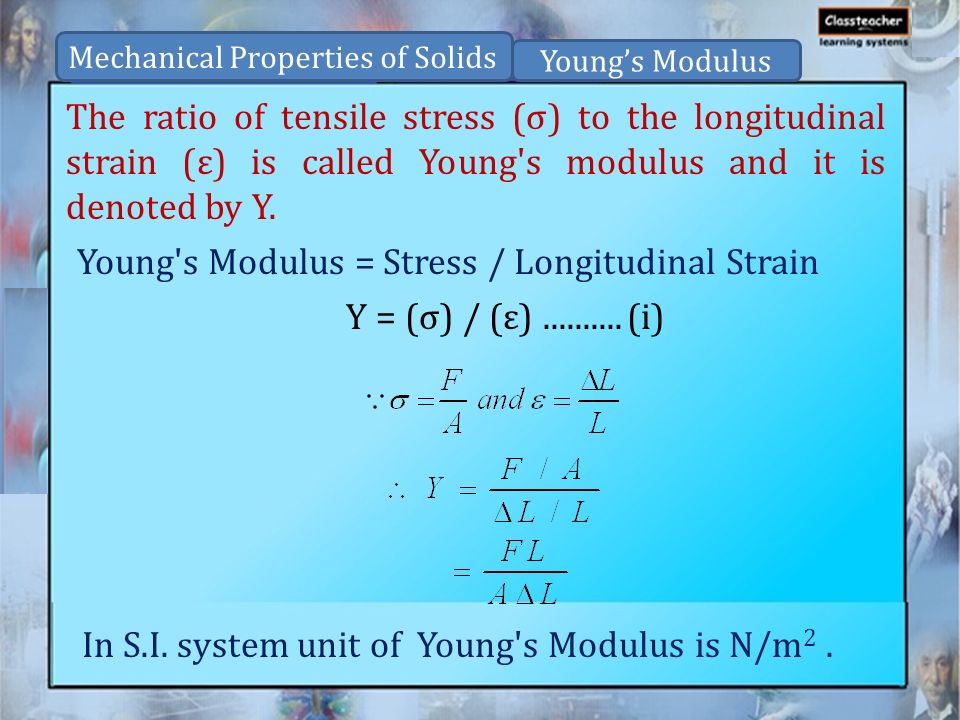

2 The ratio of tensile stress (σ) to the longitudinal strain (ε) is called Young's modulus and it is denoted by Y. Young's Modulus = Stress / Longitudinal Strain Y = (σ) / (ε).......... (i) In S.I. system unit of Young's Modulus is N/m 2. Mechanical Properties of Solids Young’s Modulus

3 Young’s moduli and yield strengths of some materials: Mechanical Properties of Solids Young’s Modulus

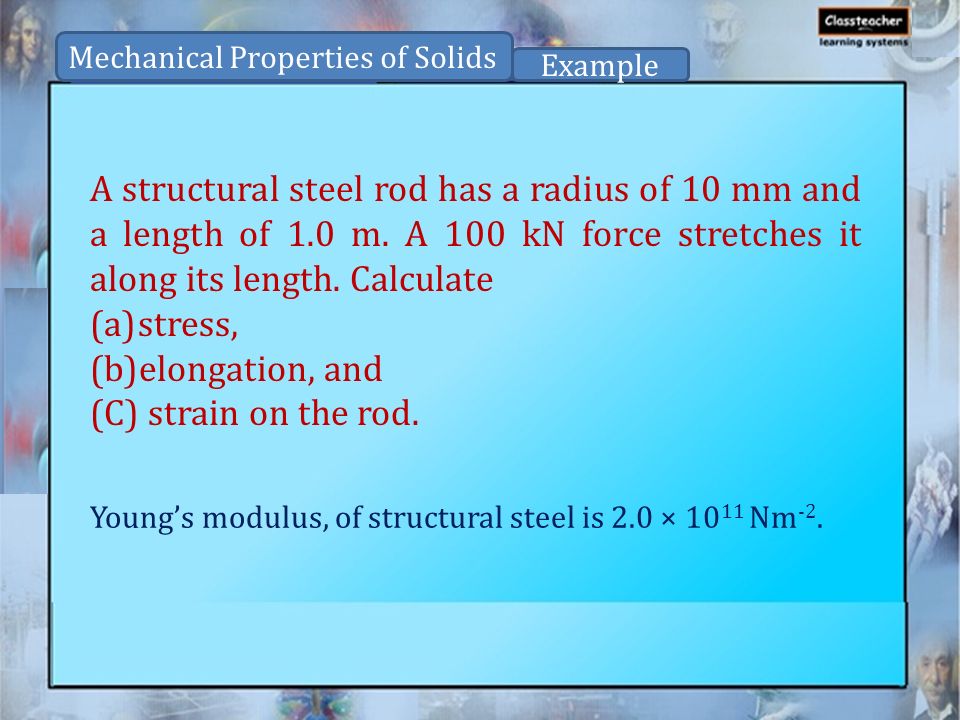

4 A structural steel rod has a radius of 10 mm and a length of 1.0 m. A 100 kN force stretches it along its length. Calculate (a)stress, (b)elongation, and (C) strain on the rod. Mechanical Properties of Solids Example Young’s modulus, of structural steel is 2.0 × 10 11 Nm -2.

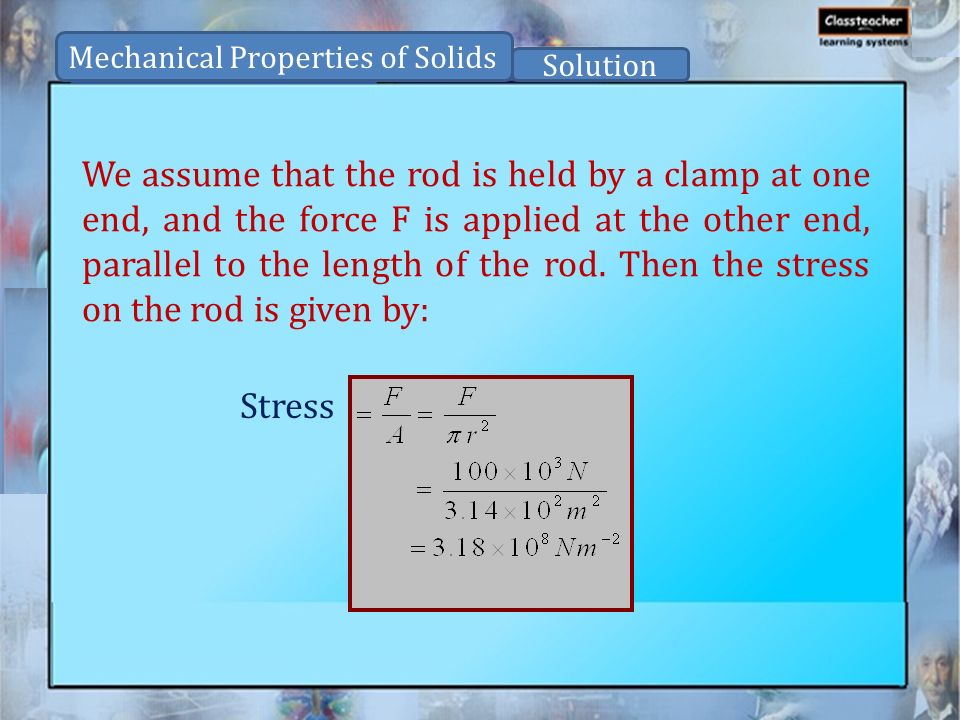

5 We assume that the rod is held by a clamp at one end, and the force F is applied at the other end, parallel to the length of the rod. Then the stress on the rod is given by: Mechanical Properties of Solids Solution Stress

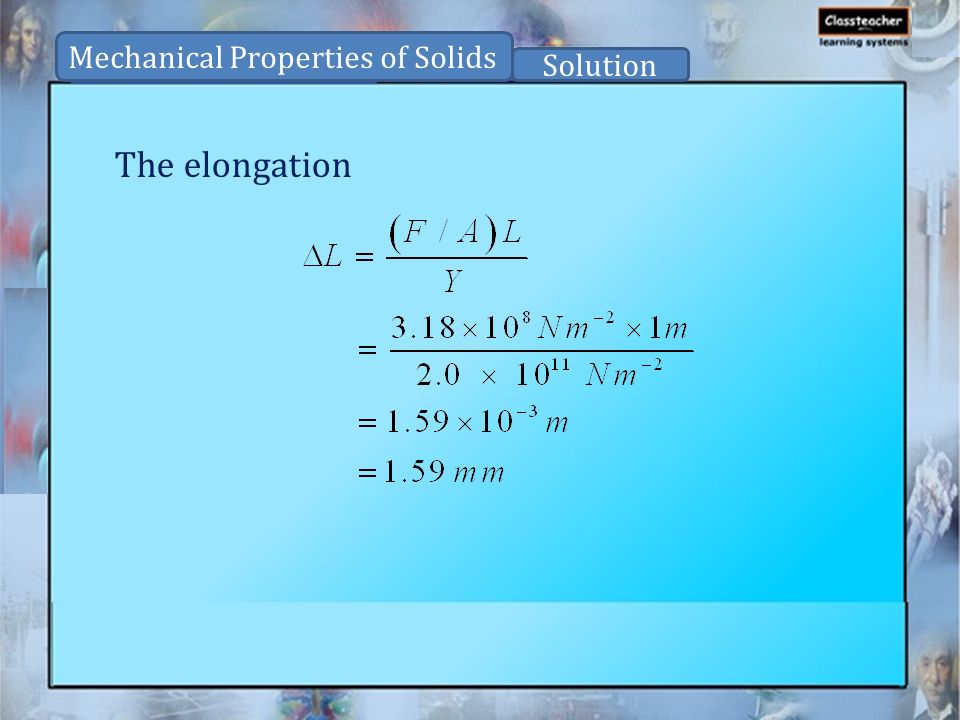

6 The elongation Mechanical Properties of Solids Solution

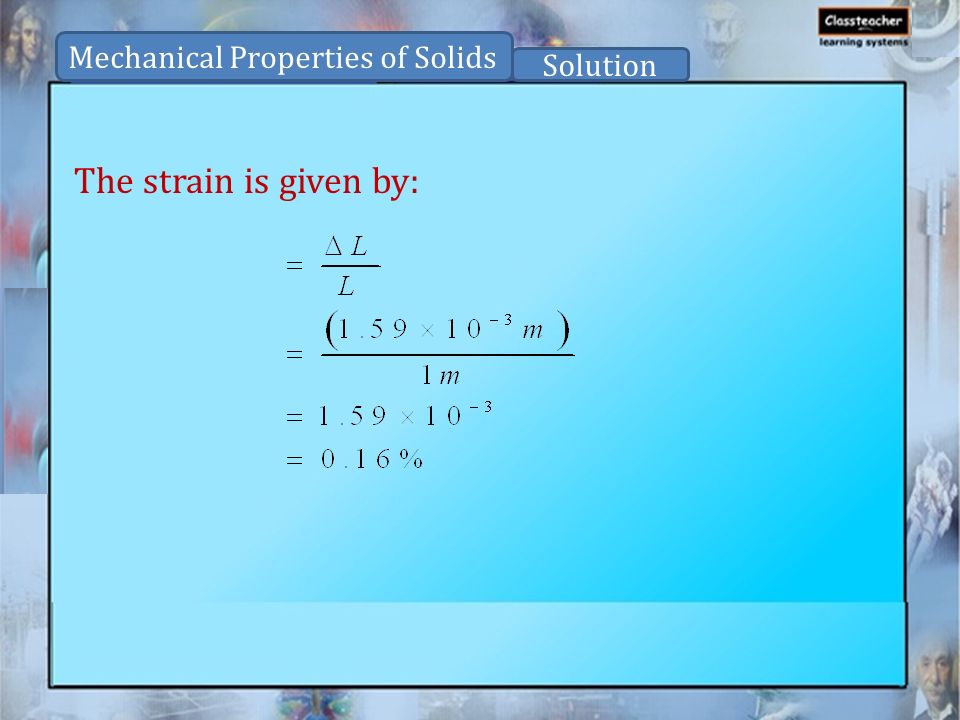

7 The strain is given by: Mechanical Properties of Solids Solution
