1. By Doğaç Başaran & Erdem Yörük
Eye & Mouth Detection By
Doğaç Başaran & Erdem Yörük

2. Introduction
Face image processing is recently used for personal identification, facial expression detection, drowsiness detection and so on. The important face parts such as eyebrows, eyes, noise, mouth are used to express facial feature
Active contour model
Deformable template model
Local smoothness of image density
Color information of image
Knowledge about shape and locationship of face parts are several methods used to detect face parts

3. Our method to detect eye&mouth
When application of face image recognition is limited to the specific purpose, in the case which one face is always clearly obtained, algorithm for extracting face parts becomes extremely simple by using
SYMMETRY.
We focus bilateral symmetries between and within face parts and detect the symmetry measure on face parts using the gradient directions
We determine width and height of face parts extraction windows from horizontally and vertically projected histograms of symmetry measures.
Then we use template matching method to detect eyes and mouth in those reduced search areas.

4. Gradient directions
We define 8 kinds of gradient direction corresponding to horizontal, vertical and oblique edges as shown in the figure.
The gradient direction at a given pixel is the direction in which the maximum increase of the image function occurs when traveling to one of its eight neighbours.

5. Symmetry detection
We examine direction of gradient at the same distance from point of interest. If both directions of gradient at the same distance from point of interest have bilateral symmetry eachother symmetry measure at this point is incremented

6. Parameters of the algorithm
bm(i,j)+=1 (if g(x(i,j-d)) is bilaterally symmetric with g(x(i,j+d)))
SM(j)=bm(m,j)
SM(i)=bm(i,n)
where,
d=horizontal distance from point of interest
g(x(i,j))=gradient function at the pixel x(i,j) giving direction of gradient at that pixel
bm(i,j)=symmetry matrix with the same size of the image giving bilateral symmetry measure at pixel x(i,j)
SM(j)=projection of symmetry matrix bm onto horizontal j-axis showing symmetry accumulated in coloumns
SM(i)=projection of symmetry matrix bm onto vertical i-axis showing symmetry accumulated in rows

7. Original image

8. X projection

9. Y_projection

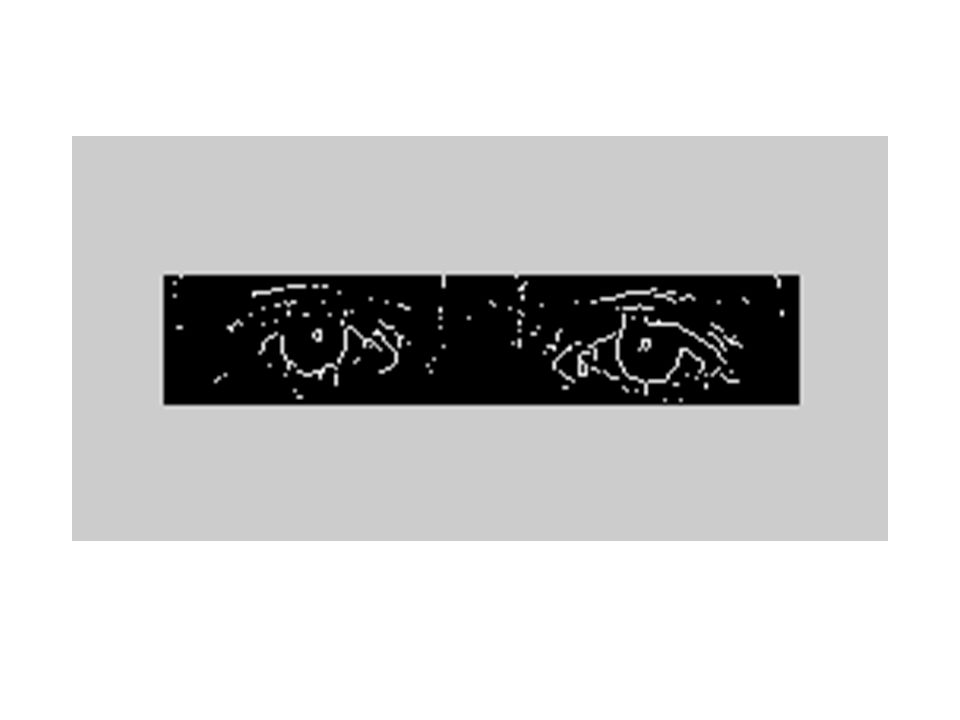

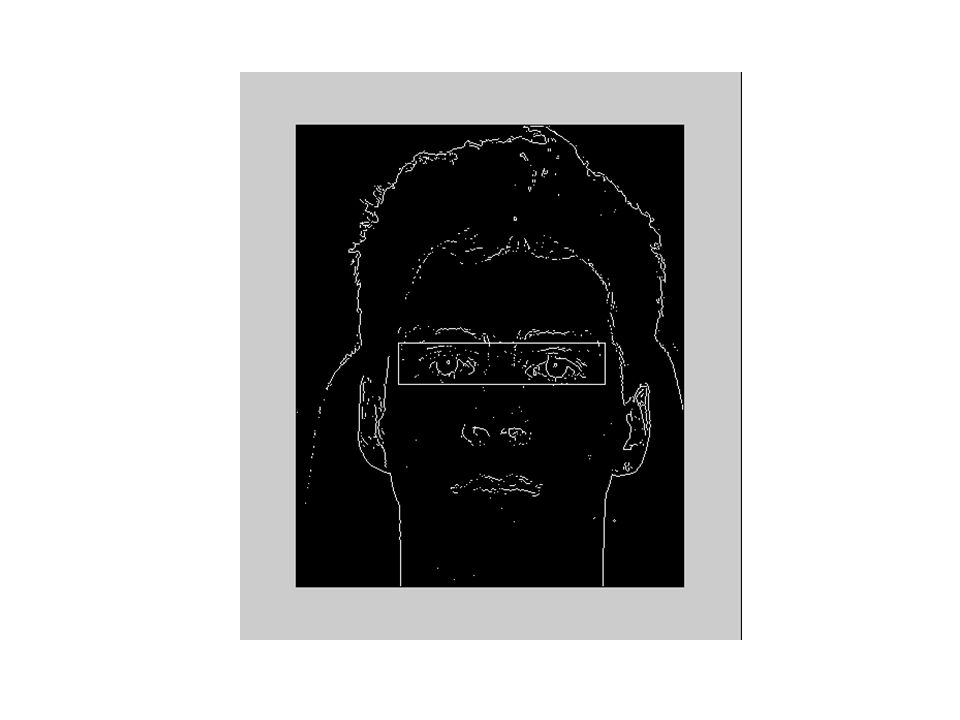

10. Face parts extraction window
The next task will be creating a window utilizing the maximum points of these two histograms where their intersection point nearly represents the center of the face. The peak in the latter histogram and the width of the lobe where it occurs gives us a clue for the height and vertical position of this extraction window. The width of the window is then determined using the positions of the secondary maximum points in the first histogram symmetrically located around the midline which actually correspond to the coloumns of the image which contain eyes and eyebrows. This window represents the reduced search area where we can apply the template matching method.

13. Template matching
A measure of similarity is the normalized cross correlation between template and original image
g(i,j) is the original image, t(i,j) is the template.

14. Left eye template

15. Right eye template

16. Mouth detection
We assume that the distance of right and left eyes is approximatelly equal to distance between the mouth and the middle of the eyes with an error of 10 pixels
Since from y porjection, we have a peak around mouth, by using this
information, we can find the peak of mouth at y projection
After finding the eyes and peak of mouth at y projection, we take an imaginary line which is vertical to the line combining the eyes, from the middle point of the eyes, and intersect this line with the peak value
of mouth and we put a cross operator there.

17. Output data
