1. Descriptive Statistics Measures of Variation

2. Essentials: Measures of Variation (Variation – a must for statistical analysis.) Know the types of measures used to look at variation and the type data to which they apply. Be able to calculate the range, standard deviation and inter-quartile range. Be able to determine the distance away from the mean a given value lies in terms of standard deviations (think z-score). Be able to apply the Empirical Rule and Chebychev’s Theorem to specific situations.

3. Measures of Variation Range Variance Standard Deviation Interquartile Range (IQR; see Measures of Position)

4. Range The Range of a data set is the difference between the highest value and the lowest value. Example: Given –the following data values, identify the range of the distribution. Values: 2, 4, 6, 8, 10 Range = 10 – 2 = 8

5. Variance For a sample the variance is a measure of variation equal to the sum of the squared deviation scores divided by n-1. It is also the square of the standard deviation. Sample Variance:

6. Sample Standard Deviation Standard deviation is a measure of the typical amount an entry deviates (or varies) from the mean. The more the entries are spread out, the greater the standard deviation. Sample Standard Deviation(s): Definition FormulaCalculation Formula

7. Interpreting Standard Deviation Standard deviation is a measure of the typical amount an entry deviates from the mean. The more the entries are spread out, the greater the standard deviation. Larson/Farber 4th ed.7

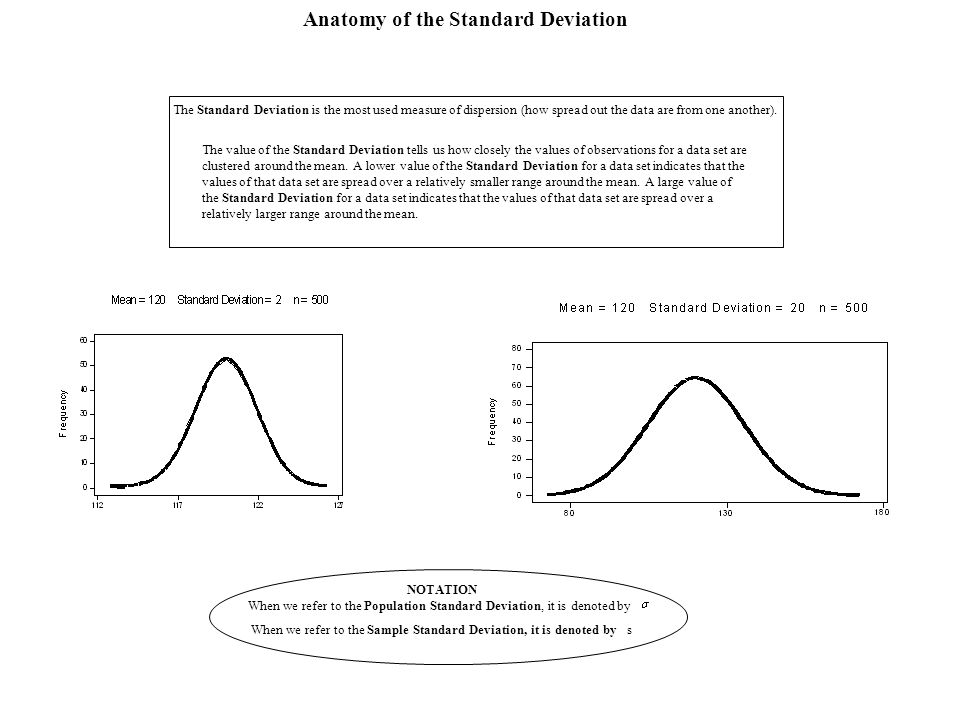

8. Anatomy of the Standard Deviation The value of the Standard Deviation tells us how closely the values of observations for a data set are clustered around the mean. A lower value of the Standard Deviation for a data set indicates that the values of that data set are spread over a relatively smaller range around the mean. A large value of the Standard Deviation for a data set indicates that the values of that data set are spread over a relatively larger range around the mean. The Standard Deviation is the most used measure of dispersion (how spread out the data are from one another). NOTATION When we refer to the Population Standard Deviation, it is denoted by When we refer to the Sample Standard Deviation, it is denoted by s

9. Interpreting Standard Deviation: Empirical Rule (68 – 95 – 99.7 Rule) For data with a (symmetric) bell-shaped distribution, the standard deviation has the following characteristics: About 68.26% of the data lie within one standard deviation of the mean. About 95.44% of the data lie within two standard deviations of the mean. About 99.74% of the data lie within three standard deviations of the mean.

10. Interpreting Standard Deviation: Empirical Rule (68 – 95 – 99.7 Rule) Source: Larson/Farber 4th ed. 68% within 1 standard deviation 34% 99.7% within 3 standard deviations 2.35% 95% within 2 standard deviations 13.5%

11. Example: Using the Empirical Rule Example: In a survey conducted by the National Center for Health Statistics, the sample mean height of women in the United States (ages 20-29) was 64 inches, with a sample standard deviation of 2.71 inches. Estimate the percent of the women whose heights are between 64 inches and 69.42 inches. Source: Larson/Farber 4th ed.

12. Solution: Using the Empirical Rule Source: Larson/Farber 4th ed. 55.8758.5861.296466.7169.4272.13 34% 13.5% Because the distribution is bell-shaped, you can use the Empirical Rule. 34% + 13.5% = 47.5% of women are between 64 and 69.42 inches tall. (64 + 2.71 = 66.71 + 2.71 = 69.42; all inches)

13. ADDITIONAL TOPICS

14. Range Rule of Thumb To obtain a rough estimate of the standard deviation, s, Conversely, the “minimum” value would be approximately equal to the mean – 2*(standard deviation). The “maximum” value would be approximately equal to the mean + 2*(standard deviation).

15. Population Variance & Standard Deviation The population variance,    sigma-squared  is a measure of variation equal to the sum of the squared deviation scores divided by N. It is also the square of the standard deviation. Population Variance: Population Standard Deviation:

16. Interquartile Range (IQR) The Interquartile Range is a measure of variation. It is the difference between the first quartile, Q 1 (25 th percentile) and the third quartile, Q 3 (75 th percentile).

17. The Interquartile Range enables us to determine the existence of outliers. Outliers exist in a data set if any of the values are –Less than or –Greater than

18. Chebyshev’s Theorem The Empirical Rule applies if the distribution of the data is approximately bell-shaped. Chebyshev’s Theorem applies to distributions regardless of shape. It states that the proportion (fraction) of data lying within K standard deviations of the mean is always at least 1 – 1/K 2, where K is any possible number > 1. –When K = 2: At least 3/4 (75%) of all values lie within 2 standard deviations of the mean. –When K = 3: At least 8/9 (89%) of all values lie within 3 standard deviations of the mean.

19. Example: Using Chebychev’s Theorem The age distribution for Florida is shown in the histogram. Apply Chebychev’s Theorem to the data using k = 2. What can you conclude? Source: Larson/Farber 4th ed.

20. Given k = 2: Two S.D. below the mean = μ – 2σ = 39.2 – 2(24.8) = -10.4 (use 0 since age can’t be negative) Two S.D. above the mean = μ + 2σ = 39.2 + 2(24.8) = 88.8 Source: Larson/Farber 4th ed. At least 75% of the population of Florida is between 0 and 88.8 years old. Solution: Using Chebychev’s Theorem

21. End of Slides
