Ch. 36 Warm-Up 1. Describe the process of how H 2 O gets into the plant and up to the leaves. 2. Compare and contrast apoplastic flow to symplastic flow.

Similar presentations


Presentation on theme: "Ch. 36 Warm-Up 1. Describe the process of how H 2 O gets into the plant and up to the leaves. 2. Compare and contrast apoplastic flow to symplastic flow."— Presentation transcript:

1 Ch. 36 Warm-Up 1. Describe the process of how H 2 O gets into the plant and up to the leaves. 2. Compare and contrast apoplastic flow to symplastic flow. 3. Explain the mass flow of materials in the phloem (source to sink).

2 Ch. 36 Warm-Up 1. What is transpiration? 2. What are mycorrhizae? 3. What is the function of the Casparian strip?

3 Chapter 36 Resource Acquisition and Transport in Vascular Plants

4 What you need to know: The role of passive transport, active transport, and cotransport in plant transport. The role of diffusion, active transport, and bulk flow in the movement of water and nutrients in plants. How the transpiration cohesion-tension mechanism explain water movement in plants. How pressure flow explains translocation.

5 What does a plant need?

6 Review: Selectively permeable membrane: osmosis, transport proteins, selective channels Proton pump: active transport; uses E to pump H + out of cell  proton gradient Cotransport: couple H + diffusion with sucrose transport Aquaporin: transport protein which controls H 2 O uptake/loss

7 Solute transport across plant cell plasma membranes

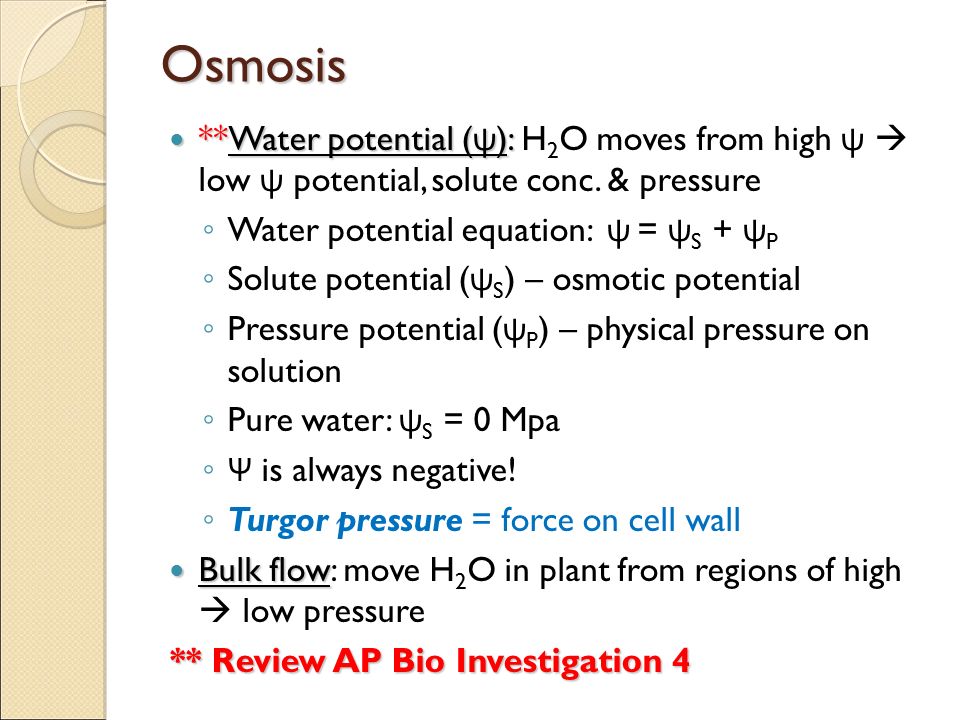

8 Osmosis **Water potential ( ψ ): **Water potential ( ψ ): H 2 O moves from high ψ  low ψ potential, solute conc. & pressure ◦ Water potential equation: ψ = ψ S + ψ P ◦ Solute potential ( ψ S ) – osmotic potential ◦ Pressure potential ( ψ P ) – physical pressure on solution ◦ Pure water: ψ S = 0 Mpa ◦ Ψ is always negative! ◦ Turgor pressure = force on cell wall Bulk flow Bulk flow: move H 2 O in plant from regions of high  low pressure ** Review AP Bio Investigation 4

9 Flaccid: limp (wilting) Plasmolyze: shrink, pull away from cell wall (kills most plant cells) due to H 2 O loss Turgid: firm (healthy plant) Turgid Plant Cell Plasmolysis

10 A watered impatiens plant regains its turgor.

11 Vascular Tissues: conduct molecules XylemPhloem Nonliving functionalLiving functional Xylem sap = H 2 O & minerals Phloem sap = sucrose, minerals, amino acids, hormones Source to sink (sugar made) to (sugar consumed/stored)

12 Transport of H 2 O and minerals into xylem: Root epidermis  cortex  [Casparian Strip]  vascular cylinder  xylem tissue  shoot system

13 At Root Epidermis Root hairs: increase surface area of absorption at root tips Mycorrhizae: symbiotic relationship between fungus + roots ◦ Increase H 2 O/mineral absorption The white mycelium of the fungus ensheathes these roots of a pine tree.

14 Transport pathways across Cortex: Apoplast Apoplast = materials travel between cells Symplast Symplast = materials cross cell membrane, move through cytosol & plasmodesmata

15 Entry into Vascular Cylinder: Endodermis (inner layer of cortex) sealed by Casparian strip (waxy material) ◦ Blocks passage of H 2 O and minerals ◦ All materials absorbed from roots enter xylem through selectively permeable membrane ◦ Symplast ◦ Symplast entry only!

16 How does material move vertically (against gravity)? Transpiration Transpiration: loss of H 2 O via evaporation from leaves into air (least important) 1. Root pressure (least important)  Diffusion into root pushes sap up 2. Cohesion-tension hypothesis ◦ Transpiration provides pull ◦ Cohesion of H 2 O transmits pull from roots  shoots

17

18 Guttation: exudation of water droplets seen in morning (not dew), caused by root pressure

19 Stomata regulate rate of transpiration Stomata – pores in epidermis of leaves/stems, allow gas exchange and transpiration Guard cells – open/close stoma by changing shape ◦ Take up K +  lower ψ  take up H 2 O  pore opens ◦ Lose K +  lose H 2 O  cells less bowed  pore closes

20 open Cells stimulated open by: light, loss of CO 2 in leaf, circadian rhythms closure Stomata closure: drought, high temperature, wind

21 BIOFLIX: WATER TRANSPORT IN PLANTS

22 Sugar Transport Translocation: transport of sugars into phloem by pressure flow Source  Sink ◦ Source = produce sugar (photosynthesis) ◦ Sink = consume/store sugar (fruit, roots) Via sieve-tube elements Active transport of sucrose

23 Bulk flow in a sieve tube

24 Symplast is dynamic Plasmodesmata allows movement of RNA & proteins between cells Phloem can carry rapid, long-distance electrical signaling ◦ Nerve-like function ◦ Swift communication ◦ Changes in gene expression, respiration, photosynthesis
