1. Chapter 3 Chang Chi-Chung 2007.4.12

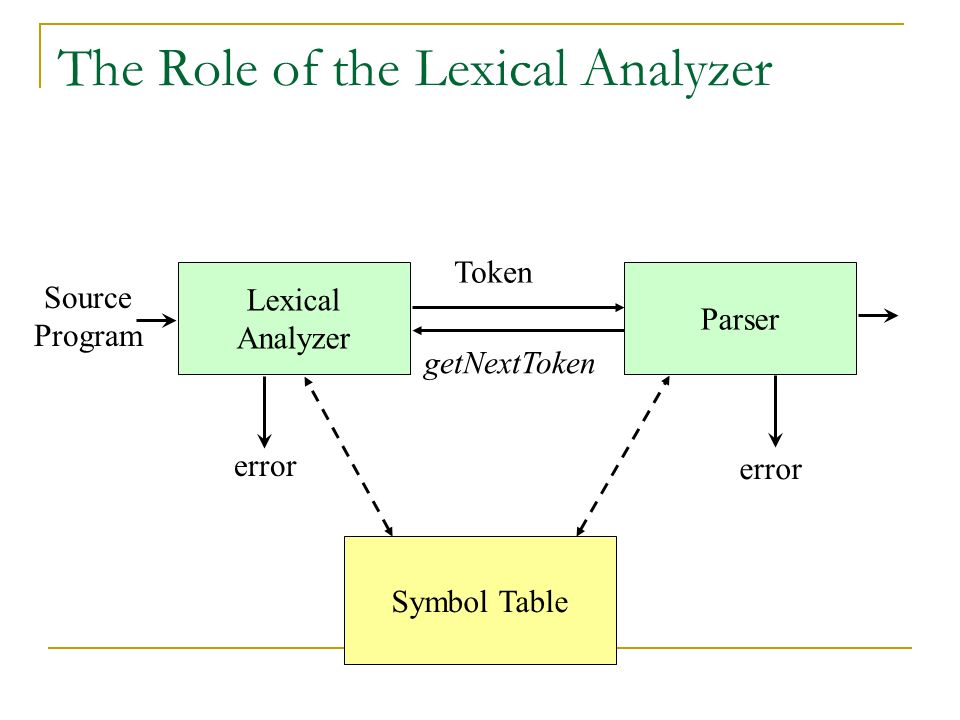

2. The Role of the Lexical Analyzer Lexical Analyzer Parser Source Program Token Symbol Table getNextToken error

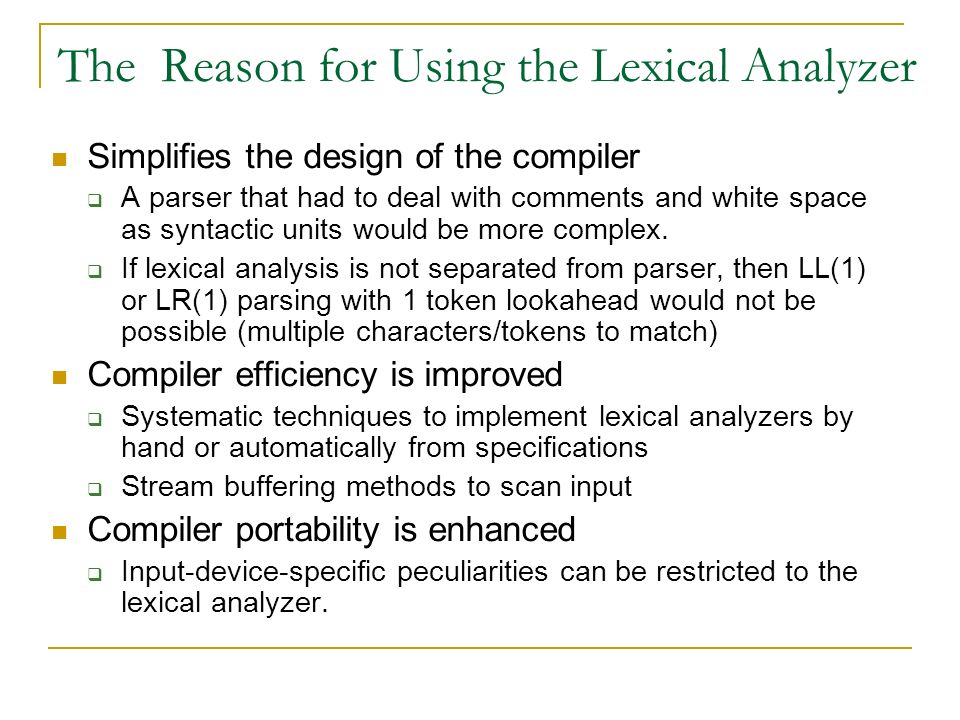

3. The Reason for Using the Lexical Analyzer Simplifies the design of the compiler  A parser that had to deal with comments and white space as syntactic units would be more complex.  If lexical analysis is not separated from parser, then LL(1) or LR(1) parsing with 1 token lookahead would not be possible (multiple characters/tokens to match) Compiler efficiency is improved  Systematic techniques to implement lexical analyzers by hand or automatically from specifications  Stream buffering methods to scan input Compiler portability is enhanced  Input-device-specific peculiarities can be restricted to the lexical analyzer.

4. Lexical Analyzer Lexical analyzer are divided into a cascade of two process.  Scanning Consists of the simple processes that do not require tokenization of the input.  Deletion of comments.  Compaction of consecutive whitespace characters into one.  Lexical analysis The scanner produces the sequence of tokens as output.

5. Tokens, Patterns, and Lexemes Token ( 符號單元 )  A pair consisting of a token name and optional arrtibute value.  Example: num, id Pattern ( 樣本 )  A description of the form for the lexemes of a token.  Example: “non-empty sequence of digits”, “letter followed by letters and digits” Lexeme ( 詞 )  A sequence of characters that matches the pattern for a token.  Example: 123, abc

6. Examples: Tokens, Patterns, and Lexemes TokenPatternLexeme ifcharacters i fif elsecharacters e l s eelse comparison or = or == or !=<=, != idletter followed by letters and digits pi, score, D2 numberany numeric constant3.14, 0, 6.23 literal anything but “, surrounded by “ ’s “core dump”

7. An Example E = M * C ** 2 A sequence of pairs by lexical analyzer

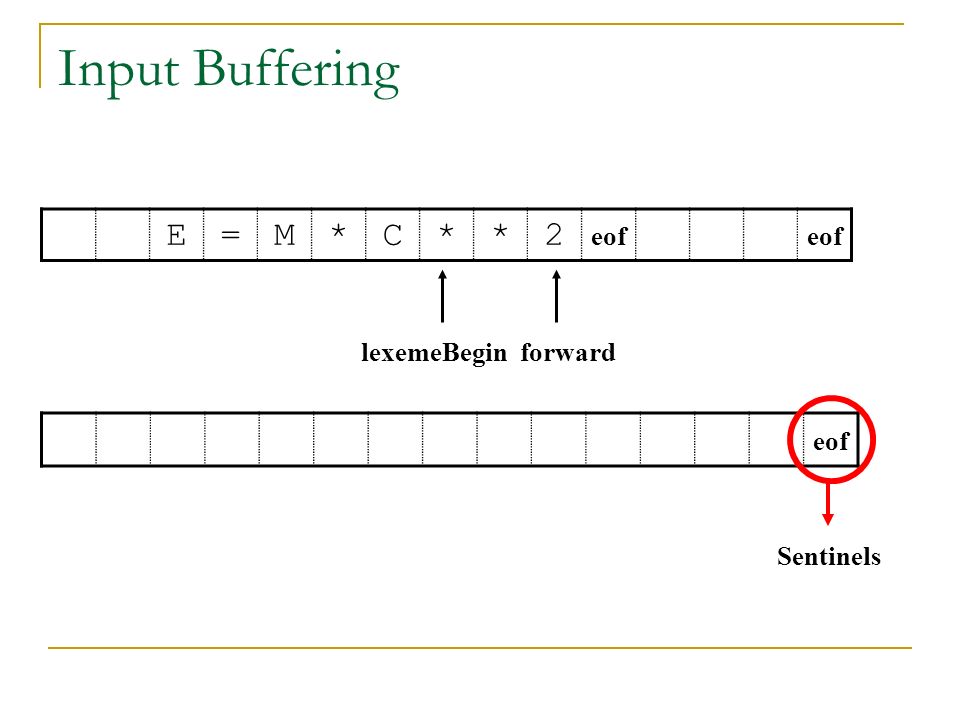

8. Input Buffering E=M*C**2 eof lexemeBeginforward Sentinels

9. Lookahead Code with Sentinels switch (*forward++) { case eof: if (forward is at end of first buffer) { reload second buffer; forward = beginning of second buffer; } else if (forward is at end of second buffer) { reload first buffer; forward = beginning of first buffer; } else /* eof within a buffer marks the end of inout */ terminate lexical anaysis; break; cases for the other characters; }

10. Strings and Languages Alphabet  An alphabet  is a finite set of symbols (characters) String  A string is a finite sequence of symbols from   s  denotes the length of string s  denotes the empty string, thus  = 0 Language  A language is a countable set of strings over some fixed alphabet  Abstract Language Φ {ε}

11. String Operations Concatenation ( 連接 )  The concatenation of two strings x and y is denoted by xy Identity ( 單位元素 )  The empty string is the identity under concatenation.   s = s  = s Exponentiation  Define s 0 =  s i = s i-1 s for i > 0  By Define s 1 = s s 2 = ss

12. Language Operations Union L  M = { s  s  L or s  M } Concatenation L M = { xy  x  L and y  M} Exponentiation L 0 = {  } L i = L i-1 L Kleene closure ( 封閉包 ) L * = ∪ i=0,…,  L i Positive closure L + = ∪ i=1,…,  L i

13. Regular Expressions  A convenient means of specifying certain simple sets of strings.  We use regular expressions to define structures of tokens.  Tokens are built from symbols of a finite vocabulary. Regular Sets  The sets of strings defined by regular expressions.

14. Regular Expressions Basis symbols:   is a regular expression denoting language L(  ) = {  }  a   is a regular expression denoting L(a) = { a } If r and s are regular expressions denoting languages L(r) and M(s) respectively, then  r  s is a regular expression denoting L(r)  M(s)  rs is a regular expression denoting L(r)M(s)  r * is a regular expression denoting L(r) *  (r) is a regular expression denoting L(r) A language defined by a regular expression is called a regular set.

15. Operator Precedence OperatorPrecedenceAssociative *highestleft concatenationSecondleft |lowestleft

16. Algebraic Laws for Regular Expressions LawDescription r | s = s | r| is commutative r | ( s | t ) = ( r | s ) | t| is associative r(st) = (rs)tconcatenation is associative r(s|t) = rs | rt (s|t)r = sr | tr concatenation distributes over | εr = rε = rε is the identity for concatenation r* = ( r |ε)*ε is guaranteed in a closure r** = r** is idempotent

17. Regular Definitions If Σ is an alphabet of basic symbols, then a regular definitions is a sequence of definitions of the form: d 1  r 1 d 2  r 2 … d n  r n  Each d i is a new symbol, not in Σ and not the same as any other of d’s.  Each r i is a regular expression over the alphabet   {d 1, d 2, …, d i-1 } Any d j in r i can be textually substituted in r i to obtain an equivalent set of definitions

18. Example: Regular Definitions Regular Definitions letter_  A | B | … | Z | a | b | … | z | _ digit  0 | 1 | … | 9 id  letter_ ( letter_ | digit ) * Regular definitions are not recursive digits  digit digits  digit wrong

19. Extensions of Regular Definitions One or more instance  r + = rr * = r * r  r * = r + | ε Zero or one instance  r? = r | ε Character classes  [a-z] = a  b  c  …  z  [A-Za-z] = A|B|…|Z|a|…|z Example  digit  [0-9]  num  digit + (. digit + )? ( E (+  -)? digit + )?

20. Regular Definitions and Grammars Context-Free Grammars stmt  if expr then stmt  if expr then stmt else stmt   expr  term relop term  term term  id  num Regular Definitions digit  [0-9] letter  [A-Za-z] if  if then  then else  else relop   >  >=  = id  letter ( letter | digit ) * num  digit + (. digit + )? ( E (+ | -)? digit + )? ws  ( blank | tab | newline ) +

21. LEXEMESTOKEN NAMEATTRIBUTE VALUE Any ws -- if - then - else - Any idid Pointer to table entry Any numbernumber Pointer to table entry <relop LT <=relop LE =relop EQ <>relop NE >relop GT >=relop GE

22. Transition Diagrams 0 2 1 6 3 4 5 7 8 return(relop, LE ) return(relop, NE ) return(relop, LT ) return(relop, EQ ) return(relop, GE ) return(relop, GT ) start < = > = > = other * * relop   >  >=  =

23. Transition Diagrams 9 start letter 10 11 * other letter or digit return (getToken(), installID() ) id  letter ( letter | digit ) *

24. An Example: Implement of RELOP TOKEN getRelop() { TOKEN retToken = new(RELOP); while (1) { case 0: c = nextChar(); if (c == ‘<‘) state = 1; else if (c == ‘=‘) state= 5; else if (c == ‘>‘) state= 6; else fail(); break; case 1:...... case 8: retract(); retToken.attribute = GT; return(retTOKEN); }

25. Finite Automata Finite Automata are recognizers.  FA simply say “Yes” or “No” about each possible input string.  A FA can be used to recognize the tokens specified by a regular expression  Use FA to design of a Lexical Analyzer Generator Two kind of the Finite Automata  Nondeterministic finite automata (NFA)  Deterministic finite automata (DFA) Both DFA and NFA are capable of recognizing the same languages.

26. NFA Definitions NFA = { S, , , s 0, F }  A finite set of states S  A set of input symbols Σ input alphabet, ε is not in Σ  A transition function   : S    S  A special start state s 0  A set of final states F, F  S (accepting states)

27. Transition Graph for FA is a state is a transition is a the start state is a final state

28. Example 012 3 a bc c a This machine accepts abccabc, but it rejects abcab. This machine accepts (abc + ) +.

29. Transition Table 0 start a 1 3 2 bb a b STATEabε 0{0, 1}{0}- 1-{2}- 2-{3}- 3--- The mapping  of an NFA can be represented in a transition table  (0, a ) = {0,1}  (0, b ) = {0}  (1, b ) = {2}  (2, b ) = {3}

30. DFA DFA is a special case of an NFA  There are no moves on input ε  For each state s and input symbol a, there is exactly one edge out of s labeled a. Both DFA and NFA are capable of recognizing the same languages.

31. Simulating a DFA Input  An input string x terminated by an end-of-file character eof. A DFA D with start state s0, accepting states F, and transition function move. Output  Answer “yes” if D accepts x ; “no” otherwise. s = s 0 c = nextChar(); while ( c != eof ) { s = move(s, c); c = nextChar(); } if (s is in F ) return “yes”; else return “no”;

32. NFA vs DFA 0 start a 1 3 2 bb a b S = {0,1,2,3}  = { a, b } s 0 = 0 F = {3} 012 3 abb b a a a (a | b)*abb

33. The Regular Language The regular language defined by an NFA is the set of input strings it accepts.  Example: (a  b)*abb for the example NFA An NFA accepts an input string x if and only if  there is some path with edges labeled with symbols from x in sequence from the start state to some accepting state in the transition graph  A state transition from one state to another on the path is called a move.

34. Theorem The followings are equivalent  Regular Expression  NFA  DFA  Regular Language  Regular Grammar

35. Convert Concept Regular Expression Nondeterministic Finite Automata Deterministic Finite Automata Minimization Deterministic Finite Automata

36. Construction of an NFA from a Regular Expression Use Thompson ’ s Construction s | t N(s)N(s) N(t)N(t)     s t N(s)N(s)N(t)N(t) s*s* N(s)N(s)     a a ε

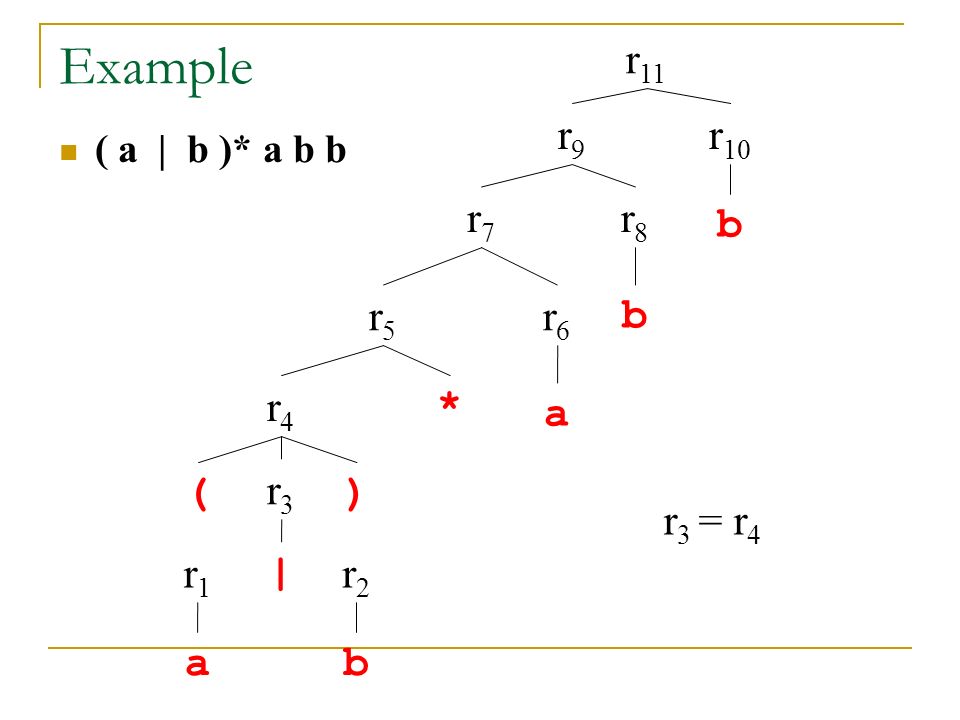

37. Example ( a | b )* a b b r 11 r8r8 r 10 r7r7 r9r9 r6r6 r5r5 * r4r4 a b b ( r3r3 ) r2r2 r1r1 ab | r 3 = r 4

38. 0 start a 1 10 2 b b a b 3 45 6789         ( a | b )* a b b Example

39. Conversion of an NFA to a DFA The subset construction algorithm converts an NFA into a DFA using the following operation. OperationDescription ε- closure(s) Set of NFA states reachable from NFA state s on ε- transitions alone. ε- closure(T) Set of NFA states reachable from some NFA state s in set T on ε-transitions alone. = ∪ s in T ε- closure(s) move(T, a) Set of NFA states to which there is a transition on input symbol a from some state s in T

40. Subset Construction(1) Initially,  -closure(s0) is the only state in Dstates and it is unmarked; while (there is an unmarked state T in Dstates) { mark T; for (each input symbol a   ) { U =  -closure ( move (T, a) ); if ( U is not in Dstates) add U as an unmarked state to Dstates Dtran[T, a] = U } }

41. Computing ε- closure(T)

42. A start B C D E b b b b b a a a a a 0 a 1 10 2 b b a b 3 45 6789         NFA StateDFA Stateab {0,1,2,4,7}ABC {1,2,3,4,6,7,8}BBD {1,2,4,5,6,7}CBC {1,2,4,5,6,7,9}DBE {1,2,3,5,6,7,10}EBC Example ( a | b )* a b b

43. Example 2 a 1 6 a 3 45 bb 8 b 7 a b 0 start    Dstates A = {0,1,3,7} B = {2,4,7} C = {8} D = {7} E = {5,8} F = {6,8} a abb a*b + 0137247 68 7 858 a b b bb b a b

44. Simulation of an NFA Input  An input string x terminated by an end-of-file character eof. An NFA N with start state s0, accepting states F, and transition function move. Output  Answer “yes” if N accepts x ; “no” otherwise. S = ε-closure( s 0 ) c = nextChar(); while ( c != eof ) { S = ε-closure( s 0 ) c = nextChar(); } if (S ∩ F != ψ ) return “yes”; else return “no”;

45. Minimizing the DFA Step 1  Start with an initial partition II with two group: F and S-F (aceepting and nonaccepting) Step 2  Split Procedure Step 3  If ( II new = II ) II final = II and continue step 4 else II = II new and go to step 2 Step 4  Construct the minimum-state DFA by II final group.  Delete the dead state

46. Split Procedure Initially, let II new = II for ( each group G of II ) { Partition G into subgroup such that two states s and t are in the same subgroup if and only if for all input symbol a, states s and t have transition on a to states in the same group of II. /* at worst, a state will be in a subgroup by itself */ replace G in II new by the set of all subgroup formed }

47. Example initially, two sets {1, 2, 3, 5, 6}, {4, 7}. {1, 2, 3, 5, 6} splits {1, 2, 5}, {3, 6} on c. {1, 2, 5} splits {1}, {2, 5} on b.

48. Minimizing the DFA Major operation: partition states into equivalent classes according to  final / non-final states  transition functions ( A B C D E ) ( A B C D ) ( E ) ( A B C ) ( D ) ( E ) ( A C ) ( B ) ( D ) ( E )

49. Important States of an NFA The “ important states ” of an NFA are those without an  -transition, that is  if move({s}, a)   for some a then s is an important state The subset construction algorithm uses only the important states when it determines  -closure ( move(T, a) ) Augment the regular expression r with a special end symbol # to make accepting states important: the new expression is r#

50. Converting a RE Directly to a DFA Construct a syntax tree for ( r ) # Traverse the tree to construct functions nullable, firstpos, lastpos, and followpos Construct DFA D by algorithm 3.62

51. Function Computed From the Syntax Tree nullable(n)  The subtree at node n generates languages including the empty string firstpos(n)  The set of positions that can match the first symbol of a string generated by the subtree at node n lastpos(n)  The set of positions that can match the last symbol of a string generated be the subtree at node n followpos(i)  The set of positions that can follow position i in the tree

52. Rules for Computing the Function Node n nullable(n)firstpos(n)lastpos(n) A leaf labeled by  true  A leaf with position i false{i}{i}{i}{i} n = c 1 | c 2 nullable(c 1 ) or nullable(c 2 ) firstpos(c 1 )  firstpos(c 2 )lastpos(c 1 )  lastpos(c 2 ) n = c 1 c 2 nullable(c 1 ) and nullable(c 2 ) if ( nullable(c 1 ) ) firstpos(c 1 )  firstpos(c 2 ) else firstpos(c 1 ) if ( nullable(c 2 ) ) lastpos(c 1 )  lastpos(c 2 ) else lastpos(c 2 ) n = c 1 * truefirstpos(c 1 )lastpos(c 1 )

53. Computing followpos for (each node n in the tree) { //n is a cat-node with left child c1 and right child c2 if ( n == c1 ． c2) for (each i in lastpos(c1) ) followpos(i) = followpos(i)  firstpos(c2); else if (n is a star-node) for ( each i in lastpos(n) ) followpos(i) = followpos(i)  firstpos(n); }

54. Converting a RE Directly to a DFA Initialize Dstates to contain only the unmarked state firstpos (n 0 ), where n 0 is the root of syntax tree T for (r)#; while ( there is an unmarked state S in Dstates ) { mark S; for ( each input symbol a   ) { let U be the union of followpos ( p ) for all p in S that correspond to a; if ( U is not in Dstates ) add U as an unmarked state to Dstates Dtran[S,a] = U ; } }

55. Example ( a | b )* a b b # nullable(n) = false firstpos(n) = { 1, 2, 3 } lastpos(n) = { 3 } followpos(1) = {1, 2, 3 } ○ b # ○ ○ b ○ a * 4 5 6 | ab 3 21 n n = ( a | b )* a

56. Example {6}{1, 2, 3} {5}{1, 2, 3} {4}{1, 2, 3} {3}{1, 2, 3} {1, 2} * | {1} a {2} b {3} a {4} b {5} b {6} # nullable firstposlastpos 12 3 4 5 6 ( a | b )* a b b #

57. Example 1,2,3 a 1,2, 3,4 1,2,3,6 1,2, 3,5 bb bb a a a Nodefollowpos 1{1, 2, 3} 2 3{4} 4{5} 5{6} 6- 1 2 3456 ( a | b )* a b b #

58. Time and Space Complexity Automaton Space (worst case) Time (worst case) NFA O(r)O(r)O(  r  x  ) DFAO(2 |r| ) O(x)O(x)
