1 Christine Russom U.S. EPA/ORD/NHEERL/MED Presented at the McKim Conference on the Use of QSARs June 27-29, 2006 ECOTOX: A Foundation for Extrapolation

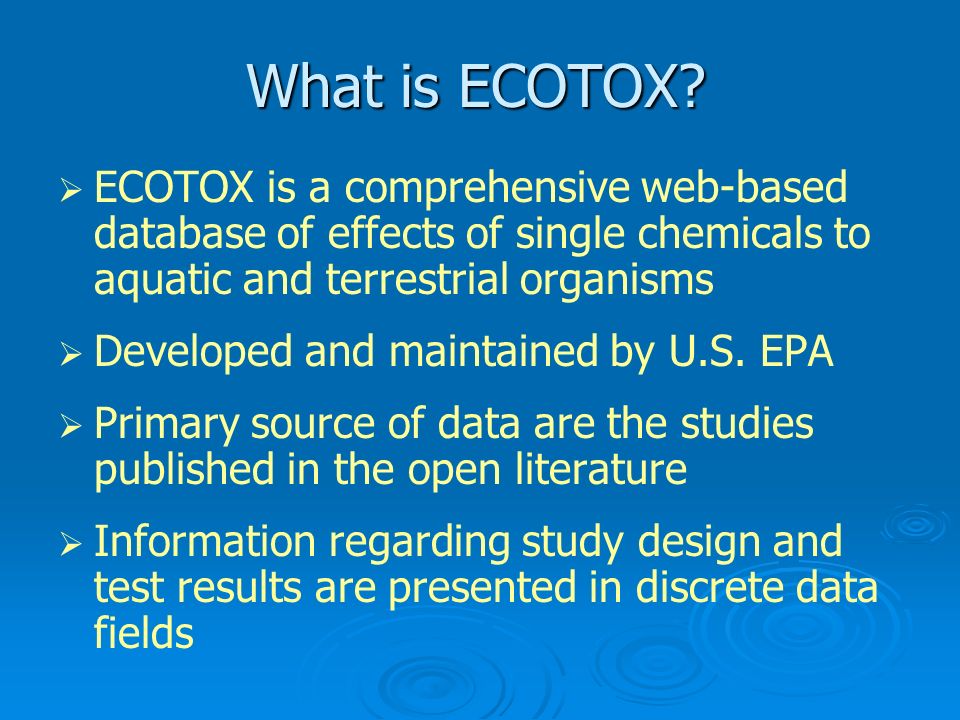

2 What is ECOTOX?   ECOTOX is a comprehensive web-based database of effects of single chemicals to aquatic and terrestrial organisms   Developed and maintained by U.S. EPA   Primary source of data are the studies published in the open literature   Information regarding study design and test results are presented in discrete data fields

3

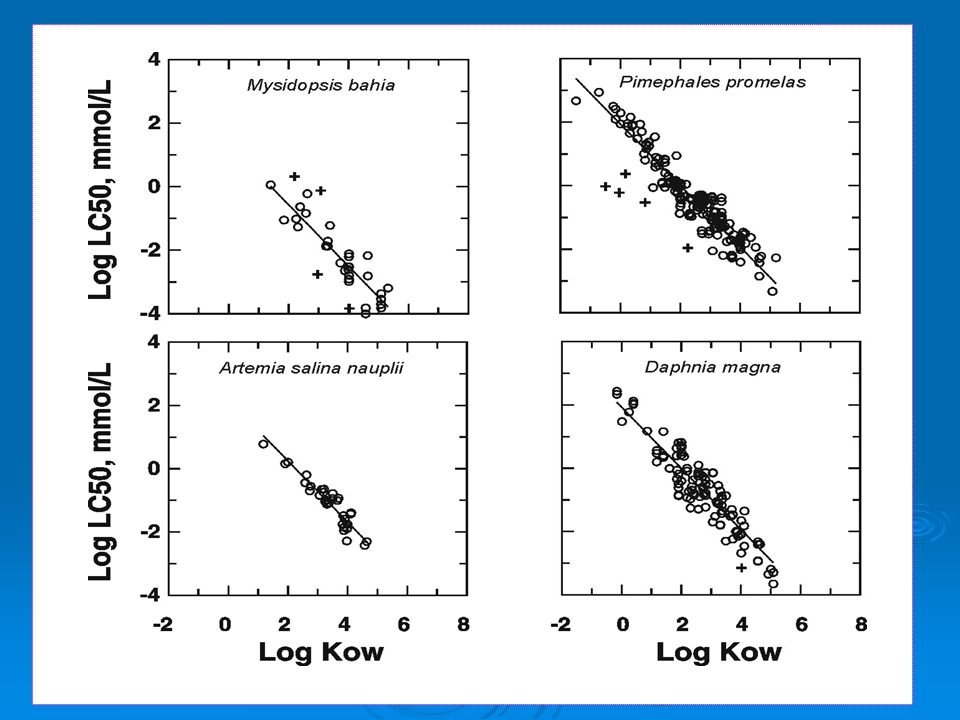

4

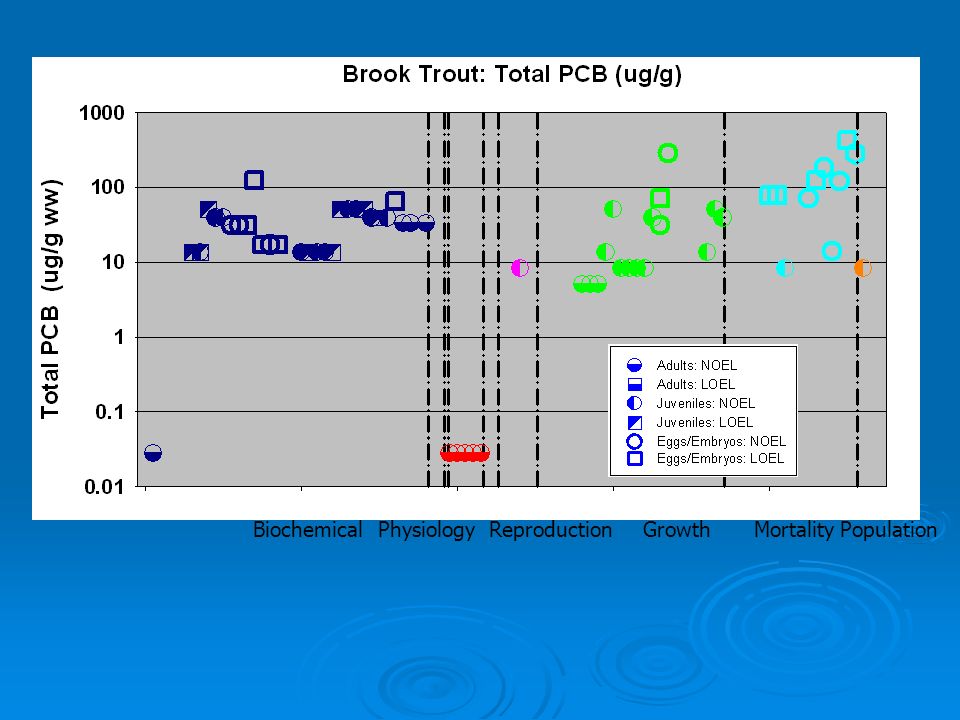

5 BiochemicalGrowthMortalityPopulationReproductionPhysiology

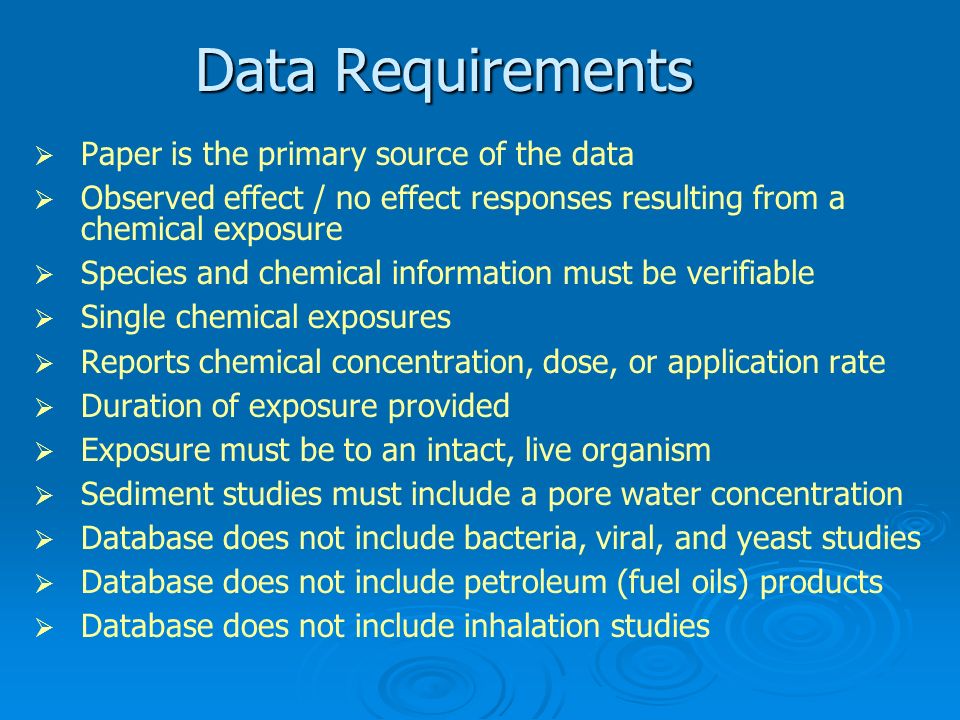

6 Data Requirements   Paper is the primary source of the data   Observed effect / no effect responses resulting from a chemical exposure   Species and chemical information must be verifiable   Single chemical exposures   Reports chemical concentration, dose, or application rate   Duration of exposure provided   Exposure must be to an intact, live organism   Sediment studies must include a pore water concentration   Database does not include bacteria, viral, and yeast studies   Database does not include petroleum (fuel oils) products   Database does not include inhalation studies

7 Develop Literature Search Strategy Conduct Literature Search Identify and Acquire Potentially Applicable Literature Codify / Abstract Relevant Data Release of New Data to Public Website Outreach / Technical Support ECOTOX Procedures QA - Verify terms used; test strategy; etc. QA - Assess effectiveness of search; validate exclusion terms; etc. QA – Maintain database of all papers acquired; verify papers identified as non- applicable; etc. QA – Training procedure; 10% replicate review; electronic checks; verification of species/chemical information; data entry QA; etc. QA – Code verification; Agency IT requirements; beta-testing prior to public release; etc. QA – User support line; data maintenance; web-site documentation / help file; etc.

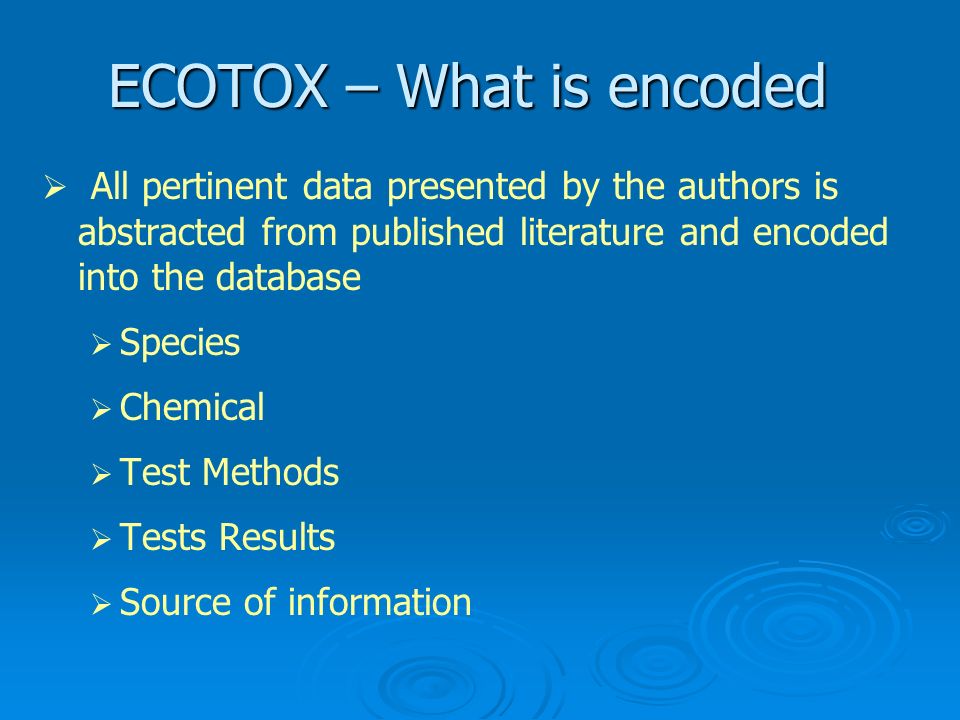

8 ECOTOX – What is encoded   All pertinent data presented by the authors is abstracted from published literature and encoded into the database   Species   Chemical   Test Methods   Tests Results   Source of information

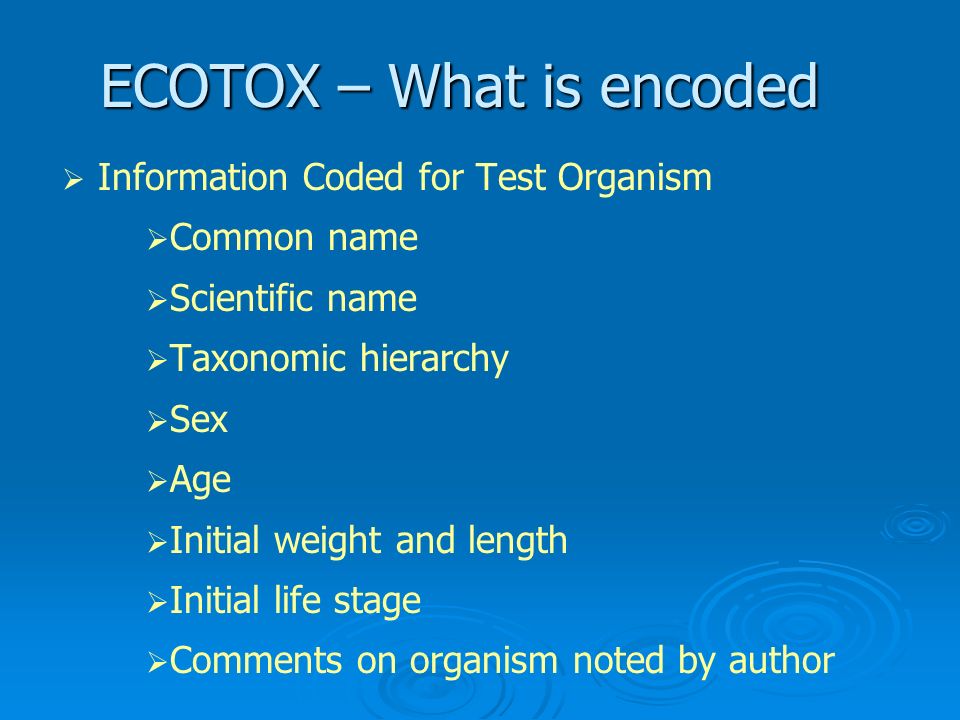

9 ECOTOX – What is encoded   Information Coded for Test Organism   Common name   Scientific name   Taxonomic hierarchy   Sex   Age   Initial weight and length   Initial life stage   Comments on organism noted by author

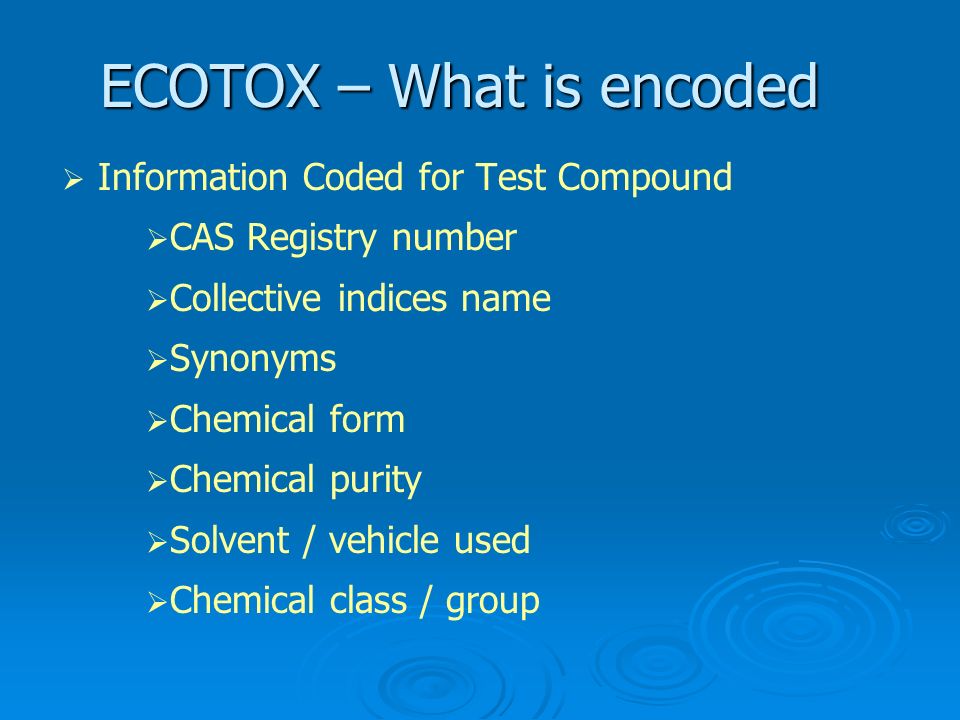

10 ECOTOX – What is encoded   Information Coded for Test Compound   CAS Registry number   Collective indices name   Synonyms   Chemical form   Chemical purity   Solvent / vehicle used   Chemical class / group

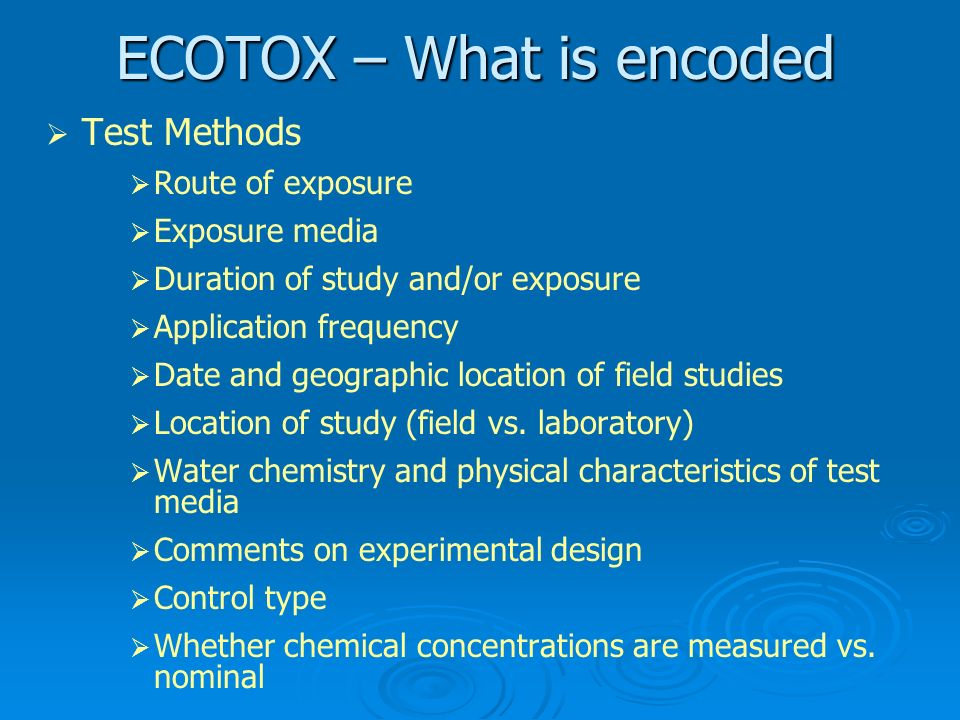

11 ECOTOX – What is encoded   Test Methods   Route of exposure   Exposure media   Duration of study and/or exposure   Application frequency   Date and geographic location of field studies   Location of study (field vs. laboratory)   Water chemistry and physical characteristics of test media   Comments on experimental design   Control type   Whether chemical concentrations are measured vs. nominal

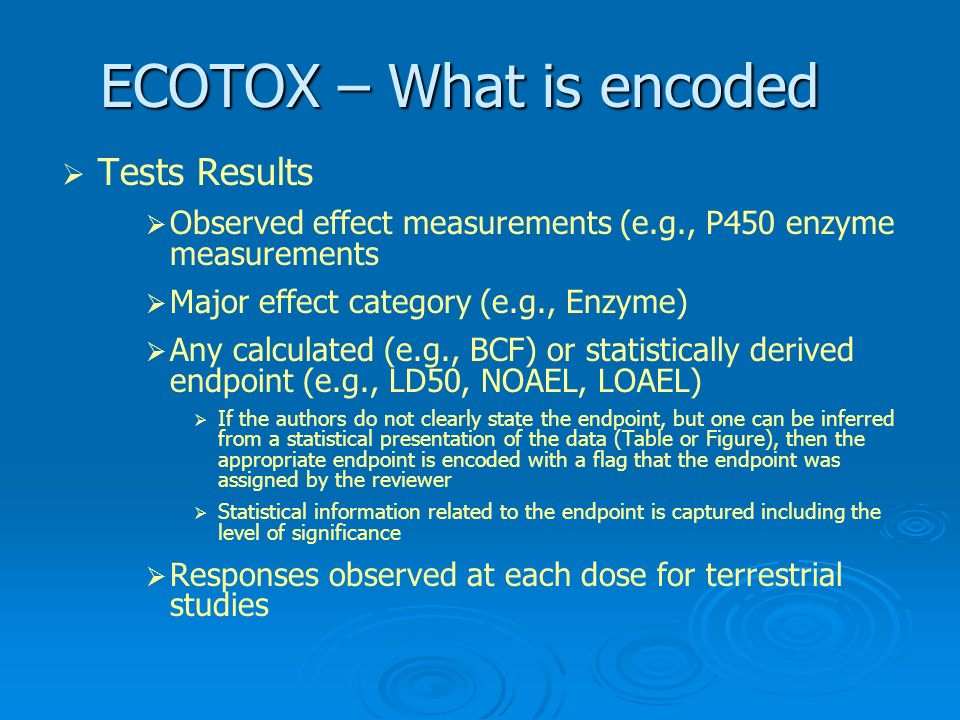

12 ECOTOX – What is encoded   Tests Results   Observed effect measurements (e.g., P450 enzyme measurements   Major effect category (e.g., Enzyme)   Any calculated (e.g., BCF) or statistically derived endpoint (e.g., LD50, NOAEL, LOAEL)   If the authors do not clearly state the endpoint, but one can be inferred from a statistical presentation of the data (Table or Figure), then the appropriate endpoint is encoded with a flag that the endpoint was assigned by the reviewer   Statistical information related to the endpoint is captured including the level of significance   Responses observed at each dose for terrestrial studies

13 ECOTOX – Effects   Observed Effect Responses   Accumulation   Behavior (e.g., avoidance and feeding behavior)   Biochemical, enzyme and hormonal responses   Growth, development and morphological changes   Cellular, genetic and histological responses   Mortality   Physiological changes, injury, immunity, and intoxication   Population Effects   Reproduction   Ecosystem Response

14

15 Data Mining   Can conduct searches on any coded parameters   Search on recent updates to the database   Taxonomy, common or scientific name, plant vs. animal   Independently compiled data sets   CAS Registry No., chemical name, chemical group   Endpoints (e.g., LC50); effect groups (e.g., mortality, growth); measurement (e.g., time to death, weight)   Test conditions: study location (lab vs. field); test media (e.g., freshwater, soil); route of exposure (e.g., diet); chemical analysis (measured vs. nominal)   Publication information: ECOTOX reference number; specific publication years; range of publication years

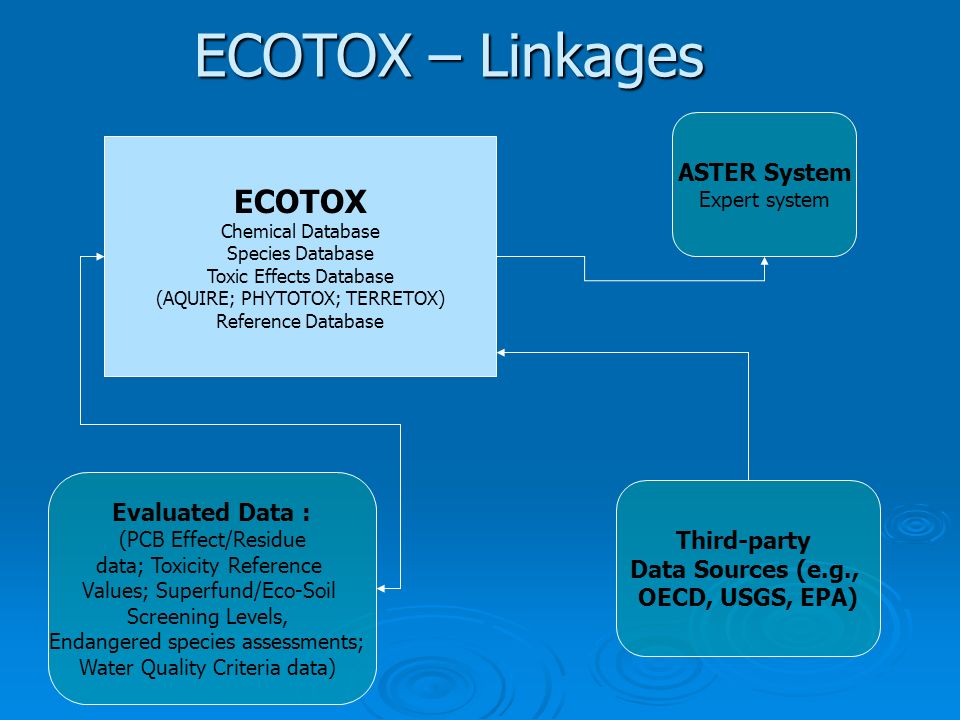

16 ECOTOX Chemical Database Species Database Toxic Effects Database (AQUIRE; PHYTOTOX; TERRETOX) Reference Database ASTER System Expert system Evaluated Data : (PCB Effect/Residue data; Toxicity Reference Values; Superfund/Eco-Soil Screening Levels, Endangered species assessments; Water Quality Criteria data) Third-party Data Sources (e.g., OECD, USGS, EPA) ECOTOX – Linkages

17 Percentage of data by endpoint type

18 Fish data in ECOTOX with Endpoints reported – Top 20 species

19 Mammalian data in ECOTOX with Endpoints reported – Top 10 species

20 Avian data in ECOTOX with Endpoints reported – Top 20 species

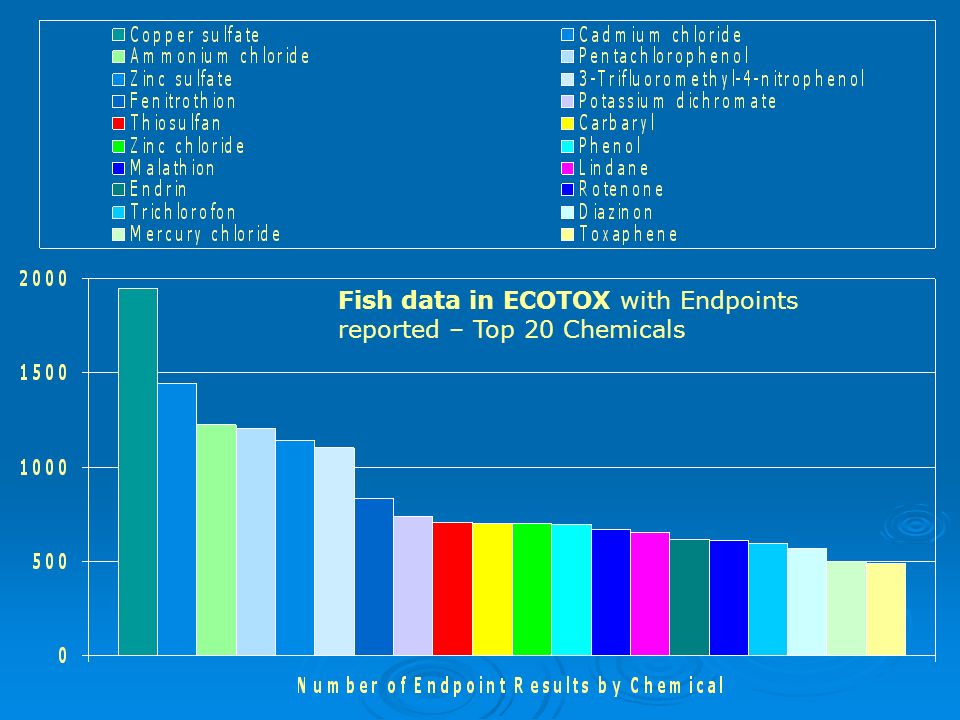

21 Fish data in ECOTOX with Endpoints reported – Top 20 Chemicals

22 Mammalian data in ECOTOX with Endpoints reported – Top 10 Chemicals

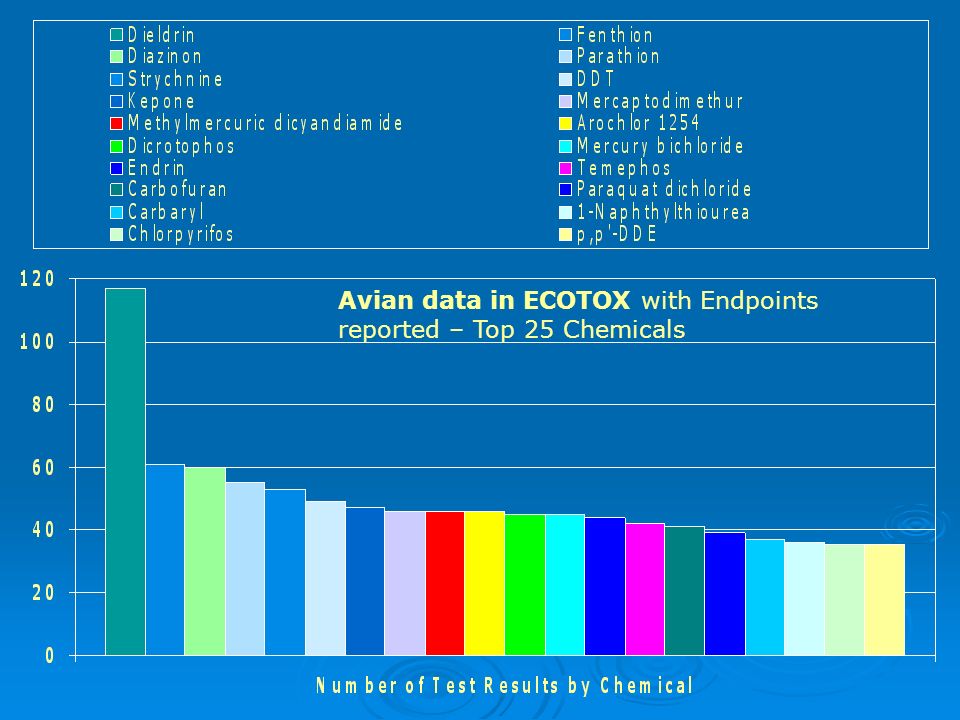

23 Avian data in ECOTOX with Endpoints reported – Top 25 Chemicals

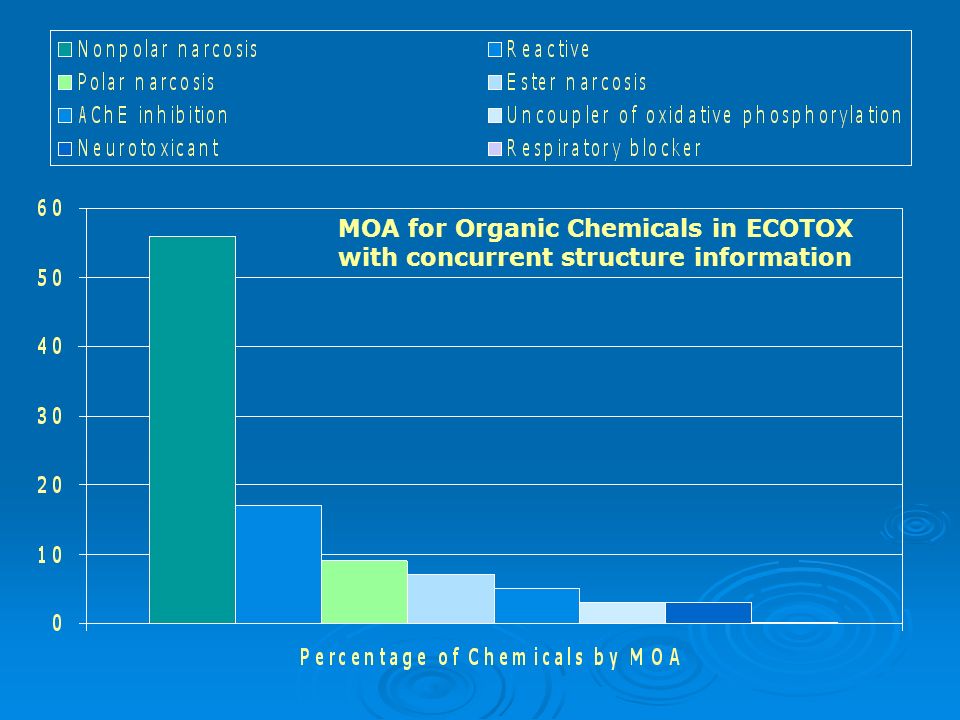

24 MOA for Organic Chemicals in ECOTOX with concurrent structure information

25 Summary of Data in ECOTOX Fish, mammals and birds Total Number of Test results in ECOTOX: 502,622 No. of test results for fish: 111,726 (65% have Endpoints) No. of test results for mammals: 89,047 (2% have Endpoints) No. of test results for birds: 36,170 (12% have Endpoints) Total Number of Chemicals in ECOTOX: 10,372 No. of unique chemicals in fish subset: 5,372 No. of unique chemicals in mammal subset: 743 No. of unique chemicals in bird subset: 752 Total Number of Species in ECOTOX: 6,137 No. of unique fish species: 731 No. of unique mammal species: 87 No. of unique bird species: 103 Total number of publications in ECOTOX: 19,551 No. of papers associated with fish data: 7,876 No. of papers associated with mammalian data: 652 No. of papers associated with bird data: 424

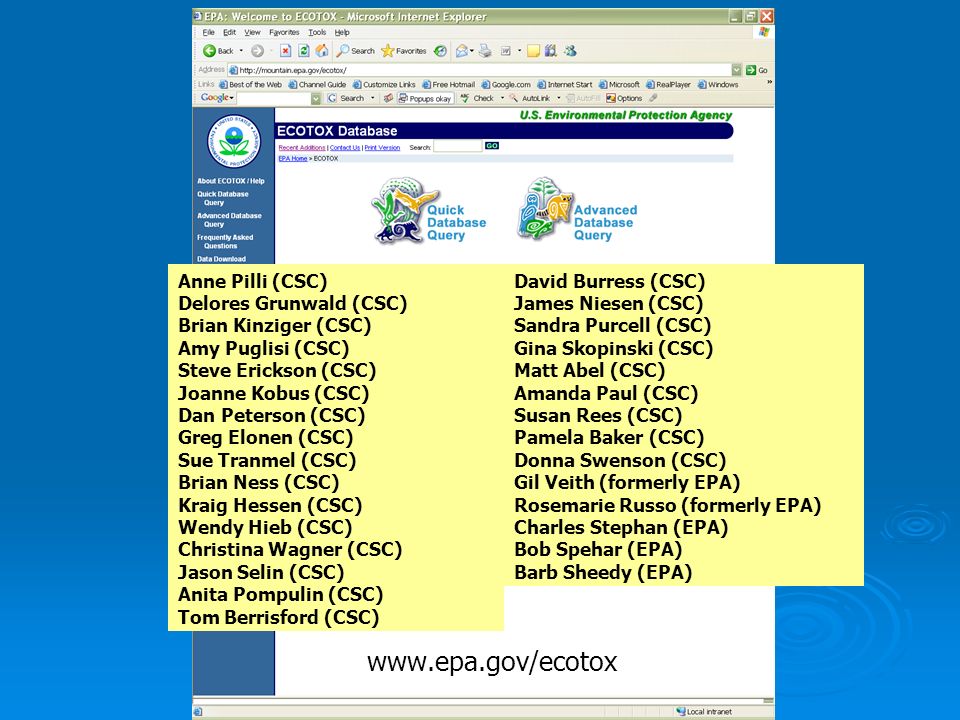

26 Anne Pilli (CSC) Delores Grunwald (CSC) Brian Kinziger (CSC) Amy Puglisi (CSC) Steve Erickson (CSC) Joanne Kobus (CSC) Dan Peterson (CSC) Greg Elonen (CSC) Sue Tranmel (CSC) Brian Ness (CSC) Kraig Hessen (CSC) Wendy Hieb (CSC) Christina Wagner (CSC) Jason Selin (CSC) Anita Pompulin (CSC) Tom Berrisford (CSC) David Burress (CSC) James Niesen (CSC) Sandra Purcell (CSC) Gina Skopinski (CSC) Matt Abel (CSC) Amanda Paul (CSC) Susan Rees (CSC) Pamela Baker (CSC) Donna Swenson (CSC) Gil Veith (formerly EPA) Rosemarie Russo (formerly EPA) Charles Stephan (EPA) Bob Spehar (EPA) Barb Sheedy (EPA) www.epa.gov/ecotox
