1. The Quantum Model of the Atom What atoms really look like. (We Think?)

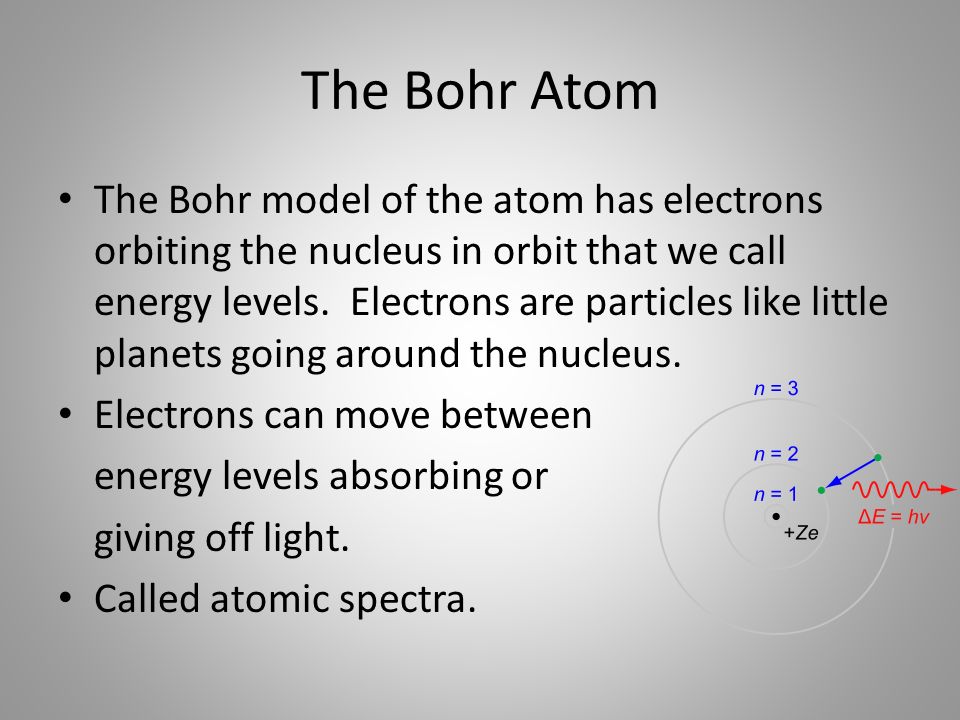

2. The Bohr Atom The Bohr model of the atom has electrons orbiting the nucleus in orbit that we call energy levels. Electrons are particles like little planets going around the nucleus. Electrons can move between energy levels absorbing or giving off light. Called atomic spectra.

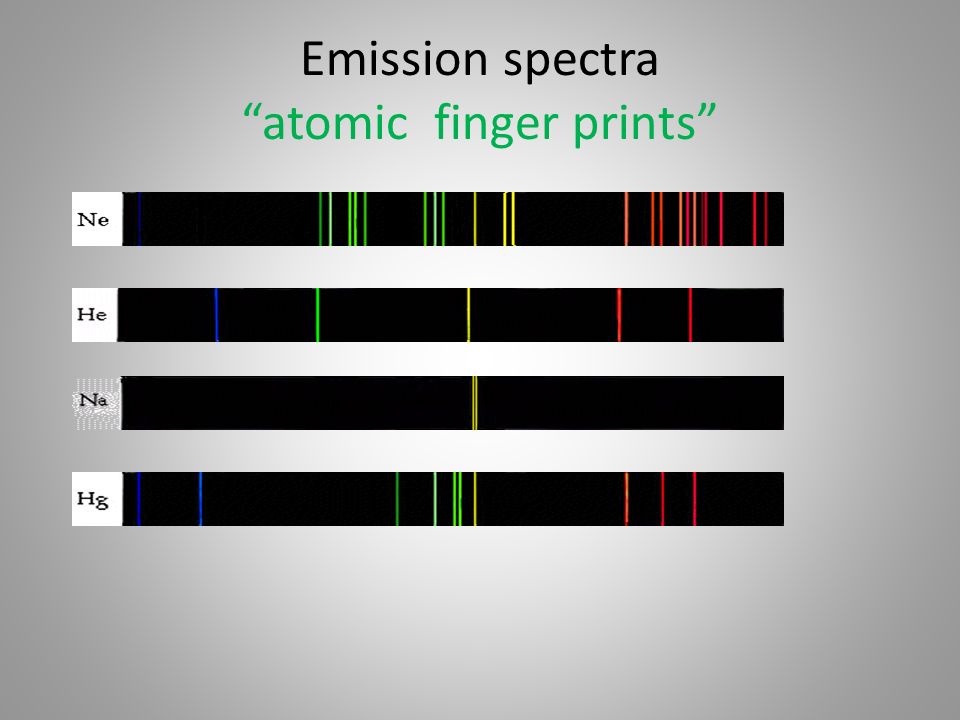

3. Emission spectra “atomic finger prints”

4. A problem with Bohr’s atom. Electrons traveling in an orbit should give off light continuously … they don’t. Why? Bohr didn’t know, his model just worked.

5. What are electrons? – 1924: De Broglie said that electrons were waves containing specific amounts of energy (like Bohr’s energy levels) – But no one said that they weren’t still a particle

6. Heisenberg Uncertainty Principle We can only observe electrons by interaction with photons. Interactions with photons cause electrons to move. Problem? 1927 – Heisenberg says: we can’t know where an electron is AND where it is going at the same time.

7. Quantum Theory 1926: Erwin Schrödinger calculated electrons as waves and found only specific energies worked (once again, just like Bohr)

8. Solve!

9. Orbital A three dimensional space around the nucleus where an electron is likely to be found. Described by Schrodinger equation as a probability of finding the electron.

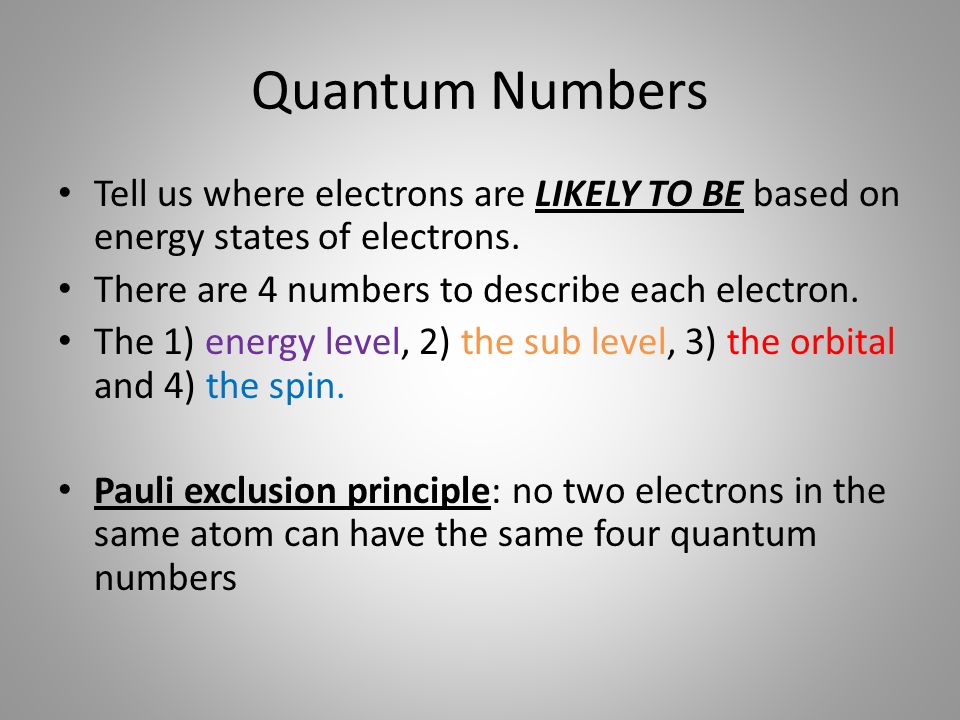

10. Quantum Numbers Tell us where electrons are LIKELY TO BE based on energy states of electrons. There are 4 numbers to describe each electron. The 1) energy level, 2) the sub level, 3) the orbital and 4) the spin. Pauli exclusion principle: no two electrons in the same atom can have the same four quantum numbers

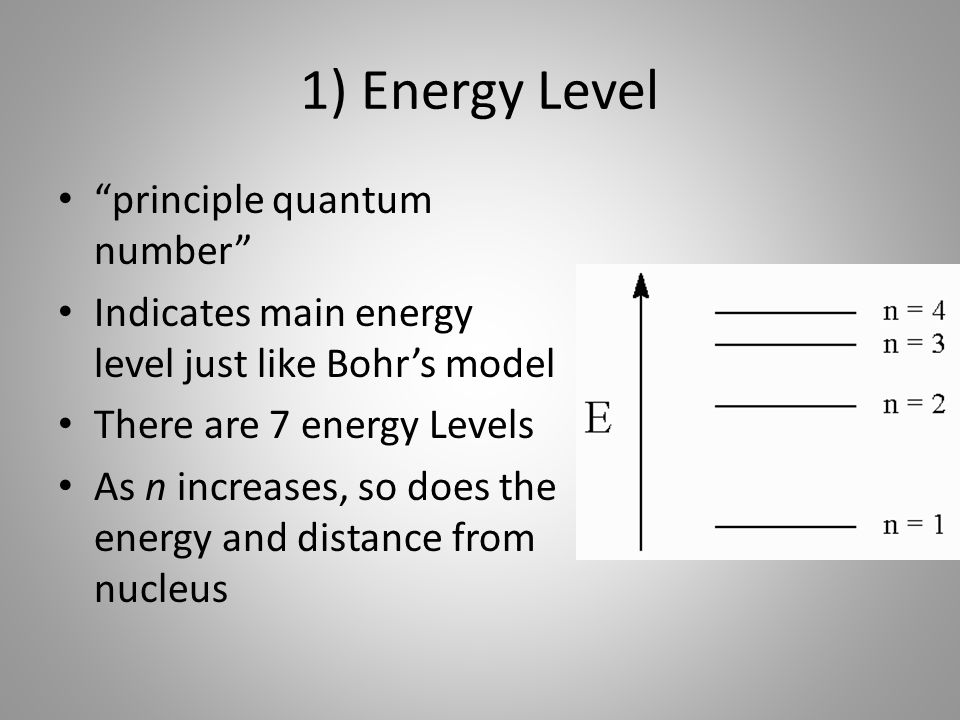

11. 1) Energy Level “principle quantum number” Indicates main energy level just like Bohr’s model There are 7 energy Levels As n increases, so does the energy and distance from nucleus

12. 2) The Sub Level Describes the SHAPE There are 4 shapes The specific orbital the electron is in. s has 1, p has 3, d has 5, f has 7 3) The Orbital

13. s orbitals are spherical

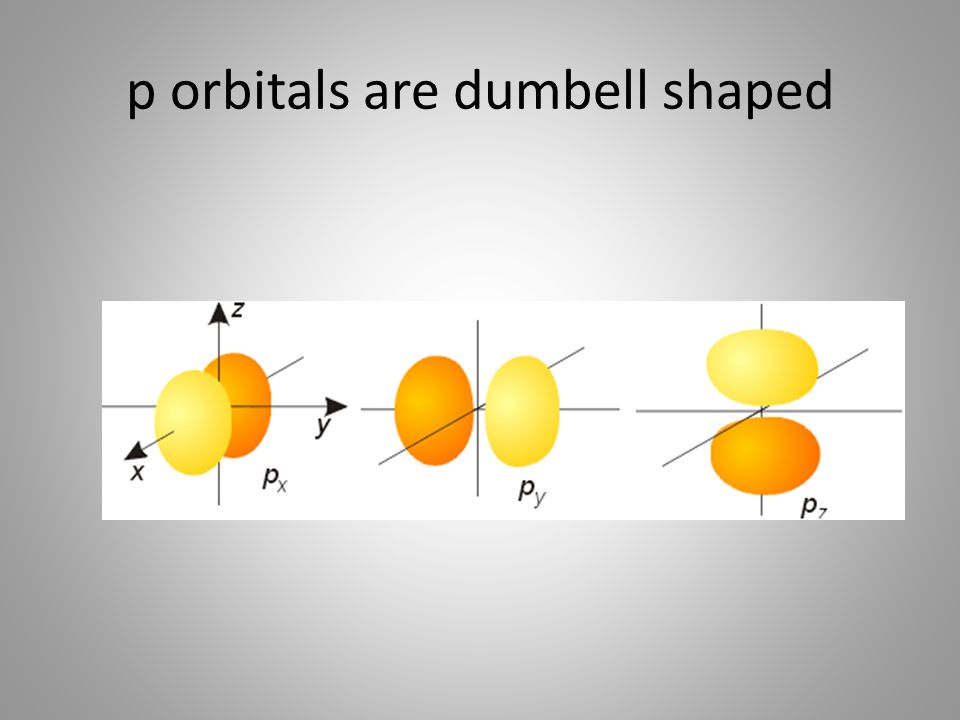

14. p orbitals are dumbell shaped

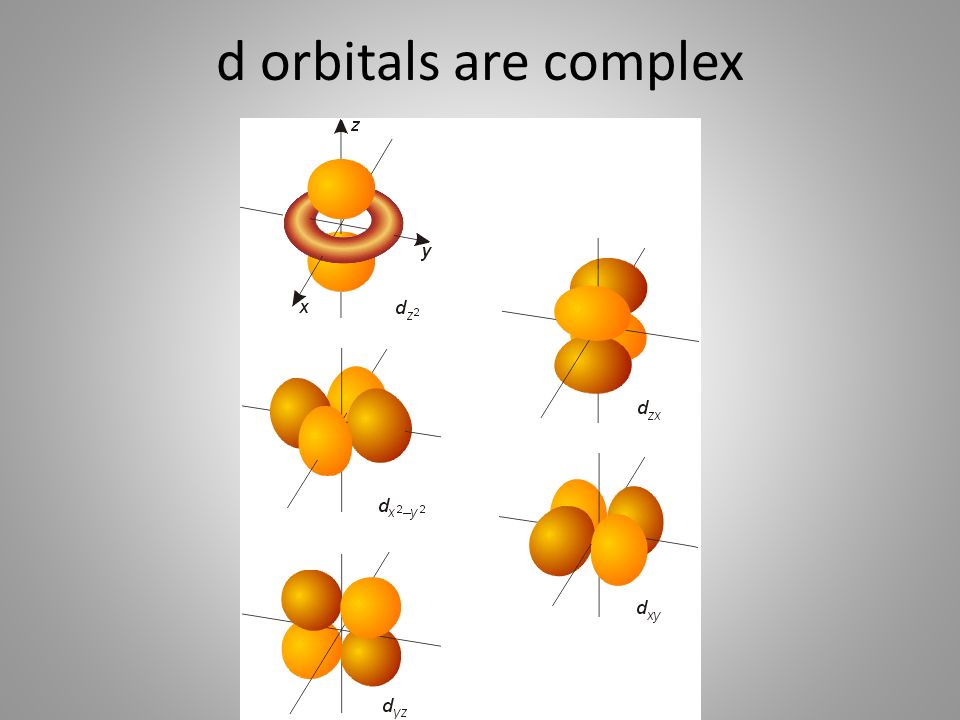

15. d orbitals are complex

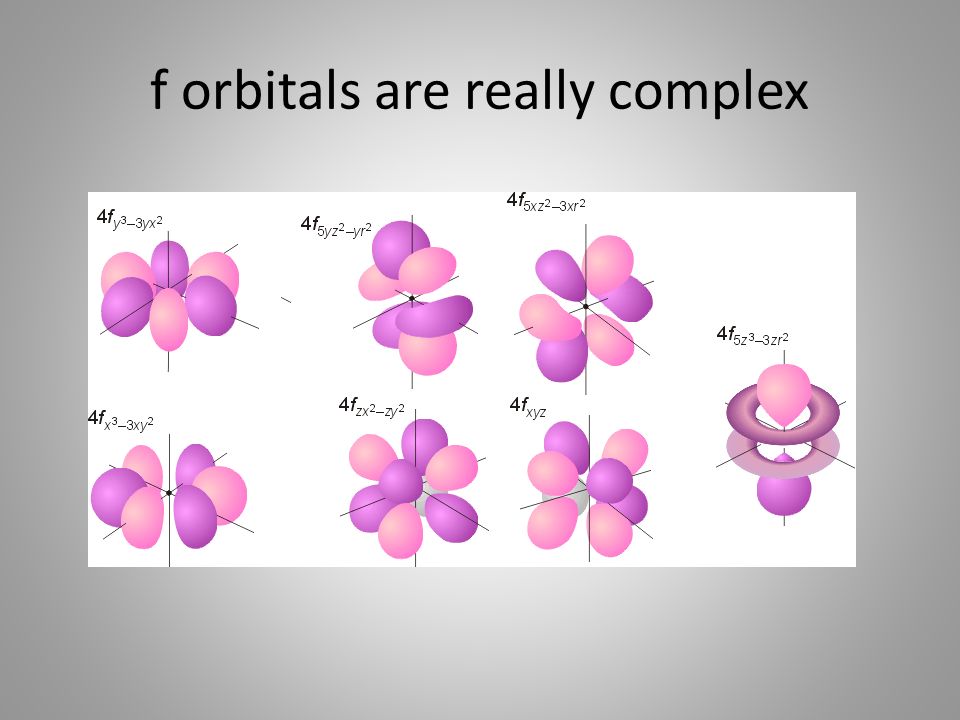

16. f orbitals are really complex

17. 4) The Spin For each orbital there are two spins: up and down. Thus, each orbital contains two electrons

18. s = electron Up spin Down spin

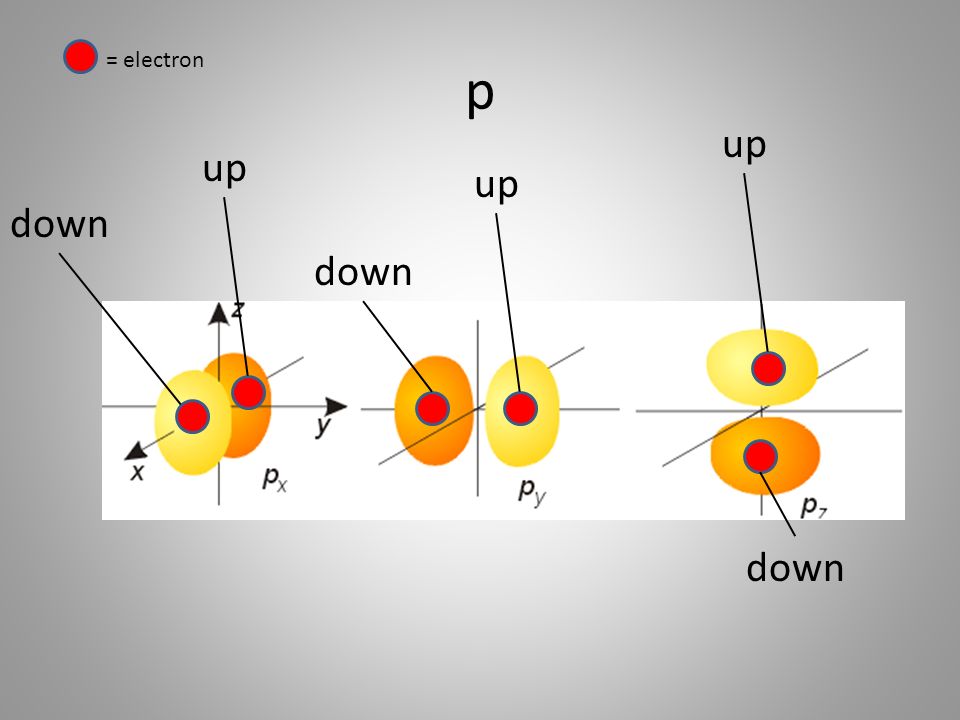

19. p = electron down up down up down

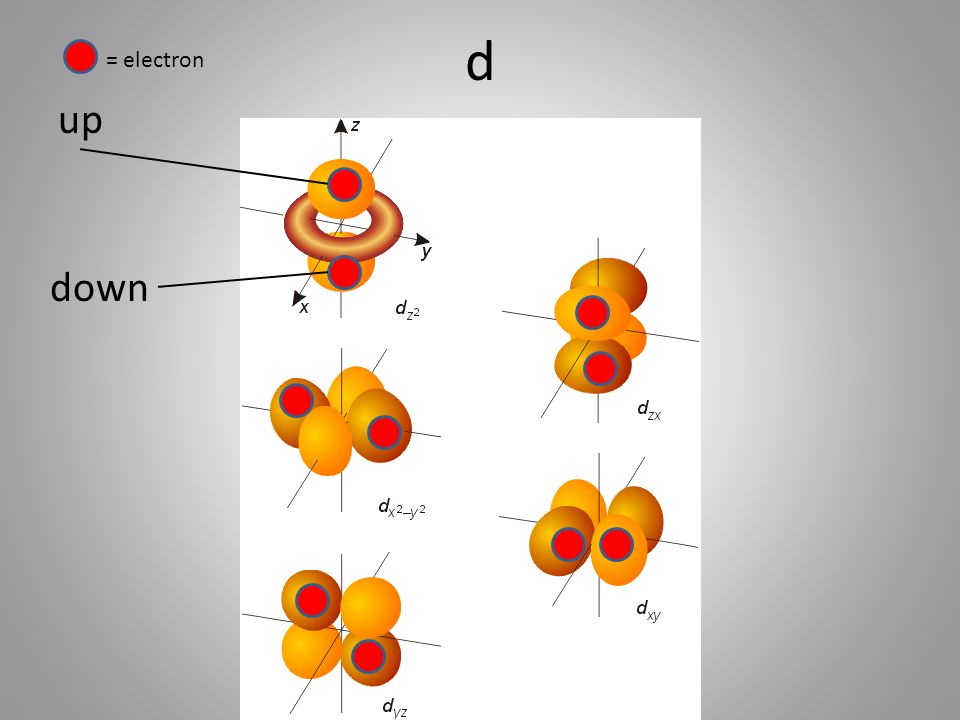

20. d = electron up down

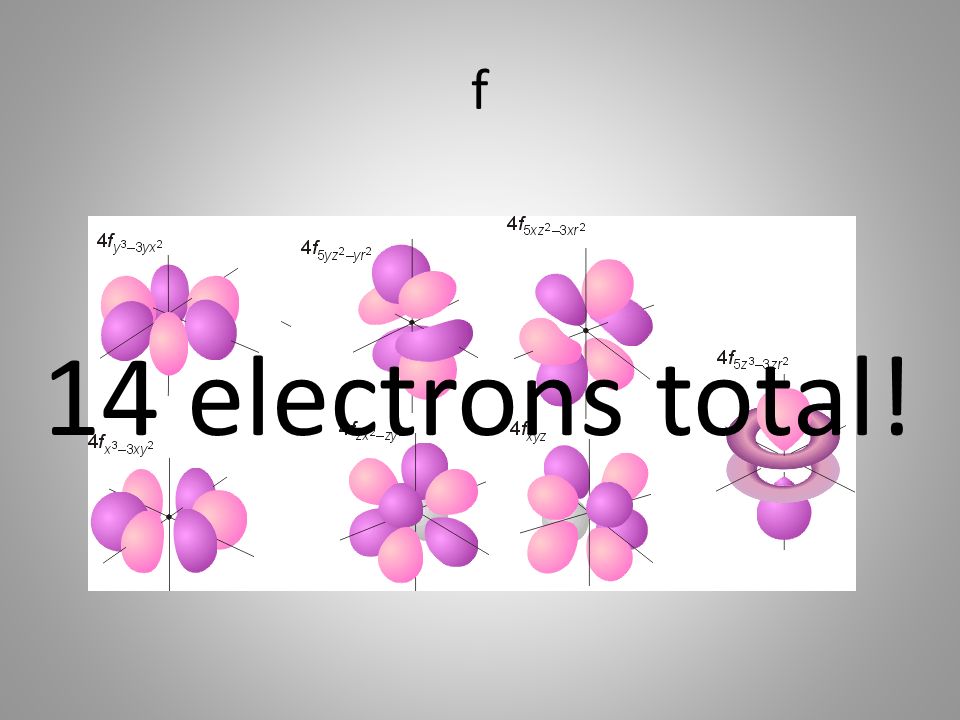

21. f 14 electrons total!

22. How are orbital shapes related to the energy levels spdf n = 11s n = 22s2p n = 33s3p3d n = 44s4p4d4f n = 55s5p5d5f5g n = 66s6p6d6f6g6h n = 77s7p7d7f7g7h n = 88s8p8d8f8g8h

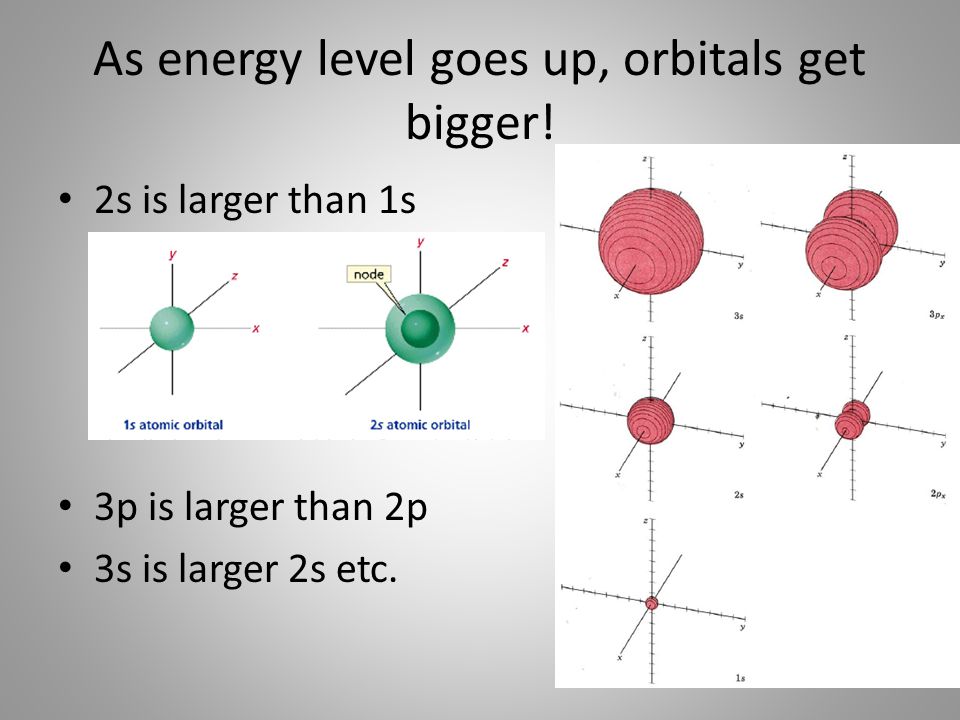

23. As energy level goes up, orbitals get bigger! 2s is larger than 1s 3p is larger than 2p 3s is larger 2s etc.

24. Sub Level Number of Orbitals in the Sub Level Number of Electrons Needed to Fill Sub Level Total Number of Orbitals in the Energy Level n 2 Total Number of Electrons in Energy Level 2n 2 1s1212 2s12 2p3648 3s12 3p36 3d510918 4s12 4p36 4d510 4f7141632

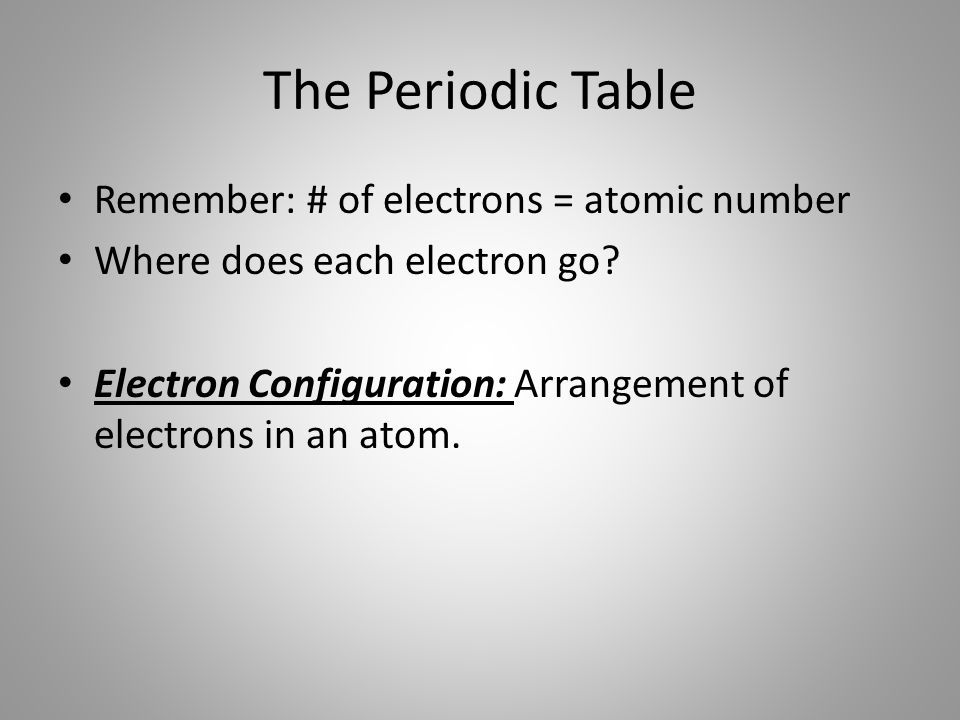

25. The Periodic Table Remember: # of electrons = atomic number Where does each electron go? Electron Configuration: Arrangement of electrons in an atom.

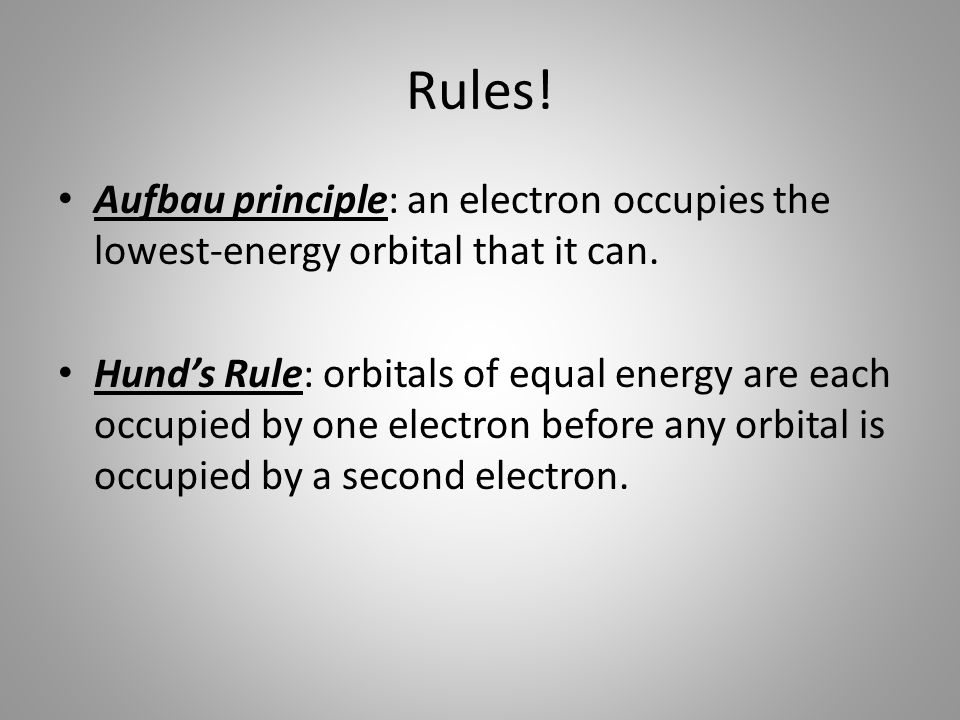

26. Rules! Aufbau principle: an electron occupies the lowest-energy orbital that it can. Hund’s Rule: orbitals of equal energy are each occupied by one electron before any orbital is occupied by a second electron.

28. 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d, and 7p Lowest EHighest E

29. Six boys move into a new house.

30. Hydrogen 1s = electron

31. Helium 1s

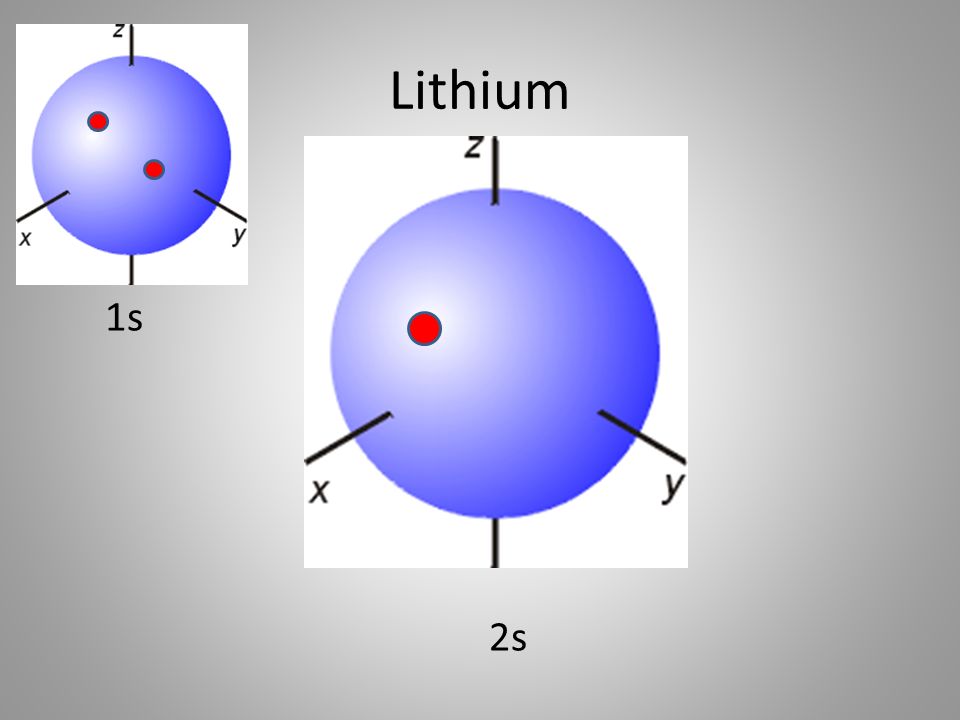

32. Lithium 1s 2s

33. Beryllium 1s 2s

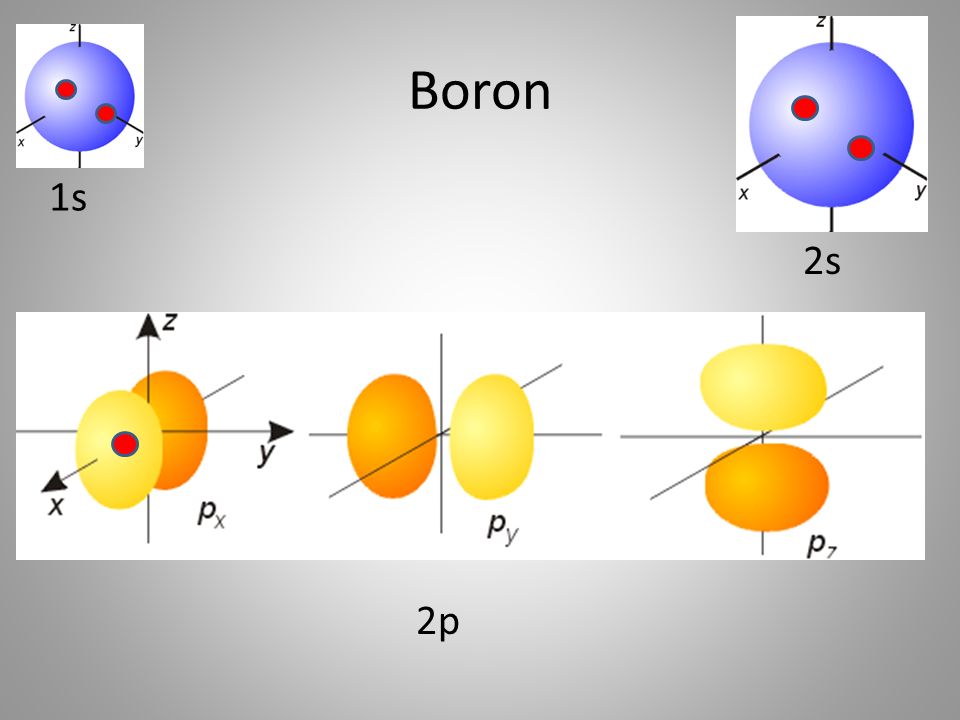

34. Boron 2s2s 2p2p 1s

35. Carbon 1s 2s2s 2p2p

36. Nitrogen 1s 2s2s 2p2p

37. Oxygen 1s 2s2s 2p2p

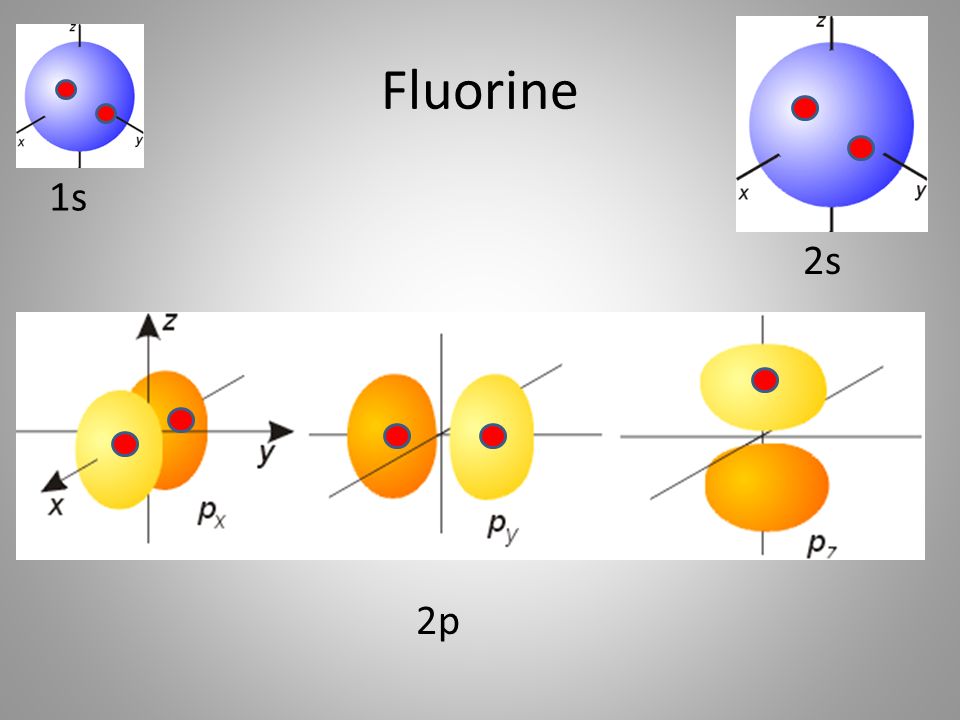

38. Fluorine 1s 2s2s 2p2p

39. Neon 1s 2s2s 2p2p

40. Orbital Notation 1s 2s2p

41. Hydrogen 1s 1 2s2p Electron Configuration 1s

42. Helium 1s 2s2p 1s 2 Electron Configuration

43. Lithium 1s 2s2p 1s 2 2s 1 Electron Configuration

44. Beryllium 1s 2s2p 1s 2 2s 2 Electron Configuration

45. Boron 1s 2s2p 1s 2 2s 2 2p 1 Electron Configuration

46. Carbon 1s 2s2p 1s 2 2s 2 2p 2 Electron Configuration

47. Nitrogen 1s 2s2p 1s 2 2s 2 2p 3 Electron Configuration

48. Oxygen 1s 2s2p 1s 2 2s 2 2p 4 Electron Configuration

49. Fluorine 1s 2s2p 1s 2 2s 2 2p 5 Electron Configuration

50. Neon 1s 2s2p 1s 2 2s 2 2p 6 Electron Configuration

51. Noble Gas Configuration To help you be lazy! Write noble gas in [ ] that precedes the element. Then only write electrons that exist thereafter. The electron configuration for Helium is NOT [He]!

52. 1 H 1s 1 2 He 1s 2 3 Li [He]2s 1 4 Be [He]2s 2 5 B [He] 2s 2 2p 1 6 C [He] 2s 2 2p 2 7 N [He] 2s 2 2p 3 8 O [He] 2s 2 2p 4 9 F [He] 2s 2 2p 5 10 Ne [He] 2s 2 2p 6 11 Na [Ne] 3s 1 12 Mg [Ne] 3s 2 13 Al [Ne] 3s 2 3p 1 14 Si [Ne] 3s 2 3p 2 15 P [Ne] 3s 2 3p 3 16 S [Ne] 3s 2 3p 4 17 Cl [Ne] 3s 2 3p 5 18 Ar [Ne] 3s 2 3p 6

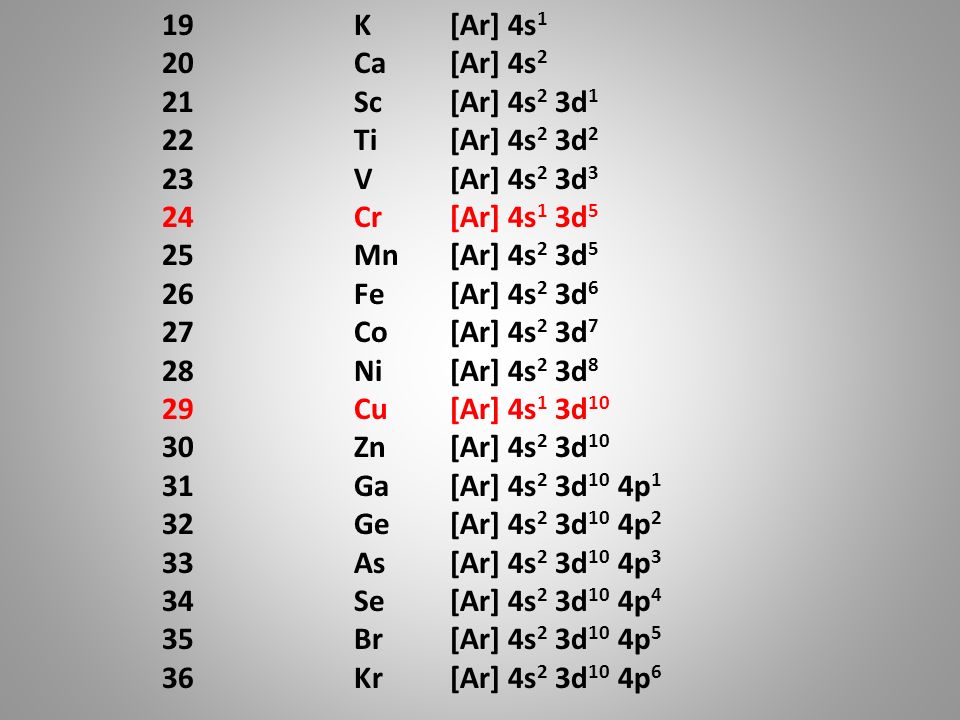

53. 19 K [Ar] 4s 1 20 Ca [Ar] 4s 2 21 Sc [Ar] 4s 2 3d 1 22 Ti [Ar] 4s 2 3d 2 23 V [Ar] 4s 2 3d 3 24 Cr [Ar] 4s 1 3d 5 25 Mn [Ar] 4s 2 3d 5 26 Fe [Ar] 4s 2 3d 6 27 Co [Ar] 4s 2 3d 7 28 Ni [Ar] 4s 2 3d 8 29 Cu [Ar] 4s 1 3d 10 30 Zn [Ar] 4s 2 3d 10 31 Ga [Ar] 4s 2 3d 10 4p 1 32 Ge [Ar] 4s 2 3d 10 4p 2 33 As [Ar] 4s 2 3d 10 4p 3 34 Se [Ar] 4s 2 3d 10 4p 4 35 Br [Ar] 4s 2 3d 10 4p 5 36 Kr [Ar] 4s 2 3d 10 4p 6

54. Exceptions! Half filled orbital sets are happy! Completely filled orbital sets are happy!
